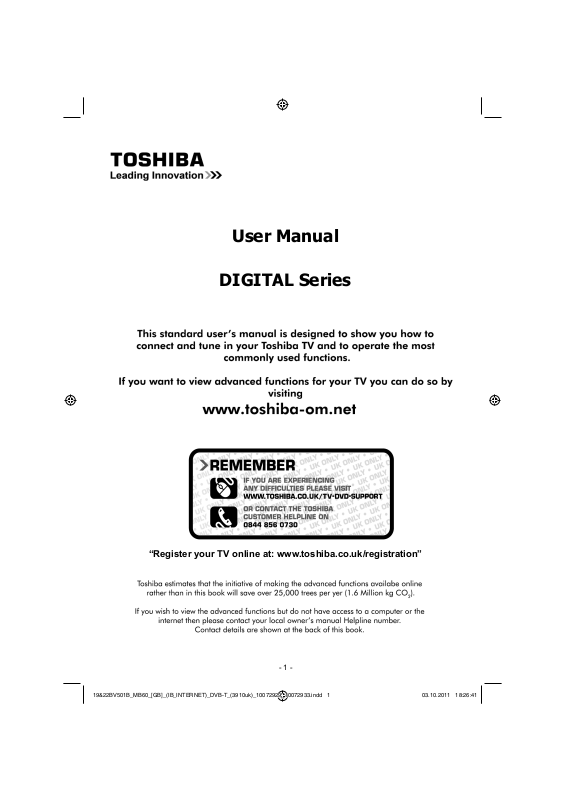

Toshiba 19BV501B, 22BV501B User Manual

User Manual

DIGITAL Series

“Register your TV online at: www.toshiba.co.uk/registration”

- 1 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 119&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1 03.10.2011 18:26:4103.10.2011 18:26:41

Digital Switchover

8IFOEPFTTXJUDIPWFSIBQQFO



$PQFMBOETXJUDIFTPO0DUPCFS

5IFFYBDUEBUFZPV TXJUDIEFQFOETPOUIF USBOTNJUUFSZPVBSF TFSWFECZ5PDIFDL XIFOZPVTXJUDI HPUP%JHJUBM6, µT QPTUDPEFDIFDLFSPO XXXEJHJUBMVLDPVL

$IFDLZPVS*57OFXT TFSWJDFPSMPPLBU5FMFUFYU QBHFUPTFFXIBU57 SFHJPOZPVµSFJO

Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

Please see above to ﬁ nd out when your area switches to digital. Digital UK is the independent, non-proﬁ t organisation leading the process of digital TV switchover in the UK.

Digital UK provides impartial information on what people need to do to prepare for the move to digital, and when they need to do it.

How the switchover affects your TV equipment:

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply plugging it into your aerial socket (check if you can get digital TV through your aerial now, or whether you’ll have to wait until switchover, at www.digitaluk. co.uk).

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels, and also to pick up new ones, Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.

If you choose to connect your TV to satellite or cable with a digital box then it will not be affected by

,FFQUIJTJNQPSUBOU JOGPSNBUJPOBCPVU IPXUPSFUVOF ZPVS57EVSJOHUIF

EJHJUBM57TXJUDIPWFS

switchover, and you won’t need to re-tune. Keep this important information about how to re-tune your TV during the digitalTV switchover

How to re-tune:

As new services are broadcast it will be necessary to re-tune the television in order to view them. Auto tuning will completely retune the television and can be used to update the channel list.

Press • MENU button on the remote control unit.

Select • Install and Retune option and then select Automatic channel scan (Retune).

A screen will appear warning that previous digital • programmes and settings will be deleted.

You must allow the television to complete the • search...

When the search is complete the Auto tuning screen • will display the total number of service found.

NOTE: Further detailed instructions on Auto tuning can be found in the TV owners manual.

If you are missing channels, it may be that they are not available in your area, or that your aerial needs upgrading.

If you have any further questions, please contact your equipment supplier or call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk

- 2 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 219&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 2 03.10.2011 18:26:4403.10.2011 18:26:44

Re-tuning: TOSHIBA Freeview Products

SCREEN

LANG

SUBTTL

PIP

1 2

BACK

EPG

FAV

SOURCE

PRESETS

SLEEP

INFO

Toshiba Digital TV

This guide can be used to help you re-tune the following product with the remote control below.

Make sure your TV is on and press 80 for the BBC News channel

SCREEN

BACK

SOURCE

SUBTTL

LANG

1 ) Press MENU and press ◄ or ► to select Install and Retune and press OK. Press

PIP

▲ or ▼ to select Automatic channel scan (Retune) to start the process.

INFO

SLEEP

PRESETS

2 ) Select the desired search mode using ► and press OK button.

3 ) Whenever you select an automatic search type and press OK button, a conﬁ rmation screen will appear on the screen. To start installation process, select Yes by using ◄ or ► and OK button.

4 ) After auto channel scan type is set and selected and conﬁ rmed, installation process will start and progress bar will move along. The television will start to search for all available stations. You must allow the television to complete the search.

* This process may affect any saved information stored on your product. Please consult your instruction manual or contact the manufacturer using the details above.

TOSHIBA Customer Helpline: 0844 856 0730 TOSHIBA Online Support: www.toshiba.co.uk/tv-dvd-support

- 3 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 319&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 3 03.10.2011 18:26:4603.10.2011 18:26:46

Manual Re-tuning

If your Freeview TV or box picks up a different regional service to your preferred service (e.g. BBC England instead of BBC Scotland, or ITV Central instead of ITV Anglia), you can use this manual re-tune If you are missing some services you may ﬁ nd they have moved to channel 800 or above, this guide will help you put them in your preferred position. If you ﬁ nd manual re-tuning too difﬁ cult, contact your local electrical retailer or installer. This is a guide only, Freeview models operate slightly differently. Some early models do not oer a manual re-tune facility – check your instruction book. Please note: Every time you re-tune, you will need to go through this process.

1 ) Go to the Postcode Checker at digitaluk.co.uk Enter your postcode on the right hand side of the web page. Remember to include your house number or name. If you do not have internet access, contact the Digital UK helpline on 08456 50 50 50* and ask for manual re-tune guide support.

2 ) Once you have entered your address details, the next page gives you an indication of which TV services you should receive, based on your most likely transmitter. You may be able to receive television services from more than one transmitter and you can check alternatives, where available. On the results page click on the pink button to see your full reception forecast and channel information for switchover.

3 ) Click on the How do I re-tune? pink banner. Scroll down to the manual re-tune table where you will see the relevant “RF Channel” numbers for the digital services that can be received at your home.**

*Calls are free for BT customers within inclusive calling plans. Call charges from other providers may vary. The standard business hours for Digital UK’s contact centre are 9am to 7pm Monday to Friday and 10am to 4pm on a Saturday. Opening hours will be extended during switchover in each area. Digital UK, PO Box 26833, Kirkcaldy,KY2 9AG . **Please note that the Freeview channel line-up is subject to change.

- 4 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 419&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 4 03.10.2011 18:26:4703.10.2011 18:26:47

4 ) Write down the “RF Channel” numbers for your transmitter using the Group boxes here:

5 ) Press MENU and use ◄ or ► to select Install and Retune.

6 ) Select Manual Channel Scan from the Installation menu and press OK.

7 ) Select Search Type as Digital by using ◄ or ►.

8 ) Select Channel and use ◄ or ► to change the channel number.

9 ) Press OK to start search.

10 ) Press MENU button. You should ﬁ nd that you now have your preferred service installed.

- 5 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 519&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 5 03.10.2011 18:26:4703.10.2011 18:26:47

Contents

Digital Switchover ................................................... 2

Re-tuning: TOSHIBA Freeview Products ................ 3

Manual Re-tuning ................................................... 4

Safety Precautions ................................................. 8

Air Circulation ..................................................... 8

Heat Damage...................................................... 8

Mains Supply ...................................................... 8

Warning ............................................................. 8

Do ....................................................................... 8

Do not ................................................................. 8

Installation and Important Information .................... 9

EXCLUSION CLAUSE........................................ 9

Important safety information ................................ 10

Removing the pedestal stand ........................... 12

The Remote Control ............................................. 13

Inserting Batteries and Effective Range of the

Remote Control................................................. 13

Connecting External Equipment ........................... 14

Connecting an HDMI® or DVI Device to the HDMI

Input...................................................................... 15

To Connect an HDMI Device ............................ 15

To Connect a DVI Device.................................. 15

Connecting a Computer........................................ 16

To Connect a Computer .................................... 16

Connecting a USB Disk, USB stick, USB device,

USB MEMORY... .................................................. 16

To Connect a USB Disk .................................... 16

USB Memory Connection ................................. 16

Controlling the TV ................................................. 17

Switching on ..................................................... 17

Using the Remote Control ................................ 17

Using the Controls and Connections on the TV ... 17

Initial Installation .................................................. 18

Auto Tuning....................................................... 19

Auto Tuning .......................................................... 19

Manual Tuning, Analogue Fine Tuning ................. 20

Digital Manual Search....................................... 20

Analogue Manual Search ................................. 20

Analogue Fine Tune.......................................... 20

General Operation ................................................ 21

Stereo and Bilingual Transmissions.................. 21

Displaying Subtitles .......................................... 21

Viewing Main Menu .......................................... 21

Controlling Volume and Muting Sound ............. 21

Selecting Programme Positions........................ 21

Channel List, Sorting Programmes, Programme

Locking ................................................................. 22

Viewing Channel List ........................................ 22

Moving a Channel ............................................. 22

Deleting a Channel ........................................... 22

Renaming a Channel ........................................ 22

Locking a Channel ............................................ 22

Viewing Info Banner, Electronic Programme

Guide .................................................................... 23

Viewing Info Banner .......................................... 23

Electronic Programme Guide............................ 23

Language Selection .............................................. 24

Language Settings ............................................ 24

Preferred ........................................................... 24

Current .............................................................. 24

Digital Settings - Parental Control, Menu Lock, Set

PIN........................................................................ 25

Viewing Parental Control Menu ........................ 25

Menu Lock ........................................................ 25

Maturity Lock (*)................................................ 25

Child Lock ......................................................... 25

Set PIN ............................................................. 25

Conﬁ guring Picture Settings ................................. 26

Conﬁ guring Picture Settings ............................. 26

Picture Mode..................................................... 26

Contrast ............................................................ 26

Brightness ......................................................... 26

Sharpness......................................................... 26

Colour ............................................................... 26

Colour Shift ....................................................... 26

Hue (NTSC only) .............................................. 26

Colour Temp ..................................................... 26

Noise Reduction ............................................... 27

Picture Zoom .................................................... 27

Resetting........................................................... 27

Changing Picture Format...................................... 28

Conﬁ guring PC Picture Settings ........................... 29

PC Picture Settings (*) ...................................... 29

PC Position ....................................................... 29

Autoposition ...................................................... 29

H Position ......................................................... 29

V Position.......................................................... 29

Dot Clock .......................................................... 29

Phase................................................................ 29

Conﬁ guring Sound Settings .................................. 30

Conﬁ guring Sound Settings .............................. 30

Operating Sound Settings Menu Items ............. 30

Volume .............................................................. 30

Equalizer (Only for speaker) ............................. 30

Balance (Only for speaker) ............................... 30

Headphone ....................................................... 30

AVL ................................................................... 30

Dynamic Bass ................................................... 30

Digital Out ......................................................... 30

Settings Menu Operation, Conditional Access ..... 31

Conﬁ guring Your TV’s Settings ......................... 31

Viewing Settings Menu ..................................... 31

Conditional Access ........................................... 31

Language .......................................................... 31

Parental ............................................................ 31

Timers ............................................................... 31

Date/Time Settings ........................................... 31

- 6 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 619&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 6 03.10.2011 18:26:4803.10.2011 18:26:48

Sources............................................................. 31

Other Settings ................................................... 31

Using a Conditional Access Module ................. 31

Setting Timers, Setting Date/Time ........................ 32

Timers ............................................................... 32

Setting Sleep Timer .......................................... 32

Setting Programme Timers ............................... 32

Conﬁ guring Date/Time Settings ........................ 32

Source Settings, Other Controls ........................... 33

Conﬁ guring Source Settings ............................. 33

Input Selection .................................................. 33

Conﬁ guring Other Settings - General ............... 33

Operation .......................................................... 33

Menu Timeout ................................................... 33

Scan Encrypted ............................................... 33

Other Controls ...................................................... 34

Backlight ........................................................... 34

Blue Background .............................................. 34

Software Upgrade ............................................. 34

Hard of Hearing ................................................ 34

Audio Description.............................................. 34

Auto TV Off ....................................................... 34

Standby Search (*) .......................................... 34

Full Mode (optional) .......................................... 34

TXT Language .................................................. 34

HDMI True Black............................................... 35

USB Media Browser ............................................. 36

Manual Start ..................................................... 36

Auto Start .......................................................... 36

Playing MP3 Files ............................................. 36

Viewing JPG Files ............................................. 37

Slideshow Feature ............................................ 37

Video Playback ................................................. 38

Media Browser Settings .................................... 38

To Close the Media Player ................................ 38

Analogue Text Services ........................................ 39

Analogue Text Services .................................... 39

Using Text Button -TEXT .................................. 39

Acessing Sub-Pages ........................................ 39

Revealing Concealed Text ................................ 39

Holding a Page ................................................ 39

To display an initial page................................... 39

Appendix A: PC Input Typical Display Modes ....... 40

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 41

Appendix C: Supported File Formats for USB

Mode..................................................................... 42

Appendix D: PIN Information ............................... 42

Speciﬁ cations and Accessories ............................ 43

License Information .............................................. 44

Questions and Answers ........................................ 45

Toshiba One (1) Year Limited Warranty For TV’s

(the “Products”)..................................................... 47

- 7 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 719&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 7 03.10.2011 18:26:4803.10.2011 18:26:48

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity, or locations where the temperature is likely to fall below 5°C (41°F).

Mains Supply

The set should be operated only from a 220-240 V AC 50 Hz outlet. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. In the UK, the fuse ﬁ tted in this plug is approved by ASTA or BSI to BS1362. It should only be replaced by a correctly rated and approved type and the fuse cover must be reﬁ tted. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

Warning

To prevent the spread of ﬁ re, keep candles or other open

ﬂ ames away from this product at all times.

Do not

DON’T remove any ﬁ xed cover as this may expose danger- ous voltages.

DON’T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DON’T allow electrical equipment to be exposed to dripping or splashing or objects ﬁ lled with liquids, such as vases, to be placed on the equipment.

DON’T place hot objects or naked ﬂ ame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to ﬁ res.

DON’T use makeshift stands and NEVER ﬁ x legs with wood screws. To ensure complete safety, always ﬁ t the manufactur- ers’ approved stand, bracket or legs with the ﬁ xings provided according to the instructions.

DON’T leave equipment switched on when it is unattended, unless it is speciﬁ cally stated that it is designed for unat- tended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way switch off, withdraw the mains plug and consult your dealer.

WARNING - excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

DO read the operating instructions before you attempt to

use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

Note : Interactive video games that involve shooting a “gun” type of joystick at an on-screen target may not work with this TV.

- 8 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 819&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 8 03.10.2011 18:26:4903.10.2011 18:26:49

Installation and Important Information

“P” Clip position on TV is dependent on model.

Where to install

Sturdy tie

(as short

as possible)

P Clip

“P” Clip position on TV is dependent on model.

Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. it falling over, secure the TV to a wall using a sturdy tie to the clip on TV. Install the P clip under the stand as shown in the above illustration.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes

In order to maintain stability and prevent

some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.

Cleaning the screen and cabinet…

Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Please take note

The digital reception function of this television is only effective in the countries listed in the “Country” section during the ﬁ rst time installation menu. Depending on country/area, some of this television’s functions may not be available. Reception of future additional or modiﬁ ed services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identiﬁ cation logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty. Regular use of other size modes will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) ﬁ re;

ii) earthquake;

iii) accidental damage;

iv) intentional misuse of the product;

v) use of the product in improper conditions;

vi) loss and/or damage caused to the product whilst in the possession of a third party;

vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the

owner’s manual;

viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with

associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of proﬁ t, interruption of business, the loss of recorded data whether caused during normal opera- tion or misuse of the product.

Note: A Toshiba wall bracket or stand, where available, must be used.

* Button and stand style is dependent on model.

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 919&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 9 03.10.2011 18:26:4903.10.2011 18:26:49

- 9 -

Important safety information

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Headphone Warning

Loud music can damage your hearing irreversibly. Do not set the volume to a high level when listening through headphones, particularly for extended listening periods.

Information for the DVB-T function

• Any function relative to the digital television (with the DVB logo) is available only within the country or area where such signals are transmitted. Verify with the salesperson if it is possible to receive a DVB-T signal in the zone where you live.

• Even if the television conforms to the DVB-T speciﬁ cations, the compatibility to future digital DVB-T transmissions is not guaranteed.

• Some digital television functions may not be available in some countries.

• The DVB-T system present in this device is FTA (Free to air).

• DVB is a registered trademark of the DVB Project. This logo indicates that the product is compliant with European Digital Broadcasting.

Possible Adverse Effects on LCD Screen

If a ﬁ xed (non-moving) pattern remains on the LCD screen for long periods of time, the image can become permanently retained on the LCD TV panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.

• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (Black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (Black bars on left and right sides of screen).

IMPORTANT INFORMATION

TV Installation

If a television is not positioned in a sufﬁ ciently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using stands recommended by the manufacturer of the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability and prevent it from falling over, secure the TV to a wall using a sturdy tie to the clip on the back of the table top stand.

This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers related to such use.

• Although this unit has been carefully manufactured and rigorously checked prior to leaving the factory as with all electrical appliances, it is possible for problems to develop. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket immediately.

- 10 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1019&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 10 03.10.2011 18:26:5003.10.2011 18:26:50

Important safety information (continued)

• Ensure that the unit is sufﬁ ciently ventilated! Never place it next to or underneath curtains!

• This set should only be connected to an mains power supply. Do not attempt to connect it to any other type of supply.

• The socket outlet must be installed near the equipment and is easily accessible.

• Do not open this unit. An attempt to repair the unit by a non-expert could be dangerous and potentially cause a ﬁ re hazard. All repairs must be carried out by qualiﬁ ed service personnel only.

• Keep away from rodents. Rodents (and also cockatiels) enjoy biting electric ﬂ exes. They can cause a short circuit (ﬁ re hazard!) and receive a fatal electric shock.

• Always hold the plug when disconnecting the unit from the socket outlet. Do not pull on ﬂ ex. The ﬂ ex can become overloaded and cause a short circuit.

• Use

a soft, dry cloth to clean the unit.

• Set up unit so that no one will trip over the ﬂ ex.

• This unit is recommended to be installed on shock-free benches in order to avoid any danger from falling.

• Take note that toddlers can pull the unit down from a table or cupboard by means of its ﬂ ex. Children can hurt themselves when doing this.

• Do not use the unit near heat sources. The casing and ﬂ ex could be damaged by the intensity of the heat.

• The screen is made of glass and can break if damage is done to it. Be careful when collecting sharp edged glass splitters.

• If you intend to wall mount the unit, contact the shop where you purchased the unit for advice, and leave the installation work to professionals. Improper installation can cause damage and/or injuries.

• When installing the set on a wall, allow at least 10 cm clearance between the rear of the set and the wall. Clearance of less than 10 cm will obstruct the vents and cause overheating to the interior of the set, resulting in faults or damage to the set.

• Taking fall-prevention measures

- If these measures are not taken, the unit can fall and cause damage and/or injuries.

- Contact the shop where you purchased the unit to obtain full details of the measures.

• When a TV stand is used,

- Ensure the unit is fully on the stand and placed in the centre.

- Do not leave the stand doors open. You could be hurt as a result of the unit falling or breaking, or your ﬁ ngers being caught or jammed. Take extra precautions if you have children.

• Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.

• To protect the unit during a thunder storm, unplug the AC power cord and disconnect the aerial.

Caution: Do not touch the aerial connector.

• When you leave your home for a long period of time, unplug the AC power cord for safety.

220-240V AC 50Hz

• The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent overheating.

The ventilation holes should not be blocked. Do not set up near radiators. Do not place in direct sunshine.

• When placing on a shelf, allow at least 10 cm clearance space around the whole unit.

• The unit shall not be exposed to dripping or splashing, and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

• Liquids spilled into the unit can cause serious damage. Switch the set off and disconnect the mains power supply, then consult a qualiﬁ ed service person before attempting to use the unit again.

• Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day and drops of water form on the outside of the glass. In the same way, moisture may condense on this unit’s internal optical pick-up lens, one of the most crucial internal parts of the unit.

• Moisture condensation occurs in the following situations:

- When you move the unit from a cold place to a warm place.

- When you use the unit in a room where the heater was just turned on.

- When you use the unit in an area where cold air from an air conditioner directly hits the unit.

- When you use the unit in a humid place.

• Never use the unit when moisture condensation may occur.

• Using the unit when moisture condensation exists may damage its own internal parts and discs. Connect the power cord of the unit to the wall outlet, turn on the unit, remove the disc, and leave it for two or three hours. After two or three hours, the unit will warm up and moisture will be evaporated. Leaving the TV connected to the wall outlet will help prevent moisture condensation in the unit.

• Never place hot objects or open ﬂ ame sources, such as lighted candles or night lights, on or close to the TV. High temperatures can melt plastic and lead to ﬁ res.

- 11 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1119&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 11 03.10.2011 18:26:5003.10.2011 18:26:50

Removing the pedestal stand

(1) Carefully lay the front of the TV face down on a ﬂ at, cushioned surface such as a quilt or blanket. Leave the stand protruding over the edge of the surface.

Note: Extreme care should always be taken when removing the pedestal stand to avoid damage to the LCD panel.

(2) Remove the

(3) Once you have removed

four screws on the stand. This will allow removal of the pedestal stand.

four screws holding the pedestal stand in place, remove the pedestal stand from

the TV by removing away from the TV.

* For 19BV501B model * For 22BV501B model

- 12 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1219&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 12 03.10.2011 18:26:5003.10.2011 18:26:50

Simple at-a-glance reference of your remote control.

SCREEN

LANG

SUBTTL

PIP

1 2 3 4 65

97 8

BACK

EPG FAV

SOURCE

PRESETS

SLEEP

INFO

Mono-Stereo / Dual I-II

Stereo/Bilingual Transmissions

Expand (in TXT mode)

Image size

Red button

Green button

The Remote Control

Standby / On mode

To switch your TV to standby mode.

Subtitle On/Off

To enable the displaying of subtitles.

SCREEN

LANG

SUBTTL

PIP

No function

Blue button

Yellow button

To select TV programme number

Direct number entry.

To call up text services in analogue

broadcasts and interactive services

To display the programme guide.

IN Text Mode: To access index page.

To select input from external sources.

Teletext / Mix

in digital mode.

To return to the previous level

Navigation Buttons

To move up, down, left or right

Return

of the on-screen menu.

in the on screen menu.

Programme guide

IN TV Mode: To display on-screen

Info

information.

AV / Source

To change channels

To move up/down between

the channels.

BACK

EPG

SOURCE

SWAP Returns to the previous programme.

MENU On/Off

To display the on screen menu.

OK / Confirm Hold (in TXT mode)

FILE SORT FUNCTION

INFO

PRESETS

SLEEP

Picture mode selection

Display sleep timer

To alter the volume

For changing volume setting level.

To mute the sound

Press once to mute sound. Press again to disable mute mode.

TOSHIBA

RC-3910

Inserting Batteries and Effective Range of the Remote Control

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in a designated disposal area.

Warning: Batteries must not be exposed to excessive heat such as sunshine, ﬁ re or the like.

The performance of the remote control will deteriorate beyond a distance of ﬁ ve metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.

- 13 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1319&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 13 03.10.2011 18:26:5403.10.2011 18:26:54

Connecting External Equipment

Before connecting any external equipment, remove the mains plug from the wall socket.

Side View

COMMON INTERFACE

The Common Interface is for a Conditional Access Module (CAM).

I M D1H

SPDIF

Coax.OUT

SCART Socket

* a decoder could be Digital Satellite, Free to Air or any other compatible decoder.

DIGITAL AUDIO

Socket

decoder*

Aerial cable:...........................................................

Connect the aerial to the ANT. socket on the rear of the TV.

SCART lead:..........................................................

If you use a decoder* or a media recorder, it is essential that the scart cable is connected to the TV.

Before running ﬁ rst time installation, any connected devices need to be set to standby

mode.

The DIGITAL AUDIO socket enables the connection of a suitable surround sound system.

HDMI

(High-Deﬁ nition Multimedia Interface) is for using

with a DVD decoder or other equipment with digital audio and video output. It is designed for best performance with 1080i and 1080p high-deﬁ nition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals. PC format signals will also be displayed.

NOTE: Although this TV is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

HDMI Input Socket

RGB/PC Input

Aerial Input

USB Input

+/- Controls

P/V-AV Button

Standby/On Button

SIDE AV

Headphone

A wide variety of external equipment can be connected to the TV; therefore, the relevant owner’s manuals for all additional equipment must be referred to for exact instructions.

If the TV automatically switches over to monitor external equipment, return to normal TV by pressing the desired programme position button. To recall external equipment, press SOURCE button repeatedly to switch between sources.

Regardless of source’s property, audio output from the DIGITAL AUDIO socket cannot be copied.

- 14 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1419&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 14 03.10.2011 18:26:5503.10.2011 18:26:55

Connecting an HDMI® or DVI Device to the HDMI Input

The HDMI input on your TV receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D–compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output).

NOTE:

• Some early HDMI equipment may not work properly with your latest HDMI TV.

• Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

To Connect an HDMI Device

Connect an HDMI cable (type A connector) to the HDMI terminal. For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo ( ).

• If your HDMI connection is capable of 1080p and/or your TV is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this mode.

• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).

• To view the HDMI device video, press SOURCE button to select HDMI1.

To Connect a DVI Device

Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI input socket and audio cables to the SIDE AV socket, using the supplied Side AV connection cable’s RED and WHITE inputs (see illustration).

• The recommended HDMI-to-DVI adaptor cable length is

6.6 ft (2m). An HDMI-to-DVI adaptor cable transfers video only. • Separate analogue audio cables are required.

SIDE AV Input

SIDE AV

Side Audio/Video Connection Cable

(Supplied)

HDMI Input

Audio Cable

(Not supplied)

Sockets

DM H

HDMI to DVI

Adapter Cable

(not supplied)

M HD I 1

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is

HDMI Input Socket (Back)

recommended that you follow these procedures:

• When turning on your electronic components, turn on the TV ﬁ rst, and then the HDMI or DVI device.

• When turning off your electronic components, turn off the HDMI or DVI device ﬁ rst, and then the TV.

HDMI device

- 15 -

19&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 1519&22BV501B_MB60_[GB]_(IB_INTERNET)_DVB-T_(3910uk)_10072929_10072933.indd 15 03.10.2011 18:27:0003.10.2011 18:27:00

+ 32 hidden pages
