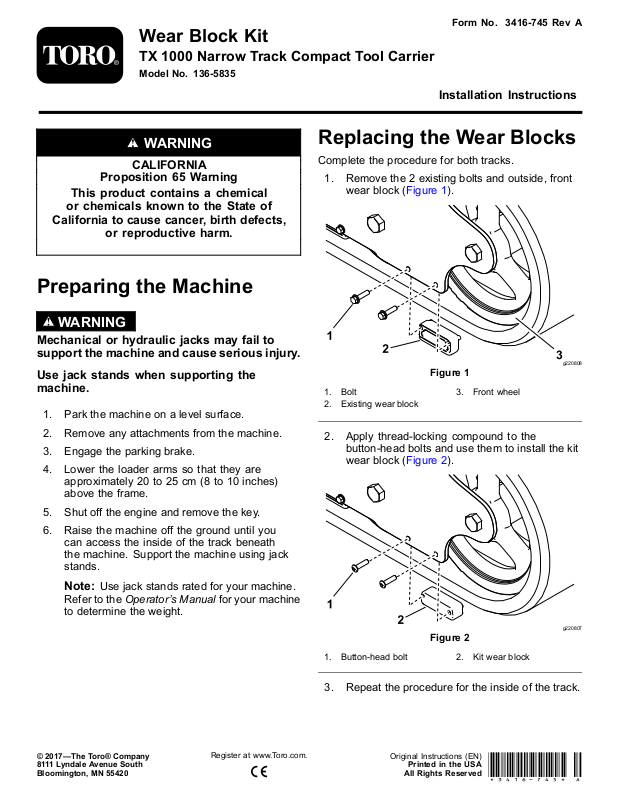

Toro 136-5835 Installation Instructions

WearBlockKit

TX1000NarrowTrackCompactToolCarrier

ModelNo.136-5835

FormNo.3416-745RevA

InstallationInstructions

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemical

orchemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orreproductiveharm.

PreparingtheMachine

WARNING

Mechanicalorhydraulicjacksmayfailto
supportthemachineandcauseseriousinjury.

Usejackstandswhensupportingthe
machine.

1.Parkthemachineonalevelsurface.

ReplacingtheWearBlocks

Completetheprocedureforbothtracks.

1.Removethe2existingboltsandoutside,front
wearblock(Figure1).

g220808

Figure1

1.Bolt3.Frontwheel

2.Existingwearblock

2.Removeanyattachmentsfromthemachine.

3.Engagetheparkingbrake.

4.Lowertheloaderarmssothattheyare
approximately20to25cm(8to10inches)
abovetheframe.

5.Shutofftheengineandremovethekey.

6.Raisethemachineoffthegrounduntilyou
canaccesstheinsideofthetrackbeneath
themachine.Supportthemachineusingjack
stands.

Note:Usejackstandsratedforyourmachine.

RefertotheOperator’sManualforyourmachine
todeterminetheweight.

2.Applythread-lockingcompoundtothe
button-headboltsandusethemtoinstallthekit
wearblock(Figure2).

g220807

Figure2

1.Button-headbolt2.Kitwearblock

3.Repeattheprocedurefortheinsideofthetrack.

©2017—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3416-745*A
