TransmissionFilterfortheRT1200TractionUnit

ModelNo.136-5456

Transmission-oilspecication:Mobiluid424

CheckingtheTransmission-OilLevel

Important:Ifyouoperatethemachinewhilethelevelofthetransmissionoilisbelowtherecommended

level,youmaydamagethetransmissionandtheparkingbrake.

1.Parkthemachineonalevelsurface.

2.Starttheengineandrunitfor10minutes.

3.Stoptheengineandremovetheignitionkey .

4.After5minutes,checkthetransmissionoillevelinthesightgauge(Figure1).

Note:Theoillevelshouldcover1/2to3/4ofthesight-gaugewindow.

FormNo.3424-803RevA

InstallationInstructions

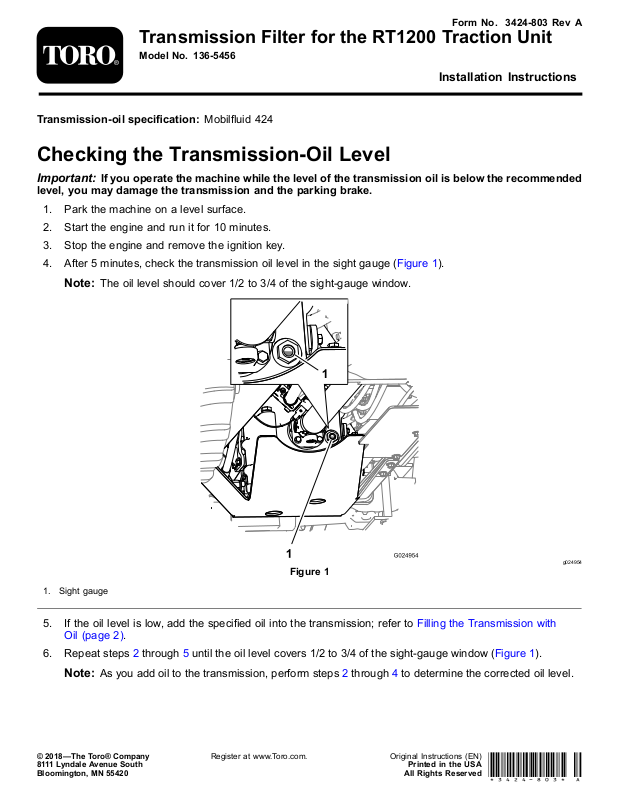

Figure1

1.Sightgauge

5.Iftheoillevelislow,addthespeciedoilintothetransmission;refertoFillingtheTransmissionwith

Oil(page2).

6.Repeatsteps2through5untiltheoillevelcovers1/2to3/4ofthesight-gaugewindow(Figure1).

Note:Asyouaddoiltothetransmission,performsteps2through4todeterminethecorrectedoillevel.

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3424-803*A

g024954

Page 2

ChangingtheTransmissionOil

DrainingtheTransmissionOil

Note:Ifpossible,draintheoilwhenitiswarm.

1.Parkthemachineonalevelsurface,stoptheengine,andremovethekey.

2.Placeadrainpanundertheforwardholeinthetransmissionshield(Figure2).

Figure2

1.Transmissionshield3.Drainplug

2.Drainpan

3.Throughthetransmissionshield,cleantheareaaroundthetransmissiondrainplug(Figure2).

4.Removethedrainplugandallowthetransmissiontodraincompletely.

5.Cleanthethreadsoftheplug.

6.ApplyPTFEthreadsealingtapetothethreadsoftheplug.

7.Throughthetransmissionshield,securelyinstallthedrainplugintothedrainportofthetransmission.

FillingtheTransmissionwithOil

Transmissionoilcapacity:approximately10L(10.6USqt)—withlterchange

Important:Ifyouoperatethemachinewhilethelevelofthetransmissionoilisbelowtherecommended

level,youmaydamagethetransmissionandtheparkingbrake.

1.Removethellplugfromthellportofthetransmission.

2.Cleanthethreadsoftheplug.

3.ApplyPTFEthreadsealingtapetothethreadsoftheplug.

g024956

4.Fillthetransmissionwiththespeciedoilthroughthellport(Figure3).

Important:Whenyoullthetransmissionwithoil,slowlyaddtheoilintothetransmissionto

avoidentrainingairwiththeoil.

Page 3

Figure3

g024955

1.Oil-servicingequipment

2.Fillport

3.Fillplug

5.Installthellplugintothellportsecurely

6.Starttheengineandrunitfor10minutes.

7.Stoptheengineandremovethekey .

8.After5minutes,checktheoillevelinthesightgauge.

Note:Theoillevelshouldcover1/2to3/4ofthesight-gaugewindow(Figure1).

Note:Asyouaddoiltothetransmission,performsteps6through8todeterminecorrectedoillevel.

Page 4

ChangingtheTransmissionFilter

Note:Youcanaccessthetransmissionlterfromunderneaththerightsideofthemachine,inboardofthe

hydraulictank.

1.Placeadrainpanunderthetransmission-oillter(Figure4).

Figure4

1.Forward

2.Transmission-oillter

3.Sharpobject

4.Drainpan

2.Puncturethebottomofthetransmissionlter,andallowtheresidualhydraulicuidtodrainintothe drainpan(Figure4).

Note:Useatapered-centerpunchorawltopuncturetheltercase

3.Removethetransmissionlterwithalterwrenchanddiscardthelter(Figure4).

4.Wipecleantheoillteradapterattheseatingsurfaceforthelter.

5.Fillthelterwithhydraulicoil.

6.ApplyathinlayerofcleangreaseoroilontotheO-ringofthenewlter.

7.Installthenewlterbyhandandtightthelter1/2to3/4turnafteritmakescontactwiththelterhead (Figure4).

Important:Donotusealterstrapwrenchtotightenthelter.Astrapwrenchcandentthe

lter,causingittoleak.

8.Starttheengineandrunitatidlefor1minute,andcheckforleaks.

9.Stoptheengineandremovethekey .

g024962

10.Checkthetransmissionoillevel;ifthelevelislow,addthespeciedoiltothetransmission;referto

FillingtheTransmissionwithOil(page2).

Important:Whenyoullthetransmissionwithoil,slowlyaddtheoilintothetransmissionto

avoidentrainingairwiththeoil.
