Toro 136-5420 Installation Instructions

FormNo.3407-926RevA

HydraulicCapLockKit

GrandStand

ModelNo.136-5420

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

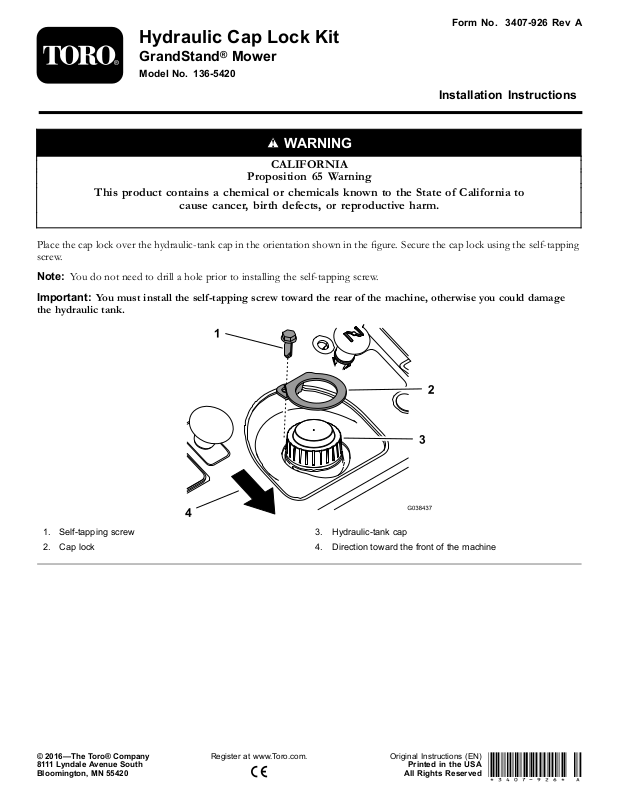

Placethecaplockoverthehydraulic-tankcapintheorientationshowninthegure.Securethecaplockusingtheself-tapping
screw.

Note:Youdonotneedtodrillaholepriortoinstallingtheself-tappingscrew .

Important:Youmustinstalltheself-tappingscrewtowardtherearofthemachine,otherwiseyoucoulddamage

thehydraulictank.

®

Mower

Proposition65Warning

InstallationInstructions

WARNING

CALIFORNIA

1.Self-tappingscrew

2.Caplock4.Directiontowardthefrontofthemachine

©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

3.Hydraulic-tankcap

OriginalInstructions(EN)

AllRightsReserved

PrintedintheUSA

*3407-926*A
