TF-T6000
User Reference
High Definition
Digital Terrestrial Receiver
Personal Video Recorder
Default PIN: 0000
Page 2
ii
The lightning flash with arrowhead symbol, in an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to a person.
The exclamation point, in an equilateral triangle, is intended to alert the user to the presence of
important operation and maintenance instructions in the literature accompanying the product.
Precautions
• Read, keep and follow these instructions.
• Clean with a dry cloth only.
• Do not block any of the ventilation openings.
• Do not install near any heat sources or in direct sunlight as this will impair cooling.
• Do not operate this product near water. Do not place any of the objects filled with liquids, such as
vases on this unit.
• Do not try to change the plug or defeat its safety purpose. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
• This product is designed for indoor use only.
• Place the digital receiver on a firm and level surface.
• Do not lay any objects such as magazines on this unit.
• Do not overload power outlets. Doing so may result in a risk of fire or electrical shock.
• Never open this unit’s casing under any circumstances, or the warranty will be void.
• Unplug this unit during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the unit has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the unit, the unit became wet from rain or moisture, does not operate
normally, or has been dropped.
• Batteries, including those which contain no heavy metals, may not be disposed with other
household wastes. Please dispose of used batteries in an environmentally sound manner. Find
out the legal regulations which apply in your area.
Page 3
iii
About this User Reference
Thank you for purchasing our digital receiver. Please read this User Reference carefully before you use
the digital receiver and keep it handy for future reference.
This User Reference covers the model TF-T6000 .
• Illustrations pictured in this reference may not be exactly the same as the actual product.
• The screenshots used in this reference may not be exactly the same as those you see on the actual
on-screen displays.
• Designs and specications of the digital receiver and other accessories are subject to change without any notice in order to introduce new features or improve the functionality of the product.
Quick Setup in ve easy steps
1. Connect t he aerial antenna to the ANT IN on the back of the Topeld unit.
2. Connect your desired audio-video cables from the back of the Topeld unit to the television connectors. (Composite, Component, HDMI)
3. Plug into power point and tur
n Topeld unit ON using
the switch on the back of the unit.
4. Switch television on, then use the television remote to select the correct video input channel for
the Topeld unit.
(for example, AV1, AV2, Component, HDMI, etc)
5. On t he main menu go to Installation > Searching then scroll to Start Search and press
OK .
Wait till the progress bar on the bottom of the screen reaches 100 % and then press
OK to save and
EXIT to exit.
The TF RCU app for Smart Phone
Download the TF RCU app to control this unit with your smart phone.
The RCU application is available to download from the *App Store or **Google Play Store.
* App Store is a registered trademark of Apple, Inc.
** Google Play isatrademark of Google Inc.
Compatible RCU support
The TF-T6000 supports compatible RCU usage for the PVR set.
Menu > Settings > Miscellaneous > Type of RCU
* The RCU code is required for this feature.
** Please visit http://topeld.com.au/ for more information.
Page 4
iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . . . . 2
1.2.1 Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Setup 5
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . . . . . 8
2.4.1 Connecting to the antenna . . . . . . . . . . . . . . . . . . . 8
2.4.2 Connecting to your television set . . . . . . . . . . . . . . . . 8
2.4.3 Connecting to an external device . . . . . . . . . . . . . . . . 10
2.5 Switching ON for the first time . . . . . . . . . . . . . . . . . . . . . 11
3 Service Search 12
3.1 Searching for broadcasting services . . . . . . . . . . . . . . . . . . . 12
3.2 Reset to factory settings . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3 Reset service list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Preference Settings 14
4.1 Video and audio settings . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1.1 High definition television . . . . . . . . . . . . . . . . . . . . 14
4.1.2 Television aspect ratio . . . . . . . . . . . . . . . . . . . . . . 15
4.1.3 Audio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4 Options for recording . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Page 5
CONTENTS v
4.5 Options for playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.6 Options for on-screen display . . . . . . . . . . . . . . . . . . . . . . 19
4.7 Options for the front display . . . . . . . . . . . . . . . . . . . . . . . 20
4.8 Options for Photo Album . . . . . . . . . . . . . . . . . . . . . . . . 20
5 Every Day Use 21
5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2.2 The favourite service lists . . . . . . . . . . . . . . . . . . . . 22
5.2.3 Viewing programme information . . . . . . . . . . . . . . . 23
5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . . . . . 23
5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . . . . . 23
5.3 Viewing electronic programme guide . . . . . . . . . . . . . . . . . . 24
5.4 Using time-shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6 Organising Services 26
6.1 Editing the favourite lists . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Recording and Playback 28
7.1 Recording a programme . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.1.1 Instant recording . . . . . . . . . . . . . . . . . . . . . . . . 29
7.1.2 Timer recording . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.3 Scheduling recordings using the programme guide . . . . . 32
7.1.4 Recording a time-shifted programme . . . . . . . . . . . . . 33
7.2 File archive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2.1 To delete a recording . . . . . . . . . . . . . . . . . . . . . . 33
7.2.2 To sort recordings . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2.3 To lock a recording . . . . . . . . . . . . . . . . . . . . . . . 34
7.2.4 To rename a recording . . . . . . . . . . . . . . . . . . . . . 34
7.2.5 To make a new folder . . . . . . . . . . . . . . . . . . . . . . 34
7.2.6 To move a recording to another folder . . . . . . . . . . . . . 34
7.3 Playing back a recording . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.3.1 To navigate using the progress bar . . . . . . . . . . . . . . . 35
7.3.2 To play in slow motion . . . . . . . . . . . . . . . . . . . . . 35
7.3.3 To play in fast motion . . . . . . . . . . . . . . . . . . . . . . 36
7.3.4 To make a bookmark . . . . . . . . . . . . . . . . . . . . . . 36
7.4 Copying a recorded file . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.5 Transcoding a recorded file . . . . . . . . . . . . . . . . . . . . . . . 37
7.6 Formatting the hard disk . . . . . . . . . . . . . . . . . . . . . . . . . 38
8 Entertainment 39
8.1 Copying files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.2 Playing back MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . 40
8.3 Viewing image files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Page 6
vi CONTENTS
8.3.1 How to move a file to the photo album . . . . . . . . . . . . 41
8.4 Playing back a video file . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.5 Playing back YouTube contents (optional) . . . . . . . . . . . . . . . 42
8.6 Sharing image files by Flickr (optional) . . . . . . . . . . . . . . . . . 42
8.7 SHOUTcast Internet radio (optional) . . . . . . . . . . . . . . . . . . 43
8.8 Weather forecast (optional) . . . . . . . . . . . . . . . . . . . . . . . . 43
8.9 Sharing media content with other devices . . . . . . . . . . . . . . . 44
8.10 Web Browser (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.10.1 Inputting Characters . . . . . . . . . . . . . . . . . . . . . . 46
8.11 Portal (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9 Accessing via Network 47
9.1 Configuring the router . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.1.1 To access within the local area network . . . . . . . . . . . . 48
9.1.2 To access over the Internet . . . . . . . . . . . . . . . . . . . 48
9.2 Network setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.2.1 For a wired connection . . . . . . . . . . . . . . . . . . . . . 49
9.2.2 For a wireless connection . . . . . . . . . . . . . . . . . . . . 49
9.3 Accessing the FTP server . . . . . . . . . . . . . . . . . . . . . . . . . 50
10 Firmware Update 52
10.1 From a memory stick . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
A Troubleshooting 53
Page 7
1 Introduction
1
Chapter 1
Introduction
The TF-T6000 digital receiver is fully compliant with the international
Digital Video Broadcasting (DVB) standard, and thus is able to receive
digital broadcasts of that standard. For its operation you need an antenna, which must be installed appropriately.
NOTE
The frequency in digital broadcasting is usually called transponder
or multiplex. To reduce confusion in this manual, the word service
is preferably used than channel as a term to indicate one television
or radio broadcast.
1.1 Features
This digital receiver has the following features:
• Can store up to 2,000 television and radio services.
• Can create lists of your favourite services.
• You can record programmes using a built-in hard drive with
large storage capacity.
• Time-shift is a special technical feature available on this digital
receiver. You can pause a programme you are watching and
resume it again at a later time. Then you can quickly go to any
part of the current programme by fast forward or rewind search.
• If you have an external hard drive connected to the digital receiver via USB, you can record programmes into it.
• Encode recorded contents to view on other portable devices.
Page 8
2 Introduction
• You can use various web services including YouTube.
• You can use the web browser to view online contents.
• You can share media files with other device across the same
home network.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or the buttons on the front panel.
NOTE
Even when you are not using the digital receiver, you should keep it
plugged into a wall socket to be in standby mode so that it can run
timer events at any time.
1.2.1 Front panel
The front panel of the digital receiver has buttons to control the digital
receiver, specific lights and a display to indicate its status.
switches the digital receiver between standby mode and
active mode.
Front display shows the current time in standby mode, and displays
the current service in active mode.
MENU displays the main menu. It is also used to return to the
previous menu from a submenu.
OK displays the services list. See §5.2.1 for more details. It
is also used to select a menu item.
CHANNELc,aswitch to the previous or next service. Also used to
navigate in menus and interactive screens.
VOLUMEb,ddecrease or increase the volume. Also used to change
values for menu options.
*There is a USB port on the front panel for firmware update and data
transfer.
Page 9
1 Introduction
1.2 Controlling the digital receiver 3
1.2.2 Remote control
• switches the remote control to operate your TV.
• switches the PVR/TV to standby/active mode.
• switches the remote control to operate the PVR.
• mutes the sound. Press again to switch back on.
• changes the video resolution.
• switches the remote control to operate your audio-video receiver.
• not applicable for this model.
• switches over to the previously viewed service.
• displays the service information box.
• set sleep timer in 10 minute increments.
• select a subtitle track.
• displays teletext.
• select an audio track and a sound mode.
• not applicable for this model.
• displays the electronic programme guide.
• select a menu item.
• , , , Navigation buttons are used to navigate in menus
or to change values for menu options.
• not applicable for this model.
• exits from a menu or hides on-screen information.
•
VOL- ,
VOL+ decrease or increase the volume.
• displays the main menu. Also used to return to the previous
menu from a submenu.
• , switch to the previous or next service.
• show, minify or hide the sub-picture.
• make a bookmark on playback or time-shift.
• jump to next bookmark position.
Page 10
4 Introduction
• edit a recording.
• has different functions per menu.
• changes the aspect ratio.
• displays the list of recorded programmes stored.
• switches over between television/ radio services.
• start a recording.
• stop playback, to stop recording, or to jump back to live television from time-shifted television.
• has different functions per menu.
• displays multi-picture screen.
• reverse playback. Subsequent presses increase the speed.
• pauses live television or playbackof a recorded programme.
• resumes normal playback speed, or displays progress bar
for navigation on playback or time-shift.
• fast forward playback. Subsequent presses increase the
speed.
• changes the position of sub-picture counterclockwise. Also
jumps back to the beginning of the video.
• start slow motion playback. Subsequent presses change the
playback speed.
• has different functions per menu.
• jump to the end of the video on playback.
In order to use the Topfield RCU for your TV, refer to the Universal
RCU setup for TV guide: Menu > Information.
NOTE
When using the remote control, point it at the remote sensor on the
front panel of the digital receiver.
The actual images or number of buttons may be different depending
on the type of remote control provided by the manufacturer.
Page 11
2 Setup
5
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the following
items with the digital receiver.
• Remote control
• Two batteries for the remote control (AAA 1.5 V)
• One HDMI cable
• A copy of this User Reference
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains voltage must range between 90 and 250 volts. Check
it before plugging the digital receiver to the wall socket. For the
power consumption of the digital receiver, refer to Table 2.1.
• The wall socket should be near the equipment. Do not run an
extension lead to the unit.
• The mains plug shall remain readily operable so that it can be
removed easily to disconnect the power.
• When placed in a cabinet, make sure there is a minimum space
of 10 centimetres around it. For the physical specification of the
digital receiver, refer to Table 2.2.
Page 12
6 Setup
• Protect the power cord from being walked on or pinched. If the
cord is damaged, do not use the digitalreceiver and get the cord
replaced.
• Refer all servicing to a qualified service technician.
• To maintain proper ventilation, always leave sufficient space
around the digital receiver.
Table 2.1: Power specification
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 40 W at maximum in active
1 W in standby
Table 2.2: Physical specifications
Size 380× 60× 265 mm
Weight(Net) 3.24 kg
Operating temperature 0 to 45◦C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
Check what connections your television set has in comparison with
the digital receiver.
...
1
ANT IN Terrestrial broadcasting signalinput socket
(5V, Max.100mA)
...
2
ANT OUT Terrestrial broadcasting signaloutput socket
through the ANT IN socket for another
digital receiver
...
3
AV-IN VIDEO Composite video inputsocket for the video
recorder or suchlike
(yellow)
...
4
AV-IN AUDIO R/L Stereo audio input sockets for the video
recorder or suchlike
(white/red)
Page 13
2 Setup
2.3 Rear panel connections 7
...
5
AV-OUT VIDEO Composite video output socket for the
television set (yellow)
...
6
AV-OUT AUDIO R/L Stereo audio output socket for the tele-
vision set or the audio-videoreceiver (white/red)
...
7
AV-OUT Y/Pb/Pr Component video output socket for the
television set
(green/blue/red)
...
8
S/PDIF OPTICAL Optical-type digital audio output socket
for the audio-video receiver
...
9
HDMI Audio and video output socket for high
definition television set
...
10
USB USB port for firmware update and data
transfer.
...
11
LAN Local area network port
...
12
ON/OFF Power switch
(You have to turn on this switch first to
use this digital receiver.)
Table 2.3: Connectors specifications
AV-IN VIDEO Composite video (CVBS) input
AV-IN AUDIO Left & right audio input
AV-OUT VIDEO Composite video (CVBS) output
AV-OUT AUDIO Left & right audio output
AV-OUT YPbPr Component video output
S/PDIF Dolby Digital audio output
HDMI High definition video output
Left & right audio output
Dolby Digital audio output
USB 2.0 Host (5 V DC, 500 mA)
LAN 10/100 Ethernet
Page 14
8 Setup
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the digital
receiver suitably to your television and other devices. If you have any
problem with your setup or need help, contact your dealer.
WARNING
Connect any components before plugging the power cord into the
wall outlet. Always turn off the product, TV and other components
before you connect or disconnect any cables.
NOTE
If you encounter any problems setting up your product, please contact your local retailer.

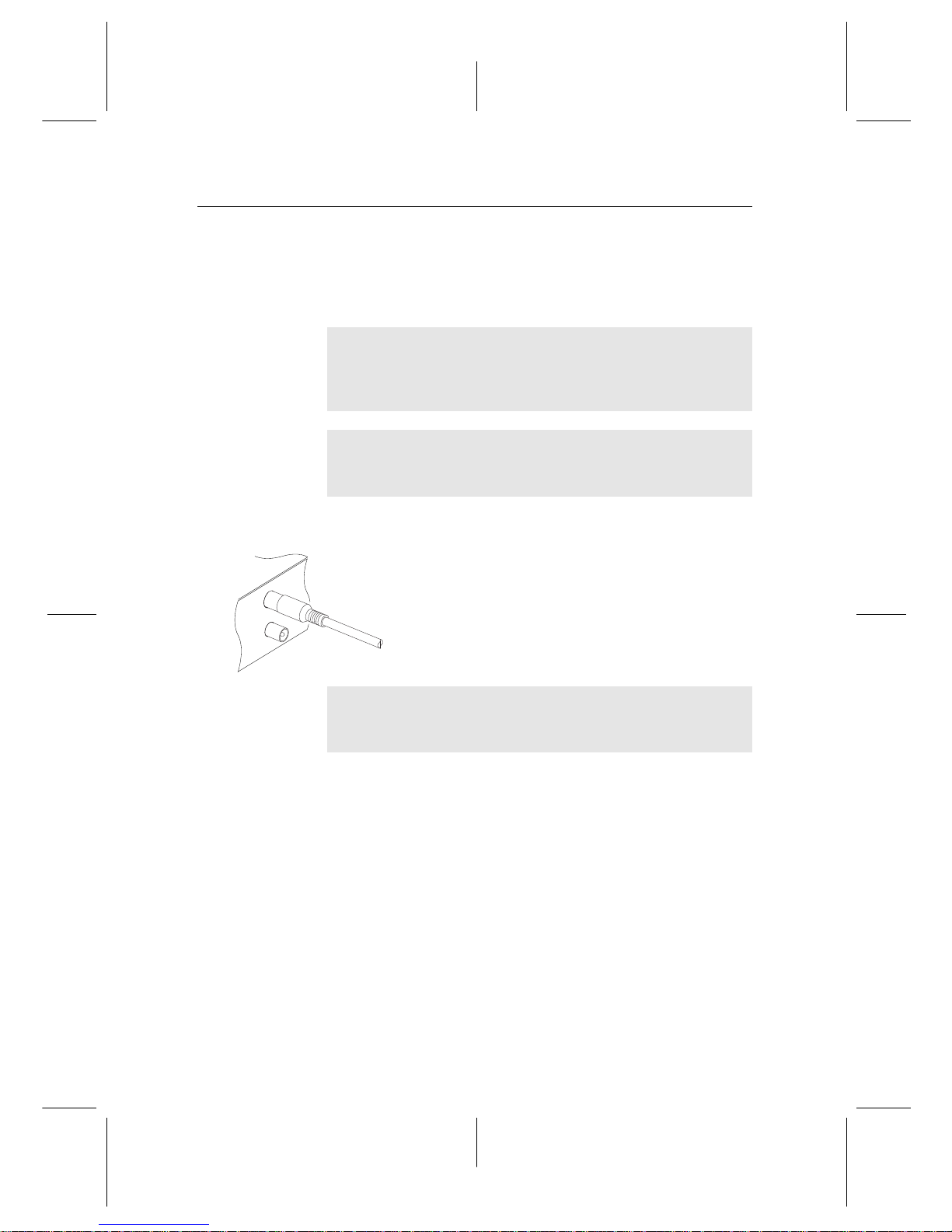

2.4.1 Connecting to the antenna
Whatever sort of connection you have between the digital
receiver and the television, you need to connect the digital
receiver to the antenna so that it can receive digital television broadcasts. Connect the antenna cable to the ANT IN
connector. If you have another digital receiver, you may
link it from the ANT OUT connector.
NOTE
ANT OUT may also be linked to your television, VCR, or DVD
recorder to loop an analogue signal.
2.4.2 Connecting to your television set
For all the following connections of the digital receiver,we recommend
you to use the first connector toget the best picture quality. If yourtelevision does not have amatching connector, then use the next connector
in the following order for a better picture quality.
1. HDMI connector (HDMI)
2. Component connector (YPbPr)
3. Composite connector (VIDEO)
You should configure audio and video settings after connecting up the
digital receiver. See §4.1 for a detailed description.
Page 15
2 Setup
2.4 Connecting up your digital receiver 9
To use the HDMI output
If you have a high definition television set, you should use
an HDMI cable for best results. Plug one end of the cable
into the HDMI socket on the digital receiver, and plug the
other end into the matching socket on your television.
In this case, you do not have to make audio connection because it can
output stereo audio or digital audio as well.
To use the Component video output
Y
Pb
Pr
You need to obtain a Component video cable (RCA cable)
to use the Component video output. Plug one ends of the
cable into the Y (green), Pb (blue) and Pr (red) sockets on
the digitalreceiver, and plug the other ends into the matching sockets on your television.
NOTE
Remember to plug in the additional white and red audio cables from
the digital receiver to the back of your television.
To use the Composite video output
You need to obtain a Composite video cable (RCA cable)
to use the Composite video output. Plug one end of the
cable into the VIDEO (yellow) socket on the digital receiver,
and plug the other end into the matching socket on your
television.
NOTE
You cannot view high definition video by means of the Composite
video output.
Page 16
10 Setup
To make the audio connection
You need to obtain an audio cable (RCA cable) to link the
audio connectors. Plug one end of the cable into the AUDIO
L (white) and AUDIO R (red) sockets on the digital receiver,
and plug the other ends into the matching sockets on your
television or audio-video receiver.
To enjoy Dolby Digital audio, your television or audiovideo receiver must be able to decode Dolby Digital audio,
and you need to obtain a S/PDIF cable.
Plug one end of the cable into the S/PDIF socket on the
digital receiver, and plug the other end into the matching
socket on your audio-video receiver.
2.4.3 Connecting to an external device
The digital receiver can also present or record the video from an external device such asa DVD player through the Compositeor Component
connector.
You need a Composite cable (RCA cable) to use the Composite connector. Plug one end of the cable into the VIDEO
(yellow), AUDIO L (white) and AUDIO R (red) sockets on
the digital receiver, and plug the other end into the matching socket on your video recorder or suchlike.
To switch the output between the digital receiver and the device connected to the AV-IN sockets, press the
M button or alternatively select
the Entertainment > Analog Input menu.
NOTE
When using the AV IN sockets, the input data will be displayed one
second later than the original input data.
(AV Input Audio Level : 2.0 Vrms at maximum)
Page 17
2 Setup
2.5 Switching ON for the first time 11
2.5 Switching ON for the first time
Now that you have your digital receiver connected, you should plug
it into a wall socket. Ensure that your television set is turned on and
on the correct video channel so that you will be able to see the display
from the digital receiver.
Press the button on the top left corner on the remote control. In a
little time, you may see a picture displaying a menu.
If you do not see a picture, try pressing the
VF button on the remote
control. If after several tries you still get no picture, check that the
television is set to the correct input. If the picture is good, you can
skip to §3.1 to search for available television and radio services.
Otherwise, you may need to temporarily connect the Composite video
connector (VIDEO) to your television set so that you can see the menu
in order to configure the video settings.
CAUTION
If the digital receiver no longer reacts properly to the remote control
commands, the batteries may be flat. Be sure to replace only with
1.5 V AAA size batteries, and observe the following precautions.
• Do not mix different types of batteries, or new and old batteries.
• Do not use rechargeable batteries.
• Do not recharge the old batteries.
• In order to avoid any risk of explosion, observe the polarities
indicated inside the battery compartment.
• Do not subject to excessive heat such as the sun and fire.
• If you are not using the remote control for a long period of
time, remove the batteries. The manufacturer accepts no liability for the damage resulting from leaking batteries.
• Batteries, including those which contain no heavy metals,
may not bedisposed with other household wastes. Please dispose of used batteries in an environmentally sound manner.
Find out the legal regulations which apply in your area.
Page 18
12 Service Search
Chapter 3
Service Search
After connecting up the digital receiver, you will need to perform a
service search.
NOTE
If there is no service stored, you will be not able to access all menus.
A is another name for a .
3.1 Searching for broadcasting services
To perform service search, selectthe Installation > Searching menu. You should see
a screen like the left figure.
You should set the Search Mode option to
Auto for the first time after connecting up
the digital receiver.
You may choose toonly search for the servicesof aspecific transponder
since more than one service are providedvia each transponder. Set the
Search Mode option to Manual, then select your desired transponder
at the Channel option. The number ranges from 6 to 12 in VHF and 28
to 69 in UHF.
Page 19
3 Service Search
3.2 Reset to factory settings 13
To start service search, move down to the Start Search item, and press
the
OK button. The digital receiver will start to search for services. It
is common for no channels to be found until quite late in the process.
When the scan is complete, you will see a message telling you how
many services have been found. Press the
OK button to save the list.
3.2 Reset to factory settings
The digital receiver maintains the following data:
• Services list
• Favourite list
• Timer list
• Preference settings
You can reset all data of the digital receiver. Select the Installation >
System Recovery > Factory Setting menu, and then you get asked for
confirmation. With the choice of Yes, the services list, favourite list
and timer list will all be cleared, and preference options will be reset
to the manufacturer’s factory settings.
NOTE
A factory reset will not delete any recorded programmes. However,
you have to search services again after a factory reset.
3.3 Reset service list
If you only want to clear the service list, select Installation > System
Recovery > Reset Service List , then you get asked for confirmation.
With the choice of Yes, the services list will be cleared. After this, you
have to do service search again.
Page 20
14 Preference Settings
Chapter 4
Preference Settings
4.1 Video and audio settings
You have to configure the video and audio settings appropriately for
your television set and other devices. Select the Settings > A/V Output
menu. You should see a screen like the left figure.
4.1.1 High definition television
The digital receiver supports various video resolutions from 576 to
1080. In general, a resolution of 720 or more is considered high definition. The higher the resolution is, the better the quality is. However, if
your television set does not support high definition, you cannot enjoy
high definition quality picture.
Set the Video Format option as you desire. If you set this option
to 576P, the digital receiver will present even high definition programmes in resolution of 576. On the contrary, if you set it to 1080I,
the digital receiver will present even standard definition programmes
in resolution of 1080.
While watching television you can change the resolution with the
button. Whenever you press it, the video resolution is changed in
turn.
NOTE
You can enjoy only standard definition video with the following
video outputs:
• Composite video output (VIDEO)
Page 21
4 Preference Settings
4.1 Video and audio settings 15
4.1.2 Television aspect ratio
If you have a wide-screen television, set the TV Aspect Ratio option to
16:9.
You can enjoy both wide-screen programmes and normal-screen programmes with your wide-screen television as the above figures show.
To watch normal-screen programmes in full screen like the left figure,
set the Display Format option to Full. Normal-screen pictures then will
be inflated to fit to the width of the wide screen. Otherwise, to watch
them in the original ratio like the right figure, set it to Center. If you
have a normal-screen television, set the TV Aspect Ratio option to 4:3.
You cannot fully enjoy wide-screen programmes with your normalscreen television as the above figures show. The left figure shows a
normal picture displayed in the normal screen. To watch wide-screen
programmes in the shape like the centre figure, set the Display Format
option to Letter Box. Wide-screen pictures then will be reduced to fit
to the width of the normal screen. Otherwise, to watch them in the
shape like the right figure, set it to Center extract. Then wide-screen
pictures will be cut out on the left and right sides equally to fit to the
width of the normal screen.
Page 22
16 Preference Settings
4.1.3 Audio mode
Basically, there are two audio sources asyou can find two audio sockets
on the backpanel of thedigital receiver. You can enjoy only one source
or both of them in either stereo or mono. Set the Sound Mode option
as you desire.
Apart from this setting, you can change the sound mode with the
button. See §5.2.4 for a detailed description.
The digital receiver can output two types of digital audio signals via
the S/PDIF output. One is an encoded signal, and the other is a decoded signal. If you have the digital receiver linked to your audiovideo receiver via the S/PDIF output, you have to set the Dolby Digital
option to PCM, which means that the digital receiver will output encoded Dolby Digital audio without decoding so that your audio-video
receiver can decode it. Otherwise, set it to multi-channel, then the digital receiver will output decoded Dolby Digital audio, scaling it down
to two channels.
NOTE
Only if the service you are currently watching provides a Dolby Digital audio track, you can enjoy Dolby Digital sound.
4.2 Local time setting
You should set your local time for timer events.
Select the Settings > Time menu. You can set the clock manually or
by Greenwich Mean Time (GMT). To use Greenwich Mean Time, take
the following steps:
1. Set the Mode to Auto, then the Time Offset will be enabled.
2. Set the Time Offset option to the time difference between your
time zone and GMT referring to Table 4.1.
3. Make sure the correct time is displayed on the Local Time area.
To set the local time manually, set Mode to Manual and enter the correct time to the Local Time option with the numeric buttons. The time
format is day/month/year 24-hour:minute.
Page 23
4 Preference Settings
4.3 Parental control 17
Table 4.1: Time offset table
Time offset City
GMT − 12:00 Eniwetok, Kwajalein
GMT − 11:00 Midway Island, Samoa
GMT − 10:00 Hawaii
GMT − 09:00 Alaska
GMT − 08:00 Pacific Time US, Canada
GMT − 07:00 Mountain Time US, Canada
GMT − 06:00 Central Time US, Canada, Mexico City
GMT − 05:00 Eastern Time US, Canada, Bogota, Lima
GMT − 04:00 Atlantic Time Canada, La Paz, Dominican Republic
GMT − 03:30 Newfoundland
GMT − 03:00 Brazil, Georgetown, Buenos Aires
GMT − 02:00 Mid-Atlantic
GMT − 01:00 Azores, Cape Verde Islands
GMT London, Lisbon, Casablanca
GMT + 1:00 Paris, Brussels, Copenhagen, Madrid
GMT + 2:00 South Africa, Kaliningrad
GMT + 3:00 Baghdad, Riyadh, Moscow, St. Petersburg
GMT + 3:30 Tehran
GMT + 4:00 Abu Dhabi, Muscat, Baku, Tbilisi
GMT + 4:30 Kabul
GMT + 5:00 Ekaterinburg, Islamabad, Karachi, Tashkent
GMT + 5:30 Bombay, Calcutta, Madras, New Delhi
GMT + 6:00 Almaty, Dhaka, Colombo
GMT + 7:00 Bangkok, Hanoi, Jakarta
GMT + 8:00 Beijing, Perth, Singapore, Hong Kong
GMT + 9:00 Tokyo, Seoul, Osaka, Sapporo, Yakutsk
GMT + 9:30 Adelaide, Darwin
GMT + 10:00 Eastern Australia, Guam, Vladivostok
GMT + 11:00 Magadan, Solomon Islands, New Caledonia
GMT + 12:00 Fiji, Auckland, Wellington, Kamchatka
4.3 Parental control
In general, television programmes are classified according to the level
of violence, nudity and language of their content. When you are
watching a programme, you can check its programme classification
on the information box. For the information box, see §5.2.3. You can
prevent your children from watching specific programmes by specifying a maximum permissible level. Select the Settings > Parental Con-
trol menu. You will be asked for your Personal Identification Number
(PIN). The number is initially set to ‘0000’ as default.
To block programmes with undesired content for family viewing, set
the Censorship option to your desired level among the following:
Page 24
18 Preference Settings
No block restricts no prorgramme.
Total block restricts every programme, even those with no programme
classification.
G restricts to G or above. G rated programmes are suitable for all
audiences.
PG restricts to PG or above rated programmes. PG stands for Parental
Guidance, the content of which is mild.
M restricts to M or above rated programmes. M stands for Mature,
the content of which is moderate in impact.
MA restricts to MA or above rated programmes. MA stands for Ma-
ture Audience, the content of which is strong.
R restricts to R rated programmes. R stands for Restricted to adults
aged 18 years or over, the content of which is very strong.
AV restricts to AV rated programmes. AV stands for Adult Viewing,
the content of which is deep hardcore.
NOTE
If a programme has no rating information, your censorship setting
will not take effect.
If anyone is trying to watch a programmethat is of or above the censorship setting, the person has to enter the personal identification number
to override. To change the number, select the Change PIN Code menu,
then a box pops up, asking a new PIN. Enter a desired number twice
for confirmation.
You can also restrict uses of some menus. Selecting the Access Control
menu displays a list of menus that you can lock. If the Time item is set
to Locked, you have to enter the PIN when accessing the Time menu.
If you enter a wrong number, you cannot use the menu. To release a
locked item, set it to Unlocked.
4.4 Options for recording
To set the options for recording, select the Settings > Recording menu.
To enable the time-shift function, you should set the Time Shifting option to anything other than Disable. The available range for this option
is 30 minutes to 5 hours. You will have the latest of the current programme as long as the duration specified at this option.
You can record a programme into both an external and the built-in
hard drive. If you want to record a programme into an external hard
drive, set Recording Drive option to External; otherwise, set this option
to Internal. If you set the Time Shift Storage option to Enable, the
Page 25
4 Preference Settings
4.5 Options for playback 19
time-shifted programme will be saved in the TimeShift folder of the
hard drive.
You can set the duration of the timer recording. Set the Timer Record-
ing Duration option as you desire. Its available range is 10 minutes to
3 hours.
Time padding is the feature of adding extra recording time to the beginning or end of a programme, so that you do not miss any part of
the programme. Set the Timer Record Padding option as you desire.
You can adjust the duration of the instant recording. Set the Instant
Recording Duration option as you desire. Its available range is 30 minutes to 5 hours.
4.5 Options for playback
To set the options for playback, select the Settings > Playback menu.
If you want to play back a recorded file from beginning, set Starting
Position option to Beginning. To play back a recorded file from the
part where you were watching, set this option to Continuing.
If you want to enjoy more levels of playback speed, set the Trick Mode
Level option to 2x, 4x, 8x, 16x, 32x, 64x, 128x; otherwise, set it to 4x,
16x, 64x, 128x.
4.6 Options for on-screen display
To set the options for the on-screen display (OSD),
select the Settings > OSD menu.
To adjust the transparency level of the OSD, set the OSD Transparency
option as you desire. Its available range is 0 to 50 percent.
To adjust the display time of the information box, set the Info Box Dis-
play Time option as you desire. Its available range is 1 to 30 seconds.
If you set this option to No Info Box, the information box will not be
displayed when you switch services.
However, pressing the button will display the information box. If
you set this option to Never Hide, the information box will always be
displayed. For the information box, see §5.2.3.
If any service’s name is too long to fit the width of the service name
column on the services list screen, you can get it to scroll by setting
the Text Scroll option to anything other than Disable. With the choice
of Full Scroll, it will be fully scrolled until its end disappears; with the
choice of Part Scroll, it will be scrolled only to its end.
Page 26
20 Preference Settings
4.7 Options for the front display
To set the options for the front display, select the Settings > Front
Display menu.
The front display shows the currently viewed service’s number and
name. If any service’s name is too long to fit the width of the service name column, you can get it to scroll by setting the Main Display
Scrolling option to anything other than Disable. With the choice of Unlimited, it will be repeatedly scrolled; with the choice of Once, it will
be scrolled only once. If you want to have the current time displayed
instead of the service number, set the Sub Display Content option to
Time.
You can also adjust the brightness of the front display in active mode
and standby mode by setting the Brightness in Operation Mode option
and the Brightness in Standby Mode option to any as you like.
4.8 Options for Photo Album
You can change a time interval and effect of slideshow in the photo
album. For the photo album feature, see §8.3.
To change the time interval of slideshow, select the Settings > Miscel-
laneous menu, and then set the Slideshow Time Interval option as you
desire. Its available range is 3 to 10 seconds.
Page 27
5 Every Day Use
21
Chapter 5
Every Day Use
5.1 Volume control
Use the
VOL- and
VOL+ buttons to alter the volume to a comfortable
level.
5.2 Watching television
To change services, press the or button. In addition, you
can switch to your desired service by entering its service number with
the numeric buttons.
5.2.1 The services list
To view the services list, press the
OK but-
ton. On the services list, you can see the
service information as follows:
• Service number and name
• Multiplex information
To select a desired service, put the highlight bar on its entry with the
Page 28
22 Every Day Use
or button and press the
OK button, then the selected service will
be presented.
Pressing the or button skips over 10 entries up or down. Entering
a service number with the numeric buttons puts the highlight bar on
its entry.
You can switch between the television services list and the radio services list by pressing the button.
5.2.2 The favourite service lists
You can select a service on a favourite list as well as on the services list.
To display the favourite lists, press the
F2
button at the services list screen. For the
services list, see §5.2.1.
To select a favourite list, put the highlight
bar on a desired favourite group list and
press the
OK button, then the selected
favourite group’s services will be listed.
As to how to edit the favourite lists, refer to §6.1.
To select a favourite service, put the highlight bar on a desired service
and press the
OK button, then it will be displayed. To select another
group, press the button.
After you have selected a favourite service, if you then switch to another service using the or button, it will bealso another favourite
service of the selected group. The digital receiver will remind you
what group you have selected by displaying its name at the top right
of the screen whenever you switch services.
To return to the services list, press the
F1 button. Besides that, you
can add or delete a favourite group or service. To add a new favorite
group, press the
F1 button to display additional options, and then
select Add New Favorite Group. To add the service you are currently
watching into a favourite group, press the
F1 button to display addi-
tional options, and then select Add this service item.
To remove the currently highlighted favourite grop or service, select
Delete item in the additional option box, then you get asked for confirmation; with the choice of Yes, it will be removed.
Page 29
5 Every Day Use
5.2 Watching television 23
5.2.3 Viewing programme information
Pressing the button displays the information box, on which you
can see all of the following:
• Service number and name
• Transponder information
• Signal level and quality
• Programme name
• Programme classification sign
• Programme summary
• Broadcasting time
• Current time
In addition, you might see the following symbols:
• Subtitle symbol ( ) if subtitle tracks are provided on the current programme.
• Dolby Digital symbol ( ) if a Dolby Digital audio track is
provided on the current programme.
• Lock symbol ( ) if the current service is locked.
Pressing the button once more displays detailed information about
the current programme. To hide the information box, press the
button.
5.2.4 Selecting audio tracks
Some programmes are provided with audio tracks in one or more lan-
guages. Pressing the button displays available audio tracks. Once
you select an audio track, that track will be heard. In addition, you can
enjoy audio tracks in four sound modes: Stereo, Mono, Left or Right.
5.2.5 Selecting subtitle tracks
Some programmes are provided with subtitle tracks in one or more
languages. If the current programme provides subtitle tracks, the subtitle symbol ( ) will be marked on the information box. Pressing the
button displays available subtitle tracks. Once you select a subtitle
track, it will be displayed.
Page 30
24 Every Day Use
5.3 Viewing electronic programme guide
The Electronic Programme Guide (EPG) shows the current and scheduled programmes that are or will be available on each service with a
short summary for each programme.
Pressing the
EPG button displays the elec-
tronic programme guide, on which you
can see the following:
• Scheduled programmes
• programme summary
• Broadcasting date
• Broadcasting time
To see detailed information of a desired programme, put the highlight
bar on the programme with the or button and press the button. To switch to another service, press the or button.
You can travel over previous days with the
F2 button, and can travel
over next days with the
F3 button.
To see the programme guide for radio broadcasts, press the button.
To switch it back, press the button again.
Pressing the
F1 button willrearrange the form, swapping the columns
and rows. To switch it back, press the
F1 button again.
You can make a timer recording on the electronic programme guide.
See §7.1.3 for detailed description.
Page 31
5 Every Day Use
5.4 Using time-shift 25
5.4 Using time-shift
You can pause and resume a live television programme, and even
rewind and replay it. When you are watching a programme and you
miss something, you can rewind and replay it. Or when your attention
is needed elsewhere, you can pause a live TV and resume a short time
later without losing any of the programme.
When you do this, you are no longer
watching the live programme, instead you
are watching a delayed presentation. This
is called time-shifted television. You can
skip commercials until you catch up to the
live broadcast.
In order to use the time-shift feature, set the Time Shifting option to
desired duration of time. Then the digital receiver will archive the
programme as much time as you set in the option. See §4.4.
The time-shift will be reset each time you change to another service.
With the time-shift, the following operations are possible:
• To go back in time, hold down the
F3 button; to go forward,
hold down the
F4 button. The progress bar is displayed mo-
mentarily with a preview window.
• You can navigate using the progress bar, refer to §7.3.1.
• You can jump backward and forward by pressing the
F4 and
F3 buttons. You can change the jump time at the Jump Time
Interval option. See §4.5.
• You can change playback speed. See §7.3.2 for slow motion. For
fast motion, see §7.3.3.
• To check your current position in time-shift, press the button. The time difference compared to live programme is displayed momentarily in top right corner of the screen. A value
of −02:00 means two minutes behind the live programme.
• To make a recording of the time-shifted programme„ see §7.1.4.
• To end time-shift, press the
EXIT button. The live programme
will be displayed.
Page 32
26 Organising Services
Chapter 6
Organising Services
6.1 Editing the favourite lists
You can make your own favourite service lists. In fact, you can define
multiple favourite service lists, each being a‘group’ of chosen services.
Select Installation > Edit Favorite List
menu. You should see a screen like the left
figure. There are three columns:
• Group name (left)
• Favourites list (centre)
• Services list (right)
The services list contains all available services, whereas the favourites
list contains only chosen services that have been added to the highlighted group. As you move the highlight bar up ordown on the group
list, favourite services belonging to the highlighted group get shown
in the favourites list.
NOTE
To load guide, go to the specificchannel, press the
EPG button, then
the guide will populate. Do this to every single channel upon starting up PVR.
Page 33
6 Organising Services
6.1 Editing the favourite lists 27
You can add up to 30 groups. To add a new group, select the NEW
item in the group list, then the on-screen keyboard appears.
To rename a group, put the highlight bar on the group entry you want
and press the
F2 button, then the on-screen keyboard likewise ap-
pears.
To delete a group, put the highlight bar on the group entry you want
and press the
F3 button, then a message box appears, asking you for
confirmation. With the choice of Yes, it will be deleted.
You can add a favourite service to a group by taking the following
steps:
1. Put the highlight bar on a desired group entry in the group list
and press the
OK button to select it. The highlight bar then
moves to the services list.
2. To add a service to the selected group, put the highlight bar on
a desired service entry and press the
OK button. The selected
service entry gets added to the favourite list. Repeat this step to
add more entries.
3. Press the
F1 button, and the highlight bar gets moved to the
favourite list. You can delete a favourite entry with the
OK but-
ton.
4. To select another group, press the
F1 button again, then the
highlight bar gets moved to each column.
Furthermore, you can rearrange a group’s favourites by moving a
favourite entry. To move a favourite entry, put the highlight bar on
the favourite entry you want and press the
F2 button. Press the ,
buttons or , buttons to move it to a desired place and press
the
OK button. To add radio services, press the button, then ra-
dio service entries get listed in the services list. To recall the television
services list after adding radio services, press the button again.
As to how to use the favourite service lists you organised, refer to
§5.2.2.
Page 34
28 Recording and Playback
Chapter 7
Recording and Playback
You can record TV programmes into an external hard drive as well as
the built-in hard drive.
NOTE
To use an external hard drive, you must connect the external hard
drive to the USB port of the digital receiver. You cannot play
back the recordings with a regular MPEG player on your computer
because they are formatted differently from the standard MPEG format. Visit http://www.kmplayer.com where you can find an MPEG
player able to play them back.
CAUTION
Do not disconnect the external hard drive while recording orplaying
back. It may cause damage to recorded programmes. You should
disconnect the external hard drive in standby mode only.
Avoid transferring files while the unit is set to record. This recorder
can record four channels simultaneously, however, this is controlled
by the channel frequency. Each channel has other programmes under
the one frequency (E.g. Channel Nine has 9, 9HD, GO, GEM) (Channel ABC has ABC News 24, ABC1, ABC2, ABC3, etc.). This recorder
can record four programmes locked on two channel frequencies simutaneously. (E.g. 10.TEN Digital plus 11.One HD and 90.GEM plus
99.Go!) While recording the above combination of programmes you
can also playback a pre-recorded show.
Page 35
7 Recording and Playback
7.1 Recording a programme 29
7.1 Recording a programme
Once a recordinggets started, a symbol like the left figure will
be displayed at the top right of the screen for a few seconds.
When you are watching a different service from the service being
recorded, you will see a number on the centre of the symbol, this indicates the order that the recording has started. When you record two
different channels from two different stations, what you are actually
doing is locking each tuner to two separate station bandwidths.
For example, if you record channel 7TWO and channel 9 Digital, you
have locked the first tuner into all the channels from 7 which includes:
7 Digital, 7 Digital 1, 7TWO and 7Mate. While on the second tuner you
have locked in all the channels from 9 which includes: 9 Digital, Gem
and Go.
With this in mind, while the above two channels (eg. 7TWO and 9
Digital) are being recorded, you can watch a third channel which can
be only one of the following: 7 Digital, 7 Digital 1, 7Mate, Gem or Go.
The same can be said for recording for four channels (eg. 7TWO,
7Mate, 9 Digital and Go). You can watch an additional channel which
can be only one of the following: 7 Digital, 7 Digital 1 or Gem.
CAUTION
Do not move the digital receiver nor pull out the power plug while it
is running. It may cause damage to recorded programmes. Topfield
is not responsible for damages inflicted on files that are stored on
the hard drive.
7.1.1 Instant recording
To instantly record a programme you are watching at present, press
the button.
If you want to record the video from the external device linked to the
Composite video input, switch the video channel to your desired one
by pressing the
M button.
Pressing the button will not pause the current recording like it does
with a video recorder. Instead, pressing the button will pause the
live show and begin time-shifting within the current recording even
with the Time Shifting option disabled. In short, it is still possible to
pause a recording, but literally recording continues in the digital receiver.
Page 36
30 Recording and Playback
After a recording has started, pressing the
button displays a menu like the left figure, in which you can set the recording duration.
To specify an arbitrary recording duration,
set the Duration option as you desire with
the or buttons and press the
OK but-
ton; the recording will end at the specified
time.
If the information about the next programme is provided by the electronic programme guide, the After this program and After next pro-
gram options will be enabled. Once the After this program option is
selected, the current recording will stop at the time when the current
programme is scheduledto end. Likewise, once the After next program
option is selected, the current recording will stop at the time when the
next programme is scheduled to end.
To stop recording, press the button;
then a box like the left figure appears,
which shows the programmes currently
being recorded. Select recording by using
navigation buttons then press
OK button
to stop the recording.
While a recording is going on, you can watch or record another service. To additionally record another service, switch to the service you
want to record, and press the button. Once a recording is started,
it is put on the recorded programme list even though it is not finished
yet. The recording file is named the program name if available or after its service name with a suffix of a number. To view the recorded
programme list, press the button or alternatively select the PVR >
Recorded Program menu. See §7.2 for detailed description about the
recorded programme list.
7.1.2 Timer recording
You can set a programme to be recorded at a specific time. Even if the
digital receiver is in standby mode, it will switch into active mode and
Page 37
7 Recording and Playback
7.1 Recording a programme 31
start recording at a specified time. When the recording comes to the
end, the digital receiver will switch back into standby mode again in
one minute. However, if you press any button on the remote control
or on the front panel even just one time, the digital receiver will not
switch into standby mode.
To add atimer recording, select the PVR >
Reservation menu, then the timer list will
be displayed. To add a new timer event,
press the
F1 button, and a box like the left
figure appears. Take the following steps:
1. Set the Record option to On to make a recording. If this option is set to Off, the digital receiver will turn on at the specified
time but not record; instead, you may record with your video
recorder or suchlike in this case.
2. You may have three sources for recording: TV, radio, the video
from the external device linked to the digital receiver’s video
input. Set the Type option to your desired source.
3. Set the Service option to the service which provides the programme you want. Pressing the
OK button on this option dis-
plays a services list, from which you can select your desired service.
4. Set the Mode option as you desire. There are five timer modes:
One Time means literally ‘One time’.
Every Day means literally ‘Every day’.
Every Weekend means ‘Every Saturday and Sunday’.
Weekly means ‘One day every week’.
Every Weekday means ‘Every Monday to Friday’.
If your favourite programme is broadcast at weekends and you
wish to record every episode of the programme, set the Mode
option to Every Weekend.
5. Set the Date option to a desired date, on which the digital receiver will turn on. The date format is day/month/year-day of the
week.
Set the Start Time option to a desired time, at which the recording will be started. The time format is hour:minute.
Page 38
32 Recording and Playback
6. Set the Duration option to a desired time, in which the recording
will be finished.
7. Pressing the
OK button on the File Name option displays the
on-screen keyboard, with which you can specify a file name for
the timer recording. If you do not specify anything, it will be
named after the service name.
8. To set a recording reservation with the above settings, select the
OK item; otherwise, it will not be saved and will not occur.
You can also edit or delete timer events in the timer list. To edit a timer
entry, put the highlight bar on the entry you want and press
OK but-
ton; then appears a box in which you can change its settings in the
same manner as making a new one.
To delete a timer event, put the highlight bar on the entry you want to
remove and press the
F2 button, then you get asked for confirmation.
With the choice of Yes, it will be deleted. To delete all timer event,
press the
F3 button.
You can sort timer events by time with the
F4 button.
7.1.3 Scheduling recordings using the programme guide
If the electronic programme guide is properly provided, you can make timer events
on it. The instructions on how to make
timer recordings using the electronic programme guide are as follows:
1. Press the
EPG button to display the electronic programme
guide.
2. Select a programme you want to record with the navigation buttons.
3. To make a timer event without recording, press the
OK button;
the letter P is displayed. To make a timer event with recording,
press it once more or alternatively press the button, then the
letter R is displayed.
4. Pressing the
OK button once more will cancel the timer.
Page 39
7 Recording and Playback
7.2 File archive 33
7.1.4 Recording a time-shifted programme
While watching a programmewith time-shift, you can record it byperforming the following steps:
NOTE
The whole timeshift buffer is recorded as one single file on the hard
drive.
1. Press the button to display the progress bar.
2. Hold down the button to move back in timeshift.
3. Press the button to start recording. When you get prompted
to save the timeshift programme, select YES at the same time a
new live recording will begin from the end of your timeshift file
on the same channel.
4. If you wish to stop the live recording, press the button on
the remote.
See §5.4 for detailed description about the time-shift feature.
7.2 File archive
When a programme is recorded, it is stored as a file on the hard drive
of the digital receiver. You can select a recording to play back from the
recorded programme list.
Select the PVR > Recorded Program menu or alternatively press the
button to display the recorded programme list. The file information is comprised of the following elements: file number, file name,
recording time, running time, file size and so on.
You can play, move, delete, rename and lock a recording file. You can
also sort the recording files by file name, running time or file size. In
addition, you can make a new folder.
7.2.1 To delete a recording
To delete a recording, put the highlight bar on it and press the
F4
button, then you get asked for confirmation. With the choice of Yes, it
will be deleted.
7.2.2 To sort recordings
To sort the recordings, take the following steps:
1. Press the
F1 button to display additional options.
Page 40
34 Recording and Playback
2. Set the Sorting option to Alphabetic, Time or Size as you want.
3. Press the
EXIT button.
4. They will be sorted by the specified option.
7.2.3 To lock a recording
To lock a recording so that other persons cannot play or delete it, take
the following steps:
1. Put the highlight bar on a desired recording.
2. Press the
F1 button to display additional options.
3. Set the Lock option to Locked.
4. Press the
EXIT button.
5. The lock symbol ( ) is displayed on it.
If you select a locked recording to play it back, you will be asked for
your personal identification number.
7.2.4 To rename a recording
To change a recording’s name, take the following steps:
1. Put the highlight bar on a desired recording.
2. Press the
F1 button to display additional options.
3. Select the Rename option, and the on-screen keyboard appears.
Change the name and save it.
7.2.5 To make a new folder
To make a new folder, press the
F2 button, then a new folder named
GROUP # is created. You can change its name in the same manner as
renaming a recording. See above.
7.2.6 To move a recording to another folder
To move a recording to another folder, put the highlight bar on a desired recording and press the
F3 button. If an external hard drive is
connected to the digital receiver, you get asked to select between the
built-in and external hard drive. Select Internal, then the folders are
listed. Once you choose a folder, the recording is moved to it.
7.3 Playing back a recording
When a programme is recorded, its additional contents such as audio
track or subtitle track are also recorded together. So you can enjoy
them while playing back a recording.
Page 41
7 Recording and Playback
7.3 Playing back a recording 35
The instructions on how to play a recording are as follows:
1. Select the PVR > Recorded Program menu or alternatively
press the button to display the list of recorded programmes.
2. Put the highlight bar on a desired recording and press the
OK
button, then an option box pops up.
3. To play from beginning, set the Starting Position option to Be-
ginning; to play from the point that you have stopped at the last
time, set it to Continuing. To start playback, select the Play item.
4. To stop playback, press the button.
During playback, you can enjoy the following tricks:
• To see the detailed information about the currently played
recording, press the button; then the information box appears and shows its file name, running time, programme information, and so on.
• To pause playback, press the button. To resume it, press the
button.
• To view the progress bar, press the button; to hide it, press
the button again.
• When the progress bar is hidden, you can move to a desired
scene by entering a progress percentage with the numeric buttons.
7.3.1 To navigate using the progress bar
First press the button to display the progress bar.
• To go forward, hold down the button; to go backward, hold
down the button.
• If there are no bookmarks, you can jump forward by the minute
set to the Jump time Interval option with the
F3 button. See §4.5
for that option. Refer to §7.3.4 as to how to bookmark a position.
• To jump to the beginning, press the button.
• To jump to the end, press the button.
• To hide the progress bar, press the button again.
7.3.2 To play in slow motion
To watch in slow motion during aplayback, press the button. If you
press it repeatedly, the playback speed changes in 4 steps: 1/2, 1/4,
1/8 and 1/16 times. To resume normal speed, press the button.
Page 42
36 Recording and Playback
7.3.3 To play in fast motion
To watch in fast motion during a playback, press the button. If you
press it repeatedly, the playback speed changes. To resume normal
speed, press the button.
You can play not only forward but also backward in fast motion. To
play backward, press the button. If you press it repeatedly, the
playback speed changes. To resume normal speed, press the button.
You can change the playback speed in 4 steps (4x, 16x, 64x and 128x)
or in 7 steps (2x, 4x, 8x, 16x, 32x, 64x and 128x). See §4.5.
7.3.4 To make a bookmark
You can mark favourite parts of a recording by creating bookmarks and then jump
to them in sequence. Bookmarksare stored
with the recording so that you can use
them again afterwards. To make bookmarks, take the following steps during
playback:
1. Press the button to display the progress bar.
2. To add a bookmark, press the
F2 button at a desired scene, then
you will see a small pointer appear above the progress bar like
in the picture above.
3. To jump forward to the next bookmark, press the
F3 button.
7.4 Copying a recorded file
You can copy a recorded file by performing the following steps:
1. Start playback of a recorded file you want.
2. Move to the scene from where you want to start the copy using
the or button.
3. Press the button and it will be copied as a new file which
is named after the original recorded file with a suffix of ‘COPY’
and a number.
4. To stop copying, press the button.
Page 43
7 Recording and Playback
7.5 Transcoding a recorded file 37
7.5 Transcoding a recorded file
You can encode a recordered video file to
playback on other portable devices, such
as a smart phone or a media player device.
Go to PVR > Recorded Program and select the file you want to transcodeby press-
ing the .
Set the File Transcoding Settings as you
need and choose OK.
Now you will see the transcoding progress
bar on the top right side of the screen as
shown on the left figure.
The transcoding progress bar will disappear in a few seconds.
If you want to see the transcoding progress
bar again, press the
F3 button.
As the transcoding finishes, it will be saved
into the Entertainment > Media Player list,
the internal storage of the unit.
The transcoded file name will start with
[Transcode] and the original file name.
Page 44
38 Recording and Playback
7.6 Formatting the hard disk
If a new hard disk is installed, it must be formatted before using. Because the Topfield unit does not recognize unformatted hard disk.
You can delete all contents stored in the hard disk by formatting it.
Select the Installation > System Recovery > Format Hard Disk menu,
and then select the hard drive you want to format. To format the builtin hard drive, select the option to Internal;
otherwise to format the external hard drive which is connected to the
digital receiver, select the option to External. With pressing the
OK
button, you get asked for confirmation. Formatting will start with the
choice of Yes. Select the Installation > System Recovery > Format
Hard Disk menu. With pressing the
OK button, you get asked for con-
firmation. Formatting will start with the choice of Yes.
NOTE
The hard drive on the digital receiver will be formatted in the JFS
file system.
Page 45
8 Entertainment
39
Chapter 8
Entertainment
This digital receiver provides several special features for entertainment.
NOTE
To fully enjoy all of the features described in this chapter, you had
better configure the network settings properly. As to how to configure the network settings, refer to §9.2.
8.1 Copying files
NOTE
To copy files to the external hard drive, it must be preformatted in
the NTFS file system. After this, the external hard drive can be used
with the Topfield PVR and your PC.
You can copy files between the built-in hard drive and external hard
drive. To copy from the internal to the external hard drive take the
following steps:
1. Connect external hard drive to your Topfield unit.
2. Press the
MENU button, then go to PVR > Recorded Program.
3. Select the file you want to transfer using the navigation buttons
on your remote. An orange bar should be on top of the selected
file.
4. Now press the
F3 button.
Page 46
40 Entertainment
5. You will be given the option to MOVE to the internal hard drive
(used when you want to transfer to a folder on the internal hard
drive) or COPY to the external hard drive.
6. Select COPY, you will then get a screen showing your external
hard drive name, select the USB external hard drive name and
press
OK .
NOTE
The copy command will keep the original file on your internal hard
drive and then make a 2nd copy of the file on your external hard
drive.
To copy from the external to the internal hard drive, take the following
steps:
1. Connect an external hard drive to the digital receiver.
2. Press the button andthen pressthe
F3 or
F4 button to select
the External List.
3. Put the highlight bar on a desired file and press the
F3 button,
then the list of folders gets displayed.
4. Select a folder in the built-in hard drive.
5. Press the
OK button, then the selected file will be copied into
the built-in hard drive.
8.2 Playing back MP3 files
You can enjoy music or audio books in MP3 format on the digital receiver. Refer to §8.1 as to how to copy a file from an external hard drive
into the built-in hard drive of the digital receiver. To play an MP3 file,
take the following steps:
1. Select the Entertainment > MP3 Player to display the MP3 file
list.
2. Put the highlight bar on a desired file; if you want to playseveral
files, select them with the
F1 button.
3. Press the
OK button to start playback.
4. To stop playback, press the
EXIT button.
To play all MP3 files in a subfolder, put the highlight bar on a desired
folder, and press the button. To change from one file to the next or
previous file, use the or buttons.
Page 47
8 Entertainment
8.3 Viewing image files 41
8.3 Viewing image files
8.3.1 How to move a file to the photo album
You must move the jpg files into the Photo Album folder first. Please
ensure your external hard drive is connected to your unit.
1. Select
MENU button on your remote then go to Entertainment
> Media Player.
2. Press the
SAT button on your remote to bring up your external
hard drive.
3. Select the external hard drive name and then press
OK .
4. You will then get access to your external hard drive. Navigate
through the external hard drive file and folders until you have
selected the image file you want to transfer.
5. With the file selected, press the
F3 button, then another screen
will appear. Select Photo Album and press
OK .
Now, you can view the image files in jpg format by performing the
following steps:
1. Select the Entertainment > Photo Album menu to display the
list of image files.
2. Put the highlight bar on a desired file and press the
OK button;
if you want to view several files using a slide show, press the
F1
button. You can change a time interval and effect of slideshow.
See §4.8.
3. To stop viewing, press the
EXIT button.
8.4 Playing back a video file
You can play back media files such as photos, videos and music with
this digital receiver. Media file formats that you can play back with the
digital receiver are as follows:
• video: MP4, TS, MKV, MPG and AVI
• photo: JPG
• music: MP3
Refer to §8.1 as to how to copy a file from an external hard drive into
the built-in hard drive of the digital receiver. To play a video file, take
the following steps:
1. Select the Entertainment > Media Player to display the video
file list.
2. Put the highlight bar on a desired file; if you want to playseveral
files, select them with the
F1 button.
Page 48
42 Entertainment
3. Press the
OK button to start playback.
4. To stop playback, press the
EXIT button.
NOTE
Due to the variations of video/audio codec types, there could be
certain files not playable.
8.5 Playing back YouTube contents (optional)
YouTube is a video sharing website where users can upload, view and
share video files. With the TF-T6000, you can access YouTube and play
back various contents.
Select the Entertainment > Portal > YouTube.
To play back a YouTube content, select a content with the and
buttons and press the
OK button.
To play back the content with full screen, press the
F1 button.
You can also search contents by a specific keyword.
To search contents by a keyword, select the Search menu.
Input the keyword, set the Search Option as you need and start the
search.
8.6 Sharing image files by Flickr (optional)
Flickr is an image hosting website and on-line community platform.
To use this function, select the Entertainment > Portal > Flickr.
You can search image files by a specific keyword. To do that, take the
following steps:
1. Select the Search menu to go to the keyword search mode.
2. Enter a keyword as you desire.
3. Select the Enter key on the screen to start searching images.
Page 49
8 Entertainment
8.7 SHOUTcast Internet radio (optional) 43
8.7 SHOUTcast Internet radio (optional)
SHOUTcast™ Radio is one of the largest directories of professionally
and community programmed online radio stations in the world. Today SHOUTcastTMRadio features over 25,000 stations from around
the globe. If you are into pop or rock music, want to check out local or world programming, you’re sure to find something you like on
SHOUTcastTMRadio.
To use SHOUTcast, select the Entertainment > Portal > SHOUTcast.
To listen to a radio station, select a radio station with the and
buttons and press the
OK button.
You can also search radio stations by a specific keyword. To do that,
take the following steps:
1. Select the Search menu to go to the keyword search mode.
2. Enter a keyword(Program, Station or Genre) as you desire.
3. Select the Enter key on the screen to start searching radio stations.
For more details, visit the SHOUTcast web site, http:
//www.shoutcast.com. You can check their terms of
service at the http://www.shoutcast.com/disclaimer.
8.8 Weather forecast (optional)
You can view the weather of your city or other cities.
To view the weather, select the Entertainment > Portal > Weather.
To change a city, take the following steps:
1. Press the Search button to see additional options.
2. Set the Continent, Country and City options as you desire with
the navigation buttons.
3. Select OK to see the weather of the city.
4. Select Set Location to set the default location.
Pressing the
F1 button toggles between the Centigrade and Fahren-
heit.
Page 50
44 Entertainment
8.9 Sharing media content with other devices
You can share mediacontent with other media sharing devicesacross a
home network. If you have, for example, amedia player that has media
sharing feature and is connected to the same home network through
a router or other network interface, you can play back on the digital
receiver the media content out of the media player, or vice versa.
Select the Entertainment > Home Media
menu, then you should see ascreen like the
left figure. The name, [HomeMedia] Top-
field PVR, specified at the DMS Name option is used as an identifier for other networked devices. If you want to change the
Server name, select the Server name and
press the
OK button.
In general, there are four methods you can share media content from
one device to another device as follows:
• Device A accesses and plays the media content out of device B.
• Device A commands device B to play B’s own media content.
• Device A commands device B to access and play the media content out of device A itself.
• Device A commands device B to access and play the media content out of device C.
Before going further, you had better designate some of the folders in the digital reciever’s hard drive for sharing so that they
can be accessed and played by other networked devices as well. Select the Server
Share Setting menu and set the folders you
want to share to Sharing. Other devices
will only access those folders you designate to be shared.
To play back media content out of other networked devices, take the
following steps:
1. Select the Player menu and you will see the [HomeMedia] Top-
field PVR listed or a renamed server name, then press the
OK
button.
Page 51
8 Entertainment
8.9 Sharing media content with other devices 45
NOTE
Some digital media servers (DMS) may not work with this receiver.
2. Select a device which has media content you want to play, then
the list of media files on the selected device gets displayed.
3. Select a media file you want to play by pressing the
OK button,
then the digital receiver would pull and play the selected media
file if it can play back.
4. If you want to make any other networked device play your selection, press the
F4 button instead of the
OK button, then the
list of shared devices gets displayed. Select a device you want
to use as a player, then the designated device would pull and
play the selected media file if it can play back.
5. If you want to download your selection to the digital receiver,
press the
F3 button instead of the
OK button, then the selected
media file gets copied into the digital receiver’s hard drive. You
can check the downloaded media files on only the FTP server of
the digital receiver.
NOTE
In order for the digital receiver to find the folders shared on your
computer you must first install a media server software on your PC.
If you have Windows 7 you will need to turn on the media server
component in windows media player. Alternatively you can also
use another media server program.
In order to share media files via smart phones, there are certain applications needed as below.
• Android OS: BubbleUPNP, MXPlayer
• iOS: Media:connector, Flex player
There could be additional applications you could use other than the
apps listed above.
NOTE
Topfield is not responsible for damages inflicted on files or systems
due to smart phone applications.
Page 52
46 Entertainment
8.10 Web Browser (optional)
You can surf the web online using the Web Browser feature.
To surf the web online, select Entertainment > Web Browser. Now
you will see the web browser on the screen.
At first, the Browser Guide will appear.
Press the
OK button to exit the Browser Guide.
NOTE
You can connect USB devices, such as a mouse or keyboard to use
with the browser.
8.10.1 Inputting Characters
When you browse web pages, you may need to input characters. There
are two ways to input characters.
1. Using the remote control
Press the navigation buttons , , , on the remote control to
move the cursor, and then press the
OK button over the input field.
Press the
F1 button and the on-screen keyboard will show up.
2. Using a mouse/ keyboard
Use the USBmouse to move the cursor, click and use the USB keyboard
to input characters.
8.11 Portal (optional)
There are various services you can use via Portal section, when the
network connection is established to the unit.
For example, YouTube, Flickr, SHOUTcast, Weather services, etc.
NOTE
The applications in the Portal section are subject to be added, modi-
fied or deleted without notice to introduce new features or improve
the functionality of the product.
Page 53
9 Accessing via Network
47
Chapter 9
Accessing via Network
NOTE
The following section describes complex functions that should only
be used by owners with advanced computer knowledge.
This digital receiver provides a feature of FTP service, by which
through the network you can transfer recording files to your computer.
Here you need a router, which will connect the digital receiver to your
computer or to the Internet. If you want to have a wireless connection,
you need a wireless router.
To use the network features of the digital receiver, you should take the
following steps:
1. Configuring your router for the digital receiver.
2. Configuring the network settings on the digital receiver.
3. Accessing the FTP Server of the digital receiver.
NOTE
The FTP server of the digital receiver doesn’t work in standby mode.
So it must be powered up at all times if you wish to use the web
service at any time.
Page 54
48 Accessing via Network
9.1 Configuring the router
In this section, the setup program of WRT54G, which is a router man-
ufactured by Linksys, will be referred to as an example of how to con-
figure the router for network access.
NOTE
For detailed description about how to set up the router, refer to the
manual of your router.
9.1.1 To access within the local area network
Once your router is powered up, a local area network gets created
whether or not it is connected to the Internet.
You can let the router automatically assign a dynamic IP address tothe
computers or devices connected to the network by enabling the DHCP
server of the router. In this case,you can access the digitalreceiver with
the IP address which is assigned to the digital receiver by the router.
If the digital receiver reboots, a new dynamic IP address will be assigned to it. You had better assign a static IP address to the digital
receiver to avoid this inconvenience. As to how to assign a static IP address, refer to the manual of your router; as to how to specify a static
IP address on the digital receiver, see §9.2.
9.1.2 To access over the Internet
When you are away from home, you can access the digital receiver
inside your home if your router is configured to route access to the
digital receiver by means of port forwarding. Via this feature, your
router will lead you to the digital receiver when you access your router
with its IP address.
Your router may be assigned to a dynamic IP address by an Internet
service provider. So if the router has rebooted, you cannot access it
unless someone in your home can inform you of the changed IP address. However, many routers support Dynamic Domain Name System (DDNS) service, which can settle this problem. The following image is an example of one such DDNS service provider.
If you use a DDNS service, you can access your router with a domain
name. The instructions on how to use the DDNS service are as follows:
1. Make an account on a web site providing DDNS service, which
should be supported by your router.
2. Configure your router with the account so that it can communicate with the web site.
Page 55
9 Accessing via Network
9.2 Network setup 49
Whenever a new dynamic IP address is assigned to the router, it will
inform the DDNS service provider of the new IP address. This makes
it possible that you access the router with a domain name at any time.
9.2 Network setup
9.2.1 For a wired connection
1. Connect your Ethernet cable from your router to the Topfield
recorder.
2. Press Installation > Network Setting > IP Setting.
3. Select Wired/Wireless LAN. Then select Wired as the preferred
connection.
4. It is recommended to use a dynamic IP address by the router
therefore select DHCP as the connection type. However if a
static connection is set then please refer to your router for an
IP address, Subnet Mask, Gateway, Primary DNS, Secondary
DNS.
5. Once a connection has been set scroll down to activate profile
and press the OK button on the remote.
6. A successful connection will populate all the IP settings and the
Level/Quality bars on the TV screen will show a high percentage level.
9.2.2 For a wireless connection
1. Connect the USB wireless dongle to the USB port on the PVR.
2. Press Installation > Network Setting > IP Setting.
3. Select Wired/Wireless LAN. Then select Wireless as the preferred connection.
5. Select AP list and press OK. A list of available networks will be
shown, then select your personal network.
6. Once network is selected choose the security mode
WPA /WPA2 / WEP. Select your WPA/ WPA2 / WEP algorithm according to your router setting.
7. Entre the pre-shared key which is also known as your network
password. Network password must be exactly the same as your
router setting including Upper/Lower case and any numbers
used.
Page 56
50 Accessing via Network
8. A successful connection will populate all the IP settings and the
Level/Quality bars on the TV screen will show a high percentage level. If the fields are not populated check the password and
any security settings.
NOTE
After selecting activate please allow up to 5 secondsfor fields topopulate. Most routers can be accessed via a web browser. Refer to your
Router user guide on how to access router setting.
9.3 Accessing the FTP server
To Access to the FTP server, set the Installation > Network Setting >
FTP Server option to Enable.
Select the Installation > Network Setting > User Info menu. At this
time, you have to enter Personal Identification Number (PIN). Then
set the User ID and Password options as you desire. And select OK to
save the settings. When you access to the FTP server, you will be asked
for the account that was made with these options.
NOTE
You can access the FTP server with an anonymous account. However, with an anonymous account you can only download files. You
cannot upload files.
You need an FTP client program to access the FTP server of the digital
receiver.
Page 57
9 Accessing via Network
9.3 Accessing the FTP server 51
You can log intothe FTPserver with the user name and password specified in the Installation > Network Setting > User Info menu.
NOTE
The maximum number of user connections is one. This means that
you cannot access the FTP server while someone else is occupying
it.
Page 58
52 Firmware Update
Chapter 10
Firmware Update
The digital receiver has a stable and convenient firmware to use. You
can get the latest firmware and the firmware update tool, which runs
on most versions of Windows, from http://www.i-topfield.com.
10.1 From a memory stick
If you have a USB memory stick, you can update the firmware from it
by taking the following steps:
1. Download a new firmware from the Topfield website.
2. Copy the firmware file to your memory stick.
3. Insert the USB memory stick into the USB port on the digital
receiver.
5. Select the Installation > Firmware Upgrade > USB Firmware
Upgrade menu, and the files in the USB memory will be listed.
6. Place the highlight bar on the right firmware file and press the
OK button, and a countdown will be displayed on the front dis-
play of the digital receiver.
7. When the message of ‘END’ appears, restart the digital receiver.
Page 59
A Troubleshooting
53
Appendix A
Troubleshooting
List of Symptoms
No power / No front display . . . . . . . . . . . . . . . . . . . . 54
I have connected my Topfield unit to the TV but getting no picture 54
When the Service Scan is finished I get zero channels . . . . . . . 54
Getting pixilated images on the my Television . . . . . . . . . . . 54
Can not receive or adjust sound through the Topfield unit . . . . 55
Can not rewind live Television . . . . . . . . . . . . . . . . . . . 55
The Free to Air Guide is blank . . . . . . . . . . . . . . . . . . . 55
Can not set the correct aspect ratio . . . . . . . . . . . . . . . . . 55
Lost part of my show because it went longer then the set time . . 55
Can not get a network connection . . . . . . . . . . . . . . . . . . 56
Can not connect my external HDD . . . . . . . . . . . . . . . . . 56
Can not see the time shown on the front of the Topfield unit . . . 56
My Topfield recorder doesn’t go to standby after instant recording 56
Cannot view guide content . . . . . . . . . . . . . . . . . . . . . 56
Before you call a repair person for your Topfield product, check the list
of possible problems and solutions.
Page 60
54 Troubleshooting
No power / No front display
• Make sure the main switch on the back of the Topfield unit is
switched to ON.
• Properly insert the power plug into the power socket.
• If the power outlet is controlled by a switch, make sure the wall
switch is ON.
• Remove the power plug from the wall and wait 10 seconds, then
plug back in.
• Plug another appliance into the outlet, if the other appliance
doesn’t work then have a qualified electrician repair the outlet.
• Plug the Topfield unit power code into a different outlet.
I have connected my Topfield unit to the TV but getting no picture
• The connection must be via an AV output out of the Topfield
unit to an AV input of the TV.
• Check that you are in the correct AV setting on the TV. For example if you connected the Topfield unit to AV2 on the TV make
sure you set your TV with the TV remote to AV2 before the Topfield unit can be used.
• Press the button on the remote and set to the correct resolution.
576i/576p/720p/1080i/1080p. You may need to press the
button multiple times to cycle through all the different formats.
All formats will be displayed on the front screen of the Topfield
unit.
When the Service Scan is finished I get zero channels
• Check that there is a signal coming from the antenna by connecting it directly to the TV or another device.
• You must have signal strength between 50%–90%
• Indoor antenna is not recommended as the signal is not enough
to display channels when a service is scanned.
Getting pixilated images on the my Television
• Check the plugon the Topfield unit andon the wall makingsure
that it’s a tight connection.
• Check that there is a signal coming from the antenna by connecting it directly to the TV or another device.
• You must have signal strength between 50%–90%
Page 61
A Troubleshooting
55
Can not receive or adjust sound through the Topfield unit
• Adjust volume using the
VOL- or
VOL+ on the Topfield remote.
• Use the TV remote to adjust the sound to approx 50% then use
the Topfield remote to adjust volume.
• Check the connection between the TV and the Topfield product.
• Make sure you are in the correct AV on the TV
Can not rewind live Television
• Make sure that Timeshift is enabled, Settings > Recording.
• Check that Hard Disc Drive is working by playing back a previous recorded program.
The Free to Air Guide is blank
• Move to every channel and give the recorder a few minutes to
populate the guide for each channel.
• Factory reset and re-scan all the services in the Installation part
of the MENU.
• Check the broadcaster sends a Free to Air guide for that service.
Can not set the correct aspect ratio
• Change the aspect ratio on the Topfield unit by pressing the
button on the Topfield remote. 16:9/4:3
• Check the aspect ratio on your TV. Refer to the user guide of
your TV for information about this procedure.
• Check the broadcast of the program. For example some programs are only broadcasted in 4:3
Lost part of my show because it went longer then the set time
• When setting a Reservation add an extra few minutes to the Duration to cover for programs going over the predicted time.
• When recording off the Free to Air guide press the button
twice on the Topfield remote and adjust the duration to cover
for programs going over the predicted time.
• Adjust the Padding in the Settings > Recording > Timer
Record Padding [Rear]. Adjust according to personal preference.
Page 62
56 Troubleshooting
Can not get a network connection
• Make sure you are using a Router and not a Modem.
• You can only establish a connection by using the Network cable
directly to the Topfield unit OR by using a USB wireless dongle.
• You are using a 3rd part USB wireless dongle.
• Your router settings are not set up correctly in the Topfieldunit.
• Check connection of Ethernet cable and USB wireless dongle,
making sure they are a tight fit in the socket.
• Restart Router and try again.
Can not connect my external HDD
• Make sure external HDD is formatted in NTFS, then reformatted to the system when it is connected. This will ensure that the
hard drive is ready to use and the full capacity is available.
• The HDD must not be more then 1000 GB (1 TB).
• You must make sure that the external HDD is self powered.
Can not see the time shown on the front of the Topfield unit
This can be adjusted in the Settings > Miscellaneous > Standby Mode,
from Passive to Active.
My Topfield recorder doesn’t go to standby after instant recording
When an instant recording has been activated the recorder will need
to stay on until the recording finishes.
To place the recorder into standby after the recording has finished
press the Power button on the remote control during a recording
and the following message will be displayed “RECORDER NOT FINISHED, DO YOU WANT TO POWER OFF?”.
Move the green tab to YES and leave the recorder uiON, but do not execute the function. The television may be turned off and the recorder
will go into standby (sleep mode) when the recording has finished.
Cannot view guide content
Perform a factory reset and service search to allow the unit to restart
the guide. Be sure to save your settings in the Installation section before applying a factory reset.
Page 63
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D symbol are trademarks of Dolby Laboratories.
Correct disposal of this product
This marking shown on the product or its literature indicates that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources. Household users should
contact either the retailer where they purchased this product or their
local government office for details of where and how they can dis-
pose this product for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
At any time during the life of a product Topfield Co., Ltd. may change or modify the hard-
ware or software on any product to introduce new features or improve the functionality of
the product.
Copyright © 2013, Topfield Co., Ltd. All rights reserved. English version
http://www.i-topfield.com 110T-U7AC6-701-1
Page 64
110T-U7AC6-701-1
Loading...
