Topfield TF 6000 COC User Manual
TOPFIELD
TF 6000 COC
User Guide
Digital Cable Receiver
CONAX
Contents iii
Contents
1 Introduction 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . 2
1.2.1 The front panel . . . . . . . . . . . . . . . . . . . . . . . 3
1.2.2 The remote control . . . . . . . . . . . . . . . . . . . . . 4
2 Setup 6
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . 9
2.4.1 Connecting to the broadcasting cable . . . . . . . . . . 9
2.4.2 Connecting to your television . . . . . . . . . . . . . . 9
2.4.3 Connecting to your video cassette recorder . . . . . . . 11
2.5 Switching on for the first time . . . . . . . . . . . . . . . . . . . 11
2.5.1 Inserting batteries in the remote control . . . . . . . . . 12
2.5.2 Powering on and checking picture . . . . . . . . . . . . 12
iv Contents
3 Preference Settings 13

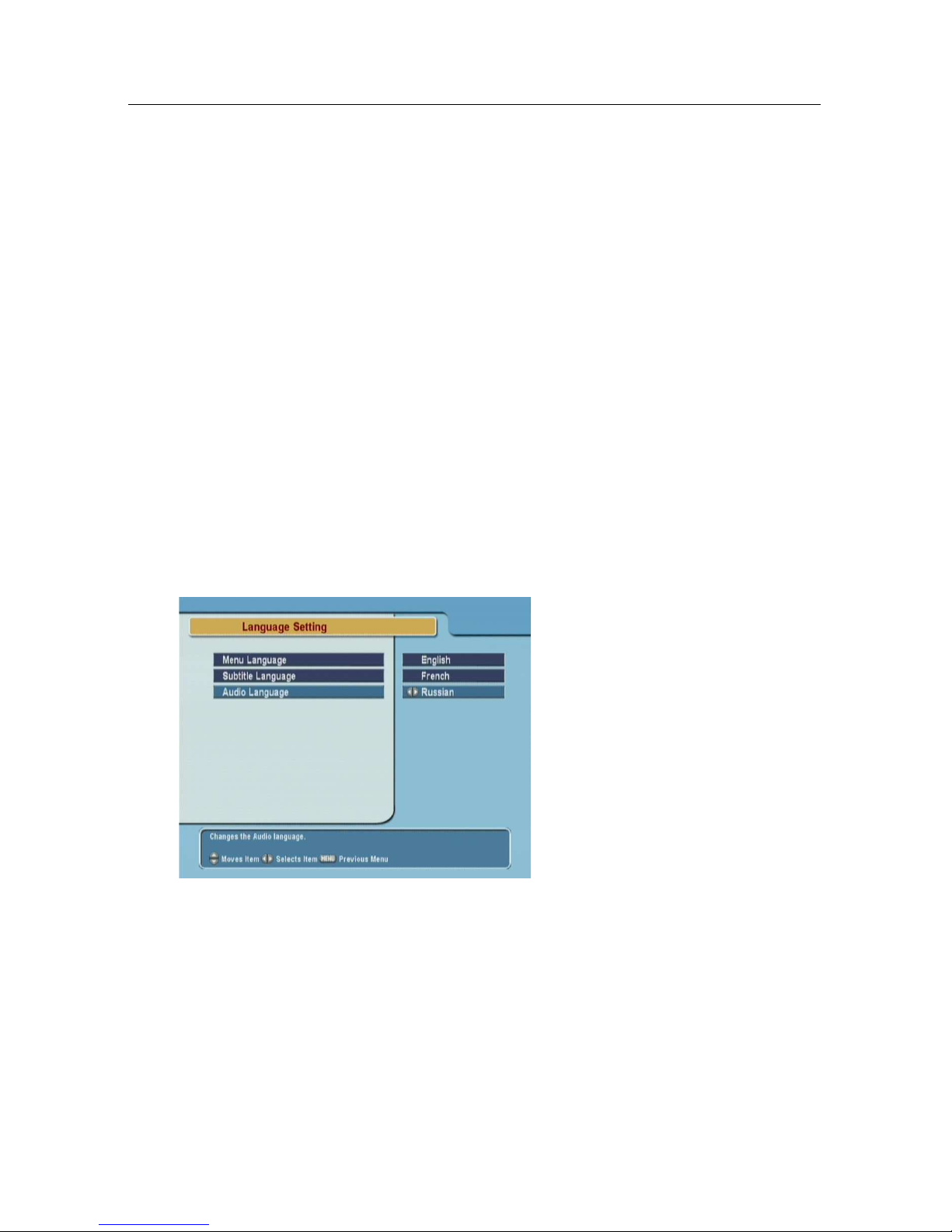

3.1 Language settings . . . . . . . . . . . . . . . . . . . . . . . . . . 13

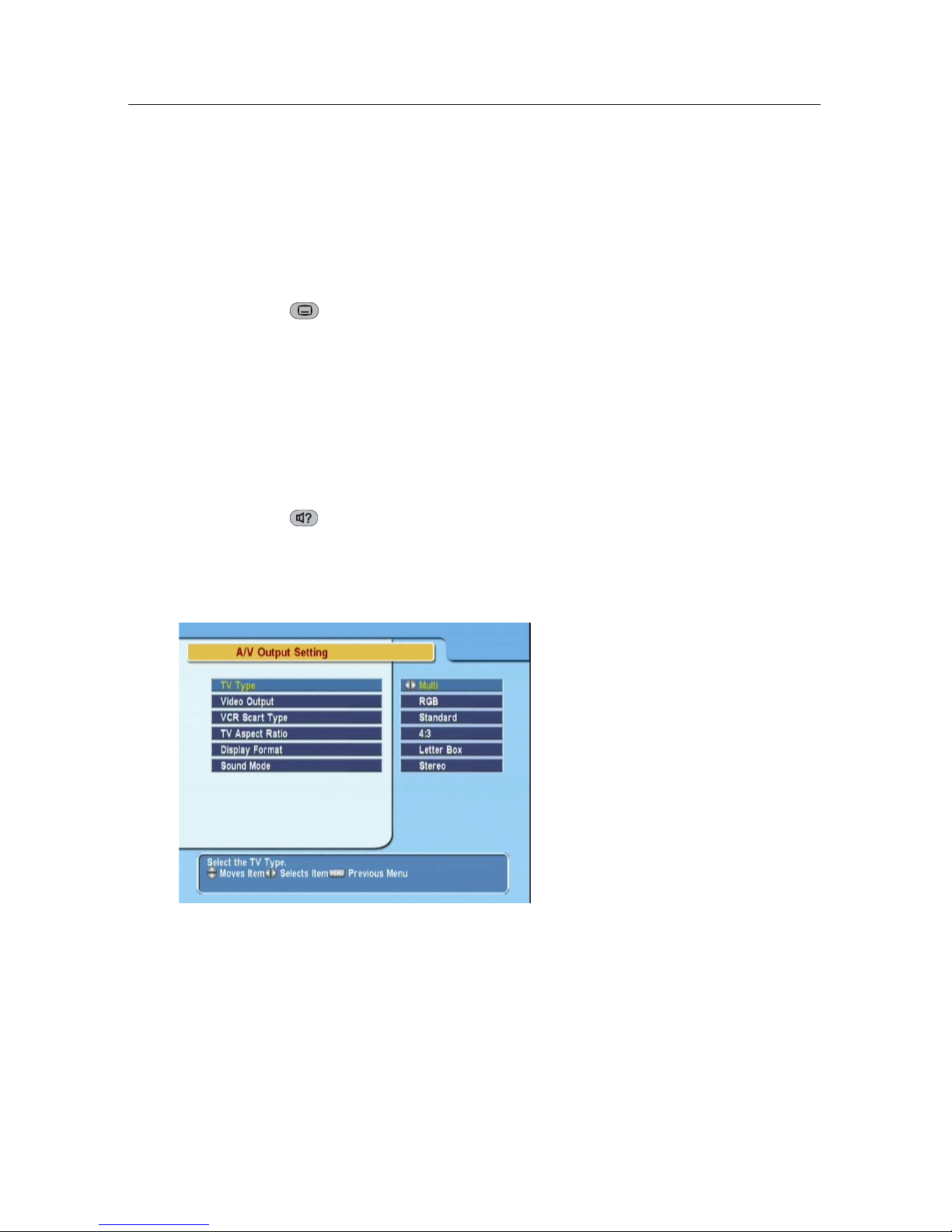

3.2 Video and audio settings . . . . . . . . . . . . . . . . . . . . . . 14
3.2.1 Television standard . . . . . . . . . . . . . . . . . . . . 14
3.2.2 Colour model . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2.3 Video cassette recorder . . . . . . . . . . . . . . . . . . 15
3.2.4 Television aspect ratio . . . . . . . . . . . . . . . . . . . 16
3.2.5 Sound mode . . . . . . . . . . . . . . . . . . . . . . . . 16

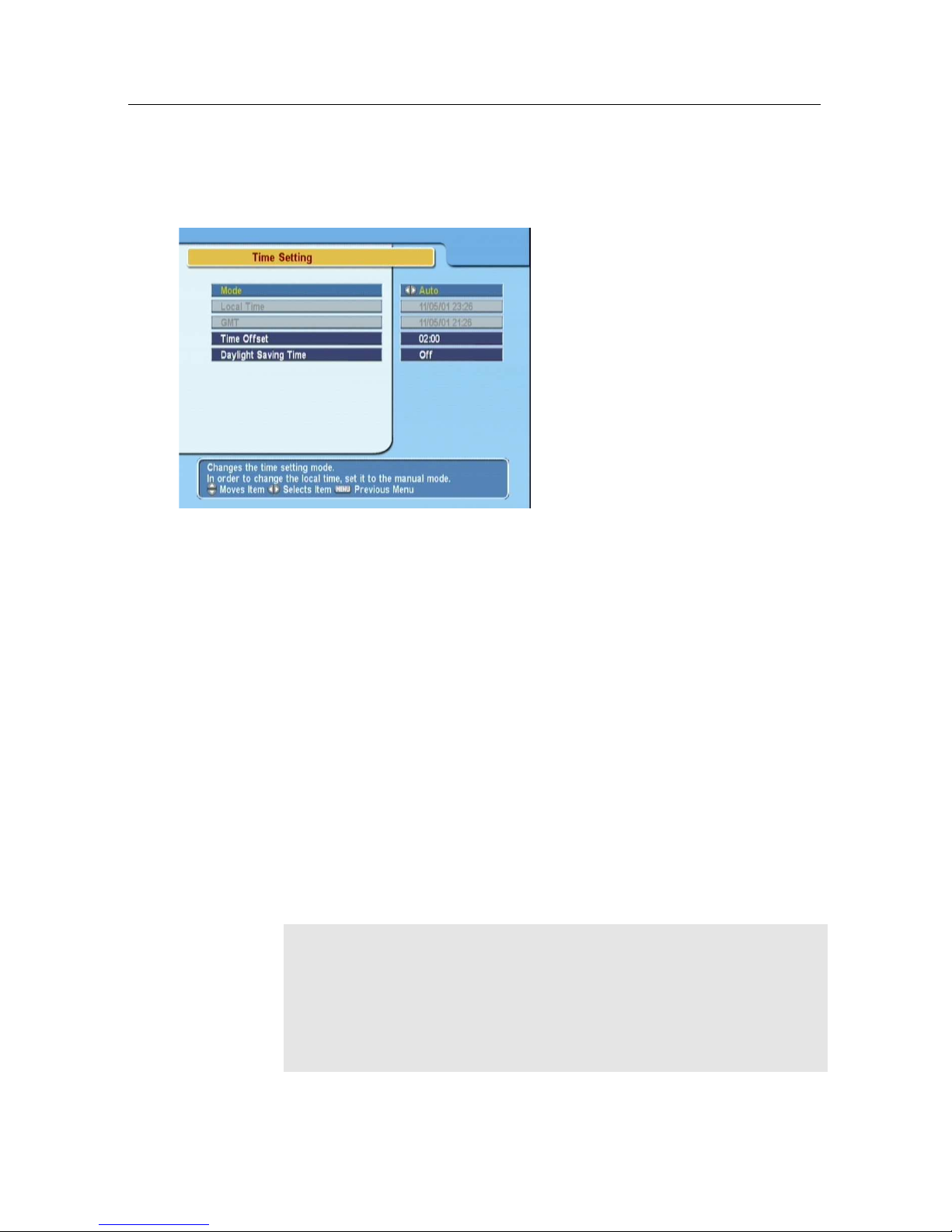

3.3 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . . 17

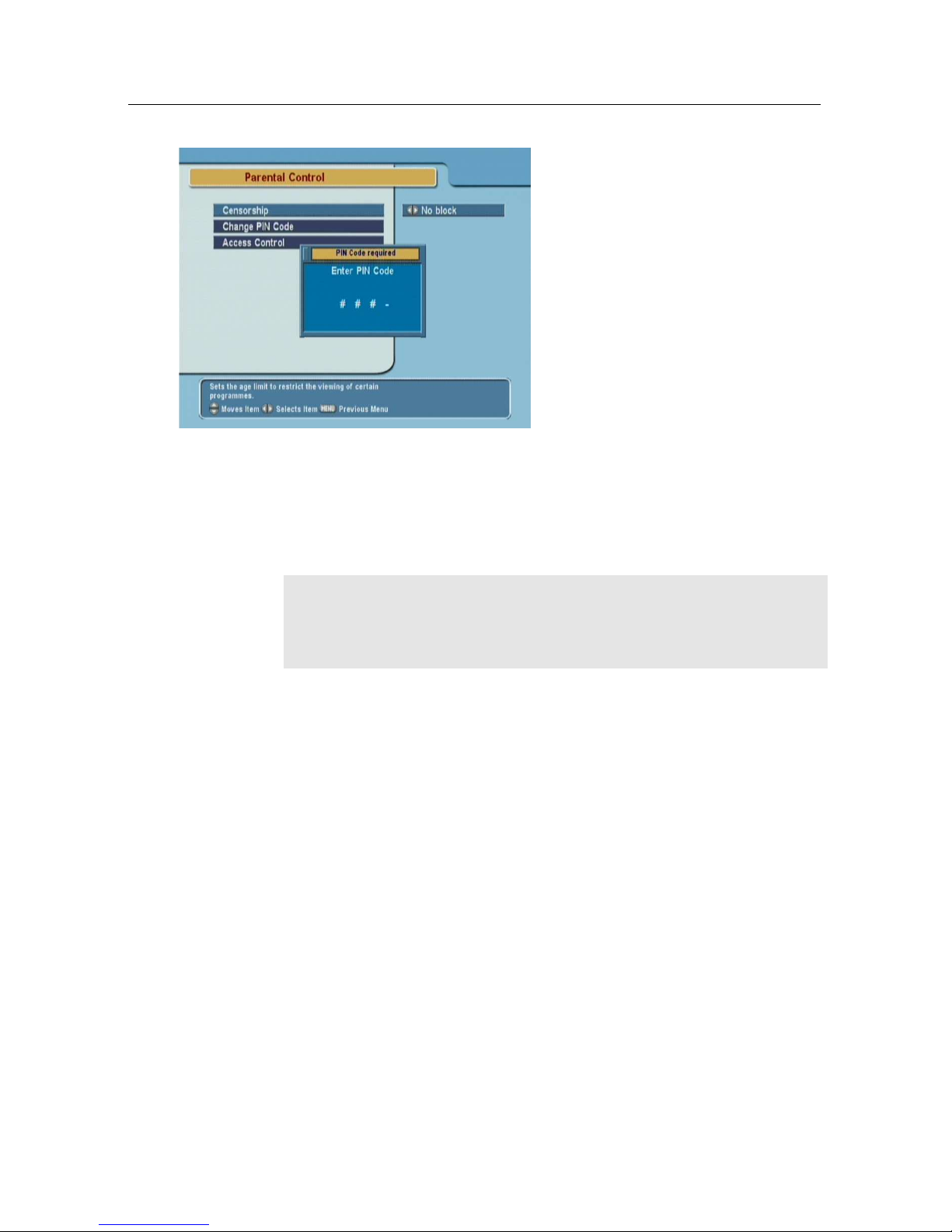

3.4 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.5 Adjusting the on-screen display . . . . . . . . . . . . . . . . . . 20
4 Service Search 21

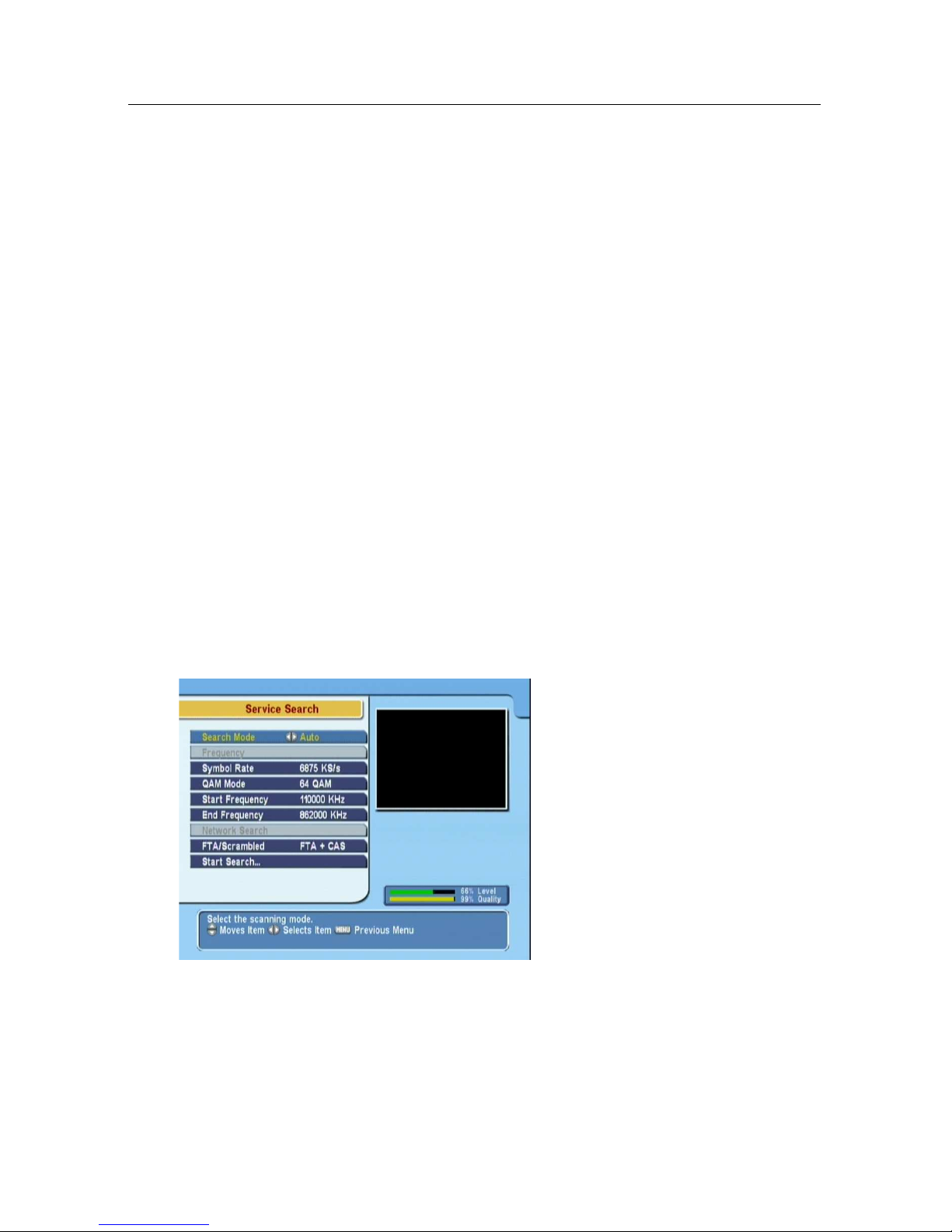

4.1 Searching broadcasting services . . . . . . . . . . . . . . . . . . 21
4.2 Resetting to factory settings . . . . . . . . . . . . . . . . . . . . 22
5 Daily Usage 24
5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . . 24

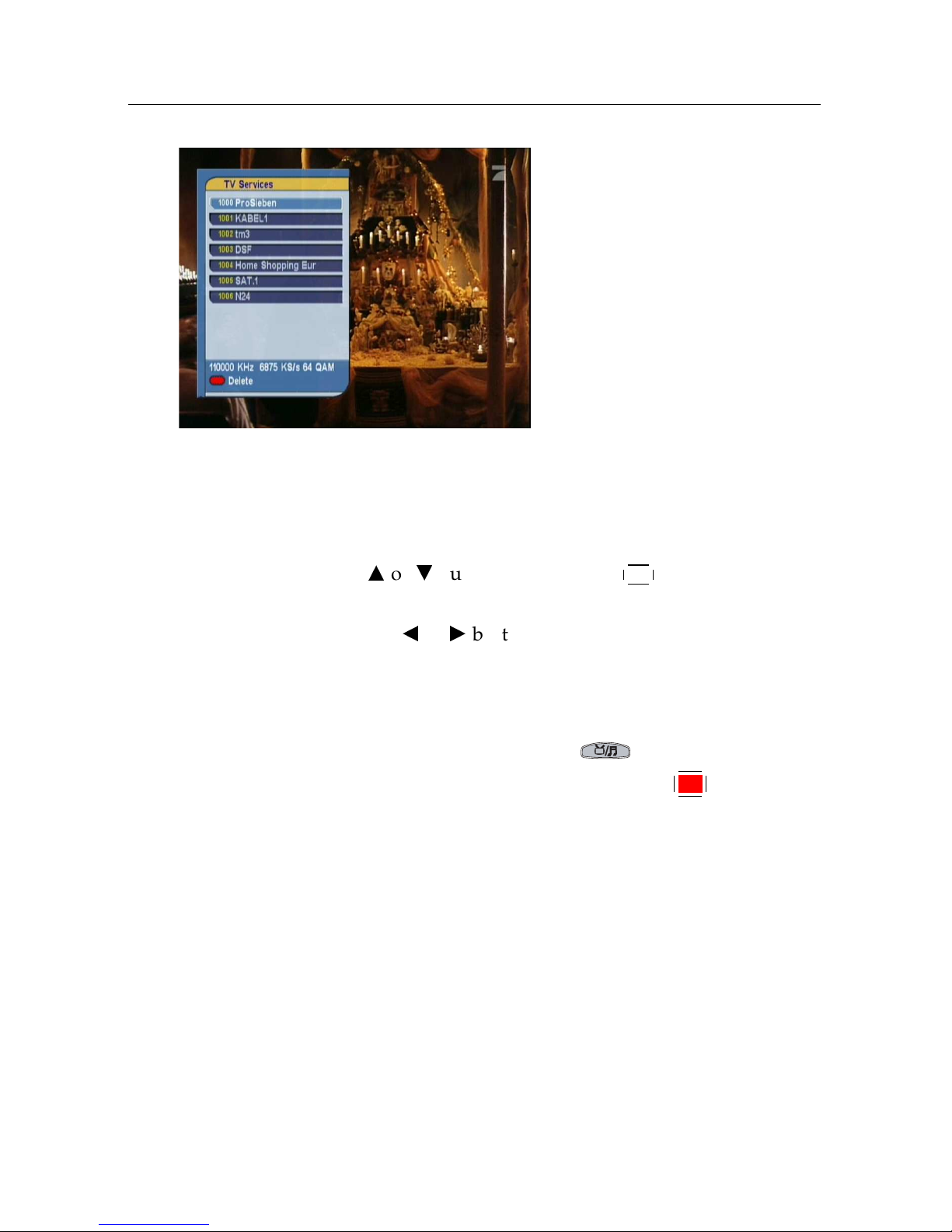

5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . . 24
5.2.2 The favourite services list . . . . . . . . . . . . . . . . . 25

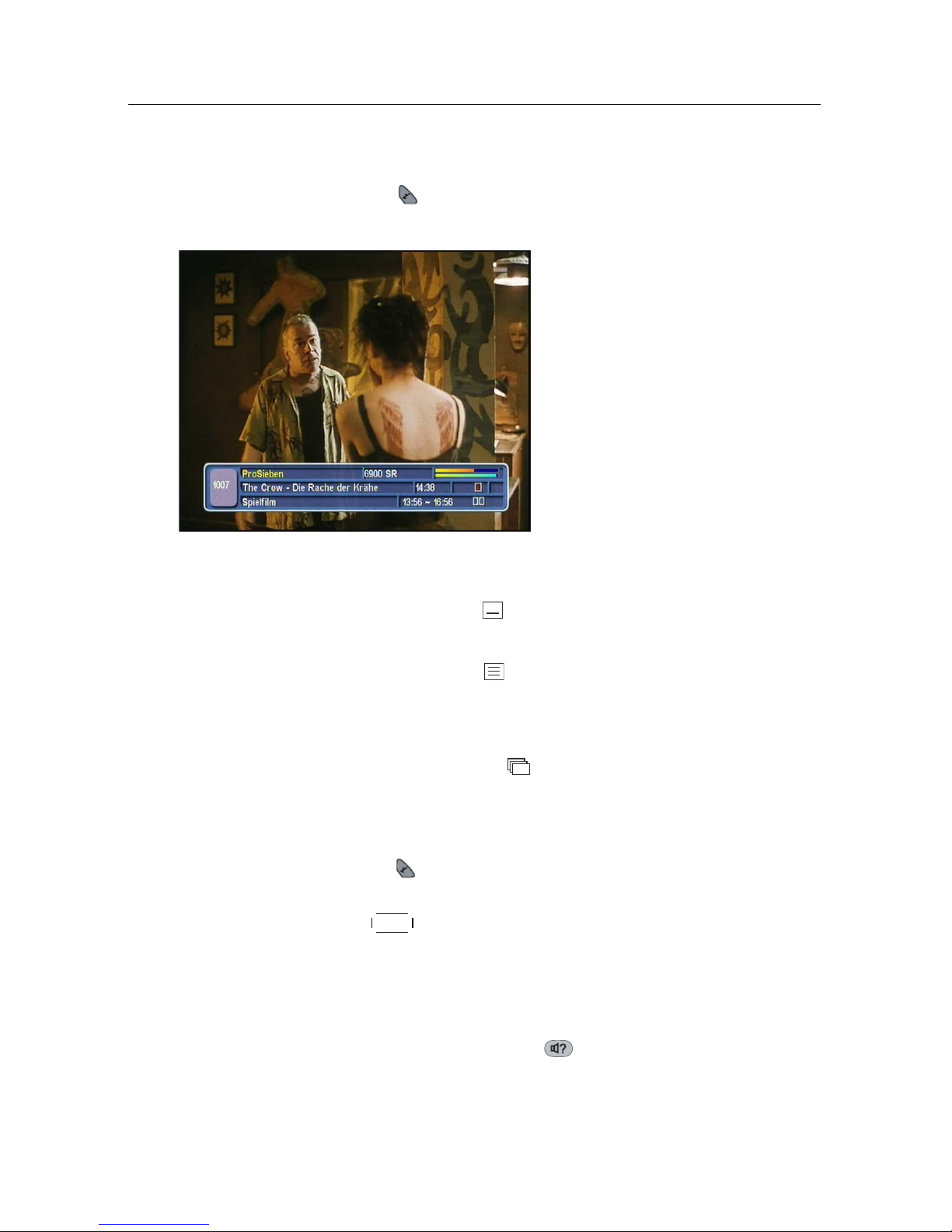

5.2.3 Viewing programme information . . . . . . . . . . . . 27
5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . . 27
5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . . 28
5.2.6 Viewing teletext . . . . . . . . . . . . . . . . . . . . . . 28

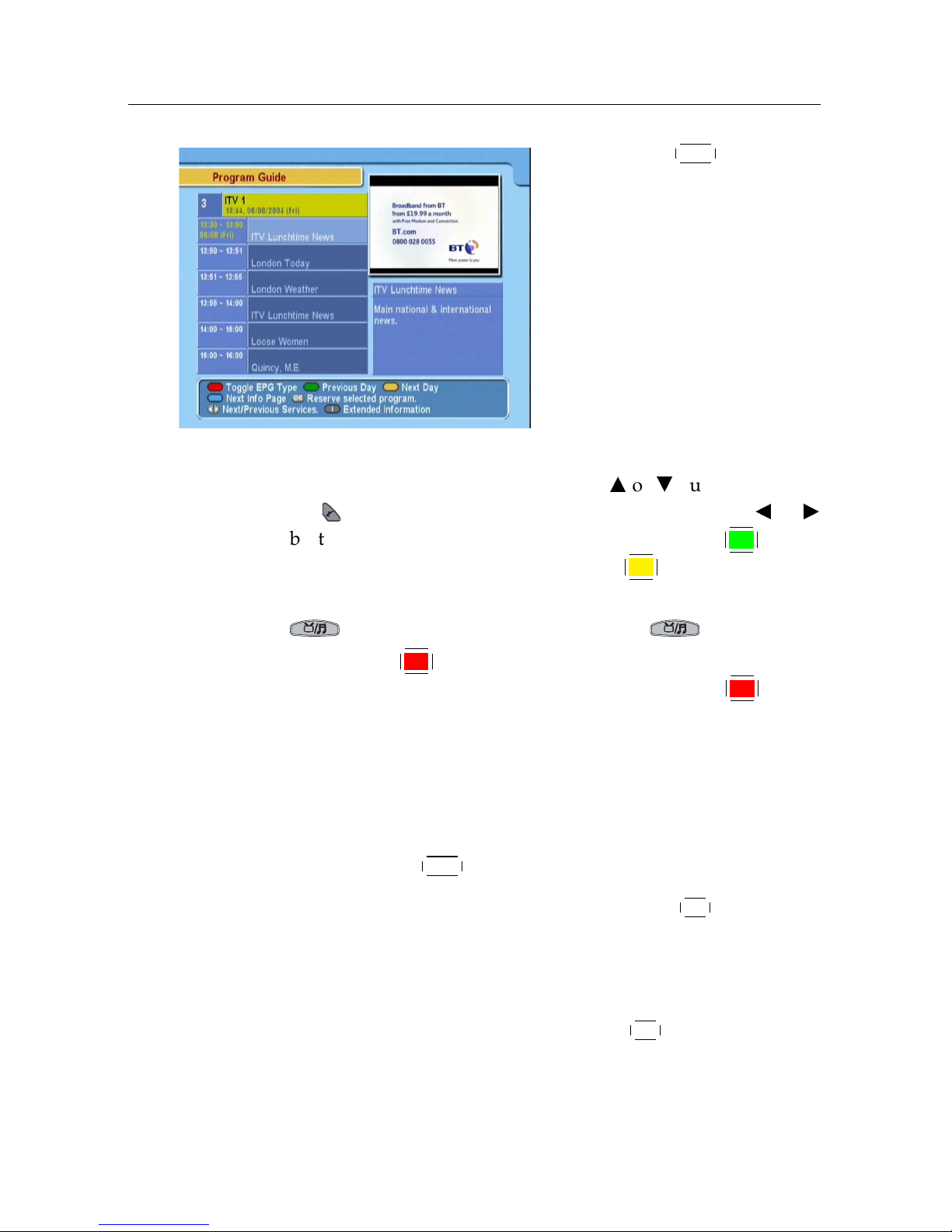

5.3 Viewing electronic programme guide . . . . . . . . . . . . . . 28
5.4 Watching multifeed programme . . . . . . . . . . . . . . . . . 30

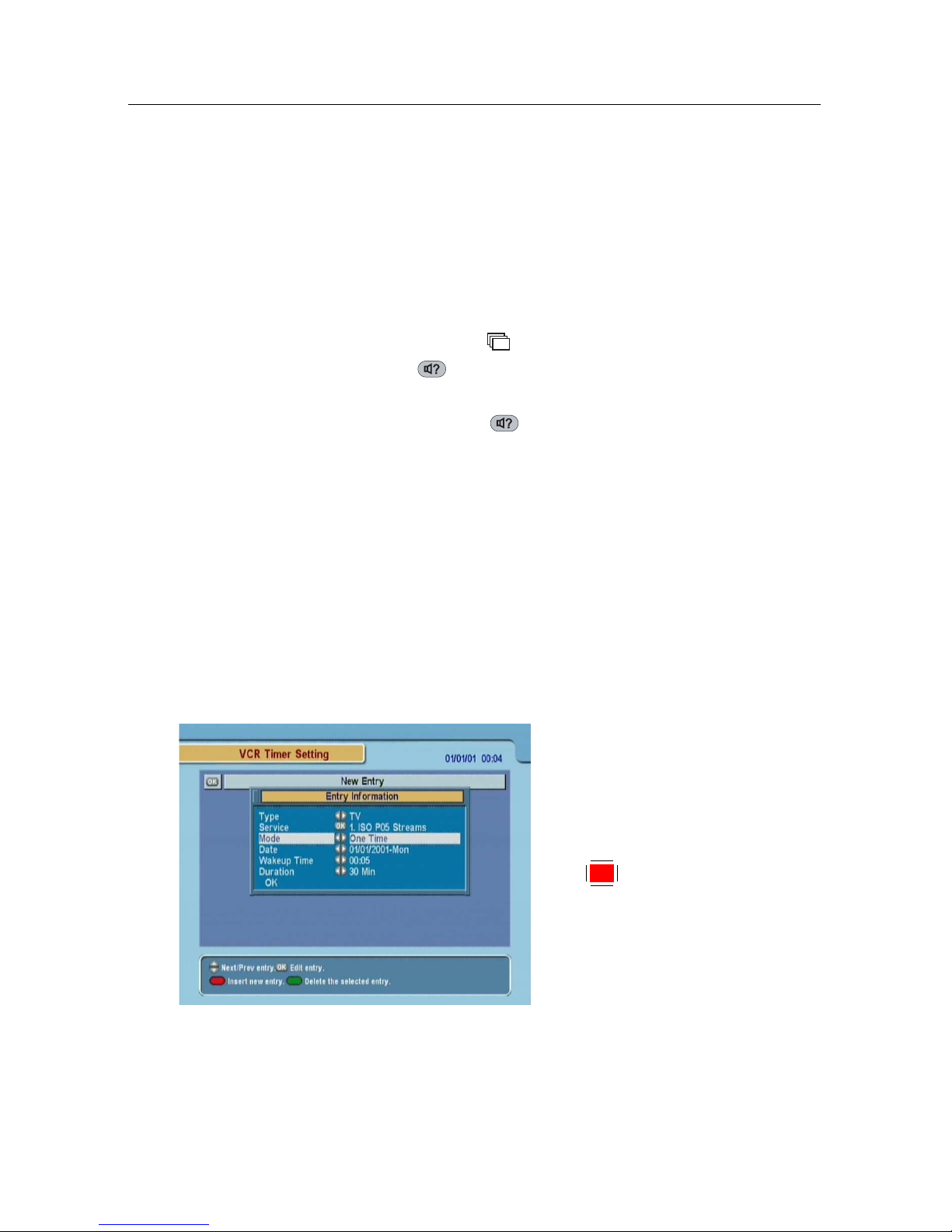

5.5 Making timer events . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents v
6 Listing Services 32

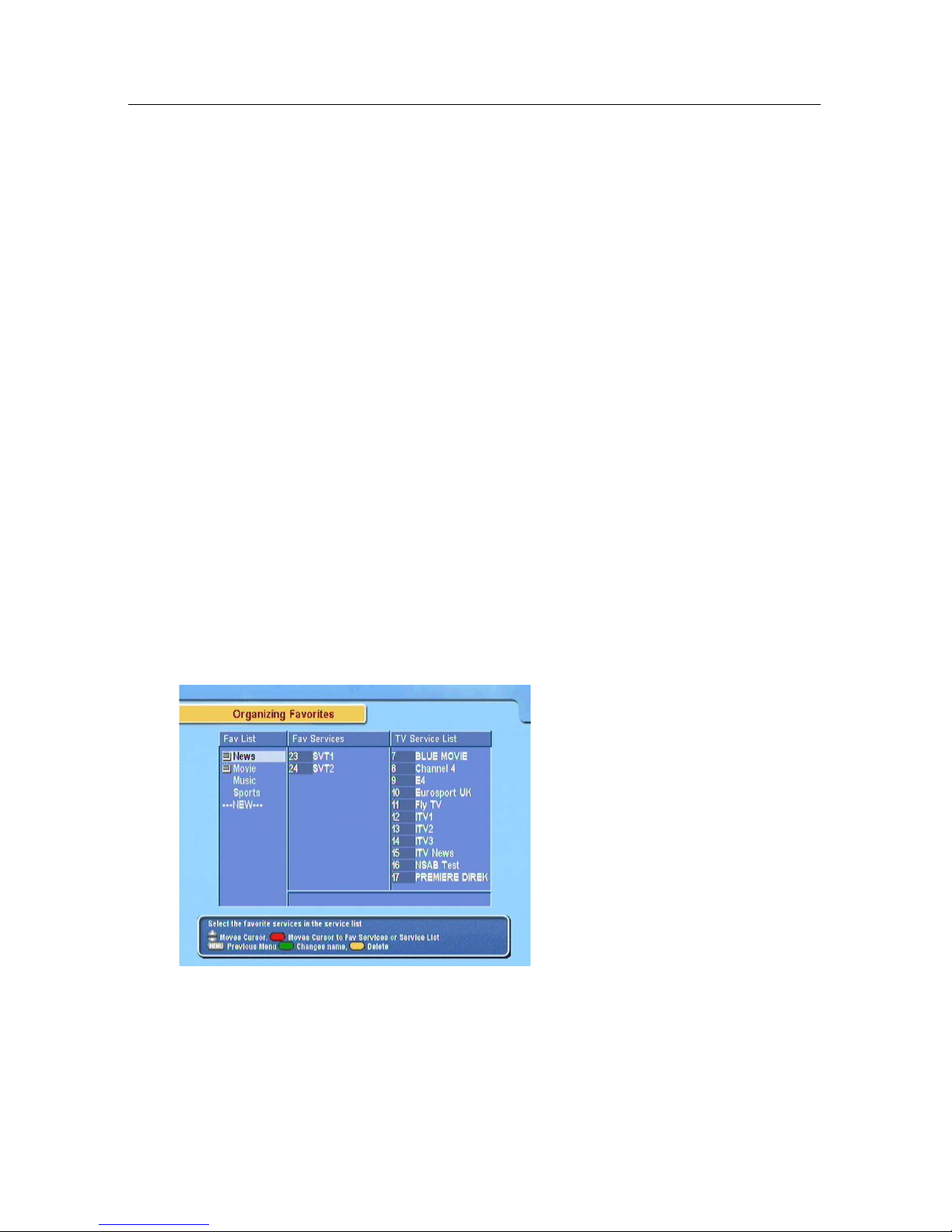

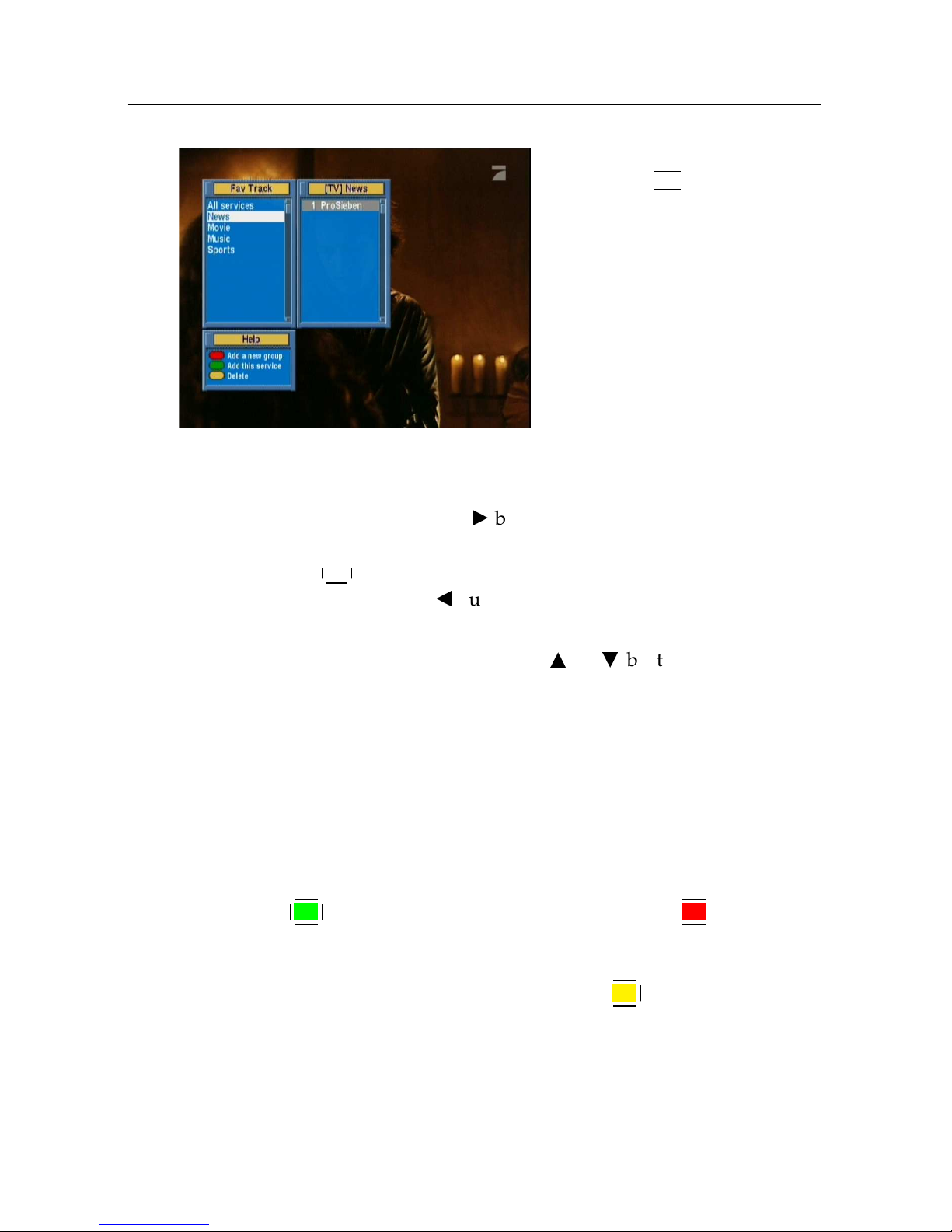

6.1 Editing the favourite list . . . . . . . . . . . . . . . . . . . . . . 32

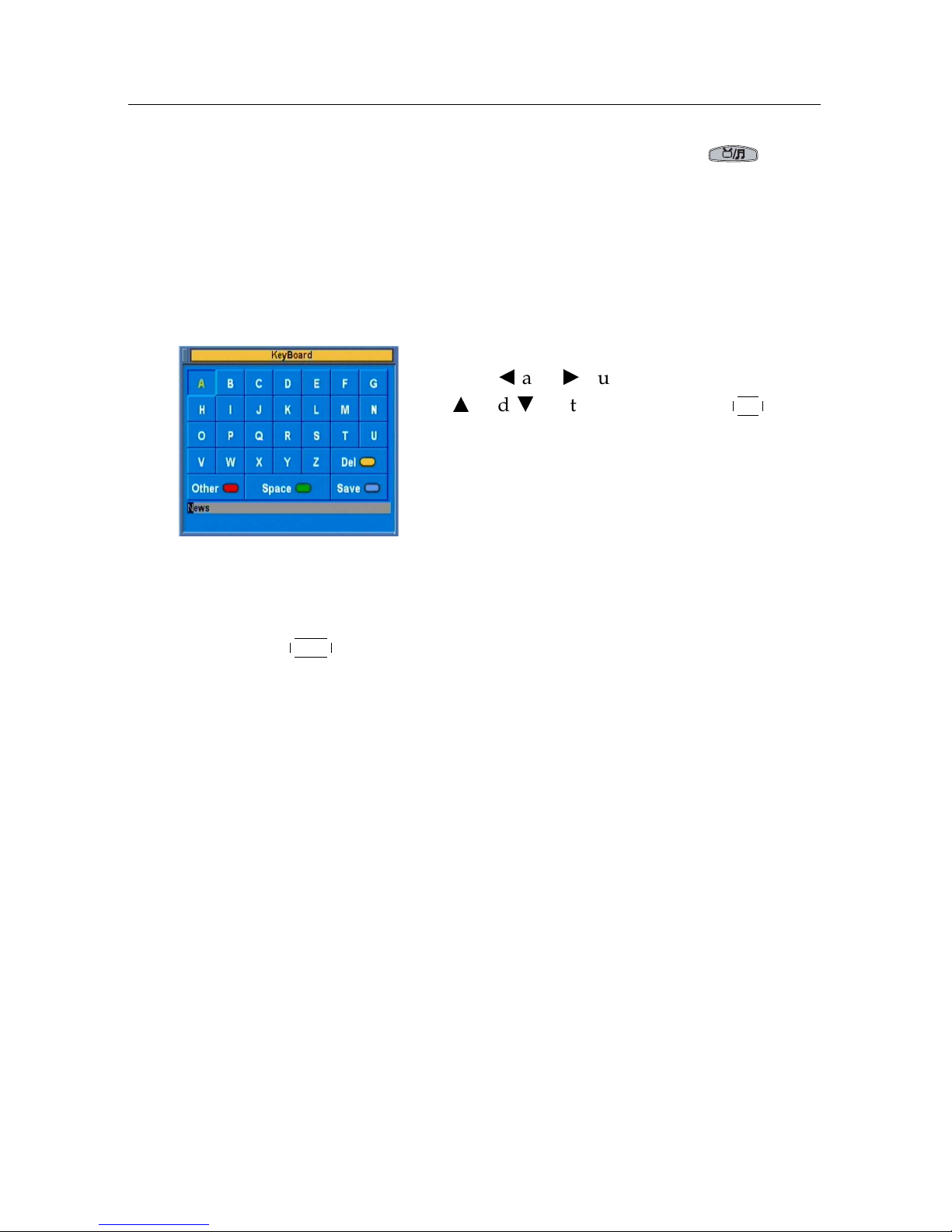

6.2 How to use on-screen keyboard . . . . . . . . . . . . . . . . . . 34
6.3 Transferring receiver data . . . . . . . . . . . . . . . . . . . . . 34
7 Firmware Update 36

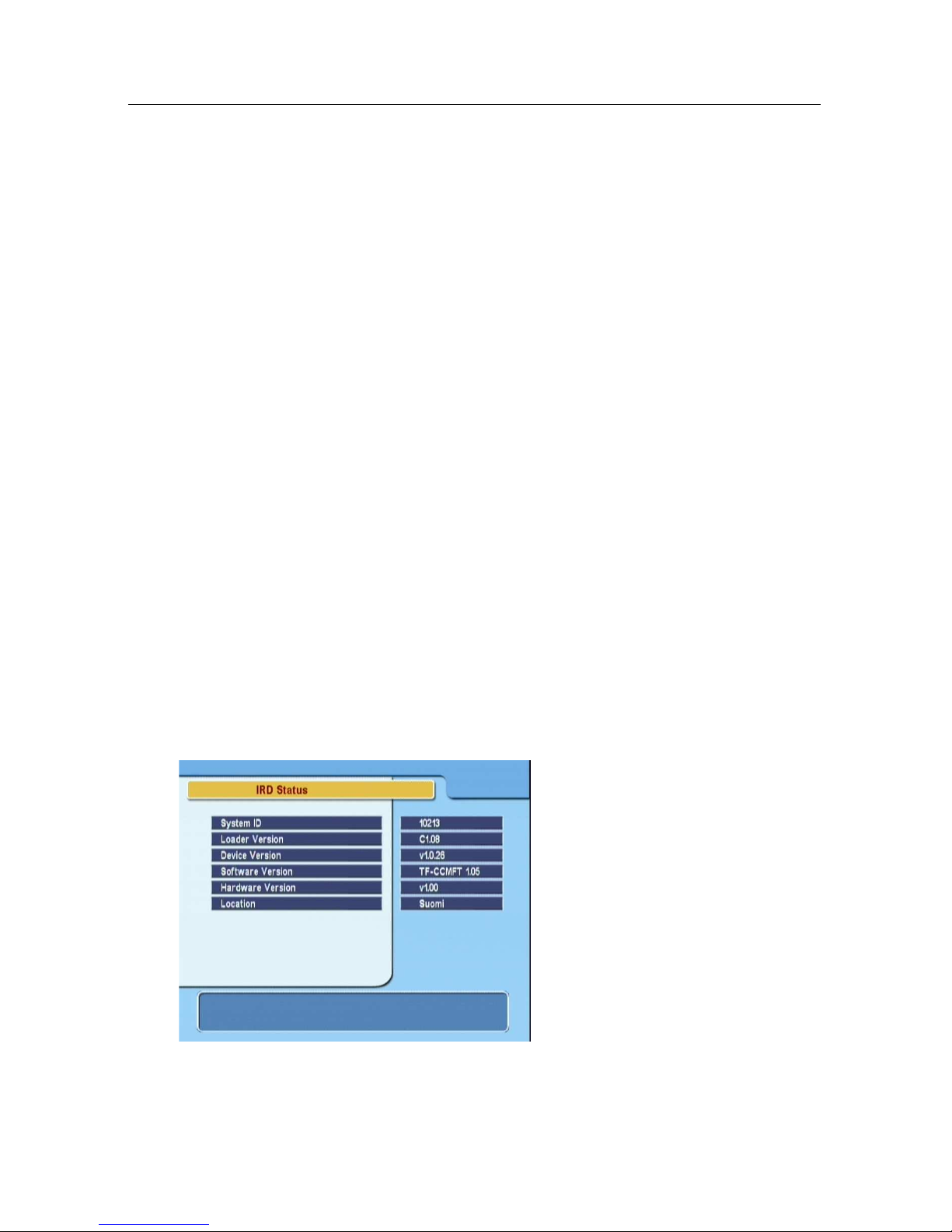

7.1 Checking the firmware information . . . . . . . . . . . . . . . 36

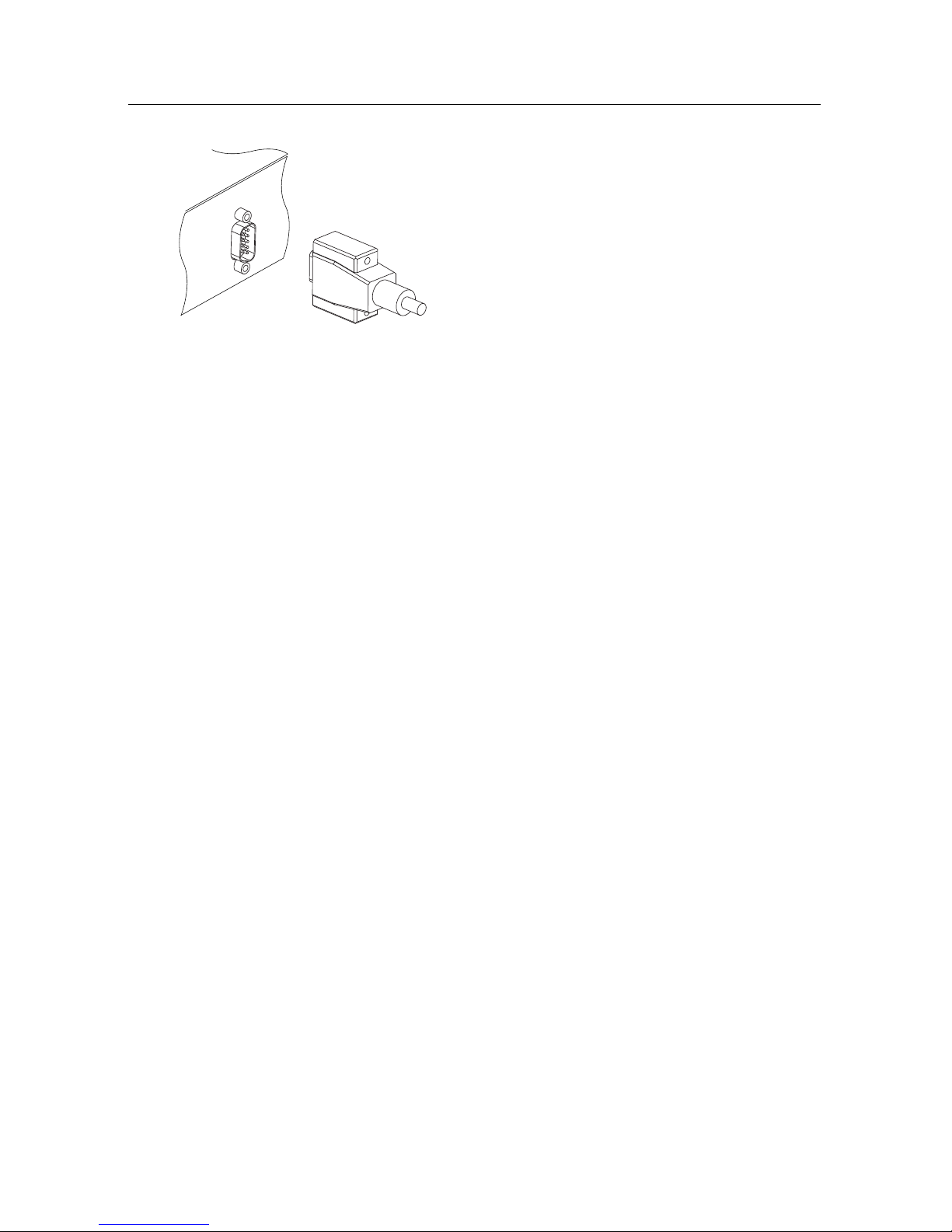

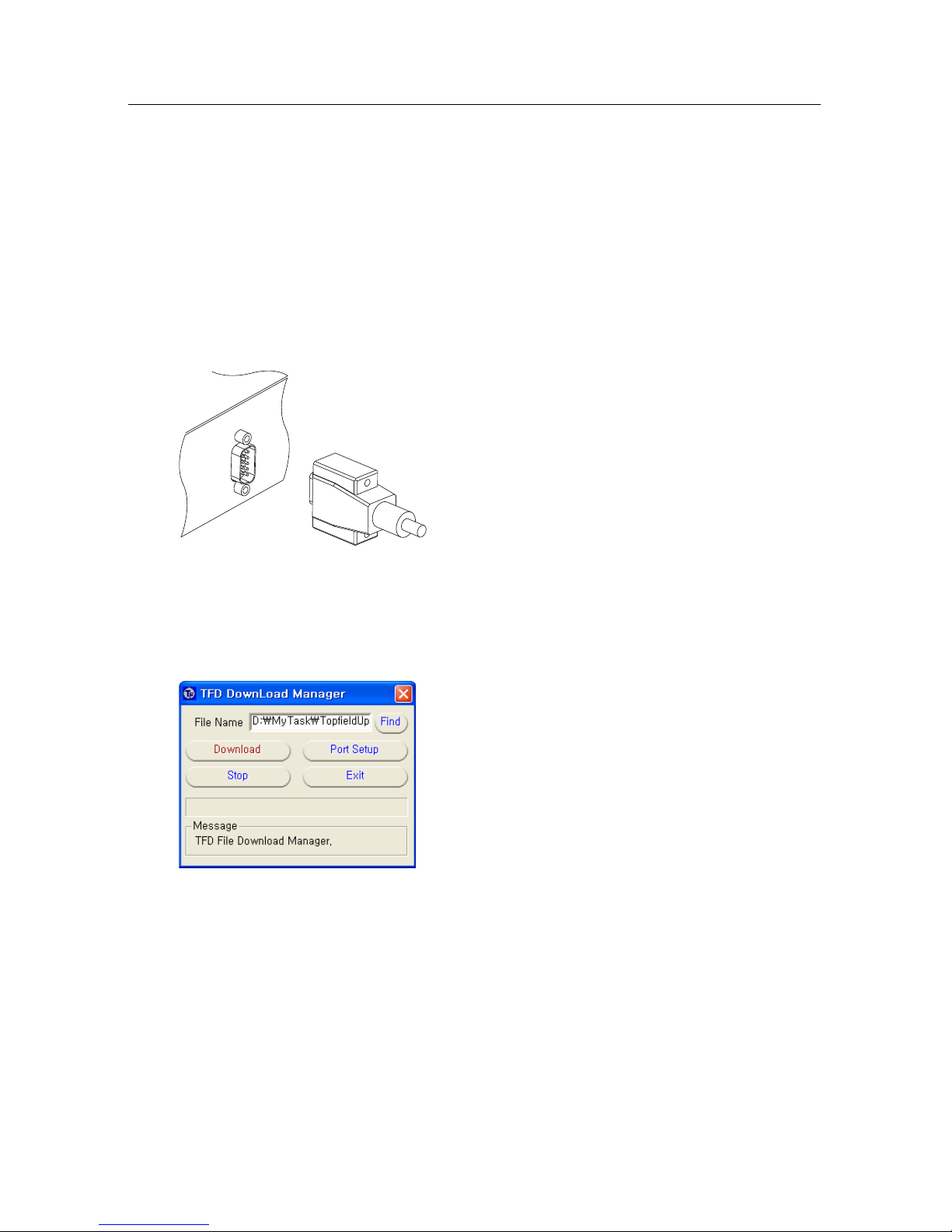

7.2 From your computer via RS-232 port . . . . . . . . . . . . . . . 38

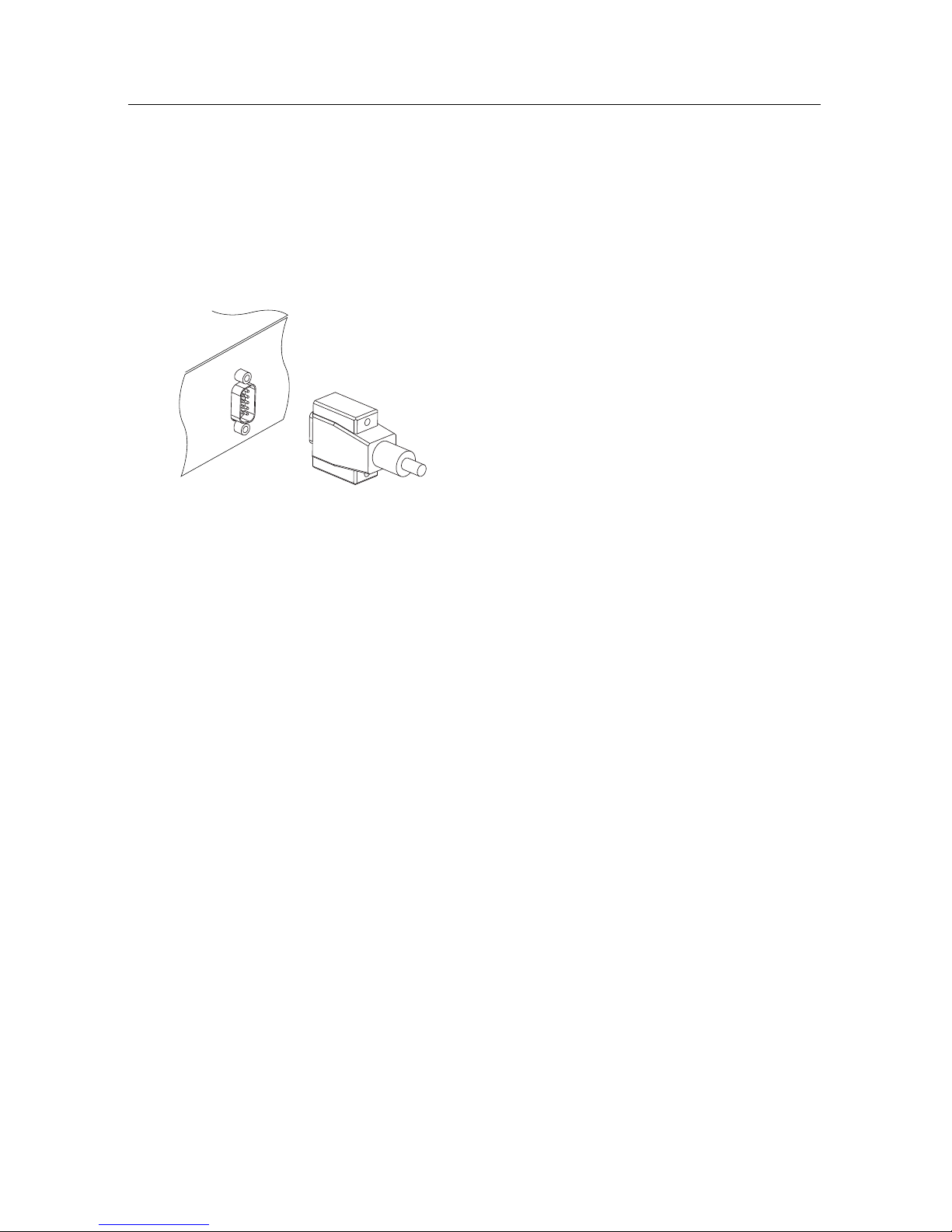

7.3 From another digital receiver via RS-232 port . . . . . . . . . . 39
Index 40
1
Chapter 1
Introduction
The TF 6000COC digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
can receive digital broadcasts.
NOTE
In general we equate a channel with a frequency. Unlike analogue broadcasts, however, digital broadcasts are not all assigned to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The frequency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 6000 COC digital receiver has the following features:
• Can store up to 2000 television and radio services.
• You can create favourite lists of your favourite services.
2 Introduction
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
•
You can update the firmware of the digital receiver to the
latest version, provided by the manufacturer.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
Front display
displays the current time in standby mode,
and displays the current service in operation mode.
lamp lights up whenever you press a button on the
remote control.
PWR
lamp lights up while the digital receiver is in standby
mode.
CHANNELc,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
button switches the digital receiver between standby
mode and operation mode.
You have to insert your subscription card into the front slot to
watch pay services.
4 Introduction
1.2.2 The remote control
1
button switches the digital receiver between standby mode and
operation mode.
2
mutes the sound. Press again to
switch it back on.
3
Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
4
switches between the current ser-
vice and the previously viewed one.
5
FAV displays the favourite lists.
6
MENU
displays the main menu. It is
also used to return to the previous
menu from a submenu.
7
EXIT
is used to exit the current
screen.
8
EPG
displays the electronic pro-
gramme guide.
9
displays the service information
box. It is also used to display more
information about a programme.
10
c,a
buttons switch to previous or
next service. They are also used to
navigate in menus and interactive
screens.
11
b,d
buttons decrease or increase the volume. They are
also used to change values for menu options.
1.2 Controlling the digital receiver 5
12
OK
displays the services list. See§5.2.1 for more details.
It is also used to select a menu item.
13
switches between television services and radio
services.
14
SAT is not used in this model.
15
V−
,
V+
buttons decrease or increase the volume. They
are also used to change values for menu options.
16
P−
,
P+
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
17
These buttons have different functions per menu. They
will be guided by on-screen help.
18
button is used to select an audio track and sound
mode, or a video track of multifeed programme. button is used to select a subtitle track. button displays
teletext.
19
pauses live television.
20
UHF is not used in this model.
21
switches the output of the TV SCART socket between
the digital receiver and the device connected to the VCR
SCART socket. See § 3.2.3 for more details.
22
M1 is not used in this model.
23
N/P
switches television standard between PAL and
NTSC. However, this button may not be used in some
models. See § 3.2.1 for more details.
24
is used to set a sleep timer.
6 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
•
The mains power must be 90 to 250 volt. Check it before
connecting the digital receiver to the wall outlet. For
the power consumption of the digital receiver, refer to
Table 2.1.
2.2 Safety precautions 7
•
The wall outlet should be near the equipment. Do not
run an extension lead to the unit.
•
Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
•
Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digital receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
•
Protect the power cord from being walked on or pinched.
If the wires are exposed or the cord is damaged, do not
use the digital receiver and get the cord replaced.
•
Never open the digital receiver casing under any circumstances. The warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 9 W at maximum in operation
8 W in standby
Table 2.2: Physical specifications
Size 260× 46× 190 mm
Weight 1.2 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 95 %
8 Setup
2.3 Rear panel connections
The TF 6000 COC has some connections on the back panel.
RS-232
VCR
TV
CABLE OUTCABLE IN
VIDEO S/PDIF
R - AUDIO - L
1
2
3
4
5 6
7
8
Check what connections your television set has in comparison
with the digital receiver.
1
CABLE IN Cable broadcasting signal input socket.
2
CABLE OUT
Cable broadcasting signal output socket
through the CABLE IN socket for another
digital receiver.
3
VIDEO
Composite video output socket for the television set. (yellow)
4
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
5
S/PDIF
Dolby digital output socket for the audio system.
6
TV
Audio and video output socket for the television set.
7
VCR
Audio and video input/output socket for the
video cassette recorder or suchlike.
8
RS-232
Serial port for firmware update and data
transfer.
2.4 Connecting up your digital receiver 9
Table 2.3: Connectors specifications
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
TV CVBS/RGB/YUV video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting to the broadcasting cable
Whatever sort of connection you have between the digital receiver and the television,
you need to connect the digital receiver to
the broadcasting cable so that it can receive
digital television services.
Connect the broadcasting cable to the CABLE
IN connector.
If you have another digital receiver, link it
from the CABLE OUT connector.

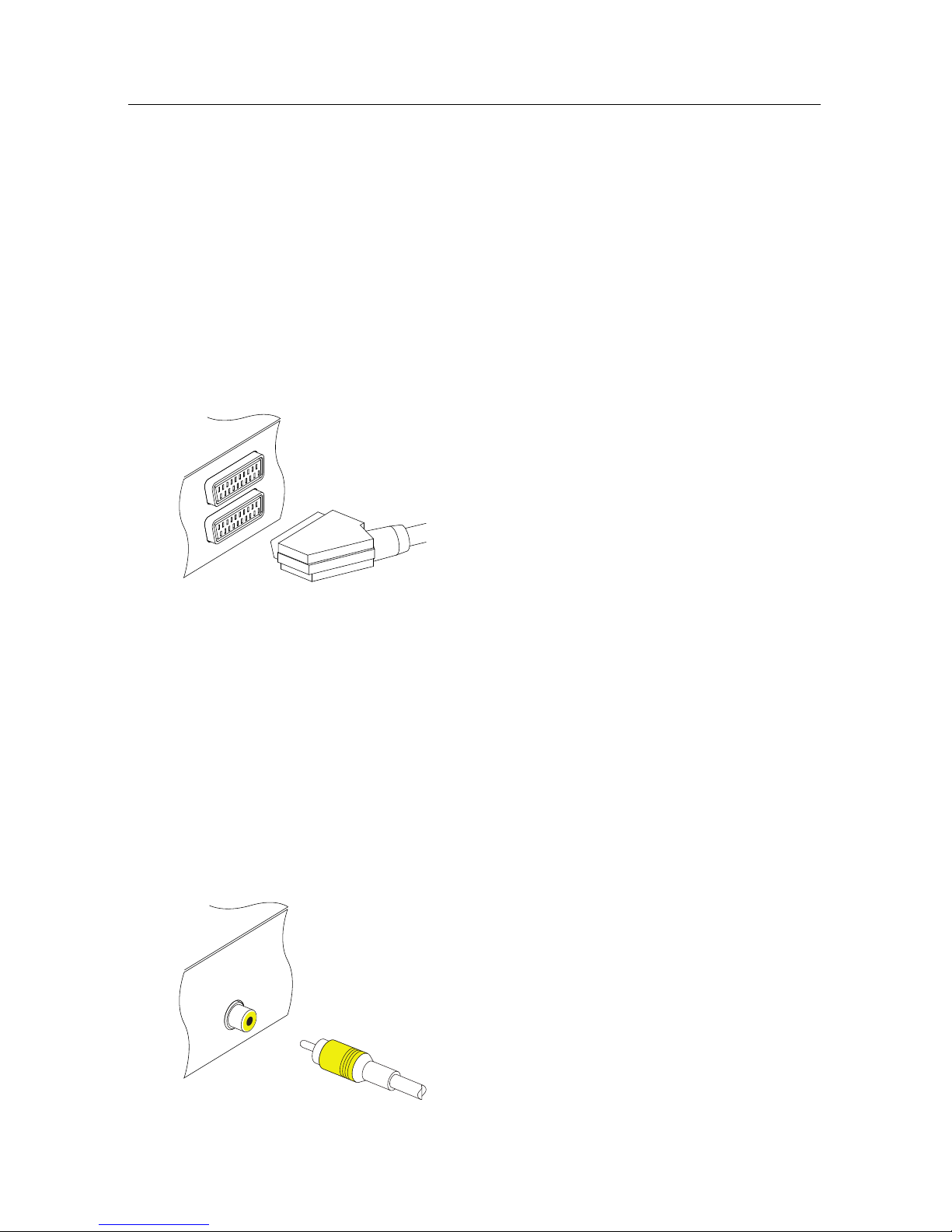

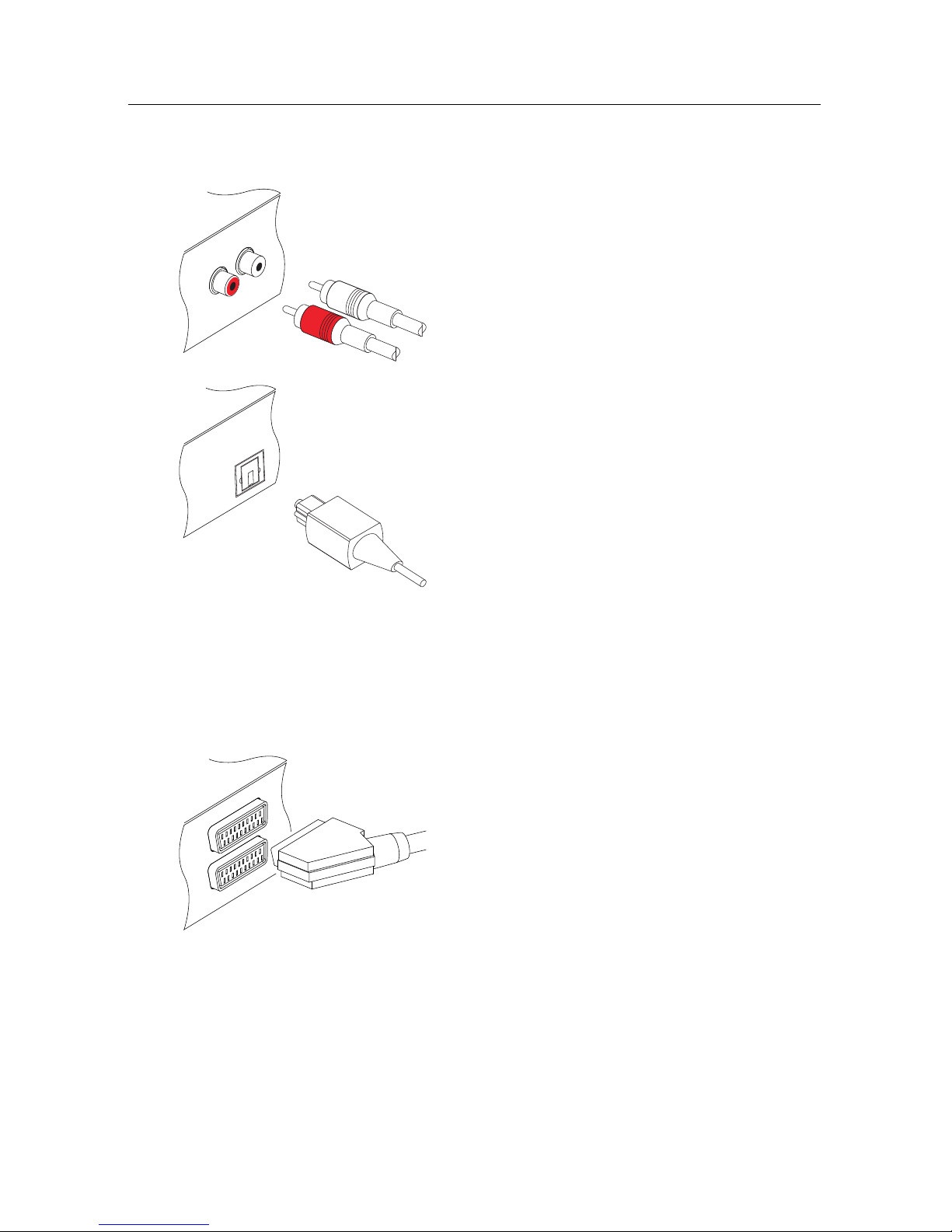

2.4.2 Connecting to your television
Between all the following connectors of the digital receiver, we
recommend you to use the first connector to get best picture
quality. If your television does not have the matching connector,
Loading...
