TOPFIELD
The User’s Manual
Personal Video Recorder
TF4000PVR
- Personal Video Recorder
TF4000PVR CoCI
- Personal Video Recorder
- Embedded Conax
Please read this User s Manual carefully.
The menu structure and specification can be changed without notice.
TABLE OF CONTENTS
INTRODUCTION 5
CONTENTS 5
FEATURES 5
FRONT/ REAR PANELS
1) FRONT PANEL
2) REAR PANEL
REMOTE CONTROL UNIT(RCU) 8
GETTING STARTED 14
FUNCTION GUIDE 15
MENU OPERATIONS
1) SYSTEM SETTING
2) ORGANIZING CHANNEL
3) ORGANIZING FAVORITES
4) RECORDING
5) HDD SERVICE
6) INSTALLATION
7) INFORMATION
8) COMMON INTERFACE
9) GAME
HOW TO RECORD AND PLAYBACK THE PVR
1) TIME SHIFTING 48
RECORDING WHILE TIME SHIFTING
2)
3) RECORDING, CHECKING AND CANCELING
4) PLAYBACK A RECORDED SERVICE
5) STOP
6) PAUSING
SLOW MOTION PLAYBACK
7)
FAST MOTION PLAYBACK
8)
9) FAST FORWARDING AND REWINDING
10) REVERSE PLAYBACK
11) BOOKMARK
RECORDING THE DESCRAMBLED LIVE SERVICE
12)
DESCRAMBLING SERVICE
13)
COPYING FROM RECORDED SERVICE
14)
CUT OUT SELECTED REGION
15)
TIME SHIFTING WHILE RECORDING
16)
ZAPPING WHILE RECORDING
17)
REPEAT MODE
18)
TROUBLE SHOOTING(Q & A) 58
SPECIFICATIONS 59
7
7
18
28
30
31
34
35
44
45
46
48
49
51
51
52
52
53
53
53
54
54
55
55
56
56
56
57
CA U T I ON
RISK ELECTRIC SHOCK
Do NOT OPEN
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
This symbol indicates
important instructions
accompanying the product.
Warning!
Please do not insert metal or alien substance into the slots
In doing so can cause damage to the PVR and reduce its life span.
for the Modules and Cards.
3
WARNING Warning WARNING Warning WARNING
Please read the following recommended safety precautions carefully for your safety.
MAINS SUPPLY : 90-250V AC 50/60 Hz.
OVERLOADING : Do not overload wall outlets, extension cords or adapters
LIQUIDS : Keep liquids away from the PVR.
as these can result in fire or electrical shock.
The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on the apparatus.
SMALL OBJECTS : Coins or other small objects must be kept away from the PVR as
CLEANING : Disconnect the PVR from the wall socket before cleaning it.
VENTILATION : Do not block the decoder’s ventilation slots.
ATTACHMENTS : Do not use any attachments that are not recommended as these
CONNECTION TO THE SATELLITE DISH LNB :
SERVICING : Do not attempt to service this product by yourself.
LIGHTNING : It is recommended that the PVR should remain connected at all
they can fall through the ventilation slots of the PVR and cause
serious damage.
Use a dry cloth lightly dampened(no solvents) to clean
the exterior of the PVR.
Ensure that a free airflow is maintained around the PVR.
Never stand the PVR on soft furnishings or carpets.
Do not use or store the PVR where it is exposed to direct
sunlight or near a heater. Never stack other electronic
equipment on top of the PVR.
may cause hazards or damage the equipment .
Disconnect the PVR from the mains before connecting or
disconnecting the cable from the satellite dish.
Failure to do so can damage the LNB.
Refer all serving to qualified service agents.
times to the mains supply and satellite dish (except when
working on the LNB). However, the manufacturer’s
instructions for safeguarding other equipment connected to the
PVR, i, e, TV set, must be followed during lightning storms.
LNB and the modem telephone line are essential.
EARTHING : The LNB cable must be earthed to the system earth for
LOCATION : Locate the PVR indoor place properly to prevent lightening,
the satellite dish.
raining and direct sunlight.
4
INTRODUCTION
Thank you for purchasing the Personal Video Recorder (PVR).
This PVR is fully compliant with the international DVB standard and thus transmits digital
images, sounds, information guides and teletext directly to your TV through the satellite.
Now you can comfortably see and receive digitally transmitted music, news, movie and sports
satellite broadcasts in your office or at your home. The PVR records and playback satellite
broadcasts. You can enjoy interesting games embedded in PVR.
In the Channel Search section, both the automatic channel search method and the
manual search mode are provided. Also it supports DiSEqC 1.2, enabling you to move your
antenna in order to focus preferred satellite. You can save up to 3500 TV and 1500 Radio
channels and work around with the Favorite, Lock, Delete, Move and Sort functions.
The Menu is very modern and supports different languages. All functions can be carried out
using the remote control and some of the functions can also be carried out using the front panel.
The PVR is easy to use and adaptable for future advances. Please be aware that new
software may change the functions of the PVR.
If you have any difficulties concerning the operation of your PVR, please refer to the
relevant section of this manual, including the ‘Troubleshooting’. This Manual will provide you
with useful information on using the PVR.
CONTENTS
Please ensure that the following items are included with the PVR.
1) Remote control unit
2) Batteries (size AAA)
3) User’s Guide (this document)
FEATURES
Fully Compliant to DVB.
Common Interface for Viaccess,Irdeto,Cryptoworks,Nagravision,Conax and Mediaguard.
55
Antenna/LNB control
- 22KHz mode On/Off
- 0/12V mode selection
- Automatic FEC Detection
- DiSEqC 1.0 & 1.2 compatible
Satellite/Channel support
- 3500 TV channels, 1500 Radio channels storable
Video/Audio
- Automatic PAL/NTSC selection
- Multi-lingual Audio support
- Automatic channel search
OSD (On Screen Display) support
- 256 color support.
- Multi-lingual menu text support.
- GMT and Time Offset support
- 10 favorite channel groups support
- Page Up/Page Down available on your channel list
- PIG ( Picture In Graphic ) support
Recording and playback
- Time shifting playback
- Recording by EPG
- Delayed Recording
- Fast and Slow Playback
- Bookmark
- Repeated Playback for selected interval
- Capable of editing recorded services
- About 12-25 hours recording capacity with a 40GB HDD
2 Tuners
- 2 Tuners for zapping while recording.
- 2 LNB inputs
- 2 RF signal loop through
- Independent LNB control
Teletext
- Software emulation mode with always VBI insertion mode on.
Embedded Conax ................................................................(
Games are embedded.
S/PDIF output (Digital Audio Output)
Embedded Conax model only)
66
FRONT / REAR PANELS
1) Front Panel
2)Rear Panel
LNB 1 IN
Connects the satellite antenna cable.
POWER ON
/STANDBY
LNB 2 IN
Connects the satellite antenna cable.
LED
TV / SAT
REMOTE
STANDBY
MENU
OK
CHANNEL
VOLUME
The channel buttons are to change channels.
The volume buttons are to change volume.
0/12V OUTPUT
Chooses the LNB on the antenna.
AUDIO-RIGHT OUTPUT
Audio output.(RED)
DISPLAY
During the STANDBY mode, the
current time is displayed.
When the power is on, the current status
is displayed (TV/ Radio/ Menu).
RF IN
Connects the TV.
RF OUT
Connects the TV RF IN (ANT IN).
RS232
Upgrades the PVR Program &
software
LNB 1 OUT
Use it to connect to
another PVR or LNB 2 IN.
LNB 2 OUT
Use it to connect to
another STB.
AUDIO-LEFT OUTPUT
Audio output.(WHITE)
VIDEO OUTPUT
Video output (YELLOW)
TV SCART
Connects the TV SCART
VCR SCART
Connects the VCR SCART
7
S/PDIF
Optical output for Digital
Audio
REMOTE CONTROL UNIT (RCU)
MUTE Button ( )
Enables/ Disables the Audio.
POWER Button ( )
Switches the PVR between Operation and Standby mode.
MENU Button (MENU)
Displays the Menu on screen or returns to
previous menu from submenu.
EXIT Button (EXIT)
Returns to the previous menu and the screen.
GUIDE Button (GUIDE)
Displays the EPG (Electronic Program Guide)
on screen only when available.
V+/V- Buttons (V+/V-)
Adjusts the volume (Increase/Decrease).
P+/P- Buttons (P+/P-)
Tunes to the next or previous service.
Services up or down through the available services.
OK Button (OK)
Displays Channel List on screen.
Selects an item in the menu.
Numeric Buttons (0~9)
Selects the TV or Radio service channels
and individual menu options.
RECALL Button ( )
Selects the previously viewed channel.
INFO Button ( )
Displays the program information box on
the screen and removes it.
TV/ Radio Button ( )
Selects the TV/Radio mode.
8
TV/SAT Button ( )
Changes the terrestrial TV and Satellite mode.
FAV Button (FAV)
Displays the favorite channel list.
SOUND Button ( )
Selects LEFT/RIGHT/MONO/STEREO
sound function.
SUBTITLE Button ( )
Selects the subtitle language list for the
current service.
TELETEXT Button ( )
Enables the teletext with software
emulation
SLEEP Button ( )
Displays sleep time. When sleep time,
the power automatically turns to the OFF
mode and the PVR to the STANDBY mode.
Button
Display the progress bar of time shifting or
playback when no progress bar is displayed.
Fast rewind when the progress bar is displayed.
Button
Playback with normal speed.
Button
Pause
Button
Fast forward or fast motion playback.
Button
Display recorded service list.
Button
Add or delete bookmark
Button
Go to the previous bookmark
Button
Display the recording or playback status.
Starts instant playback if time shifting is enabled.
UHF Button (UHF)
Displays and alters the UHF setting in menu.
Button
Slow motion playback.
Button
Stop playback or recording.
Button
Start recording
Button
Select the period for repeated playback.
9
INSTALLATION (Connection)
First, connect both the satellite antenna and the TV line to the PVR and switch the
power on.
In this manual there are some of the most common ways to connect the equipment:
TV, VCR and PVR.
There are several ways of connecting the PVR to the existing Audio/TV system.
We recommend one of the following setups.
If you have problems with your connections and need help, contact your dealer or
service provider.
1. Connection to TV, VCR and Hi-Fi
1-1) Connection to the TV with the SCART Cable.
Connect one end of the SCART cable to the
TV SCART socket on the PVR and the other
end to a SCART socket on the TV.
1-2) Connection to the VCR with the SCART Cable.
Connect one end of the SCART cable to the
VCR SCART socket on the PVR and the other
end to a SCART socket on the VCR.
10
1-3) Connection to the TV with the CINCH Cable.
Connect one end (3 connectors) of the CINCH
cable to the AUDIO-RIGHT (red),
AUDIO-LEFT (white) and the VIDEO
output (yellow) socket on the PVR.
Connect the other end (3 connectors) to the
AUDIO-RIGHT (red), AUDIO-LEFT
(white) and the VIDEO input
(yellow) socket on the TV or Hi-Fi.
1-4) Connection to the TV using the RF cable.
Connect a terrestrial antenna to RF IN socket
on the PVR.
Connect one end of the RF cable to the RF
OUT socket on the PVR.
Connect the other end to the ANT IN socket
on the TV.
2.Connection to the Antenna.
We recommend one of the following installation diagrams because of the LNB
specifications for selecting RF signal band by DC voltage and 22Khz tone.
If the PVR is installed with separated connection type, there is no restriction for
zapping while recording.
11
2-1) Installing the PVR with two separated Antennas.
Installing the PVR with two separated Antennas.
The Connection Type in LNB setting menu
should be set to Separated.
2-2) Installing the PVR with one Antenna.
The Connection Type in LNB setting menu
should be set to Loop Through.
Tuner 1 and 2 can receive the RF signal of
the same polarity and the same band.
2-3) Installing the PVR with one dual LNB Antenna.
The Connection Type in LNB setting
menu should be set to Separated.
12
2-4) Installing the PVR with two separated dual LNB
Antennas and DiSEqC switches.
The Connection Type in LNB setting
menu should be set to Separated.
3.Connection to the other Satellite Receiver.
Connect the satellite cable to the LNB IN socket
on the PVR. With other connector, connect the
LNB OUT socket on the PVR and the LNB IN
socket of the other PVR or STB.
13
GETTING STARTED
Press the Power button to operate the PVR from the STANDBY mode. Now, the
Info Box will appear for a given time and disappear. By pressing the button, the Info
Box will remain on the screen. The display time of the Info Box is adjustable under the
Installation menu of the Main menu.
If the current broadcast has EPG (Electronic Program Guide) with it, press the
button to see not only the current channel’s but also other channel’s EPG without
any time constraints. Also, press button to reserve and save the current service
and to watch the broadcast automatically when it starts.
IMPORTANT: Before taking charge of your new PVR, some important technical
settings are essential.
- First, press the MENU ( ) button on the RCU to make the Main Menu appear.
- Go to the LNB Setting menu under the Channel Search item of the
Installation menu and press button.
- The default PIN CODE is 0000.
- Choose the right parameters for Satellite Name, LNB Frequency, 22KHz, 12 V,
DiSEqC 1.0, and Motorized System according to your LNB and satellite settings.
If the right Satellite Name and LNB Frequency were not found in the list, call the
dealer for satellite information.
- Then, press the MENU ( ) button and go back to the Channel Search
menu.
- Set the Search Mode to the Auto mode. (A Manualor Advanced Search
can always be performed later on)
- Select the Start Search... item and press button.
- The search procedure will take a while. Press button when the searching
process is over (100%) to confirm and save the new channel list.
- For further information, please refer to the LNB Setting item of the MENU
OPERATIONS on this manual.
14
Function Guide
Information Box
Press button on the RCU to see the program
information. The Information box displays as follows:
. Channel Number
. Channel Name
. Detailed Program Information
. Signal Level & Quality
. Satellite Information
. Information of subtitle and / or teletext
By using , buttons, you can see the EPG of next event. To change volume level in this
mode, press , buttons without no interval.
Press button once more, you can see the extended infomation of the current program.
To remove info box, press button once more.
EPG (Electronic Program Guide)
To use currently showing TV, and Radio services
as well as to use next program schedules,
press button on the remote control unit.
If EPG is available on programs, you will see
the detailed description of the programs, start/end
time and programs schedules etc. , and
, buttons will be used to move program and
to see next program schedules. The button makes the reservation for the next program.
button shows extended information of the current program.
button will change the contents of EPG between TV and Radio services.
15
Subtitle
You can choose a language of subtitle using button
on the RCU.
If a broadcaster provides subtitles, you can see
symbol in the Information Box.
Teletext
If a broadcaster supports teletext, you can see symbol in the Information Box.
There are VBI insertion mode and software emulation mode in teletext.
In the VBI insertion mode, which is always on, you can watch the teletext with your TV
using the RCU of your TV. To watch teletext with VBI insertion, your TV must support
teletext.
In the software emulation mode, you can watch the teletext even though your TV does
not support teletext. You can watch the teletext using the RCU of PVR.
Press Teletext ( ) button to watch the teletext with software emulation mode.
Press Teletext ( ) button or EXIT( ) button to escape from teletext.
Soundtrack
You can choose a language of soundtrack using
button on the RCU when a broadcaster supports
various languages of soundtrack.
Also, it is possible to choose a mode among
Stereo,
Mono, Leftand Rightusing the , buttons
on the RCU.
16
MENU OPERATIONS
Now this chapter assumes that the PVR system has been installed correctly,
meaning:
* The satellite dish for the PVR has been installed, connected to the PVR and
correctly adjusted to the proper satellite.
* The PVR is connected to the TV.
* The RCU has batteries and ready to control the PVR.
If the PVR has not been installed or connected properly, please refer to the
INSTALLATION (connection) menu on this manual.
Many of the functions of the PVR are available from the Main Menu. Press the
button to open it.
The Conax Conditional Access menu is valid for Embedded Conax model only.
This menu allows you to view the information on the Smart Card and Conax
Conditional Access System. ............................( Embedded Conax model only)
17
I. SYSTEM SETTING
I-1 TIME SETTING
Various time modes can be set, such as the current local time, the Power
On/Off time and the Sleep Time. The exact local present time can be adjusted
by using the GMT, the Time Offset and the Mode sub menus.
PLEASE NOTE: Configure the Local Time before adjusting the Wakeup
Time,Power Off Time or the Sleep Time.
18
A. Local Time Setting
Press button at Local Time Setting item in the Time Setting menu to open the
Local Time Setting menu. Inside the Local Time Setting menu, there are 4 sub
menus: Mode, Local Time, GMT and Time Offset.
Mode
By using the , buttons,you can control the Auto/Manual mode. The Auto
mode automatically updates the time settings by adding the GMT received from the
satellite and the Time Offset value you have inserted. The Automode is recommended.
Local Time
The Local Time is adjustable only when the Mode is on the Manual mode.
Adjust the current time, if necessary, by using the numeric buttons and the ,
buttons.
GMT
GMT is referred to the standard time of Greenwich. This cannot be changed.
Time Offset
The current time of the local area can be inserted. In another words, insert the
time difference of the local time zone from the GMT. For example, if the local area is
Seoul (the time difference from the GMT being 9), insert 9:00. The time is
adjustable by using the , buttons,15 minutes at a time.
19
B. Timer
Use the , buttons to select the On/Offmode. If the Timer item
is set to On, the Wakeup Time item, the Wakeup Channel item and the
Power Off Time item becomes adjustable.
C. Wakeup Time
The Wakeup Time item sets up the time the PVR automatically turns
on. Insert the preferable Wakeup Time by using the numeric buttons and the
, buttons on the RCU. To disable the wakeup funtion, make the Timer
item Off.
D. Wakeup Channel
The Wakeup Channelitem automatically turns the PVR to the preset
channel when it automatically turns on by the Wakeup function.
20
E. Power Off Time
The Power Off Timemenu sets the time of the PVR automatically turns off.
F. Sleep Time
The Sleep Time item is similar to the Power Offmenu. The Sleep
Timefunction turns off after the adjusted sleep time.
21
I-2. PARENTAL CONTROL
The age rating control, the PIN(Personal Identification Number) Code and the
passwords to various menus can be configured. The PIN Code box will
automatically appear when this menu is selected. The default PIN Code is 0000.
A. Censorship
The Censorship item blocks programs according to each specific setting.
Use the , buttons to select the items below.
No Block: Access to everyone.
4~18(age): Inaccessible for viewers within each minimum age limit.
Total Block: Access to no one.
If the channel is limitation free, the block function will not work.
B. Change PIN Code
Go to the PIN Code item to configure new PIN Code. Press button, and a
box will appear on the screen. Enter the PIN code by using the numeric buttons on your
RCU.
22
C. Access Control
The Access Control menu controls access to 6 items: Time Setting,
Language Setting, A/V Output Setting, Organizing Channels,
Organizing Favorites and Installation. Press the , buttons to
Lock/Unlock the access. Lockingmeans controlling the access to specific
menus with the PIN Code system. The default PIN Code is 0000.
23
I-3. LANGUAGE SETTING
There are many languages available for the menu. The default language is
English.
A. Menu Language
It is an item for changing the language of the Main menu.
Select the language which the menus will be shown in.
[English / French / German / Italian / Spanish / Arabic / Greek / Turkish /
Danish / Swedish / Norwegian]
B. Subtitle Language
It is an item for changing the language of the subtitle.
As long as the services support, the subtitle language is changeable by
pressing button on your RCU.
[English / French / German / Italian / Spanish / Arabic / Greek / Turkish /
Danish / Swedish / Norwegian]
24
C. Audio Language
It is an item for changing the language of the Audio.
The first audio language is set to English. If more than one audio language is
transmitted, you may select one language among several languages transmitted
by pressing button.
[English / French / German / Italian / Spanish / Arabic / Greek / Turkish /
Danish / Swedish / Norwegian]
I-4. A/V OUTPUT SETTING
The PVR has many A/V Outputs. Control this menu properly according to external
components connected to the PVR. Configurations concerning Audio and Video can be
made here.
A. TV Type
Enables the setting of the TV standard. For automatic PAL/NTSC selection, set to
Multi.
B. TV Aspect Ratio
Enables the setting of the screen format of the TV. Select 4:3 or 16:9 mode by
using , buttons.
25
C. Display Format
Enables the setting of the screen format of the TV. Select the Letter Box
or Center extract mode of 16:9 pictures by using , buttons.
D. Sound Mode
Allows you to configure the sound mode. Select the Stereo, Mono, Left and
Right modes by using the , buttons. The Sound mode is configurable later
on by using the button on your RCU.
E. UHF Type
Allows you to change the UHF Type. Select the PAL G, PAL I, PAL K modes
by using the , buttons.
F. UHF Channel
Choose the UHF Channel by using the , buttons. The default UHF channel
is CH36.
I-5. OSD Transparency
Adjusts the OSD transparency level of all kinds of menus. The available levels
are ranging from 0% to 50%.
26
I-6. Info Box Display Time
Adjusts the time-out of the Info Box. Sets the period of time the Info Box is displayed on screen.
The adjustable time is from 0 to 30 seconds.
I-7. Info Box Position
Adjusts the position of the Info Box. Allows you to change the position by using the
, buttons.
27

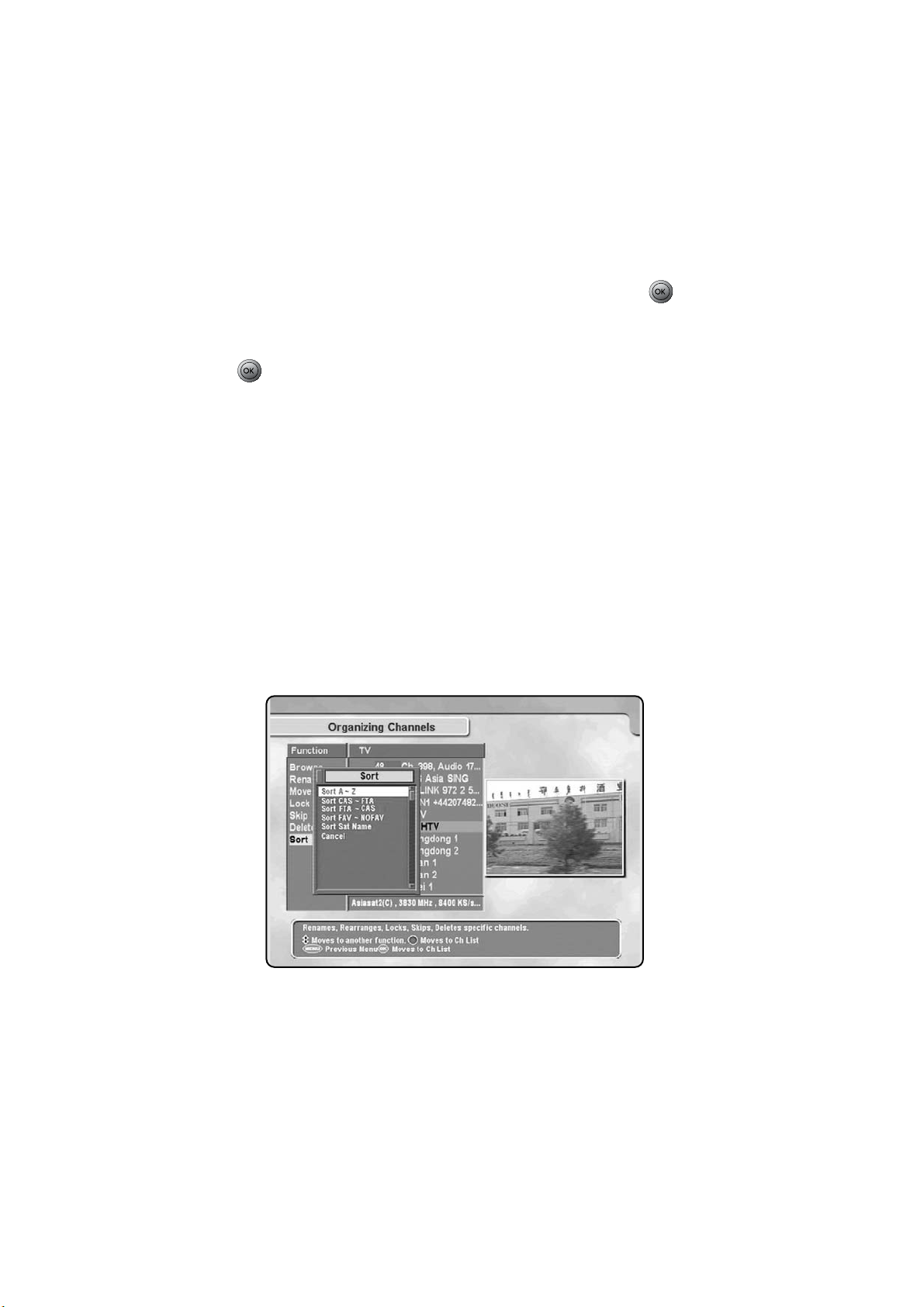

II. ORGANIZING CHANNELS
This mode can be used to rename, reorder, lock, hide and delete TV Services.
A. Browse
Press button. Now, browsing through the Organizing Channels is possible.
Press assigned buttons on the help message.
B. Rename
Use , buttons to select Rename item and press the button to move
the cursor to the Channel List. Press button to display keyboard, and rename
the channel. After renaming it, be sure to save it by pressing the button at Save
item.
C. Move
You can reorder and move the service to the preferred position. Mark the desired channel
to move and press button. Use , buttons to choose the Move mode.
D. Lock
You can restrain and lock the services. From here, locking (and later unlocking)
channels in any of the lists is possible e.g. in order to prevent children from watching
it. If a locked service is selected, enter the PIN code in order to enjoy it.
28
E. Skip
You can hide and skip the services. In order to unlock the skip function, press button
on the skipped channel. The skipped channels will not be visible on channel list.
F. Delete
Press button to delete channels. The delete function differs from the skip
function as it deletes the channel completely. Whereas, the skip function just makes
the channel invisible.
NOTE: Deleted channels are permanently deleted. The only way to reobtain
is to perform a new channel search.
G. Sort
You can sort and rearrange the sequence for the services.
29

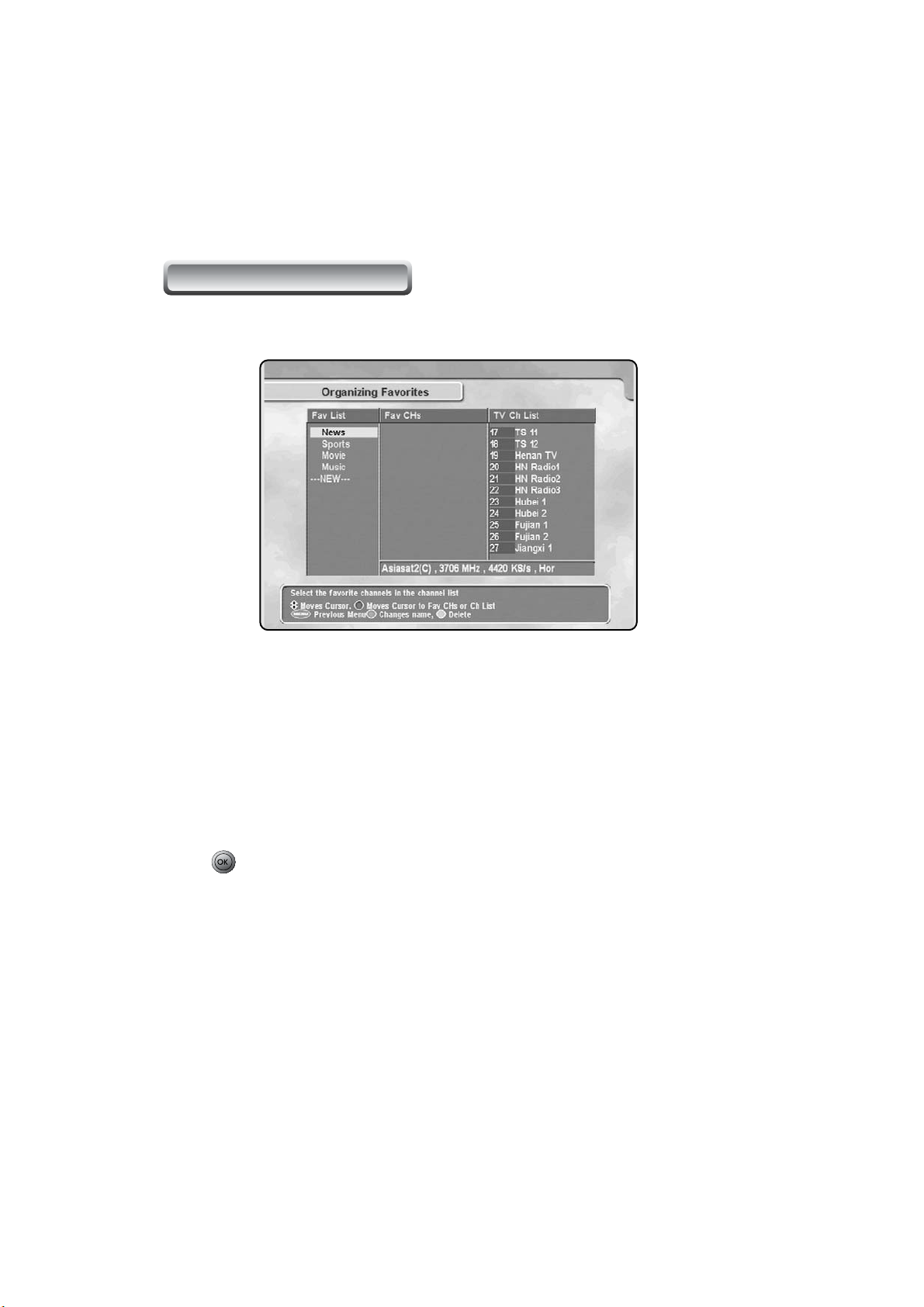

III. ORGANIZING FAVORITES
This mode is helpful in adding and deleting services to and from the favorite
group.
Under the menu Organizing Favorites, there are three different modes:
Fav List , Fav CHsand Ch List. On the Fav List mode, four standard lists are
selected as the default menus: News, Sports, Movie and Music. Up to 10 lists
including these lists can be added and renamed.
When deleting a service, select a service in the Fav CHs section and press the
assigned button on the help message.
To add services into Favorites, locate the cursor to the desired service and press
button.
Even in the Favorite CHs, you will see basic satellite & Channel information.
30
IV. Recording
This menu shows some options for recording.
IV-1. Satellite
Press button to display the satellite list. Select a satellite that includes the channel to
be recorded.
IV-2. Channel
Press button to display the channel list. Select a channel to be recorded.
IV-3 Mode
There are two recording modes.
To record the selected service immediately, select the Quick mode.
To record current event including the data of the time shifting buffer, select Current Event
mode. The Current Event mode is valid only when the event information of the channel
exists.
IV-4. Duration
To change the duration of the recording time, press or button.
31
IV-5. File Name
To change the file name of the service to be recorded, press button at this item.
IV-6. Start
To start recording, press button at this item.
IV-7. Stop
To stop recording, press button at this item.

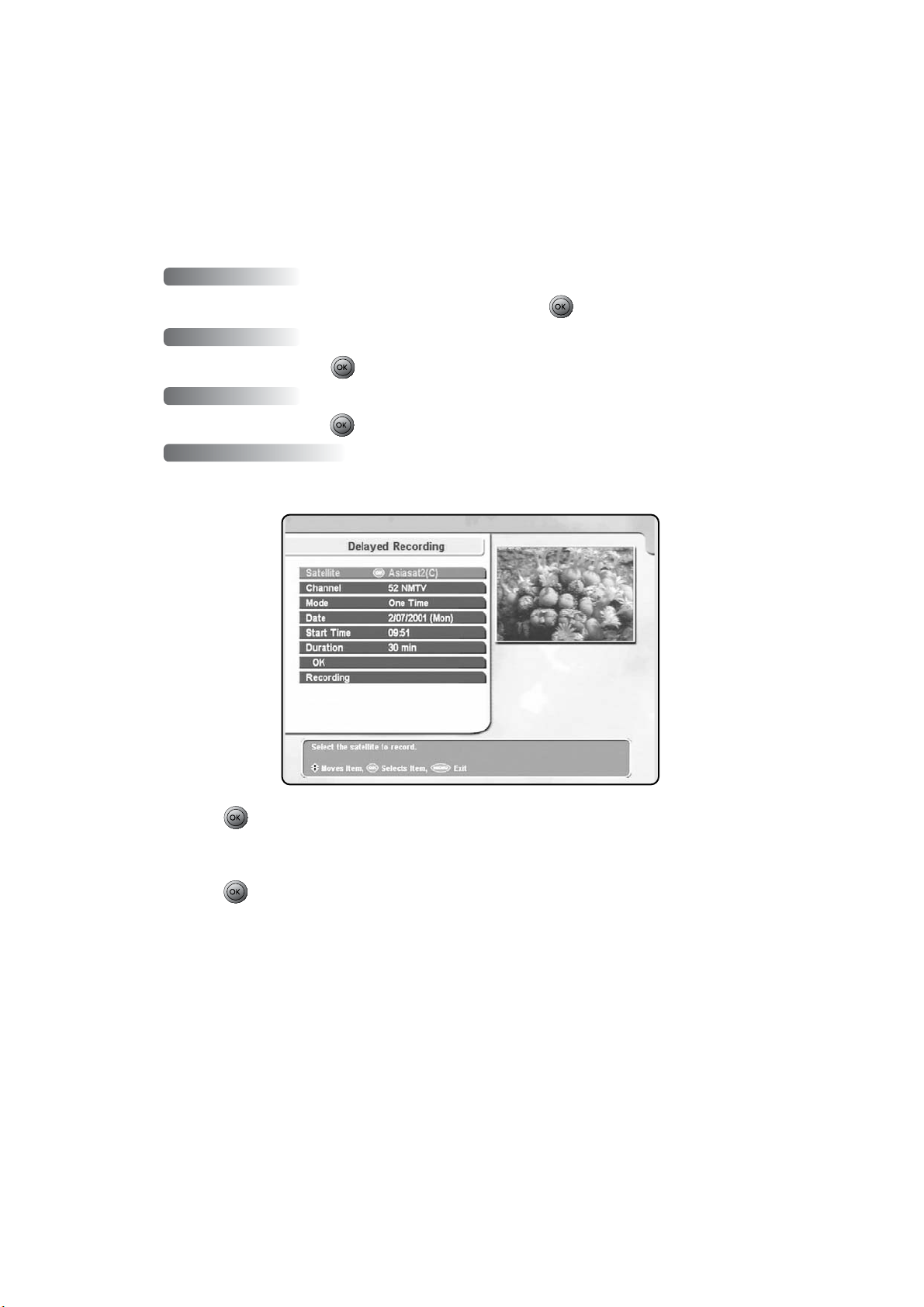

IV-8. Delayed Recording
In this menu you can reserve delayed recording.
A. Satellite
Press button to display the satellite list. Select a satellite that includes the
channel to be recorded.
B. Channel
Press button to display the channel list. Select a channel to be recorded.
C. Mode
There are 3 or 4 different modes.
Select One Time to record the channel only once.
Select Every Dayto record the same channel at the same time of every day.
Select Weekly to record the same channel at the same time on the same weekday.
Select Every Weekendto record the same channel at the same time on every
weekend. This menu is enabled when the Date menu is set to Saturday or Sunday.
32
D. Date
To change the recording start date, press or button.
E. Start Time
To change the recording start time, press or button or enter the time using the
numeric buttons
F. Duration
To change the recording duration, press or button.
G. OK
To confirm the setting for the delayed recording, press button.
Be sure to confirm it if you want to register the current setting for delayed recording.
IV-9 Edit Reservation
In this menu you can check, edit and cancel the delayed recordings.
A. List
Press button to display the reserved list. Select one of the reserved items.
B. Channel
This item displays the channel name to be recorded.
C. Date
This item displays the recording start date.
33
D. Mode
There are 3 or 4 different modes.
Select One Time to record the channel only once.
Select Every Dayto record the same channel at the same time of every day.
Select Weekly to record the same channel at the same time on the same weekday.
Select Every Weekendto record the same channel at the same time on every
weekend. This menu is enabled when the Date menu is set to Saturday or Sunday.
E. Start Time
This item displays the recording start time.
F. Duration
This item displays the recording duration.
G. Save
This item enables you to save the reservation.
H. Cancel
To delete the registration of the selected delayed recording, press button at this item.
I. Recording
To go to the Recording menu, press button at this item.
V. HDD Service
You can use this menu to manage the HDD and the functions related to the HDD
34
V-1. Delayed Recording
Refer to IV-8. Delayed Recording.
V-2. Edit Reservation
Refer to IV-9. Edit Reservation.
V-3. Format Hard Disk
To format the HDD in PVR, press button at this item.
Format Hard Disk will delete all the data and the files in HDD permanently.
If a new HDD is installed, it should be formatted by this PVR. The file structure of the
PVR is different from that of PC.
You cannot use the Time shifting, Recording and Playback functions with an
unformatted HDD.
V-4. Time Shifting
To enable time shifting function, select Enable.
If the Time Shifting is enabled, this PVR records the current channel in normal play.
And, you can take advantage of the time shifting function.
To disable time shifting function, select Disable. If you don’t want to use time shifting
function, disable the time shifting to reduce the power consumption.
VI. INSTALLATION
35
VI-1. LNB Setting
The Low Noise Blockdown Converter (LNB) amplifies the signal received by
the satellite dish and lowers the frequency of the signal. The signal is then fed from
the LNB at the dish via cable to the PVR.
For the LNB Settings, move the cursor to Installation item and press button.
Then, move the cursor to the LNB Setting item and press button.
A. Satellite Name
Press the button to display the Satellite List. The Satellite name list is put in
alphabetical order. Select one of the preprogrammed satellites that correspond to the
value of the antenna. If the desired satellite name is not in the list, then select Others.
B. Tuner Select
Select a tuner for channel searching from the selected satellite.
C. Connection Type
If two tuners share one LNB as the diagram 2-2) on page 12, select Loop Through.
If a service is being recoded, the other tuner can receive only the signal of the same band
and polarity as being recorded in this configuration.
If the tuners are connected to separated LNBs (or Dual LNB), select Separated.
There is no restriction as in the Loop Through configuration.
D. LNB Frequency
Select the L.O. Frequency set to antenna. The LNB Frequency of 5150, 9750,
10600, 10750, 11475 MHz or Universal can be selected by using the or button.
36
NOTE: If the Universal LNB is selected, both 9750 and 10600 MHz are
supported at the same time, and therefore the 22 KHz tone setting
is not required.
E. LNB Power
Select LNB power ‘ On’ for internal and ‘ Off ’ for external.
F. 22 KHz
If you are using a 22 KHz tone switch box, make 22 KHz tone switch enable or disable
to select LNB or antenna.
G. 12V
Use it if the switch box is controlled by 12V DC.
H. DiSEqC 1.0
The PVR is designed to be DiSEqC 1.0 compatible. This allows multiple antennas to be
connected to the PVR at the same time. If you are using two or more fixed antennas or
LNBs, then it is recommended to use a DiSEqC 1.0 switch.
Select from 1 of DiSEqC to 4 of DiSEqC, Mini A, Mini B or Disable
according to the option or the configuration of DiSEqC switch box or antenna.
I. Channel Search
To go to Channel Search menu directly from LNB Setting menu, press
button at this item.
VI-2. Channel Search
37
A. Satellite Name
Press the button to display the Satellite List Box. The Satellite name list is put in
alphabetical order. Select one of the preprogrammed satellites that correspond to the value
of the antenna. If the desired satellite name is not in the list, then select Others.
B. Search Mode
There are 4 search modes, Auto, Manual, Advanced and SMATV. The Auto
mode enables to search using the information the PVR has. On the other hand, there
will be a need to know in advance the frequencies and the symbol rates before using the
Manual mode. On the Advanced mode, enter the Audio PID, Video PID or the PCR
PID. The SMATV mode is used to special purposes on satellite master antenna TV
system.
C. Frequency
Enter the Transponder’s Frequency by using the numeric buttons on your RCU.
D. Symbol Rate
Enter the Transponder’s Symbol Rate by using the numeric buttons on your RCU.
E. Polarization
Choose the type of polarization, either the Horizontal or the Vertical.
F. Network Search
This Network Search item can be used if the Search mode is set to the
Manual or Auto mode. If the Network Search item is set to Onand the NIT
(Network Information Table) is available, the Transponder’s information can be found.
G. PID
Press button to enter Video,Audio and PCR PID’s.
1) Video PID
Insert the Video PID by using the numeric buttons on your RCU.
2) Audio PID
Insert the Audio PID by using the numeric buttons on your RCU.
38
3) PCR PID
Insert the PCR PID by using the numeric buttons on your RCU.
4) SAVE
To ensure the above Video,Audio and PCR PID change, press button at this item.
H. FTA/ Scrambled
Choose your favorable channels among FTA only, CAS only and FTA+CAS.
I. Tuner Select
Select a tuner for channel searching from the selected satellite.
J. Start Search...
Searches for digital channels after the configuration of the LNB is over. To stop the
searching process on the way, press either the button or the button.
This menu will be shown as long as the PVR is searching for channels. All channels
found will be listed in two columns on the screen; with TV channels in one column and
Radio channels in the other. Please note that the search procedure may take a few minutes.
When the search procedure is completed, the screen will show how many TV and Radio
channels have been found. Press button to save the channels.
K. LNB Setting
To go to LNB Setting menu directly from Channel Search menu, press
button at this item.
39
VI-3 . Service Copy
This item enables you to copy the service list of one tuner to that of the other.
A. Tuner 1 to Tuner 2
Copy the service list of Tuner 1 to that of Tuner 2.
B. Tuner 2 to Tuner 1
Copy the service list of Tuner 2 to that of Tuner 1.
C. All
Add the service list of Tuner 1 and Tuner 2 and save it to that of Tuner 1 and Tuner 2.
VI-4 . Motorized DiSEqC 1.2
If you have DiSEqC 1.2 motorized system, then you can use the DiSEqC 1.2 functions.
. Satellite Name
A selection of satellite names that will be used to identify a motor position.
. Tuner Select: Select a tuner for channel searching from the selected satellite.
. Frequency: Selects the frequency to catch the strong signal.
. DiSEqC Command Mode : Change the current mode between User and Installer
modes.
-User: This mode is used to fine-tune the position of the motor for better reception.
-Installer: This mode is used to search for the position of a satellite manually.
. Movement: In case of User mode, the movement is adjustable by fine-tuning.
In case of Installer mode, the movement is adjustable by East , West going
command.
40
. Motor Control
- Goto : Moves the motor to the stored position of the selected satellite.
- Store : Stores the current position of the motor for the selected satellite.
- Reset : Resets all stored position of the motor relative to the “0” position (Installer
mode only).
- Recalculate : Recalculates the position of the Stab Rotor motor.
- Limit E , Limit W: Limits east and west position.
- Limit Off : Removes the limitation.
- Goto Ref: Goes to reference.
. Channel Search: After saving the DiSEqC configuration at the highest signal quality,
press button to start channel searching of the selected satellite.
VI-5. SAT/Tp Edit
A. Satellite Name
By pressing button, you can see the listed satellite names.
Then, using , , or buttons, you can select satellite.
B. Frequency
By pressing button, you can see the all frequencies of transponders of a satellite,
and also you can select a frequency. Or, by pressing , , or buttons,
you can select and view a frequency one by one.
C. Symbol Rate
You can see the symbol rate of the specified satellite on the right side of the menu.
41
D. Polarization
You can select the polarization from Horizontal and Vertical.
E. SAT Name Edit
You can change the name of the satellite by this menu.
Press button to display a keyboard. There are several items such as Other, Save
and Space in the keyboard.
By selecting Other item, you can see a new alphabet character sets. The Space item
means a space between two characters. And the Save item is used to confirm the new
name of the satellite.
Notes: You can move the cursor in the satellite name row by or and column
by or button.
F. Add New TP
In case of new transponder information is added by broadcaster, you can add new
TP(transponder) information and enjoy new services.
Before adding new TP information, you should know the frequency, symbol rate and
polarization types.
After adding new information, you should confirm the new information by pressing
button at OK item.
G. Delete TP
By selecting this item, you can delete the selected TP (Transponder) information.
H. Add Satellite
Using this menu, you can add new satellite name by keyboard, then it will be added in
the Satellite Name menu.
I. Delete Satellite
By selecting this item, you can delete the selected satellite information.
J. Channel Search
It is used to go to Channel Search menu directly from SAT/Tp Editmenu.
42
VI-6. Factory Setting
All the stored data can be reset just like it was manufactured.
VI-7.Transfer Program to Other PVR
It is used to transfer PVR program to other PVR for upgrading the PVR.
Notes: Please proceed this menu with connecting the PVR of same model and
same specification.
VI-8.Transfer Data to Other PVR
It is used to transfer PVR Data such as satellite/TP information to other PVR for
upgrading the PVR.
Notes: Please proceed this menu with connecting the PVR of same model and
same specification.
43
VII. INFORAMTION
You can check the PVR version and refer the calendar.
VII-1. PVR STATUS
Check the PVR’s system information. It shows the PVR’s:
v System ID
v Loader Version
v Device Version
v Application Version
v Last Update
44
VII-2. CALENDAR
Press the or button to select the year. Press the or button to select
the month.
VIII. COMMON INTERFACE
The menu differs according to each inserted CAM. If the module has not been
installed yet, the phrase ‘Not Installed’ will be accordingly indicated.
45
IX. GAME
IX-1. ExBlock
IX-2. Poker
46
IX-3. Bricks Lay
IX-4. Bomb Hexa
47

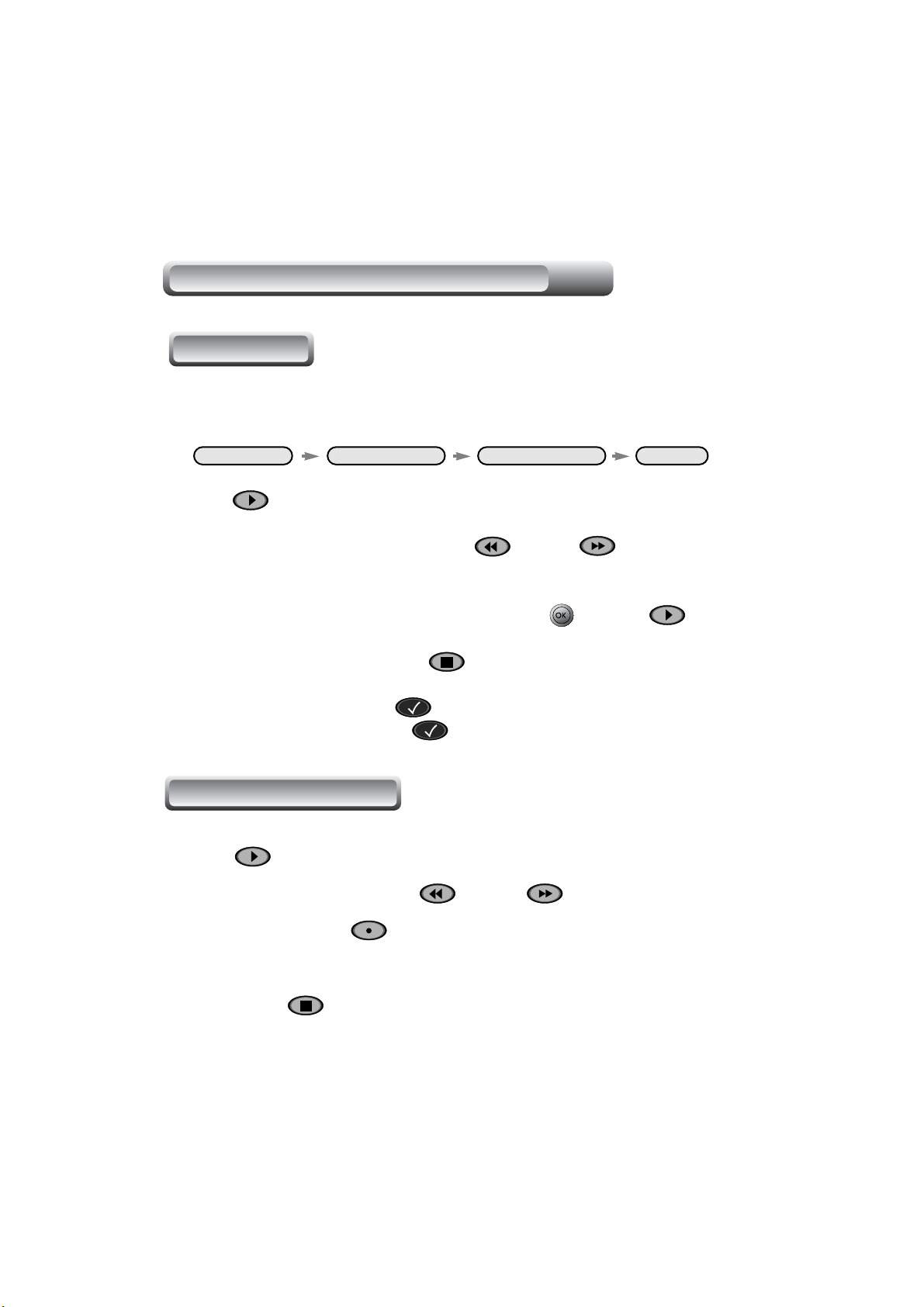

HOW TO RECORD AND PLAYBACK THE PVR
Time Shifting
1. To enable Time Shifting, the Time Shifting option should be enabled.
To find the Time Shifting option menu, follow the steps below.
Main Menu HDD Service Time Shifting Enable
2. Press button to display Time Shifting progress bar.
3. To go to the desired playback position, press button or button. This function
is valid while the Time Shifting progress bar is displayed.
4. To remove the Time Shifting progress bar at once, press or PLAY( ) button.
5. To play the live video, press STOP( ) button.
6. To start Instant Playback, press button. The start position of the playback goes 10
seconds back per each pressing of button.
Recording while Time Shifting
1. Press button to display Time Shifting progress bar.
2. To go to the desired position, press button or button.
3. Press RECORDING ( ) button to start recording.
4. The recording will be started from the selected position.
5. Press STOP( ) button to stop Time Shifting.
48
6. Press STOP ( ) button again to stop recording.
Caution : If the recording time is less than about 1 minute, recording will not be done
successfully.
Recording, Checking and Editing reserving
To record services, refer to the following steps. There are four kinds of recording references.
Caution : If the recording time is less than about 1 minute, recording will not be done
successfully.
1.Immediate Recording by RECORDING ( ) button
a. Recording
Press RECORD( ) button to record the channel you are watching.
To specify the stop time, go to Recording menu and modify Duration item.
To go to the Recording menu, press RECORDING ( ) button once more.
b. Checking
A Recording Icon ( ) will be displayed on the upper rightmost of the TV screen
if the recording is in progress. For more information, press CHECK( ) button
or INFORMATION ( ) button.
c. Stop
Press STOP( ) button and select Yes to confirm the immediate stop.
49
eferences.
ne
m.
more.
2.Immediate Recording by Menu Selection
a. Recording
To go to Recording menu, press button and select Recording item by
pressing button.
Select the options that you want to record with. Select Start item and press button.
For detailed information, refer to the explanation of Recording menu in Menu
operations.
b. Checking and modification
A Recording Icon ( ) will be displayed on the upper rightmost of the TV screen if the
recording is in progress. For more information, press INFORMATION ( )
button or CHECK ( ) button.
To check and modify the recording options, go to Recording menu.
c. Stop
Press STOP ( ) button and select Yes to confirm the immediate stop.
Otherwise, go to Recording menu and press button at Stop item.
3. Delayed Recording
screen
) button
p.
a. Recording
Go to Recording menu and press button at the Delayed Recording item.
Set the options that you want to record with. Press button at OK item.
For detailed information, refer to the explanation of Recording menu in Menu
operations.
b. Checking
To check the reserved recordings, go to Edit Reservation menu of Recording
menu.
c. Canceling
To cancel the reserved recording, go to Edit Reservation menu of Recording
menu. Press button at Cancel item.
50
4. Recording by EPG
a. Recording
Press GUIDE( ) button to display EPG. Select a service that you want to record,
and press RECORDING ( ) button. Instead of RECORDING ( ) button,
two times pressing of button is valid for delayed recording.
The Recording mark ( ) will be displayed.
b. Checking
Press GUIDE( ) button to display EPG. The reserved services for delayed
recording will be marked with a Recording mark( ).
c. Canceling
Press GUIDE( ) button to display EPG.
To cancel a reservation of delayed recording, select the service you want to cancel and
press RECORDING ( ) button again. Instead of RECORDING ( )
button, button is valid. The Recording mark ( ) will disappear.
Playback a Recorded Service
1.Press the red button( ) to display the recorded service list.
2.Select a recorded service at the list.
3.Press button to start playback.
Stop
1.To stop playback, press STOP( ) button.
2.This function is available for playback.
51
Pausing
To pause the picture or playback, press PAUSE( ) button.
Press PAUSE( ) button or PLAY( ) button to quit pausing.
1. Pausing from live video
If the PAUSING is kept more than 5 seconds with enabled Time Shifting mode, the
play mode is changed to time-shifted playback. The video continues from the paused
image when resumed from PAUSING.
2.Pausing from Time Shifting
The video continues from the paused image when resumed from PAUSING.
3. Pausing from Playback
The video continues from the paused image when resumed from PAUSING.
Slow Motion Playback
1. To playback in slow motion(without sound), press the SLOW ( ) button.
2. Slow motion speed can be adjusted by pressing the SLOW ( ) button
repeatedly.
3. There are 7 steps in slow motion playback.
4. Press PLAY( ) button to resume playback with normal speed.
5. The slow motion function is available for the playback and the time-shifted playback.
52
Fast Motion Playback
1. If there is a Time Shifting or Playback progress bar, remove the progress bar by
pressing PLAY( ) button.
2. Press button for fast motion playback. To change the playback speed, press
button repeatedly.
3. There are 4 steps in fast motion playback.
4. Press PLAY( ) button to resume playback with normal speed.
5. The slow motion function is available for the playback and the time-shifted playback.
Fast Forwarding and Rewinding
1. Press button to display Time Shifting or Playback progress bar.
2. To go to the desired playback position, press button or button. This function
is valid while the progress bar is displayed.
3. To remove the progress bar at once, press button.
Reverse Playback
1. Press button to display the Time Shifting or Playback progress bar.
2. To rewind with motion, press button without the progress bar.
The reverse motion is not so much smooth as fast motion playback because of the
limitation of the characteristics of MPEG signal.
Sometimes you may encounter the message The service is not running.. on the
reverse playback of scrambled data. The message will be disappeared in a few
seconds.
53
Bookmark
You can jump to a position directly by bookmark function in playback and time-shifted
playback.
To search positions very quickly and easily, use bookmarks.
1. Adding a bookmark
To add a bookmark, press BOOKMARK ( ) button at the position you want to
add it.
2. Going to a bookmark
Press GO TO BOOKMARK ( ) button to jump to the previous bookmark.
Then, the PVR plays from the book marked position.
3. Deleting a bookmark
To remove a bookmark, select the bookmarked position by GO TO BOOKMARK
( ) button and press BOOKMARK ( ) button.
4. 30 sencods forward
If there is no bookmark, the PVR plays every 30 seconds forward by pressing
BOOKMARK ( ) button.
Recording The Descrambled Live Service
1. Select the live video you want to record. Descramble the service with a proper
CAM and smart card. The live service should play well with the proper CAM
and smart card.
2. Start recording according to the recording procedure.
3. During recording, don’t change the channel neither try the time shifting function.
Caution : If there is any disturbance such as channel changing or time shifting during
recording, scrambled service will be recorded.
If the recording time is less than about 1 minute, recording will not be done
successfully.
54

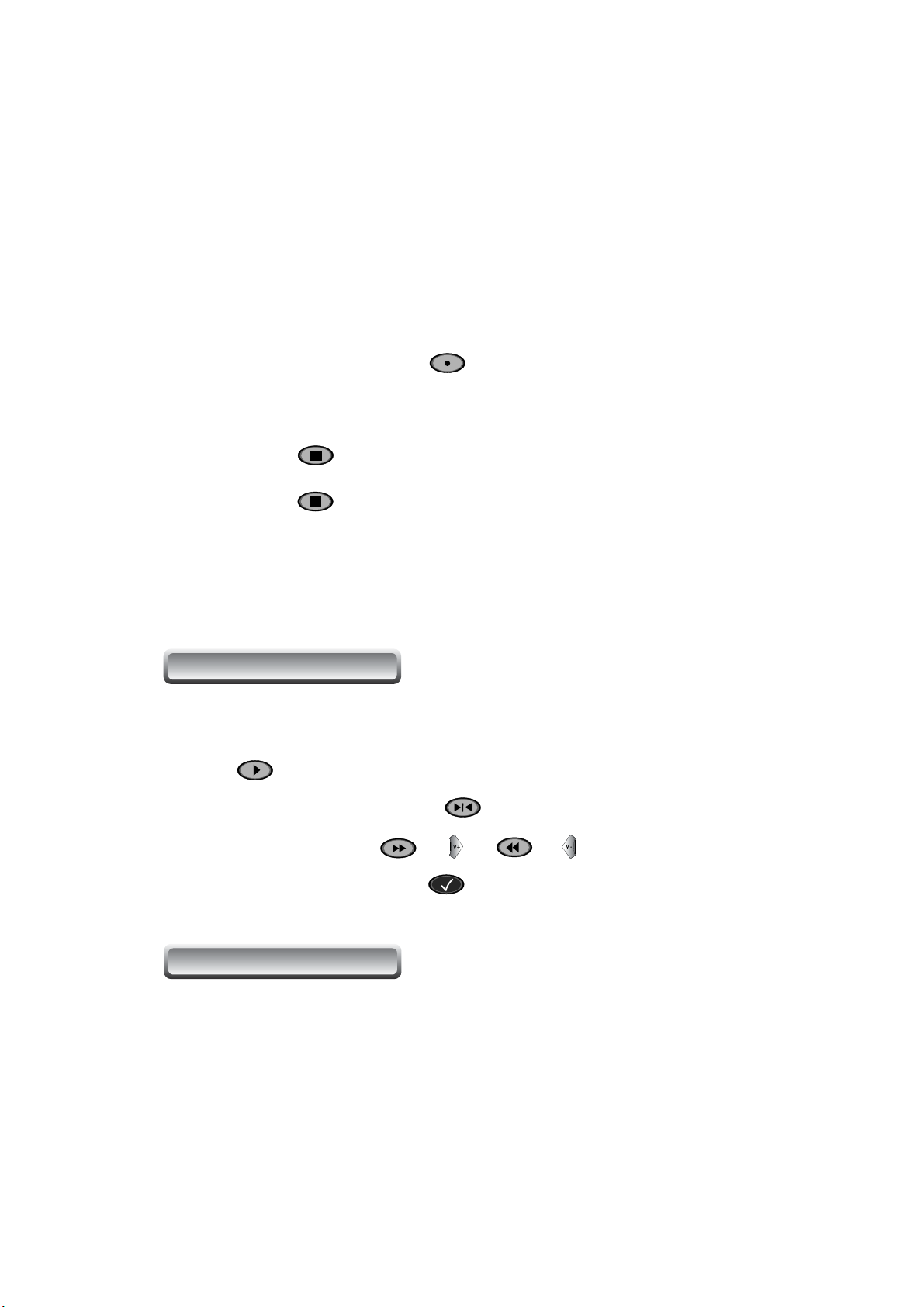

Descrambling Services
1. Select and play back a service you want to descramble. Descramble the service with a
proper CAM and smart card. The live service should play well with the proper CAM and
smart card.
2. Press button to display Playback progress bar.
3. To go to the desired position, press button or button.
4. Start playback. The video should be descrambled with a proper CAM and smart card.
The fast/slow motion descrambling is possible by fast/slow motion playback.
5. Start recording by RECORDING ( ) Button.
6. The video displayed on TV will be recorded.
7. Press STOP ( ) button to stop recording.
8. Press STOP ( ) button again to stop playback
Caution : If the descrambling time is less than about 1 minute, descrambling will not be
done successfully.
Copying from Recorded Service
1. Select and play back a service to copy it.
2. Press button to display Playback progress bar.
3. To go to the desired position, press button or button.
55
4. Start playback the recorded video you want to copy.
The fast/slow motion copying is possible by fast/slow motion playback.
5. Start copying by RECORDING ( ) Button.
6. The video displayed on TV will be copied.
7. Press STOP ( ) button to stop copying.
8. Press STOP ( ) button again to stop playback
Caution : If the copying time is less than about 1 minute, copying will not be done
successfully.
Cut Out Selected Region
1. Start playback a recorded service.
2. Press button to display Playback progress bar.
3. To specify one end of region, press the button with the progress bar.
4. Move the cursor by pressing (or ) or (or ) button.
5. To cut out selected region, press the button once more.
Time Shifting while Recording
During recording, Time Shifting is possible only in the recorded channel.
56
Zapping while Recording
1. With Separated mode in LNB setting menu.
For the tuner being recorded with, all the channels in the same TP can be selected.
For the other tuner, all the scanned channels can be selected.
2. With Loop Through mode in LNB setting menu.
For the tuner being recorded with, all the channels in the same TP can be selected.
For the other tuner, all the channels of the same polarity and the same band as being
recorded channel can be selected.
Repeat mode
The repeat mode works only in playback mode. It does not work in time shifting mode.
There are two repeat modes.
1. Repeating the whole selected service.
a. Start playback a recorded service.
b. Press button without the progress bar to repeat the whole selected service.
c. Press button once more to cancel the repeating playback.
2 Repeating the selected region.
a. Start playback a recorded service.
b. Press button to display Playback progress bar.
c. To specify one end of region, press the button with the progress bar.
d. Move the cursor by pressing (or ) or (or ) button.
e. To specify the other end of region, press the button once more.
f. Press button once more to cancel the repeating playback.
57
TROUBLESHOOTING (Q & A)
Problem Possible Causes What to do
Nothing appears on the
Front Panel.
No sound or picture, but
the front panel shows the
time or -- : --
No Picture, No Sound.
The Remote Control Unit
(RCU) is not working.
You have forgotten your
secret PIN Code.
Time Setting is wrong.
The main power cable
is not connected.
PVR is in standby mode.
The satellite dish is not
pointing at the satellite.
No Signal or Weak Signal.
LNB is faulty.
The UHF Button is
pushed down .
No Batteries.
The RCU is incorrectly
aimed.
The PVR is in standby
mode.
The Time is not set properly.
Check that the main power
cable is plugged into the power
socket.
Turn the power ON.
Adjust the dish.
Check the settings in one of
the channel search submenus.
Check the cable connections.
Replace the LNB.
Get out of the UHF mode.
Change the batteries (both).
Aim the RCU properly to
the PVR.
Change the mode to the
normal mode.
Contact your Service Provider.
Adjust the Time on the Menu.
2 broadcasts overlap.
The CAM is not working.
Black Screen.
The channels are not
configured properly on the
RF mode.
The CAM is not installed
properly.
The CAM is not working
correctly.
58
Set the channels in the RF mode
under the A/V setting of the
Menu between 21 to 69 on the TV.
Check that the CAM has been
correctly inserted.
Eject the CAM and reinsert
it again.
SPECIFICATIONS
I. PVR SPECIFICATIONS
Item Specification
Power
Input Frequency
SCART
A/V OUT
Digital Audio Out
LNB Power
Modulation / FEC Type
DiSEqC
Tone Switching
RF Modulator UHF Ch. 21-69 with PAL I/G/K
Specification MPEG - 2/DVB Compliant SI
Video Compression MP@ML in MPEG-2
Aspect Ratio
On-Screen Display
EPG
Common Interface
90 - 250VAC, 50 / 60Hz
950 - 2150 MHz
1 RS - 232C, 115kbpsDATA Service
2 SCARTs : 1 VCR, 1 TV
1Video / 2 Audio (left and right)
SPDIF
Convertible 13.5/18V (500mA max)
QPSK / Multiple convolution coding
(DVB Compliant)
DiSEqC 1.0 / 1.2 compatible
22 KHz
4:3 or 16:9
256 colors with full resolution
Supported
Viaccess , Irdeto , Cryptoworks , Conax,
Nagravision , Mediaguard
II. CHANNEL PROCESSING
Item Specification
Input Frequency Range
Number of Channels
Tuning System
Tuning Step Size
Modulation
Inner FEC
Outer FEC Reed Solomon Coding RS (204, 188, t=8)
Input Symbol Rate 2 to 45 Ms/s
IF Bandwidth
Connector Type
950 - 2150 MHz
3500 TV Cannels and 1500 Radio Channels
PLL Digital Synthesis Channels
125 KHz Max
QPSK (DVB Specification)
Rates: 1/2, 2/3, 3/4, 5/6, 7/8
(DVB Specification)
27MHz
F Type ( IEC 169 - 24 female)
59
III. MPEG AUDIO
Item Specification
Operation Mode Mono , Left , Right and Stereo
Sampling Rates 32, 44.1 and 48 kHz
Resolution 18 bit digital to analogue Converters
. VIDEO SPECIFICATIONS
Item Specification
Specification
TV System
Video Decoding
Video Resolution
. RF MODULATOR
Item Specification
Features
Connector
Channel Range
Pre-Set Channel
Meets ETR 154 amended in ALM-95-021
PAL I ,G,K
ISO / IEC 13818-2, MP@ML
720 pixels
Input RF bypass Supported.
IEC Coaxial female 9.5 mm.(IEC 168-2)
CCIR UHF E 22-69 adjustable
Channel 36 (or TBD)
576 lines 25 frames per sec.
. POWER SUPPLY
Item Specification
Input Voltage
Type
Power Consumption
Standby Power
Protection Separate internal fuse
90 - 250VAC, 50 / 60Hz
SMPS
Max.55Watt
10Watt
60
Loading...
