Topfield TF3100FEP PRO, TF3100FEI User Manual

The User’s Manual
FREE TO AIR Digital Satellite Receiver
TF3100FEi
TF3100FEP pro
- Embedded Positioner
Please read this Users Manual carefully. The menu structure and specification can be changed without noti
ce.
TABLE OF CONTENTS
INTRODUCTION 4 CONTENTS 5 FEATURES 5 FRONT/ REAR PANELS 6
1) FRONT PANEL
2) REAR PANEL REMOTE CONTROL UNIT(RCU) 8
GETTING STARTED 14 FUNCTION GUIDE 15 MENU OPERATIONS 17
1) SYSTEM SETTING

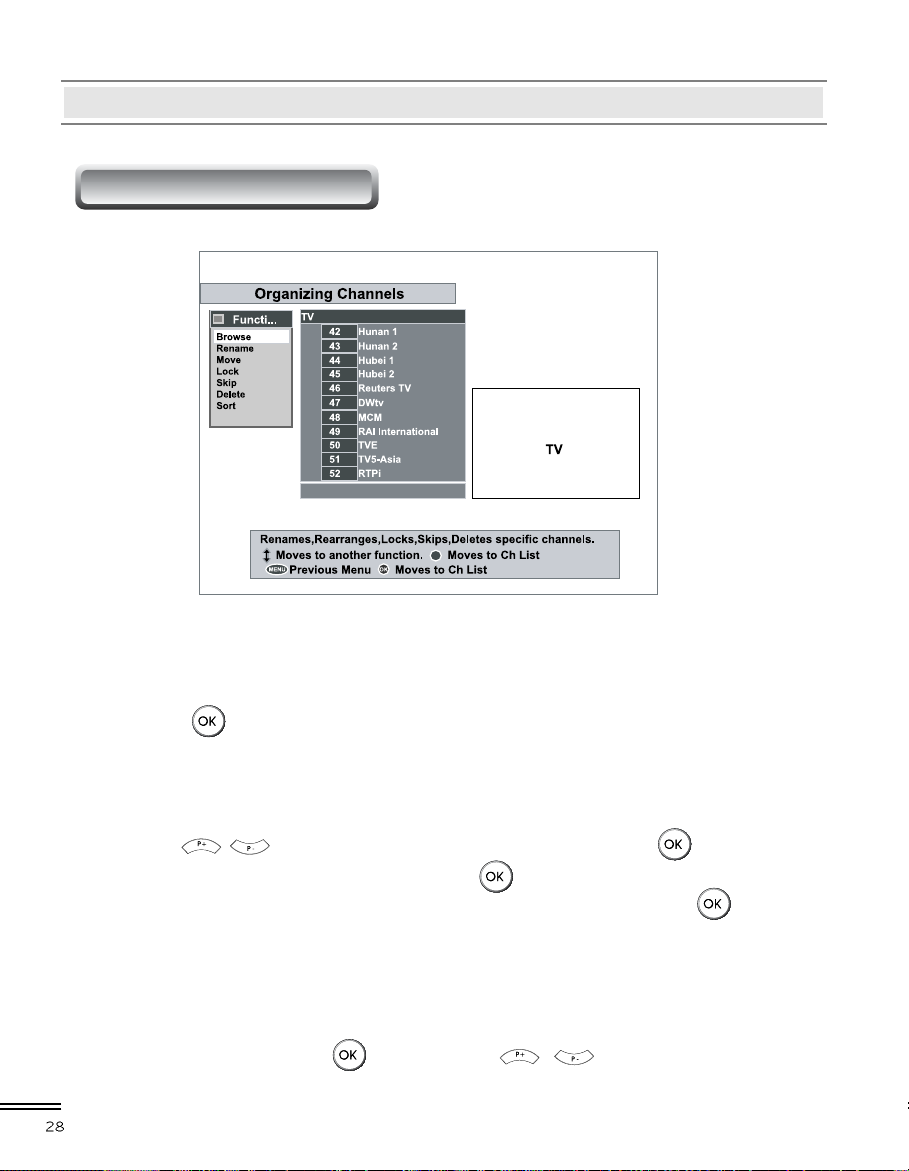

2) ORGANIZING CHANNEL
3) ORGANIZING FAVORITES
4) INSTALLATION * POSITIONER SETTING GUIDE(Positioner model only)

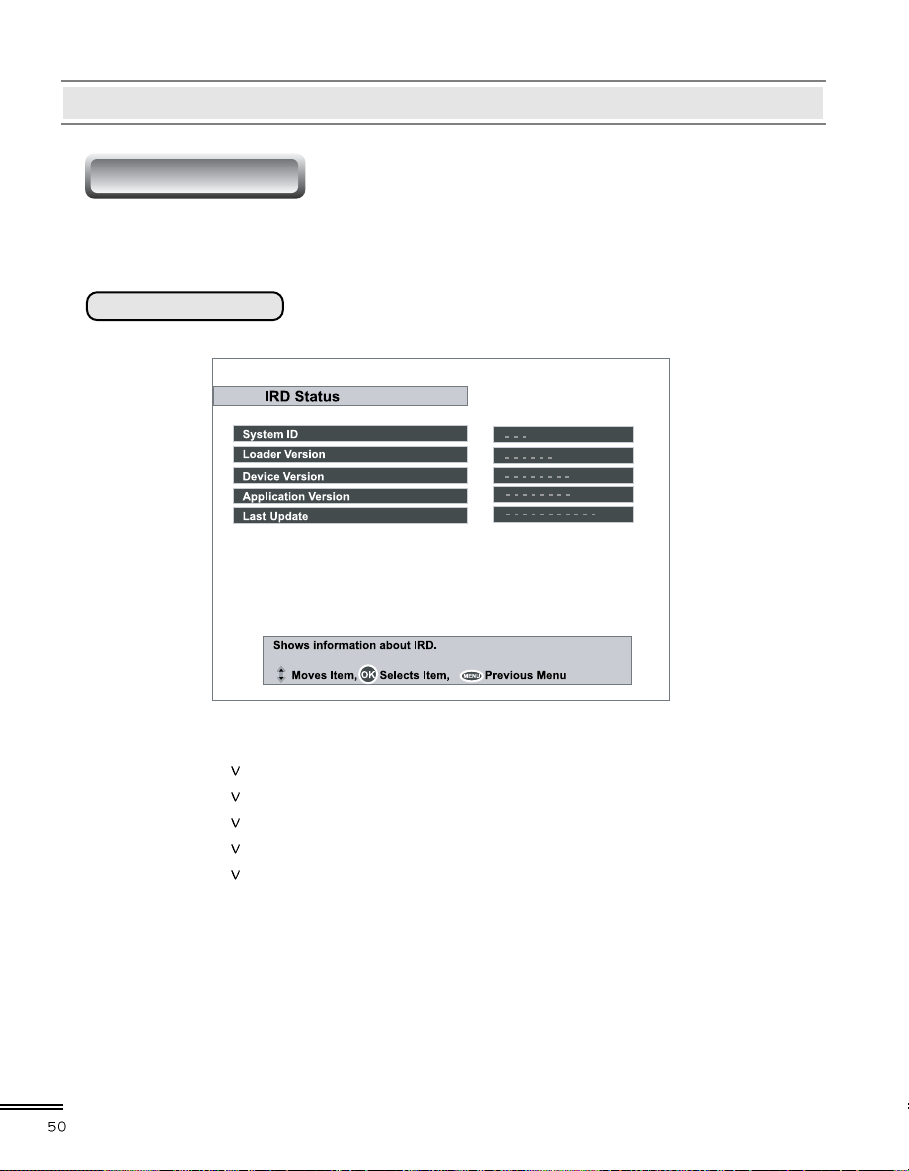

5) INFORMATION
6) GAME TROUBLE SHOOTING(Q & A) 54 SPECIFICATIONS 55
6 6
18 28 30 31 38 50 52
CAUTION
RISK ELECTRIC SHOCK
Do NOT OPEN
This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
Please do not insert metal or alien substance into the slots
In doing so can cause damage to the STB and reduce its life span.
for the Modules and Cards.
This symbol indicates important instructions accompanying the product.
WARNING Warning WARNING Warning WARNING
Please read the following recommended safety precautions carefully for your safety. MAINS SUPPLY : 90-250V AC 50/60 Hz. OVERLOADING : Do not overload wall outlets, extension cords or adapters
as these can result in fire or electrical shock.
LIQUIDS : Keep liquids away from the STB.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
SMALL OBJECTS : Coins or other small objects must be kept away from the IRD
as they can fall through the ventilation slots of the IRD and cause serious damage.
CLEANING : Disconnect the IRD from the wall socket before cleaning it.
Use a dry cloth lightly dampened(no solvents) to clean the exterior of the IRD.
VENTILATION : Do not block the decoder’s ventilation slots.
Ensure that a free airflow is maintained around the IRD. NEVER stand the IRD on soft furnishings or carpets. Do not use or store the IRD where it is exposed to direct sunlight or near a heater. NEVER stack other electronic equipment on top of the IRD.
ATTACHMENTS : Do not use any attachments that are not recommended as these
may cause hazards or damage the equipment .
CONNECTION TO THE SATELLITE DISH LNB :
Disconnect the IRD from the mains before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE LNB,
SERVICING : Do not attempt to service this product yourself.
Refer all serving to qualified service agents.
LIGHTNING : It is recommended that the IRD should remain connected at all
times to the mains supply and satellite dish (except when working on the LNB). However, the manufacturer’s instructions for safeguarding other equipment connected to the IRD, i, e, TV set, must be followed during lightning storms. LNB and the modem telephone line are essential.
EARTHING : The LNB cable must be earthed to the system earth for
the satellite dish.
LOCATION : Locate the IRD indoor place properly to prevent lightening,
raining and direct sunlight.
WARNING
INTRODUCTION
Thank you for purchasing the Digital Satellite Receiver (STB). This Digital Satellite Receiver is fully compliant with the international DVB standard and thus transmits digital images, sounds, information guides and teletext directly to your TV through the satellite. Now you can comfortably see and receive digitally transmitted music, news, movie and sports satellite broadcasts in your office or at your home.
In the Channel Search section, both the automatic channel search method and the manual Search mode are provided. Also it supports DiSEqC 1.2, enabling you to move your antenna in order to focus your preferred satellite. You can save up to 3500 TV and 1500 Radio channels and work around with the Favorite, Lock, Delete, Move and Sort functions. The Menu is very modern and supports different languages. All functions can be carried out using the remote control and some of the functions can also be carried out using the front panel.
The STB is easy to use and adaptable for future advances. Please be aware that new software may change the functions of the STB. If you have any difficulties concerning the operation of your STB, please refer to the relevant section of this manual, including the ‘Troubleshooting’. This Manual will provide you with useful information on using the STB.
INTRODUCTION
CONTENTS
Please ensure that the following items are included with the STB.
1) Remote control unit
2) Batteries (size AAA)
3) User’s Guide (this document)
FEATURES
Fully Compliant to DVB
Antenna/LNB control
- 22KHz mode On/Off
- 0/12V mode selection
- Automatic FEC Detection
- DiSEqC 1.0 & 1.2 compatible
- Built-In Positioner (High Power Azimuth Control-36DC,5A) ....(Positioner model only)
Satellite/Channel support
- 3500 TV channels, 1500 Radio channels storable
Video/Audio
- Automatic and Manual PAL/NTSC selection
- Multi-lingual Audio support
- Automatic channel search
OSD (On Screen Display) support
- 256 color support.
- Multi-lingual menu text support.
- GMT and Time Offset support
- 10 favorite channel groups support
- Page Up/Page Down available on your channel list
- PIG ( Picture In Graphic ) support
Teletext
- Software emulation mode with always VBI insertion mode on.

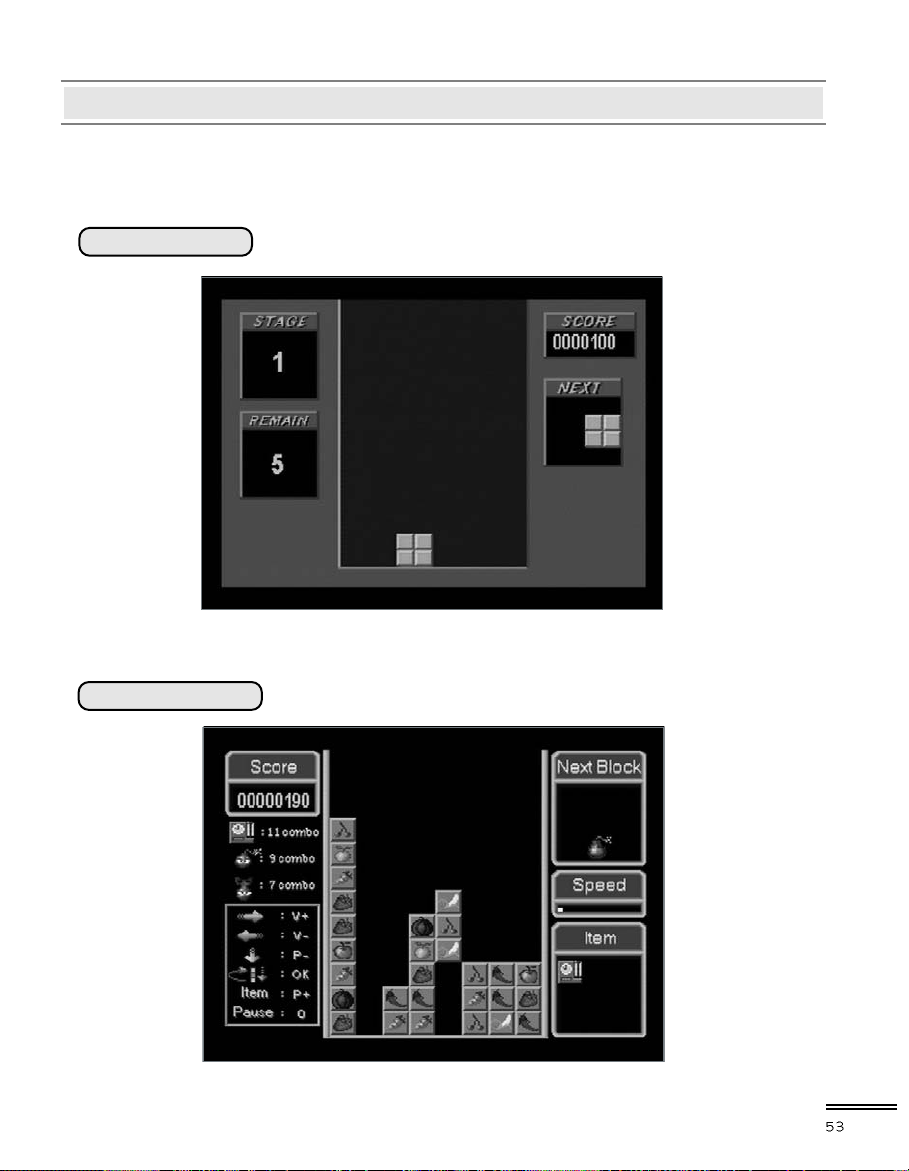

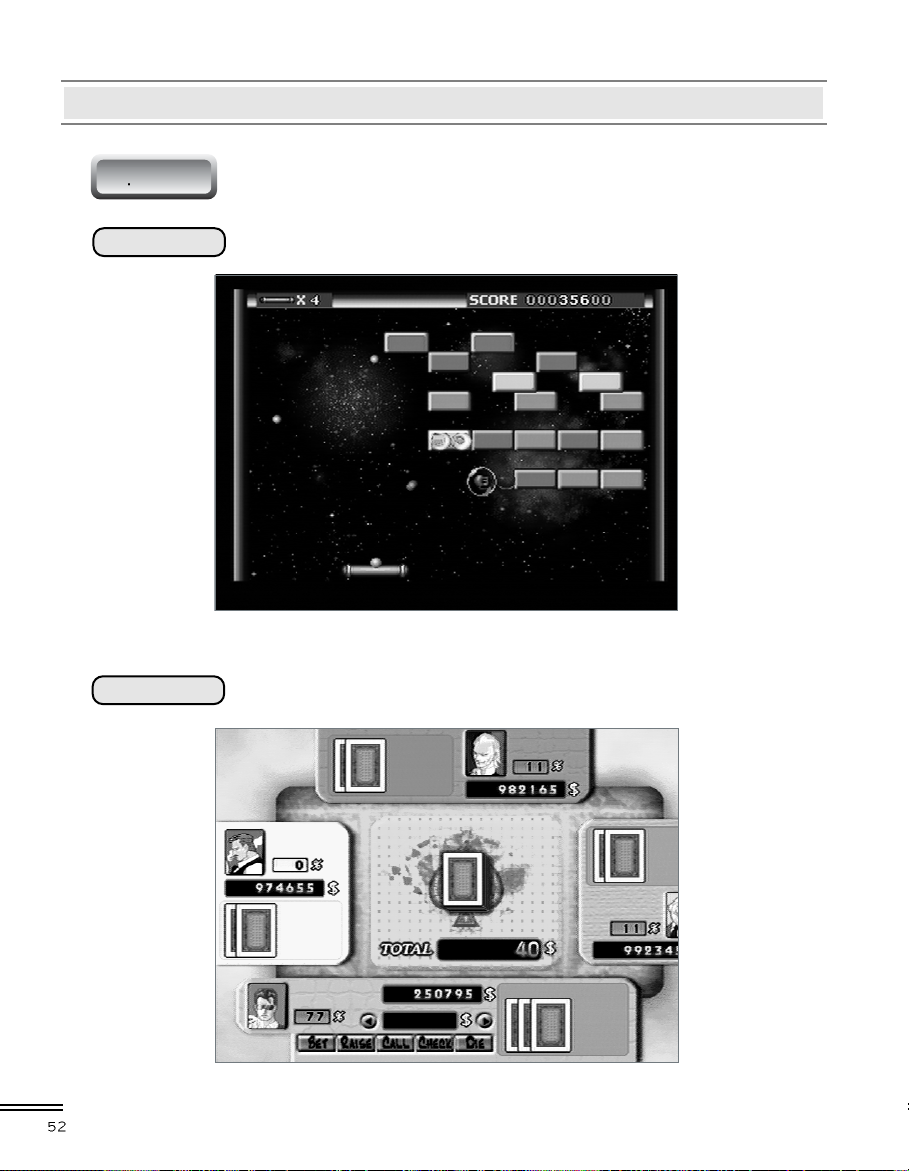

Games are embedded.
CONTENTS/ FEATURES
FRONT / REAR PANELS
1) Front Panel
- STANDBY
The power button of STB (ON / Stand by)
- LED
REMOTE STANDBY
- CHANNEL
The channel buttons are to change channels.
2) Rear Panel
(Non-Positioner model)
FRONT/REARPANELS
FRONT / REAR PANELS Positioner model only
(Embedded Positioner model)
LNB IN
Connects the satellite antenna cable.
LNB OUT
Use it to connect to another STB.
0/12V OUTPUT
Chooses the LNB on the antenna.
RS232
Upgrades the STB Program & software.
TV SCART
Connects the TV SCART.
VCR SCART
Connects the VCR SCART.
VIDEO OUTPUT
Video output (YELLOW).
AUDIO-LEFT INPUT
Audio input (WHITE).
AUDIO-RIGHT INPUT
Audio input (RED).
RF IN
Connects the TV antenna.
RF OUT
Connects the TV.
DISH CONTROL
Connects the actuated dish.
FRONT/REARPANELS
REMOTE CONTROL UNIT (RCU)
Switches the STB between Operation and Standby mode.
Enables/ Disables the Audio.
Selects the TV or Radio service channels and individual
menu options.
Displays the Menu on screen or returns to previous menu from submenu.
Displays the EPG (Electronic Progam Guide) on screen only when available.
Adjusts the volume (Increase/Decrease).
Tunes to the next or previous service. Services up or down through the available services.
Displays Channel List on screen. Selects the item in the menu mode.
Returns to the previous menu and the screen.
Displays the program information box on the screen and removes it.
REMOTE CONTROL UNIT
Selects the previously viewed channel.
REMOTE CONTROL UNIT (RCU)
Selects the TV/Radio mode.
Stills the playing picture.
Changes the terrestrial TV and Satellite mode.
Selects LEFT/RIGHT/MONO/STEREO sound function.
Selects the subtitle language list for the current service. Enables the teletext with software emulation.
Displays the favorite channel list.
Selects function. (F1)
Selects function. (F2)
Selects function. (F3)
Selects function. (F4)
REMOTE CONTROL UNIT
REMOTE CONTROL UNIT (RCU)
Displays and alters the UHF setting in menu.
Displays sleep time. When sleep time, the power automatically turns to the OFF mode and the STB to the STANDBY mode.
REMOTE CONTROL UNIT
INSTALLATION (Connection)
First, connect both the satellite antenna and the TV line to the STB and switch the power on.
In this manual there are some of the most common ways to connect the equipment: TV, VCR and STB.
There are several ways of connecting the STB to the existing Audio/TV system. We recommend using one of the following setups.
If you have problems with your connections and need help, contact your dealer or Service Provider.
1) Connection to TV, VCR and Hi-Fi
1-1) Connection to the TV with the SCART
Cable.
Connect one end of the SCART cable to
the TV SCART socket on the STB and the other end to a SCART socket on the TV.
1-2) Connection to the VCR with the SCART
Cable.
Connect one end of the SCART cable to
the VCR SCART socket on the STB and the other end to a SCART socket on the VCR.
INSTALLATION
INSTALLATION (Connection)
1-3) Connection to the TV with the CINCH
Cable.
Connect one end (3 connectors) of the
CINCH cable to the AUDIO-RIGHT (red), AUDIO-LEFT (white) and the VIDEO OUTPUT (yellow) socket on the STB.
Connect the other end (3 connectors) to
the AUDIO-RIGHT input (red), AUDIO-LEFT input (white) and the VIDEO input (yellow) socket on the
TV or Hi-Fi.
1-4) Connection to the TV using the RF cable.
Connect a terrestrial antenna to RF IN
socket on the STB.
Connect one end of the RF cable to the RF OUT socket on the STB. Connect the other end to the ANT IN socket on the TV.
2) Connection to the other Satellite Receiver.
Connect the satellite cable to the LNB IN socket on the STB. With a connector, connect the LNB OUT socket on the STB and the ANT IN socket of the other STB.
INSTALLATION
INSTALLATION (Connection) Positioner model only

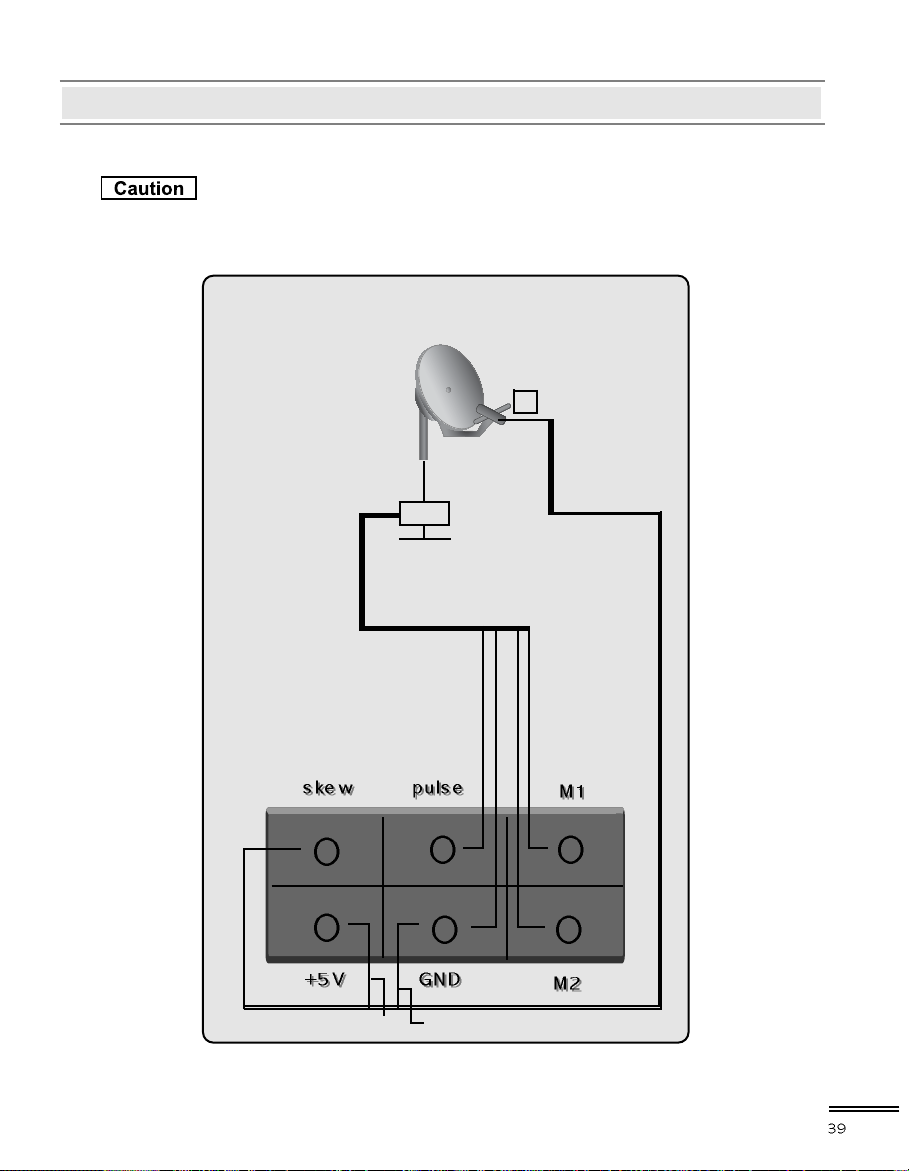

3. Connection to the dish. (Positioner model only)
3-1) Connection to an actuated dish
Connect the LNB IN socket of the STB
to the LNB. Connect motor wires to M1 and M2. Switch these connections if the motor moves to the wrong direction. Connect sensor wires to PULSE and GND connector. Connect a mechanical polarotor to +5V, GND and SKEW connectors. Improper connetion cause malfunction or may break down your STB and Motor
3-2) Connection to an actuated dish with
C/Ku switch .
Connect the cables from C and ku-band
LNB to 12 Volt C/Ku switch. Connect the coaxial cable from the 0/12 Volt switch to LNB IN connector. Connect the power cable which comes from the 0/12 Volt switch to the 0/12V connector. Connect motor wires to M1 and M2. Switch these connections if the motor moves to the wrong direction. Connect sensor wires to PULSE and GND connectors. Connect a mechanical polarotor to +5V,GND and SKEW connectors.
INSTALLATION
GUIDE
MENU
MENU
GETTING STARTED
Press the Power button to operate the STB from the STANDBY mode.
Now, the Info box will appear for a given time and disappear. Pressing the button, the Info box will remain on the screen. The display time of the Info box is adjustable under the Installation Menu of the Main Menu.
If the current broadcast has EPG (Electronic Program Guide) with it, press the button to see not only the current channel’s but also other channel’s EPG without any time constraints. Also, press the button to reserve and save the current service and to watch the broadcast
automatically when it starts.
IMPORTANT: Before taking charge of your new STB, some important technical
settings are essential.

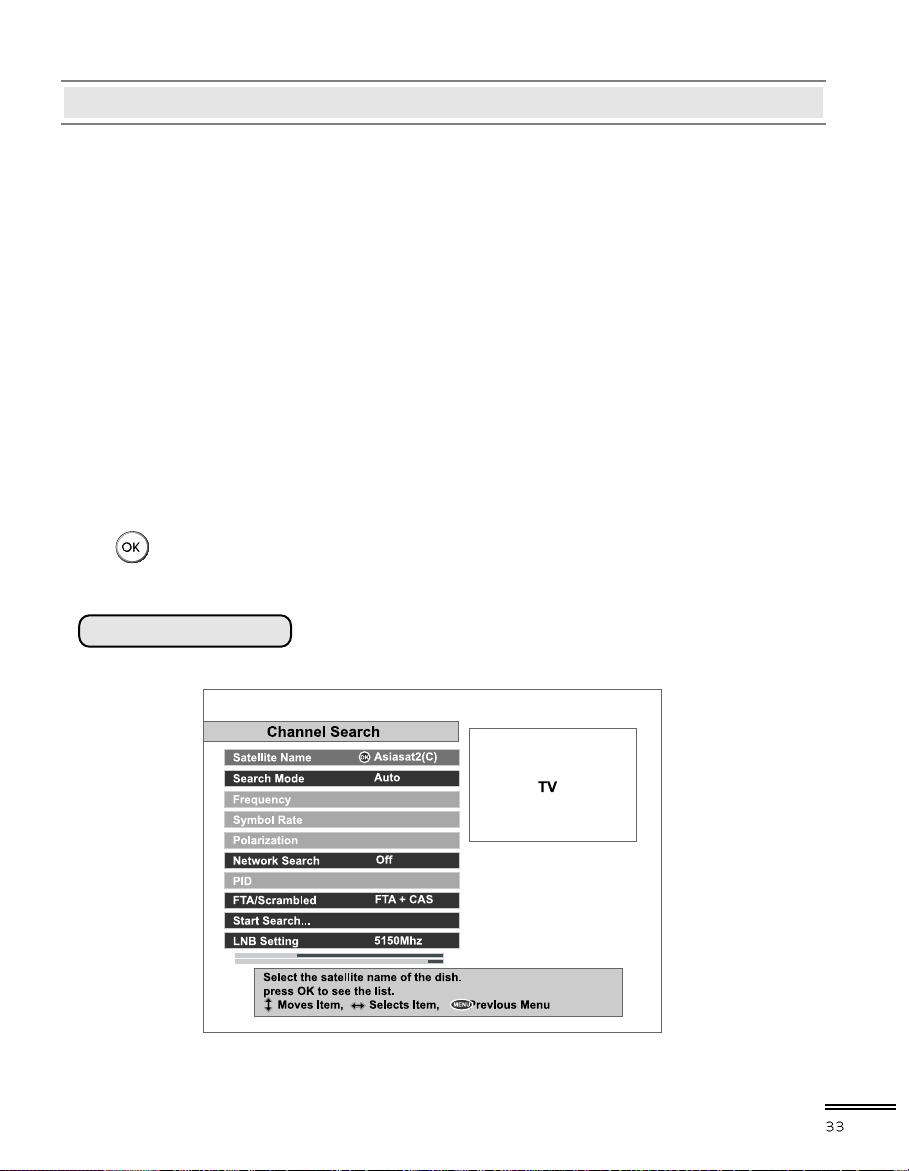

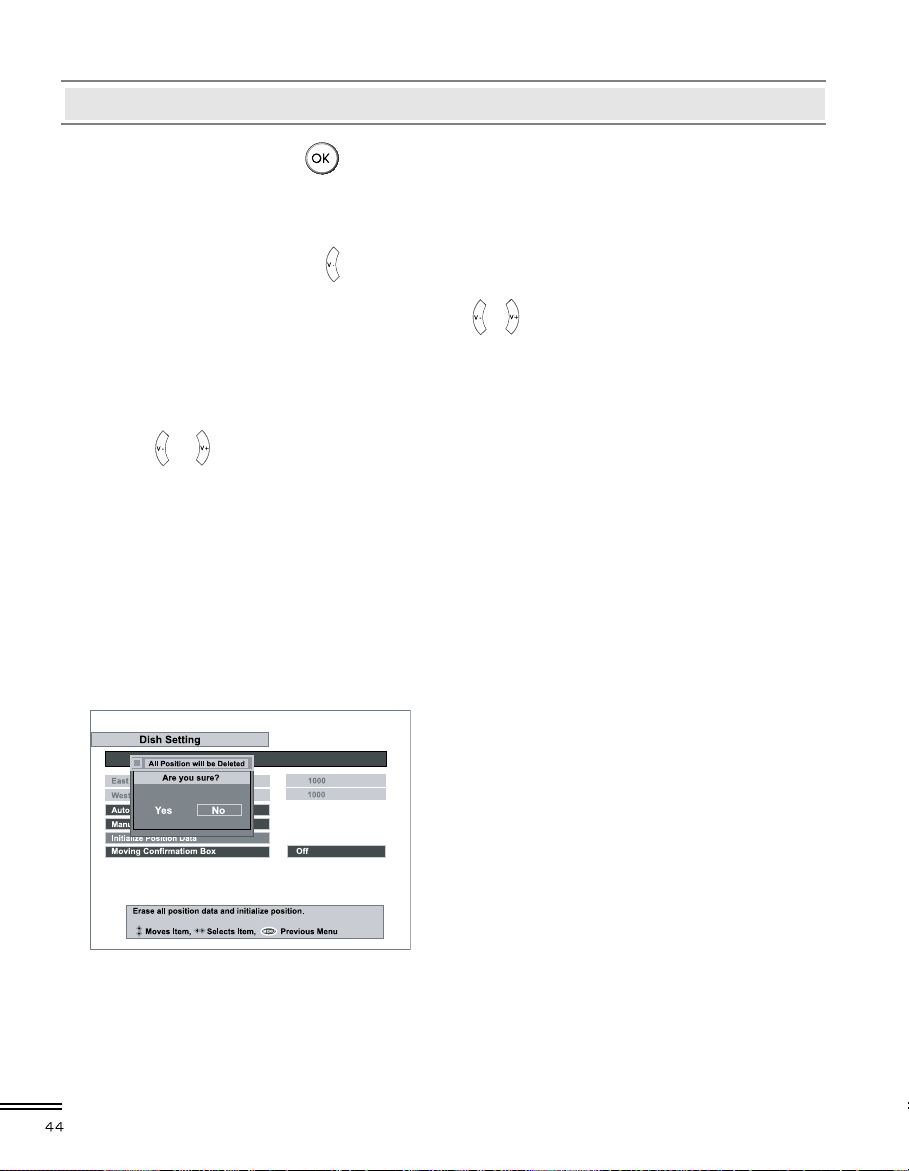

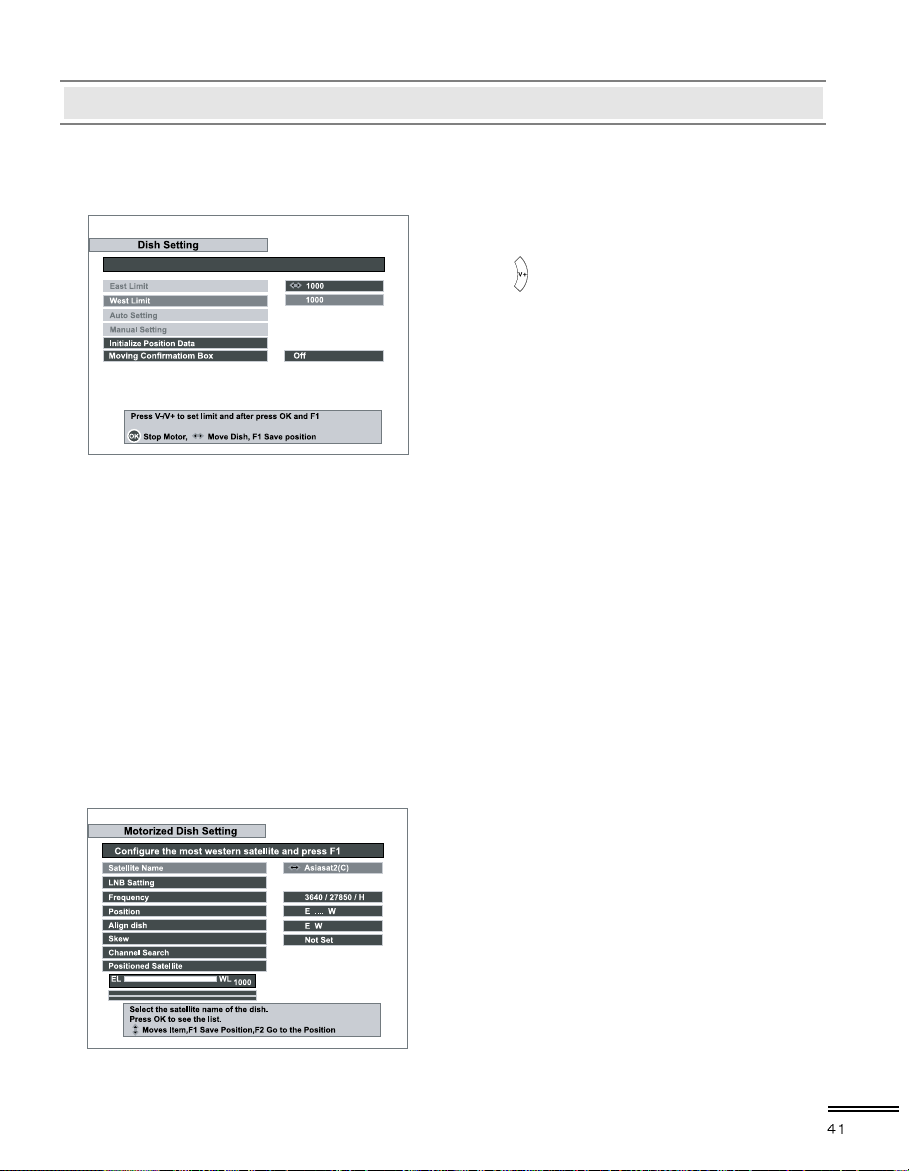

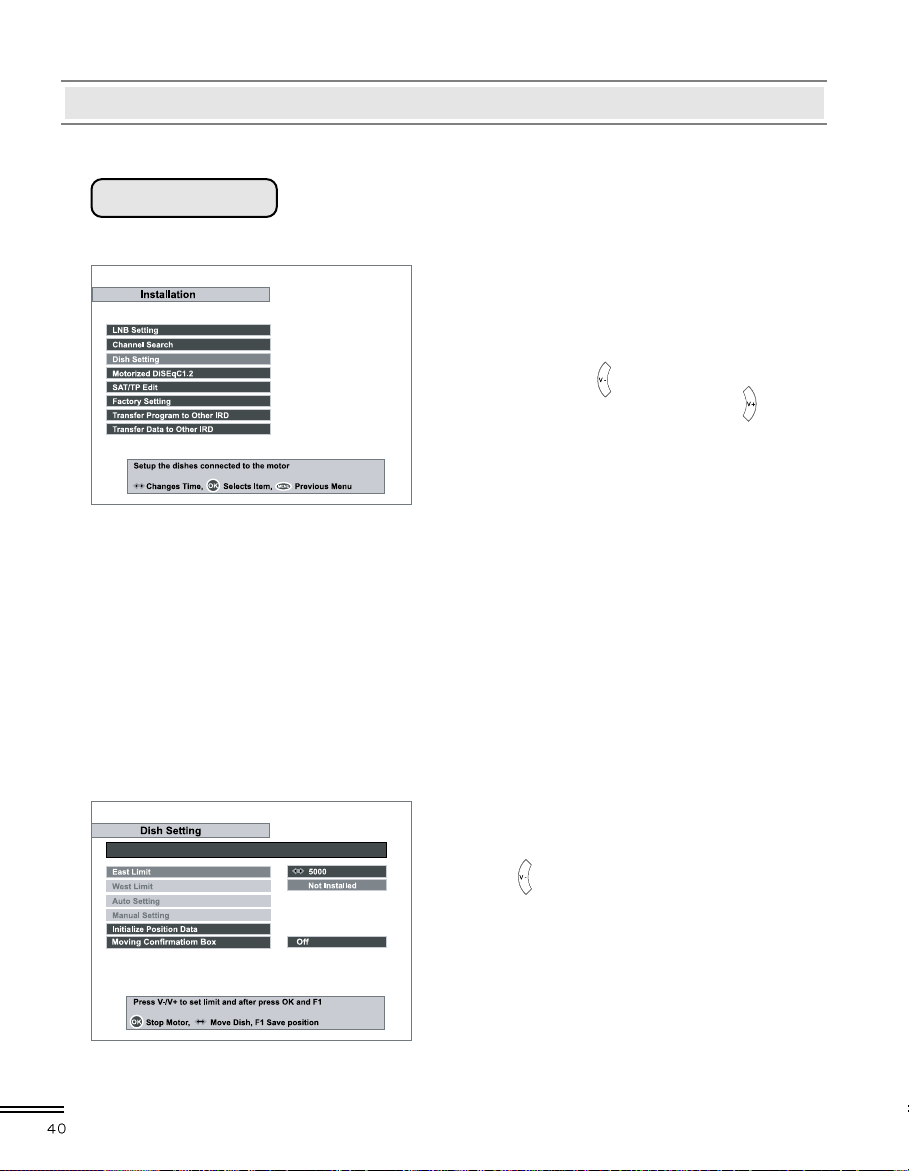

- Adjust your antenna through Dish Setting menu in installation menu.
- First, press the button on the RCU to make the Main Menu appear.

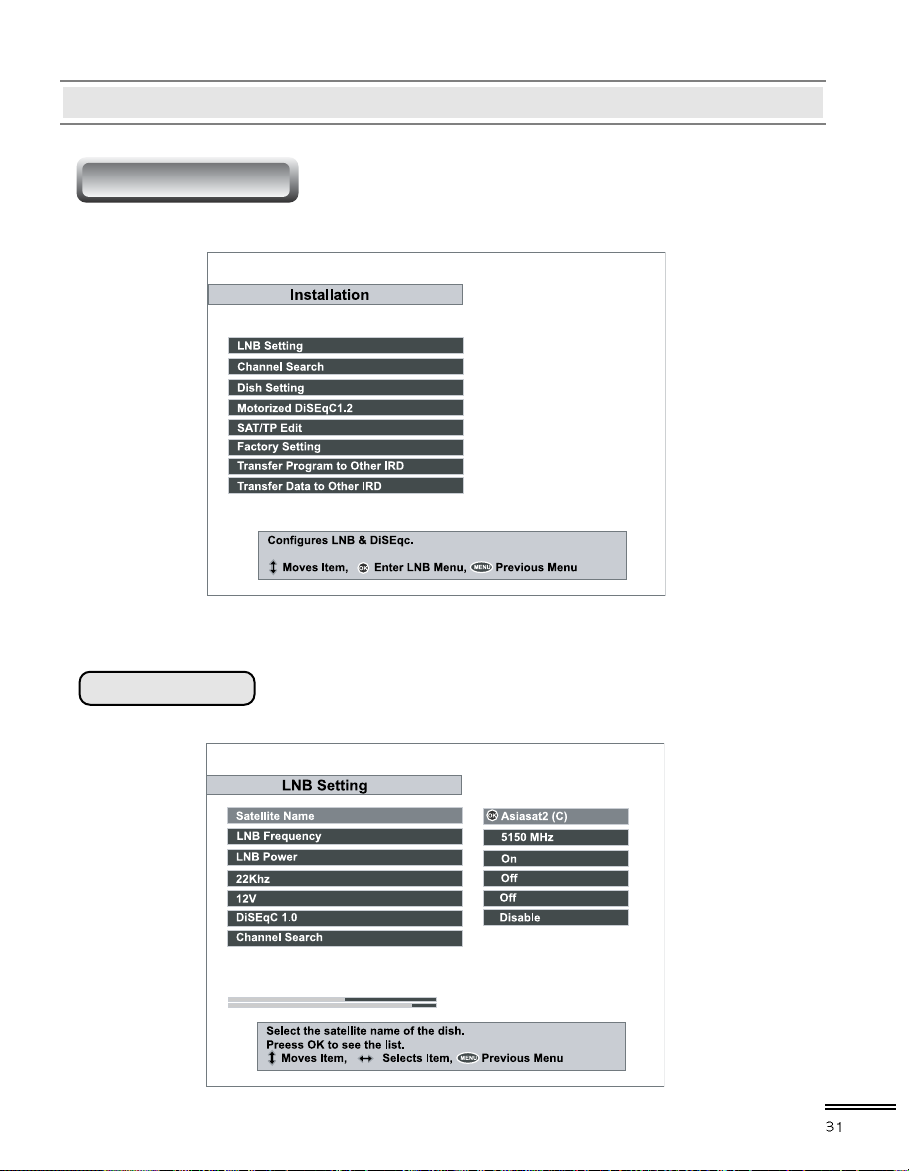

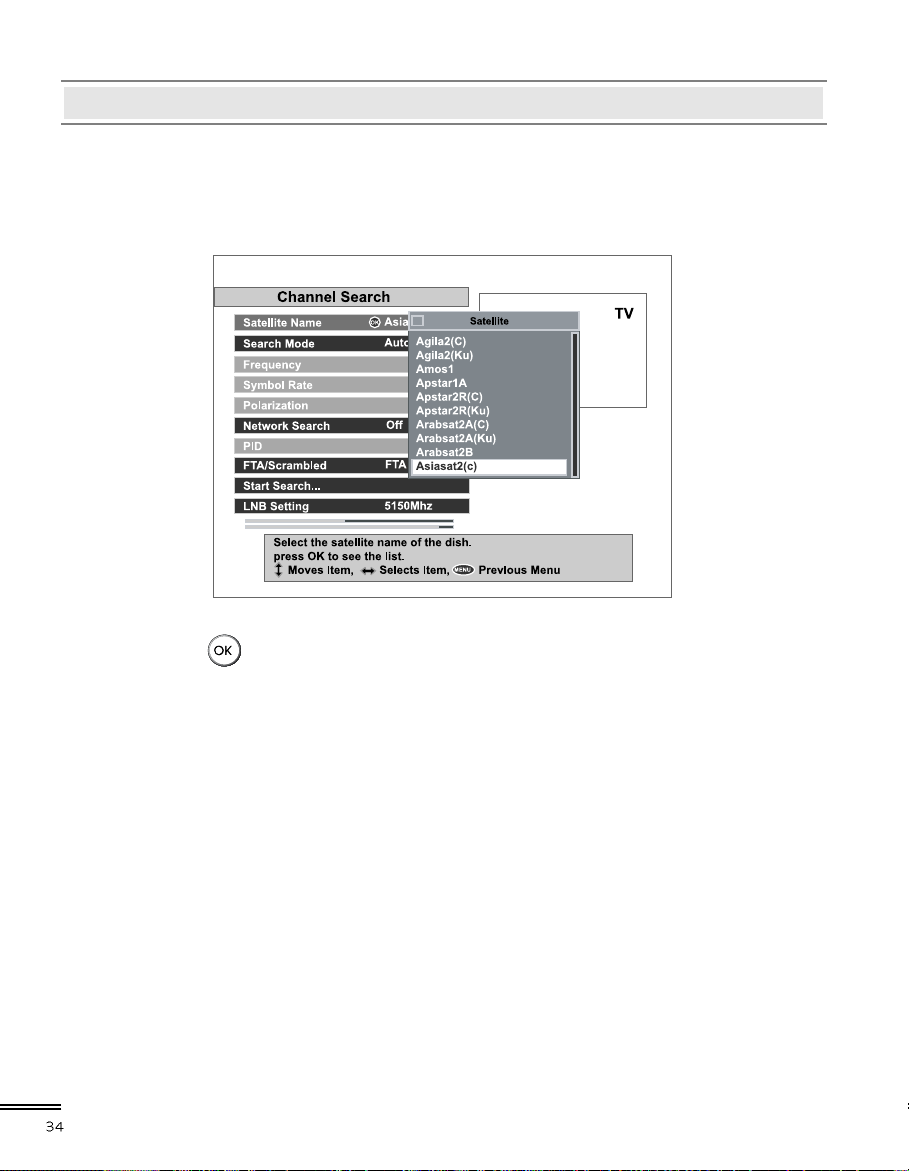

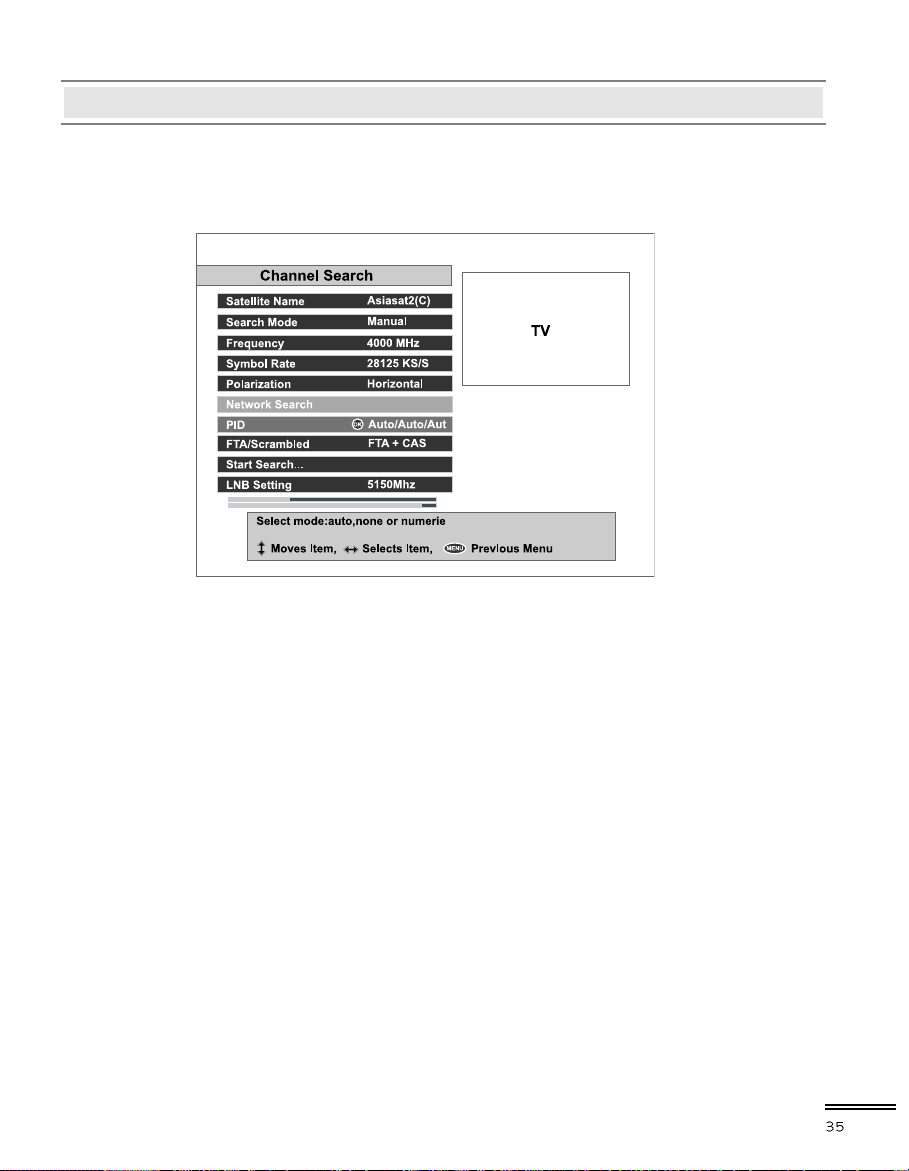

- Go to the LNB Settingmenu under the Channel Searchitem of the Installation menu and press button.
- The Default PIN CODE is 0000.
- Choose the right parameters for Satellite Name, LNB Frequency, 22KHz, 12 V, DiSEqC 1.0, and Motorized System according to your LNB and satellite settings. If the right Satellite Name and LNB Frequency were not found in the list, call the dealer for satellite information.
- Then, press the button and go back to the Channel Search menu.
- Set the Search Mode to the Auto mode. (A Manualor Advanced Search
can always be performed later on)

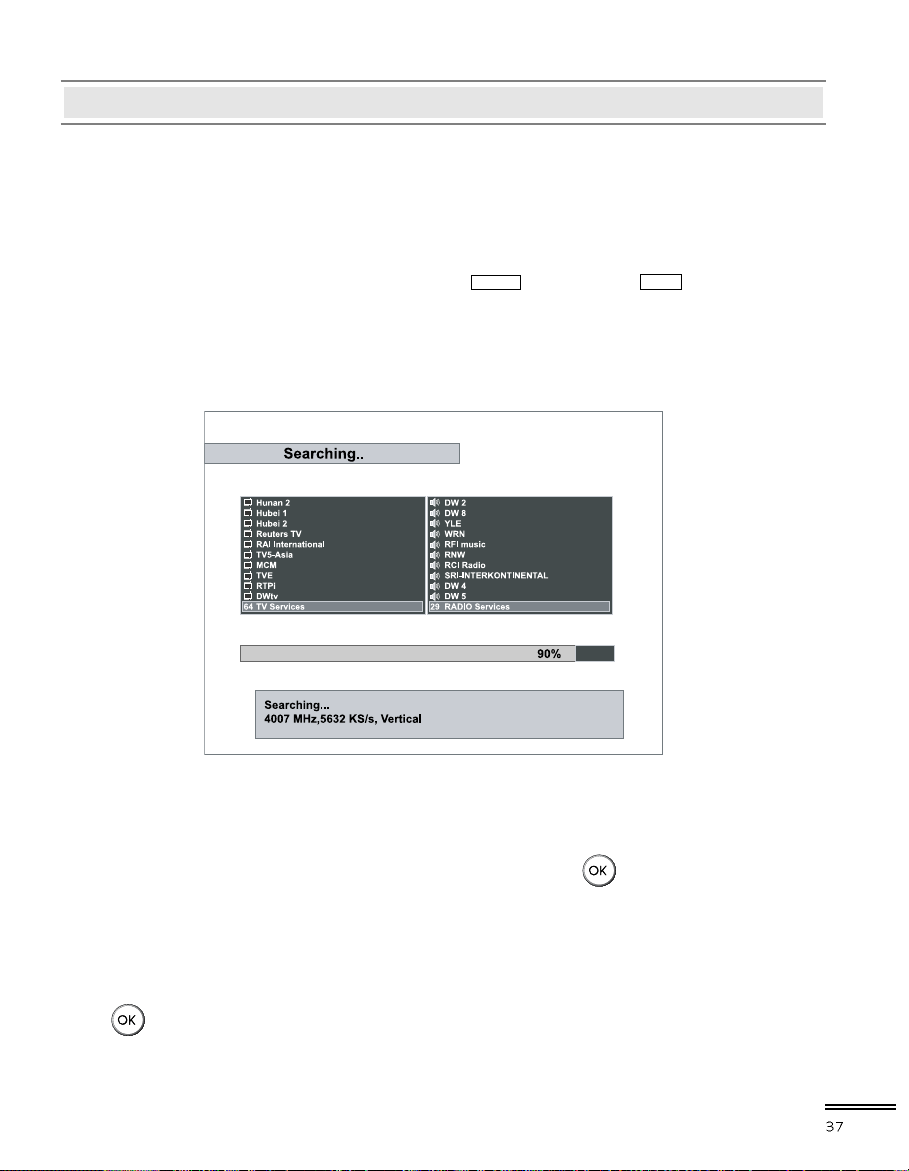

- Select the Start Search... item and press button.
- The search procedure will take a while. Press the button when the searching
process is over (100%) to confirm and save the new channel list.
- For further information, please refer to the LNB Setting item of the MENU OPERATIONS on this manual.
INFO
GETTINGSTARTED
Function Guide
Information Box
Press INFO key on the RCU to see the program information. The Information box displays as follows:
Channel Number Channel Name Detailed Program Information Signal Level & Quality Satellite Information Information of subtitle and / or teletext
EPG (Electronic Program Guide)
To use currently showing TV, and Radio services as well as to use next program schedules, press button on the remote control unit. If EPG is available on programs, you will see the detailed description of the programs, start/end time and programs schedules etc.
, and , buttons will be used
to move program and to see next program
schedules. The button makes the reservation for the next program.
button shows extended information of the current program.
button will change the contents of EPG between TV and Radio services.
FUNCTION GUIDE
Function Guide
AUTO
Track 01 Track 02 Track 03 Track 04 Track 05 Track 06 Track 07 Track 08
Sound Track
Sound Mode
Mono
Subtitle
You can choose a language of subtitle using
button on the RCU.
If a broadcaster provides subtitles, you can see
symbol in the Information Box.
Teletext
If a broadcaster supports teletext, you can see symbol in the Information Box. There are VBI insertion mode and software emulation mode in teletext.
In the VBI insertion mode, which is always on, you can watch the teletext with your TV using the RCU of your TV. To watch teletext with VBI insertion, your TV must support teletext. In the software emulation mode, you can watch the teletext even though your TV does not support teletext. You can watch the teletext using the RCU of STB. Press button twice to watch the teletext with software emulation mode. Press button or button to escape from teletext.
EXIT
Soundtrack
You can choose a language of soundtrack using
button on the RCU when a broadcaster
supports various languages of soundtrack.
Also, it is possible to choose a mode among Stereo, Mono, Leftand Right using the
, buttons on the RCU.
FUNCTION GUIDE
U
MENU OPERATIONS
Now this chapter assumes that the STB system has been installed correctly, meaning: * The satellite dish for the STB has been installed, connected to the STB and
correctly adjusted to the proper satellite. * The STB is connected to the TV. * The RCU has batteries and ready to control the STB.
If the STB has not been installed or connected properly, please refer to the
INSTALLATION (connection) menu on this manual.
Many of the functions of the STB are available from the Main Menu. Press the
MEN
button to open it.
MENUOPERATIONS
MENU OPERATIONS

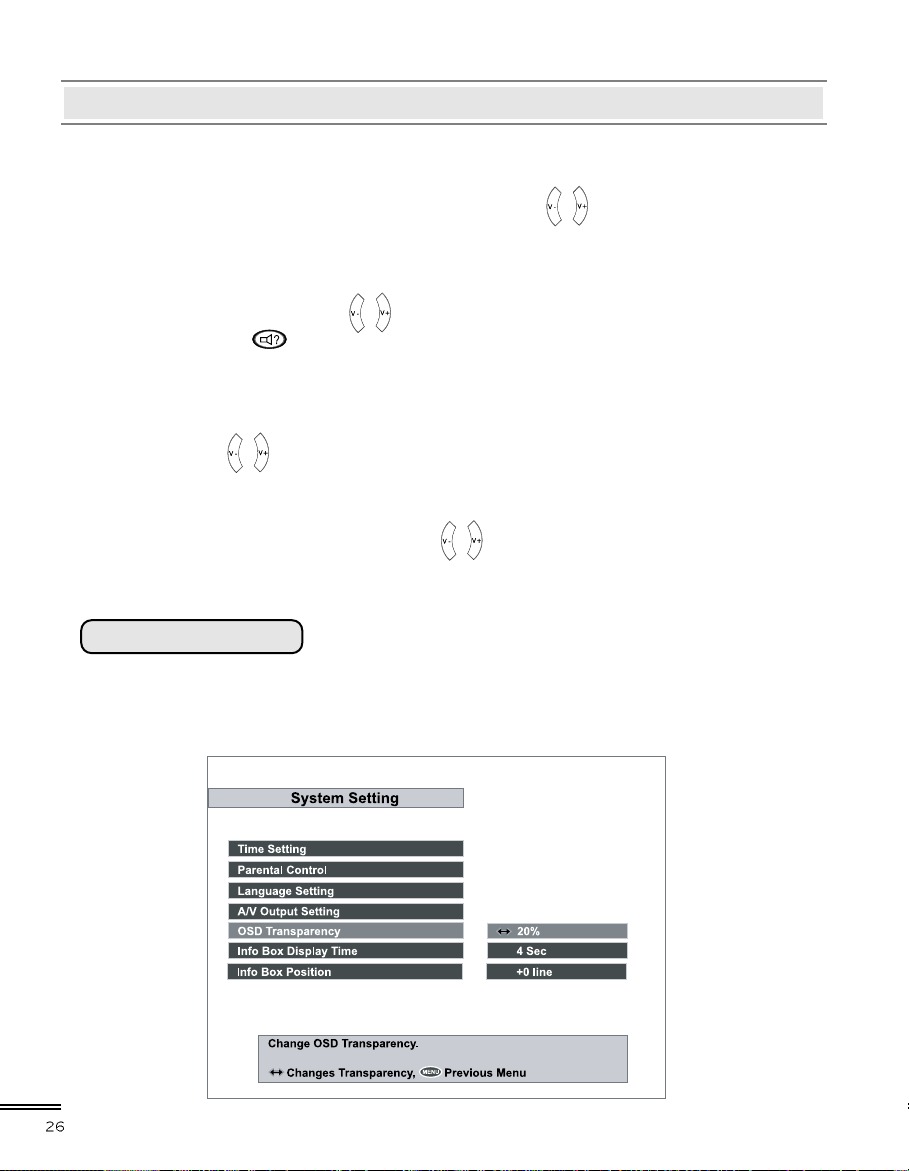

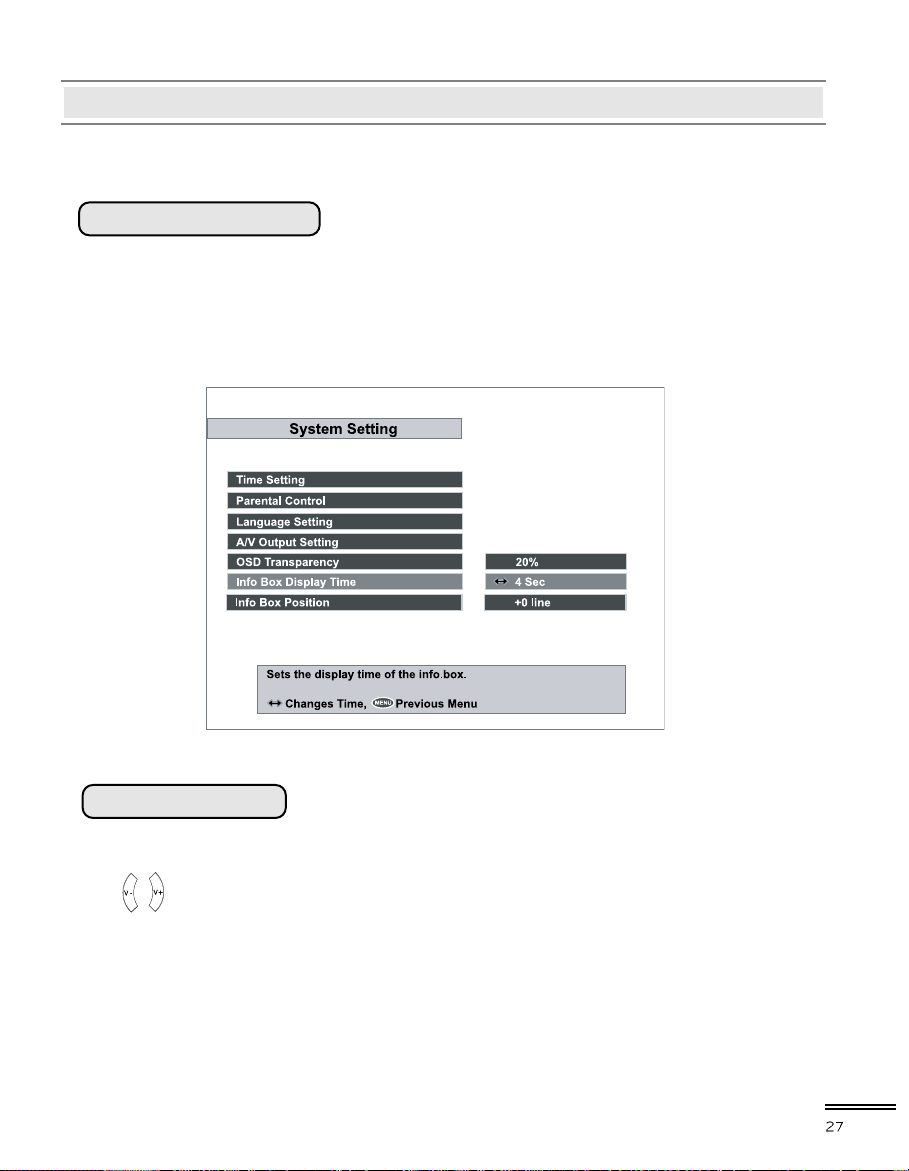

I. SYSTEM SETTING

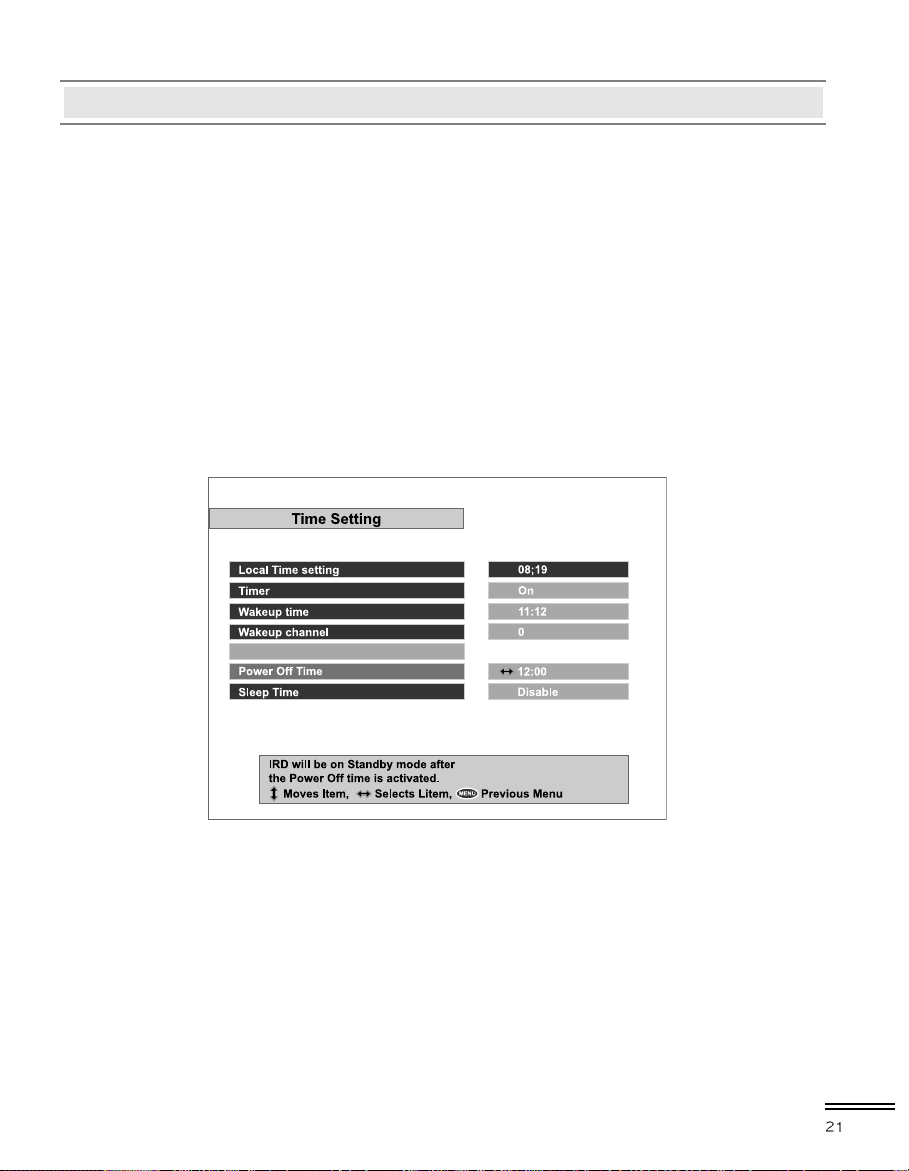

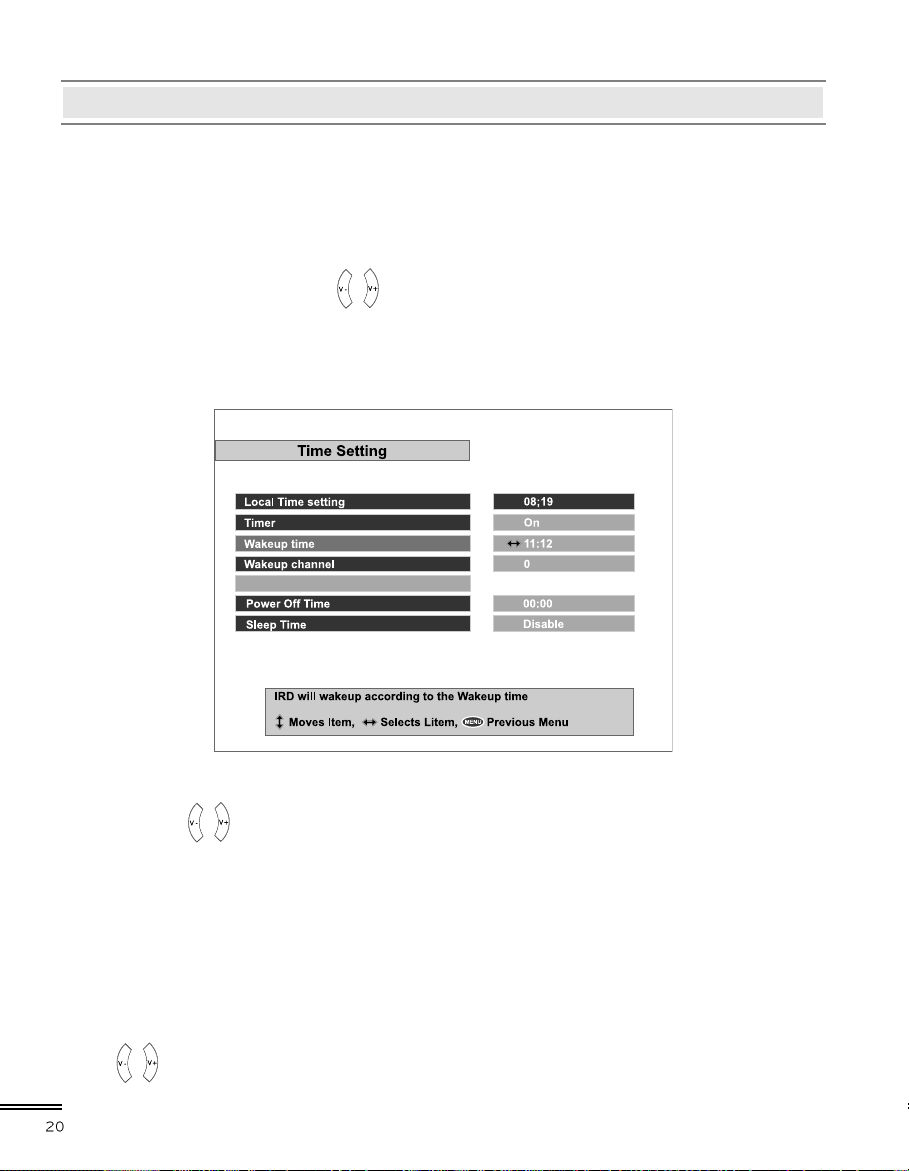

I-1 TIME SETTING
Various time modes can be set, such as the current local time, the Power On/Off time and the Sleep Time. The exact local present time can be adjusted
by using the GMT, the Time Offset and the Mode sub menus.
PLEASE NOTE: Configure the Local Time before adjusting the
Wakeup Time,Power Off Time or the Sleep Time.
MENUOPERATIONS
MENU OPERATIONS

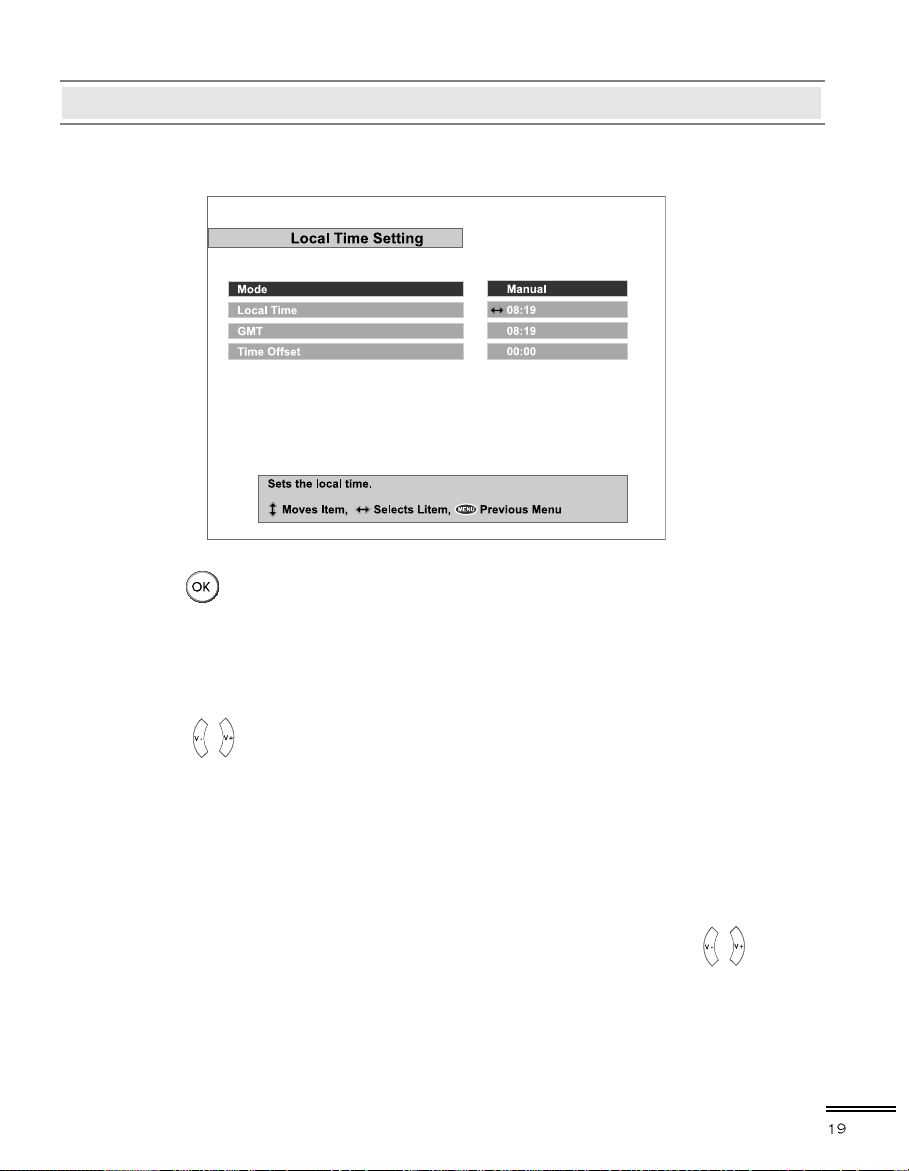

A. Local Time Setting
Press the button at Local Time Setting item in the Time Setting Menu to open the Local Time Setting menu. Inside the Local Time Setting menu, there are 4 sub menus: Mode, Local Time,GMT and Time Offset.
Mode
Bysing the , buttons, you can control the Auto/Manual mode. The Auto mode automatically updates the time settings by adding the GMT received from the satellite and the Time Offset value you have inserted. The Automode is recommended.
Local Time
The Local Time is adjustable only when the Mode is on the Manual mode.
Adjust the current time, if necessary, by using the numeric buttons and the , buttons.
GMT
GMT is referred to the standard time of Greenwich. This cannot be changed.
MENUOPERATIONS
MENU OPERATIONS
Time Offset
The current time of the local area can be inserted. In another words, insert the time difference of the local time zone from the GMT. For example, if the local area is Seoul (the time difference from the GMT being 9), insert 9:00. The time
is adjustable by using the , buttons,15 minutes at a time.
B. Timer
Use the , buttons to select the On/Off mode. If the Timeritem
is set to On, the Wakeup Time item, the Wakeup channel item and the Power Off Time item becomes adjustable.
C. Wakeup Time
The Wakeup Time item sets up the time the STB automatically turns on. Insert the preferable Wakeup Time by using the numeric buttons and the
, buttons on the RCU. To disable the wakup function, make the Timer item Off.
MENUOPERATIONS
MENU OPERATIONS
D. Wakeup Channel
The Wakeup Channel item automatically turns the STB to the preset channel when it automatically turns on by the Wakeup function.
E. Power Off Time
The Power Off Time item sets the time of the STB automatically turns off.
F. Sleep Time
The Sleep Time item is similar to the Power Off menu. The Sleep Time function turns off after the adjusted sleep time.
MENUOPERATIONS
MENU OPERATIONS
I-2. PARENTAL CONTROL
The age rating control, the PIN(Personal Identification Number) Code and the
passwords to various menus can be configured. The PIN Code box will
automatically appear when this menu is selected. The default PIN Code is 0000.
A. Censorship
The Censorship item blocks programs according to each specific setting.
Use the , buttons to select the items below.
No Block: Access to everyone.
4~18(age): Inaccessible for viewers within each minimum age limit.
Total Block: Access to no one .
If the channel is limitation free, the block function will not work.
B. Change PIN Code
Go to the PIN Code item to configure new PIN Code. Press the button,
and a box will appear the screen. Enter the PIN code by using the numeric buttons on
your RCU.
MENU OPERATIONS
MENU OPERATIONS

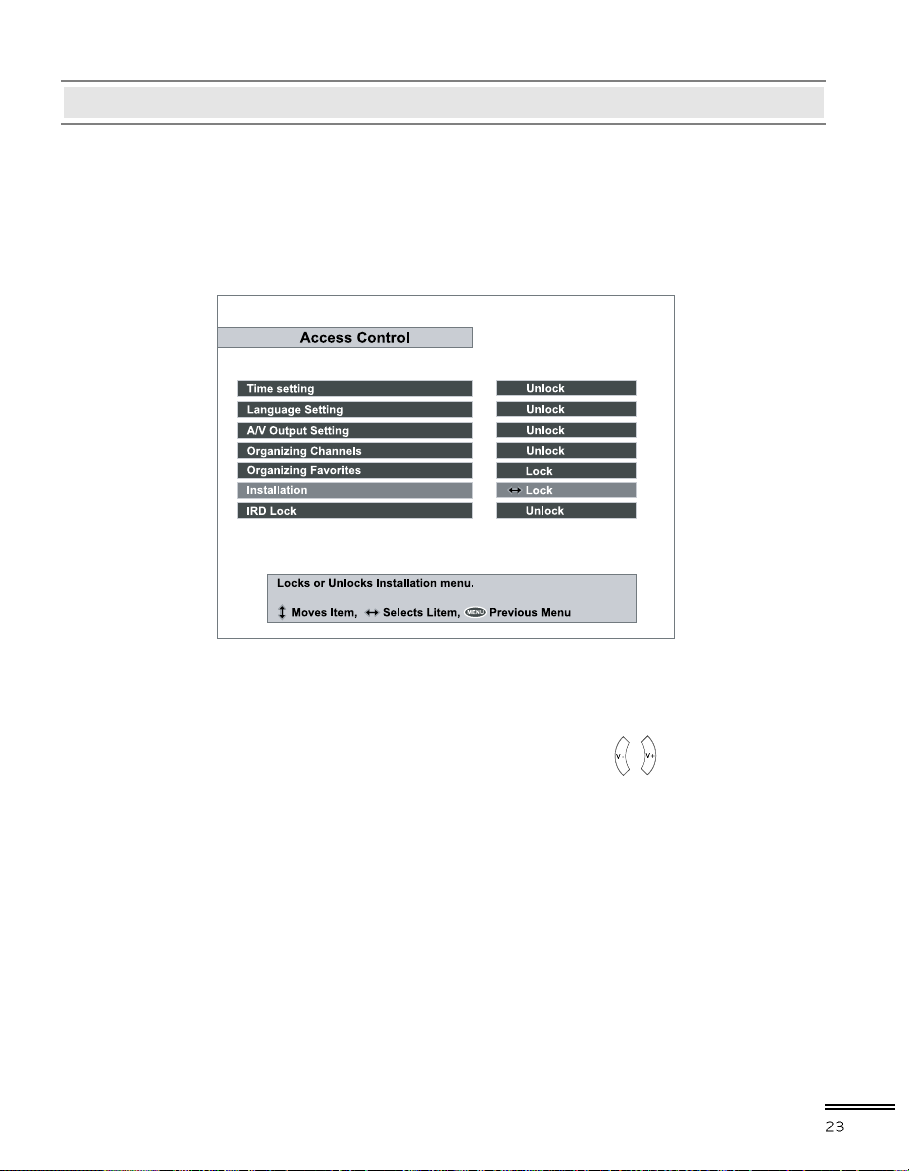

C. Access Control
The Access Control menu controls access to 6 items: Time Setting, Language Setting, A/V Output Setting, Organizing Channels, Organizing Favorites and Installation. Press the , buttons to Lock/Unlockthe access. Locking means controlling the access to specific menus with the PIN Code system. The default PIN Code is 0000.
MENUOPERATIONS
MENU OPERATIONS
I-3. LANGUAGE SETTING
There are many languages available for the menu. The default language is
English.

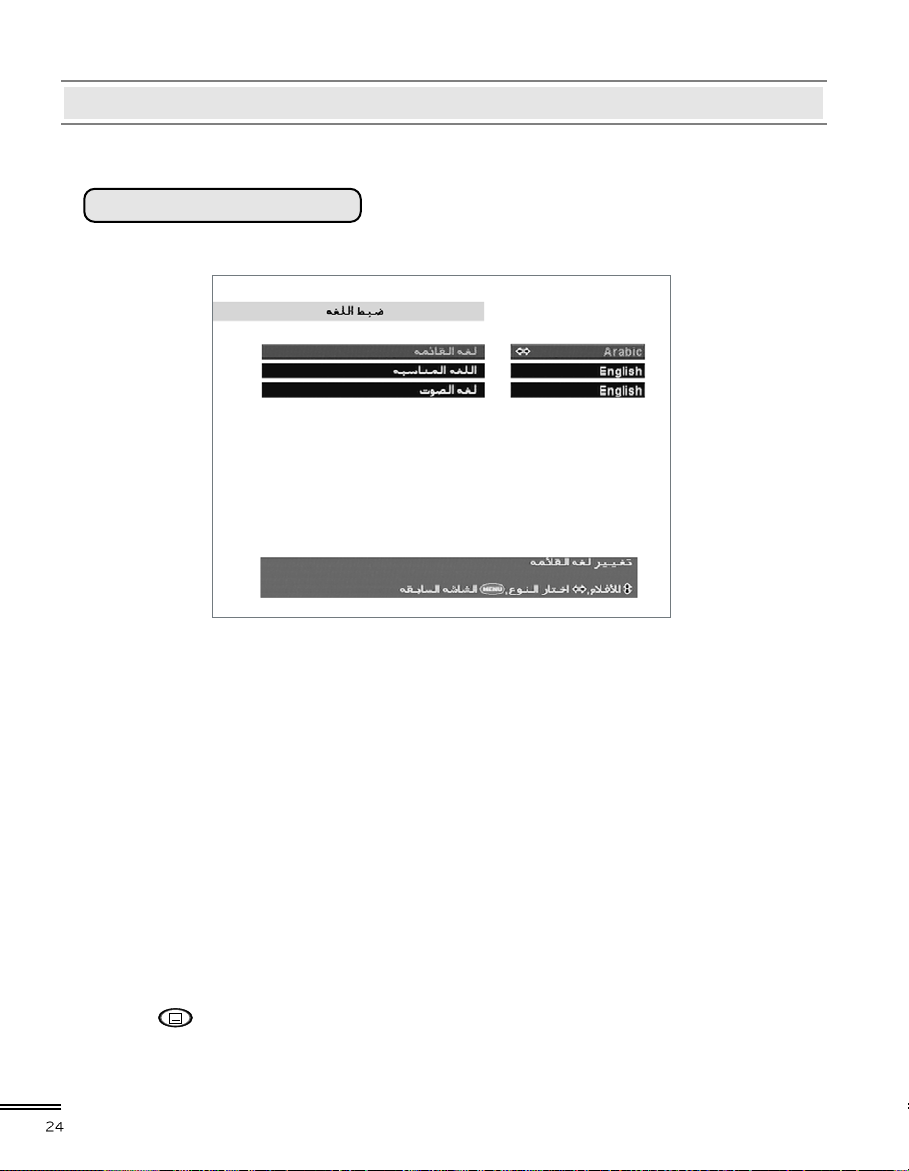

A. Menu Language
It is an item for changing the language of the Main Menu. Select the language which the menus will be shown in. [English / French / German / Italian / Spanish / Arabic / Greek / Turkish /
Danish / Swedish / Norwegian]
B. Subtitle Language
It is an item for changing the language of the subtitle. As long as the services support, the subtitle language is changeable by pressing the button on your RCU. [English / French / German / Italian / Spanish / Arabic / Greek / Turkish /
MENUOPERATIONS
Danish / Swedish / Norwegian]
MENU OPERATIONS
C. Audio Language
It is an item for changing the language of the Audio. The first audio language is set to English. If more than one audio language is transmitted, you may select one language among several languages transmitted by pressing the button.
[English / French / German / Italian / Spanish / Arabic / Greek / Turkish /
Danish / Swedish / Norwegian]

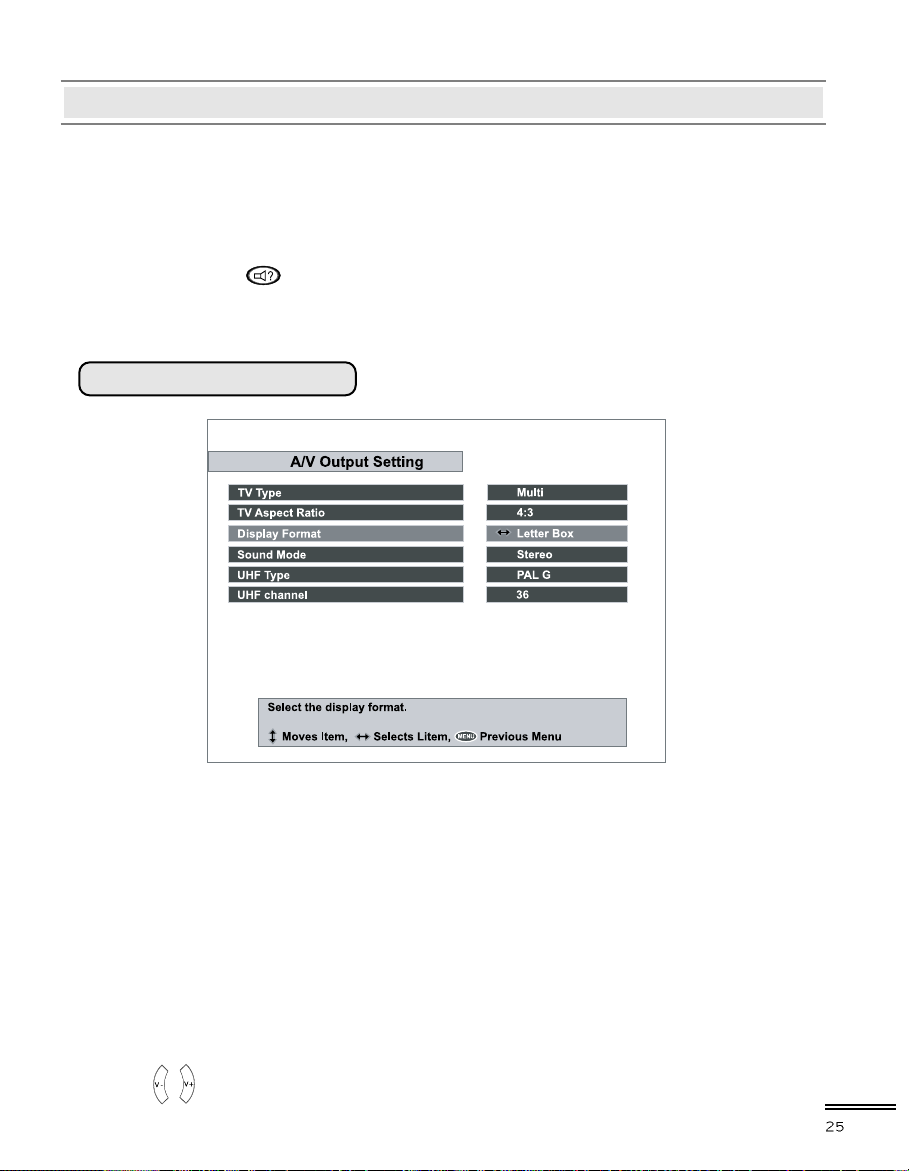

I-4. A/V OUTPUT SETTING
The STB has many A/V Outputs. Control this menu properly according to external components connected to the STB. Configurations concerning Audio and Video can be made here.
A. TV Type
Enables the setting of the TV standard. For automatic PAL/NTSC selection, set to
Multi.
B. TV Aspect Ratio
Enables the setting of the screen format of the TV. Select 4:3 or 16:9 mode by
using , buttons.
MENUOPERATIONS
MENU OPERATIONS
C. Display Format
Enables the setting of the screen format of the TV. Select the Letter Box or Center extract mode of 16:9 pictures by using , buttons.
D. Sound Mode
Allows you to configure the sound mode. Select the Stereo, Mono, Leftand Right modes by using the , buttons. The Sound mode is configurable later
on by using the button on your RCU.
E. UHF Type
Allows you to change the UHF Type. Select the PAL G, PAL I, PAL Kmodes by using the , buttons.
F. UHF Channel
Choose the UHF Channel by using the , buttons. The default UHF channel is CH36.
I-5. OSD Transparency
Adjusts the OSD transparency level of all kinds of menus. The available levels
are ranging from 0% to 50%.
MENUOPERATIONS
MENU OPERATIONS
I-6. Info Box Display Time
Adjusts the time-out of the Info Box. Sets the period of time the Info Box is
displayed on screen. The adjustable time is from 0 to 30 seconds.
I-7. Info Box Position
Adjusts the position of the Info Box. Allows you to change the position by using the
, buttons.
MENUOPERATIONS
MENU OPERATIONS
II. ORGANIZING CHANNELS
This mode can be used to rename, reorder, lock, hide and to delete TV Services.
A. Browse
Press the button. Now, browsing through the Organizing Channels is possible. Press assigned buttons on the help message.
B. Rename
Use the , buttons to select Rename item and press the button to move the cursor to the Channel List. Press button to display keyboard, and rename the channel. After renaming it, be sure to save it by pressing the button at Save item.
C. Move
You can reorder and move the service to the preferred position. Mark the desired channel to move and press button. Use the , buttons to choose the
MENU OPERATIONS
Move mode.
MENU OPERATIONS
D. Lock
You can restrain and lock the use of the services. From here, locking (and later unlocking) channels in any of the lists is possible e.g. in order to prevent children
from watching it. If a locked service is selected, enter the PIN code in order to enjoy it.
E. Skip
You can ride and skip the services. In order to unlock the skip function, press the
button on the skipped channel. The skipped channels will not be visible on
channel list.
F. Delete
Press button to delete channels. The delete function differs from the skip function as it deletes the channel completely. Whereas, the skip function just makes the channel invisible.
NOTE: Deleted channels are permanently deleted. The only way to reobtain
is to perform a new channel search.
G. Sort
You can sort and rearrange the sequence for the services.
MENUOPERATIONS
MENU OPERATIONS
III. ORGANIZING FAVORITES
MENUOPERATIONS
This mode is helpful in adding and deleting services to and from the favorite
group.
Under the menu Organizing Favorites, there are three different modes: Fav List,Fav CHsand Ch List. On the Fav List mode, four standard lists are selected as the default menus: News, Sports, Movie and Music. Up to 10 lists including these lists can be added and renamed.
When deleting a service, select a service in the Fav CHs section and press the assigned button on the help message.
To add services into Favorites, locate the cursor to the desired service and press the button. Even in the Favorite CHs, you will see basic satellite & Channel information.
MENU OPERATIONS
IV. INSTALLATION
IV-1.LNB Setting
MENUOPERATIONS
MENU OPERATIONS
The Low Noise Blockdown Converter (LNB) amplifies the signal received by the satellite dish and lowers the frequency of the signal. The signal is then fed from the LNB at the dish via cable to the STB. For the LNB Settings, move the cursor to INSTALLATIONitem and press
button.
Then, set the cursor to the LNB Setting item and press button.
A. Satellite Name
Press the button to display the Satellite List box. The Satellite name list is put in alphabetical order. Select one of the preprogrammed satellites that correspond to the value of the antenna. If the desired satellite name is not in the list, then select Others .
B. LNB Frequency
Select the L.O. Frequency set to antenna. The LNB Frequency of 5150, 9750, 10600, 10750, 11475 MHz or Universal can be selected by using the or button.
NOTE: If the Universal LNB is selected, both 9750 and 10600 MHz are
supported at the same time, and therefore the 22 KHz tone setting is not required.
C. LNB Power
Select LNB power ‘ On’ for internal and ‘ Off ’ for external.
D. 22 KHz
If you are using a 22 KHz tone switch box, make 22 KHz tone switch enable or disable to select LNB or antenna.
MENUOPERATIONS
MENU OPERATIONS
E. 12V
Use it if the switch box is controlled by 12V DC.
F. DiSEqC 1.0
The STB is designed to be DiSEqC 1.0 compatible. This allows multiple antennas to be connected to the STB at the same time. If using two or more fixed antennas or LNBs, then it is recommended to use a DiSEqC 1.0 switch.
Select from 1 of DiSEqC to 4 of DiSEqC, Mini A, MiniB or Disable according to the option or the configuration of DiSEqC switch box or antenna.
G. Channel Search
To go to channel search menu directly from LNB setting menu, press
button at this item.
IV-2. Channel Search
MENUOPERATIONS
MENU OPERATIONS
A. Satellite Name
Press the button to display the Satellite List Box. The Satellite name list is put in alphabetical order. Select one of the preprogrammed satellites that correspond to the value of the antenna. If the desired satellite name is not in the list, then select Others.
MENUOPERATIONS
MENU OPERATIONS
B. Search Mode
There are 4 search modes, Auto, Manual, Advancedand SMATV.The Auto mode enables to search using the information the STB has. On the other
hand, there will be a need to know in advance the frequencies and the symbol rates before using the Manual mode. On the Advanced mode, enter the Audio PID, Video PID or the PCR PID. The SMATV mode is used to special purposes on satellite master antenna TV system.
C. Frequency
Enter the Transponder’s Frequency by using the numeric buttons on your RCU.
D. Symbol Rate
Enter the Transponder’s Symbol Rate by using the numeric buttons on your RCU.
E. Polarization
Choose the Type of polarization, either the Horizontal or the Vertical.
MENU OPERATIONS
MENU OPERATIONS
F. Network Search
This Network Search item can be used if the Search mode is set to
the Manual or Auto mode. If the Network Search item is set to Onand the NIT (Network Information Table) is available, the Transponder’s information can be found.
G. PID
Press button to enter Video/Audio/PCR PID’s.
1) Video PID
Insert the Video PID by using the numeric buttons on your RCU.
2) Audio PID
Insert the Audio PID by using the numeric buttons on your RCU
3) PCR PID
Insert the PCR PID by using the numeric buttons on your RCU.
4) SAVE
To ensure the above Video/Audio/PCR PID change, press button at this item.
H. FTA/ Scrambled
Choose your favorable channels among FTA only / CAS only/ FTA+CAS.
MENUOPERATIONS
MENU
MENU OPERATIONS
I. Start Search...
Searches for digital channels after the configuration of the LNB is over. To stop the searching process on the way, press either the button or the button.
EXIT
This menu will be shown as long as the STB is searching for channels. All channels found will be listed in two columns on the screen; with TV channels in one column
and Radio channels in the other. Please note that the search procedure may take a few minutes. When the search procedure is completed, the screen will show how many TV and Radio channels have been found. Press button to save the channels.
J. LNB Setting
To go to LNB Setting menu directly from Channel Search menu,press
button at this item.
MENUOPERATIONS
Positioner Setting Guide Positioner model only
Positioner Setting Guide
For the viewing of certain programs and satellites, the satellite and the antenna has to be configured. This is possible through the Motorized Dish Setting menu.
NOTE: The positioner should be installed correctly, before proceeding this part of manual.
Installation
Warning: Disconnect
STB from mains supply, before installing the positioner
and/or skew motors.
Positioner
There are 4 wires from actuator motor. That is to say, M1, M2, Pulse(or reed) and GND wires. Please check and follow the procedures.
A. Connect the GND wire to the GND terminal on your STB.
B. Connect the motor wires of actuator to the motor terminal(M1,M2) on your STB.
: Please do not connect the pulse(or reed) wires to the motor
terminals(M1,M2) on STB. It may break down your STB and Motor.
C. Connect the reed wires of actuator to the ‘Pulse’ terminal on your STB.
: Please do not connect the motor wires(M1,M2) to the
pulse terminal on STB. It may break down your STB and motor.
Skew
There are 3 wires from skew motor. That is to say, +5V, Skew and GND wires. Please check and follow the procedures.
A. Connect the GND wire of skew motor to the GND terminal on your STB.
B. Connect the +5V wire of skew motor to the +5V terminal on your STB.
POSITI ONERSETTINGGUIDE
C. Connect the skew wire of skew motor to the Skew terminal on your STB.
Positioner Setting Guide Positioner model only
: Please do not exchange the above three wires. It May break down
your STB and skew motor.
Skew motor S
positioner motor
P
M1
Skew wire
+5V
pulse
M2
GND
GND wire
POSITI ONERSETTINGGUIDE
Positioner Setting Guide Positioner model only
IV-3. Dish Setting
First, go to the Motorized Dish Setting under the Installation-Dish Setting-Auto Setting menu. Please note that the button always indicates the eastern direction and similarly the button always the western direction.
IMPORTANT: After the configurations, “saving” the information is crucial! Press the red (F1) button to save the settings.
Before setting the antenna position, the East Limit and the West limit have to be set.
A. East Limit
POSITIONER SETTING GUIDE
Press the button to move and adjust the motor to a certain position of the East limit. Save it by pressing red (F1) button. The indicated number will be set as 1000.
Positioner Setting Guide Positioner model only
B. West Limit
Press the button to move and adjust the motor to a certain position of the West limit. Save it by pressing red (F1) button. The indicated number will increase from
1000.
The dish limits are now saved in the receiver and the dish is positioned to the most western limit.
CAUTION: If you do not have a movable dish, just press the red(F1) button twice to
program the East and the West limit in the same position. This will be indicated by a numeric value of 1000 for both limits.
There are two main ways of configuring the antenna: the Auto and the Manual setting.

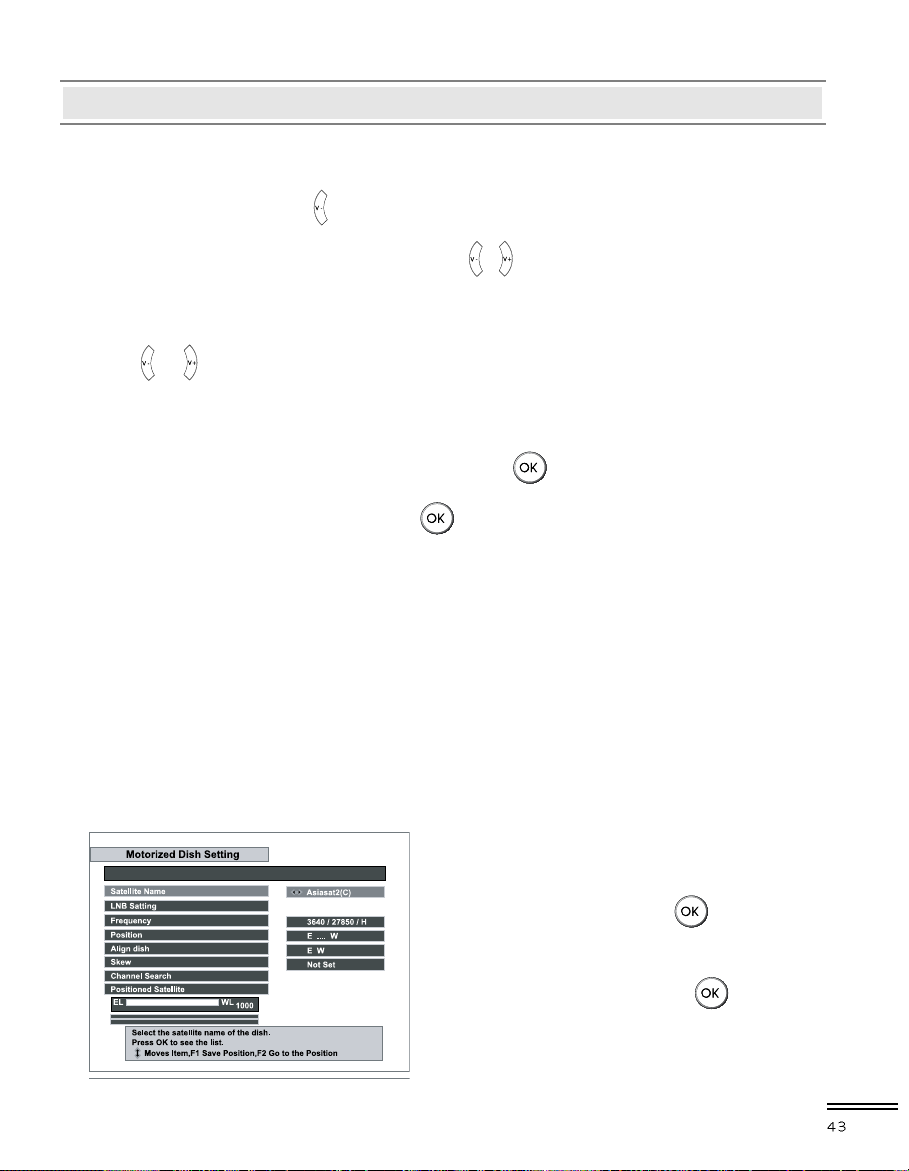

C. Auto Setting
The Auto Setting consists of 4 main steps: configuring the most western,middle and the most eastern satellite and the specific Satellite you want to set.
POSITI ONERSETTINGGUIDE
Positioner Setting Guide Positioner model only
1) Most Western Satellite
. Satellite Name : Press the button to display the satellite list. Choose the desirable
most western satellite among the list by highlighting it and press the button.
. Frequency : Press the button to display the frequency list. Any frequency will
function. Please contact the installer or the service provider for more specific information.
. Position dish : Press the button to search and allocate the antenna to the adequate
position. The positioning procedure might not succeed the first time. Repeat the procedure, if it is needed. As you press the / buttons, the cursor will subsequently move to the left/right until it finds the matching position. As soon as the cursor finds the position, the signal quality(yellow bar) will appear. If the signal strenth is appear, the motor will be stopped.
. Align dish : In the position, move the dish to obtain the highest signal quality using
the or buttons.
. Press the red (F1) button to save it!
NOTE: There could be an error, though rare, concerning the misplacement of
east and west positions. Please check the position of the Antenna Positioner for the best solution.
2) Middle Satellite
. Repeat the first 2 steps(Satellite Name, Frequency) as listed above. . Position dish : Press the button to search and allocate the antenna to the adequate
position. The positioning procedure might not succeed the first time. Repeat the procedure, if it is needed. As you press the / button, the cursor will subsequently move to the left/right until it finds the matching position. As soon as the cursor finds the position, the signal quality (yellow bar) will appear. If the signal strenth is appear, the motor will be stopped.
. Align dish : In the position, move the dish to obtain the highest signal quality using
the or buttons.
. Press the red (F1) button to save it!
POSITI ONERSETTINGGUIDE
Positioner Setting Guide Positioner model only
3) The Most Eastern Satellite
. Repeat the first 2 steps(Satellite Name, Frequency) as listed above. . Position dish : Press the button to search and allocate the antenna to the adequate
position. The positioning procedure might not succeed the first time. (Repeat the procedure, if it is needed.) As you press the / button, the cursor will subsequently move to the left/right until it finds the matching position. As soon as the cursor finds the position, the signal quality (yellow bar) will appear.
. Align dish : In the position, peak the dish to obtain the highest signal quality using
the or buttons. Press the red (F1) button to save it!
4) Program Satellites
Now go to the Satellite Name section and press to display the satellite list.
Accordingly, check all satellites you want to positioned between the most western and the most eastern satellite using the button. Press the red (F1) button to save it. Let the receiver calculate all intermediate satellite positions. All selected satellite positions are now stored.
The STB now has programmed the position of all selected satellites. Next step is to
store all channels on the satellite. Under the same Dish Setting menu, go to the Channel Search section. Select the Start Search... section to launch the searching procedure and to store all channels.
Repeat this procedure for all satellites.
D. Manual Setting
1) Satellite Name : Press the button to
display the satellite list. Choose the desirable most western satellite among the list by highlighting it and pressing the button.
POSITI ONERSETTINGGUIDE
Positioner Setting Guide Positioner model only
Frequency : Press the button to display the frequency list. Any frequency will
2)
function. Please contact the installer or the service provider for more specific information.
3)
Position dish : Press the button to search and allocate the antenna to the adequate
position. The positioning procedure might not succeed the first time. Repeat the procedure, if it is needed. As you press the / buttons, the cursor will subsequently move to the left/right until it finds the matching position. As soon as the cursor finds the position, the quality signal (yellow bar) will appear.
4)
Align dish : In the position, peak the dish to obtain the highest signal quality using
the or buttons.
. Press the red (F1) button to save it!
5)
Channel Search : Select Start Search... to store all channels.
NOTE: There could be an error, though rare, concerning the misplacement of east and west positions. Please check the position of the Antenna Positioner for the best solution.
E. Initialize Position Data
You can initialize all stored position data when you want set up new satellite position.
F. Moving Confirmaton Box
If this item is set to Off, you need not confirm the moving when channel is changed to other satellite. If this item is set to On, you have to confirm the moving antenna position when
POSITI ONERSETTINGGUIDE
channel is changed to other satellite.
MENU OPERATIONS

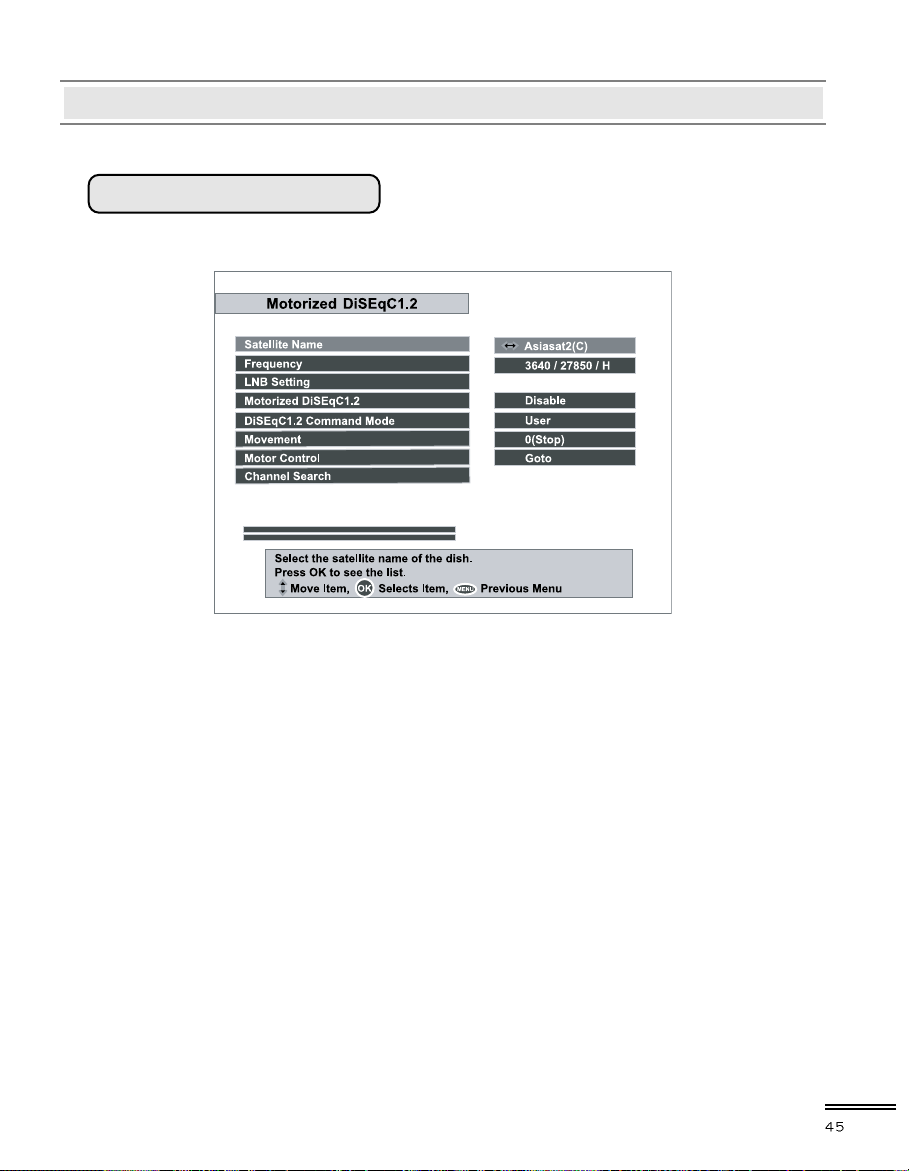

IV-4 . Motorized DiSEqC 1.2
If you have DiSEqC 1.2 motorised system, then you can use the DiSEqC 1.2 functions.
. Satellite Name
A selection of satellite names that will be used to identify a motor position.
. Frequency: Selects the frequency to catch the strong signal. . DiSEqC Command Mode : Change the current mode between User and Installer
modes.
- User: This mode is used to fine-tune the position of the motor for better reception.
- Installer: This mode is used to search for the position of a satellite manually.
. Movement: In case of User mode, the movement is adjustable by fine-tuning.
In case of Installer mode, the movement is adjustable by East, West going command.
MENUOPERATIONS
MENU OPERATIONS
. Motor Control
- Goto : Moves the motor to the stored position of the selected satellite.
- Store : Stores the current position of the motor for the selected satellite.
- Reset : Resets all stored position of the motor relative to the “0” position. (Installer mode only)
- Recalculate : Recalculates the position of the Stab Rotor motor.
- Limit E,W: Limits east and west position.
- Limit OFF : Setting of the limitation.
- Goto Ref : Goes to reference.
. Channel Search: After saving the DiSEqC configuration at the highest signal quality,
press button to start channel searching of the selected satellite.

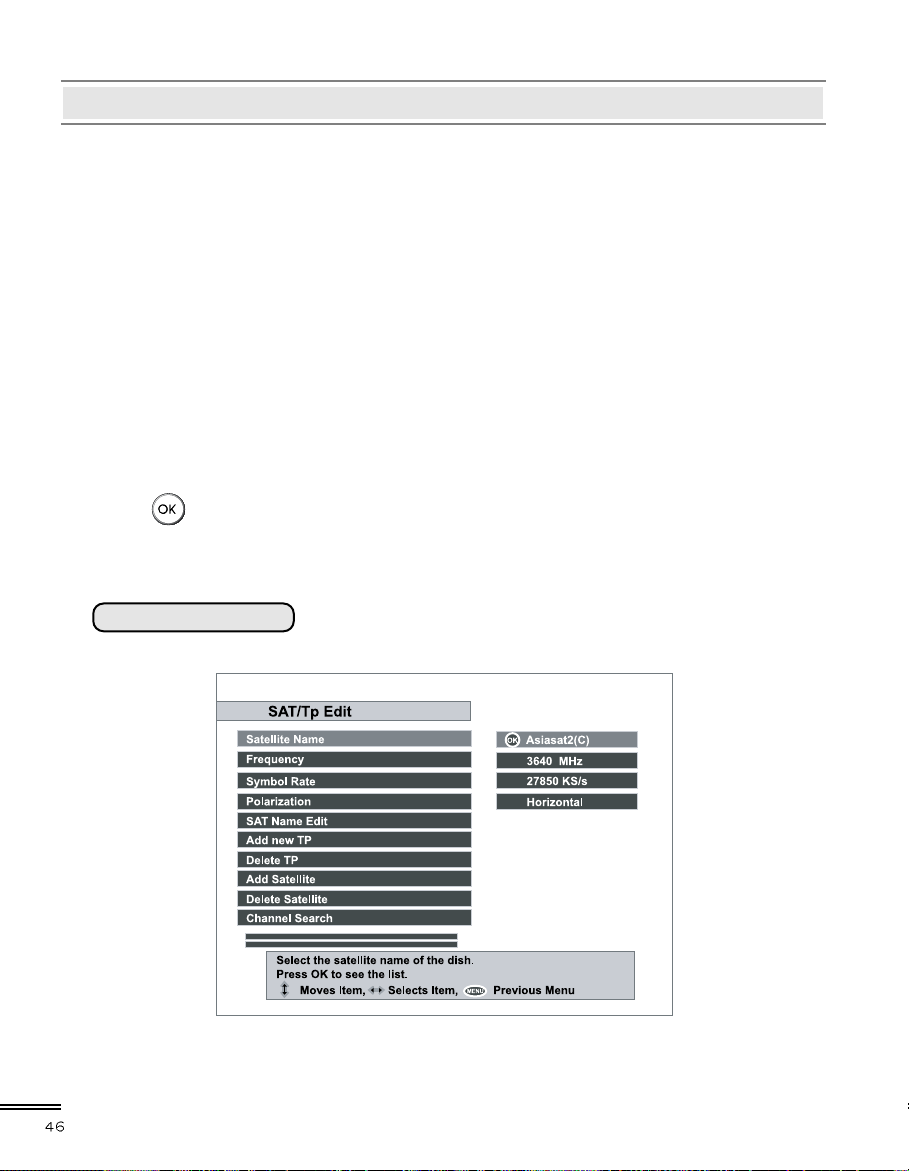

IV-5. SAT/Tp Edit
MENU OPERATIONS
MENU OPERATIONS
A. Satellite Name
By pressing button, you can see the listed satellite names . Then,using , , or buttons, you can select satellite.
B. Frequency
By pressing button, you can see the all frequencies of transponders of a satellite, and also you can select a frequency. Or, by pressing , , or buttons, you can select and view a frequency one by one.
C. Symbol Rate
You can see the symbol rate of specified satellite on the right side of the menu.
D. Polarization
You can select the polarization from Horizontal and Vertical modes.
E. SAT Name Edit
You can change the name of the satellite name by this menu. Press button to display a keyboard. There are several items such as Other, Save and Space in the keyboard. By selecting Other item, you can see a new alphabet character sets.
The Space item a space between two characters. And the Save item is used to
confirm the new name of the satellite.
Notes: You can move the cursor in the satellite name row by or and column by or button.
MENUOPERATIONS
MENU OPERATIONS
F. Add New TP
In case of new transponder information is added by broadcaster, you can add new TP(transponder) information and enjoy new services. Before adding new TP information, you should know the frequency, symbol rate and polarization types. After adding new information, you should confirm the new information by pressing
button at OK item.
G. Delete TP
By selecting this item, you can delete the selected TP(Transponder) information.
H. Add Satellite
Using this menu, you can add new satellite name by keyboard, then it will be added in the Satellite Name menu.
I. Delete Satellite
By selecting this item, you can delete the selected satellite information.
J. Channel Search
It is used to go to Channel Search menu directly from SAT/Tp Editmenu.
MENUOPERATIONS
MENU OPERATIONS

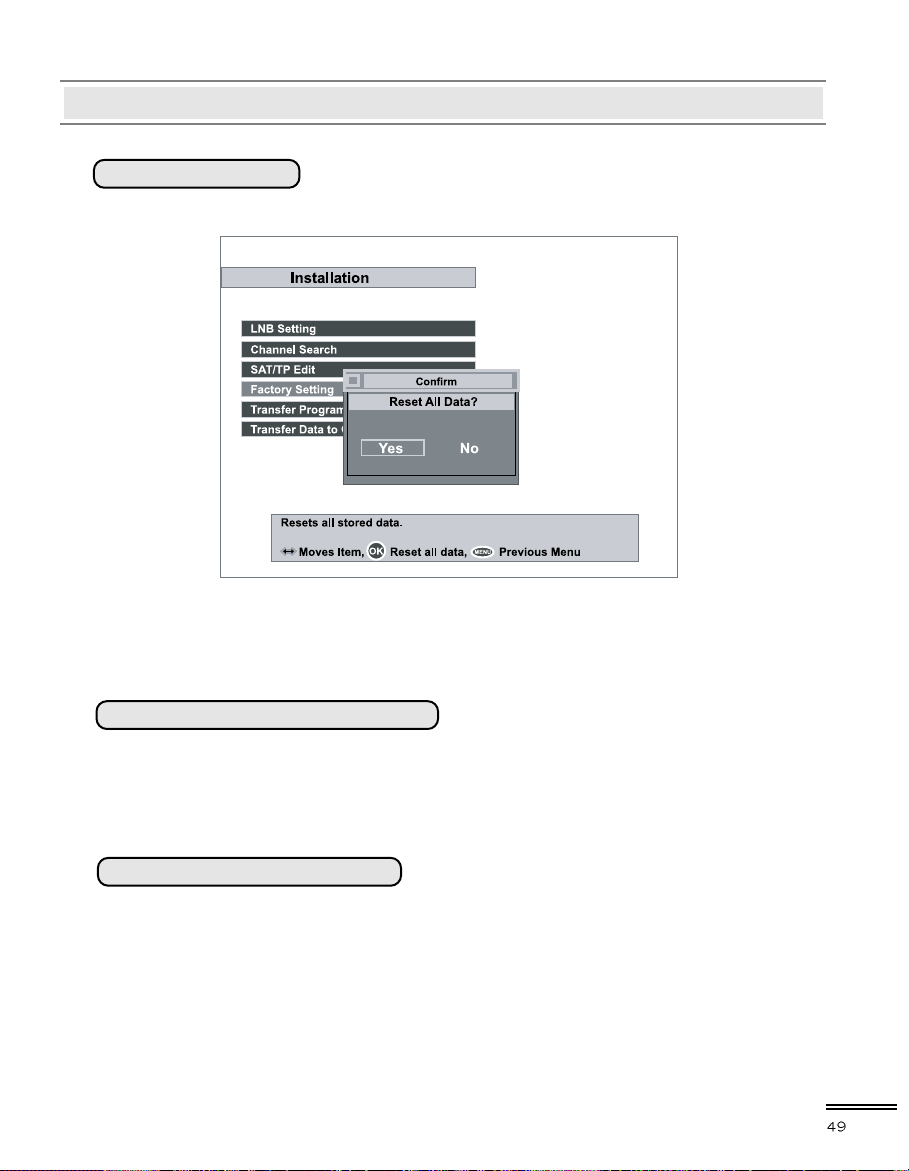

IV-6. Factory Setting
All the stored data can be reset just like it was manufactured.
IV-7.Transfer Program to Other IRD
It is used to transfer program to other IRD for upgrading the IRD.
Notes: Please proceed this menu with connecting the IRD of same model
and same specification.
IV-8.Transfer Data to Other IRD
It is used to transfer data such as satellite/TP information to other IRD for upgrading the IRD.
Notes: Please proceed this menu with connecting the IRD of same model and
same specification.
MENUOPERATIONS
MENU OPERATIONS
V. INFORAMTION
You can check the STB version and refer the calendar.
V-1. IRD STATUS
MENUOPERATIONS
Check the IRD’s system information. It shows the IRD’s:
System ID Loader Version Device Version Application Version Last Update
MENU OPERATIONS

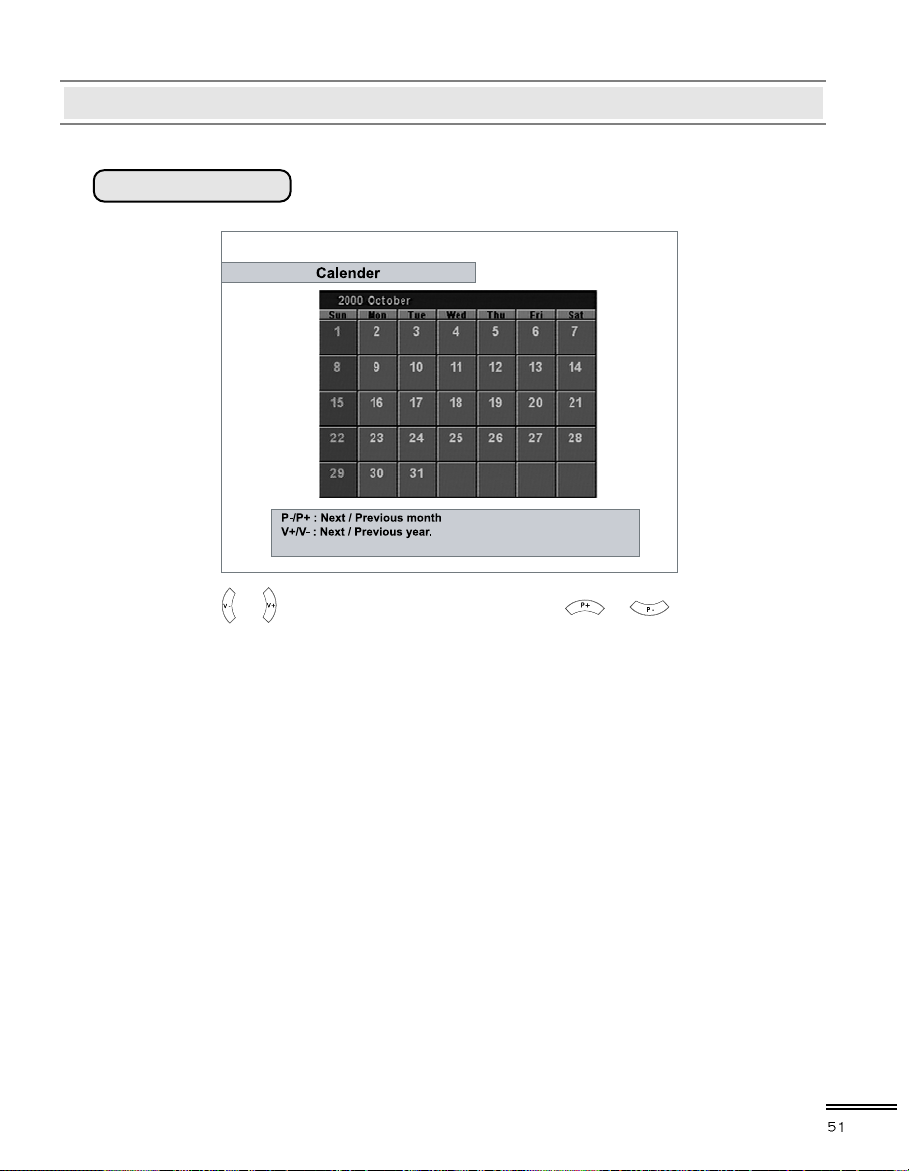

V-2. CALENDAR
Press the or button to select the year. Press the or button to
select the month.
MENU OPERATIONS
MENU OPERATIONS
VI GAME
VI-1. Block
MENUOPERATIONS
VI-2. Poker
MENU OPERATIONS
VI-3. Bricks Lay
VI-4. Bomb Hexa
MENU OPERATIONS
TROUBLESHOOTING (Q & A)
Problem Possible Causes What to do
Nothing appears on the Front Panel.
No sound or picture, but the front panel shows the time or -- : --
No Picture, No Sound.
The Remote Control Unit (RCU) is not working.
You have forgotten your secret PIN Code.
Time Setting is wrong.
The main power cable is not connected.
STB is in standby mode.
The satellite dish is not pointing at the satellite. No Signal or Weak Signal. LNB is faulty. The UHF Key is
pushed down .
No Batteries. The RCU is incorrectly aimed. The STB is in standby
mode.
The Time is not set properly.
Check that the main power cable is plugged into the power socket.
Turn the power ON.
Adjust the dish. Check the settings in one of the channel search submenus.
Check the cable connections. Replace the LNB. Get out of the UHF mode.
Change the batteries (both). Aim the RCU properly to
the STB. Change the mode to the
normal mode.
Contact your Service Provider.
Adjust the Time on the Menu.
2 broadcasts overlap.
TROUBLESHOOTING(Q & A)
The channels are not configured properly on the RF mode.
Set the channels in the RF mode under the A/V setting of the Menu between 21 to 69 on the TV.
SPECIFICATIONS(IRD)
STB SPECIFICATIONS
Item Specification
Power
Input Frequency
SCART
CINCH A/V Out
LNB Power
Modulation / FEC Type
DiSEqC Bus
Tone Switching
RF Modulator UHF Ch. 21-69 with PAL I/G/B
Specification MPEG - 2/DVB Compliant SI
Video Compression MP@ML in MPEG-2
Aspect Ratio
On-Screen Display
EPG
90 - 250VAC, 50 / 60Hz
950 - 2150 MHz
1 RS - 232C, 115kbpsDATA Service
2 SCARTS: 1 VCR, 1 TV
1Video / 2 Audio (left and right)
Convertible 13.5/18V (500mA max)
QPSK / Multiple convolution coding
(DVB Compliant)
DiSEqC Ver. 1.0 / 1.2 compatible
22 KHz
4:3 or 16:9
256 colors with full resolution
Supported
CHANNEL PROCESSING
Item Specification
Input Frequency Range
Number of Channels
Tuning System
Tuning Step Size
Modulation
Inner FEC
Outer FEC Reed Solomon coding RS (204, 188, t=8)
Input Symbol Rate 2 to 45 Ms/s
IF Bandwidth
Connector Type
950 - 2150 MHz
3500 TV Channels and 1500 Radio Channels
PLL Digital Synthesis Channels
125 KHz Max
QPSK (DVB Specification) Rates: 1/2, 2/3, 3/4, 5/6, 7/8
(DVB Specification)
27MHz
F Type ( IEC 169 - 24 female)
SPECIFICATIONS (IRD)
SPECIFICATIONS(IRD)
MPEG AUDIO
Item Specification
Operation Mode Mono , Left , Right and Stereo
Sampling Rates 32, 44.1 and 48 kHz
Resolution 18 bit digital to analogue Converters
VIDEO SPECIFICATIONS
Item Specification
Specification
TV System
Video Decoding
Video Resolution
RF MODULATOR
Item Specification
Features
Connector
Channel Range
Pre-Set Channel
Meets ETR 154 amended in ALM-95-021
PAL I ,G,K
ISO / IEC 13818-2, MP@ML
720 pixels
Input RF bypass Supported. IEC Coaxial female 9.5 mm.(IEC 168-2) CCIR UHF E 22-69 adjustable
Channel 36 (or TBD)
576 lines 25 frames per sec.
. POWER SUPPLY (Non-Positioner model only)
Item Specification
Input Voltage
Type
Power Consumption
Standby Power
Protection Separate internal fuse
SPECIFICATIONS(IRD)
90 - 250VAC, 50 / 60Hz
SMPS
Max.30Watt
8Watt
SPECIFICATIONS(IRD)
. POWER SUPPLY (Embedded Positioner model only)
Item Specification
Input Voltage
Type
Power Consumption
Standby Power
Protection Separate internal fuse
. POSITIONER (Embedded Positioner model only)
Item Specification
Satellite Position Azimuth Control
Output Power
Sensor Type
4 push terminals (M1,M2,Pulse,GND)
90 - 250VAC, 50 / 60Hz
SMPS
Max.230Watt
8Watt
50
36VDC, 5A Max
Reed Switch
SPECIFICATIONS(IRD)
Loading...
