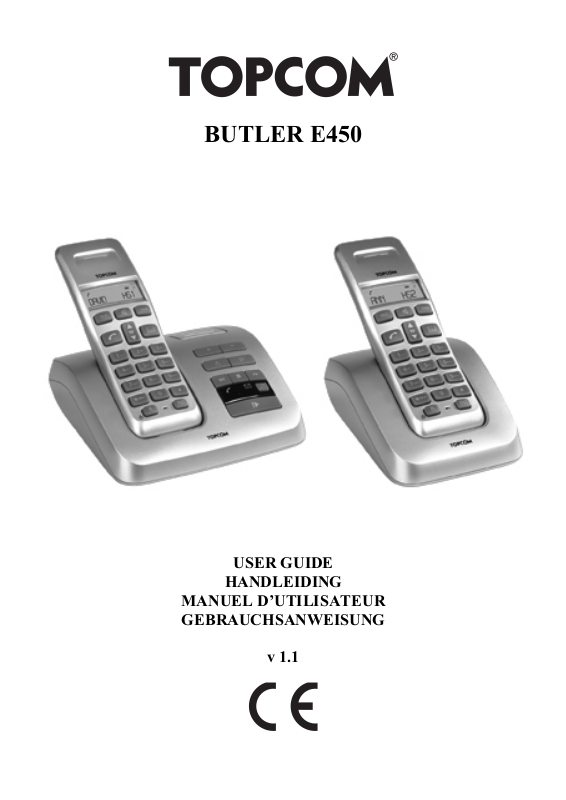

Topcom BUTLER E450 User Manual

BUTLER E450

USER GUIDE

HANDLEIDING MANUEL D’UTILISATEUR GEBRAUCHSANWEISUNG

v 1.1

Important

To use ‘Caller ID’ (display caller), this service has to be activated on your phone line. Normally you

need a separate subscription from your telephone company to activate this function. If you don’t

have the Caller ID function on your phone line, the incoming telephone numbers will NOT be

shown on the display of your telephone.

Belangrijk

Om de ‘Nummerweergave’ te kunnen gebruiken, moet deze dienst geactiveerd zijn op uw

telefoonlijn. Om deze dienst te activeren, hebt U hiervoor meestal een apart abonnement van uw

telefoonmaatschappij nodig. Indien U geen nummerweergavefunctie hebt op uw telefoonlijn, zullen

de inkomende telefoonnummers NIET op de display van uw toestel verschijnen.

Important

Pour utiliser la fonction ‘Caller ID/Clip’ (affichage de l’appelant), ce service doit être activé sur

votre ligne téléphonique. Généralement, vous avez besoin d’un abonnement séparé de votre

compagnie de téléphone pour activer cette fonction. Si vous n’avez pas la fonction ‘Caller ID -

Affichage Appelant’ sur votre ligne téléphonique, les numéros de téléphone entrants n’apparaîtront

PAS sur l’écran de votre téléphone.

Wichtig

Zur Verwendung der ‘Rufnummernanzeige’ muss dieser Dienst erst für Ihre Telefonleitung freigege-

ben werden. Zur Aktivierung dieser Dienstleistung benötigen Sie meistens ein separates Abonne-

ment Ihrer Telefongesellschaft.Wenn Sie für Ihre Telefonleitung keine Rufnummernanzeigefunktion

haben, erscheinen die eingehenden Telefonnummern NICHT im Display Ihres Gerätes.

UK To be connected to the public analogue telephone network. NL Geschikt voor aansluiting op het openbare analoog geschakelde telefoonnetwerk. F Il est destiné à être raccordé au réseau de télécommunication public. D Kompatibel für den analogen telefonanschluss.

UK The features described in this manual are published with reservation to modifications. NL De in deze handleiding beschreven mogelijkheden worden gepubliceerd onder voorbehoud van

wijzigingen. F Les possibilités décrites dans ce manuel sont publiées sous réserve de modifications. D Die in dieser Bedienungsanleitung umschriebenen Möglichkeiten, werden vorbehaltlich Änderun-

gen publiziert.

This product is in compliance with the essential requirements and other

relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on:

http://www.topcom.net/support/cedeclarations.php

UK The CE symbol indicates that the unit complies with the essential requirements of the R&TTE

directive. NL Het toestel voldoet aan de basiseisen van de R&TTE-richtlijn. Dit wordt bevestigd door de CE-

markering. F La conformité de l’appareil avec les exigences fondamentales de la directive européenne R&TTE

relative aux terminaux, est confirmée par le label CE. D Die Übereinstimmung des Gerätes mit den grundlegenden Anforderungen der R&TTE-Directive

ist durch das CE-Kennzeichen bestätigt.

1 Safety instructions

Safety instructions

English

• Only use the charger plug supplied. Do not use other chargers as this may damage the battery cells.

• Only insert rechargeable batteries of the same type. Never use ordinary, non-rechargeable batteries. Insert rechargeable batteries so they connect to the right poles (indicated in the battery compartment of the handset).

• Do not touch the charger and plug contacts with sharp or metal objects.

• The operations of some medical devices may be affected.

• The handset may cause an unpleasant buzzing sound in hearing aids.

• Do not place the basic unit in a damp room or at a distance of less then 1.5 m away from a water source. Keep water away from the handset.

• Do not use the telephone in environments where there is a risk of explosions.

• Dispose of the batteries and maintain the telephone in an environment-friendly manner.

• As this telephone cannot be used in case of a power cut, you should use a mains-independent telephone for emergency calls, e.g. a mobile phone.

2 Getting started

2.1 How to use this user guide

In this user guide, following method is used to clarify the instructions:

English

Text....... “DISPLAY”.

Text that appears on the display of the phone is shown in the right column between quotation marks.

Key to press.

2.2 Installing the base

For installation, do the following: 1 Plug one end of the adaptor into the outlet and the other end into the adaptor jack on the back

of the base.

2 Connect one end of the telephone cord with the wall phone jack and the other end to the bottom

of the base.

3 Put the telephone- and AC power line cord in the base guides as shown on picture 2A.

Getting started

- 2A Back view of base A. Telephone wall outlet B. Power cable C. Telephone cord

2.3 Installing the charger

1 Plug the adaptor into the wall outlet.

- 2C Charger -

A. Adaptor with power cable

2.4 Installing the handset

1 Open the battery compartment as shown on picture 2B. 2 Insert the batteries respecting the polarity (+ and -). 3 Close the battery compartment. 4 Leave the handset on the base unit for 20 hours.

- 2B Back view of handset -

Butler E450

PQRS

GHI

ABC

JKL

TUV

DEF

MNO

WXYZ

INT

A. Cover B. Rechargeable batteries

Getting started

English

Before you use the telephone for the first time, you must first make sure the battery is charged for 20 hours. If you do not do this, the telephone will not work optimally.

2.5 Keys/LED’s

Handset

1. Display

2. Menu / OK key

3. Up / Redial / Pause key

4. Phonebook key

5. Alphanumeric keys

6. INT key

7. On/Off/Flash key

8. Keypad lock

9. Down/Call log key

10. On-hook/Off-hook key

11. Handsfree key

12. Mute/Delete key

Handset display

In standby mode, the display shows the time and the handset number:

12-05 HS1

- 2C Handset -

- 2D Display -

Getting started

2021

Base

13. Volume Down key

14. Volume Up key

15. Outgoing Message key

16. Stop key

17. Skip Forward key

18. Delete key

19. Answering On/Off LED

20. Play/Pause key

21. In use/Power LED

22. Skip Back key

23. Answering machine On/Off key

24. Paging key

- 2E Base -

2.6 Symbols

Off hook; you are online Handset keypad locked EXT INT

External call You are in the phonebook

Internal call Battery low

New numbers in call list Battery medium

Answered call Battery full

Unanswered call Battery empty

Your are in the menu Handset within base range

Indicates that the displayed number is

longer than the screen (12 digits)

Answering machine on

2.7 Base LED

The “in use/power LED” (20) indicates the following status:

Off The base has no power. Blinking slowly Off hook or during ringing.

The antenna flashes when the handset is not registered on the base

Blinking rapidly During registration.

The “answering on/off” LED (18) indicates the following status:

Off The answering machine is off. On The answering machine is on. Blinking slowly There are new messages. Blinking rapidly The memory of the answering machine is full.

Getting started

2.8 Navigating the menu

The Butler E450 has a menu system which is easy to use. Each menu leads to a list of options. The menu map is shown on the following paragraph.

1 When the handset is switched on and in standby, press the menu key to open

the main menu.

2 Scroll to the desired menu option. The menu options scroll in a loop (you

return to the first after the last).

3 Press the OK key to view further options or to confirm the setting displayed.

Press the delete key to return to the previous level in the menu.

2.9 Menu overview

Menu Submenu items

English

Play Messages

Phonebook

TAM Settings

Setup

New Msg All Msg

Add Entry Modify Entry Delete Entry

Ans On/Off Ans Mode Memo Rec OGM Settings Day Settings Ans Delay Remote Code

Base Volume Base Melody Del Handset PIN Code Dial Mode Default

Handset

Date - Time

Beep Int Ring Vol Ext Ring Vol Int Melody Ext Melody Auto Answer Name Language Keylock?

Date Set Clock Set Alarm Set

Select Base Reg Base

Using the telephone

GHI6MNO5JKL

INT

3 Using the telephone

3.1 Switching the handset on/off

1 Press the on/off key on the handset for 2 seconds. The handset will search

the base.

2 Press and hold the on/off key for 3 seconds. The display will go off.

3.2 Changing the menu language

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “LANGUAGE” and confirm. 4 Select a language and confirm.

3.3 Receiving a telephone call

To take the call:

1 Press the off-hook key.

OR Lift the handset off its base if you have activated “Automatic answer”.

(See “6.5 Automatic answer” ) You are connected to your correspondent. 2 Press the on-hook key to hang up or put the handset back on the base.

3.4 Making an external telephone call

Direct dialing

1 Press the off-hook key to start the call. 2 Dial the telephone number. 3 Press the on-hook key to hang up or put the handset back on the base.

To correct a number use the delete key to delete an entered digit.

Pre-dialing

MNO5JKL

GHI

1 Dial the telephone number. 2 Press the off-hook key to start the call. 3 Press the on-hook key to hang up or put the handset back on the base.

3.5 Making an internal telephone call

1 Press the internal call key.

MNO5JKL

GHI

2 Enter the number of the internal handset (1 to 5). 3 Press the on-hook key to hang up or put the handset back on the base.

Using the telephone

INT

3.6 Internal call transfer

Transfer an external call to an other handset.

1 Press the internal call key.

MNO5JKL

GHI

2 Enter the number of the internal handset (1 to 5), the external caller is put

on hold. 3 When the other handset picks up, press the on-hook key to hang up and

transfer the call. If the internal correspondent does not pick-up, press the internal call key again

to reconnect to the external caller on line. 4 Press the on-hook key to hang up or put the handset back on the base.

3.7 Conference call

Only possible when more then one handset are registered to the base! You can converse simultaneously with an internal correspondent and an external correspondent. During an external call:

1 Press the internal call key.

English

MNO5JKL

GHI

2 Enter the number of the internal handset (1 to 5). 3 When the other handset picks up, press and hold the ‘ ’ key.

If the internal correspondent does not pick-up, press the internal call key again to reconnect to the external caller on line.

4 Press the on-hook key to hang up or put the handset back on the base.

3.8 Handsfree mode

You can speak with your correspondent without picking up the handset.

1 Press the handsfree key during a call to activate or deactivate the handsfree

mode.

3.9 Speaker volume during call

1 During a conversation, press the up or down key to change the volume

accordingly.

The handsfree volume is also adjusted together with the receiver in the handset as above described.

3.10 Display of call duration

The call duration is displayed after 15 seconds, in minutes - seconds. At the end of each call, the total call duration is displayed for 5 seconds.

3.11 Microphone mute

It is possible to mute the microphone during a conversation.

1 Press the mute key. You can talk freely without being heard by the calling

party. “MUTE” is displayed. 2 Press the mute key again to return to normal mode.

Using the telephone

3.12 Pause key

When dialing a number you can add a pause between two digits:

1 Press the redial/pause key for 2 seconds.

3.13 Locating a handset (Paging function)

1 Press the paging key on the base. All handsets registered with the base will ring.

MNO5JKL

GHI

2 Press any key on the handset to stop the ringing.

3.14 Redial memory

You can redial up to 10 of the last numbers called. If you have stored a name in the phonebook to go with the number, the name will be displayed instead.

1 Press the redial key. 2 Select a number. If the number is in the phonebook, the name will be

shown. When the name is displayed, you can toggle between the name and the number

by pressing the OK key!

3 Press the off-hook key to start the call. 4 Press the on-hook key to return to standby.

3.15 Using the alphanumerical keypad

With your telephone, you can also enter alphanumeric characters. This is useful for entering a name into the phonebook, giving a name to the handset, ... To select a letter, press the corresponding key as many times as necessary. For example, to select an ‘A’, press ‘2’ once. To select a ‘B’, press ‘2’ twice and so on. To select ‘A’ and then ‘B’ consecutively, press ‘2’ once, wait until the cursor moves on to the next character, then press ‘2’ twice. During entering text, the available character under each key appears below on the display.

Press ‘1’ to select a space. Press the delete key to delete a character.

The keypad characters are as follows:

Key First Second Third Fourth Fifth

press press press press press

1space - 1 2ABC2 3D E F 3 4GHI 4 5J K L 5 6MNO6 7P Q R S 7 8TUV8 9WXYZ9

4 Phonebook

Each handset can store up to 50 telephone numbers and names. Names can be up to 12 characters long and numbers up to 20 digits. To enter alphanumerical characters, refer to the section “3.15 Using the alphanumerical keypad” .

4.1 To add an entry into the phonebook

1 Enter the menu. 2 Select “PHONEBOOK” and confirm. 3 Select “ADD ENTRY” and confirm.

MNO5JKL

GHI

4 Enter the name and confirm. Press and hold the mute/delete key to exit the menu without taking any

modifications into account.

Phonebook

English

GHI6MNO5JKL

5 Enter the number and confirm. 6 Select a ring melody (1-5) and confirm.

4.2 To dial an entry from the phonebook

1 Press the phonebook key. 2 Select a name or enter the first letter of the name. (The list scrolls in

alphabetical order.) Press the OK key if you first like to see the telephone number. If the telephone number is longer then 12 digits, press the OK key again to see

the complete number.

3 Press the off-hook key to start the call. 4 Press the on-hook key to hang up or put the handset back on the base.

4.3 To modify a name and number

1 Enter the menu. 2 Select “PHONEBOOK” and confirm. 3 Select “MODIFY ENTRY” and confirm. 4 Select the name to modify and confirm.

GHI6MNO5JKL

5 Delete the unwanted characters and enter the new name.

Confirm.

MNO5JKL

GHI

6 Enter the new number and confirm. 7 Select a ring melody (1-5) and confirm.

4.4 Delete an entry from the phonebook

1 Enter the menu. 2 Select “PHONEBOOK” and confirm. 3 Select “DELETE ENTRY” and confirm. 4 Select a name or enter the first letter of the name and confirm.

“CONFIRM” appears on the display. 5 Confirm or cancel.

Caller Identification

5 Caller Identification

This service only works when you have a Caller ID/Clip subscription. Please contact your telephone company.

When you receive an external call, the telephone number of the caller appears on the handset display. The telephone can receive calls in both FSK and DTMF. You can also see his or her name if it is transmitted by the network. If the name is programmed in the phonebook, the name in the phonebook is displayed!

The caller identity is replaced by the call duration after 15 seconds in communication. It is still possible to display the caller’s identity after this time by pressing the OK key repeatedly for the name and number.

The telephone can store 40 calls in a Call List (received and missed calls) that can be reviewed later. This function is only available if your are subscribed to the caller ID information. When the memory is full, the new calls automatically replace the oldest calls in the memory.

New or missed calls are signaled by a blinking icon on the display.

To consult the list of calls:

1 Press the call log key. If there are no calls in the list “EMPTY” will appear. 2 Scroll through the calls. The callers names will be shown if the name is send

by the network or is stored in the phonebook. If you are at the end of the list

you will hear a beep tone. When is shown, this call is been answered. When is shown, the call is

unanswered 3 Press the OK key to see the telephone number. If the telephone number is longer then 12 digits, press the OK key again to see

the complete number. 4 Press the OK key again to see the time and date when the call is received.

Press the OK key to add this entry to the phonebook if it’s not already stored:

Press OK when “ADD” is shown on the display. Enter or modify the name

and press OK. Enter or modify the telephone number and press OK. Select

the melody (1-5) which will be heard when this number is calling by means

of the up/down keys and press OK. The entry will be stored in the phonebook. 6 Press the off-hook key to call back a correspondent, when their telephone

number or name are displayed.

You can delete each entry separately:

1 Scroll to the call you want to delete and delete. ”DELETE” appears on the screen. 2 Confirm or cancel.

To delete all entries at ones:

1 Press the delete key long (2 seconds). “DELETE ALL” appears on the screen. 2 Confirm or cancel.

Personalize the handset

6 Personalize the handset

Every programmation is confirmed at the end by a double or single long beep. A double beep confirms the validation of your choice. A long beep signifies that the modification has not been taken into account.

6.1 Adjusting the ring volume

Handset ring volume internal/external calls

The handset ring volume for internal or external calls can be set separately. You can choose from 5 handset ringer volume levels and “OFF”.

When the handset is inside the base, the base will not ring during incoming call. So when the handset ring volume is turned off and handset is inside the base, your phone will not ring anymore!

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “INT RING VOL” to change the internal volume or

“EXT RING VOL” to change the external volume and confirm.

English

4 Select a volume (1 to 5 or “OFF”). 5 Confirm or return to the previous menu.

6.2 Choosing the ring melody

The base and each handset can ring with a different melody. The handsets can ring with a different melody according to whether the call is internal or external. You can choose from 5 different ringer melodies:

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “HANDSET” and confirm. 4 Select “INT MELODY” to change the internal melody or

“EXT MELODY” to change the internal melody and confirm.

5 Select a melody (1 to 5). 6 Press the OK key to confirm or return to the previous menu.

6.3 Activation/deactivation of beeps

The handsets can emit a beep tone when a key is pressed, when the batteries are low or when the handset is out of range.

Key pressed beep tone on/off

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “BEEP” and confirm. 4 Select “KEYTONE” and confirm. 5 Select “ON” to activate or “OFF” to deactivate and confirm.

Personalize the handset

Low battery

Handset out of range

6.4 Handset name

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “BEEP” and confirm. 4 Select “LOW BATTERY” and confirm. 5 Select “ON” to activate or “OFF” to deactivate and confirm.

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “BEEP” and confirm. 4 Select “OUT RANGE” and confirm. 5 Select “ON” to activate or “OFF” to deactivate and confirm.

You can change the name displayed on the handset during standby (max. 9 characters). This function allows you to personalize each handset.

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “NAME” and confirm.

GHI6MNO5JKL

4 Enter the name you want and confirm. Press the delete key to delete a character. Press and hold the phonebook key to

exit the menu without taking any modifications into account.

6.5 Automatic answer

When there is a incoming call and the handset is on the base, the phone automatically takes the line when lifted. This is the default setting, but can be set off:

1 Enter the menu. 2 Select “HANDSET” and confirm. 3 Select “AUTO ANSWER” and confirm. 4 Select “ON” to activate or “OFF” to deactivate and confirm.

6.6 Reset the handset

It is possible to return the phone to the original default configuration. This is the configuration which was installed when you first received the telephone. To return to default settings:

1 Enter the menu 2 Select “SETUP” and confirm. 3 Select “DEFAULT” and confirm.

MNO5JKL

GHI

4 Enter the 4 digit PIN code (default =0000) and confirm.

Personalize the handset

DEFAULT PARAMETERS ARE:

Low battery beeps On Out of range warning beeps Off Key click On Auto answer On Internal melody 1 Internal volume 3 External melody 3 External volume 3 Ear volume 3 Phonebook Empty Call log list Empty Redial list Empty Pin code 0000 Dial mode DTMF Keypad lock Off

Returning to default settings will delete all entries in the phonebook and call log. The PIN code will also be reset to 0000.

English

6.7 Keypad lock

The keypad can be locked so that no settings can be changed or no telephone number can be dialed. The -icon will appear on the screen when keypad is locked.

Locking the keypad

1 Press and hold the ‘ ’ key for 3 seconds. The keypad will be locked.

Unlock the keypad

1 Press any key, “PRESS ” will appear on the screen. 2 Press the ‘ ’ key within 3 seconds.

6.8 Setting the time

1 Enter the menu. 2 Select “DATE - TIME” and confirm. 3 Select “CLOCK SET” and confirm.

MNO5JKL

GHI

4 Enter the time (24h format) and confirm.

6.9 Setting the alarm

1 Enter the menu. 2 Select “DATE - TIME” and confirm. 3 Select “ALARM SET” and confirm. 4 Select “ON” to turn on the alarm and confirm.

MNO5JKL

GHI

Enter the time (24h format) when the alarm must be activated and confirm.

Select “OFF” to turn off the alarm and confirm.

Base settings

GHI6MNO5JKL

7 Base settings

7.1 Adjusting the ring volume

Base ring volume

You can choose from 5 ringer volume levels and “OFF”.

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “BASE VOLUME” and confirm. 4 Select a volume (“OFF” or 1 to 5). 5 Confirm or return to the previous menu.

7.2 Choosing the ring melody

The base and each handset can ring with a different melody. To set the base melody:

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “BASE MELODY” and confirm. 4 Select a melody (1 to 5). 5 Confirm or return to the previous menu.

7.3 Changing the PIN code

Certain functions are only available to users who know the PIN code. By default the PIN code is 0000. To change the PIN code:

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “PIN CODE” and confirm.

GHI6MNO5JKL

4 Enter the old 4 figure PIN code and confirm. 5 Enter a new 4 figure PIN code and confirm.

MNO5JKL

GHI

6 Enter the new PIN code a second time and confirm.

7.4 Setting the dialing mode

There are two types of dialing mode: DTMF/Tone dialing (most common) and pulse dialing (for older installations). To change the dialing mode:

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “DIAL MODE” and confirm. 4 Select the dialing mode and confirm.

Managing multiple handsets

7.5 Flash time duration

Press the flash key ‘R’ (key 7 - picture 2D Handset) to use certain services on your external line such as “call waiting” (if your phone company offers this feature); or to transfer calls if you use a telephone exchange (PABX). The Flash key ‘R’ is a brief interruption of the line. You can set the flash time to 100ms or 250ms

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “RECALL” and confirm. 4 Choose “RECALL1” for short flash time (100ms) or “RECALL2” for long

flash time (250ms) and confirm.

8 Managing multiple handsets

8.1 Adding a new handset

Only needed when you have deregistered a handset or when you bought a new one.

English

You can register new handsets on the base if these handsets support the DECT GAP protocol. The base can support a maximum of 5 handsets. If you already have 5 handsets, and you wish to add another one or change one handset, you must first delete a handset, then associate the new handset.

Putting the base into registration mode:

1 Press and hold the paging key on the base for 6 seconds. The base will then

emit a beep tone. The LED on the base will start to blink for 90 seconds. During that time, the

base is ready to register a new handset.

If your additional handset is a Butler E450

2 Enter the menu. 3 Select “REGISTER” and confirm. 4 Select “REG BASE” and confirm.

GHI6MNO5JKL

5 Enter the number of the base to be associated with the handset (1-4) and

confirm. (The flashing numbers are already in use.)

GHI6MNO5JKL

6 Enter the Base PIN code (0000 by default) and confirm. The handset will start searching for the DECT base. If the handset has located

the base, it will display the base identification number. 7 Confirm or stop. If the handset does not locate the base, it will return to the standby mode after

a few seconds. Try again by changing the base number and check that you are not in an environment with interference. Move closer to the base.

Managing multiple handsets

If your handset is another model

After starting the registration procedure on the base, refer to the handset manual to find out how to register the handset. The handset must be GAP compatible.

The icon ‘ ’ and the text “NOT REG” flashes on the display when the handset is not associated with the base. When a handset is associated with a base, it is attributed a handset number by the base. It is this number that is displayed on the handset after the name and must be used for internal calls.

DECT GAP Profile only guarantees that basic calling-functions will work correctly between different brands/types. There’s a possibility that certain services (like CLIP) will not work correctly.

8.2 Removing a handset

This procedure needs to be carried out on a different handset then the one you want to remove.

1 Enter the menu. 2 Select “SETUP” and confirm. 3 Select “DEL HANDSET” and confirm.

GHI6MNO5JKL

4 Enter the Base PIN code (0000 by default) and confirm. 5 Select the handset to be removed and confirm.

8.3 Setting up a handset on another base

If you want to use a Butler E450 handset with a base of another model. The base must be GAP compatible.

1 Put the base in registration mode, refer to the base manual. 2 Enter the menu. 3 Select “REGISTER” and confirm. 4 Select “REG BASE” and confirm.

GHI6MNO5JKL

GHI

MNO5JKL

5 Enter the number of the base to be associated with the handset and confirm. 6 Enter the Base PIN code and confirm.

The handset will start searching for the DECT base. If the handset has located the base, it will display the base identification number.

7 Confirm or stop.

8.4 Selecting a base

You can switch your handset between bases. The handsets can be registered up to 4 bases simultaneously. When selecting the base, the current selected base is indicated by a blinking base number. If you select “AUTO” the handset will automatically search for another base when you are out of range. The handset must first be registered with each base individually.

1 Enter the menu. 2 Select “REGISTER” and confirm. 3 Select “SELECT BASE” and confirm. 4 Select a base or select “AUTO” and confirm.

Answering machine

When you have activated Automatic base selection and the handset is out of range on the current base, the handset will only search for the strongest base in standby (not during communication).

9 Answering machine

The Butler E450 has a built-in digital answering machine with a recording capacity of 13 min. This answering machine can be controlled by the base and by the handset. The answering machine can be operated remotely and features the possibility of recording two outgoing messages (Message 1 and Message 2).

An internal voice will state various information, such as day and time of the call, as well as settings such as VIP code, ring delay... The language available of the internal voice is indicated on the packing!

All messages and settings are stored on Flash-Memory and will not be erased when the adapter is unplugged. Only the day/time settings will be erased.

9.1 Answering machine settings

Some settings can also be done on the base but most settings are controlled by the handset.

Setting the base speaker volume

To change the volume during playback of incoming or outgoing messages:

Press the base volume keys to increase or to decrease.

The volume can be set from 0 to 9. If the volume is set to the lowest position there will be no audible output during call screening and during remote interrogation, but there will be a level 1 output for other operation.

English

Turning Answering Machine on/off

If the answering machine is on, the answering on/off LED on the base will light up continuously (or blink when there are new messages) and the machine will automatically pick up the line after a number of rings (see “ Setting Number of Rings (Answer delay)” ). On the handset the -icon will be show (or blink when there are new messages). If the answering machine is Off, the answering on/off LED on the base will not lit and the icon will not been shown on the handset display. To turn the answering on/off from the base.

1 Press the on/off key on the base to switch on the answering machine. 2 A voice confirms the setting and playback the active outgoing message. 3 Press the on/off key again to switch off the answering machine.

To turn the answering on/off from the handset:

1 Enter the menu 2 Select “TAM SETTINGS” and confirm. 3 Select “ANS ON/OFF” and confirm. 4 Select “ON” or “OFF” and confirm.

Even if the answering machine is off, the machine will automatically pick up after 10 rings in order to enable remote activation (see “9.3 Remote Operation” ).

Answering machine

GHI

MNO5JKL

Setting Number of Rings (Answer delay)

The number of rings after which the answering machine will answer calls can be set from 2 to 9 and “Toll saver”. The standard setting is 6 rings. In “Toll saver” mode, the machine will answer after 6 rings if there are no new messages, and after 2 rings if there are new messages. If there are no new messages and you call your machine to check your messages remotely (see “9.3 Remote Operation” ), you can hang up after the 2nd ring. You do not need to pay connection fees and you know that you don’t have any new messages. To set the number of ring by the base:

1 Press the skip forward key briefly to check the actual number of rings. A

voice will playback the current number of rings.

2 Press the skip forward key for 2 seconds to set the number of ringing tones.

Press the skip forward key immediately to change the current number of rings.

3 4 If you do not press any keys for 3 seconds, the machine will set the selected

number of rings.

To set the number of ring by the handset:

1 Enter the menu. 2 Select “TAM SETTINGS” and confirm. 3 Select “ANS DELAY” and confirm. 4 Set the number of rings and confirm.

Memory Full

If the memory is full, the answering on/off LED on the base will flash rapidly (0,5 sec. on/off). If the answering machine is turned on and a call comes in, the machine will automatically play outgoing message 2 (answering machine function without recorded caller message). When listening to the messages, the internal voice will say that the memory is full before playing back the messages. Erase some or all the messages to have free memory again.

Programming the VIP Code

The VIP code is a 3-digit code used to operate the machine remotely (see “9.3 Remote Operation” ). The VIP code is set to '123' by default.

1 Enter the menu. 2 Select “TAM SETTINGS” and confirm. 3 Select “REMOTE CODE” and confirm. 4 Enter the new code and confirm.

Answering machine

Recording and selecting an outgoing message

Two outgoing messages of 3 minutes can be recorded (OGM1 and OGM2).

• Outgoing message 1 for the answering function and the possibility for callers to leave a message.

• Outgoing message 2 for the answering function without allowing callers to leave a messages on the machine (answer only).

If no outgoing message is recorded, a pre-recorded outgoing message will be used.

1 Enter the menu. 2 Select “TAM SETTINGS” and confirm. 3 Select “OGM SETTINGS” and confirm.

• Select “PLAY OGM” to play and hear the outgoing message. Select “ANS AND REC” for outgoing message 1 or “ANS ONLY” for outgoing message 2 and confirm.

• Select “RECORD OGM” to record the outgoing message. Select “ANS AND REC” for outgoing message 1 or “ANS ONLY” for outgoing message 2 and confirm. The internal voice will ask to start speaking after the tone. You can end the

recording by pressing the ‘ ’-key. The recording will be played back.

English

• Select “DELETE OGM” to erase the outgoing message. Select “ANS AND REC” for outgoing message 1 or “ANS ONLY” for outgoing message 2 and confirm. The pre-recorded outgoing message will be played.

Selecting the outgoing message (answering mode)

To set the answering mode by the base:

1 Press and hold the outgoing message key until the voice ask you to select

the outgoing message.

2 Press the skip back key to select outgoing message 1 or the skip forward

key to select outgoing message 2. The selected message will be played.

To set the answering mode by the handset:

1 Enter the menu. 2 Select “TAM SETTINGS” and confirm. 3 Select “ANS MODE” and confirm. 4 Select “ANS AND REC” for outgoing message 1 or “ANS ONLY” for

outgoing message 2 and confirm.

Setting the day

During playback of messages you will hear the day and time when the messages are recorded. The time is set by the internal clock (See “6.8 Setting the time” ) but the day need to be set separatly:

1 Enter the menu. 2 Select “TAM SETTINGS” and confirm. 3 Select “DAY SETTINGS” and confirm. 4 Set the day and confirm.

Answering machine

9.2 Operation

If a call is received and the answering machine is turned ON, the answering machine will automatically answer the call after the set number of rings.

• If outgoing message 1 has been selected, the message will be played, a beep will be heard and the caller can leave a message (max. 3 minutes).

• If outgoing message 2 has been selected, after the beep, the line will automatically be disconnected. The caller doesn’t have the possibility to leave a message.

If, during recording, nothing is said for 8 seconds, the line will be automatically disconnected.

Due to noise on your telephone line, it’s possible that the device will not disconnect automatically, but record up to max. 3 minutes. The recording will be interrupted as soon as you take the line. If the unit continuous recording, press on the base.

Call screening on base and handset

This function is convenient if you only want to answer certain calls. During incoming call it is possible to screen the call over the base and handset and hear who is calling. On the base, if the speaker volume is not set to minimum, you can hear the outgoing message and the caller who is leaving a message. For the handset:

1 When “SCREENING?” appears press OK, you can hear the caller by the

handset.

2 Press the delete key to stop the screening.

Recording a memo

A memo is considered as an incoming message that can be picked up later by the user. The max. recording time for a memo is 3 minutes.

1 Enter the menu. 2 Select “TAM SETTINGS” and confirm. 3 Select “MEMO REC” and confirm. 4 The internal voice will ask you to start the memo recording after the beep. 5 Press the ‘ ’-key to stop the recording.

Playback of incoming messages and memos

On the base:

1 Press the playback key to play all the messages and memos. 2 Press the playback for 2 seconds to play only the new messages and

memos.

For each message, the internal voice announce the day and time when the message was recorded.

During playback, you can:

GHI

MNO5JKL

• Press the skip back key once to go to the beginning of the current message.

• Press the skip back key twice to go to the previous message.

• Press the stop key to stop the playback.

• Press the delete key to erase the current message.

• Press the play/pause key to interrupt the playback. Press the play/pause key

again to restart playback.

• Press the skip forward key to go to the next message.

After you have listened to all messages, the internal voice will ask you to delete all the messages.

• Press the delete key to confirm. After pressing delete, the internal voice confirms that all the messages have been deleted.

• Press the stop key to skip.

On the handset:.

Answering machine

English

1 Enter the menu. 2 Select “PLAY MESSAGES” and confirm. 3 The amount of new messages will be show, press the down key to see all

messages (new and old messages).

4 Press the OK key to play a message. 5 After the play back, the internal voice will ask to delete all messages by

pressing the delete key.

9.3 Remote Operation

The answering machine can be operated remotely using a touch-tone phone (DTMF tone selection system). The remote control is menu operated.

To enter the remote operation

1 Call your machine. The answering machine picks up the line, you hear the outgoing message and

a beep.

After the beep, press the ‘ ’ key long. The unit will ask to enter the VIP code.

MNO5JKL

GHI

3 Slowly dial the VIP code (default = ‘123’).

• If the VIP code is incorrect the unit will confirm and ask you to re-enter.

4 If the VIP code is correct and the unit has new messages, it will start to

pronounce the amount of new messages and also play them. When all messages are played, the unit will ask you to press ‘5’ to delete current played messages, or ‘1’ to hear main menu.

1 • If the unit doesn’t have any new messages it will say so and ask you to

press ‘1’ for main menu.

Answering machine

Main Menu

1 Press ‘1’ to hear the main menu. 2 Press ‘2’ to play all messages. 3 Press ‘3’ to play new messages. 4 Press ‘4’ to skip back during messages. 5 Press ‘5’ to delete during messages. 6 Press ‘6’ to skip forward during messages. 7 Press ‘7’ to set answer on/off. 8 Press ‘8’ to hear outgoing messages menu. 9 Press ‘9’ to set a new security code.

You are not obliged to play the main menu before activating any function.

Outgoing Message Menu

Press ‘8’ in the main menu. The unit shall announce ‘Outgoing message menu’ followed by the outgoing message menu:

2 Press ‘2’ to play the outgoing message. 3 Press ‘3’ to record ‘outgoing message 1’. 4 Press ‘4’ to record ‘outgoing message 2’. 5 Press ‘5’ to select ‘outgoing message 1’. 6 Press ‘6’ to select ‘outgoing message 2’. 8 Press ‘8’ to hear outgoing messages menu again. 1 Press ‘1’ to hear mean menu again.

Setting the security code

5 The unit shall ask to press the ‘ ’ key to set a new VIP code. Press ‘ ’.

MNO5JKL

GHI

6 Use the numerical keypad to enter the new security code after the tone. 7 Press the ‘ ’ key to confirm.

1 8 The unit shall ask to press ‘1’ for main menu.

10 Troubleshooting

Symptom Possible cause Solution

No display Batteries uncharged Check the position of the

No tone Telephone cord badly connected Check the telephone cord

Troubleshooting

batteries Recharge the batteries

Handset turned off Turn on the handset

connection

English

The line is occupied by another handset

The icon flashes

Base or handset do not ring The ringing volume is off or low Adjust the ringing volume Tone is good, but there is no

communication Not possible to transfer a call

on PABX Telephone does not react

when pressing the keys

Handset out of range Bring the handset closer to the

The base has no power supply Check the mains connection

The handset is not registered on the base

The dialing mode is wrong Adjust the dialing mode

The flash time is too short or too long

Manipulation error Remove the batteries and put

11 Technical dataTechnical characteristics

Wait until the other handset hangs up

base

to the base Register the handset on the

base

(pulse/tone) Change the flash time

them back in place

Standard DECT (Digital Enhanced Cordless Telecommunications)

GAP (Generic Access Profile) Frequency range 1880 MHz to 1900 MHz Number of channels 120 duplex channels Modulation GFSK Speech coding 32 kbit/s Emission power 10 mW (average power per channel) Range maximum 300m in open space / 10-50m inhouse Number of handsets Up to 5 Base power supply 230V / 50 Hz / 6,5V DC 300mA Handset Batteries: 2 rechargeable batteries AAA, NiMh 1,2V, 550mAh Handset autonomy 200 hours in standby Handset talk time 10 hours Normal conditions of use +5 °C to +45 °C Dialing mode Pulse / Tone Flash time 100 or 250 ms

Warranty

12 Warranty

12.1 Warranty period

The Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. The warranty on batteries is limited to 6 months after purchase. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered. The warranty has to be proven by presentation of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

12.2 Warranty handling

A faulty unit needs to be returned to a Topcom service centre including a valid purchase note. If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge. Topcom will at its discretion fulfill its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit. The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by Topcom or its appointed service centres.

12.3 Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories not recommended by Topcom are not covered by the warranty. Topcom cordless phones are designed to work with rechargeable batteries only. The damage caused by the use of non-rechargeable batteries is not covered under warranty. The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation. No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible. Any warranty claims will be invalid if the unit has been repaired, altered or modified by the buyer or by unqualified, non-officially appointed Topcom service centres.

13 Disposal of the device (environment)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point. By re-using some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

14 Cleaning

Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents.

Veiligheidsinstructies

Nederlands

1 Veiligheidsinstructies

• Gebruik uitsluitend de meegeleverde adapter. Gebruik geen andere laders, omdat dit de

batterijcellen kan beschadigen.

• Gebruik uitsluitend oplaadbare batterijen van hetzelfde type. Gebruik nooit gewone,

niet-oplaadbare batterijen. Let bij het plaatsen van de oplaadbare batterijen op de polariteit (aangeduid in het batterijvak van de handset).

• Raak de laad- en stekkercontacten niet aan met scherpe en metalen voorwerpen.

• De werking van sommige medische instrumenten kan worden beïnvloed.

• De handset kan een onaangenaam zoemend geluid veroorzaken in hoorapparaten.

• Plaats het basisstation niet in een vochtige ruimte of op minder dan 1,5 m van een waterbron.

De handset niet in aanraking brengen met water.

• Gebruik de telefoon niet in omgevingen met explosiegevaar.

• Recycleer de batterijen en onderhoud de telefoon op een milieuvriendelijke manier.

• Omdat deze telefoon niet kan worden gebruikt tijdens een stroomuitval, moet u een telefoon

gebruiken die niet afhankelijk is van het elektriciteitsnet bij noodgevallen, bv. een mobiele telefoon.

Nederlands

2Beginnen

2.1 Deze gebruikshandleiding gebruiken

In deze gebruikshandleiding is de volgende methode gebruikt om de instructies te verduidelijken:

Tekst....... "DISPLAY".

De tekst die verschijnt op de display van de telefoon wordt tussen aanhalingstekens getoond in de rechterkolom.

In te drukken toets.

2.2 Het basisstation installeren

Volg deze stappen voor de installatie: 1 Steek de stroomstekker van de adapter in het stopcontact en de stroomplug in de aansluiting

aan de onderkant van het basisstation.

2 Steek de telefoonstekker in het telefoonstopcontact en de telefoonplug in de connector aan de

onderzijde van het basisstation.

3 Plaats de telefoon- en stroomkabel in de aansluitingen van het basisstation, zoals weergegeven

in afbeelding 2A.

Beginnen

- 2A Onderaanzicht van het basisstation A. Telefoonstopcontact B. Stroomkabel C. Telefoonkabel

2.3 De lader installeren

1 Verbind de adapter met het stopcontact.

- 2C Lader -

A. Adapter met stroomkabel

2.4 De handset installeren

1 Open het batterijvak zoals weergegeven in afbeelding 2B. 2 Plaats de batterijen en let daarbij op de polariteit (+ en -). 3 Sluit het batterijvak. 4 Laat de handset 20 uur in het basisstation staan.

Butler E450

PQRS

GHI

ABC

JKL

TUV

DEF

MNO

WXYZ

INT

Beginnen

Voordat u de telefoon voor het eerst gebruikt, moet u controleren of de batterij 20 uur is opgeladen. De telefoon zal niet optimaal werken als u dit niet doet.

2.5 Toetsen/LED’s

Handset

1. Display

2. Menu- / OK-toets

3. Omhoog / Nummerherhaling / Pauzetoets

4. Telefoonboek-toets

5. Alfanumerieke toetsen

6. INT-toets

7. Aan / Uit / Flash-toets

8. Toetsenbordvergrendeling

9. Omlaag / Oproeplog-toets

10. Opleggen / Opnemen-toets

11. Handenvrij-toets

12. Microfoon uit / Wissen-toets

- 2B Onderaanzicht van de handset A. Batterijdeksel B. Oplaadbare batterijen

Nederlands

Handset display

In de stand-bymodus toont de display de tijd en het

- 2C Handset -

nummer van de handset:

12-05 HS1

- 2E Display -

Beginnen

2021

Base

13. Volume lager-toets

14. Volume hoger-toets

15. Uitgaand bericht-toets

16. Stop toets

17. Verderspoeltoets

18. Wis-toets

19. Antwoord aan/uit LED

20. Play / Pause-toets

21. In gebruik / Aan-Uit-LED

22. Terugspoeltoets

23. Antwoordapparaat aan/uit toets

24. Paging-toets

- 2D Base -

2.6 Symbolen

Opgenomen, u bent verbonden Toetsenbord van handset vergrendeld EXT INT

Externe oproep U bevindt zich in het telefoonboek

Interne oproep Batterij bijna leeg

Nieuwe nummers in de oproeplijst Batterij halfleeg

Beantwoorde oproep Batterij vol

Onbeantwoorde oproep Batterij leeg

U bevindt zich in het menu

Geeft aan dat het getoonde nummer

langer is dan het scherm (12 cijfers)

Handset binnen bereik van het basisstation De antenne knippert wanneer de handset

niet in het basisstation is geregistreerd

Antwoordapparaat aan

2.7 LED van het basisstation

De "In gebruik / Aan-Uit" -LED (20) geeft de volgende status weer:

Uit Het basisstation krijgt geen stroom. Langzaam knipperen Opgenomen of tijdens het bellen. Snel knipperen Tijdens het registreren.

De "Antwoord aan/uit"-LED (18) geeft de volgende status weer:

Uit Het antwoordapparaat is uitgeschakeld. Aan Het antwoordapparaat staat aan. Langzaam knipperen Er zijn nieuwe berichten. Snel knipperen Het geheugen van het antwoordapparaat is vol.

+ 74 hidden pages
