TOPCOM BPM Wrist 5331

1 Introduction

Congratulations with your purchase of the Topcom BPM Wrist 5331. This fully automatic, wrist mounted blood pressure monitor is both easy to use and ideally suited for daily measurements. The large display includes systolic, diastolic and pulse, all clearly shown at the completion of each reading.

In addition, you can store up to 30 measurements per Memory Zone, ideal for users who want to monitor and track their blood pressure on a regular basis. The BPM wrist 5331 is compact and portable, making it ideal for home use and travel.

Please read this manual carefully before use. For specific information on your own blood pressure, contact your physician. Put the user guide away in a safe place for future reference.

ENGLISH

2 Safety instructions

1.This product is for household use only. It is not intended as a substitute for consultation with your doctor.

2.For users diagnosed with common arrhythmia (atrial or ventricular premature beats or atrial fibrillation), diabetes, poor circulation of blood, kidney problems, or for users suffered from stroke, or for unconscious users, the device might not be suitable for use. Consult your doctor in case of any doubt.

3.The unit should not be operated by children so to avoid hazardous situations.

4.The unit contains high-precision assemblies. Therefore, avoid extreme temperatures, humidity, and direct sunlight. Avoid dropping or strongly shocking the main unit, and protect it from dust.

5.Leaky batteries can damage the unit. Remove the batteries when the unit is not used for a long time.

6.Do not press the START key when the cuff is not placed around the wrist.

7.Do not disassemble the main unit or cuff.

8.If the unit is stored in a cold place, allow it to acclimate at room temperature before use.

9.Clean the blood pressure monitor body and the cuff carefully with a slightly damp, soft cloth. Do not press. Do not bend the pre-formed cuff inside out. Do not wash the cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipments, do not use the device near a cell phone or microwave oven.

3

TOPCOM BPM Wrist 5331

3 Helpful tips

Here are a few helpful tips to help you obtain more accurate readings:

Do not measure your blood pressure immediately after consuming a large meal. To obtain more accurate readings, please wait one hour before measuring.

Do not smoke or drink alcohol before measuring your blood pressure.

You should not be physically tired or exhausted while taking a measurement.

It is important that you relax during measurement. Try to take 15-minutes rest before a reading.

Do not take measurements if you are under stress or under tension.

Take your blood pressure at normal body temperature. If you are feeling cold or hot, wait a while before taking a measurement.

If the monitor is stored at very low temperature (near freezing), have it placed at a warm location for at least one hour before using it.

Wait about 5 minutes before taking the next pressure measurement.

4 Disposal of the device

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product,

user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point. By re-using some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

5 Blood pressure

5.1What is blood pressure?

Blood pressure is the pressure exerted on the artery tube while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest). The pressure measured when

the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

5.2Why measure your blood pressure?

Among the various health problems afflicting modern people, problems associated with high blood pressure are by far the most common. High blood pressure's dangerously strong correlation with cardiovascular diseases

and high morbidity has made measuring blood pressures a necessity of identifying those at risk.

4

TOPCOM BPM Wrist 5331

5.3Blood pressure standard

The World Health Organization (WHO) and National High Blood Pressure Education Program has developed a Blood pressure standard, according to which areas of low and high-risk blood pressure are identified. This standard however, is a general guideline as individual's blood pressure varies among different people and different groups...etc.





Hypertension

Systolic over 160







95

Diastolic over 95

















!

















(mmHg)



Borderline



Systolic

140 ~159







90



Diastolic

90 ~ 94































Diastolic



Hypotension



Normal











Systolic



Systolic under 139











under 99



Diastolic under 89





























100





140

160





Systolic (mmHg) !













ENGLISH

It is important that you consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you will be considered at risk.

5.4Blood pressure fluctuation

Blood pressure fluctuates all the time!

You should not be worried if you encountered two or three measurements at high levels. Blood pressure changes over the month and even throughout the day depending on circumstances (state of mind, temperature, ...)

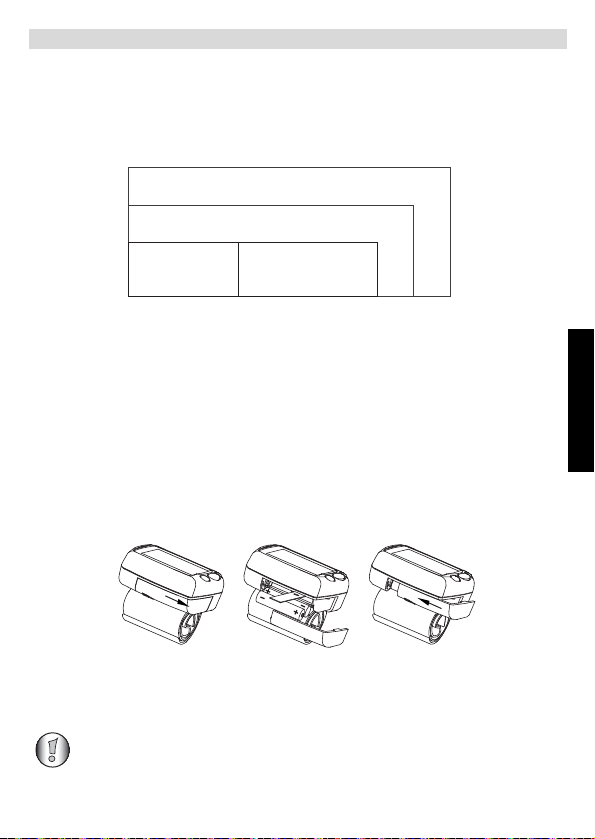

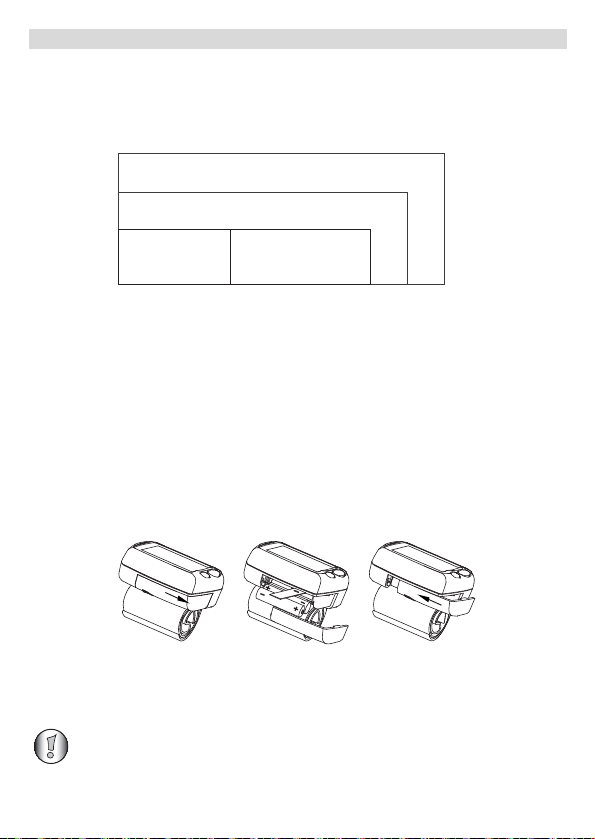

6 Battery installation

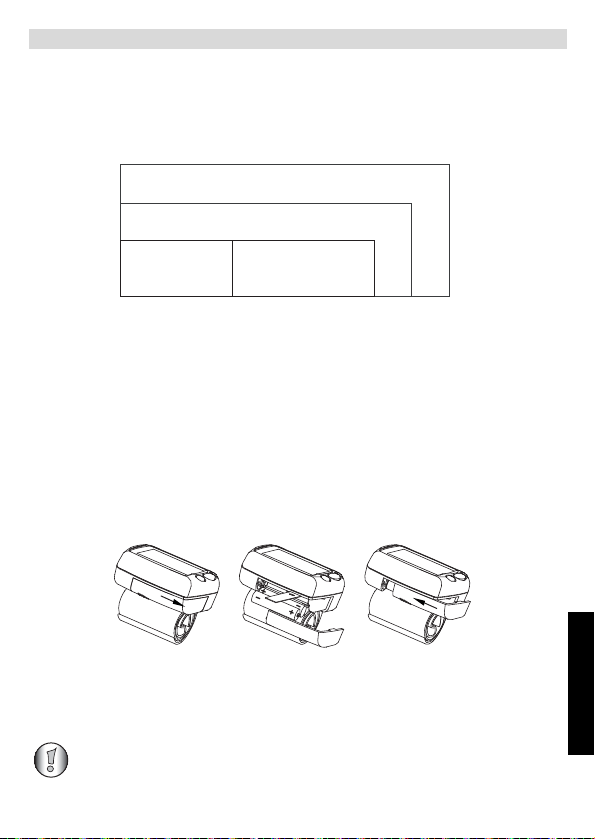

Open the battery compartment by pulling the cover away

Insert 2 AAA non - rechargeable batteries. Follow the polarity as indicated in the battery compartment.

Re-install the battery cover.

Do not shortcircuit & dispose of in fire. Remove the battery if this device is not going to be used for a long period.

5

TOPCOM BPM Wrist 5331





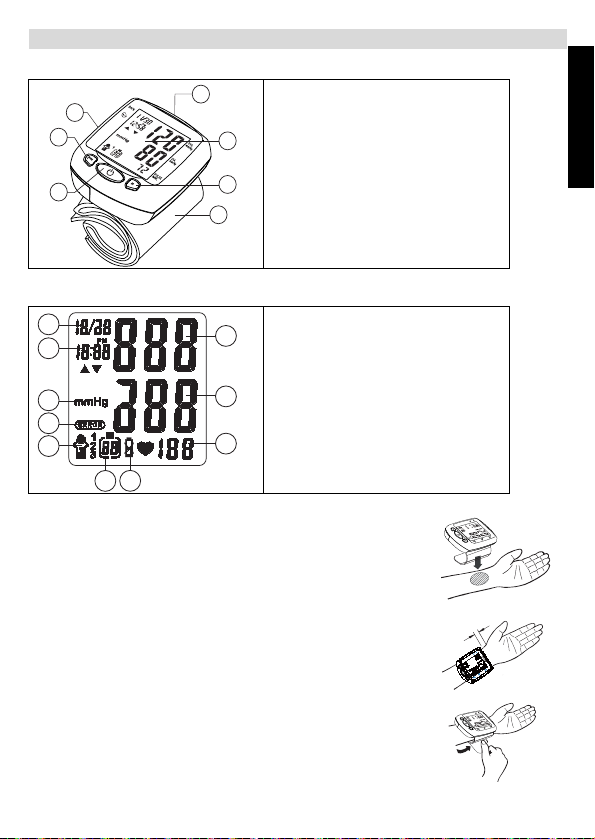

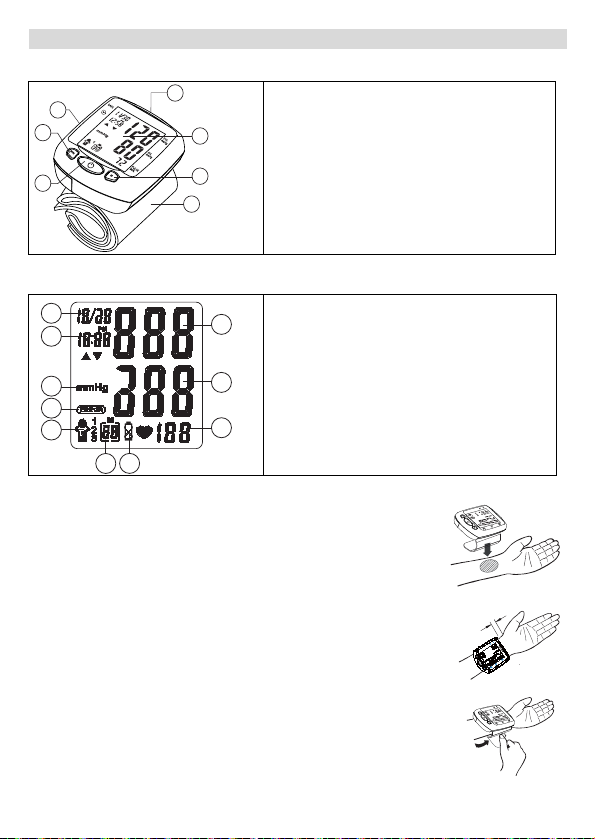

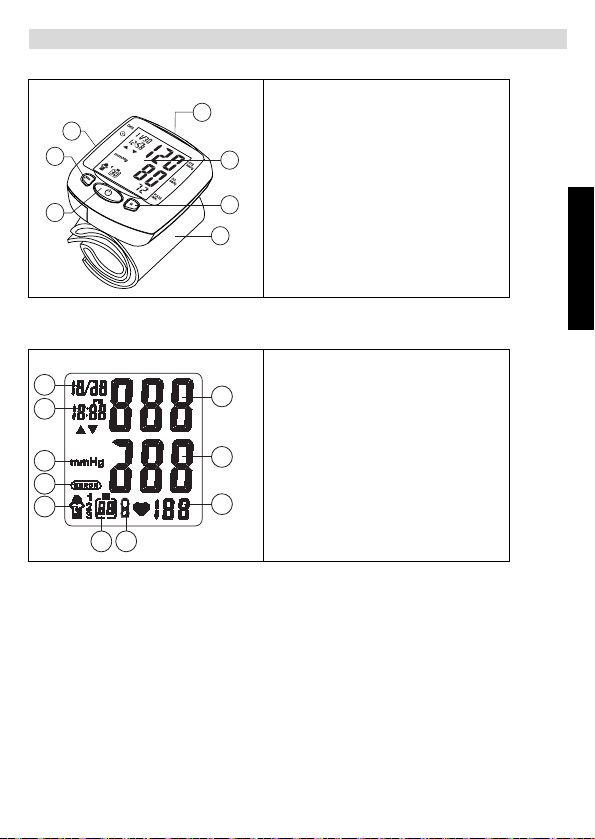

7

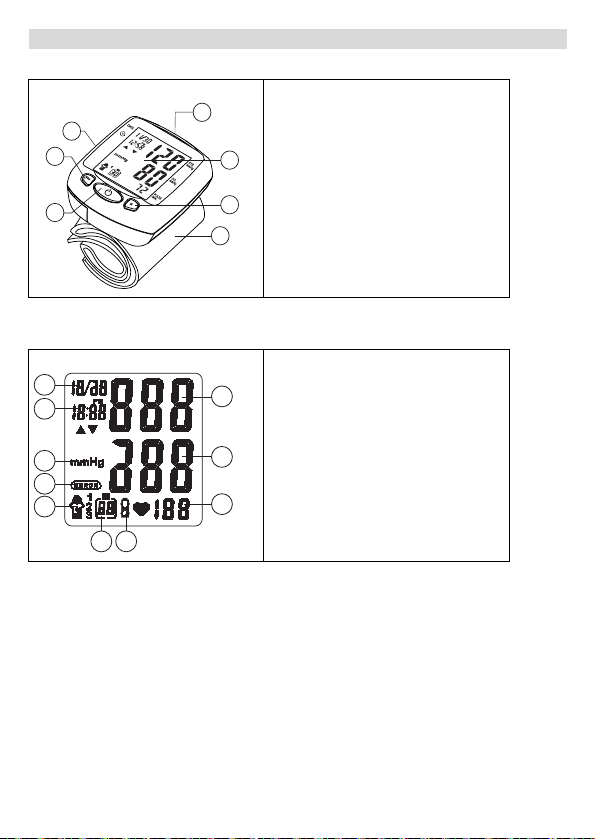

Buttons







1

1.

Up/Down button



7

2.

LCD display

6

2

3.

MEMORY RECALL button

4.

Wrist cuff









5.

START / STOP button

5

3

6.

MODE button



7.

Battery compartment



4







8

Display





10

1

1.

Systolic pressure

9

2.

Diastolic pressure







3.

Pulse rate



2

4.

Battery Low indicator

8

5.

Memory number

7



6.

Memory zone

3

7.

Error icon

6

8.

Blood pressure unit

9.Time

5 4

10. Date

9

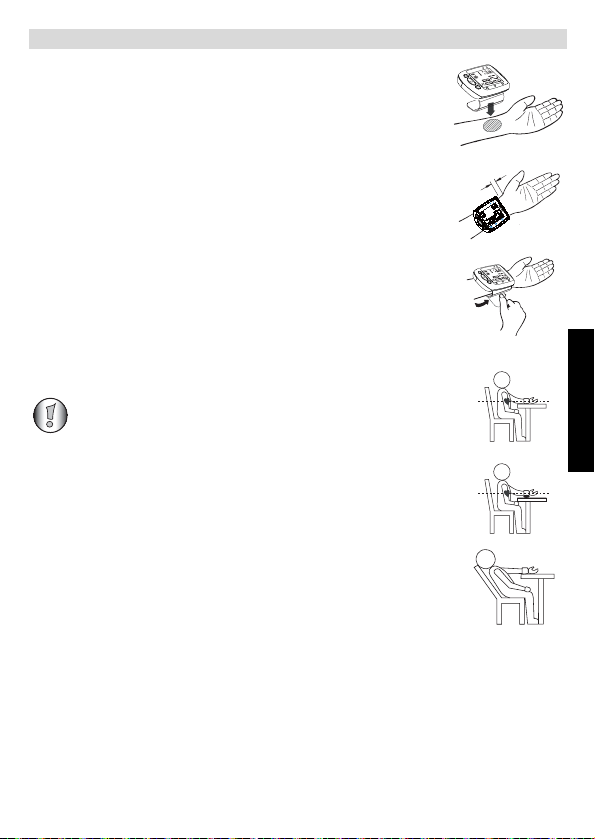

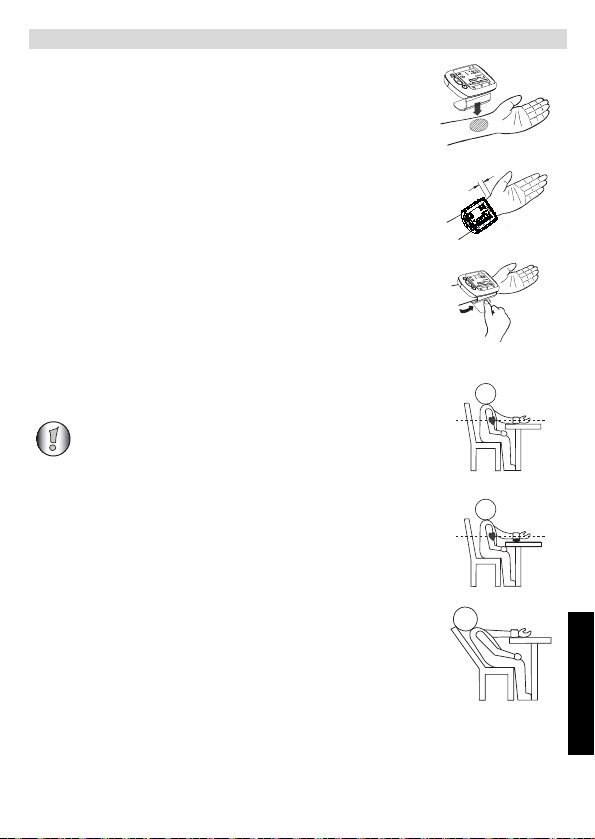

Applying the cuff



1.

Remove all watches, jewelry, etc. prior to attaching the





wrist monitor.Clothing sleeves should be rolled up and





the cuff should be wrapped on bare skin for correct





measurements. Apply cuff to left wrist with palm facing





up.

1cm





2. Make sure the edge of the cuff is about 1 cm from the palm. In order to insure accurate-measurements.

3. Fasten the velcro strap securely around your wrist so there is no extra space between the cuff and the wrist. If the cuff is not wrapped tight enough ,the measurement values will be false.

4. If your physician has diagnosed you with poor circulation on your left arm, place the cuff around your right wrist.

6

TOPCOM BPM Wrist 5331

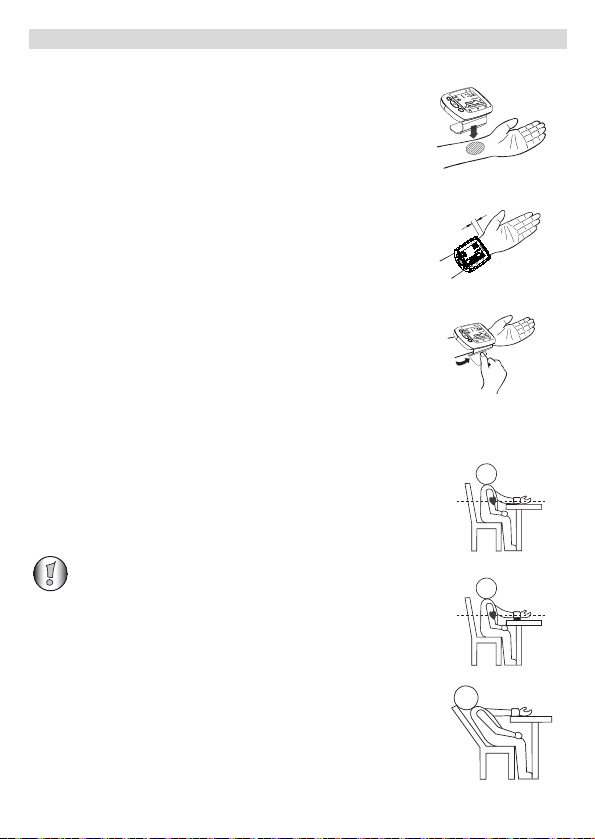

10 Measuring posture

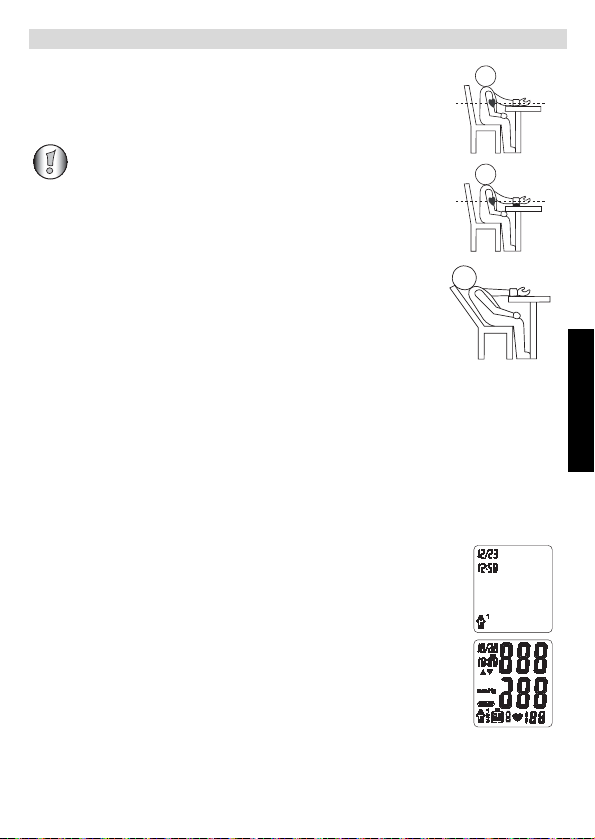

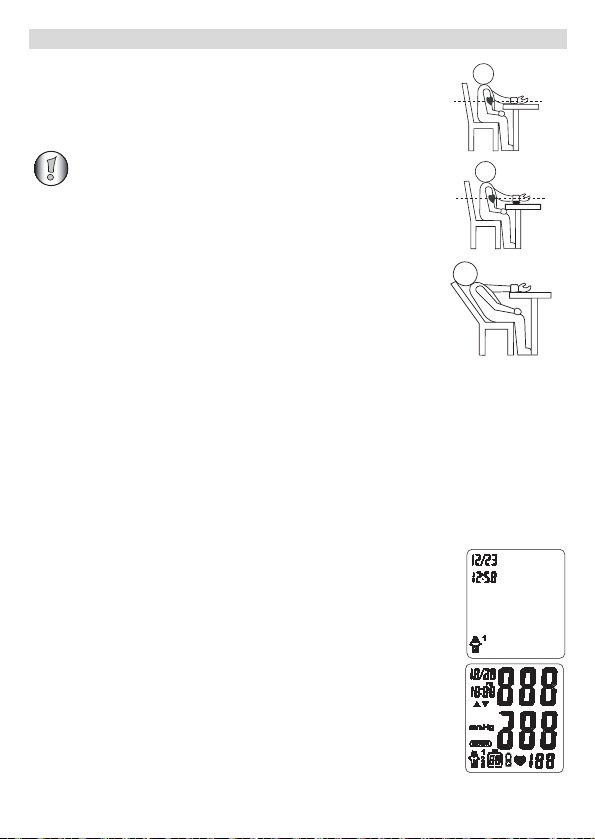

1.Relax your entire body, especially the area between

your elbow and fingers. Place your elbow on a table so that the cuff is at the same level as your heart.

Your heart is located slightly below your arm pit.

2.If the cuff is not at the same level as your heart or if you

can not keep your arm completely still throughout the reading, use a soft object such as folded towel to support your arm.

3.Turn your palm upwards.Sit upright in a chair, and take

5-6 deep breaths. Avoid leaning back while the

(X)

measurements being taken.

ENGLISH

11 Measurement

11.1Important

1.This monitor automatically switches off 1 minute after the last key operation.

2.To interrupt the measurement, simply press any key. The cuff will deflate immediately after a key is pressed.

3.During the measurement, do not talk or move your arm or hand muscles.

4.The result will be stored automatically in the selected Memory Zone. Select the desires Memory Zone before measurement (see §12)

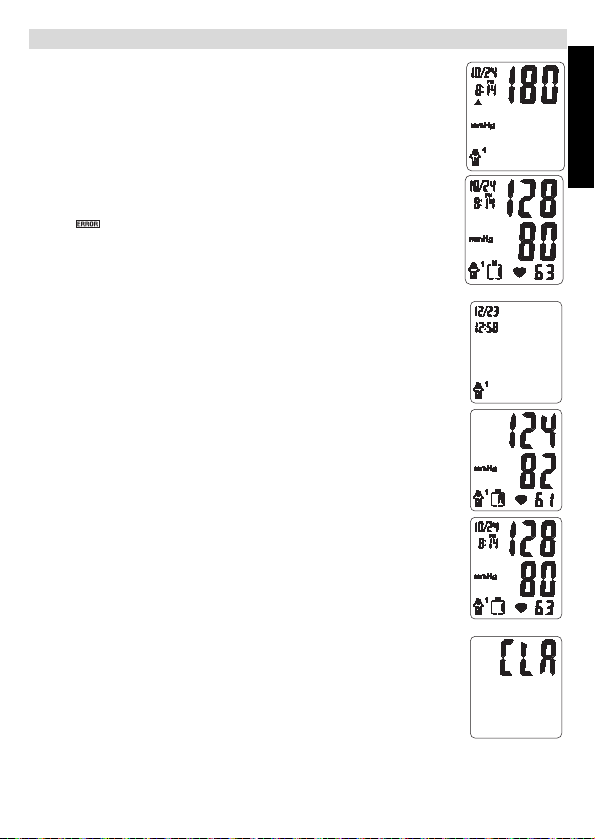

12 Procedure

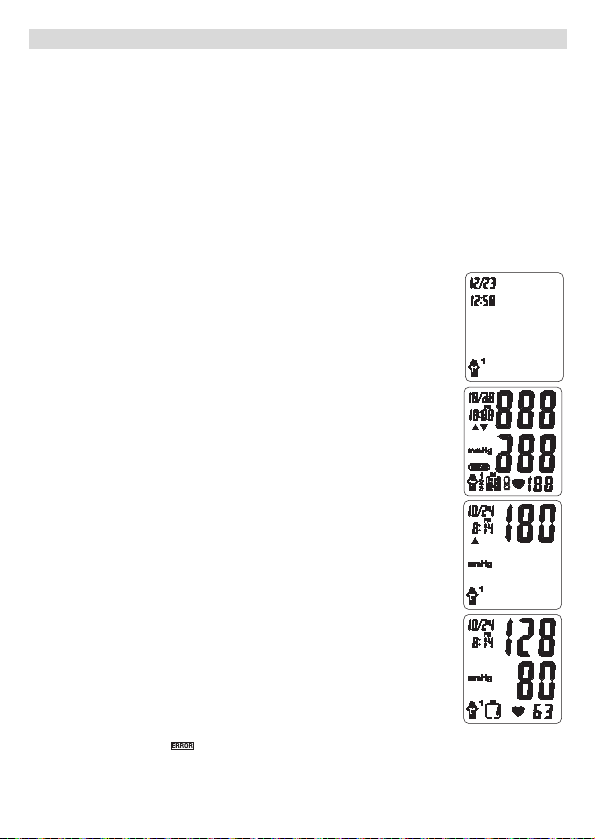

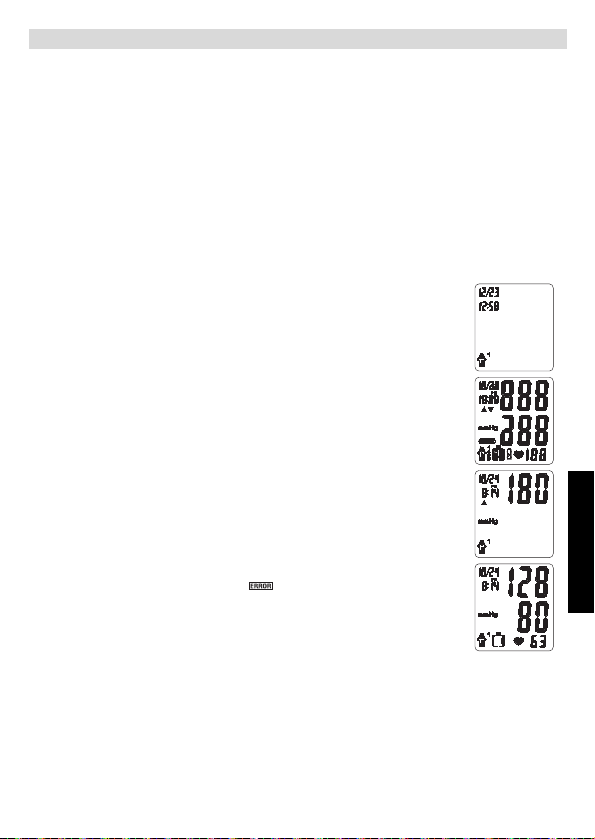

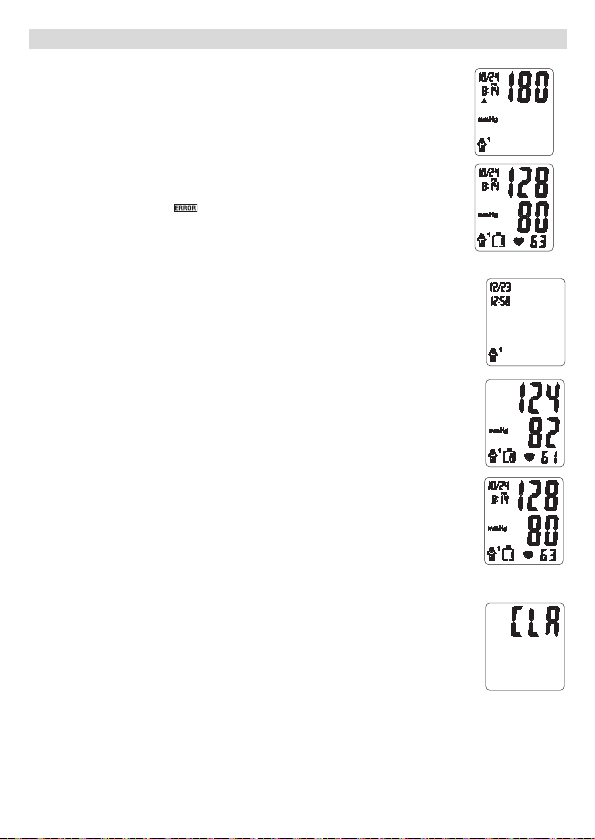

1.Press the START/STOP button to activate the display.

2.Press the UP or DOWN button to select the desired memory zone.

3.Press the START/STOP button to start measurement. The cuff will inflate to the level that is right for you.

7

TOPCOM BPM Wrist 5331

4.When the right level is reached, the cuff will deflate.

This monitor will re-inflate automatically to approximately 220mmHg if the system detects that your body needs more pressure to measure your blood pressure.

5.When the measurement is completed, systolic, diastolic and pulse will be shown simultaneously on the LCD screen.

6.When a mistake was detected during measurement the Error icon appears on the display

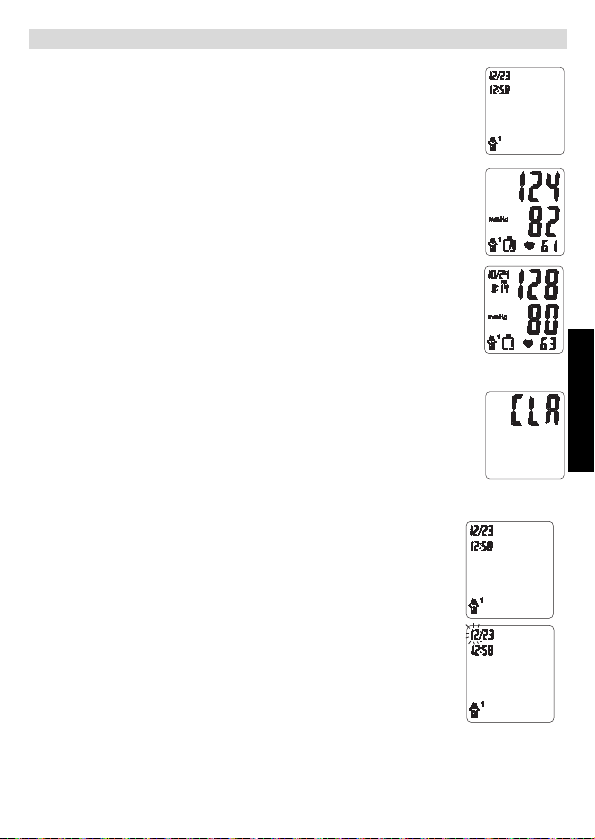

13 Memory

The BPM 5331 has 3 Memory zones. Each can store up to 30 measurements including the date and time

The result will be stored automatically in the selected Memory Zone after the measurement.

To recall measurement results:

Press the START/STOP button to activate the display.

Press the UP or DOWN button to select the desired memory zone.

Press the MEMORY CALL button to see the average of all measurement results.

Press the UP button repeatedly to see prior stored measurement results.

To stop reading the data, press the START/STOP button to switch back to normal time.

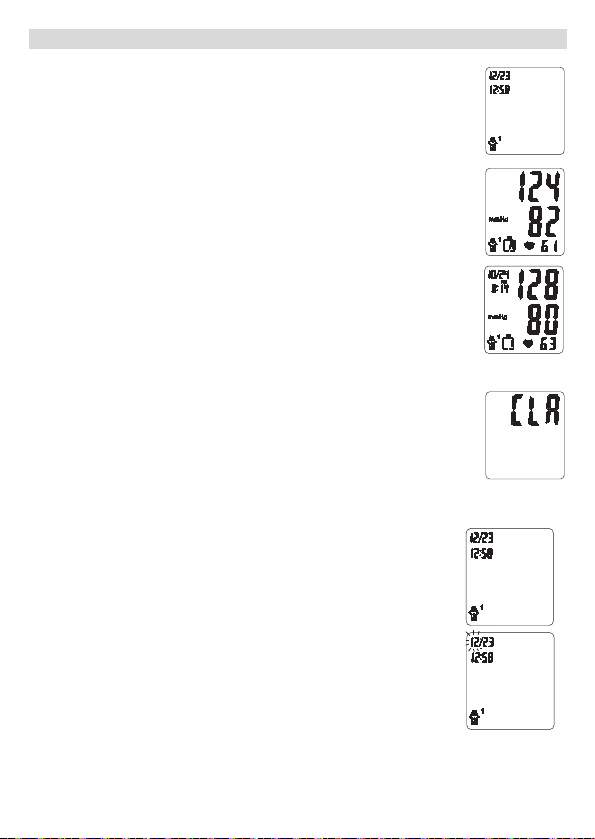

To erase all data from one memory zone:

Press the START/STOP button to activate the display.

Press the UP or DOWN button to select the desired memory zone.

Press the MEMORY CALL button to see the average of all measurement results.

Press the MODE and the DOWN button simultaneously to erase all data from the selected memory zone.

8

TOPCOM BPM Wrist 5331

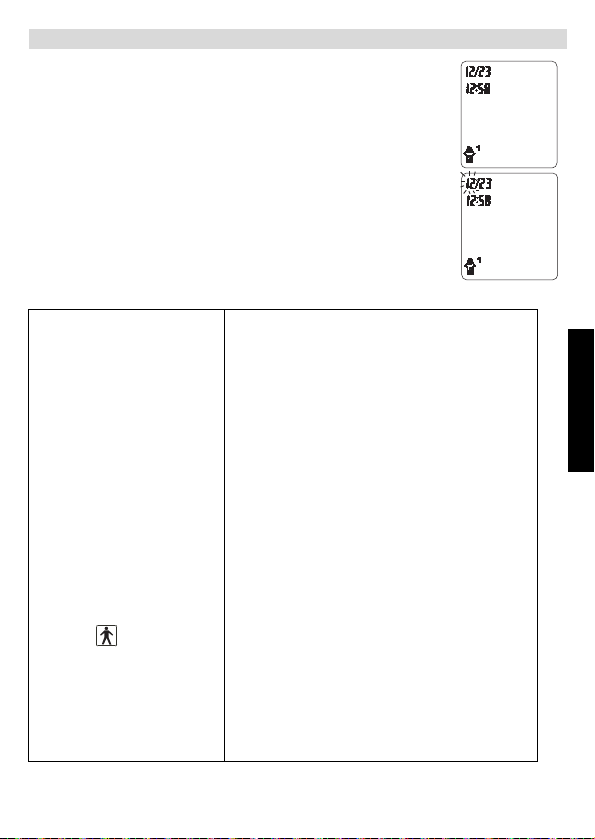

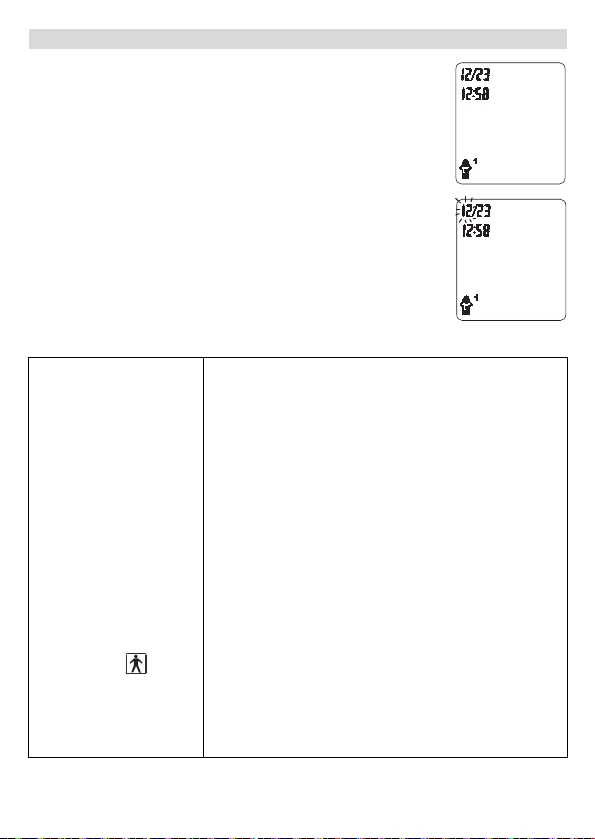

14 Time adjustment

To adjust the date an time:

Press the START/STOP button to activate the display.

Press the MODE button, the month will blink on the display.

• Press the UP or DOWN button to change the month.

• Press the MODE button to confirm the month. The day will blink on the display.

• Change the day, hours and minutes as described above, using the UP or DOWN button to change and the MODE button to confirm every setting.

After setting the minutes, the device is ready to use.

15 Technical specifications

Power source

3V DC: Two LR03 (AAA) Non rechargeable batteries

Measurement method

Oscillometric

Measurement zone

Pressure: 0 ~ 300 mmHg

Accuracy

Pulse: 40 ~ 199 beats/minute

Pressure: ± 3 mmHg

Pressure sensor

Pulse: within ± 5% of reading

Semi-conductor

Inflation

Pump driven

Deflation

Automatic Pressure release valve

Memory capacity

3 Memory zones for each 30 memories

Auto-shut-off

1 minute after last key operation

Operation environment

+10°C ~ + 40°C - < 85% RH

Storage environment

-20°C ~ + 70°C - < 85% RH

Weight

120g (without batteries)

Wrist circumference

135 ~ 195 mm

Limited patient

Over 18 years old

Dimensions

74(L) x 84(W) x 32(H) mm

K.B.

Short time operation 2 minutes

Classification





Internally powered equipment









Classification of type BF (applied part)













IPX0







Not suitable for use in presence of flammable









anaesthetic mixture with air or with oxygen or









nitrous oxide







Continuous operation with short-time loading











*Specifications are subject to change without notice.

ENGLISH

9

TOPCOM BPM Wrist 5331

The CE symbol indicates that the unit complies with the essential requirements of the directive 93/42/EEC.

16 Topcom Warranty

16.1Warranty period

The Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.

The warranty has to be proven by presentation of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

16.2Warranty handling

A faulty unit needs to be returned to a Topcom service centre including a valid purchase note. If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge.

Topcom will at its discretion fulfill its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit.

The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by Topcom or its appointed service centres.

16.3Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories not recommended by Topcom are not covered by the warranty.

The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation.

No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.

10

TOPCOM BPM Wrist 5331

1 Inleiding

Gefeliciteerd met uw aankoop van de Topcom BPM wrist 5331. Deze volautomatische bloeddrukmeter, polsmodel, is gebruiksvriendelijk en ideaal voor dagelijkse metingen. Op de grote display worden bovendruk- (systolisch), onderdruk- (diastolisch) en polsslagwaarden weergegeven, allemaal duidelijk af te lezen op het eind van elke meting.

Bovendien kunt u tot 30 metingen per Geheugenzone opslaan, ideaal voor gebruikers die hun bloeddruk regelmatig willen controleren en opvolgen. De BPM wrist 5331 is compact en draagbaar, en zo ideaal voor gebruik thuis en onderweg.

Lees deze handleiding aandachtig alvorens het toestel te gebruiken. Voor specifieke informatie over uw eigen bloeddruk, raden we u aan uw arts te raadplegen. Bewaar de gebruikershandleiding op een veilige plaats voor later gebruik.

2 Veiligheidsinstructies

1.Dit toestel is enkel geschikt voor huishoudelijk gebruik. Het is niet de bedoeling om met deze meter een raadpleging bij uw dokter te vervangen.

2.Voor gebruikers die lijden aan aritmie (atriale of ventriculaire premature hartslag of atriale fibrillatie), suikerziekte, slechte bloedsomloop, nieraandoeningen, of voor gebruikers die een beroerte hebben gehad of gebruikers die bewusteloos zijn, is het toestel niet geschikt. In geval van twijfel, raadpleeg uw arts.

3.Dit toestel mag niet worden gebruikt door kinderen, anders kunnen er gevaarlijke situaties ontstaan.

4.Het toestel omvat precisiecomponenten. Daarom moet het worden beschermd tegen extreme temperaturen, vochtigheid en direct zonlicht. Laat het toestel niet vallen en vermijd sterke schokken. Bescherm het tegen stof.

5.Lekkende batterijen kunnen schade aan het toestel veroorzaken. Verwijder de batterijen wanneer u het toestel langere tijd niet gebruikt.

6.Druk niet op START zolang de polsband niet rond de pols is bevestigd.

7.Demonteer het toestel of de polsband niet.

8.Als het toestel op een koude plaats wordt bewaard, laat het dan eerst op kamertemperatuur komen alvorens het te gebruiken.

9.Reinig de bloeddrukmeter en de polsband voorzichtig met een licht vochtige, zachte doek. Oefen geen druk uit. Draai de voorgevormde polsband niet binnenstebuiten. Was de polsband niet en gebruik ook geen chemisch reinigingsmiddel om hem te reinigen. Gebruik nooit verdunner, alcohol of benzine als reinigingsmiddel.

Gebruik het toestel niet in de buurt van een mobiele telefoon of magnetron om onnauwkeurige resultaten door elektromagnetische interferentie tussen elektrische en elektronische apparaten te voorkomen.

NEDERLANDS

11

TOPCOM BPM Wrist 5331

3 Handige tips

Hieronder vindt u enkele handige tips die u helpen meer nauwkeurige resultaten te verkrijgen:

Meet uw bloeddruk niet onmiddellijk nadat u uitgebreid hebt gegeten. Om nauwkeurige resultaten te verkrijgen, wacht u het best één uur alvorens te meten.

Rook niet of drink geen alcohol voordat u uw bloeddruk meet.

Tijdens een meting mag u niet lichamelijk moe of uitgeput zijn.

Het is belangrijk dat u zich tijdens de meting ontspant. Probeer 15 minuten te rusten voordat u uw bloeddruk neemt.

Meet uw bloeddruk niet als u gestrest of gespannen bent.

Meet uw bloeddruk bij een normale lichaamstemperatuur. Als u het koud of warm hebt, wacht u beter een tijdje alvorens uw bloeddruk te meten.

Als de meter op een erg koude plaats wordt bewaard (dichtbij vriestemperatuur), zet hem dan gedurende minstens één uur in een warme ruimte vooraleer hem te gebruiken.

Wacht ongeveer 5 minuten vooraleer u opnieuw uw bloeddruk meet.

4 Het toestel vernietigen (milieu)

Op het einde van de levenscyclus van het product mag u dit product niet bij het normale huishoudelijke afval gooien, maar moet u het naar een

inzamelpunt brengen voor de recyclage van elektrische en elektronische apparatuur. Dit wordt aangeduid door het symbool op het product, in de handleiding en/of op de verpakking.

Sommige materialen van het product kunnen worden hergebruikt als u ze naar een inzamelpunt brengt. Door onderdelen of grondstoffen van gebruikte producten te hergebruiken, levert u een belangrijke bijdrage tot de bescherming van het milieu. Wend u tot uw locale overheid voor meer informatie over de inzamelpunten in uw buurt.

5 Bloeddruk

5.1Wat is bloeddruk?

Bloeddruk is de druk die wordt uitgeoefend op de slagaderwand door het bloed dat door de slagaders stroomt. De druk die wordt gemeten wanneer het hart samentrekt en bloed uit het hart stuwt, is systolisch (bovendruk). De druk die wordt gemeten wanneer het hart uitzet door het bloed dat terugstroomt naar het hart wordt de diastolische bloeddruk (onderdruk) genoemd.

5.2Waarom moet u uw bloeddruk meten?

Van de verschillende gezondheidsproblemen waarmee de moderne mens heeft af te rekenen, komen problemen gepaard met een hoge bloeddruk verreweg het vaakst voor. Door de gevaarlijk sterke correlatie tussen hoge bloeddruk en cardiovasculaire aandoeningen en het hoge ziektecijfer zijn bloeddrukmetingen noodzakelijk geworden om de risicogroepen te identificeren.

12

TOPCOM BPM Wrist 5331

5.3Bloeddruknorm

De Wereldgezondheidsorganisatie (WHO) en het Nationale Voorlichtingsprogramma voor Hoge Bloeddruk hebben een bloeddruknorm ontwikkeld aan de hand waarvan bloeddrukwaarden met laag en hoog risico worden geïdentificeerd. Die norm is echter slechts een algemene richtlijn, want de individuele bloeddruk verschilt van persoon tot persoon en van groep tot groep ... enz.





Hoge bloeddruk



Bovendruk hoger dan 160







95

(hypertensie)



Onderdruk hoger dan 95





(mmHg)











90

Grensgebied



Bovendruk 140 - 159











Onderdruk 90 - 94



















Onderdruk



Lage bloeddruk



Normaal









(hypotensie)



Bovendruk lager dan 139











Bovendruk lager



Onderdruk lager dan 89











dan 99

















100

140

160

Bovendruk (mm Hg)

NEDERLANDS

Het is belangrijk dat u regelmatig uw arts raadpleegt. Uw arts zal u vertellen wat uw normale bloeddrukbereik is en vanaf welke waarde u risico loopt.

5.4Bloeddrukschommeling

De bloeddruk schommelt voortdurend!

U hoeft zich nog niet ongerust te maken als u twee of drie keer een hoge bloeddruk meet. De bloeddruk verandert in de loop van de maand en zelfs in de loop van de dag, afhankelijk van de omstandigheden (gemoedsgesteldheid, temperatuur ...).

6 Batterijen plaatsen

Open het batterijvak door het afdekplaatje weg te schuiven

Plaats 2 niet-oplaadbare AAA-batterijen. Let op de in het batterijvak aangeduide polariteit.

Plaats het plaatje van het batterijvak terug.

Maak geen kortsluiting en gooi de batterijen niet in het vuur. Verwijder de batterij als u het toestel langere tijd niet gebruikt.

13

TOPCOM BPM Wrist 5331

7

Knoppen







1

1.

Omhoog/Omlaag-knop



7



2.

LCD-display





6

2

3.

GEHEUGENOPROEP-knop





4.

Polsband



3

5.

START / STOP-knop

5

6.

MODUS-knop



7.

Batterijvak



4







8

Display





10



1

1.

Systolische druk

9



2.

Diastolische druk











3.

Polsslag







4.

Indicator zwakke batterij

8



2

5.

Geheugennummer

7





6.

Geheugenzone





7.

Error-symbool

6



3

8.

Bloeddruk-unit







9.

Tijd



5

4

10.

Datum







9

De polsband aanbrengen



1.

Verwijder horloges, juwelen enz. vooraleer u de polsband





bevestigt. Rol uw mouwen op en bevestig de polsband op





uw naakte huid om een correcte meting te verzekeren.





Bevestig de polsband op uw linkerpols met uw handpalm





naar boven gericht.



2.

Voor nauwkeurige metingen, moet de rand van de

1cm



polsband ongeveer 1 cm van de palm van uw hand





verwijderd zijn.



3.

Bevestig de velcroband stevig rond uw pols zodat er geen





speling is tussen de polsband en uw pols. Als de polsband





niet stevig genoeg rond de pols wordt gewikkeld, zijn





de meetresultaten verkeerd.



4.

Indien uw arts een zwakke bloedsomloop aan uw linkerarm





heeft vastgesteld, moet u de polsband rond uw rechterpols





bevestigen.



14

TOPCOM BPM Wrist 5331

10 Meethouding

1. Ontspan heel uw lichaam, vooral het gebied tussen uw elleboog en vingers. Plaats uw elleboog op een tafel zodat de polsband zich op dezelfde hoogte bevindt als uw hart.

Uw hart bevindt zich iets lager dan uw oksel.

2. Als de polsband niet op dezelfde hoogte als uw hart ligt of als u uw arm niet volledig stil kunt houden gedurende de meting, kunt u een zacht voorwerp gebruiken zoals een opgevouwen handdoek om uw arm te ondersteunen.

3.Draai uw handpalm omhoog. Zit rechtop in een stoel en haal

5-6 keer diep adem. Leun niet achteruit tijdens de meting.

(X)

11 Meting

11.1Belangrijk

1.Deze meter schakelt automatisch uit wanneer er gedurende 1 minuut geen toets wordt ingedrukt.

2.Om de meting te onderbreken, drukt u op een willekeurige toets. De polsband zal onmiddellijk leeglopen nadat op een toets is gedrukt.

3.Praat niet tijdens de meting en beweeg ook uw armof handspieren niet.

4.Het resultaat wordt automatisch opgeslagen in de geselecteerde geheugenzone. Selecteer de gewenste Geheugenzone vóór de meting (zie §12).

NEDERLANDS

12 Procedure

1.Druk op de START/STOP-toets om de display te activeren.

2.Druk op de Omhoogof de Omlaag-toets om de gewenste geheugenzone te selecteren.

3.Druk op de START/STOP-knop om met de meting te beginnen. De polsband wordt automatisch opgepompt tot het niveau dat goed is voor u.

4.Als het juiste niveau bereikt is, loopt de polsband automatisch leeg.

De meter zal de polsband automatisch verder oppompen tot ongeveer 220 mmHg als het systeem detecteert dat uw lichaam meer druk nodig heeft om uw bloeddruk te meten.

15

TOPCOM BPM Wrist 5331

5.Als de meting voltooid is, verschijnen de systolische en diastolische druk en de polsslag tegelijkertijd op het LCDscherm.

6.Wanneer tijdens de meting een fout wordt vastgesteld, verschijnt het Error-symbool op het scherm.

13 Geheugen

De BPM 5331 heeft 3 Geheugenzones. In elke zone kunnen tot 30 metingen, inclusief datum en tijd, worden opgeslagen.

Het resultaat wordt automatisch opgeslagen in de geselecteerde Geheugenzone na de meting.

Meetresultaten oproepen:

Druk op de START/STOP-toets om de display te activeren.

Druk op de Omhoogof de Omlaag-toets om de gewenste geheugenzone te selecteren.

Druk op de GEHEUGENOPROEP-toets om het gemiddelde van alle meetresultaten weer te geven.

Druk meermaals op de Omhoog-toets om voordien opgeslagen meetresultaten weer te geven.

Druk om te stoppen met het oproepen van meetresultaten op de START/STOP-knop en u keert terug naar het hoofdmenu.

Alle meetresultaten in de Geheugenzone wissen:

Druk op de START/STOP-toets om de display te activeren.

Druk op de Omhoogof Omlaag-toets om de gewenste geheugenzone te selecteren.

Druk op de GEHEUGENOPROEP-toets om het gemiddelde van alle meetresultaten weer te geven.

Druk tegelijkertijd op MODEen Omlaag-toets om alle gegevens in de geselecteerde geheugenzone te wissen.

16

TOPCOM BPM Wrist 5331

14 Datum en tijd instellen

De datum en de tijd instellen:

Druk op de START/STOP-toets om de display te activeren.

Druk op de MODUS-knop, de maand knippert op de display.

Druk meermaals op de Omhoogof de Omlaag-toets om de

maand te wijzigen.

Druk op de MODUS-knop om de maand te bevestigen. De

dag knippert op de display.

• Wijzig de dag, de uren en minuten zoals hierboven beschreven, gebruik hiervoor de Omhoogof de Omlaag-toets om de waarden te wijzigen en de MODUS-knop om elke instelling te bevestigen.

Wanneer u de minuten hebt ingesteld, is het toestel klaar voor gebruik.

15 Technische specificaties

Voedingsbron

3 V DC: Twee LR03 (AAA) Niet-oplaadbare batterijen

Meetmethode

Oscillometrisch

Meetzone

Druk: 0 ~ 300 mmHg

Nauwkeurigheid

Polsslag: 40 ~ 199 slagen/minuut

Druk: ±3 mmHg

Druksensor

Polsslag: binnen ±5% van meetresultaat

Halfgeleider

Oppompen

Pompgestuurd

Leeglopen

Automatische drukaflaatklep

Geheugencapaciteit

30 geheugenplaatsen voor elke zone

Automatische uitschakeling

1 minuut nadat voor het laatst een toets ingedrukt is

Bedrijfstemperatuur

+10°C ~ + 40°C - < 85% RV

Opslagtemperatuur

-20°C ~ +70°C - < 85% RV

Gewicht

120 g (zonder batterijen)

Polsomtrek

135 ~ 195 mm

Leeftijdsbeperkingen

Ouder dan 18 jaar

Afmetingen

74 (L) x 84 (B) x 32 (H) mm

K.B.

Kortstondig gebruik 2 minuten

Classificatie





Toestel met interne voeding









Classificatie type BF-apparatuur (toegepast onderdeel)













IPX0







Niet geschikt voor gebruik in de nabijheid van









ontvlambare anesthetische mengsels met lucht of









met zuurstof of lachgas







Geschikt voor continu gebruik met korte oplaadtijd











*Productspecificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd.

NEDERLANDS

17

TOPCOM BPM Wrist 5331

Het toestel voldoet aan de basiseisen van de 93/42/EEC-richtlijn.

Dit wordt bevestigd door de CE-markering.

16 Topcom Garantie

16.1Garantieperiode

Op de Topcom-toestellen wordt een garantie van 24 maanden verleend.

De garantieperiode begint op de dag waarop het nieuwe toestel wordt gekocht. Kleine onderdelen of defecten die een verwaarloosbaar effect hebben op de werking of waarde van het toestel worden niet gedekt door de waarborg.

De garantie moet worden bewezen door voorlegging van het aankoopbewijs waarop de datum van aankoop en het toesteltype staan.

16.2Afwikkeling van garantieclaims

Een defect toestel moet, samen met een geldig aankoopbewijs, worden teruggestuurd naar een Topcom-hersteldienst. Als het toestel tijdens de garantieperiode een defect vertoont, zal Topcom of diens officieel erkende hersteldienst eventuele defecten te wijten aan materiaalof productiefouten gratis herstellen.

Topcom zal naar eigen goeddunken haar garantieverplichtingen vervullen door defecte toestellen of onderdelen van defecte toestellen hetzij te herstellen, hetzij te vervangen. In het geval dat het toestel wordt vervangen, kan de kleur en het model verschillend zijn van het oorspronkelijk gekochte toestel.

De oorspronkelijke aankoopdatum is bepalend voor het begin van de garantieperiode. De garantieperiode wordt niet verlengd als het toestel wordt vervangen of hersteld door Topcom of diens officieel erkende hersteldienst.

16.3Garantiebeperkingen

Schade of defecten te wijten aan onoordeelkundig gebruik of bediening en schade te wijten aan het gebruik van niet-originele onderdelen of accessoires die niet zijn aanbevolen door Topcom, worden niet gedekt door de garantie.

De garantie dekt geen schade te wijten aan externe factoren, zoals bliksem, water en brand, noch enige transportschade.

Er kan geen beroep worden gedaan op de garantie als het serienummer op het toestel is gewijzigd, verwijderd of onleesbaar gemaakt.

18

TOPCOM BPM Wrist 5331

1 Introduction

Félicitations pour l'achat du Topcom BPM Wrist 5331. Ce tensiomètre, entièrement automatique et qui se place autour du poignet, est facile à utiliser et convient parfaitement à une utilisation quotidienne. Le grand écran affiche la tension systolique, la tension diastolique et le rythme cardiaque, tous trois clairement lisibles à la fin de chaque cycle de mesure.

En outre, vous pouvez enregistrer jusqu'à 30 mesures par zone de mémoire, ce qui est idéal pour les utilisateurs désireux de contrôler et de suivre leur tension artérielle sur une base régulière. Le BPM Wrist 5331 est compact et portable, ce qui le rend parfait pour une utilisation à domicile et en voyage.

Veuillez lire attentivement le mode d’emploi avant d’utiliser l’appareil. Pour des informations spécifiques sur votre tension artérielle, consultez votre médecin. Conservez le mode d’emploi en lieu sûr afin de pouvoir le consulter ultérieurement.

2 Instructions de sécurité

1.Ce produit est prévu pour un usage domestique uniquement. Il ne remplace aucunement une consultation chez votre médecin.

2.L'appareil peut ne pas convenir aux utilisateurs qui souffrent d'une arythmie commune (auriculaire ou ventriculaire ou fibrillation auriculaire), de diabète, d'une mauvaise circulation du sang, de problèmes rénaux, aux utilisateurs qui ont eu une attaque et aux utilisateurs inconscients. Consultez votre médecin en cas de doute.

3.Afin d'éviter toute situation dangereuse, l'appareil ne doit pas être utilisé par des enfants.

4.L'appareil contient des pièces de haute précision. Par conséqent, évitez les températures extrêmes, l'humidité et la lumière directe du soleil. Évitez de laisser tomber ou de donner un choc puissant à l'unité principale et protégez-la de la poussière.

5.Une fuite des piles peut endommager l'appareil. Retirez les piles lorsque vous n'utilisez pas l'appareil pendant un long moment.

6.N'appuyez pas sur le bouton START lorsque l'appareil n'est pas placé autour du poignet.

7.Ne démontez pas l'unité principale ni le manchon.

8.Si l'appareil est conservé dans un endroit frais, laissez-le s'acclimater à la température ambiante avant de l'utiliser.

9.Nettoyez l'unité du tensiomètre et le manchon avec un chiffon doux légèrement humide. N'appuyez pas. Ne pliez pas le manchon préformé de l'intérieur vers l'extérieur. Ne lavez pas le manchon et n'utilisez pas de nettoyant chimique dessus. N'utilisez jamais de solvants, d'alcool ou d'essence pour le nettoyage.

FRANÇAIS

19

TOPCOM BPM Wrist 5331

N'utilisez pas l'appareil près d'un téléphone portable ou d'un four à micro-ondes, ceci afin d'éviter des résultats imprécis dûs à une interférence électromagnétique entre les équipements électriques et électroniques.

3 Conseils utiles

Voici quelques conseils utiles pour vous aider à obtenir des mesures plus précises :

Ne mesurez pas votre tension immédiatement après avoir consommé un repas copieux. Pour obtenir des mesures plus précises, attendez une heure avant de prendre votre tension.

Ne fumez pas et ne buvez pas avant de prendre votre tension artérielle.

Lorsque vous prenez votre tension, vous ne devez pas être fatigué physiquement.

Il est important que vous soyez détendu pendant la mesure. Essayez de vous reposer 15 minutes au préalable.

Ne prenez pas votre tension si vous êtes stressé ou tendu.

Prenez votre tension artérielle à température normale du corps. Si vous avez froid ou chaud, attendez un peu avant de prendre votre tension.

Si le moniteur est conservé à des températures très basses (proches du gel), placez-le dans un endroit chauffé pendant au moins une heure avant de l'utiliser.

Attendez environ 5 minutes avant la mesure suivante.

4 Mise au rebut de l'appareil

Au terme du cycle de vie de ce produit, ne le jetez pas avec les déchets ménagers ordinaires mais déposez-le dans un point de collecte pour le

recyclage des équipements électriques et électroniques. Le symbole sur ce produit, sur le mode d'emploi et/ou la boîte vous le signale.

Certains matériaux composant le produit peuvent être réutilisés si vous les déposez dans un point de recyclage. En réutilisant certaines pièces ou matières

premières de produits usagés, vous apportez une contribution importante à la protection de l'environnement. Pour toute information supplémentaire sur les points de collecte dans votre région, veuillez contacter vos autorités locales.

5 Tension artérielle

5.1Qu'est-ce que la tension artérielle ?

La tension artérielle est la pression exercée sur les parois artérielles lorsque le sang passe dans les artères. La tension mesurée lorsque le coeur se contracte et envoie du sang hors du coeur est dite systolique (plus élevée). La tension mesurée lorsque le coeur se dilate sous l'action du sang qui revient dans le coeur est appelée tension diastolique (plus faible).

20

TOPCOM BPM Wrist 5331

5.2Pourquoi mesurer votre tension artérielle ?

Parmi les différents problèmes de santé qui touchent les gens à l'heure actuelle, les problèmes associés à une hypertension sont de loin les plus fréquents. La corrélation dangereusement forte entre l'hypertension, d'une part, et les maladies cardiovasculaires et une mortalité élevée, d'autre part, exige de mesurer la tension artérielle afin d'identifier les personnes à risque.

5.3Norme de tension artérielle

L'Organisation Mondiale de la Santé (OMS) et le National High Blood Pressure Education Program ("programme d'éducation national sur l'hypertension") ont mis au point une norme de tension artérielle déterminant les zones d'hypotension et d'hypertension. Toutefois, cette norme constitue uniquement une directive générale étant donné que la tension artérielle varie notamment d'une personne à l'autre et d'un groupe à l'autre.

Diastolic (mmHg)!



Hypertension

Systolic over 160





95

Diastolic over

95





































Borderline



Systolic 140 ~159





90



Diastolic 90 ~ 94

















Hypotension



Normal











Systolic



Systolic under 139











under 99



Diastolic under 89



























100





140

160



Systolic (mmHg) !













FRANÇAIS

Il est important que vous consultiez votre médecin régulièrement. Il vous indiquera la plage normale de votre tension ainsi que le point à partir duquel vous serez considéré comme exposé à un risque.

5.4Fluctuation de la tension artérielle

La tension artérielle fluctue tout le temps !

Vous ne devez pas vous inquiéter si vous avez deux ou trois mesures élevées. La tension artérielle fluctue au cours du mois et même au cours d'une journée selon les circonstances (état d'esprit, température...).

21

Topcom CE0197 5331 User Manual

TOPCOM BPM Wrist 5331

6 Installation des piles

Ouvrez le compartiment des piles en retirant le couvercle.

Insérez 2 piles AAA non rechargeables. Respectez les polarités indiquées dans le compartiment des piles.

Réinstallez le couvercle du compartiment des piles.

Ne les court-circuitez pas et ne les jetez pas dans le feu. Enlevez les piles si cet appareil ne doit pas être utilisé pendant un long moment.

7 Boutons



1

1.

Bouton UP/DOWN



7



2.

Écran LCD

6

2

3.

Bouton MEMORY RECALL





4.

Manchon



3

5.

Bouton START / STOP

5

6.

Bouton MODE



7.

Compartiment des piles



4







8

Écran





10





1.

Tension systolique



1

2.

Tension diastolique

9







3.

Rythme cardiaque







4.

Indicateur de faible niveau

8



2



des piles



5.

Numéro de mémoire

7





6.

Zone de mémoire

6



3

7.

Icône d'erreur



8.

Unité de la tension artérielle









5

4

9.

Heure



10.

Date







22

Loading...
+ 50 hidden pages
