Introduction

Thank you for purchasing TomTom Navigator as your navigation system. This Quick Start Guide contains basic instructions for using TomTom Navigator. This guide is to be used after the SD card has been inserted and the GPS receiver has been connected.

If necessary, refer to one of the other two documents that have been supplied:

Installation poster

User guide

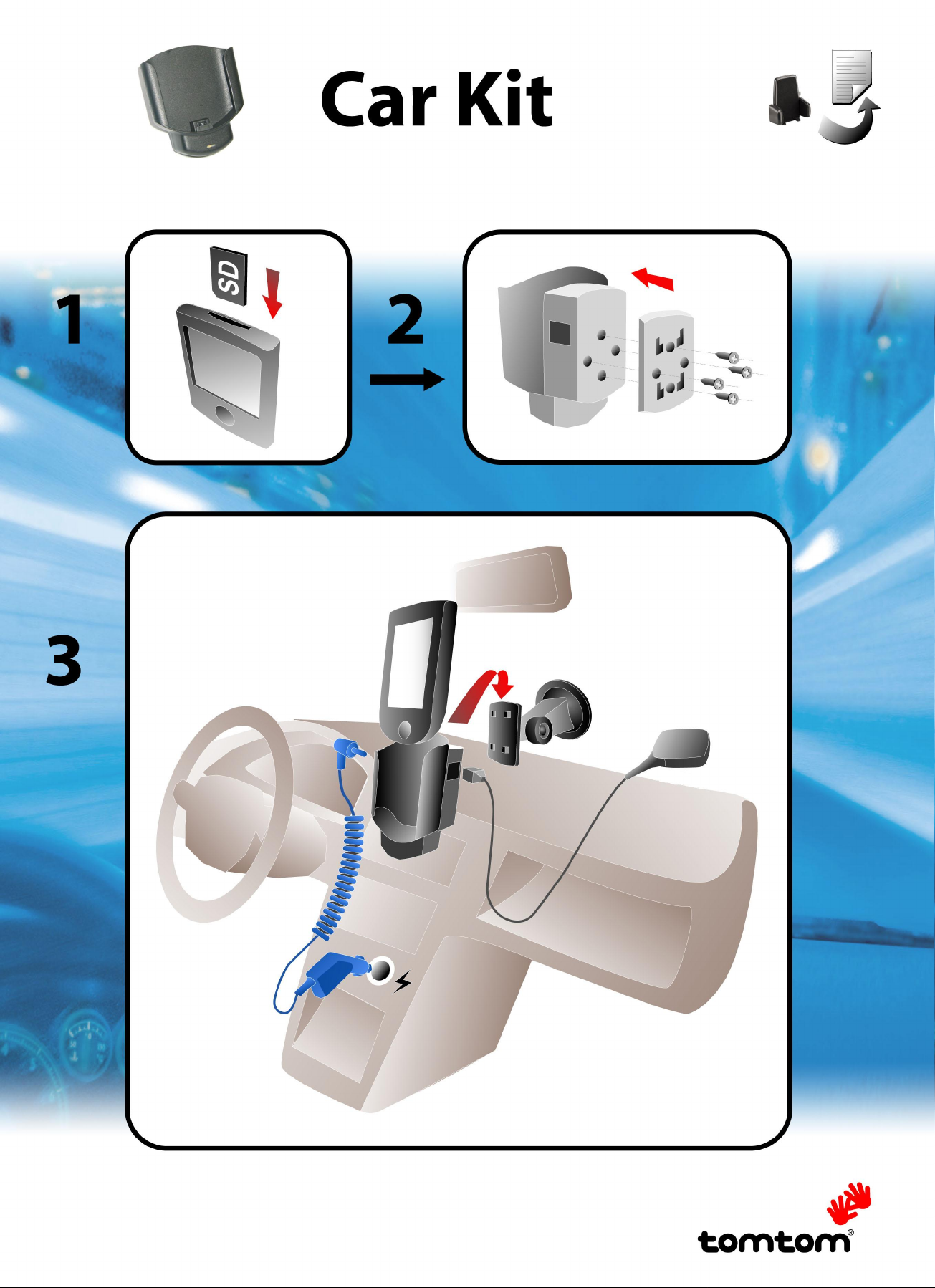

The poster contains all procedures for mounting and cabling the hardware to make the system

ready for first use. The software is already installed on your SD-card. If custom software installation is required, refer to the user guide. This guide is provided on the CD-ROM and contains detailed instructions on all functions. For custom installation, also refer to this guide.

Chapter 1 Launching the application for the first time

The GPS receiver is connected, the SD-card is inserted, and the program has started automatically. The very first time you use TomTom Navigator, you will be asked to specify your language:

Tap the language of your choice

After you have selected your preferred language, you will be asked to specify a few personal preferences:

Tap the screen anywhere.

Setting up right-handed or left-handed operation

You can now decide to set up the software for either left-handed or right-handed operation. With left-handed operation, important buttons and controls will be located on the left side of the screen. As a result, you will be able to operate them with your left hand without obscuring the screen.

• For right-handed operation: tap Yes.

• For left-handed operation: tap No.

Choosing how distances are displayed

1. Tap an option.

2. Tap Done

Choosing how time is displayed

1. Tap an option.

2. Tap Done.

Selecting a voice

You may now select the voice that will be used for driving instructions. Many different voices are available in many different languages.

1. To browse through the voices, tap for forward, or for backward.

2. To hear a sample of the current voice, tap the Test button.

3. Tap Done to select the current voice.

Specifying your home address

Providing a “HOME” address is very useful. For example, you will be able to plan a route back home with a single tap on the screen.

• If you wish to specify your home address now, tap Yes.

• If you wish to specify your home address later, tap No.

If you choose Yes, you will need to perform the following steps:

1. Enter the first letters of the name of your home city by tapping the corresponding letters on the keyboard.

2. In the list, tap your city.

3. Enter the first letters of your street name.

4. In the list, tap your street.

5. Enter your house number.

6. Tap Done.

Selecting the correct GPS receiver

A brief tour

1. To browse through the GPS receivers, tap for forward, or for backward.

2. Tap Done when the correct GPS receiver is displayed

You are now presented with a brief tour of TomTom Navigator. It explains the most important concepts and controls. It only takes a few minutes.

After the brief tour, TomTom Navigator is ready for use.

Chapter 2 Planning your first route

The main screen of TomTom Navigator displays your position on the map. It gets this position from your GPS receiver. If your GPS receiver is switched off, or has not (yet) determined a clear position from the GPS satellites, the main screen will display your last known position. To emphasize the fact that your real position is unknown, the screen is displayed in back and white.

The main screen when your GPS position is not known (showing the last known position)

The main screen when your GPS position is known but no destination has yet been provided

Your position is indicated by the sign.

A. To zoom in, tap [+] in the upper right-hand corner. B. To zoom out, tap [-] in the upper left-hand corner.

To access the menu (which provides access to all the options and functions available), tap the screen roughly in the middle.

The menu

The menu appears when you tap the main screen. It provides access to all functions.

First page of the menu

1. To access any of the functions, tap the corresponding icon.

2. To browse to the next menu page, tap .

3. To return to the main screen, tap Cancel.

Second page of the menu

Planning your first route

Perform the following steps to plan a route from your current position to a particular address.

1. In the menu, tap Navigate to .

You are now asked to choose a type of destination. Some of the items on this menu may be dimmed, indicating that they are (currently) unavailable.

2. Tap Address .

3. Enter the first letters of the name of the city by tapping the corresponding letters on the keyboard. A few letters usually suffice. The cities with the same initial letters will be displayed in the list. Tap the city when you see the name in the list.

4. Enter the first letters of the street name until you see the street you are looking for displayed in the list. Then, tap the street name.

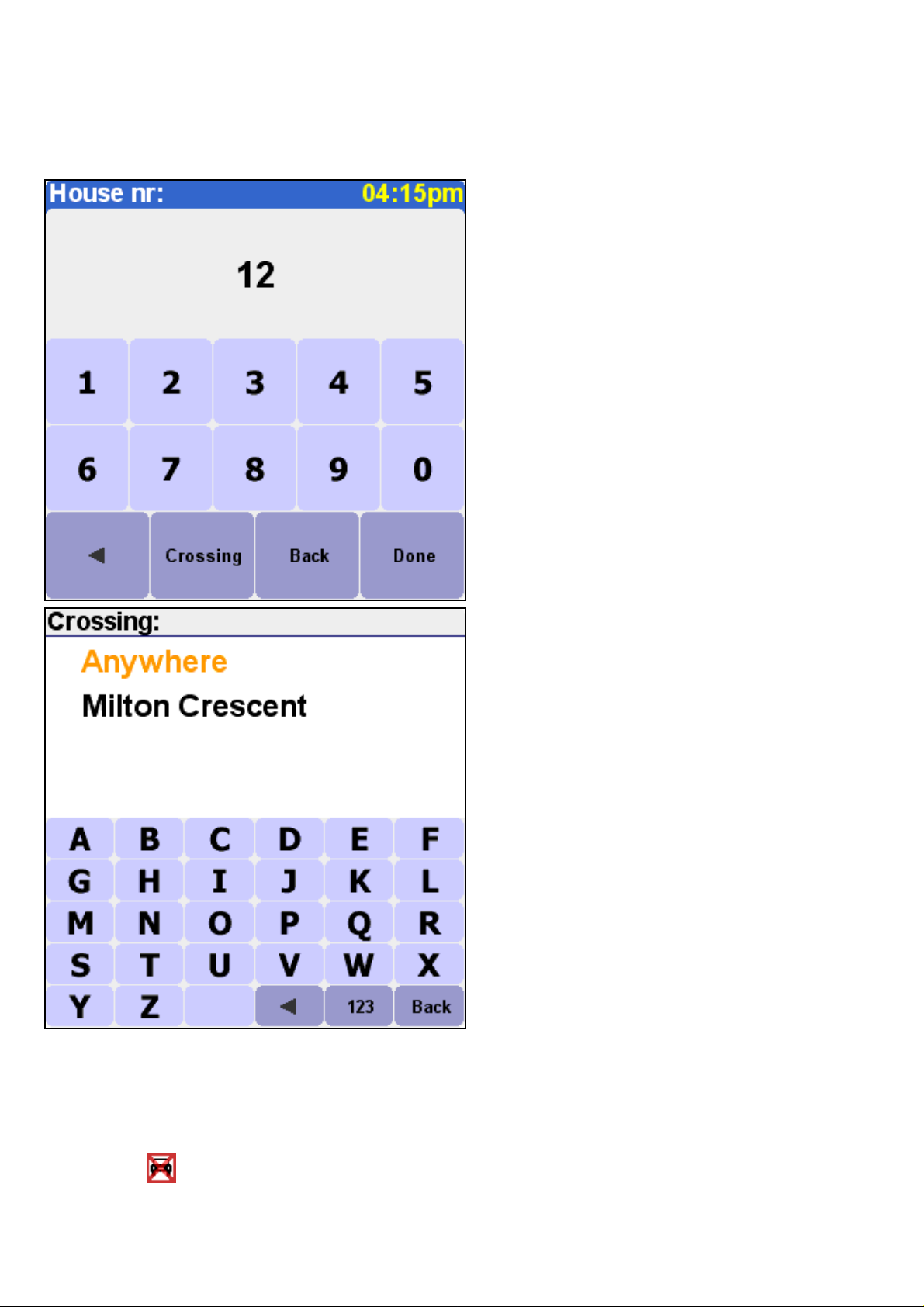

5. Enter the house number and tap Done. (Note: if you do not enter a house number, you will be asked to select a street crossing instead.)

TomTom Navigator will now plan a route from your current GPS location to the destination you have just entered. Once the route has been calculated, tap Done to return to the main screen.

Please note: route planning will not start unless TomTom Navigator knows your current location – which requires a valid GPS signal. If necessary, refer to your installation poster to find out how to connect your GPS device.

Driving around

Your main screen will now look similar to the one below:

• On the map, a dark red path indicates the planned route.

• The lower left-hand corner shows the next driving instruction: an arrow showing what to do, and a

distance indicating when to do it.

• At the very bottom you see the name of the next street you will reach if you follow the current driving instruction.

The lower right-hand corner shows your journey information:

o the current time o the estimated time of arrival o the distance left to the destination o your current speed o the time left to the destination

Once you start driving, driving instructions will be provided in advance by a voice. Should you miss a spoken instruction, you can tap on the driving instruction (the bottom left-hand corner) to repeat it.

The route summary

If you tap the journey information (i.e. the lower right-hand corner of the main screen), a full-screen route summary will be displayed:

The title bar shows your current destination and the current time. The map shows your route from start to finish. Underneath the map you can see the total travel time and the length of the route.

The side bar shows the state of your battery, the current strength of the GPS satellite signal, and your longitude and latitude.

Finally, the small button below shows your application version.

• To display a complete list of route instructions, tap Route.

• To browse around on the map of your route, tap Map.

• To return to the main screen, tap Done (or tap anywhere on the map).

• To get more information on the GPS signal, tap the GPS information bar on the side.

• To get detailed information about your software version, tap the version button on the side.

Ignoring the planned route

TomTom Navigator is very flexible. If you take a different turn from the one TomTom Navigator proposes (whether by mistake or on purpose), TomTom Navigator will adjust almost instantly to the new situation. It will keep guiding you to your destination from your current position as fast as it can calculate.

Chapter 3 Points of interest

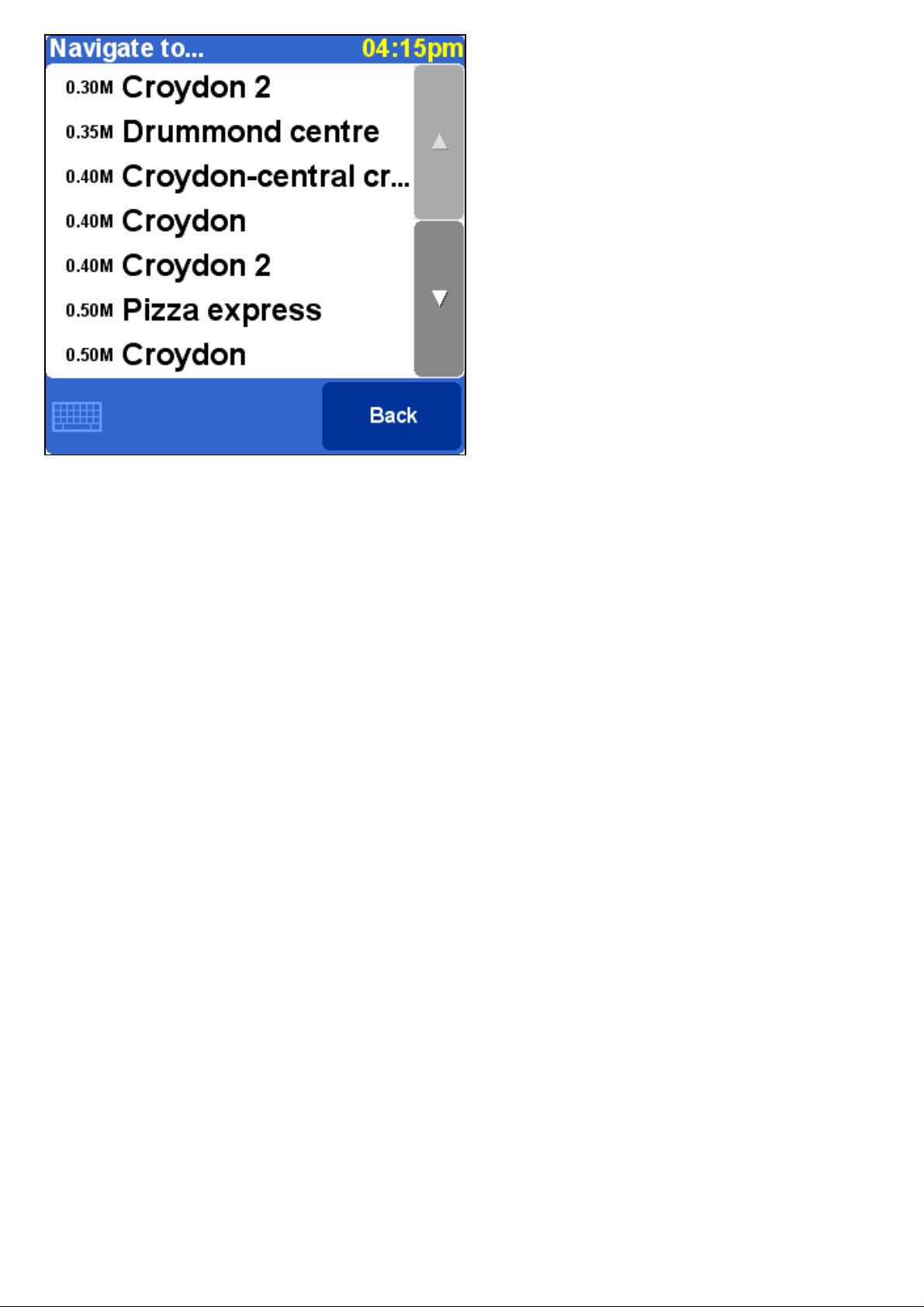

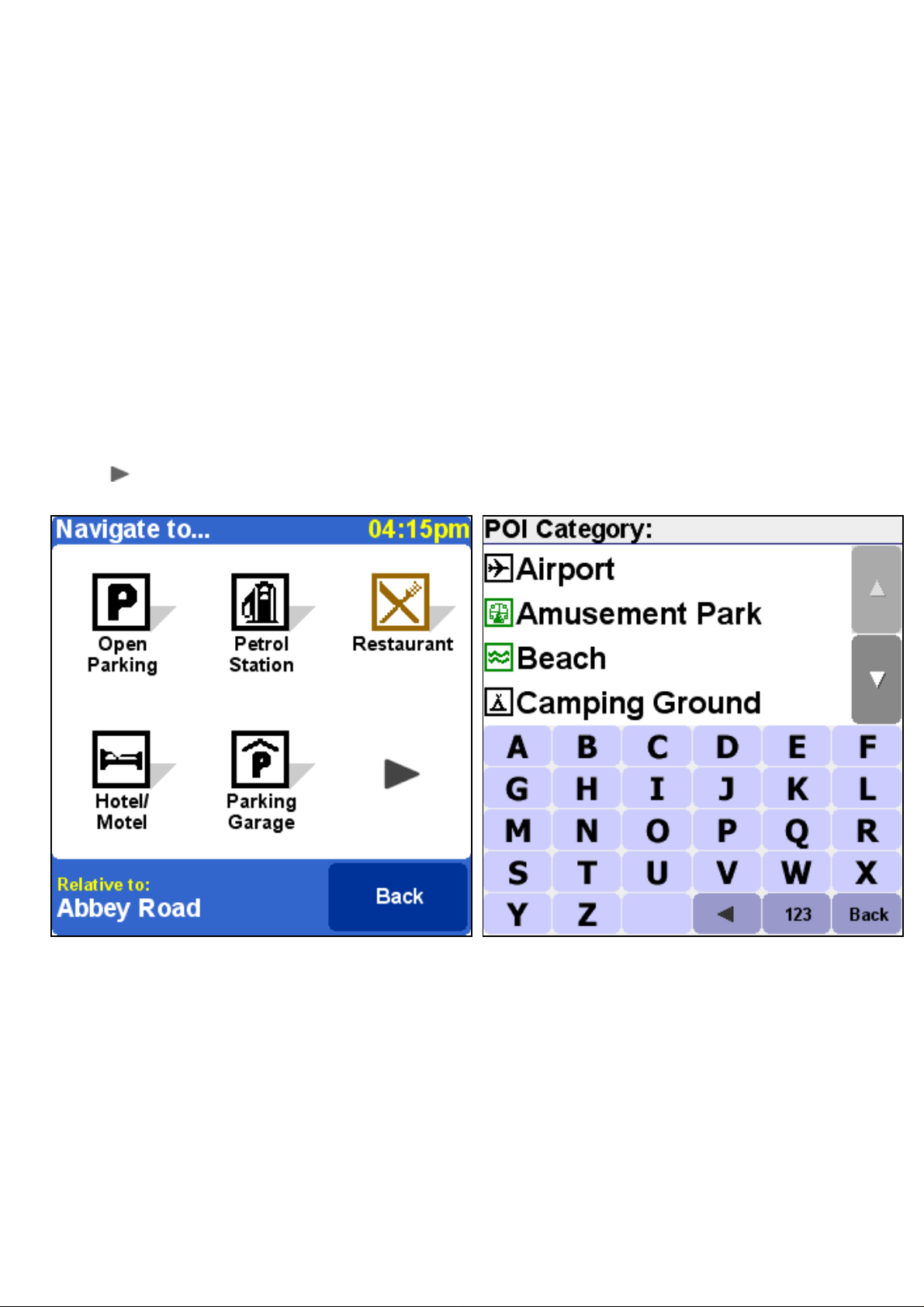

Points of interest (often abbreviated to “POI”) are locations such as parking garages, petrol stations, hotels, restaurants, hospitals, airports, etc. When planning a route you can select a nearby point of interest as your destination. You can also ask TomTom Navigator to show or hide certain POI on the main screen or on the map.

Enabling/disabling particular points of interest

In the preferences, you can specify which POI categories are of interest to you.

1. In the menu, tap Change preferences .

2. Tap to go to the next preferences page.

3. Tap Enable/Disable POI .

4. Place checkmarks in front of the categories that are of interest to you. You can add or remove a checkmark simply by tapping the category.

You can scroll through the list using and , or use the keyboard to search for particular items.

5. Tap Done.

Points of interest from the marked categories will be displayed on the maps.

Showing/hiding points of interest

• To hide the points of interest on the main screen, tap Change preferences in the menu, then tap

Hide POI

• To show the points of interest on the main screen, tap Change preferences in the menu, then

tap Show POI

Note: only those points of interest that you have check marked in your preferences will be displayed.

Favourites

TomTom Navigator allows you to maintain a list of favourites – locations that you use a lot, like your work address, your company headquarters, your best friends, your most important customers, your hotel etc.

Any location can be turned into a favourite.

To create a favourite tap Add favourite in the menu. You will be asked to provide a name.

Preferences

TomTom Navigator offers many preferences – options that allow you to change the look and feel to your liking.

In the menu, tap Change preferences . There are several pages of preferences, which we recommend you study at leisure. In this Quick Start Guide,

however, we will restrict ourselves to describing the most important ones which you will probably use on a daily basis. Refer to the user guide on the CD-ROM for information on all preferences.

Turning the sound on and off

You can turn off the voice that gives navigation instructions. You will then have to rely on the visual instructions on your screen to navigate. To hear the navigation instructions again, turn on the sound once more. If the sound is

switched off, this is indicated during navigation by the icon in the lower left-hand corner of the screen.

In the menu, tap Change preferences .

• If the sound is currently switched on, switch it off by tapping Turn off sound .

• If the sound is currently switched off, switch it on by tapping Turn on sound .

Using day colours/night colours

Normally, TomTom Navigator uses bright colours with a lot of contrast, so that you can see the map clearly, even in bright sunlight. When it is dark outside, you may want to switch to night colours. The map will then be displayed using subdued colours that will not interfere with your night vision.

In the menu, tap Change preferences .

If day colours are used, switch to night colours by tapping Use night colours .

If night colours are used, switch to day colours by tapping Use day colours .

Requesting an alternative route

Routes are calculated on the basis of the time required to reach the destination. In other words, TomTom Navigator calculates the quickest way to get you to your destination.

If for some reason you want to get rid of a particular route (for instance because of a traffic jam), you can request an alternative route. Such an alternative will use different roads, and will probably take more time. An unlimited number of alternatives can be calculated – each alternative will be longer and/or take more time than the previous one.

1. In the menu, tap Find alternative .

2. Tap Calculate alternative . The alternative route is calculated and displayed on the screen. Note: this menu also offers options to avoid roadblocks directly ahead.

If you wish to revert to the original (fastest) route, tap Recalculate original .

Browsing around on a map

TomTom Navigator offers many features that allow you to browse around on a map. You can do so by tapping

Browse map in the menu, or tap Map in the route summary screen. On the map, you will find all the items you might find on a normal, paper map, such as cities, town, roads, streets,

rivers and lakes, points of interest (such as petrol stations, restaurants and hospitals) etc. You will also find more dynamic and personal elements, such as your current GPS position, your favourite locations,

or your current departure and destination.

The blinking icon represents your cursor. Simply tap the map anywhere to place the cursor at that position. To increase or decrease the scale of the map, move the white square at the side of the screen up or down. The map

will zoom in (or out) relative to your cursor position. To browse around, simply tap the map and drag it around. Button Function

This button allows you to search for a specific location and place your cursor there. You use it to locate:

• an address;

• one of your favourite locations;

• your home location;

• a recent destination;

• a nearby point of interest (e.g. a hotel or petrol station);

• your current GPS position.

The cursor provides functions for your cursor location (i.e. the location indicated by the blinking icon). You can:

• calculate a route from your current location to the cursor location;

• find a point of interest near the cursor location;

• centre the map around the cursor location;

• turn the cursor location into a favourite.

Options The options button allows you to change the properties of the map that is currently being displayed. For

instance, you can decide to show more or less roads and streets, or street names, or to show or hide points of interest or favourites.

You can even show or hide specific categories of points of interest, by tapping Show POI in the options screen.

By tapping this button (in the top right corner of the screen), the map will be will re-centred around your GPS position.

Done

Tap Done to return to the main screen.

Introduction

Thank you for purchasing TomTom Navigator as your navigation system. This User Guide is your reference using TomTom Navigator .

If necessary, refer to one of the other two documents that have been supplied:

● Installation poster

The poster contains all procedures for mounting and connecting the cables to make the system ready for first use.

● Quick Start Guide

This document contains the basic instructions and the instructions when you use the TomTom Navigator for the first time.

Table of Contents

1. What you see on the screen

1.1. The main screen

1.2. The menu

1.3. The route summary

1.4. The map browser

1.5. The schematic view

2. Browsers and locations

2.1. Browsers

2.2. Picking locations

2.2.1 Picking your HOME location

2.2.2 Picking a favourite location

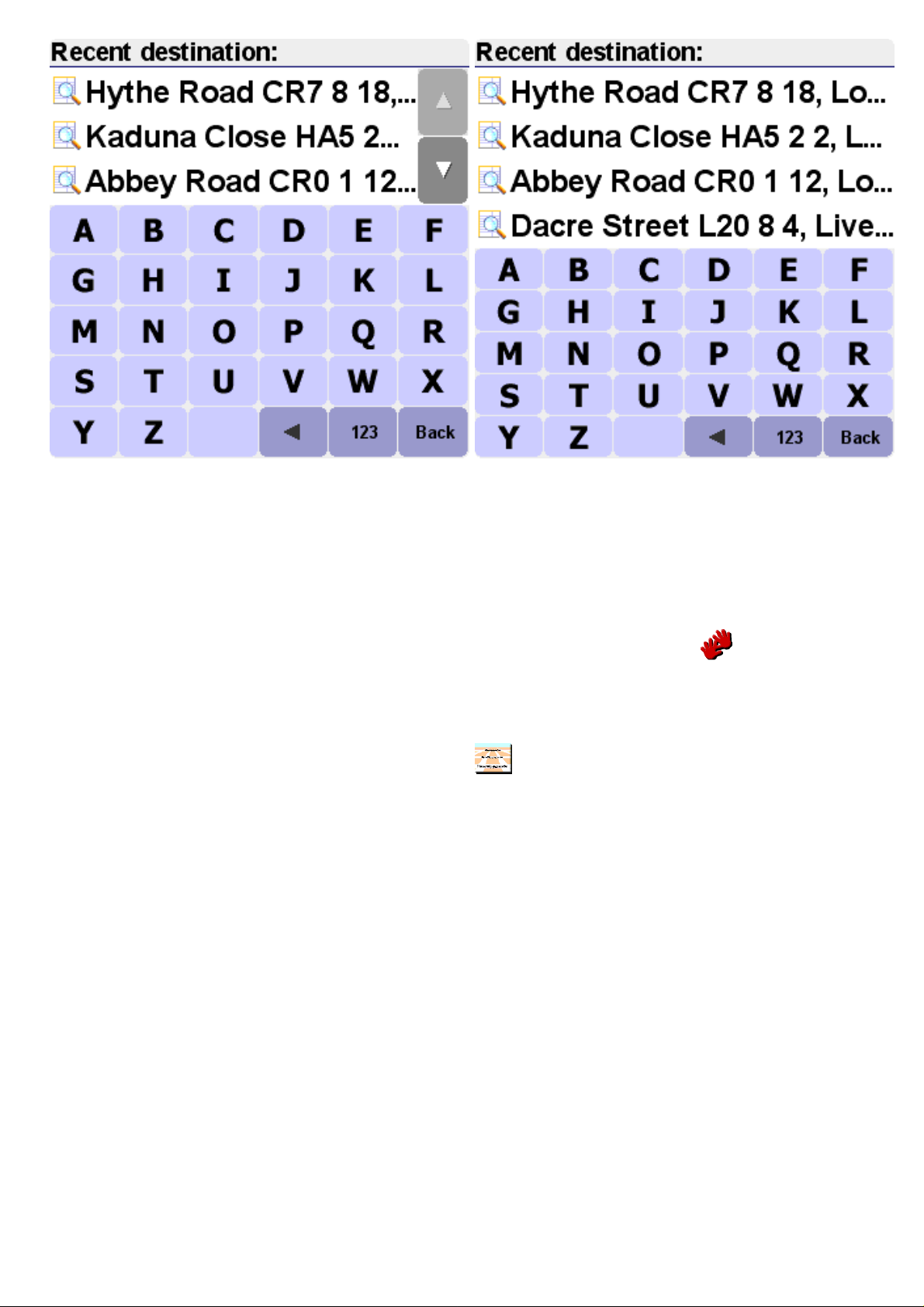

2.2.3 Picking a recent destination

2.2.4 Picking your GPS position

2.2.5 Picking a point of interest

2.2.6 Picking an address

3. The menu

3.1. Planning from A to B

3.2. Alternative routes

3.3. The route instructions

4. The preferences

4.1. Use night colours

4.2. Turn off 3D display

4.3. Turn off map display

4.4. Hide POI

4.5. Turn sound off

4.6. Change volume

4.7. Maintain favourites

4.8. GPS status

4.9. Switch map

4.10. Enable/Disable POI

4.11. Change map colours

4.12. Use larger keyboard

4.13. About Navigator

4.14. Set name display

4.15. Change Home location

4.16. Set metric units

4.17. Left-handed lay-out

4.18. Set schematic speed

4.19. Change voice

4.20. Switch Language

4.21. POI appendix

5. Installation

5.1. Using the CD-ROM

5.2. Requirements for installation

5.3. First time installation of TomTom Navigator with a map

5.4. (Re-)Installing TomTom Navigator, voices and maps

5.5. Major Roads Map

1. What you see on the screen

1.1. The main screen

The main screen of TomTom Navigator is used to navigate to your destination. Your position is displayed on the map using your GPS receiver. If your GPS receiver is switched off, or has not (yet) determined a clear position from the GPS satellites, the main screen displays your last known position. To emphasize the fact that your actual position is unknown, the screen is displayed in black and white.

"Sound off" warning indicator

Next instruction

The name of the next street

Journey information

Speed/distance indicator

Your current GPS position

"Zoom in" button

"Next highway" indicator

"Zoom out" button

The dark red path indicates the calculated route. The route instructions will guide you along this path to reach your destination.

Your next driving instruction shows an arrow for the direction to follow and a distance indicator (presented in your distance

units preference) when to do it. The bottom of the screen shows the street name you will reach if you follow the current

driving instruction. If the "sound off" indicator is not shown, the displayed instruction will be accompanied by voice instructions. If necessary, use the sound on preference to switch on the voice instructions.

To increase or decrease the scale of the map, tap to zoom in or to zoom out relative to your current position. This keeps working when covered by the

The journey information shows the current time, estimated time of arrival and the time left to reach your destination.

"next highway" indicator.
