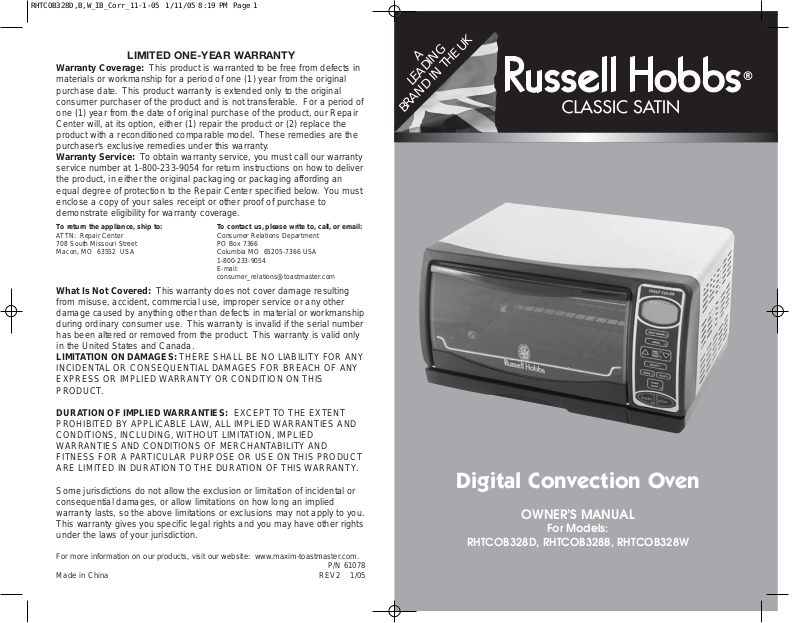

Toastmaster RHTCOB328W, RHTCOB328B User Manual

LEADING

RAND IN THE UK

Digital Convection Oven

OWNER’S MANUAL

For Models:

RHTCOB328D, RHTCOB328B, RHTCOB328W

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Contact Consumer Service for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated Oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

12. To disconnect, press the red STOP Button, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. Use extreme caution when removing tray or disposing of hot grease.

15. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.

16. Oversize foods or metal utensils must not be inserted in a Toaster Oven as they may create a fire or risk of electrical shock.

17. A fire may occur if the Toaster Oven is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation. Do not store any items on top of the appliance when in operation.

IMPORTANT SAFEGUARDS (Continued)

18. Extreme caution should be exercised when using containers constructed of other than metal or glass.

19. Do not store any materials, other than manufactures recommended accessories, in this Oven when not in use.

20. Do not place any of the following materials in the Oven: paper, cardboard, plastic and the like.

21. Do not cover Crumb Tray or any part of the Oven with metal foil. This will cause overheating of the Oven.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

ADDITIONAL IMPORTANT SAFEGUARDS

CAUTION HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property.

1. A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Use and Care Guide before operating or cleaning this appliance.

2. Unplug from outlet when not in use and before cleaning. To avoid

electrical shock, never immerse or rinse this appliance in water or any other liquid.

3. If this appliance falls or accidentally becomes immersed in water, unplug it from the wall outlet immediately. Do not reach

into the water!

4. When using this appliance, provide adequate air space above and on all sides for air circulation. Do not operate this appliance while it is touching or near curtains, wall coverings, clothing, dish towels or other flammable materials.

5. To reduce the risk of fire, do not leave this appliance unattended during use.

6. If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair a malfunctioning appliance!

7. The cord to this appliance should only be plugged into a 120V AC electrical wall outlet.

8. Do not use this appliance in an unstable position.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

We do not recommend the use of extension cords.

ELECTRIC POWER

If the electric circuit is overloaded with other appliances, your appliance may not operate. It should be operated on a separate electrical circuit.

INTRODUCTION

Your Russell Hobbs®6 Slice Digital Convection Oven offers 5 Functions: KEEP WARM, BROIL, TOAST, BAKE, and CONVECTION BAKE. The large LCD Display and electronic touch pad controls make operation simple. Its attractive styling and beautiful curved Glass Door make it a handsome addition to any kitchen.

PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATIONS

LCD Display

Toaster Oven

Removable Wire Rack (P/N 21612)

Body

Glass Oven Door

Door Handle

Upper Heating Elements

Upper Shelf Position

Lower Shelf Position

Crumb Tray (P/N 21613)

Control Panel

Lower Heating Elements

Vents

Cord Wrap (not shown)

Power Cord with Polarized Plug

BEFORE USING YOUR DIGITAL CONVECTION OVEN FOR THE FIRST TIME

CAUTION: To protect against electric shock, do not immerse the

Digital Convection Oven or allow cord to come into contact with water or other liquids.

1. Carefully unpack the Oven and accessories removing all packaging materials. Remove any labels from the outer surfaces.

2. Use a clean damp cloth to wipe the inside and outside surfaces of the Oven. Wash all accessories in warm soapy water, rinse and dry thoroughly. Do not use abrasive cleaners.

3. To ensure that the Oven is free from oils used in manufacturing, select the BAKE Function and set the TEMPERATURE to 450°F, set the TIME to 30 minutes and press the START Button. At the end of the bake time the Digital Convection Oven is ready for use.

HINTS FOR BEST RESULTS

•To prevent heat loss, avoid opening the door excessively.

•To speed up browning, brush lean cuts of meat, chicken and fish with oil, margarine or melted butter.

• If the START Button is not pressed, the Display will revert to: (— — —).

Operating Instructions

CONTROL PANEL

1. Toast Color: Browning Selector consists of series of 5 points that represent Toast Color, progressively darker each step.

2. Digital Display: Shows set TIME/TEMPERATURE or (— — —).

3. KEEP WARM Button: Fixed temperature setting at 200 default time: 30 minutes (0:30). Maximum Time: 1 hour.

4. BROIL Button: Fixed temperature setting at 450ºF, default time: 30 minutes (0:30). Maximum Time: 2 hours.

5. BAKE Button: Default temperature setting at 350ºF, default time: 30 minutes (0:30). Maximum Time: 2 hours.

6. TOAST Button: Fixed temperature setting at 450ºF, default setting: light toast.

7. CONVECTION BAKE Button: Default setting at 350ºF, 30 minutes (0:30). Maximum Time: 2 hours.

8. SELECT Button: Toggles between TIME and TEMPERATURE.

9. TIME/TEMPERATURE Button: Press UP or DOWN Arrows to adjust TIME and TEMPERATURE for some Functions and Toast Color selection when toasting..

(Hint: Holding the UP or DOWN Arrows down in place will either fast forward or fast reverse the time and temperature.)

10. START Button: Press this Button to begin all Functions. If this

Button is not pressed, the Display will revert to: (— — —).

11. STOP Button: Press this Button to turn OFF the power. The

beeper will sound once, the Display will revert to: (— — —), and all Indicator Lights will turn OFF.

ºF,

Toast Color Points

Digital Display

NOTE: Each time you press KEEP WARM, BROIL, TIME/TEMPERATURE,

BAKE, CONVECTION BAKE, TOAST, START or STOP Buttons, a

red Indicator Light will illuminate and you will hear a beep. This lets you know your selection has been made.

SHELF AND RACK POSITIONS

Depending on the size of your food or the height of your baking pan, you may wish to adjust the height and position of the Wire Rack. There are 2 Shelf Positions that the Wire Rack or inverted Wire Rack fits into. Slide the Wire Rack into the Oven making sure that it is level and properly positioned. You may use the Wire Rack in the normal position or invert it.

• When using the BROIL Function, your food should be 1- 2 inches from the top element.

• When baking, the shelf position used will depend on the size of the food being prepared. It is important to place your food as close to the center as possible to ensure even cooking.

Wire Rack

Inverted Wire Rack

KEEP WARM FUNCTION

Use the KEEP WARM Function at 200ºF, f or 5 minutes to a maximum time of 1 hour. The temperature cannot be adjusted.

1. Plug the Digital Convection Oven into a 120V AC outlet.

2. Press the KEEP WARM Button. The red Indicator Light next to the KEEP WARM Button will illuminate.

3. The TIME Light will also illuminate and the default TIME 0:30 minutes will appear on the Display. To change the TIME, press the UP or DOWN Arrow and it will change in 5 minute increments. You may set the Oven to KEEP WARM for 5 minutes to a maximum of 1 hour.

NOTE: If you press the SELECT Button, the TEMPERATURE Light will

illuminate and the preset temperature of 200°F will appear in the Display. The temperature cannot be adjusted. Press the SELECT Button again.

4. Open the Door and center food on the Wire Rack. Close the Door.

5. Press the START Button to begin warming. The Display will show the last selection, TIME or TEMPERATURE. If TEMPERATURE was selected last, it will remain on the Display for approximately 30 seconds; then it will display the TIME as it counts down. At the end of the pre-set time, the Oven will sound 5 beeps and turn itself OFF.

6. You may turn the Oven OFF and cancel warming at any time by pressing the red STOP Button.

7. Wear protective oven mitts to remove food from Digital Convection Oven.

8. Unplug and allow to cool before cleaning.

HINTS FOR KEEP WARM

• Use for short periods of time after food is cooked.
