Toastmaster RA36C1W Parts List

parts
manual

Wendy’s USA RA36C1W/

RA36C7W (Eng)

MODEL RA36C1W

and RA36C7W

RANGES

P/N 38457

Rev. B • V1 • 9/98

RA36C7W

Top Assembly - 24 x 24 Griddle & 12 x 24 Hotplate

1

6

8

9

13

15

18

11

20

7

16

17

12

19

10

14

10

18

2

13

15

14

5

3

4

18

5

16

17

18

5

19

20

21

22

5

11

22

21

2

RA36C7W

Parts List (Top Assembly)

GRIDDLE TOP ASSEMBLY

Item No. Qty. Part No. Description

1 1 7603538 Assembly, 24 x 24 Griddle Plate, 208V

1 1 7603539 Assembly, 24 x 24 Griddle Plate, 240V

1 1 7603541 Assembly, 24 x 24 Griddle Plate, 480V

2 1 7603536 24 x 24 Griddle Plate Only

3 2 3004257 Control Thermostat, 150° - 450F°

4 2 2100059 Knob, Control Thermostat, 150° - 450°F

5 26 B301A8817 Hex Nut, 1/4-20

HOT PLATE ASSEMBLY

Item No. Qty. Part No. Description

6 1 7601872 Assembly, 12 x 24 Hot Plate, 208V

6 1 7601873 Assembly, 12 x 24 Hot Plate, 240V

6 1 7601875 Assembly, 12 x 24 Hot Plate, 480V

7 1 20XA1G1 12 x 24 Plate Only [Drain Both Sides]

8 1 3004281 Control Thermostat, 250° - 850°F

9 1 2100094 Knob, Control Thermostat, 250° - 850°F

10 10 2000340 Cap Screw, 1/4-20 x 3/8

11 8 F706A8807 Hex Nut, Brass, 1/4-20

12 4 2001184 Stud, 1/4-20 x 1-5/8

SHARED PARTS

Griddle & Hot Plate Assemblies

Item No. Qty. Part No. Description

Grid./H.P.

13 2/1 34191 Thermostat Sleeve

14 4/2 F706A1013 Clamp, Thermostat Bulb

15 2/1 7007257 Angle Clamp, Thermostat Bulb

16 2/1 F706A8703 Heating Element, 208V/5200W

16 2/1 F706A8731 Heating Element, 240V/5300W

16 2/1 F706A8729 Heating Element, 480V/5300W

17 4/2 20A2G1 Clamp Plate, Heating Element

18 20/10 F706A8809 Washer, Flat, 11/32 i.d. x 1-1/4 o.d.

19 8/4 F706A8811 Spacer

20 16/10 F706A8805 Lockwasher, Extnl Star, 1/4 i.d. x 5/8 o.d.

21 2/1 F706A1017 Baffle

22 2/1 8500079 Insulation

3

RA36C1W

Top Assembly

4, 5

3

2

1

4

RA36C1W

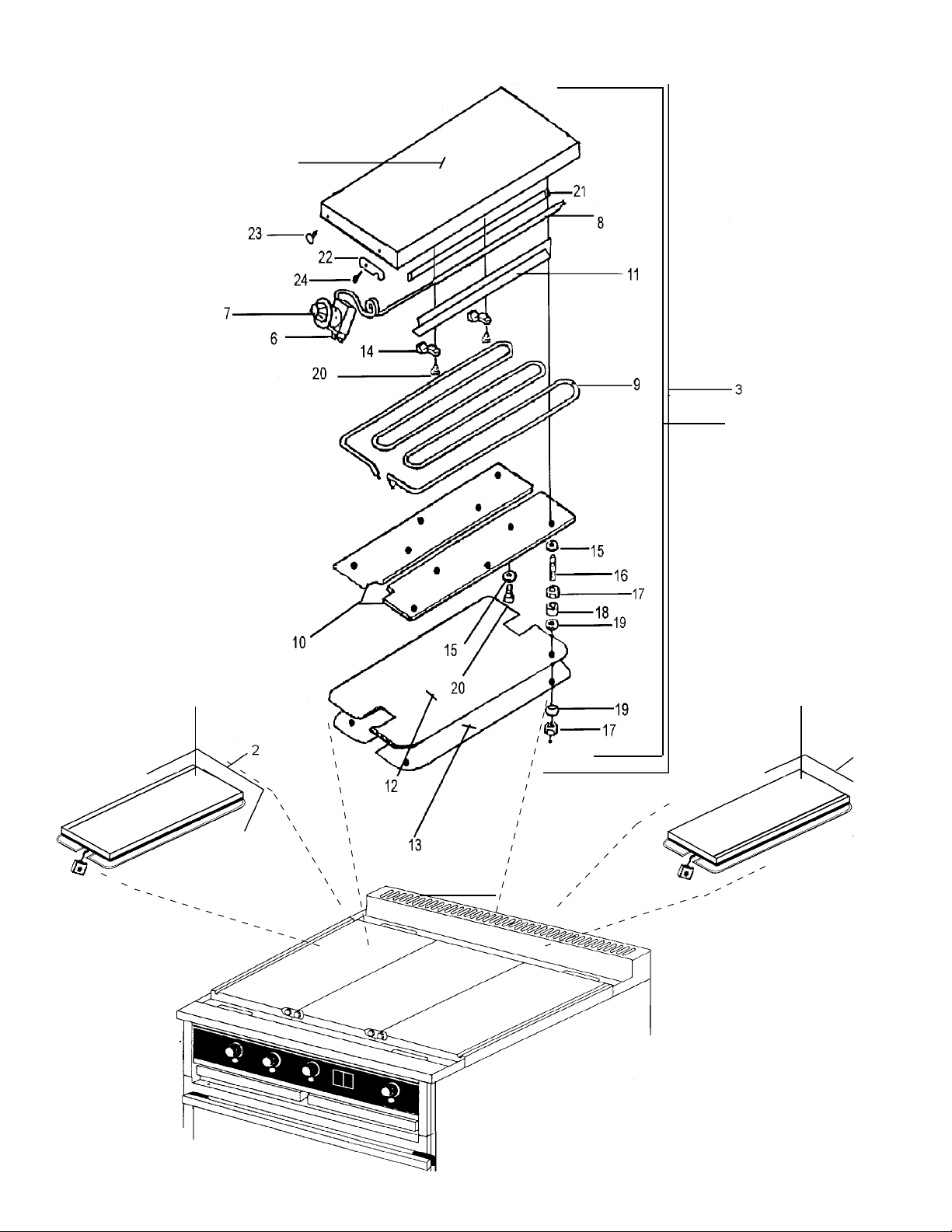

Parts List (Top Assembly)

Item No. Qty. Part No. Description

HOT PLATE ASSEMBLY

1 1 7600083S Assembly, 12 x 24 Hot Plate - Right Drain, 208V
1 1 7600084S Assembly, 12 x 24 Hot Plate - Right Drain, 240V
1 1 7600086S Assembly, 12 x 24 Hot Plate - Right Drain, 480V
2 1 7600087S Assembly, 12 x 24 Hot Plate - Left Drain, 208V
2 1 7600088S Assembly, 12 x 24 Hot Plate - Left Drain, 240V
2 1 7600090S Assembly, 12 x 24 Hot Plate - Left Drain, 480V
3 1 7600074S Assembly, 12 x 24 Hot Plate - Center, 208V
3 1 7600075S Assembly, 12 x 24 Hot Plate - Center, 240V
3 1 7600077S Assembly, 12 x 24 Hot Plate - Center, 480V
4 1 20A2G8 12 x 24 Hot Plate - Left or Right Drain
5 1 20A2G9 12 x 24 Hot Plate - Center [no drain]

6 1 3004281 Thermostat, Hot Plate 250° - 850°F
7 1 2100094 Knob, Thermostat 250° - 850°F
8 1 34191 Thermostat Sleeve
9 1 F706A8703 Heating Element, 208V/5200W
9 1 F706A8731 Heating Element, 240V/5300W
9 1 F706A8729 Heating Element, 480V/5300W

10 2 20A2G1 Clamp Plate, Heating Element

11 1 7007257 Angle Clamp, Thermostat Bullb
12 1 8500079 Insulation
13 1 F706A1017 Baffle
14 2 F70681013 Clamp, Thermostat Bulb
15 10 F706A8809 Washer, Flat, 11/32 x 1-1/4
16 4 2001184 Stud, Threaded, 1/4-20 x 1-3/4
17 4 F706A8807 Hex Nut, Brass, 1/4-20
18 4 F706A8811 Spacer
19 10 F706A8805 Lockwasher, Extnl Star, 1/4 i.d. x 5/8 o.d.
20 10 2000340 Cap Screw, 1/4-20 x 3/8

21 4 20A1G8 Key Strip
22 4 20A2G6 Latch Plate
23 4 20A2G7 Screw, Latch Plate
24 4 20A1G7 Pin, Latch Plate

5

RA36C1W & RA36C7W

Range Top Assembly

6

RA36C1W & RA36C7W

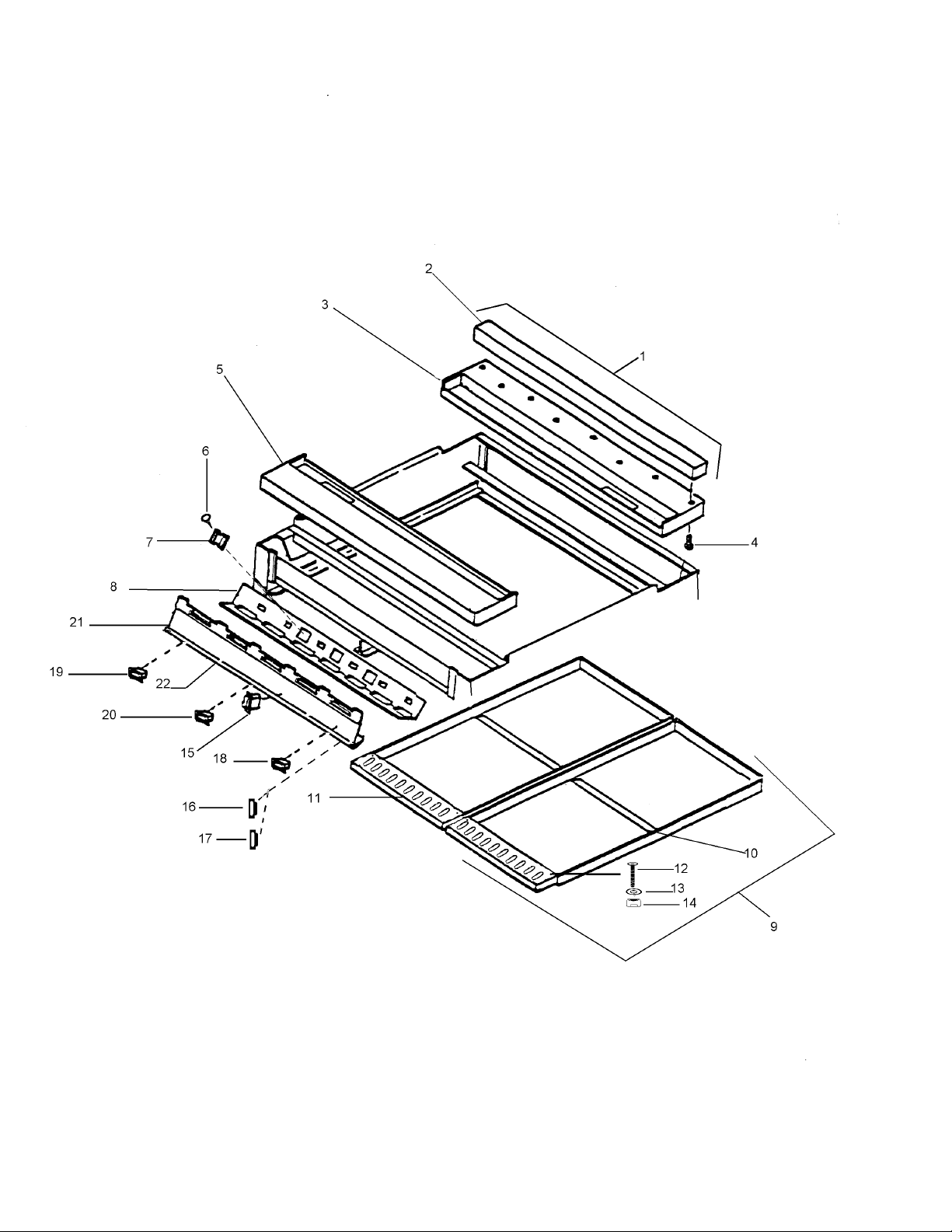

Parts List (Range Top Assembly)

Item No. Qty. Part No. Description

1 1 7601382 Rear Grease Trough & Rail Assembly
2 1 7600051 Back Rail
3 1 7600049 Rear Grease Trough
4 3 4111A8809 Screw, Mach., Hex Head, 10-32 x 3/8
5 1 7600048 Front Grease Trough
6 3 1411D8709 Grommet
7 3 7601445 Control Housing Cover

8 1 7000634 Control Housing

9 2 7601840 Grease Drawer Assembly
10 2 7601838 Grease Drawer Only
11 2 7001735 Grease Drawer Handle Perforated
12 4 2000199 Screw, 10-24 x 3/8
13 4 220327 Lockwasher, 3/16 i.d. x 3/8 o.d.
14 4 30841 Nut, Acorn 10-24

15 1 3027A8715 On/Off Rocker Switch
16 1 3003138 Oven Signal Light, Green, [On]
17 1 3003137 Oven Signal Light, Amber, [Heating]
18 1 3003141 Right Signal Light, Amber
19 1 3003142 Left Signal Light, Amber
20 1 3003145 Center Signal Light, Amber [C1 Models Only]
21 1 7608152 Control Panel
22 1 2401046 Nameplate, Black, C1 Model
22 1 2401023 Nameplate, Black, C7 Model

7

RA36C1W & RA36C7W

Oven Base Assembly

23

8

RA36C1W & RA36C7W

Parts List (Oven Base)

Item No. Qty. Part No. Description

1 1 7608157 Heat Element & Cup Assy., 208V/7500W
1 1 7608158 Heat Element & Cup Assy., 240V/7500W
2 1 3027A3081 Heat Element Cup Only
3 1 3002452 Heat Element Only, 208V/7500W
3 1 3002453 Heat Element Only, 240V/7500W
4 4 3027A3083 Support, Heating Element

5 1 7608121S Motor Blower Assy., 208/240V
6 1 3103902 Blower Wheel
7 1 7607766 Motor Mount, Weldment
8 1 7004592 Motor Mounting Bracket
9 1 3002761 Motor, 2-Speed, 1/4 HP, 208/240V

10 1 7608120 Blower Baffle

11 2 3102543 Side Rack Shelf Support, Left & Right
12 4 3102541 Rack Shelf 20-1/2 x 28-1/2
12 1 32564 Rack #1, First Shelf (chicken)
12 1 32565 Rack #2, Second Shelf (chicken)
13 1 7600059 Fuse Panel, Bracket
14 2 1455A0339S Fuse Holder & Fuse Assy., 208/240V
15 2 1455A8735 Fuse Holder Only, 208/240V
16 2 1455A8793 Fuse, SC10, 10 amp 208/240V

17 2 3027A0001 Terminal Block
18 1 3000641 Relay, Mercury - 208/240V Contactor
19 1 7002704 Switch, Lever Bracket
20 1 3003770 Microswitch - Blower
21 1 43685 Eye Bolt
22 1 436121 Door Spring

23 1 7608156 Oven Door Assembly
24 1 7600027S Door Handle Assembly
25 1 7000056 Door Handle
26 2 3000061 Black End Caps, Handle
27 2 3103164 Spacer Blocks, Door
28 4 2000320 Screw, Door Handle, 10-32 x 3-1/2
29 2 3100324 Bearing, Hex Sleeve
30 1 7607845 Pin, Hinge, Right Side
30 1 7607846 Pin, Hinge, Left Side
31 2 2001831 Washer, 5/8 i.d.
32 1 7606469 Cable Assembly

33 1 7608149 Gasket, Door, Right
34 1 7608150 Gasket, Door, Left
35 1 7608148 Gasker, Door, Top
36 1 3003792 3-Position Switch
37 1 2100080 Knob, Temperature Dial
38 1 7608145S Sensor, Thermostat (Probe) Assembly
39 1 3004261 Electronic Thermostat P/C Board
40 1 7601391 Side Sheet, Right Case
40 1 7601389 Side Sheet, Left Case
41 2 33519 Caster, Front, 6-1/4 (159mm) Swivel with Brake
42 2 33520 Caster, Rear, 6-1/4 (159mm) Swivel

9
