USER’S GUIDE

MFC-240C

If you need to call Customer Service

Please complete the following information for future reference:

Model Number: MFC-240C

Serial Number:

Date of Purchase:

Place of Purchase:

The serial number is on the back of the unit. Retain this User's Guide with your sales receipt as a permanent record of your purchase, in the event of theft, fire or warranty service.

http://www.brother.com/registration/

By registering your product with Brother, you will be recorded as the original owner of the product. Your registration with Brother:

 may serve as confirmation of the purchase date of your product

should you lose your receipt; and

 may support an insurance claim by you in the event of product loss

covered by insurance.

Approval Information and Compilation and Publication Notice

THIS EQUIPMENT IS DESIGNED TO WORK WITH A TWO WIRE ANALOGUE PSTN LINE FITTED WITH THE APPROPRIATE CONNECTOR.

APPROVAL INFORMATION

Brother advises that this product may not function correctly in a country other than where it was originally purchased, and does not offer any warranty in the event that this product is used on public telecommunication lines in another country.

Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

Section I General

1 General Information

Using the documentation .......................................................................................2

Symbols and conventions used in the documentation ....................................2

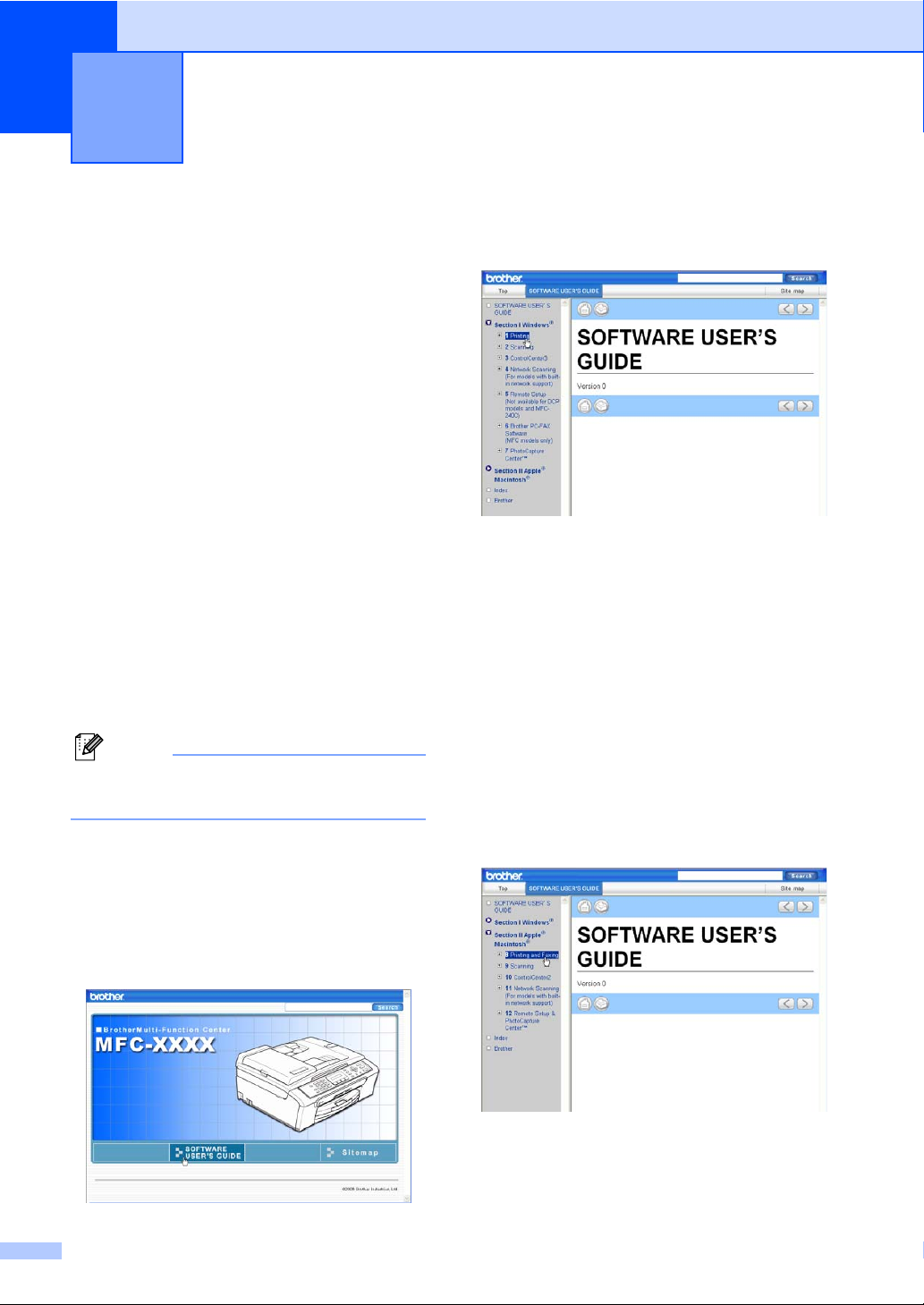

Accessing the complete User’s Guide ...................................................................2

Viewing Documentation...................................................................................2

Control panel overview ..........................................................................................4

2 Loading documents and paper

Loading documents ...............................................................................................6

Using the ADF .................................................................................................6

Using the scanner glass ..................................................................................7

Scanning area .................................................................................................8

Acceptable paper and other media........................................................................8

Recommended media .....................................................................................9

Handling and using media ...............................................................................9

Choosing the right media...............................................................................10

Loading paper, envelopes and other media ........................................................12

Loading paper and other media.....................................................................12

Loading envelopes and post cards ................................................................13

Printable Area................................................................................................15

3 General setup

Power Save mode ...............................................................................................16

Putting your machine in Power Save mode...................................................16

Bringing your machine out of Power Save mode ..........................................16

Power Save setting........................................................................................16

Mode Timer..........................................................................................................17

Paper settings......................................................................................................17

Paper Type ....................................................................................................17

Paper Size .....................................................................................................17

Volume Settings...................................................................................................18

Ring Volume ..................................................................................................18

Beeper Volume..............................................................................................18

Speaker Volume ............................................................................................18

Setting Daylight Savings Time.............................................................................18

LCD display .........................................................................................................19

LCD Contrast.................................................................................................19

4 Security features

TX Lock................................................................................................................20

Setting and changing the TX lock password .................................................20

Turning the TX Lock on/off ............................................................................21

Section II Fax

5 Sending a fax

Entering Fax mode ..............................................................................................24

Faxing from the ADF ....................................................................................24

Faxing from the scanner glass ......................................................................24

Faxing Letter size documents from the scanner glass ..................................25

Colour fax transmission.................................................................................25

Cancelling a fax in progress..........................................................................25

Broadcasting (Monochrome only)........................................................................25

Canceling a Broadcast in progress................................................................26

Additional sending operations..............................................................................26

Sending faxes using multiple settings ...........................................................26

Contrast.........................................................................................................27

Changing fax resolution.................................................................................27

Dual access (Monochrome only) ...................................................................28

Real time transmission ..................................................................................28

Overseas Mode .............................................................................................28

Checking and cancelling waiting jobs............................................................29

Sending a fax manually .................................................................................29

Out of Memory message ...............................................................................29

6 Receiving a Fax

Receive modes ....................................................................................................30

Choosing the Receive Mode .........................................................................30

Using receive modes ...........................................................................................31

Fax only.........................................................................................................31

Fax/Tel...........................................................................................................31

Manual...........................................................................................................31

External TAD .................................................................................................31

Receive mode settings ........................................................................................31

Ring Delay.....................................................................................................31

F/T Ring Time (Fax/Tel mode only)...............................................................32

Fax Detect .....................................................................................................32

Additional receiving operations............................................................................33

Printing a reduced incoming fax ....................................................................33

Receiving faxes into memory ........................................................................33

7 Telephone and External devices

Voice Operations.................................................................................................34

Tone or pulse (not available in New Zealand) ...............................................34

Fax/Tel mode ................................................................................................34

Fax/Tel mode in Power Save mode ..............................................................34

Phone line services..............................................................................................34

Do you have Voice Mail?...............................................................................34

iii

Telephone Service for Australia...........................................................................35

Telstra

Caller ID.........................................................................................................37

How Does the Caller ID Work?......................................................................37

The Caller ID is Stored in Your Machine Memory .........................................37

Viewing Caller ID List ....................................................................................38

Telephone Service for New Zealand ...................................................................38

FaxAbility.......................................................................................................38

Caller ID.........................................................................................................40

How Does the Caller ID Work?......................................................................40

Viewing Caller ID List ....................................................................................40

Telephone Service for Some Countries...............................................................41

Distinctive Ring (For Singapore and Hong Kong)..........................................41

Caller ID (For Singapore and Hong Kong) ....................................................42

Viewing Caller ID List ....................................................................................43

Connecting an external TAD ...............................................................................43

Connections...................................................................................................43

Recording an outgoing message...................................................................44

Multi-Line connections (PABX)......................................................................44

External and extension phones ...........................................................................45

Operation from extension telephones............................................................45

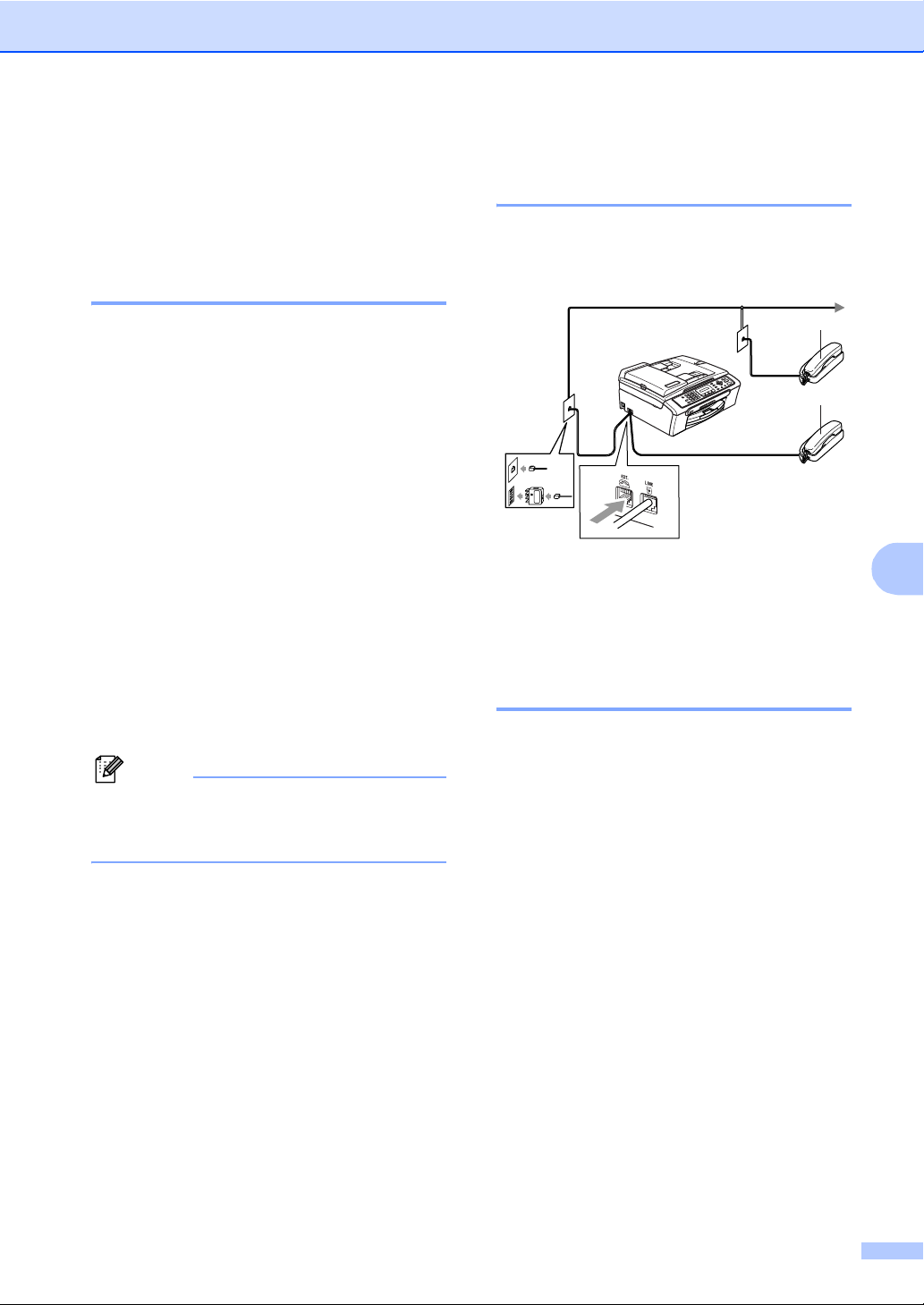

Connecting an external or extension phone ..................................................45

Using remote codes.......................................................................................45

FaxStream® Duet® (Distinctive Ring)..............................................35

8 Dialling and storing numbers

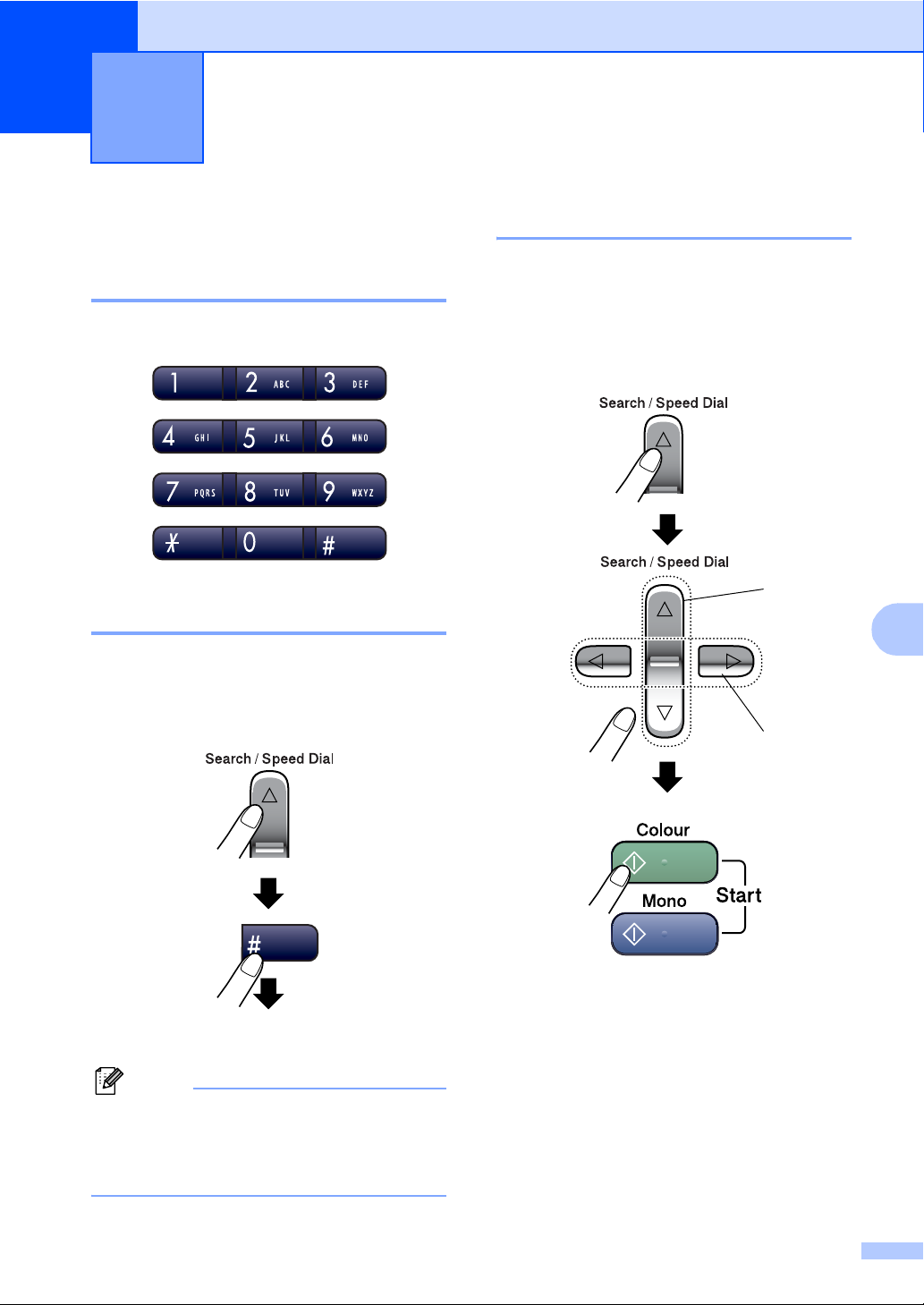

How to Dial ..........................................................................................................47

Manual dialling...............................................................................................47

Speed-Dialling ...............................................................................................47

Search ...........................................................................................................47

Fax Redial .....................................................................................................48

Storing numbers ..................................................................................................48

Storing a pause .............................................................................................48

Storing Speed-Dial numbers .........................................................................48

Changing Speed-Dial names or numbers .....................................................49

Setting up groups for broadcasting................................................................49

Combining Quick-Dial numbers.....................................................................50

9 Printing Reports

Fax reports...........................................................................................................51

Transmission Verification Report...................................................................51

Fax Journal (activity report) ...........................................................................51

Reports ................................................................................................................52

How to print a report ......................................................................................52

Section III Copy

10 Making copies

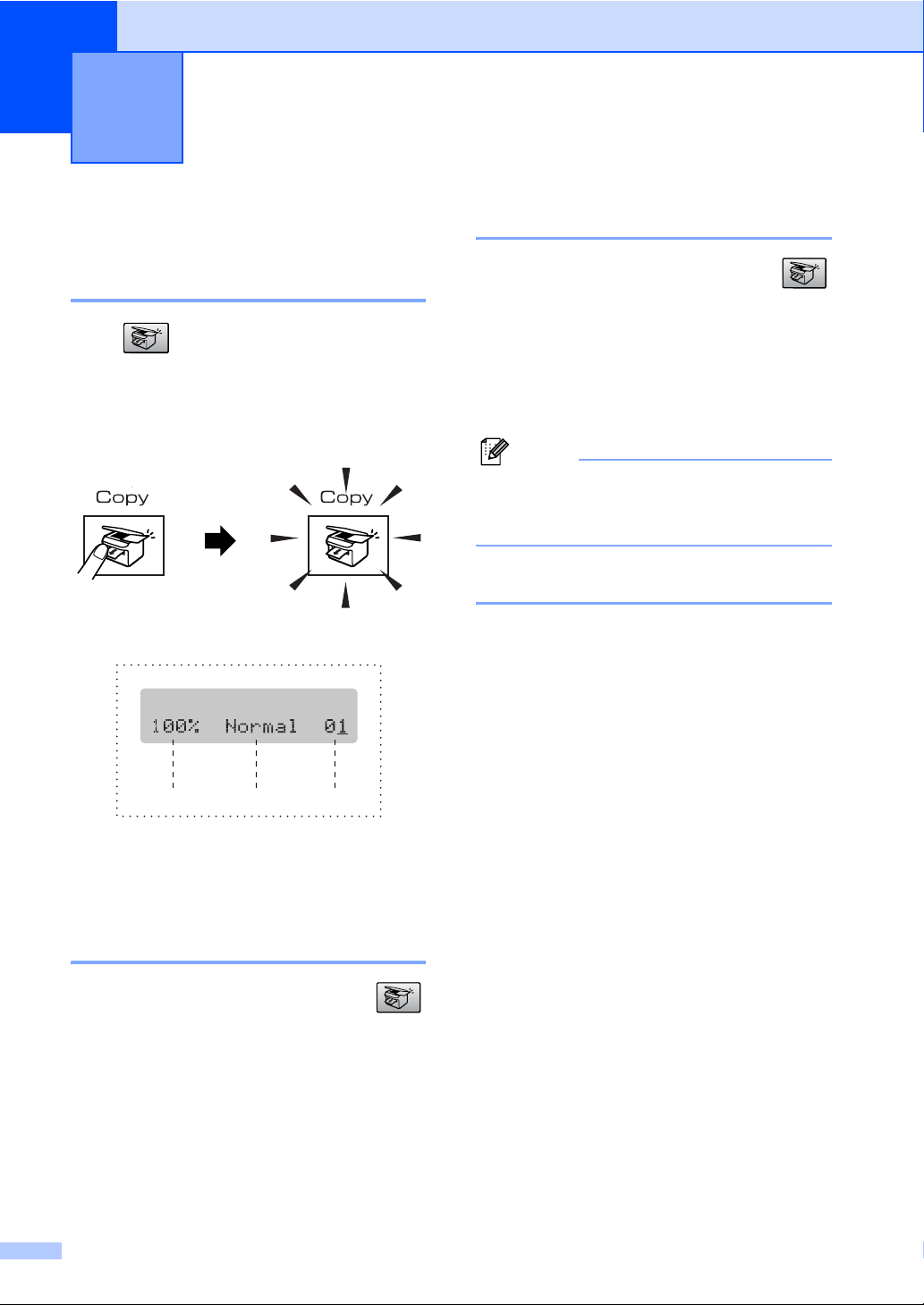

How to copy.........................................................................................................54

Entering Copy mode......................................................................................54

Making a single copy.....................................................................................54

Making multiple copies ..................................................................................54

Stop copying..................................................................................................54

Copy options........................................................................................................55

Changing copy speed and quality .................................................................56

Enlarging or reducing the image copied ........................................................56

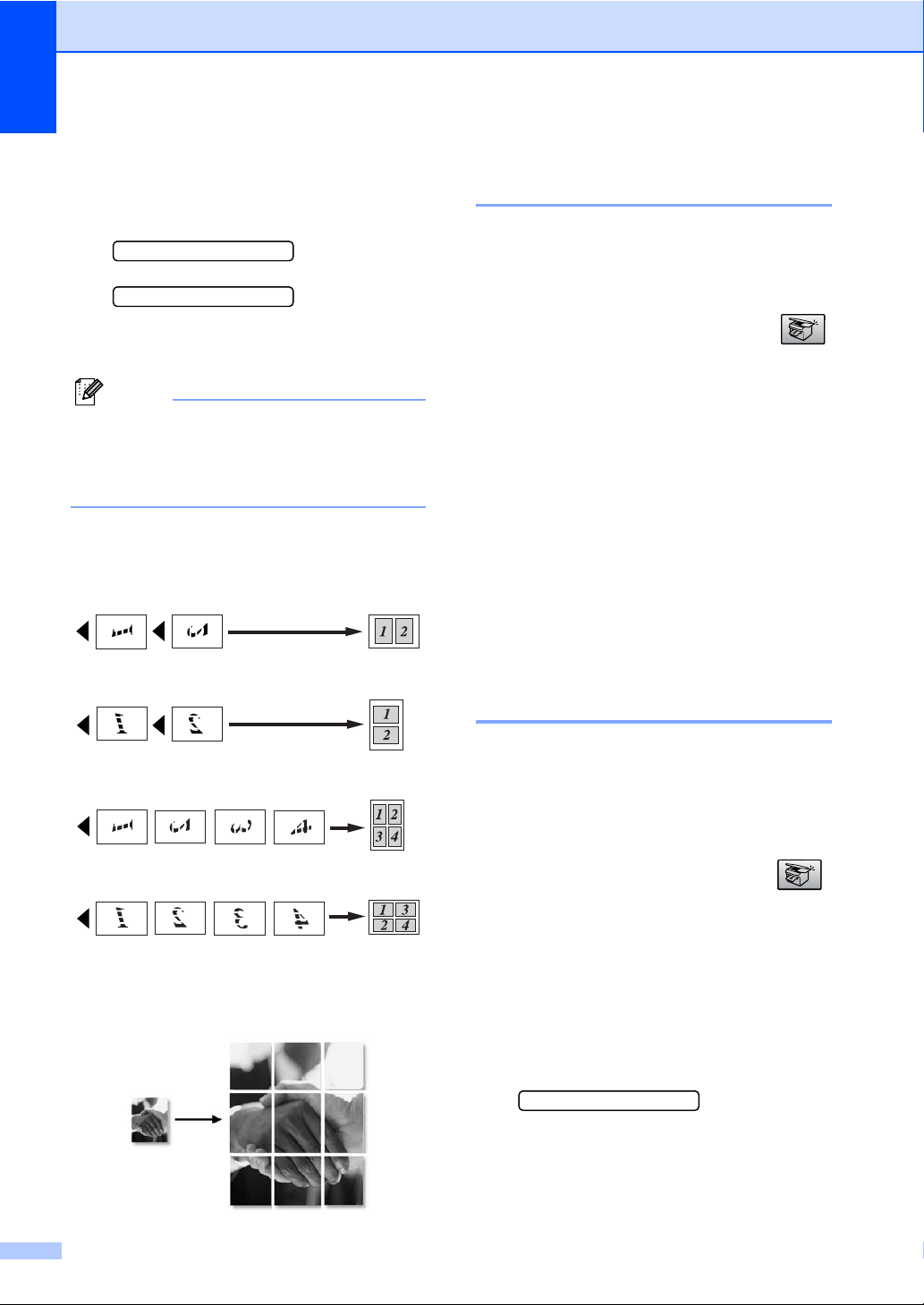

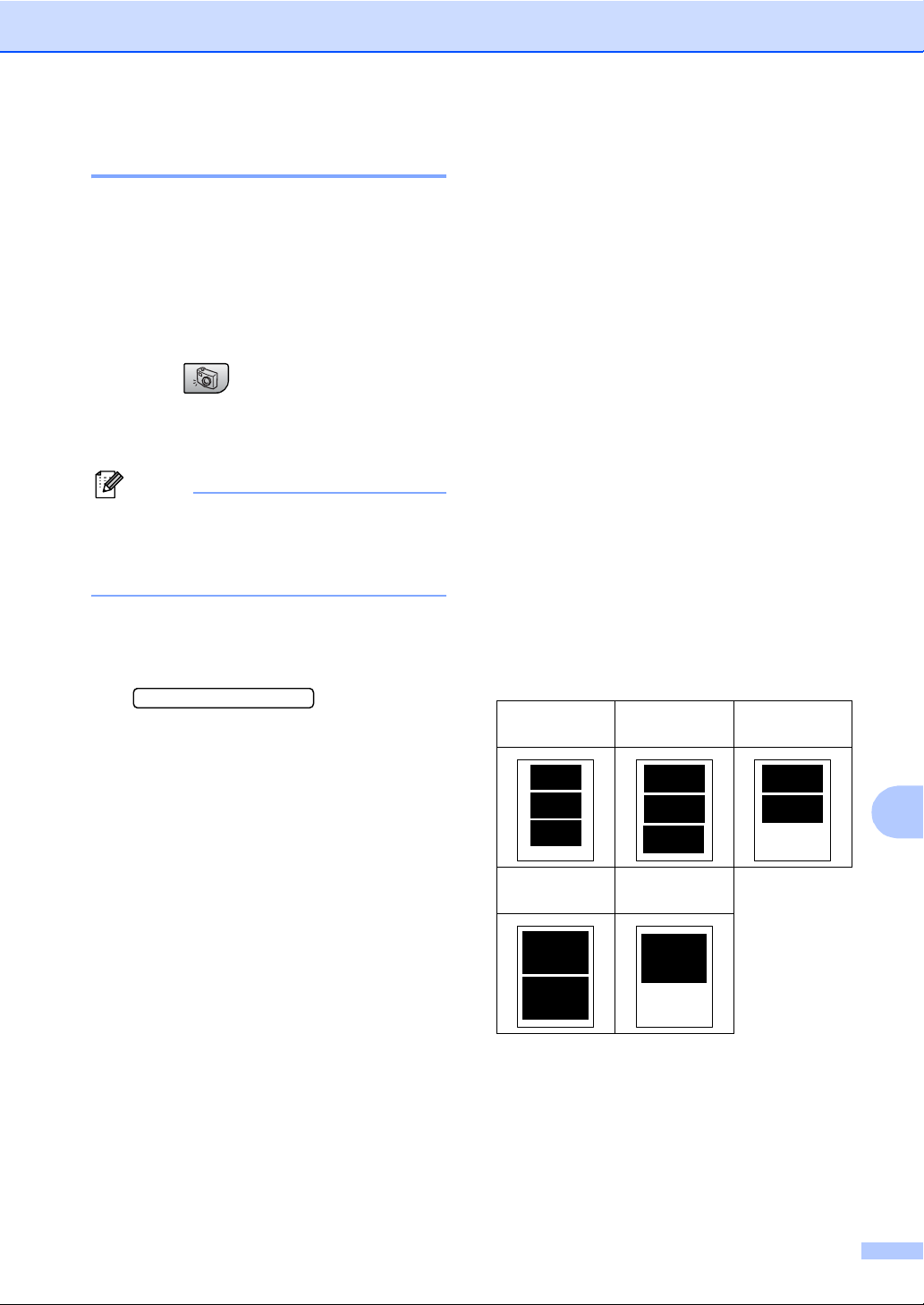

Making N in 1 copies or a poster ...................................................................57

Sorting copies using the ADF (Monochrome only) ........................................58

Adjusting Brightness, Contrast and Colour....................................................58

Paper options ................................................................................................59

Section IV Direct Photo Printing

11 Printing photos from a memory card

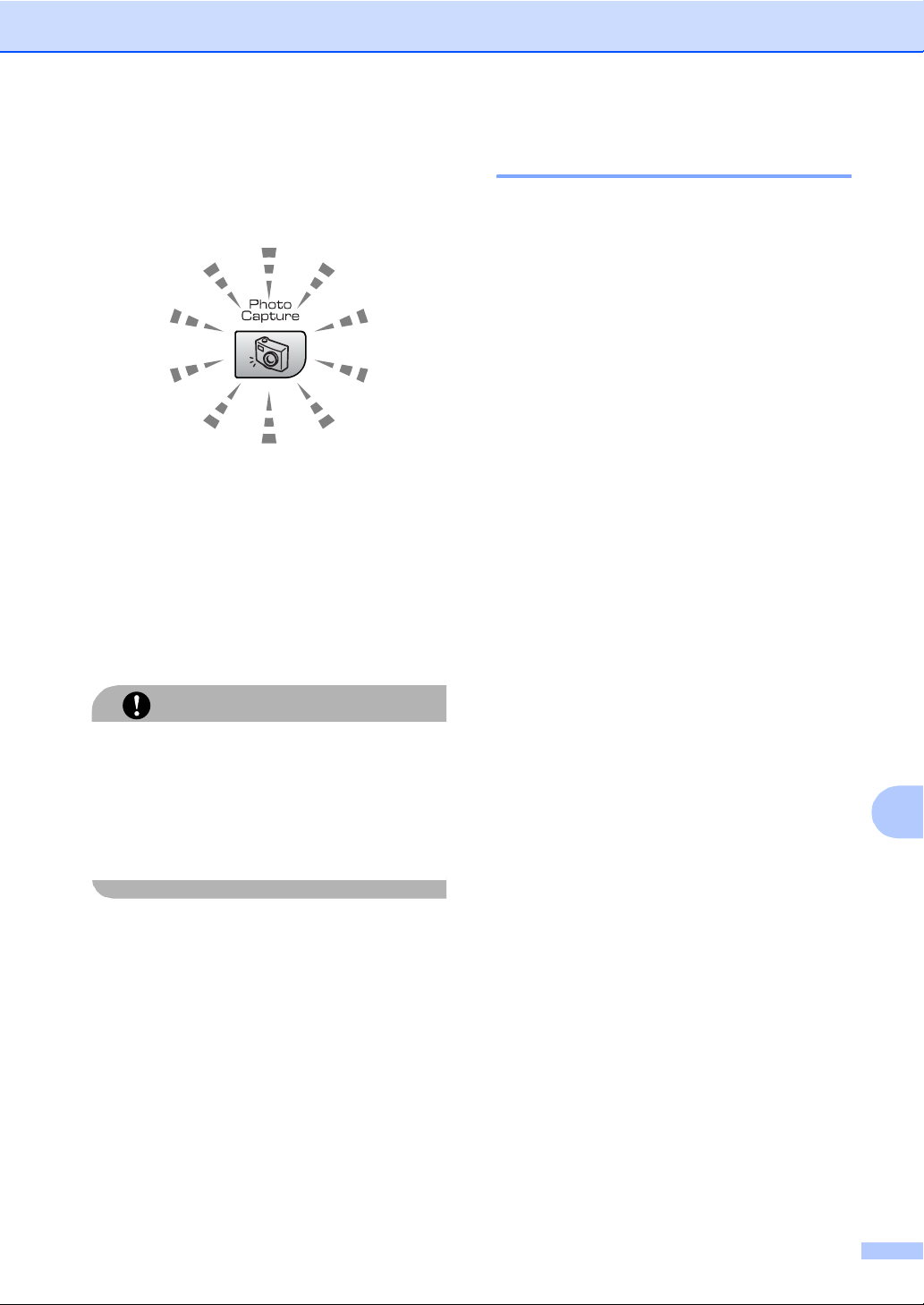

PhotoCapture Center™ Operations.....................................................................62

Printing from a memory card without a PC....................................................62

Using PhotoCapture Center™ from your computer.......................................62

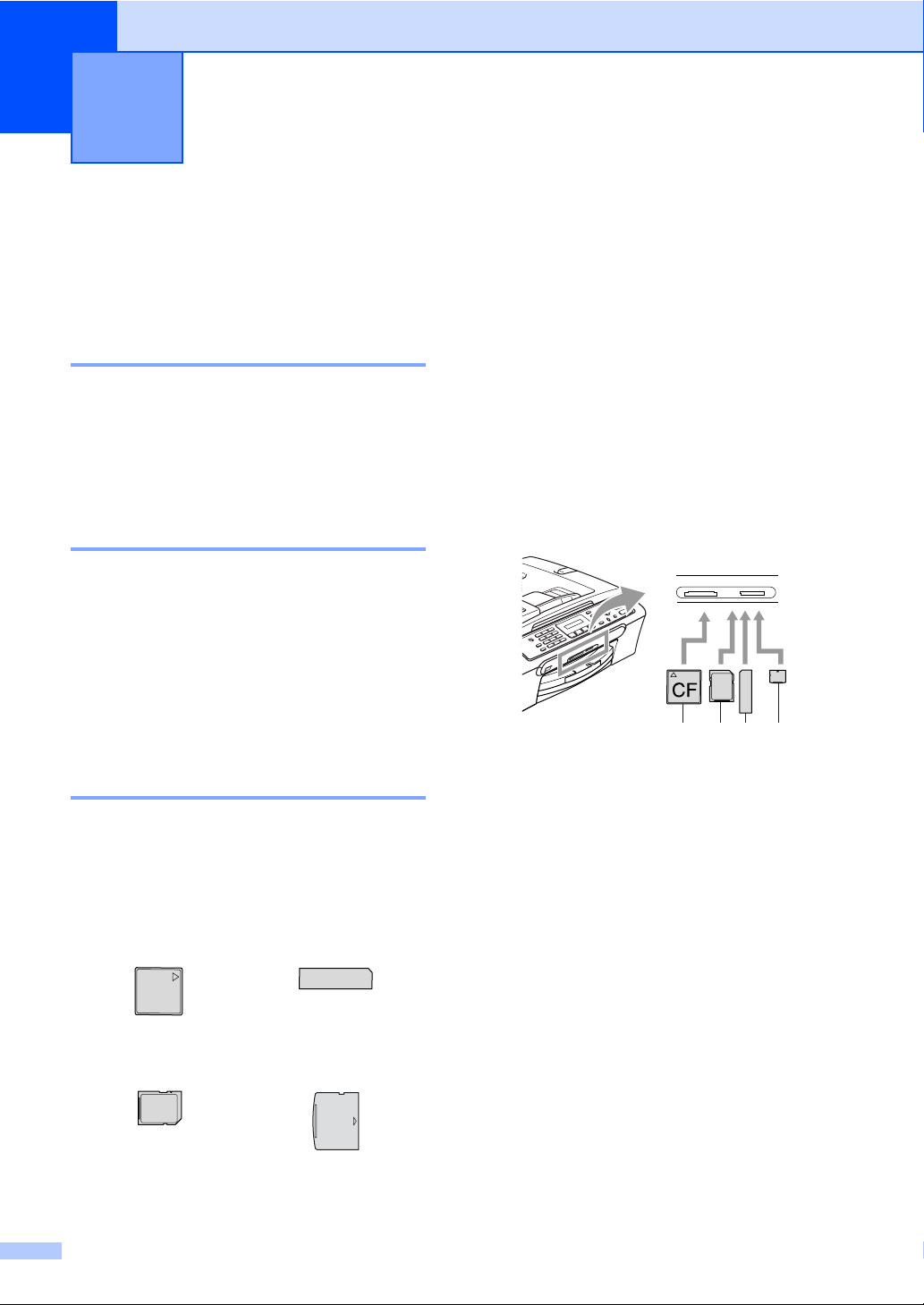

Using memory cards......................................................................................62

Memory card folder structure.........................................................................63

How to print from a memory card ........................................................................64

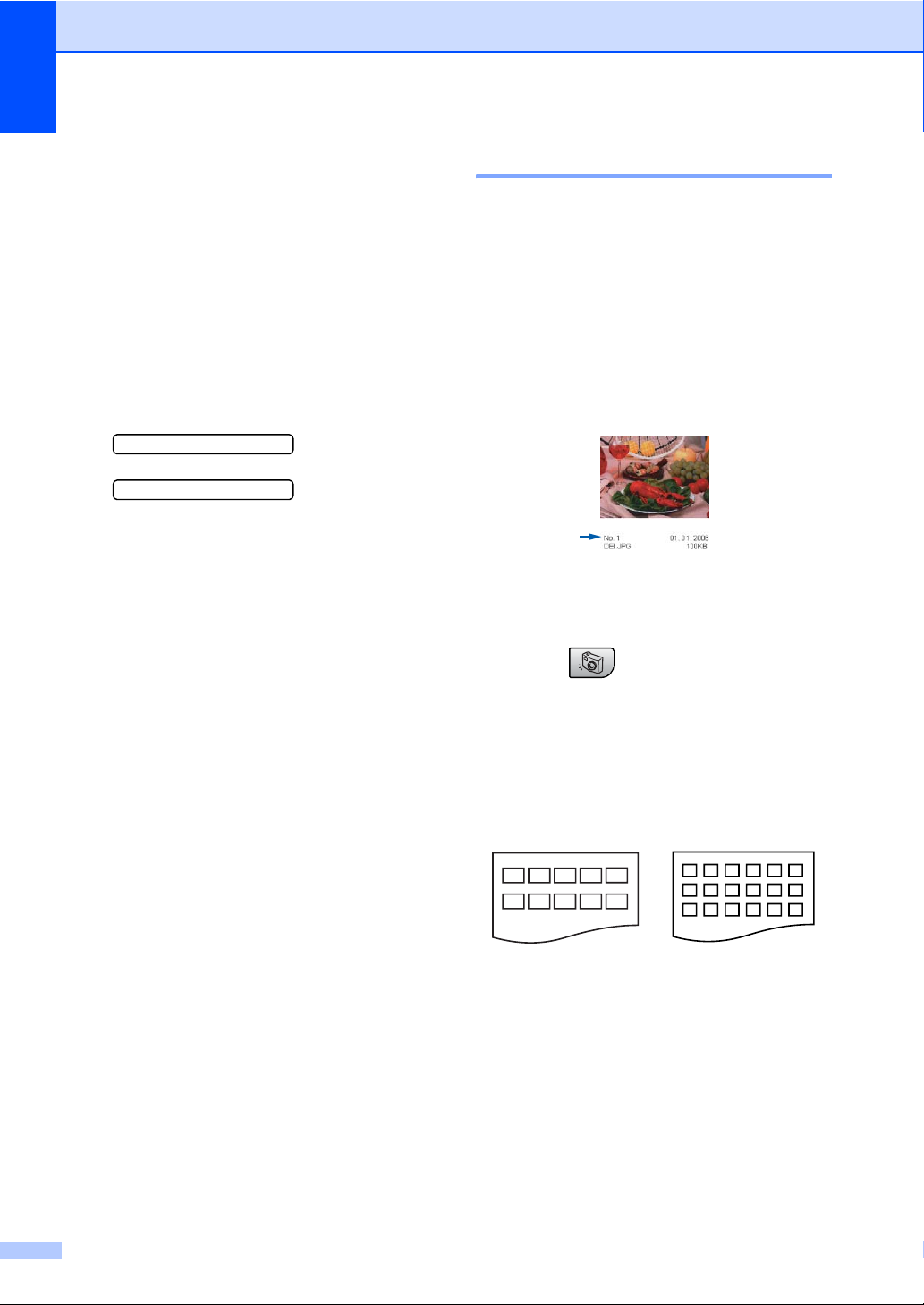

Printing the thumbnail index ..........................................................................64

Printing Images..............................................................................................65

DPOF printing................................................................................................66

PhotoCapture Center™ print settings..................................................................67

Print speed and quality..................................................................................67

Paper Options................................................................................................67

Adjusting Brightness and Contrast ................................................................67

Cropping ........................................................................................................68

Borderless printing.........................................................................................68

Understanding the Error Messages.....................................................................68

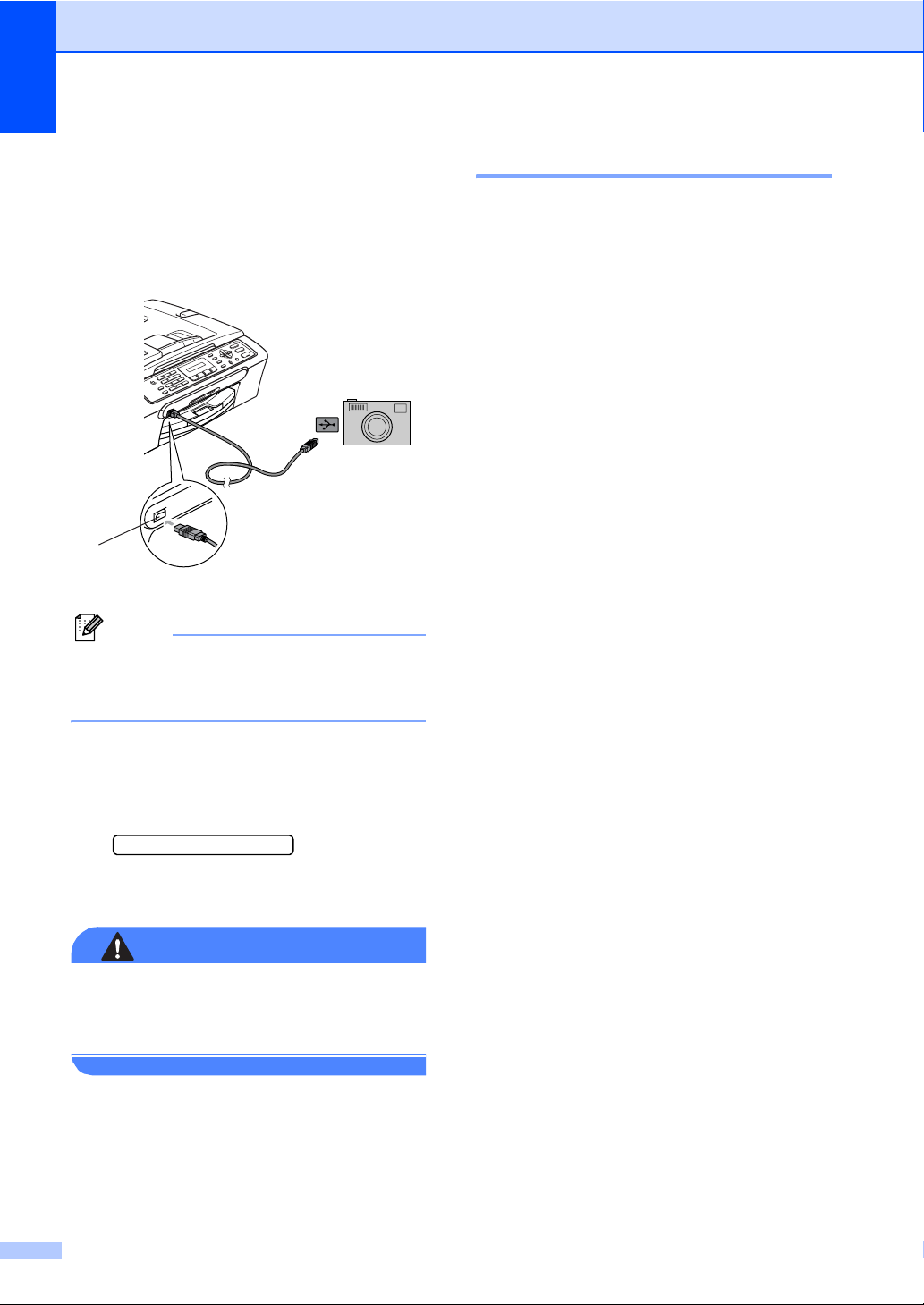

12 Printing photos from a camera with PictBridge

Before Using PictBridge.......................................................................................69

PictBridge requirements ................................................................................69

Using PictBridge..................................................................................................69

Setting your digital camera............................................................................69

Printing Images....................................................................................................70

DPOF printing................................................................................................70

Understanding the Error Messages.....................................................................71

Section V Software

13 Software features

Section VI Appendixes

A Safety and Legal

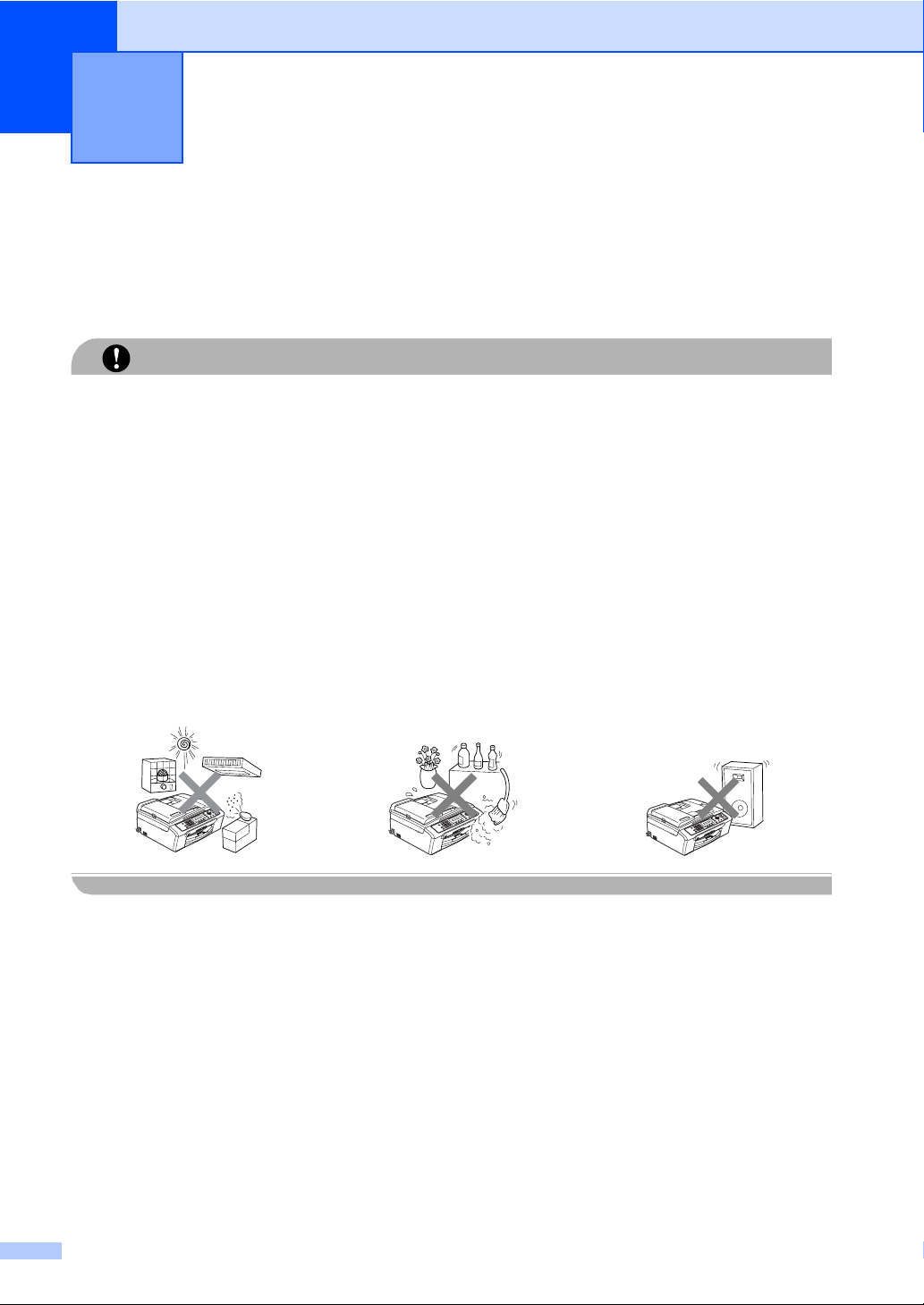

Choosing a location .............................................................................................76

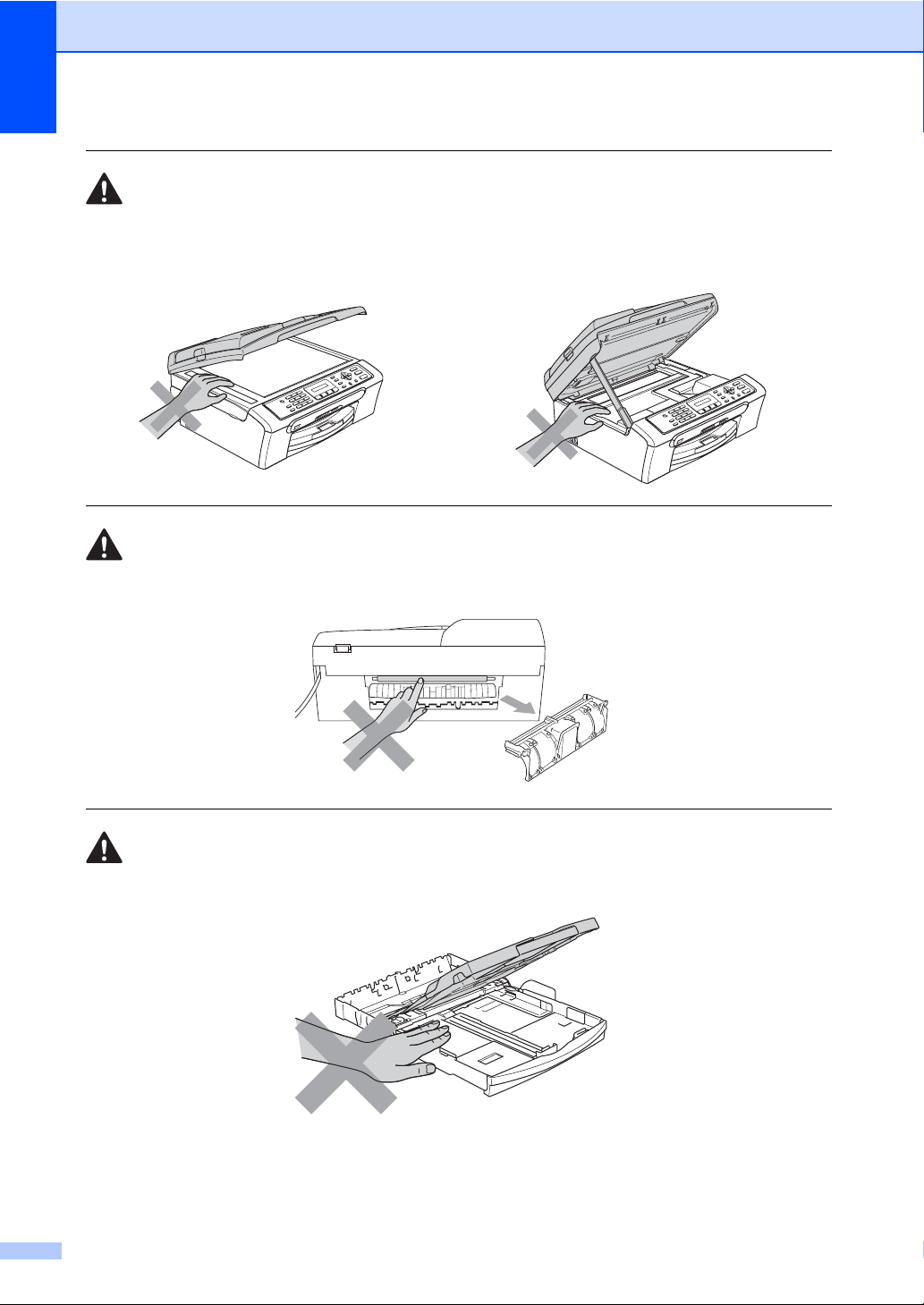

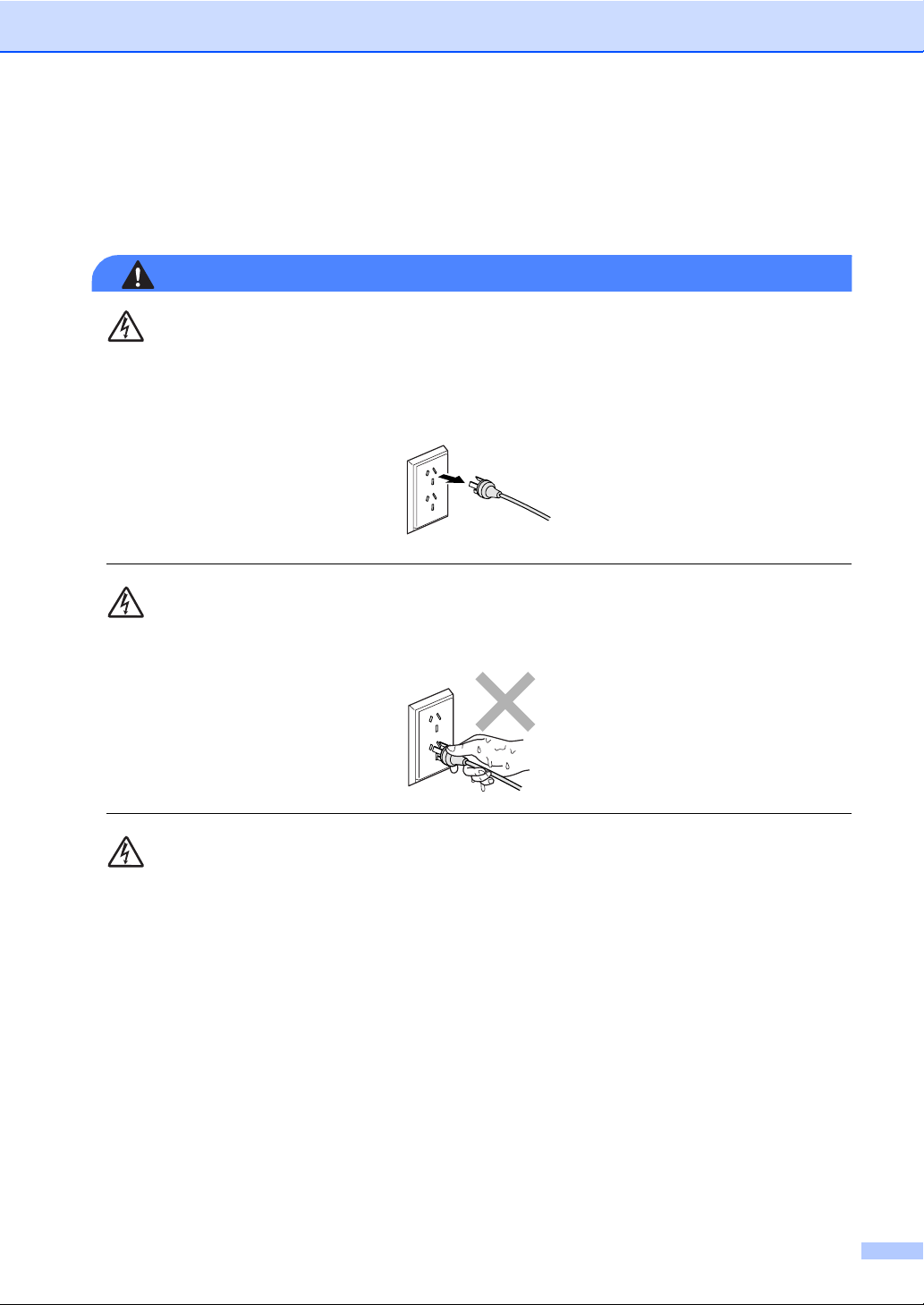

To use the machine safely...................................................................................77

IMPORTANT-For Your Safety .......................................................................80

Important Information for Australia ......................................................................81

Important safety instructions..........................................................................81

Important Information for New Zealand ...............................................................83

Important Safety Instructions.........................................................................83

Important Information for Some Countries...........................................................85

Important Safety Instructions.........................................................................85

Legal limitations for copying ................................................................................87

Trademarks..........................................................................................................88

B Troubleshooting and Routine Maintenance

Troubleshooting ...................................................................................................89

If you are having difficulty with your machine................................................89

Error messages ...................................................................................................94

Transferring your faxes or Fax Journal report ...............................................97

Changing LCD language ...............................................................................97

Document jam ..............................................................................................98

Printer jam or paper jam ................................................................................98

Dial Tone detection......................................................................................100

Compatibility................................................................................................100

Routine maintenance.........................................................................................101

Replacing the ink cartridges ........................................................................101

Cleaning the outside of the machine ...........................................................103

Cleaning the scanner...................................................................................104

Cleaning the machine printer platen............................................................104

Cleaning the Paper Pick-up Roller ..............................................................105

Cleaning the print head ...............................................................................105

Checking the print quality ............................................................................106

Checking the printing alignment ..................................................................107

Checking the ink volume .............................................................................107

Machine Information ..........................................................................................107

Checking the serial number.........................................................................107

Packing and shipping the machine ....................................................................108

C Menu and Features

On-screen programming....................................................................................110

Menu table...................................................................................................110

Memory storage...........................................................................................110

Menu keys .........................................................................................................110

Menu Table........................................................................................................112

Entering Text .....................................................................................................119

D Specifications

General..............................................................................................................120

Print media.........................................................................................................122

Fax.....................................................................................................................123

Copy ..................................................................................................................125

PhotoCapture Center™.....................................................................................126

PictBridge ..........................................................................................................126

Scanner .............................................................................................................127

Printer................................................................................................................128

Interfaces...........................................................................................................129

Computer requirements.....................................................................................130

Consumable items.............................................................................................131

E Glossary

FIndex

vii

viii

Section I

General I

General Information 2 Loading documents and paper 6 General setup 16 Security features 20

General Information 1

Using the documentation

Thank you for buying a Brother machine! Reading the documentation will help you make the most of your machine.

Symbols and conventions used in the documentation 1

The following symbols and conventions are used throughout the documentation.

Bold Bold typeface identifies specific

keys on the machine control panel.

Italics Italicized typeface emphasizes

an important point or refers you to a related topic.

Courier New

Text in the Courier New font identifies messages on the LCD of the machine.

Accessing the

complete User’s Guide

This User’s Guide does not contain all the information about the machine such as how to use Printer, Scanner and PC Fax. When you are ready to learn detailed information about these operations, read the Software User’s Guide that is on the CD-ROM.

Viewing Documentation 1

Viewing Documentation (For Windows

To view the documentation, from the Start menu, point to Brother, MFC-XXXX (where XXXX is your model name) from the programs group, and then select User’s Guide.

If you have not installed the software, you can find the documentation by following the instructions below:

)

Warnings tell you what to do to prevent possible personal injury.

Electrical Hazard icons alert you to possible electrical shock.

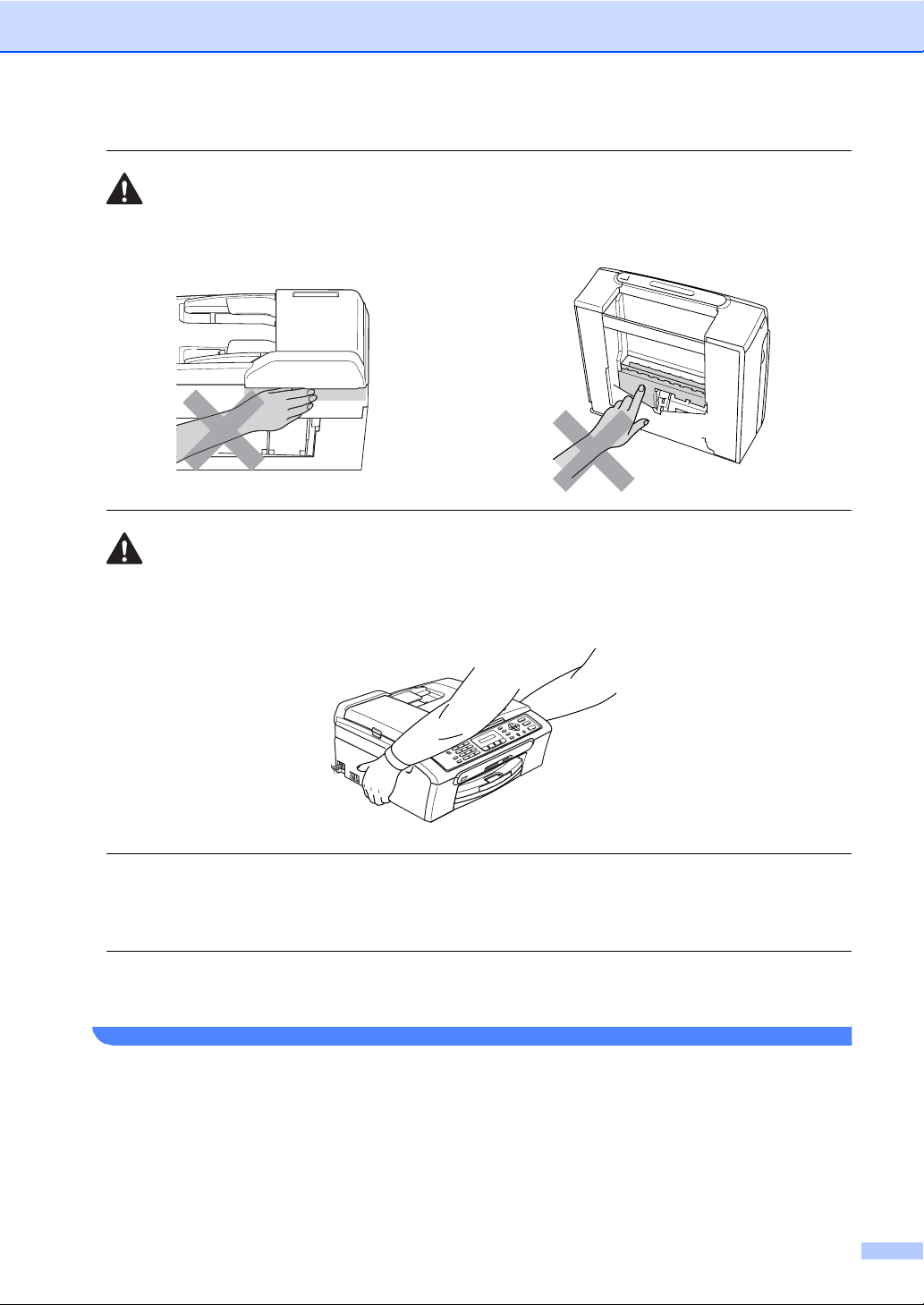

Hot Surface icons warn you not to touch machine parts that are hot.

Cautions specify procedures you must follow or avoid to prevent possible damage to the machine or other objects.

Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

Improper Setup icons alert you to devices and operations that are not compatible with the machine.

a Turn on your PC. Insert the Brother

CD-ROM into your CD-ROM drive.

b If the model name screen appears, click

your model name.

c If the language screen appears, click

your language. The CD-ROM main menu will appear.

General Information

Note

If this window does not appear, use Windows

Explorer to run the setup.exe program from the root directory of the Brother CD-ROM.

d Click User's Guide to view the Software

User's Guide in HTML format.

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User’s Guide

 Scanning

(For Windows Professional and Windows

 ControlCenter3

(For Windows Professional and Windows

PaperPort

 Instructions for scanning directly from

ScanSoft

The complete ScanSoft® PaperPort® SE with OCR User's Guide can be viewed

from the Help selection in the ScanSoft PaperPort

98/98SE/Me/2000

XP)

98/98SE/Me/2000

XP)

SE with OCR User’s Guide

PaperPort®.

with OCR application.

Viewing Documentation (For Macintosh®) 1

a Turn on your Macintosh

. Insert the Brother CD-ROM into your CD-ROM drive. The following window will appear.

b Double-click the Documentation icon. c Double-click your language folder. d Double-click the top page file to view the

Software User’s Guide in HTML format.

e Click the documentation you want to

read.

 Software User’s Guide: Software

User’s Guide in HTML format

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User’s Guide

 Scanning

(For Mac OS

X 10.2.4 or greater)

 ControlCenter2

(For Mac OS

Presto!

PageManager® User’s Guide

X 10.2.4 or greater)

 Instructions for scanning directly from

Presto! Presto!

PageManager®. The complete

PageManager® User's Guide

can be viewed from the Help selection in the Presto!

PageManager® application.

Chapter 1

Control panel overview 1

1 Power Save

Lets you put the machine into Power Save mode.

2 Fax keys

 Redial/Pause

Redials the last number called. It also inserts a pause when programming quick dial numbers.

 Hook

Press before dialling if you want to make sure a fax machine answers, and then press Start. Also, press this key after you pick up the handset of an external telephone during the F/T ring (fast doublerings).

3 Dial Pad

Use these keys to dial telephone and fax numbers and as a keyboard for entering information into the machine.

The # key lets you temporarily switch the dialling mode during a telephone call from Pulse to Tone (not available in New Zealand).

4 LCD (liquid crystal display)

Displays messages on the screen to help you set up and use your machine.

5 Mode keys:

 Fax

Lets you access Fax mode.

 Scan

Lets you access Scan mode.

 Copy

Lets you access Copy mode.

 PhotoCapture

Lets you access PhotoCapture Center™ mode.

6910

General Information

78 11

6 Copy Options

Lets you temporarily change the copy settings when in copy mode.

7 Fax Resolution

Lets you temporarily change the resolution when sending a fax.

8 Ink Management

Lets you clean the print head, check the print quality, and check the available ink volume.

9 Menu keys:

 Menu

Accesses the main menu.

 a Search/Speed Dial

Lets you look up and dial numbers that are stored in the memory.

 Volume keys

d c

In Fax mode, you can press these keys to adjust the ring volume.

 d

Press to scroll backward to a menu selection.

10 Stop/Exit

11 Start keys:

 a or b

Press to scroll through the menus and options.

 Clear/Back

Press to cancel the current setting.

 OK

Selects a setting.

Stops an operation or exits from a menu.

 Colour Start

Lets you start sending faxes or making copies in full colour. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).

 Mono Start

Lets you start sending faxes or making copies in monochrome. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).

Loading documents and paper 2

Loading documents 2

You can send a fax, make copies, and scan from the ADF (automatic document feeder) and from the scanner glass (Flatbed).

Using the ADF 2

The ADF can hold up to 10 pages and feeds each sheet individually. Use standard 80 gsm (20 lb) paper and always fan the pages before putting them in the ADF.

Recommended environment 2

Temperature: 20 to 30° C (68 to 86° F) Humidity: 50% to 70% Paper: 80 gsm A4 (20 lb LTR)

Document Sizes Supported 2

Length: 148 to 355.6 mm

(5.8 to 14 in.)

Width: 148 to 215.9 mm

(5.8 to 8.5 in.)

Weight: 64to90gsm (17to24lb)

How to load documents 2

DO NOT pull on the document while it is feeding.

DO NOT use paper that is curled, wrinkled, folded, ripped, stapled, paper clipped, pasted or taped.

DO NOT use cardboard, newspaper or fabric with ADF. Instead use the scanner glass (Flatbed).

 Make sure documents written with ink are

CAUTION

completely dry.

a Fan the pages well. Make sure you put

the documents face down, top edge first in the ADF until you feel them touch

the feed roller.

b Adjust the paper guides to fit the width of

your documents.

c Unfold the ADF Document Output

Support Flap (1).

Loading documents and paper

CAUTION

DO NOT leave thick documents on the scanner glass. If you do this, the ADF may jam.

Using the scanner glass 2

You can use the scanner glass to fax, copy or scan pages of a book or one page at a time.

Document Sizes Supported 2

Length: Up to 297 mm (11.7 in.) Width: Up to 215.9 mm (8.5 in.) Weight: Up to 2 kg (4.4 lb)

How to load documents 2

Note

To use the scanner glass, the ADF must be empty.

a Lift the document cover.

b Using the document guidelines on the

left, centre the document face down on the scanner glass.

c Close the document cover.

If you are scanning a book or thick document, DO NOT slam the cover or press on it.

CAUTION

Chapter 2

Scanning area

The scanning area depends on the settings in the application you are using. The figures below show the areas you cannot scan on paper.

Usage

Fax Letter 3 mm

Copy Letter 3 mm

Scan Letter 3 mm

Document Size

A4 3 mm

Top (1)

Bottom (2)

(0.12 in.)

Left (3)

Right (4)

4 mm (0.16 in.)

1 mm (0.04 in.)

3 mm (0.12 in.)

0 mm (0 in.)

Acceptable paper and other media 2

The print quality can be affected by the type of paper you use in the machine.

To get the best print quality for the settings you have chosen, always set the Paper Type to match the type of paper you load.

You can use plain paper, inkjet paper (coated paper), photo paper, transparencies and envelopes.

We recommend testing various paper types before buying large quantities.

For best results, use Brother paper.

 When you print on inkjet paper (coated

paper), transparencies and photo paper, be sure to choose the correct media in the ‘Basic’ tab of the printer driver or in the Paper Type setting of the menu (See Paper Type on page 17).

 When you print on Brother photo paper,

load the instruction sheet included with the photo paper in the paper tray first, and then put the photo paper on the instruction sheet.

 When you use transparencies or photo

paper, remove each sheet at once to prevent smudging or paper jams.

 Avoid touching the printed surface of the

paper immediately after printing; the surface may not be completely dry and may stain your fingers.

Loading documents and paper

Recommended media 2

To get the best print quality, we suggest using Brother paper. (See table below.)

If Brother paper is not available in your country, we recommend testing various papers before purchasing large quantities.

We recommend using ‘3M Transparency Film’ when you print on transparencies.

Brother paper

Paper Type Item

A4 Plain BP60PA A4 Glossy Photo BP61GLA A4 Inkjet (Matte) BP60MA 10 x 15 cm Glossy BP61GLP

Handling and using media 2

 Store paper in its original packaging, and

keep it sealed. Keep the paper flat and away from moisture, direct sunlight and heat.

 The coated side of photo paper is shiny.

Avoid touching the shiny (coated) side. Load photo paper with the shiny side facing down.

 Avoid touching either side of

transparencies because they absorb water and perspiration easily, and this may cause decreased output quality. Transparencies designed for laser printers/copiers may stain your next document. Use only transparencies recommended for inkjet printing.

Improper Setup

DO NOT use the following kinds of paper:

• Damaged, curled, wrinkled, or irregularly shaped paper

1 2 mm (0.08 in.) or longer

• Extremely shiny or highly textured paper

• Paper already printed on by a printer

• Paper that cannot be arranged uniformly when stacked

• Paper made with a short grain

Paper capacity of the output paper tray 2

Up to 50 sheets of 80 gsm A4 or 20 lb Letter paper.

 Transparencies or photo paper must be

picked up from the output paper tray one page at a time to avoid smudging.

Chapter 2

Choosing the right media 2

Paper type and size for each operation for paper tray 2

Paper Type Paper Size Usage

Fax Copy Photo

Capture

Cut Sheet Letter 216 × 279 mm (8 1/2 × 11 in.) Yes Yes Yes Yes

A4 210 × 297 mm (8.3 × 11.7 in.) Yes Yes Yes Yes Legal 216 × 356 mm (8 1/2 × 14 in.) Yes Yes – Yes Executive 184 × 267 mm

(7 1/4 × 10 1/2 in.) JIS B5 182 × 257 mm (7.2 × 10.1 in.) – – – Yes A5 148 × 210 mm (5.8 × 8.3 in.) – Yes – Yes A6 105 × 148 mm (4.1 × 5.8 in.) – – – Yes

Cards Photo 10 × 15 cm (4 × 6 in.) – Yes Yes Yes

Photo 2L 13 × 18 cm (5 × 7 in.) – – Yes Yes Index Card 127 × 203 mm (5 × 8 in.) – – – Yes Post Card 1 Post Card 2

(Double)

Envelopes C5

Envelope DL

Envelope COM-10 105 × 241 mm (4 1/8 × 9 1/2 in.) – – – Yes Monarch 98 × 191 mm (3 7/8 × 7 1/2 in.) – – – Yes JE4

Envelope

Transparencies

Letter 216 × 279 mm (8 1/2 × 11 in.) – Yes – Yes A4 210 × 297 mm (8.3 × 11.7 in.) – Yes – Yes

100 × 148 mm (3.9 × 5.8 in.) – – – Yes

148 × 200 mm (5.8 × 7.9 in.) – – – Yes

162 × 229 mm (6.4 × 9 in.) – – – Yes

110 × 220 mm (4.3 × 8.7 in.) – – – Yes

105 × 235 mm (4.1 × 9.3 in.) – – – Yes

––– Yes

Printer

Loading documents and paper

Paper weight, thickness and capacity 2

Paper Type Weight Thickness No. of sheets

Cut Sheet

Cards Photo Card Up to 240 gsm

Envelopes 75 to 95 gsm (20 to 25 lb) Up to 0.52 mm (Up to 0.02 in.) 10 Transparencies – – 10

Plain Paper 64 to 120 gsm (17 to 32 lb) 0.08 to 0.15 mm (0.003 to 0.006 in.)

Inkjet Paper 64 to 200 gsm (17 to 53 lb) 0.08 to 0.25 mm (0.003 to 0.01 in.) 20 Glossy Paper Up to 220 gsm

(Up to 58 lb)

(Up to 64 lb)

Index Card Up to 120 gsm

(Up to 32 lb)

Post Card Up to 200 gsm

(Up to 53 lb)

Up to 50 sheets for Legal size paper 80 gsm (20 lb). Up to 100 sheets of 80 gsm (20 lb) paper.

Up to 0.25 mm (Up to 0.01 in.) 20

Up to 0.28 mm (Up to 0.01 in.) 20

Up to 0.15 mm (Up to 0.006 in.) 30

Up to 0.23 mm (Up to 0.01 in.) 30

100

Chapter 2

Loading paper, envelopes and other media

Loading paper and other media 2

a Pull the paper tray completely out of the

machine. If the paper support flap is open, close it and lift the output paper tray cover (1).

c Fan the stack of paper well to avoid

paper jams and misfeeds.

Note

Always make sure that the paper is not curled.

d Gently put the paper into the paper tray

print side down and top edge first. Check that the paper is flat in the tray.

b Press and slide the paper side guides

(1) and paper length guide (2) to fit the paper size.

Note

When you use Legal size paper, press and hold the universal guide release button as you slide out the front of the paper tray.

Loading documents and paper

e Gently adjust the paper side guides with

both hands and the paper length guide to fit the paper. Make sure the paper side guides touch the sides of the paper.

Note

Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause feed problems.

f Put the paper tray cover back. g Slowly push the paper tray completely

into the machine.

Loading envelopes and post cards 2

Loading envelopes 2

 Use envelopes that weigh from 75 to

95 gsm (20 to 25 lb).

 Some envelopes need margin settings to

be set in the application. Make sure you do a test print first.

Do not use any of the following types of envelope, as they will cause paper feed problems:

CAUTION

• If they are of a baggy construction.

• That are embossed (have raised writing on them).

• That have clasps or staples.

• That are pre-printed on the inside.

Glue 2 Double flap 2

h While holding the paper tray in place, pull

out the paper support (1) until it clicks and unfold the paper support flap (2).

Note

Do not use the paper support flap for Legal paper.

Occasionally you may experience paper feed problems caused by the thickness, size and flap shape of the envelopes you are using.

Chapter 2

How to load envelopes and post cards 2

a Before loading, press the corners and

sides of the envelopes or post cards to make them as flat as possible.

Note

If the envelopes or post cards are ‘doublefeeding,’ put one envelope in the paper tray at a time.

If you have problems when printing on envelopes, try the following suggestions:

a Open the envelope flap. b Make sure the open flap is either to the

side of the envelope or to the back edge of the envelope when printing.

c Adjust the size and margin in your

application.

b Put the envelopes or post cards into the

paper tray with the address side down and the leading edge (top of the envelopes) in first. Slide the paper side guides (1) and paper length guide (2) to fit the size of the envelopes or post cards.

Note

When the machine ejects small paper onto the output paper tray you may not be able to reach it. Make sure printing has finished, and then pull the tray completely out of the machine.

Loading documents and paper

Printable Area 2

The printable area depends on the settings in the application you are using. The figures below show the unprintable areas on cut sheet paper and envelopes. The machine can only print in the shaded areas when the Borderless print feature is available and turned on.

Cut Sheet Paper Envelopes

Top (1) Bottom (2) Left (3) Right (4)

Cut Sheet 3mm (0.12in.) 3mm (0.12in.) 3mm (0.12in.) 3mm (0.12in.) Envelopes 12 mm (0.47 in.) 24 mm (0.95 in.) 3 mm (0.12 in.) 3 mm (0.12 in.)

Note

The Borderless feature is not available for envelopes.

General setup 3

Power Save mode 3

When the machine is idle, you can put the machine into Power Save mode by pressing the Power Save key. You can still receive telephone calls in Power Save mode. For further information on receiving faxes in the power save condition, please see the table on page 16. If you want to do other operations, you must take the machine out of Power Save mode.

Note

If you have connected an external telephone or TAD, it is always available.

Putting your machine in Power Save mode 3

a Press and hold down the Power Save

key until the LCD shows Shutting Down.

The LCD light goes off.

Bringing your machine out of Power Save mode 3

a Press the Power Save key.

Note

• Even if you have put the machine into Power Save mode, it will periodically clean the print head to preserve print quality.

• If you unplug the AC power cord, no machine operations will be available.

• You can customize Power Save mode so that, apart from automatic head cleaning, no machine operations are available. (See Power Save setting on page 16.)

Power Save setting 3

You can customize the machine's Power Save key. The default mode is

Fax Receive:On. Your machine can receive faxes or calls even when the machine is in Power Save mode. If you do not want your machine to receive faxes or calls, turn this setting to Fax Receive:Off.

a Press Menu, 1, 6. b Press a or b to choose

Fax Receive:On, or Fax Receive:Off.

Press OK.

c Press Stop/Exit.

On/Off setting

Fax Receive: On

(default)

Fax Receive: Off

You cannot receive a fax automatically if you have set the receive mode to Fax/Tel.

Receive mode

Fax Only

External TAD

Manual

Fax/Tel

— No machine

Available operations

Fax Receive, Fax Detect

 You cannot

receive a fax with

Mono Start or Colour Start.

Fax Detect

 You cannot

receive a fax with

Mono Start or Colour Start.

operations will be available other than cleaning the print head.

General setup

Mode Timer 3

The machine has four temporary mode keys on the control panel: Fax, Scan, Copy and PhotoCapture. You can change the amount of time the machine takes after the last Scan, Copy or PhotoCapture operation before it returns to Fax mode. If you choose Off, the machine stays in the mode you used last.

a Press Menu, 1, 1. b Press a or b to choose 0 Sec,

30 Secs, 1 Min, 2 Mins, 5 Mins or Off.

Press OK.

c Press Stop/Exit.

Paper settings 3

Paper Type 3

To get the best print quality, set the machine for the type of paper you are using.

a Press Menu, 1, 2. b Press a or b to choose Plain Paper,

Inkjet Paper, Brother Photo, Other Photo or Transparency.

Press OK.

c Press Stop/Exit.

Note

The machine ejects paper with printed surfaces face up onto the paper tray in the front of the machine. When you use transparencies or glossy paper, remove each sheet at once to prevent smudging or paper jams.

Paper Size 3

You can use five sizes of paper for printing copies: Letter, Legal, A4, A5, and 10 × 15 cm (4 × 6 in.) and three sizes for printing faxes: Letter, Legal and A4. When you change the size of paper you load in the machine, you will need to change the paper size setting at the same time so your machine can fit an incoming fax on the page.

a Press Menu, 1, 3. b Press a or b to choose Letter,

Legal, A4, A5 or 10×15cm. Press OK.

c Press Stop/Exit.

Chapter 3

Volume Settings 3

Ring Volume 3

You can select a range of ring volume levels, from High to Off.

While in Fax mode , press d or

c to adjust the volume level. The LCD shows the current setting, and each key press will change the volume to the next level. The machine will keep the new setting until you change it.

You can also change the volume through the menu, by following the instructions below:

Setting the Ring Volume from the menu

a Press Menu, 1, 4, 1. b Press a or b to choose Low, Med,

High or Off. Press OK.

c Press Stop/Exit.

Speaker Volume 3

You can select a range of speaker volume levels, from High to Off.

a Press Menu, 1, 4, 3. b Press a or b to choose Low, Med,

High or Off. Press OK.

c Press Stop/Exit.

Setting Daylight Savings Time

You can set the machine to change for daylight savings time. It will reset the time

forward one hour in the Spring and backward one hour in the Autumn. Make sure you have set the correct date and time in the Date/Time setting.

a Press Menu, 1, 5. b Press a or b to select On or Off.

Press OK.

Beeper Volume 3

When the beeper is on, the machine will beep when you press a key, make a mistake or after you send or receive a fax.

You can select a range of volume levels, from High to Off.

a Press Menu, 1, 4, 2. b Press a or b to choose Low, Med,

High or Off Press OK.

c Press Stop/Exit.

LCD display 3

LCD Contrast 3

You can adjust the LCD contrast for a sharper and more vivid display. If you are having difficulty reading the LCD, try changing the contrast setting.

a Press Menu, 1, 7. b Press a or b to choose Light or

Dark. Press OK.

c Press Stop/Exit.

General setup

Security features 4

TX Lock 4

TX Lock lets you prevent unauthorized access to the machine.

While TX Lock is On, the following operations are available:

 Receiving faxes

While TX Lock is On, the following operations are NOT available:

 Sending faxes  Copying  PC printing  Scanning  PhotoCapture

Setting and changing the TX lock password

Setting up the password 4

Changing the TX Lock password 4

a Press Menu, 2, 0, 1. b Press a or b to choose

Set Password. Press OK.

c Enter a 4-digit number for the current

password. Press OK.

d Enter a 4-digit number for a new

password. Press OK.

e When the LCD shows Verify:,

re-enter the password. Press OK.

f Press Stop/Exit.

Note

• If you forget the TX Lock password, please call your Brother dealer for service.

• If you have already set the password, you will not need to set it again.

a Press Menu, 2, 0, 1. b Enter a 4-digit number for the password.

Press OK.

c When the LCD shows Verify:,

re-enter the password. Press OK.

d Press Stop/Exit.

Turning the TX Lock on/off

Turning TX Lock on 4

a Press Menu, 2, 0, 1. b Press a or b to choose Set TX Lock.

Press OK.

c Enter the registered 4-digit password.

Press OK. The machine goes offline and the LCD shows TX Lock Mode.

Turning TX Lock off 4

a Press Menu. b Enter the registered 4-digit password.

Press OK. TX lock is automatically turned off.

Security features

Note

If you enter the wrong password, the LCD shows Wrong Password and stays offline. The machine will stay in TX Lock mode until the registered password is entered.

Chapter 4

Section II

Fax II

Sending a fax 24 Receiving a Fax 30 Telephone and External devices 34 Dialling and storing numbers 47 Printing Reports 51

Sending a fax 5

Entering Fax mode 5

To enter fax mode, press (Fax), and the key will glow green.

Faxing from the ADF 5

a Make sure you are in Fax mode . b Put the document face down in the ADF. c Dial the fax number using the dial pad. d Press Mono Start or Colour Start.

The machine starts scanning the document.

Note

• To cancel, press Stop/Exit.

• If the memory is full, the document will be sent in real time.

Faxing from the scanner glass 5

d Press Mono Start or Colour Start.

 If you press Mono Start, the

machine starts scanning the first page. Go to step e.

 If you press Colour Start, the

machine starts sending the document.

e Do one of the following:

 To send a single page, press 2 to

choose No. (or press Mono Start again). The machine starts sending the document.

 To send more than one page, press

1 to choose Yes and go to step f.

f Put the next page on the scanner glass.

Press OK. The machine starts scanning the page. (Repeat step e and step f for each additional page.)

Note

If the memory is full and you are faxing a single page, it will be sent in real time.

You can use the scanner glass to fax pages of a book one at a time. The documents can be up to letter or A4 size.

You cannot send multiple pages for colour faxes.

Note

Since you can only scan one page at a time, it is easier to use the ADF if you are sending a multiple page document.

a Make sure you are in Fax mode . b Load your document on the scanner

glass.

c Dial the fax number.

Sending a fax

Faxing Letter size documents from the scanner glass 5

When documents are Letter size, you need to set Scan Size to Letter. If you do not, the side portion of the faxes will be missing.

a Make sure you are in Fax mode .

b Press Menu, 2, 2, 0. c Press a or b to choose Letter.

Press OK.

Colour fax transmission 5

Your machine can send a colour fax to machines that support this feature.

Colour faxes cannot be stored in the memory. When you send a colour fax, the machine will send it in real time (even if Real Time TX is set to Off).

Broadcasting (Monochrome only) 5

Broadcasting is when the same fax message is automatically sent to more than one fax number. You can include Groups, Speed-Dial numbers and up to 50 manually dialled numbers in the same broadcast.

After the broadcast is finished, a Broadcast Report will be printed.

a Make sure you are in Fax mode .

b Load your document. c Enter a number. Press OK.

You can use either a Speed-Dial, a Group or a manually entered number using the dial pad.

d Repeat c until you have entered all the

fax numbers you wish to broadcast to.

Cancelling a fax in progress 5

If you want to cancel a fax while the machine is scanning, dialling or sending, press Stop/Exit.

e Press Mono Start.

Note

• If you did not use up any of the numbers for Groups, access codes or credit card numbers, you can ‘broadcast’ faxes to as many as 90 different numbers.

• The available memory will vary depending on the types of jobs in the memory and the number of locations used for broadcasting. If you broadcast to the maximum numbers available, you will not be able to use dual access.

• Enter the long dialling sequence numbers as you would normally, but remember that each and Speed-Dial number counts as one number, so the number of locations you can store becomes limited.

• If the memory is full, press Stop/Exit to stop the job. If more than one page has been scanned, press Mono Start to send the portion that is in the memory.

Chapter 5

Canceling a Broadcast in progress 5

a Press Menu, 2, 5.

The LCD will show the fax number being dialled.

XXXXXXXX

b Press OK.

The LCD will show:

1.Clear 2.Exit

c Press 1 to clear.

The LCD will then show the Broadcast job number and 1.Clear 2.Exit.

d To cancel the Broadcast, press 1. e Press Stop/Exit.

Additional sending operations 5

Sending faxes using multiple settings 5

When you send a fax you can choose any combination of these settings: resolution, contrast, overseas mode and real time transmission.

a Make sure you are in Fax mode . b Load your document. c Choose a setting you want to change.

Press OK.

d Choose one of the options below:

1.Yes 2.No

 Press 1 to change another setting.  Press 2 when you have finished

choosing your settings.

e Send the fax as normal.

Sending a fax

Contrast 5

If your document is very light or very dark, you may want to change the contrast. For most documents the default setting Auto can be used. It automatically chooses the suitable contrast for your document.

Use Light when sending a light document. Use Dark when sending a dark document.

a Make sure you are in Fax mode . b Load your document. c Press Menu, 2, 2, 1. d Press a or b to choose Auto, Light

or Dark. Press OK.

Note

Even if you choose Light or Dark, the machine will send the fax using the Auto setting in any of the following conditions:

• When you send a colour fax.

• When you choose Photo as the Fax Resolution.

To change the default fax resolution 5

a Make sure you are in Fax mode . b Press Menu, 2, 2, 2. c Press a or b to choose the resolution

you want. Press OK.

Note

• You can choose four different resolution settings for monochrome faxes and two for colour.

Monochrome

Standard Suitable for most typed

documents.

Fine Good for small print and

transmits a little slower than Standard resolution.

S.Fine Good for small print or artwork

and transmits slower than Fine resolution.

Photo Use when the document has

varying shades of grey or is a photograph. This has the slowest transmission.

Changing fax resolution 5

The quality of a fax can be improved by changing the fax resolution. Resolution can be changed for the next fax or for all faxes.

To change the fax resolution for the next fax 5

a Make sure you are in Fax mode . b Load your document. c Press Fax Resolution then a or b to

choose the resolution. Press OK.

Colour

Standard Suitable for most typed

documents.

Fine Use when the document is a

photograph. The transmission time is slower than Standard resolution.

If you choose S.Fine or Photo and then use the Colour Start key to send a fax, the machine will send the fax using the Fine setting.

• The time to send will increase when selecting S.Fine or Photo.

Chapter 5

Dual access (Monochrome only) 5

You can dial a number and start scanning the fax into memory—even when the machine is sending from memory, receiving faxes or printing PC data. The LCD shows the new job number and available memory.

To send a colour fax, the machine will send the document in real time (even if Real Time TX is Off).

The number of pages you can scan into the memory will vary depending on the data that is printed on them.

Note

If the Out of Memory message appears while scanning documents, press Stop/Exit to cancel or Mono Start to send the pages scanned so far.

Real time transmission 5

When you are sending a fax, the machine will scan the documents into the memory before sending. Then, as soon as the phone line is free, the machine will start dialling and sending.

If the memory is full, the machine will send the document in real time (even if Real Time TX is set to Off).

Sometimes, you may want to send an important document immediately, without waiting for memory transmission. You can set

Real Time TX to On for all documents or Next Fax Only for the next fax only.

c Press a or b to choose Realtime

TX:On or Realtime TX:Off.

Press OK.

Sending in real time for the next fax only 5

a Make sure you are in Fax mode . b Press Menu, 2, 2, 3. c Press a or b to choose Next Fax

Only. Press OK.

d Press a or b to choose on (or off).

Press OK.

Note

In real time transmission, the automatic redial feature does not work when using the scanner glass.

Overseas Mode 5

If you are having difficulty sending a fax overseas due to possible interference on the phone line, we recommend that you turn on the Overseas mode. After you send a fax using this feature, the feature will turn itself off.

a Make sure you are in Fax mode . b Load your document. c Press Menu, 2, 2, 4. d Press a or b to choose On (or Off).

Press OK.

Sending in real time for all faxes 5

a Make sure you are in Fax mode . b Press Menu, 2, 2, 3.

3.Real Time TX

Realtime TX:On

Sending a fax

Checking and cancelling waiting jobs 5

You can check which jobs are still waiting in the memory to be sent and cancel a job. (If there are no jobs, the LCD shows No Jobs Waiting.)

a Press Menu, 2, 5.

Any waiting jobs appear on the LCD.

b Press a or b to scroll through the jobs

and choose the job you want to cancel. Press OK.

c Do one of the following:

 Press 1 to cancel it.  Press 2 to exit without cancelling.

d When you have finished, press

Stop/Exit.

Sending a fax manually 5

Out of Memory message 5

If you get an Out of Memory message while scanning the first page of a fax, press Stop/Exit to cancel the fax.

If you get an Out of Memory message while scanning a subsequent page, you will have the option to press Mono Start to send the pages scanned so far, or to press Stop/Exit to cancel the operation

Note

If you get an Out of Memory message while faxing and you do not want to delete your stored faxes to clear the memory, you can send the fax in real time. (See Real time transmission on page 28.)

Manual transmission lets you hear the dialling, ringing and fax-receiving tones while sending a fax.

a Make sure you are in Fax mode . b Load your document. c Pick up the handset of an external

phone and listen for a dial tone.

d Dial the fax number you want to call. e When you hear the fax tone, press

Mono Start or Colour Start.

 If you load the document on the

scanner glass, press 1 to send the fax.

1.Send 2.Receive

f Replace the handset.

Receiving a Fax 6

Receive modes 6

You must choose a receive mode depending on the external devices and telephone services you have on your line.

Choosing the Receive Mode 6

By default, your machine will automatically receive any faxes that are sent to it. The diagram below will help you choose the correct mode.

For more detailed information on the receive modes see page 31.

Are you connecting an external telephone or external telephone answering device to the machine?

Yes

Are you using the voice message function of your external telephone answering device?

Yes

To set a receive mode follow the instructions below.

Do you want the machine to answer fax and telephone calls automatically?

a Press Menu, 0, 1. b Press a or b to choose Fax Only,

Fax/Tel, External TAD or Manual. Press OK.

c Press Stop/Exit.

Yes

Do you want to use the machine for Fax only?

The LCD will display the current receive mode.

Yes

Fax Only

Fax/Tel

Manual

External TAD

12/10 11:53 Fax12/10 11:53 Fax

1 Current receive mode

Fax: Fax Only

Receiving a Fax

Using receive modes 6

Some receive modes answer faxes automatically (Fax Only and Fax/Tel). You may want to change the ring delay before using these modes see Ring Delay on page

31.

Fax only 6

Fax only mode will automatically answer every call as a fax call. If the call is a fax your machine will receive it.

Fax/Tel 6

Fax/Tel mode helps you automatically manage incoming calls, by recognising whether they are fax or voice calls and dealing with them in one of the following ways:

 Faxes will be automatically received.  Voice calls will start the F/T ring to tell you

to pick up the line. The F/T ring is a fast double ring made by your machine.

 Use this mode if you receive few voice

calls.

External TAD 6

External TAD mode lets an external answering device manage your incoming calls. Incoming calls will be dealt with in one of the following ways:

 Faxes will be automatically received.  Voice callers can record a message on the

external TAD.

For more information see Connecting an external TAD on page 43.

Receive mode settings6

Ring Delay 6

The Ring Delay sets the number of times the machine rings before it answers in Fax Only or Fax/Tel mode. If you have external or extension phones on the same line as the machine, choose the maximum number of rings.

(See Operation from extension telephones on page 45 and Fax Detect on page 32.)

a Press Menu, 2, 1, 1.

Also see F/T Ring Time (Fax/Tel mode only) on page 32 and Ring Delay on page 31.

Manual 6

To receive a fax in manual mode press Mono Start or Colour Start when you hear fax tones (short repeating beeps). You can also use the Fax Detect feature to receive faxes by lifting a handset on the same line as the machine.

Also see Fax Detect on page 32. If you use a computer modem on the same

line, faxing will not operate correctly.

b Press a or b to choose how many

times the line rings before the machine answers (02-10 for Australia, 01-10 for New Zealand, 00-10 for some countries). Press OK.

Note

For some countries, if you choose 00, the line will not ring at all.

c Press Stop/Exit.

Chapter 6

F/T Ring Time (Fax/Tel mode only) 6

If you set the Receive Mode to Fax/Tel, you need to decide how long the machine will signal you with its special pseudo/double-ring when you have a voice call. If it's a fax call, the machine receives the fax.

This pseudo/double-ring happens after the initial ringing from the phone company. Only the machine rings and no other phones on the same line will ring with the special pseudo/double-ring. However, you can still answer the call on any telephone.

a Press Menu, 2, 1, 2. b Press a or b to choose how long the

machine will ring to alert you that you have a voice call (20, 30, 40 or 70 seconds for Australia and some countries, 20, 30, 40 or 55 for New Zealand). Press OK.

c Press Stop/Exit.

Note

Even if the caller hangs up during the pseudo/double-ringing, the machine will continue to ring for the set time.

Fax Detect 6

If Fax Detect is On: 6

The machine receives fax calls automatically, even if you lift the handset of an extension or external phone. When you see Receiving on the LCD or when you hear ‘chirps’ through the handset of an extension phone connected to another wall socket/phone socket, just replace the handset and your machine will do the rest.

If Fax Detect is Off: 6

When you hear a fax tone through the handset, you have to press Mono Start or Colour Start on the machine.

If you are not at your machine, press l 5 1 (l 9 1 for New Zealand) on the extension phone. (See Operation from extension telephones on page 45.)

Note

• If this feature is set to On, but your machine does not connect a fax call when you lift an extension or external phone handset, press the fax receive code l 5 1 (l 9 1 for New Zealand). At the machine, press Mono Start or Colour Start.

• We do not recommend you to have a PC and the machine on the same phone line.

a Press Menu, 2, 1, 3.

b Press a or b to choose On (or Off).

Press OK.

c Press Stop/Exit.

Receiving a Fax

Additional receiving operations 6

Printing a reduced incoming fax 6

The machine automatically reduces each page of an incoming fax to fit on one page of A4, Letter or Legal size paper, with Auto Reduction On.

The machine calculates the reduction ratio by using the page size of the fax and your Paper Size setting (Menu, 1, 3).

a Make sure you are in Fax mode . b Press Menu, 2, 1, 5.

5.Auto Reduction

c Use a or b to choose On or Off. Press

OK.

d Press Stop/Exit.

If Memory Receive is Off: 6

The machine will carry on receiving the fax, with the remaining pages being stored in memory, if enough memory is available. The machine will then stop automatically answering calls until fresh paper is put in the paper tray. To print the last fax you received, put fresh paper in the tray.

a Make sure you are in Fax mode . b Press Menu, 2, 1, 6. c Use a or b to choose On or Off. Press

OK.

d Press Stop/Exit.

Receiving faxes into memory 6

Tihs feature is only available for monochrome faxes.

As soon as the paper tray becomes empty during fax reception, the LCD shows No Paper Fed; put some paper in the paper tray. (See Loading paper and other media on page 12.) If you are unable to put paper in the paper tray the following will happen:

If Memory Receive is On: 6

The machine will carry on receiving the fax, with the remaining pages being stored in memory, if enough memory is available. Further incoming faxes will also be stored into memory until the memory is full. When the memory is full the machine will stop automatically answering calls. To print the faxes, put fresh paper in the tray.

Telephone and External devices 7

Voice Operations 7

Tone or pulse (not available in New Zealand)7

If you are using an external phone and have a pulse dialling service, but need to send tone signals (for example, for telephone banking), follow the instructions below. If you have Touch Tone service, you will not need this feature to send tone signals.

a Lift the handset of the external phone. b Press # on the control panel of your

machine. Any digits dialled after this will send tone signals. When you hang up, the machine will return to the pulse dialling service.

Fax/Tel mode 7

When the machine is in Fax/Tel mode, it will use the F/T Ring Time (pseudo/doubleringing) to alert you to pick up a voice call.

If you are at an external telephone, lift the handset of the external telephone, and then press Hook to answer.

If you are at an extension phone, you'll need to lift the handset during the F/T Ring Time and then press #51 (# 9 1 for New Zealand) between the pseudo/double rings. If no one is on the line, or if someone wants to send you a fax, send the call back to the machine by pressing l 51 (l 9 1 for New Zealand).

Phone line services 7

Your machine supports the Caller ID subscriber telephone service that some telephone companies offer.

Features like Voice Mail, Call Waiting, Call Waiting/Caller ID, RingMaster, answering services, alarm systems or other custom features on one phone line may create problems with the operation of your machine.

Do you have Voice Mail? 7

If you have Voice Mail on the phone line that you will install your new machine on, there is a strong possibility that Voice Mail and the machine will conflict with each other while receiving incoming calls. However, the Distinctive Ring feature allows you to use more than one number on your line, so both Voice Mail and the machine can work together without any problems. If each one has a separete phone number, neither will interfere with the other’s operations.

If you decide to get the Distinctive Ring service from the telephone company, you will need to follow the directions on next page to ‘register’ the new Distinctive Ring pattern they give you. This is so your machine can recognize its incoming calls.

Fax/Tel mode in Power Save mode 7

Fax/Tel mode does not work in power save mode. The machine will not answer telephone or fax calls and will keep ringing. If you are at an external or extension phone, lift the handset and talk. If you hear fax tones, hold the handset until Fax Detect activates your machine. If the other party says they want to send you a fax, activate the machine by pressing l 51 (l 9 1 for New Zealand).

Telephone and External devices

Telephone Service for Australia 7

Telstra® FaxStream® Duet® (Distinctive Ring) 7

Telstra® FaxStream® Duet® is an enhanced Public Switched Telephone Service (PSTS)

offered by Telstra additional number on one phone line, with its

own distinctive ring pattern. Telstra FaxStream

that helps users distinguish voice and facsimile calls. With FaxStream

incoming calls to a fax number are announced by a different, distinctive ring signal. Only one call can be answered (or made) at any one time and while this call is in progress, incoming calls to either number will be presented with a busy tone.

Your machine has a Distinctive Ring function, allowing you to dedicate one phone number just for receiving faxes.

that allows you to have an

Duet® is a call handling feature

Duet®,

What is the Advantage of using Telstra® FaxStream® Duet® Function?7

Using Telstra® FaxStream® Duet® is the most efficient way to receive both fax and telephone calls on the same line. When the voice call comes in, all phones (extension and external) and the fax machine will ring to alert you to pick it up. If a fax call comes in, the fax machine will answer automatically without ringing, whereas the extension and external phones will ring twice with a distinctive ring pattern. It is also a more efficient way of operating a Fax machine with an extension phone as you do not have to use the remote activation codes. It gives you two independent numbers without the higher cost of a second line.

Note

After you have set the Distinctive Ring feature to On, the receive mode is set to Manual automatically. If you don’t have a TAD or Voice Mail set up on the Distinctive Ring number, Manual mode means you must answer all the voice calls yourself. You can not change the receive mode from Manual mode while the Distinctive Ring is set to on.

Chapter 7

How does Telstra® FaxStream® Duet® Work? 7

Incoming calls to the voice number, will have the standard ring pattern of long, long tone, followed by a pause, repeated, while the new fax number will have a different ring pattern of three short bursts of ring, repeated at regular intervals.

When FaxStream receive a voice call all extension and external phones will ring with a standard ring pattern. The fax machine will ring on the third ring with a standard ring pattern. All external and the extension phones will continue to ring, until you or a telephone answering device can answer the voice number.

When FaxStream receive a fax call on the Duet

Fax machine will answer and automatically receive the fax message without ringing. On the other hand, all extension and external phones will ring twice with a distinctive ring pattern. Do not answer the phone as you are receiving a fax message.

Flowchart Sequence of Incoming call

(either Voice or Fax)

All extension phones ring, fax machine is silent.

Registered Duet (Fax) Number

Fax machine automatically receives and prints fax message without ringing.

You answer the call at an external phone or an extension phone.

Duet® is On and you

Incoming Call

Fax machine begins ringing on third ring.

number the

Main number (Voice Number)

Telephone Answering Device (TAD) answers the call.

Set the Distinctive Ring to ON 7

Very important!

After you have set the Distinctive Ring feature to ON, the receive mode is set to Manual automatically. Unless you have a TAD or Voice Mail set up on the Distinctive Ring number, Manual mode means you must answer all the calls yourself. You can not change the receive mode to another mode while the Distinctive Ring is set to on.

a Press Menu, 2, 0, 3.

0.Miscellaneous

3.Distinctive

b Press a or b to choose On.

Press OK.

c Press Stop/Exit.

Distinctive Ring is now set to on.

Turning off Distinctive Ring 7

a Press Menu, 2, 0, 3.

0.Miscellaneous

3.Distinctive

b Press a or b to choose Off.

Press OK.

c Press Stop/Exit.

Note

If you turn off Distinctive Ring, the machine will stay in Manual receive mode. You will need to set the Receive Mode again. (See Choosing the Receive Mode on page 30.)

Telephone and External devices

Caller ID 7

Caller ID is a telephone service that allows the subscriber to see a display of the caller’s phone number or name as the telephone rings. It is a fast way to screen your calls. You can respond quickly to calls you missed, because Caller IDs are received and stored in your machine memory.

Note

To get the Caller ID Service: apply for the Caller ID service at your local telephone company, if available.

Advantages of Caller ID 7

For Business

All businesses profit from a quicker response to customer calls. Businesses that provide mail order services, money-lending services or provide confidential information, can protect themselves from false orders or acceptance of false identification.

At Home

How Does the Caller ID Work?7

The Caller ID Appears on the Display When Your Telephone Rings 7

As your telephone rings, the display shows you the caller’s phone number or name if the name has stored in the One-Touch and Speed-Dial. Once you press Hook and answer the call by lifting the external telephone’s handset, the caller’s ID disappears. You will see up to the first 16 characters of the number on the display.

Note

•If Out of Area appears on the display, it means that the call came from outside your caller ID service area or a public

phone.

•If Private Call appears on the display, it means the caller intentionally blocked

the transmission of his/her ID.

Depends on network function.

Residential customers can protect themselves from unwanted calls.

The Caller ID is Stored in Your Machine Memory 7

The machine can store a maximum of the last 30 incoming caller IDs in the memory, along with the time and date of reception. The 31st call will cause the oldest ID to be erased.

The Caller ID information stored in the memory can be used for the following.

 Printing the Caller ID List.

You can review calls you received by checking the Caller IDs in memory. This report will list the Date, Time, Phone Number (Caller ID) name, and type of Call (Comment) if available.

Chapter 7

Viewing Caller ID List

a Press Menu, 2, 0, 4.

0.Miscellaneous

4.Caller ID

b Press a or b to choose Display#.

Press OK. The Caller ID of the last call will appear on the display. If no ID is stored, the beeper will sound and No Caller ID will appear on the display.

c Press a or b to scroll through the Caller

ID memory to choose the Caller ID you want to view. Press OK. The LCD shows the caller’s number, the date, and time of the call.

d Do one of the following:

 To return to the Caller ID listing,

press d.

 To finish viewing, press Stop/Exit.

Printing Caller ID List 7

a Press Menu, 2, 0, 4.

0.Miscellaneous

4.Caller ID

b Press a or b to choose Print

Report.

Press OK. If no ID is stored, the beeper will sound and No Caller ID will appear on the LCD.

Telephone Service for New Zealand 7

FaxAbility 7

FaxAbility is a service offered by Telecom that allows you to have an additional number on one phone line, with its own distinctive ring pattern. This way, when you get an incoming call, you can identify the number being called by its ring.

How Will the Fax Machine Treat All Other Numbers? 7

FaxAbility mode ensures that the machine will answer calls to the FaxAbility (secondary) number. When a call comes in to your main number, all the phones will ring. You can set an external answering device (TAD) to answer calls on the other number(s). (See the chart in the following page.)

What is the Advantage of Using the FaxAbility Function?

Using FaxAbility is the most efficient way to receive both fax and telephone calls on the same line. It is much easier for your callers who dial manually. The fax machine will answer with receiving tones so they will not have to press an activation code. And the people who call to talk on your main number will not have to talk to your fax machine. Basically, it gives you two independent numbers without the higher cost of a second line.

c Press Mono Start or Colour Start. d When the printing has finished, press

Stop/Exit.

Telephone and External devices

How Does FaxAbility Work? 7

Your telephone number will have the standard ring pattern of long, long tone, while the new number will have a ring pattern of long, silence, long, etc. When FaxAbility is On, you will not hear the first ring of all incoming calls on the fax machine. Extension phones will ring as usual. If the fax machine recognizes the ring pattern, all ringing will stop and the fax machine will answer and automatically receive the fax message. Otherwise, you will hear the extension phones and the fax machine continue to ring. The fax machine always listens to the ring pattern before it answers, so do not pick up the phone during that time. You will quickly learn to recognize the ring pattern for faxes, so you will not be tempted to answer that number. Either you or a telephone answering device can answer the main number(s).

Flowchart Sequence of Incoming call

Incoming Call

(either Voice or Fax)

All extension phones ring, fax machine is silent.

Registered Duet (Fax) Number

Fax machine automatically receives and prints fax message without ringing.

Main number (Voice Number)

Fax machine begins ringing on third ring.

How to Turn FaxAbility OFF or ON 7

The FaxAbility function is designed to accommodate the FaxAbility service provided by Telecom. To change the setting, repeat steps a-c; Step b is where you can choose either On or Off.

Call Waiting beeps caused by incoming calls on your main number can affect fax transmissions. If you have FaxAbility Service but don’t have Call Waiting, you need do nothing at this stage. If you do have Call Waiting as well as FaxAbility, set the Call Waiting menu option to On. See below.

a Press Menu, 2, 0, 3.

The screen displays

0.Miscellaneous

3.FaxAbility

b Press a or b to set FaxAbility to On (or

Off).

If you have FaxAbility service, choose On. Press OK.

c Press a or b to set Call Waiting to On

(or Off). If you have Call Waiting service, choose On to avoid the trouble caused by Call Waiting. Press OK.

d Press Stop/Exit.

You answer the call at an external phone or an extension phone.

Telephone Answering Device (TAD) answers the call.

Note

After you have set the FaxAbility feature to On, the receive mode is set to Manual automatically. Unless you have a TAD or Voice Mail set up on the FaxAbility number, Manual mode means you must answer all the call yourself. You can not change the receive mode to the other mode while the FaxAbility is set to on.

Chapter 7

Caller ID 7

Caller ID is a telephone service that allows the subscriber to see a display of the caller’s phone number and name if available as the telephone rings. It is a fast way to screen your calls. You can respond quickly to calls you missed, because Caller IDs are received and stored in your machine memory.

Note

To get the Caller ID Service, apply for the Caller ID service at your local telephone company, if available.

Advantages of Caller ID 7

For Business

At Home

Residential customers can protect themselves from unwanted calls.

How Does the Caller ID Work?7

The Caller ID Appears on the Display When Your Telephone Rings 7

As your telephone rings, the display shows you the caller’s phone number or name if available. Once you press Hook and answer the call, the caller’s ID disappears. You will see up to the first 16 characters of the number and name if available on the display.

Note

•If Out of Area appears on the display, it means that the call came from outside

your caller ID service area.

•If Private Call appears on the display, it means the caller intentionally blocked

the transmission of his/her ID.

Depends on network function.

Viewing Caller ID List

Your machine stores information for the last thirty calls in the Caller ID list. You can view or print this list. When the thirty-first call comes in to the machine, it replaces information about the first call.

a Press Menu, 2, 0, 4.

0.Miscellaneous

4.Caller ID

b Press a or b to choose Display#.

Press OK. The Caller ID of the last call will appear on the display. If no ID is stored, the beeper will sound and No Caller ID will appear on the display.

Telephone and External devices

c Press a or b to scroll through the Caller

ID memory to choose the Caller ID you want to view. Press OK. The LCD shows the caller’s number, the date, and time of the call.

d Do one of the following:

 To return to the Caller ID listing,

press d.

 To finish viewing, press Stop/Exit.

Printing Caller ID List 7

a Press Menu, 2, 0, 4.

0.Miscellaneous

4.Caller ID

b Press a or b to choose Print

Report.

Press OK. If no ID is stored, the beeper will sound and No Caller ID will appear on the LCD.

c Press Mono Start or Colour Start. d When the printing has finished, press

Stop/Exit.

Note

If you use the Caller ID for Dial back;

• Please be sure that you use appropriate dialling procedures for local and national call.

• Please be sure that you make sure of the details of the exact number to be called back, and the need to insert prefix(es) for manual dialling.

• Please understand that your machine may not display precisely the digits to be called.

Telephone Service for Some Countries 7

Distinctive Ring (For Singapore and Hong Kong) 7

This machine feature lets you use the Distinctive Ring subscriber service offered by some telephone companies, which allows you to have several telephone numbers on one phone line. Each phone number has its own Distinctive Ring pattern, so you will know which phone number is ringing. This is one way you can have a separate phone number for your machine.

Your machine has a Distinctive Ring function, allowing you to dedicate one phone number just for receiving faxes. You will need to set Distinctive Ring to On.

Note

You can switch it off temporarily, then turn it back on. When you get a new fax number, make sure you reset this function.

• The machine will answer only calls to the Distinctive Ring number.

Note

After you have set the Distinctive Ring feature to On, the receive mode is set to Manual automatically. Unless you have a TAD or Voice Mail set up on the Distinctive Ring number, Manual mode means you must answer all the call yourself. You can not change the receive mode to the other mode while the Distinctive Ring is set to on.

Chapter 7

Registering the Distinctive Ring pattern 7

Very important!*

a Press Menu, 2, 0, 3.

0.Miscellaneous

3.Distinctive

b Press a or b to choose On.

Press OK.

c Press Stop/Exit.

Distinctive Ring is now set to on.

Turning off Distinctive Ring 7

a Press Menu, 2, 0, 3.

0.Miscellaneous

3.Distinctive

b Press a or b to choose Off.

Press OK.

c Press Stop/Exit.

Caller ID (For Singapore and Hong Kong) 7

The Caller ID feature of this machine lets you use the Caller ID subscriber service offered by many local phone companies. This service provides you, by means of the screen display, the telephone number (or name) of your caller as the line rings. (See Printing Caller ID List on page 43.)

After a few rings, the screen displays the telephone number of your caller (or name, if available). Once you press Hook and answer the call, the Caller ID information disappears from the screen, but the call information remains stored in the Caller ID memory.

 You will see the first 16 characters of the

number or name.

 Out of Area display means call

originates outside your Caller ID service area.

 Private Call display means the caller

has intentionally blocked transmission of information.

Note

You can print a list of Caller ID information received by your machine.

Caller ID service varies with different carriers. Call your local phone company to determine the kind of service available in your area.

Note

If you turn off Distinctive Ring, the machine will stay in Manual receive mode. You will need to set the Receive Mode again. (See Choosing the Receive Mode on page 30.)

Telephone and External devices

Viewing Caller ID List

a Press Menu, 2, 0, 4.

0.Miscellaneous

4.Caller ID

b Press a or b to choose Display#.

Press OK. The Caller ID of the last call will appear on the display. If no ID is stored, the beeper will sound and No Caller ID will appear on the display.

c Press a or b to scroll through the Caller

ID memory to choose the Caller ID you want to view. Press OK. The LCD shows the caller’s name or number, the date, and time of the call.

d Do one of the following:

 To return to the Caller ID listing,

press d.

 To finish viewing, press Stop/Exit.

Printing Caller ID List 7

a Press Menu, 2, 0, 4.

0.Miscellaneous

4.Caller ID

b Press a or b to choose Print

Report.

Press OK. If no ID is stored, the beeper will sound and No Caller ID will appear on the LCD.

c Press Mono Start or Colour Start. d When the printing has finished, press

Stop/Exit.

Connecting an external TAD 7

You can connect an external Telephone Answering Device (TAD) to the same line as your machine. When the TAD answers a call, your machine will “listen” for the CNG (fax calling) tones sent by a sending fax machine. If it hears them it will take over the call and receive the fax. If it does not hear them, it will let your TAD take a voice message and the display will show Telephone.

The external TAD must answer within two rings. This is because your machine cannot hear the CNG tones until the external TAD has picked up the call. The sending machine will send CNG tones for only eight to ten seconds longer. We do not recommend using the toll saver feature on your external TAD if it needs more than four rings to activate it.

Note

If you have problems receiving faxes, reduce the ring delay setting on your external TAD to one or two rings.

Connections 7

The external TAD must be connected as shown in the illustration below.

1TAD

When the TAD answers a call, the LCD shows Telephone.

Chapter 7

a Set your external TAD to one or two

rings. (The machine’s Ring Delay setting does not apply.)

b Record the outgoing message on your

external TAD.

c Set the TAD to answer calls. d Set the Receive Mode to

External TAD. (See Choosing the Receive Mode on page 30.)

Recording an outgoing message 7

a Record 5 seconds of silence at the

beginning of your message. This allows your machine time to listen for fax tones.

b Limit your speaking to 20 seconds. c End your 20-second message by giving

your Fax Receive Code for people sending manual faxes. For example: “After the beep, leave a message or send a fax by pressing l 5 1 (l 9 1 for New Zealand) and Start.”

Multi-Line connections (PABX) 7

Most offices use a central telephone system. Brother recommends that all our machines be

connected to a discreet (dedicated) line. Although a particular PABX may appear to work with a particular model of fax machine, we cannot guarantee that the unit will operate correctly.

While it is often relatively simple to connect a fax machine to a PABX, (Private Automatic Branch Exchange), we suggest that you contact the company that installed your telephone system and ask them to connect the fax machine for you.

Brother does not recommend the use of a PABX line. PABX limitations in general can cause some functions of the fax machine not to work correctly.

Note

• You need to turn the Remote Codes setting to on to use the Fax Receive Code l 5 1 (l 9 1 for New Zealand). see Using remote codes on page 45.

• We recommend beginning your OGM with an initial 5 second silence because the machine cannot hear fax tones over a loud voice. You may try leaving out this pause, but if your machine has trouble receiving, then you should re-record the OGM to include it.

Telephone and External devices

External and extension phones 7

Operation from extension telephones 7

If you answer a fax call on an extension telephone, or an external telephone that is correctly connected to the machine into the correct socket on the machine, you can make your machine take the call by using the Fax Receive Code. When you press the Fax Receive Code l 5 1 (l 9 1 for New Zealand), the machine starts to receive the fax. (See Fax Detect on page 32.)

If you answer a call and no one is on the line:

You should assume that you’re receiving a manual fax.

a Press l 5 1 (l 9 1 for New Zealand)

and wait for the chirp or until the machine’s LCD shows Receiving, and then hang up.

Note

You can also use the Fax Detect feature to make your machine tactically take the call. (See Fax Detect on page 32.)

Connecting an external or extension phone 7

You can connect a separate telephone directly to your machine as shown in the diagram below.

1 Extension telephone

2 External telephone

When you are using an external telephone, the LCD shows Telephone.

Using remote codes 7

Fax Receive Code 7

If you answer a fax call on an extension or external telephone, you can tell your machine to receive it by dialling the fax receive code l 5 1 (l 9 1 for New Zealand). Wait for the chirping sounds then replace the handset. See Fax Detect on page 32. Your caller will have to press Mono Start or Colour Start to send the fax.

Telephone Answer Code 7

If you receive a voice call and the machine is in F/T mode, it will start to sound the F/T (double) ring after the initial ring delay. If you pick up the call on an extension phone you can turn the F/T ring off by pressing # 5 1 (#91 for New Zealand) (make sure you press this between the rings).

Chapter 7

Changing the remote codes 7

The preset fax receive code is l 5 1 (l 9 1 for New Zealand). The preset telephone answer code is # 5 1 (# 9 1 for New Zealand). If you are always disconnected when accessing your external TAD, try changing the three digit remote codes, for example ### and 555.

a Make sure you are in Fax mode . b Press Menu 2, 1, 4.

1.Setup Receive

4.Remote Codes

c Press a or b to choose On (or Off).

Press OK.

d If you chose On in step c, enter the new

fax receive code. Press OK.

e Enter the new telephone answer code.

Press OK.

f Press Stop/Exit.

Note

Remote codes might not work with some telephone systems.

Dialling and storing numbers 8

How to Dial 8

Manual dialling 8

Press all of the digits of the fax number.

Speed-Dialling 8

a Press Search/Speed Dial, #, and then

the two digit Speed-Dial number.

Search 8

You can search for names you have stored in the Speed-Dial memories.

Press Search/Speed Dial and the navigation keys to search, or use the dial pad to search alphabetically.

Two-digit number

Note

If the LCD shows Not Registered when you enter a Speed-Dial number, a number has not been stored at this location.

1 To search numerically.

2 To search alphabetically, you can use the

dial pad to enter the first letter of the name you are looking for.

Chapter 8

Fax Redial 8

If you are sending a fax manually and the line is busy, press Redial/Pause, and then press Mono Start or Colour Start to try again. If you want to make a second call to the last number dialled, you can save time by pressing Redial/Pause and Mono Start or

Colour Start. Redial/Pause only works if you dialled from

the control panel. If you are sending a fax automatically and the

line is busy, the machine will automatically redial up to three times at five minute intervals.

Note

In Manual Transmission the automatic redial feature does not work when using the scanner glass.

Storing numbers 8

You can set up your machine to do the following types of easy dialling: Speed-Dial and Groups for broadcasting faxes. When you dial a Quick-Dial number, the LCD shows the name, if you stored it, or the number.

Storing Speed-Dial numbers 8

You can store up to 40 Speed-Dial numbers with a name. When you dial you will only have to press a few keys (For example: Search/Speed Dial, #, the two-digit number, and Mono Start or Colour Start).

a Press Menu, 2, 3, 1. b Use the dial pad to enter a 2-digit

Speed-Dial location number (01-40). Press OK.

c Enter the fax or telephone number (up to

20 digits). Press OK.

d Do one of the following:

 Enter the name (up to 16 characters)

using the dial pad. Press OK. (To help you enter letters, see Entering Text on page 119.)

 To store the number without a name,

press OK.

e Do one of the following:

 To store another Speed-Dial

number, go to step b.

 To finish the setting, press

Stop/Exit.

Note

If you lose electrical power, the Quick-Dial numbers that are in the memory will not be lost because they are stored permanently.

Storing a pause 8

Press Redial/Pause to put a 3.5-second pause between numbers. If you are dialling overseas, you can press Redial/Pause as many times as needed to increase the length of the pause.

Dialling and storing numbers

Changing Speed-Dial names or numbers 8

If you try to store a Speed-Dial name or number where a number has already been stored, the LCD will show the name or number that has been stored there, and will ask you to do one of the following:

 Press 1 to change the stored number.

#05:Mike

1.Change 2.Exit

 Press 2 to exit without making a change.

If you chose 1, you will be able to change the stored number and name, or enter a new one. Follow the instructions below:

a Enter a new number. Press OK. b Enter a new name. Press OK.

 To change a character, use d or c to

position the cursor under the character you want to change, then press Clear/Back. Re-enter the character.

 To finish the setting, press Stop/Exit.

Setting up groups for broadcasting 8

If you regularly want to send the same fax message to many fax numbers you can set up a Group. Groups are stored on a SpeedDial number. Each group uses up a SpeedDial location. You can then send the fax message to all the numbers stored in a group just by entering a Speed-Dial number, and then pressing Mono Start.

Before you can add numbers to a Group, you need to store them as Speed-Dial numbers. You can have up to six small Groups, or you can assign up to 39 numbers to one large Group.

a Press Menu, 2, 3, 2.

3.Set Quick-Dial

2.Setup Groups

b Use the dial pad to enter the two-digit

speed-dial number where you want to store Group. Press OK.

c Use the dial pad to enter a Group

number (1 to 6). Press OK.

Setup Group:G01

d To add Speed-Dial numbers follow the

instructions below: For example, for Speed-Dial numbers 05 and 09. Press Search/Speed Dial, 05, Search/Speed Dial, 09. The LCD shows: #05#09

G01:#05#09

Note

Please choose a Speed-Dial number that has not been used to store a number yet.

e Press OK when you have finished

adding numbers.

f Use the dial pad to enter a name for the

Group. Press OK.

g Press Stop/Exit.

Note

You can easily print a list of all your Speed-Dial numbers. Numbers that are part of a group will be marked in the GROUP column. (See How to print a report on page 52.)

Chapter 8

Combining Quick-Dial numbers 8

You can combine more than one Quick-Dial number when you dial. This feature may be useful if you need to dial an access code for a cheaper rate long distance carrier.

For example, you might have stored ‘555’ on Speed-Dial # 0 3 and ‘7000’ on Speed-Dial # 0 2. You can use them both to dial ‘5557000’ if you press the following keys:

Search/Speed Dial, # 0 3, Search/Speed Dial, # 0 2, and Start.

Numbers can be added manually by entering them on the dial pad:

Search/Speed Dial, # 0 3, 7, 0, 0, 1 (on the dial pad), and Start.

This would dial ‘555–7001’. You can also add a pause by pressing the Redial/Pause key.

Printing Reports 9

Fax reports 9

You need to set up the Transmission Verification Report and Journal Period using the Menu key.

Transmission Verification Report 9

You can use the Transmission Report as proof that you sent a fax. This report lists the time and date of transmission and whether the transmission was successful (OK). If you choose On or On+Image, the report will print for every fax you send.

If you send a lot of faxes to the same place, you may need more than the job numbers to know which faxes you must send again. Choosing On+Image or Off+Image will print a section of the fax's first page on the report to help you remember.

When the Verification Report is turned Off or Off+Image, the Report will only print if there is a transmission error, with NG in the RESULT column.

a Press Menu, 2, 4, 1. b Press a or b to choose Off+Image,

On, On+Image or Off. Press OK.

c Press Stop/Exit.

Fax Journal (activity report) 9

You can set the machine to print a journal at specific intervals (every 50 faxes, 6, 12 or 24 hours, 2 or 7 days). If you set the interval to

Off, you can still print the report How to print a report on page 52. The default setting is

Every 50 Faxes.

a Press Menu, 2, 4, 2. b Press a or b to choose an interval.

Press OK. (If you choose 7 days, the LCD will ask you to choose the first day for the 7-day countdown.)

 6, 12, 24 hours, 2 or 7 days

The machine will print the report at the chosen time and then erase all jobs from its memory. If the machine's memory becomes full with 200 jobs before the time you chose has passed, the machine will print the Journal early and then erase all jobs from the memory. If you want an extra report before it is due to print, you can print it without erasing the jobs from the memory.

 Every 50 Faxes

The machine will print the Journal when the machine has stored 50 jobs.

c Enter the time to start printing in 24-hour

format. Press OK. (For example: enter 19:45 for 7:45 PM.)

d Press Stop/Exit.

Chapter 9

Reports 9

The following reports are available:

1.XMIT Verify

Prints a Transmission Verification Report for your last transmission.

2.Help List

A help list about how to quickly program your machine.

3.Quick-Dial

Lists names and numbers stored in the Speed-Dial memory, in numerical order.

4.Fax Journal

Lists information about the last incoming and outgoing faxes. (TX: Transmit.) (RX: Receive.)

5.User Settings

Lists your settings.

How to print a report

a Press Menu, 5. b Choose one of the options below:

 Press a or b to select the report you

want. Press OK.

 Enter the number of the report you

want to print. For example, press 2 to print the help list.

c Press Mono Start.

Section III

Copy III

Making copies 54

Making copies 10

How to copy 10

Entering Copy mode 10

Press (Copy) to enter Copy mode. (The default setting is Fax mode.) You can

change the number of seconds or minutes that the machine stays in Copy mode. (See Mode Timer on page 17.)

The LCD shows the default copy setting:

Making multiple copies 10

a Make sure you are in Copy mode . b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Mono Start or Colour Start.

Note

To sort your copies, press the Copy Options key. (See Sorting copies using

the ADF (Monochrome only) on page 58.)

Stop copying 10

To stop copying, press Stop/Exit.

123

1 Copy Ratio

2Quality

3 No of Copies

Making a single copy 10

a Make sure you are in Copy mode . b Load your document. c Press Mono Start or Colour Start.

Making copies

Copy options 10

When you want to quickly change the copy settings temporarily for the next copy, use the Copy Options key.

The machine returns to its default settings 60 seconds after it finishes copying, or if the mode timer returns the machine to Fax mode. For more information see Mode Timer on page 17.

Press Menu

selection

Quality Normal

Enlarge/ Reduce

Paper Type Plain Paper

Paper Size Letter

Brightness - nnonn +58

Stack/ Sort

Page Layout

No. of copies

Options

Fast

Best

50%/69%/78%/83% 93%/97%/100% 104%/142%/186% 198%/200% Custom(25–400%)

Inkjet Paper

Brother Photo

Other Photo

Transparency

Legal

10(W)×15(H)cm

Stack

Sort

Off(1 in 1)

2in1(P)

2in1(L)

4in1(P)

4in1(L)

Poster(3 × 3)

No. of copies: 01

(01 - 99)

Page

Note

You can save the copy settings you use most often by setting them as default. You can find instructions on how to do this in the section for each feature.

Chapter 10

Changing copy speed and quality 10

You can select from a range of quality settings. The default setting is Normal.

To temporarily change the quality setting, follow the instruction below:

Press

Copy Options

Normal Normal is the

recommended mode for ordinary printouts. This produces good copy quality with good copy speed.

Fast Fast copy speed

and lowest ink consumption. Use to save time printing documents to be proof-read, large documents or many copies.

Best Use best mode to

copy precise images such as photographs. This provides the highest resolution and the slowest speed.

a Make sure you are in Copy mode . b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

To change the default setting, follow the instruction below:

a Press Menu, 3, 1.

1.Quality

b Press a or b to choose Normal, Best

or Fast quality. Press OK.

c Press Stop/Exit.

Enlarging or reducing the image copied 10

You can select the following enlargement or reduction ratios:

Custom(25–400%) allows you to enter a ratio from 25% to 400%.

Press

Copy Options

and then a or b to choose

Enlarge/Reduce

Custom(25–400%)

200%

198% 10×15cmiA4

186% 10×15cmiLTR

142% A5iA4

104% EXEiLTR

100%

97% LTRiA4

93% A4iLTR

83% LGLiA4

78% LGLiLTR

69% A4iA5

50%

d Press Copy Options and a or b to

choose Quality. Press OK.

e Press a or b to choose Normal, Best

or Fast quality. Press OK.

f Press Mono Start or Colour Start.

Making copies

To enlarge or reduce the next copy follow the instructions below:

a Make sure you are in Copy mode . b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Copy Options and a or b to

choose Enlarge/Reduce. Press OK.

e Choose one of the options below:

 Use a or b to choose the

enlargement or reduction ratio you want. Press OK.

 Use a or b to choose Custom (25–

400%). Press OK. Use the dial pad

to enter an enlargement or reduction ratio from 25% to 400%. (For example, press 5 3 to enter 53%.) Press OK.

f Press Mono Start or Colour Start.

Note

Page Layout Options 2 in 1(P), 2 in 1(L), 4 in 1(P), 4 in 1(L) or Poster are not available with Enlarge/Reduce.

Making N in 1 copies or a poster 10

You can reduce the amount of copies by using the N in 1 copy feature. This allows you to copy two or four pages onto one page, which allows you to save paper.

You can also produce a poster. When you use the poster feature your machine divides your document into sections, then enlarges the sections so you can assemble them into a poster. If you want to make a poster, use the scanner glass.

Important 10

 Please make sure paper size is set to A4.  You can not use the Enlarge/Reduce

setting with the N in 1 and Poster features.

 N in 1 colour copies are not available.  (P) means Portrait and (L) means

Landscape.

 You can only make one poster copy at a

time.

a Make sure you are in Copy mode . b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Copy Options and a or b to

choose Page Layout. Press OK.

e Press a or b to choose

Off(1 in 1), 2in1(P), 2in1(L), 4in1(P), 4in1(L) or Poster(3 × 3).

Press OK.

f Press Mono Start to scan the

document. You can also press Colour Start if you are using Poster layout.

If you are making a poster or placed the document in the ADF, the machine scans the pages and starts printing.

If you are using the scanner glass, go to g.

g After the machine scans the page, press

1 to scan the next page.

Next Page?

1.Yes 2.No

Chapter 10

h Put the next document on the scanner

glass. Press OK. Repeat g and h for each page of the layout.

Set Next Page

Then Press OK

i After all the pages have been scanned,

press 2 to finish.

Note

If photo paper is selected as the paper type setting for N in 1 copies, the images will be printed as if plain paper had been selected.

Place your document face down in the direction shown below:

 2 in 1 (P)

 2 in 1 (L)

Sorting copies using the ADF (Monochrome only) 10

You can sort multiple copies. Pages will be stacked in the order 1 2 3, 1 2 3, 1 2 3, and so on.

a Make sure you are in Copy mode .

b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Copy Options and a or b to

choose Stack/Sort. Press OK.

e Press a or b to choose Sort. Press

OK.

f Press Mono Start.

Adjusting Brightness, Contrast and Colour 10

 4 in 1 (P)

 4 in 1 (L)

 Poster (3x3)

You can make a poster size copy of a photograph.

Brightness 10

To temporarily change the brightness setting, follow the instruction below:

a Make sure you are in Copy mode .

b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Copy Options and a or b to

choose Brightness. Press OK.

-nnonn+ e

e Press a or b to make the copy lighter

or darker. Press OK.

f Press Mono Start or Colour Start.

Making copies

To change the default setting follow the instructions below:

a Press Menu, 3, 2. b Press a or b to make the copy lighter

or darker. Press OK.

c Press Stop/Exit.

Contrast 10

Adjust the contrast to help an image look sharper and more vivid.

The contrast can only be changed through the default setting.

a Press Menu, 3, 3.

3.Contrast

b Press a or b to change the contrast.

Press OK.

c Press Stop/Exit.

Colour saturation 10

The colour saturation can only be changed through the default setting.

a Press Menu, 3, 4.

4.Color Adjust

b Press a or b to choose 1.Red,

2.Green or 3.Blue. Press OK.

Paper options 10

Paper type 10

If you are copying on special paper, be sure to select the type of paper you are using so you will get the best print quality.

a Make sure you are in Copy mode .

b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Copy Options and a or b to

choose Paper Type. Press OK.

e Press a or b to choose the type of

paper you are using (Plain Paper, Inkjet Paper, Brother Photo, Other Photo or Transparency).

Press OK.

f Press Mono Start or Colour Start.

Note

To change the default paper type setting see Paper Type on page 17.

c Press a or b to change the colour

saturation. Press OK.

d Choose one of the options below:

 Return to b to select the next colour.  Press Stop/Exit.

Chapter 10

Paper size 10

If copying on paper other than A4 size, you will need to change the paper size setting. You can copy on Letter, A4, A5 or Photo Card 10(W) × 15(H) cm paper.

a Make sure you are in Copy mode .

b Load your document. c Use the dial pad to enter the number of

copies (up to 99).

d Press Copy Options and a or b to

choose Paper Size. Press OK.

e Press a or b to choose the size of

paper you are using Letter, Legal, A4, A5 or 10(W) × 15(H)cm.

Press OK.

f Press Mono Start or Colour Start.

Note

To change the default paper type setting see Paper Size on page 17.

Section IV

Direct Photo Printing IV

Printing photos from a memory card 62 Printing photos from a camera with PictBridge 69

Printing photos from a memory

card

PhotoCapture Center™ Operations

Printing from a memory card without a PC 11

Even if your machine is not connected to your computer, you can print photos directly from digital camera media. (See How to print from a memory card on page 64.)

Using PhotoCapture Center™ from your computer

You can access the memory card that is in the media drive (slot) of the machine from your PC.

(See PhotoCapture Center

Remote Setup & Photo Capture Center

Macintosh the CD-ROM.)

in the Software User's Guide on

™

for Windows® or

™

for

 miniSD™ can be used with a miniSD™

adapter.

 Memory Stick Duo™ can be used with a

Memory Stick Duo™ adapter.

 Memory Stick Pro Duo™ can be used with

a Memory Stick Pro Duo™ adapter.

 Adapters are not included with the

machine. Contact a third party supplier for adapters.

The PhotoCapture Center™ feature lets you print digital photos from your digital camera at high resolution to get photo quality printing.

Firmly put the card into the correct slot.

1 2 3 4

Using memory cards 11

Your Brother machine includes two media drives (slots) for use with popular digital

camera media: CompactFlash

Stick

Memory Stick Pro™, SecureDigital™,

MultiMediaCard™ and xD-Picture Card™.

CompactFlash

SecureDigital™

MultiMediaCard™

, Memory

Memory Stick

Memory Stick Pro™

xD-Picture Card™

1 CompactFlash

2 SecureDigital™, MultiMediaCard™

3 Memory Stick

4 xD-Picture Card™

, Memory Stick Pro™

Printing photos from a memory card

The PhotoCapture key will light to show the memory card status. It can be on, off or blinking. See the table below for what the light means.

 On

A memory card is inserted correctly.

 Off

No memory card is present, or it is incorrectly inserted.

 Blinking

The inserted memory card is being read, or is being written to.

CAUTION

DO NOT unplug the power cord or remove the memory card from the media drive (slot) while the machine is reading or writing to the card (the PhotoCapture key is blinking). You will lose your data or

damage the card.

The machine can only read one memory card at a time so do not put more than one card in a slot.

Memory card folder structure 11

Your machine is designed to be compatible with modern digital camera image files and memory cards; however, please read the points below to avoid errors:

 The DPOF file on the memory card must

be in a valid format. (See DPOF printing on page 66.)

 The image file extension must be. JPG

(Other image file extensions like. JPEG, .TIF, .GIF and so on will not be recognized).

 Walk-up PhotoCapture Center™ printing

must be performed separately from PhotoCapture Center™ operations using the PC. (Simultaneous operation is not available.)

 IBM Microdrive™ is not compatible with

the machine.

 The machine can read up to 999 files on a

memory card.

 CompactFlash  This product supports xD-Picture Card™

Type M / Type H (Large Capacity).

Please be aware of the following:

 When printing the INDEX or IMAGE, the

PhotoCapture Center™ will print all the valid images, even if one or more images have been corrupted. A portion of the corrupted image may be printed.

 Your machine is designed to read memory

cards that have been formatted by a digital camera.

When a digital camera formats a memory card it creates a special folder into which it copies image data. If you need to modify the image data stored on a memory card with your PC, we recommend that you do not modify the folder structure created by the digital camera. When saving new or modified image files to the memory card we also recommend you use the same folder your digital camera uses. If the data is not saved to the same folder, the machine may not be able to read the file or print the image.

Type II is not supported.

Chapter 11

How to print from a memory card 11

Before printing a photo you must first print a thumbnail index to choose the number of the photo you want to print. Follow the instructions below to start printing directly from your memory card:

a Make sure you have put the memory

card in the proper slot. The LCD will show the following message:

C.Flash Active

Press PhotoC...

b Press PhotoCapture. For DPOF

printing, see DPOF printing on page 66.

c Press a or b to choose Print Index

and then press OK.

d Press Colour Start to start printing the

index sheet. Make a note of the image number you want to print. See Printing the thumbnail index on page 64.

e Press a or b to choose

Print Images and then press OK. See Printing Images on page 65.

f Enter the image number and press OK. g Press Colour Start to start printing.

Printing the thumbnail index 11

The PhotoCapture Center™ assigns each of your images a number. It does not recognize any other numbers or file names that your digital camera or PC may have assigned to the images.

When you print a thumbnail page, it will show all of the pictures on your memory card and the number assigned to it. Even corrupted images may have part of the image printed.

a Make sure you have put the memory

card in the correct slot. Press (PhotoCapture).

b Press a or b to choose Print Index.

Press OK.

c Press a or b to choose

6 Images/Line or 5 Images/Line. Press OK.

5 Images/Line 6 Images/Line

Print time for 5 Images/Line will be slower than 6 Images/Line, but the quality is better.

d Press Colour Start to print.

Printing photos from a memory card

Printing Images 11

Before you can print an individual image, you have to know the image number.

a Make sure you have put the memory

card in the correct slot.

b Print the index first. (See Printing the

thumbnail index on page 64.)

Press (PhotoCapture).

c Press a or b to choose

Print Images. Press OK.

Note

If your memory card contains valid DPOF information, the LCD will show DPOF Print:Yes. See DPOF printing on page 66.

d Enter the image number that you want to

print from the thumbnail index. Press OK.

No.:1,3,6

Multiple numbers can be entered by using the OK key to separate numbers. For example 1, OK, 3, OK, 6 would print images 1,3 and 6. The # key can be used to print a range of numbers, for example 1, #, 5 would print all images from 1 to 5.

e After you have selected all the images

you want to print, press OK to select your settings. If you have already chosen your settings, press Colour Start.

g Press a or b to choose the paper size

you are using, Letter, A4, 10×15cm or 13×18cm.

 If you selected Letter or A4, go to h.  If you selected another size, go to i.  If you have finished choosing

settings, press Colour Start.

h Press a or b to choose the print size

(10×8cm, 13×9cm, 15×10cm, 18×13cm or 20×15cm). Press OK.

i Choose one of the options below:

 To choose the number of copies go

to j.

 If you have finished choosing

settings, press Colour Start.

j Enter the number of copies you want.

Press OK.

k Press Colour Start to print.

The printing positions when using A4 are shown below.

10×8cm

18×13cm

13×9cm

20×15cm

15×10cm

f Press a or b to choose the type of

paper you are using, Plain Paper, Inkjet Paper, Brother Photo or Other Photo.

Press OK.

Chapter 11

DPOF printing 11

DPOF stands for Digital Print Order Format. Major digital camera manufacturers (Canon

Inc., Eastman Kodak Company, Fuji Photo Film Co. Ltd., Matsushita Electric Industrial Co. Ltd. and Sony Corporation) created this standard to make it easier to print images from a digital camera.

If your digital camera supports DPOF printing, you will be able to choose on the digital camera display the images and number of copies you want to print.

When the memory card (CompactFlash Memory Stick

SecureDigital™ MultiMediaCard™ or xD-Picture Card™) with DPOF information is put into your machine, you can print the chosen image easily.

To print directly from a memory card with DPOF information on it follow the instructions below:

, Memory Stick Pro™,

f Press a or b to choose the paper size

you are using, Letter, A4, 10×15cm or 13×18cm.

 If you selected Letter or A4, go to g.  If you selected another size, go to h.

g Press a or b to choose the print size

(10×8cm, 13×9cm, 15×10cm, 18×13cm or 20×15cm). Press OK.

h Press Colour Start to print.

a Firmly insert the memory card into the

card slot.

C.Flash Active

Press (PhotoCapture).

b Press a or b to choose

Print Images. Press OK.

c If there is a DPOF file on the card, the

LCD will show:

DPOF Print:Yes

d Press a or b to choose

DPOF Print:Yes. Press OK.

e Press a or b to choose the type of

paper you are using, Plain Paper, Inkjet Paper, Brother Photo or Other Photo.

Press OK.

Printing photos from a memory card

PhotoCapture Center™ print settings 11

These settings will remain until you change them again.

Print speed and quality 11

a Press Menu, 4, 1. b Press a or b to choose Normal or

Photo. Press OK.

c Press Stop/Exit.

Paper Options 11

Paper Type 11

a Press Menu, 4, 2.

Print Size 11

This setting is available only when you select Letter or A4 in the paper size setting.

a Press Menu, 4, 4. b Press a or b to choose the print size

you are using, 10×8cm, 13×9cm, 15×10cm, 18×13cm or 20×15cm.

Press OK.

c Press Stop/Exit.

Adjusting Brightness and Contrast 11

Brightness 11

a Press Menu, 4, 5. b Press a or b to make a lighter or darker

Print. Press OK.

b Press a or b to choose Plain Paper,

Inkjet Paper, Brother Photo or Other Photo.

Press OK.

c Press Stop/Exit.

Paper Size 11

a Press Menu, 4, 3. b Press a or b to choose the paper size

you are using, Letter, A4, 10×15cm or 13×18cm.

Press OK.

c Press Stop/Exit.

Contrast 11

You can select the contrast setting. More contrast will make an image look sharper and more vivid.

a Press Menu, 4, 6. b Press a or b to increase or decrease

the contrast. Press OK.

c Press Stop/Exit.

Chapter 11

Cropping 11

If your photo is too long or wide to fit the available space on your chosen layout, part of the image will be automatically cropped.

The default setting is On. If you want to print the whole image, turn this setting to Off.

a Press Menu, 4, 7. b Press a or b to choose Off (or On).

Press OK.

c Press Stop/Exit.

Cropping: On

/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Cropping: Off 11

/ / / / / / / / / / / / / / / / / /

/ / / / / / / / / / / / / / / / / / / / / /

Understanding the Error Messages 11

Once you are familiar with the types of errors that can occur while you are using the PhotoCapture Center™, you can easily identify and troubleshoot any problems.

 Media Error

This message will appear if you put in a memory card that is either bad or not formatted, or when there is a problem with the media drive. To clear this error, take out the memory card.

 No File

This message will appear if you try to access a memory card in the drive (slot) that does not contain a .JPG file.

 Out of Memory

This message will appear if you are working with images that are too large for the machine's memory.

Borderless printing 11

This feature expands the printable area to the edges of the paper. Printing time will be slightly slower.

a Press Menu, 4, 8. b Press a or b to choose Off (or On).

Press OK.

c Press Stop/Exit.

Printing photos from a camera

Your Brother machine supports the PictBridge standard, allowing you to connect to and print photos directly from any PictBridge compatible digital camera.

with PictBridge

Before Using PictBridge

PictBridge requirements 12

To avoid errors, remember the following points:

 The machine and the digital camera must

be connected using a suitable USB cable.

 The image file extension must be .JPG

(Other image file extensions like .JPEG, .TIF, .GIF and so on will not be recognized).

 PhotoCapture Center™ operations are

not available when using the PictBridge feature.

Using PictBridge 12

Setting your digital camera 12

Make sure your camera is in PictBridge mode. Some of the settings listed below may not be available for your PictBridge compatible digital camera.

Camera Menu Selections

Paper Size

Paper Type Plain Paper, Glossy

Layout Borderless: On,

DPOF setting Print Quality Normal, Fine,

See DPOF printing for more details.

If your camera is set to use the Printer Settings (Default setting), the machine will print your photo using the settings below.

Options

Letter, A4, 10x15 cm, Printer Settings (Default

setting)

Paper, Inkjet Paper, Printer Settings (Default

setting)

Borderless: Off, Printer Settings (Default

setting)

Printer Settings (Default

setting)

Settings Options

Paper Size 10x15 cm Paper Type Glossy Paper Layout Borderless: On Print Quality Fine Color

Enhancement

Please refer to the documentation supplied with your camera for more detailed information on changing PictBridge settings.

Off

Chapter 12

Printing Images 12

a Make sure that your camera is turned

off. Connect your camera to the PictBridge port (1) on the machine using the USB cable.

1 PictBridge port

Note

Remove any memory cards from the machine before connecting the digital camera.

b Turn on the camera.

When the machine has recognized the camera, the LCD shows the following message:

Camera Connected

DPOF printing 12

DPOF stands for Digital Print Order Format. Major digital camera manufacturers (Canon

Inc., Eastman Kodak Company, Fuji Photo Film Co. Ltd., Matsushita Electric Industrial Co. Ltd. and Sony Corporation) created this standard to make it easier to print images from a digital camera.

If your digital camera supports DPOF printing, you will be able to choose on the digital camera display the images and number of copies you want to print.

When the machine starts printing a photo, the LCD will show Printing.

WARNING

To prevent damage to your machine, do not connect any device other than a PictBridge compatible camera to the PictBridge port.

Understanding the Error Messages 12

Once you are familiar with the types of errors that can occur while you are using the PictBridge, you can easily identify and troubleshoot any problems.

 Out of Memory

This message will appear if you are working with images that are too large for the machine's memory.

 Wrong USB device

This message will appear if you connect a non-PictBridge compatible or broken device to the PictBridge port. To clear the error, unplug the device from the PictBridge port, then press Power Save to turn the machine off and then on again.

Printing photos from a camera with PictBridge

For more detailed solutions see Error messages on page 94.

Chapter 12

Section V

Software V

Software features 74

Software features 13

The CD-ROM includes the Software User’s Guide for features available when connected to a computer (for example, printing and scanning). The guide has easy to use links that, when clicked, will take you directly to a particular section.

You can find information on these features:

 Printing  Scanning

 ControlCenter3 (for Windows

 ControlCenter2 (for Macintosh®)  Faxing from your computer  PhotoCapture Center™

How to read the HTML User’s Guide

This is a quick reference to use the HTML User’s Guide.

(For Windows

)

Note

If you have not installed the software, see Viewing Documentation on page 2.

a From the Start menu, point to Brother,

MFC-XXXX (where XXXX is you r model

number) from the programs group, then click User’s Guide.

c Click the heading you would like to read

from the list at the left of the window.

(For Macintosh®)

a Make sure your Macintosh

on. Insert the Brother CD-ROM into your CD-ROM drive. The following window will appear.

is turned

b Double-click the Documentation icon. c Double-click your language folder, and

then double-click the top page file.

d Click SOFTWARE USER’S GUIDE in

the top menu, and then click the heading you would like to read from the list at the left of the window.

b Click SOFTWARE USER’S GUIDE

from the top menu.

Section VI

Appendixes VI

Safety and Legal 76 Troubleshooting and Routine Maintenance 89 Menu and Features 110 Specifications 120 Glossary 132

Safety and Legal A

Choosing a location A

Put your machine on a flat, stable surface that is free of vibration and shocks, such as a desk. Put the machine near a telephone socket and a standard, grounded electrical socket. Choose a location where the temperature remains between 10° and 35° C (50° F and 95° F).

CAUTION

• Avoid placing your machine in a high-traffic area.

• Avoid placing your machine on a carpet.

• DO NOT put the machine near heaters, air conditioners, refrigerators, medical equipment, chemicals or water.

• DO NOT expose the machine to direct sunlight, excessive heat, moisture, or dust.

• DO NOT connect your machine to electrical sockets controlled by wall switches or automatic timers.

• Disruption of power can wipe out information in the machine's memory.

• Do not connect your machine to electrical sockets on the same circuit as large appliances or other equipment that might disrupt the power supply.

• Avoid interference sources, such as speakers or the base units of cordless phones.

Safety and Legal

To use the machine safely A

Please keep these instructions for later reference and read them before attempting any maintenance.

WARNING

There are high voltage electrodes inside the machine. Before you clean the inside of the machine, make sure you have unplugged the telephone line cord first and then the power cord from the electrical socket. Doing this will prevent an electrical shock.

DO NOT handle the plug with wet hands. Doing this might cause an electrical shock.

DO NOT pull in the middle of the power cord. Doing this might cause an electrical shock.

DO NOT put your hands on the edge of the machine under the document cover or the scanner cover. Doing this may cause injury.

DO NOT touch the paper feed roller. Doing this may cause injury.

DO NOT put your hands on the edge of the paper tray. Doing this may cause injury.

Safety and Legal

DO NOT touch the area shaded in the illustration. Doing this may cause injury.

When moving the machine you must lift it from the base, by placing a hand at each side of the unit as shown in the illustration. Do not carry the machine by holding the scanner cover.

If the machine becomes hot, releases smoke, or generates any strong smells, immediately turn off the power switch and unplug the machine from the electrical sooket. Call your Brother dealer for service.

If metal objects, water or other liquids get inside the machine, immediately turn off the power switch and unplug the machine from the electrical socket. Call your Brother dealer for service.

WARNING

• Use caution when installing or modifying telephone lines. Never touch telephone wires or terminals that are not insulated unless the telephone line has been unplugged at the wall socket. Never install telephone wiring during a lightning storm. Never install a telephone wall socket in a wet location.

• This product must be installed near an electrical socket that is easily accessible. In case of an emergency, you must unplug the power cord from the electrical socket to shut off the power completely.

• Always make sure the plug is fully inserted

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to people, including the following:

1 DO NOT use this product near water, for example, near a bath tub, wash bowl, kitchen sink

or washing machine, in a wet basement or near a swimming pool.

2 Avoid using this product during an electrical storm. There may be a remote risk of electric

shock from lightning.

3 DO NOT use this product to report a gas leak in the vicinity of the leak.

IMPORTANT-For Your Safety A

To ensure safe operation the two-pin plug or the three-pin plug supplied must be inserted only into a standard two-pin power point or three-pin power point which is effectively grounded through the normal household wiring.

Extension cords used with the equipment must be two-conductor or three-conductor and be correctly wired to provide connection to ground. Incorrectly wired extension cords are a major cause of fatalities.

The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, consult a qualified electrician.

Disconnect device A

This machine must be installed near a power outlet, which is easily accessible. In case of emergencies, you must disconnect the power cord from the power outlet in order to shut off power completely.

Safety and Legal

Important Information for Australia A

Important safety instructions A

1 Read all of these instructions. 2 Save them for later reference. 3 Follow all warnings and instructions marked on the product. 4 Unplug this product from the wall socket before cleaning the outside of the machine and the

scanner glass. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 5 Do not use this product near water. 6 Do not place this product on an unstable cart, stand, or table. The product may fall, causing

serious damage to the product. 7 Slots and openings in the cabinet at the back or bottom are provided for ventilation; to ensure

reliable operation of the product and to protect it from overheating, these openings must not

be blocked or covered. The openings should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should never be placed near or over a radiator

or heater. This product should never be placed in a built-in installation unless adequate

ventilation is provided. 8 This product should be connected to an AC power source within the range indicated on the

rating label. Do NOT connect it to a DC power source. If you are not sure, contact a qualified

electrician. 9 This product is equipped with a 3-wire grounded plug, a plug having a third (grounded) pin.

This plug will only fit into a grounded power outlet. This is a safety feature. If you are unable to

insert the plug into the outlet, call your electrician to replace your obsolete outlet. Do not defeat

the purpose of the grounded plug. 10 Do not place anything on top of the power cord including this machine. Do not allow the power

cord to be stepped on. 11 Do not place anything in front of the machine that will block received faxes. Do not place

anything in the path of received faxes. 12 Do not touch a document during printing. 13 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in a risk of fire or electric shock. Never

spill liquid of any kind on the product. 14 Do not attempt to service this product yourself, because opening or removing covers may

expose you to dangerous voltage points and/or other risks. Refer all servicing to service

personnel. 15 Wait until pages have exited the machine before picking them up.

16 Unplug this product from the electrical socket and refer servicing to Authorized Service

Personnel under the following conditions:

 When the power cord is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

Adjust only those controls that are covered by the operating instructions. Incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

Safety and Legal

Important Information for New Zealand A

Important Safety Instructions A

1 Read all of these instructions. 2 Save them for later reference. 3 Follow all warnings and instructions marked on the product. 4 Unplug this product from the wall outlet before cleaning the outside of the machine and the

scanner glass. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 5 The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has

accepted that the item complies with minimum conditions for connection to its network. It

indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty.

Above all, it provides no assurance that any item will work correctly in all respects with another

item of Telepermitted equipment of a different make or model, nor does it imply that any

product is compatible with all of Telecom’s network services. 6 This equipment does not fully meet Telecom’s impedance requirements. Performance

limitations may occur when used in conjunction with some parts of the network. Telecom will

accept no responsibility should difficulties arise in such circumstances. 7 If a charge for local calls is acceptable, the “Dial Button” should not be used for local calls. Only

the 7-digits of the local number should be dialled from your telephone. Do not dial the area

code digit or the “0” prefix. 8 This equipment shall not be set to make automatic calls to the Telecom ‘111’ Emergency

Service. 9 This equipment should not be used under any circumstances which may constitute a nuisance

to other Telecom customers. 10 Not all telephones will respond to incoming ringing when connected to the extension socket. 11 The answer delay setting of this equipment shall not be set to less than the default setting as

this will destroy Caller ID information. 12 All persons using this device for recording telephone conversations shall comply with New

Zealand law. This requires that at least one party to the conversation is to be aware that it is

being recorded. In addition, the Principles enumerated in the Privacy Act 1993 shall be

complied with in respect to the nature of the personal information collected, the purpose for its

collection, how it is to be used and what it disclosed to any other party. 13 Do not place this product on an unstable surface, stand, or table. The product may fall, causing

serious damage to the product. 14 Slots and openings in the cabinet at the back or bottom are provided for ventilation; to ensure

reliable operation of the product and to protect it from overheating, these openings must not

be blocked or covered. The openings should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should never be placed near or over a radiator

or heater. This product should not be placed in a built-in installation unless adequate ventilation

is provided.

Chapter A

15 This product should be connected to an AC power source within the range indicated on the

rating label. Do NOT connect it to a DC power source. If you are not sure, contact a qualified electrician.

16 This product is equipped with a 3-wire earthed plug. This plug will fit into only an earthed

socket. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete socket. Do not defeat the purpose of an earthed plug.

17 Do not place anything on top of the power cord including this machine. Do not allow the power

cord to be stepped on.

18 Do not place anything in front of the machine that will block received faxes. Do not place

anything in the path of received faxes. 19 Do not touch a document during printing. 20 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in a risk of fire or electric shock. Never

spill liquid of any kind on the product. 21 Do not attempt to service this product yourself, because opening or removing covers may

expose you to dangerous voltage points and/or other risks. Refer all servicing to service

personnel. 22 Unplug this product from the mains power and telephone line sockets, and refer servicing to

qualified Service Personnel under the following conditions:

 If the power cord is damaged or frayed.  If liquid has been spilled into the product.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

23 This unit will only work in conjunction with a tone signalling (DTMF) telephone, but some

telephones are not compatible. Since noise or speech from the telephone can upset dialling

from this unit, errors may result if the devices are used together in other than quiet conditions. 24 Where it is necessary to dial prefix digits, such as a Caller Display override code (“0196” or

“0197”), this unit will have to be used in conjunction with an associated tone signalling (DTMF)

telephone. 25 Note that some telephones are not compatible with this unit and dialling errors may result if the

two devices are used together in other than quiet conditions. The Telecom Faults Service is

not to be called should such problems arise. In such cases, it is recommended that the prefix

and wanted number are dialled manually. 26 This equipment may not provide for the effective hand-over of a call to another device

connected to the same line.

Safety and Legal

Important Information for Some Countries A

Important Safety Instructions A

scanner glass. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 5 Do not place this product near water. 6 Do not place this product on an unstable cart, stand, or table. The product may drop, causing

serious damage to the product. 7 Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure

reliable operation of the product and to protect it from overheating, these openings must not

be blocked or covered. The openings should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should never be placed near or on a radiator

or heater. This product should never be placed in a built-in installation unless proper ventilation

is provided. 8 This product should be connected to an AC power source within the range indicated on the

rating label. Do NOT connect it to a DC power source. If you are not sure, contact a qualified

electrician. 9 This product is equipped with a 2-wire grounding type plug or a 3-wire grounding type plug

(Only for Singapore, Malaysia, Hong Kong and India), a plug having two or three pins. This

plug will only fit into only a grounding-type power outlet. This is a safety feature. If you are

unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.

Do not defeat the purpose of the grounding-type plug. 10 Do not place anything on top of the power cord including this machine. Do not allow the power

cord to be stepped on. 11 If an extension cord is used with this product, make sure that the total ampere ratings on the

products plugged into the extension cord do not exceed the extension cord ampere rating. 12 Do not place anything in front of the machine that will block received faxes. Do not place

anything in the path of received faxes. 13 Do not touch a document during printing. 14 Never push objects of any kind into this product through cabinet slots, since they may touch

dangerous voltage points or short out parts resulting in the risk of fire or electric shock. Never

spill liquid of any kind on the product. 15 Do not attempt to service this product yourself, as opening or removing covers may expose

you to dangerous voltage points and/or other risks, and may void your warranty. Please refer

all servicing to our Authorized Service Personnel. A list of Authorized Service Centres has

been included for your convenience, or you may contact the Brother Dealer for Service.

Chapter A

16 Unplug this product from the wall outlet and refer servicing to Authorized Service Personnel

under the following conditions:

 If the power cord is damaged or frayed.  If the product has been spilled by liquid.  If the product has been exposed to rain or water.  If the product does not operate normally when the operating instructions are followed.

 If the product has been dropped or the cabinet has been damaged.  If the product exhibits a distinct change in performance, indicating a need for service.

17 To protect your product against power surges, we recommend the use of a power protection

device (Surge Protector).

WARNING

For protection against the risk of electrical shock, always disconnect all cables from the wall outlet before servicing, modifying or installing the equipment.

This equipment may not be used on coin service lines provided by the telephone company or connected to party lines.

Brother cannot accept any financial or other responsibilities that may be the result of your use of this information, including direct, special or consequential damages. There are no warranties extended or granted by this document.

Safety and Legal

Legal limitations for copying A

It is an offence to make reproductions of certain items or documents with the intent to commit fraud. This memorandum is intended to be a guide rather than a complete list.

We suggest you check with relevant legal authorities if in doubt about a particular item or document.

The following are examples of documents which may not be copied:

 Money  Bonds or other certificates of indebtedness  Certificates of Deposit  Armed Forces Service or Draft papers.  Passports  Postage Stamps (cancelled or uncancelled)  Immigration Papers  Welfare documents  Cheques or Drafts drawn by Governmental Agencies  Identification Documents, badges or insignias  Licences and Certificates of Title to motor vehicles

Copyrighted works cannot be copied. Sections of a copyrighted work can be copied for ‘fair dealing’. Multiple copies would indicate improper use.

Works of art should be considered the equivalent of copyrighted works. Licenses and Certificates of Title to motor vehicles may not be copied under certain

state/provincial laws.

Chapter A

Trademarks A

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. © 2006 Brother Industries, Ltd. All rights reserved. Windows and Microsoft are registered trademarks of Microsoft in the U.S. and other countries. Macintosh and TrueType are registered trademarks of Apple Computer, Inc. PaperPort is a registered trademark of ScanSoft, Inc. Presto! PageManager is a registered trademark of NewSoft Technology Corporation. Microdrive is a trademark of International Business Machine Corporation. CompactFlash is a registered trademark of SanDisk Corporation. Memory Stick is a registered trademark of Sony Corporation. SecureDigital is a trademark of Matsushita Electric Industrial Co. Ltd., SanDisk Corporation and

Toshiba Corporation. SanDisk is a licensee of the SD and miniSD trademarks. MultiMediaCard is a trademark of Infineon Technologies and licensed to the MultiMediaCard

Association. xD-Picture Card is a trademark of Fujifilm Co. Ltd., Toshiba Corporation and Olympus Optical Co.

Ltd. PictBridge is a trademark. Memory Stick Pro, Memory Stick Pro Duo, Memory Stick Duo and MagicGate are trademarks of

Sony Corporation. Each company whose software title is mentioned in this manual has a Software License

Agreement specific to its proprietary programs.

All other brand and product names mentioned in this User's Guide and the Software User's Guide are registered trademarks of their respective companies.

Troubleshooting and Routine

Maintenance

Troubleshooting B

If you think there is a problem with your machine, check the chart below and follow the troubleshooting tips.

Most problems can be easily resolved by yourself. If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips. Visit us at http://solutions.brother.com

If you are having difficulty with your machine B

Printing

Difficulty Suggestions

No printout Check the interface cable or connection on both the machine and your computer.

Poor print quality Check the print quality. (See Checking the print quality on page 106.)

White h orizontal lin es appear in text or graphics.

The machine prints blank pages. Clean the print head. (See Cleaning the print head on page 105.) Characters and lines are stacked. Check the printing alignment. (See Checking the printing alignment on page 107.)

(See the Quick Setup Guide.) Make sure the machine is plugged in and not in Power Save mode. One or more ink cartridges are empty. (See Replacing the ink cartridges on

page 101.) Check to see if the LCD is showing an error message. (See Error messages on

page 94.) Check that the correct printer driver has been installed and chosen. Make sure the machine is online. Click Start and then Printers and Faxes. Right-

click and choose make sure that

Make sure that the Printer Driver or Paper Type setting in the menu matches the type of paper you are using. (See Printing for Windows Macintosh

page 17.) Make sure that your ink cartridges are fresh. The following may cause ink to clog:

 The expiration date written on the cartridge package has passed. (Cartridges

stay usable for up to two years if kept in their original packaging.)

 The ink cartridge was in your machine over six months.

 The ink cartridge may not have been stored properly before use.

Try using the recommended types of paper. (See Acceptable paper and other media on page 8.)

The recommended environment for your machine is between 20° C to 33° C (68° F to 91° F).

Clean the print head. (See Cleaning the print head on page 105.) Try using the recommended types of paper. (See Acceptable paper and other

media on page 8.)

‘Brother MFC-XXXX’ (where XXXX is your model name), and

‘Use Printer Offline’ is unchecked.

in the Software User's Guide on the CD-ROM and Paper Type on

or Printing and Faxing for

Printing (Continued)

Difficulty Suggestions

Printed text or images are skewed. Make sure the paper is loaded properly in the paper tray and the paper side guide

is adjusted correctly. (See Loading paper and other media on page 12.) Make sure the Jam Clear Cover is set properly.

Smudged stain at the top centre of the printed page.

Printing appears dirty or ink seems to run.

Stains appear on the reverse side or at the bottom of the page.

The machine prints dense lines on the page.

The printouts are wrinkled. In the printer driver Basic tab, click the Settings, and uncheck the Bi-Directional

Cannot perform ‘2 in 1 or 4 in 1’ printing.

Print speed is too slow. Try changing the printer driver setting. The highest resolution needs longer data

Machine feeds multiple pages Make sure the paper is loaded properly in the paper tray. (See Loading paper and

Colour Enhancement is not working properly.

Printed pages are not stacked neatly.

Printed pages double feed and cause a paper jam.

Machine does not print from Paint Brush.

Machine does not print from Adobe Illustrator.

The machine ca nnot print full pages of a document.

Out of memory message occurs.

Make sure the paper is not too thick or curled. (See Acceptable paper and other media on page 8.)

Make sure you are using the recommended types of paper. (See Accept able paper and other media on page 8.) Don't handle the paper until the ink is dry.

Make sure the printer platen is not dirty with ink. (See Cleaning the machine printer platen on page 104.)

Make sure you are using the paper support flap. (See Loading paper and other media on page 12.)

Check Reverse Order in the Basic tab of the printer driver.

Printing. Check that the paper size setting in the application and in the printer driver are the

same.

processing, sending and printing time. Try the other quality settings in the printer driver Basic tab. Also, click the Settings tab, and make sure you uncheck Colour Enhancement.

Turn the borderless feature off. Borderless printing is slower than normal printing. (See Printing for Windows

or Printing and Faxing for Macintosh® in the Software

User's Guide on the CD-ROM.)

other media on page 12.) Check that more than two types of paper are not loaded in the paper tray at any

one time. If the image data is not full colour in your application (such as 256 colour), Colour

Enhancement will not work. Use at least 24 bit colour data with the Colour Enhancement feature.

Make sure you are using the paper support flap. (See Loading paper and other media on page 12.)

Make sure you pull out the paper support until it clicks.

Try setting the Display setting to ‘256 colours.’

Try to reduce the print resolution. (See Printing for Windows

Faxing for Macintosh

in the Software User's Guide on the CD-ROM.)

Reduce the printing resolution. (See Printing for Windows

for Macintosh

in the Software User's Guide on the CD-ROM.)

or Printing and

or Printing and Faxing

Reduce the complexity of your document and try again. Reduce the graphic quality or the number of font sizes within your application software.

Toastmaster MFC-240C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
