SpeedTouch™

570/570i Wireless ADSL Routers Setup and User’s Guide

500 SERIES

SpeedTouch™ 570

Setup and User’s Guide

3EC 17766 BAAA TCZZA Ed. 01

Status Released

Change Note PeckelbeenS

Short Title CD-UG ST570 R2.0

3EC 17766 BAAA TCZZA Ed. 01

Copyright

© 2002 THOMSON multimedia. All rights reserved. Passing on, and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON multimedia. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON multimedia. THOMSON multimedia assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

Contents

1 SpeedTouch™570 Installation ...................................... 7

1.1 Getting Acquainted with the SpeedTouch™570.............................................. 8

1.2 Preparing the SpeedTouch™570 ..................................................................... 10

1.3 Wireless Connectivity ....................................................................................... 13

1.3.1 First-time Wireless Client Connectivity ................................................................................... 15

1.3.2 Connecting other Wireless Clients ...........................................................................................16

1.4 SpeedTouch™570 Configuration Setup .......................................................... 18

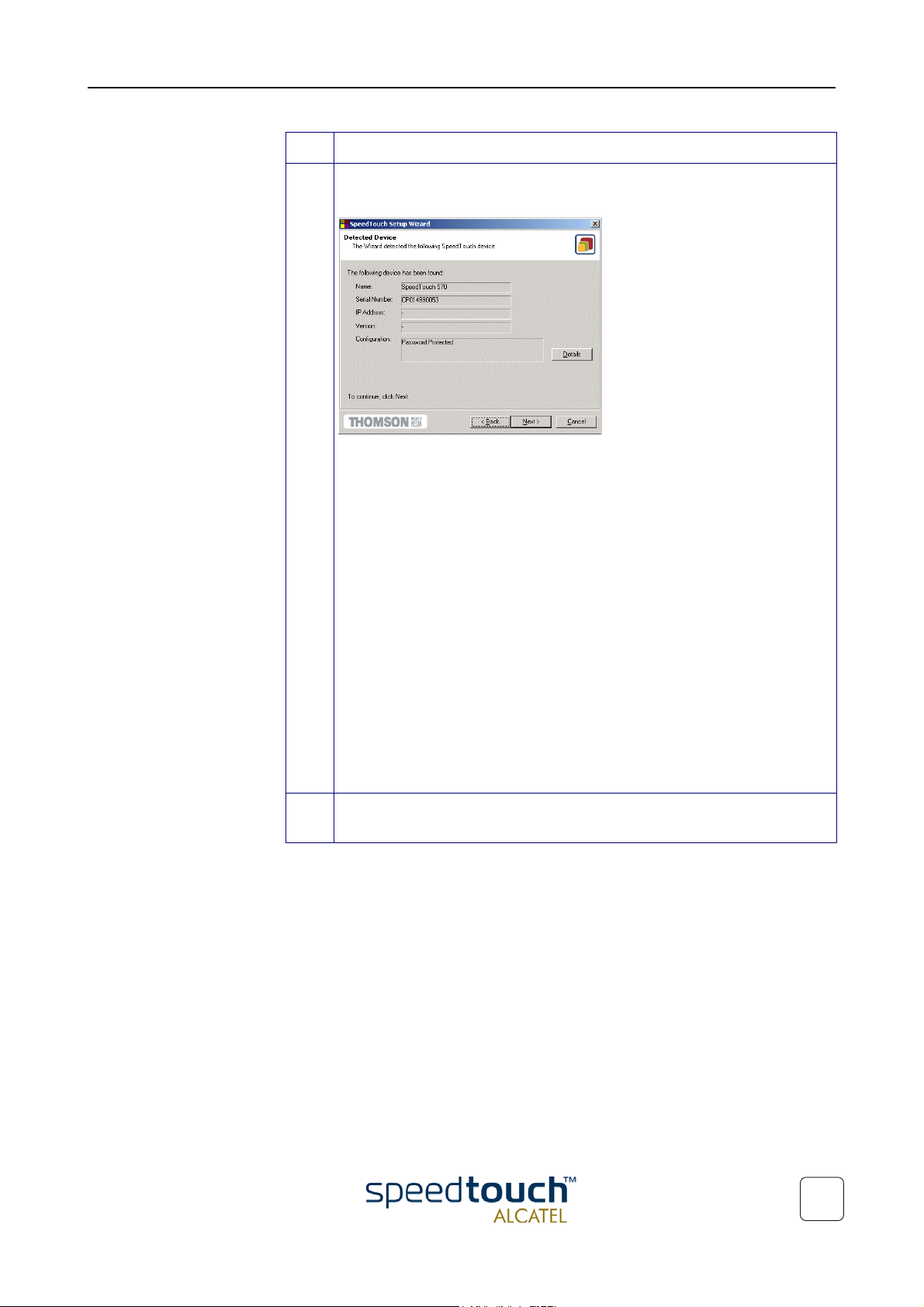

1.4.1 Configuration Setup for MS Windows OSs ............................................................................. 19

1.4.2 Configuration Setup for other OSs............................................................................................24

1.5 SpeedTouch™570 Internet Connectivity........................................................ 26

2 SpeedTouch™570 Web Interface .............................. 29

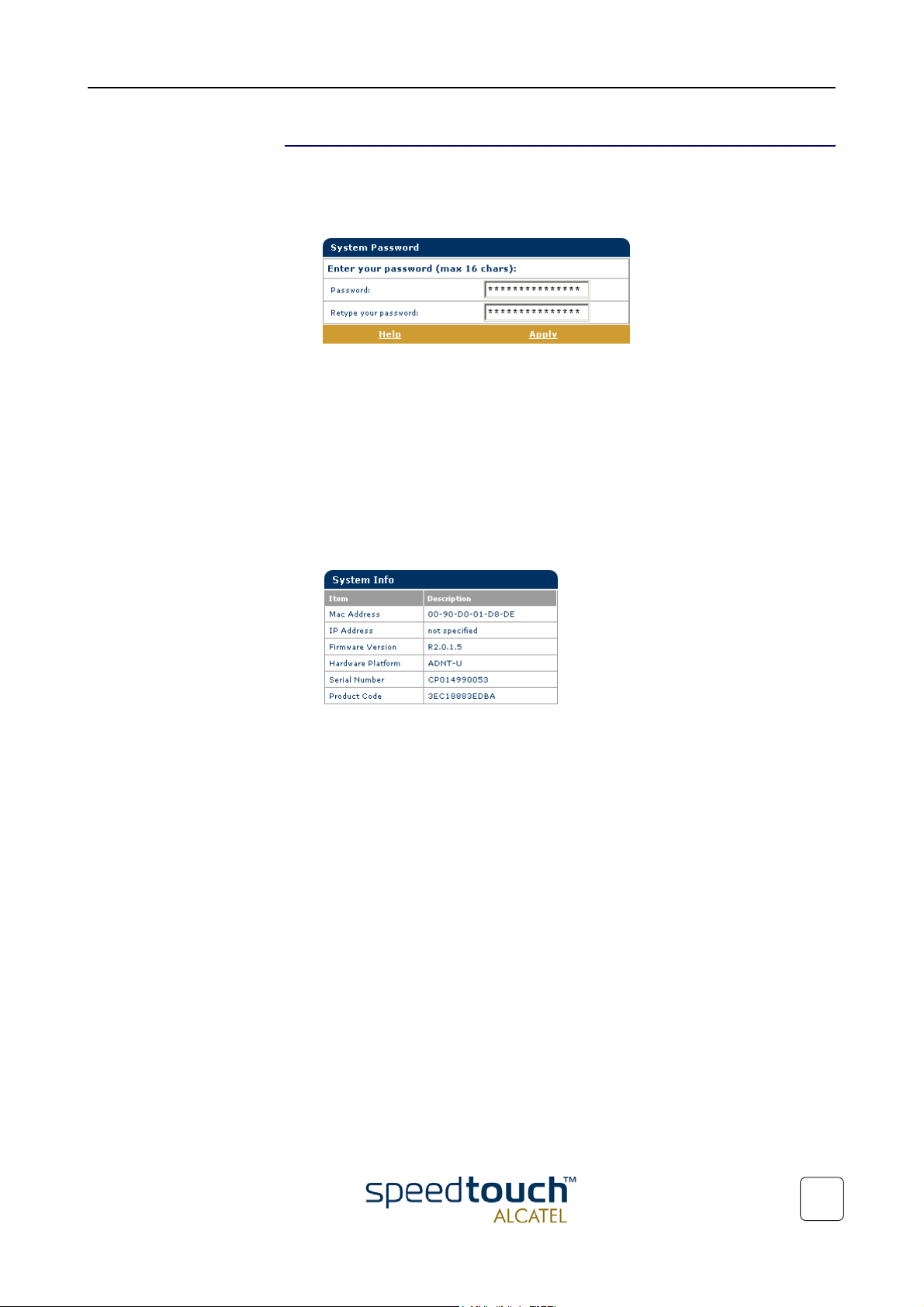

2.1 System Tasks ...................................................................................................... 32

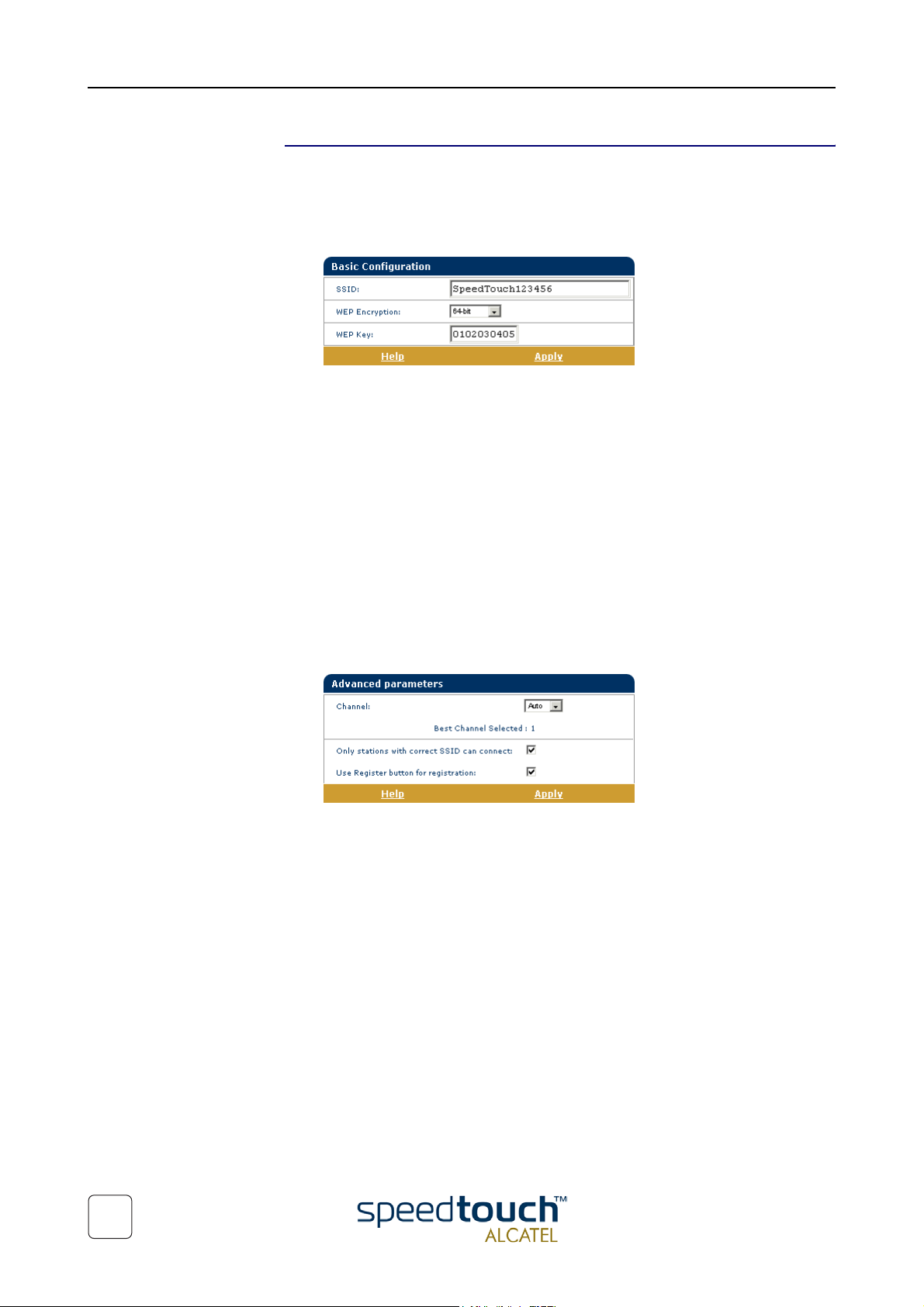

2.2 Other Places Tasks ............................................................................................ 36

3 Troubleshooting and Specifications ........................... 43

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

Introduction Thank you for purchasing the SpeedTouch™570 Wireless ADSL router!

With the SpeedTouch™570 two cutting-edge technologies are combined: ADSL and the Wireless LAN (WLAN). With this answer to the increasing popularity of both technologies, users can connect to your (Wireless) network and surf the Internet at high speed without the need for any expensive wiring installation.

In this Setup and User's

Guide

Terminology For readability, both the SpeedTouch™570 and SpeedTouch™570i will be referred to as

Quick installation and

Safety instructions

Documentation and

software updates

This Setup and User's Guide will assist you in getting acquainted with the SpeedTouch™570 and quickly connecting wired and wireless users to the Internet.

SpeedTouch™570 in this Setup and User's Guide.

Prior to connecting the SpeedTouch™570 , read the SpeedTouch™ Quick Installation Guide and Safety instructions.

Due to the continuous evolution of DSL technology, existing products are regularly upgraded.

For more information on the newest technological breakthroughs, software upgrades and documents, please consult the SpeedTouch™ web sites at:

• http://www.speedtouch.com

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

1.1 Getting Acquainted with the SpeedTouch™570

Introducing the

SpeedTouch™

The SpeedTouch™570 You SpeedTouch™ is presented in a slim line box:

SpeedTouch™ LEDs The SpeedTouch™570 is equipped with 5 LEDs on its front panel, indicating the state of

Prior to proceeding, please make sure to read first the SpeedTouch™ Quick Installation Guide . It provides important package content and safety information.

Check whether all items are present in your package.

In the event of damaged or missing items, please contact your local product dealer for more information.

the device during operation:

Indicator Description

Name Color State

LAN Green Flashing Wireless LAN traffic activity

Off No Wireless LAN activity

Line TX Green Flashing Cell transmission on DSL line

Off No transmission activity

Line RX Green Flashing Cell reception from DSL line

Off No reception activity

Line Sync Green Flashing Initialization of DSL line

On DSL line synchronized

PWR/Alarm Green On Power on, normal operation

Amber Flashing WLAN client registration

3EC 17766 BAAA TCZZA Ed. 01

SpeedTouch™570 back

panel layout

1 SpeedTouch™570 Installation

B FEC DA

A Power button D Defaults button

B Power inlet E WLAN Registration button

C 10/100Base-T Ethernet port F DSL line port

Ethernet port LED

functionality

The Ethernet port on the rear panel has two LEDs:

Indicator Description

Name LED

Status

A 10/100Base-T Off 10Base-T Ethernet connection.

Solid 100Base-T Ethernet connection.

BIntegrity

Off No connection on this port.

Activity

Solid Ethernet link up.

Flashing Data is flowing from/to this port.

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

1.2 Preparing the SpeedTouch™570

Wall fixing assembly Part of the package is a wall mounting assembly which allows you to conveniently mount

the SpeedTouch™570 on a wall.

Before you start, check for the following items:

• The wall fixing assembly

• 2 screws and 2 wall plugs

• 1 Velcro sticker.

To prepare the wall fixing assembly and the SpeedTouch™570 , proceed as follows:

Step Action

1 Mark two hole horizontal positions, 134 mm (5.36 inches) apart:

2 Drill the marked holes with a 6mm (0.24 inches) diameter drill bit to a

minimum depth of 35mm (1.38 inches).

3 Insert the wall plugs in the drilled holes, position the wall fixing assembly over

the holes, insert the screws in the wall plugs and tighten them firmly:

4 Place the Velcro sticker on the wall fixing assembly in the marked area.

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

Step Action

5 Position the SpeedTouch™570 over the two hooks and slide the box down

into place so that it is attached to the Velcro:

Two variants Two ADSL variants of the SpeedTouch™570 Wireless ADSL Routers exist:

• The SpeedTouch™570 :

The ADSL/POTS variant connecting to an analog POTS(*) line

• The SpeedTouch™570 i :

The ADSL/ISDN variant connecting to a digital ISDN(**) line.

You can identify your variant by checking the identification label located on the bottom of your SpeedTouch™570 .

Use only the SpeedTouch™570 variant which is appropriate for the DSL service delivered to your premises. Check with your Service Provider to determine whether your SpeedTouch™570 is adapted to ADSL service requirements.

(*) Plain Old Telephone Service (POTS)

(**) Integrated Services Digital Network (ISDN)

ADSL service The appropriate DSL service must be available your premises.

• ADSL service must be enabled on your telephone line

• As both telephone and ADSL service are simultaneously available from the same

copper pair, you will need a central splitter or distributed filters for de coupling ADSL and telephone signals.

Always contact your Service Provider when installing splitter/filters!

Public telephone lines carry voltages that can cause electric shock. Only install splitter/ filters yourself if these are qualified for that purpose. Other splitter/filters may only be installed by qualified service personnel.

Connect the ADSL line The DSL port on the SpeedTouch™570 is marked “Line”.

Use the DSL cable provided to wire the SpeedTouch™570 DSL port to your telephone wall outlet.

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

Connect the power

supply

Always check first whether the power supply adapter provided is suitable for the local power specifications. Contact your Service Provider in case of any doubt.

The power inlet on the SpeedTouch™570 is marked “DC”.

Plug the adapter's coaxial jack into the SpeedTouch™570's power inlet.

Turn on t h e

SpeedTouch™570

Once all previous steps are completed, you can turn the SpeedTouch™570 on (I) with the power switch.

The SpeedTouch™570 is ready for service as soon as the start-up procedures are completed, the Power On Self Test (POST) is passed and both Power/Alarm and Line Sync LEDs on the front panel are constantly lit green.

For troubleshooting startup failures, see chapter “3 Troubleshooting and Specifications”

on page 43.

Local networking setup The SpeedTouch™570 offers two local networking solutions:

• Wireless Ethernet

The SpeedTouch™570 Wireless Ethernet allows multiple PCs to connect to your local network. To be able to connect the PCs, you must install a Wireless Ethernet client adapter (WLAN client) on each PC you want to connect via the Wireless Ethernet. For more information on how to proceed for associating and registering WLAN clients, see “1.3 Wireless Connectivity” on page 13.

• Wired Ethernet

The SpeedTouch™570's Ethernet port on the back panel allows you to connect the SpeedTouch™570 to an existing 10 or 100Base-T Ethernet network or a single computer with installed Ethernet card.

Internet connection

setup

• To connect the SpeedTouch™570 to a single computer, you can simply use

the included straight-through Ethernet cable to connect both Ethernet ports.

• For building a wired Ethernet network of multiple PCs, you must connect

the SpeedTouch™570 to a hub or a switch.

Note If a hub or switch is used for wired Ethernet networking, please follow the

installation instructions supplied with the hub for connections and Ethernet cabling.

To continue with preparing the SpeedTouch™570 for Internet connectivity, see

“1.4 SpeedTouch™570 Configuration Setup” on page 18.

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

1.3 Wireless Connectivity

Introduction The SpeedTouch™570 features a Wireless LAN Access Point which behaves as a hub

and allows wireless connectivity between several devices and the local (W)LAN and via the SpeedTouch™570 DSL router - to the public network, e.g. the Internet.

WLAN technology enables these devices to communicate with each other in a locally mobile fashion, without the need for a wired environment.

Wireless basics The WLAN's 'radio' link is a shared medium. As no physical connection exists between

the SpeedTouch™570 and wireless clients, a name must be given to allow unique identification of your WLAN radio link. This is done by the Service Set ID (SSID). Wireless clients must be part of this SSID environment in order to be able to communicate with other clients on the (W)LAN - including the SpeedTouch™570 .

The IEEE802.11b standard for WLANs allows several WLAN networks using different radio channels to be co-located. Several channels are available for use which are associated to a slightly different frequency in the allowed range. The SpeedTouch™570 supports operation on all allowed channels and is able to select the best radio channel at each start-up.

Wireless security Since the SpeedTouch™570 (W)LAN environment is a radio environment, precautions

must be taken to ensure that your wireless network is safe from malicious intruders. In addition to providing the possibility of giving a personalized SSID name to the wireless network, the SpeedTouch™570 features a physical registration mechanism, an Access Control List (ACL) and enhanced Wired Equivalent Privacy (WEP) 64- or 128-bits encryption to secure your network and to control wireless client access.

Wireless client

requirements

Recommended Wireless client

adapters

Only WLAN client adapters compliant to IEEE802.11b DSSS, will be able to communicate with the SpeedTouch™570 , and with the other members of the SpeedTouch™570 (W)LAN environment.

It is advisable that the WLAN client adapter is Wireless Ethernet Compatibility Alliance (WECA) Wi-Fi™ (*) certified to ensure smooth interoperability.

To use SpeedTouch™570 's encryption security features, the WLAN client adapters should at least support 64-bit WEP encryption.

(*) Wireless-Fidelity (Wi-Fi)

Only WLAN client adapters compliant to IEEE802.11b DSSS, will be able to communi-

cate with the SpeedTouch™570, hence with other members of the SpeedTouch™570 Wireless LAN environment.

It is advisable that the WLAN client adapter is Wireless Ethernet Compatibility Alliance (WECA) Wi-Fi certified to ensure smooth interoperability.

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

Default configuration When the SpeedTouch™570 leaves the factory and after every Push-to-Defaults, the

SpeedTouch™570 wireless configuration returns to its initial default settings.

These settings are as follows:

• The default SSID is printed on the identification label located on the bottom of

your SpeedTouch™570: This unique SSID consists of the word “SpeedTouch” followed by the 6 last characters of the SpeedTouch™570 WLAN access point MAC address, without any spaces.

• By default SpeedTouch™570 automatically selects the best DSSS radio channel

number at each start-up.

• The 'Registration' button is activated by default.

• Access Control List is empty and locked by default.

• WEP encryption is disabled by default.

3EC 17766 BAAA TCZZA Ed. 01

1 SpeedTouch™570 Installation

1.3.1 First-time Wireless Client Connectivity

Initial SpeedTouch™570

wireless configuration

Preconditions for a

successful first-time

WLAN client

registration

When the SpeedTouch™570 leaves the factory and after every Push-to-Defaults, the SpeedTouch™570 wireless configuration returns to its initial default settings.

These settings are as follows:

• The SSID is as printed on the identification label located on the bottom of your

SpeedTouch™570 .

• The DSSS radio channel number is set to “automatic”.

• The 'Registration' button is activated.

• The Access Control List is empty and locked.

• WEP encryption is disabled.

Make sure that:

• The SpeedTouch™570 is powered on and ready for service.

• The SpeedTouch™570 is in its default configuration.

If needed, perform a push-to-defaults via its default button.

• The WLAN client adapter is installed on your computer.

By default the WLAN client adapter’s IP configuration is set to dynamically obtain its IP configuration (DHCP).

• The WLAN client is correctly configured for the default SpeedTouch™570 SSID,

hence associated to the SpeedTouch™570 WLAN. Depending on your WLAN client a wireless icon may become green or a message similar to the following may pop up: “Successfully joined Wireless network SpeedTouch012345".

Note Some WLAN clients do not automatically join a WLAN. If so, follow the

instructions for the WLAN client software to initiate the association.

Registering the first

WLAN client

3EC 17766 BAAA TCZZA Ed. 01

Proceed as follows:

Step Action

1 Make sure that all preconditions mentioned above are met.

2 Push the red Registration button on the SpeedTouch™570 back panel.

3 Make sure the WLAN client is correctly associated again to the Speed-

Touch™570 WLAN. Depending on your WLAN client adapter a wireless icon may become green or a message similar to the following may pop up: “Successfully joined Wireless network SpeedTouch012345".

Note Some WLAN clients do not automatically join a WLAN. If so,

follow the instructions for the WLAN client software to initiate the association.

4 As a result the WLAN client is associated to the default SpeedTouch™570

Wireless environment and registered to the Access Control List.
