Thomson DCW775, DCW775EU User Manual

CABLE

DCW775 - Wireless Gateway

User manual

SATELLITE

TELECOM

TERRES TRIAL

Chapter 1: Connections and Setup

CAUTION

Disconnect power before

servicing.

CAUTION

To ensure reliable operation and to prevent

overheating, provide adequate ventilation for this

modem and keep it away from heat sources. Do

not locate near heat registers or other

heat-producing equipment. Provide for free air

flow around the Wireless Gateway and its power

supply.

This symbol means that your inoperative electronic appliance must be collected separately and

not mixed with the household waste. The European Union has implemented a specific collection

and recycling system for which producers are responsible.

This appliance has been designed and manufactured with high quality materials and components

that can be recycled and reused. Electrical and electronic appliances are liable to contain parts

that are necessary in order for the system to work properly but which can become a health and

environmental hazard if they are not handled or disposed of in the proper way. Consequently,

please do not throw out your inoperative appliance with the household waste.

If you are the owner of the appliance, you must deposit it at the appropriate local collection point

or leave it with the vendor when buying a new appliance.

- If you are a professional user, please follow your supplier's instructions.

- If the appliance is rented to you or left in your care, please contact your service provider.

Help us protect the environment in which we live !

NORTH AMERICAN CABLE INSTALLER:

This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Illustrations contained in this document are for representation only.

Important Information

DOCSIS compliant

This product was designed according to Data over Cable Service Interface Specifications.

Operating Information

Operating Temperature: 0˚ C to 40˚ C (32˚ F ~ 104˚ F) Storage Temperature: -20˚ C to 70˚ C (-4˚ F ~ 158˚ F)

If you purchased this product at a retail outlet, please read the following:

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the product.

Model No. ____________________________Serial No ________________________________

Purchase Date: ________________________Dealer/Address/Phone: _________________________

Illustrations contained in this document are for representation only.

List of Figures

iii

Chapter 1: Connections and Setup ...................................................................................................................... 2

Introduction ................................................................ ......................................................................................... 2

Wireless Gateway Features .......................................................................................................................... 2

What’s on the CD-ROM .............................................................................................................................. 2

DOCSIS is trademarks of Cable Television Laboratories, Inc. .................................................................. 3

Computer Requirements.............................................................................................................................. 3

Wall Mounting ............................................................................................................................................. 4

Wireless Gateway DCW775 Overview ................................................................................................................ 5

Front Panel ................................................................................................................................................... 5

Rear Panel .................................................................................................................................................... 7

Side Panel ..................................................................................................................................................... 7

Relationship among the Devices .......................................................................................................................... 8

What the Modem Does ................................................................................................................................ . 8

What the Modem Needs to Do Its Job ......................................................................................................... 8

Contact Your Local Cable Company .......................................................................................................... 8

Connecting the Wireless Gateway to a Single Computer ................................................................................. 10

Attaching the Cable TV Wire to the Wireless Gateway ........................................................................... 10

Important Connection Information ........................................................................................................... 11

Ethernet Connection to a Computer ......................................................................................................... 11

Connecting More Than One Computer to the Wireless Gateway ............................................................ 12

Turning on the Wireless Gateway ..................................................................................................................... 13

Chapter 2: WEB Configuration ........................................................................................................................ 14

Accessing the Web Configuration ..................................................................................................................... 14

Outline of Web Manager ........................................................................................................................... 15

Status ................................................................................................ .................................................................. 16

1. Software .................................................................................................................................................. 16

Illustrations contained in this document are for representation only.

List of Figures

2. Connection .............................................................................................................................................. 17

3. Password ................................................................................................................................................. 18

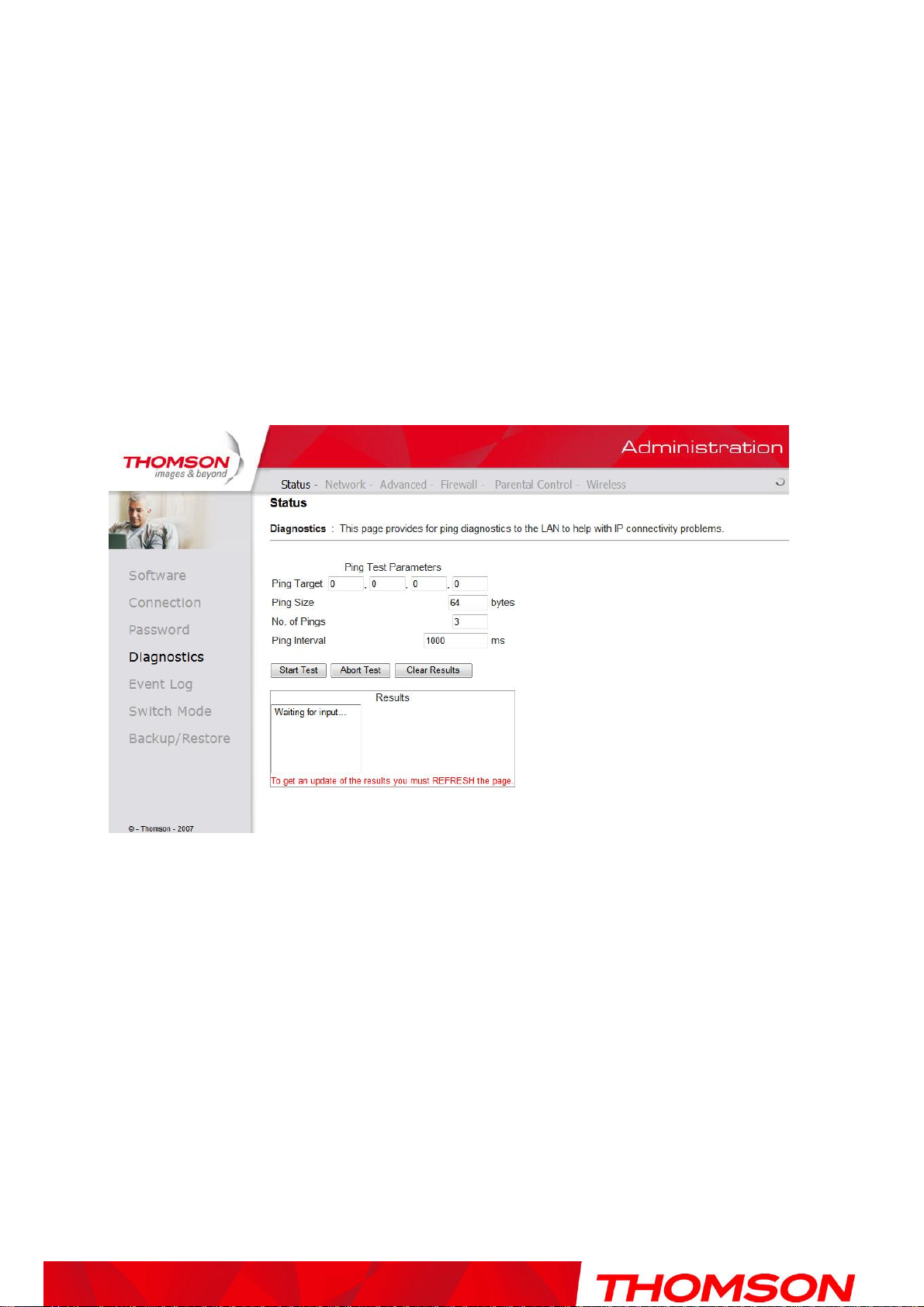

4. Diagnostics .............................................................................................................................................. 19

5. Event Log ............................................................................................................................................... 20

6. Switch Mode ........................................................................................................................................... 20

7. Backup/Restore ................................................................................................................................ 21

Network.............................................................................................................................................................. 22

1. LAN ........................................................................................................................................................ 22

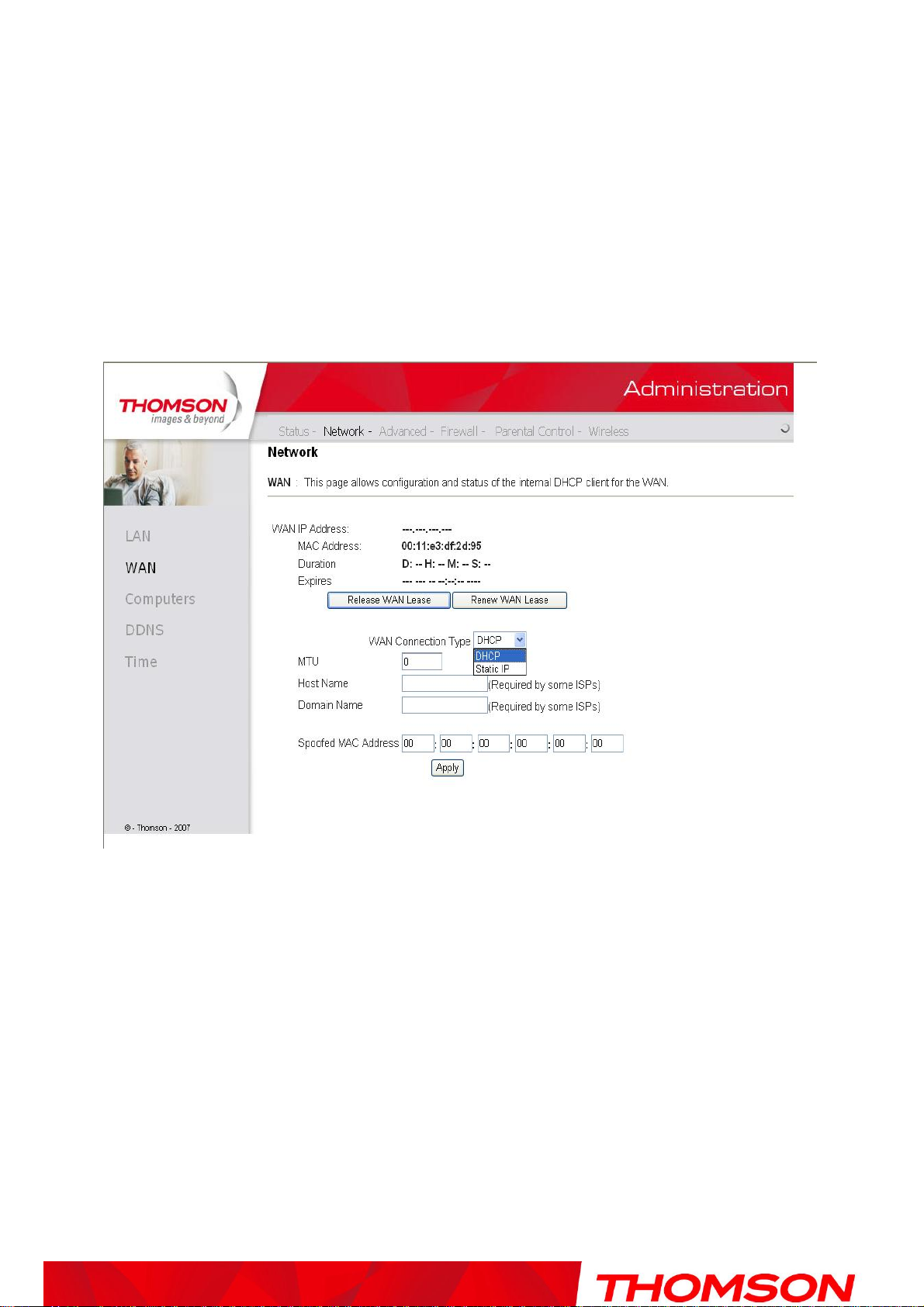

2. WAN ....................................................................................................................................................... 23

3. Computers .............................................................................................................................................. 24

4. DDNS .................................................................................................................................................... 25

5. Time ...................................................................................................................................................... 26

Advanced ........................................................................................................................................................... 27

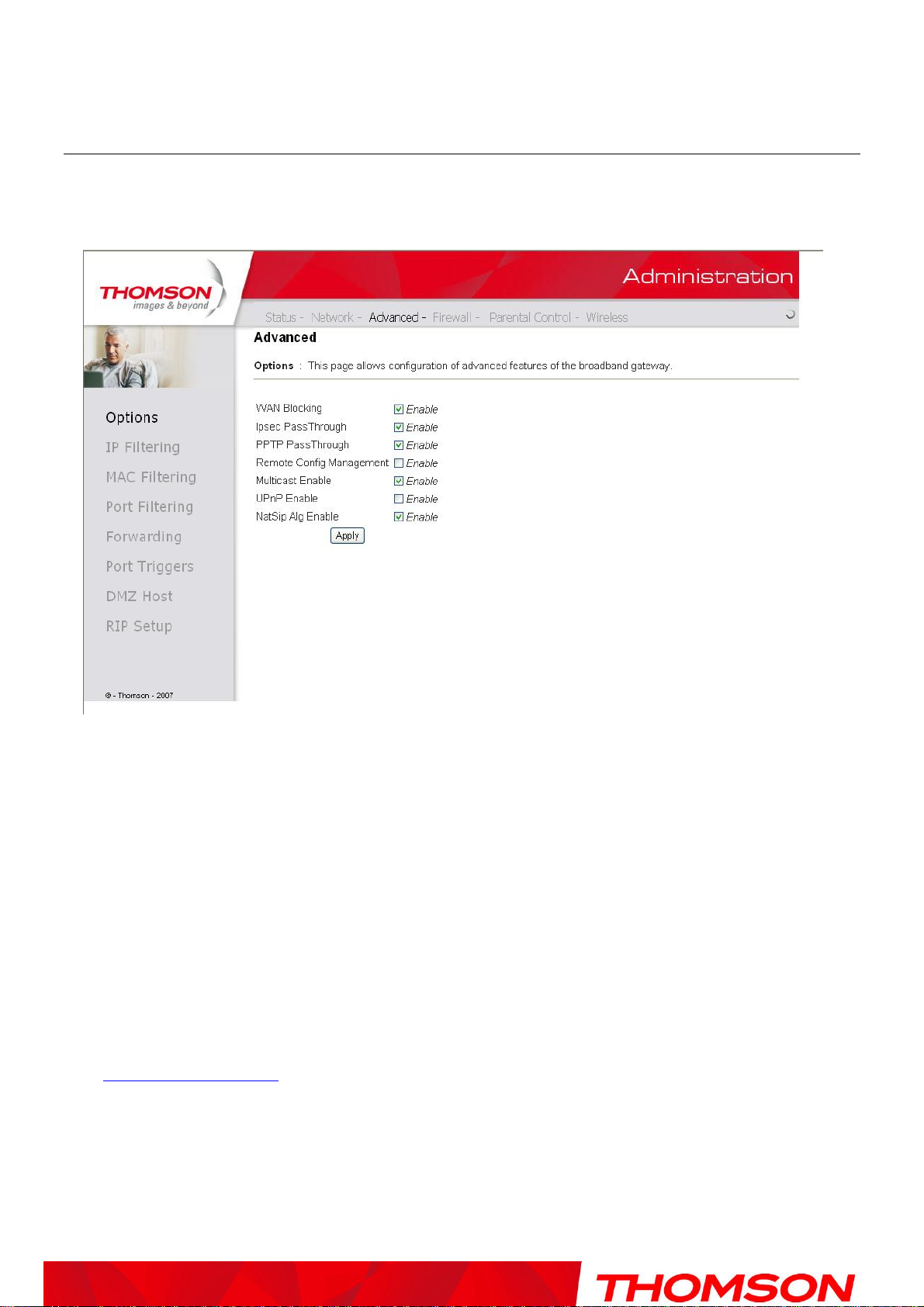

1. Options ................................................................................................................................................... 27

2. IP Filtering ............................................................................................................................................. 28

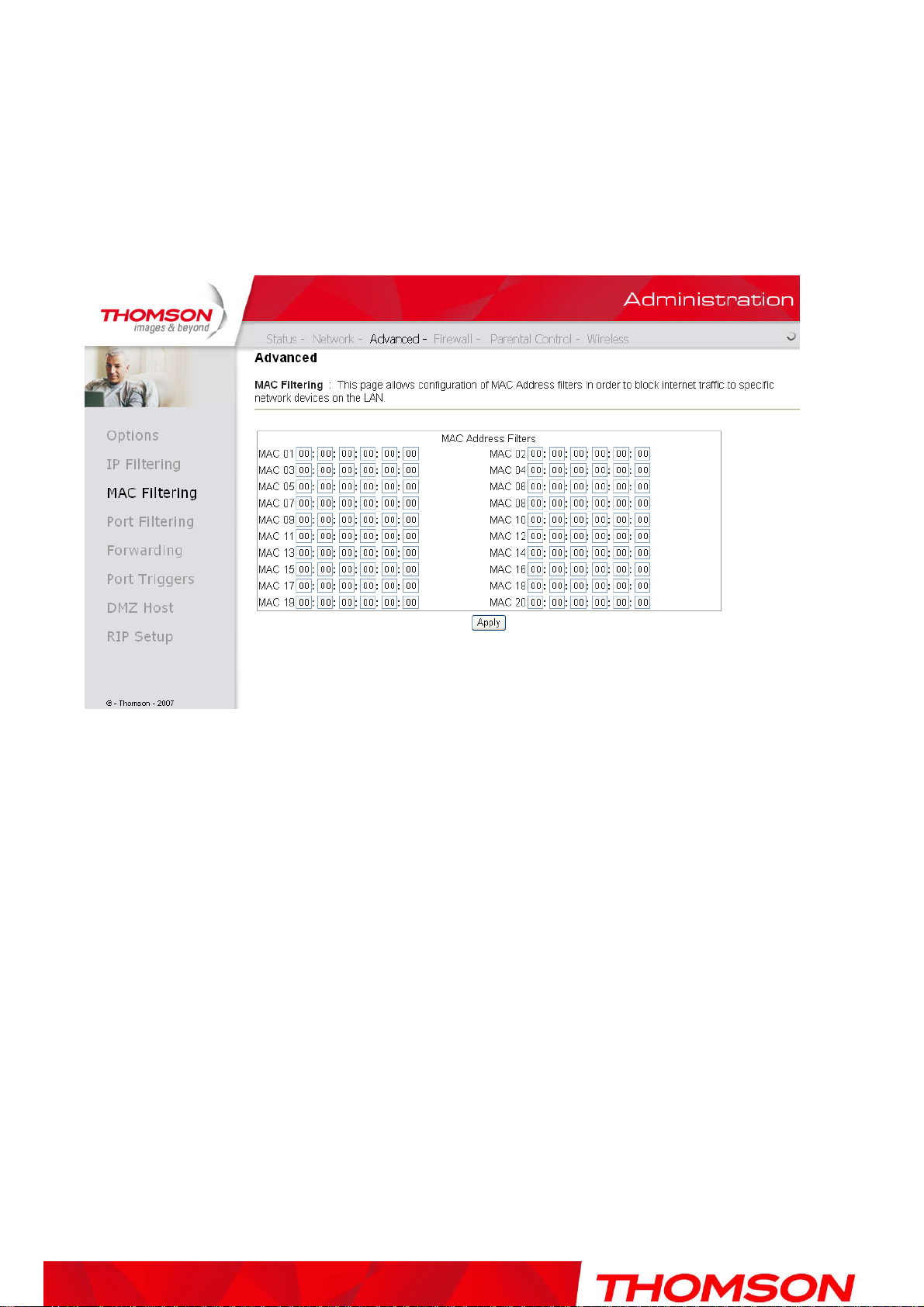

3. MAC Filtering ........................................................................................................................................ 29

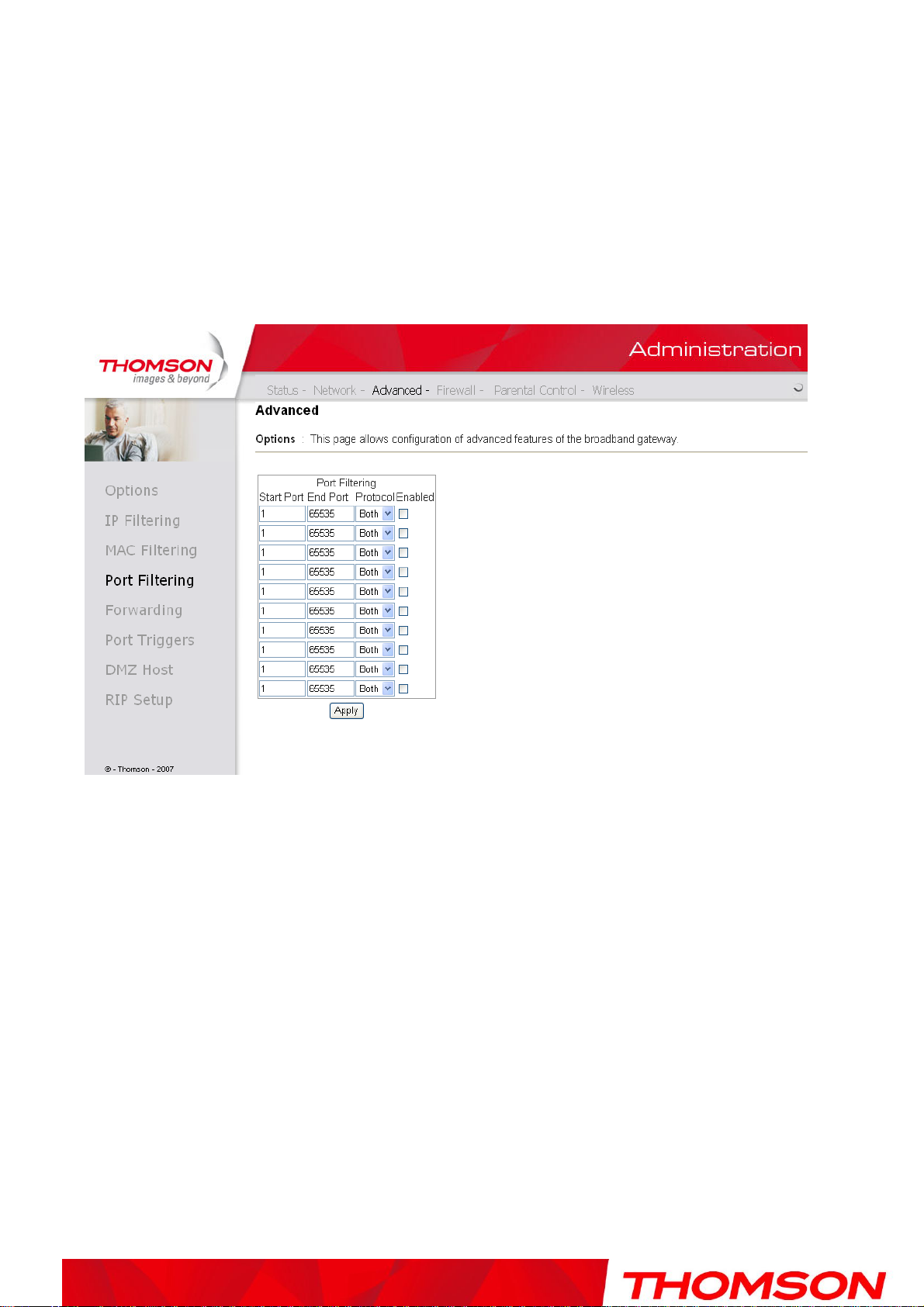

4. Port Filtering .......................................................................................................................................... 30

5. Forwarding ............................................................................................................................................. 31

6. Port Triggers .......................................................................................................................................... 32

7. DMZ Host ............................................................................................................................................ 33

8. RIP (Routing Information Protocol) Setup ........................................................................................... 34

Firewall ................................ .............................................................................................................................. 35

1. Web Filtering.......................................................................................................................................... 35

2. TOD Filtering ......................................................................................................................................... 36

3. Local Log and Remote Log .................................................................................................................... 37

Parental Control ................................................................................................................................................ 38

Illustrations contained in this document are for representation only.

List of Figures

1. Basic ........................................................................................................................................................ 38

Wireless .............................................................................................................................................................. 39

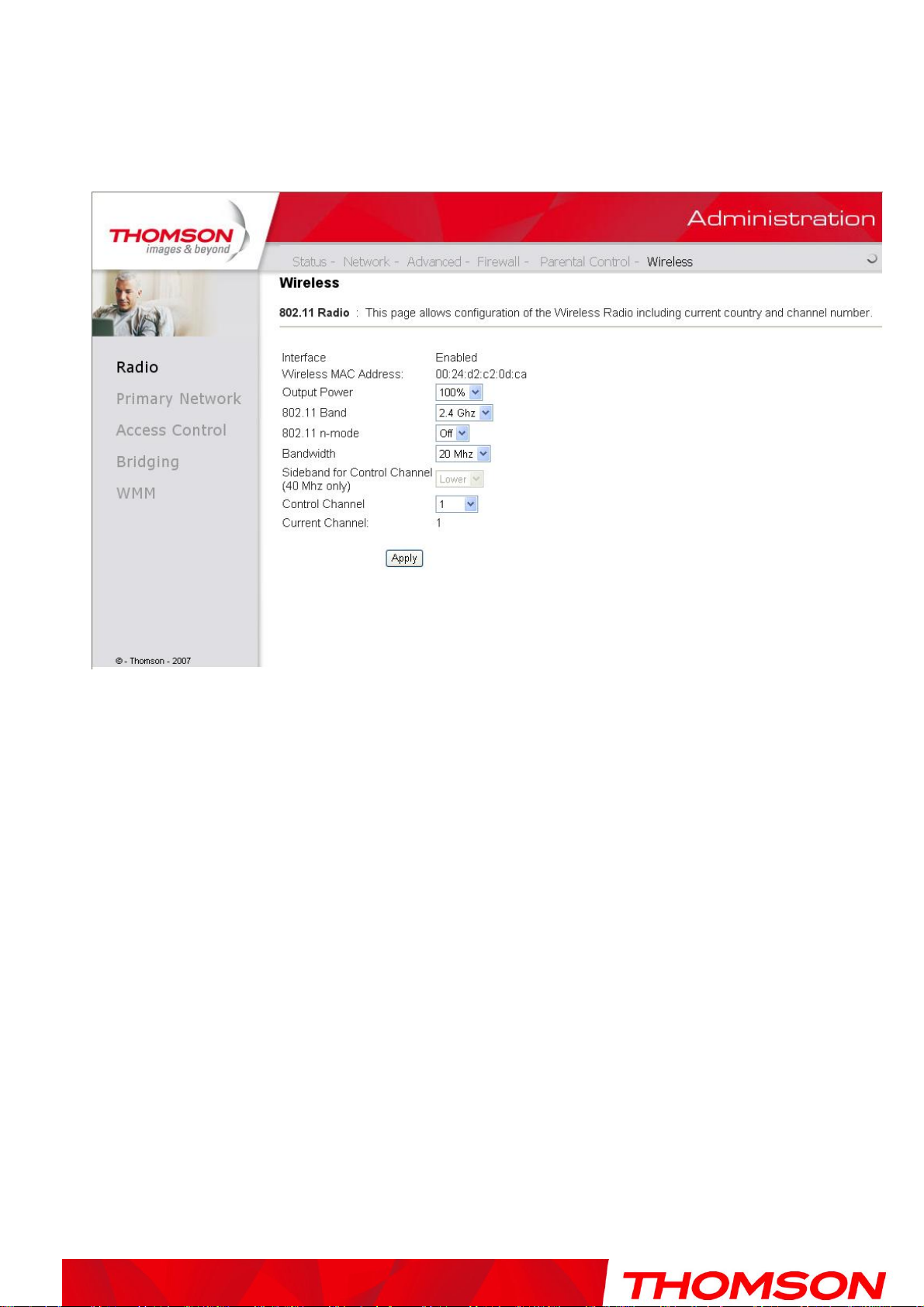

1. 802.11/ Radio .......................................................................................................................................... 40

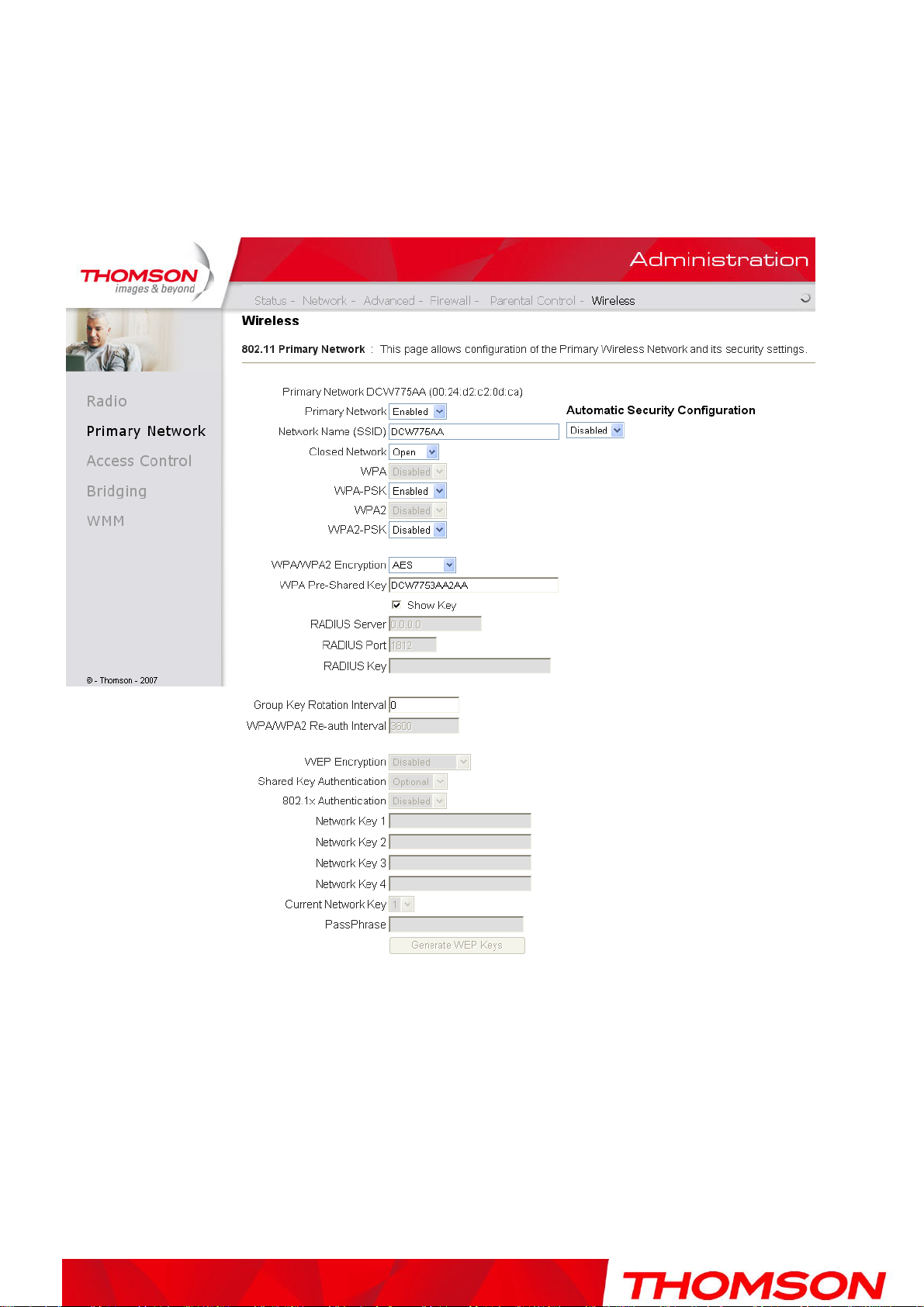

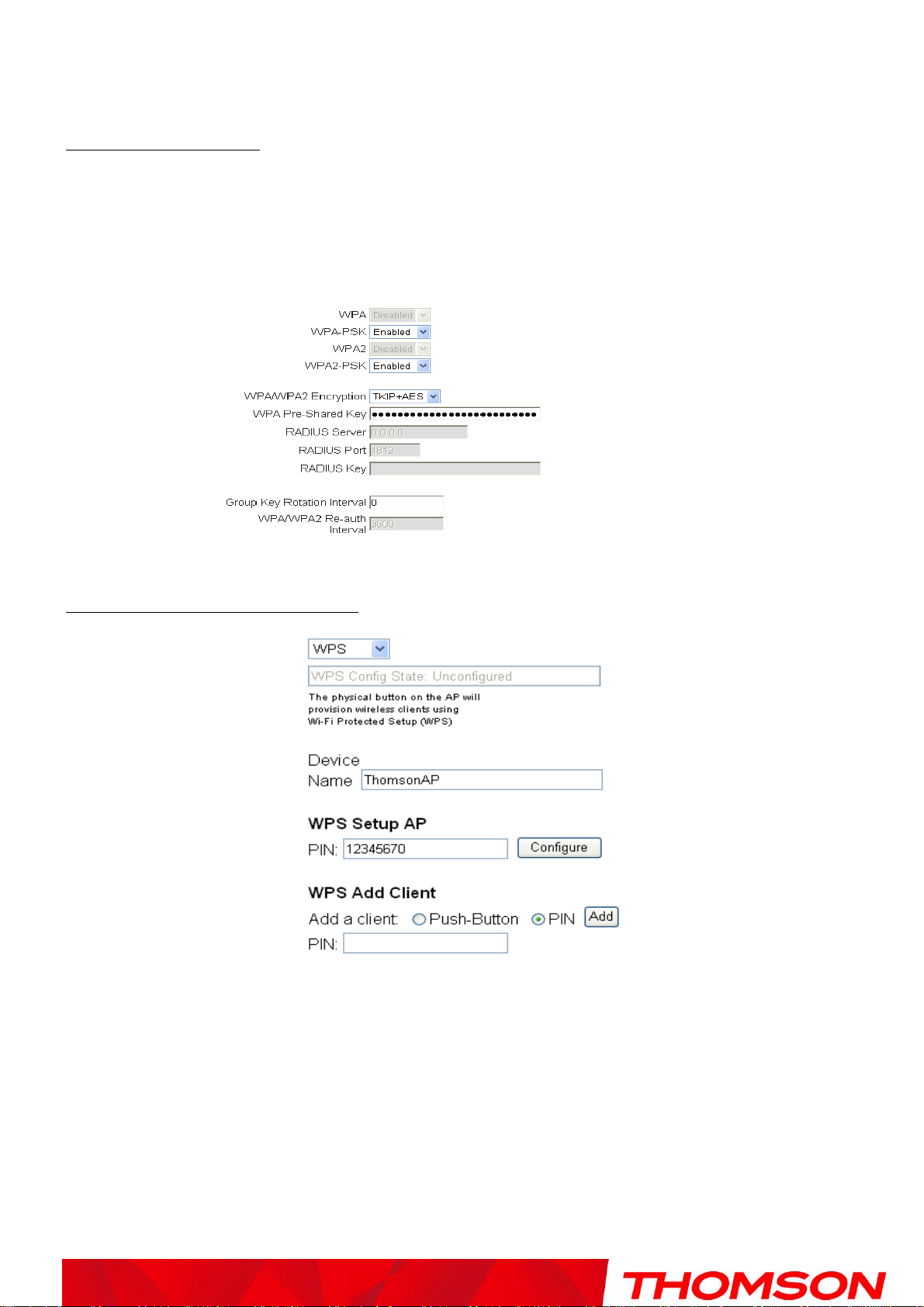

2. 802.11/ Primary Network ....................................................................................................................... 42

3. Access Control ........................................................................................................................................ 49

4. Bridging ................................................................ .................................................................................. 50

5. 802.11 QoS (WMM) Settings ................................................................................................................. 51

Chapter 3: Networking ...................................................................................................................................... 53

Communications ........................................................................................................................................ 53

Type of Communication ............................................................................................................................ 53

Cable Modem (CM) Section ...................................................................................................................... 54

Networking Section .................................................................................................................................... 54

Three Networking Modes .......................................................................................................................... 55

Cable Modem (CM) Mode ......................................................................................................................... 55

Residential Gateway (RG) Mode ............................................................................................................... 57

CableHome (CH) Mode ............................................................................................................................. 58

MAC and IP Addresses Summary............................................................................................................. 60

Chapter 4: Additional Information ................................................................................................................... 61

Frequently Asked Questions ...................................................................................................................... 61

General Troubleshooting ........................................................................................................................... 63

FCC Declaration of Conformity and Industry Canada Information ....................................................... 64

Service Information ........................................................................................................................................... 65

Glossary ............................................................................................................................................................. 66

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Introduction

Wireless Gateway Features

 CableLabs DOCSIS 1.0/1.1/2.0/3.0 Standard Compliant  4 x Standard RJ-45 connector for 10/100/1000 BaseT Ethernet with auto-negotiation and MDIX

functions; Support maximum Ethernet cable length up to 100m (Category 5)

 1 x Master USB connector socket comply to USB2.0  WIFI interface 802.11n; 2,4GHz or 5 GHz with at least 2x2 antennas.  Transparent bridging for IP traffic  Transparent bridging between CPE and RF interface  Transparent bridging between Ethernet and USB interface when USB is populated on the board  RSA and 56 bit DES data encryption security  SNMP network management support  Remote operating firmware downloading  Support Web pages and private DHCP server for status monitoring  MPEG over IP encapsulation  Power management  Network Protocol: IP/TCP/UDP/ARP/ICMP/DHCP/FTP/TFTP/SNMP/HTTP  Syslog (remote)  Event Log (local)  Clear LED display  Reset switch in order to restore factory parameters  Two detachable SMA antennas connectors (optional)

What’s on the CD-ROM

Insert the Wireless Gateway CD-ROM into your CD-ROM drive to view troubleshooting tips, the internal diagnostics, and other valuable information.

CD-ROM Contents:

 Electronic copy of this user’s guide in additional languages (PDF format)  Adobe Acrobat Reader — application you can load to read PDF format, if you don’t have it

loaded already

 Links to Thomson web site

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

IBM PC COMPATIBLE

MACINTOSH**

CPU

Pentium preferred

PowerPC or higher

System RAM

16MB (32MB preferred)

24MB (32MB preferred)

Operating System

Windows* NT/2000/Me/XP/Vista, Linux

Mac OS** 7.6.1 or higher

Video

VGA or better (SVGA preferred)

VGA or better (SVGA built-in preferred)

Ethernet

10 /100 /1000 Base-T

An Ethernet card makes it possible for your computer to pass data to and from the internet. You must have an Ethernet card and software drivers installed in your computer. You will also need a standard Ethernet cable to connect the Ethernet card to your Wireless Gateway.

Software

 A TCP/IP network protocol for each machine  Microsoft Internet Explorer 4.0 or later or Netscape Navigator 4.0 or

later. (5.0 and 4.7 or later, respectively, are strongly recommended.)

DOCSIS is trademarks of Cable Television Laboratories, Inc.Computer Requirements

For the best possible performance from your Wireless Gateway, your personal computer must meet the following minimum system requirements (note that the minimum requirements may vary by cable companies):

* Windows is a trademark of Microsoft Corporation.

** Macintosh and the Mac OS are trademarks of Apple Computer, Inc.

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Wall Mounting

Number of screws: 2 pieces. Direction for wall mounting: Tuner downward or leftward or rightward

Dimension for the screw: 3.5 mm; length: 10 mm.

There are 2 slots on the underside of the WIRELESS GATEWAY that can be used for wall mounting.

Note: When wall mounting the unit, ensure that it is within reach of the power outlet.

To do this:

1. For THE WIRELESS GATEWAY, ensure that the wall you use is smooth, flat, dry and sturdy and

use the 2 screws holes

2. The unit can be to use solid concrete wall and/or hard wood wall

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Wireless Gateway DCW775 Overview

Front Panel

The following illustration shows the front panel of the DCW775:

Reset Button behavior

a) Push and hold the button between 0 and 5 seconds  Reboot the device b) Between 6 and 10 seconds  Display the channel bonding status for DS and US

Note: This is the same as the above Channel Bonding display after the registration

c) After 11 seconds  Perform the factory reset.

WPS LED is a backlight in WPS button

d) When WiFi is on, the LED is blinking e) When WPS association is on, the LED is turned on

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

DCW775

Power

Internet

Ethernet

USB

Wireless

Description

Online 1 2 3 4

Boot-up

Operation

ON X X

Power on 0.25 sec

FLASH

FLASH X X X X X X

From power ON to system initialization

complete

DOCSIS Start-up

Operation

FLASH

OFF

OFF X X X X X X

During DS scanning and acquiring SYNC

FLASH

OFF X X X X X X

From SYNC completed, receiving UCD to ranging

completed

FLASH X X X X X X

During DHCP, configuration file download,

ON X X X X X X

Operational (NACO=ON)

FLASH

OFF X X X X X X

Operational (NACO=OFF)

Channel Bonding

Operation

FLASH

FLASH X X X X X X

Wait registration with all DS and all US – Lights

Flash sequentially from the right to left

Minimum duration 3 seconds

X X X X X X X X X

From 1 to 4 DS, from 1 to 4 LEDs are ON.

From 5 to 8 DS, From 1 to 4 LEDs are flashing

Duration 3 seconds

OFF X X

OFF X X X X X X

From 1 to 2 US, from 1 to 2 LEDs are ON.

From 3 to 4 US, From 1 to 2 LEDs are flashing

Duration 3 seconds.

FLASH

FLASH X X X X X X

Wait registration with all DS and all US – Lights

Flash sequentially from the left to right

Minimum duration 3 seconds

CPE Operation

ON X X

OFF

No Ethernet Link

Ethernet Link

FLASH

TX/RX Ethernet Traffic

ON X X X X X X X X

OFF

Wireless is disable

Wireless initiate success or enable

FLASH

TX/RX Wireless Traffic

USB Operation

X X X X X X X

OFF

No USB Link

USB Link

FLASH

TX/RX USB Traffic

SW Download

Operation

FLASH

ON X X X X X X

A software download and while updating the

FLASH memory

The LEDs on the front panel are described in the table below (from left to right):

Illustrations contained in this document are for representation only.

Rear Panel

 4 x GIGA ETHERNET: Ethernet 10/100/1000BaseT RJ-45 connector  USB : USB 2.0 host connector  RESET: Reset CM  CABLE: F-Connector  12VDC: DC power socket

Chapter 1: Connections and Setup

Side Panel

 1 x WPS button with LED

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Relationship among the Devices

What the Modem Does

The Wireless Gateway provides high-speed Internet access as well as cost-effective fax/modem services over residential, commercial, and education subscribers on public and private networks via an existing CATV infrastructure. The IP traffic can transfer between the Wireless Gateway and DOCSIS compliant headend equipment. The data security secures upstream and downstream communications.

What the Modem Needs to Do Its Job

The Right Cable Company: Make sure your local cable company provides data services that use

cable TV industry-standard DOCSIS compliant technology.

Contact Your Local Cable Company

You will need to contact your cable company to establish an Internet account before you can use your gateway. You should have the following information ready (which you will find on the sticker on the gateway):

 The serial number  The model number  The Cable Modem (CM) Media Access Control (MAC) address  SSID, WEP/WPA-PSK information

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Please verify the following with the cable company

 The cable service to your home supports DOCSIS compliant two-way modem access.  You have a cable outlet near your PC and it is ready for Cable Modem service.

Note: It is important to supply power to the modem at all times. Keeping your modem plugged in will keep it connected to the Internet. This means that it will always be ready whenever you need.

Important Information

Your cable company should always be consulted before installing a new cable outlet. Do not attempt any rewiring without contacting your cable company first.

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Connecting the Wireless Gateway to a Single Computer

This section of the manual explains how to connect your Wireless Gateway to the Ethernet port on your computer and install the necessary software. Please refer to Figure 1 to help you connect your Digital Cable Modem for the best possible connection.

Attaching the Cable TV Wire to the Wireless Gateway

1. Locate the Cable TV wire. You may find it one of three ways: a. Connected directly to a TV, a Cable TV converter box, or VCR. The line will be connected to

the jack which should be labeled either IN, CABLE IN, CATV, CATV IN, etc.

b. Connected to a wall-mounted cable outlet. c. Coming out from under a baseboard heater or other location. See Figure 1 for the wiring

example.

Notes: For optimum performance, be sure to connect your Wireless Gateway to the first point the cable enters your home. The splitter must be rated for at least 1GHz.

Fig. 1: Basic Home Wiring

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Important Connection Information

The Wireless Gateway supports 4 Ethernet connections simultaneously. Below are important points to remember before you connect the Wireless Gateway.

Ethernet Connection to a Computer

Make the connection to the modem in the following sequence:

1. Connect one end of the coaxial cable to the cable connection on the wall, and the other end to the

CABLE jack on the Wireless Gateway.

2. Connect the plug from the DC power supply into the POWER DC ADAPTER jack on the Cable

Wireless Gateway, and plug the power supply into a DC outlet.

Note: Use only the power supply that accompanied this unit. Using other adapters may damage the unit.

3. Connect one end of the Ethernet cable (straight-wired, see below) to the Ethernet port on the back of

your computer, and the other end to the ETHERNET port on the Wireless Gateway.

Make sure that the Ethernet cable is straight-wired (not “null” or crossover-wired). However, you will need a crossover-type cable if you are connecting the modem to a hub, or a hub within a port switch that provides the same function.

Fig.2: Ethernet Connection

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Connecting More Than One Computer to the Wireless Gateway

If you need to connect more than one computer to DCW775, simply connect the computers to the Ethernet ports on the rear panel. You may also use a hub with an crossover Ethernet cable to connect more than 4 computer to the Wireless Gateway.

Fig.3: Multiple-PC Connection

Note: You may need to check with your service provider in order to connect multiple computers.

Illustrations contained in this document are for representation only.

Chapter 1: Connections and Setup

Turning on the Wireless Gateway

After installing the Wireless Gateway and turn it on for the first time (and each time the modem is reconnected to the power), it goes through several steps before it can be used. Each of these steps is represented by a different pattern of flashing lights on the front of the modem.

Note: All indicators flash once before the initialization sequence.

If all of the lights are flashing sequentially, it means the Wireless Gateway is automatically updating its system software. Please wait for the lights to stop flashing. You cannot use your modem during this time. Do not remove the power supply or reset the Wireless Gateway during this process.

Illustrations contained in this document are for representation only.

Chapter 2: WEB Configuration

To make sure that you can access the Internet successfully, please check the following first.

1. Make sure the Ethernet connection between the Wireless Gateway and your computer is OK.

2. Make sure the TCP/IP protocol is set properly.

3. Subscribe to a Cable Company.

Accessing the Web Configuration

The Wireless Gateway offers local management capability through a built in HTTP server and a number of diagnostic and configuration web pages. You can configure the settings on the web page and apply them to the device.

Once your host PC is properly configured; please proceed as follows:

1. Start your web browser and type the private IP address of the Wireless Gateway on the URL

field: 192.168.0.1.

2. After connecting to the device, you will be prompted to enter username and password. By

default, the username is ― ‖ and the password is ―admin‖.

Fig. 4

If you login successfully, the main page will appear.

Illustrations contained in this document are for representation only.

Outline of Web Manager

The main screen will be shown as below.

Chapter 2: WEB Configuration

Fig. 5

 Main Menu: the hyperlinks on the top of the page.  Title: the sidebar on the left side of the page indicates the title of this management interface, e.g.,

Software in this example

 Main Window: the current workspace of the web management, containing configuration or status

information

For easy navigation, the pages are organized in groups, with group names main menu, individual page names within each group are provided in the sidebar. To navigate to a page, click the group hyperlink at the top, then the page title on the sidebar.

Your cable company may not support the reporting of some items of information listed on your gateway’s internal web pages. In such cases, the information field appears blank. This is normal.

Illustrations contained in this document are for representation only.

Chapter 2: WEB Configuration

Status

1. Software

The information section shows the hardware and software information about your gateway. The status section of this page shows how long your gateway has operated since last time being powered

up, and some key information the Cable Modem received during the initialization process with your cable company. If Network Access shows ―Allowed,‖ then your cable company has configured your gateway to have Internet connectivity. If not, you may not have Internet access, and should contact your cable company to resolve this.

Fig. 6

Illustrations contained in this document are for representation only.

Chapter 2: WEB Configuration

2. Connection

This page reports current connection status containing startup procedures, downstream and upstream status, CM online information, and so on. The information can be useful to your cable company’s support technician if you’re having problems.

Fig. 7

Illustrations contained in this document are for representation only.

+ 51 hidden pages
