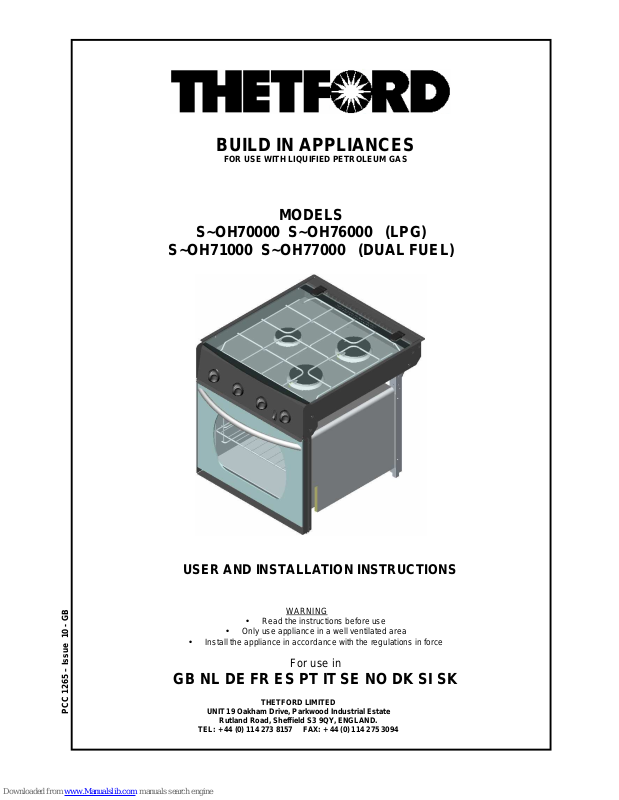

Thetford S-OH70000, S-OH71000, S-OH76000, S-OH77000 User And Installation Instructions Manual
PCC
12
65
–
Issue
10
-
GB
BUILD IN APPLIANCES
FOR USE WITH LIQUIFIED PETROLEUM GAS
USER AND INSTALLATION INSTRUCTIONS
THETFORD LIMITED
UNIT 19 Oakham Drive, Parkwood Industrial Estate
Rutland Road, Sheffield S3 9QY, ENGLAND.
TEL: + 44 (0) 114 273 8157 FAX: + 44 (0) 114 275 3094
WARNING
• Read the instructions before use
• Only use appliance in a well ventilated area
• Install the appliance in accordance with the regulations in force
For use in
GB NL DE FR ES PT IT SE NO DK SI SK
MODELS
S~OH70000 S~OH76000 (LPG)
S~OH71000 S~OH77000 (DUAL FUEL)
2
• Appliance and accessible parts become hot
during use.
• Avoid touching heating elements.
• Children less than 8 years of age shall be kept
away unless continuously supervised.
• This appliance can be used by children aged
from 8 years and above, persons with reduced
physical, sensory or mental capabilities and/or
lack of experience and knowledge only if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be
made by children without supervision.
• Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Never extinguish a fire with water, switch off the
appliance and cover flame with lid or fire blanket.
• Danger of Fire: D
o not store items on the cooking
surface.
• Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since
they can scratch the surface, which may result in
shattering of the glass.
• Never use a steam cleaner to clean appliance.
WARNINGS
3
TRIPLEX COOKER RANGE
TRIPLEX TRIPLEX ‘WIDE’
S~OH70000 and S~OH71000 S~OH76000 and S~OH77000
W = 445mm
+ 2.0
/
-0.0
W = 496mm
+ 2.0
/
-0.0
#1 = Side battons (optional) 15x40x330 #1 = Side battons (optional) 15x40x330
#2 = Worktop Cutout 493mm #2 = Worktop Cutout 493mm
4
1 GREEN & YELLOW 2 BLUE 3 BROWN 4 BLACK
5 RED 6 YELLOW 7 PURPLE 8 WHITE
#1 CABLE CLAMP #2 ROTARY SWITCH #3 WARNING LAMP #4 HOTPLATE
#5
EARTH- FASCIA
SUPPORT BRACKET
#6
EARTH-BURNER
SUPPORT FRAME
#7
HOTPLATE
CONNECTIONS
MINIMUM DISTANCE TO COMBUSTIBLE MATERIAL
WIRING DIAGRAM
•
Recommended minimum dimensions
to combustible material
• Installers should verify with furniture
manufacturer suitability of materials
T ≥ 10mm V ≥ 400mm
X ≥ 200mm Y & Z ≥ 500mm
5

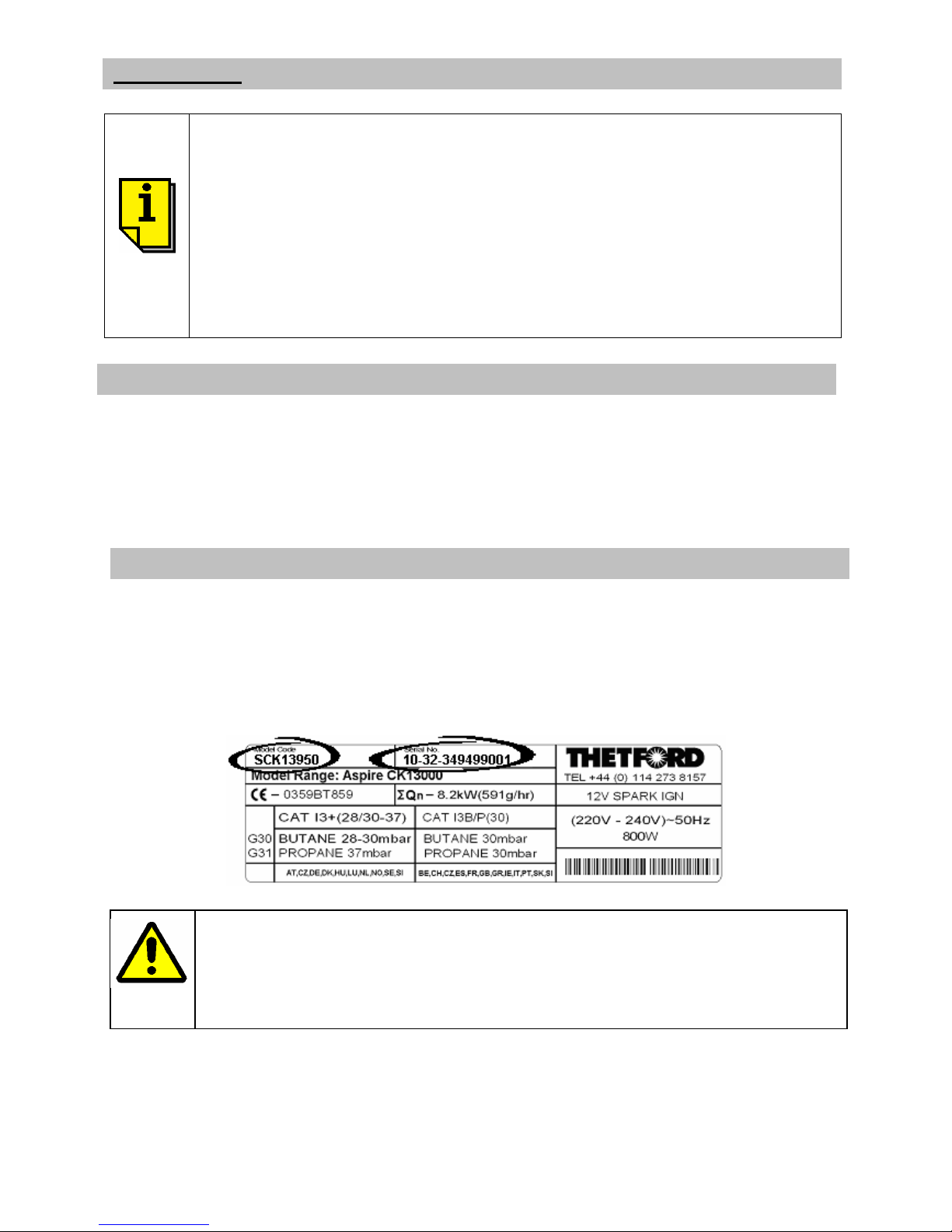

SPECIFICATION
