Thetford S-OG72000, S-OV72000 User And Installation Instructions Manual

INS 1

002

–

Issue

0

USER AND INSTALLATION INSTRUCTIONS

PLEASE READ THOROUGHLY AND KEEP FOR FUTURE REFERENCE

FOR USE IN

GB, CH, ES, PT, IT, BE, FR, IE, DK, FI, GR, NL, NO, DE, SE, SL

SPINFLO LIMITED

(Part of the Thetford Group)

Unit 19, Oakham Drive, Parkwood Industrial Estate

Rutland Road, Sheffield S3 9QX, ENGLAND.

TEL: + 44 (0) 114 273 8157 FAX: + 44 (0) 114 275 3094

Models

S ~ OG72000 SD Duplex Oven&Grill

S ~ OV72000 SD Oven Only

BUILD IN APPLIANCES

FOR USE WITH LIQUIFIED PETROLEUM GAS

CAUTION – ALL OUTER SURFACES WILL GET HOT WHEN IN USE

2

3

4

IMPORTANT

• Ensure that all electrical cables are routed directly away and well clear of

this appliance and other heat sources.

• If it is not possible to install the appliance as per our recommendations,

refer to Thetford / Spinflo for guidance.

IMPORTANT

CONSTRUCTION MATERIALS:­ALL COOKING APPLIANCES BECOME HOT DURING USE.

IT IS IMPORTANT THE INSTALLER VERIFIES THE FURNITURE CONSTRUCTION
MATERIAL AND THAT IT IS SUITABLE FOR THE APPLICATION - I.E. PLASTIC
MATERIALS USED IN THE CONSTRUCTION MAY HAVE A SOFTENING POINT
LOWER THAN THE MAXIMUM ALLOWABLE TEMPERATURE RISE SPECIFIED IN
THE EUROPEAN STANDARD (EN30).

5

CONTENTS
User’s Section

Specification ………………………………………………… 6
Introduction ………………………………………………… 7
Operation of the Door ………………………………………………… 9
Using the Grill ………………………………………………… 10
Using the Oven ………………………………………………… 12

Installation and Servicing
Installation Dimensions ………………………………………………… 2
Specification ………………………………………………… 6
Installation Instructions ………………………………………………… 15
Operation ………………………………………………… 8
Maintenance & Servicing ………………………………………………… 18

6

SPECIFICATION

Gas Category

CAT I3+ (28-30/37) CAT I3 B/P (30)
BUTANE (G30) 28-30 mbar BUTANE (G30) 30 mbar
PROPANE (G31) 37 mbar PROPANE (G31) 30 mbar

SD DUPLEX SD OVEN ONLY
Model S~OG72000

S~OV72000

External Dimensions, mm

(HxWxD)

408 x 527 x 530mm 408 x 527 x 530mm

Oven Capacity, Litres
(HxWxD)

32.4

(209 x 428 x 362)

32.4

(209 x 428 x 362)

No. of tray positions

Grill 2, Oven 3 Oven 3

Heat input, kW

Total heat input 3.2kW 1.6kW
Hotplate Burners N/A N/A
Grill burner heat input 1.6kW N/A
Oven burner heat input 1.6kW 1.6kW

Injector size, mm

Grill burner Sabaf 0.62 N/A
Oven burner Sabaf 0.59 Sabaf 0.59

Bypass size, mm

Grill control Sabaf 0.35 N/A
Oven control Sabaf 0.35 Sabaf 0.29
Spark ignition (where fitted)

12V Electronic 12V Electronic

Fan Cooling System

Operating Voltage 4.5~13.8V dc 4.5~13.8V dc
Rated Voltage 12V dc 12V dc
Rated Current 150mA 150mA
Power Consumption 1.8W 1.8W

Weight (Kg)

14.5 13.5

IMPORTANT

• THIS APPLIANCE IS SUITABLE FOR USE WITH LIQUEFIED PETROLEUM

GAS (LPG) AND SHOULD NOT BE USED ON ANY OTHER GAS.

• USE ONLY THE GAS PRESSURES SPECIFIED ABOVE

• THIS APPLIANCE MUST BE EARTHED.

7

INTRODUCTION

This appliance must be installed in accordance with the local, national and European
regulations in force. Particular attention shall be given to the requirements regarding
ventilation. Read the instructions before installing or using the appliance

The appliance is designed for either high or low level installations. Failure to install the
appliance correctly could invalidate any warranty or liability claims and lead to prosecution.
Please refer to the methods of installation within this handbook.

Our policy is one of continuous development and improvement. Specifications and
illustrations may change subsequent to publication.

Provision Of Ventilation

The use of a gas cooking appliance results in the production of heat and moisture in a
room in which it is installed. Ensure that the kitchen is well ventilated, keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor
hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example
opening a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present. The room containing the appliance should have an
air supply in accordance with local, national and European standards.

Position

This appliance must be positioned free from draughts, which may affect the combustion
and in a manner that will prevent the accumulation of unburnt gas. When in use ensure
that air vents are not inadvertently blocked or shut off.
We recommend that all ventilation holes in the appliance cabinet are baffled, to prevent
direct draughts on the appliance.

WARNING

• The appliance is not intended for use by young children or infirm persons,

without supervision.

• Young children should be supervised to ensure they do not play with the

appliance.

IMPORTANT

•

Before using the appliance for the first time, remove all accessories and packing

in the grill and oven, including any surface protection film, ie plastic coating.

• Clean all interior surfaces with hot soapy water to remove any residual
protective covering of oil and rinse carefully.

8

OPERATION

The burners on this appliance have fixed aeration and no adjustment is required.
Depending on the gas being used, the burners should flame as follows:-

Propane - The flames should burn quietly with a blue/green colour with no sign of

yellow tips.

Butane - Normally on initial lighting, a small amount of yellow tipping will occur and

then slightly increases as the burner heats up.

IMPORTANT

• This appliance is approved for use with LPG gas; Propane and Butane. We
recommend using Propane gas for this appliance.

• Butane gas may be used, although the performance of the appliance maybe
compromised when the ambient temperature is below 10°C.

• Butane gas should not be used when the ambient temperature is below 5°C.

IMPORTANT

The control tap on this appliance operates both the grill and oven burners. To
ensure safe operation it is not possible to operate both burners at the same

time.

9

OPERATION

Operation of the Door

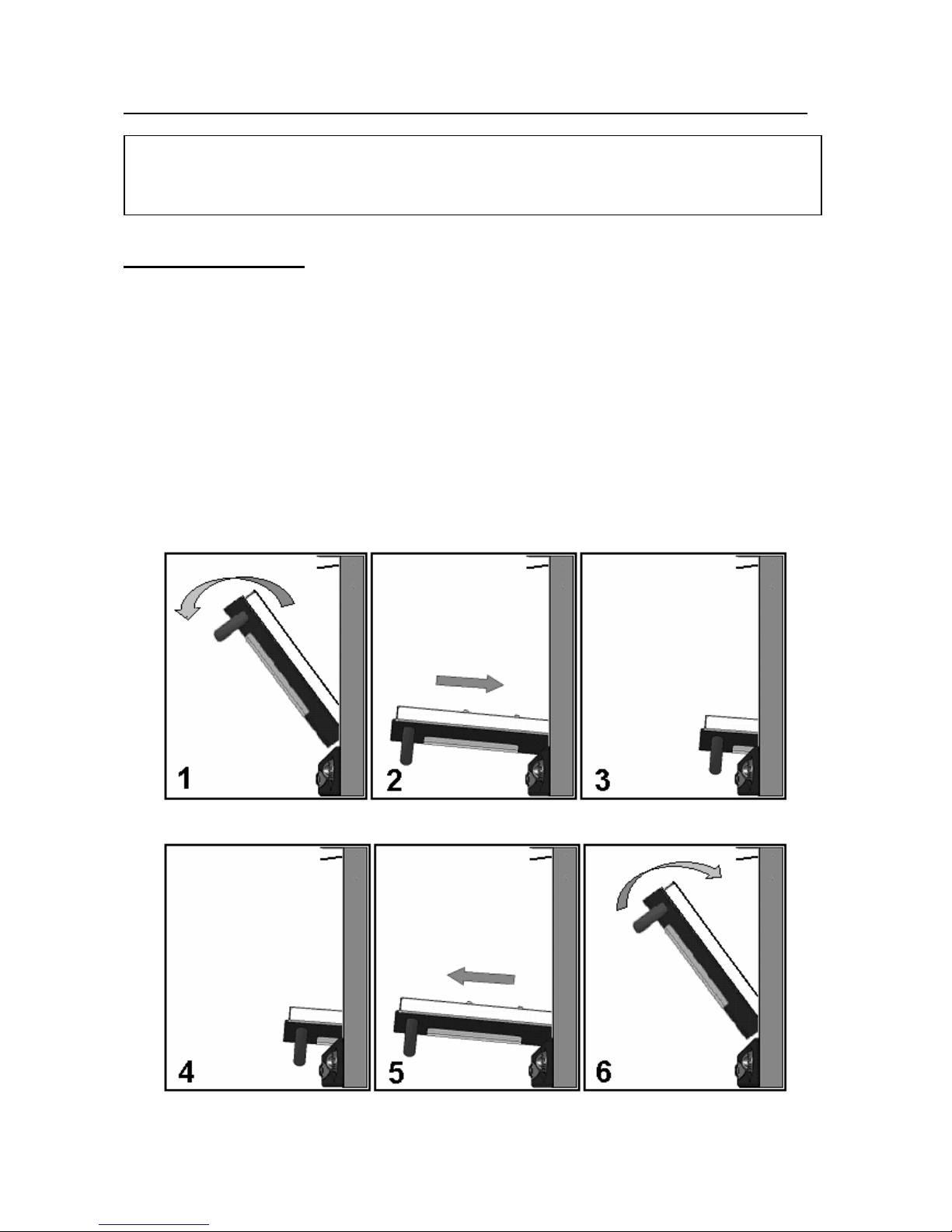

This appliance is fitted with our unique slide under door. As you open the door fully, it
slides neatly under the oven. This feature maximises the space in the kitchen area by
reducing the protruding door, giving easy access to the inside of the oven.
To open the door:-

1. Pull the handle forward and down, as with any other drop down door

2. When in fully open position push the door horizontally to slide the door in.

3. Continue pushing until door stops in the parked position below the oven.

To close the door

4. Grasp handle and slide door out from parked position.

5. Continue until door fully extended.

6. Rotate door upwards into the closed position.

OPEN

CLOSE

WARNING

Pans or other utensils MUST NOT be placed on the door when in its open
position.

10

OPERATION

Using the Grill
OFF ON

1. Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn
off at gas cylinder/mains and contact supplier.

2. To light: Open door and slide under, push in the control knob and turn clockwise to full
rate. Hold a lighted match or taper to the burner and push the control knob in and hold.
The burner should ignite and the control knob should be held in for 10 -15 seconds
before release. If the burner goes out, repeat procedure, holding control knob for
slightly longer.

3. For models fitted with Spark Ignition the procedure is similar except that the burner can

be ignited by depressing the ignition button, which is located on the fascia. Ignition
must be carried out with the door open, and if the burner has not lit within 15 seconds
the control knob should be released and the grill left for at least 1 minute before a
further attempt to ignite the burner.

4. On first use of the grill, it should be heated for about 20 minutes to eliminate any

residual factory lubricants that might impart unpleasant smells to the food being
cooked. A non-toxic smoke may occur when using for the first time so open any
windows and turn on mechanical ventilators to help remove the smoke.

WARNING

• The grill area can get hot when the oven is in use, even if the grill is

switched off.

• Care should be taken when removing pans from the grill, i.e. use of oven

gloves, and by making use of the removal grill pan handle.

IMPORTANT

• The grill pan supplied is multi functional, for use in grill or oven.

• The handle design allows removal or insertion whilst the pan is in use.

• Always remove the handle when the pan is in use.

• The grill MUST only be used with the door open.

11

OPERATION

5. Although the grill does heat up quickly, it is recommended that a few minutes preheat

be allowed.

6. Flame Failure Device (FFD): the grill burner is fitted with a flame sensing probe, which

will automatically cut off the gas supply in the event of the flame going out. In the event
of the burner flames being accidentally extinguished, turn off the burner control and do
not attempt to re-ignite the burner for at least one minute.

7. It is normal for the flames on this burner to develop yellow tips as it heats up,

particularly on Butane.

8. A reversible grill pan trivet enables the correct grilling height to be achieved. Grilling

should be carried out on the middle shelf position.
Fast Toasting trivet in high position
Grilling Sausages trivet in high position
Grilling Steak/Bacon trivet in high position
Grilling Chops, etc trivet in low position

Slow Grilling trivet removed

9. To turn off: turn the control knob until the circle on the control knob is aligned with the

dot on the control panel, this should be done by turning anti-clockwise. Always make sure
the control knob is in the off position when you have finished grilling.

10. Note: the grill must only be used with the door open.

12

OPERATION

Using the Oven
OFF ON (FULL)

1. Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn
off at gas cylinder/mains and contact supplier.

2. To light: Open door, push in the control knob and turn anti-clockwise to full rate (gas
mark 9). Hold a lighted match or taper to the burner and push the control knob in and
hold. The burner should ignite and the control knob should be held in for 10 -15
seconds before release. If the burner goes out, repeat procedure holding control knob
for slightly longer.

3. For models fitted with Spark Ignition the procedure is similar except that the burner can
be ignited by depressing the ignition button, which is located on the fascia. Ignition
must be carried out with the door open, and if the burner has not lit within 15 seconds
the control knob should be released and the oven left for at least 1 minute before a
further attempt to ignite the burner.

4. Place the oven shelf in the required position and close the door. Set control knob to
approximately gas mark 5 and heat the oven for about 30 minutes to eliminate any
residual factory lubricants that might impart unpleasant smells to the meals being
cooked. A non-toxic smoke may occur when using for the first time so open any
windows and turn on mechanical ventilators to help remove the smoke.

5. Although the oven does heat up quickly, it is recommended that a 10 minutes preheat
be allowed. The oven should be up to full temperature in about 15-20mins.

IMPORTANT

• The appliance is fitted with a fan cooling system. The cooling fan will
automatically switch on after lighting the grill or oven burner.

• The fan will automatically switch off a few minutes after the burner is
extinguished, when the front of the appliance has cooled sufficiently.

13

OPERATION

6. To turn off: turn the control knob clockwise until the circle on the control knob is aligned
with the dot on the control panel.

7.

To remove a shelf, pull forward until it stops, raise at front and remove.

Oven Temperature Control

The temperature in the oven is controlled by a thermostatic gas tap and is variable over
the range 130°C to 240°C. Approximate temperatures for the settings on the control knob
are shown in the table below. The temperatures indicated refer to the centre of the oven
and at any particular setting the oven will be hotter at the top and cooler towards the base.
The variation between top and centre, and centre to bottom is approximately equivalent to
one gas mark. Good use can be made of the temperature variation in several dishes
requiring different temperatures may be cooked at the same time. In this way maximum
benefit can be obtained from the gas used to heat the oven. Care should be taken not to
overload the oven, adequate spacing being used to allow free circulation for heat.

Cooking Guidelines

Best results will be obtained by the shelf positions in this guide – please see chart on next
page. It is not necessary to preheat the oven but advisable for a range of dishes. The oven
is capable of full temperature in 15-20 minutes.
Most cookery books give details of the shelf positions and gas mark settings for each
recipe. If in doubt about a recipe you intend to use, study the recipe carefully then find a
similar dish in our guide and use our shelf position and gas mark setting recommendation.
Shelf positions are from the top down. When roasting with aluminium foil care must be
taken that the foil does not impair circulation or block the oven flue outlet.

Cooking Guidelines

Gas

Mark

Temperature

¼ - ½ 265-275ºF 130-135ºC Very cool Meringues

1 285 140 Cool Stewed fruit
2 300 150 Cool Rich fruit cake
3 330 165 Warm Baked custard
4 355 180 Moderate Victoria sandwich
5 385 195 Fairly hot Whisked sponges
6 410 210 Hot Short crust pastry
7 430 220 Hot Bread, scones
8 445 230 Very hot Puff pastry
9 465 240 Very hot Quick browning

Dish

Gas

Mark

Shelf

Position

Cooking Time

Scones 7 2 8-15mins
Small cakes 5 2 15-25mins
Victoria sandwich 4 2 20-30mins
Very rich fruit cake 2 2 Approx. 60mins per 500g
Puff pastry 8 2 15-30mins
Flaky pastry 7 2 15-30mins
Shortcrust pastry 6 2 15-55mins
Shortbread fingers 3 2 25-30mins
Ginger nuts 5 2 12-16mins
Rice pudding 2 3 100-120mins
Baked custard 3 3 50-60mins
Fruit crumble 5 3 30-40mins
Beef 3

7

3 3 25mins per 500g plus 25mins

15mins per 500g plus 20mins

Pork 3

7

3 3 30mins per 500g plus 35mins

25mins per 500g plus 25mins

IMPORTANT

Always ensure food is properly cooked prior to serving.

14

OPERATION
Do's And Don'ts

DO read the user instructions carefully before using the appliance for the first time.
DO allow the oven to heat before using for the first time, in order to expelany smells

before the introduction of food.
DO clean the appliance regularly.
DO remove spills as soon as they occur.
DO always use oven gloves when removing food shelves and trays from
the oven.
DO check that controls are in the off position when finished.
DO NOT allow children near the cooker when in use. Turn pan handles away
from the front so that they cannot be caught accidentally.
DO NOT allow fats or oils to build up in the oven trays or base.
DO NOT use abrasive cleaners or powders that will scratch the surfaces of the

appliance.
DO NOT under any circumstances use the oven as a space heater.
DO NOT put heavy objects onto open grill and oven doors.

Leaks

If a smell of gas becomes apparent, the supply should be turned off at the cylinder
IMMEDIATELY. Extinguish naked lights including cigarettes and pipes. Do not operate
electrical switches. Open all doors and windows to disperse any gas escape.
Butane/Propane gas is heavier than air; any escaping gas will therefore collect at a low
level. The strong unpleasant smell of gas will enable the general area of the leak to be
detected. Check that the gas is not escaping from an unlighted appliance. Never check for
leaks with a naked flame, leak investigation should be carried out using a leak detector
spray.

15

INSTALLATION
Regulations and Standards

In your own interest of safety, it is law that all gas appliances are installed and serviced by
an authorized gas technician who will undertake work to safe and satisfactory standards.
Failure to install the appliance correctly could invalidate any warranty or liability claims and
lead to prosecution.
This appliance shall be installed in accordance with the local and National/European
standards in force. Particular attention shall be given to the requirements regarding
ventilation. Read the instructions before installing or using this appliance.

Ventilation
This appliance is suitable for installation into Holiday Homes, Touring Caravans and Boats.
In all cases the national standards with regard to ventilation for the particular vehicle into
which the appliance is to be installed must be adhered to.
The European Standard EN1949 - "Specification for the installation of LPG systems in
leisure and other road vehicles", specifies that all appliances be installed in accordance
with the manufacturer’s instructions, including the adequate provision to avoid the
accumulation of un-burnt gases. We recommend a vent in the floor (minimum=130mm2,
maximum=3850mm2) venting to the outside, to avoid the accumulation of un-burnt gases.
We also recommend that all ventilation holes in the appliance cabinet are baffled, to
prevent direct draughts on the appliance.

Location of Appliance
This appliance maybe installed in a kitchen/kitchen diner but NOT in a room containing a
bath or a shower. LP gas appliances must not be fitted below ground level. e.g. in a
basement.

IMPORTANT

• This appliance must be installed into an aperture, sealed off at either side in
order to prevent draughts from adjoining cupboards/vents. Ensure that air vents
and gas escape holes are kept clear, holes for cables and pipes must be sized to
minimize air leakage between compartments.

• Under no circumstances should the ventilation hole exceed 3850mm2 or other
low level ventilation located in the compartment, including vents in kickboards.
Low level vents in adjacent compartments are permitted.

•

Cupboards beneath the appliance MUST be sealed to prevent a gas escape
entering the living area.

WARNING

When installing DO NOT lift appliance using the door handles.

16

INSTALLATION

Position

The performance of this appliance meets the approval requirements of the European
Standard for Domestic Cooking Appliances (EN30) which specifies a maximum allowable
temperature rise of the furniture into which the appliance is installed of 65oC above the
ambient temperature. To ensure compliance with the standard it is important the
installation follows the minimum dimensions as shown in this manual.

All cooking appliances become hot during use, it is important the installer verifies
the furniture construction material and that it is suitable for the application - i.e.
plastic materials used in the construction may have a softening point lower than
the maximum allowable temperature rise specified in the European Standard.

ALL combustible materials such as curtains and shelves must be kept well clear of the
appliance, and their installation should meet all relevant local and national/European
standards in force.

Fixing

Fixing screw positions are located as follows.
Screw into place using a flange head No 6 woodscrew

Appliance Front Fixed Appliance

S~OV72000 3 front fixing holes each side of Oven opening

S~OG72000 3 front fixing holes each side of Oven opening

17

INSTALLATION
CONNECTION

Gas Connection

The gas connection is made to a 8mm Ø inlet pipe beneath and to the front of the
appliance depending on exact specification. Prior to connection remove the plastic
protection plug from the fitting. It is recommended that the appliance be connected by
copper pipe, rubber tubing MUST NOT be used.
The burners on this appliance have fixed aeration and no adjustment is necessary.

Connection - Electrical

Ensure that all electrical cables and wires are routed well clear of any heat source,
including this appliance. Excess cord must be routed away from the appliance and must
not come into contact with the oven or grill body.
The plugs must be accessible after installation to aid servicing.

IMPORTANT

• This appliance is approved for use with LPG gas; Propane and Butane. We
recommend using Propane gas for this appliance.

• Butane gas may be used, although the performance of the appliance maybe
compromised when the ambient temperature is below 10°C.

• Butane gas should not be used when the ambient temperature is below 5°C.

• After installation the appliance must be tested for soundness

• The gas supply input pressure to which this appliance is connected MUST not

rise or fall by more than 2.5mbar (butane/propane) from nominal when ALL
appliances connected to the supply are operated simultaneously. If this appliance
is not installed in accordance with the instructions and tolerances detailed herein,
we the manufacturer can not be held responsible for any problems that occur, or
poor performance that is perceived/witnessed.

IMPORTANT

• This appliance MUST be earthed

• A constant 12V supply is necessary at all times to ensure the cooling system

operates correctly.

18

MAINTENANCE & SERVICING

This appliance needs little maintenance other than cleaning. All parts should be
cleaned using warm soapy water. Do not use abrasive cleaners, steel wool or
cleansing powders. When cleaning the burner ring it is essential to ensure that the
holes do not become blocked. The control knobs are a push fit and can be removed for
cleaning.

1. Disconnect from gas supply

Open the oven door and remove the 3 screws from each side trim. Carefully slide
the appliance out one third and disconnect the gas supply from the front left hand
side of the appliance.

2. Remove appliance from housing
Check for any possible snagging of wires or pipes. If OK, lift appliance out onto a
suitable surface.

3. Control replacement

Disconnect from gas supply (1). Remove appliance from housing (2).
Open the oven door and unscrew the 2 screws holding the thermostat probe in
position and push the probe back out through the hole in the rear of oven. Remove
the 4 retaining screws from the bottom of the appliance and to the rear of the
control. This will remove the front curved fascia panel, this will allow access to the
two retaining screws on the front trim. Disconnect the inlet pipe and two burner
supply pipes. Remove the fittings off the old control and fit on the replacement.

4. Remove the grill burner
Disconnect from gas supply (1). Remove appliance from housing (2).
Open the oven door, and remove the top/sides insulation sheet. Drill the 4 pop
rivets on top of the roof, then Lever off the 2 starlock washers retaining the grill
burner.

5. Spark Ignition (where fitted)
Disconnect from gas supply (1). Remove appliance from housing (2).
Grill burner - Remove the screw from the bracket and spark ignition probe in the
top of the burner. Trace the electrode wire back to the generator and pull off the
connector.
Oven burner - Trace the electrode wire up the back of the cooker to the generator
and pull off the connector. Unscrew the fixing screw on the spark electrode inside
the oven cavity, then carefully pull the electrode from inside the oven and remove.

6. Grill burner injector (No62)

Disconnect from gas supply (1). Remove appliance from housing (2).
Release injector holder from bracket, disengage the grill pipe from the control and
remove the injector.

IMPORTANT

• Shut off gas supply at isolating valve, switch off electric supply and ensure all
parts are cool before cleaning or servicing

• All servicing must be carried out by an approved competent person.

• After each service the appliance must be checked for gas soundness

• This appliance must not be modified or adjusted unless authorized and carried

out by the manufacturer or his representative. No parts other than those supplied
by the manufacturer should be used on this appliance.

• If the supply cord is damaged, it must only be replaced by the manufacturer or his
representative in order to avoid a hazard.

19

MAINTENANCE & SERVICING

7. Oven burner injector (No59)
Open the oven door and unscrew the burner retaining screw, slide the burner to the
left and lift out. The injector is exposed to the right hand side of the cut out.
Unscrew the injector.

8. Thermocouple replacement
Disconnect from gas supply (1). Remove appliance from housing (2).
Grill burner - Remove the push on female terminal of the thermocouple from the
right hand side thermal switch, located on the rear of front trim (viewed from front of
appliance) Unscrew the nut at the burner.
Oven burner -. Remove the push on female terminal on the thermocouple from the
right hand side thermal switch, located on the rear of front trim (viewed from front of
appliance). Inside the oven cavity, the thermocouple is located above the burner on
the rear wall. Unscrew the locknut and pull out the thermocouple from the rear of
the appliance.

9. Removing Drop Down Oven Door

Open the door and engage 1 pin in each hinge (3.2 x 9.5mm pop rivets ideal). Lift
the door and pull out of front trim.

10. Removing Thermal Switches

The thermal switches are used to activate the cooling fan system, and to stop the
supply of gas in the event of fan failure. The switches are located between the oven
roof and top trim, fixed to the rear of the front trim, one is positioned centrally and
the other to the right (viewed from front of appliance).
Disconnect from gas supply (1). Remove appliance from housing (2). Open oven
door and remove the 2 retaining screws from the heat deflection trim situated just
below the appliance top trim, then remove. Disconnect all thermocouple wires from
thermal switches and drill out the 4 pop rivets (2 on each thermal cut) to remove.
