Thetford S-HB33000, S-HB34500, S-HB34000 Use And Installation Intructions
PCC
1274
–
Issue
4
-
GB

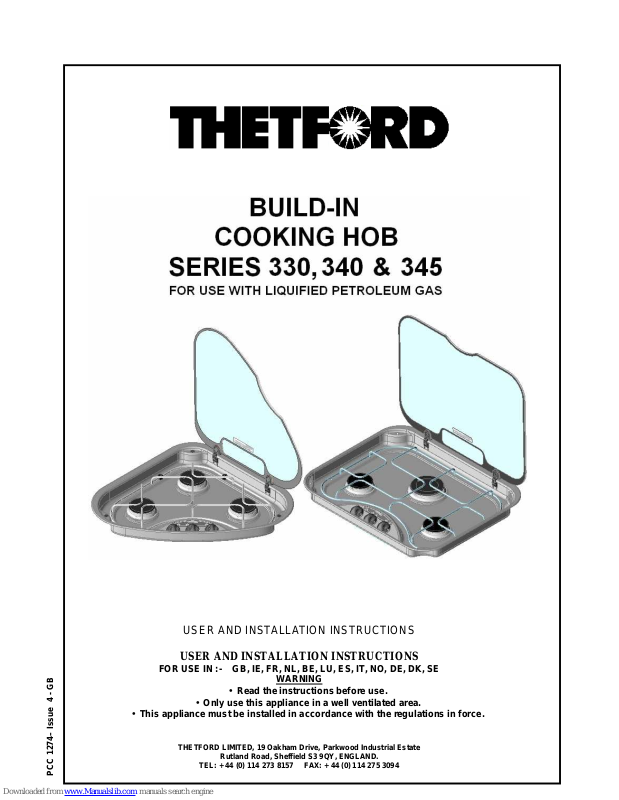

USER AND INSTALLATION INSTRUCTIONS
USER AND INSTALLATION INSTRUCTIONS
FOR USE IN :- GB, IE, FR, NL, BE, LU, ES, IT, NO, DE, DK, SE
WARNING
• Read the instructions before use.
• Only use this appliance in a well ventilated area.
• This appliance must be installed in accordance with the regulations in force.
THETFORD
LIMITED,
19 Oakham Drive
, Parkwood Industrial
Estate
Rutland Road, Sheffield S3 9QY, ENGLAND.
TEL: + 44 (0) 114 273 8157 FAX: + 44 (0) 114 275 3094
2
ITEM PART No DESCRIPTION ITEM PART No DESCRIPTION
1 S~G930.BK GLASS LID 2 S~PCC0691 PAN SUPPORT
3 S~PCC0833 RAPID BURNER CAP 4 S~PCC0832 RAPID BURNER SPREADER
5 S~PCC2003 HINGE 6 S~PCC0813 BURNER CAP
7 S~PCC0812 BURNER SPREADER 8 S~PCC1500 STICK ON FASCIA
9 S~PCX0390 BUMP STOP 10 S~PCC0647 PAN SUPPORT CLIP
11 S~PCX0415 FIXING BUSH 12 S~PCX0416 CLAMPING ARM
13 S~PCC0609 CONTROL KNOB 14 S~PCC0742 TAP FIXING NUT
15 S~PCC0799 RAPID BURNER CUP 16 S~PCC0797 BURNER CUP
17 S~PCC0737 CONTROL TAP (0.34 Bypass) 18 S~PCC07739 CONTROL TAP (0.45 Bypass)
19 S~PCC1130 THERMOCOUPLE 190MM 20 S~PCC1455 SPARK PROBE 600MM
21 S~PCC1403 SPARK GENERATOR (12V) 22 S~WIR0504 +VE WIRE TO GENERATOR
23 S~WIR0505 +VE WIRE TO BATTERY 24 S~WIR0200 -VE WIRE TO BATTERY
3
ITEM PART No DESCRIPTION ITEM PART No DESCRIPTION
1 S~G0940 GLASS LID 2 S~PCC0693
PAN SUPPORT
3 S~PCC0813 BURNER CAP 4 S~PCC0814
BURNER SPREADER
5 S~PCX0390 BUMP STOP 6 S~PCX0415 FIXING BUSH
7 S~PCC2003 HINGE 8 S~PCC647 CLIP, PAN SUPPORT
9 S~PCC1500 STICK ON FASCIA 10 S~PCX0416
CLAMPING ARM
11 S~PCC0609 CONTROL KNOB 12 S~PCC0742
TAP FIXING NUT
13 S~PCC0797 BURNER CUP 14 S~PCC1190 THERMOCOUPLE 190MM
15 S~PCC1453 SPARK PROBE 300MM 16 S~PCC0737
CONTROL TAP
17 S~PCC1403 SPARK GENERATOR 18 S~WIR0505 +VE WIRE TO BATTERY
19 S~WIR0504 +VE WIRE TO GENERATOR 20 S~WIR0501 -VE WIRE TO BATTERY
21 S~PCC1132 THERMOCOUPLE 450MM 22 S~PCC1455 SPARK ELECTRODE 450MM
4
RECOMMENDED PAN SIZES
FIG 2
SERIES 330 SERIES 340 & 345
CONTROL POSITIONS – ALL MODELS
FIG. 1 OFF FULL RATE LOW RATE
5
APPLIANCE LOCATION
Series 330, 340 & 345 the minimum allowable distance to combustible
materials is as shown below
FIG. 3
A= 200mm unless protected by a non-combustible heat barrier
B = 500mm minimum to fitment above appliance
