Advanced Voltage Mode Pulse Width Modulator

DESCRIPTION

The UCC35701/UCC35702 family of pulse width modulators is intended for
isolated switching power supplies using primary side control. They can be
used for both off-line applications and DC/DC converter designs such as in
a distributed power system architecture or as a telecom power source.

The devices feature low startup current, allowing for efficient off-line start

­ing, yet have sufficient output drive to switch power MOSFETs in excess of
500kHz.

Voltage feed forward compensation is operational over a 5:1 input range
and provides fast and accurate response to input voltage changes over a
4:1 range. An accurate volt-second clamp and maximum duty cycle limit
are also featured.

Fault protection is provided by pulse by pulse current limiting as well as the
ability to latch off after a programmable number of repetitive faults has oc

­curred.

Two UVLO options are offered. UCC35701 family has turn-on and turn-off
thresholds of 13V/9V and UCC35702 family has thresholds of 9.6V/8.8V.

The UCC35701/2 and the UCC25701/2 are offered in the 14 pin SOIC (D),
14 pin PDIP (N) or in 14 pin TSSOP (PW) packages. The UCC15701/2 is
offered in the 14 pin CDIP (J) package.

3VDD

12 VREF

8FB

4OUT

2ILIM

5PGND

C3

1 COUNT

CF

14 SS

CS

11 SYNC

9 VSCLAMP

VREF

10 CT

CT

7RT

6

VFF

13GND

VINSUPPLY

V

IN

RETURN

RGND

R10

RCS

R8

R7

R6

C2

R8

R

F

R5

R4

R3

R2

R1

V

OUT

UCC35701

C1

C4

C6

R12

C6

C5

R11

R13

C7

R14

V

OUT

R15

TYPICAL APPLICATION DIAGRAM

SLUS293A - JANUARY 2000

FEATURES

•

700kHz Operation

•

Integrated Oscillator/ Voltage Feed
Forward Compensation

•

Accurate Duty Cycle Limit

•

Accurate Volt-second Clamp

•

Optocoupler Interface

•

Fault Counting Shutdown

•

Fault Latch off or Automatic Shutdown

•

Soft Stop Optimized for Synchronous
Rectification

•

1A Peak Gate Drive Output

• 130µA Start-up Current

• 750µA Operating Current

UDG-98005-1

application

INFO

available

2

UCC15701/2
UCC25701/2
UCC35701/2

ABSOLUTE MAXIMUM RATINGS

Supply voltage (Supply current limited to 20mA) . . . . . . . . 15V

Supply Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA

Input pins ( ILIM,VFF,RT,CT,VSCLAMP,SYNC,SS) . . . . . . 6V

Output Current (OUT) DC. . . . . . . . . . . . . . . . . . . . . +/–180mA

Output Current (OUT) Pulse (0.5ms) . . . . . . . . . . . . . . +/–1.2A

Storage Temperature. . . . . . . . . . . . . . . . . . . –65°C to +150°C

Junction Temperature. . . . . . . . . . . . . . . . . . . –55°C to +150°C

Lead Temperature (Soldering, 10 sec.) . . . . . . . . . . . . +300°C

Note: All voltages are with respect to GND. Currents are posi

­tive into the specified terminal. Consult Packaging Section of
the Databook for thermal limitations and considerations of
packages.

VREF

GND

SS

SYNC

CT

FB

VSCLAMP

1

2

3

4

5

6

7

14

13

12

11

10

9

8

ILIM

COUNT

VFF

RT

VDD

OUT

PGND

CONNECTION DIAGRAMS

DIL-14, SOIC-14,TSSOP-14 (TOP VIEW)
N or J, D, PW PACKAGE

ELECTRICAL CHARACTERISTICS: Unless otherwise specified, V

DD

= 11V, RT = 60.4k, CT= 330pF, C

REF=CVDD

=

0.1 F, VFF= 2.0V, and no load on the outputs.

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

UVLO Section

Start Threshold (UCCX5701) 12 13 14 V

(UCCX5702) 8.8 9.6 10.4 V

Stop Threshold (UCCX5701) 8 9 10 V

(UCCX5702) 8.0 8.8 9.6 V

Hysteresis (UCCX5701) 3 4 V

(UCCX5702) 0.3 0.8 V

Supply Current

Start-up Current (UCCX5701) V

DD

= 11V, VDDComparator Off 130 200 µA

(UCCX5702) V

DD

= 8V, VDDComparator Off 120 190 A

I

DD

Active VDDComparator On 0.75 1.5 mA

V

DD

Clamp Voltage (UCCX5701) IDD= 10mA 13.5 14.3 15 V

(UCCX5702) I

DD

= 10mA 13 13.8 15 V

V

DD

Clamp – Start Threshold (UCCX5701) 1.3 V

(UCCX5702) 4.2 V

Voltage Reference

V

REF

VDD= 10V to 13V, I

VREF

= 0mA to 2mA 4.9 5 5.1 V

Line Regulation V

DD

= 10V to 13V 20 mV

Load Regulation I

VREF

= 0mA to 2mA 2 mV

Short Circuit Current V

REF

= 0V, TJ = 25°C 20 50 mA

TA=T

J

UVLO

Option

Package Part Number

–55°C to +125°C

13V / 9V CDIP-14 UCC15701J

9.6V / 8.8V CDIP-14 UCC15702J

–40°C to +85°C

13V / 9V

SOIC-14 UCC25701D
PDIP-14 UCC25701N
TSSOP-14 UCC25701PW

9.6V / 8.8V

SOIC-14 UCC25702D
PDIP-14 UCC25702N
TSSOP-14 UCC25702PW

0°C to +70°C

13V / 9V

SOIC-14 UCC35701D
PDIP-14 UCC35701N
TSSOP-14 UCC35701PW

9.6V / 8.8V

SOIC-14 UCC35702D
PDIP-14 UCC35702N
TSSOP-14 UCC35702PW

The D and PW packages are available taped and reeled. Add
TR suffix to the device type (e.g., UCC35701DTR).

ORDERING INFORMATION

3

UCC15701/2
UCC25701/2
UCC35701/2

ELECTRICAL CHARACTERISTICS:

Unless otherwise specified, VDD= 11V, RT = 60.4k, CT= 330pF, C

REF=CVDD

=

0.1 F, VFF= 2.0V, and no load on the outputs.

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

Line Sense

Vth High Line Comparator 3.9 4 4.1 V
Vth Low Line Comparator 0.5 0.6 0.7 V
Input Bias Current –100 100 nA

Oscillator Section

Frequency V

FF

= 0.8V to 3.2V 90 100 110 kHz

Frequency V

FF

= 0.6V to 3.4V (Note 1) 90 100 110 kHz
SYNC VIH 2V
SYNC VIL 0.8 V
SYNC Input Current VSYNC = 2.0V 3 10 µA
RT Voltage VFF = 0.4V 0.5 0.6 0.7 V

VFF = 0.8V 0.75 0.8 0.85 V
VFF = 2.0V 1.95 2.0 2.05 V
VFF = 3.2V 3.15 3.2 3.25 V
VFF = 3.6V 3.3 3.4 3.5 V

C

T

Peak Voltage VFF = 0.8V (Note 1) 0.8 V

VFF = 3.2V (Note 1) 3.2 V

C

T

Valley Voltage (Note 1) 0 V

Soft Start/Shutdown/Duty Cycle Control Section

I

SS

Charging Current 10 18 30 A

I

SS

Discharging Current 300 500 750 µA

Saturation V

DD

= 11V, IC Off 25 100 mV

Fault Counter Section

Threshold Voltage VFF = 0.8V to 3.2V 3.8 4 4.2 V
Saturation Voltage VFF = 0.8V to 3.2V 100 mV
Count Charging Current 10 18 30 µA

Current Limit Section

Input Bias Current –100 0 100 nA
Current Limit Threshold 180 200 220 mV
Shutdown Threshold 500 600 700 mV

Pulse Width Modulator Section

FB Pin Input Impedance VFB = 3V 30 50 100 k
Minimum Duty Cycle VFB <= 1V 0 %
Maximum Duty Cycle VFB >= 4.5V, VSCLAMP >= 2.0V 95 99 100 %
PWM Gain VFF = 0.8V 35 50 70 %/V

Volt Second Clamp Section

Maximum Duty Cycle VFF = 0.8V, VSCLAMP = 0.6V 69 74 79 %
Minimum Duty Cycle VFF = 3.2V, VSCLAMP = 0.6V 17 19 21 %

Output Section

VOH I

OUT

= –100mA, (VDD–V

OUT

) 0.4 1 V

VOL I

OUT

= 100mA 0.4 1 V

Rise Time C

LOAD

= 1000pF 20 100 ns

Fall Time C

LOAD

= 1000pF 20 100 ns

Note 1: Guaranteed by design. Not 100% tested in production.

4

UCC15701/2
UCC25701/2
UCC35701/2

PIN DESCRIPTIONS

VDD: Power supply pin. A shunt regulator limits supply

voltage to 14V typical at 10mA shunt current.
PGND: Power Ground. Ground return for output driver

and currents.
GND: Analog Ground. Ground return for all other circuits.

This pin must be connected directly to PGND on the
board.

OUT: Gate drive output. Output resistance is 10Ω maxi

-

mum.
VFF: Voltage feedforward pin. This pin connects to the

power supply input voltage through a resistive divider and
provides feedforward compensation over a 0.8V to 3.2V
range. A voltage greater than 4.0V or less than 0.6V on
this pin initiates a soft stop cycle.

RT: The voltage on this pin mirrors VFF over a 0.8V to

3.2V range. A resistor to ground sets the ramp capacitor
charge current. The resistor value should be between
20k and 200k.

CT: A capacitor to ground provides the oscillator/
feedforward sawtooth waveform. Charge current is 2 •
I

RT

, resulting in a CT slope proportional to the input volt

-

age. The ramp voltage range is GND to V

RT

.

Period and oscillator frequency is given by:

T

VC

I

tRC

RT T

RT

DISCH T T

=

•

•

+≈••

2

05.

F

RT CT

≈

•

2

8FB

9VSCLAMP

10CT

3VDD

5.0V
REF

SS

2ILIM

1COUNT

14

13

GND

4OUT

5PGND

12 VREF

0.7V

13/9V (35701)

9.6/8.8V (35702)

SSDONE

7RT

6VFF

11 SYNC

4.5V

4V

V

REF

0.6V

0.2V

CURRENT FAULT

CURRENT LIMIT

V

REF

0.6V

4V

2*I

RT

0.2V

3µA

I

25*I

RUN

I

I

RT

PEAK

VALLEY

SHUTDOWN

LATCH

FAULT

LATCH

0.2V

VDD

HIGH LINE
LOW LINE

PWM

SQ

R

D

S

Q

R

D

1.5R

+

R

RQ

S

D

RQ

S

D

SSDONE

PWM

DQ

R

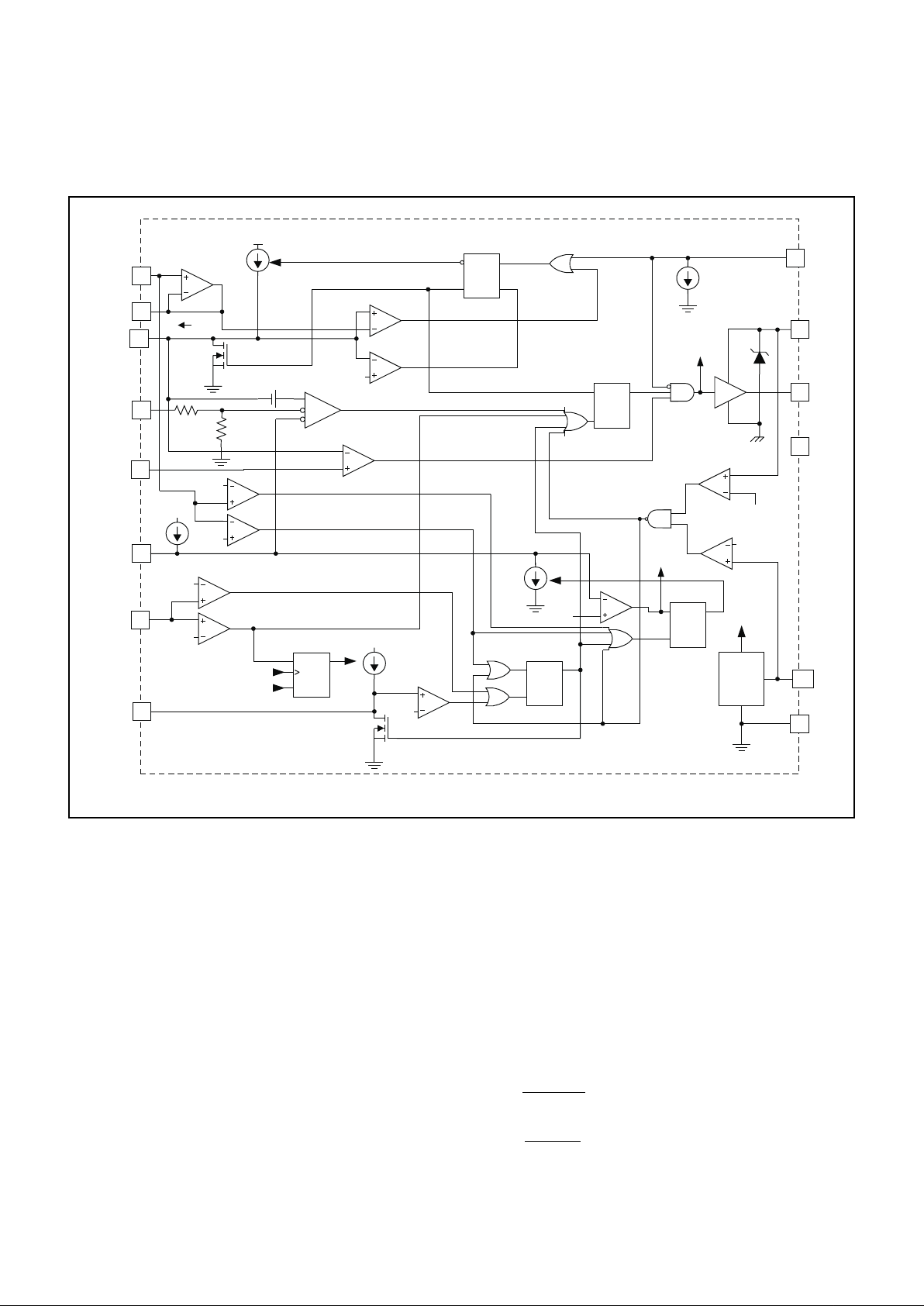

DETAILED BLOCK DIAGRAM

UDG-98004

5

UCC15701/2
UCC25701/2
UCC35701/2

(Note: Refer to the Typical Application Diagram on the first
page of this datasheet for external component names.) All the
equations given below should be considered as first order ap

-

proximations with final values determined empirically for a spe

-

cific application.

Power Sequencing

VDD is normally connected through a high impedance
(R6) to the input line, with an additional path (R7) to a
low voltage bootstrap winding on the power transformer.
VFF is connected through a divider (R1/R2) to the input
line.

For circuit activation, all of the following conditions are re

-

quired:

1. VFF between 0.6V and 4.0V (operational input voltage
range).

2. VDD has been under the UVLO stop threshold to reset
the shutdown latch.

3. VDD is over the UVLO start threshold.

The circuit will start at this point. I

VDD

will increase from
the start up value of 130 A to the run value of 750 A.
The capacitor on SS is charged with a 18 A current.
When the voltage on SS is greater than 0.8V, output
pulses can begin, and supply current will increase to a
level determined by the MOSFET gate charge require

-

ments to I

VDD

~ 1mA + QT • fs. When the output is ac

­tive, the bootstrap winding should be sourcing the supply
current. If VDD falls below the UVLO stop threshold, the
controller will enter a shutdown sequence and turn the
controller off, returning the start sequence to the initial
condition.

VDD Clamp

An internal shunt regulator clamps VDD so the voltage
does not exceed a nominal value of 14V. If the regulator
is active, supply current must be limited to less than
20mA.

APPLICATION INFORMATION

VSCLAMP: Voltage at this pin is compared to the CT

voltage, providing a constant volt-second limit. The com

­parator output terminates the PWM pulse when the ramp
voltage exceeds VSCLAMP. The maximum on time is
given by:

t

VCT

I

ON

VSCLAMP

RT

=

•

•2

The maximum duty cycle limit is given by:

D

t

T

V

V

MAX

ON VSCLAMP

RT

==

FB: Input to the PWM comparator. This pin is intended
to be driven with an optocoupler circuit. Input impedance
is 50kΩ. Typical modulation range is 1.6V to 3.6V.

SYNC: Level sensitive oscillator sync input. A high level
forces the gate drive output low and resets the ramp ca­pacitor. On-time starts at the negative edge the pulse.
There is a 3µA pull down current on the pin, allowing it to
be disconnected when not used.

VREF: 5.0V trimmed reference with 2% variation over
line, load and temperature. Bypass with a minimum of

0.1µF to ground.
SS: Soft Start pin. A capacitor is connected between this

pin and ground to set the start up time of the converter.
After power up (V

DD

>13V AND V

REF

>4.5V), or after a
fault condition has been cleared, the soft start capacitor
is charged to V

REF

by a nominal 18µA internal current

source. While the soft start capacitor is charging, and

while V

SS

< (0.4 • V

FB

), the duty cycle, and therefore the

output voltage of the converter is determined by the soft
start circuitry.

At High Line or Low Line fault conditions, the soft start
capacitor is discharged with a controlled discharge cur

­rent of about 500µA. During the discharge time, the duty
cycle of the converter is gradually decreased to zero.
This soft stop feature allows the synchronous rectifiers to
gradually discharge the output LC filter. An abrupt shut
off can cause the LC filter to oscillate, producing unpre

­dictable output voltage levels.

All other fault conditions (UVLO, VREF Low, Over Cur

­rent (0.6V on ILIM) or COUNT) will cause an immediate
stop of the converter.Furthermore, both the Over Current
fault and the COUNT fault will be internally latched until
V

DD

drops below 9V or VFFgoes below the 600mV

threshold at the input of the Low Line comparator.
After all fault conditions are cleared and the soft start ca-

pacitor is discharged below 200 mV, a soft start cycle will
be initiated to restart the converter.

ILIM: Provides a pulse by pulse current limit by terminat­ing the PWM pulse when the input is above 200mV. An
input over 600mV initiates a latched soft stop cycle.

COUNT: Capacitor to ground integrates current pulses
generated when ILIM exceeds 200mV. A resistor to
ground sets the discharge time constant. A voltage over
4V will initiate a latched soft stop cycle.

PIN DESCRIPTIONS (cont.)

6

UCC15701/2
UCC25701/2
UCC35701/2

Output Inhibit

During normal operation, OUT is driven high at the start
of a clock period and is driven low by voltages on CT, FB
or VSCLAMP.

The following conditions cause the output to be immedi

­ately driven low until a clock period starts where none of
the conditions are true:

1. I

LIM

> 0.2V

2. FB or SS is less than 0.8V

Current Limiting

ILIM is monitored by two internal comparators. The cur

­rent limit comparator threshold is 0.2V. If the current limit
comparator is triggered, OUT is immediately driven low
and held low for the remainder of the clock cycle, provid

­ing pulse-by-pulse over-current control for excessive
loads. This comparator also causes C

F

to be charged for

the remainder of the clock cycle.
If repetitive cycles are terminated by the current limit

comparator causing COUNT to rise above 4V, the shut­down latch is set. The COUNT integration delay feature
will be bypassed by the shutdown comparator which has
a 0.6V threshold. The shutdown comparator immediately
sets the shutdown latch. R

F

in parallel with CFresets the

COUNT integrator following transient faults. R

F

must be

greater than (4 • R4) • (1 – D

MAX

).

Latched Shutdown

If ILIM rises above 0.6V, or COUNT rises to 4V, the shut

­down latch will be set. This will force OUT low, discharge
SS and COUNT, and reduce I

DD

to approximately 750 A.
When, and if, VDDfalls below the UVLO stop threshold,
the shutdown latch will reset and IDDwill fall to 130 A,
allowing the circuit to restart. If V

DD

remains above the

UVLO stop threshold (within the UVLO band), an alter

-

nate restart will occur if VFF is momentarily reduced be

­low 1V. External shutdown commands from any source
may be added into either the COUNT or ILIM pins.

Voltage Feedforward

The voltage slope on CT is proportional to line voltage
over a 4:1 range and equals 2•VFF/(RT•CT).The capaci

­tor charging current is set by the voltage across R

T

.

V(RT) tracks VFF over a range of 0.8V to 3.2V. A chang

­ing line voltage will immediately change the slope of
V(CT), changing the pulse width in a proportional man

­ner without using the feedback loop, providing excellent
dynamic line regulation.

VFF is intended to operate accurately over a 4:1 range
between 0.8V and 3.2V. Voltages at VFF below 0.6V or
above 4.0V will initiate a soft stop cycle and a chip re

-

start when the under/over voltage condition is removed.

Volt-Second Clamp

A constant volt-second clamp is formed by comparing
the timing capacitor ramp voltage to a fixed voltage de

­rived from the reference. Resistors R4 and R5 set the
volt-second limit. For a volt-second product defined as
VIN • t

ON(max)

, the required voltage at VSCLAMP is:

()

()

R

RR

Vt

RC

IN

ON

TT

2

12+











••

•

max

.

The duty cycle limit is then:

V

V

VSCLAMP

VFF

, or

V

V

R

RR

VSCLAMP

IN

•
+











2

12

.

The maximum duty cycle is realized when the
feedforward voltage is set at the low end of the operating
range (V

FF

= 0.8V).

The absolute maximum duty cycle is:

D

VV

R

RR

MAX

VSCLAMP REF

==•

+08 08545..

Frequency Set

The frequency is set by a resistor from RT to ground and
a capacitor from CT to ground. The frequency is approxi

-

mately:

F

RC

TT

=

•

2

()

External synchronization is via the SYNC pin. The pin
has a 1.5V threshold , making it compatible with 5V and

3.3V CMOS logic. The input is level sensitive, with a high
input forcing the oscillator ramp low and the output low.
An active pull down on the SYNC pin allows it to be un

-

connected when not used.

Gate Drive Output

The UCC35701/2 is capable of a 1A peak output current.
Bypass with at least 0.1

F directly to PGND. The capaci

-

tor must have a low equivalent series resistance and in

­ductance. The connection from OUT to the power
MOSFET gate should have a 2 or greater damping re

­sistor and the distance between chip and MOSFET
should be minimized. A low impedance path must be es

­tablished between the MOSFET source (or ground side
of the current sense resistor), the V

DD capacitor and

PGND. PGND should then be connected by a single path
(shown as RGND) to GND.

APPLICATION INFORMATION (cont.)

7

UCC15701/2
UCC25701/2
UCC35701/2

Transitioning From UCC3570 To UCC35701

The UCC35701/2 is an advanced version of the popular,
low power UCC3570 PWM. Significant improvements
were made to the IC’s oscillator and PWM control sec

­tions to enhance overall system performance. All of the
key attributes and functional blocks of the UCC3570 were
maintained in the UCC35701/2. A typical application us

­ing UCC3570 and UCC35701/2 is shown in Fig. 6 for
comparison.

The advantages of the UCC35701/2 over the UCC3570
are as follows.

•

Improved oscillator and PWM control section.

•

A precise maximum volt-second clamp circuit. The
UCC3570 has a dual time base between oscillator and
feedforward circuitry. The integated time base in
UCC35701/2 improves the duty cycle clamp accuracy,
providing better than ± 5% accurate volt- second
clamp over full temperature range.

• Separately programmable oscillator timing resistor

(RT) and capacitor (CT) circuits provide a higher
degree of versatility.

• An independent SYNC input pin for simple external

synchronization.

• A smaller value filter capacitor (0.1

F) can be used

with the enhanced reference voltage.

UCC35701/2 is pin to pin compatible to UCC3570 but is
not a direct drop-in replacement for UCC3570 sockets.
The changes required to the power supply printed circuit
board of for existing UCC3570 designs are minimal. For
conversion, only one extra resistor to set the volt-second
clamp needs to be added to the existing PC board lay

­outs. In addition, some component values will need to be
changed due to the functionality change in of four of the
IC pins.

The Pinout Changes from UCC3570 are as follows.

•

Pin 7 was changed from SLOPE to RT (for timing
resistor)

•

Pin 8 was changed from ISET to VSCLAMP (requiring
one additional resistor from pin 9 to VREF)

•

Pin 10 was changed from RAMP to CT (single timing
capacitor)

•

Pin 11 was changed from FREQ to SYNC (input only)

Additional Information

Please refer to the following two Unitrode application
topics on UCC3570 for additional information.

[1] Application Note U-150,

Applying the UCC3570 Volt­age-Mode PWM Controller to Both Off-line and DC/DC
Converter Designs

by Robert A. Mammano

[2] Design Note DN-62,

Switching Power Supply Topol-

ogy, Voltage Mode vs. Current Mode

by Robert

Mammano

APPLICATION INFORMATION (cont.)

VSCLAMP

CT

FEEDBK

SOFT START HIGH DC LOW DC ZERO DC

SOFTST

V-S CLAMP

SOFT STOP

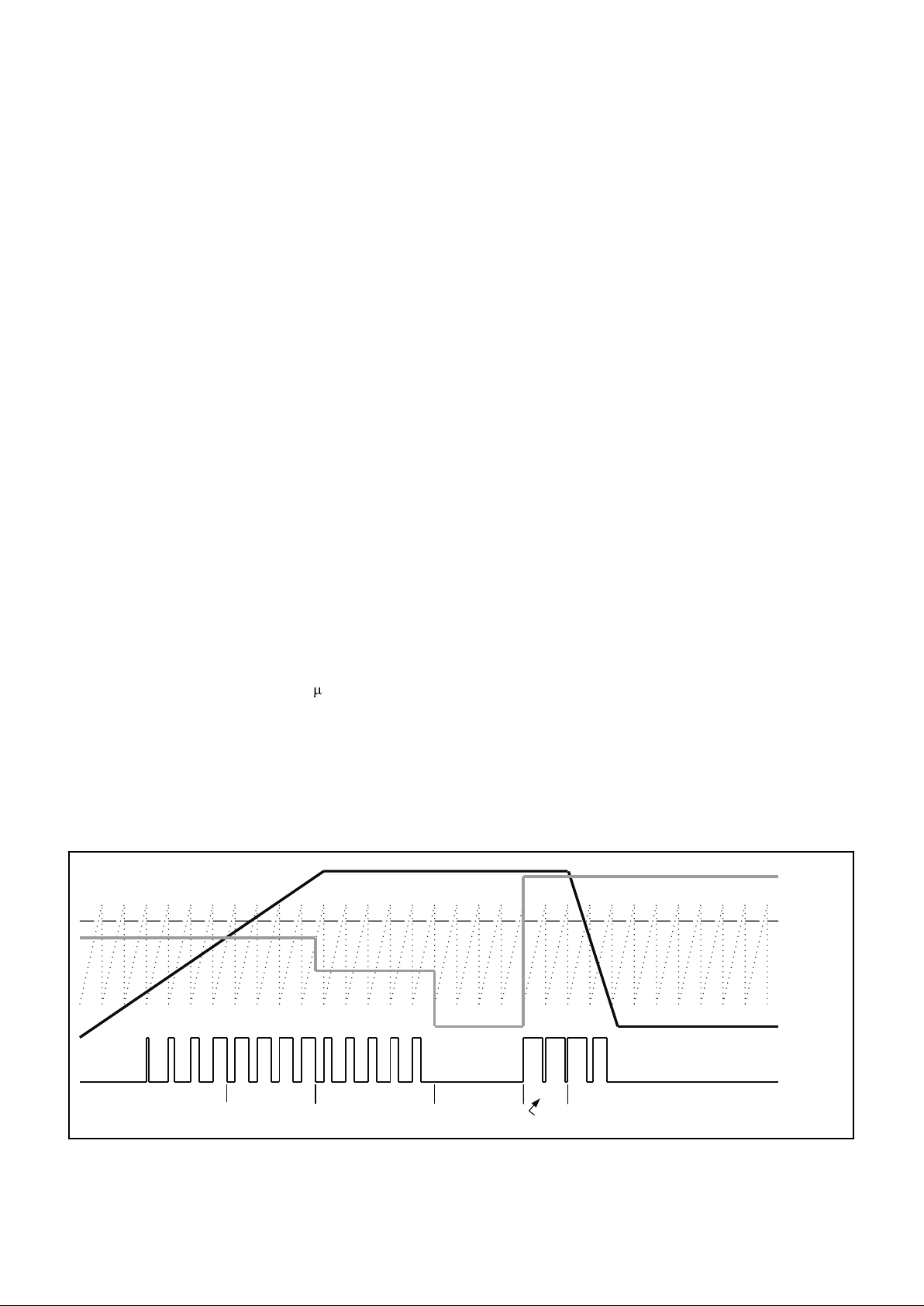

Figure 1. Timing diagram for PWM action with forward, soft start and volt-second clamp.

TYPICAL WAVEFORMS

UDG-98207

8

UCC15701/2
UCC25701/2
UCC35701/2

VFF

CT

SYNC

Figure 2. Timing diagram for oscillator waveforms showing feedforward action and synchronization.

TYPICAL WAVEFORMS (cont.)

10

100

1000

20 60 100 140 180 220

RT [KΩ]

FREQUENCY [kHz]

100pF
150pF
220pF
330pF
470pF

Figure 3. Oscillator frequency vs. RT and CT.

TYPICAL CHARACTERISTIC CURVES

0.97

0.98

0.99

1.00

1.01

1.02

1.03

-55 -35 -15 5 25 45 65 85 105 125

TEMPERATURE [°C]

NORMALIZED DUTY CYCLE

VFF=0.8

VFF=3.2

Figure 5. Normalized maximum duty cycle vs.
temperature.

UDG-98208

Figure 4. Oscillator frequency vs. temperature.

9

UCC15701/2
UCC25701/2
UCC35701/2

UNITRODE CORPORATION
7 CONTINENTAL BLVD. • MERRIMACK, NH 03054
TEL. [phone] • FAX [phone]

6

7

10

9

11

14

1

12

8

13

3

4

2

5

VFF

SLOPE

RAMP

ISET

FREQ

SS

COUNT

VREF

FB

GND

PGND

OUT

VDD

ILIM

R5

C1

C2

R8

R

GND

R

SNS

R9

C4

R6

R7

C3

R1

R2

R3

R4

C

R

C

T

R

T

C

F

R

F

C

SS

UCC3570

V

IN+

6

7

10

9

11

14

1

12

8

13

3

4

2

5

VFF

RT

CT

VSCLAMP

SYNC

SS

COUNT

VREF

FB

GND

PGND

OUT

VDD

ILIM

R5

C1

C2

R8

R

GND

R9

R7

C3

R1

R2

R3

R4

C

T

R

NEW

C

F

R

F

C

SS

UCC35701

V

IN+

R12

C6

C5

R11

R13

C7

R14

V

OUT

R12

C6

C5

R11

R13

C7

R14

V

OUT

V

OUT

R

SNS

V

OUT

R6

C4

R15

R15

Figure 6. Single-ended forward circuit comparison between UCC3750 and UCC37501.

APPLICATION INFORMATION (cont.)

UDG-98210

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.

Customers are responsible for their applications using TI components.
In order to minimize risks associated with the customer’s applications, adequate design and operating

safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent

that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Copyright  2000, Texas Instruments Incorporated
