TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions

Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage

Active-Low Reset Signal with 200-ms Pulse Width

Very Low Dropout Voltage ...Maximum of 35 mV at IO = 100 mA (TPS7350)

Low Quiescent Current – Independent of Load . . . 340 µA Typ

Extremely Low Sleep-State Current,

0.5 µA Max

2% Tolerance Over Full Range of Load, Line, and Temperature for Fixed-Output Versions

Output Current Range of 0 mA to 500 mA

TSSOP Package Option Offers Reduced Component Height For Critical Applications

description

The TPS73xx devices are members of a family of micropower low-dropout (LDO) voltage regulators. They are di ffere ntiate d from the TP S71xx an d TPS72xx LDOs by their integrated delayed microprocessor-reset function. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered.

AVAILABLE OPTIONS

OUTPUT VOLTAGE

(V)

NEGATIVE-GOING RESET

THRESHOLD VOLTAGE (V)

PACKAGED DEVICES

MIN TYP MAX MIN TYP MAX

SMALL

OUTLINE

(D)

PLASTIC DIP

(P)

TSSOP

(PW)

CHIP FORM

(Y)

4.9 5 5.1 4.55 4.65 4.75 TPS7350QD TPS7350QP TPS7350QPW TPS7350Y

4.75 4.85 4.95 4.5 4.6 4.7 TPS7348QD TPS7348QP TPS7348QPW TPS7348Y

3.23 3.3 3.37 2.868 2.934 3 TPS7333QD TPS7333QP TPS7333QPW TPS7333Y

–

40°C to

125°C

2.94 3 3.06 2.58 2.64 2.7 TPS7330QD TPS7330QP TPS7330QPW TPS7330Y

125 C

2.425 2.5 2.575 2.23 2.32 2.39 TPS7325QD TPS7325QP TPS7325QPW TPS7325Y Adjustable

1.2 V to 9.75 V

1.101 1.123 1.145 TPS7301QD TPS7301QP TPS7301QPW TPS7301Y

The D and PW packages are available taped and reeled. Add an R suffix to device type (e.g., TPS7350QDR). The TPS7301Q is programmable using an external resistor divider (see application information). The chip form is tested at 25°C.

The TPS7325 has a tolerance of ±3% over the full temperature range.

The TPS71xx and the TPS72xx are 500-mA and 250-mA output regulators respectively, of fering performance similar to that of the TPS73xx but without the delayed-reset function. The TPS72xx devices are further differentiated by availability in 8-pin thin-shrink small-outline packages (TSSOP) for applications requiring minimum package size.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1 2 3 4 5 6 7 8 9 10

20 19 18 17 16 15 14 13 12 11

GND GND GND

NC NC EN NC

IN IN IN

RESET NC NC FB

‡

NC SENSE

†

OUT OUT NC NC

PW PACKAGE

(TOP VIEW)

NC – No internal connection †

SENSE – Fixed voltage options only (TPS7325, TPS7330, TPS7333, TPS7348, and TPS7350)

‡

FB – Adjustable version only (TPS7301)

1 2 3 4

8 7 6 5

GND

IN IN

RESET SENSE†/FB

‡

OUT OUT

D OR P PACKAGE

(TOP VIEW)

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

description (continued)

The RESET output of the TPS73xx initiates a reset in microcomputer and microprocessor systems in the event of an undervoltage condition. An internal comparator in the TPS73xx monitors the output voltage of the regulator to detect an undervoltage condition on the regulated output voltage.

If that occurs, the RESET output (open-drain NMOS) turns on, taking the RESET signal low . RESET stays low for the duration of the undervoltage condition. Once the undervoltage condition ceases, a 200-ms (typ) time-out begins. At the completion of the 200-ms delay, RESET

goes high.

An order of magnitude reduction in dropout voltage and quiescent current over conventional LDO performance is achieved by replacing the typical pnp pass transistor with a PMOS device.

Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (maximum of 35 mV at an output current of 100 mA for the TPS7350) and is directly proportional to the output current (see Figure 1). Additionally , since the PMOS pass element is a voltage-driven device, the quiescent current is low and remains constant, independent of output loading (typically 340 µA over the full range of output current, 0 mA to 500 mA). These two key specifications yield a significant improvement in operating life for battery-powered systems.

The LDO family also features a sleep mode; applying a logic high signal to EN (enable) shuts down the regulator, reducing the quiescent current to 0.5 µA maximum at TJ = 25°C.

The TPS73xx is offered in 2.5-V , 3-V , 3.3-V , 4.85-V, and 5-V fixed-voltage versions and in an adjustable version (programmable over the range of 1.2 V to 9.75 V). Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges (3% for the 2.5 V and the adjustable version). The TPS73xx family is available in PDIP (8 pin), SO (8 pin) and TSSOP (20 pin) packages. The TSSOP has a maximum height of

1.2 mm.

Figure 1. Dropout Voltage Versus Output Current

0.25

0.2

0.1

0.05

0.15

0 50 100 150 200 250 300

0.3

350 400 450 500

TA = 25°C

TPS7348

TPS7350

Dropout Voltage – V

IO – Output Current – mA

TPS7333

TPS7330

TPS7325

Figure 2. Typical Application Configuration

†

TPS7325, TPS7330, TPS7333, TPS7348, TPS7350 (fixed-voltage options)

‡

Capacitor selection is nontrivial. See application information section for details.

SENSE

RESET

OUT

IN IN

GND

321

20 15 14 13

0.1 µF

To System Reset

CSR = 1 Ω

10 µF

TPS73xxPW

†

‡

250 kΩ

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS73xxY chip information

These chips, when properly assembled, display characteristics similar to those of the TPS73xxQ. Thermal compression or ultrasonic bonding may be used on the doped aluminum bonding pads. Chips may be mounted with conductive epoxy or a gold-silicon preform.

(6) (4)

(3)

(7)

(2)

(1)

GND

‡

OUT RESET

TPS73xx

CHIP THICKNESS: 15 TYPICAL BONDING PADS: 4 × 4 MINIMUM TJmax = 150°C TOLERANCES ARE ±10%. ALL DIMENSIONS ARE IN MILS.

†

SENSE – Fixed voltage options only (TPS7325, TPS7330, TPS7333, TPS7348, and TPS7350)

‡

FB – Adjustable version only (TPS7301)

BONDING PAD ASSIGNMENTS

SENSE

†

(5)

NOTE A. For most applications, OUT and SENSE should

be tied together as close as possible to the device; for other implementations, refer to SENSE-pin connection discussion in the applications information section of this data sheet.

(3)

(4)

(5)

(6)

(7)

(2)

(1)

functional block diagram

_ +

ref

OUT

SENSE§/FB

GND

RESET

TPS7301 TPS7325 TPS7330 TPS7333 TPS7348 TPS7350

DEVICE

UNITR1 R2

0 260 358 420 726 756

∞

233 233 233 233 233

Ω

kΩ kΩ kΩ kΩ kΩ

RESISTOR DIVIDER OPTIONS

For most applications, SENSE should be externally connected to OUT as close as possible to the device. For other implementations, refer to SENSE-pin connection discussion in applications information section.

Switch positions are shown with EN

low (active).

NOTE A. Resistors are nominal values only.

Delayed

Reset

¶¶

MOS transistors Bilpolar transistors Diodes Capacitors Resistors

COMPONENT COUNT

464

4 17 76

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

timing diagram

†

res

is the minimum input voltage for a valid RESET . The symbol V

res

is not currently listed within EIA or JEDEC standards

for semiconductor symbology.

res

†

res

Threshold

Voltage

RESET Output

200 ms Delay

Output Undefined

Output

Undefined

IT+

IT–

IT+

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

‡

Input voltage range

, VI, RESET, SENSE, EN –0.3 V to 11 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output current, IO 2 A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous total power dissipation See Dissipation Rating Tables 1 and 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating virtual junction temperature range, TJ –55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

‡

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

All voltage values are with respect to network terminal ground.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

DISSIPATION RATING TABLE 1 – FREE-AIR TEMPERATURE (SEE FIGURE 3)

≤ 25°C DERATING FACTOR T

= 70°C T

= 125°C

PACKAGE

POWER RATING ABOVE TA = 25°CAPOWER RATINGAPOWER RATING

D 725 mW 5.8 mW/°C 464 mW 145 mW P 1 175 mW 9.4 mW/°C 752 mW 235 mW

†

700 mW 5.6 mW/°C 448 mW 140 mW

DISSIPATION RA TING TABLE 2 – CASE TEMPERATURE (SEE FIGURE 4)

≤ 25°C DERATING FACTOR T

= 70°C T

= 125°C

PACKAGE

POWER RATING ABOVE TC = 25°CCPOWER RATINGCPOWER RATING

D 2188 mW 9.4 mW/°C 1765 mW 1248 mW P 2738 mW 21.9 mW/°C 1752 mW 548 mW

†

4025 mW 32.2 mW/°C 2576 mW 805 mW

†

Refer to Thermal Information section for detailed power dissipation considerations when using the TSSOP package.

Figure 3

PW Package R

θJA

= 178°C/W

1200

800

400

25 50 75 100

– Maximum Continuous Dissipation – mW

MAXIMUM CONTINUOUS DISSIPATION

FREE-AIR TEMPERATURE

125 150

1400

1000

600

200

TA – Free-Air Temperature – °C

D Package R

θJA

= 172°C/W

P Package R

θJA

= 106°C/W

Figure 4

2400

1600

800

25 50 75 100

– Maximum Continuous Dissipation – mW

3200

4000

MAXIMUM CONTINUOUS DISSIPATION

CASE TEMPERATURE

4800

125 150

4400

3600

2800

2000

1200

400

TC – Case Temperature – °C

D Package R

θJC

= 57°C/W

P Package R

θJC

= 46°C/W

PW Package R

θJC

= 37°C/W

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

recommended operating conditions

MIN MAX UNIT

TPS7301Q 2.47 10 TPS7325Q 3.1 10

TPS7330Q 3.5 10 V

Input voltage, V

†

TPS7333Q 3.77 10 TPS7348Q 5.2 10

TPS7350Q 5.33 10

High-level input voltage at EN, V

2 V

Low-level input voltage at EN, V

0.5 V

Output current range, I

0 500 mA

Operating virtual junction temperature range, T

–40 125 °C

†

Minimum input voltage defined in the recommended operating conditions is the maximum specified output voltage plus dropout voltage, VDO, at the maximum specified load range. Since dropout voltage is a function of output current, the usable range can be extended for lighter loads. To calculate the minimum input voltage for the maximum load current used in a given application, use the following equation:

I(min)

O(max)

)

DO(max load)

Because the TPS7301 is programmable, r

DS(on)

should be used to calculate VDO before applying the above equation. The equation for calculating

VDO from r

DS(on)

is given in Note 2 in the TPS7301 electrical characteristics table. The minimum value of 2.97 V is the absolute lower limit for

the recommended input voltage range for the TPS7301.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics at IO = 10 mA, EN = 0 V, Co = 4.7 µF (CSR‡ = 1 Ω), SENSE/FB shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

MIN TYP MAX

UNIT

EN ≤ 0.5 V, V

= V

+ 1 V

25°C 340 400

Ground current (active mode)

EN ≤ 0.5 V,

+ 1

0 mA ≤ IO ≤ 500 mA

–40°C to 125°C 550

25°C 0.01 0.5

Input current (standby mode)

2.7 V ≤ V

≤ 10

–40°C to 125°C 2

25°C 1.2 2

Output current limit

= 0 V,

= 10

–40°C to 125°C 2

Pass-element leakage current in standby

25°C 0.01 0.5

mode

2.7 V ≤ V

≤ 10 V

–40°C to 125°C 1

25°C 0.02 0.5

RESET leak

age curren

ormal operation,V at

RESET

= 10

–40°C to 125°C 0.5

Output voltage temperature coefficient –40°C to 125°C 61 75 ppm/°C Thermal shutdown junction temperature 165 °C

2.5 V ≤ VI ≤ 6 V

EN logic high (standb

y mode

)

6 V ≤ VI ≤ 10 V

–

40°C to 125°C

2.7

25°C 0.5

EN logic l

ow (active mode

)

2.7 V ≤ V

≤ 10 V

–40°C to 125°C 0.5

EN hysteresis voltage 25°C 50 mV

25°C –0.5 0.001 0.5

EN i

nput curren

0 V ≤ V

≤ 10 V

–40°C to 125°C –0.5 0.5

25°C 2.05 2.5

Minimum V

for active pass element

–40°C to 125°C 2.5

25°C 1 1.5

Mini

mum

or va

lid RESET

O(RESET)

= –

300 µA

–40°C to 125°C 1.9

‡

CSR (compensation series resistance) refers to the total series resistance, including the equivalent series resistance (ESR) of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7301Q electrical characteristics at IO = 10 mA, V

= 3.5 V , EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω), FB

shorted to OUT at device leads (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

25°C 1.182 V

Reference voltage (measured at FB)

2.5 V ≤ VI ≤ 10 V, See Note 1

5 mA ≤ IO ≤ 500 mA,

–40°C to 125°C 1.147 1.217 V

Reference voltage temperature coefficient

–40°C to 125°C 61 75 ppm/°C

25°C 0.7 1

= 2.4 V,

50 µA ≤ I

≤

150 mA

–40°C to 125°C 1

25°C 0.83 1.3

Pass-element series resistance

2.4 V

150 mA ≤ I

≤ 500 mA

–40°C to 125°C 1.3

(See Note 2)

25°C 0.52 0.85

Ω

= 2.9 V,

50 µA ≤ I

≤

500 mA

–40°C to 125°C 0.85 VI = 3.9 V, 50 µA ≤ IO ≤ 500 mA 25 °C 0.32 VI = 5.9 V, 50 µA ≤ IO ≤ 500 mA 25 °C 0.23

= 2.5 V to 10 V, 50 µA ≤ I

≤ 500 mA,

25°C 3 18

Input regulation

See Note 1

–40°C to 125°C 25

2.5 V ≤ V

≤ 10 V, I

= 5 mA to 500 mA,

25°C 5 14

See Note 1

–40°C to 125°C 25

Output regulation

2.5 V ≤ V

≤ 10 V, I

= 50 µA to 500 mA,

25°C 7 22

See Note 1

µ ,

–40°C to 125°C 54

25°C 48 59

50 µA

–40°C to 125°C 44

Ripple rejection

120 H

= 500 mA,

25°C 45 54

See Note 1

–40°C to 125°C 44

Output noise-spectral density f = 120 Hz 25°C 2

µV/√Hz

Co = 4.7 µF 25°C 95

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF 25°C 89

µVrms

Co = 100 µF 25°C 74

RESET trip-threshold voltage

O(FB)

decreasing –40°C to 125°C 1.101 1.145 V

RESET hysteresis voltage

Measured at V

O(FB)

25°C 12 mV

25°C 0.1 0.4

RESET

output low voltage

= 2.13 V,

O(RESET)

400 µA

–40°C to 125°C 0.4

25°C –10 0.1 10

FB input current

–40°C to 125°C –20 20

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

Output voltage programmed to 2.5 V with closed-loop configuration (see application information).

NOTES: 1. When VI < 2.9 V and IO > 150 mA simultaneously, pass element r

DS(on)

increases (see Figure 33) to a point where the resulting

dropout voltage prevents the regulator from maintaining the specified tolerance range.

2. To calculate dropout voltage, use equation: VDO = IO

⋅ r

DS(on)

is a function of both output current and input voltage. This parametric table lists r

DS(on)

for VI = 2.4 V, 2.9 V, 3.9 V, and

5.9 V , which corresponds to dropout conditions for programmed output voltages of 2.5 V, 3 V, 4 V, and 6 V respectively . For other programmed values, refer to Figure 33.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7325Q electrical characteristics at IO = 10 mA, V

= 3.5 V , EN = 0 V, Co = 10 µF (CSR† = 1 Ω), SENSE

shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

25°C 2.45 2.5 2.55

Output voltage

3.5 V ≤ VI ≤ 10 V, 5 mA ≤ IO ≤ 500 mA –40°C to 125°C 2.425 2.575

25°C 5

= 10 mA,

= 2.97

–40°C to 125°C 14

25°C 50 80

ropout voltage

100 mA

2.97 V

–40°C to 125°C 150

25°C 270 400

500 mA

= 2.97

–40°C to 125°C 600

(2.97 V – V

)/I

, V

= 2.97 V ,

25°C 0.5 0.7

Pass-element series resistance

(

O)O

IO = 500 mA

–40°C to 125°C 1.4

Ω

25°C 6 20

Input regulation

3.5 V to 10 V

50 µA ≤ I

≤ 500 mA

–40°C to 125°C 25

25°C 20 32

5 mA to 500 mA

,3.5 V ≤

≤ 10 V

–40°C to 125°C 50

Output regulation

25°C 28 60

= 50 µA to

500 mA

,3.5 V ≤

≤ 10

–40°C to 125°C 100

25°C 50 53

50 µA

–40°C to 125°C 49

Ripple rejection

120 H

25°C 49 53

500 mA

–40°C to 125°C 32

Output noise-spectral density f = 120 Hz 25°C 2

µV/√Hz

Co = 4.7 µF

25°C 274

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

25°C 228

µVrms

Co = 100 µF

25°C 159

RESET trip-threshold voltage

VO decreasing –40°C to 125°C 2.23 2.32 2.39 V

25°C 0.14 0.4

RESET output low voltage

2.1 V

O(RESET)

= –

0.8 mA

–40°C to 125°C 0.4

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

Dropout test and pass-element series resistance test are not production tested. Test method requires SENSE terminal to be disconnected from output voltage.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7330Q electrical characteristics at IO = 10 mA, V

= 4 V , EN = 0 V , Co = 4.7 µF (CSR† = 1 Ω), SENSE

shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

25°C 3

Output voltage

4 V ≤ VI ≤ 10 V, 5 mA ≤ IO ≤ 500 mA –40°C to 125°C 2.94 3.06

25°C 5.2 7

= 10 mA,

= 2.94

–40°C to 125°C 10

25°C 52 75

ropout voltage

100 mA

2.94 V

–40°C to 125°C 100

25°C 267 450

500 mA

= 2.94

–40°C to 125°C 500

(2.94 V – V

)/I

, V

= 2.94 V ,

25°C 0.5 0.7

Pass-element series resistance

(

O)O

IO = 500 mA

–40°C to 125°C 1

Ω

25°C 6 23

Input regulation

4 V to 10 V

50 µA ≤ I

≤ 500 mA

–40°C to 125°C 29

25°C 20 32

5 mA to 500 mA

,4 V ≤

≤ 10 V

–40°C to 125°C 60

Output regulation

25°C 28 60

= 50 µA to

500 mA

,4 V ≤

≤ 10

–40°C to 125°C 120

25°C 43 53

50 µA

–40°C to 125°C 40

Ripple rejection

120 H

25°C 39 53

500 mA

–40°C to 125°C 36

Output noise-spectral density f = 120 Hz 25°C 2

µV/√Hz

Co = 4.7 µF

25°C 274

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

25°C 228

µVrms

Co = 100 µF

25°C 159

RESET trip-threshold voltage

VO decreasing –40°C to 125°C 2.58 2.64 2.7 V

25°C 0.14 0.4

RESET output low voltage

2.6 V

O(RESET)

= –

0.8 mA

–40°C to 125°C 0.4

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7333Q electrical characteristics at IO = 10 mA, V

= 4.3 V, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω),

SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

25°C 3.3

Output voltage

4.3 V ≤ VI ≤ 10 V, 5 mA ≤ IO ≤ 500 mA –40°C to 125°C 3.23 3.37

25°C 4.5 7

= 10 mA,

= 3.23

–40°C to 125°C 8

25°C 44 60

ropout voltage

100 mA

3.23 V

–40°C to 125°C 80

25°C 235 300

500 mA

= 3.23

–40°C to 125°C 400

(3.23 V – V

)/I

, V

= 3.23 V ,

25°C 0.44 0.6

Pass-element series resistance

(

O)O

IO = 500 mA

–40°C to 125°C 0.8

Ω

25°C 6 23

Input regulation

4.3 V to 10 V

50 µA ≤ I

≤ 500 mA

–40°C to 125°C 29

25°C 21 38

5 mA to 500 mA, 4.3 V ≤ V

≤ 10 V

–40°C to 125°C 75

Output regulation

25°C 31 60

= 50 µA to

500 mA, 4.3 V ≤ V

≤ 10

–40°C to 125°C 120

25°C 43 51

50 µA

–40°C to 125°C 40

Ripple rejection

120 H

25°C 39 49

500 mA

–40°C to 125°C 36

Output noise-spectral density f = 120 Hz 25°C 2

µV/√Hz

Co = 4.7 µF

25°C 274

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

25°C 228

µVrms

Co = 100 µF

25°C 159

RESET trip-threshold voltage

VO decreasing –40°C to 125°C 2.868 V

RESET hysteresis voltage

25°C 18 mV

25°C 0.17 0.4

RESET output low voltage

= 2.8 V,

O(RESET)

= –1

–40°C to 125°C 0.4

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7348Q electrical characteristics at IO = 10 mA, V

= 5.85 V, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω),

SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

25°C 4.85

Output voltage

5.85 V ≤ VI ≤ 10 V, 5 mA ≤ IO ≤ 500 mA –40°C to 125°C 4.75 4.95

25°C 2.9 6

= 10 mA,

= 4.75

–40°C to 125°C 8

25°C 28 37

ropout voltage

100 mA

4.75 V

–40°C to 125°C 54

25°C 150 180

500 mA

= 4.75

–40°C to 125°C 250

(4.75 V – V

)/I

, V

= 4.75 V ,

25°C 0.28 0.37

Pass-element series resistance

(

O)O

IO = 500 mA

–40°C to 125°C 0.52

Ω

25°C 9 35

Input regulation

5.85 V to 10 V

50 µA ≤ I

≤ 500 mA

–40°C to 125°C 37

25°C 28 42

5 mA to 500 mA, 5.85 V ≤ V

≤ 10 V

–40°C to 125°C 80

Output regulation

25°C 42 65

= 50 µA to

500 mA, 5.85 V ≤ V

≤ 10

–40°C to 125°C 130

25°C 42 53

50 µA

–40°C to 125°C 39

Ripple rejection

120 H

25°C 39 50

500 mA

–40°C to 125°C 35

Output noise-spectral density f = 120 Hz 25°C 2 µV/√Hz

Co = 4.7 µF

25°C 410

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

25°C 328

µVrms

Co = 100 µF

25°C 212

RESET trip-threshold voltage

VO decreasing –40°C to 125°C 4.5 4.7 V

RESET hysteresis voltage

25°C 26 mV

25°C 0.2 0.4

RESET output low voltage

O(RESET)

= –

1.2 mA,V

4.12 V

–40°C to 125°C 0.4

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7350Q electrical characteristics at IO = 10 mA, V

= 6 V , EN = 0 V , Co = 4.7 µF (CSR† = 1 Ω), SENSE

shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

25°C 5

Output voltage

6 V ≤ VI ≤ 10 V, 5 mA ≤ IO ≤ 500 mA –40°C to 125°C 4.9 5.1

25°C 2.9 6

= 10 mA,

= 4.88

–40°C to 125°C 8

25°C 27 35

ropout voltage

100 mA

4.88 V

–40°C to 125°C 50

25°C 146 170

500 mA

= 4.88

–40°C to 125°C 230

(4.88 V – V

)/I

, V

= 4.88 V ,

25°C 0.27 0.35

Pass-element series resistance

(

O)O

IO = 500 mA

–40°C to 125°C 0.5

Ω

25°C 4 25

Input regulation

6 V to 10 V

50 µA ≤ I

≤ 500 mA

–40°C to 125°C 45

25°C 30 45

5 mA to 500 mA

,6 V ≤

≤ 10 V

–40°C to 125°C 86

Output regulation

25°C 45 65

= 50 µA to

500 mA

,6 V ≤

≤ 10

–40°C to 125°C 140

25°C 43 53

50 µA

–40°C to 125°C 38

Ripple rejection

120 H

25°C 41 51

500 mA

–40°C to 125°C 36

Output noise-spectral density f = 120 Hz 25°C 2

µV/√Hz

Co = 4.7 µF

25°C 430

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

25°C 345

µVrms

Co = 100 µF

25°C 220

RESET trip-threshold voltage

VO decreasing –40°C to 125°C 4.55 4.75 V

RESET hysteresis voltage

25°C 28 mV

25°C 0.15 0.4

RESET output low voltage

O(RESET)

= –1.2 mA,

= 4.25

–40°C to 125°C 0.4

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

switching characteristics

PARAMETER TEST CONDITIONS

TPS7301Q, TPS7333Q TPS7348Q, TPS7350Q

UNIT

MIN TYP MAX

25°C 140 200 260

RESET ti

me-out delay

See Figure 5

–40°C to 125°C 100 300

electrical characteristics at IO = 10 mA, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω), TJ = 25°C, SENSE/FB shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

TPS7301Y, TPS7333Y TPS7348Y, TPS7350Y

UNIT

MIN TYP MAX

Ground current (active mode)

EN ≤ 0.5 V, 0 mA ≤ IO ≤ 500 mA

VI = VO + 1 V,

340 µA

Input current (standby mode)

EN = VI, 2.7 V ≤ VI ≤ 10 V

0.01 µA Output current limit VO = 0 V, VI = 10 V 1.2 A Pass-element leakage current in standby mode

EN = VI, 2.7 V ≤ VI ≤ 10 V

0.01 µA RESET leakage current

Normal operation, V at RESET = 10 V

0.02 µA Thermal shutdown junction temperature 165 °C EN logic low (active mode)

2.7 V ≤ VI ≤ 10 V 0.5 V EN hysteresis voltage 50 mV EN input current

0 V ≤ VI ≤ 10 V 0.001 µA Minimum VI for active pass element 2.05 V Minimum VI for valid RESET

O(RESET)

= –300 µA 1 V

†

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7301Y electrical characteristics at IO = 10 mA, V

= 3.5 V, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω),

= 25°C, FB shorted to OUT at device leads (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

Reference voltage (measured at FB) 1.182 V

VI = 2.4 V, 50 µA ≤ IO ≤ 150 mA 0.7 VI = 2.4 V, 150 mA ≤ IO ≤ 500 mA 0.83

Pass-element series resistance (See Note 2)

VI = 2.9 V, 50 µA ≤ IO ≤ 500 mA 0.52

Ω

VI = 3.9 V, 50 µA ≤ IO ≤ 500 mA 0.32 VI = 5.9 V, 50 µA ≤ IO ≤ 500 mA 0.23

Input regulation

VI = 2.5 V to 10 V, See Note 1

50 µA ≤ IO ≤ 500 mA,

3 mV

2.5 V ≤ VI ≤ 10 V, See Note 1

IO = 5 mA to 500 mA,

5 mV

Output regulation

2.5 V ≤ VI ≤ 10 V, See Note 1

IO = 50 µA to 500 mA,

7 mV

IO = 50 µA 59

Ripple rejection f = 120 Hz

IO = 500 mA, See Note 1

Output noise-spectral density f = 120 Hz 2

µV/√Hz

Co = 4.7 µF 95

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF 89

µVrms

Co = 100 µF 74

RESET hysteresis voltage

Measured at V

O(FB)

12 mV

RESET output low voltage

VI = 2.13 V , I

O(RESET)

= 400 µA 0.1 V

FB input current 0.1 nA

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

Output voltage programmed to 2.5 V with closed-loop configuration (see application information).

NOTES: 1. When VI < 2.9 V and IO > 150 mA simultaneously, pass element r

DS(on)

increases (see Figure 33) to a point where the resulting

dropout voltage prevents the regulator from maintaining the specified tolerance range.

2. To calculate dropout voltage, use equation: VDO = IO

⋅ r

DS(on)

is a function of both output current and input voltage. The parametric table lists r

DS(on)

for VI = 2.4 V, 2.9 V, 3.9 V, and

5.9 V , which corresponds to dropout conditions for programmed output voltages of 2.5 V, 3 V, 4 V, and 6 V respectively . For other programmed values, refer to Figure 33.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7325Y electrical characteristics at IO = 10 mA, V

= 3.5 V, EN = 0 V, Co = 10 µF (CSR† = 1 Ω),

= 25°C, SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

Output voltage 2.5 V

IO = 10 mA, VI = 2.97 V 5

Dropout voltage

IO = 100 mA, VI = 2.97 V 50

IO = 500 mA, VI = 2.97 V 270

Pass-element series resistance

(2.97 V – VO)/IO, IO = 500 mA

VI = 2.97 V ,

0.5 Ω

Input regulation VI = 3.5 V to 10 V, 50 µA ≤ IO ≤ 500 mA 6 mV

IO = 5 mA to 500 mA, 3.5 V ≤ VI ≤ 10 V 20 mV

Output regulation

IO = 50 µA to 500 mA, 3.5 V ≤ VI ≤ 10 V 28 mV

IO = 50 µA 53

Ripple rejection

120 H

IO = 500 mA 53

Output noise-spectral density f = 120 Hz 2

µV/√Hz

Co = 4.7 µF

274

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

228

µVrms

Co = 100 µF

159

RESET output low voltage

VI = 2.1 V, I

O(RESET)

= –0.8 mA 0.14 V

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

Dropout test and pass-element series resistance test are not production tested. Test method requires SENSE terminal to be disconnected from output voltage.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7330Y electrical characteristics at IO = 10 mA, V

= 4 V, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω),

= 25°C, SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

Output voltage 3 V

IO = 10 mA, VI = 2.94 V 5.2

Dropout voltage

IO = 100 mA, VI = 2.94 V 52

IO = 500 mA, VI = 2.94 V 267

Pass-element series resistance

(2.94 V – VO)/IO, IO = 500 mA

VI = 2.94 V ,

0.5 Ω

Input regulation VI = 4 V to 10 V, 50 µA ≤ IO ≤ 500 mA 6 mV

IO = 5 mA to 500 mA, 4 V ≤ VI ≤ 10 V 20 mV

Output regulation

IO = 50 µA to 500 mA, 4 V ≤ VI ≤ 10 V 28 mV

IO = 50 µA 53

Ripple rejection

120 H

IO = 500 mA 53

Output noise-spectral density f = 120 Hz 2

µV/√Hz

Co = 4.7 µF

274

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

228

µVrms

Co = 100 µF

159

RESET output low voltage

VI = 2.6 V, I

O(RESET)

= –0.8 mA 0.14 V

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7333Y electrical characteristics at IO = 10 mA, V

= 4.3 V, EN = 0 V, C

= 4.7 µF (CSR† = 1 Ω),

= 25°C, SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

Output voltage 3.3 V

IO = 10 mA, VI = 3.23 V 4.5

Dropout voltage

IO = 100 mA, VI = 3.23 V 44

IO = 500 mA, VI = 3.23 V 235

Pass-element series resistance

(3.23 V – VO)/IO, IO = 500 mA

VI = 3.23 V ,

0.44 Ω

Input regulation VI = 4.3 V to 10 V, 50 µA ≤ IO ≤ 500 mA 6 mV

IO = 5 mA to 500 mA, 4.3 V ≤ VI ≤ 10 V 21 mV

Output regulation

IO = 50 µA to 500 mA, 4.3 V ≤ VI ≤ 10 V 31 mV

IO = 50 µA 51

Ripple rejection

120 H

IO = 500 mA 49

Output noise-spectral density f = 120 Hz 2

µV/√Hz

Co = 4.7 µF

274

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

228

µVrms

Co = 100 µF

159

RESET hysteresis voltage

18 mV

RESET output low voltage

VI = 2.8 V, I

O(RESET)

= –1 mA 0.17 V

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7348Y electrical characteristics at IO = 10 mA, V

= 5.85 V, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω),

= 25°C, SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

Output voltage 4.85 V

IO = 10 mA, VI = 4.75 V 2.9

Dropout voltage

IO = 100 mA, VI = 4.75 V 28

IO = 500 mA, VI = 4.75 V 150

Pass-element series resistance

(4.75 V – VO)/IO, IO = 500 mA

VI = 4.75 V ,

0.28 Ω

Input regulation VI = 5.85 V to 10 V, 50 µA ≤ IO ≤ 500 mA 9 mV

IO = 5 mA to 500 mA, 5.85 V ≤ VI ≤ 10 V 28 mV

Output regulation

IO = 50 µA to 500 mA, 5.85 V ≤ VI ≤ 10 V 42 mV

IO = 50 µA 53

Ripple rejection

120 H

IO = 500 mA 50

Output noise-spectral density f = 120 Hz 2 µV/√Hz

Co = 4.7 µF

410

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

328

µVrms

Co = 100 µF

212

RESET hysteresis voltage

26 mV

RESET output low voltage

O(RESET)

= –1.2 mA, VI = 4.12 V 0.2 V

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS7350Y electrical characteristics at IO = 10 mA, V

= 6 V, EN = 0 V, Co = 4.7 µF (CSR† = 1 Ω),

= 25°C, SENSE shorted to OUT (unless otherwise noted)

PARAMETER

TEST CONDITIONS

‡

MIN TYP MAX

UNIT

Output voltage 5 V

IO = 10 mA, VI = 4.88 V 2.9 6

Dropout voltage

IO = 100 mA, VI = 4.88 V 27 35

IO = 500 mA, VI = 4.88 V 146 170

Pass-element series resistance

(4.88 V – VO)/IO, IO = 500 mA

VI = 4.88 V ,

0.27 0.35 Ω

Input regulation VI = 6 V to 10 V, 50 µA ≤ IO ≤ 500 mA 4 25 mV

IO = 5 mA to 500 mA, 6 V ≤ VI ≤ 10 V 28 75 mV

Output regulation

IO = 50 µA to 500 mA, 6 V ≤ VI ≤ 10 V 41 mV

IO = 50 µA 53

Ripple rejection

120 H

IO = 500 mA 51

Output noise-spectral density f = 120 Hz 2

µV/√Hz

Co = 4.7 µF

430

Output noise voltage 10 Hz ≤ f ≤ 100 kHz

Co = 10 µF

345

µVrms

Co = 100 µF

220

RESET hysteresis voltage

28 mV

RESET output low voltage

O(RESET)

= –1.2 mA, VI = 4.25 V 0.15 0.4 V

†

CSR refers to the total series resistance, including the ESR of the capacitor, any series resistance added externally , and PWB trace resistance to Co.

‡

Pulse-testing techniques are used to maintain virtual junction temperature as close as possible to ambient temperature; thermal effects must be taken into account separately.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

PARAMETER MEASUREMENT INFORMATION

SENSE

RESET

OUT

IN EN

GND

0.1 µF

Reset

CSR

10 µF

TEST CIRCUIT

RESET

Timeout Delay

RESET

IT+

VOLTAGE WAVEFORMS

Figure 5. Test Circuit and Voltage Waveforms

OUT

SENSE

GND

CSR

cer

†

Ceramic capacitor

To Load

Figure 6. Test Circuit for Typical Regions of Stability (Refer to Figures 29 through 32)

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Table of Graphs

vs Output current 7

IQQuiescent current

vs Input voltage 8

Quiescent current TPS7348 vs Free-air temperature 9

vs Input voltage 10

IQQuiescent current

TPS7325

vs Free-air temperature 11

Dropout voltage vs Output current 12

∆V

Change in dropout voltage vs Free-air temperature 13

Dropout voltage TPS7301 vs Output current 14

∆V

Change in output voltage vs Free-air temperature 15

Output voltage vs Input voltage 16

Output voltage TPS7325 vs Input voltage 17 Line regulation 18

TPS7301 vs Output current 19 TPS7325 vs Output current 20

TPS7330 vs Output current 21

VOOutput voltage

TPS7333 vs Output current 22 TPS7348 vs Output current 23 TPS7350 vs Output current 24

Output voltage response from enable (EN) 25

TPS7301 or TPS7333 26 TPS7325 27

TPS7348 or TPS7350 28

Load transient response

TPS7301 29 TPS7333 30

TPS7348 or TPS7350 31 Ripple rejection vs Frequency 32 Output spectral noise density vs Frequency 33

vs Output current 34

Compensation series resistance

= 4.7 µ

vs Added ceramic capacitance 35

(CSR)

vs Output current 36

= 10 µ

vs Added ceramic capacitance 37

DS(on)

Pass-element resistance vs Input voltage 38

Minimum input voltage for valid RESET vs Free-air temperature 39

IT–

Negative-going reset threshold vs Free-air temperature 40

OL(RESET)

RESET output current vs Input voltage 41

Reset time delay vs Free-air temperature 42

Distribution for reset delay 43

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

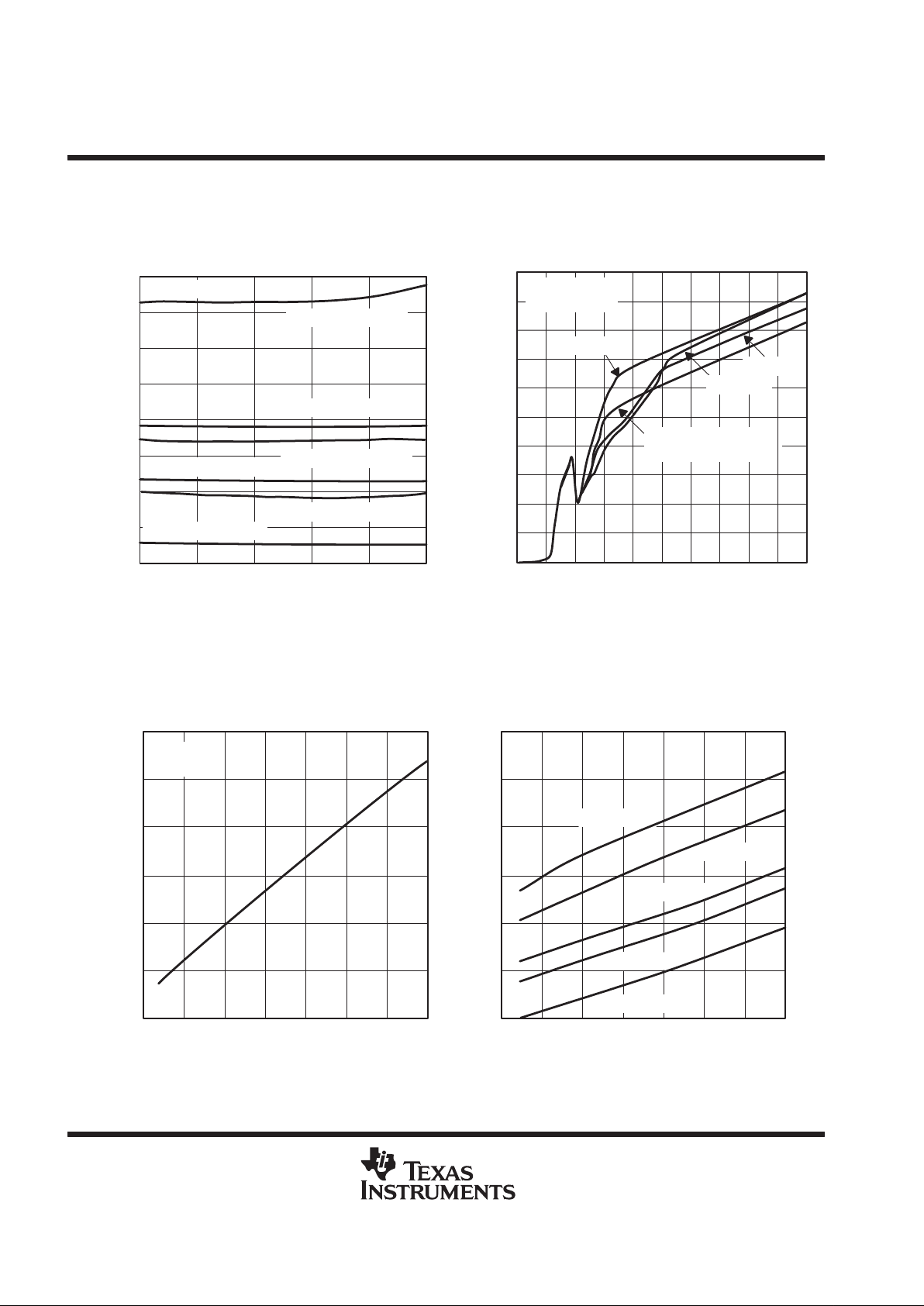

Figure 7

QUIESCENT CURRENT

OUTPUT CURRENT

– Quiescent Current –

Aµ

IO – Output Current – mA

425

375

350

300

0 50 100 150 200 250

450

400

325

TA = 25°C

TPS73xx, VI = 10 V

TPS7350, VI = 6 V

TPS7333, VI = 4.3 V

TPS7348, VI = 5.85 V

275

TPS7330, VI = 4 V

TPS7325, VI = 3.5 V

Figure 8

QUIESCENT CURRENT

INPUT VOLTAGE

VI – Input Voltage – V

– Quiescent Current –

Aµ

200

150

0123456

250

350

500

78910

100

300

TPS7333

TPS7350

TA = 25°C IO = 500 mA

TPS7301 With V

Programmed to 2.5 V

400

450

TPS7348

Figure 9

TPS7348

QUIESCENT CURRENT

FREE-AIR TEMPERATURE

300

250

200

350

400

–50 – 25 0 25 50 75 100 125

VI = 5.85 V IO = 500 mA

– Quiescent Current –

Aµ

TA – Free-Air Temperature – °C

450

500

Figure 10

TPS7325

QUIESCENT CURRENT

INPUT VOLTAGE

300

250

200

350

400

3 45678910

– Quiescent Current –

Aµ

VI – Input Voltage – V

450

500

TA = 125°C

TA = 85°C

TA = 25°C

TA = 0°C

TA = –40°C

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

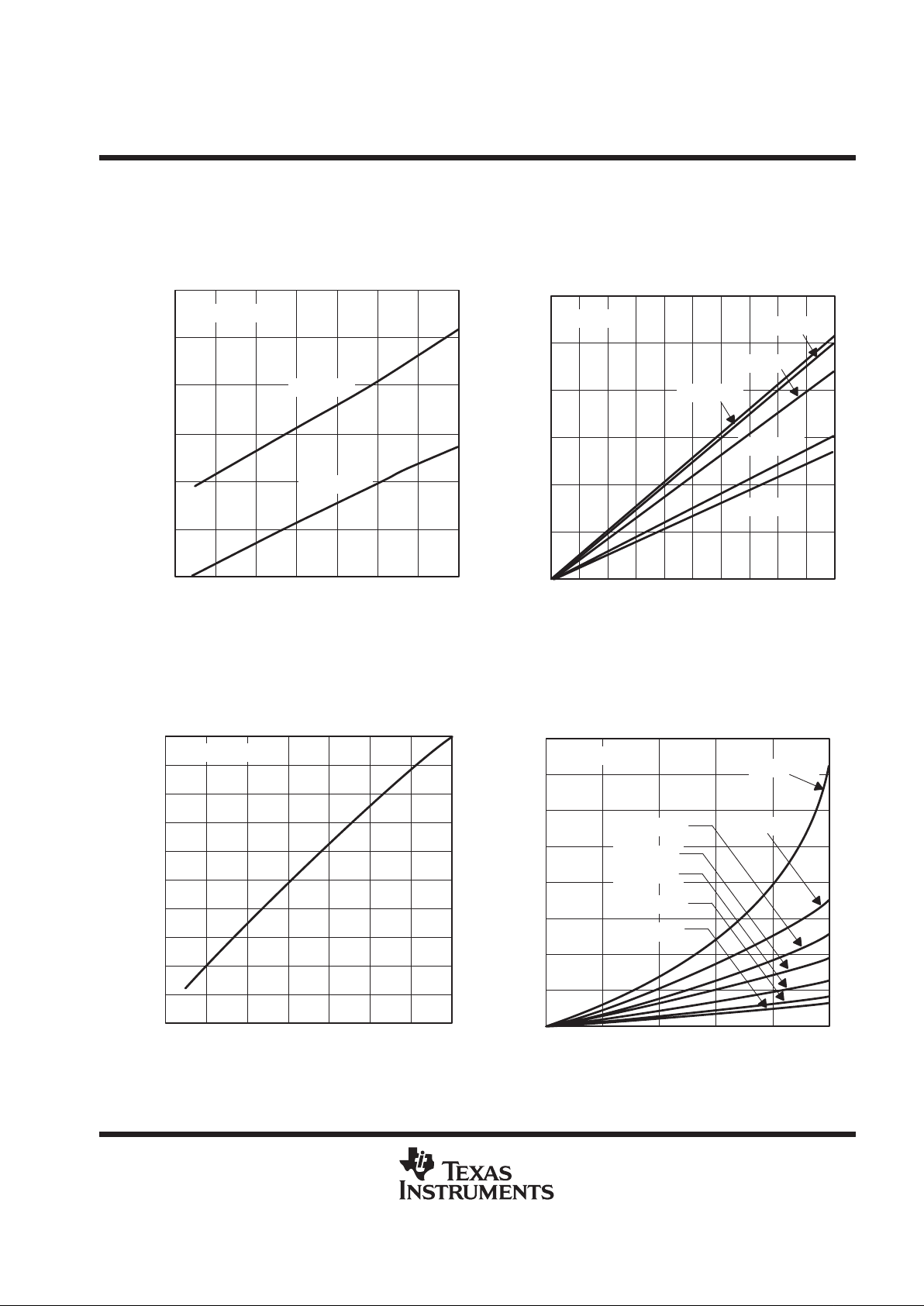

Figure 11

TPS7325

QUIESCENT CURRENT

FREE-AIR TEMPERATURE

300

250

200

350

400

–50 – 25 0 25 50 75 100 125

– Quiescent Current –

Aµ

TA – Free-Air Temperature – °C

450

500

VI = 10 V

VI = 3.5 V

IL = 750 mA

Figure 12

DROPOUT VOLTAGE

OUTPUT CURRENT

0.25

0.2

0.1

0.05

0.15

0 50 100 150 200 250 300

0.3

350 400 450 500

TA = 25°C

TPS7348

TPS7350

Dropout Voltage – V

IO – Output Current – mA

TPS7333

TPS7330

TPS7325

Figure 13

– Change In Dropout Voltage – mV

CHANGE IN DROPOUT VOLTAGE

FREE-AIR TEMPERATURE

8 6

4 2 0

–2 –4

–6 –8

–10

–50 –25 0 25 50 75 100 125

IO = 100 mA

TA – Free-Air Temperature – °C

∆

Figure 14

0 50 100 150 200 250

1.6

1.4

1.2

0.8

0.6

0.4

0.2

– Dropout Voltage – VV

IO – Output Current – mA

TPS7301

DROPOUT VOLTAGE

OUTPUT CURRENT

VI = 2.9 V

VI = 2.4 V

VI = 2.6 V

VI = 3.2 V VI = 3.9 V

VI = 5.9 V

VI = 9.65 V

TA = 25°C

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

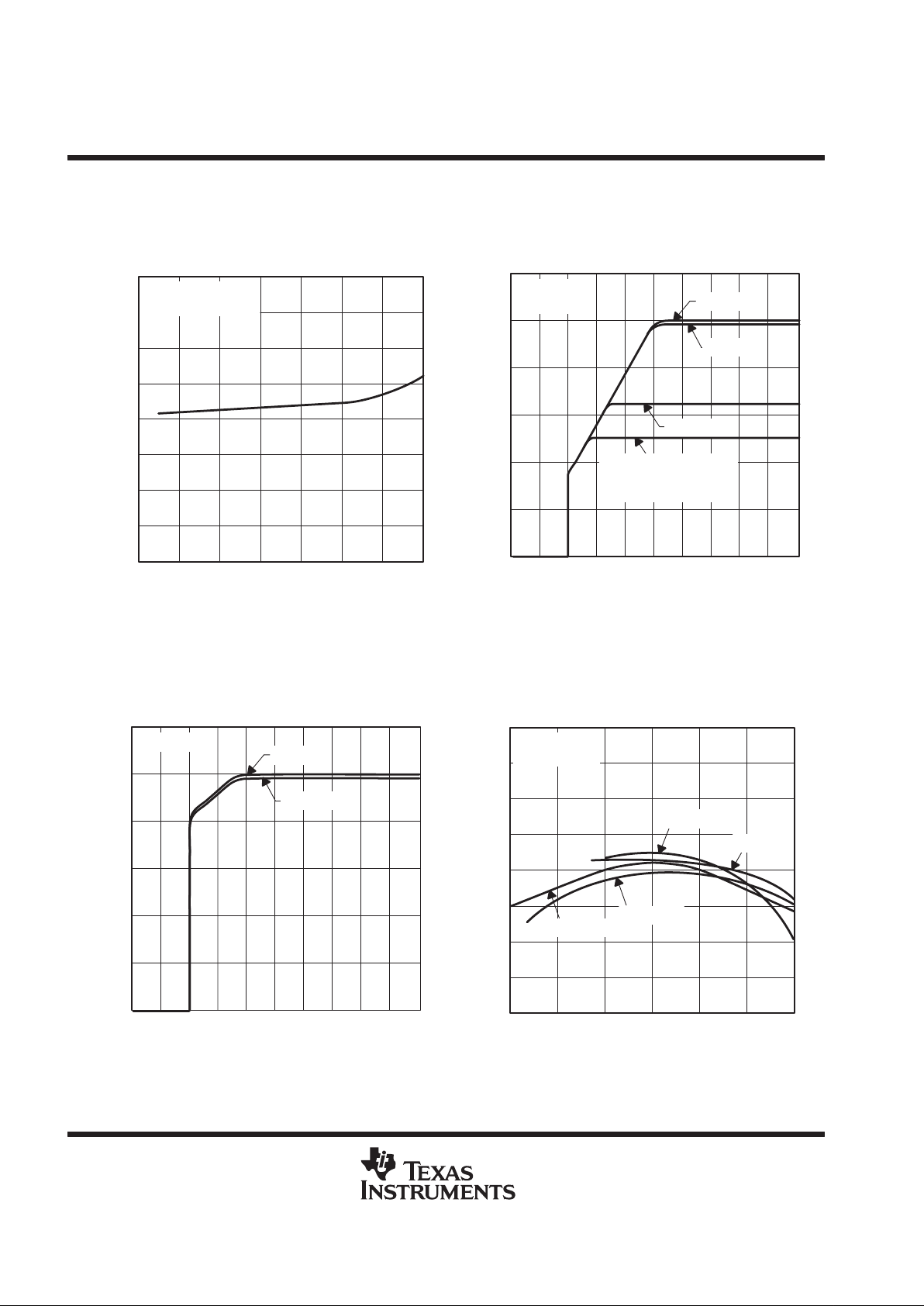

Figure 15

CHANGE IN OUTPUT VOLTAGE

FREE-AIR TEMPERATURE

– Change in Output Voltage – mV

–5

–10

–20

–50 – 25 0 25 50 75 100 125

–15

TA – Free-Air Temperature – °C

∆

VI = V

O(nom)

+ 1 V

IO = 100 mA

Figure 16

0123456

– Output Voltage – V

OUTPUT VOLTAGE

INPUT VOLTAGE

78910

TPS7333

TA = 25°C IO = 500 mA

TPS7350

TPS7348

VI – Input Voltage – V

TPS7301 With V

Programmed to 2.5 V and TPS7325

Figure 17

1.5

0.5

0123456

– Output Voltage – V

2.5

TPS7325

OUTPUT VOLTAGE

INPUT VOLTAGE

78910

TA = 25°C

100 mA

500 mA

VI – Input Voltage – V

Figure 18

4567

– Change In Output Voltage – mV

8910

–5

–10

–15

–20

TPS7350

TPS7348

TA = 25°C IO = 250 mA

VI – Input Voltage – V

∆V

TPS7333

TPS7325

LINE REGULATION

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

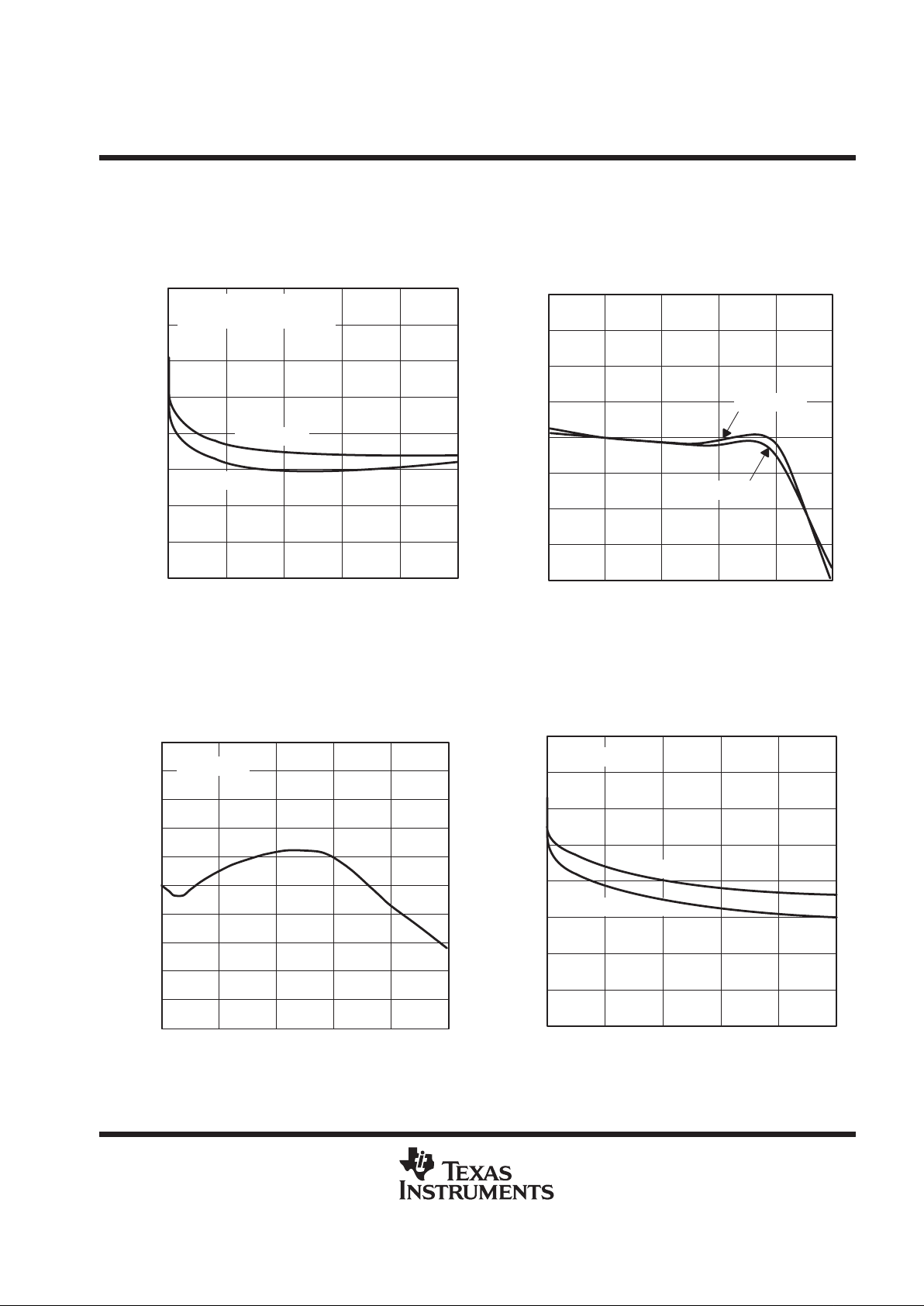

Figure 19

2.5

2.495

2.485

2.48 0 100 200 300

– Output Voltage – V

2.505

2.515

TPS7301

OUTPUT VOLTAGE

OUTPUT CURRENT

2.52

400 500

2.49

2.51

IO – Output Current – mA

TA = 25°C VO Programmed to 2.5 V

VI = 3.5 V

VI = 10 V

Figure 20

0 100 200 300 400 500

2.495

2.49

2.485

2.48

IO – Output Current – mA

2.515

2.51

2.505

2.5

2.52

VI = 10 V

VI = 3.5 V

– Output Voltage – V

TPS7325

OUTPUT VOLTAGE

OUTPUT CURRENT

Figure 21

OUTPUT VOLTAGE

OUTPUT CURRENT

TPS7330

3.06

2.94

2.85 0 100 300

– Output Voltage – V

3.12

500

3.15

3.09

3.03

2.97

2.91

2.88

200 400

IO – Output Current – mA

TA = 25°C

Figure 22

3.3

3.29

3.27

3.26 0 100 200 300

– Output Voltage – V

3.31

3.33

OUTPUT VOLTAGE

OUTPUT CURRENT

3.34

400 500

3.28

3.32

TPS7333

TA = 25°C

VI = 10 V

VI = 4.3 V

IO – Output Current – mA

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 23

OUTPUT VOLTAGE

OUTPUT CURRENT

TPS7348

4.87

4.85

4.83

4.8 0 100 300

– Output Voltage – V

4.89

4.92

500

4.91

4.9

4.88

4.86

4.84

4.82

4.81

200 400

IO – Output Current – mA

TA = 25°C

VI = 5.85 V

VI = 10 V

Figure 24

OUTPUT VOLTAGE

OUTPUT CURRENT

TPS7350

5.01

4.99

4.97

4.94 0 100 300

– Output Voltage – V

5.03

5.06

400 500

5.05

5.04

5.02

4.98

4.96

4.95

200

TA = 25°C

VI = 6 V

VI = 10 V

IO – Output Current – mA

– Output Voltage – V

OUTPUT VOLTAGE RESPONSE FROM

ENABLE (EN

)

0 20 40 60 80 100 120 140

EN Voltage – V

TA = 25°C RL = 500 Ω Co = 4.7 µF (CSR = 1Ω) No Input Capacitance

O(nom)

Time – µs

–2

Figure 25

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

LOAD TRANSIENT RESPONSE

200

100

–100

–200

– Output Current – mA

105

TPS7301 (WITH VO PROGRAMMED TO 2.5 V) OR TPS7333

t – Time – µs

0 100 200 300 400 500

TA = 25°C VI = 6 V CI = 0 Co = 4.7 µF (CSR = 1 Ω)

– Change in Output Voltage – mV∆V

–45

Figure 26

150

–50

–100

t – Time – µs

–200 –100 0 500100 600

– Change in Output Voltage – mV∆V

Figure 27

–150

–200

–250

–300 200 300 400

100

LOAD TRANSIENT RESPONSE

TPS7325

∆IO = 100 mA VI = 6 V CI = 0 Co = 10 µF TA = 25°C

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

LOAD TRANSIENT RESPONSE

200

100

–100

–200

105

TPS7348 OR TPS7350

t – Time – µs

0 100 200 300 400 500

VI = 6 V CI = 0 Co = 4.7 µF CSR = 1 Ω TA = 25°C

– Change in Output Voltage – mV∆V

– Output Current – mA I

–45

Figure 28

LINE TRANSIENT RESPONSE

100

–50

–100

6.5

6.25

TPS7301 WITH VO PROGRAMMED TO 2.5 V

t – Time – µs

0 100 200 300 400

TA = 25°C CI = 0 Co = 4.7 µF (CSR = 1 Ω)

– Change in Output Voltage – mV∆V

– Input Voltage – V V

5.75

Figure 29

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

LINE TRANSIENT RESPONSE

200

100

–50

–100

– Input Voltage – V

6.5

6.25

TPS7333

t – Time – µs

5.75

0 100 200 300 400 500

TA = 25°C CI = 0 Co = 4.7 µF (CSR = 1 Ω)

– Change in Output Voltage – mV∆V

Figure 30

LINE TRANSIENT RESPONSE

100

–50

–100

– Input Voltage – V

6.5

6.25

TPS7348 OR TPS7350

t – Time – µs

0 100 200 300 400 500

TA = 25°C CI = 0 Co = 4.7 µF (CSR = 1 Ω)

– Change in Output Voltage – mV∆V

5.75

Figure 31

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 32

Ripple Rejection – dB

f – Frequency – Hz

RIPPLE REJECTION

FREQUENCY

10 100 1 K 10 K 100 K 1 M 10 M

TA = 25°C No Input Capacitance Added VI = VO + 1 V IO = 100 mA Co = 4.7 µF (CSR = 1)

TPS7333

TPS7301 With VO Programmed to 2.5 V

TPS7348/

TPS7350

Figure 33

10 100 1 k 10 k 100 k

Co = 10 µF (CSR = 1 Ω)

Co = 4.7 µF (CSR = 1 Ω)

Co = 100 µF (CSR = 1 Ω)

f – Frequency – Hz

OUTPUT SPECTRAL-NOISE DENSITY

FREQUENCY

0.1

0.01

TA = 25°C No Input Capacitance Added VI = VO + 1 V

Output Spectral-Noise Density –

Hzµ

Figure 34

0.1

0.01 0 50 100 150 200 250

TYPICAL REGIONS OF STABILITY

COMPENSATION SERIES RESISTANCE (CSR)

†

OUTPUT CURRENT

100

IO – Output Current – mA

CSR – Compensation Series Resistance – Ω

Region of Instability

TA = 25°C VI = VO + 1 V Co = 4.7 µF No Added Ceramic Capacitance No Input Capacitance Added

Region of Instability

Figure 35

0.1

0.01 0 0.1 0.2 0.3 0.4 0.5

TYPICAL REGIONS OF STABILITY

COMPENSATION SERIES RESISTANCE (CSR)

†

ADDED CERAMIC CAPACITANCE

100

Added Ceramic Capacitance – µF

0.6 0.7 0.8 0.9 1

TA = 25°C VI = VO + 1 V IO = 500 mA Co = 4.7 µF No Input Capacitor Added

Region of Instability

CSR – Compensation Series Resistance – Ω

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 36

0.1

0.01 0 50 100 150 200 250

TYPICAL REGIONS OF STABILITY

COMPENSATION SERIES RESISTANCE (CSR)

†

OUTPUT CURRENT

100

IO – Output Current – mA

Region of Instability

TA = 25°C VI = VO + 1 V Co = 10 µF No Added Ceramic Capacitance No Input Capacitor Added

Region of Instability

CSR – Compensation Series Resistance – Ω

Figure 37

0.1

0.01 0 0.1 0.2 0.3 0.4 0.5

TYPICAL REGIONS OF STABILITY

COMPENSATION SERIES RESISTANCE (CSR)

†

ADDED CERAMIC CAPACITANCE

100

Added Ceramic Capacitance – µF

0.6 0.7 0.8 0.9 1

Region of Instability

TA = 25°C VI = VO + 1 V IO = 500 mA Co = 10 µF No Input Capacitor Added

Region of Instability

CSR – Compensation Series Resistance – Ω

Figure 38

0.4

0.3

0.2

0.1 2457

– Pass-Element Resistance –

0.5

PASS-ELEMENT RESISTANCE

INPUT VOLTAGE

0.6

910

368

TA = 25°C V

I(FB)

= 1.12 V

DS(on)

Ω

VI – Input Voltage – V

0.9

0.8

0.7

1.1

IO = 500 mA

IO = 100 mA

Figure 39

1.08

1.07

1.06

1.05

– Minimum Input Voltage For Valid RESET – V

1.09

MINIMUM INPUT VOLTAGE FOR VALID RESET

FREE-AIR TEMPERATURE

1.1

–50 –25 0 25 50 75 100 125

TA – Free-Air Temperature – °C

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 40

– Negative-Going Reset Threshold – mV

NEGATIVE-GOING RESET THRESHOLD

FREE-AIR TEMPERATURE

–5

–10

–15

IT–

TA – Free-Air Temperature – °C

–50 –25 0 25 50 75 100 125

Figure 41

1.5

0.5

0123456

– RESET Output Current – mA

2.5

3.5

RESET OUTPUT CURRENT

INPUT VOLTAGE

78910

VI – Input Voltage – V

TPS7333

TPS7348

TPS7350

IL = 10 mA VOL ≤ 0.4 V TA = 25°C

Figure 42

192

191

196

190

– Reset Delay Time – ms

194

193

195

RESET DELAY TIME

FREE-AIR TEMPERATURE

197

TA – Free-Air Temperature –°C

–50 –25 0 25 50 75 100 125

Figure 43

5 0

180 185 190 195

Percentage of Units – %

DISTRIBUTION FOR RESET DELAY

200 205 210

td – Reset Delay Time – ms

TA = 25°C 197 Devices

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

THERMAL INFORMATION

In response to system-miniaturization trends, integrated circuits are being offered in low-profile and fine-pitch surface-mount packages. Implementation of many of today’s high-performance devices in these packages requires special attention to power dissipation. Many system-dependent issues such as thermal coupling, airflow, added heat sinks and convection surfaces, and the presence of other heat-generating components affect the power-dissipation limits of a given component.

Three basic approaches for enhancing thermal performance are illustrated in this discussion:

Improving the power-dissipation capability of the PWB design

Improving the thermal coupling of the component to the PWB

Introducing airflow in the system

Figure 44 is an example of a thermally enhanced PWB layout for the 20-lead TSSOP package. This layout involves adding copper on the PWB to conduct heat away from the device. The R

θJA

(thermal resistance, junction-to-ambient) for this component/board system is illustrated in Figure 45. The family of curves illustrates the effect of increasing the size of the copper-heat-sink surface area. The PWB is a standard FR4 board (L × W × H = 3.2 inch × 3.2 inch × 0.062 inch); the board traces and heat sink area are 1-oz (per square foot) copper.

Figure 46 shows the thermal resistance for the same system with the addition of a thermally-conductive compound between the body of the TSSOP package and the PWB copper routed directly beneath the device. The thermal conductivity for the compound used in this analysis is 0.815 W/m × °C.

Using these figures to determine the system R

θJA

allows the maximum power-dissipation limit to be calculated with

the equation:

D(max)

J(max)

JA(system)

Where

J(max)

is the maximum allowable junction temperature; 150°C absolute maximum and 125°C

maximum recommended operating temperature for specified operation.

This limit should then be applied to the internal power dissipated by the TPS73xx regulator. The equation for calculating total internal power dissipation of the TPS73xx is:

D(total)

+ǒVI*

IO)

Because the quiescent current of the TPS73xx family is very low, the second term is negligible, further simplifying the equation to:

D(total)

VI*

For a 20-lead TSSOP/FR4 board system with thermally conductive compound between the board and the device body , where T

= 55°C, airflow = 100 ft/min, and copper heat sink area = 1 cm2, the maximum power-dissipation limit

can be calculated. As indicated in Figure 46, the system R

θJA

is 94°C/W; therefore, the maximum power-dissipation

limit is:

D(max)

J(max)

JA(system)

125 C*55 C

94 CńW

745 mW

°°

If the system implements a TPS7348 regulator where VI = 6 V and IO = 150 mA, the internal power dissipation is:

D(total)

+ǒVI*

IO+(6*

4.85) 0.150+173 mW

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

THERMAL INFORMATION

Comparing P

D(total)

with P

D(max)

reveals that the power dissipation in this example does not exceed the maximum limit. When it does, one of two corrective actions can be taken. The power-dissipation limit can be raised by increasing either the airflow or the heat-sink area. Alternatively , the internal power dissipation of the regulator can be lowered by reducing either the input voltage or the load current. In either case, the above calculations should be repeated with the new system parameters.

Copper Heat Sink

1 oz Cu

Figure 44. Thermally Enhanced PWB Layout (not to scale) for the 20-Pin TSSOP

Figure 45

110

0 50 100 150 200 250

130

150

THERMAL RESISTANCE, JUNCTION-TO-AMBIENT

AIR FLOW

170

300

190

C/W

JAθ

R – Thermal Resistance, Junction-to-Ambient –

0 cm

8 cm

2 cm

4 cm

1 cm

Component/Board System 20-Lead TSSOP

Air Flow – ft/min

Figure 46

110

0 50 100 150 200 250

130

150

170

300

190

THERMAL RESISTANCE, JUNCTION-TO-AMBIENT

AIR FLOW

0 cm

4 cm

2 cm

8 cm

1 cm

C/W

JAθ

R – Thermal Resistance, Junction-to-Ambient –

Component/Board System 20-Lead TSSOP Includes Thermally Conductive Compound Between Body and Board

Air Flow – ft/min

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

The TPS73xx series of low-dropout (LDO) regulators overcome many of the shortcomings of earlier generation LDOs, while adding features such as a power-saving shutdown mode and a supply-voltage supervisor. The TPS73xx family includes five fixed-output voltage regulators: the TPS7325 (2.5 V), TPS7330 (3 V), TPS7333 (3.3 V), the TPS7348 (4.85 V), and the TPS7350 (5 V). The family also offers an adjustable device, the TPS7301 (adjustable from 1.2 V to 9.75 V).

device operation

The TPS73xx, unlike many other LDOs, features very low quiescent currents that remain virtually constant even with varying loads. Conventional LDO regulators use a pnp-pass element, the base current of which is directly proportional to the load current through the regulator (I

= IC/β). Close examination of the data sheets reveals that such devices are typically specified under near no-load conditions; actual operating currents are much higher as evidenced by typical quiescent current versus load current curves (see Figure 7). The TPS73xx uses a PMOS transistor to pass current; because the gate of the PMOS element is voltage driven, operating currents are low and invariable over the full load range. The TPS73xx specifications reflect actual performance under load.

Another pitfall associated with the pnp-pass element is its tendency to saturate when the device goes into dropout. The resulting drop in β forces an increase in IB to maintain the load. During power-up, this translates to large start-up currents. Systems with limited supply current may fail to start up. In battery-powered systems, it means rapid battery discharge when the voltage decays below the minimum required for regulation. The TPS73xx quiescent current remains low even when the regulator drops out, thus eliminating both problems.

Included in the TPS73xx family is a 4.85-V regulator, the TPS7348. Designed specifically for 5-V cellular systems, its 4.85-V output, regulated to within ± 2%, allows for operation within the low-end limit of 5-V systems specified to ± 5% tolerance; therefore, maximum regulated operating lifetime is obtained from a battery pack before the device drops out, adding crucial talk minutes between charges.

The TPS73xx family also features a shutdown mode that places the output in the high-impedance state (essentially equal to the feedback-divider resistance) and reduces quiescent current to under 0.5 µA. When the shutdown feature is not used, EN

should be tied to ground. Response to an enable transition is quick; regulated

output voltage is reestablished in typically 120 µs.

minimum load requirements

The TPS73xx family is stable even at zero load; no minimum load is required for operation.

SENSE connection

The SENSE terminal of fixed-output devices must be connected to the regulator output for proper functioning of the regulator. Normally , this connection should be as short as possible; however , the connection can be made near a critical circuit (remote sense) to improve performance at that point. Internally, SENSE connects to a high-impedance wide-bandwidth amplifier through a resistor-divider network, and noise pickup feeds through to the regulator output. It is essential to route the SENSE connection in such a way as to minimize/avoid noise pickup. Adding an RC network between SENSE and OUT to filter noise is not recommended because it can cause the regulator to oscillate.

external capacitor requirements

An input capacitor is not required; however, a ceramic bypass capacitor (0.047 pF to 0.1 µF) improves load transient response and noise rejection when the TPS73xx is located more than a few inches from the power supply. A higher-capacitance electrolytic capacitor may be necessary if large (hundreds of milliamps) load transients with fast rise times are anticipated.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

external capacitor requirements (continued)

As with most LDO regulators, the TPS73xx family requires an output capacitor for stability. A low-ESR 10-µF solid-tantalum capacitor connected from the regulator output to ground is sufficient to ensure stability over the full load range (see Figure 42). Adding high-frequency ceramic or film capacitors (such as power-supply bypass capacitors for digital or analog ICs) can cause the regulator to become unstable unless the ESR of the tantalum capacitor is less than 1.2 Ω over temperature. Capacitors with published ESR specifications such as the AVX TPSD106M035R0300 and the Sprague 593D106X0035D2W work well because the maximum ESR at 25°C is 300 mΩ (typically, the ESR in solid-tantalum capacitors increases by a factor of 2 or less when the temperature drops from 25°C to –40°C). Where component height and/or mounting area is a problem, physically smaller, 10-µF devices can be screened for ESR. Figures 29 through 32 show the stable regions of operation using different values of output capacitance with various values of ceramic load capacitance.

In applications with little or no high-frequency bypass capacitance (< 0.2 µF), the output capacitance can be reduced to 4.7 µF, provided ESR is maintained between 0.7 and 2.5 Ω. Because capacitor minimum ESR is seldom if ever specified, it may be necessary to add a 0.5-Ω to 1-Ω resistor in series with the capacitor and limit ESR to 1.5 Ω maximum. As shown in the CSR graphs (Figures 29 through 32), minimum ESR is not a problem when using 10-µF or larger output capacitors.

Below is a partial listing of surface-mount capacitors usable with the TPS73xx family. This information, along with the CSR graphs, is included to assist in selection of suitable capacitance for the user’s application. When necessary to achieve low height requirements along with high output current and/or high ceramic load capacitance, several higher ESR capacitors can be used in parallel to meet the guidelines above.

All load and temperature conditions with up to 1 µF of added ceramic load capacitance:

PART NO. MFR. VALUE MAX ESR

†

SIZE (H × L × W)

†

T421C226M010AS Kemet 22 µF, 10 V 0.5 2.8 × 6 × 3.2 593D156X0025D2W Sprague 15 µF, 25 V 0.3 2.8 × 7.3 × 4.3 593D106X0035D2W Sprague 10 µF, 35 V 0.3 2.8 × 7.3 × 4.3 TPSD106M035R0300 AVX 10 µF, 35 V 0.3 2.8 × 7.3 × 4.3

Load < 200 mA, ceramic load capacitance < 0.2 µF, full temperature range:

PART NO. MFR. VALUE MAX ESR

†

SIZE (H × L × W)

†

592D156X0020R2T Sprague 15 µF, 20 V 1.1 1.2 × 7.2 × 6 595D156X0025C2T Sprague 15 µF, 25 V 1 2.5 × 7.1 × 3.2 595D106X0025C2T Sprague 10 µF, 25 V 1.2 2.5 × 7.1 × 3.2 293D226X0016D2W Sprague 22 µF, 16 V 1.1 2.8 × 7.3 × 4.3

Load < 100 mA, ceramic load capacitance < 0.2 µF, full temperature range:

PART NO. MFR. VALUE MAX ESR

†

SIZE (H × L × W)

†

195D106X06R3V2T Sprague 10 µF, 6.3 V 1.5 1.3 × 3.5 × 2.7 195D106X0016X2T Sprague 10 µF, 16 V 1.5 1.3 × 7 × 2.7 595D156X0016B2T Sprague 15 µF, 16 V 1.8 1.6 × 3.8 × 2.6 695D226X0015F2T Sprague 22 µF, 15 V 1.4 1.8 × 6.5 × 3.4 695D156X0020F2T Sprague 15 µF, 20 V 1.5 1.8 × 6.5 × 3.4 695D106X0035G2T Sprague 10 µF, 35 V 1.3 2.5 × 7.6 × 2.5

†

Size is in mm. ESR is maximum resistance at 100 kHz and TA = 25°C. Listings are sorted by height.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

external capacitor requirements (continued)

†

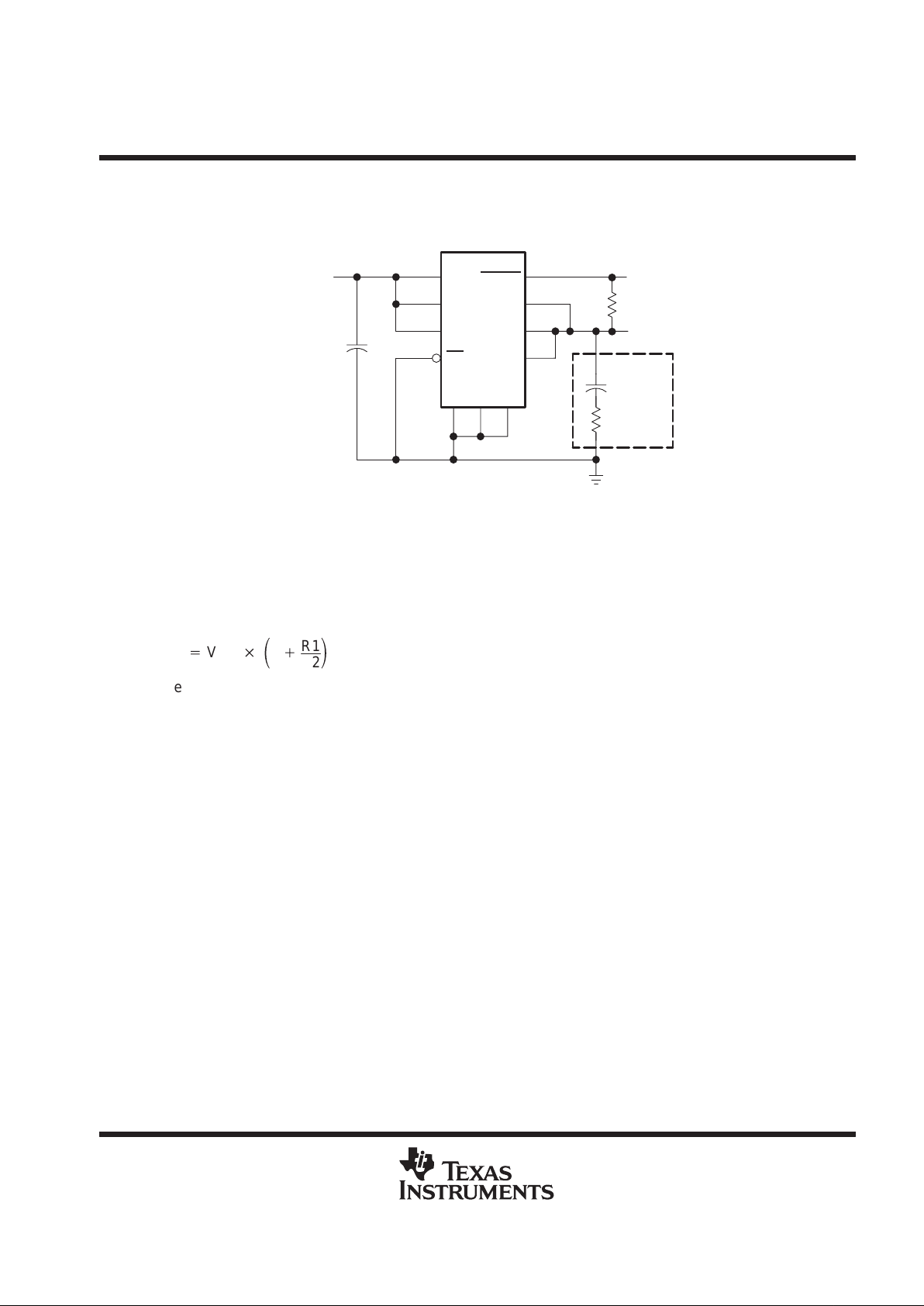

TPS7333, TPS7348, TPS7350 (fixed-voltage options)

SENSE

RESET

OUT

IN IN

GND

321

20 15 14 13

0.1 µF

To System Reset

CSR = 1 Ω

10 µF

TPS73xxPW

†

250 kΩ

Figure 47. Typical Application Circuit

programming the TPS7301 adjustable LDO regulator

Programming the adjustable regulators is accomplished using an external resistor divider as shown in Figure 43. The equation governing the output voltage is:

VO+

ref

ǒ1

)

R1 R2

Where

ref

= reference voltage, 1.182 V typ

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

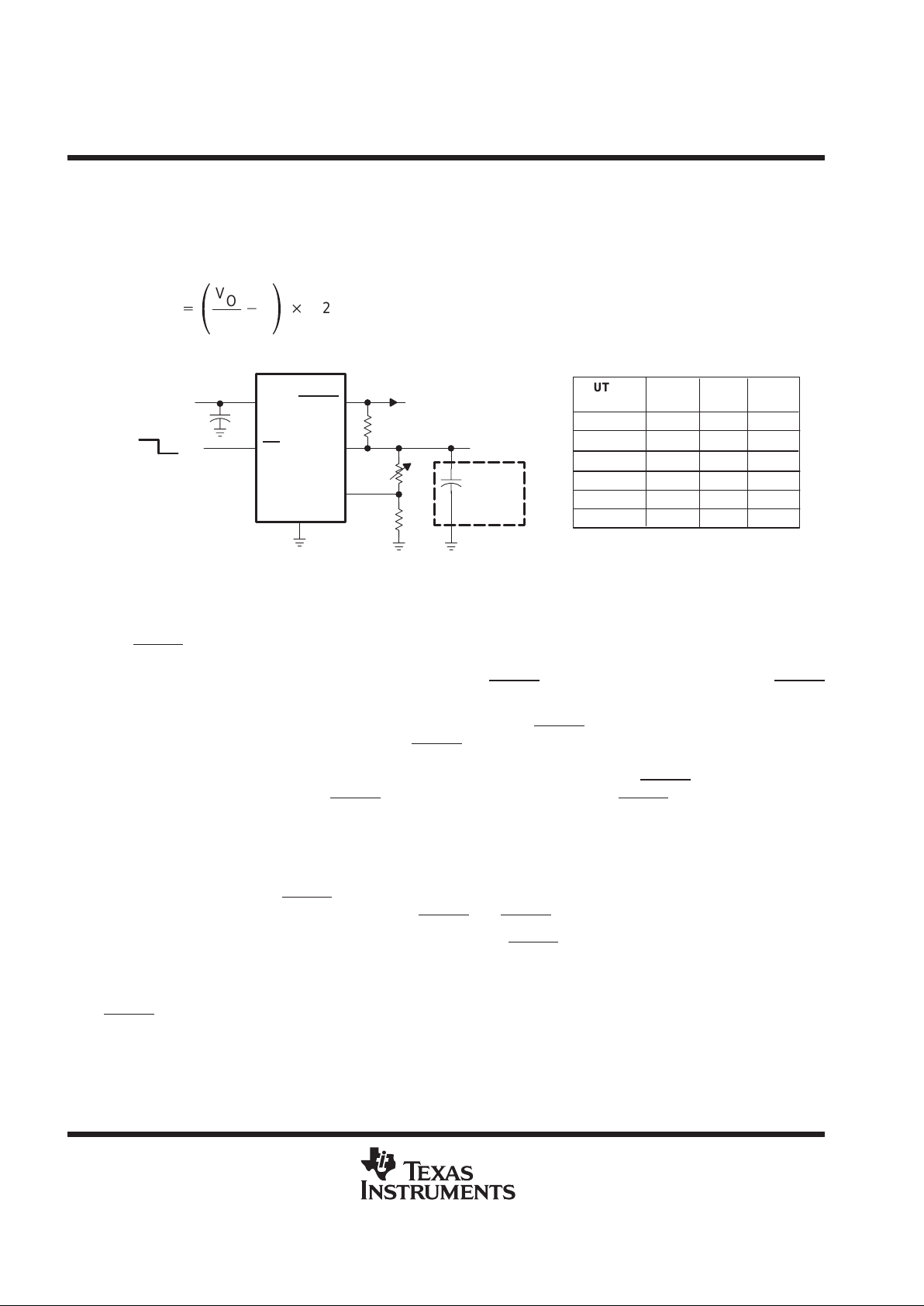

Resistors R1 and R2 should be chosen for approximately 7-µA divider current. A recommended value for R2 is 169 kΩ with R1 adjusted for the desired output voltage. Smaller resistors can be used, but offer no inherent advantage and consume more power. Larger values of R1 and R2 should be avoided as leakage currents at FB will introduce an error. Solving for R1 yields a more useful equation for choosing the appropriate resistance:

ref

OUTPUT

VOLTAGE

R1 R2

2.5 V

3.3 V

3.6 V 4 V 5 V

6.4 V

UNIT

191 309 348 402 549 750

169 169 169 169 169 169

kΩ kΩ kΩ kΩ kΩ kΩ

OUTPUT VOLTAGE

PROGRAMMING GUIDE

RESET

OUT

GND

<0.5 V

>2.7 V

TPS7301

To System Reset

0.1 µF 250 kΩ

CSR = 1 Ω

10 µF

Figure 48. TPS7301 Adjustable LDO Regulator Programming

undervoltage supervisor function

The RESET output of the TPS73xx initiates a reset in microcomputer and microprocessor systems in the event of an undervoltage condition. An internal comparator in the TPS73xx monitors the output voltage of the regulator to detect the undervoltage condition. When that occurs, the RESET

output transistor turns on taking the RESET

signal low. On power up, the output voltage tracks the input voltage. The RESET

output becomes active (low) as V

approaches the minimum required for a valid RESET signal (specified at 1.5 V for 25°C and 1.9 V over full recommended operating temperature range). When the output voltage reaches the appropriate positive-going input threshold (V

IT+

), a 200-ms (typical) timeout period begins during which the RESET output remains low. Once the timeout has expired, the RESET output becomes inactive. Since the RESET output is an open-drain NMOS, a pullup resistor should be used to ensure that a logic-high signal is indicated.

The supply-voltage-supervisor function is also activated during power-down. As the input voltage decays and after the dropout voltage is reached, the output voltage tracks linearly with the decaying input voltage. When the output voltage drops below the specified negative-going input threshold (V

IT–

— see electrical characteristics tables), the RESET output becomes active (low). It is important to note that if the input voltage decays below the minimum required for a valid RESET, the RESET is undefined.

Since the circuit is monitoring the regulator output voltage, the RESET output can also be triggered by disabling the regulator or by any fault condition that causes the output to drop below V

IT–

. Examples of fault conditions include a short circuit on the output and a low input voltage. Once the output voltage is reestablished, either by reenabling the regulator or removing the fault condition, then the internal timer is initiated, which holds the RESET

signal active during the 200-ms (typical) timeout period.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

undervoltage supervisor function (continued)

Transient loads or line pulses can also cause a reset to occur if proper care is not taken in selecting the input and output capacitors. Load transients that are faster than 5 µs can cause a reset if high-ESR output capacitors (greater than approximately 7 Ω) are used. A 1-µs transient causes a reset when using an output capacitor with greater than 3.5 Ω of ESR. Note that the output-voltage spike during the transient can drop well below the reset threshold and still not trip if the transient duration is short. A 1-µs transient must drop at least 500 mV below the threshold before tripping the reset circuit. A 2-µs transient trips RESET

at just 400 mV below the threshold. Lower-ESR output capacitors help by reducing the drop in output voltage during a transient and should be used when fast transients are expected.

NOTE:

IT+

= V

IT–

+Hysteresis

output noise

The TPS73xx has very low output noise, with a spectral noise density < 2 µV/√Hz. This is important when noise-susceptible systems, such as audio amplifiers, are powered by the regulator.

regulator protection

The TPS73xx PMOS-pass transistor has a built-in back diode that safely conducts reverse currents when the input voltage drops below the output voltage (e.g., during power down). Current is conducted from the output to the input and is not internally limited. If extended reverse voltage is anticipated, external limiting might be appropriate.

The TPS73xx also features internal current limiting and thermal protection. During normal operation, the TPS73xx limits output current to approximately 1 A. When current limiting engages, the output voltage scales back linearly until the overcurrent condition ends. While current limiting is designed to prevent gross device failure, care should be taken not to exceed the power dissipation ratings of the package. If the temperature of the device exceeds 165°C, thermal-protection circuitry shuts it down. Once the device has cooled, regulator operation resumes.

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

D (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

14 PIN SHOWN

4040047/D 10/96

0.228 (5,80)

0.244 (6,20)

0.069 (1,75) MAX

0.010 (0,25)

0.004 (0,10)

0.014 (0,35)

0.020 (0,51)

0.157 (4,00)

0.150 (3,81)

0.044 (1,12)

0.016 (0,40)

Seating Plane

0.010 (0,25)

PINS **

0.008 (0,20) NOM

A MIN

A MAX

DIM

Gage Plane

0.189

(4,80)

(5,00)

0.197

(8,55)

(8,75)

0.337

0.344

(9,80)

0.394

(10,00)

0.386

0.004 (0,10)

0.010 (0,25)

0.050 (1,27)

0°–8°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice. C. Body dimensions do not include mold flash or protrusion, not to exceed 0.006 (0,15). D. Falls within JEDEC MS-012

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q

LOW-DROPOUT VOLTAGE REGULATORS

WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

P (R-PDIP-T8) PLASTIC DUAL-IN-LINE PACKAGE

4040082/B 03/95

0.310 (7,87)

0.290 (7,37)

0.010 (0,25) NOM

0.400 (10,60)

0.355 (9,02)

0.020 (0,51) MIN

0.070 (1,78) MAX

0.240 (6,10)

0.260 (6,60)

0.200 (5,08) MAX

0.125 (3,18) MIN

0.015 (0,38)

0.021 (0,53)

Seating Plane

0.010 (0,25)

0.100 (2,54)

0°–15°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice. C. Falls within JEDEC MS-001

TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION

SLVS124F – JUNE 1995 – REVISED JANUAR Y 1999

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

4040064/E 08/96

14 PIN SHOWN

Seating Plane

1,20 MAX

0,19

4,50 4,30

6,20

6,60

0,30

0,75 0,50

0,25

Gage Plane

0,15 NOM

0,65

0,10

0°–8°

0,10

PINS **

A MIN

A MAX

DIM

2,90

3,10

4,90

5,10

6,60

6,404,90

5,10

7,70

7,90

9,60

9,80

0,15 0,05

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice. C. Body dimensions do not include mold flash or protrusion not to exceed 0,15. D. Falls within JEDEC MO-153

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by government requirements.

CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERSTOOD T O BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right of TI covering or relating to any combination, machine, or process in which such semiconductor products or services might be or are used. TI’s publication of information regarding any third party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Texas Instruments TPS7325QD, TPS7301QPWR, TPS7301QPWLE, TPS7301QP, TPS7301QDR Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
