TLC32047C, TLC32047I

Data Manual

Wide-Band Analog Interface Circuit

SLAS049A

April 1995

Printed on Recycled Paper

IMPORTANT NOTICE

T exas Instruments (TI) reserves the right to make changes to its products or to discontinue any semiconductor product or service without notice, and advises its customers to obtain the latest version of relevant information to verify , before placing orders, that the information being relied on is current.

TI warrants performance of its semiconductor products and related software to the specifications applicable at the time of sale in accordance with TI’s standard warranty . T esting and other quality control techniques are utilized to the extent TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by government requirements.

Certain applications using semiconductor products may involve potential risks of death, personal injury , or severe property or environmental damage (“Critical Applications”).

TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, INTENDED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT APPLICATIONS, DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS.

Inclusion of TI products in such applications is understood to be fully at the risk of the customer. Use of TI products in such applications requires the written approval of an appropriate TI officer . Questions concerning potential risk applications should be directed to TI through a local SC sales office.

In order to minimize risks associated with the customer’s applications, adequate design and operating safeguards should be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or services described herein. Nor does TI warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right of TI covering or relating to any combination, machine, or process in which such semiconductor products or services might be or are used.

Contents

Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Features 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Functional Block Diagrams 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Terminal Assignments 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Terminal Functions 1-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Detailed Description 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Internal Timing Configuration 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Analog Input 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A/D Band-Pass Filter, Clocking, and Conversion Timing 2-4. . . . . . . . . . . . . . . . . . . . . . . .

A/D Converter 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Analog Output 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

D/A Low-Pass Filter, Clocking, and Conversion Timing 2-4. . . . . . . . . . . . . . . . . . . . . . . . .

D/A Converter 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Serial Port 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Synchronous Operation 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

One 16-Bit Word 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Two 8-Bit Bytes 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Synchronous Operating Frequencies 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Asynchronous Operation 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

One 16-Bit Word 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Two 8-Bit Bytes 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Asynchronous Operating Frequencies 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation of TLC32047 With Internal Voltage Reference 2-7. . . . . . . . . . . . . . . . . . . . . . .

Operation of TLC32047 With External Voltage Reference 2-7. . . . . . . . . . . . . . . . . . . . . .

Reset 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Loopback 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communications Word Sequence 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DR Word Bit Pattern 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Primary DX Word Bit Pattern 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Secondary DX Word Bit Pattern 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page

iii

Reset Function 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power-Up Sequence 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AIC Register Constraints 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AIC Responses to Improper Conditions 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation With Conversion Times Too Close Together 2-12. . . . . . . . . . . . . . . . . . . . . . . .

More Than One Receive Frame Sync Occurring Between

Two Transmit Frame Syncs – Asynchronous Operation 2-12. . . . . . . . . . . . . . . . . .

More than One Transmit Frame Sync Occurring Between Two Receive

Frame Syncs – Asynchronous Operation 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

More than One Set of Primary and Secondary DX Serial Communications

Occurring Between Two Receive Frame

Syncs – Asynchronous Operation 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Frequency Response Correction 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

(sin x)/x Correction 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

(sin x)/x Roll-Off for a Zero-Order Hold Function 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Correction Filter 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Correction Results 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TMS320 Software Requirements 2-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Absolute Maximum Ratings Over Operating Free-Air Temperature Range 3-1. . . . . . . . .

Recommended Operating Conditions 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Characteristics 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

total device 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

power supply rejection and crosstalk attenuation 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

serial port 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

receive amplifier input 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

transmit filter output 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

receive and transmit system distortion specifications 3-3. . . . . . . . . . . . . . . . . . . . . . . . .

receive channel signal-to-distortion ratio 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

transmit channel signal-to-distortion ratio 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

receive and transmit gain and dynamic range 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

receive channel band-pass filter transfer function 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . .

receive and transmit channel low-pass filter transfer function 3-5. . . . . . . . . . . . . . . . . .

Operating Characteristics (Noise) 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Timing Requirements 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parameter Measurement Information – Timing Diagrams 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TMS32047 – Processor Interface 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Typical Characteristics 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Applications Information 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page

List of Illustrations

Figure Page

1–1 Dual-Word (Telephone Interface) Mode 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–2 Word Mode 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–3 Byte Mode 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–1 Asynchronous Internal Timing Configuration 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–2 Primary and Secondary Communications Word Sequence 2-8. . . . . . . . . . . . . . .

2–3 Reset on Power-Up Circuit 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–4 Conversion Times Too Close Together 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–5 More Than One Receive Frame Sync Between Two Transmit Frame Syncs 2-13 2–6 More Than One Transmit Frame Sync Between Two Receive Frame Syncs 2-13 2–7 More Than One Set of Primary and Secondary DX Serial Communications

Between Two Receive Frame Syncs 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–8 First-Order Correction Filter 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–1 IN+ and IN– Gain Control Circuitry 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

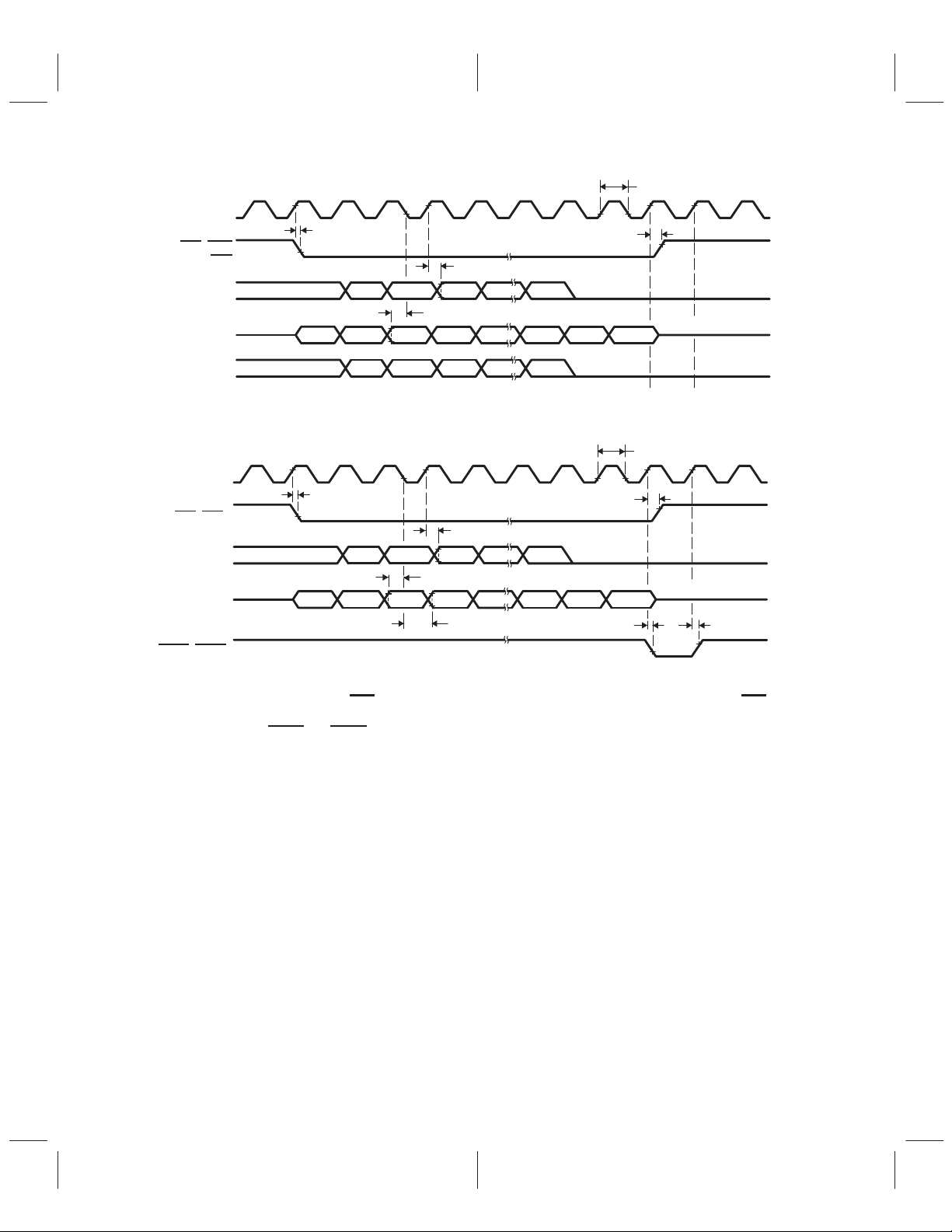

4–2 Dual-Word (Telephone Interface) Mode Timing 4-2. . . . . . . . . . . . . . . . . . . . . . . . . .

4–3 Word Timing 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–4 Byte-Mode Timing 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–5 Shift-Clock Timing 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–6 TMS32010/TMS320C15–TLC32047 Interface Circuit 4-4. . . . . . . . . . . . . . . . . . . .

4–7 TMS32010/TMS320C15–TLC32047 Interface Timing 4-5. . . . . . . . . . . . . . . . . . . .

5–1 D/A and A/D Low-Pass Filter Response Simulation 5-1. . . . . . . . . . . . . . . . . . . . . .

5–2 D/A and A/D Low-Pass Filter Response 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–3 D/A and A/D Low-Pass Group Delay 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–4 A/D Band-Pass Response 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–5 A/D Band-Pass Filter Response Simulation 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–6 A/D Band-Pass Filter Group Delay 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–7 A/D Channel High-Pass Filter 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–8 D/A (sin x)/x Correction Filter Response 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–9 D/A (sin x)/x Correction Filter Response 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–10 D/A (sin x)/x Correction Error 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–11 A/D Band-Pass Group Delay 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–12 D/A Low-Pass Group Delay 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

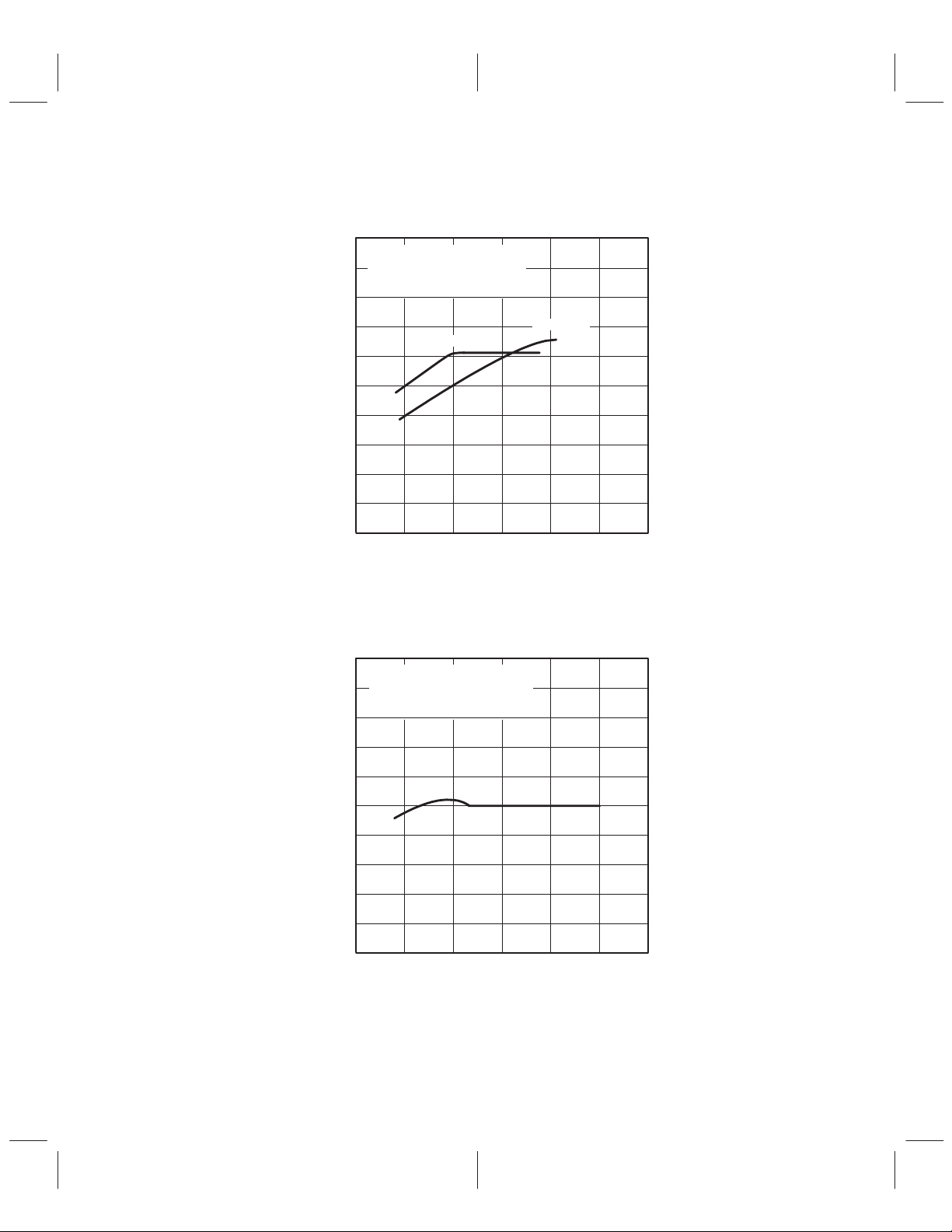

5–13 A/D Signal-to-Distortion Ratio vs Input Signal 5-7. . . . . . . . . . . . . . . . . . . . . . . . . . .

5–14 A/D Gain Tracking 5-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5–15 D/A Converter Signal-to-Distortion Ratio vs Input Signal 5-8. . . . . . . . . . . . . . . . .

5–16 D/A Gain Tracking 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Illustrations (continued)

Figure Page

5–17 A/D Second Harmonic Distortion vs Input Signal 5-9. . . . . . . . . . . . . . . . . . . . . . . .

5–18 D/A Second Harmonic Distortion vs Input Signal 5-9. . . . . . . . . . . . . . . . . . . . . . . .

5–19 A/D Third Harmonic Distortion vs Input Signal 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . .

5–20 D/A Third Harmonic Distortion vs Input Signal 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . .

6–1 AIC Interface to the TMS32020/C25 Showing Decoupling Capacitors

and Schottky Diode 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6–2 External Reference Circuit for TLC32047 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Tables

Table Page

2–1 Mode-Selection Function Table 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–2 Primary DX Serial Communication Protocol 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–3 Secondary DX Serial Communication Protocol 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . .

2–4 AIC Responses to Improper Conditions 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–5 (sin x)/x Roll-Off Error 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–6 (sin x)/x Correction Table for f

4–1 Gain Control Table 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

= 8000 Hz and fs = 9600 Hz 2-16. . . . . . . . . . . . . . . .

vii

1 Introduction

The TLC32047 wide-band analog interface circuit (AIC) is a complete analog-to-digital and digital-to-analog interface system for advanced digital signal processors (DSPs) similar to the TMS32020, TMS320C25, and TMS320C30. The TLC32047 offers a powerful combination of options under DSP control: three operating modes [dual-word (telephone interface), word, and byte] combined with two word formats (8 bits and 16 bits) and synchronous or asynchronous operation. It provides a high level of flexibility in that conversion and sampling rates, filter bandwidths, input circuitry , receive and transmit gains, and multiplexed analog inputs are under processor control.

This AIC features a

• band-pass switched-capacitor antialiasing input filter

• 14-bit-resolution A/D converter

• 14-bit-resolution D/A converter

• low-pass switched-capacitor output-reconstruction filter

The antialiasing input filter comprises eighth-order and fourth-order CC-type (Chebyshev/elliptic transitional) low-pass and high-pass filters, respectively. The input filter is implemented in switchedcapacitor technology and is preceded by a continuous time filter to eliminate any possibility of aliasing caused by sampled data filtering. When low-pass filtering is desired, the high-pass filter can be switched out of the signal path. A selectable auxiliary differential analog input is provided for applications where more than one analog input is required.

The output-reconstruction filter is an eighth-order CC-type (Chebyshev/elliptic transitional low-pass filter) followed by a second-order (sin x)/x correction filter and is implemented in switched-capacitor technology . This filter is followed by a continuous-time filter to eliminate images of the sample data signal. The on-board (sin x)/x correction filter can be switched out of the signal path using digital signal processor control.

The A/D and D/A architectures ensure no missing codes and monotonic operation. An internal voltage reference is provided to ease the design task and to provide complete control over the performance of the IC. The internal voltage reference is brought out to REF . Separate analog and digital voltage supplies and ground are provided to minimize noise and ensure a wide dynamic range. The analog circuit path contains only differential circuitry to keep noise to a minimum. The exception is the DAC sample-and-hold, which utilizes pseudo-differential circuitry.

The TLC32047C is characterized for operation from 0 operation from –40

°C to 85°C.

°C to 70°C, and the TLC32047I is characterized for

1–1

1.1 Features

• 14-Bit Dynamic Range ADC and DAC

• 16-Bit Dynamic Range Input With Programmable Gain

• Synchronous or Asynchronous ADC and DAC Sampling Rates Up to 25,000 Samples Per

Second

• Programmable Incremental ADC and DAC Conversion Timing Adjustments

• T ypical Applications

– Speech Encryption for Digital Transmission – Speech Recognition and Storage Systems – Speech Synthesis – Modems at 8-kHz, 9.6-kHz, and 16-kHz Sampling Rates – Industrial Process Control – Biomedical Instrumentation – Acoustical Signal Processing – Spectral Analysis – Instrumentation Recorders – Data Acquisition

• Switched-Capacitor Antialiasing Input Filter and Output-Reconstruction Filter

• Three Fundamental Modes of Operation: Dual-Word (Telephone Interface), Word, and Byte

• 600-mil Wide N Package

• Digital Output in Twos Complement Format

• CMOS Technology

FUNCTION TABLE

DATA

FORMAT

16-bit format Dual-word

16-bit format Word mode Word mode DATA-DR/CONTROL = V

8-bit format (2 bytes required)

1–2

SYNCHRONOUS

(CONTROL

BIT D5 = 1)

(telephone interface) mode

Byte mode Byte mode DATA-DR/CONTROL = V

ASYNCHRONOUS

(CONTROL

BIT D5 = 0)

Dual-word (telephone interface) mode

FORCING CONDITION

DATA-DR/CONTROL = 0 to 5 V FSD

/WORD-BYTE = 0 to 5 V

FSD

/WORD-BYTE = V

FSD

/WORD-BYTE = V

CC–

(5 V nom)

CC+

CC–

(–5 V nom)

CC–

(–5 Vnom)

DIRECT

INTERFACE

TMS32020, TMS320C25, TMS320C30

TMS32020, TMS320C25, TMS320C30, indirect interface to TMS320C10 (see Figure 7)

TMS320C17

1.2 Functional Block Diagrams

WORD OR BYTE MODE

IN +

IN –

AUX IN + AUX IN –

OUT +

OUT –

25 24

Receive Section

Transmit Section

M U X

Low-Pass

High-Pass

Low-Pass

Filter

A/D

Serial

Port

Internal Voltage

Reference

M U

(sin x)/x

Correction

D/A

FSR

EODR

MSTR CLK

SHIFT CLK

WORDBYTE

CONTROL

FSX

EODX

IN +

IN –

AUX IN + AUX IN –

OUT +

OUT –

20 19 17, 18 9 7 8 2

ANLGVCC–VCC+

GND

DGTL

GND

(Digital)

DUAL-WORD (TELEPHONE INTERFACE) MODE

26 25

24 23

Receive Section

M U

Low-Pass

Filter

High-Pass

Filter

Transmit Section

Low-Pass

Filter

M U

20 19 17, 18 9 7 8 2

ANLGVCC–VCC+

GND

DGTL

GND

(Digital)

M U

(sin x)/x

Correction

A/D

Internal Voltage

Reference

D/A

RESETREF

Serial

Port

RESETREF

FSR

D11 OUT

MSTR CLK

SHIFT CLK

FSD

DATA-DR

FSX

D10 OUT

1–3

FRAME SYNCHRONIZATION FUNCTIONS TLC32047 Function

Receiving serial data on DX from processor to internal DAC FSX low Transmitting serial data on DR from internal ADC to processor , primary communications FSR low Transmitting serial data on DR from DATA-DR to processor, secondary communications in

dual-word (telephone interface) mode only

–5 V5 V

20 19

Serial Data Out

FSR

Analog In

26 25

IN+ IN–

CC+

TLC32047

CC–

Frame Sync Output

FSD low

Analog Out

22 21

OUT+ OUT–

FSD

D11OUT

FSX

D10OUT

DATA-DR

Serial Data In

Secondary Communication (see Table above)

Serial Data Input

16-Bit Format TTL

or CMOS Logic Levels

TMS32020, TMS320C25, TMS320C30,

or Equivalent 16-Bit DSP

TTL or CMOS Logic Levels

Figure 1–1. Dual-Word (Telephone Interface) Mode

When the DATA-DR/CONTROL input is tied to a logic signal source varying between 0 and 5 V, the TLC32047 is in the dual-word (telephone interface) mode. This logic signal is routed to the DR line for input to the DSP only when terminal 1, data frame synchronization (FSD

), outputs a low level. The FSD pulse duration is 16 shift clock pulses. Also, in this mode, the control register data bits D10 and D11 appear on D10OUT and D1 1OUT, respectively, as outputs.

1–4

Analog In

20 19

IN+

IN–

CC+

TLC32047

–5 V5 V

CC–

FSR

Serial Data Out

Analog Out

(5 V nom)

Analog In

Analog Out

CC+

OUT+

OUT–

WORD-BYTE

IN+

IN–

OUT+

OUT–

CONTROL

Figure 1–2. Word Mode

–5 V5 V

20 19 V

CC+

TLC32047

CC–

EODR

FSX

EODX

FSR

EODR

FSX

Serial Data In

Serial Data Out

Serial Data In

TMS32020, TMS320C25,

TMS320C30, or Equivalent 16-Bit DSP

TTL or CMOS Logic Levels

CC–

(–5 V nom)

TMS320C17 or Equivalent 8-Bit Serial

Interface (2 Bytes Required)

TTL or CMOS Logic Levels

CC–

(–5 V nom)

CC–

(–5 V nom)

WORD-BYTE

EODX

CONTROL

Figure 1–3. Byte Mode

The word or byte mode is selected by first connecting the DATA-DR/CONTROL input to V FSD

/WORD-BYTE becomes an input and can then be used to select either word or byte transmission

formats. The end-of-data transmit (EODX

) and the end-of-data receive (EODR) signals on terminals 1 1 and

CC–.

3, respectively, are used to signal the end of word or byte communication (see the Terminal Functions section).

1–5

1.3 Terminal Assignments

†

28 27 26 25 24 23 22 21 20 19 18 17 16 15

NU NU IN+ IN– AUX IN+ AUX IN– OUT+ OUT– V V ANLG GND ANLG GND NU NU

/WORD-BYTE

FSD

RESET

D11OUT/EODR

FSR

MSTR CLK

REF DGTL GND SHIFT CLK

D10OUT/EODX

DATA-DR/CONTROL

FSX

N PACKAGE

(TOP VIEW)

‡

1 2

‡

3 4

5 6 7

8 9 10

‡

13 14

CC+ CC–

MSTR CLK

REF

DGTL GND

SHIFT CLK

D10OUT/EODX

FN PACKAGE

(TOP VIEW)

‡

FSD/WORD-BYTE

NUNUIN+

RESET

FSR

D11OUT/EODR

321

5 6 7 8 9

‡

12 13

‡

28 27

14 15 16 1718

FSX

ANLG GND

IN–

AUX IN+

AUX IN–

OUT+

OUT–

CC+

CC–

ANLG GND

DATA-DR/CONTROL

NU - Nonusable; no external connection should be made to these pins.

†

600-mil wide

‡

The portion of the terminal name to the left of the slash is used for the dual-word (telephone interface) mode. The portion of the terminal name to the right of the slash is used for word-byte mode.

1.4 Ordering Information

AVAILABLE OPTIONS

PACKAGED DEVICES

1–6

0°C to 70°C TLC32047CFN TLC32047CN

–40°C to 85°C TLC32047IFN TLC32047IN

PLASTIC CHIP CARRIER

(FN)

PLASTIC DIP

(N)

1.5 Terminal Functions

I/O

DESCRIPTION

TERMINAL

NAME NO.

ANLG GND 17,18 Analog ground return for all internal analog circuits. ANLG GND is internally connected

AUX IN+ 24 I Noninverting auxiliary analog input stage. AUX IN+ can be switched into the band-pass

AUX IN– 23 I Inverting auxiliary analog input (see the above AUX IN+ description). DATA-DR 13 I The dual-word (telephone interface) mode, selected by applying an input logic level

CONTROL When CONTROL is tied to V

DR 5 O DR is used to transmit the ADC output bits from the AIC to the TMS320 serial port. This

DX 12 I DX is used to receive the DAC input bits and timing and control information from the

D10OUT 11 O In the dual-word (telephone interface) mode, bit D10 of the control register is output to

EODX End of data transmit. During the word-mode timing, a low-going pulse occurs on EODX

to DGTL GND.

filter and ADC path via software control. If the appropriate bit in the control register is a 1, the auxiliary inputs replace the IN+ and IN– inputs. If the bit is a 0, the IN+ and IN– inputs are used (see the DX Serial Data Word Format).

between 0 and 5 V to DA T A-DR, allows DATA-DR to function as a data input. The data is then framed by the FSD communication. The functions FSD selection (see Table 2–1).

WORD-BYTE, EODR used to select either the word or byte mode (see Function Table).

transmission of bits from the AIC to the TMS320 serial port is synchronized with the SHIFT CLK signal.

TMS320. This serial transmission from the TMS320 serial port is synchronized with the SHIFT CLK signal.

D10OUT . When the device is reset, bit D10 is initialized to 0 (see DX Serial Data W ord Format). The output update is immediate upon changing bit D10.

immediately after the 16 bits of DAC and control or register information have been transmitted from the TMS320 serial port to the AIC. EODX can be used to interrupt a microprocessor upon completion of serial communications. Also, EODX can be used to strobe and enable external serial-to-parallel shift registers, latches, or external FIFO RAM and to facilitate parallel data bus communications between the DSP and the serial-to-parallel shift registers. During the byte-mode timing, EODX goes low after the first byte has been transmitted from the TMS320 serial port to the AIC and is kept low until the second byte has been transmitted. The TMS320C17 can use this low-going signal to differentiate first and second bytes.

signal and transmitted as an output to DR during secondary

, and EODX are valid in this mode. FSD/WORD-BYTE is then

, D11OUT, and D10OUT are valid with this mode

, the device is in the word or byte mode. The functions

CC–

1–7

1.5 Terminal Functions (continued)

I/O

DESCRIPTION

TERMINAL

NAME NO.

D11OUT 3 O In the dual-word (telephone interface) mode, bit D11 of the control register is output to

EODR End of data receive. During the word-mode timing, a low-going pulse occurs on EODR

DGTL GND 9 Digital ground for all internal logic circuits. Not internally connected to ANLG GND. FSD 1 O Frame sync data. The FSD output remains high during primary communication. In the

WORD-BYTE I WORD-BYTE allows differentiation between the word and byte data format (see

FSR 4 O Frame sync receive. FSR is held low during bit transmission. When FSR goes low, the

FSX 14 O Frame sync transmit. When FSX goes low, the TMS320 serial port begins transmitting

IN+ 26 I Noninverting input to analog input amplifier stage IN– 25 I Inverting input to analog input amplifier stage MSTR CLK 6 I Master clock. MSTR CLK is used to derive all the key logic signals of the AIC, such as

OUT+ 22 O Noninverting output of analog output power amplifier. OUT+ drives transformer hybrids

OUT– 21 O Inverting output of analog output power amplifier. OUT– is functionally identical with and

REF 8 I/O Internal voltage reference is brought out on REF . An external voltage reference can be

D11OUT. When the device is reset, bit D11 is initialized to 0 (see DX Serial Data W ord Format). The output update is immediate upon changing bit D1 1.

immediately after the 16 bits of A/D information have been transmitted from the AIC to the TMS320 serial port. EODR can be used to interrupt a microprocessor upon completion of serial communications. Also, EODR can be used to strobe and enable external serial-to-parallel shift registers, latches, or external FIFO RAM, and to facilitate parallel data bus communications between the DSP and the serial-to-parallel shift registers. During the byte-mode timing, EODR goes low after the first byte has been transmitted from the AIC to the TMS320 serial port and is kept low until the second byte has been transmitted. The TMS320C17 can use this low-going signal to differentiate between first and second bytes.

dual-word (telephone interface) mode, the FSD during secondary communication.

DATA-DR/CONTROL and Table 2-1 for details).

TMS320 serial port begins receiving bits from the AIC via DR of the AIC. The most significant DR bit is present on DR before FSR Internal Timing Configuration Diagrams).

bits to the AIC via DX of the AIC. FSX Sections and Internal Timing Configuration Diagrams).

the shift clock, the switched-capacitor filter clocks, and the A/D and D/A timing signals. The internal timing configuration diagram shows how these key signals are derived. The frequencies of these signals are synchronous submultiples of the master clock frequency to eliminate unwanted aliasing when the sampled analog signals are transferred between the switched-capacitor filters and the ADC and DAC converters (see the Internal Timing Configuration).

or high-impedance loads directly in a differential or a single-ended configuration.

complementary to OUT+.

applied to REF to override the internal voltage reference.

is held low during bit transmission (see Serial Port

output is identical to the FSX output

goes low (see Serial Port Sections and

1–8

1.5 Terminal Functions (continued)

I/O

DESCRIPTION

TERMINAL

NAME NO.

RESET 2 I Reset. A reset function is provided to initialize T A, TA ’, TB, RA, RA ’, RB (see Figure 2-1),

SHIFT CLK 10 O Shift clock. SHIFT CLK is obtained by dividing the master clock signal frequency by four .

V V V

DD CC+ CC–

7 Digital supply voltage, 5 V ±5% 20 Positive analog supply voltage, 5 V ±5% 19 Negative analog supply voltage, –5 V ±5%

and the control registers. This reset function initiates serial communications between the AIC and DSP. The reset function initializes all AIC registers, including the control register. After a negative-going pulse on RESET provide a 16-kHz data conversion rate for a 10.368-MHz master clock input signal. The conversion rate adjust registers, TA ’ and RA ’, are reset to 1. The CONTROL register bits are reset as follows (see AIC DX Data Word Format section):

D11 = 0, D10 = 0, D9 = 1, D7 = 1, D6 = 1, D5 = 1, D4 = 0, D3 = 0, D2 = 1 The shift clock (SCLK) is held high during RESET This initialization allows normal serial-port communication to occur between the AIC and the DSP.

SHIFT CLK is used to clock the serial data transfers of the AIC.

, the AIC registers are initialized to

1–9

1–10

2 Detailed Description

WORD

BYTE

Table 2–1. Mode-Selection Function Table

DATA-DR/

CONTROL

Data in

(0 to 5 V)

Data in

(0 to 5 V)

CC–

†

DATA-DR/CONTROL has an internal pulldown resistor to –5 V, and FSD/WORD-BYTE has an internal pullup resistor to 5 V.

FSD/

WORD-BYTE

FSD out

(0 to 5 V)

FSD out

(0 to 5 V)

CC+

CC–

CONTROL REGISTER

BIT (D5)

OPERATING

MODE

Dual-Word

(Telephone

Interface)

Dual-Word

(Telephone

Interface)

SERIAL

CONFIGURATION

Synchronous,

One 16-Bit Word

Asynchronous,

One 16-bit Word

Synchronous,

One 16-Bit Word

Asynchronous,

One 16-bit Word

Synchronous,

Two 8-Bit Bytes

Asynchronous,

Two 8-Bit Bytes

DESCRIPTION

Terminal functions DATA-DR†,

†

FSD

, D11OUT, and D10OUT are applicable in this configuration. FSD

is asserted during secondary communication, but the FSR

is not asserted. However, FSD during primary communication.

Terminal functions DATA-DR†,

†

FSD

, D11OUT, and D10OUT are applicable in this configuration. FSD

is asserted during secondary communication, but the FSR However, FSD during primary communication. If secondary communications occur while the A/D conversion is being transmitted from DR, FSD go low, and data from DATA-DR cannot go onto DR.

Terminal functions CONTROL†, WORD-BYTE†, EODR EODX configuration.

remains high

is not asserted.

remains high

cannot

, and

are applicable in this

, and

are applicable in this

, and

are applicable in this

, and

are applicable in this

2–1

2.1 Internal Timing Configuration (see Figure 2–1)

All the internal timing of the AIC is derived from the high-frequency clock signal that drives the master clock input. The shift clock signal, which strobes the serial port data between the AIC and DSP, is derived by dividing the master clock input signal frequency by four.

The TX(A) counter and the TX(B) counter, which are driven by the master clock signal, determine the D/A conversion timing. Similarly , the RX(A) counter and the RX(B) counter determine the A/D conversion timing. In order for the low-pass switched-capacitor filter in the D/A path (see Functional Block Diagram) to meet its transfer function specifications, the frequency of its clock input must be 432 kHz. If the clock frequency is not 432 kHz, the filter transfer function frequencies are frequency-scaled by the ratios of the clock frequency to 432 kHz:

Absolute Frequency (kHz)

432

To obtain the specified filter response, the combination of master clock frequency and the TX(A) counter and the RX(A) counter values must yield a 432-kHz switched-capacitor clock signal. This 432-kHz clock signal can then be divided by the TX(B) counter to establish the D/A conversion timing.

The transfer function of the band-pass switched-capacitor filter in the A/D path (see Functional Block Diagram) is a composite of its high-pass and low-pass transfer functions. When the shift clock frequency (SCF) is 432 kHz, the high-frequency roll-off of the low-pass section meets the band-pass filter transfer function specification. Otherwise, the high-frequency roll-off is frequency-scaled by the ratio of the high-pass section’s SCF clock to 432 kHz (see Figure 5–5). The low-frequency roll-off of the high-pass section meets the band-pass filter transfer function specification when the A/D conversion rate is 24 kHz. If not, the low-frequency roll-off of the high-pass section is frequency-scaled by the ratio of the A/D conversion rate to 24 kHz.

The TX(A) counter and the TX(B) counter are reloaded each D/A conversion period, while the RX(A) counter and the RX(B) counter are reloaded every A/D conversion period. The TX(B) counter and the RX(B) counter are loaded with the values in the TB and RB registers, respectively . Via software control, the TX(A) counter

Normalized Frequency SCF f

can be loaded with the T A register, the T A register less the TA By selecting the T A register less the TA an amount of time that equals T A

option is executed, the upcoming conversion timing occurs later by an amount of time that equals

′ times the signal period of the master clock. Thus, the D/A conversion timing can be advanced or

′ register option, the upcoming conversion timing occurs earlier by

′ times the signal period of the master clock. If the T A register plus the T A′

′ register, or the T A register plus the T A′ register.

retarded. An identical ability to alter the A/D conversion timing is provided. However, the RX(A) counter can be programmed via software control with the RA register, the RA register less the RA register plus the RA

′ register.

The ability to advance or retard conversion timing is particularly useful for modem applications. This feature allows controlled changes in the A/D and D/A conversion timing and can be used to enhance signal-to-noise performance, to perform frequency-tracking functions, and to generate nonstandard modem frequencies.

If the transmit and receive sections are configured to be synchronous, then the low-pass and band-pass switched-capacitor filter clocks are derived from the TX(A) counter. Also, both the D/A and A/D conversion timings are derived from the TX(A) counter and the TX(B) counter. When the transmit and receive sections are configured to be synchronous, the RX(A) counter, RX(B) counter, RA register, RA registers are not used.

clock

(kHz)

′ register, or the RA

′ register, and RB

(1)

2–2

XTAL

OSC

20.736 MHZ

41.472 MHZ

TMS320 DSP

Transmit Section

D/A Conversion

Timing

Receive Section

A/D Conversion

Timing

MASTER CLOCK

TA Register

(5 Bits)

See Table 2-3

Adder/Subtractor

TX (A) Counter

(6 Bits)

RA Register

(5 Bits)

See Table 2-3

Adder/Subtractor

RX (A) Counter

(6 Bits)

5.184 MHz

10.368 MHz

TA′ REGISTER

(6 Bits)

2s-Complement TA

See Table 2-3

†

D1 D0 SELECT

TA + TA′

TA – TA′

See Table 2-2

Divide By 2

864 kHz

RA′ Register

(6 Bits)

2s-Complement RA

See Table 2-3

†

D1 D0 SELECT

RA + RA′

RA – RA′

See Table 2-2

Divide By 2

864 kHz

432 kHz

Divide By 4

TB Register

(6 Bits)

See Table 2-3

TX (B) Counter

RB Register

(6 Bits)

See Table 2-3

RX (B) Counter

SHIFT CLOCK

1.296 MHz

2.592 MHz

SCF CLOCK

Low-Pass Filter,

(sin x)/x Filter

7.20 kHz for TB = 60

8.00 kHz for TB = 54

9.60 kHz for TB = 45

14.4 kHz for TB = 30

16.0 kHz for TB = 27

24.0 kHz for TB = 18

D/A Conversion

Frequency

SCF CLOCK

Low-Pass Filter

7.20 kHz for RB = 60

8.00 kHz for RB = 54

9.60 kHz for RB = 45

14.4 kHz for RB = 30

16.0 kHz for RB = 27

24.0 kHz for RB = 18

High-Pass Filter, A/D Conversion Frequency

†

These control bits are described in the DX Serial Data Word Format section.

NOTES: A. Tables 2–2 and 2–3 (pages 2–9 and 2–10) are primary and secondary communication protocols,

respectively.

B. In synchronous operation, RA, RA’, RB, RX(A), and RX(B) are not used. T A, T A’, TB, TX(A), and TX(B) are

used instead.

C. Items in italics refer only to frequencies and register contents, which are variable. A crystal oscillator driving

20.736 MHz into the TMS320-series DSP provides a master clock frequency of 5.184 MHz. The TLC32047 produces a shift clock frequency of 1.296 MHz. If the TX(A) register contents equal 6, the SCF clock frequency is then 432 kHz, and the D/A conversion frequency is 432 kHz ÷ T(B).

Figure 2–1. Asynchronous Internal Timing Configuration

2–3

2.2 Analog Input

Two pairs of analog inputs are provided. Normally , the IN+ and IN– input pair is used; however, the auxiliary input pair, AUX IN+ and AUX IN–, can be used if a second input is required. Since sufficient common-mode range and rejection are provided, each input set can be operated in differential or single-ended modes. The gain for the IN+, IN–, AUX IN+, and AUX IN– inputs can be programmed to 1, 2, or 4 (see T able 4–1). Either input circuit can be selected via software control. Multiplexing is controlled with the D4 bit (enable/disable AUX IN+ and AUX IN–) of the secondary DX word (see T able 2–3). The multiplexing requires a 2-ms wait at SCF = 432 kHz (see Figure 5–3) for a valid output signal. A wide dynamic range is ensured by the differential internal analog architecture and the separate analog and digital voltage supplies and grounds.

2.3 A/D Band-Pass Filter, A/D Band-Pass Filter Clocking, and A/D Conversion Timing

The receive-channel A/D high-pass filter can be selected or bypassed via software control (see Functional Block Diagram). The frequency response of this filter is on page 3-5. This response results when the switched-capacitor filter clock frequency is 432 kHz and the A/D sample rate is 24 kHz. Several possible options can be used to attain a 432-kHz switched-capacitor filter clock. When the filter clock frequency is not 432 kHz, the low-pass filter transfer function is frequency-scaled by the ratio of the actual clock frequency to 432 kHz (see Typical Characteristics section). The ripple bandwidth and 3-dB low-frequency roll-off points of the high-pass section are 450 Hz and 300 Hz, respectively . However, the high-pass section low-frequency roll-off is frequency-scaled by the ratio of the A/D sample rate to 24 kHz.

Figure 2–1 and the DX Serial Data Word Format sections of this data manual indicate the many options for attaining a 432-kHz band-pass switched-capacitor filter clock. These sections indicate that the RX(A) counter can be programmed to give a 432-kHz band-pass switched-capacitor filter clock for several master clock input frequencies.

The A/D conversion rate is attained by frequency-dividing the band-pass switched-capacitor filter clock with the RX(B) counter. Unwanted aliasing is prevented because the A/D conversion rate is an integer submultiple of the band-pass switched-capacitor filter sampling rate, and the two rates are synchronously locked.

2.4 A/D Converter

Fundamental performance specifications for the receive channel ADC circuitry are on pages 3-2 and 3-3 of this data manual. The ADC circuitry, using switched-capacitor techniques, provides an inherent sample-and-hold function.

2.5 Analog Output

The analog output circuitry is an analog output power amplifier. Both noninverting and inverting amplifier outputs are brought out of the IC. This amplifier can drive transformer hybrids or low-impedance loads directly in either a differential or single-ended configuration.

2.6 D/A Low-Pass Filter, D/A Low-Pass Filter Clocking, and D/A Conversion Timing

The frequency response of these filters is on page 3-5. This response results when the low-pass switched-capacitor filter clock frequency is 432 kHz (see Equation 1). Like the A/D filter, the transfer function of this filter is frequency-scaled when the clock frequency is not 432 kHz (see Typical Characteristics section). A continuous-time filter is provided on the output of the low-pass filter to eliminate the periodic sample data signal information, which occurs at multiples of the 432-kHz switched-capacitor clock feedthrough.

The D/A conversion rate is attained by frequency-dividing the 432-kHz switched-capacitor filter clock with the T(B) counter. Unwanted aliasing is prevented because the D/A conversion rate is an integer submultiple of the switched-capacitor low-pass filter sampling rate, and the two rates are synchronously locked.

2–4

2.7 D/A Converter

Fundamental performance specifications for the transmit channel DAC circuitry are on pages 3-3 and 3-4. The DAC has a sample-and-hold function that is realized with a switched-capacitor ladder.

2.8 Serial Port

The serial port has four possible configurations summarized in the function table on page 1-2. These configurations are briefly described below.

• The transmit and receive sections are operated asynchronously, and the serial port interfaces directly with the TMS320C17. The communications protocol is two 8-bit bytes.

• The transmit and receive sections are operated asynchronously, and the serial port interfaces directly with the TMS32020, TMS320C25, and TMS320C30. The communications protocol is one 16-bit word.

• The transmit and receive sections are operated synchronously, and the serial port interfaces directly with the TMS320C17. The communications protocol is two 8-bit bytes.

• The transmit and receive sections are operated synchronously, and the serial port interfaces directly with the TMS32020, TMS320C25, TMS320C30, or two SN74299 serial-to-parallel shift registers, which can interface in parallel to the TMS32010, TMS320C15, to any other digital signal processor, or to external FIFO circuitry. The communications protocol is one 16-bit word.

2.9 Synchronous Operation

When the transmit and receive sections are operated synchronously, the low-pass filter clock drives both low-pass and band-pass filters (see Functional Block Diagram). The A/D conversion timing is derived from and equal to the D/A conversion timing. When data bit D5 in the control register is a logic 1, transmit and receive sections are synchronous. The band-pass switched-capacitor filter and the A/D converter timing are derived from the TX(A) counter, the TX(B) counter , and the T A and T A’ registers. In synchronous operation, both the A/D and the D/A channels operate from the same frequencies. The FSX identical during primary communication, but FSR there is no new A/D conversion result.

is not asserted during secondary communication because

and the FSR timing is

2.9.1 One 16-Bit Word [Dual-Word (Telephone Interface) or Word Mode]

The serial port interfaces directly with the serial ports of the TMS32020, TMS320C25, and the TMS320C30, and communicates in one 16-bit word. The operation sequence is as follows:

1. FSX

2. One 16-bit word is transmitted and one 16-bit word is received.

3. FSX

4. EODX

If the device is in the dual-word (telephone interface) mode, FSD communication period and enables the data word received at the DA TA-DR/CONTROL input to be routed to the DR line. The secondary communication period occurs four shift clocks after completion of primary communications.

and FSR are brought low by the TLC32047 AIC. and FSR are brought high.

and EODR emit low-going pulses one shift clock wide. EODX and EODR are valid in the

word or byte mode only .

goes low during the secondary

2–5

2.9.2 Two 8-Bit Bytes (Byte Mode)

The serial port interfaces directly with the serial port of the TMS320C17 and communicates in two 8-bit bytes. The operation sequence is as follows:

1. FSX

and FSR are brought low.

2. One 8-bit word is transmitted and one 8-bit word is received.

3. EODX

and EODR are brought low.

4. FSX and FSR emit positive frame-sync pulses that are four shift clock cycles wide.

5. One 8-bit byte is transmitted and one 8-bit byte is received.

6. FSX

7. EODX

and FSR are brought high.

and EODR are brought high.

2.9.3 Synchronous Operating Frequencies

The synchronous operating frequencies are determined by the following equations. Switched capacitor filter (SCF) frequencies (see Figure 2–1):

Low pass SCF clock frequency (DńA and AńD channels)

High pass SCF clock frequency (AńD channel)+AńD conversion frequency

master clock frequency

T(A) 2

Conversion frequency (AńD and DńA channels)

Low pass SCF clock frequency

master clock frequency

T(A) 2 T(B)

T(B)

NOTE: T(A), T(B), R(A), and R(B) are the contents of the TA, TB, RA, and RB registers, respectively.

2.10 Asynchronous Operation

When the transmit and the receive sections are operated asynchronously , the low-pass and band-pass filter clocks are independently generated from the master clock. The D/A and the A/D conversion timing is also determined independently .

D/A timing is set by the counters and registers described in synchronous operation, but the RA and RB registers are substituted for the T A and TB registers to determine the A/D channel sample rate and the A/D path switched-capacitor filter frequencies. Asynchronous operation is selected by control register bit D5 being zero.

2.10.1 One 16-Bit Word (Word Mode)

The serial port interfaces directly with the serial ports of the TMS32020, TMS320C25, and TMS320C30 and communicates with 16-bit word formats. The operation sequence is as follows:

1. FSX

2. One 16-bit word is transmitted or one 16-bit word is received.

3. FSX

4. EODX

2.10.2 Two 8-Bit Bytes (Byte Mode)

The serial port interfaces directly with the serial port of the TMS320C17 and communicates in two 8-bit bytes. The operating sequence is as follows:

or FSR are brought low by the TLC32047 AIC. or FSR are brought high.

or EODR emit low-going pulses one shift clock wide. EODX and EODR are valid in either

the word or byte mode only .

1. FSX

or FSR are brought low by the TLC32047 AIC.

2. One byte is transmitted or received.

2–6

3. EODX or EODR are brought low.

4. FSX or FSR are brought high for four shift clock periods and then brought low.

5. The second byte is transmitted or received.

6. FSX

7. EODX

or FSR are brought high.

or EODR are brought high.

2.10.3 Asynchronous Operating Frequencies

The asynchronous operating frequencies are determined by the following equations. Switched-capacitor filter frequencies (see Figure 2–1):

Low pass DńA SCF clock frequency

Low pass AńD SCF clock frequency

High pass SCF clock frequency (AńD channel)+AńD conversion frequency

master clock frequency

T(A) 2

master clock frequency

R(A) 2

Conversion frequency:

DńA conversion frequency

AńD conversion frequency

Low pass DńA SCF clock frequency

Low pass AńD SCF clock frequency (for low pass receive filter)

T(B)

R(B)

(3)

NOTE: T(A), T(B), R(A), and R(B) are the contents of the TA, TB, RA, and RB registers, respectively.

2.11 Operation of TLC32047 With Internal Voltage Reference

The internal reference of the TLC32047 eliminates the need for an external voltage reference and provides overall circuit cost reduction. The internal reference eases the design task and provides complete control of the IC performance. The internal reference is brought out to REF. To keep the amount of noise on the reference signal to a minimum, an external capacitor can be connected between REF and ANLG GND.

(2)

2.12 Operation of TLC32047 With External Voltage Reference

REF can be driven from an external reference circuit. This external circuit must be capable of supplying 250

µA and must be protected adequately from noise and crosstalk from the analog input.

2.13 Reset

A reset function is provided to initiate serial communications between the AIC and DSP and to allow fast, cost-effective testing during manufacturing. The reset function initializes all AIC registers, including the control register. After a negative-going pulse on RESET

, the AIC is initialized. This initialization allows normal serial port communications activity to occur between AIC and DSP (see AIC DX Data Word Format section). After a reset, TA=TB=RA=RB=18 (or 12 hexadecimal), TA

′=RA′=01 (hexadecimal), the A/D

high-pass filter is inserted, the loop-back function is deleted, AUX IN+ and AUX IN – are disabled, the transmit and receive sections are in synchronous operation, programmable gain is set to 1, the on-board (sin x)/x correction filter is not selected, D10 OUT is set to 0, and D11 OUT is set to 0.

2.14 Loopback

This feature allows the circuit to be tested remotely . In loopback, OUT+ and OUT– are internally connected to IN+ and IN–. The DAC bits (D15 to D2), which are transmitted to DX, can be compared with the ADC bits (D15 to D2) received from DR. The bits on DR equal the bits on DX. However, there is some dif ference in these bits due to the ADC and DAC output offsets.

The loopback feature is implemented with digital signal processor control by transmitting a logic 1 for data bit D3 in the DX secondary communication to the control register (see Table 2–3).

2–7

2.15 Communications Word Sequence

In the dual-word (telephone interface) mode, there are two data words that are presented to the DSP or µP from DR. The first data word is the ADC conversion result occurring during the FSR time, and the second is the serial data applied to DATA-DR during the FSD time. FSR is not asserted during secondary communications and FSD is not asserted during primary communications.

FSX

FSR

FSD

Primary Communications

DX-14 Bits Digital 11 From DSP to DAC

Input for D/A Conversion

2s Complement Output From ADC to the DSP

16 bits 16 bits

4 Shift Clocks

Secondary Communications

DX-14 Bits Digital XX From DSP

Input for Register Program

16 bits Digital From DATA-DR to DR

Data From DATA-DR to the DSP

TLC32047

TLC32047 Dual-Word

(Telephone Interface)

Mode Only

TLC32047

Dual-Word

(Telephone Interface)

Mode Only

TLC32047

Dual-Word

(Telephone Interface)

Mode Only

Figure 2–2. Primary and Secondary Communications Word Sequence

2.15.1 DR Word Bit Pattern

A/D MSB 1st bit sent A/D LSB

↓ ↓

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

The data word is the 14-bit conversion result of the receive channel to the processor in 2s complement format. With 16-bit processors, the data is 16 bits long with the two LSBs at zero. Using 8-bit processors, the data word is transmitted in the same order as one 16-bit word, but as two bytes with the two LSBs of the second byte set to zero.

2–8

2.15.2 Primary DX W ord Bit Pattern

A/D OR D/A MSB 1st bit sent 1st bit sent of 2nd byte A/D or D/A LSB

↓ ↓↓

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

Table 2–2. Primary DX Serial Communication Protocol

FUNCTIONS D1 D0

D15 (MSB)-D2 → DAC Register. TA → TX(A), RA → RX(A) (see Figure 2–1). TB → TX(B), RB → RX(B) (see Figure 2–1).

D15 (MSB)-D2 → DAC Register. TA+TA′ → TX(A), RA+RA′ → RX(A) (see Figure 2–1). TB → TX(B), RB → RX(B) (see Figure 2–1). The next D/A and A/D conversion period is changed by the addition of TA′ and RA′ master clock cycles, in which TA′ and RA′ can be positive, negative, or zero (refer to Table 2–4, AIC Responses to Improper Conditions).

D15 (MSB)-D2 → DAC Register. TA–TA′ → TX(A), RA–RA′ → RX(A) (see Figure 2–1). TB → TX(B), RB → RX(B) (see Figure 2–1). The next D/A and A/D conversion period is changed by the subtraction of TA ′ and RA′ master clock cycles, in which TA′ and RA′ can be positive, negative, or zero (refer to Table 2–4, AIC Responses to Improper Conditions).

D15 (MSB)-D2 → DAC Register. TA → TX(A), RA → RX(A) (see Figure 2–1). TB → TX(B), RB → RX(B) (see Figure 2–1). After a delay of four shift cycles, a secondary transmission follows to program the AIC to operate in the desired configuration. In the telephone interface mode, data on DATA-DR is routed to DR (Serial Data Output) during secondary transmission.

NOTE: Setting the two least significant bits to 1 in the normal transmission of DAC information (primary communications)

to the AIC initiates secondary communications upon completion of the primary communications. When the primary communication is complete, FSX the secondary communication. The timing specifications for the primary and secondary communications are identical. In this manner, the secondary communication, if initiated, is interleaved between successive primary communications. This interleaving prevents the secondary communication from interfering with the primary communications and DAC timing. This prevents the AIC from skipping a DAC output. FSR secondary communications activity. However, in the dual-word (telephone interface) mode, FSD during secondary communications but not during primary communications.

remains high for four shift clock cycles and then goes low and initiates

is not asserted during

0 0

0 1

1 0

1 1

is asserted

2–9

2.15.3 Secondary DX Word Bit Pattern

D/A MSB 1st bit sent 1st bit sent of 2nd byte D/A LSB

↓ ↓↓

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

Table 2–3. Secondary DX Serial Communication Protocol

FUNCTIONS D1 D0

D13 (MSB)-D9 → TA , 5 bits unsigned binary (see Figure 2–1). D6 (MSB)-D2 → RA, 5 bits unsigned binary (see Figure 2–1). D15, D14, D8, and D7 are unassigned.

D14 (sign bit)-D9 → TA′, 6 bits 2s complement (see Figure 2–1). D7 (sign bit)-D2 → RA′, 6 bits 2s complement (see Figure 2–1). D15 and D8 are unassigned.

D14 (MSB)-D9 → TB, 6 bits unsigned binary (see Figure 2–1). D7 (MSB)-D2 → RB, 6 bits unsigned binary (see Figure 2–1). D15 and D8 are unassigned.

D2 = 0/1 deletes/inserts the A/D high-pass filter. D3 = 0/1 deletes/inserts the loopback function. D4 = 0/1 disables/enables AUX IN+ and AUX IN–. D5 = 0/1 asynchronous/synchronous transmit and receive sections. D6 = 0/1 gain control bits (see Table 4–1). D7 = 0/1 gain control bits (see Table 4–1). D9 = 0/1 delete/insert on-board second-order (sin x)/x correction filter D10 = 0/1 output to D10OUT [dual-word (telephone interface) mode] D11 = 0/1 output to D11OUT [dual-word (telephone interface) mode] D8, D12–D15 are unassigned.

0 0

0 1

1 0

1 1

2.16 Reset Function

A reset function is provided to initiate serial communications between the AIC and DSP. The reset function initializes all AIC registers, including the control register. After power has been applied to the AIC, a negative-going pulse on RESET rate for a 10.368-MHz master clock input signal. Also, the pass-bands of the A/D and D/A filters are 300 Hz to 7200 Hz and 0 Hz to 7200 Hz, respectively . Therefore, the filter bandwidths are 66% of those shown in the filter transfer function specification section. The AIC, excepting the control register, is initialized as follows (see AIC DX Data Word Format section):

INITIALIZED VALUE (HEX)TA12

The control register bits are reset as follows (see Table 2–3):

D1 1 = 0, D10 = 0, D9 = 1, D7 = 1, D6 = 1, D5 = 1, D4 = 0, D3 = 0, D2 = 1

This initialization allows normal serial port communications to occur between the AIC and the DSP. If the transmit and receive sections are configured to operate synchronously and the user wishes to program different conversion rates, only the TA, TA receive timing are synchronously derived from these registers (see the Terminal Functions and DX Serial Data Word Format sections).

Figure 2–3 shows a circuit that provides a reset on power-up when power is applied in the sequence given in the Power-Up Sequence section. The circuit depends on the power supplies reaching their recommended values a minimum of 800 ns before the capacitor charges to 0.8 V above DGTL GND.

2–10

initializes the AIC registers to provide a 16-kHz A/D and D/A conversion

′, and TB register need to be programmed. Both transmit and

TA′01TB12RA12RA′01RB

TLC32047

VCC+

RESET

VCC–

5 V

200 kΩ

0.5 µF –5 V

Figure 2–3. Reset on Power-Up Circuit

2.17 Power-Up Sequence

T o ensure proper operation of the AIC and as a safeguard against latch-up, it is recommended that Schottky diodes with forward voltages less than or equal to 0.4 V be connected from V V

to DGTL GND. In the absence of such diodes, power is applied in the following sequence: ANLG GND

CC–

and DGTL GND, V

CC–

, then V

and VDD. Also, no input signal is applied until after power-up.

CC+

to ANLG GND and from

CC–

2.18 AIC Register Constraints

The following constraints are placed on the contents of the AIC registers:

1. TA register must be

2. TA register must be

3. TA

′ register can be either positive, negative, or zero.

4. RA register must be

5. RA register must be ≥ 5 in byte mode (WORD/BYTE = Low).

′ register can be either positive, negative, or zero.

6. RA

7. (TA register

8. (RA register

± TA′ register) must be > 1.

± RA′ register) must be > 1.

9. TB register must be

10. RB register must be ≥ 15.

≥ 4 in word mode (WORD/BYTE= High). ≥ 5 in byte mode (WORD/BYTE= Low).

≥ 4 in word mode (WORD/BYTE = High).

≥ 15.

2.19 AIC Responses to Improper Conditions

The AIC has provisions for responding to improper conditions. These improper conditions and the response of the AIC to these conditions are presented in T able 2–4. The general procedure for correcting any improper operation is to apply a reset and reprogram the registers to the proper value.

2–11

Table 2–4. AIC Responses to Improper Conditions

g g

g() g

g g

g() g

ggg

IMPROPER CONDITION AIC RESPONSE

TA register + TA′ register = 0 or 1 Reprogram TX(A) counter with TA register value TA register – TA′ register = 0 or 1

TA register + TA′ register < 0 MODULO 64 arithmetic is used to ensure that a positive value is loaded

RA register + RA′ register = 0 or 1 Reprogram RX(A) counter with RA register value RA register – RA′ register = 0 or 1

RA register + RA′ register = 0 or 1 MODULO 64 arithmetic is used to ensure that a positive value is loaded

TA register = 0 or 1 AIC is shut down. Reprogram TA or RA registers after a reset. RA register = 0 or 1

TA register < 4 in word mode The AIC serial port no longer operates. Reprogram TA or RA registers TA register < 5 in byte mode RA register < 4 in word mode RA register < 5 in byte mode

TB register < 15 ADC no longer operates RB register < 15 DAC no longer operates AIC and DSP cannot communicate Hold last DAC output

into TX(A) counter, i.e., T A register + T A′ register + 40 hex is loaded into TX(A) counter.

into RX(A) counter, i.e., RA register + RA′ register + 40 hex is loaded into RX(A) counter.

after a reset.

2.20 Operation With Conversion Times Too Close Together

If the difference between two successive D/A conversion frame syncs is less than 1/25 kHz, the AIC operates improperly . In this situation, the second D/A conversion frame sync occurs too quickly, and there is not enough time for the ongoing conversion to be completed. This situation can occur if the A and B registers are improperly programmed or if the A + A adjusting the conversion period via the A + A requirement. See Figure2–4.

Frame Sync

or FSR)

(FSX

′ register result is too small. When incrementally

′ register options, the designer should not violate this

2.21 More Than One Receive Frame Sync Occurring Between Two Transmit Frame Syncs – Asynchronous Operation

When incrementally adjusting the conversion period via the A + A′ or A – A′ register options, a specific protocol is followed. The command to use the incremental conversion period adjust option is sent to the AIC during an FSX conversion period A or conversion period B may be adjusted. For both transmit and receive conversion periods, the incremental conversion period adjustment is performed near the end of the conversion period. If there is sufficient time between t receive conversion period A. Otherwise, the adjustment is performed during receive conversion period B. The adjustment command only adjusts one transmit conversion period and one receive conversion period. T o adjust another pair of transmit and receive conversion periods, another command must be issued during a subsequent FSX

2–12

Ongoing Conversion

t2 – t1 ≤ 1/25 kHz

Figure 2–4. Conversion Times Too Close Together

frame sync. The ongoing conversion period is then adjusted; however, either receive

and t2, the receive conversion period adjustment is performed during

frame (see Figure 2–5).

FSX

FSR

Transmit Conversion Period

Receive Conversion

Period A

Receive Conversion

Period B

Figure 2–5. More Than One Receive Frame Sync Between T wo Transmit Frame Syncs

2.22 More Than One Transmit Frame Sync Occurring Between Two Receive Frame Syncs – Asynchronous Operation

When incrementally adjusting the conversion period via the A + A′ or A – A′ register options, a specific protocol must be followed. For both transmit and receive conversion periods, the incremental conversion period adjustment is performed near the end of the conversion period. The command to use the incremental conversion period adjust options is sent to the AIC during an FSX conversion period is then adjusted. However, three possibilities exist for the receive conversion period adjustment as shown in Figure 2–6. When the adjustment command is issued during transmit conversion period A, receive conversion period A is adjusted if there is sufficient time between t sufficient time between t

and t2, receive conversion period B is adjusted. The third option is that the receive

portion of an adjustment command can be ignored if the adjustment command is sent during a receive conversion period, which is adjusted due to a prior adjustment command. For example, if adjustment commands are issued during transmit conversion periods A, B, and C, the first two commands may cause receive conversion periods A and B to be adjusted, while the third receive adjustment command is ignored. The third adjustment command is ignored since it was issued during receive conversion period B, which already is adjusted via the transmit conversion period B adjustment command.

FSX

Transmit

Conversion

Period B

FSR

Transmit

Conversion

Period A

frame sync. The ongoing transmit

and t2. If there is not

Transmit

Conversion

Period C

Receive Conversion Period BReceive Conversion Period A

Figure 2–6. More Than One Transmit Frame Sync Between Two Receive Frame Syncs

2.23 More than One Set of Primary and Secondary DX Serial Communications Occurring Between Two Receive Frame Syncs (See DX Serial Data Word Format section) – Asynchronous Operation

The TA, TA′, TB, and control register information that is transmitted in the secondary communication is accepted and applied during the ongoing transmit conversion period. If there is sufficient time between t and t2, the TA, RA′, and RB register information, sent during transmit conversion period A, is applied to receive conversion period A. Otherwise, this information is applied during receive conversion period B. If RA, RA

′, and RB register information has been received and is being applied during an ongoing conversion

period, any subsequent RA, RA disregarded. See Figure 2–7.

′, or RB information received during this receive conversion period is

2–13

FSX

FSR

SecondaryPrimary

Transmit

Conversion

Preload A

Receive

Conversion

Period A

Transmit

Conversion

Preload B

Receive

Conversion

Period B

SecondaryPrimarySecondaryPrimary

Transmit

Conversion

Preload C

Figure 2–7. More Than One Set of Primary and Secondary DX Serial Communications

Between T wo Receive Frame Syncs

2.24 System Frequency Response Correction

The (sin x)/x correction for the DAC zero-order sample-and-hold output can be provided by an on-board second-order (sin x)/x correction filter (see Functional Block Diagram). This (sin x)/x correction filter can be inserted into or omitted from the signal path by digital-signal-processor control (data bit D9 in the DX secondary communications). When inserted, the (sin x)/x correction filter precedes the switched-capacitor low-pass filter. When the TB register (see Figure 2–1) equals 15, the correction results of Figures 5–8, 5–9, and 5–10 can be obtained.

The (sin x)/x correction can also be accomplished by disabling the on-board second-order correction filter and performing the (sin x)/x correction in digital signal processor software. The system frequency response can be corrected via DSP software to This correction is accomplished with a first-order digital correction filter, that requires seven TMS320 instruction cycles. With a 200-ns instruction cycle, seven instructions represent an overhead factor of 1.1% and 1.3% for sampling rates of 8 and 9.6 kHz, respectively (see the (sin x)/x Correction Section for more details).

± 0.1 dB accuracy to a band edge of 3000 Hz for all sampling rates.

2.25 (sin x)/x Correction

If the designer does not wish to use the on-board second-order (sin x)/x correction filter, correction can be accomplished in digital signal processor (DSP) software. (sin x)/x correction can be accomplished easily and efficiently in digital signal processor software. Excellent correction accuracy can be achieved to a band edge of 3000 Hz by using a first-order digital correction filter. The results shown below are typical of the numerical correction accuracy that can be achieved for sample rates of interest. The filter requires seven instruction cycles per sample on the TMS320 DSP. With a 200-ns instruction cycle, nine instructions per sample represents an overhead factor of 1.4% and 1.7% for sampling rates of 8000 Hz and 9600 Hz, respectively. This correction adds a slight amount of group delay at the upper edge of the 300-Hz to 3000-Hz band.

2.26 (sin x)/x Roll-Off for a Zero-Order Hold Function

The (sin x)/x roll-off error for the AIC DAC zero-order hold function at a band-edge frequency of 3000 Hz for the various sampling rates is shown in Table 2–5 (see Figure 5–10).

2–14

Table 2–5. (sin x)/x Roll-Off Error

)

sin π f/f

(Hz

7200 –2.64 8000 –2.11

9600 –1.44 14400 –0.63 16000 –0.50 19200 –0.35 25000 –0.21

Error = 20 log

f = 3000 Hz

(dB)

π f/f

The actual AIC (sin x)/x roll-off is slightly less than the figures above because the AIC has less than 100% duty cycle hold interval.

2.27 Correction Filter

T o externally compensate for the (sin x)/x roll-off of the AIC, a first-order correction filter can be implemented as shown in Figure 2–8.

u (i +

y(i +

(1 – p1) p2

– 1

Figure 2–8. First-Order Correction Filter

The difference equation for this correction filter is:

= p2 ⋅ (1 – p1) ⋅ u

(i + 1)

+ p1 ⋅ y

(i) (4)

where the constant p1 determines the pole locations. The resulting squared magnitude transfer function is:

| H (f) |

⋅ (1–p1)

1–2 ⋅ p1 ⋅ cos (2π f/fs) + (p1)

(p2)

(5)

2.28 Correction Results

Table 2-6 shows the optimum p values and the corresponding correction results for 8000-Hz and 9600-Hz sampling rates (see Figures 5–8, 5–9, and 5–10).

2–15

Table 2–6. (sin x)/x Correction Table for fs = 8000 Hz and fs = 9600 Hz

()

f (Hz)

ROLL-OFF ERROR (dB) ROLL-OFF ERROR (dB)

fs = 8000 Hz p1 = –0.14813 p2 = 0.9888 p2 = 0.9951

300 –0.099 –0.043 600 –0.089 –0.043

900 –0.054 0 1200 –0.002 0 1500 0.041 0 1800 0.079 0.043 2100 0.100 0.043 2400 0.091 0.043 2700 –0.043 0 3000 –0.102 –0.043

fs = 9600 Hz p1 = –0.1307

2.29 TMS320 Software Requirements

The digital correction filter equation can be written in state variable form as follows:

= y

(i+1)

× k1 + u

(i)

where

k1 = p1 k2 = (1 – p1)p2 y(i) is the filter state u(i+1)

The coefficients k1 and k2 must be represented as 16-bit integers. The SACH instruction (with the proper shift) yields the correct result. With the assumption that the TMS320 processor page pointer and memory configuration are properly initialized, the equation can be executed in seven instructions or seven cycles with the following program:

ZAC LT K2 MPY U LTA K1 MPY Y APAC SACH (dma), (shift)

(i+1)

× k2

2–16

3 Specifications

3.1 Absolute Maximum Ratings Over Operating Free-Air Temperature Range (Unless Otherwise Noted)

†

Supply voltage range, V Supply voltage range, V Supply voltage range, V Output voltage range, V Input voltage range, V

(see Note 1) –0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . .

CC+

(see Note 1) –0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . .

CC–

–0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

–0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

–0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital ground voltage range –0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating free-air temperature range: TLC32047C 0°C to 70°C. . . . . . . . . . . . . . . . . . .

TLC32047I –40°C to 85°C. . . . . . . . . . . . . . . . . .

Storage temperature range –40°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Case temperature for 10 seconds: FN package 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package 260°C. . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: Voltage values for maximum ratings are with respect to V

CC–

3–1

3.2 Recommended Operating Conditions

Operating free-air temperature range, T

°C

250

ppm/°C

MIN NOM MAX UNIT

Supply voltage, V Supply voltage, V Digital supply voltage, VDD (see Note 2) 4.75 5 5.25 V Digital ground voltage with respect to ANLG GND, DGTL GND 0 V Reference input voltage, V High-level input voltage, V Low-level input voltage, VIL (see Note 3) 0 0.8 V Load resistance at OUT+ and/or OUT–, R Load capacitance at OUT+ and/or OUT–, C MSTR CLK frequency (see Note 4) 5 10.368 MHz Analog input amplifier common mode input voltage (see Note 5) ±1.5 V A/D or D/A conversion rate 25 kHz

NOTES: 2. Voltages at analog inputs and outputs, REF , V

digital inputs and outputs and VDD are with respect to DGTL GND.

3. The algebraic convention, in which the least positive (most negative) value is designated minimum, is used in this data manual for logic voltage levels only.

4. The band-pass switched-capacitor filter (SCF) specifications apply only when the low-pass section SCF clock is 432 kHz and the high-pass section SCF clock is 24 kHz. If the low-pass SCF clock is shifted from 432 kHz, the low-pass roll-off frequency shifts by the ratio of the low-pass SCF clock to 432 kHz. If the high-pass SCF clock is shifted from 24 kHz, the high-pass roll-off frequency shifts by the ratio of the high-pass SCF clock to 24 kHz. Similarly, the low-pass switched-capacitor filter (SCF) specifications apply only when the SCF clock is 432 kHz. If the SCF clock is shifted from 432 kHz, the low-pass roll-off frequency shifts by the ratio of the SCF clock to 432 kHz.

5. This range applies when (IN+ – IN–) or (AUX IN+ – AUX IN–) equals ± 6 V.

(see Note 2) 4.75 5 5.25 V

CC+

(see Note 2) –4.75 –5 –5.25 V

CC–

(see Note 2) 2 4 V

ref(ext)

TLC32047C 0 70

TLC32047I –40 85

CC+

, and V

are with respect to ANLG GND. Voltages at

CC–

2 V

300 Ω

100 pF

3.3 Electrical Characteristics Over Recommended Operating Free-Air Temperature Range, V

CC+

= 5 V, V

= –5 V, VDD = 5 V (Unless

CC–

Otherwise Noted)

3.3.1 Total Device, MSTR CLK Frequency = 5.184 MHz, Outputs Not Loaded

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

High-level output voltage VDD = 4.75 V, IOH = –300 µA 2.4 V

Low-level output voltage VDD = 4.75 V, IOL = 2 mA 0.4 V

Supply current from

CC+

Supply current from

CC–

CC –

Supply current from V

Internal reference output voltage 3 3.3 V

ref

Temperature coefficient of

Vref

internal reference voltage

Output resistance at REF 100 kΩ

†

All typical values are at TA = 25°C.

3–2

TLC32047C 35 TLC32047I TLC32047C –35 TLC32047I

–40

7 mA

3.3.2 Power Supply Rejection and Crosstalk Attenuation

CC+ CC

su ly voltage

Idle channel, su ly

200 mV

CMRR

j,,

See Note 6

100

kΩ

1580mV

±3

600 Ω

±6

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

or V– supply voltage

rejection ratio, receive channel

rejection ratio, transmit channe (single-ended)

Crosstalk attenuation, transmit-to-receive (single-ended)

†

All typical values are at TA = 25°C.

–

f = 0 to 30 kHz

f = 30 kHz to 50 kHz

= 0 to 30 kHz

f = 30 kHz to 50 kHz

Idle channel, supply si

nal at 200 mV p-p measured at DR (ADC output)

pp signal at measured at OUT+

p-p

3.3.3 Serial Port

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

†

All typical values are at TA = 25°C.

High-level output voltage IOH = –300 µA 2.4 V Low-level output voltage IOL = 2 mA 0.4 V Input current ±10 µA Input current, DATA-DR/CONTROL ±100 µA Input capacitance 15 pF Output capacitance 15 pF

3.3.4 Receive Amplifier Input

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

A/D converter offset error (filters in) 10 70 mV Common-mode rejection ratio at IN+, IN–, or

AUX IN+, AUX IN–

†

All typical values are at TA = 25°C.

NOTE 6: The test condition is a 0-dBm, 1-kHz input signal with a 24-kHz conversion rate.

Input resistance at IN+, IN– or AUX IN+, AUX IN–, REF

80 dB

3.3.5 Transmit Filter Output

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

†

All typical values are at TA = 25°C.

Output offset voltage at OUT+ or OUT– (single-ended relative to ANLG GND)

Maximum peak output voltage swing across R RL at OUT+ or OUT– (single-ended)

Maximum peak output voltage swing between OUT+ and OUT– (differential output)

≥ 300 Ω,

Offset voltage = 0

≥

3–3

3.3.6 Receive and Transmit Channel System Distortion, SCF Clock

0.1 dB to –24 dB

PARAMETER

TEST CONDITIONS

UNIT

A/D ch

distortion ratio

Frequency = 432kHz (see Note 7)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

Attenuation of second harmonic of A/D input signal

Attenuation of third and higher harmonics of A/D input signal

Attenuation of second harmonic of D/A input signal

Attenuation of third and higher harmonics of D/A input signal

†

All typical values are at TA = 25°C.

single-ended 70 differential single-ended differential 57 65 single-ended 70 differential single-ended differential 57 65

= –

= –0 dB to –24

62 70

3.3.7 Receive Channel Signal-to-Distortion Ratio (see Note 7)

Av = 1 V/V

MIN MAX MIN MAX MIN MAX

VI = –6 dB to –0.1 dB 56 VI = –12 dB to –6 dB 56 56 VI = –18 dB to –12 dB 53 56 56

annel signal-to-

‡

Av is the programmable gain of the input amplifier.

Measurements under these conditions are unreliable due to overrange and signal clipping.

NOTE 7: The test condition is a 1-kHz input signal with a 24-kHz conversion rate. The load impedance for the DAC is

600 Ω. Input and output voltages are referred to V

VI = –24 dB to –18 dB 47 53 56 VI = –30 dB to –24 dB 41 47 53 VI = –36 dB to –30 dB 35 41 47 VI = –42 dB to –36 dB 29 35 41 VI = –48 dB to –42 dB 23 29 35 VI = –54 dB to –48 dB 17 23 29

ref

‡

Av = 2 V/V

‡

Av = 4 V/V

§ §

‡

3–4

3.3.8 Transmit Channel Signal-to-Distortion Ratio (see Note 7)

reference is 0 dB

PARAMETER TEST CONDITIONS MIN MAX UNIT

VI = –6 dB to –0.1 dB 58 VI = –12 dB to –6 dB 58 VI = –18 dB to –12 dB 56 VI = –24 dB to –18 dB 50

D/A channel signal-to-distortion ratio

NOTE 7: The test condition is a 1-kHz input signal with a 24-kHz conversion rate. The load impedance for the DAC is

600 Ω. Input and output voltages are referred to V

VI = –30 dB to –24 dB 44 VI = –36 dB to –30 dB 38 VI = –42 dB to –36 dB 32 VI = –48 dB to –42 dB 26 VI = –54 dB to –48 dB 20

ref

3.3.9 Receive and Transmit Gain and Dynamic Range (see Note 8)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

Transmit gain tracking error VO = –48 dB to 0 dB signal range ±0.05 ±0.25 dB Receive gain tracking error VI = –48 dB to 0 dB signal range ±0.05 ±0.25 dB

NOTE 8: Gain tracking is relative to the absolute gain at 1 kHz and 0 dB (0 dB relative to V

3.3.10 Receive Channel Band-Pass Filter Transfer Function, SCF f Input (IN+ – IN–) is a

PARAMETER

Filter gain

†

All typical values are at TA = 25°C.

‡

The MIN, TYP , and MAX specifications are given for a 432-kHz SCF clock frequency . A slight error in the 432-kHz SCF can result from inaccuracies in the MSTR CLK frequency, resulting from crystal frequency tolerances. If this frequency error is less than 0.25%, the ADJUSTMENT ADDEND should be added to the MIN, TYP , and MAX specifications, where K1 = 100 × [(SCF frequency – 432 kHz)/432 kHz]. For errors greater than 0.25%, see Note 9.

NOTE 9: The filter gain outside of the pass band is measured with respect to the gain at 1 kHz. The filter gain within the

pass band is measured with respect to the average gain within the pass band. The pass bands are 450 Hz to 10.95 kHz and 0 to 10.95 kHz for the band-pass and low-pass filters, respectively. For switched-capacitor filter clocks at frequencies other than 432 kHz, the filter response is shifted by the ratio of switched-capacitor filter clock frequency to 432 kHz.

TEST

CONDITION

nput signa

±3-V Sine Wave

FREQUENCY ADJUSTMENT MIN

f ≤ 150 Hz K1 × 0 dB –33 –29 –25 f = 300 Hz K1 × –0.26 dB –4 –2 –1 f = 450 Hz to 9300 Hz K1 × 0 dB –0.25 0 0.25 f = 9300 Hz to 9900 Hz K1 × 0 dB –0.3 0 0.3 f = 9900 Hz to 10950 Hz K1 × 0 dB –0.5 0 0.5 f = 11.4 kHz K1 × 2.3 dB –2 –0.5 f = 12 kHz K1 × 2.7 dB –16 –14 f ≥ 13.2 kHz K1 × 3.2 dB –40 f ≥ 15 kHz K1 × 0 dB –60

‡

(see Note 9)

ref

clock

TYP

= 432 kHz,

†

MAX UNIT

3–5

3.3.11 Receive and Transmit Channel Low-Pass Filter Transfer Function,

reference is 0 dB

rms

Receive noise (see Note 10)

Inputs grounded, gain

SCF f

PARAMETER

Filter gain

†

All typical values are at TA = 25°C.

‡

The MIN, TYP , and MAX specifications are given for a 432-kHz SCF clock frequency . A slight error in the 432-kHz SCF may result from inaccuracies in the MSTR CLK frequency, resulting from crystal frequency tolerances. If this frequency error is less than 0.25%, the ADJUSTMENT ADDEND should be added to the MIN, TYP , and MAX specifications, where K1 = 100 × [(SCF frequency – 432 kHz)/432 kHz]. For errors greater than 0.25%, see Note 9.

NOTE 9: The filter gain outside of the pass band is measured with respect to the gain at 1 kHz. The filter gain within the

= 432 kHz (see Note 9)

clock

TEST

CONDITION

f = 0 Hz to 9300 Hz K1 × 0 dB –0.25 0 0.25 f = 9300 Hz to 9900 Hz K1 × 0 dB –0.3 0 0.3

nput signa

f = 9900 Hz to 10950 Hz K1 × 0 dB –0.5 0 0.5 f = 11.4 kHz K1 × 2.3 dB –5 –2 –0.5 f = 12 kHz K1 × 2.7 dB –16 –14 f ≥ 13.2 kHz K1 × 3.2 dB –40 f ≥ 15 kHz K1 × 0 dB –60

FREQUENCY

RANGE

ADJUSTMENT

ADDEND

‡

MIN TYP†MAX UNIT

3.4 Operating Characteristics Over Recommended Operating Free-Air

Temperature Range, V

3.4.1 Receive and Transmit Noise (Measurement Includes Low-Pass and Band-Pass Switched-Capacitor Filters)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

broadband with (sin x)/x 280 500

Transmit noise

†

All typical values are at TA = 25°C.

NOTE 10: The noise is computed by statistically evaluating the digital output of the A/D converter.

broadband without (sin x)/x 0 to 12 kHz with (sin x)/x 0 to 12 kHz without (sin x)/x 240 400

= 5 V, V

CC+

DX = input = 00000000000000, constant input code

CC–

= –5 V, VDD = 5 V

250 450 250 400

300 500 µV rms

18 dBrnc0

µV

3–6

3.5 Timing Requirements

3.5.1 Serial Port Recommended Input Signals

PARAMETER MIN MAX UNIT

c(MCLK)

r(MCLK)

f(MCLK)

su(DX)

h(DX)

NOTE 11: RESET pulse duration is the amount of time that the reset pin is held below 0.8 V after the power supplies have

3.5.2 Serial Port – AIC Output Signals, CL = 30 pF for SHIFT CLK Output, CL = 15 pF

c(SCLK)

f(SCLK)

r(SCLK)

d(CH-FL)

d(CH-FH)

d(CH-DR)

d(CH-EL)

d(CH-EH)

f(EODX)

f(EODR)

d(CH-EL)

d(CH-EH)

d(MH-SL)

d(MH-SH)

†

Typical values are at TA = 25°C.

Master clock cycle time 95 ns Master clock rise time 10 ns Master clock fall time 10 ns Master clock duty cycle 25% 75% RESET pulse duration (see Note 11) 800 ns DX setup time before SCLK↓ 20 ns DX hold time after SCLK↓ t

reached their recommended values.

c(SCLK)/4

For All Other Outputs

PARAMETER MIN TYP†MAX UNIT

Shift clock (SCLK) cycle time 380 ns Shift clock (SCLK) fall time 3 8 ns Shift clock (SCLK) rise time 3 8 ns Shift clock (SCLK) duty cycle 45 55 % Delay from SCLK↑ to FSR/FSX/FSD↓ 30 ns Delay from SCLK↑ to FSR/FSX/FSD↑ 35 90 ns DR valid after SCLK↑ 90 ns Delay from SCLK↑ to EODX/EODR↓ in word mode 90 ns Delay from SCLK↑ to EODX/EODR↑ in word mode 90 ns EODX fall time 2 8 ns EODR fall time 2 8 ns Delay from SCLK↑ to EODX/EODR↓ in byte mode 90 ns Delay from SCLK↑ to EODX/EODR↑ in byte mode 90 ns Delay from MSTR CLK↑ to SCLK↓ 65 170 ns Delay from MSTR CLK↑ to SCLK↑ 65 170 ns

3–7

3–8

4 Parameter Measurement Information

±full scale

Anal

= AUX IN+ – AUX IN–

±half scale

Anal

ANLG GND

= AUX IN+ ANLG GND

IN +

AUX IN+

IN –

AUX IN–

Rfb = R for D6 = 1 and D7 = 1

Rfb = 2R for D6 = 1 and D7 = 0 Rfb = 4R for D6 = 0, and D7 = 1

–

D6 = 0 and D7 = 0

–

To MUX

Figure 4–1. IN+ and IN– Gain Control Circuitry

Table 4–1. Gain Control Table (Analog Input Signal Required for

= ±6

‡§

†

RESULT

Full-Scale Bipolar A/D Conversion Twos Complement)

INPUT

CONFIGURATIONS

Differential configuration

og input = IN+ – IN–

Single-ended configuration

og input= IN+ –

†

CC+

‡

VID = Differential Input Voltage, VI = Input voltage referenced to ground with IN– or AUX IN– connected to ground.

In this example, V exceed 0.1 dB below full scale.

= AUX IN+ – ANLG GND

= 5 V, V

= –5 V, VDD = 5 V

CC–

is assumed to be 3 V. In order to minimize distortion, it is recommended that the analog input not

ref

–

CONTROL REGISTER BITS

D6 D7

1 1 0 0

–

1 0 VID = ±3 V ±full scale 0 1 VID = ±1.5 V ±full scale 1 1

0 0 1 0 VI = ±3 V ±full scale 0 1 VI = ±1.5 V ±full scale

ANALOG A/D CONVERSION INPUT

= ±3

4–1

SHIFT

CLK

FSX, FSR,

FSD

8 V

(CH-FL)

tsu

(DX)

8 V

(SCLK)

2 V2 V

(CH-DR)

D13D14D15

D12

(CH-FH)

8 V

D0D1D2D11

2 V2 V

2 V

D0D1D2D11D12D13D14D15

Don’t Care

DATA-DR

D15 D14 D13 D12 D2 D1 D0

D11

Figure 4–2. Dual-Word (Telephone Interface) Mode Timing

(SCLK)

2 V2 V

2 V

D0D1D2D11

D0D1D2D11D12D13D14D15

8 V

Don’t Care

2 V

(CH-EH)

FSX

EODX

SHIFT

CLK

, FSR

, EODR

2 V2 V

(DX)

8 V

(CH–DR)

D12

D13D14D15

(DX)

(CH-FL)

†

‡

8 V

tsu

8 V

td (CH-FH)

(CH-EL)

Figure 4–3. Word Timing

†

The time between falling edges of FSR is the A/D conversion period and the time between falling edges of FSX is the D/A conversion period.

‡

In the word format, EODX is 20 shift-clocks wide, giving a four-clock period setup time between data words.

and EODR go low to signal the end of a 16-bit data word to the processor. The word-cycle

4–2

2 V

c (SCLK)

2 V 2 V

2 V

r (SCLK)

d (CH-FH)

d (CH-FL)

8 V

d (CH-FH)

2 V 2 V

D1 D0

d (CH-DR)

d (CH-EH)

D12 D11D8

Don’t Care

d (CH-EL)

h (DX)

D13 D9D15 D14 D0D2 D1

8 V

Figure 4–4. Byte-Mode Timing

2 V

f (SCLK)

2 V

CLK

SHIFT

8 V

d (CH-FL)

FSR,

FSX

D15 D14 D13 D9 D8 D7 D6 D2

su (DX)

EODX

EODR,

The time between falling edges of FSR is the A/D conversion period, and the time between fallling edges of FSX is the D/A conversion period.

In the byte mode, when EODX or EODR is high, the first byte is transmitted or received, and when these signals are low, the second byte is

transmitted or received. Each byte-cycle is 12 shift-clocks long, allowing for a four-shift-clock setup time between byte transmissions.

†

‡

4–3

MSTR CLK

(MH-SH)

(MH-SL)

SHIFT CLK

Figure 4–5. Shift-Clock Timing

4.1 TMS32047 – Processor Interface

SN74LS74

SN74LS299

SN74LS299SN74LS138

G2 S0 G1

A-H

S1 G2 S0 G1

A-H

CLK

DEN

G1 A0/PA0 A1/PA1 A2/PA2

TMS32010 TLC32047

D0-D15

D8-D15

D0-D7D0-D15

SN74LS74

FSX

SHIFT CLK

4–4

CLK

OUT

INT

Figure 4–6. TMS32010/TMS320C15–TLC32047 Interface Circuit

MSTR CLK

EODX

CLK OUT

DEN

S0,G1

D0–D15

CLK OUT

SN74LS138 Y1

SN74LS299 CLK

D0–D15

Figure 4–7. TMS32010/TMS320C15–TLC32047 Interface Timing

Valid

(a) IN INSTRUCTION TIMING

Valid

(b) OUT INSTRUCTION TIMING

4–5

4–6

5 Typical Characteristics

(

)

0.4 TA = 25°C Input = ± 3 V Sine Wave

0.2

– 0.2

Pass Band Magnitude – dB

– 0.4

D/A AND A/D LOW-PASS FILTER

RESPONSE SIMULATION

– 0.6

0369

Normalized Frequency

Figure 5–1

D/A AND A/D LOW-PASS FILTER

RESPONSE SIMULATION

See Figure 2-1 for Pass Band

– 10

Detail

– 20

– 30

– 40

– 50

Magnitude – dB

– 60

– 70

– 80

– 90

0 3 6 9 12 15 18

Figure 5–2

12 15

TA = 25°C Input = ± 3 V Sine Wave

21 24 27 30

NOTE : Absolute Frequency (kHz)

Normalized Frequency

clock

kHz

432

5–1

D/A AND A/D LOW-PASS GROUP DELAY

(

)

0.6 TA = 25°C

Input = ±3 V Sine Wave

0.5

0.4

0.3

Group Delay – ms

0.2

0369

f – Frequency – kHz

Figure 5–3

A/D BAND-PASS RESPONSE

0.4

High-Pass SCF f TA = 25°C Input = ±3 V Sine Wave

0.2

– 0.2

Pass Band Magnitude – dB

– 0.4

– 0.6

0369

clock

f – Frequency – kHz

Figure 5–4

12 15

= 24 kHz

12 15

NOTE : Absolute Frequency (kHz)

5–2

Normalized Frequency

clock

kHz

432

A/D BAND-PASS FILTER RESPONSE SIMULATION

(

)

– 10

– 20

– 30

– 40

– 50

Magnitude – dB

– 60

– 70

– 80

High-Pass SCF f

= 24 kHz

clock

TA = 25°C Input = ± 3 V Sine Wave

– 90

0 3 6 9 12 15 18

A/D BAND-PASS FILTER GROUP DELAY

1.0

0.9

0.8

0.6

0.5

0.4

Group Delay – ms

0.2

0.1

0 1.2 2.4 3.6 4.8 6 7.2

21 24 27 30

f – Frequency – kHz

Figure 5–5

High-Pass SCF f TA = 25°C Input = ±3 V Sine Wave

f – Frequency – kHz

clock

8.4 9.6 10.8 12

= 24 kHz

NOTE : Absolute Frequency (kHz)

Figure 5–6

Normalized Frequency

clock

kHz

432

5–3

A/D CHANNEL HIGH-PASS FILTER

(

)

TA = 25°C Input = ± 3 V Sine Wave

– 10

– 20

– 30

Magnitude – dB

– 40

– 50

– 60

0 150 300 450 600 750 900

Normalized Frequency

10501200 13501500

Figure 5–7

D/A (sin x)/x CORRECTION FILTER RESPONSE

– 2

Magnitude – dB

– 4

– 6

0 3 6 9 12 15 18

NOTE : Absolute Frequency (kHz)

5–4

TA = 25°C Input = ± 3 V Sine Wave

f – Frequency – kHz

Figure 5–8

Normalized Frequency

21 24 27 30

432

clock

kHz

D/A (sin x)/x CORRECTION FILTER RESPONSE

(

)

325

TA = 25°C Input = ± 3 V Sine Wave

260

sµ

195

130

Group Delay –

0 3 6 9 12 15 18

D/A (sin x)/x CORRECTION ERROR

TA = 25°C

1.6

Input = ± 3 V Sine Wave

1.2

0.8

0.4 0

– 0.4

Magnitude – dB

– 0.8

– 1.2 – 1.6

– 2

0 1.5 3 4.5 6 7.5 9

21 24 27 30

f – Frequency – kHz

Figure 5–9

(sin x) /x Correction

Error

28.8 kHz (sin x) /x Distortion

10.5 12 13.5 15

f – Frequency – kHz

NOTE : Absolute Frequency (kHz)

Figure 5–10

Normalized Frequency

SCFf

clock

kHz

432

5–5

A/D BAND-PASS GROUP DELAY

760

Low-pass SCF f

720

µs

680

640

600

560

520

480

A/D Band-pass Group Delay –

440

High-pass SCF f TA = 25°C Input = ± 3 V Sine Wave

clock

= 144 kHz

= 8 kHz

400

0.4 0.8 1.2 1.6 2.0

f – Frequency – Hz

Figure 5–11

D/A LOW-PASS GROUP DELAY

560

520

µs

480

440

400

360

320

280

A/D Band-pass Group Delay –

240

200

Low-pass SCF f TA = 25°C Input = ± 3 V Sine Wave

0 0.4 0.8 1.2 1.6 2.0

f – Frequency – Hz

Figure 5–12

clock

2.4 2.8 3.2 3.6

= 144 kHz

2.4 2.8 3.2 3.6

5–6

A/D SIGNAL-TO-DISTORTION RATIO

INPUT SIGNAL

100

1-kHz Input Signal

16-kHz Conversion Rate TA = 25°C

70 60 50

40 30

Signal-To-Distortion Ratio – dB

– 50 – 40 – 30 – 20 – 10 0 10

Gain = 4

Input Signal Relative to V

Gain = 1

ref

– dB

Figure 5–13

A/D GAIN TRACKING

(GAIN RELATIVE TO GAIN AT 0-dB INPUT SIGNAL)

0.5 1-kHz Input Signal

0.4

16-kHz Conversion Rate TA = 25°C

0.3

0.2

0.1

0.0

– 0.1

Gain Tracking – dB

– 0.2

– 0.3

– 0.4 – 0.5

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

Figure 5–14

ref

– dB

5–7

D/A CONVERTER SIGNAL-TO-DISTORTION RATIO

INPUT SIGNAL

100

1-kHz Input Signal Into 600 Ω

16-kHz Conversion Rate TA = 25°C

70 60 50

40 30

Signal-To-Distortion Ratio – dB

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

ref

– dB

Figure 5–15

D/A GAIN TRACKING (GAIN RELATIVE TO GAIN

AT 0-dB INPUT SIGNAL)

0.5

1-kHz Input Signal Into 600 Ω

0.4

16-kHz Conversion Rate TA = 25°C

0.3

5–8

0.2

0.1

0.0

– 0.1

Gain Tracking – dB

– 0.2

– 0.3

– 0.4 – 0.5

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

Figure 5–16

ref

– dB

A/D SECOND HARMONIC DISTORTION

INPUT SIGNAL

– 100

Second Harmonic Distortion – dB

1-kHz Input Signal 16-kHz Conversion Rate

– 90

TA = 25°C

– 80

– 70 – 60 – 50

– 40 – 30

– 20

– 10

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

ref

Figure 5–17

D/A SECOND HARMONIC DISTORTION

INPUT SIGNAL

– 100

1-kHz Input Signal Into 600 Ω

– 90

16-kHz Conversion Rate TA = 25°C

– 80

– dB

– 70 – 60 – 50

– 40 – 30

– 20

Second Harmonic Distortion – dB

– 10

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

ref

Figure 5–18

– dB

5–9

A/D THIRD HARMONIC DISTORTION

INPUT SIGNAL

– 1000

– 90

Third Harmonic Distortion – dB

1-Hz Input Signal 16-kHz Conversion Rate TA = 25°C

– 80

– 70 – 60 – 50

– 40 – 30

– 20

– 10

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

ref

Figure 5–19

D/A THIRD HARMONIC DISTORTION

INPUT SIGNAL

– 100

1-kHz Input Signal Into 600 Ω

– 90

16-kHz Conversion Rate TA = 25°C

– 80

– dB

5–10

– 70 – 60 – 50

– 40 – 30

Third Harmonic Distortion – dB

– 20

– 10

– 50 – 40 – 30 – 20 – 10 0 10

Input Signal Relative to V

ref

Figure 5–20

– dB

6 Application Information

TMS32020/C25

CLKOUT

FSX

FSR

CLKR

CLKX

C = 0.2 µF, Ceramic

Figure 6–1. AIC Interface to the TMS32020/C25 Showing Decoupling

†

Thomson Semiconductors

TLC32047 MSTR CLK FSX DX FSR DR SHIFT CLK

VCC +

REF

ANLG GND

VCC –

DGTL GND

Capacitors and Schottky Diode

500 Ω

TL431

BAT 42

†

3 V Output

0.01 µF

5 V

†

– 5 V 5 V

0.1 µF

2500 Ω

FOR: VCC = 12 V, R = 7200 Ω

VCC = 10 V, R = 5600 Ω VCC = 0 V, R = 1600 Ω

Figure 6–2. External Reference Circuit for TLC32047

6–1

6–2

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent TI deems necessary to support this warranty . Specific testing of all parameters of each device is not necessarily performed, except those mandated by government requirements.

CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICA TIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICATIONS IS UNDERST OOD TO BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right of TI covering or relating to any combination, machine, or process in which such semiconductor products or services might be or are used. TI’s publication of information regarding any third party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

TEXAS INSTRUMENTS TLC32047C, TLC32047I Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
