The TI-Nspire™ CAS math and science learning
handheld
This guidebook provides information about a powerful, advanced
learning handheld available from Texas Instruments: the TI-Nspire™ CAS
handheld.
Your learning handheld comes equipped with a variety of pre-installed
software applications that have features relevant to different subjects
and curriculums.
Extend the reach of your TI-Nspire™ CAS handheld with accessories, such
as the TI-Nspire™ CAS computer software, TI-Nspire™ ViewScreen™
Panel and TI-Nspire™ Computer Link Software.
How to use this guidebook
This guidebook is intended to provide instruction for the basic operation
of the TI-Nspire™ CAS handheld.
The chapters in this guidebook include:
Getting Started - Provides start up information for the learning
handheld, and offers students and educators an overview of the basic
operations of the TI-Nspire™ CAS handheld.
Working with Documents - Provides instruction for creating and
working with documents.
Using Calculator- Provides an overview of the Calculator application.
Using Graphs & Geometry - Provides an overview of the Graphs &
Geometry application.
Using Lists & Spreadsheet- Provides an overview of the Lists &
Spreadsheet application.
Using Data & Statistics - Provides instruction for using the Data &
Statistics application to analyze data created in other applications.
Using Notes- Provides an overview of the Notes application.
Data Collection - Provides an overview of the Data Collection console.
Service and Warranty Information - Includes service and warranty
information and contact information for technical support.
Introduction1
Where to find more information
The remainder of the product information is available in electronic form.
The comprehensive guidebook for using the TI-Nspire™ CAS handheld is
included on the CD-ROM that came with your learning handheld. This
guidebook is also available online as a free download at
education.ti.com/guides.
2Introduction
Getting Started
TI-Nspire™ CAS handheld keys
d Removes
menus or dialog
boxes from the
screen.
e Moves to the
next entry field.
/ Provides
access to the
function or
character shown
above each key.
g Makes the next
character typed
upper-case.
w Turns on the
TI-Nspire handheld.
cDisplays the
home menu.
bDisplays the
application or
context menu.
. Clears
(erases) the entry
line or deletes the
selected object.
kDisplays the
catalog for
entering
commands.
· Evaluates an
expression,
executes an
instruction, or
selects a menu
item.
xClick button
Selects an object on the screen.
NavPad
Press 3, 4, 5,or6
to move the cursor.
Getting Started3
/ + x
or
Press and hold
to display the grab cursor ÷ so you can
grab an object on the screen.
x
Keyboard shortcuts
Use the following keyboard
shortcuts to perform common
functions.
Editing Text
cut
copy
paste
undo
redo
/X
/C
/V
/Z
/Y
select application
save current
document
Navigation
Home
End
Page Up
Page Down
Up a level in the
hierarchy
/K
/S
/7
/1
/9
/3
/£
Inserting Characters,
Symbols
display character
palette
not equal to
underscore
|
{
semi-colon (;)
display math
template palette
/k
/=
/_
/>
/<
/:
/r
% /j
$
degree symbol
backslash ( \ )
Managing Documents
create new
document
insert new page
/"
/'
gp
/N
/I
Down a level in the
hierarchy
Navigating in Documents
displays previous
page
displays next page
displays Page
Sorter
Wizards and Templates
add a column to a
matrix
add a row to a
matrix
integration
template
derivative template
Modifying Display
increase contrast
decrease contrast
power off
/ 6
/¡
/¢
/£
g@
@
g+
g-
/+
/-
/w
4Getting Started
Initial startup
The TI-Nspire™ CAS math and science learning handheld uses four AAA
batteries, which are provided with the product.
Installing batteries
1.Remove the battery cover from the back of the handheld.
2.Unwrap the four AAA batteries provided with your handheld and
insert them into the battery compartment. Arrange the batteries
according to the polarity (+ and -) diagram in the battery
compartment.
3.Replace the battery cover. The cover should snap into place.
Replacing batteries
1.Save all documents and close all applications.
2.Remove the battery cover from the back of the handheld.
Note: When you remove the battery cover, the handheld powers
down. You cannot operate the handheld with the battery cover
removed.
3.First, remove the batteries and replace them with new AAA
batteries. Arrange the batteries according to the polarity (+ and -)
diagram in the battery compartment.
4.Replace the battery cover. The cover should snap into place.
Battery Precautions
Take these precautions when replacing batteries.
•Do not leave batteries within the reach of children.
Getting Started5
•Do not mix new and used batteries. Do not mix brands, or types
within brands, of batteries.
•Do not mix rechargeable and non-rechargeable batteries.
•Install batteries according to polarity (+ and -) diagrams.
•Do not place non-rechargeable batteries in a battery recharger.
•Properly dispose of used batteries immediately.
•Do not incinerate or dismantle batteries.
•Seek medical advice immediately if a cell or battery has been
swallowed.
Additional precautions for rechargeable batteries
•Use only the charger recommended for the cell or battery, or the one
that was provided with the original equipment.
•Remove the cell or battery from the charger or alternating current
adapter when not in use or being charged.
•Use of the battery in other devices may result in personal injury or
damage to equipment or property.
For proper disposal of used batteries
•Do not mutilate, puncture, or dispose of batteries in fire. The
batteries can burst or explode, releasing hazardous chemicals.
Discard used batteries according to local regulations.
Adjusting the contrast
To lighten the display, press and hold / and tap -.
To darken the display, press
/ and tap +.
Turning the handheld on and off
To turn on the handheld, press w.
To turn off the handheld, press /w. The next time you turn on the
handheld, it is in the same state as when you left it. The settings and
memory contents are retained.
Automatic Power Down
To prolong battery life, Automatic Power Down turns off the handheld
after several minutes of inactivity. The next time you turn on the
handheld, it is exactly as you left it.
6Getting Started
Turning on your TI-Nspire™ handheld for the first
time
fAfter installing the batteries, press w to turn on the handheld.
A progress bar displays while the operating system loads.
Choosing a language
After loading, the handheld prompts you to select a display
language.
1.Press 6 until the desired language is highlighted, and then press
x or · to select it.
2.Press
e to highlight the OK button, and press x or · to select
it.
Choosing a font size
The handheld prompts you to select a display font size.
1.Press
Getting Started7
6 until the font size you wish to display is highlighted, and
then press x or · to select it.
2.Press e to highlight the OK button, and press x or · to select
it.
Note: You can reset the font size on your handheld at any time by
changing the system settings.
When you have selected the font size, the
This screen describes a few of the basics of using your new handheld.
Press 6 on the NavPad to scroll down through the document.
Once you have finished with the welcome screen, press e to
highlight the OK button, then press x or · to display the home
menu.
Welcome screen displays.
The Home menu
The Home menu provides a starting point for all activities on your
handheld. Use the Home menu to perform the following tasks:
•Creating new documents
•Opening and managing existing documents
•Viewing and changing system and document settings
•Viewing hints for operating the handheld
Using the Home menu
The Home menu displays when you power on your handheld for the first
time.
Note: To return to the Home menu from any other location, press
8Getting Started
c.
1.Press the arrows on the NavPad (3, 4, 5,or6 ) to move among the
options on the Home menu.
A brief description of each option displays at the bottom of the
screen.
Note: Options that are unavailable currently are grayed out.
2.Press
x or · to select a highlighted option, or press the number
associated with the option.
For example, press
To learn more about applications and documents, see the Working with Documents chapter.
6 to open a new document.
The TI-Nspire™ handheld screen
The handheld screen provides information about the active document,
system settings, and status. The following example illustrates the main
elements of the handheld screen. A description of each element follows.
Getting Started9
Ë
Ì
Ê
Ê Page tabs - indicate the problem number followed by the page
number.
Ë System settings - display the system settings in use, what modifier
keys are in use, and provides a snapshot of battery status.
Ì Status icons - indicate whether any modifier keys are active, and
display battery and memory status.
Viewing status information
The icons at the top of the handheld screen provide a quick look at the
operating status. Icons show:
•Any active modifier keys
•The current page number and the total page number
•Battery status and low memory
IconIndicatorAction
Active key
critical
good
low
10Getting Started
Battery statusIndicates battery life.
Indicates whether / or g
keys are active.
Viewing system settings
The system information menu allows you to view the following system
information:
•Document settings
•System settings
•Handheld status
•About screen
Not all options are accessible at all times. For example, if no document is
open, you cannot view document settings. Options that are currently
unavailable are grayed out.
Document Settings
Document settings control how the handheld displays and interprets
information in each document. All numbers, including elements of
matrices and lists, display according to the document settings.
Document Settings Options
The following table lists the document settings and their possible values.
FieldValues
Display DigitsFloat
Float1 - Float12
Fix0 - Fix12
AngleRadian
Degree
Gradian
Exponential FormatNormal
Scientific
Engineering
Real or ComplexReal
Rectangular
Polar
Exact or Approx.Auto
Exact
Approximate
Getting Started11
FieldValues
Vector FormatRectangular
Cylindrical
Spherical
BaseDecimal
Hex
Binary
Unit SystemSI
Eng/US
Changing document settings
1.Press /c16to open the Document Settings dialog
box.
2.Press
3.When you reach the desired setting, press
4.Press the
e to move through the list of settings. Press 3 to move back
through the list.
A bold line around a box indicates it is active.
6 to expand the selection
list.
5 and 6 keys to highlight the desired option, and press
x or · .
5.Press the
6.Press
Note: To apply the new settings to the device, highlight
System
12Getting Started
4 key to highlight OK.
x or · to apply the new document settings.
Apply to
and press x or ·.
System settings
System settings apply default settings to all documents on the handheld.
When you create a new document, it uses the system settings, by default,
to control how the document displays and interprets information.
Document settings applied to an individual document override the
system settings. System settings also control the language and the font
size for the handheld.
Changing system settings
1.Press c82to open the System Settings window.
2.Press e until the desired category is highlighted.
3.Press
4.Press
5.Press
Getting Started13
6 to display the list of possible settings.
6 to highlight the desired setting.
x or · to select the new setting.
6.When you have changed all the settings to suit your needs, press
e until OK is highlighted, and press x or · to apply your
changes.
Note: Click
Defaults to return the handheld to the factory settings.
Handheld Status
The Handheld Status screen shows the amount of memory (in bytes)
used by all documents and variables on your TI-Nspire™ CAS handheld.
The Handheld Status screen displays the following information:
•Storage Capacity
•Space Used
•Free Space
•Battery Status
Checking available memory
1.Press c83.
2.Press x or dor · to dismiss the Handheld Status screen.
Freeing Memory
If you have insufficient memory to store documents on your handheld,
you must free memory to create the space you need. To free memory,
you must delete documents and/or folders from memory. To keep the
documents and folders for use later, back them up to another handheld
or to a computer.
14Getting Started
Deleting items from memory
If you have unnecessary documents stored, you can delete them from
memory to create additional space.
Before you delete documents, consider restoring sufficient available
memory by copying files to another handheld.

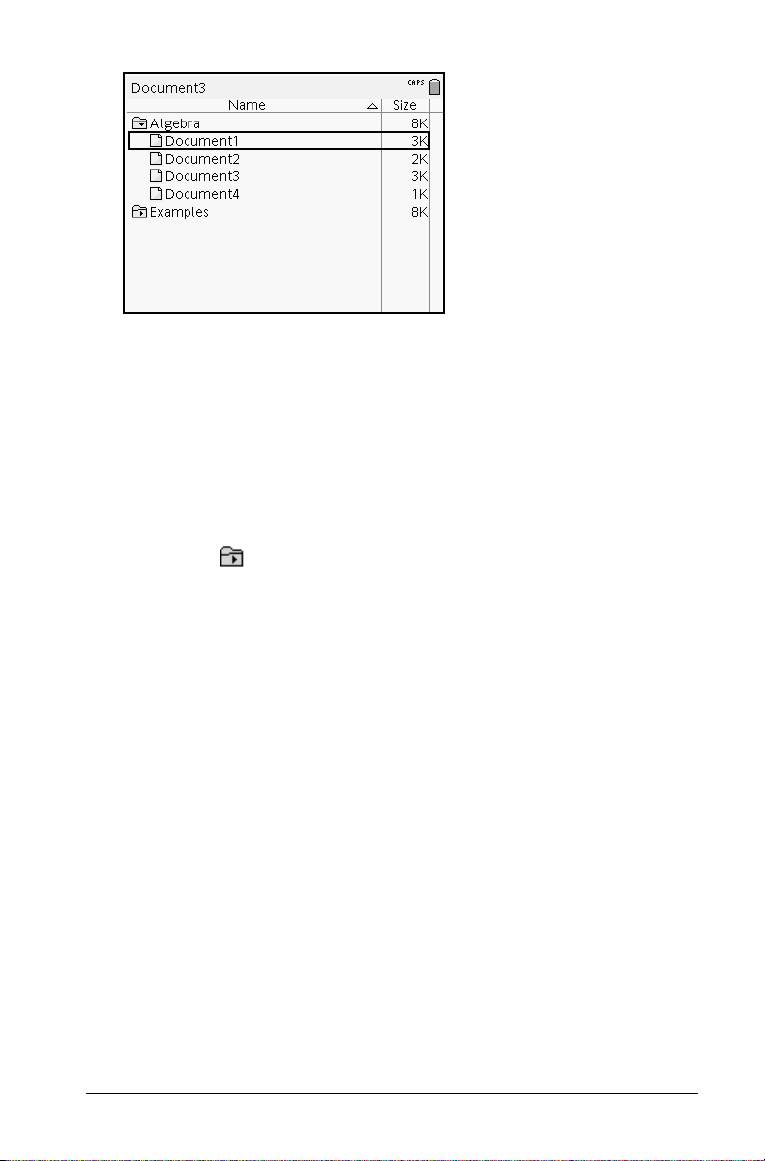

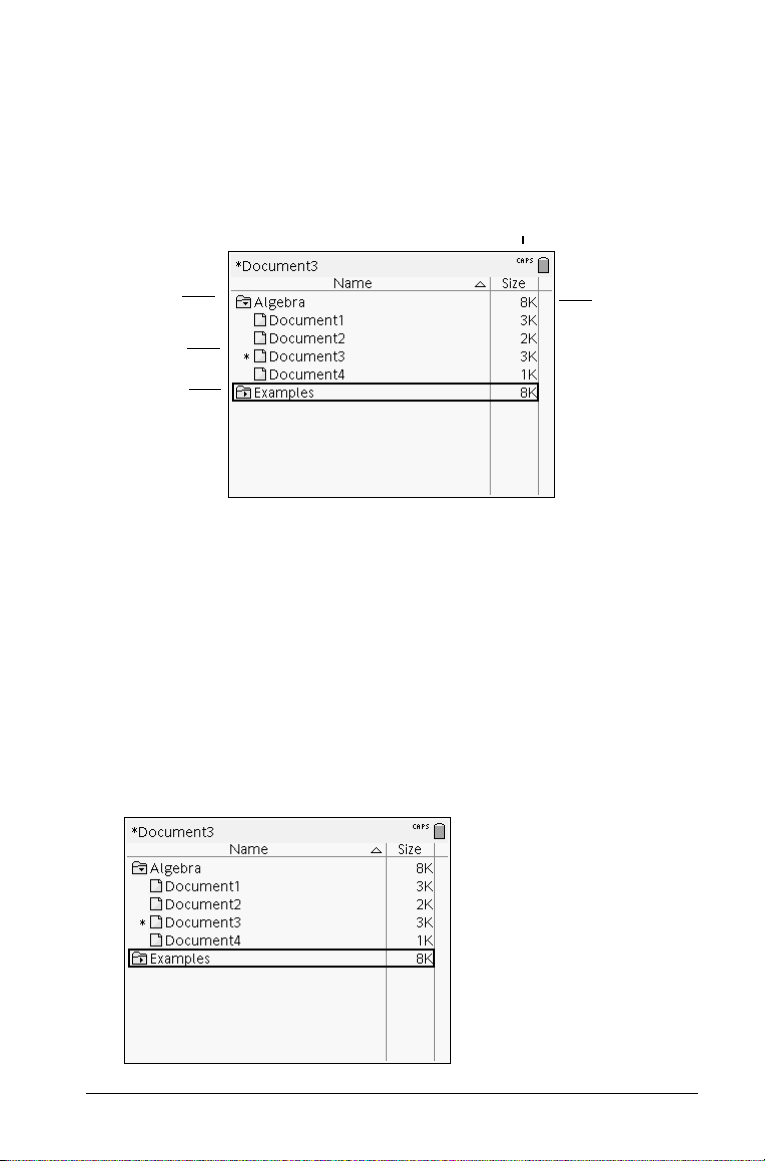

1.Open My Documents.
c7.
Press
2.Press
3.Press
4.Press
£ or ¤ to select the folder or document you want to delete.
..
x or · to confirm that you want to delete the file.
Note: Press
d to cancel the deletion. Press /Z to cancel.
Sharing files with a computer or another device
You can connect your TI-Nspire™ handheld to a computer or another
device with a USB Computer Cable. This allows you to share files. Your
handheld comes with two different USB Computer Cables.
Connecting your handheld with a USB cable
You can use USB cables to connect two TI-Nspire™ CAS handhelds, to
connect a TI-Nspire™ CAS handheld to a computer.
TI-Nspire™ USB connection
cable to connect handheld to a
computer using TI-Nspire™
Computer Link software.
TI-Nspire™ unit-to-unit USB
cable to connect two TINspire™ handhelds
Backing up files to another handheld
To back up files to another TI-Nspire™ CAS handheld, follow the steps
below. Complete instructions for connecting two handhelds are included
in the electronic version of the handheld guidebook, provided on the CD
that came with your handheld.
Getting Started15
Connecting two TI-Nspire™ CAS handhelds with the USB
unit-to-unit cable
The TI-Nspire™ CAS handheld USB
A port is located at the center of
the top of the handheld.
1.Firmly insert either end of the
USB unit-to-unit cable into
the USB A port.
2.Insert the other end of the
cable into the receiving unit’s
USB A port.
Sending a document
1.Press c7 to open My Documents on the sending unit.
2.Press the 5 and 6 keys to highlight the document you want to send.
3.Press
4.When the file transfer is complete, a message displays on the
/c15 to select Send from the document menu.
receiving unit.
Upgrading the operating system
You can upgrade the OS on your TI-Nspire™ CAS handheld using your
computer and TI-Nspire™ Computer Link software. You can also transfer
the OS from one handheld to another.
OS upgrade operations do not delete user documents. If there is not
enough room on the receiving handheld for the upgrade, the sending
handheld is notified. The only time documents can be affected by an OS
installation is if the receiving handheld has a corrupted OS. In this
situation, documents may be affected by OS restoration. It is a good
practice to back up your important documents and folders before
installing an updated operating system.
See the important information below concerning batteries before
performing an OS upgrade.
Important Operating System download information
You should always install new batteries before beginning an OS
download.
16Getting Started
When in OS download mode, the Automatic Power Down
feature does not function. If you leave your handheld in download mode
for an extended time before you begin the downloading process, your
batteries may become depleted. You will then need to replace the
batteries with new batteries before downloading.
TM
(APD)
Where to get Operating System upgrades
For up-to-date information about available OS upgrades, check the Texas
Instruments web site at http://education.ti.com.
You can download an OS upgrade from the Texas Instruments web site to
a computer, and use a USB computer cable to install the OS on your
TI-Nspire™ CAS handheld.
For complete information, refer to the instructions in the chapter on
TI-Nspire™ Computer Link software.
Backing up files to a computer
Use the TI-Nspire™ Computer Link software to back up the contents of
your handheld to a computer. TI-Nspire™ Computer Link software is
available on the product CD that came with your handheld.
Resetting the memory
The Reset button on the underside of the handheld resets all memory.
This function restores RAM and Flash memory to factory settings. All files
will be deleted. All system variables are reset to default settings.
Caution: Before you reset all memory, consider restoring sufficient
available memory by deleting only selected data.
To reset all memory on the handheld, follow these steps.
1.Use a paper clip or ball point pen to press the Reset button on the
underside of the handheld.
2.Hold for three seconds and release.
Getting Started17
Handheld memory is cleared.
When you clear memory, the contrast sometimes changes. If the screen is
faded or blank, adjust the contrast by pressing
/+ or /-.
Displaying the About screen
The About screen displays information about theTI-Nspire™ CAS
handheld type, the operating system (OS) version, and product ID.
To dis play the About screen, press
For information regarding OS updates, see the chapter Transferring Files
in the electronic version of the handheld guidebook. This guidebook is
available on the CD that came with your handheld, or on the Texas
Instruments web site: http://education.ti.com/guides.
c84.
Viewing Hints
Hints provide helpful information for navigating the handheld. To view
Hints, press c9.
18Getting Started

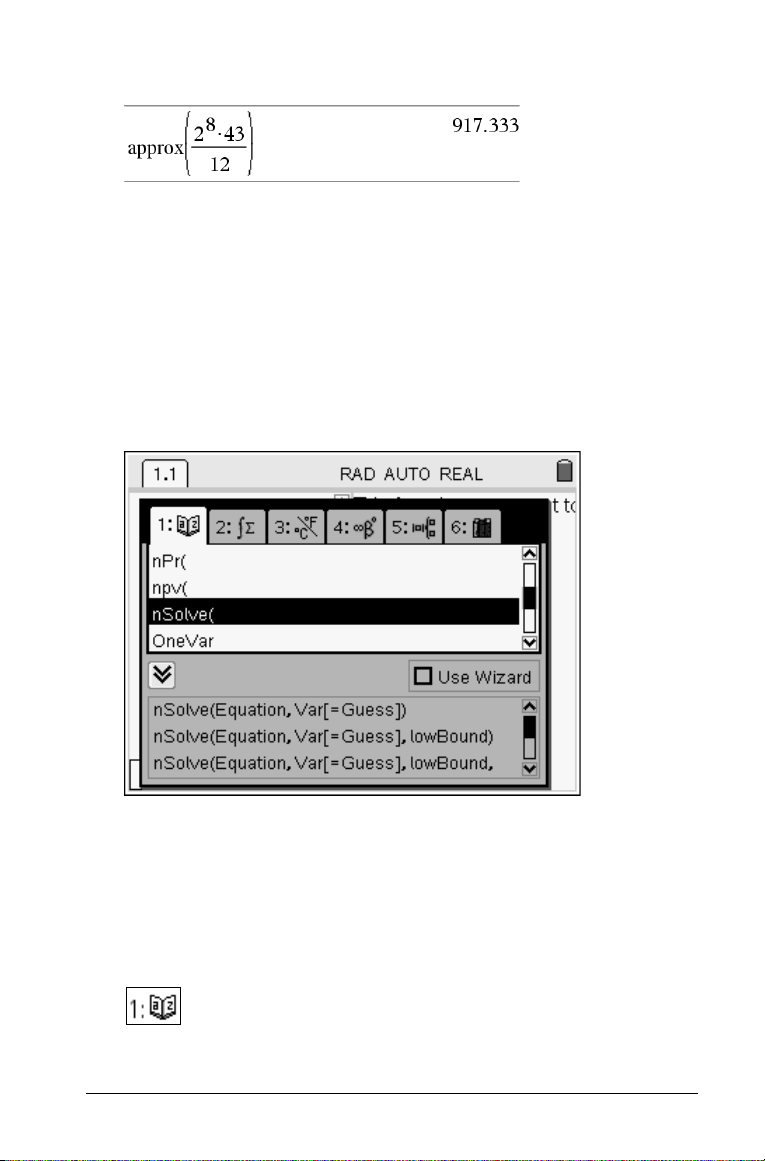

Using the catalog
Use the catalog to access a list of TI-Nspire™ commands and functions,
units, symbols and expression templates. Commands and functions are
listed alphabetically. Commands or functions not beginning with a letter
are found at the end of the list (&, /, +, -, and so on.).
The catalog window uses six tabs to categorize commands, special
characters, and templates:
Contains all commands and functions, in alphabetical
order
Contains all math functions
Provides the values for standard measurement units
Provides a symbol palette for adding special characters
Contains math templates for creating two dimensional
objects, including product, sum, square root and integral
Shows public library (LibPub) objects
Opening the catalog
1.Press k to open the catalog.
2.Press the number key corresponding to the appropriate tab.
For example, press
3.Press
Getting Started19
6 until the item you want to insert is highlighted.
4 to show a table of symbols.
A syntax example for the selected item displays at the bottom of the
screen.
Note: To see additional syntax examples of the selected item, press
e, and then press · to maximize or minimize the Help. To move
back to the selected item, press
ge.
4.Press
Using wizards
Some functions have a wizard to help you enter function arguments. To
use the wizard, press
· to insert the item.
e until the Use Wizard box is highlighted. Press
x or · to select the check box.

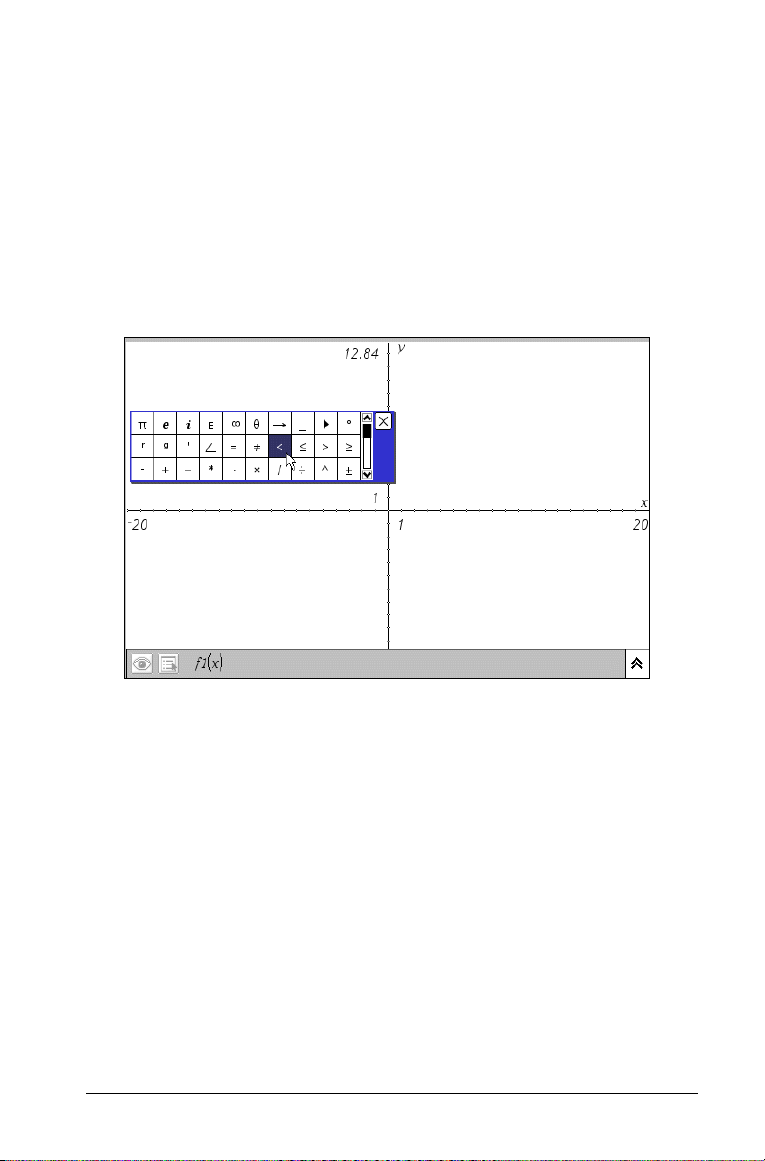

Entering special characters
The symbol palette contains a subset of the objects found in the catalog.
1.To display the symbol palette, press
2.Press 3, 4, 5oor 6 until the desired symbol is highlighted.
/k.
3.Press
· to insert the symbol.
Entering Math expressions
Math expression templates help you create two-dimensional objects
including partial, product, sum, square root, and integral.
1.To display the math expressions palette, press
20Getting Started
/r.
2.Press 3, 4, 5oor 6 until the item you want to insert is highlighted.
3.Press
x or · to insert the item.
Entering international language characters
The ; key allows you to enter specially accented or punctuated
characters in applications that allow text input.
1.Open an application that allows text input.
2.Type the desired text.
3.Position the cursor after the letter that you want to accent. For
example, "e" while in the French locale.
4.Press
; on the keypad. Notice that the "e" changes to "é." Keep
pressing
Press
continue typing.
; until you find the accented version of e that you want.
_ or the next letter of your text to accept the character and
Getting Started21
22Getting Started
Working with Documents
The TI-Nspire™ CAS handheld lets you save your work in documents,
which you can share with other handheld users, and those using the
desktop software. In fact, all of the work you do with the TI-Nspire™
handheld is contained in one or more documents. The three main
components involved in organizing and saving work on your handheld
are:
•Documents
•Page Sorter
•My Documents
Documents
The TI-Nspire™ document model is simple and easy to use when you
understand its structure.
•Each document is divided into one or more problems.
•Each problem contains one or more pages.
•Each page can be divided into as many as four work areas.
•Each work area can contain any of the TI-Nspire™ math and science
learning technology applications (Calculator, Graphs & Geometry,
Lists & Spreadsheet, Data & Statistics and Notes).
Page Sorter
Although the handheld typically displays the pages in your document
one at a time, the Page Sorter lets you see all of the problems in your
document and all pages within each problem in thumbnail format. You
can use the Page Sorter to rearrange and delete pages, and copy a page
from one problem and paste it in another.
Working with Documents23
My Documents
My Documents is a file manager where you store and organize your
documents. Documents are stored in folders.
Creating documents
There are two methods for creating a document. You can create a blank
document and then add applications and apply a layout, or if no
document is currently open, you can create a document containing a
single application.
Creating a blank document
fPress c6 to open a document from the home menu, or use the
shortcut keys.
Shortcut keys:/N

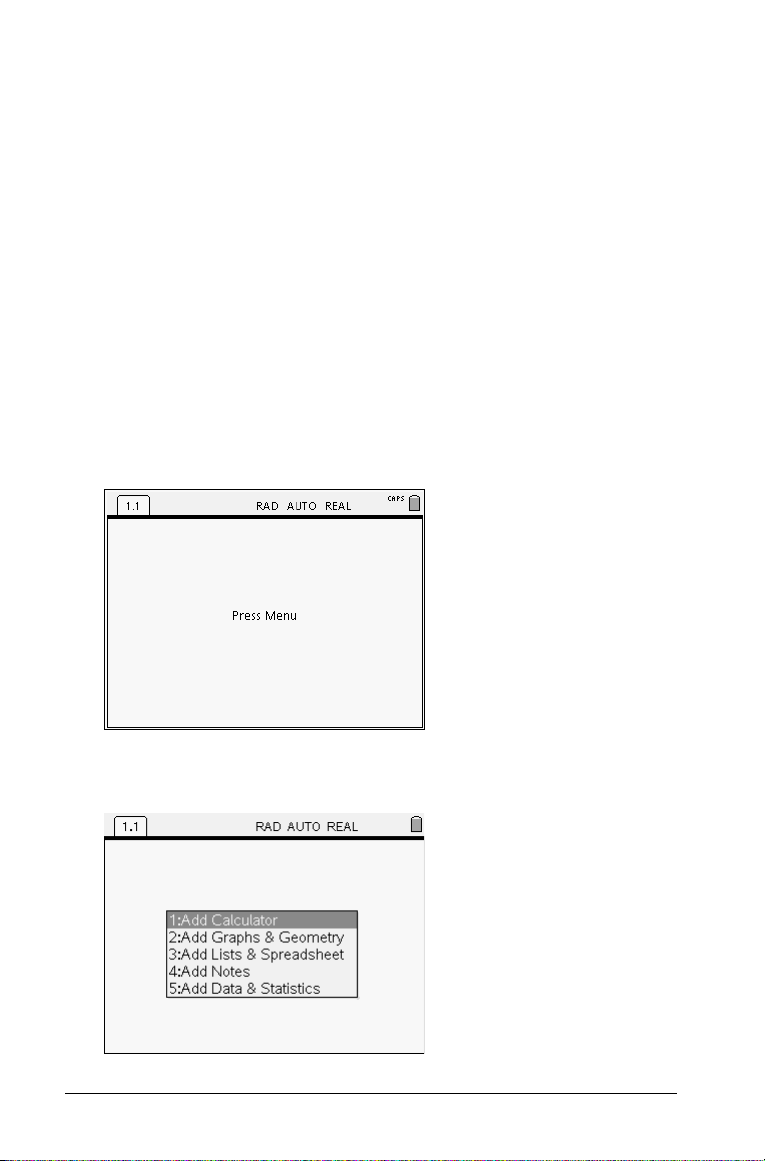

A new document opens and displays a blank page with the Add
Application menu.
Note: The tab at the top left of the screen indicates that this is the
first page of the first problem.
24Working with Documents
Adding an application
fPress the number that corresponds to the application you wish to
add to the page.
For example, press
the page. The application displays in the work area.
2 to add the Graphs & Geometry application to
Creating a document with an application
If no documents are currently open, you can create a document with an
application already added.
fPress
Working with Documents25
c and select the number of the application you want to
create. For example, press c3 to create a new Lists &
Spreadsheet page.
A new document opens with Lists & Spreadsheet on the page.
Note: If you are currently working in a document, this method adds
a new page, containing the selected application.
Working with applications
Once you have added an application to your page, there are three menus
that provide access to the features and functionality of the application,
and allow you to manipulate your documents. These menus are:
•Application menu
•Context menu
•Page Tools menu
Application menu
The Application menu displays tools for working with a specific
application. Each application has a unique menu.
Using the Application menu
1.If you are on a blank page, press b to display the Application
menu. The menu displays applications that you can add to the page.
2.Press the number of the application you want to add to the page.
For example, press
26Working with Documents
3 to add the Lists & Spreadsheet application.
3.Press b to display the Application menu.
When you have an application on a page, the Application menu
displays options for working with the current application. The
example below displays the Application menu for the Lists &
Spreadsheet application.
Context menu
The context menu displays options that are specific to the selected object
or the current cursor location.
Using the Context menu
fTo access a context-sensitive menu from an application, press
/b.
In the example below, the context menu displays options available
for the selected cell in Lists & Spreadsheet.
Working with Documents27
Page Tools menu
The Page Tools menu allows you to move between pages, modify page
layout, insert pages or problems, delete pages and change document
settings.
Using the Page Tools menu
1.Press /c
2.Press the number of the option you wish to select. For example, to
change the page layout, press 5.
to display the menu.
Changing the page layout
When you create a new document, it contains space to add one
application. If you need to add more than one application to a page, you
can change the layout to accommodate as many as four applications.
You can choose a standard layout, provided as a menu item, or you can
customize a layout to suit your needs.

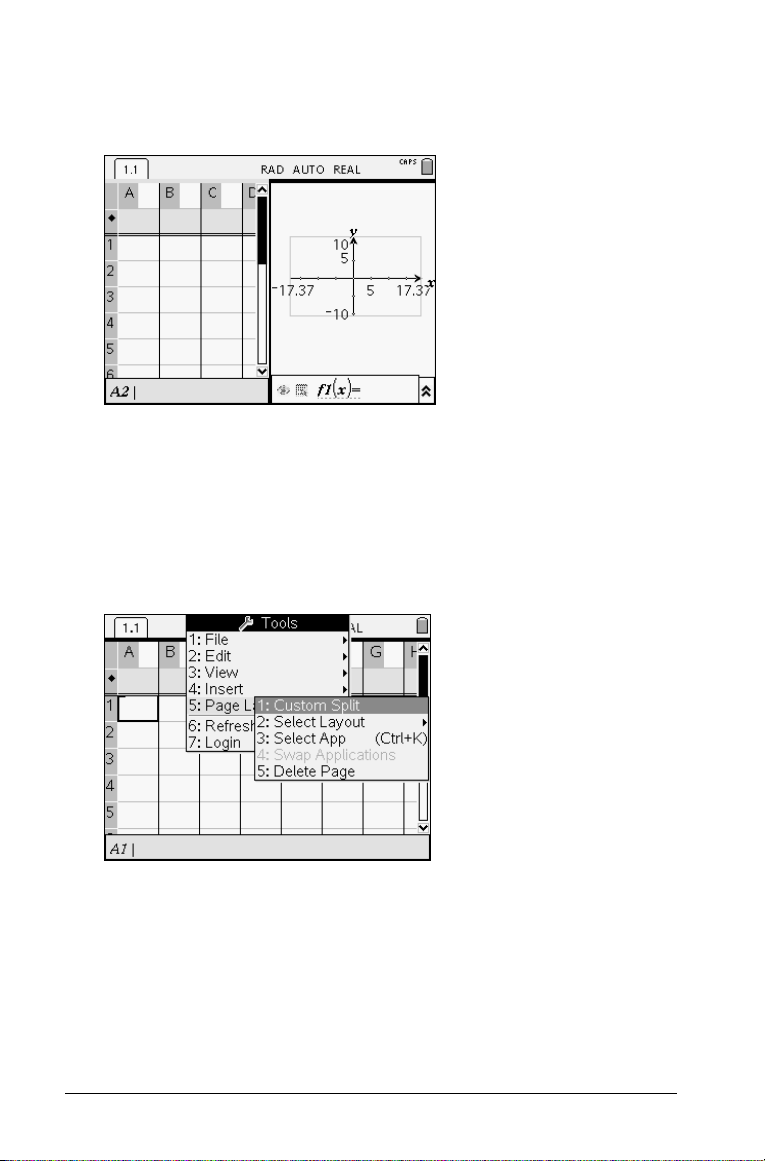

Choosing a standard layout
1.Press /c5 to display layout options.
28Working with Documents
2.If you want to select a standard layout, press 2.
3.Press the number that corresponds to the layout you want to apply
to the page.

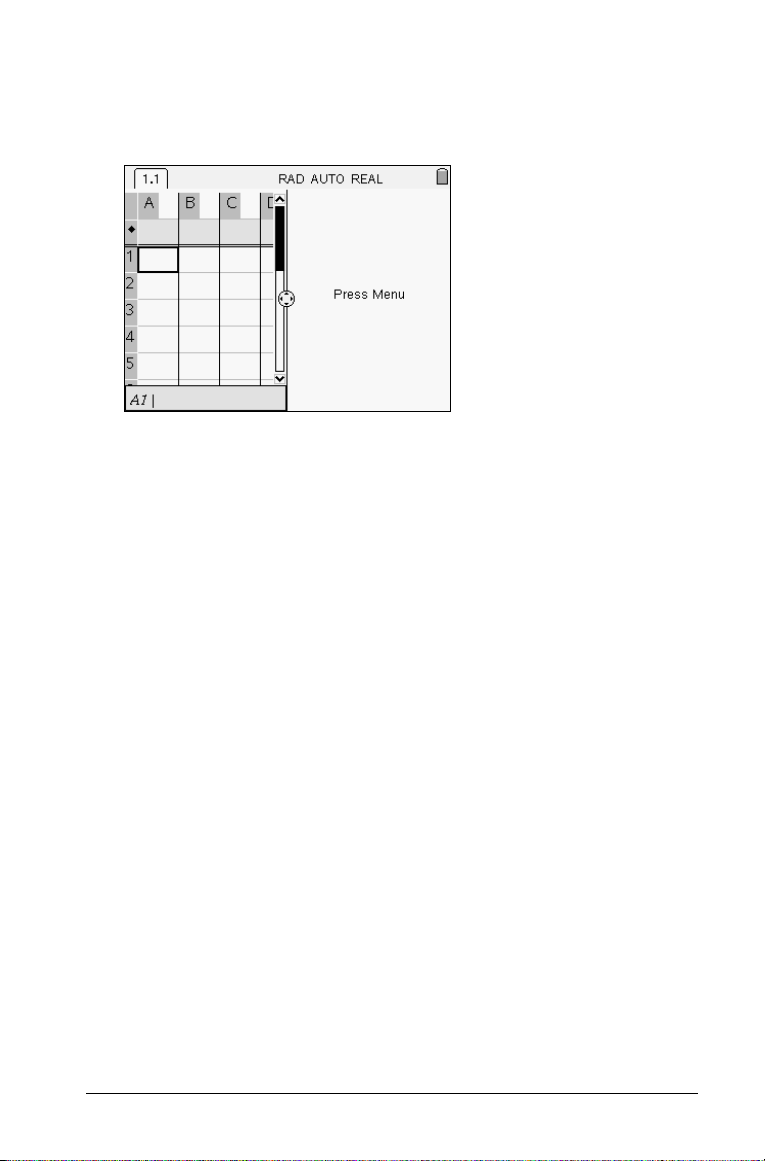

For example, press
vertically on the page. The page is divided into the layout design you
have selected.
4.Press
/e to move to the right pane on the page.
2 to create a two-pane layout, divided
Working with Documents29
5.Press the number of the application you want to add the new pane.
For example, to add the Graphs & Geometry application to the right
pane, press
Note: If you need to change the layout of the page to add or delete
applications, you can do so at any time.
2.
Creating a custom layout
If the standard layouts do not meet your needs, you can customize the
space allotted to applications on a page.
1.Press
30Working with Documents
/c5 to display layout options.
2.Press 1 to select the custom split option.
The standard layout displays, with a blinking divider between the
application panes.
3.Press
4.Press
£, ¤, ¡ or ¢ to move the divider to adjust the height and
width of the panes in the layout.
Note: Press
+ or - to select a defined layout.
xor · to accept the layout dimensions.
Repositioning applications on a page
If you want to change the position of applications on a page with
multiple applications, you can do so by "swapping" the positions of two
applications.
Swapping applications
1.From the Page Layout menu, select Swap Applications.
Press /c54
2.Press /e to select the application you want to move.
The selected application is surrounded by a heavy, flashing black
border, and the Swap App cursor
Note: On a two-pane page layout, the selected application
automatically swaps position with the opposite pane. Press
or
· to complete the swap.
3.Press
£, ¤, ¡ or ¢ to position the cursor over the application you are
targeting to swap.
é displays on the screen.
x
Working with Documents31
4.Press xor · to complete the swap.
Note: Press
d to cancel the swap.
Adding a problem to a document
A document can contain as many as 30 problems. To add a new problem:

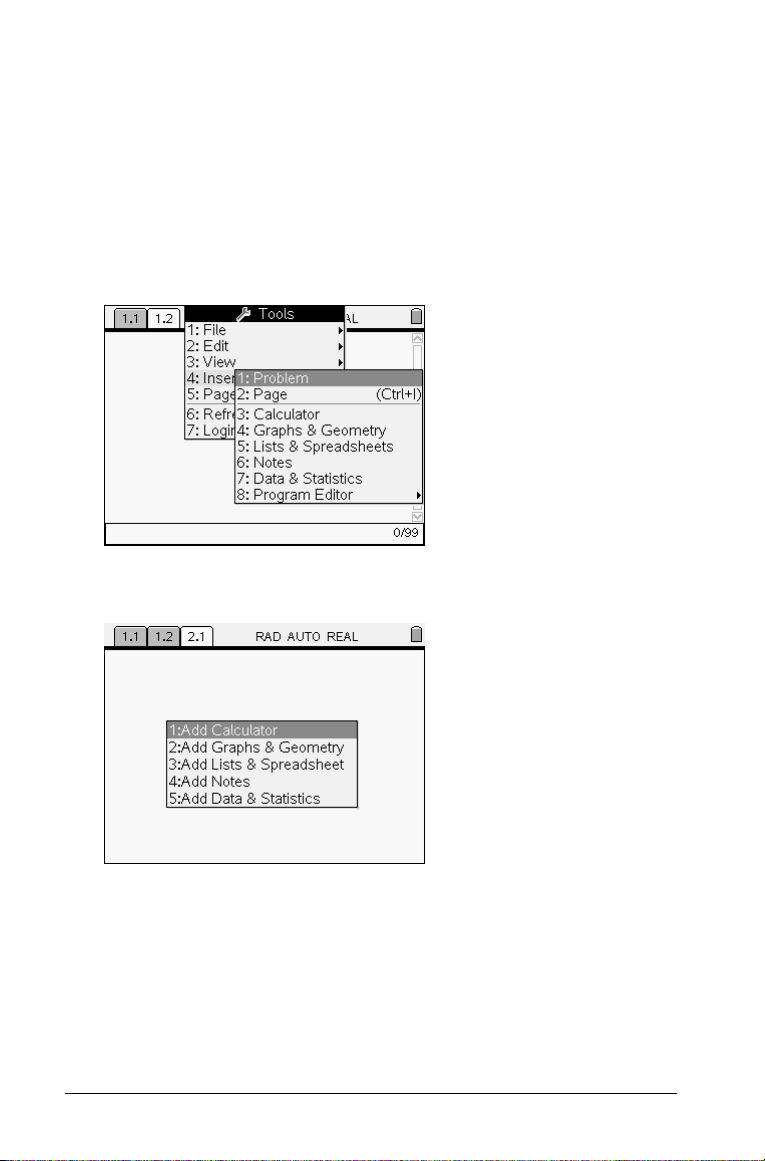

1.Press
/c41.
A new problem with one page is added to the document.
Note: The tab at the top left of the screen indicates that this is the
first page of the second problem.
2.Press the number of the application you want to add to the new
page.
Adding a page to a problem
Each problem can contain up to 50 pages. To add a new page to a
problem:
fPress
32Working with Documents
/c42 to add a blank page
or
fPress c to display the Home menu, then press the number of the
application you’d like to add to the new page in the problem.
For example, press
application.
Shortcut keys:
A new page is added to the current problem.
Note: The tab at the top left of the screen indicates that this is the
second page of the second problem.
c1to add a new page with the Calculator
/I.
Moving through pages in a document
Use the following keys to navigate through your documents.
/ 3 displays the previous page.
/ 4 displays the next page.
/ 5 displays the Page Sorter.

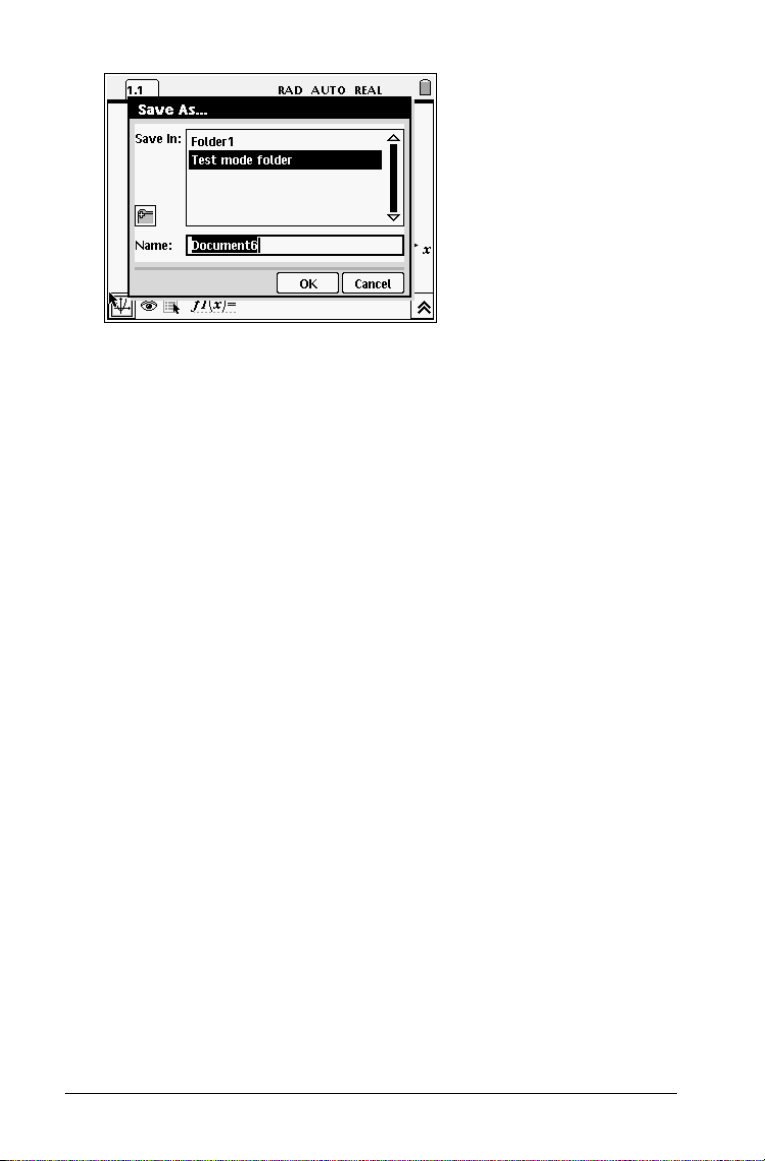

Saving a document
If you are working in a document and want to save it:
1.Press
Working with Documents33
/c13or
Shortcut keys:
If you are saving the document for the first time, you will be asked
which folder to save it to, and what to name the document.
/S
2.Type a name for the new document.
3.If you want to save the document in a different folder, press
geand type a new folder name, or press x to view a list of
existing folders.
4.Press
5.Press
6.Press
¤ to highlight the folder name and press x to select it.
e to select OK.
xor · to save the document.
Viewing and reordering pages in a document
The Page Sorter displays all of the problems in your document and all
pages within each problem in thumbnail format. You can use the Page
Sorter to rearrange and delete pages, copy a page from one problem and
paste it in another and apply templates to pages.
Opening the Page Sorter from a document
fPress /c33 or
Shortcut keys: /£.

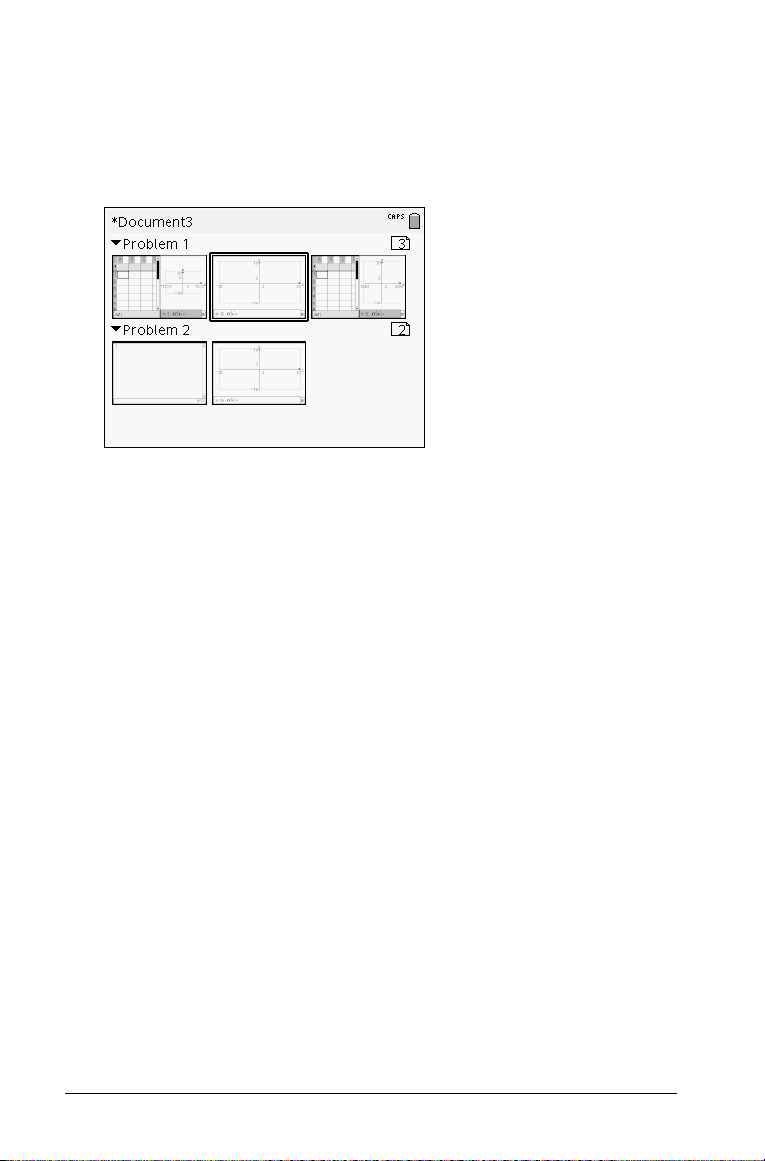

The Page Sorter screen displays all of the problems and pages in the
current document.
34Working with Documents
Reordering pages in a problem
To move a page within a document from the Page Sorter:
1.Use the
A heavy border around the page indicates that it is selected.
2.Either press and hold
displays.
3.Press 3 , 4, 5 and 6 to move the page to the desired position.
4.Press
Note: You can press
The page moves to the new location within the problem, and the
counter adjusts accordingly.
3 and 4 keys to select the page you want to move.
xor press / xuntil the grab cursor ÷
x or · to finish the move.
d to cancel.
Working with Documents35
Copying a page to another problem
To copy a page from one problem to another in the same document:
1.Press
3 , 4, 5 and 6 to select the page you want to copy.
A heavy border around the page indicates that it is selected.
p
2.Press /C to copy the page.
3.Press
4.Press
3 , 4, 5 and 6 to move the page to the desired position in the
new problem.
/ V to paste the page in the new location.
The page moves to the new location within the problem, and the
counter adjusts accordingly.
Copying a page to another document
To copy a page from one document to another document:
1.Press
36Working with Documents
3 , 4, 5 and 6 to select the page you want to copy.
A heavy border around the page indicates that it is selected.
2.Press /C to copy the page.
3.Press
4.Press
5.Press
6.Press the
7.Press
8.Press /5 to display the Page Sorter.
9.Press
10. Press
c 7 to open My Documents.
5 and 6 to highlight the folder containing the document you
want to copy the page to.
4 to open the folder, or press b 3.
5 and 6 keys to highlight the document.
x or · to open the document.o
3 , 4, 5 and 6 to move the page to the desired position in the
document.
/ V to paste the page in the new location.
The page moves to the new location within the problem, and the
counter adjusts accordingly.
Document settings
You can change the mode settings for a document when you want to use
settings different from those you have specified for the handheld. For
instance, if you want to change the angle mode or exponential format
used by the current document without changing the settings for every
document on the handheld, use Document Settings to do so.
Changing document settings
1.Press c81 to display the Document Settings dialog box.
Working with Documents37
2.Press e to move down through the list of settings.
Note: Press
3.When you reach the setting that you want to change, press
expand the selection list.
4.Press the
and press
5.Press
6.Press
Note: If you want these settings to apply to future documents also,
highlight
geif you need to move back up through the list.
5 and 6 keys to highlight the option you wish to select
xor ·.
e until the OK button is highlighted.
x or · to apply the new document settings.
Apply to System and press x.
6 to
38Working with Documents
Managing documents
My Documents is a file manager where you store and organize your
documents. The example below illustrates the My Documents screen with
its main parts labeled. Following the screen, you can find descriptions of
each labeled part.
Ã
À
Á
Â
À Expanded folder
Á Unsaved document
 Collapsed folder
à System status indicators
Ä File size
Opening My Documents
To open My Documents:
fPress
c7.
Note: If you are working in a document, press / 5 / 5.
Ä
Working with Documents39
The My Documents screen opens, displaying all folders and files on
the handheld.
Opening documents
To open a document:
1.Press
2.Press
3.Press the
4.Press
5 and 6 to highlight the folder containing the document.
xor · to open the folder.
5 and 6 keys to highlight the document you want to
open.
xor · to open the document.o
Expanding folders
To expand a single folder:
1.Press
2.Press
3.The icon changes to the opened icon and a list displays showing
5 and 6 to highlight the folder.
xor · to open the folder.
all documents within the folder.
Expanding all folders
To expand all folders on the My Documents screen:
fPress
b 5.
All folders expand to display their contents.
Renaming folders or documents
To rename a folder or document:
1.Press the
want to rename.
2.Press
40Working with Documents
5 and 6 keys to highlight the document or folder you
b 2.
The document or folder name is highlighted.
3.Type a new name and press · to complete the change.
Note: Press
d to cancel.
Collapsing folders
To collapse a single folder:
fPress
To collapse all folders:
fPress b6 to collapse all folders.
3 tto collapse an expanded folder. The icon returns to the closed
folder icon and the contents of the folder no longer display on
the screen.
Creating folders
You can create folders two different ways:
•You can create a folder when you save a new document: The
and Save As... menu commands allow you to enter a new folder
name for the document.
•You can create a folder directly from the My Documents screen. Press
Save
b 1. Type a name for new folder, and press xor · to add it.
File and folder naming conventions
Folder names must be unique. File and folder names can be very long,
and can include almost all characters, including spaces and punctuation.
Deleting documents and folders
1.Press 5 and 6 to highlight the document or folder you want to
delete.
Working with Documents41
2.Press /c26 or press ..
A dialog box displays, confirming that you want to delete the file or
folder.
3.Press
Note: Press
xor · to select Yes.
The document is deleted.
/ c 2 1 to Undo a file or folder deletion.
Duplicating documents and folders
Use Copy / C and Paste / V to duplicate documents and folders.
To copy a document to another folder, select the desired folder, then
paste.
Recovering deleted documents
Most operations performed in My Documents can be undone. Press
/Z (Undo) to cancel the last operation until the deleted document is
restored.
42Working with Documents
Linking values on pages
Variable linking is a powerful tool for building and exploring
mathematical models. Values and functions created or defined in one
application can interact with other applications (within the same
problem) to share data.
When using linked items, keep in mind:
•Values can be linked between applications on one page or between
different pages of the same problem.
•All applications are linked to the same actual data. If you delete it
from any application, all references to the data are lost.
•If the linked value is changed in the original application, the change
is reflected in all linked usages.
Each application allows you to define a value or function as a variable.
Defining a variable is the first step in linking values.
Creating TI-Nspire™ variables

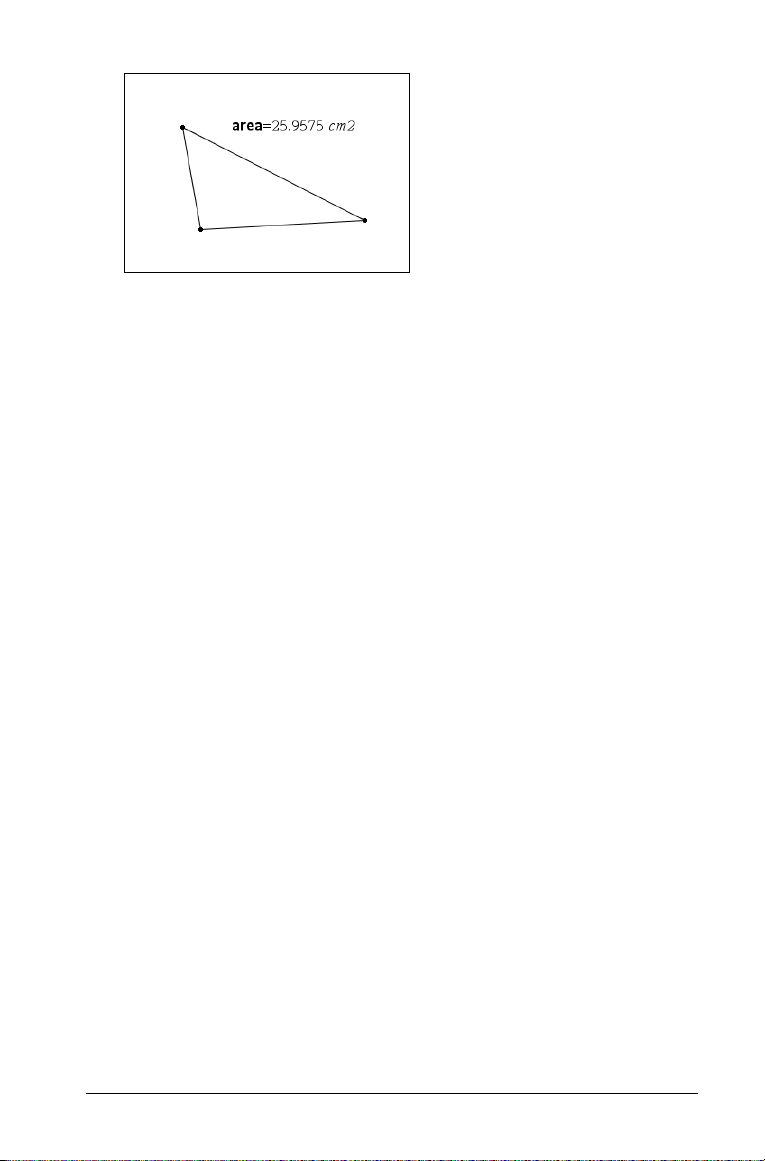

Variables can be any portion or attribute of an object or function created
within an application. Examples of attributes that can become variables
are the area of a rectangle, the radius of a circle, the value contained in a
spreadsheet cell or the contents of a row or column, or a function
expression. When you create a variable, it is stored in memory within the
problem .
Types of variables
You can store the following data types as variables:
Data typeExamples
Expression
List{2, 4, 6, 8}{1, 1, 2}
Matrix
2.54 1.25E6 2p xmin/10 2+3i (xN2)
2
/2
123
This can be entered as:
[1,2,3;3,6,9]
2
369
Character string“Hello”“xmin/10”“The answer is:”
Functionmyfunc( arg )ellipse( x, y, r1, r2 )
Measurementcoordinate, length, perimeter, slope, angle, integral
Working with Documents43

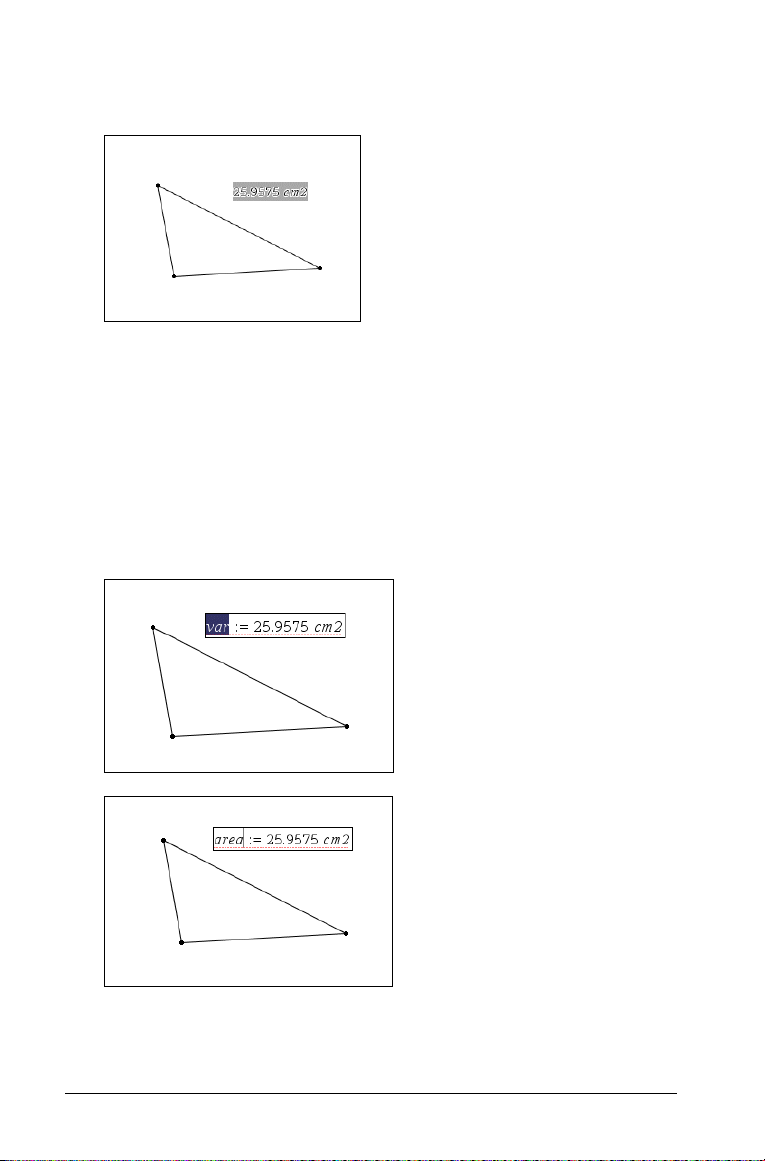

Creating a variable from a Graphs & Geometry value
1.Click to select the value to store as a variable.
2.Do one of the following:
•Press
•Press
3.Press
default variable name. Type over VAR with the variable name you
want to give the value.
h. The Variables options are displayed with Store
highlighted.
/ L to display the Variables options. Store is
highlighted.
·. VAR := appears before the selected value. This is the
4.When the variable name is typed, press
that variable name, and the stored value or its name appears in bold
text to indicate it is a stored value.
44Working with Documents
·. The value is saved to
Creating a variable from a Lists & Spreadsheet cell value
You can share a cell value with other TI-Nspire™ math and science
learning technology applications. When defining or referring to a shared
cell in Lists & Spreadsheet, you precede the name with an apostrophe (‘).
1.Click the cell that you want to share.
2.Press
3.Replace the letters “var” with a name for the variable, and press
Note: If a variable with the name you specified already exists in the
current problem, Lists & Spreadsheet displays an error message.
hor / L. A formula is inserted into the cell with var as a
placeholder for a variable name.
·.
The value is now available as a variable to other TI-Nspire™ math
and science learning technology applications within the current
problem.
Creating Calculator variables
As alternatives to using h, you can use “:=” or the Define command.
All of the following statements are equivalent.
3
5+8
& num
num := 5+8
Define num=5+8
3
3
Special considerations for variables
Rules for naming variables
Variable and function names that you create must meet the following
naming rules.
Working with Documents45
Note: Avoid defining variables that use the same names as those used
for statistical analysis. In some cases, an error condition could occur.
Variable names used for statistical analysis are listed in the Appendix of
Functions, under the
StatMatrix entry.
•You can use 1 to 16 characters consisting of letters, digits, and the
underscore character (_). Letters can be U.S. or Greek letters (but not
Π or p), accented letters, and international letters.
•You can use uppercase or lowercase letters. The names AB22, Ab22, aB22, and ab22 all refer to the same variable.
•Do not use spaces.
•If you use an underscore as the first character, the variable it is
considered a type of unit, such as _m, _ft, and _in. Units do not allow
subsequent underscores in the name.
•You cannot use a preassigned variable or function name, such as ans
min.
or
Note: For a complete list of TI-Nspire™ functions, refer to the
TI-Nspire™ Reference Guide.
Here are some examples:
Variable nameValid?
MyvarYes
My varNo. Contains a space.
aYes
LogNo. Name is preassigned to the
log( ) function.
Log1Yes
Preventing name conflicts
A TI-Nspire™ shared variable can have the same name as a table cell or
column letter. To help you prevent name conflicts in your table formulas,
Lists & Spreadsheet provides syntax rules.
•To refer to a variable whose name could conflict with the name of a
cell (such as A1), precede the variable name with an apostrophe
(‘A1).
46Working with Documents
•To refer to a table column (such as A) without conflicting with a
single-letter variable name A, follow the column letter with a pair of
brackets (A[]).
Use this
syntax:To refer to:Remarks
myvarThe shared variable
myvar.
A1The table cell at
column A, row 1.
‘A1The shared variable A1. The apostrophe makes this a
AThe shared variable A.This syntax never refers to column
No special syntax needed, because
this name does not conflict with a
cell or column reference.
This syntax always refers to table
cell A1—never to variable A1.
reference to variable A1—never to
table cell A1.
A.
A[]Column A of the
current table.
Brackets make this a reference to
column A—never to variable A.
Checking a variable’s value using the Calculator
application
You can check the value of an existing variable by entering its name on
the Calculator entry line.
fOn the Calculator entry line, type the variable name num and press
·.
The value most recently stored in num is displayed as the result.
Using (linking) TI-Nspire™ variables
Sharing, or linking, the variables you create is a powerful tool for math
exploration. The display of linked variables is automatically updated
when the variable’s value changes.

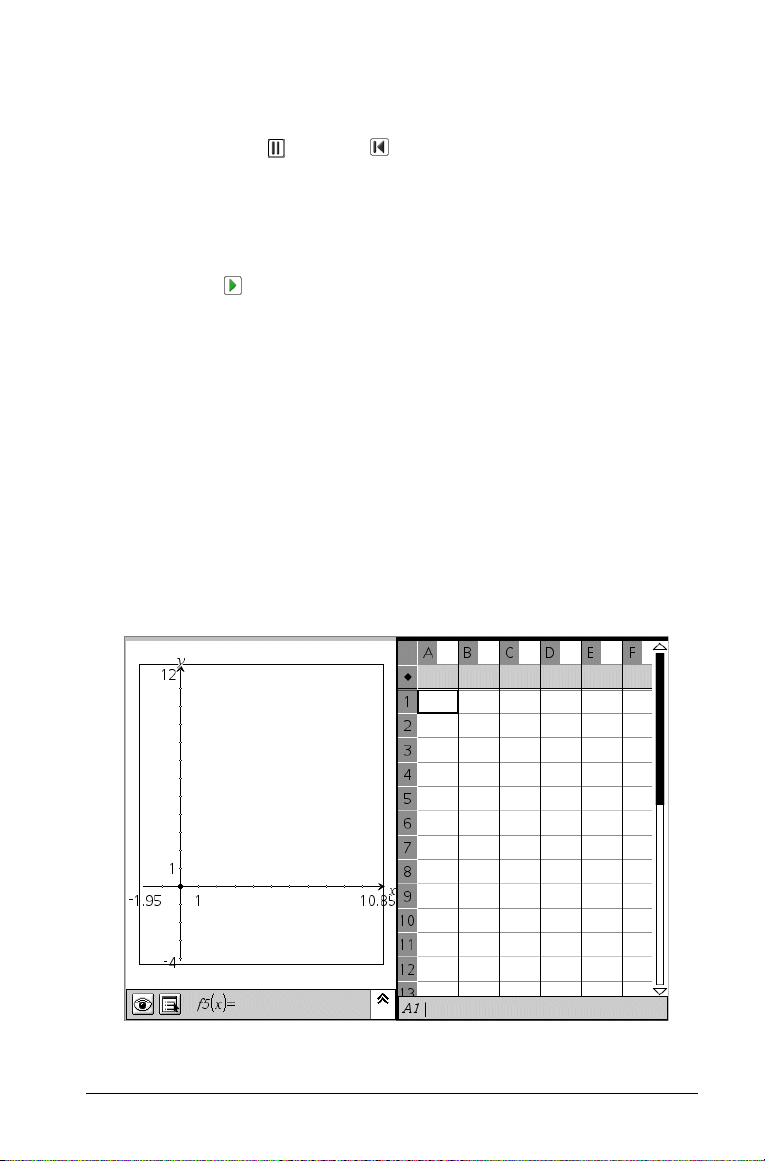

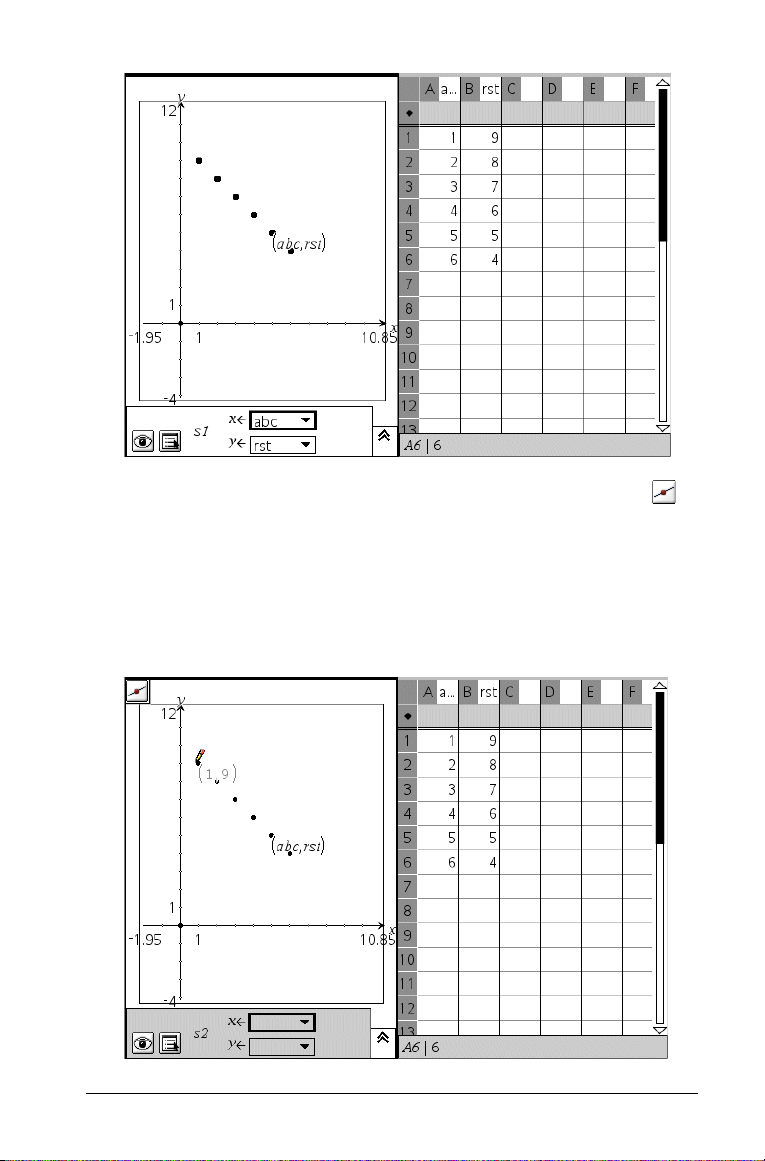

In the following two examples, two data lists were created in Lists &
Spreadsheet and then plotted in Graphs & Geometry.
Working with Documents47
When the values are altered in Lists & Spreadsheet, they automatically
update in Graphs & Geometry.
Linking to shared variables
To use a stored variable:
1.Display the page and select the location or object to which you want
to link a variable.
2.Do one of the following:
•Press
•Press
•Select
3.Press £ and ¤ to scroll the list, or type part of the variable name. As
you type, the TI-Nspire™ system displays a list of variables that begin
with the letters you typed. Typing part of the name enables you to
locate a variable more quickly if the list is long.
48Working with Documents
h. The Variables display.
/ L to display the Variables options.
Tools > Variables.
4.When you locate and highlight the name of the variable you want to
use, click the name or press
·. The selected variable value is linked.
Linking a Lists & Spreadsheet cell to a variable
When you link a cell to a variable, Lists & Spreadsheet keeps the cell
value updated to reflect the current value of the variable. The variable
can be any variable in the current problem space and can be defined in
Graphs & Geometry, Calculator, or any instance of Lists & Spreadsheet.
Note: Do not link to a system variable. Doing so could prevent the
variable from being updated by the system. System variables include ans, StatMatrix, and statistics results (such as RegEqn, dfError, and Resid).
1.Click the cell that you want to link to the variable.
2.Click or
The VarLink menu displays.
3.Under Link To, scroll to the name of the variable and click it.
The cell shows the value of the variable.
/ L, and click Cell.

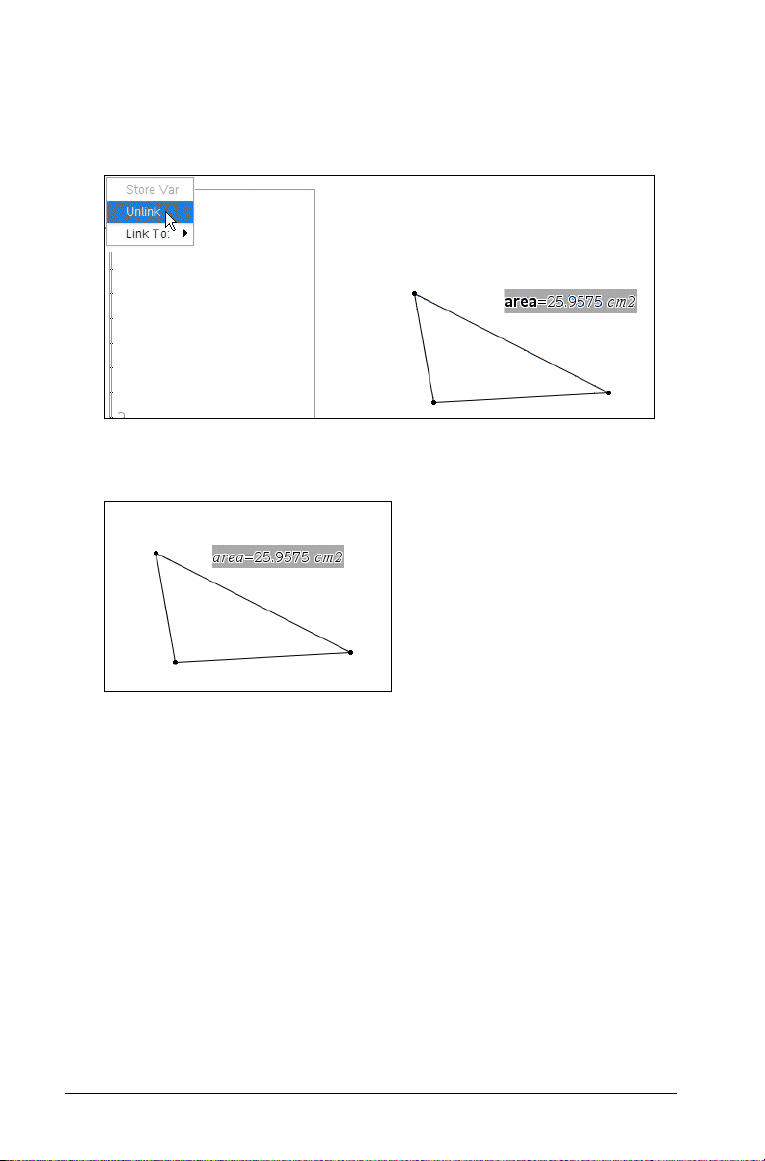

Removing a linked variable
To remove a linked variable from a page:
1.Select the linked variable.
2.Do one of the following:
•Press
Working with Documents49
h.
•Press /L to display the Variables options.
•Open the Tools menu and select the Variables option.
The Variables options display.
3.Select Unlink. The link is removed from the value, and the value is
displayed without any bolding.
Libraries
A library is a TI-Nspire™ document that contains a collection of variables,
functions, and/or programs that have been defined as library objects.
Unlike ordinary variables, functions, and programs, which can be used
only within a single problem (the problem in which they are defined),
library objects are accessible from any document. You can even create
public library objects that appear in the TI-Nspire™ Catalog.
For details, see the “Libraries” chapter in Part 2 of the handheld
guidebook, available on the CD that came with your handheld or on the
Texas Instruments web site, http://education.ti.com.
50Working with Documents
Program Editor
The Program Editor helps you define, edit, and manage user-defined
functions and programs.
•The editor has dialog boxes to help you define functions and
programs using correct syntax.
•The editor lets you enter multiple-line programming statements
without requiring a special key sequence to add each line.
•You can easily create private and public library objects (variables,
functions, and programs).
For details, see the “Programming” chapter in Part 2 of the handheld
guidebook, available on the CD that came with your handheld or on the
Texas Instruments web site, http://education.ti.com.
Sending a document to another handheld
You can send documents and Operating System (OS) files to another
TI-Nspire™ handheld.
Rules for sending files
•If a document with the same name as the one you are sending
already exists on the receiving TI-Nspire™ handheld, the document
will be renamed. The system appends a number to the name to make
it unique. For example, if a document called Mydata existed on the
receiving TI-Nspire™ handheld, it would be renamed Mydata(2).
Both the sending and receiving units display a message that shows
the new name.
•There is a 255-character maximum length for a file name, including
the entire path. If a transmitted file has the same name as an existing
file on the receiving unit and the file names contain 255 characters,
then the name of the transmitted file will be truncated to allow the
software to follow the renaming scheme described in the previous
bullet.
•All variables associated with the document being transmitted are
transfered with the document.
•Transmissions will time out after 30 seconds.
Sending a document
1.Open My Documents.
Press c7.
Working with Documents51
2.Press the 5 and 6 keys on the NavPad to highlight the document you
want to send.
3.Select Send from the My Documents menu.
Press /c15.
4.The file transfer begins. A progress bar displays to allow you to
follow the transfer. There is a cancel button on the Sending... dialog
that allows you to cancel the transmission while it in progress.
When the transfer is complete, a message displays. If the file was
renamed on the receiving handheld, the new file name displays.
Receiving a document
No action is required by the user of the receiving TI-Nspire™ handheld.
Units are automatically powered on when the cable is attached.
Canceling a transfer
1.To cancel a transmission in-progress, press Cancel on the dialog of
the sending unit.
Note: To cancel a transfer from the receiving handheld, press
2.A link transmission error message displays.
3.Press
d or · to cancel the transmission error message.
For more information, see the Transferring Files chapter in Part 2 of
this guidebook, available on the CD that came with your handheld,
or on the Texas Instruments web site at
http://education.ti.com/guides.
d.
52Working with Documents
Using Calculator
Getting started with the Calculator application
The Calculator application gives you a place to enter and evaluate math
expressions. You can also use it to define variables, functions, and
programs. When you define or edit a variable, function, or program, it
becomes available to any TI-Nspire™ math and science learning
technology application—such as Graphs & Geometry—that resides in the
same problem.
You can also use Calculator to define library objects, such as variables,
functions, and programs, which are accessible from any problem of any
document. For information on creating library objects, see the
“Libraries” section of the documentation.
À
Á
Â
À Calculator menu – This menu is available anytime you are in the
Calculator work area. Press b to display the menu. The menu in
this screen snapshot may not exactly match the menu on your screen.
Á Calculator work area
–You enter a math expression on the entry line and then press
· to evaluate the expression.
–Expressions display in standard mathematical notation as you
enter them.
Using Calculator53
–Entered expressions and results show in the Calculator history.
 Example of Calculator variables used in another TI-Nspire™
application
The Calculator tool menu
The Calculator tool menu lets you enter and evaluate a variety of math
expressions.
Menu
Name
Actions
Number
Menu OptionFunction
DefineInserts the Define command.
Recall DefinitionLets you view, reuse, or modify
a function or program that you
have defined.
Delete VariableInserts the
delVar command.
Clear a-zDeletes all variables with
single-letter names.
Clear HistoryDeletes all expressions in the
Calculator history.
Insert CommentLets you insert text.
LibraryLets you refresh all libraries, set
LibPub or LibPriv access, insert a
“\” character, or create a library
shortcut.
Convert to Decimal
Inserts ¢Decimal command.
FactorInserts factor().
Least Common MultipleInserts
Greatest Common DivisorInserts
RemainderInserts
Fraction ToolsLets you select
54Using Calculator
lcm().
gcd() function.
remain().
propFrac(),
getNum(), getDenom(), or
comDenom().
Menu
Name
Menu OptionFunction
Number ToolsLets you select round(), iPart(),
fPart(), sign(), mod(), floor(),
or ceiling().
Complex Number ToolsLets you select
imag(), angle(), ¢Polar, ¢Rect,
or the absolute value template.
Algebra
SolveInserts
FactorInserts
ExpandInserts
ZerosInserts
Numerical SolveInserts
solve().
factor().
expand().
zeros().
nSolve().
Polynomial ToolsLets you select
polyRemainder(),
polyQuotient(), polyGcd(),
polyCoeffs(), or polyDegree().
Fraction ToolsLets you select
getNum(), getDenom(), or
comDenom().
Convert Expression
Lets you select
¢Exp.
TrigonometryLets you select tExpand() or
tCollect().
ComplexLets you select
cFactor(), or cZeros().
conj(), real(),
propFrac(),
¢cos, ¢sin, or
cSolve(),
ExtractLets you select
left() or right().
Finance SolverStarts the Finance Solver.
Calculus
DerivativeInserts the Derivative template.
IntegralInserts the Integral template.
Using Calculator55
Menu
Name
Menu OptionFunction
LimitInserts the Limit template.
SumInserts the Sum template.
ProductInserts the Product template.
Function MinimumInserts
Function MaximumInserts
Tangent LineInserts
Normal LineInserts
Arc LengthInserts
SeriesLets you select
series(), or dominantTerm().
Differential Equation SolverInserts
Implicit DifferentiationInserts
Numerical CalculationsLets you select
nfMin(), or nfMax()
Probability
Factorial (!)Inserts !.
PermutationsInserts
CombinationsInserts
RandomLets you select
randInt(), randBin(),
randNorm(), randSamp(), or
RandSeed.
fMin().
fMax().
tangentLine().
normalLine().
arcLen().
taylor(),
deSolve().
impDif().
nDeriv(), nInt(),
nPr().
nCr().
rand(),
DistributionsLets you select from several
distributions, such as
, Binomial Cdf, and
Pdf
Inverse F.
56Using Calculator
Normal
Menu
Name
Statistics
Menu OptionFunction
Stat CalculationsLets you select from several
statistics calculations, such as
one-variable analysis, twovariable analysis, and
regressions.
Stat ResultsInserts the stat.results variable.
List MathLets you select from several list
calculations, such as minimum,
maximum, and mean.
List OperationsLets you select from several list
operations, such as sorting,
filling, and converting to a
matrix.
DistributionsLets you select from several
distributions, such as
, Binomial Cdf, and
Pdf
Inverse F.
Normal
Confidence IntervalsLets you select from several
confidence intervals, such as
t interval and zinterval.
Stat Tests Lets you select from several
tests such as
.
test
ANOVA, t test, z
Matrix & Vector
Tra nspose
Inserts
T
DeterminantInserts det().
Row-Echelon FormInserts
Reduced Row-Echelon
Inserts
ref().
rref().
Form
SimultaneousInserts
Using Calculator57
simult().
Menu
Name
Menu OptionFunction
CreateLets you select from several
matrix-creation options, such as
construct matrix, identity,
diagonal, submatrix, and others.
NormsLets you select
rowNorm(), or colNorm().
norm(),
DimensionsLets you select
rowDim(), or colDim().
Row OperationsLets you select
rowAdd(), mRow(), or
mRowAdd().
dim(),
rowSwap(),
Element OperationsInserts “dot” operators such as
.+ (dot add) and .^ (dot power).
AdvancedInserts
VectorInserts
trace(), LU, QR, eigVl(),
eigVc(), or charPoly(),
unitV(), crossP(), dotP(),
8Polar, 8Rect ,8Cylind, or
Sphere.
8
Functions & Programs
Program EditorLets you view, open for editing,
import, or create a new program
or function.
Func...EndFuncInserts a template for creating a
function.
Prgm...EndPrgmInserts a template for creating a
program.
LocalInserts the
Local command.
ControlLets you select from a list of
function and program-control
templates, such as
If...Then...EndIf,
While...EndWhile,
Try...Else...EndTry, and others.
58Using Calculator
Menu
Name
Menu OptionFunction
TransferInserts transfer commands
Return, Cycle, Exit, Lbl, Stop,
or Goto.
DispDisplays intermediate results.
ModeInserts commands for setting or
reading modes, such as display
digits, angle mode, base mode,
and others. Also lets you get the
current language information.
Add New LineStarts a new line within a
function or program definition.
Before you begin
fTurn on the handheld, and add a Calculator application to a
document.
Entering and evaluating math expressions
Options for entering expressions
Calculator lets you enter and edit expressions through several methods.
•By pressing keys on the handheld keypad.
•By selecting items from the Calculator menu.
•By selecting items from the Catalog (
k).
Entering simple math expressions
Note: To enter a negative number on the handheld, press v. To enter a
negative number on a computer keyboard, press the hyphen key (

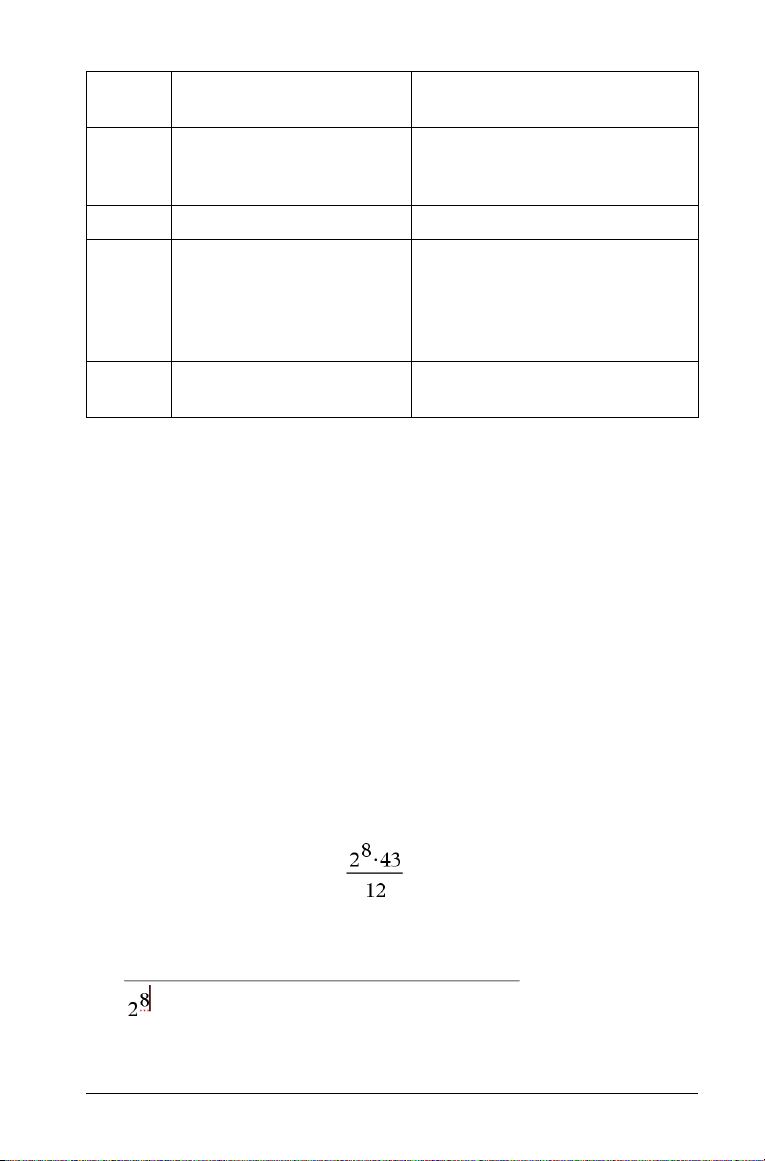

Suppose you want to evaluate
1.Select the entry line in the Calculator work area.
2.Type 2^8 to begin the expression.
Using Calculator59
-).
3.Press ¢ to return the cursor to the baseline, and then type
r 43 p 12.
4.Press · to evaluate the expression.
The expression displays in standard mathematical notation, and the
result displays on the right side of the Calculator.
Note: If a result does not fit on the same line with the expression, it
displays on the next line.
Controlling the form of a result
You might expect to see a decimal result instead of 2752/3 in the
preceding example. A close decimal equivalent is 917.33333..., but that’s
only an approximation.
By default, Calculator retains the more precise form: 2752/3. Any result
that is not a whole number displays in a fractional or symbolic form (1/2,
p, , etc.). This reduces rounding errors that could be introduced by
2
intermediate results in chained calculations.
You can force a decimal approximation in a result:
•By pressing
Pressing
•By including a decimal in the expression (for example,
43).
60Using Calculator
/
· instead of · to evaluate the expression.
/
· forces approximate result.
43. instead of
•By wrapping the expression in the approx() function.
•By changing the document’s
Approximate.
–Press
/c1 to display the File menu, and then select
Document Settings.
Auto or Approximate mode setting to
Inserting items from the Catalog
You can use the Catalog to insert system functions and commands, units,
symbols, and expression templates into the Calculator entry line.
1.Press
k to open the Catalog.
Note: Some functions have a wizard that prompts you for each
argument. If you prefer to enter the argument values directly on the
entry line, you may need to disable the wizard.
2.Press the number key for the category of the item. For example,
press 1 to show the alphabetic list.
Contains all commands and functions, in alphabetical
order.
Using Calculator61
Contains all math functions.
Provides the values for standard measurement units.
Provides a symbol palette for adding special characters.
Contains math templates for creating two dimensional
objects, including product, sum, square root and integral.
Shows Public library (LibPub) objects.
3.Press ¤ and then use ¡, ¢, £, or ¤ as necessary to select the item
that you want to insert.
Note: To see syntax examples of the selected item, press
then press
the selected item, press
4.Press
· to alternately show or hide the Help. To move back to
ge.
· to insert the item into the entry line.
e, and
Using an expression template
The Calculator has templates for entering matrices, piecewise functions,
systems of equations, integrals, derivatives, products, and other math
expressions.
For example, suppose you want to evaluate
1.Press
2.Select to insert the algebraic sum template.
/r to open the Template palette.
The template appears on the entry line with small blocks
representing elements that you can enter. A cursor appears next to
one of the elements to show that you can type a value for that
element.
62Using Calculator
3.Use the arrow keys to move the cursor to each element’s position,
and type a value or expression for each element.
4.Press
· to evaluate the expression.
Editing Calculator expressions
Although you cannot edit an expression in the Calculator history, you can
copy all or part of an expression from the history and paste it to the entry
line. You can then edit the entry line.
Positioning the cursor in an expression
fPress e to cycle through the parameters of a template.
– or –
Press ¡, ¢, £, or ¤ to move the cursor through the expression. The
cursor moves to the closest valid position in the direction that you
press.
Note: An expression template may force the cursor to move through its
parameters, even though some parameters may not be exactly in the
path of the cursor movement. For example, moving upward from the
main argument of an integral always moves the cursor to the top limit.
Using Calculator63
Inserting into an expression in the entry line
1.Position the cursor at the point where you want to insert additional
elements.
2.Type the elements that you want to insert.
Note: When you insert an open parenthesis, Calculator adds a temporary
close parenthesis, displayed in gray. You can override the temporary
parenthesis by typing the same parenthesis manually or by entering
something past the temporary parenthesis (thereby implicitly validating
its position in the expression). After you override the temporary gray
parenthesis, it is replaced with a black parenthesis.
Selecting part of an expression
1.Press ¡, ¢, £, or ¤ to move the cursor to a starting point.
2.Press and hold
g and press ¡, ¢, £, or ¤ to select.
Deleting all or part of an expression on the entry line
1.Select the part of the expression to delete.
2.Press ..
Working with the Calculator history
As you enter and evaluate expressions in the Calculator application, each
entry/result pair is saved in the Calculator history. The history gives you a
way to review your calculations, repeat a set of calculations, and copy
expressions for reuse in other pages or documents.
Viewing the Calculator history
The history of the expressions you have entered accumulates above the
entry line, with the most recent expression at the bottom. If the history
does not fit in the Calculator work area, you can scroll through the
history.
Note: You may notice a processing slowdown when the history contains
a large number of entries.
fPress £ or ¤.
64Using Calculator
À
Á
À
Â
À Scrollbar buttons
Á Scroll position indicator
 Current entry/total entries
Reusing a previous expression or result
You can copy an expression, subexpression, or result from the Calculator
history and paste it into the entry line or into other TI-Nspire™
applications.
1.Scroll to the item that you want to copy.
2.Select the item.
Note: The float setting for the current document may limit the
number of decimal places displayed in a result. To capture the result
in its full precision, select it either by scrolling with the up and down
arrow keys or by triple-clicking it.
3.Press
4.Select the location where you want the copy.
5.Press
Using Calculator65
/C to make the copy.
/V to paste the copy.
Note: If you copy an expression that uses variables into a different
problem, the values of those variables are not copied. You must define
the variables in the problem where you paste the expression.
Deleting an expression from the history
When you delete an expression, all variables and functions defined in the
expression retain their current values.
1.Use the arrow keys to select the expression that you want to delete.
2.Press
..
The expression and its result are removed.
Clearing the Calculator history
When you clear the history, all variables and functions defined in the
history retain their current values. If you clear the history by mistake, use
the undo feature.
1.Press
2.On the
b to display the Calculator menu.
Actions menu, select Clear History.
All expressions and results are removed from the history.
Where to find more information
More in-depth information, step-by-step instructions, and screen
examples of all the Calculator features are contained in the Using
Calculator chapter in Part 2 of the user guide, which is available on the
CD-ROM that came with your handheld and as a download from the web
site: http://education.ti.com/guides.
66
Using Graphs & Geometry
À
Getting started with Graphs & Geometry
The Graphs & Geometry application enables you to:
•Graph and explore functions.
•Create and explore geometric shapes.
•Animate points on objects or graphs and explore their behavior.
•Graph data collected by the Data Collection tool.
•Explore graphical and geometric transformations.
•Explore and investigate concepts of calculus.
•Link to data created by other applications and utilize it in Graphs &
Geometry.
ÁÂ
Ã
Ä
Å
À Problem/Page number counter
Á System Settings indicator
 Status indicator (with battery status indicator icon)
à Graphs & Geometry units indicator (sample display is centimeters)
Ä Sample Graphs & Geometry work area in Graphing View, with
Analytic Window and tooltip for triangle shown
Å Sample Graphs & Geometry entry line (line for function entry shown)
Getting acquainted with Graphs & Geometry
fTurn on the TI-Nspireé handheld, and add the Graphs & Geometry
application to your page.
Using Graphs & Geometry67
When you add Graphs & Geometry to a page, your work area contains
the x and y axes for a graph, as well as a function entry line and Graphs &
Geometry-specific tools.
The basic components of the Graphs & Geometry application are the:
•Tool menu
•Work area (which contains the axes)
•Entry line.
The Tool menu
Press b to open the Actions menu. These menus and tools enable you
to graph and explore different types of functions, draw and explore
geometric structures, as well as other capabilities which will be covered
in this chapter.
The following tables contain a brief summary of what each menu
contains or tool enables you to do within the Graphs & Geometry work
area.
Note: The number that precedes each title is the numeric entry for
accessing the tool using the handheld keys or the virtual keypad on the
computer. For example, to draw a circle, you would press
Menu Option ListOverview of Tool Actions
1: ActionsProvides tools to access the pointer, hide or
show various graph features, add text,
delete all objects in the work area, access
the calculate tool, and access the attributes
for an object or function.
2: View Provides tools to manipulate the work area
features and display.
b 8 1.
3: Graph TypeEnables you to select the type of graph to
plot in the work area: function, parametric,
polar, or scatter plot. The entry line below
the work area shows the notational
conventions to use to specify a function for
the selected graph type.
4: WindowProvides different Zoom settings as well as
the ability to define the x- and y-axis
minimums and maximums.
68Using Graphs & Geometry
Menu Option ListOverview of Tool Actions
5: Trace Creates and activates a trace on the graph.
Sets the trace increment and enables you to
create and remove geometric trace.
6: Points & Lines Provides tools for drawing various types of
points, lines, segments, rays, tangents,
vectors, and circle arcs.
7: MeasurementProvides tools for measuring angles, lengths,
areas, integrals, and slope.
8: ShapesProvides tools for drawing circles, triangles,
rectangles, and polygons.
9: ConstructionProvides tools to define perpendicular and
parallel lines, bisectors, midpoints, locus,
compass, and perform measurement
transfers.
A: TransformationProvides tools for symmetry, reflection,
translation, rotation, and dilation.
Action Menu Tools
Tool name Tool function
1: Pointer Selects, moves, and manipulates
objects.
2: SelectEnables you to select the objects in
part of the work area by placing a
dashed-line box around them.
3: Hide/Show Enables you to hide or display any
object, function, or feature on the
work area.
4: Attributes Enables you to change the attributes
of a selected object in the work area.
Attributes vary depending upon the
object selected.
5: Delete All Removes all objects and graphed
functions from the page.
Using Graphs & Geometry69
Tool name Tool function
6: Text Places user-created alpha-numeric
values on the page. Numerical values
can be applied to objects. The tool
can be used to enter a function and
graph it.
7: Coordinates and
Equations
8: Calculate Opens the calculate tool to perform
9: Redefine Redefines a previously defined point
A: Insert SliderLets you easily modify the value of a
Displays the coordinates of a point or
the equation of a line or circle.
calculations using measurements,
numerical values, or calculation
results. This tool is different from the
Calculator application.
to a new location. For example, it can
define a point in free space to a
location on an object or from one
object to another object.
numeric variable.
View Menu Tools
Tool name Tool function
1: Graphing ViewPlaces the work area in graphing mode.
When you add Graphs & Geometry to a
page the Cartesian axes displays in the
work area with a function entry line
below.
2: Plane Geometry
View
3: Hide (Show)
Analytic Window
70Using Graphs & Geometry
Places the work area in geometry mode.
Geometry scale displays, but no axes,
grid, or entry line displays until you
choose Show Analytic Window.
Opens a small graphing window on a
plane geometry work area. Places the
Graphs & Geometry work area in
modeling mode. This tool can be used
only after Plane Geometry is selected.
Tool name Tool function
4: Hide (Show) AxesHides the axes if they are currently
displayed on the page. Displays the axes
if none are displayed on the page.
5: Show (Hide) Grid Turns the grid on or off on the page.
Objects can be attached to the grid when
the grid is displayed.
6: Hide (Show) Entry
Line
7: Show (Hide) ScaleToggles between showing and hiding the
Hides or displays the entry line on the
page.
scale legend on the work area. When the
scale is shown, the value and/or units can
be changed to desired values/units. This
applies only to geometric constructions.
Show (Hide) Axes End
Value
8: Add Function TableLaunches the Lists & Spreadsheet
Toggles between showing and hiding the
lowest value and highest value on the
horizontal and vertical axes.
function table. When launched from
Graphs & Geometry, it is pre-populated
with all functions defined in the problem
with the exception of hidden functions.
More information on using Function
Tables is available in the Lists &
Spreadsheet chapter of this document.
Graphing Type Menu Tools
Tool name Tool function
1: Function Displays the function mode entry line at
the bottom of the work area.
2: Parametric Displays the parametric mode entry line
at the bottom of the work area. This
display shows the t-min, t-max, and t-step
values. The defaults are 0-2p
max, and p/24 for t-step.
for t-min, t-
Using Graphs & Geometry71
Tool name Tool function
3: PolarDisplays the Polar mode entry line at the
bottom of the work area. This display
shows the q-min, q-max, and q-step
values. The defaults are 0-2pfor q-min
and q-max, and p/24 for q-step.
4: Scatter Plot Displays the Scatter Plot mode entry line
at the bottom of the work area.
Window Menu Tools
Tool name Tool function
1: Window SettingsLets you specify the minimum and
maximum values for the x-axis and yaxis. You can also set the axis scaling
increment between tics.
2: Zoom - Box Enables you to define an area that
you want to enlarge.
3: Zoom - In Enables you to define the center
point of the zoom in location. The
Zoom In factor is approximately 2.
4: Zoom - Out Enables you to define the center
point of the zoom out location. The
Zoom Out factor is approximately 2.
min, and y-max to center the origin.
The x and y scale factors are equal.
This is the default axes setting when
Graphs & Geometry is first added to
a page.
min, and y-max to emphasize the
first quadrant. The x and y scale
factors are equal.
72Using Graphs & Geometry
Tool name Tool function
7: Zoom - User If you have modified any window
settings (such as x-min), Zoom-User
saves the present settings. If you
have not modified any window
settings since last selecting ZoomUser, Zoom-User restores those
settings.
8: Zoom - Trig Automatically sets x-min and x-max
to integer multiples of p. The x and y
scale factors are equal.
9: Zoom - DataRedefines the axes so that all
statistical data points are displayed.
A: Zoom - Fit Recalculates y-min and y-max to
include the minimum and maximum
y values of all functions between the
current x-min and x-max. Hidden
functions are not included.
B: Zoom - SquareRecalculates y-min and y-max so that
the vertical scale is the same as the
horizontal scale.
Trace Menu Tools
Tool name Tool function
1: Graph Trace Activates a trace point on the graph,
enabling you to trace functions.
2: Trace SettingEnables you to set the increment
between points touched by Graph Trace
automatically, or by specifying a
numeric trace step value.
3: Geometry Trace Enables you to view the pathway of a
geometric or analytic object (such as a
function graph) on the work area. The
pathway has a delayed fade. As more
movement occurs on the work area,
older portions of the pathway fade. If
you temporarily halt movement, a
portion of the trace path remains
displayed.
Using Graphs & Geometry73
Tool name Tool function
4: Erase Geometry TraceHalts geometric trace and erases all
persistent pathways on the work area.
Points and Lines Menu Tools
Tool name Tool function
1: Point Constructs a point defined in free space,
on an object, or at the intersection of
two objects.
2: Point On Constructs a point defined on an object.
When the object is a function graph, the
coordinates are displayed.
3: Intersection Point(s)Constructs a point at each intersection of
two selected objects.
4: Line Constructs an infinite line defined by
two points or by a point and a direction.
If you press
you limit its orientation, relative to the
x-axis or the horizontal aspect of the
screen, by 15- increments.
5: Segment Constructs a segment, defined by two
end points, which may be created or
defined in free space or on a defined
object.
6: Ray Constructs a ray, defined by two points
or by a point and a direction, extending
infinitely. If you press
the ray, you limit its orientation, relative
to the x-axis or the horizontal aspect of
the screen, by 15- increments.
7: Tangent Creates a tangent line.
g while creating the line,
g while creating
8: Vector Constructs a vector with magnitude and
direction defined by two points.
9: Circle arcCreates an arc based on three points.
74Using Graphs & Geometry
Measurement Menu Tools
Tool name Tool function
1: Length Displays the distance between two
selected points or the length of a
segment, perimeter, circumference, or
radius.
2: Area Displays the area of a selected polygon
or circle.
3: Slope Displays the slope of a selected line or
segment. A vertical slope is represented
by %.
4: Angle Displays the measure of an angle or an
angle defined by three selected points.
5: Integral Calculates and displays the numerical
value of the integral of a selected
function, and shades the area between
the curve and the x-axis from point a to
point b.
Shapes Menu Tools
Tool name Tool function
1: Circle Constructs a circle. The center point is
defined by the first click on the page and
the radius is determined by the second
click.
2: Triangle Constructs a triangle, defined by three
points (vertices), which may be created or
defined in free space or on a defined
object.
3: Rectangle Constructs a rectangle.
4: Polygon Constructs an n-sided polygon. Each click
defines a vertex, and the polygon is
completed by clicking the initial vertex or
by pressing
5: Regular PolygonConstructs an n-sided regular polygon.
Using Graphs & Geometry75
·.
Construction Menu Tools
Tool name Tool function
1: Perpendicular Constructs a line perpendicular to a
selected line, segment, ray, vector, axis,
or side of a polygon, and passing
through a created or selected point.
2: Parallel Constructs a line parallel to a selected
line, segment, ray, vector, axis, or side
of a polygon, and passing through a
created or selected point.
3: Perpendicular Bisector Constructs a perpendicular line that
bisects two points, a segment, or side
of a polygon.
4: Angle Bisector Constructs a line that bisects an angle
identified by three selected points
where the second point is the vertex.
5: Midpoint Constructs a midpoint of two selected
points, a segment, or side of a
polygon.
6: Locus Constructs the locus of a point or
object defined by the movement of a
driver point along a pathway.
Pathways are geometric shapes and
function graphs.
7: Compass Constructs a circle from a center point
with a radius defined by a selected
segment or the distance between two
points.
8: Measurement transfer Transfers an entered or measured
value to a selected object, axis, or
function graph. If the original value
changes, the change is also reflected in
the transferred measurement.
Transformation Menu Tools
Tool name Tool function
1: Symmetry Creates the image of an object rotated
- around a point.
180
76Using Graphs & Geometry
Tool name Tool function
2: Reflection Creates the image of an object reflected
across a line, segment, ray, vector, axis, or
side of a polygon.
3: Translation Creates the image of an object translated
by a specified vector.
4: Rotation Creates the image of an object rotated
around a point by a specified angular
value.
5: Dilation Creates the image of an object dilated
from a point by a specified factor.
Note: When you select a tool to use, that tool’s icon displays in the upper
left corner of the Graphs & Geometry page. It is there to remind you
which tool is currently active.
Using the context menu
To display the context menu for an object:
fMove the cursor to the object and then press
The first two options on the context menu are:
Recent: lists the 9 most recent tools you used. This is a session-level
•
listing. The tools used on any Graphs & Geometry page are shown,
regardless of the document in which they are used.
•Attributes: enables you to access the attributes appropriate for a
selected function, object, or work area.
Additional options that are appropriate for your selection also display on
the menu. For example, the context menu for a triangle also contains the
Hide/Show, Delete, Length, and Area options.
/b.
The work area
There are two work area views available:
•Graphing View
•Plane Geometry View
The Graphing view
The Graphing view is the default Graphs & Geometry work area display. It
contains:
Using Graphs & Geometry77
•the default Cartesian axes in the Zoom Standard format (1:1
scale).
•the entry line from which you can graph up to 100 functions.
Axes, entry line, and grid can all be displayed or hidden, but in this view,
no scale for any drawn shapes (e.g. Circle, etc.) can be displayed. All
objects created in this view are analytic objects. Therefore, their
displayed size and proportion are affected only by the scale of the axis
system (the command "Show Scale" has no effect).
The Plane Geometry view
The plane geometry view removes the axes and entry line from the work
area to enable you to draw geometric shapes and explore them. In this
view, you can display and set a scale for your drawings.
To change to Plane Geometry view:
1.From the
Press b22.
2.The display refreshes to clear the axes and entry line and display a
default scale. Any graphs or drawings created in graphing view are
not displayed on the plane geometry area.
To return to Graphing view:
fFrom the
Press
78Using Graphs & Geometry
View menu, select Plane Geometry View.
View Menu, select Graphing View.
b 2 1.
The display refreshes to show the axes and entry line.
Note: Any geometric constructions created while in the plane
geometry view are retained and displayed along with any previouslycreated graphs.
The analytic window
The analytic (graphing) window is available in the Plane Geometry view.
It adds an analytic (graphing) window on top of a portion of the plane
geometry work area. This provides a combination work area that enables
you to use both work area types without toggling the view between
them.
To open the analytic window:
1.Ensure that the work area is in Plane Geometry view.
2.From the
View menu, select Show Analytic Window .
Press b23.
3.A reduced size graphing window opens on the lower left corner of
the plane geometry space.
Using Graphs & Geometry79
Graphing
area
Modeling view - shows the previous two views
and the work done on both.
Plane
Geometry
area
You can alter the work area, without changing the view, to temporarily:
•Hide the axes. Any graphs or objects remain displayed on the
work area.
•Show or hide axis end values and show or hide a grid in the
graphing window.
•Hide the entry line.
•Hide the scale.
•Resize the axes using the zoom tools or by dragging tic marks.
To display more of the plane geometry work area, pan the screen.
To remove the analytic window from the work area
fFrom the View menu, select Hide Analytic Window .
b 2 3.
Press
Object behavior in different views
When you create an object in the graph area, it is called an analytic
object, and all points of the object reside on the graph plane. When you
change the axes scale, you automatically affect the appearance of the
object. If you calculate a value associated with the object such as the
area, only generic units are assigned (u for unit). These objects remain
associated with the coordinate plane until you delete them or redefine
them to the plane geometry area. When working with a modeling view
work area, you cannot move an analytic object onto the plane geometry
area.
80Using Graphs & Geometry
When you create an object in the plane geometry area, it is a geometric
object. These objects can have an assigned scale, such as miles or
centimeters, instead of u for units. You can lock a point, such as one
vertex of a triangle, on the work area, but since the object is not tied to a
coordinate plane, you cannot display coordinates for that vertex. When
working with a modeling mode work area (Plane Geometry view with
analytic window), you can move a geometric object into the graphing
work area. The object remains a geometric object, and is not associated
with the axes.

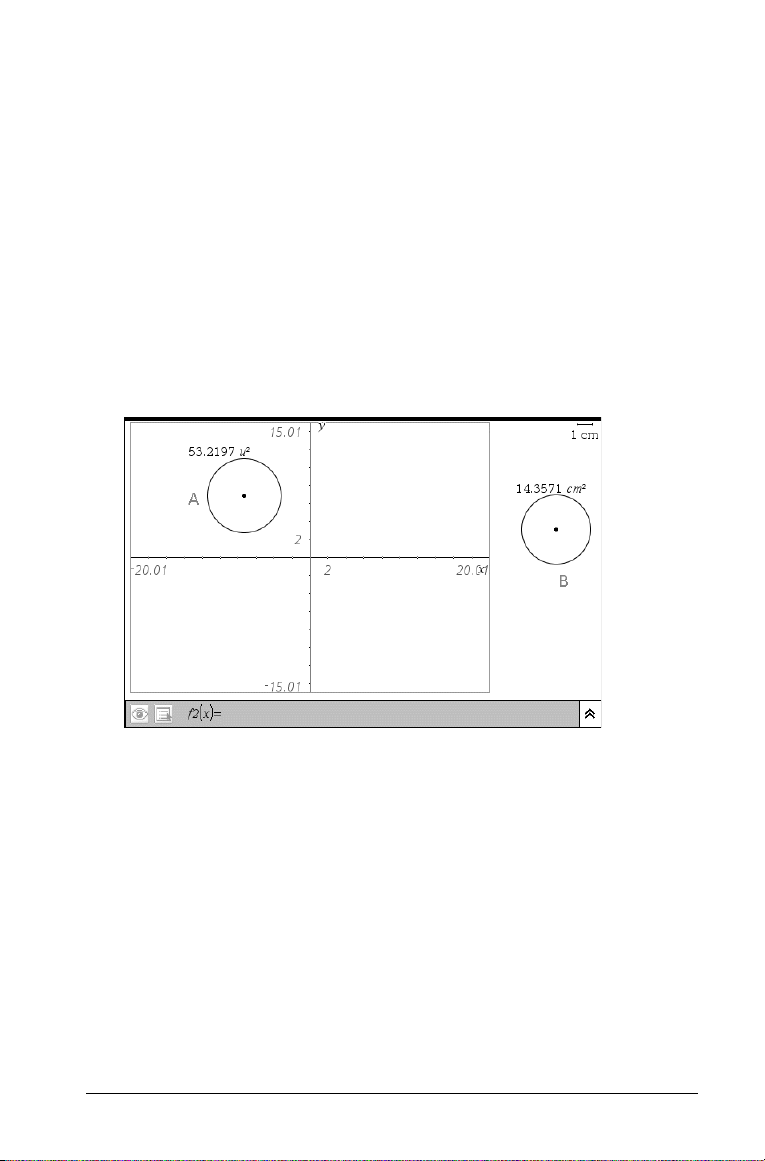

The examples below show a modeling work area and the two types of
objects. A is an analytic object while B is a geometric object:
The examples below show a modeling work area and the two types of
objects: A is an analytic object while B is a geometric object.

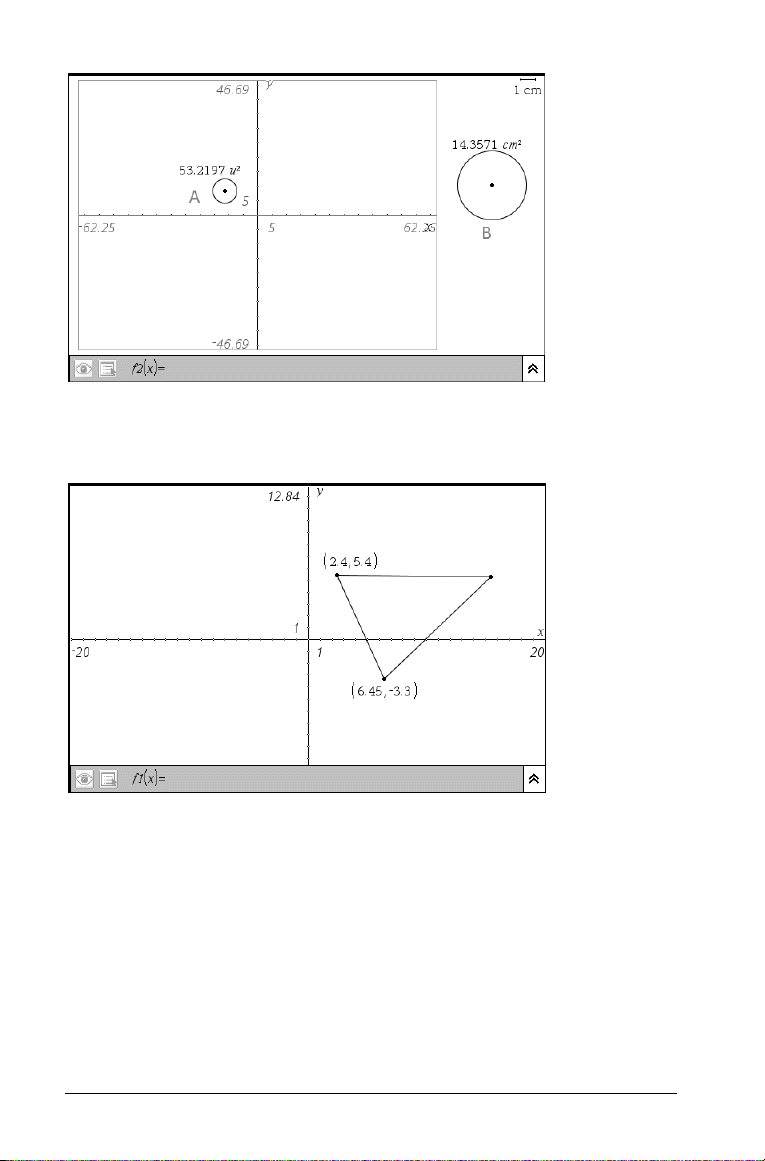

While the two circles appear identical, they do not behave in the same
way. Analytic objects are impacted when the graph area is altered. In the
next example, the axes were altered. Notice that only Circle A’s
appearance is affected by the change.
Using Graphs & Geometry81
If you construct an object while the axis is hidden, the object created will
be a geometric object. However, if you construct an analytic object and
later hide the axis, the object remains an analytical one.
Triangle as it
appears in
Graphing
view. The
unlabeled
vertex remains
a geometric
point.
Units of MeasureGeneric (displayed as u)User-defined (per scale)
Area Graph TypeCartesian (default) or
Polar
Uses•Define and graph
functions to:
–Graph
functions of
the form f (x)
–Create scatter
plots
–Graph polar
equations
–Graph
parametric
functions
•Construct analytic
objects
•Label equations
•Identify
coordinates for
discrete points
BehaviorAnalytic constructions
must remain in the
analytic area.
Euclidian
•Construct Euclidean
objects
•Create
transformations
•Determine
measurements (for
example, length,
angle, or area)
Geometric constructions
can be moved into the
analytic area but remain
geometric in nature.
Creating and manipulating axes
When you add the Graphs & Geometry application to a page, Cartesian
axes displays by default.
You can change the appearance of your axes in the following ways:
1.Adjust the length of the axes:
•When using Plane Geometry view with Show Analytic Window,
–Select an axis and retype the domain or range labels.
Using Graphs & Geometry83
–Select an axis and drag to increase or decrease the numbers
on the scale and tic mark spacing.
The aspect ratio of the axes is retained. To modify the scale of
only one axis, press
Extended domain
g as you adjust the value or drag the line.
Default range and
domain
2.Use the Zoom tool options to adjust the view.
3.Adjust the end style of the axes using the Attributes tool. Display the
Attributes tool by:
•selecting it from the menu or
•pressing
Press the left and right arrow keys to display the desired end style.
The attributes list for the axes also enables you to select a Zoom tool.
4.Adjust the axes scale and tic mark spacing manually.
a)Click and hold one tic mark, and move it on the axis. The
b) To adjust the scale and tic mark spacing on a single axis,
84Using Graphs & Geometry
/ and clicking an axis between two tick marks.
spacing and number of tic marks increases (or decreases) on
both axes.
press and hold
that axis.
g, and then grab and drag a tic mark on
5.Change axis end values by double-clicking them and typing new
values.
6.Adjust the location of the axes. To move the existing axes without
resizing or rescaling them, click in and drag an empty region of the
screen until the axes are in the desired location.
7.Use the Window Setting tool to define the x-max, x-min, y-max,
y-min, x-scale and y-scale values for the axes. When selected, this tool
opens a dialog that enables you to enter the values desired. The
current values are initially displayed. Type over them to enter new
values.
Window Settings dialog with initial values displayed
Note: The axis values set on the Window Settings dialog can be stored as
variables that can be accessed outside of Graphs & Geometry. Select the
axis label at the value to be linked, and then click var to link to the value.
You can use tools on the View menu to hide and redisplay the axes, the
scale, and axis end values.
f From the
View menu, select Hide/Show Axes .
Press b24.
•If the axes are shown on the page, selecting this tool hides them.
•If the axes are hidden on the page, selecting this tool redisplays
them.
Using Graphs & Geometry85
Moving about the work area
Graphs of functions may extend beyond the visible portion of your
screen. This does not mean they are truncated. You can view them by
panning the screen. To pan the screen:
1.Click and hold the mouse button in an open area of the page.
2.Move to display different portions of the screen.
The entry line
The Entry line appears at the bottom of the Graphs & Geometry work
area. When the line is not active, it is grayed out.

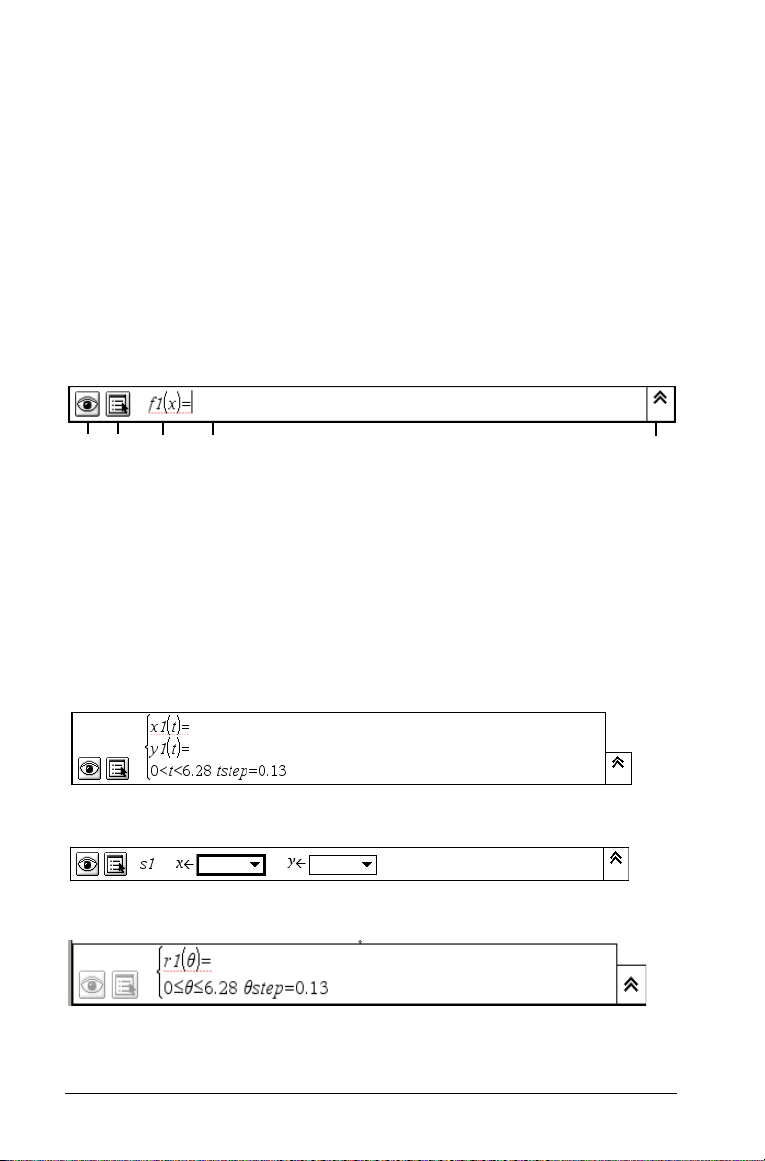

ÀÁ ÂÃÄ
From left to right, the parts of this line are:
À Hide/Show button.
Á Attributes button.
 f1(x)= is the default notation for a function or inequality.
à Blank area into which you enter the function, polar equation,
inequality, parametric, or scatter plot data to be graphed.
Ä Expand/Contract (History) button.
Parametric Mode entry line
Scatter Plot Mode entry line
Polar Mode entry line
86Using Graphs & Geometry
Graphing inequalities
Function mode enables you to define a function that uses a symbol other
than the equal sign. To change = to a different sign and graph the
inequality:
1.Position the cursor to the right of the equal sign.
2.Delete the equal sign:
•Press
3.Type the desired sign or use the Symbol Palette to enter the
appropriate inequality. The possible inequalities are: >, +, {, and |.
4.Type the rest of the inequality expression.
Press
The expression, as typed, displays next to the graph. Shading is
always present on the graphs of inequalities to show the values that
satisfy the inequality. If you graph two inequalities that overlap, the
area of overlap is shaded darker than either of the individual
inequality graphs.
..
· to graph it.
Using Graphs & Geometry87
Finding points of interest: zeroes, minima, maxima
When you create a graph, you can use the Point On tool (press
b62) to locate the zeros, minima, and maxima if these are
applicable for objects on the work area. (They may not display if their
location on the graph not visible on your screen.) Both local and global
points of interest display. You can also use the Graph Trace tool to display
the local points of interest automatically as you trace.
Note: Global points of interest display only when they are also local. For
example, inverse sine reaches its (global) maximum at x=1, but the tool
tip 'M' does not display there. This is because x=1 is not a local maximum.
To find them, just move the point along the object or graphed line, and
when you are near a point of interest, the coordinates display along with
one of the following identifiers:
•Zeroes: z (Coordinates)
•Minimum: m (Coordinates)
•Maximum: M (Coordinates)
Finding the min and max of a function
To find the minimum or maximum of a function or object on the graph:
1.From the
Press
2.Select the function graph or object.
3.From the
Press b11.
4.Select the point created in Step 2 and drag it along the function
graph or object.
As you approach a point of interest, the one-character identifier
along with the point’s coordinates display. The example below shows
the m (minimum) identifier along with the value of the minimum for
the function graphed on the axes.
88Using Graphs & Geometry
Points & Lines menu, select the Point On tool .
b62.
Actions menu, select the Pointer tool .
5.As you move away from the point of interest, the identifier no
longer displays on the page.
Animating objects
You can animate a point on a line, ray, axis, vector, graph, segment or
circle. In addition, you can also animate points on multiple objects in the
work area at one time.
Animating one point on an object
1.From the Points & Lines menu, select the Point On tool .
Press
b62.
Click on the object to identify the point that you want to animate.
2.From the
Press
When the attribute bar displays, select the animation attribute .
Using Graphs & Geometry89
Actions menu, select the Attributes tool .
b13.
3.The default speed is 0. You can type a number from 1 - 9 to set speed
or you can use < or > to select a speed from -12 to 12.
The higher the number you type, the faster the animation speed.
4.Select → for one-way animation or ↔ for oscillating animation.
5.Animation begins automatically when you select the speed and
direction.
Press
+ and - to increase/decrease the speed of animation
incrementally once it is set.

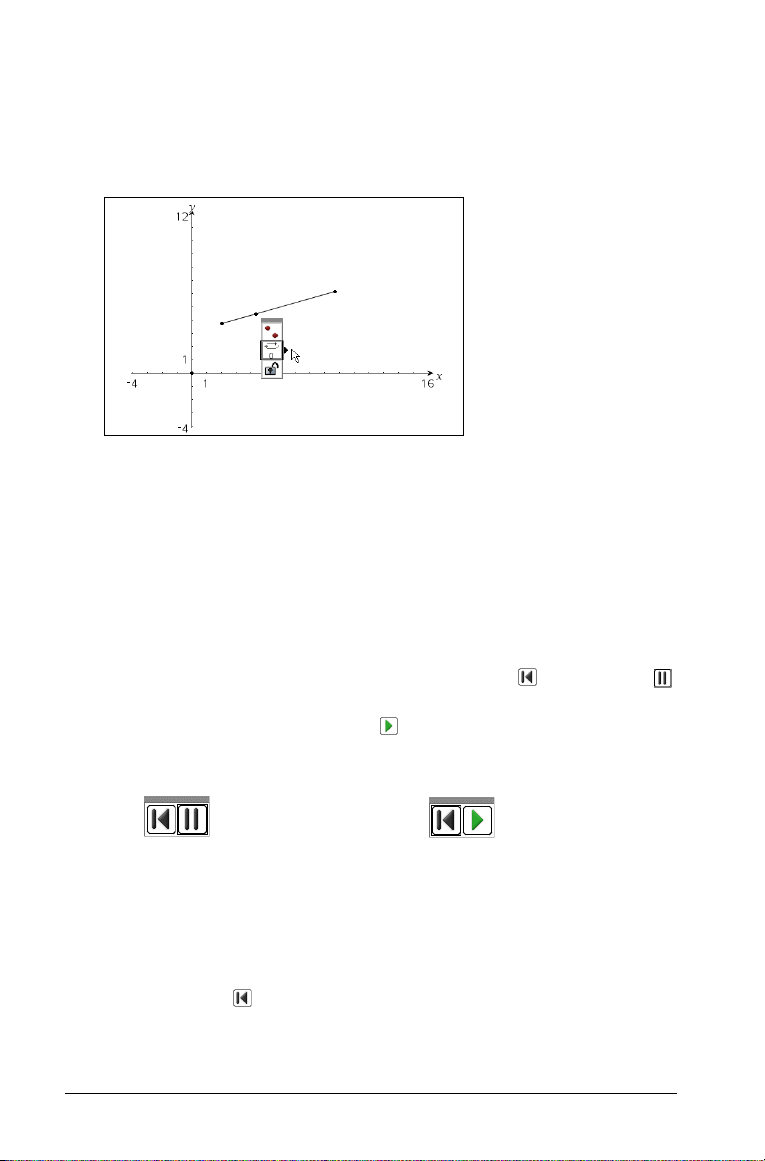

The animation control panel
Once a point is animated, a floating control panel displays on the page.
You can move this panel by dragging it to a new location.
When animation is active, the panel contains a
button. When either button is pressed and animation is reset or paused,
the Pause button changes to a Start button. These controls affect all
animated points on a page.
Panel when animation is
active
Panel with animation
paused/reset
Reset and a Pause
Resetting animation
Selecting the Reset button not only pauses animation but also returns
the animated point to its initial coordinate position on the object when
animation was first started. If multiple points are animated on the page,
all are returned to their original locations when you select Reset.
90Using Graphs & Geometry
Stopping animation
To stop the animation of an object:
1.Select the
2.Display the Animation attribute for the point.
3.Change the speed to 0 (zero).
4.Click an empty area of the screen to apply the change, or press ·.
5.Select Start to resume animation if other animated points were
temporarily stopped.
If no other animated points are on the page, the animation control
box does not reappear when the velocity is set to 0.
Note: If you have multiple points in motion on one page and want
to permanently stop the animation of all objects, when motion is
paused or stopped, display the attributes bar for each point and
change the velocity to 0.
Pause or Reset button on the control bar.
Creating a scatter plot
If you do not have an existing set of data points available for plotting,
create them on the same page using the Lists & Spreadsheet application.
1.To create the data lists and scatter plot on the same page, select a
page configuration with two work areas.
Using Graphs & Geometry91
2.Create the data lists on the Lists & Spreadsheet portion of the page.
3.Select the Scatter Plot tool .
Press
b34.
4.Select the lists to plot from the drop down list for each axis.
When both entry fields have a data list specified, the scatter plot
displays on the Graphs & Geometry work area.
92Using Graphs & Geometry
5.To label the points on the scatter plot, select the Point On tool
from the Points & Lines menu.
Press b62.
a) Select the first point.
The coordinates display.
b) Click to anchor the values on the work area.
Using Graphs & Geometry93
c)To label the remaining points, select them one at a time.
Click each one to anchor the coordinates on the work area.
6.Label the axes and significant points, if desired.
More Information
More in-depth information, step-by-step instructions, and examples of all
the Graphs & Geometry features are contained in the Graphs & Geometry
chapter in Part 2 of the user guide, available on the CD that came with
your handheld, or on the web site at http://education.ti.com/guides.
94Using Graphs & Geometry
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
