Texas Instruments SN65LBC179D, SN65LBC179DR, SN65LBC179P, SN65LBC179QD, SN65LBC179QDR Datasheet

SN75LBC179, SN65LBC179, SN65LBC179Q

LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D

Designed for High-Speed Multipoint Data
Transmission Over Long Cables

D

Operate With Pulse Widths as Low
as 30 ns

D

Low Supply Current ...5 mA Max

D

Meets or Exceeds the Standard
Requirements of ANSI RS-485 and
ISO 8482:1987(E)

D

Common-Mode Voltage Range of –7 V
to 12 V

D

Positive- and Negative-Output Current
Limiting

D

Driver Thermal Shutdown Protection

D

Pin Compatible With the SN75179B

description

The SN65LBC179, SN65LBC179Q, and
SN75LBC179 differential driver and receiver pairs
are monolithic integrated circuits designed for
bidirectional data communication over long
cables that take on the characteristics of
transmission lines. They are balanced, or
differential, voltage mode devices that meet or
exceed the requirements of industry standards
ANSI RS-485 and ISO 8482:1987(E). Both
devices are designed using TI’s proprietary
LinBiCMOS with the low power consumption of
CMOS and the precision and robustness of
bipolar transistors in the same circuit.

The SN65LBC179, SN65LBC179Q, and
SN75LBC179 combine a differential line driver
and differential line receiver and operate from a
single 5-V supply. The driver differential outputs
and the receiver differential inputs are connected
to separate terminals for full-duplex operation and
are designed to present minimum loading to the
bus when powered off (V

CC

= 0). These parts
feature a wide common-mode voltage range
making them suitable for point-to-point or
multipoint data bus applications. The devices also
provide positive- and negative-current limiting
and thermal shutdown for protection from line fault
conditions. The line driver shuts down at a junction
temperature of approximately 172°C.

Copyright  2000, Texas Instruments Incorporated

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

LinBiCMOS is a trademark of Texas Instruments Incorporated.

logic symbol

†

logic diagram (positive logic)

Y

Z

B

A

R

D

5

6

7

8

2

3

R

D

B

A

Z

Y

7

8

6

5

2

3

†

This symbol is in accordance with ANSI/IEEE Std 91-1984
and IEC Publication 617-12.

INPUT

D

OUTPUTS

Y Z

DRIVER

DIFFERENTIAL INPUTS

A–B

VID ≥ 0.2 V

–0.2 V < VID < 0.2 V

VID ≤ – 0.2 V

Open circuit

OUTPUT

R

H
?
L
H

RECEIVER

H = high level, L = low level,
? = indeterminate

Function Tables

1
2
3
4

8
7
6
5

V

CC

R
D

GND

A
B
Z
Y

D OR P PACKAGE

(TOP VIEW)

H
L

HLL

H

SN75LBC179, SN65LBC179, SN65LBC179Q
LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

description (continued)

The SN65LBC179, SN65LBC179Q, and SN75LBC179 are available in the 8-pin dual-in-line and small-outline
packages. The SN75LBC179 is characterized for operation over the commercial temperature range of 0°C to
70°C. The SN65LBC179 is characterized over the industrial temperature range of –40°C to 85°C. The
SN65LBC179Q is characterized over the extended industrial or automotive temperature range of – 40°C to
125°C.

schematics of inputs and outputs

RECEIVER A INPUTEQUIVALENT OF DRIVER INPUT RECEIVER B INPUT

DRIVER OUTPUT TYPICAL OF RECEIVER OUTPUT

Output

V

CC

V

CC

100 kΩ

NOM

3 kΩ
NOM

Input

18 kΩ

NOM

1.1 kΩ
NOM

1.1 kΩ
NOM

3 kΩ
NOM

18 kΩ

NOM

100 kΩ
NOM

Input

V

CC

Input

V

CC

22 kΩ

V

CC

R Output

12 kΩ

12 kΩ

SN75LBC179, SN65LBC179, SN65LBC179Q

LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

3

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

†

Supply voltage range, VCC –0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range at A, B, Y, or Z (see Note 1) –10 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range at D or R (see Note 1) –0.3 V to VCC + 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous total power dissipation (see Note 2) Internally limited. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Total power dissipation See Dissipation Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating free-air temperature range, T

A

: SN65LBC179 –40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SN65LBC179Q –40°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . .

SN75LBC179 0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values are with respect to GND.

2. The maximum operating junction temperature is internally limited. Uses the dissipation rating table to operate below this
temperature.

DISSIPATION RA TING TABLE

PACKAGE

TA ≤ 25°C

POWER RATING

DERATING FACTOR

ABOVE TA = 25°C

TA = 70°C

POWER RATING

TA = 85°C

POWER RATING

D 725 mW 5.8 mW/°C 464 mW 377 mW
P 1100 mW 8.8 mW/°C 704 mW 572 mW

recommended operating conditions

MIN NOM MAX UNIT

Supply voltage, V

CC

4.75 5 5.25 V

High-level input voltage, V

IH

D 2 V

Low-level input voltage, V

IL

D 0.8 V

Differential input voltage, V

ID

–6

‡

6 V

Voltage at any bus terminal (separately or common-mode), VO, VI, or V

IC

A, B, Y, or Z –7 12 V

p

Y or Z –60

High-level output current, I

OH

R –8

mA

p

Y or Z 60

Low-level output current, I

OL

R 8

mA

SN65LBC179 –40 85

Operating free-air temperature, T

A

SN65LBC179Q –40 125

°C

SN75LBC179 0 70

‡

The algebraic convention, in which the least positive (most negative) limit is designated as minimum, is used in this data sheet for differential
input voltage, voltage at any bus terminal (separately or common mode), operating temperature, input threshold voltage, and common-mode
output voltage.

SN75LBC179, SN65LBC179, SN65LBC179Q
LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

DRIVER SECTION

electrical characteristics over recommended operating conditions (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

V

IK

Input clamp voltage II = –18 mA –1.5 V

RL = 54 Ω,

SN65LBC179,
SN65LBC179Q

1.1 2.2 5

p

See Figure 1

SN75LBC179 1.5 2.2 5

|VOD|

Differential output voltage (see Note 3)

RL = 60 Ω,

SN65LBC179,
SN65LBC179Q

1.1 2.2 5

V

See Figure 2

SN75LBC179 1.5 2.2 5

∆|VOD|

Change in magnitude of differential
output voltage (see Note 4)

See Figures 1 and 2 ±0.2 V

V

OC

Common-mode output voltage 1 2.5 3 V

∆|VOC|

Change in magnitude of common-mode output
voltage (see Note 4)

RL = 54 Ω, See Figure 1

±0.2 V

I

O

Output current with power off VCC = 0, VO = –7 V to 12 V ±100 µA

I

IH

High-level input current VI = 2.4 V –100 µA

I

IL

Low-level input current VI = 0.4 V –100 µA

I

OS

Short-circuit output current –7 V ≤ VO ≤ 12 V ±250 mA

I

CC

Supply current No load

SN65LBC179,
SN75LBC179

4.2 5 mA

CC

y

SN65LBC179Q 4.2 7 mA

†

All typical values are at VCC = 5 V and TA = 25°C.

NOTES: 3. The minimum VOD specification of the SN65179 may not fully comply with ANSI RS-485 at operating temperatures below 0°C.

System designers should take the possibly lower output signal into account in determining the maximum signal transmission
distance.

4. ∆|VOD| and ∆|VOC| are the changes in the steady-state magnitude of VOD and VOC, respectively, that occur when the input is
changed from a high level to a low level.

switching characteristics, VCC = 5 V, TA = 25°C

PARAMETER TEST CONDITIONS MIN MAX UNIT

t

d(OD)

Differential-output delay time

7 18 ns

t

t(OD)

Differential transition time

R

L

= 54 Ω,

See Figure 3

5 20 ns

SN75LBC179, SN65LBC179, SN65LBC179Q

LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

5

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

RECEIVER SECTION

electrical characteristics over recommended operating conditions (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

V

IT+

Positive-going input threshold voltage IO = –8 mA 0.2 V

V

IT–

Negative-going input threshold voltage IO = 8 mA –0.2 V

V

hys

Hysteresis voltage (V

IT+

– V

IT–

) 45 mV

V

OH

High-level output voltage VID = 200 mV , IOH = –8 mA 3.5 4.5 V

V

OL

Low-level output voltage VID = –200 mV, IOL = 16 mA 0.3 0.5 V

VI = 12 V,
Other inputs at 0 V ,

SN65LBC179,
SN75LBC179

0.7 1 mA

VCC = 5 V

SN65LBC179Q 0.7 1.2 mA

VI = 12 V,
Other inputs at 0 V ,

SN65LBC179,
SN75LBC179

0.8 1 mA

p

VCC = 0 V

SN65LBC179Q 0.8 1.2 mA

IIBus input current

VI = –7 V,
Other inputs at 0 V ,

SN65LBC179,
SN75LBC179

–0.5 –0.8 mA

VCC = 5 V

SN65LBC179Q –0.5 –1.0 mA

VI = –7 V,
Other inputs at 0 V ,

SN65LBC179,
SN75LBC179

–0.5 –0.8 mA

VCC = 0 V

SN65LBC179Q –0.5 –1.0 mA

switching characteristics, VCC = 5 V, TA = 25°C

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

t

PHL

Propagation delay time, high- to low-level output

15 30 ns

t

PLH

Propagation delay time, low- to high-level output

V

ID

= –1.5 V to 1.5 V,

See Figure 4

15 30 ns

t

sk(p)

Pulse skew ( t

PHL

– t

PLH

)

3 6 ns

t

t

Transition time

See Figure 4

3 5 ns

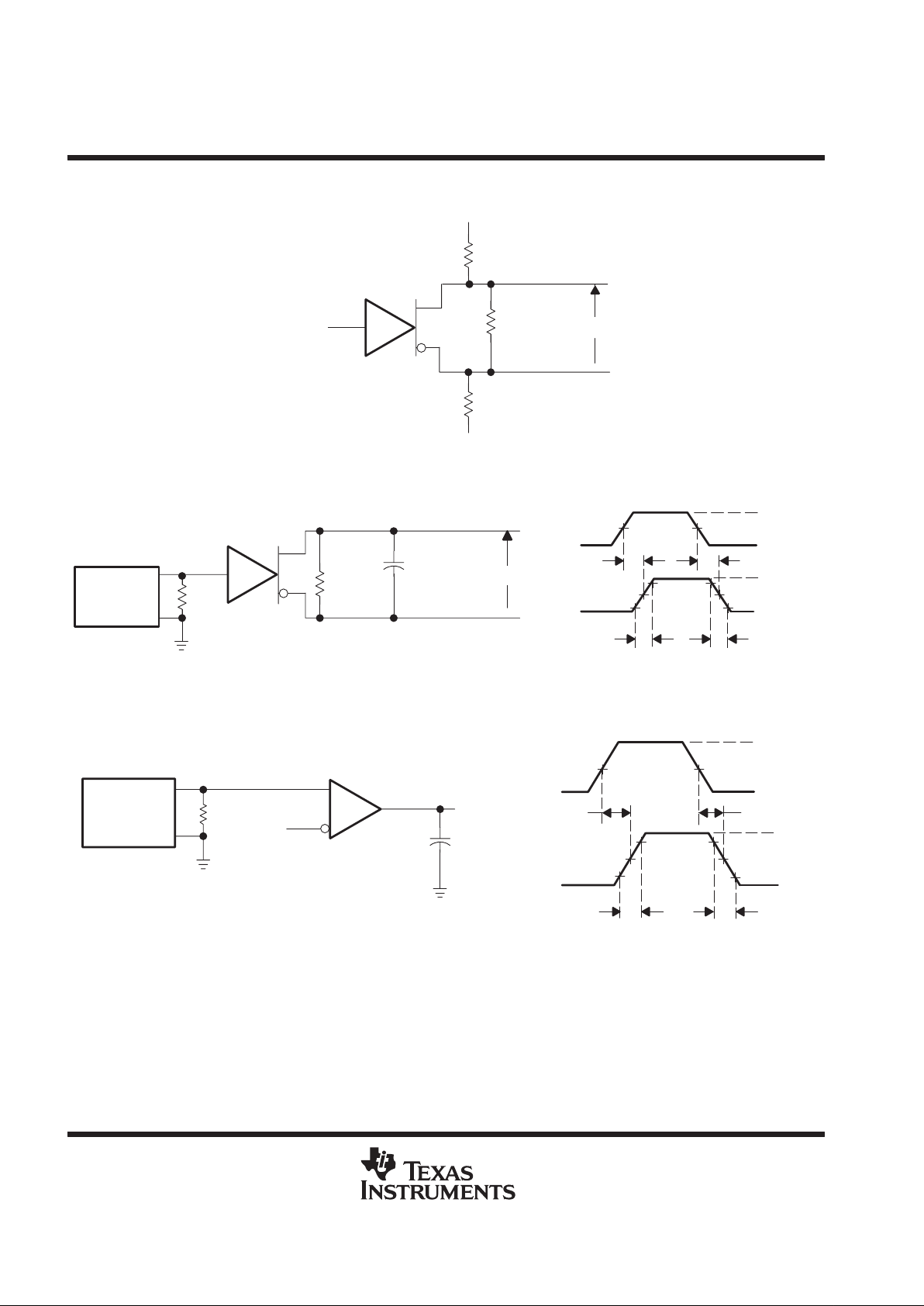

PARAMETER MEASUREMENT INFORMATION

V

OD

R

L

2

0 V or 3 V

Z

D

Y

R

L

2

V

OC

Figure 1. Differential and Common-Mode Output Voltage Test Circuit

SN75LBC179, SN65LBC179, SN65LBC179Q
LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

PARAMETER MEASUREMENT INFORMATION

V

OD

V

test

R1
375 Ω

0 V or 3 V

Z

D

R2
375 Ω

V

test

Y

RL = 60 Ω

–7 V < V

test

< 12 V

Figure 2. Differential Output Voltage Test Circuit

0 V

3 V

t

t(OD)

t

t(OD)

1.5 V

t

d(ODH)

50%

Output

Input

TEST CIRCUIT VOLTAGE WAVEFORMS

t

d(ODL)

RL = 54 Ω

Output

Generator

(see Note A)

50 Ω

1.5 V

50%

≈ 2.5 V
≈ – 2.5 V

CL = 50 pF

(see Note B)

1.5 V

Figure 3. Driver Test Circuits and Differential Output Delay and Transition Time Voltage Waveforms

TEST CIRCUIT VOLTAGE WAVEFORMS

V

OL

V

OH

3 V

0 V

t

PHL

t

PLH

Output

Input

1.3 V

1.5 V

1.3 V

50 Ω

Output

1.5 V

Generator

(see Note A)

A

B

t

t

90%

10%10%

90%

t

t

CL = 15 pF

(see Note B)

1.5 V

Figure 4. Receiver Test Circuit and Propagation Delay and Transition Time Voltage Waveforms

NOTES: A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 1 MHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns,

ZO=50Ω.

B. CL includes probe and jig capacitance.

SN75LBC179, SN65LBC179, SN65LBC179Q

LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

7

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

2.5

1.5

1

0

0102030

– High-Level Output Voltage – V

3.5

4

DRIVER

HIGH-LEVEL OUTPUT VOLTAGE

vs

HIGH-LEVEL OUTPUT CURRENT

5

40 50 60

V

OH

IOH – High-Level Output Current – mA

4.5

3

2

0.5

VCC = 5 V
TA = 25°C

2.5

1.5

1

0

0204060

– Low-Level Output Voltage – V

3.5

4

DRIVER

LOW-LEVEL OUTPUT VOLTAGE

vs

LOW-LEVEL OUTPUT CURRENT

5

80 100 120

V

OL

IOL – Low-Level Output Current – mA

4.5

3

2

0.5

VCC = 5 V
TA = 25°C

70 80 90 100

Figure 5 Figure 6

2

1.5

0.5

0

0102030405060

– Differential Output Voltage – V

2.5

3.5

DRIVER

DIFFERENTIAL OUTPUT VOLTAGE

vs

OUTPUT CURRENT

4

70 80 90 100

1

3

VCC = 5 V
TA = 25°C

V

OD

IO – Output Current – mA

2

1.5

0.5

0
– 50 – 25 0 25

2.5

DRIVER

DIFFERENTIAL OUTPUT VOLTAGE

vs

FREE-AIR TEMPERATURE

50 75

1

3

VCC = 5 V
Load = 54 Ω
VIH = 2 V

TA – Free-Air Temperature – °C

100 125

– Differential Output Voltage – V

V

OD

Figure 7 Figure 8

SN75LBC179, SN65LBC179, SN65LBC179Q
LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

8

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

2

1

0

0 –10 – 20 – 30

– High-Level Output Voltage – V

3

4

RECEIVER

HIGH-LEVEL OUTPUT VOLTAGE

vs

HIGH-LEVEL OUTPUT CURRENT

5

– 40 – 50

IOH – High-Level Output Current – mA

V

OH

20

15

5

0
– 50 – 25 0 25

– Differential Delay Times – ns

DRIVER

DIFFERENTIAL DELAY TIME

vs

FREE-AIR TEMPERATURE

50 75

10

VCC = 5 V
Load = 54 Ω

TA – Free-Air Temperature – °C

100 125

t

d(ODH)

t

d(ODL)

6

VID = 200 mV

t

d(OD)

Figure 9 Figure 10

0.3

0.2

0.1
0

0510

– Low-Level Output Voltage – V

0.4

0.5

RECEIVER

LOW-LEVEL OUTPUT VOLTAGE

vs

LOW-LEVEL OUTPUT CURRENT

0.6

15 20 25

30

IOL – Low-Level Output Current – mA

V

OL

VCC = 5 V
TA = 25°C
VID = – 200 mV

0.7

0.8

0.9

1

35 40

2

1

0

– Output Voltage – V

3

4

RECEIVER

OUTPUT VOLTAGE

vs

DIFFERENTIAL INPUT VOLTAGE

5

VID – Differential Input Voltage – mV

V

O

– 80 – 60 – 40 – 20 0 20 40 60 80

6

VIC = 12 V

VIC = 0 V

VIC = –7 V

Figure 11 Figure 12

SN75LBC179, SN65LBC179, SN65LBC179Q

LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

9

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

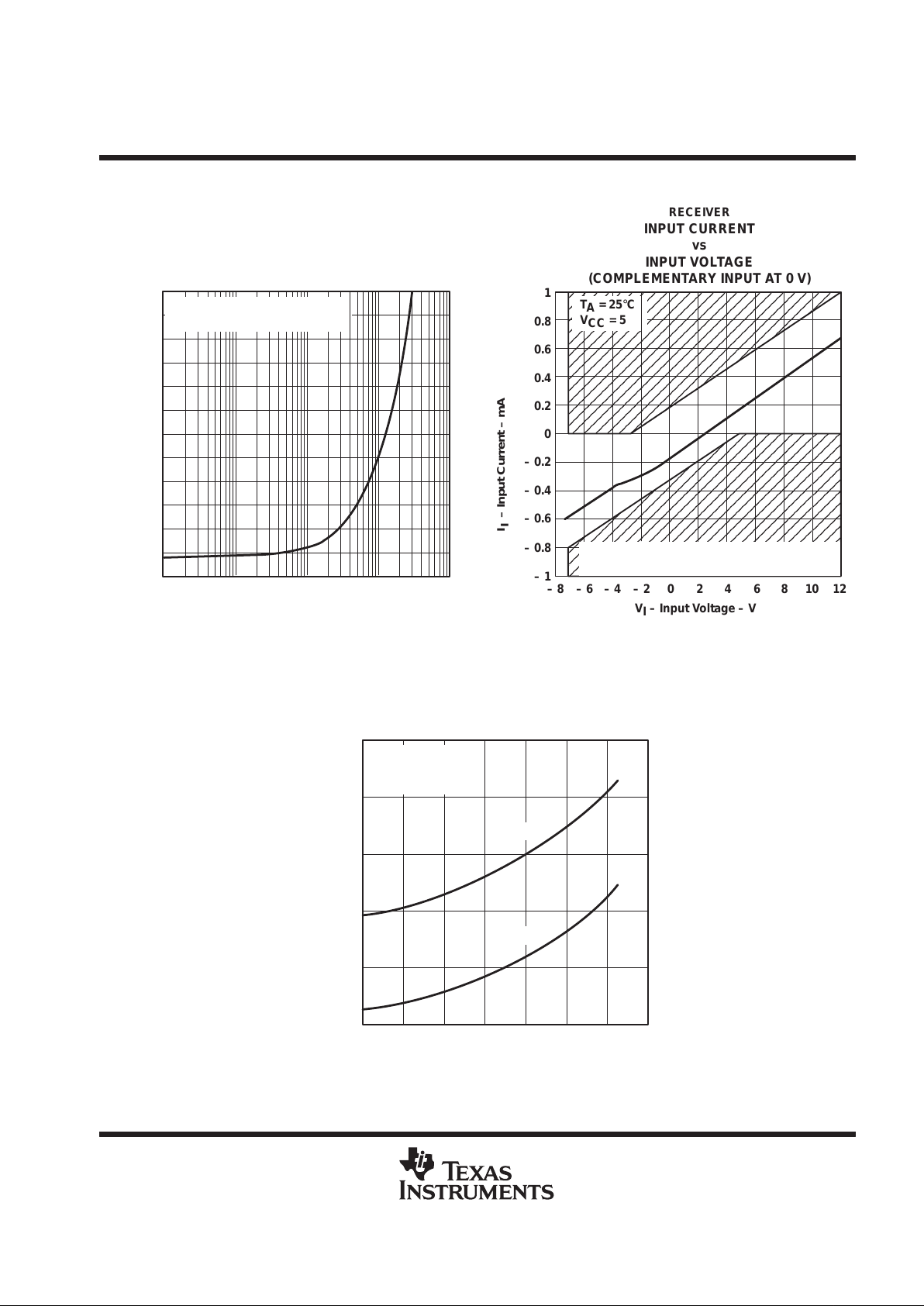

TYPICAL CHARACTERISTICS

40

5

25

15

0

50

30

10 K 100 K 1 M 10 M 100 M

45

10

20

AVERAGE SUPPLY CURRENT

vs

FREQUENCY

35

60
55

– Average Supply Current – mAI

CC

f – Frequency – Hz

– 0.4
– 0.6

– 0.8

– 1

– 8 – 6 – 4 – 2 0 2

– Input Current – mA

– 0.2

0

RECEIVER

INPUT CURRENT

vs

INPUT VOLTAGE

(COMPLEMENTARY INPUT AT 0 V)

0.2

468

10 12

0.4

0.6

0.8

I

I

VI – Input Voltage – V

1

TA = 25°C
VCC = 5 V

The shaded region of this graph represents
more than 1 unit load per RS-485.

Receiver Load = 50 pF
Driver Load = Receiver Inputs

Figure 13 Figure 14

23.5

23

22.5

22

– 40 – 20 0 20 40 60

– Propagation Delay Time – ns

24

24.5

RECEIVER

PROPAGATION DELAY TIME

vs

FREE-AIR TEMPERATURE

80 100

TA – Free-Air Temperature – °C

t

PHL

t

PLH

VCC = 5 V
CL = 15 pF
VIO = ±1.5 V

t

pd

Figure 15

SN75LBC179, SN65LBC179, SN65LBC179Q
LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL INFORMATION

D (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

14 PIN SHOWN

4040047/D 10/96

0.228 (5,80)

0.244 (6,20)

0.069 (1,75) MAX

0.010 (0,25)

0.004 (0,10)

1

14

0.014 (0,35)

0.020 (0,51)

A

0.157 (4,00)

0.150 (3,81)

7

8

0.044 (1,12)

0.016 (0,40)

Seating Plane

0.010 (0,25)

PINS **

0.008 (0,20) NOM

A MIN

A MAX

DIM

Gage Plane

0.189

(4,80)

(5,00)

0.197

8

(8,55)

(8,75)

0.337

14

0.344

(9,80)

16

0.394

(10,00)

0.386

0.004 (0,10)

M

0.010 (0,25)

0.050 (1,27)

0°–8°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion, not to exceed 0.006 (0,15).
D. Falls within JEDEC MS-012

SN75LBC179, SN65LBC179, SN65LBC179Q

LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

SLLS173C – JANUARY 1994 – REVISED JANUARY 2000

11

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL INFORMATION

P (R-PDIP-T8) PLASTIC DUAL-IN-LINE

8

4

0.015 (0,38)
Gage Plane

0.325 (8,26)

0.300 (7,62)

0.010 (0,25) NOM

MAX

0.430 (10,92)

4040082/D 05/98

0.200 (5,08) MAX

0.125 (3,18) MIN

5

0.355 (9,02)

0.020 (0,51) MIN

0.070 (1,78) MAX

0.240 (6,10)

0.260 (6,60)

0.400 (10,60)

1

0.015 (0,38)

0.021 (0,53)

Seating Plane

M

0.010 (0,25)

0.100 (2,54)

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C. Falls within JEDEC MS-001

For the latest package information, go to http://www.ti.com/sc/docs/package/pkg_info.htm

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.

CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERSTOOD T O
BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Copyright  2000, Texas Instruments Incorporated
