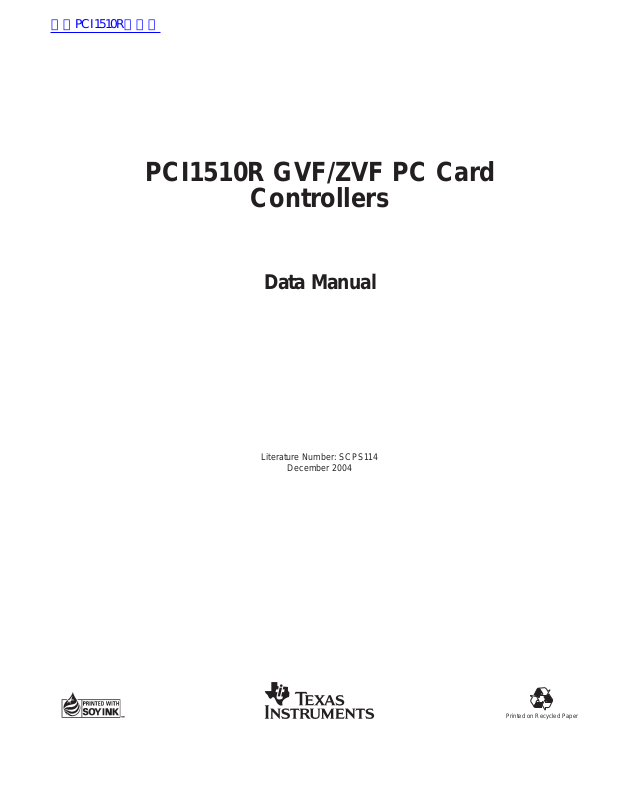

PCI1510R GVF/ZVF PC Card

Controllers

Data Manual

Literature Number: SCPS114

December 2004

Printed on Recycled Pape

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty . Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive

DSP dsp.ti.com Broadband www.ti.com/broadband Interface interface.ti.com Digital Control www.ti.com/digitalcontrol Logic logic.ti.com Military www.ti.com/military Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork Microcontrollers microcontroller.ti.com Security www.ti.com/security

Telephony www.ti.com/telephony Video & Imaging www.ti.com/video Wireless www.ti.com/wireless

Mailing Address: Texas Instruments

Post Office Box 655303 Dallas, Texas 75265

Contents

Section Page

1 PCI1510R Features 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Introduction 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 Controller Functional Description 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Related Documents 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Trademarks 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 Document Conventions 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5 Ordering Information 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6 PCI1510R Data Manual Document History 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.7 Terminal Assignments 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.8 Terminal Descriptions 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Principles of Operation 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Power Supply Sequencing 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 I/O Characteristics 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Clamping Voltages 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4 Peripheral Component Interconnect (PCI) Interface 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.1 PCI GRST Signal 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.2 PCI Bus Lock (LOCK) 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.3 Loading Subsystem Identification 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5 PC Card Applications 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.1 PC Card Insertion/Removal and Recognition 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.2 Parallel Power-Switch Interface (TPS2211A) 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.3 Zoomed Video Support 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.4 Standardized Zoomed-Video Register Model 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.5 Internal Ring Oscillator 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.6 Integrated Pullup Resistors 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.7 SPKROUT and CAUDPWM Usage 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.8 LED Socket Activity Indicators 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5.9 CardBus Socket Registers 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6 Serial-Bus Interface 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.1 Serial-Bus Interface Implementation 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.2 Serial-Bus Interface Protocol 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.3 Serial-Bus EEPROM Application 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6.4 Accessing Serial-Bus Devices Through Software 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7 Programmable Interrupt Subsystem 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.1 PC Card Functional and Card Status Change Interrupts 32 . . . . . . . . . . . . . . . . . . . . . .

3.7.2 Interrupt Masks and Flags 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.3 Using Parallel IRQ Interrupts 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.4 Using Parallel PCI Interrupts 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.5 Using Serialized IRQSER Interrupts 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.6 SMI Support in the Controller 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8 Power Management Overview 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.1 Integrated Low-Dropout Voltage Regulator (LDO-VR) 36 . . . . . . . . . . . . . . . . . . . . . . . .

3.8.2 Clock Run Protocol 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.3 CardBus PC Card Power Management 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.4 16-Bit PC Card Power Management 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.5 Suspend Mode 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.6 Requirements for Suspend Mode 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

December 2004 SCPS114

iii

Contents

Section Page

3.8.7 Ring Indicate 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.8 PCI Power Management 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.9 CardBus Bridge Power Management 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.10 ACPI Support 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8.11 Master List of PME Context Bits and Global Reset-Only Bits 41 . . . . . . . . . . . . . . . . . .

4 PC Card Controller Programming Model 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1 PCI Configuration Registers 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2 Vendor ID Register 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3 Device ID Register 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4 Command Register 45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5 Status Register 46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.6 Revision ID Register 46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7 PCI Class Code Register 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.8 Cache Line Size Register 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.9 Latency Timer Register 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.10 Header Type Register 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.11 BIST Register 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.12 CardBus Socket/ExCA Base-Address Register 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.13 Capability Pointer Register 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.14 Secondary Status Register 49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.15 PCI Bus Number Register 49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.16 CardBus Bus Number Register 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.17 Subordinate Bus Number Register 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.18 CardBus Latency Timer Register 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.19 Memory Base Registers 0, 1 51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.20 Memory Limit Registers 0, 1 51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.21 I/O Base Registers 0, 1 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.22 I/O Limit Registers 0, 1 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.23 Interrupt Line Register 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.24 Interrupt Pin Register 53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.25 Bridge Control Register 54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.26 Subsystem Vendor ID Register 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.27 Subsystem ID Register 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.28 PC Card 16-Bit I/F Legacy-Mode Base Address Register 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.29 System Control Register 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.30 Multifunction Routing Register 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.31 Retry Status Register 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.32 Card Control Register 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.33 Device Control Register 61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.34 Diagnostic Register 62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.35 Capability ID Register 62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.36 Next-Item Pointer Register 62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.37 Power-Management Capabilities Register 63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.38 Power-Management Control/Status Register 64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.39 Power-Management Control/Status Register Bridge Support Extensions 65 . . . . . . . . . . . . . . . . .

4.40 Power-Management Data Register 65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.41 General-Purpose Event Status Register 66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.42 General-Purpose Event Enable Register 67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

December 2004SCPS114

Section Page

4.43 General-Purpose Input Register 68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.44 General-Purpose Output Register 68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.45 Serial-Bus Data Register 69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.46 Serial-Bus Index Register 69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.47 Serial-Bus Slave Address Register 70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.48 Serial-Bus Control and Status Register 71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 ExCA Compatibilty Registers 72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1 ExCA Identification and Revision Register 75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2 ExCA Interface Status Register 76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3 ExCA Power Control Register 77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.4 ExCA Interrupt and General Control Register 78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.5 ExCA Card Status-Change Register 79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.6 ExCA Card Status-Change Interrupt Configuration Register 80 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.7 ExCA Address Window Enable Register 81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.8 ExCA I/O Window Control Register 82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.9 ExCA I/O Windows 0 and 1 Start-Address Low-Byte Registers 83 . . . . . . . . . . . . . . . . . . . . . . . . . .

5.10 ExCA I/O Windows 0 and 1 Start-Address High-Byte Registers 83 . . . . . . . . . . . . . . . . . . . . . . . . .

5.11 ExCA I/O Windows 0 and 1 End-Address Low-Byte Registers 83 . . . . . . . . . . . . . . . . . . . . . . . . . .

5.12 ExCA I/O Windows 0 and 1 End-Address High-Byte Registers 83 . . . . . . . . . . . . . . . . . . . . . . . . . .

5.13 ExCA Memory Windows 0−4 Start-Address Low-Byte Registers 84 . . . . . . . . . . . . . . . . . . . . . . . .

5.14 ExCA Memory Windows 0−4 Start-Address High-Byte Registers 84 . . . . . . . . . . . . . . . . . . . . . . . .

5.15 ExCA Memory Windows 0−4 End-Address Low-Byte Registers 85 . . . . . . . . . . . . . . . . . . . . . . . . .

5.16 ExCA Memory Windows 0−4 End-Address High-Byte Registers 85 . . . . . . . . . . . . . . . . . . . . . . . . .

5.17 ExCA Memory Windows 0−4 Offset-Address Low-Byte Registers 86 . . . . . . . . . . . . . . . . . . . . . . .

5.18 ExCA Memory Windows 0−4 Offset-Address High-Byte Registers 86 . . . . . . . . . . . . . . . . . . . . . . .

5.19 ExCA Card Detect and General Control Register 87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.20 ExCA Global Control Register 88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.21 ExCA I/O Windows 0 and 1 Offset-Address Low-Byte Registers 89 . . . . . . . . . . . . . . . . . . . . . . . .

5.22 ExCA I/O Windows 0 and 1 Offset-Address High-Byte Registers 89 . . . . . . . . . . . . . . . . . . . . . . . .

5.23 ExCA Memory Windows 0−4 Page Registers 89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 CardBus Socket Registers 90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.1 Socket Event Register 91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2 Socket Mask Register 92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3 Socket Present-State Register 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.4 Socket Force Event Register 94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.5 Socket Control Register 96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.6 Socket Power-Management Register 97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Electrical Characteristics 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.1 Absolute Maximum Ratings Over Operating Temperature Ranges 98 . . . . . . . . . . . . . . . . . . . . . . .

7.2 Recommended Operating Conditions 99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.3 Electrical Characteristics Over Recommended Operating Conditions 100 . . . . . . . . . . . . . . . . . . . .

7.4 PCI Clock/Reset Timing Requirements Over Recommended Ranges of Supply Voltage and

Operating Free-Air Temperature 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.5 PCI Timing Requirements Over Recommended Ranges of Supply Voltage and Operating Free-Air

Temperature 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Mechanical Data 102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

December 2004 SCPS114

Figures

List of Figures

Figure Page

2−1 PCI1510R GVF Package Terminal Diagram 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−1 PCI1510R Simplified Block Diagram 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−2 3-State Bidirectional Buffer 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−3 TPS2211A Typical Application 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−4 Zoomed Video Implementation Using the PCI1510R Controller 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−5 Zoomed Video Switching Application 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−6 Sample Application of SPKROUT and CAUDPWM 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−7 Two Sample LED Circuits 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−8 Serial EEPROM Application 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−9 Serial-Bus Start/Stop Conditions and Bit Transfers 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−10 Serial-Bus Protocol Acknowledge 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−11 Serial-Bus Protocol − Byte Write 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−12 Serial-Bus Protocol − Byte Read 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−13 EEPROM Interface Doubleword Data Collection 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−14 IRQ Implementation 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−15 Signal Diagram of Suspend Function 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−16 RI_OUT Functional Diagram 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−17 Block Diagram of a Status/Enable Cell 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−1 ExCA Register Access Through I/O 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−2 ExCA Register Access Through Memory 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−1 Accessing CardBus Socket Registers Through PCI Memory 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

December 2004SCPS114

List of Tables

Table Page

2−1 Signal Names Sorted by GVF Terminal Number 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−2 CardBus PC Card Signal Names Sorted Alphabetically to GVF Terminals 8. . . . . . . . . . . . . . . . . . .

2−3 16-Bit PC Card Signal Names Sorted Alphabetically to GVF Terminals 9. . . . . . . . . . . . . . . . . . . . . .

2−4 Power Supply Terminals 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−5 PC Card Power Switch Terminals 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−6 PCI System Terminals 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−7 PCI Address and Data Terminals 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−8 PCI Interface Control Terminals 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−9 Multifunction and Miscellaneous Terminals 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−10 16-Bit PC Card Address and Data Terminals 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−11 16-Bit PC Card Interface Control Terminals 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−12 CardBus PC Card Interface System Terminals 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−13 CardBus PC Card Address and Data Terminals 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−14 CardBus PC Card Interface Control Terminals 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−1 PC Card Card-Detect and Voltage-Sense Connections 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−2 Zoomed-Video Card Interrogation 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−3 Integrated Pullup Resistors 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−4 CardBus Socket Registers 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−5 Register- and Bit-Loading Map 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−6 PCI1510R Registers Used to Program Serial-Bus Devices 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−7 Interrupt Mask and Flag Registers 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−8 PC Card Interrupt Events and Description 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−9 SMI Control 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−10 Requirements for Internal/External 2.5-V Core Power Supply 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−11 Power-Management Registers 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−1 PCI Configuration Registers 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−2 Bit Field Access Tag Descriptions 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−3 Command Register Description 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−4 Status Register Description 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−5 Secondary Status Register Description 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−6 Bridge Control Register Description 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−7 System Control Register Description 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−8 Multifunction Routing Register Description 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−9 Retry Status Register Description 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−10 Card Control Register Description 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−11 Device Control Register Description 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−12 Diagnostic Register Description 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−13 Power-Management Capabilities Register Description 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−14 Power-Management Control/Status Register Description 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−15 Power-Management Control/Status Register Bridge Support Extensions Description 65. . . . . . . . . .

4−16 General-Purpose Event Status Register Description 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−17 General-Purpose Event Enable Register Description 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−18 General-Purpose Input Register Description 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−19 General-Purpose Output Register Description 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−20 Serial-Bus Data Register Description 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−21 Serial-Bus Index Register Description 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4−22 Serial-Bus Slave Address Register Description 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

December 2004 SCPS114

vii

Tables

Table Page

4−23 Serial-Bus Control and Status Register Description 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−1 ExCA Registers and Offsets 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−2 ExCA Identification and Revision Register Description 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−3 ExCA Interface Status Register Description 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−4 ExCA Power Control Register Description—82365SL Support 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−5 ExCA Power Control Register Description—82365SL-DF Support 77. . . . . . . . . . . . . . . . . . . . . . . . . .

5−6 ExCA Interrupt and General Control Register Description 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−7 ExCA Card Status-Change Register Description 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−8 ExCA Card Status-Change Interrupt Configuration Register Description 80. . . . . . . . . . . . . . . . . . . . .

5−9 ExCA Address Window Enable Register Description 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−10 ExCA I/O Window Control Register Description 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−11 ExCA Memory Windows 0−4 Start-Address High-Byte Registers Description 84. . . . . . . . . . . . . . . .

5−12 ExCA Memory Windows 0−4 End-Address High-Byte Registers Description 85. . . . . . . . . . . . . . . . .

5−13 ExCA Memory Windows 0−4 Offset-Address High-Byte Registers Description 86. . . . . . . . . . . . . . .

5−14 ExCA Card Detect and General Control Register Description 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5−15 ExCA Global Control Register Description 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−1 CardBus Socket Registers 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−2 Socket Event Register Description 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−3 Socket Mask Register Description 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−4 Socket Present-State Register Description 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−5 Socket Force Event Register Description 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−6 Socket Control Register Description 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6−7 Socket Power-Management Register Description 97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

December 2004SCPS114

1 PCI1510R Features

Features

D A 253-Terminal MicroStar BGAE Ball-Grid

Array (GVF/ZVF) Package

D 2.5-V Core Logic and 3.3-V I/O with

Universal PCI Interfaces Compatible with

3.3-V and 5-V PCI Signaling Environments

D Integrated Low-Dropout Voltage Regulator

(LDO-VR) Eliminates the Need for an External 2.5-V Power Supply

D Mix-and-Match 5-V/3.3-V 16-Bit PC Cards

and 3.3-V CardBus Cards

D A Single PC Card or CardBus Slot with Hot

Insertion and Removal

D Parallel Interface to TI TPS2211A

Single-Slot PC Card Power Switch

D Burst Transfers to Maximize Data

Throughput with CardBus Cards

D Interrupt Configurations: Parallel PCI,

Serialized PCI, Parallel ISA, and Serialized ISA

D Serial EEPROM Interface for Loading

Subsystem ID, Subsystem Vendor ID, and other Configuration Registers

D Pipelined Architecture for Greater Than

130-Mbps Throughput from CardBus-to-PCI and from PCI-to-CardBus

D Up to Five General-Purpose I/Os D Programmable Output Select for CLKRUN D Five PCI Memory Windows and Two I/O

Windows Available for the 16-Bit Interface

D Two I/O Windows and Two Memory

Windows Available to the CardBus Socket

D Exchangeable-Card-Architecture- (ExCA-)

Compatible Registers Are Mapped in Memory and I/O Space

D IntelE 82365SL-DF and 82365SL Register

Compatible

D Ring Indicate, SUSPEND, PCI CLKRUN, and

CardBus CCLKRUN

D Socket Activity LED Terminal D PCI Bus Lock (LOCK) D Internal Ring Oscillator

T able 1−1.

Figure 1−1.

MicroStar BGA is a trademark of Texas Instruments. Other trademarks are the property of their respective owners.

December 2004 SCPS114

Introduction

2 Introduction

The Texas Instruments PCI1510R device, a 144-terminal, 209-terminal, or 253-terminal single-slot CardBus controller designed to meet the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges, is an ultralow-power high-performance PCI-to-CardBus controller that supports a single PC card socket compliant with the PC Card Standard (rev. 7.2). The controller provides features that make it the best choice for bridging between PCI and PC Cards in both notebook and desktop computers. The PC Card Standard retains the 16-bit PC Card specification defined in the PCI Local Bus Specification and defines the 32-bit PC Card, CardBus, capable of full 32-bit data transfers at 33 MHz. The controller supports both 16-bit and CardBus PC Cards, powered at 5 V or 3.3 V, as required.

2.1 Controller Functional Description

The controller is compliant with the PCI Local Bus Specification, and its PCI interface can act as either a PCI master device or a PCI slave device. The PCI bus mastering is initiated during CardBus PC Card bridging transactions. The controller is also compliant with PCI Bus Power Management Interface Specification (rev.

1.1). All card signals are internally buffered to allow hot insertion and removal without external buffering. The

controller is register-compatible with the Intel 82365SL-DF and 82365SL ExCA controllers. The controller internal data path logic allows the host to access 8-, 16-, and 32-bit cards using full 32-bit PCI cycles for maximum performance. Independent buffering and a pipeline architecture provide an unsurpassed performance level with sustained bursting. The controller can also be programmed to accept fast posted writes to improve system-bus utilization.

Multiple system-interrupt signaling options are provided, including parallel PCI, parallel ISA, serialized ISA, and serialized PCI. Furthermore, general-purpose inputs and outputs are provided for the board designer to implement sideband functions. Many other features designed into the controller, such as a socket activity light-emitting diode (LED) outputs, are discussed in detail throughout this document.

An advanced complementary metal-oxide semiconductor (CMOS) process achieves low system power consumption while operating at PCI clock rates up to 33 MHz. Several low-power modes enable the host power management system to further reduce power consumption.

2.2 Related Documents

• Advanced Configuration and Power Interface (ACPI) Specification (revision 1.1)

• PCI Bus Power Management Interface Specification (revision 1.1)

• PCI Bus Power Management Interface Specification for PCI to CardBus Bridges (revision 0.6)

• PCI to PCMCIA CardBus Bridge Register Description (Yenta) (revision 2.1)

• PCI Local Bus Specification (revision 2.2)

• PCI Mobile Design Guide (revision 1.0)

• PC Card Standard (revision 7.2)

• Serialized IRQ Support for PCI Systems (revision 6)

2.3 Trademarks

Intel is a trademark of Intel Corporation. TI and MicroStar BGA are trademarks of Texas Instruments. Other trademarks are the property of their respective owners.

December 2004SCPS114

2.4 Document Conventions

Throughout this data manual, several conventions are used to convey information. These conventions are listed below:

1. To identify a binary number or field, a lower case b follows the numbers. For example: 000b is a 3-bit binary field.

2. To identify a hexadecimal number or field, a lower case h follows the numbers. For example: 8AFh is a 12-bit hexadecimal field.

3. All other numbers that appear in this document that do not have either a b or h following the number are assumed to be decimal format.

Introduction

4. If the signal or terminal name has a bar above the name (for example, GRST logical NOT function. When asserted, this signal is a logic low, 0, or 0b.

5. RSVD indicates that the referenced item is reserved.

6. In Sections 4 through 6, the configuration space for the controller is defined. For each register bit, the software access method is identified in an access column. The legend for this access column includes the following entries:

r – read-only access ru – read-only access with updates by the controller internal hardware rw – read and write access rcu – read access with the option to clear an asserted bit with a write-back of 1b including updates

by the controller internal hardware.

2.5 Ordering Information

ORDERING NUMBER NAME VOLTAGE PACKAGE

PCI1510R PC Card controller 3.3 V, 5-V tolerant I/Os 253-ball PBGA (GVF or ZVF)

2.6 PCI1510R Data Manual Document History

DATE PAGE NUMBER REVISION

11/2004 All Initial release

), then this indicates the

2.7 Terminal Assignments

The PCI1510R controller is available in two 253-terminal MicroStar BGA packages (GVF/ZVF). The GVF and ZVF packages are mechanically and electrically identical, but the ZVF is a lead-free (Pb, atomic number

82) design. Throughout the remainder of this manual, only the GVF package designator is used for either the

GVF or ZVF package. The terminal layout for the GVF package is shown in Figure 2−1.

Table 2−1 lists the terminal assignments for the GVF package. The signal names for the PC Card slot are given in a CardBus // 16-bit signal format. Table 2−1 is arranged in order by increasing terminal designator, which is alphanumeric for this package. Table 2−2 and Table 2−3 list the CardBus and 16-bit signal names, respectively, in alphanumerical order with the corresponding terminal number for the package.

December 2004 SCPS114

Introduction

GVF PACKAGE

(TOP VIEW)

NNNN N

NNNNNNNNN

NNNNNNNNN N NNNN

NNNNNN

NNN

N NNN

CCC

NNN N

NNN

NN NNNNNN

PPP

PPPP

PPP

PPPP

ABCDEFGHJKLMNPRTUVW

PCI Interface

PC Card Interface

TPS Power Switch

MFUNC Pins

VCC Ground (GND) Miscellaneous

No Connection

Figure 2−1. PCI1510R GVF Package Terminal Diagram

December 2004SCPS114

Table 2−1. Signal Names Sorted by GVF Terminal Number

TERMINAL

SIGNAL NAME

CARDBUS 16-BIT

A02 CAUDIO BVD2(SPKR) C08 CFRAME A23 A03 CVS1 VS1 C09 CDEVSEL A21 A04 CAD25 A1 C10 CRSVD A18 A05 V A06 CRST RESET C12 CAD11 OE A07 CAD17 A24 C13 CAD7 D7 A08 CTRDY A22 C14 CAD4 D12 A09 CSTOP A20 C15 CCD1 CD1 A10 CAD16 A17 C16 NC NC A11 V A12 CAD9 A10 C18 NC NC A13 CAD5 D6 C19 NC NC A14 CAD2 D11 D01 CAD31 D10 A15 NC NC D02 CRSVD D2 A16 NC NC D03 CAD29 D1 A17 NC NC D17 NC NC A18 NC NC D18 NC NC B01 CAD27 D0 D19 NC NC B02 CSTSCHG BVD1(STSCHG/RI) E01 NC NC B03 CSERR WAIT E02 NC NC B04 CAD26 A0 E03 NC NC B05 CAD23 A3 E05 CCD2 CD2 B06 CAD21 A5 E06 CAD24 A2 B07 CAD18 A7 E07 CREQ INPACK B08 CIRDY A15 E08 CVS2 VS2 B09 CGNT WE E09 CCLK A16 B10 CC/BE1 A8 E10 CBLOCK A19 B11 CAD12 A11 E11 CAD15 IOWR B12 CAD10 CE2 E12 CAD8 D15 B13 CRSVD D14 E13 CAD3 D5 B14 CAD1 D4 E14 CAD0 D3 B15 NC NC E17 NC NC B16 NC NC E18 NC NC B17 NC NC E19 NC NC B18 NC NC F01 NC NC B19 NC NC F02 NC NC C01 CAD30 D9 F03 NC NC C02 CAD28 D8 F09 CC/BE2 A12 C03 CCLKRUN WP(IOIS16) F10 CPERR A14 C04 CINT READY(IREQ) F12 CAD6 D13 C05 CC/BE3 REG F17 NC NC C06 CAD22 A4 F18 NC NC C07 CAD19 A25 F19 NC NC

CCCB

C11 CAD13 IORD

C17 NC NC

CARDBUS 16-BIT

SIGNAL NAME

Introduction

December 2004 SCPS114

Introduction

TERMINAL

Table 2−1. Signal Names Sorted by GVF Terminal Number (Continued)

SIGNAL NAME

CARDBUS 16-BIT

G01 NC NC K12 V G02 NC NC K17 NC NC G03 NC NC K18 NC NC G07 GND GND K19 NC NC G08 GND GND L01 NC NC G09 CAD20 A6 L02 NC NC G10 CPAR A13 L03 NC NC G11 CAD14 A9 L05 VCCD1 VCCD1 G12 CC/BE0 CE1 L06 VCCD0 VCCD0 G13 GND GND L07 SPKROUT SPKROUT G17 NC NC L08 GND GND G18 NC NC L09 GND GND G19 NC NC L10 GND GND H01 NC NC L11 GND GND H02 VR_EN VR_EN L12 GND GND H03 NC NC L17 NC NC H08 V H09 V H10 V H11 V H12 V H13 GND GND M05 MFUNC1 MFUNC1 H17 NC NC M07 V H18 NC NC M08 GND GND H19 NC NC M09 V

J01 NC NC M10 V J02 NC NC M12 V J03 NC NC M17 NC NC J08 V J09 GND GND M19 VR_PORT VR_PORT J10 GND GND N01 VPPD1 VPPD1 J11 GND GND N02 VPPD0 VPPD0 J12 V J17 NC NC N05 MFUNC5 MFUNC5 J18 NC NC N07 V

J19 NC NC N08 DEVSEL DEVSEL K01 NC NC N09 AD12 AD12 K02 NC NC N10 AD8 AD8 K03 NC NC N11 AD1 AD1 K08 V K09 GND GND N18 NC NC K10 GND GND N19 NC NC

K11 GND GND P01 MFUNC2 MFUNC2

CC CC CC CC CC

L18 NC NC

L19 NC NC M01 NC NC M02 NC NC M03 NC NC

M18 NC NC

N03 MFUNC0 MFUNC0

N17 NC NC

CARDBUS 16-BIT

CC CC CC

SIGNAL NAME

December 2004SCPS114

Table 2−1. Signal Names Sorted by GVF Terminal Number (Continued)

TERMINAL

SIGNAL NAME

CARDBUS 16-BIT

P02 MFUNC3 MFUNC3 U16 NC NC P03 MFUNC4 MFUNC4 U17 NC NC P05 PCLK PCLK U18 NC NC P06 AD20 AD20 U19 NC NC P09 PAR PAR V01 AD30 AD30 P17 NC NC V02 AD29 AD29 P18 NC NC V03 AD26 AD26 P19 NC NC V04 AD24 AD24 R01 MFUNC6 MFUNC6 V05 AD23 AD23 R02 SUSPEND SUSPEND V06 AD18 AD18 R03 PRST PRST V07 FRAME FRAME R06 AD21 AD21 V08 PERR PERR R07 AD16 AD16 V09 AD15 AD15 R08 TRDY TRDY V10 AD11 AD11 R09 AD13 AD13 V11 AD7 AD7 R10 AD9 AD9 V12 AD3 AD3 R11 AD5 AD5 V13 NC NC R17 NC NC V14 NC NC R18 NC NC V15 NC NC R19 NC NC V16 NC NC T01 GRST GRST V17 NC NC T02 GNT GNT V18 NC NC T03 RI_OUT/PME RI_OUT/PME V19 NC NC T17 NC NC W02 AD27 AD27 T18 NC NC W03 V T19 NC NC W04 C/BE3 C/BE3 U01 REQ REQ W05 IDSEL IDSEL U02 AD31 AD31 W06 AD19 AD19 U03 AD28 AD28 W07 C/BE2 C/BE2 U04 AD25 AD25 W08 STOP STOP U05 AD22 AD22 W09 C/BE1 C/BE1 U06 AD17 AD17 W10 V U07 IRDY IRDY W11 C/BE0 C/BE0 U08 SERR SERR W12 AD4 AD4 U09 AD14 AD14 W13 AD0 AD0 U10 AD10 AD10 W14 NC NC U11 AD6 AD6 W15 NC NC U12 AD2 AD2 W16 NC NC U13 NC NC W17 NC NC U14 NC NC W18 NC NC U15 NC NC

CARDBUS 16-BIT

CCP

SIGNAL NAME

CCP

Introduction

December 2004 SCPS114

Introduction

Table 2−2. CardBus PC Card Signal Names Sorted Alphabetically to GVF Terminals

SIGNAL NAME TERMINAL SIGNAL NAME TERMINAL SIGNAL NAME TERMINAL

AD0 W13 CAD11 C12 CREQ E07 AD1 N11 CAD12 B11 CRST A06 AD2 U12 CAD13 C11 CRSVD B13 AD3 V12 CAD14 G11 CRSVD C10 AD4 W12 CAD15 E11 CRSVD D02 AD5 R11 CAD16 A10 CSERR B03 AD6 U11 CAD17 A07 CSTOP A09 AD7 V11 CAD18 B07 CSTSCHG B02 AD8 N10 CAD19 C07 CTRDY A08 AD9 R10 CAD20 G09 CVS1 A03 AD10 U10 CAD21 B06 CVS2 E08 AD11 V10 CAD22 C06 DEVSEL N08 AD12 N09 CAD23 B05 FRAME V07 AD13 R09 CAD24 E06 GNT T02 AD14 U09 CAD25 A04 GRST T01 AD15 V09 CAD26 B04 IDSEL W05 AD16 R07 CAD27 B01 IRDY U07 AD17 U06 CAD28 C02 MFUNC0 N03 AD18 V06 CAD29 D03 MFUNC1 M05 AD19 W06 CAD30 C01 MFUNC2 P01 AD20 P06 CAD31 D01 MFUNC3 P02 AD21 R06 CAUDIO A02 MFUNC4 P03 AD22 U05 C/BE0 W11 MFUNC5 N05 AD23 V05 C/BE1 W09 MFUNC6 R01 AD24 V04 C/BE2 W07 PAR P09 AD25 U04 C/BE3 W04 PCLK P05 AD26 V03 CBLOCK E10 PERR V08 AD27 W02 CC/BE0 G12 PRST R03 AD28 U03 CC/BE1 B10 REQ U01 AD29 V02 CC/BE2 F09 RI_OUT/PME T03 AD30 V01 CC/BE3 C05 SERR U08 AD31 U02 CCD1 C15 SPKROUT L07 CAD0 E14 CCD2 E05 STOP W08 CAD1 B14 CCLK E09 SUSPEND R02 CAD2 A14 CCLKRUN C03 TRDY R08 CAD3 E13 CDEVSEL C09 VCCD0 L06 CAD4 C14 CFRAME C08 VCCD1 L05 CAD5 A13 CGNT B09 VPPD0 N02 CAD6 F12 CINT C04 VPPD1 N01 CAD7 C13 CIRDY B08 VR_EN H02 CAD8 E12 CLK_48_RSVD — VR_PORT M19 CAD9 A12 CPAR G10 CAD10 B12 CPERR F10

December 2004SCPS114

Introduction

Table 2−3. 16-Bit PC Card Signal Names Sorted Alphabetically to GVF Terminals

SIGNAL NAME TERMINAL SIGNAL NAME TERMINAL SIGNAL NAME TERMINAL

AD0 W13 A11 B11 FRAME V07 AD1 N11 A12 F09 GNT T02 AD2 U12 A13 G10 GRST T01 AD3 V12 A14 F10 IDSEL W05 AD4 W12 A15 B08 INPACK E07 AD5 R11 A16 E09 IORD C11 AD6 U11 A17 A10 IOWR E11 AD7 V11 A18 C10 IRDY U07 AD8 N10 A19 E10 MFUNC0 N03 AD9 R10 A20 A09 MFUNC1 M05 AD10 U10 A21 C09 MFUNC2 P01 AD11 V10 A22 A08 MFUNC3 P02 AD12 N09 A23 C08 MFUNC4 P03 AD13 R09 A24 A07 MFUNC5 N05 AD14 U09 A25 C07 MFUNC6 R01 AD15 V09 BVD1(STSCHG/RI) B02 OE C12 AD16 R07 BVD2(SPKR) A02 PAR P09 AD17 U06 C/BE0 W11 PCLK P05 AD18 V06 C/BE1 W09 PERR V08 AD19 W06 C/BE2 W07 PRST R03 AD20 P06 C/BE3 W04 READY(IREQ) C04 AD21 R06 CD1 C15 REG C05 AD22 U05 CD2 E05 REQ U01 AD23 V05 CE1 G12 RESET A06 AD24 V04 CE2 B12 RI_OUT/PME T03 AD25 U04 CLK_48_RSVD — SERR U08 AD26 V03 DEVSEL N08 SPKROUT L07 AD27 W02 D0 B01 STOP W08 AD28 U03 D1 D03 SUSPEND R02 AD29 V02 D2 D02 TRDY R08 AD30 V01 D3 E14 VCCD0 L06 AD31 U02 D4 B14 VCCD1 L05 A0 B04 D5 E13 VPPD0 N02 A1 A04 D6 A13 VPPD1 N01 A2 E06 D7 C13 VR_EN H02 A3 B05 D8 C02 VR_PORT M19 A4 C06 D9 C01 VS1 A03 A5 B06 D10 D01 VS2 E08 A6 G09 D11 A14 WAIT B03 A7 B07 D12 C14 WE B09 A8 B10 D13 F12 WP(IOIS16) C03 A9 G11 D14 B13 A10 A12 D15 E12

December 2004 SCPS114

Introduction

I/O

DESCRIPTION

I/O

DESCRIPTION

I/O

DESCRIPTION

2.8 Terminal Descriptions

The terminals are grouped in tables by functionality, such as PCI system function, power-supply function, etc. The terminal numbers are also listed for convenient reference.

Table 2−4. Power Supply T erminals

TERMINAL

NAME NUMBER

G07, G08, G13,

H13, J09, J10,

GND

CCCB

CCP

VR_EN H02 I Internal voltage regulator enable. Active-low

VR_PORT M19

J11, K09, K10, K11, L08, L09, L10, L11, L12,

M08

H08, H09, H10, H11, H12, J08,

J12, K08, K12,

M07, M09, M10,

M12, N07

A05, A11 Clamp voltage for PC Card interface. Matches card signaling environment, 5 V or 3.3 V

W03, W10 Clamp voltage for PCI and miscellaneous I/O, 5 V or 3.3 V

Device ground terminals

Power supply terminals for I/O and internal voltage regulator

Internal voltage regulator input/output. When VR_EN is low, the regulator is enabled and this terminal is an output. An external bypass capacitor is required on this terminal. When VR_EN high, the regulator is disabled and this terminal is an input for an external 2.5 V core power source.

TERMINAL

NAME NUMBER

VCCD0 VCCD1

VPPD0 VPPD1

TERMINAL

NAME NUMBER

GRST T01 I

PCLK P05 I

PRST R03 I

L06 L05

N02 N01

Table 2−5. PC Card Power Switch T erminals

O Logic controls to the TPS2211A PC Card power interface switch to control AVCC

O Logic controls to the TPS2211A PC Card power interface switch to control AVPP

Table 2−6. PCI System T erminals

Global reset. When the global reset is asserted, the GRST signal causes the controller to place all output buffers in a high-impedance state and reset all internal registers. When GRST completely in its default state. For systems that require wake-up from D3, GRST during initial boot. PRST transition from D3 to D0.

When the SUSPEND preserved. All outputs are placed in a high-impedance state.

PCI bus clock. PCLK provides timing for all transactions on the PCI bus. All PCI signals are sampled at the rising edge of PCLK.

PCI bus reset. When the PCI bus reset is asserted, PRST causes the controller to place all output buffers in a high-impedance state and reset internal registers. When PRST

signal only if it is enabled. After PRST is deasserted, the controller is in a default state.

PME When the SUSPEND

preserved. All outputs are placed in a high-impedance state.

must be asserted following initial boot so that PME context is retained during the

mode is enabled, the device is protected from GRST, and the internal registers are

is asserted, the device can generate the

mode is enabled, the device is protected from PRST, and the internal registers are

is asserted, the device is

normally is asserted only

December 2004SCPS114

TERMINAL

I/O

DESCRIPTION

NAME NUMBER

AD31 AD30 AD29 AD28 AD27 AD26 AD25 AD24 AD23 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 AD13 AD12 AD11 AD10

AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0

C/BE3 C/BE2 C/BE1 C/BE0

PAR P09 I/O

U02 V01 V02 U03

W02

V03 U04 V04 V05 U05 R06 P06

W06

V06 U06 R07 V09 U09 R09 N09 V10 U10 R10 N10 V11 U11 R11

W12

V12 U12 N11

W13 W04

W07 W09 W11

Table 2−7. PCI Address and Data Terminals

PCI address/data bus. These signals make up the multiplexed PCI address and data bus on the primary interface. During the address phase of a primary-bus PCI cycle, AD31–AD0 contain a 32-bit address or

I/O

other destination information. During the data phase, AD31–AD0 contain data.

PCI-bus commands and byte enables. These signals are multiplexed on the same PCI terminals. During the address phase of a primary-bus PCI cycle, C/BE3 this 4-bit bus is used as a byte enable. The byte enable determines which byte paths of the full 32-bit data

I/O

bus carry meaningful data. C/BE0 applies to byte 0 (AD7–AD0), C/BE1 applies to byte 1 (AD15–AD8), C/BE2

applies to byte 2 (AD23–AD16), and C/BE3 applies to byte 3 (AD31–AD24).

PCI-bus parity. In all PCI-bus read and write cycles, the controller calculates even parity across the AD31–AD0 and C/BE3 indicator with a one-PCLK delay. As a target during PCI cycles, the controller compares its calculated parity to the parity indicator of the initiator. A compare error results in the assertion of a parity error (PERR).

–C/BE0 buses. As an initiator during PCI cycles, the controller outputs this parity

–C/BE0 define the bus command. During the data phase,

Introduction

December 2004 SCPS114

Introduction

I/O

DESCRIPTION

Table 2−8. PCI Interface Control Terminals

TERMINAL

NAME NUMBER

PCI device select. The controller asserts DEVSEL to claim a PCI cycle as the target device. As a PCI initiator

DEVSEL N08 I/O

FRAME V07 I/O

GNT T02 I

IDSEL W05 I

IRDY U07 I/O

PERR V08 I/O REQ U01 O PCI bus request. REQ is asserted by the controller to request access to the PCI bus as an initiator.

SERR U08 O

STOP W08 I/O

TRDY R08 I/O

on the bus, the controller monitors DEVSEL occurs, then the controller terminates the cycle with an initiator abort.

PCI cycle frame. FRAME is driven by the initiator of a bus cycle. FRAME is asserted to indicate that a bus transaction is beginning, and data transfers continue while this signal is asserted. When FRAME deasserted, the PCI bus transaction is in the final data phase.

PCI bus grant. GNT is driven by the PCI bus arbiter to grant the controller access to the PCI bus after the current data transaction has completed. GNT PCI bus parking algorithm.

Initialization device select. IDSEL selects the controller during configuration space accesses. IDSEL can be connected to one of the upper 24 PCI address lines on the PCI bus.

PCI initiator ready. IRDY indicates the ability of the PCI bus initiator to complete the current data phase of the transaction. A data phase is completed on a rising edge of PCLK where both IRDY asserted. Until IRDY

PCI parity error indicator. PERR is driven by a PCI device to indicate that calculated parity does not match PAR when PERR

PCI system error. SERR is an output that is pulsed from the controller when enabled through bit 8 of the command register (PCI offset 04h, see Section 4.4) indicating a system error has occurred. The controller need not be the target of the PCI cycle to assert this signal. When SERR is enabled in the command register , this signal also pulses, indicating that an address parity error has occurred on a CardBus interface.

PCI cycle stop signal. STOP is driven by a PCI target to request the initiator to stop the current PCI bus transaction. STOP support burst data transfers.

PCI target ready. TRDY indicates the ability of the primary bus target to complete the current data phase of the transaction. A data phase is completed on a rising edge of PCLK when both IRDY Until both IRDY

and TRDY are both sampled asserted, wait states are inserted.

is enabled through bit 6 of the command register (PCI offset 04h, see Section 4.4).

is used for target disconnects and is commonly asserted by target devices that do not

and TRDY are asserted, wait states are inserted.

until a target responds. If no target responds before timeout

may or may not follow a PCI bus request, depending on the

and TRDY are

and TRDY are asserted.

December 2004SCPS114

Table 2−9. Multifunction and Miscellaneous Terminals

I/O

DESCRIPTION

TERMINAL

NAME NUMBER

MFUNC0 N03 I/O

MFUNC1 M05 I/O

MFUNC2 P01 I/O

MFUNC3/ IRQSER

MFUNC4 P03 I/O

MFUNC5 N05 I/O

MFUNC6/ CLKRUN

RI_OUT / PME T03 O

SPKROUT L07 O

SUSPEND R02 I

P02 I/O

R01 I/O

Introduction

Multifunction terminal 0. MFUNC0 can be configured as parallel PCI interrupt INTA, GPI0, GPO0, socket activity LED output, ZV switching output, CardBus audio PWM, GPE Section 4.30, Multifunction Routing Register, for configuration details.

Multifunction terminal 1. MFUNC1 can be configured as GPI1, GPO1, socket activity LED output, D3_STAT Multifunction Routing Register, for configuration details.

Serial data (SDA). When VCCD0 and VCCD1 are detected high after a global reset, the MFUNC1 terminal provides the SDA signaling for the serial bus interface. The two-terminal serial interface loads the subsystem identification and other register defaults from an EEPROM after a global reset. See Section 3.6.1, Serial Bus Interface Implementation, for details on other serial bus applications.

Multifunction terminal 2. MFUNC2 can be configured as GPI2, GPO2, socket activity LED output, ZV switching output, CardBus audio PWM, GPE Multifunction Routing Register, for configuration details.

Multifunction terminal 3. MFUNC3 can be configured as a parallel IRQ or the serialized interrupt signal IRQSER. This terminal is IRQSER by default. See Section 4.30, Multifunction Routing Register, for configuration details.

Multifunction terminal 4. MFUNC4 can be configured as PCI LOCK, GPI3, GPO3, socket activity LED output, ZV switching output, CardBus audio PWM, GPE Section 4.30, Multifunction Routing Register, for configuration details.

Serial clock (SCL). When VCCD0 terminal provides the SCL signaling for the serial bus interface. The two-terminal serial interface loads the subsystem identification and other register defaults from an EEPROM after a global reset. See Section 3.6.1, Serial Bus Interface Implementation, for details on other serial bus applications.

Multifunction terminal 5. MFUNC5 can be configured as GPI4, GPO4, socket activity LED output, ZV switching output, CardBus audio PWM, D3_STAT Multifunction Routing Register, for configuration details.

Multifunction terminal 6. MFUNC6 can be configured as a PCI CLKRUN or a parallel IRQ. See Section 4.30, Multifunction Routing Register, for configuration details.

Ring indicate out and power management event output. Terminal provides an output for ring- indicate or PME

Speaker output. SPKROUT is the output to the host system that can carry SPKR or CAUDIO through the controller from the PC Card interface. SPKROUT is driven as the exclusive-OR combination of card SPKR//CAUDIO inputs.

Suspend. SUSPEND protects the internal registers from clearing when the GRST or PRST signal is asserted. See Section 3.8.5, Suspend Mode, for details.

, ZV switching output, CardBus audio PWM, GPE, or a parallel IRQ. See Section 4.30,

, RI_OUT, D3_ST AT, or a parallel IRQ. See Section 4.30,

, D3_STAT, RI_OUT, or a parallel IRQ. See

and VCCD1 are detected high after a global reset, the MFUNC4

, GPE, or a parallel IRQ. See Section 4.30,

signals.

, or a parallel IRQ. See

December 2004 SCPS114

Introduction

I/O

DESCRIPTION

TERMINAL

NAME NUMBER

A25 A24 A23 A22 A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 D14 D13 D12

D11

D10

D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

C07 A07 C08 A08 C09 A09 E10 C10 A10 E09 B08 F10 G10 F09 B11 A12 G11 B10 B07 G09 B06 C06 B05 E06 A04 B04

E12 B13 F12 C14 A14 D01 C01 C02 C13 A13 E13 B14 E14 D02 D03 B01

Table 2−10. 16-Bit PC Card Address and Data Terminals

O PC Card address. 16-bit PC Card address lines. A25 is the most significant bit.

I/O PC Card data. 16-bit PC Card data lines. D15 is the most significant bit.

December 2004SCPS114

TERMINAL

I/O

DESCRIPTION

NAME NUMBER

BVD1 (STSCHG

BVD2(SPKR) A02

CD1 CD2

CE1 CE2

INPACK E07

IORD C11

IOWR E11

OE C12

READY (IREQ

REG C05

RESET A06 VS1 VS2

WAIT B03

/RI)

)

B02

C15 E05

G12 B12

C04

A03 E08

Table 2−11. 16-Bit PC Card Interface Control Terminals

Battery voltage detect 1. BVD1 is generated by 16-bit memory PC Cards that include batteries. BVD1 is used with BVD2 as an indication of the condition of the batteries on a memory PC Card. Both BVD1 and BVD2 are high when the battery is good. When BVD2 is low and BVD1 is high, the battery is weak and must be replaced. When BVD1 is low, the battery is no longer serviceable and the data in the memory PC Card is lost. See Section 5.6, ExCA Card Status-Change Interrupt Configuration Register,

for enable bits. See Section 5.5, ExCA Card Status-Change Register, and Section 5.2, ExCA Interface Status Register, for the status bits for this signal.

Status change. STSCHG battery voltage dead condition of a 16-bit I/O PC Card.

Ring indicate. RI Battery voltage detect 2. BVD2 is generated by 16-bit memory PC Cards that include batteries. BVD2

is used with BVD1 as an indication of the condition of the batteries on a memory PC Card. Both BVD1 and BVD2 are high when the battery is good. When BVD2 is low and BVD1 is high, the battery is weak and must be replaced. When BVD1 is low, the battery is no longer serviceable and the data in the memory PC Card is lost. See Section 5.6, ExCA Card Status-Change Interrupt Configuration Register,

for enable bits. See Section 5.5, ExCA Card Status-Change Register, and Section 5.2, ExCA Interface Status Register, for the status bits for this signal.

Speaker. SPKR configured for the 16-bit I/O interface.

Card detect 1 and card detect 2. CD1 and CD2 are internally connected to ground on the PC Card.

When a PC Card is inserted into a socket, CD1 Section 5.2, ExCA Interface Status Register.

Card enable 1 and card enable 2. CE1 and CE2 enable even- and odd-numbered address bytes. CE1

enables even-numbered address bytes, and CE2 enables odd-numbered address bytes. Input acknowledge. INPACK is asserted by the PC Card when it can respond to an I/O read cycle at

the current address. I/O read. IORD is asserted by the controller to enable 16-bit I/O PC Card data output during host I/O

read cycles. I/O write. IOWR is driven low by the controller to strobe write data into 16-bit I/O PC Cards during host

I/O write cycles. Output enable. OE is driven low by the controller to enable 16-bit memory PC Card data output during

host memory read cycles. Ready. The ready function is provided by READY when the 16-bit PC Card and the host socket are

configured for the memory-only interface. READY is driven low by the 16-bit memory PC Cards to indicate that the memory card circuits are busy processing a previous write command. READY is driven high when the 16-bit memory PC Card is ready to accept a new data transfer command.

Interrupt request. IREQ 16-bit I/O PC Card requires service by the host software. IREQ is requested.

Attribute memory select. REG remains high for all common memory accesses. When REG is asserted, access is limited to attribute memory (OE

I/O

active). Attribute memory is a separately accessed section of card memory and is generally

IOWR used to record card capacity and other configuration and attribute information.

PC Card reset. RESET forces a hard reset to a 16-bit PC Card. Voltage sense 1 and voltage sense 2. VS1 and VS2, when used in conjunction with each other,

determine the operating voltage of the PC Card. Bus cycle wait. WAIT is driven by a 16-bit PC Card to extend the completion of the memory or I/O in

progress.

is used by 16-bit modem cards to indicate a ring detection.

is an optional binary audio signal available only when the card and socket have been

is used to alert the system to a change in the READY, write protect, or

and CD2 are pulled low. For signal status, see

is asserted by a 16-bit I/O PC Card to indicate to the host that a device on the

is high (deasserted) when no interrupt

or WE active) and to the I/O space (IORD or

Introduction

December 2004 SCPS114

Introduction

I/O

DESCRIPTION

I/O

DESCRIPTION

Table 2−11. 16-Bit PC Card Interface Control Terminals (Continued)

TERMINAL

NAME NUMBER

WE B09 O

WP (IOIS16

)

TERMINAL

NAME NUMBER

CCLK E09 O

CCLKRUN C03 I/O

CRST A06 O

C03 I

Write enable. WE is used to strobe memory write data into 16-bit memory PC Cards. WE is also used for memory PC Cards that employ programmable memory technologies.

Write protect. WP applies to 16-bit memory PC Cards. WP reflects the status of the write-protect switch on 16-bit memory PC Cards. For 16-bit I/O cards, WP is used for the 16-bit port (IOIS16

I/O is 16 bits. IOIS16 address on the bus corresponds to an address to which the 16-bit PC Card responds, and the I/O port that is addressed is capable of 16-bit accesses.

applies to 16-bit I/O PC Cards. IOIS16 is asserted by the 16-bit PC Card when the

) function.

Table 2−12. CardBus PC Card Interface System Terminals

CardBus clock. CCLK provides synchronous timing for all transactions on the CardBus interface. All signals except CRST sampled on the rising edge of CCLK, and all timing parameters are defined with the rising edge of this signal. CCLK operates at the PCI bus clock frequency, but it can be stopped in the low state or slowed down for power savings.

CardBus clock run. CCLKRUN is used by a CardBus PC Card to request an increase in the CCLK frequency, and by the controller to indicate that the CCLK frequency is going to be decreased.

CardBus reset. CRST brings CardBus PC Card-specific registers, sequencers, and signals to a known state. When CRST the controller drives these signals to a valid logic level. Assertion can be asynchronous to CCLK, but deassertion must be synchronous to CCLK.

, CCLKRUN, CINT, CSTSCHG, CAUDIO, CCD2, CCD1, CVS2, and CVS1 are

is asserted, all CardBus PC Card signals are placed in a high-impedance state, and

December 2004SCPS114

TERMINAL

I/O

DESCRIPTION

NAME NUMBER

CAD31 CAD30 CAD29 CAD28 CAD27 CAD26 CAD25 CAD24 CAD23 CAD22 CAD21 CAD20 CAD19 CAD18 CAD17 CAD16 CAD15 CAD14 CAD13 CAD12 CAD11 CAD10 CAD9 CAD8 CAD7 CAD6 CAD5 CAD4 CAD3 CAD2 CAD1 CAD0

CC/BE3 CC/BE2 CC/BE1 CC/BE0

CPAR G10 I/O

D01 C01 D03 C02 B01 B04 A04 E06 B05 C06 B06 G09 C07 B07 A07 A10 E11 G11 C11 B11 C12 B12 A12 E12 C13 F12 A13 C14 E13 A14 B14 E14

C05 F09 B10 G12

I/O

Introduction

Table 2−13. CardBus PC Card Address and Data Terminals

CardBus address and data. These signals make up the multiplexed CardBus address and data bus on the CardBus interface. During the address phase of a CardBus cycle, CAD31–CAD0 contain a 32-bit address. During the data phase of a CardBus cycle, CAD31–CAD0 contain data. CAD31 is the most significant bit.

CardBus bus commands and byte enables. CC/BE3–CC/BE0 are multiplexed on the same CardBus terminals. During the address phase of a CardBus cycle, CC/BE3 During the data phase, this 4-bit bus is used as a byte enable. The byte enable determines which byte paths of the full 32-bit data bus carry meaningful data. CC/BE0 applies to byte 0 (CAD7–CAD0), CC/BE1 applies to byte 1 (CAD15–CAD8), CC/BE2 applies to byte 2 (CAD23–CAD16), and CC/BE3 applies to byte (CAD31–CAD24).

CardBus parity. In all CardBus read and write cycles, the controller calculates even parity across the CAD and CC/BE delay. As a target during CardBus cycles, the controller compares its calculated parity to the parity indicator of the initiator; a compare error results in a parity error assertion.

buses. As an initiator during CardBus cycles, the controller outputs CPAR with a one-CCLK

–CC/BE0 define the bus command.

December 2004 SCPS114

Introduction

I/O

DESCRIPTION

Table 2−14. CardBus PC Card Interface Control Terminals

TERMINAL

NAME NUMBER

CAUDIO A02 I CBLOCK E10 I/O CardBus lock. CBLOCK is used to gain exclusive access to a target.

CCD1 CCD2

CDEVSEL C09 I/O

CFRAME C08 I/O

CGNT B09 O

CINT C04 I

CIRDY B08 I/O

CPERR F10 I/O

CREQ E07 I

CSERR B03 I

CSTOP A09 I/O

CSTSCHG B02 I

CTRDY A08 I/O

CVS1 CVS2

C15 E05

A03 E08

CardBus audio. CAUDIO is a digital input signal from a PC Card to the system speaker. The controller supports the binary audio mode and outputs a binary signal from the card to SPKROUT.

CardBus detect 1 and CardBus detect 2. CCD1 and CCD2 are used in conjunction with CVS1 and CVS2

to identify card insertion and interrogate cards to determine the operating voltage and card type. CardBus device select. The controller asserts CDEVSEL to claim a CardBus cycle as the target device.

As a CardBus initiator on the bus, the controller monitors CDEVSEL responds before timeout occurs, then the controller terminates the cycle with an initiator abort.

CardBus cycle frame. CFRAME is driven by the initiator of a CardBus bus cycle. CFRAME is asserted to indicate that a bus transaction is beginning, and data transfers continue while this signal is asserted.

When CFRAME CardBus bus grant. CGNT is driven by the controller to grant a CardBus PC Card access to the CardBus

bus after the current data transaction has been completed. CardBus interrupt. CINT is asserted low by a CardBus PC Card to request interrupt servicing from the

host. CardBus initiator ready. CIRDY indicates the ability of the CardBus initiator to complete the current data

phase of the transaction. A data phase is completed on a rising edge of CCLK when both CIRDY CTRDY

CardBus parity error. CPERR reports parity errors during CardBus transactions, except during special cycles. It is driven low by a target two clocks following the data cycle during which a parity error is detected.

CardBus request. CREQ indicates to the arbiter that the CardBus PC Card desires use of the CardBus bus as an initiator.

CardBus system error. CSERR reports address parity errors and other system errors that could lead to catastrophic results. CSERR pullup; deassertion may take several CCLK periods. The controller can report CSERR assertion of SERR

CardBus stop. CSTOP is driven by a CardBus target to request the initiator to stop the current CardBus transaction. CSTOP not support burst data transfers.

CardBus status change. CSTSCHG alerts the system to a change in the card status, and is used as a wake-up mechanism.

CardBus target ready. CTRDY indicates the ability of the CardBus target to complete the current data phase of the transaction. A data phase is completed on a rising edge of CCLK, when both CIRDY CTRDY

CardBus voltage sense 1 and CardBus voltage sense 2. CVS1 and CVS2 are used in conjunction with CCD1

I/O

and CCD2 to identify card insertion and interrogate cards to determine the operating voltage and

card type.

is deasserted, the CardBus bus transaction is in the final data phase.

are asserted. Until CIRDY and CTRDY are both sampled asserted, wait states are inserted.

is driven by the card synchronous to CCLK, but deasserted by a weak

on the PCI interface.

is used for target disconnects, and is commonly asserted by target devices that do

are asserted; until this time, wait states are inserted.

until a target responds. If no target

and

to the system by

and

December 2004SCPS114

3 Principles of Operation

The following sections give an overview of the PCI1510R controller. Figure 3−1 shows a simplified block diagram of the controller. The PCI interface includes all address/data and control signals for PCI protocol. The interrupt interface includes terminals for parallel PCI, parallel ISA, and serialized PCI and ISA signaling. Miscellaneous system interface terminals include multifunction terminals: SUSPEND management control signal), and SPKROUT.

PCI Bus

Activity LED

Principles of Operation

, RI_OUT/PME (power

INTA

Interrupt

Controller

TPS2211A

Power Switch

PC Card

Socket

External ZV Port

NOTE: The PC Card interface is 68 terminals for CardBus and 16-bit PC Cards. In ZV mode, 23 terminals are used for routing the ZV signals

to the VGA controller and audio subsystem.

PCI1510R

IRQSER

Multiplexer

PCI950

IRQSER

Deserializer

Zoomed Video

IRQ2−15

VGA

Controller

Audio

Subsystem

Figure 3−1. PCI1510R Simplified Block Diagram

3.1 Power Supply Sequencing

The controller contains 3.3-V I/O buffers with 5-V tolerance requiring an I/O power supply and an LDO-VR power supply for core logic. The core power supply, which is always 2.5 V, can be supplied through the VR_PORT terminal (when VR_EN supply via the V

terminals. The clamping voltages (V

on the interface. The following power-up and power-down sequences are recommended.

is high) or from the integrated LDO-VR. The LDO-VR needs a 3.3-V power

CCCB

and V

) can be either 3.3 V or 5 V , depending

CCP

The power-up sequence is:

1. Assert GRST

to the device to disable the outputs during power up. Output drivers must be powered up in the high-impedance state to prevent high current levels through the clamp diodes to the 5-V clamping rails (V

2. Apply 3.3-V power to V

CCCB

and V

CCP

3. Apply the clamp voltage.

December 2004 SCPS114

Principles of Operation

The power-down sequence is:

1. Assert GRST

to the device to disable the outputs during power down. Output drivers must be powered down in the high-impedance state to prevent high current levels through the clamp diodes to the 5-V clamping rails (V

CCCB

2. Remove the clamp voltage.

3. Remove the 3.3-V power from V NOTE: The clamp voltage can be ramped up or ramped down along with the 3.3-V power. The

voltage difference between V

3.2 I/O Characteristics

Figure 3−2 shows a 3-state bidirectional buffer. Section 7.2, Recommended Operating Conditions, provides the electrical characteristics of the inputs and outputs.

NOTE: The controller meets the ac specifications of the PC Card Standard and PCI Local Bus Specification.

and V

Tied for Open Drain

CCP

and the clamp voltage must remain within 3.6 V.

CCP

Pad

Figure 3−2. 3-State Bidirectional Buffer

NOTE: Unused terminals (input or I/O) must be held high or low to prevent them from floating.

3.3 Clamping Voltages

The clamping voltages are set to match whatever external environment the controller is interfaced with, 3.3 V or 5 V. The I/O sites can be pulled through a clamping diode to a voltage rail that protects the core from external signals. The core power supply is always 3.3 V and is independent of the clamping voltages. For example, PCI signaling can be either 3.3 V or 5 V, and the controller must reliably accommodate both voltage levels. This is accomplished by using a 3.3-V I/O buffer that is 5-V tolerant, with the applicable clamping voltage applied. If a system designer desires a 5-V PCI bus, then V

can be connected to a 5-V power supply.

CCP

The controller requires three separate clamping voltages because it supports a wide range of features. The three voltages are listed and defined in Section 7.2, Recommended Operating Conditions. GRST PME

, and CSTSCHG are not clamped to any of them.

3.4 Peripheral Component Interconnect (PCI) Interface

The controller is fully compliant with the PCI Local Bus Specification. The controller provides all required signals for PCI master or slave operation, and may operate in either a 5-V or 3.3-V signaling environment by connecting the V controller provides the optional interrupt signal INTA

terminal to the desired voltage level. In addition to the mandatory PCI signals, the

CCP

3.4.1 PCI GRST Signal

During the power-up sequence, GRST and PRST must be asserted. GRST can only be deasserted 100 µs after PCLK is stable. PRST

can be deasserted at the same time as GRST or any time thereafter.

, SUSPEND,

December 2004SCPS114

3.4.2 PCI Bus Lock (LOCK)

The bus-locking protocol defined in the PCI Local Bus Specification is not highly recommended, but is provided on the controller as an additional compatibility feature. The PCI LOCK MFUNC4 terminal by setting the appropriate values in bits 19−16 of the multifunction routing register. See Section 4.30, Multifunction Routing Register, PCI-to-CardBus bridges in the downstream direction (away from the processor).

PCI LOCK indicates an atomic operation that may require multiple transactions to complete. When LOCK is asserted, nonexclusive transactions can proceed to an address that is not currently locked. A grant to start a transaction on the PCI bus does not guarantee control of LOCK protocol. It is possible for different initiators to use the PCI bus while a single master retains ownership of LOCK

. Note that the CardBus signal for this protocol is CBLOCK to avoid confusion with the bus clock.

An agent may need to do an exclusive operation because a critical access to memory might be broken into several transactions, but the master wants exclusive rights to a region of memory . The granularity of the lock is defined by PCI to be 16 bytes, aligned. The LOCK a resource lock without interfering with nonexclusive real-time data transfer, such as video.

Principles of Operation

signal can be routed to the

for details. Note that the use of LOCK is only supported by

; control of LOCK is obtained under its own

protocol defined by the PCI Local Bus Specification allows

The PCI bus arbiter may be designed to support only complete bus locks using the LOCK scenario, the arbiter does not grant the bus to any other agent (other than the LOCK asserted. A complete bus lock may have a significant impact on the performance of the video. The arbiter that supports complete bus lock must grant the bus to the cache to perform a writeback due to a snoop to a modified line when a locked operation is in progress.

The controller supports all LOCK

protocol associated with PCI-to-PCI bridges, as also defined for PCI-to-CardBus bridges. This includes disabling write posting while a locked operation is in progress, which can solve a potential deadlock when using devices such as PCI-to-PCI bridges. The potential deadlock can occur if a CardBus target supports delayed transactions and blocks access to the target until it completes a delayed read. This target characteristic is prohibited by the PCI Local Bus Specification, and the issue is resolved by the PCI master using LOCK

3.4.3 Loading Subsystem Identification

The subsystem vendor ID register (PCI offset 40h, see Section 4.26) and subsystem ID register (PCI offset 42h, see Section 4.27) make up a doubleword of PCI configuration space for function 0. This doubleword register is used for system and option card (mobile dock) identification purposes and is required by some operating systems. Implementation of this unique identifier register is a PC 99/PC 2001 requirement.

The controller offers two mechanisms to load a read-only value into the subsystem registers. The first mechanism relies upon the system BIOS providing the subsystem ID value. The default access mode to the subsystem registers is read-only, but can be made read/write by clearing bit 5 (SUBSYSRW) in the system control register (PCI offset 80h, see Section 4.29). Once this bit is cleared, the BIOS can write a subsystem identification value into the registers at PCI offset 40h. The BIOS must set the SUBSYSRW bit such that the subsystem vendor ID register and subsystem ID register is limited to read-only access. This approach saves the added cost of implementing the serial electrically erasable programmable ROM (EEPROM).

protocol. In this

master) while LOCK is

In some conditions, such as in a docking environment, the subsystem vendor ID register and subsystem ID register must be loaded with a unique identifier via a serial EEPROM. The controller loads the data from the serial EEPROM after a reset of the primary bus. Note that the SUSPEND

input gates the PCI reset from the entire controller core, including the serial-bus state machine (see Section 3.8.5, Suspend Mode, for details on using SUSPEND

The controller provides a two-line serial-bus host controller that can interface to a serial EEPROM. See Section 3.6, Serial-Bus Interface, for details on the two-wire serial-bus controller and applications.

December 2004 SCPS114

Principles of Operation

3.5 PC Card Applications

This section describes the PC Card interfaces of the controller.

• Card insertion/removal and recognition

• Zoomed video support

• Speaker and audio applications

• LED socket activity indicators

• CardBus socket registers

3.5.1 PC Card Insertion/Removal and Recognition

The PC Card Standard (release 7.2) addresses the card-detection and recognition process through an interrogation procedure that the socket must initiate on card insertion into a cold, nonpowered socket. Through this interrogation, card voltage requirements and interface (16-bit versus CardBus) are determined.

The scheme uses the card-detect and voltage-sense signals. The configuration of these four terminals identifies the card type and voltage requirements of the PC Card interface. The encoding scheme is defined in the PC Card Standard (release 7.2) and in Table 3−1.

Table 3−1. PC Card Card-Detect and Voltage-Sense Connections

CD2//CCD2 CD1//CCD1 VS2//CVS2 VS1//CVS1 KEY INTERFACE VOLTAGE

Ground Ground Open Open 5 V 16-bit PC Card 5 V Ground Ground Open Ground 5 V 16-bit PC Card 5 V and 3.3 V Ground Ground Ground Ground 5 V 16-bit PC Card 5 V, 3.3 V, and X.X V Ground Ground Open Ground LV 16-bit PC Card 3.3 V Ground Connect to CVS1 Open Connect to CCD1 LV CardBus PC Card 3.3 V

Ground Ground Ground Ground LV 16-bit PC Card 3.3 V and X.X V Connect to CVS2 Ground Connect to CCD2 Ground LV CardBus PC Card 3.3 V and X.X V Connect to CVS1 Ground Ground Connect to CCD2 LV CardBus PC Card 3.3 V, X.X V, and Y.Y V

Ground Ground Ground Open LV 16-bit PC Card X.X V Connect to CVS2 Ground Connect to CCD2 Open LV CardBus PC Card X.X V

Ground Connect to CVS2 Connect to CCD1 Open LV CardBus PC Card X.X V and Y.Y V Connect to CVS1 Ground Open Connect to CCD2 LV CardBus PC Card Y.Y V

Ground Connect to CVS1 Ground Connect to CCD1 Reserved

Ground Connect to CVS2 Connect to CCD1 Ground Reserved

3.5.2 Parallel Power-Switch Interface (TPS2211A)

The controller provides a parallel interface for control of the PC Card power switch. The VCCD and VPPD terminals are used with the TI TPS2211A single-slot PC Card power-switch interface to provide power-switch support. Figure 3−3 illustrates a typical application, where the controller represents the PC Card controller.

December 2004SCPS114

Power Supply

12 V

5 V

3.3 V

12V 5V

3.3V

Principles of Operation

TPS2211A

Supervisor

PCI1510R

(PC Card

Controller)

Figure 3−3. TPS2211A Typical Application

3.5.3 Zoomed Video Support

The controller allows for the implementation of zoomed video (ZV) for PC Cards. Zoomed video is supported by setting bit 6 (ZVENABLE) in the card control register (PCI offset 91h, see Section 4.32). Setting this bit puts 16-bit PC Card address lines A25−A4 of the PC Card interface in the high-impedance state. These lines can then transfer video and audio data directly to the appropriate controller. Card address lines A3−A0 can still access PC Card CIS registers for PC Card configuration. Figure 3−4 illustrates a PCI1510R ZV implementation.

SHDN SHDN

VCCD0 VCCD1 VPPD0 VPPD1

AVPP

AVCC

V V V V

PP1 PP2 CC CC

PC Card

Motherboard

PCI Bus

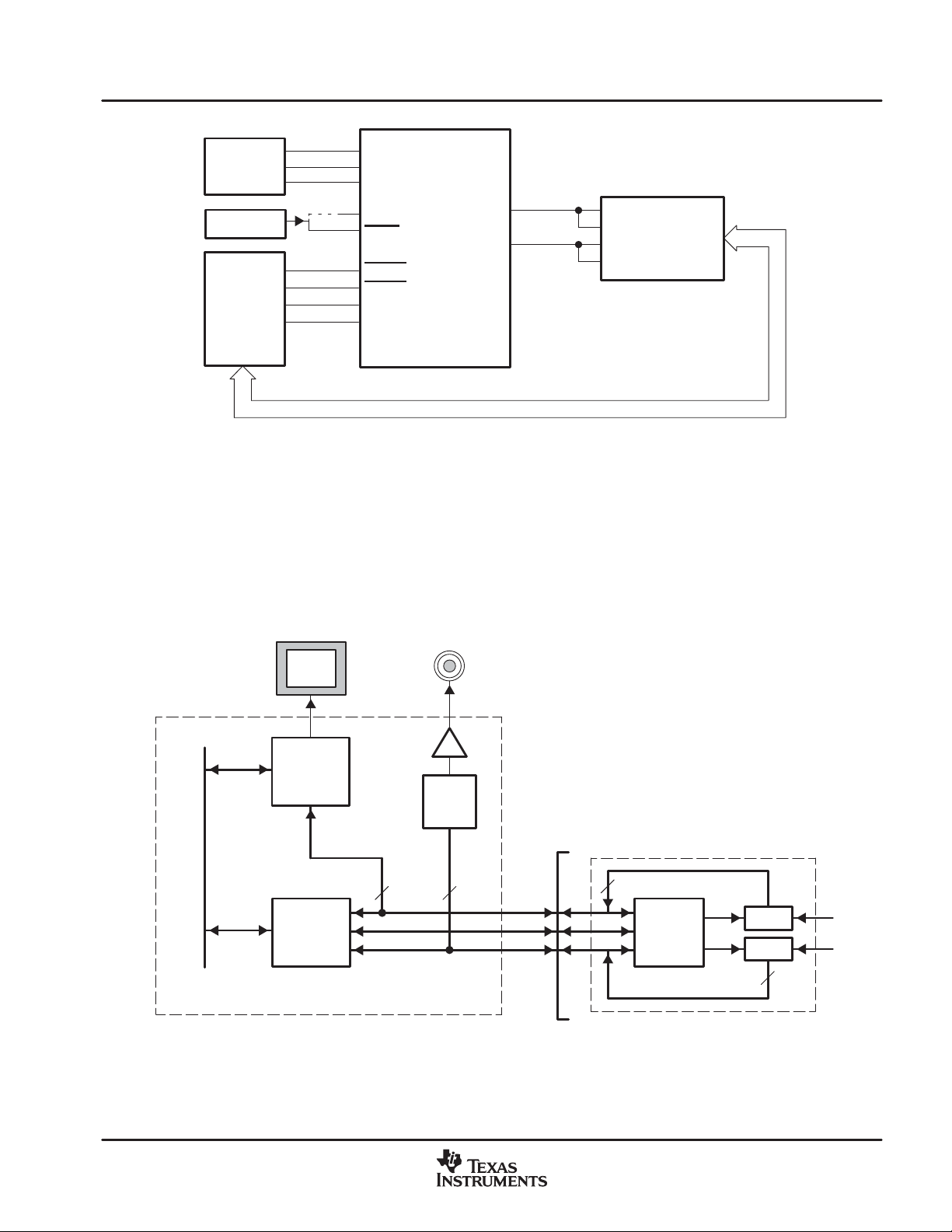

Figure 3−4. Zoomed Video Implementation Using the PCI1510R Controller

CRT

VGA

Controller

Zoomed Video

PCI1510R

Port

Audio

Codec

19 4

Speakers

PCM Audio Input

PC Card

Interface

Video

Audio

December 2004 SCPS114

Principles of Operation

Not shown in Figure 3−4 is the multiplexing scheme used to route a socket ZV source to the graphics controller. The controller provides ZVSTAT and ZVSEL0 external bus drivers. Figure 3−5 shows an implementation for switching between two ZV streams using external logic.

Figure 3−5 illustrates an implementation using standard three-state bus drivers with active-low output enables. ZVSEL0

signals on the multifunction terminals to switch

PCI1510R

ZVSTAT ZVSEL0

Figure 3−5. Zoomed Video Switching Application

is an active-low output indicating that the socket ZV mode is enabled.

3.5.4 Standardized Zoomed-Video Register Model

The standardized zoomed-video register model is defined for the purpose of standardizing the ZV port control for PC Card controllers across the industry. The following list summarizes the standardized zoomed-video register model changes to the existing PC Card register set.

• Socket present state register (CardBus socket address + 08h, see Section 6.3) Bit 27 (ZVSUPPORT) has been added. The platform BIOS can set this bit via the socket force event register (CardBus socket address + 0Ch, see Section 6.4) to define whether zoomed video is supported on the socket by the platform.

• Socket force event register (CardBus socket address + 0Ch, see Section 6.4) Bit 27 (FZVSUPPORT) has been added. The platform BIOS can use this bit to set the ZVSUPPORT bit in the socket present state register (CardBus socket address + 08h, see Section 6.3) to define whether zoomed video is supported on the socket by the platform.

• Socket control register (CardBus socket address +10h, see Section 6.5) Bit 11 (ZV_ACTIVITY) has been added. This bit is set when zoomed video is enabled for the PC Card socket.

Bit 10 (STDZVREG) has been added. This bit defines whether the PC Card controller supports the standardized zoomed-video register model.

Bit 9 (ZVEN) is provided for software to enable or disable zoomed video.

If the STDZVEN bit (bit 0) in the diagnostic register (PCI offset 93h, see Section 4.34) is 1b, then the standardized zoomed video register model is disabled. For backward compatibility , even if the STDZVEN bit is 0b (enabled), the controller allows software to access zoomed video through the legacy address in the card control register (PCI offset 91h, see Section 4.32), or through the new register model in the socket control register (CardBus socket address + 10h, see Section 6.5).

December 2004SCPS114

3.5.4.1 Zoomed-Video Card Insertion and Configuration Procedure

1. A zoomed-video PC Card is inserted into an empty slot.

2. The card is detected and interrogated appropriately. There are two types of PC Card controllers to consider.

• Legacy controller not using the standardized ZV register model Software reads bit 10 (STDZVREG) of the socket control register (CardBus socket address + 10h) to determine if the standardized zoomed-video register model is supported. If the bit returns 0b, then software must use legacy code to enable zoomed video.

• Newer controller that uses the standardized ZV register model Software reads bit 10 (STDZVREG) of the socket control register (CardBus socket address + 10h) to determine if the standardized zoomed-video register model is supported. If the bit returns 1b, then software can use the process/register model detailed in Table 3−2 to enable zoomed video.

Table 3−2. Zoomed-Video Card Interrogation

ZVSUPPORT ZV_ACTIVITY ACTION

1 0 Set ZVEN to enable zoomed video. 1 1

0 X

Display a user message such as, The zoomed video protocol required by this PC Card application is al-

ready in use by another card. Display a user message such as, This platform does not support the zoomed-video protocol required by

this PC Card application.

Principles of Operation

3.5.5 Internal Ring Oscillator

The internal ring oscillator provides an internal clock source for the controller so that neither the PCI clock nor an external clock is required in order for the controller to power down a socket or interrogate a PC Card. This internal oscillator can be enabled by setting bit 27 (P2CCLK) of the system control register (PCI offset 80h, see Section 4.29) to 1b. This function is enabled by default.

3.5.6 Integrated Pullup Resistors

The PC Card Standard (release 7.2) requires pullup resistors on various terminals to support both CardBus and 16-bit card configurations. Unlike the PCI12XX, PCI1450, and PCI4450 which required external pullup resistors, the controller has integrated all of these pullup resistors. The I/O buffer on the BVD1(STSCHG is turned on when a 16-bit PC Card is inserted, and the pulldown resistor is turned on when a CardBus PC Card is inserted. This prevents unexpected CSTSCHG signal assertion. The integrated pullup resistors are listed in Table 3−3.

)/CSTSCHG terminal has the capability to switch either pullup or pulldown. The pullup resistor

Table 3−3. Integrated Pullup Resistors

SIGNAL NAME

A14/CPERR F10 CD2/CCD2 E05

A15/CIRDY B08 INPACK/CREQ E07

A19/CBLOCK E10 READY/CINT C04

A20/CSTOP A09 RESET/CRST A06

A21/CDEVSEL C09 VS1/CVS1 A03

A22/CTRDY A08 VS2/CVS2 E08

BVD1(STSCHG)/CSTSCHG B02 WAIT/CSERR B03

BVD2(SPKR)/CAUDIO A02 WP(IOIS16)/CCLKRUN C03

CD1/CCD1 C15

TERMINAL

NUMBER

SIGNAL NAME

TERMINAL

NUMBER

December 2004 SCPS114

Principles of Operation

3.5.7 SPKROUT and CAUDPWM Usage

SPKROUT carries the digital audio signal from the PC Card to the system. When a 16-bit PC Card is configured for I/O mode, the BVD2 terminal becomes SPKR audio applications, and is referred to as CAUDIO. SPKR controller. The CardBus CAUDIO signal also can pass a single-amplitude binary waveform. The binary audio signal from the PC Card socket is used in the controller to produce SPKROUT. This output is enabled by bit 1 (SPKROUTEN) in the card control register (PCI offset 91h, see Section 4.32).

Older controllers support CAUDIO in binary or PWM mode but use the same terminal (SPKROUT). Some audio chips may not support both modes on one terminal and may have a separate terminal for binary and PWM. The implementation includes a signal for PWM, CAUDPWM, which can be routed to an MFUNC terminal. Bit 2 (AUD2MUX), located in the card control register, is programmed to route a CardBus CAUDIO PWM terminal to CAUDPWM. See Section 4.30, Multifunction Routing Register, for details on configuring the MFUNC terminals.

Figure 3−6 provides an illustration of a sample application using SPKROUT and CAUDPWM.

System

Core Logic

SPKROUT

PCI1510R

CAUDPWM

. This terminal is also used in CardBus binary

passes a TTL-level digital audio signal to the

BINARY_SPKR

Speaker

Subsystem

PWM_SPKR

Figure 3−6. Sample Application of SPKROUT and CAUDPWM

3.5.8 LED Socket Activity Indicators

The socket activity LED is provided to indicate when a PC Card is being accessed. The LED_SKT signal can be routed to the multifunction terminals. When configured for LED output, this terminal outputs an active high signal to indicate socket activity. See Section 4.30, Multifunction Routing Register, the multifunction terminals.

The active-high LED signal is driven for 64-ms. When the LED is not being driven high, it is driven to a low state. Either of the two circuits shown in Figure 3−7 can be implemented to provide LED signaling, and the board designer must implement the circuit that best fits the application.

The LED activity signal is valid when a card is inserted, powered, and not in reset. For PC Card-16, the LED activity signal is pulsed when READY/IREQ CFRAME

, IRDY, or CREQ are active.

for details on configuring

is low. For CardBus cards, the LED activity signal is pulsed if

December 2004SCPS114

Current Limiting

R ≈ 500 Ω

Principles of Operation

PCI1510R

Figure 3−7. Two Sample LED Circuits

As indicated, the LED signal is driven for a period of 64 ms by a counter circuit. To avoid the possibility of the LED appearing to be stuck when the PCI clock is stopped, the LED signaling is cut off when the SUSPEND signal is asserted, when the PCI clock is to be stopped during the clock run protocol, or when in the D2 or D1 power state.

If any additional socket activity occurs during this counter cycle, then the counter is reset and the LED signal remains driven. If socket activity is frequent (at least once every 64 ms), then the LED signals remain driven.

3.5.9 CardBus Socket Registers

Application-

Specific Delay

LED

Current Limiting

R ≈ 500 Ω

LED

The controller contains all registers for compatibility with the PC Card Standard. These registers exist as the CardBus socket registers and are listed in Table 3−4.

Table 3−4. CardBus Socket Registers

Socket event 00h Socket mask 04h Socket present state 08h Socket force event 0Ch Socket control 10h Reserved 14h−1Ch Socket power management 20h

3.6 Serial-Bus Interface

The controller provides a serial-bus interface to load subsystem identification information and selected register defaults from a serial EEPROM, and to provide a PC Card power-switch interface alternative. The serial-bus interface is compatible with various I

3.6.1 Serial-Bus Interface Implementation

To enable the serial interface, a pullup resistor must be implemented on the VCCD0 and VCCD1 terminals and the appropriate pullup resistors must be implemented on the SDA and SCL signals, that is, the MFUNC1 and MFUNC4 terminals. When the interface is detected, bit 3 (SBDETECT) in the serial bus control and status register (PCI offset B3h, see Section 4.48) is set. The SBDETECT bit is cleared by a writeback of 1b.

C and SMBus components.

December 2004 SCPS114

Principles of Operation

The controller implements a two-pin serial interface with one clock signal (SCL) and one data signal (SDA). When pullup resistors are provided on the VCCD0 MFUNC4 terminal and the SDA signal is mapped to the MFUNC1 terminal. The controller drives SCL at nearly 100 kHz during data transfers, which is the maximum specified frequency for standard-mode I EEPROM must be located at address A0h. Figure 3−8 illustrates an example application implementing the two-wire serial bus.

and VCCD1 terminals, the SCL signal is mapped to the

C. The serial

Serial

EEPROM

A2 A1 A0

SCL

SDA

Figure 3−8. Serial EEPROM Application

Some serial device applications may include PC Card power switches, ZV source switches, card ejectors, or other devices that may enhance the user’s PC Card experience. The serial EEPROM device and PC Card power switches are discussed in the sections that follow.

3.6.2 Serial-Bus Interface Protocol

The SCL and SDA signals are bidirectional, open-drain signals and require pullup resistors as shown in Figure 3−8. The controller , which supports up to 100-Kb/s data-transfer rate, is compatible with standard mode

C using 7-bit addressing.

All data transfers are initiated by the serial bus master. The beginning of a data transfer is indicated by a start condition, which is signaled when the SDA line transitions to low state while SCL is in the high state, as illustrated in Figure 3−9. The end of a requested data transfer is indicated by a stop condition, which is signaled by a low-to-high transition of SDA while SCL is in the high state, as shown in Figure 3−9. Data on SDA must remain stable during the high state of the SCL signal, as changes on the SDA signal during the high state of SCL are interpreted as control signals, that is, a start or a stop condition.

PCI1510R

5 V

VCCD0 VCCD1

MFUNC4 MFUNC1

SDA

SCL

Start

Condition

Stop

Condition

Data Line Stable,

Data Valid

Change of

Data Allowed

Figure 3−9. Serial-Bus Start/Stop Conditions and Bit Transfers

December 2004SCPS114

Principles of Operation

Data is transferred serially in 8-bit bytes. The number of bytes that may be transmitted during a data transfer is unlimited; however, each byte must be completed with an acknowledge bit. An acknowledge (ACK) is indicated by the receiver pulling the SDA signal low, so that it remains low during the high state of the SCL signal. Figure 3−10 illustrates the acknowledge protocol.

SCL From

Master

SDA Output

By Transmitter

SDA Output

By Receiver

123 789

Figure 3−10. Serial-Bus Protocol Acknowledge

The controller is a serial bus master; all other devices connected to the serial bus external to the controller are slave devices. As the bus master, the controller drives the SCL clock at nearly 100 kHz during bus cycles and places SCL in a high-impedance state (zero frequency) during idle states.

Typically, the controller masters byte reads and byte writes under software control. Doubleword reads are performed by the serial EEPROM initialization circuitry upon a PCI reset and may not be generated under software control. See Section 3.6.3, Serial-Bus EEPROM Application, for details on how the controller automatically loads the subsystem identification and other register defaults through a serial-bus EEPROM.

Figure 3−11 illustrates a byte write. The controller issues a start condition and sends the 7-bit slave device address and the command bit zero. A 0b in the R/W

command bit indicates that the data transfer is a write. The slave device acknowledges if it recognizes the address. If no acknowledgment is received by the controller, then an appropriate status bit is set in the serial-bus control and status register (PCI offset B3h, see Section 4.48). The word address byte is then sent by the controller, and another slave acknowledgment is expected. Then the controller delivers the data byte MSB first and expects a final acknowledgment before issuing the stop condition.

Slave Address Word Address

Sb6 b4b5 b3 b2 b1 b0 0 b7 b6 b5 b4 b3 b2 b1 b0AA

R/W

S/P = Start/Stop ConditionA = Slave Acknowledgement

b7 b6 b4b5 b3 b2 b1 b0 A P

Data Byte

Figure 3−11. Serial-Bus Protocol − Byte Write

Figure 3−12 illustrates a byte read. The read protocol is very similar to the write protocol, except the R/W command bit must be set to 1b to indicate a read-data transfer. In addition, the controller master must acknowledge reception of the read bytes from the slave transmitter. The slave transmitter drives the SDA signal during read data transfers. The SCL signal remains driven by the controller master.

December 2004 SCPS114

Principles of Operation

Slave Address Word Address

Sb6 b4b5 b3 b2 b1 b0 0 b7 b6 b5 b4 b3 b2 b1 b0AA

Start

A = Slave Acknowledgement

R/W

Sb6 b4b5 b3 b2 b1 b0 1 A

Restart R/W

b7 b6 b4b5 b3 b2 b1 b0 M P

S/P = Start/Stop ConditionM = Master Acknowledgement

Slave Address

Data Byte

Figure 3−12. Serial-Bus Protocol − Byte Read

Figure 3−13 illustrates EEPROM interface doubleword data collection protocol.

Slave Address Word Address

S1 10 0 0 0 0 0 b7b6b5b4b3b2b1b0AA

Start

Data Byte 3 M

R/W

Data Byte 2 Data Byte 1 Data Byte 0 M PMM

S1 10 00001A

Restart

Slave Address

Stop

R/W

M = Master Acknowledgement

Figure 3−13. EEPROM Interface Doubleword Data Collection

3.6.3 Serial-Bus EEPROM Application

When the PCI bus is reset and the serial-bus interface is detected, the controller attempts to read the subsystem identification and other register defaults from a serial EEPROM. The registers and corresponding bits that can be loaded with defaults through the EEPROM are provided in Table 3−5.

S/P = Start/Stop ConditionA = Slave Acknowledgement

December 2004SCPS114

Table 3−5. Register- and Bit-Loading Map

EEPROM

OFFSET

00h Flag 01h: Load / FFh: do not load 01h PCI 04h Command register, bit 8, 6−5, 2−0

02h PCI 40h Subsystem vendor ID bits 7−0 ← bits 7−0 03h PCI 40h Subsystem vendor ID bits 15−8 ← bits 7−0 04h PCI 42h Subsystem ID bits 7−0 ← bits 7−0 05h PCI 42h Subsystem ID bits 15−8 ← bits 7−0 06h PCI 44h PC Card 16-bit I/F LBAR bits 7−1 ← bits 7−1 07h PCI 44h PC Card 16-bit I/F LBAR bits 15−8 ← bits 7−0 08h PCI 44h PC Card 16-bit I/F LBAR bits 23−16 ← bits 7−0 09h PCI 44h PC Card 16-bit I/F LBAR bits 31−24 ← bits 7−0 0Ah PCI 80h System control bits 7−0 ← bits 7−0 0Bh PCI 80h System control bits 15−8 ← bits 7−0 0Ch PCI 80h System control bits 23−16 ← bits 7−0 0Dh PCI 80h System control bits 31−24 ← bits 7−0 0Eh PCI 8Ch Multifunction routing bits 7−0 ← bits 7−0 0Fh PCI 8Ch Multifunction routing bits 15−8 ← bits 7−0 10h PCI 8Ch Multifunction routing bits 23−16 ← bits 7−0

11h PCI 8Ch Multifunction routing bits 27−24 ← bits 3−0 12h PCI 90h Retry status bits 7, 6 ← bits 7, 6 13h PCI 91h Card control bit 7 ← bit 7 14h PCI 92h Device control bits 6, 3−0 ← bits 6, 3−0 15h PCI 93h Diagnostic bits 7, 4–0 ← bits 7, 4−0 16h PCI A2h Power management capabilities bit 15 ← bit 7 17h ExCA 00h ExCA identification and revision bits 7–0 ← bits 7−0 18h CB Socket + 0Ch Socket force event, bit 27 ← bit 3

OFFSET

Note: bits loaded per following: bit 8 ← bit 7

bit 6 ← bit 6 bit 5 ← bit 5

bit 2 ← bit 2 bit 1 ← bit 1 bit 0 ← bit 0

Principles of Operation

This format must be followed for the controller to load initializations from a serial EEPROM. All bit fields must be considered when programming the EEPROM.

The serial EEPROM is addressed at slave address 1010 000b by the controller. All hardware address bits for the EEPROM should be tied to the appropriate level to achieve this address. The serial EEPROM chip in the sample application circuit (Figure 3−8) assumes the 1010b high-address nibble. The lower three address bits are terminal inputs to the chip, and the sample application shows these terminal inputs tied to GND.

3.6.4 Accessing Serial-Bus Devices Through Software

The controller provides a programming mechanism to control serial bus devices through software. The programming is accomplished through a doubleword of PCI configuration space at offset B0h. Table 3−6 lists the registers used to program a serial-bus device through software.

December 2004 SCPS114

Principles of Operation

Table 3−6. PCI1510R Registers Used to Program Serial-Bus Devices

PCI OFFSET REGISTER NAME DESCRIPTION

B0h Serial-bus data Contains the data byte to send on write commands or the received data byte on read commands. B1h Serial-bus index

B2h

B3h

Serial-bus slave address

Serial-bus control and status

The content of this register is sent as the word address on byte writes or reads. This register is not used in the quick command protocol.

Write transactions to this register initiate a serial-bus transaction. The slave device address and the R/ W command selector are programmed through this register.

Read data valid, general busy, and general error status are communicated through this register. In addition, the protocol-select bit is programmed through this register.

3.7 Programmable Interrupt Subsystem

Interrupts provide a way for I/O devices to let the microprocessor know that they require servicing. The dynamic nature of PC Cards and the abundance of PC Card I/O applications require substantial interrupt support from the controller. The controller provides several interrupt signaling schemes to accommodate the needs of a variety of platforms. The different mechanisms for dealing with interrupts in this device are based on various specifications and industry standards. The ExCA register set provides interrupt control for some 16-bit PC Card functions, and the CardBus socket register set provides interrupt control for the CardBus PC Card functions. The controller is, therefore, backward compatible with existing interrupt control register definitions, and new registers have been defined where required.

The controller detects PC Card interrupts and events at the PC Card interface and notifies the host controller using one of several interrupt signaling protocols. To simplify the discussion of interrupts in the controller, PC Card interrupts are classified either as card status change (CSC) or as functional interrupts.

The method by which any type of PCI1510R interrupt is communicated to the host interrupt controller varies from system to system. The PCI1510R controller offers system designers the choice of using parallel PCI interrupt signaling, parallel ISA-type IRQ interrupt signaling, or the IRQSER serialized ISA and/or PCI interrupt protocol. It is possible to use the parallel PCI interrupts in combination with either parallel IRQs or serialized IRQs, as detailed in the sections that follow. All interrupt signaling is provided through the seven multifunction terminals, MFUNC0−MFUNC6.

3.7.1 PC Card Functional and Card Status Change Interrupts

PC Card functional interrupts are defined as requests from a PC Card application for interrupt service and are indicated by asserting specially-defined signals on the PC Card interface. Functional interrupts are generated by 16-bit I/O PC Cards and by CardBus PC Cards.

Card status change (CSC)-type interrupts are defined as events at the PC Card interface that are detected by the controller and may warrant notification of host card and socket services software for service. CSC events include both card insertion and removal from the PC Card socket, as well as transitions of certain PC Card signals.

Table 3−7 summarizes the sources of PC Card interrupts and the type of card associated with them. CSC and functional interrupt sources are dependent on the type of card inserted in the PC Card socket. The three types of cards that can be inserted into any PC Card socket are:

• 16-bit memory card

• 16-bit I/O card

• CardBus cards

December 2004SCPS114

Principles of Operation

CardBus

Battery conditions

memory

All PC Cards

Table 3−7. Interrupt Mask and Flag Registers

CARD TYPE EVENT MASK FLAG

16-bit memory

16-bit I/O

All 16-bit PC

Cards

Battery conditions (BVD1, BVD2) ExCA offset 05h/45h/805h bits 1 and 0 ExCA offset 04h/44h/804h bits 1 and 0 Wait states (READY) ExCA offset 05h/45h/805h bit 2 ExCA offset 04h/44h/804h bit 2 Change in card status (STSCHG) ExCA offset 05h/45h/805h bit 0 ExCA offset 04h/44h/804h bit 0 Interrupt request (IREQ) Always enabled PCI configuration offset 91h bit 0

Power cycle complete ExCA offset 05h/45h/805h bit 3 ExCA offset 04h/44h/804h bit 3 Change in card status (CSTSCHG) Socket mask bit 0 Socket event bit 0

Interrupt request (CINT) Always enabled PCI configuration offset 91h bit 0 Power cycle complete Socket mask bit 3 Socket event bit 3 Card insertion or removal Socket mask bits 2 and 1 Socket event bits 2 and 1

Functional interrupt events are valid only for 16-bit I/O and CardBus cards; that is, the functional interrupts are not valid for 16-bit memory cards. Furthermore, card insertion and removal-type CSC interrupts are independent of the card type.

Table 3−8. PC Card Interrupt Events and Description

CARD TYPE EVENT TYPE SIGNAL DESCRIPTION

A transition on BVD1 indicates a change in the PC Card battery conditions.

A transition on BVD2 indicates a change in the PC Card battery conditions.

A transition on READY indicates a change in the ability of the memory PC Card to accept or provide data.

The assertion of STSCHG indicates a status change on the PC Card.

The assertion of IREQ indicates an interrupt request from the PC Card.

The assertion of CSTSCHG indicates a status change on the PC Card.

The assertion of CINT indicates an interrupt request from the PC Card.

A transition on either CD1//CCD1 or CD2//CCD2 indicates an insertion or removal of a 16-bit or CardBus PC Card.

An interrupt is generated when a PC Card power-up cycle has completed.

16-bit

16-bit I/O

CardBus

(BVD1, BVD2)

Wait states

(READY)

Change in card

status (STSCHG

Interrupt request

(IREQ

)

Change in card

status (CSTSCHG)

Interrupt request

(CINT

)

Card insertion

or removal

Power cycle

complete

BVD1(STSCHG)//CSTSCHG

CSC

BVD2(SPKR)//CAUDIO

CSC READY(IREQ)//CINT

CSC BVD1(STSCHG)//CSTSCHG

)

Functional READY(IREQ)//CINT

CSC BVD1(STSCHG)//CSTSCHG

Functional READY(IREQ)//CINT

CSC

CSC N/A

CD1//CCD1,

CD2

//CCD2

The naming convention for PC Card signals describes the function for 16-bit memory, I/O cards, and CardBus. For example, READY(IREQ CINT

for CardBus cards. The 16-bit memory card signal name is first, with the I/O card signal name second,

)//CINT includes READY for 16-bit memory cards, IREQ for 16-bit I/O cards, and

enclosed in parentheses. The CardBus signal name follows after a double slash (//). The PC Card Standard describes the power-up sequence that must be followed by the controller when an

insertion event occurs and the host requests that the socket V

and VPP be powered. Upon completion of

this power-up sequence, the interrupt scheme can be used to notify the host system (see Table 3−8), denoted by the power cycle complete event. This interrupt source is considered an internal event, because it depends on the completion of applying power to the socket rather than on a signal change at the PC Card interface.

December 2004 SCPS114

Principles of Operation

3.7.2 Interrupt Masks and Flags

Host software may individually mask (or disable) most of the potential interrupt sources listed in Table 3−8 by setting the appropriate bits in the controller. By individually masking the interrupt sources listed, software can control those events that cause an interrupt. Host software has some control over the system interrupt the controller asserts by programming the appropriate routing registers. The controller allows host software to route PC Card CSC and PC Card functional interrupts to separate system interrupts. Interrupt routing somewhat specific to the interrupt signaling method used is discussed in more detail in the following sections.

When an interrupt is signaled by the controller, the interrupt service routine must determine which of the events listed in Table 3−7 caused the interrupt. Internal registers in the controller provide flags that report the source of an interrupt. By reading these status bits, the interrupt service routine can determine the action to be taken.

Table 3−7 details the registers and bits associated with masking and reporting potential interrupts. All interrupts can be masked except the functional PC Card interrupts, and an interrupt status flag is available for all types of interrupts.

Notice that there is not a mask bit to stop the controller from passing PC Card functional interrupts through to the appropriate interrupt scheme. These interrupts are not valid until the card is properly powered, and there should never be a card interrupt that does not require service after proper initialization.

Table 3−7 lists the various methods of clearing the interrupt flag bits. The flag bits in the ExCA registers (16-bit PC Card-related interrupt flags) can be cleared using two different methods. One method is an explicit write of 1b to the flag bit to clear and the other is by reading the flag bit register. The selection of flag bit clearing methods is made by bit 2 (IFCMODE) in the ExCA global control register (ExCA offset 1Eh/5Eh/81Eh, see Section 5.20), and defaults to the flag-cleared-on-read method.

The CardBus-related interrupt flags can be cleared by an explicit write of 1b to the interrupt flag in the socket event register (see Section 6.1). Although some of the functionality is shared between the CardBus registers and the ExCA registers, software should not program the chip through both register sets when a CardBus card is functioning.

3.7.3 Using Parallel IRQ Interrupts

The seven multifunction terminals, MFUNC6−MFUNC0, implemented in the controller can be routed to obtain a subset of the ISA IRQs. The IRQ choices provide ultimate flexibility in PC Card host interruptions. To use the parallel ISA-type IRQ interrupt signaling, software must program the device control register (PCI offset 92h, see Section 4.33), to select the parallel IRQ signaling scheme. See Section 4.30, Multifunction Routing Register, for details on configuring the multifunction terminals.

A system using parallel IRQs requires (at a minimum) one PCI terminal, INTA requirement is dictated by certain card and socket-services software. The INTA the MFUNC0 terminal for INTA 16-bit PC Card functions.

As an example, suppose the six IRQs used by legacy PC Card applications are IRQ3, IRQ4, IRQ5, IRQ10, IRQ11, and IRQ15. The multifunction routing register must be programmed to a value of 0FBA 5432h. This value routes the MFUNC0 terminal to INTA Figure 3−14. Not shown is that INTA to some circuitry that provides parallel PCI interrupts to the host.

signaling. This leaves (at a maximum) six different IRQs to support legacy

, to signal CSC events. This requirement calls for routing

signaling and routes the remaining terminals as illustrated in

must also be routed to the programmable interrupt controller (PIC), or

December 2004SCPS114

PCI1510R PIC

MFUNC1 MFUNC2 MFUNC3 MFUNC4 MFUNC5 MFUNC6

Figure 3−14. IRQ Implementation

Power-on software is responsible for programming the multifunction routing register to reflect the IRQ configuration of a system implementing the controller. See Section 4.30, Multifunction Routing Register, details on configuring the multifunction terminals.

The parallel ISA-type IRQ signaling from the MFUNC6−MFUNC0 terminals is compatible with the input signal requirements of the 8259 PIC. The parallel IRQ option is provided for system designs that require legacy ISA IRQs. Design constraints may demand more MFUNC6−MFUNC0 IRQ terminals than the controller makes available.

3.7.4 Using Parallel PCI Interrupts

Principles of Operation

IRQ3 IRQ4 IRQ5 IRQ10 IRQ11 IRQ15

for

Parallel PCI interrupts are available when exclusively in parallel PCI interrupt/parallel ISA IRQ signaling mode, and when only IRQs are serialized with the IRQSER protocol. Socket functional interrupts can be routed to INTA

3.7.5 Using Serialized IRQSER Interrupts

The serialized interrupt protocol implemented in the controller uses a single terminal to communicate all interrupt status information to the host controller. The protocol defines a serial packet consisting of a start cycle, multiple interrupt indication cycles, and a stop cycle. All data in the packet is synchronous with the PCI clock. The packet data describes 16 parallel ISA IRQ signals and the optional 4 PCI interrupts INTA INTC

, and INTD. For details on the IRQSER protocol, refer to the document Serialized IRQ Support for PCI

Systems.

3.7.6 SMI Support in the Controller

The controller provides a mechanism for interrupting the system when power changes have been made to the PC Card socket interfaces. The interrupt mechanism is designed to fit into a system maintenance interrupt (SMI) scheme. SMI interrupts are generated by the controller, when enabled, after a write cycle to either the socket control register (CB offset 10h, see Section 6.5) of the CardBus register set, or the ExCA power control register (ExCA offset 02h/42h/802h, see Section 5.3) causes a power cycle change sequence to be sent on the power switch interface.

The SMI control is programmed through three bits in the system control register (PCI offset 80h, see Section 4.29). These bits are SMIROUTE (bit 26), SMISTATUS (bit 25), and SMIENB (bit 24). Table 3−9 describes the SMI control bits function.

, INTB,

Table 3−9. SMI Control

BIT NAME FUNCTION

SMIROUTE This shared bit controls whether the SMI interrupts are sent as a CSC interrupt or as IRQ2. SMISTAT This socket dependent bit is set when an SMI interrupt is pending. This status flag is cleared by writing back a 1b. SMIENB When set, SMI interrupt generation is enabled.

December 2004 SCPS114

Principles of Operation

If CSC SMI interrupts are selected, then the SMI interrupt is sent as the CSC on a per-socket basis. The CSC interrupt can be either level or edge mode, depending upon the CSCMODE bit in the ExCA global control register (ExCA offset 1Eh/5Eh/81Eh, see Section 5.20).

If IRQ2 is selected by SMIROUTE, then the IRQSER signaling protocol supports SMI signaling in the IRQ2 IRQ/Data slot. In a parallel ISA IRQ system, the support for an active low IRQ2 is provided only if IRQ2 is routed to either MFUNC3 or MFUNC6 through the multifunction routing register (PCI offset 8Ch, see Section 4.30).

3.8 Power Management Overview

In addition to the low-power CMOS technology process used for the controller, various features are designed into the device to allow implementation of popular power-saving techniques. These features and techniques are discussed in this section.

3.8.1 Integrated Low-Dropout Voltage Regulator (LDO-VR)

The controller requires 2.5-V core voltage. The core power can be supplied by the controller itself using the internal VR_PORT terminal. Table 3−10 lists the requirements for both the internal core power supply and the external core power supply.

SUPPLY V

Internal 3.3 V GND 2.5-V output Internal 2.5-V LDO-VR is enabled. A 1.0-µF bypass capacitor is required on the VR_PORT

External 3.3 V V

LDO-VR. The core power can alternatively be supplied by an external power supply through the

Table 3−10. Requirements for Internal/External 2.5-V Core Power Supply

VR_EN VR_PORT NOTE

terminal for decoupling. This output is not for external use.

2.5-V input Internal 2.5-V LDO-VR is disabled. An external 2.5-V power supply, of minimum 50-mA capacity, is required. A 0.1-µF bypass capacitor on the VR_PORT terminal is required.

3.8.2 Clock Run Protocol

The PCI CLKRUN feature is the primary method of power management on the PCI interface of the controller. CLKRUN CLKRUN provided. For details on the CLKRUN

signaling is provided through the MFUNC6 terminal. Since some chip sets do not implement , this is not always available to the system designer, and alternate power-saving features are

protocol see the PCI Mobile Design Guide.

The controller does not permit the central resource to stop the PCI clock under any of the following conditions:

• Bit 1 (KEEPCLK) in the system control register (PCI offset 80h, see Section 4.29) is set.

• The 16-bit PC Card- resource manager is busy.

• The CardBus master state machine is busy. A cycle may be in progress on CardBus.

• The master is busy. There may be posted data from CardBus to PCI in the controller.

• Interrupts are pending.

• The CardBus CCLK for either socket has not been stopped by the CCLKRUN

The controller restarts the PCI clock using the CLKRUN

• A 16-bit PC Card IREQ

or a CardBus CINT has been asserted by either card.

• A CardBus CBWAKE (CSTSCHG) or 16-bit PC Card STSCHG

• A CardBus attempts to start the CCLK using CCLKRUN

• A CardBus card arbitrates for the CardBus bus using CREQ

3.8.3 CardBus PC Card Power Management

manager.

protocol under any of the following conditions:

/RI event occurs in either socket.

The controller implements its own card power-management engine that can turn off the CCLK to a socket when there is no activity to the CardBus PC Card. The PCI clock-run protocol is followed on the CardBus CCLKRUN

interface to control this clock management.

December 2004SCPS114

3.8.4 16-Bit PC Card Power Management

The COE bit (bit 7) of the ExCA power control register (ExCA offset 02h/42h/802h, see Section 5.3) and PWRDWN bit (bit 0) of the ExCA global control register (ExCA offset 1Eh/5Eh/81Eh, see Section 5.20) bits are provided for 16-bit PC Card power management. The COE bit places the card interface in a high-impedance state to save power. The power savings when using this feature are minimal. The COE bit resets the PC Card when used, and the PWRDWN bit does not. Furthermore, the PWRDWN bit is an automatic COE, that is, the PWRDWN performs the COE function when there is no card activity.

NOTE: The 16-bit PC Card must implement the proper pullup resistors for the COE and

PWRDWN modes.

3.8.5 Suspend Mode

The SUSPEND signal, provided for backward compatibility, gates the PRST (PCI reset) signal and the GRST (global reset) signal from the controller. Besides gating PRST and GRST, SUSPEND also gates PCLK inside the controller in order to minimize power consumption.

Principles of Operation

It should also be noted that asynchronous signals, such as card status change interrupts and RI_OUT be passed to the host system without a PCI clock. However, if card status change interrupts are routed over the serial interrupt stream, then the PCI clock must be restarted in order to pass the interrupt, because neither the internal oscillator nor an external clock is routed to the serial-interrupt state machine. Figure 3−15 is a signal diagram of the suspend function.

RESET

GNT

SUSPEND

PCLK

External Terminals

Internal Signals

RESETIN

, can

SUSPENDIN

PCLKIN

Figure 3−15. Signal Diagram of Suspend Function

December 2004 SCPS114

Principles of Operation

3.8.6 Requirements for Suspend Mode

The suspend mode prevents the clearing of all register contents on the assertion of reset (PRST or GRST) which would require the reconfiguration of the controller by software. Asserting the SUSPEND the PCI outputs of the controller in a high-impedance state and gates the PCLK signal internally to the controller unless a PCI transaction is currently in process (GNT not be parked on the controller when SUSPEND state.

signal places

is asserted). It is important that the PCI bus

is asserted, because the outputs are in a high-impedance

The GPIOs, MFUNC signals, and RI_OUT in the appropriate PCI1510R registers.

3.8.7 Ring Indicate

The RI_OUT output is an important feature in power management, allowing a system to go into a suspended mode and wake up on modem rings and other card events. TI-designed flexibility permits this signal to fit wide platform requirements. RI_OUT

• A 16-bit PC Card modem in a powered socket asserts RI incoming call.

• A powered down CardBus card asserts CSTSCHG (CBWAKE) requesting system and interface wake up.

• A powered CardBus card asserts CSTSCHG from the insertion/removal of cards or change in battery

voltage levels.

Figure 3−16 shows various enable bits for the RI_OUT events. See Table 3−7 for a detailed description of CSC interrupt masks and flags.

PC Card

Socket

signal are all active during SUSPEND, unless they are disabled

on the controller can be asserted under any of the following conditions:

to indicate to the system the presence of an

function; however, i t does not show the masking of CSC

RI_OUT Function

Card

I/F

CSTSMASK

RINGEN

CDRESUME

RIENB

RI_OUT

Figure 3−16. RI_OUT Functional Diagram

from the 16-bit PC Card interface is masked by bit 7 (RINGEN) in the ExCA interrupt and general control

RI register (ExCA offset 03h/43h/803h, see Section 5.4). This is only applicable when a 16-bit card is powered in the socket.

The CBWAKE signaling to RI_OUT

is enabled through the same mask as the CSC event for CSTSCHG. The mask bit (bit 0, CSTSMASK) is programmed through the socket mask register (CB offset 04h, see Section 6.2) in the CardBus socket registers.

RI_OUT

can be routed through any of three different pins, RI_OUT/PME, MFUNC2, or MFUNC4. The RI_OUT function is enabled by setting RIENB in the card control register (PCI offset 91h, see Section 4.32). The PME function is enabled by setting PMEEN in the power management control/status register (PCI offset A4h, see Section 4.38). When RIMUX in the system control register (PCI offset 80h, see Section 4.29) is set to 0b, both the RI_OUT enabled and RIMUX is set to 0b, the RI_OUT never be seen. Therefore, in a system using both the RI_OUT be set to 1b and RI_OUT

function and the PME function are routed to the RI_OUT/PME terminal. If both functions are

/PME terminal becomes RI_OUT only and PME assertions will

function and the PME function, RIMUX must

must be routed to either MFUNC2 or MFUNC4.

December 2004SCPS114

3.8.8 PCI Power Management

The PCI Bus Power Management Interface Specification for PCI to CardBus Bridges establishes the infrastructure required to let the operating system control the power of PCI functions. This is done by defining a standard PCI interface and operations to manage the power of PCI functions on the bus. The PCI bus and the PCI functions can be assigned one of seven power-management states, resulting in varying levels of power savings.

The seven power-management states of PCI functions are:

• D0-uninitialized − Before device configuration, device not fully functional

• D0-active − Fully functional state

• D1 − Low-power state

• D2 − Low-power state

• D3

− Low-power state. Transition state before D3

hot

− PME signal-generation capable. Main power is removed and VAUX is available.

cold

− No power and completely non-functional

off

In the D0-uninitialized state, the controller does not generate PME and MEM_EN bits (bits 0 and 1) of the command register (PCI offset 04h, see Section 4.4) are both set, the controller switches the state to D0-active. Transition from D3 at the deassertion of PRST immediately.

The PWR_STATE bits (bits 0−1) of the power-management control/status register (PCI offset A4h, see Section 4.38) only code for four power states, D0, D1, D2, and D3 D3 states is invisible to the software because the controller is not accessible in the D3

. The assertion of GRST forces the controller to the D0-uninitialized state

NOTE:

cold

Principles of Operation

and/or interrupts. When the IO_EN

to the D0-uninitialized state happens

cold

. The differences between the three

hot

cold

or D3

off

state.

Similarly, bus power states of the PCI bus are B0−B3. The bus power states B0−B3 are derived from the device power state of the originating bridge device.

For the operating system (OS) to manage the device power states on the PCI bus, the PCI function should support four power-management operations. These operations are:

• Capabilities reporting

• Power status reporting

• Setting the power state

• System wake up

The OS identifies the capabilities of the PCI function by traversing the new capabilities list. The presence of capabilities in addition to the standard PCI capabilities is indicated by a 1b in bit 4 (CAPLIST) of the status register (PCI offset 06h, see Section 4.5).

The capabilities pointer provides access to the first item in the linked list of capabilities. For the controller, a CardBus bridge with PCI configuration space header type 2, the capabilities pointer is mapped to an offset of 14h. The first byte of each capability register block is required to be a unique ID of that capability. PCI power management has been assigned an ID of 01h. The next byte is a pointer to the next pointer item in the list of capabilities. If there are no more items in the list, then the next item pointer must be set to 0. The registers following the next item pointer are specific to the capability of the function. The PCI power-management capability implements the register block outlined in Table 3−11.

Table 3−11. Power-Management Registers

Power-management capabilities Next-item pointer Capability ID A0h

Power-management

Power-management data

control/status bridge

support extensions

Power-management control/status A4h

December 2004 SCPS114

Principles of Operation

The power management capabilities register (PCI offset A2h, see Section 4.37) provides information on the capabilities of the function related to power management. The power-management control/status register (PCI offset A4h, see Section 4.38) enables control of power-management states and enables/monitors power-management events. The data register is an optional register that can provide dynamic data.

For more information on PCI power management, see the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges.

3.8.9 CardBus Bridge Power Management

The PCI Bus Power Management Interface Specification for PCI to CardBus Bridges was approved by PCMCIA in December of 1997. This specification follows the device and bus state definitions provided in the PCI Bus Power Management Interface Specification published by the PCI Special Interest Group (SIG). The main issue addressed in the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges is wake-up from D3

The specific issues addressed by the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges for D3 wake up are as follows:

• Preservation of device context. The specification states that a reset must occur during the transition from

D3 to D0. Some method to preserve wake-up context must be implemented so that the reset does not clear the PME context registers.

hot

or D3

without losing wake-up context (also called PME context).

cold

• Power source in D3 The Texas Instruments PCI1510R controller addresses these D3 wake-up issues in the following manner:

• Two resets are provided to handle preservation of PME

− Global reset (GRST controller in its default state and requires BIOS to configure the device before becoming fully functional.

− PCI reset (PRST then PME

context is preserved. If PME is not enabled, then PRST acts the same as a normal PCI

reset. Please see the master list of PME

• Power source in D3 auxiliary power source must be supplied to the V for D3 Wake-Up or the PCI Power Management Interface Specification for PCI to CardBus Bridges for further information.

3.8.10 ACPI Support

The Advanced Configuration and Power Interface (ACPI) Specification provides a mechanism that allows unique pieces of hardware to be described to the ACPI driver. The controller offers a generic interface that is compliant with ACPI design rules.

Two doublewords of general-purpose ACPI programming bits reside in the PCI configuration space at of fset A8h. The programming model is broken into status and control functions. In compliance with ACPI, the top level event status and enable bits reside in the general-purpose event status register (PCI offset A8h, see Section 4.41) and general-purpose event enable register (PCI offset AAh, see Section 4.42). The status and enable bits are implemented as defined by ACPI and illustrated in Figure 3−17.

if wake-up support is required from this state.

cold

context bits:

) is used only on the initial boot up of the system after power up. It places the

) has dual functionality based on whether PME is enabled or not. If PME is enabled,

context bits in Section 3.8.11.

if wake-up support is required from this state. Since VCC is removed in D 3

cold

terminals. Consult the PCI14xx Implementation Guide

cold

, an

December 2004SCPS114

Status Bit

Event Input

Enable Bit

Event Output

Figure 3−17. Block Diagram of a Status/Enable Cell

The status and enable bits generate an event that allows the ACPI driver to call a control method associated with the pending status bit. The control method can then control the hardware by manipulating the hardware control bits or by investigating child status bits and calling their respective control methods. A hierarchical implementation would be somewhat limiting, however, as upstream devices would have to remain in some level of power state to report events.

For more information of ACPI, see the Advanced Configuration and Power Interface (ACPI) Specification.

3.8.11 Master List of PME Context Bits and Global Reset-Only Bits

If the PME enable bit (bit 8) of the power-management control/status register (PCI offset A4h, see section 4.38) is asserted, then the assertion of PRST not asserted, then the PME

context bits are cleared with PRST. The PME context bits are:

• Bridge control register (PCI offset 3Eh): bit 6

• System control register (PCI offset 80h): bits 10, 9, 8

• Power-management control/status register (PCI offset A4h): bits 15, 8

• ExCA power control register (ExCA offset 802h): bits 7, 5

• ExCA interrupt and general control register (ExCA offset 803h): bits 6−5

• ExCA card status change register (ExCA offset 804h): bits 11−8, 3−0

• ExCA card status-change-interrupt configuration register (ExCA offset 805h): bits 3−0

• CardBus socket event register (CardBus offset 00h): bits 3−0

• CardBus socket mask register (CardBus offset 04h): bits 3−0

• CardBus socket present state register (CardBus offset 08h): bits 13−7, 5−1

• CardBus socket control register (CardBus offset 10h): bits 6−4, 2−0

will not clear the following PME context bits. If the PME enable bit is

†

, 4−3, 1−0 († 82365SL mode only)

Principles of Operation

Global reset places all registers in their default state regardless of the state of the PME

enable bit. The GRST signal is gated only by the SUSPEND signal. This means that assertion of SUSPEND blocks the GRST signal internally, thus preserving all register contents. The registers cleared only by GRST

are:

• Status register (PCI offset 06h): bits 15−11, 8

• Secondary status register (PCI offset 16h): bits 15−11, 8

• Interrupt pin register (PCI offset 3Dh): bits 1, 0

• Subsystem vendor ID register (PCI offset 40h): bits 15–0

• Subsystem ID register (PCI offset 42h): bits 15–0

• PC Card 16-bit legacy mode base address register (PCI offset 44h): bits 31–1

• System control register (PCI offset 80h): bits 31–29, 27–13, 11, 6−0

• Multifunction routing register (PCI offset 8Ch): bits 27−0

• Retry status register (PCI offset 90h): bits 7−5, 3, 1

• Card control register (PCI offset 91h): bits 7−5, 2−0

• Device control register (PCI offset 92h): bits 7−5, 3−0

• Diagnostic register (PCI offset 93h): bits 7−0

• Power management capabilities register (PCI offset A2h): bit 15

• General-purpose event status register (PCI offset A8h): bits 15−14

• General-purpose event enable register (PCI offset AAh): bits 15−14, 11, 8, 4−0

• General-purpose output (PCI offset AEh): bits 4−0

• Serial bus data (PCI offset B0h): bits 7−0

• Serial bus index (PCI offset B1h): bits 7−0

December 2004 SCPS114

Principles of Operation

• Serial bus slave address register (PCI offset B2h): bits 7−0

• Serial bus control and status register (PCI offset B3h): bits 7, 5−0

• ExCA identification and revision register (ExCA offset 00h): bits 7−0

• ExCA global control register (ExCA offset 1Eh): bits 2−0

• Socket present state register (CardBus offset 08h): bit 29

• Socket power management register (CardBus offset 20h): bits 25−24

December 2004SCPS114

PC Card Controller Programming Model

4 PC Card Controller Programming Model

This chapter describes the PCI1510R PCI configuration registers that make up the 256-byte PCI configuration header.

4.1 PCI Configuration Registers

The configuration header is compliant with the PCI Local Bus Specification as a CardBus bridge header and is PC 99 compliant as well. Table 4−1 shows the PCI configuration header, which includes both the predefined portion of the configuration space and the user-definable registers.

Table 4−1. PCI Configuration Registers

Device ID Vendor ID 00h

Status Command 04h

Class code Revision ID 08h

BIST Header type Latency timer Cache line size 0Ch

CardBus socket/ExCA base address 10h

Secondary status Reserved Capability pointer 14h

CardBus latency timer Subordinate bus number CardBus bus number PCI bus number 18h

CardBus memory base register 0 1Ch

CardBus memory limit register 0 20h

CardBus memory base register 1 24h

CardBus memory limit register 1 28h

CardBus I/O base register 0 2Ch

CardBus I/O limit register 0 30h

CardBus I/O base register 1 34h

CardBus I/O limit register 1 38h Bridge control Interrupt pin Interrupt line 3Ch Subsystem ID Subsystem vendor ID 40h

PC Card 16-bit I/F legacy-mode base address 44h

Reserved 48h−7Ch

System control 80h

Reserved 84h−88h

Multifunction routing 8Ch

Diagnostic Device control Card control Retry status 90h

Reserved 94h−9Ch

Power-management capabilities Next-item pointer Capability ID A0h

Power-management

Power-management data

General-purpose event enable General-purpose event status A8h

General-purpose output General-purpose input ACh

Serial bus control/status Serial bus slave address Serial bus index Serial bus data B0h

control/status bridge

support extensions

Power-management control/status A4h

Reserved B4h−FCh

A bit description table, typically included when a register contains bits of more than one type or purpose, indicates bit field names, which appear in the signal column; a detailed field description, which appears in the function column; and field access tags, which appear in the type column of the bit description table. Table 4−2 describes the field access tags.

December 2004 SCPS114

PC Card Controller Programming Model

Table 4−2. Bit Field Access Tag Descriptions

ACCESS TAG NAME MEANING

R Read Field may be read by software.

W Write Field may be written by software to any value.

S Set Field may be set by a write of 1b. Writes of 0b have no effect. C Clear Field may be cleared by a write of 1b. Writes of 0b have no effect. U Update Field may be autonomously updated by the controller.

4.2 Vendor ID Register

This 16-bit register contains a value allocated by the PCI Special Interest Group (SIG) and identifies the manufacturer of the PCI device. The vendor ID assigned to TI is 104Ch.

PCI register offset: 00h Register type: Read-only Default value: 104Ch

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 1 0 0 0 0 0 1 0 0 1 1 0 0

4.3 Device ID Register

This 16-bit register contains a value assigned to the controller by TI. The device identification for the controller is AC56h.

PCI register offset: 02h Register type: Read-only Default value: AC56h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 1 0 1 0 1 1 0 0 0 1 0 1 0 1 1 0

December 2004SCPS114

PC Card Controller Programming Model

4.4 Command Register

The command register provides control over the controller interface to the PCI bus. All bit functions adhere to the definitions in PCI Local Bus Specification. See Table 4−3 for a complete description of the register contents.

PCI register offset: 04h Register type: Read-only, Read/Write Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Table 4−3. Command Register Description

BIT SIGNAL TYPE FUNCTION

15−10 RSVD R Reserved. Bits 15−10 return 000000b when read.

9 FBB_EN R

8 SERR_EN RW

7 STEP_EN R

6 PERR_EN RW

5 VGA_EN RW

4 MWI_EN R

3 SPECIAL R

2 MAST_EN RW

1 MEM_EN RW

0 IO_EN RW

Fast back-to-back enable. The controller does not generate fast back-to-back transactions; therefore, bit 9 returns 0b when read.

System error (SERR) enable. Bit 8 controls the enable for the SERR driver on the PCI interface. SERR can be asserted after detecting an address parity error on the PCI bus. Both bits 8 and 6 must be set for the controller to report address parity errors.

0 = Disable SERR 1 = Enable SERR

Address/data stepping control. The controller does not support address/data stepping; therefore, bit 7 is hardwired to 0b.

Parity error response enable. Bit 6 controls the controller response to parity errors through PERR. Data parity errors are indicated by asserting PERR

SERR

0 = The controller ignores detected parity error (default) 1 = The controller responds to detected parity errors

VGA palette snoop. Bit 5 controls how PCI devices handle accesses to video graphics array (VGA) palette registers.

Memory write-and-invalidate enable. Bit 4 controls whether a PCI initiator device can generate memory write-and-Invalidate commands. The controller does not support memory write-and-invalidate commands, but uses memory write commands instead; therefore, this bit is hardwired to 0b.

Special cycles. Bit 3 controls whether or not a PCI device ignores PCI special cycles. The controller does not respond to special cycle operations; therefore, this bit is hardwired to 0b.

Bus master control. Bit 2 controls whether or not the controller can act as a PCI bus initiator (master). The controller can take control of the PCI bus only when this bit is set.

0 = Disables the controller from generating PCI bus accesses (default) 1 = Enables the controller to generate PCI bus accesses

Memory space enable. Bit 1 controls whether or not the controller can claim cycles in PCI memory space.

0 = Disables the controller from responding to memory space accesses (default) 1 = Enables the controller to respond to memory space accesses

I/O space control. Bit 0 controls whether or not the controller can claim cycles in PCI I/O space.

0 = Disables the controller from responding to I/O space accesses (default) 1 = Enables the controller to respond to I/O space accesses

output driver (default)

output driver

, whereas address parity errors are indicated by asserting

December 2004 SCPS114

PC Card Controller Programming Model

4.5 Status Register

The status register provides device information to the host system. Bits in this register can be read normally. A bit in the status register is reset when a 1b is written to that bit location; a 0b written to a bit location has no effect. All bit functions adhere to the definitions in the PCI Local Bus Specification. See Table 4−4 for a complete description of the register contents.

PCI register offset: 06h Register type: Read-only, Read/Clear Default value: 0210h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0

Table 4−4. Status Register Description

BIT SIGNAL TYPE FUNCTION

15 PAR_ERR RC Detected parity error. Bit 15 is set when a parity error is detected (either address or data). 14 SYS_ERR RC Signaled system error. Bit 14 is set when SERR is enabled and the controller signals a system error to the host.

13 MABORT RC

12 TABT_REC RC

11 TABT_SIG RC

10−9 PCI_SPEED R

8 DATAPAR RC

7 FBB_CAP R

6 UDF R

5 66MHZ R

4 CAPLIST R

3−0 RSVD R Reserved. Bits 3−0 return 0h when read.

Received master abort. Bit 13 is set when a cycle initiated by the controller on the PCI bus is terminated by a master abort.

Received target abort. Bit 12 is set when a cycle initiated by the controller on the PCI bus is terminated by a target abort.

Signaled target abort. Bit 11 is set by the controller when it terminates a transaction on the PCI bus with a target abort.

DEVSEL timing. These bits encode the timing of DEVSEL and are hardwired 01b, indicating that the controller asserts PCI_SPEED at a medium speed on nonconfiguration cycle accesses.

Data parity error detected.

0 = The conditions for setting bit 8 have not been met 1 = A data parity error occurred, and the following conditions were met:

a. PERR b. The controller was the bus master during the data parity error. c. The parity error response bit is set in the command register (PCI offset 04h, see Section 4.4).

Fast back-to-back capable. The controller cannot accept fast back-to-back transactions; therefore, bit 7 is hardwired to 0b.

User-definable feature support. The controller does not support the user-definable features; therefore, bit 6 is hardwired to 0b.

66-MHz capable. The controller operates at a maximum PCLK frequency of 33 MHz; therefore, bit 5 is hardwired to 0b.

Capabilities list. Bit 4 returns 1b when read. This bit indicates that capabilities in addition to standard PCI capabilities are implemented. The linked list of PCI power-management capabilities is implemented in this function.

was asserted by any PCI device including the PCI1510R controller.

4.6 Revision ID Register

The revision ID register indicates the silicon revision of the controller.

PCI register offset: 08h Register type: Read-only Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

December 2004SCPS114

PC Card Controller Programming Model

4.7 PCI Class Code Register

The class code register recognizes the controller as a bridge device (06h) and a CardBus bridge device (07h), with a 00h programming interface.

PCI register offset: 09h Register type: Read-only Default value: 06 0700h

BIT NUMBER 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

NAME Base class Subclass Programming interface

RESET STATE 0 0 0 0 0 1 1 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0

4.8 Cache Line Size Register

The cache line size register is programmed by host software to indicate the system cache line size.

PCI register offset: 0Ch Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

4.9 Latency Timer Register

The latency timer register specifies the latency time for the controller in units of PCI clock cycles. When the controller is a PCI bus initiator and asserts FRAME timer expires before the transaction has terminated, then the controller terminates the transaction when its GNT

is deasserted.

PCI register offset: 0Dh Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

, the latency timer begins counting from zero. If the latency

4.10 Header Type Register

This register returns 02h when read, indicating that the controller configuration space adheres to the CardBus bridge PCI header. The CardBus bridge PCI header ranges from PCI register 00h to 7Fh, and 80h to FFh is user-definable extension registers.

PCI register offset: 0Eh Register type: Read-only Default value: 02h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 1 0

4.11 BIST Register

Because the controller does not support a built-in self-test (BIST), this register returns the value of 00h when read.

PCI register offset: 0Fh Register type: Read-only Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

December 2004 SCPS114

PC Card Controller Programming Model

4.12 CardBus Socket/ExCA Base-Address Register

The CardBus socket/ExCA base-address register is programmed with a base address referencing the CardBus socket registers and the memory-mapped ExCA register set. Bits 31−12 are read/write and allow the base address to be located anywhere in the 32-bit PCI memory address space on a 4-Kbyte boundary. Bits 11−0 are read-only, returning 000h when read. When software writes FFFF FFFFh to this register, the value read back is FFFF F000h, indicating that at least 4 Kbytes of memory address space are required. The CardBus registers start at offset 000h, and the memory-mapped ExCA registers begin at offset 800h.

PCI register offset: 10h Register type: Read-only, Read/Write Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

4.13 Capability Pointer Register

The capability pointer register provides a pointer into the PCI configuration header where the PCI power-management register block resides. PCI header doublewords at A0h and A4h provide the power-management (PM) registers. This register returns A0h when read.

PCI register offset: 14h Register type: Read-only Default value: A0h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 1 0 1 0 0 0 0 0

December 2004SCPS114

PC Card Controller Programming Model

4.14 Secondary Status Register

The secondary status register is compatible with the PCI-to-PCI bridge secondary status register and indicates CardBus-related device information to the host system. This register is very similar to the status register (offset 06h, see Section 4.5); status bits are cleared by writing a 1b. See Table 4−5 for a complete description of the register contents.

PCI register offset: 16h Register type: Read-only, Read/Clear Default value: 0200h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0

Table 4−5. Secondary Status Register Description

BIT SIGNAL TYPE FUNCTION

15 CBPARITY RC Detected parity error. Bit 15 is set when a CardBus parity error is detected (either address or data). 14 CBSERR RC

13 CBMABORT RC

12 REC_CBTA RC

11 SIG_CBTA RC

10−9 CB_SPEED R

8 CB_DPAR RC

7 CBFBB_CAP R

6 CB_UDF R

5 CB66MHZ R

4−0 RSVD R Reserved. Bits 4−0 return 00000b when read.

Signaled system error. Bit 14 is set when CSERR is signaled by a CardBus card. The controller does not assert CSERR

Received master abort. Bit 13 is set when a cycle initiated by the controller on the CardBus bus has been terminated by a master abort.

Received target abort. Bit 12 is set when a cycle initiated by the controller on the CardBus bus is terminated by a target abort.

Signaled target abort. Bit 11 is set by the controller when it terminates a transaction on the CardBus bus with a target abort.

CDEVSEL timing. These bits encode the timing of CDEVSEL and are hardwired 01b, indicating that the controller asserts CB_SPEED at a medium speed.

CardBus data parity error detected.

0 = The conditions for setting bit 8 have not been met 1 = A data parity error occurred and the following conditions were met:

Fast back-to-back capable. The controller cannot accept fast back-to-back transactions; therefore, bit 7 is hardwired to 0b.

User-definable feature support. The controller does not support user-definable features; therefore, bit 6 is hardwired to 0b.

66-MHz capable. The controller CardBus interface operates at a maximum CCLK frequency of 33 MHz; therefore, bit 5 is hardwired to 0b.

a. CPERR b. The controller was the bus master during the data parity error. c. The parity error response bit is set in the bridge control.

was asserted on the CardBus interface.

4.15 PCI Bus Number Register

This register is programmed by the host system to indicate the bus number of the PCI bus to which the controller is connected. The controller uses this register in conjunction with the CardBus bus number and subordinate bus number registers to determine when to forward PCI configuration cycles to its secondary buses.

PCI register offset: 18h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

December 2004 SCPS114

PC Card Controller Programming Model

4.16 CardBus Bus Number Register

This register is programmed by the host system to indicate the bus number of the CardBus bus to which the controller is connected. The controller uses this register in conjunction with the PCI bus number and subordinate bus number registers to determine when to forward PCI configuration cycles to its secondary buses.

PCI register offset: 19h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

4.17 Subordinate Bus Number Register

This register is programmed by the host system to indicate the highest-numbered bus below the CardBus bus. The controller uses this register in conjunction with the PCI bus number and CardBus bus number registers to determine when to forward PCI configuration cycles to its secondary buses.

PCI register offset: 1Ah Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

4.18 CardBus Latency Timer Register

This register is programmed by the host system to specify the latency timer for the controller CardBus interface in units of CCLK cycles. When the controller is a CardBus initiator and asserts CFRAME timer begins counting. If the latency timer expires before the controller transaction has terminated, then the controller terminates the transaction at the end of the next data phase. A recommended minimum value for this register is 40h, which allows most transactions to be completed.

PCI register offset: 1Bh Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

, the CardBus latency

December 2004SCPS114

PC Card Controller Programming Model

4.19 Memory Base Registers 0, 1

The memory base registers indicate the lower address of a PCI memory address range. These registers are used by the controller to determine when to forward a memory transaction to the CardBus bus and when to forward a CardBus cycle to PCI. Bits 31−12 of these registers are read/write and allow the memory base to be located anywhere in the 32-bit PCI memory space on 4-Kbyte boundaries. Bits 11−0 are read-only and always return 000h. Write transactions to these bits have no effect. Bits 8 and 9 of the bridge control register specify whether memory windows 0 and 1 are prefetchable or nonprefetchable. The memory base register or the memory limit register must be nonzero for the controller to claim any memory transactions through CardBus memory windows (that is, these windows are not enabled by default to pass the first 4 Kbytes of memory to CardBus).

PCI register offset: 1Ch, 24h Register type: Read-only, Read/Write Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

4.20 Memory Limit Registers 0, 1

The memory limit registers indicate the upper address of a PCI memory address range. These registers are used by the controller to determine when to forward a memory transaction to the CardBus bus and when to forward a CardBus cycle to PCI. Bits 31−12 of these registers are read/write and allow the memory base to be located anywhere in the 32-bit PCI memory space on 4-Kbyte boundaries. Bits 11−0 are read-only and always return 000h. Write transactions to these bits have no effect. Bits 8 and 9 of the bridge control register specify whether memory windows 0 and 1 are prefetchable or nonprefetchable. The memory base register or the memory limit register must be nonzero for the controller to claim any memory transactions through CardBus memory windows; that is, these windows are not enabled by default to pass the first 4 Kbytes of memory to CardBus.

PCI register offset: 20h, 28h Register type: Read-only, Read/Write Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

December 2004 SCPS114

PC Card Controller Programming Model

4.21 I/O Base Registers 0, 1

The I/O base registers indicate the lower address of a PCI I/O address range. These registers are used by the controller to determine when to forward an I/O transaction to the CardBus bus and when to forward a CardBus cycle to the PCI bus. The lower 16 bits of this register locate the bottom of the I/O window within a 64-Kbyte page, and the upper 16 bits (31−16) are a page register which locates this 64-Kbyte page in 32-bit PCI I/O address space. Bits 31−2 are read/write. Bits 1 and 0 are read-only and always return 00b, forcing I/O windows to be aligned on a natural doubleword boundary.

NOTE: Either the I/O base register or the I/O limit register must be nonzero to enable any I/O transactions.

PCI register offset: 2Ch, 34h Register type: Read-only, Read/Write Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

4.22 I/O Limit Registers 0, 1

The I/O limit registers indicate the upper address of a PCI I/O address range. These registers are used by the controller to determine when to forward an I/O transaction to the CardBus bus and when to forward a CardBus cycle to PCI. The lower 16 bits of this register locate the top of the I/O window within a 64-Kbyte page, and the upper 16 bits are a page register that locates this 64-Kbyte page in 32-bit PCI I/O address space. Bits 15−2 are read/write and allow the I/O limit address to be located anywhere in the 64-Kbyte page (indicated by bits 31−16 of the appropriate I/O base) on doubleword boundaries.

Bits 31−16 are read-only and always return 0000h when read. The page is set in the I/O base register. Bits 1 and 0 are read-only and always return 00b, forcing I/O windows to be aligned on a natural doubleword boundary. Write transactions to read-only bits have no effect. The controller assumes that the lower 2 bits of the limit address are 11b.

NOTE: The I/O base or the I/O limit register must be nonzero to enable an I/O transaction.

PCI register offset: 30h, 38h Register type: Read-only, Read/Write Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

4.23 Interrupt Line Register

The interrupt line register communicates interrupt line routing information.

PCI register offset: 3Ch Register type: Read/Write Default value: FFh

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 1 1 1 1 1 1 1 1

December 2004SCPS114

PC Card Controller Programming Model

4.24 Interrupt Pin Register

The value read from the interrupt pin register is function dependent and depends on the interrupt signaling mode, selected through bits 2−1 (INTMODE field) of the device control register (PCI offset 92h, see Section 4.33).

PCI register offset: 3Dh Register type: Read-only Default value: 01h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 1

December 2004 SCPS114

PC Card Controller Programming Model

4.25 Bridge Control Register

The bridge control register provides control over various controller bridging functions. See Table 4−6 for a complete description of the register contents.

PCI register offset: 3Eh Register type: Read-only, Read/Write Default value: 0340h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 1 1 0 1 0 0 0 0 0 0

Table 4−6. Bridge Control Register Description

BIT SIGNAL TYPE FUNCTION

15−11 RSVD R Reserved. Bits 15−11 return 00000b when read.

Write posting enable. Enables write posting to and from the CardBus socket. W rite posting enables posting

10 POSTEN RW

9 PREFETCH1 RW

8 PREFETCH0 RW

7 INTR RW

6 CRST RW

5 MABTMODE RW

4 RSVD R Reserved. Bit 4 returns 0b when read. 3 VGAEN RW

2 ISAEN RW

1 CSERREN RW

0 CPERREN RW

of write data on burst cycles. Operating with write posting disabled inhibits performance on burst cycles. Note that burst write data can be posted, but various write transactions may not.

Memory window 1 type. Bit 9 specifies whether or not memory window 1 is prefetchable. Bit 9 is encoded as:

0 = Memory window 1 is nonprefetchable 1 = Memory window 1 is prefetchable (default)

Memory window 0 type. Bit 8 specifies whether or not memory window 0 is prefetchable. This bit is encoded as:

0 = Memory window 0 is nonprefetchable 1 = Memory window 0 is prefetchable (default)

PCI interrupt − IREQ routing enable. Bit 7 selects whether PC Card functional interrupts are routed to PCI interrupts or the IRQ specified in the ExCA registers.

0 = Functional interrupts routed to PCI interrupts (default) 1 = Functional interrupts routed by ExCAs

CardBus reset. When bit 6 is set, CRST is asserted on the CardBus interface. CRST can also be asserted by passing a PRST

0 = CRST 1 = CRST

Master abort mode. Bit 5 controls how the controller responds to a master abort when the controller is an initiator on the CardBus interface. This bit is common between each socket.

0 = Master aborts not reported (default) 1 = Signal target abort on PCI and SERR

VGA enable. Bit 3 affects how the controller responds to VGA addresses. When this bit is set, accesses to VGA addresses are forwarded.

ISA mode enable. Bit 2 affects how the controller passes I/O cycles within the 64-Kbyte ISA range. When this bit is set, the controller does not forward the last 768 bytes of each 1K I/O range to CardBus.

CSERR enable. Bit 1 controls the response of the controller to CSERR signals on the CardBus bus.

0 = CSERR 1 = CSERR is forwarded to PCI SERR

CardBus parity error response enable. Bit 0 controls the response of the controller to CardBus parity errors.

0 = CardBus parity errors are ignored 1 = CardBus parity errors are reported using CPERR

assertion to CardBus. deasserted asserted (default)

(if enabled)

is not forwarded to PCI SERR

December 2004SCPS114

PC Card Controller Programming Model

4.26 Subsystem Vendor ID Register

The subsystem vendor ID register is used for system and option-card identification purposes and may be required for certain operating systems. This register is read-only or read/write, depending on the setting of bit 5 (SUBSYSRW) in the system control register (PCI offset 80h, see Section 4.29).

PCI register offset: 40h Register type: Read-only (Read/Write if enabled by SUBSYSRW) Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

4.27 Subsystem ID Register

The subsystem ID register is used for system and option-card identification purposes and may be required for certain operating systems. This register is read-only or read/write, depending on the setting of bit 5 (SUBSYSRW) in the system control register (PCI offset 80h, see Section 4.29).

PCI register offset: 42h Register type: Read-only (Read/Write if enabled by SUBSYSRW) Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

4.28 PC Card 16-Bit I/F Legacy-Mode Base Address Register

The controller supports the index/data scheme of accessing the ExCA registers, which are mapped by this register. An address written to this register is the address for the index register and the address + 1 is the data address. Using this access method, applications requiring index/data ExCA access can be supported. The base address can be mapped anywhere in 32-bit I/O space on a word boundary; hence, bit 0 is read-only, returning 1b when read. See Section 5, ExCA Compatibility Registers, for register offsets.

PCI register offset: 44h Register type: Read-only, Read/Write Default value: 0000 0001h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

December 2004 SCPS114

PC Card Controller Programming Model

4.29 System Control Register

System-level initializations are performed by programming this doubleword register. See Table 4−7 for a complete description of the register contents.

PCI register offset: 80h Register type: Read-only, Read/Write, Read/Clear Default value: 0844 9060h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 1 0 0 0 0 1 0 0 0 1 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 1 0 0 1 0 0 0 0 0 1 1 0 0 0 0 0

Table 4−7. System Control Register Description

BIT SIGNAL TYPE FUNCTION

Serialized PCI interrupt routing step. Bits 31 and 30 configure the serialized PCI interrupt stream signaling and accomplish an even distribution of interrupts signaled on the four PCI interrupt slots.

31−30 SER_STEP RW

29−28 RSVD R Reserved. Bit 28 returns 0b when read.

27 OSEN R/W

26 SMIROUTE RW

25 SMISTATUS RC

24 SMIENB RW 23 RSVD R Reserved. Bit 23 returns 0b when read.

22 CBRSVD RW

21 VCCPROT RW

20 REDUCEZV RW

19−16 RSVD RW Reserved. Do not change the default value.

15 MRBURSTDN RW

14 MRBURSTUP RW

00 = INTA 01 = INTA 10 = INTA 11 = INTA

Internal oscillator enable

0 = Internal oscillator is disabled 1 = Internal oscillator is enabled (default)

SMI interrupt routing. Bit 26 selects whether IRQ2 or CSC is signaled when a write occurs to power a PC Card socket.

0 = PC Card power change interrupts routed to IRQ2 (default) 1 = A CSC interrupt is generated on PC Card power changes

SMI interrupt status. This bit is set when bit 24 (SMIENB) is set and a write occurs to set the socket power. Writing a 1b to bit 25 clears the status.

0 = SMI interrupt signaled (default) 1 = SMI interrupt not signaled

SMI interrupt mode enable. When bit 24 is set and a write to the socket power control occurs, the SMI interrupt signaling is enabled and generates an interrupt. This bit defaults to 0b (disabled).

CardBus reserved terminals signaling. When a CardBus card is inserted and bit 22 is set, the RSVD CardBus terminals are driven low. When this bit is 0b, these terminals are placed in a high-impedance state.

0 = Place CardBus RSVD terminals in a high-impedance state 1 = Drive Cardbus RSVD terminals low (default)

VCC protection enable.

0 = VCC protection enabled for 16-bit cards (default) 1 = VCC protection disabled for 16-bit cards

Reduced zoomed video enable. When this bit is enabled, terminals A25−A22 of the card interface for PC Card-16 cards are placed in the high-impedance state. This bit must not be set for normal ZV operation. This bit is encoded as:

0 = Reduced zoomed video disabled (default) 1 = Reduced zoomed video enabled

Memory read burst enable downstream. When bit 15 is set, memory read transactions are allowed to burst downstream.

0 = Downstream memory read burst is disabled 1 = Downstream memory read burst is enabled (default)

Memory read burst enable upstream. When bit 14 is set, the controller allows memory read transactions to burst upstream.

0 = Upstream memory read burst is disabled (default) 1 = Upstream memory read burst is enabled

signal in INTA IRQSER slots signal in INTB IRQSER slots signal in INTC IRQSER slots

signal in INTD IRQSER slots

December 2004SCPS114

Table 4−7. System Control Register Description (Continued)

BIT SIGNAL TYPE FUNCTION

Socket activity status. When set, bit 13 indicates access has been performed to or from a PC card and

13 SOCACTIVE R

12 RSVD R Reserved. Bit 12 returns 1b when read.

11 PWRSTREAM R

10 DELAYUP R

9 DELAYDOWN R

8 INTERROGATE R

7 AUTOPWRSWEN R/W

6 PWRSAVINGS RW

5 SUBSYSRW RW

4 CB_DPAR RW

3 RSVD RW Reserved. Do not change the default value.

2 EXCAPOWER RW

1 KEEPCLK RW

0 RIMUX RW

is cleared upon read of this status bit.

0 = No socket activity (default) 1 = Socket activity

Power stream in progress status bit. When set, bit 11 indicates that a power stream to the power switch is in progress and a powering change has been requested. This bit is cleared when the power stream is complete.

0 = Power stream is complete and delay has expired 1 = Power stream is in progress

Power-up delay in progress status. When set, bit 10 indicates that a power-up stream has been sent to the power switch and proper power may not yet be stable. This bit is cleared when the power-up delay has expired.

Power-down delay in progress status. When set, bit 9 indicates that a power-down stream has been sent to the power switch and proper power may not yet be stable. This bit is cleared when the power-down delay has expired.

Interrogation in progress. When set, bit 8 indicates an interrogation is in progress and clears when interrogation completes.

0 = Interrogation not in progress (default) 1 = Interrogation in progress

Auto power-switch enable.

0 = Bit 5 (AUTOPWRSWEN) in ExCA power control register (ExCA offset 02h, see Section 5.3)

is disabled (default)

1 = Bit 5 (AUTOPWRSWEN) in ExCA power control register (ExCA offset 02h, see Section 5.3)

is enabled

Power savings mode enable. When this bit is set, if a CB card is inserted, idle, and without a CB clock, then the applicable CB state machine will not be clocked.

Subsystem ID (PCI offset 42h, see Section 4.27), subsystem vendor ID (PCI offset 40H, see Section 4.26), ExCA identification and revision (ExCA offset 00h/40h/800h, see Section 5.1) registers read/write enable.

0 = Subsystem ID, subsystem vendor ID, ExCA identification and revision registers are read/write 1 = Subsystem ID, subsystem vendor ID, ExCA identification and revision registers are read-only

(default)

CardBus data parity SERR signaling enable

0 = CardBus data parity not signaled on PCI SERR 1 = CardBus data parity signaled on PCI SERR

ExCA power-control bit.

0 = Enables 3.3 V 1 = Enables 5 V

Keep clock. This bit works with PCI and CB CLKRUN protocols.

0 = Allows normal functioning of both CLKRUN 1 = Does not allow CB clock or PCI clock to be stopped using the CLKRUN

RI_OUT/PME multiplex enable.

0 = RI_OUT

at the same time, the terminal becomes RI_OUT

1 = Only PME

and PME are both routed to the RI_OUT/PME terminal. If both functions are are enabled

is routed to the RI_OUT/PME terminal

protocols (default)

PC Card Controller Programming Model

protocols

only and PME assertions are not seen.

December 2004 SCPS114

PC Card Controller Programming Model

4.30 Multifunction Routing Register

The multifunction routing register configures the MFUNC0−MFUNC6 terminals for various functions. All multifunction terminals default to the general-purpose input configuration. This register is intended to be programmed once at power-on initialization. The default value for this register can also be loaded through a serial bus EEPROM. See Table 4−8 for a complete description of the register contents.

PCI register offset: 8Ch Register type: Read-only, Read/Write Default value: 0000 1000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0

Table 4−8. Multifunction Routing Register Description

BIT SIGNAL TYPE FUNCTION

31−28 RSVD R Bits 31−28 return 0h when read.

Multifunction terminal 6 configuration. These bits control the internal signal mapped to the MFUNC6 terminal

27−24 MFUNC6 RW

23−20 MFUNC5 RW

19−16 MFUNC4 RW

15−12 MFUNC3 RW

11−8 MFUNC2 RW

as follows:

0000 = RSVD 0001 = CLKRUN 0010 = IRQ2 0110 = IRQ6 1010 = IRQ10 1110 = IRQ14 0011 = IRQ3 0111 = IRQ7 1011 = IRQ11 1111 = IRQ15

Multifunction terminal 5 configuration. These bits control the internal signal mapped to the MFUNC5 terminal as follows:

0000 = GPI4 0001 = GPO4 0101 = D3_STAT 0010 = PCGNT 0011 = IRQ3 0111 = ZVSEL0 1011 = IRQ11 1111 = IRQ15

Multifunction terminal 4 configuration. These bits control the internal signal mapped to the MFUNC4 terminal as follows:

NOTE: When the serial bus mode is implemented by pulling up the VCCD0

MFUNC4 terminal provides the SCL signaling.

0000 = GPI3 0001 = GPO3 0101 = IRQ5 1001 = IRQ9 1101 = LED_SKT 0010 = LOCK 0011 = IRQ3 0111 = ZVSEL0 1011 = IRQ11 1111 = D3_STAT

Multifunction terminal 3 configuration. These bits control the internal signal mapped to the MFUNC3 terminal as follows:

0000 = RSVD 0100 = IRQ4 1000 = IRQ8 1100 = IRQ12 0001 = IRQSER 0010 = IRQ2 0110 = IRQ6 1010 = IRQ10 1110 = IRQ14 0011 = IRQ3 0111 = IRQ7 1011 = IRQ11 1111 = IRQ15

Multifunction terminal 2 configuration. These bits control the internal signal mapped to the MFUNC2 terminal as follows:

0000 = GPI2 0001 = GPO2 0101 = IRQ5 1001 = IRQ9 1101 = D3_STAT 0010 = PCREQ 0110 = ZVSTAT 1010 = IRQ10 1110 = GPE 0011 = IRQ3 0111 = ZVSEL0 1011 = IRQ11 1111 = IRQ7

†

PCI 0110 = ZVSTAT 1010 = IRQ10 1110 = GPE

†

0100 = IRQ4 1000 = IRQ8 1100 = IRQ12 0101 = IRQ5 1001 = IRQ9 1101 = IRQ13

0100 = IRQ4 1000 = CAUDPWM 1100 = LED_SKT

0110 = ZVSTAT 1010 = IRQ10 1110 = GPE

0100 = IRQ4 1000 = CAUDPWM 1100 = RI_OUT

†

0101 = IRQ5 1001 = IRQ9 1101 = IRQ13

0100 = IRQ4 1000 = CAUDPWM 1100 = RI_OUT

1001 = D3_STAT 1101 = LED_SKT

and VCCD1 terminals, the

December 2004SCPS114

Table 4−8. Multifunction Routing Register Description (Continued)

BIT SIGNAL TYPE FUNCTION

Multifunction terminal 1 configuration. These bits control the internal signal mapped to the MFUNC1 terminal as follows:

NOTE: When the serial bus mode is implemented by pulling up the VCCD0

7−4 MFUNC1 RW

3−0 MFUNC0 RW

†

Default value

MFUNC1 terminal provides the SDA signaling.

0000 = GPI1 0001 = GPO1 0101 = IRQ5 1001 = IRQ9 1101 = IRQ13 0010 = D3_STAT 0011 = IRQ3 0111 = ZVSEL0 1011 = IRQ11 1111 = IRQ15

Multifunction terminal 0 configuration. These bits control the internal signal mapped to the MFUNC0 terminal as follows:

0000 = GPI0 0001 = GPO0 0101 = IRQ5 1001 = IRQ9 1101 = IRQ13 0010 = INTA 0011 = IRQ3 0111 = ZVSEL0 1011 = IRQ11 1111 = IRQ15

†

0100 = IRQ4 1000 = CAUDPWM 1100 = LED_SKT

0110 = ZVSTAT 1010 = IRQ10 1110 = GPE

0100 = IRQ4 1000 = CAUDPWM 1100 = LED_SKT

0110 = ZVSTAT 1010 = IRQ10 1110 = GPE

4.31 Retry Status Register

PC Card Controller Programming Model

and VCCD1 terminals, the

The retry status register enables the retry timeout counters and displays the retry expiration status. The flags are set when the controller retries a PCI or CardBus master request and the master does not return within 2 PCI clock cycles. The flags are cleared by writing a 1b to the bit. These bits are expected to be incorporated into the PCI command, PCI status, and bridge control registers by the PCI SIG. See Table 4−9 for a complete description of the register contents.

PCI register offset: 90h Register type: Read-only, Read/Write, Read/Clear Default value: C0h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 1 1 0 0 0 0 0 0

Table 4−9. Retry Status Register Description

BIT SIGNAL TYPE FUNCTION

PCI retry timeout counter enable. Bit 7 is encoded:

7 PCIRETRY RW

6 CBRETRY RW

5 TEXP_CBB RC

4 RSVD R Reserved. Bit 4 returns 0b when read.

3 TEXP_CBA RC

2 RSVD R Reserved. Bit 2 returns 0b when read.

1 TEXP_PCI RC

0 RSVD R Reserved. Bit 0 returns 0b when read.

0 = PCI retry counter disabled 1 = PCI retry counter enabled (default)

CardBus retry timeout counter enable. Bit 6 is encoded:

0 = CardBus retry counter disabled 1 = CardBus retry counter enabled (default)

CardBus target B retry expired. Write a 1b to clear bit 5.

0 = Inactive (default) 1 = Retry has expired

CardBus target A retry expired. Write a 1b to clear bit 3.

0 = Inactive (default) 1 = Retry has expired

PCI target retry expired. Write a 1b to clear bit 1.

0 = Inactive (default) 1 = Retry has expired

December 2004 SCPS114

PC Card Controller Programming Model

4.32 Card Control Register

The card control register is provided for PCI1130 compatibility. RI_OUT is enabled through this register. See Table 4−10 for a complete description of the register contents.

PCI register offset: 91h Register type: Read-only, Read/Write, Read/Clear Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 4−10. Card Control Register Description

BIT SIGNAL TYPE FUNCTION

Ring indicate output enable.

7 RIENB RW

6 ZVENABLE RW 5 RSVD RW Reserved. Do not change default value.

4−3 RSVD R Reserved. Bits 4 and 3 return 00b when read.

2 AUD2MUX RW

1 SPKROUTEN RW

0 IFG RC

0 = Disables any routing of RI_OUT 1 = Enables RI_OUT

for routing to MFUNC2 or MFUNC4

Compatibility ZV mode enable. When set, the corresponding PC Card socket interface ZV terminals enter a high-impedance state. This bit defaults to 0b.

CardBus audio-to-IRQMUX. When set, the CAUDIO CardBus signal is routed to the corresponding multifunction terminal which may be configured for CAUDPWM.

Speaker out enable. When bit 1 is set, SPKR on the PC Card is enabled and is routed to SPKROUT. The SPKROUT terminal drives data only when the SPKROUTEN bit is set. This bit is encoded as:

0 = SPKR to SPKROUT not enabled 1 = SPKR

Interrupt flag. Bit 0 is the interrupt flag for 16-bit I/O PC Cards and for CardBus cards. Bit 0 is set when a functional interrupt is signaled from a PC Card interface. Write back a 1b to clear this bit.

0 = No PC Card functional interrupt detected (default) 1 = PC Card functional interrupt detected

to SPKROUT enabled

signal for routing to the RI_OUT/PME terminal, when RIMUX is set to 0b, and

signal (default)

December 2004SCPS114

PC Card Controller Programming Model

4.33 Device Control Register

The device control register is provided for PCI1130 compatibility. See Table 4−11 for a complete description of the register contents.

PCI register offset: 92h Register type: Read-only, Read/Write Default value: 66h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 1 1 0 0 1 1 0

Table 4−11. Device Control Register Description

BIT SIGNAL TYPE FUNCTION

Socket power l o c k b i t . W h e n t h i s bit is set to 1b, software cannot power down the PC Card socket while

7 SKTPWR_LOCK RW

6 3VCAPABLE RW

5 IO16V2 RW Diagnostic bit. This bit defaults to 1b. 4 RSVD R Reserved. Bit 4 returns 0b when read. 3 TEST RW TI test. Only a 0b should be written to bit 3.

2−1 INTMODE RW

0 RSVD RW Reserved. Bit 0 is reserved for test purposes. Only 0b should be written to this bit.

in D3. This may be necessary to support wake on LAN or RING if the operating system is programmed to power down a socket when the CardBus controller is placed in the D3 state.

3-V socket capable force

0 = Not 3-V capable 1 = 3-V capable (default)

Interrupt signaling mode. Bits 2 and 1 select the interrupt signaling mode. The interrupt signaling mode bits are encoded:

00 = Parallel PCI interrupts only 01 = Parallel IRQ and parallel PCI interrupts 10 = IRQ serialized interrupts and parallel PCI interrupt 11 = IRQ and PCI serialized interrupts (default)

December 2004 SCPS114

PC Card Controller Programming Model

4.34 Diagnostic Register

The diagnostic register is provided for internal TI test purposes. It is a read/write register, but only 00h should be written to it. See Table 4−12 for a complete description of the register contents.

PCI register offset: 93h Register type: Read/Write Default value: 60h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 1 1 0 0 0 0 0

Table 4−12. Diagnostic Register Description

BIT SIGNAL TYPE FUNCTION

This bit defaults to 0b. This bit is encoded as:

7 TRUE_VAL RW

6 RSVD R Reserved. Bit 6 returns 1b when read.

5 CSC RW

4 DIAG4 RW Diagnostic RETRY_DIS. Delayed transaction disable. 3 DIAG3 RW Diagnostic RETRY_EXT. Extends the latency from 16 to 64. 2 DIAG2 RW Diagnostic DISCARD_TIM_SEL_CB. Set = 210, reset = 215. 1 DIAG1 RW Diagnostic DISCARD_TIM_SEL_PCI. Set = 210, reset = 215.

0 STDZVEN RW

0 = Reads true values in PCI vendor ID and PCI device ID registers (default) 1 = Reads all 1s in reads from the PCI vendor ID and PCI device ID registers

CSC interrupt routing control

0 = CSC interrupts routed to PCI if ExCA 803 bit 4 = 1b 1 = CSC interrupts routed to PCI if ExCA 805 bits 7−4 = 0000b (default) In this case, the setting of ExCA 803 bit 4 is a don’t care.

Standardized zoomed video register model enable.

0 = Enable the standardized zoomed video register model (default) 1 = Disable the standardized zoomed video register model

4.35 Capability ID Register

The capability ID register identifies the linked list item as the register for PCI power management. The register returns 01h when read, which is the unique ID assigned by the PCI SIG for the PCI location of the capabilities pointer and the value.

PCI register offset: A0h Register type: Read-only Default value: 01h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 1

4.36 Next-Item Pointer Register

The next-item pointer register indicates the next item in the linked list of the PCI power-management capabilities. Because the controller function includes only one capabilities item, this register returns 00h when read.

PCI register offset: A1h Register type: Read-only Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

December 2004SCPS114

PC Card Controller Programming Model

4.37 Power-Management Capabilities Register

This register contains information on the capabilities of the PC Card function related to power management. The controller CardBus bridge supports the D0, D1, D2, and D3 power states. See Table 4−13 for a complete description of the register contents.

PCI register offset: A2h Register type: Read/Write, Read-only Default value: FE12h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 1 1 1 1 1 1 1 0 0 0 0 1 0 0 1 0

Table 4−13. Power-Management Capabilities Register Description

BIT SIGNAL TYPE FUNCTION

PME support. This 5-bit field indicates the power states from which the controller function may assert PME. A 0b for any bit indicates that the function cannot assert the PME five bits return 11111b when read. Each of these bits is described below:

15 PME_SupportRW

14−11 PME_Support R

10 D2_Support R

9 D1_Support R

8−6 RSVD R Reserved. Bits 8−6 return 000b when read.

5 DSI R

4 AUX_PWR R

3 PMECLK R

2−0 VERSION R

Bit 15 defaults to the value 1b indicating the PME signal can be asserted from the D3 R/W because wake-up support from D3 to the VCC terminals. If the system designer chooses not to provide an auxiliary power source to the V terminals for D3

Bit 14 contains the value 1b, indicating that the PME signal can be asserted from D3 Bit 13 contains the value 1b, indicating that the PME Bit 12 contains the value 1b, indicating that the PME Bit 11 contains the value 1b, indicating that the PME

D2 support. Bit 10 returns a 1b when read, indicating that the CardBus function supports the D2 device power state.

D1 support. Bit 9 returns a 1b when read, indicating that the CardBus function supports the D1 device power state.

Device-specific initialization. Bit 5 returns 1b when read, indicating that the CardBus controller function requires special initialization (beyond the standard PCI configuration header) before the generic-class device driver is able to use it.

Auxiliary power source. Bit 4 is tied to bit 15. When bit 4 is set, it indicates that support for PME in D3 requires auxiliary power supplied by the system by way of a proprietary delivery vehicle. When bit 4 is 0b, it indicates that the function supplies its own auxiliary power source.

PME clock. Bit 3 returns 0b when read, indicating that no host bus clock is required for the controller to generate PME

Version. Bits 2−0 return 010b when read, indicating that the power-management registers (PCI offsets A4h−A7h, see Sections 4.38−4.40) are defined in the PCI Bus Power Management Interface Specification version 1.1.

wake-up support, then BIOS should write a 0b to this bit.

cold

is contingent on the system providing an auxiliary power source

signal can be asserted from D2 state. signal can be asserted from D1 state.

signal can be asserted from the D0 state.

signal while in that power state. These

state. This bit is

cold

state.

hot

cold

December 2004 SCPS114

PC Card Controller Programming Model

4.38 Power-Management Control/Status Register

The power-management control/status register determines and changes the current power state of the controller CardBus function. The contents of this register are not affected by the internally-generated reset caused by the transition from D3 of a D3

to D0 state transition. TI-specific registers, PCI power-management registers, and the PC Card

hot

16-bit legacy-mode base address register (PCI offset 44h, see Section 4.28) are not reset. See Table 4−14 for a complete description of the register contents.

PCI register offset: A4h Register type: Read-only, Read/Write, Read/Clear Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Table 4−14. Power-Management Control/Status Register Description

BIT SIGNAL TYPE FUNCTION

PME status. Bit 15 is set when the CardBus function would normally assert PME, independent of the state

15 PMESTAT RC

14−13 DATASCALE R Data scale. This 2-bit field returns 00b when read. The CardBus function does not return any dynamic data.

12−9 DATASEL R Data select. This 4-bit field returns 0h when read. The CardBus function does not return any dynamic data.

8 PME_EN RW

7−2 RSVD R Reserved. Bits 7−2 return 000000b when read.

1−0 PWR_STATE RW

of bit 8 (PME_EN). Bit 15 is cleared by a writeback of 1b, and this also clears the PME asserted by this function. Writing a 0b to this bit has no effect.

PME enable. Bit 8 enables the function to assert PME. If this bit is cleared, then assertion of PME is disabled.

Power state. This 2-bit field is used both to determine the current power state of a function and to set the function into a new power state. This field is encoded as:

00 = D0 01 = D1 10 = D2 11 = D3

to D0 state. All PCI, ExCA, and CardBus registers are reset as a result

hot

signal if PME was

hot

December 2004SCPS114

PC Card Controller Programming Model

4.39 Power-Management Control/Status Register Bridge Support Extensions

The power-management control/status register bridge support extensions support PCI bridge specific functionality. See Table 4−15 for a complete description of the register contents.

PCI register offset: A6h Register type: Read-only Default value: C0h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 1 1 0 0 0 0 0 0

Table 4−15. Power-Management Control/Status Register Bridge Support Extensions Description

BIT SIGNAL TYPE FUNCTION

BPCC_Enable. Bus power/clock control enable. This bit returns 1b when read. This bit is encoded as:

0 = Bus power/clock control is disabled 1 = Bus power/clock control is enabled (default)

7 BPCC_EN R

6 B2_B3 R

5−0 RSVD R Reserved. Bits 5−0 return 0000000b when read.

A 0b indicates that the bus power/clock control policies defined in the PCI Bus Power Management Interface Specification are disabled. When the bus power/clock control enable mechanism is disabled, the bridge power-management control/status register power state field (see Section 4.38, bits 1−0) cannot be used by the system software to control the power or the clock of the bridge secondary bus. A 1b indicates that the bus power/clock control mechanism is enabled.

B2/B3 support for D3 programming the function to D3 as:

0 = When the bridge is programmed to D3 1 = When the bridge is programmed to D3

. The state of this bit determines the action that is to occur as a direct result of

hot

. This bit is only meaningful if bit 7 (BPCC_EN) is 1b. This bit is encoded

hot

, its secondary bus has its power removed (B3)

hot

, its secondary bus PCI clock is stopped (B2) (default)

hot

4.40 Power-Management Data Register

The power-management data register returns 00h when read, because the CardBus function does not report dynamic data.

PCI register offset: A7h Register type: Read-only Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

December 2004 SCPS114

PC Card Controller Programming Model

4.41 General-Purpose Event Status Register

The general-purpose event status register contains status bits that are set when events occur that are controlled by the general-purpose control register. The bits in this register and the corresponding GPE cleared by writing 1b to the corresponding bit location. The status bits in this register do not depend upon the states of corresponding bits in the general-purpose enable register. See Table 4−16 for a complete description of the register contents.

PCI register offset: A8h Register type: Read-only, Read/Clear Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Table 4−16. General-Purpose Event Status Register Description

BIT SIGNAL TYPE FUNCTION

15 ZV_STS RC

14−12 RSVD R Reserved. Bits 14−12 return 000b when read.

11 PWR_STS RC

10−9 RSVD R Reserved. Bits 10 and 9 return 00b when read.

8 VPP12_STS RC

7−5 RSVD R Reserved. Bits 7−5 return 000b when read.

4 GP4_STS RC GPI4 Status. Bit 4 is set on a change in status of the MFUNC5 terminal input level. 3 GP3_STS RC GPI3 Status. Bit 3 is set on a change in status of the MFUNC4 terminal input level. 2 GP2_STS RC GPI2 Status. Bit 2 is set on a change in status of the MFUNC2 terminal input level. 1 GP1_STS RC GPI1 Status. Bit 1 is set on a change in status of the MFUNC1 terminal input level. 0 GP0_STS RC GPI0 Status. Bit 0 is set on a change in status of the MFUNC0 terminal input level.

PC Card socket 0 ZV status. Bit 15 is set on a change in status of bit 6 (ZVENABLE) in the function 0 card control register (PCI offset 91h, see Section 4.32).

Power-change status. Bit 11 is set when software has changed the power state of the socket. A change in either VCC or VPP causes this bit to be set.

12-V VPP request status. Bit 8 is set when software has changed the requested VPP level to or from 12 V for the PC Card socket.

are

December 2004SCPS114

PC Card Controller Programming Model

4.42 General-Purpose Event Enable Register

The general-purpose event enable register contains bits that are set to enable a GPE signal. The GPE signal is driven until the corresponding status bit is cleared and the event is serviced. The GPE if one of the multifunction terminals, MFUNC6−MFUNC0, is configured for GPE for a complete description of the register contents.

PCI register offset: AAh Register type: Read-only, Read/Write Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Table 4−17. General-Purpose Event Enable Register Description

BIT SIGNAL TYPE FUNCTION

15 ZV0_EN RW

14−12 RSVD R Reserved. Bits 14−12 return 000b when read.

11 PWR_EN RW

10−9 RSVD R Reserved. Bits 10 and 9 return 00b when read.

8 VPP12_EN RW

7−5 RSVD R Reserved. Bits 7−5 return 000b when read.

4 GP4_EN RW

3 GP3_EN RW

2 GP2_EN RW

1 GP1_EN RW

0 GP0_EN RW

PC Card ZV enable. When bit 15 is set, a GPE is signaled on a change in status of bit 6 (ZVENABLE) in the card control register (PCI offset 91h, see Section 4.32).

Power change enable. When bit 11 is set, a GPE is signaled on when software has changed the power state.

12-V VPP request enable. When bit 8 is set, a GPE is signaled when software has changed the requested VPP level to or from 12 V.

GPI4 enable. When bit 4 is set, a GPE is signaled when there has been a change in status of the MFUNC5 terminal input level if configured as GPI4.

GPI3 enable. When bit 3 is set, a GPE is signaled when there has been a change in status of the MFUNC4 terminal input level if configured as GPI3.

GPI2 enable. When bit 2 is set, a GPE is signaled when there has been a change in status of the MFUNC2 terminal input if configured as GPI2.

GPI1 enable. When bit 1 is set, a GPE is signaled when there has been a change in status of the MFUNC1 terminal input if configured as GPI1.

GPI0 enable. When bit 0 is set, a GPE is signaled when there has been a change in status of the MFUNC0 terminal input if configured as GPI0.

can only be signaled

signaling. See Table 4−17

December 2004 SCPS114

PC Card Controller Programming Model

4.43 General-Purpose Input Register

The general-purpose input register provides the logical value of the data input from the GPI terminals, MFUNC5, MFUNC4, and MFUNC2−MFUNC0. See Table 4−18 for a complete description of the register contents.

PCI register offset: ACh Register type: Read-only Default value: 00XXh

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 X X X X X

Table 4−18. General-Purpose Input Register Description

BIT SIGNAL TYPE FUNCTION

15−5 RSVD R Reserved. Bits 15−5 return 0s when read.

4 GPI4_DATA R GPI4 data bit. The value read from bit 4 represents the logical value of the data input from the MFUNC5 terminal. 3 GPI3_DATA R GPI3 data bit. The value read from bit 3 represents the logical value of the data input from the MFUNC4 terminal. 2 GPI2_DATA R GPI2 data bit. The value read from bit 2 represents the logical value of the data input from the MFUNC2 terminal. 1 GPI1_DATA R GPI1 data bit. The value read from bit 1 represents the logical value of the data input from the MFUNC1 terminal. 0 GPI0_DATA R GPI0 data bit. The value read from bit 0 represents the logical value of the data input from the MFUNC0 terminal.

4.44 General-Purpose Output Register

The general-purpose output register is used for control of the general-purpose outputs. See Table 4−19 for a complete description of the register contents.

PCI register offset: AEh Register type: Read-only, Read/Write Default value: 0000h

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Table 4−19. General-Purpose Output Register Description

BIT SIGNAL TYPE FUNCTION

15−5 RSVD R Reserved. Bits 15−5 return 0s when read.

4 GPO4_DATA RW

3 GPO3_DATA RW

2 GPO2_DATA RW

1 GPO1_DATA RW

0 GPO0_DATA RW

GPO4 data bit. The value written to bit 4 represents the logical value of the data driven to the MFUNC5 terminal if configured as GPO4. Read transactions return the last data value written.

GPIO3 data bit. The value written to bit 3 represents the logical value of the data driven to the MFUNC4 terminal if configured as GPO3. Read transactions return the last data value written.

GPO2 data bit. The value written to bit 2 represents the logical value of the data driven to the MFUNC2 terminal if configured as GPO2. Read transactions return the last data value written.

GPO1 data bit. The value written to bit 1 represents the logical value of the data driven to the MFUNC1 terminal if configured as GPO1. Read transactions return the last data value written.

GPO0 data bit. The value written to bit 0 represents the logical value of the data driven to the MFUNC0 terminal if configured as GPO0. Read transactions return the last data value written.

December 2004SCPS114

PC Card Controller Programming Model

4.45 Serial-Bus Data Register

The serial-bus data register is for programmable serial-bus byte reads and writes. This register represents the data when generating cycles on the serial bus interface. To write a byte, this register must be programmed with the data, the serial bus index register must be programmed with the byte address, the serial-bus slave address must be programmed with the 7-bit slave address, and the read/write indicator bit must be reset.

On byte reads, the byte address is programmed into the serial-bus index register, the serial bus slave address register must be programmed with both the 7-bit slave address and the read/write indicator bit, and bit 5 (REQBUSY) in the serial bus control and status register (PCI offset B3h, see Section 4.48) must be polled until clear. Then the contents of this register are valid read data from the serial bus interface. See Table 4−20 for a complete description of the register contents.

PCI register offset: B0h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 4−20. Serial-Bus Data Register Description

BIT SIGNAL TYPE FUNCTION

7−0 SBDATA RW

Serial-bus data. This bit field represents the data byte in a read or write transaction on the serial interface. On reads, the REQBUSY bit must be polled to verify that the contents of this register are valid.

4.46 Serial-Bus Index Register

The serial-bus index register is for programmable serial-bus byte reads and writes. This register represents the byte address when generating cycles on the serial-bus interface. To write a byte, the serial-bus data register must be programmed with the data, this register must be programmed with the byte address, and the serial-bus slave address register must be programmed with both the 7-bit slave address and the read/write indicator bit.

On byte reads, the word address is programmed into this register, the serial-bus slave address must be programmed with both the 7-bit slave address and the read/write indicator bit, and bit 5 (REQBUSY) in the serial-bus control and status register (see Section 4.48) must be polled until clear. Then the contents of the serial-bus data register are valid read data from the serial-bus interface. See Table 4−21 for a complete description of the register contents.

PCI register offset: B1h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 4−21. Serial-Bus Index Register Description

BIT SIGNAL TYPE FUNCTION

7−0 SBINDEX RW Serial-bus index. This bit field represents the byte address in a read or write transaction on the serial interface.

December 2004 SCPS114

PC Card Controller Programming Model

4.47 Serial-Bus Slave Address Register

The serial-bus slave address register is for programmable serial-bus byte read and write transactions. To write a byte, the serial-bus data register must be programmed with the data, the serial-bus index register must be programmed with the byte address, and this register must be programmed with both the 7-bit slave address and the read/write indicator bit.

On byte reads, the byte address is programmed into the serial bus index register, this register must be programmed with both the 7-bit slave address and the read/write indicator bit, and bit 5 (REQBUSY) in the serial-bus control and status register (PCI offset B3h, see Section 4.48) must be polled until clear. Then the contents of the serial-bus data register are valid read data from the serial-bus interface. See Table 4−22 for a complete description of the register contents.

PCI register offset: B2h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 4−22. Serial-Bus Slave Address Register Description

BIT SIGNAL TYPE FUNCTION

7−1 SLAVADDR RW

0 RWCMD RW

Serial-bus slave address. This bit field represents the slave address of a read or write transaction on the serial interface.

Read/write command. Bit 0 indicates the read/write command bit presented to the serial bus on byte read and write accesses.

0 = A byte write access is requested to the serial bus interface 1 = A byte read access is requested to the serial bus interface

December 2004SCPS114

PC Card Controller Programming Model

4.48 Serial-Bus Control and Status Register

The serial-bus control and status register communicates serial-bus status information and selects the quick command protocol. Bit 5 (REQBUSY) in this register must be polled during serial-bus byte reads to indicate when data is valid in the serial-bus data register. See Table 4−23 for a complete description of the register contents.

PCI register offset: B3h (function 0) Register type: Read-only, Read/Write, Read/Clear Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 4−23. Serial-Bus Control and Status Register Description

BIT SIGNAL TYPE FUNCTION

Protocol select. When bit 7 is set, the send-byte protocol is used on write requests and the receive-byte

7 PROT_SEL RW

6 RSVD R Reserved. Bit 6 returns 0b when read.

5 REQBUSY R

4 ROMBUSY R

3 SBDETECT RC

2 SBTEST RW

1 REQ_ERR RC

0 ROM_ERR RC

protocol is used on read commands. The word-address byte in the serial-bus index register (PCI offset B1h, see Section 4.46) is not output by the controller when bit 7 is set.

Requested serial-bus access busy. Bit 5 indicates that a requested serial-bus access (byte read or write) is in progress. A request is made, and bit 5 is set, by writing to the serial-bus slave address register (PCI offset B2h, see Section 4.47). Bit 5 must be polled on reads from the serial interface. After the byte read access has been requested, the read data is valid in the serial-bus data register.

Serial EEPROM busy status. Bit 4 indicates the status of the controller serial EEPROM circuitry . Bit 4 is set during the loading of the subsystem ID and other default values from the serial-bus EEPROM.

0 = Serial EEPROM circuitry is not busy 1 = Serial EEPROM circuitry is busy

Serial-bus detect. When bit 3 is set, it indicates that the serial-bus interface is detected through pullup resistors on the VCCD0 terminals can be used for alternate functions such as general-purpose inputs and outputs.

0 = Serial-bus interface not detected 1 = Serial-bus interface detected

Serial-bus test. When bit 2 is set, the serial-bus clock frequency is increased for test purposes.

0 = Serial-bus clock at normal operating frequency,  100 kHz (default) 1 = Serial-bus clock frequency increased for test purposes

Requested serial-bus access error. Bit 1 indicates when a data error occurs on the serial interface during a requested cycle, and can be set due to a missing acknowledge. Bit 1 is cleared by a writeback of 1b.

0 = No error detected during user-requested byte read or write cycle 1 = Data error detected during user-requested byte read or write cycle

EEPROM data-error status. Bit 0 indicates when a data error occurs on the serial interface during the auto-load from the serial-bus EEPROM, and can be set due to a missing acknowledge. Bit 0 is also set on invalid EEPROM data formats. See Section 3.6.1, Serial Bus Interface Implementation, for details on EEPROM data format. Bit 0 is cleared by a writeback of 1b.

0 = No error detected during auto-load from serial-bus EEPROM 1 = Data error detected during auto-load from serial-bus EEPROM

and VCCD1 terminals after reset. If bit 3 is reset, then the MFUNC4 and MFUNC1

December 2004 SCPS114

ExCA Compatibilty Registers

5 ExCA Compatibilty Registers

The ExCA registers implemented in the PCI1510R controller are register-compatible with the Intel 82365SL−DF PCMCIA controller. ExCA registers are identified by an offset value that is compatible with the legacy I/O index/data scheme used on the Intel 82365 ISA controller. The ExCA registers are accessed through this scheme by writing the register offset value into the index register (I/O base) and reading or writing the data register (I/O base + 1). The I/O base address used in the index/data scheme is programmed in the PC Card 16-bit I/F legacy-mode base address register (PCI offset 44h, see Section 4.28). The offsets from this base address run contiguously from 00h to 3Fh. See Figure 5−1 for an ExCA I/O mapping illustration.

PCI1510R Configuration Registers

CardBus Socket/ExCA Base Address

Offset

10h

Host I/O Space

Index

Data

Offset

00h

PC Card A

ExCA

Registers

3Fh

16-Bit Legacy-Mode Base Address

44h

Figure 5−1. ExCA Register Access Through I/O

The controller also provides a memory-mapped alias of the ExCA registers by directly mapping them into PCI memory space. They are located through the CardBus socket/ExCA base-address register (PCI offset 10h, see Section 4.12) at memory offset 800h. See Figure 5−2 for an ExCA memory mapping illustration. This illustration also identifies the CardBus socket register mapping, which is mapped into the same 4-K window at memory offset 00h.

Host

PCI1510R Configuration Registers

CardBus Socket/ExCA Base Address

16-Bit Legacy-Mode Base Address

10h

44h

Memory Space

CardBus

Socket

Registers

ExCA

Registers

OffsetOffset

00h

20h

800h

844h

Figure 5−2. ExCA Register Access Through Memory

December 2004SCPS114

ExCA Compatibilty Registers

The interrupt registers in the ExCA register set, as defined by the 82365SL−DL specification, control such card functions as reset, type, interrupt routing, and interrupt enables. Special attention must be paid to the interrupt routing registers and the host interrupt signaling method selected for the controller to ensure that all possible controller interrupts can potentially be routed to the programmable interrupt controller . The ExCA registers that are critical to the interrupt signaling are the ExCA interrupt and general control register (ExCA offset 03h/43h/803h, see Section 5.4) and the ExCA card status-change interrupt configuration register (05h/45h/805h, see Section 5.6).

Access to I/O mapped 16-bit PC cards is available to the host system via two ExCA I/O windows. These are regions of host I/O address space into which the card I/O space is mapped. These windows are defined by start, end, and offset addresses programmed in the ExCA registers described in this section. I/O windows have byte granularity.

Access to memory mapped 16-bit PC Cards is available to the host system via five ExCA memory windows. These are regions of host memory space into which the card memory space is mapped. These windows are defined by start, end, and offset addresses programmed in the ExCA registers described in this section. Table 5−1 identifies each ExCA register and its respective ExCA offset. Memory windows have 4-Kbyte granularity.

Table 5−1. ExCA Registers and Offsets

EXCA REGISTER NAME

Identification and revision 800 00 Interface status 801 01 Power control 802 02 Interrupt and general control 803 03 Card status change 804 04 Card status-change interrupt configuration 805 05 Address window enable 806 06 I /O window control 807 07 I /O window 0 start-address low byte 808 08 I /O window 0 start-address high byte 809 09 I /O window 0 end-address low byte 80A 0A I /O window 0 end-address high byte 80B 0B I /O window 1 start-address low byte 80C 0C I /O window 1 start-address high byte 80D 0D I /O window 1 end-address low byte 80E 0E I /O window 1 end-address high byte 80F 0F Memory window 0 start-address low byte 810 10 Memory window 0 start-address high byte 811 11 Memory window 0 end-address low byte 812 12 Memory window 0 end-address high byte 813 13 Memory window 0 offset-address low byte 814 14 Memory window 0 offset-address high byte 815 15 Card detect and general control 816 16 Reserved 817 17 Memory window 1 start-address low byte 818 18 Memory window 1 start-address high byte 819 19 Memory window 1 end-address low byte 81A 1A

Memory window 1 end-address high byte 81B 1B

PCI MEMORY ADDRESS

OFFSET (HEX)

ExCA OFFSET

(HEX)

December 2004 SCPS114

ExCA Compatibilty Registers

Table 5−1. ExCA Registers and Offsets (Continued)

EXCA REGISTER NAME

Memory window 1 offset-address low byte 81C 1C Memory window 1 offset-address high byte 81D 1D Global control 81E 1E Reserved 81F 1F Memory window 2 start-address low byte 820 20 Memory window 2 start-address high byte 821 21 Memory window 2 end-address low byte 822 22 Memory window 2 end-address high byte 823 23 Memory window 2 offset-address low byte 824 24 Memory window 2 offset-address high byte 825 25 Reserved 826 26 Reserved 827 27 Memory window 3 start-address low byte 828 28 Memory window 3 start-address high byte 829 29 Memory window 3 end-address low byte 82A 2A Memory window 3 end-address high byte 82B 2B Memory window 3 offset-address low byte 82C 2C Memory window 3 offset-address high byte 82D 2D Reserved 82E 2E Reserved 82F 2F Memory window 4 start-address low byte 830 30 Memory window 4 start-address high byte 831 31 Memory window 4 end-address low byte 832 32 Memory window 4 end-address high byte 833 33 Memory window 4 offset-address low byte 834 34 Memory window 4 offset-address high byte 835 35 I/O window 0 offset-address low byte 836 36 I/O window 0 offset-address high byte 837 37 I/O window 1 offset-address low byte 838 38 I/O window 1 offset-address high byte 839 39 Reserved 83A 3A Reserved 83B 3B Reserved 83C 3C Reserved 83D 3D Reserved 83E 3E Reserved 83F 3F Memory window page 0 840 − Memory window page 1 841 − Memory window page 2 842 − Memory window page 3 843 − Memory window page 4 844 −

PCI MEMORY ADDRESS

OFFSET (HEX)

ExCA OFFSET

(HEX)

December 2004SCPS114

ExCA Compatibilty Registers

5.1 ExCA Identification and Revision Register

The ExCA identification and revision register provides host software with information on 16-bit PC Card support and Intel 82365SL-DF compatibility . This register is read-only or read/write, depending on the setting of bit 5 (SUBSYSRW) in the system control register (PCI offset 80h, see Section 4.29). See Table 5−2 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 800h; ExCA offset 00h Register type: Read-only, Read/Write Default value: 84h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 1 0 0 0 0 1 0 0

Table 5−2. ExCA Identification and Revision Register Description

BIT SIGNAL TYPE FUNCTION

7−6 IFTYPE R 5−4 RSVD RW Reserved. Bits 5 and 4 can be used for Intel 82365SL-DF emulation.

3−0 365REV RW

Interface type. These bits, which are hardwired as 10b, identify the 16-bit PC Card support provided by the controller. The controller supports both I/O and memory 16-bit PC cards.

Intel 82365SL-DF revision. This field stores the Intel 82365SL-DF revision supported by the controller. Host software can read this field to determine compatibility to the Intel this field puts the controller in 82365SL mode.

82365SL-DF register set. Writing 0010b to

December 2004 SCPS114

ExCA Compatibilty Registers

5.2 ExCA Interface Status Register

The ExCA interface status register provides information on the current status of the PC Card interface. An X in the default bit value indicates that the value of the bit after reset depends on the state of the PC Card interface. See Table 5−3 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 801h; ExCA offset 01h Register type: Read-only Default value: 00XX XXXXb

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 X X X X X X

Table 5−3. ExCA Interface Status Register Description

BIT SIGNAL TYPE FUNCTION

7 RSVD R Reserved. Bit 7 returns 0b when read.

Card Power. Bit 6 indicates the current power status of the PC Card socket. This bit reflects how the ExCA

6 CARDPWR R

5 READY R

4 CARDWP R

3 CDETECT2 R

2 CDETECT1 R

1−0 BVDSTAT R

power control register (ExCA offset 02h/42h/802h, see Section 5.3) is programmed. Bit 6 is encoded as:

0 = VCC and VPP to the socket turned off (default) 1 = VCC and VPP to the socket turned on

Ready. Bit 5 indicates the current status of the READY signal at the PC Card interface.

0 = PC Card not ready for data transfer 1 = PC Card ready for data transfer

Card write protect (WP). Bit 4 indicates the current status of WP at the PC Card interface. This signal reports to the controller whether or not the memory card is write protected. Furthermore, write protection for an entire 16-bit memory window is available by setting the appropriate bit in the memory window offset-address high-byte register.

0 = WP is 0b. PC Card is read/write. 1 = WP is 1b. PC Card is read-only.

Card detect 2. Bit 3 indicates the status of CD2 at the PC Card interface. Software may use this and bit 2 (CDETECT1) to determine if a PC Card is fully seated in the socket.

0 = CD2 is 1b. No PC Card is inserted. 1 = CD2

is 0b. PC Card is at least partially inserted.

Card detect 1. Bit 2 indicates the status of CD1 at the PC Card interface. Software may use this and bit 3 (CDETECT2) to determine if a PC Card is fully seated in the socket.

0 = CD1 is 1b. No PC Card is inserted. 1 = CD1

is 0b. PC Card is at least partially inserted.

Battery voltage detect. When a 16-bit memory card is inserted, the field indicates the status of the battery voltage detect signals (BVD1, BVD2) at the PC Card interface, where bit 1 reflects the BVD2 status and bit 0 reflects BVD1.

00 = Battery dead 01 = Battery dead 10 = Battery low; warning 11 = Battery good

When a 16-bit I/O card is inserted, this field indicates the status of SPKR PC Card interface. In this case, the two bits in this field directly reflect the current state of these card outputs.

(bit 1) and STSCHG (bit 0) at the

December 2004SCPS114

ExCA Compatibilty Registers

5.3 ExCA Power Control Register

The ExCA power control register provides PC Card power control. Bit 7 (COE) of this register controls the 16-bit output enables on the socket interface, and can be used for power management in 16-bit PC Card applications. See Table 5−4 and Table 5−5 for a complete description of the register contents.

The controller supports both the 82365SL and 82365SL-DF register models. Bits 3−0 (365REV) of the ExCA identification and revision register (ExCA offset 00h, see Section 5.1) control which register model is supported.

ExCA register offset: CardBus socket address + 802h; ExCA offset 02h Register type: Read-only, Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−4. ExCA Power Control Register Description—82365SL Support

BIT SIGNAL TYPE FUNCTION

Card output enable. Bit 7 controls the state of all of the 16-bit outputs on the controller. This bit is

7 COE RW

6 RSVD R Reserved. Bit 6 returns 0b when read.

5 AUTOPWRSWEN RW

4 CAPWREN RW

3−2 RSVD R Reserved. Bits 3 and 2 return 00b when read.

1−0 EXCAVPP RW

encoded as:

0 = 16-bit PC Card outputs disabled (default) 1 = 16-bit PC Card outputs enabled

Auto power switch enable.

0 = Automatic socket power switching based on card detects is disabled 1 = Automatic socket power switching based on card detects is enabled

PC Card power enable.

0 = VCC = No connection 1 = VCC is enabled and controlled by bit 2 (EXCAPOWER) of the system control register

(PCI offset 80h, see Section 4.29)

PC Card VPP power control. Bits 1 and 0 request changes to card VPP. The controller ignores this field unless VCC to the socket is enabled. This field is encoded as:

00 = No connection (default) 01 = V

10 = 12 V 11 = Reserved

Table 5−5. ExCA Power Control Register Description—82365SL-DF Support

BIT SIGNAL TYPE FUNCTION

Card output enable. Bit 7 controls the state of all of the 16-bit outputs on the controller . This bit is encoded as:

7 COE RW

6−5 RSVD R Reserved. Bits 6 and 5 return 00b when read.

4−3 EXCAVCC RW

2 RSVD R Reserved. Bit 2 returns 0b when read.

1−0 EXCAVPP RW

December 2004 SCPS114

0 = 16-bit PC Card outputs disabled (default) 1 = 16-bit PC Card outputs enabled

VCC. Bits 4 and 3 request changes to card VCC. This field is encoded as:

00 = 0 V (default) 01 = 0 V reserved 10 = 5 V 11 = 3.3 V

VPP. Bits 1 and 0 request changes to card VPP. The controller ignores this field unless VCC to the socket is enabled. This field is encoded as:

00 = No connection (default) 01 = V

10 = 12 V 11 = Reserved

ExCA Compatibilty Registers

5.4 ExCA Interrupt and General Control Register

The ExCA interrupt and general control register controls interrupt routing for I/O interrupts, as well as other critical 16-bit PC Card functions. See Table 5−6 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 803h; ExCA offset 03h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−6. ExCA Interrupt and General Control Register Description

BIT SIGNAL TYPE FUNCTION

Card ring indicate enable. Bit 7 enables the ring indicate function of BVD1/RI. This bit is encoded as:

7 RINGEN RW

6 RESET RW

5 CARDTYPE RW

4 CSCROUTE RW

3−0 INTSELECT RW

0 = Ring indicate disabled (default) 1 = Ring indicate enabled

Card reset. Bit 6 controls the 16-bit PC Card RESET, and allows host software to force a card reset. Bit 6 affects 16-bit cards only. This bit is encoded as:

0 = RESET signal asserted (default) 1 = RESET signal deasserted

Card type. Bit 5 indicates the PC card type. This bit is encoded as:

0 = Memory PC Card installed (default) 1 = I/O PC Card installed

PCI interrupt CSC routing enable bit. When bit 4 is set (high), the card status change interrupts are routed to PCI interrupts. When low, the card status change interrupts are routed using bits 7−4 (CSCSELECT field) in the ExCA card status-change interrupt configuration register (ExCA offset 05h/45h/805h, see Section 5.6). This bit is encoded as:

0 = CSC interrupts are routed by ExCA registers (default). 1 = CSC interrupts are routed to PCI interrupts.

Card interrupt select for I/O PC Card functional interrupts. Bits 3−0 select the interrupt routing for I/O PC Card functional interrupts. This field is encoded as:

0000 = No interrupt routing (default). CSC interrupts are routed to PCI interrupts. This bit setting is

ORed with bit 4 (CSCROUTE) for backward compatibility. 0001 = IRQ1 enabled 0010 = SMI enabled 0011 = IRQ3 enabled 0100 = IRQ4 enabled 0101 = IRQ5 enabled 0100 = IRQ6 enabled 0111 = IRQ7 enabled 1000 = IRQ8 enabled 1001 = IRQ9 enabled 1010 = IRQ10 enabled 1011 = IRQ11 enabled 1100 = IRQ12 enabled 1101 = IRQ13 enabled 1110 = IRQ14 enabled 1111 = IRQ15 enabled

December 2004SCPS114

ExCA Compatibilty Registers

5.5 ExCA Card Status-Change Register

The ExCA card status-change register controls interrupt routing for I/O interrupts as well as other critical 16-bit PC Card functions. The register enables these interrupt sources to generate an interrupt to the host. When the interrupt source is disabled, the corresponding bit in this register always reads 0b. When an interrupt source is enabled, the corresponding bit in this register is set to indicate that the interrupt source is active. After generating the interrupt to the host, the interrupt service routine must read this register to determine the source of the interrupt. The interrupt service routine is responsible for resetting the bits in this register as well. Resetting a bit is accomplished by one of two methods: a read of this register or an explicit write back of 1b to the status bit. The choice of these two methods is based on bit 2 (interrupt flag clear mode select) in the ExCA global control register (ExCA offset 1E/5E/81E, see Section 5.20). See Table 5−7 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 804h; ExCA offset 04h Register type: Read-only Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−7. ExCA Card Status-Change Register Description

BIT SIGNAL TYPE FUNCTION

7−4 RSVD R Reserved. Bits 7−4 return 0h when read.

Card detect change. Bit 3 indicates whether a change on CD1 or CD2 occurred at the PC Card interface.

3 CDCHANGE R

2 READYCHANGE R

1 BATWARN R

0 BATDEAD R

This bit is encoded as:

0 = No change detected on either CD1 or CD2 1 = Change detected on either CD1 or CD2

Ready change. When a 16-bit memory is installed in the socket, bit 2 includes whether the source of an interrupt was due to a change on READY at the PC Card interface, indicating that the PC Card is now ready to accept new data. This bit is encoded as:

0 = No low-to-high transition detected on READY (default)

1 = Detected low-to-high transition on READY When a 16-bit I/O card is installed, bit 2 is always 0b. Battery warning change. When a 16-bit memory card is installed in the socket, bit 1 indicates whether the

source of an interrupt was due to a battery-low warning condition. This bit is encoded as:

0 = No battery warning condition (default)

1 = Detected battery warning condition When a 16-bit I/O card is installed, bit 1 is always 0b.

Battery dead or status change. When a 16-bit memory card is installed in the socket, bit 0 indicates whether the source of an interrupt was due to a battery dead condition. This bit is encoded as:

0 = STSCHG deasserted (default)

1 = STSCHG Ring indicate. When the controller is configured for ring indicate operation, bit 0 indicates the status of

asserted

December 2004 SCPS114

ExCA Compatibilty Registers

5.6 ExCA Card Status-Change Interrupt Configuration Register

The ExCA card status-change interrupt configuration register controls interrupt routing for card status-change interrupts, as well as masking CSC interrupt sources. See Table 5−8 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 805h; ExCA offset 05h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−8. ExCA Card Status-Change Interrupt Configuration Register Description

BIT SIGNAL TYPE FUNCTION

Interrupt select for card status change. Bits 7−4 select the interrupt routing for card status-change interrupts.

0000 = CSC interrupts routed to PCI interrupts if bit 5 (CSC) of the diagnostic register (PCI of fset 93h, see Section 4.34) is set to 1b. In this case bit 4 (CSCROUTE) of the ExCA interrupt and general control register (ExCA offset 03h/43h/803h, see Section 5.4) is a don’t care. This is the default setting.

0000 = No ISA interrupt routing if bit 5 (CSC) of the diagnostic register is set to 0b (see Section 4.34). In this case, CSC interrupts are routed to PCI interrupts by setting bit 4 (CSCROUTE) of the ExCA interrupt

7−4 CSCSELECT RW

3 CDEN RW

2 READYEN RW

1 BATWARNEN RW

0 BATDEADEN RW

and general control register (ExCA offset 03h/43h/803h, see Section 5.4) to 1b. This field is encoded as:

0000 = No interrupt routing (default) 1000 = IRQ8 enabled 0001 = IRQ1 enabled 1001 = IRQ9 enabled 0010 = SMI enabled 1010 = IRQ10 enabled 0011 = IRQ3 enabled 1011 = IRQ11 enabled 0100 = IRQ4 enabled 1100 = IRQ12 enabled 0101 = IRQ5 enabled 1101 = IRQ13 enabled 0110 = IRQ6 enabled 1110 = IRQ14 enabled 0111 = IRQ7 enabled 1111 = IRQ15 enabled

Card detect enable. Bit 3 enables interrupts on CD1 or CD2 changes. This bit is encoded as:

0 = Disables interrupts on CD1 1 = Enables interrupts on CD1

Ready enable. Bit 2 enables/disables a low-to-high transition on PC Card READY to generate a host interrupt. This interrupt source is considered a card status change. This bit is encoded as:

0 = Disables host interrupt generation (default) 1 = Enables host interrupt generation

Battery warning enable. Bit 1 enables/disables a battery warning condition to generate a CSC interrupt. This bit is encoded as:

0 = Disables host interrupt generation (default) 1 = Enables host interrupt generation

Battery dead enable. Bit 0 enables/disables a battery dead condition on a memory PC Card or assertion of the STSCHG

0 = Disables host interrupt generation (default) 1 = Enables host interrupt generation

I/O PC Card signal to generate a CSC interrupt.

or CD2 line changes (default)

or CD2 line changes

December 2004SCPS114

ExCA Compatibilty Registers

5.7 ExCA Address Window Enable Register

The ExCA address window enable register enables/disables the memory and I/O windows to the 16-bit PC Card. By default, all windows to the card are disabled. The controller does not acknowledge PCI memory or I/O cycles to the card if the corresponding enable bit in this register is 0b, regardless of the programming of the memory or I/O window start/end/offset address registers. See Table 5−9 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 806h; ExCA offset 06h Register type: Read-only, Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−9. ExCA Address Window Enable Register Description

BIT SIGNAL TYPE FUNCTION

I/O window 1 enable. Bit 7 enables/disables I/O window 1 for the PC Card. This bit is encoded as:

7 IOWIN1EN RW

6 IOWIN0EN RW

5 RSVD R Reserved. Bit 5 returns 0b when read.

4 MEMWIN4EN RW

3 MEMWIN3EN RW

2 MEMWIN2EN RW

1 MEMWIN1EN RW

0 MEMWIN0EN RW

0 = I/O window 1 disabled (default) 1 = I/O window 1 enabled

I/O window 0 enable. Bit 6 enables/disables I/O window 0 for the PC Card. This bit is encoded as:

0 = I/O window 0 disabled (default) 1 = I/O window 0 enabled

Memory window 4 enable. Bit 4 enables/disables memory window 4 for the PC Card. This bit is encoded as:

0 = Memory window 4 disabled (default) 1 = Memory window 4 enabled

Memory window 3 enable. Bit 3 enables/disables memory window 3 for the PC Card. This bit is encoded as:

0 = Memory window 3 disabled (default) 1 = Memory window 3 enabled

Memory window 2 enable. Bit 2 enables/disables memory window 2 for the PC Card. This bit is encoded as:

0 = Memory window 2 disabled (default) 1 = Memory window 2 enabled

Memory window 1 enable. Bit 1 enables/disables memory window 1 for the PC Card. This bit is encoded as:

0 = Memory window 1 disabled (default) 1 = Memory window 1 enabled

Memory window 0 enable. Bit 0 enables/disables memory window 0 for the PC Card. This bit is encoded as:

0 = Memory window 0 disabled (default) 1 = Memory window 0 enabled

December 2004 SCPS114

ExCA Compatibilty Registers

5.8 ExCA I/O Window Control Register

The ExCA I/O window control register contains parameters related to I/O window sizing and cycle timing. See Table 5−10 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 807h; ExCA offset 07h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−10. ExCA I/O Window Control Register Description

BIT SIGNAL TYPE FUNCTION

7 WAITSTATE1 RW

6 ZEROWS1 RW

5 IOIS16W1 RW

4 DATASIZE1 RW

3 WAITSTATE0 RW

2 ZEROWS0 RW

1 IOIS16W0 RW

0 DATASIZE0 RW

I/O window 1 wait state. Bit 7 controls the I/O window 1 wait state for 16-bit I/O accesses. Bit 7 has no effect on 8-bit accesses. This wait-state timing emulates the ISA wait state used by the Intel bit is encoded as:

0 = 16-bit cycles have standard length (default) 1 = 16-bit cycles are extended by one equivalent ISA wait state

I/O window 1 zero wait state. Bit 6 controls the I/O window 1 wait state for 8-bit I/O accesses. Bit 6 has no effect on 16-bit accesses. This wait-state timing emulates the ISA wait state used by the Intel 82365SL-DF. This bit is encoded as:

0 = 8-bit cycles have standard length (default) 1 = 8-bit cycles are reduced to equivalent of three ISA cycles

I/O window 1 IOIS16 source. Bit 5 controls the I/O window 1 automatic data sizing feature that uses IOIS16 from the PC Card to determine the data width of the I/O data transfer. This bit is encoded as:

0 = Window data width determined by DATASIZE1, bit 4 (default) 1 = Window data width determined by IOIS16

I/O window 1 data size. Bit 4 controls the I/O window 1 data size. Bit 4 is ignored if bit 5 (IOSIS16W1) is set. This bit is encoded as:

0 = Window data width is 8 bits (default) 1 = Window data width is 16 bits

I/O window 0 wait state. Bit 3 controls the I/O window 0 wait state for 16-bit I/O accesses. Bit 3 has no effect on 8-bit accesses. This wait-state timing emulates the ISA wait state used by the Intel bit is encoded as:

0 = 16-bit cycles have standard length (default) 1 = 16-bit cycles are extended by one equivalent ISA wait state

I/O window 0 zero wait state. Bit 2 controls the I/O window 0 wait state for 8-bit I/O accesses. Bit 2 has no effect on 16-bit accesses. This wait-state timing emulates the ISA wait state used by the Intel 82365SL-DF. This bit is encoded as:

0 = 8-bit cycles have standard length (default) 1 = 8-bit cycles are reduced to equivalent of three ISA cycles

I/O window 0 IOIS16 source. Bit 1 controls the I/O window 0 automatic data sizing feature that uses IOIS16 from the PC Card to determine the data width of the I/O data transfer. This bit is encoded as:

0 = Window data width is determined by DATASIZE0, bit 0 (default) 1 = Window data width is determined by IOIS16

I/O window 0 data size. Bit 0 controls the I/O window 0 data size. Bit 0 is ignored if bit 1 (IOSIS16W0) is set. This bit is encoded as:

0 = Window data width is 8 bits (default) 1 = Window data width is 16 bits

82365SL-DF. This

December 2004SCPS114

ExCA Compatibilty Registers

5.9 ExCA I/O Windows 0 and 1 Start-Address Low-Byte Registers

These registers contain the low byte of the 16-bit I/O window start address for I/O windows 0 and 1. The 8 bits of these registers correspond to the lower 8 bits of the start address.

Register: ExCA I/O window 0 start-address low-byte ExCA register offset: CardBus socket address + 808h; ExCA offset 08h Register: ExCA I/O window 1 start-address low-byte ExCA register offset: CardBus socket address + 80Ch; ExCA offset 0Ch Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.10 ExCA I/O Windows 0 and 1 Start-Address High-Byte Registers

These registers contain the high byte of the 16-bit I/O window start address for I/O windows 0 and 1. The 8 bits of these registers correspond to the upper 8 bits of the end address.

Register: ExCA I/O window 0 start-address high-byte ExCA register offset: CardBus socket address + 809h; ExCA offset 09h Register: ExCA I/O window 1 start-address high-byte ExCA register offset: CardBus socket address + 80Dh; ExCA offset 0Dh Register type: Read/write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.11 ExCA I/O Windows 0 and 1 End-Address Low-Byte Registers

These registers contain the low byte of the 16-bit I/O window end address for I/O windows 0 and 1. The 8 bits of these registers correspond to the lower 8 bits of the end address.

I/O window 0 end-address low-byte

ExCA register offset: CardBus socket address + 80Ah; ExCA offset 0Ah Register: ExCA

I/O window 1 end-address low-byte

ExCA register offset: CardBus socket address + 80Eh; ExCA offset 0Eh Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.12 ExCA I/O Windows 0 and 1 End-Address High-Byte Registers

These registers contain the high byte of the 16-bit I/O window end address for I/O windows 0 and 1. The 8 bits of these registers correspond to the upper 8 bits of the end address.

Register: ExCA ExCA register offset: CardBus socket address + 80Bh; ExCA offset 0Bh Register: ExCA ExCA register offset: CardBus socket address + 80Fh; ExCA offset 0Fh Register type: Read/write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

I/O window 0 end-address high-byte I/O window 1 end-address high-byte

December 2004 SCPS114

ExCA Compatibilty Registers

5.13 ExCA Memory Windows 0−4 Start-Address Low-Byte Registers

These registers contain the low byte of the 16-bit memory window start address for memory windows 0, 1, 2, 3, and 4. The 8 bits of these registers correspond to bits A19−A12 of the start address.

Register: ExCA memory window 0 start-address low-byte ExCA register offset: CardBus socket address + 810h; ExCA offset 10h Register: ExCA memory window 1 start-address low-byte ExCA register offset: CardBus socket address + 818h; ExCA offset 18h Register: ExCA memory window 2 start-address low-byte ExCA register offset: CardBus socket address + 820h; ExCA offset 20h Register: ExCA memory window 3 start-address low-byte ExCA register offset: CardBus socket address + 828h; ExCA offset 28h Register: ExCA memory window 4 start-address low-byte ExCA register offset: CardBus socket address + 830h; ExCA offset 30h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.14 ExCA Memory Windows 0−4 Start-Address High-Byte Registers

These registers contain the high nibble of the 16-bit memory window start address for memory windows 0, 1, 2, 3, and 4. The lower 4 bits of these registers correspond to bits A23−A20 of the start address. In addition, the memory window data width and wait states are set in this register. See Table 5−11 for a complete description of the register contents.

Register: ExCA memory window 0 start-address high-byte ExCA register offset: CardBus socket address + 811h; ExCA offset 11h Register: ExCA memory window 1 start-address high-byte ExCA register offset: CardBus socket address + 819h; ExCA offset 19h Register: ExCA memory window 2 start-address high-byte ExCA register offset: CardBus socket address + 821h; ExCA offset 21h Register: ExCA memory window 3 start-address high-byte ExCA register offset: CardBus socket address + 829h; ExCA offset 29h Register: ExCA memory window 4 start-address high-byte ExCA register offset: CardBus socket address + 831h; ExCA offset 31h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−11. ExCA Memory Windows 0−4 Start-Address High-Byte Registers Description

BIT SIGNAL TYPE FUNCTION

Data size. Bit 7 controls the memory window data width. This bit is encoded as:

7 DATASIZE RW

6 ZEROWAIT RW

5−4 SCRATCH RW Scratch pad bits. Bits 5 and 4 have no effect on memory window operation. 3−0 STAHN RW

0 = Window data width is 8 bits (default) 1 = Window data width is 16 bits

Zero wait state. Bit 6 controls the memory window wait state for 8- and 16-bit accesses. This wait-state timing emulates the ISA wait state used by the Intel

0 = 8- and 16-bit cycles have standard length (default) 1 = 8-bit cycles are reduced to equivalent of three ISA cycles.

16-bit cycles are reduced to equivalent of two ISA cycles.

Start-address high nibble. Bits 3−0 represent the upper address bits A23−A20 of the memory window start address.

82365SL-DF. This bit is encoded as:

December 2004SCPS114

ExCA Compatibilty Registers

5.15 ExCA Memory Windows 0−4 End-Address Low-Byte Registers

These registers contain the low byte of the 16-bit memory window end address for memory windows 0, 1, 2, 3, and 4. The 8 bits of these registers correspond to bits A19−A12 of the end address.

Register: ExCA memory window 0 end-address low-byte ExCA register offset: CardBus socket address + 812h; ExCA offset 12h Register: ExCA memory window 1 end-address low-byte ExCA register offset: CardBus socket address + 81Ah; ExCA offset 1Ah Register: ExCA memory window 2 end-address low-byte ExCA register offset: CardBus socket address + 822h; ExCA offset 22h Register: ExCA memory window 3 end-address low-byte ExCA register offset: CardBus socket address + 82Ah; ExCA offset 2Ah Register: ExCA memory window 4 end-address low-byte ExCA register offset: CardBus socket address + 832h; ExCA offset 32h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.16 ExCA Memory Windows 0−4 End-Address High-Byte Registers

These registers contain the high nibble of the 16-bit memory window end address for memory windows 0, 1, 2, 3, and 4. The lower 4 bits of these registers correspond to bits A23−A20 of the end address. In addition, the memory window wait states are set in this register. See Table 5−12 for a complete description of the register contents.

Register: ExCA memory window 0 end-address high-byte ExCA register offset: CardBus socket address + 813h; ExCA offset 13h Register: ExCA memory window 1 end-address high-byte ExCA register offset: CardBus socket address + 81Bh; ExCA offset 1Bh Register: ExCA memory window 2 end-address high-byte ExCA register offset: CardBus socket address + 823h; ExCA offset 23h Register: ExCA memory window 3 end-address high-byte ExCA register offset: CardBus socket address + 82Bh; ExCA offset 2Bh Register: ExCA memory window 4 end-address high-byte ExCA register offset: CardBus socket address + 833h; ExCA offset 33h Register type: Read-only, Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−12. ExCA Memory Windows 0−4 End-Address High-Byte Registers Description

BIT SIGNAL TYPE FUNCTION

7−6 MEMWS RW 5−4 RSVD R Reserved. Bits 5 and 4 return 00b when read. 3−0 ENDHN RW

Wait state. Bits 7 and 6 specify the number of equivalent ISA wait states to be added to 16-bit memory accesses. The number of wait states added is equal to the binary value of these two bits.

End-address high nibble. Bits 3−0 represent the upper address bits A23−A20 of the memory window end address.

December 2004 SCPS114

ExCA Compatibilty Registers

5.17 ExCA Memory Windows 0−4 Offset-Address Low-Byte Registers

These registers contain the low byte of the 16-bit memory window offset address for memory windows 0, 1, 2, 3, and 4. The 8 bits of these registers correspond to bits A19−A12 of the offset address.

Register: ExCA memory window 0 offset-address low-byte ExCA register offset: CardBus socket address + 814h; ExCA offset 14h Register: ExCA memory window 1 offset-address low-byte ExCA register offset: CardBus socket address + 81Ch; ExCA offset 1Ch Register: ExCA memory window 2 offset-address low-byte ExCA register offset: CardBus socket address + 824h; ExCA offset 24h Register: ExCA memory window 3 offset-address low-byte ExCA register offset: CardBus socket address + 82Ch; ExCA offset 2Ch Register: ExCA memory window 4 offset-address low-byte ExCA register offset: CardBus socket address + 834h; ExCA offset 34h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.18 ExCA Memory Windows 0−4 Offset-Address High-Byte Registers

These registers contain the high 6 bits of the 16-bit memory window offset address for memory windows 0, 1, 2, 3, and 4. The lower 6 bits of these registers correspond to bits A25−A20 of the offset address. In addition, the write protection and common/attribute memory configurations are set in this register. See Table 5−13 for a complete description of the register contents.

Register: ExCA memory window 0 offset-address high-byte ExCA register offset: CardBus socket address + 815h; ExCA offset 15h Register: ExCA memory window 1 offset-address high-byte ExCA register offset: CardBus socket address + 81Dh; A ExCA offset 1Dh Register: ExCA memory window 2 offset-address high-byte ExCA register offset: CardBus socket address + 825h; ExCA offset 25h Register: ExCA memory window 3 offset-address high-byte ExCA register offset: CardBus socket address + 82Dh; ExCA offset 2Dh Register: ExCA memory window 4 offset-address high-byte ExCA register offset: CardBus socket address + 835h; ExCA offset 35h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−13. ExCA Memory Windows 0−4 Offset-Address High-Byte Registers Description

BIT SIGNAL TYPE FUNCTION

Write protect. Bit 7 specifies whether write operations to this memory window are enabled. This bit is encoded as:

7 WINWP RW

6 REG RW

5−0 OFFHB RW

0 = Write operations are allowed (default) 1 = Write operations are not allowed

Bit 6 specifies whether this memory window is mapped to card attribute or common memory. This bit is encoded as:

0 = Memory window is mapped to common memory (default) 1 = Memory window is mapped to attribute memory

Offset-address high byte. Bits 5−0 represent the upper address bits A25−A20 of the memory window offset address.

December 2004SCPS114

ExCA Compatibilty Registers

5.19 ExCA Card Detect and General Control Register

The ExCA card detect and general control register controls how the ExCA registers for the socket respond to card removal, as well as reports the status of VS1 a complete description of the register contents.

ExCA register offset: CardBus socket address + 816h; ExCA offset 16h Register type: Read-only, Read/Write Default value: XX00 0000b

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE X X 0 0 0 0 0 0

Table 5−14. ExCA Card Detect and General Control Register Description

BIT SIGNAL TYPE FUNCTION

VS2 state. Bit 7 reports the current state of VS2 at the PC Card interface and, therefore, does not have

7 VS2STAT R

6 VS1STAT R

5 SWCSC RW

4 CDRESUME RW

3−2 RSVD R Reserved. Bits 3 and 2 return 00b when read.

1 REGCONFIG RW

0 RSVD R Reserved. Bit 0 returns 0b when read.

a default value.

0 = VS2 low 1 = VS2

high

VS1 state. Bit 6 reports the current state of VS1 at the PC Card interface and, therefore, does not have a default value.

0 = VS1 low 1 = VS1

high

Software card detect interrupt. If bit 3 (CDEN) in the ExCA card status-change interrupt configuration register (ExCA offset 05h/45h/805, see Section 5.6) is set, then writing a 1b to bit 5 causes a card-detect card-status change interrupt for the associated card socket. If bit 3 (CDEN) in the ExCA card status-change-interrupt configuration register (ExCA offset 05h/45h/805, see Section 5.6) is cleared to 0b, then writing a 1b to bit 5 has no effect. A read operation of this bit always returns 0b.

Card detect resume enable. If bit 4 is set to 1b, then once a card detect change has been detected on CD1 and CD2 inputs, RI_OUT goes from high to low. RI_OUT remains low until bit 0 (card status change) in the ExCA card status-change register is cleared (see Section 5.5). If this bit is a 0b, then the card detect resume functionality is disabled.

0 = Card detect resume disabled (default) 1 = Card detect resume enabled

Register configuration on card removal. Bit 1 controls how the ExCA registers for the socket react to a card removal event. This bit is encoded as:

0 = No change to ExCA registers on card removal (default) 1 = Reset ExCA registers on card removal

and VS2 at the PC Card interface. See Table 5−14 for

December 2004 SCPS114

ExCA Compatibilty Registers

5.20 ExCA Global Control Register

The host interrupt mode bits in this register are retained for Intel 82365SL-DF compatibility . See Table 5−15 for a complete description of the register contents.

ExCA register offset: CardBus socket address + 81Eh; ExCA offset 1Eh Register type: Read-only, Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

Table 5−15. ExCA Global Control Register Description

BIT SIGNAL TYPE FUNCTION

7−5 RSVD R Reserved. Bits 7−5 return 000b when read.

Level/edge interrupt mode select − card B. Bit 4 selects the signaling mode for the host interrupt for card

4 INTMODEB RW

3 INTMODEA RW

2 IFCMODE RW

1 CSCMODE RW

0 PWRDWN RW

B interrupts. This bit is encoded as:

0 = Host interrupt is edge mode (default) 1 = Host interrupt is level mode

Level/edge interrupt mode select − card A. Bit 3 selects the signaling mode for the host interrupt for card A interrupts. This bit is encoded as:

0 = Host interrupt is edge mode (default) 1 = Host interrupt is level mode

Interrupt flag clear mode select. Bit 2 selects the interrupt flag clear mechanism for the flags in the ExCA card status change register (ExCA offset 04h/44h/804h, see Section 5.5). This bit is encoded as:

0 = Interrupt flags are cleared by read of CSC register (default) 1 = Interrupt flags are cleared by explicit writeback of 1b

Card status change level/edge mode select. Bit 1 selects the signaling mode for the host interrupt for card status changes. This bit is encoded as:

0 = Host interrupt is edge mode (default) 1 = Host interrupt is level mode

Power-down mode select. When bit 0 is set to 1b, the controller is in power-down mode. In power-down mode, the controller card outputs are high-impedance until an active cycle is executed on the card interface. Following an active cycle, the outputs are again high-impedance. The controller still receives functional interrupts and/or card status-change interrupts; however, an actual card access is required to wake up the interface. This bit is encoded as:

0 = Power-down mode is disabled (default) 1 = Power-down mode is enabled

December 2004SCPS114

ExCA Compatibilty Registers

5.21 ExCA I/O Windows 0 and 1 Offset-Address Low-Byte Registers

These registers contain the low byte of the 16-bit I/O window offset address for I/O windows 0 and 1. The 8 bits of these registers correspond to the lower 8 bits of the offset address, and bit 0 is always 0b.

Register: ExCA I/O window 0 offset-address low-byte ExCA register offset: CardBus socket address + 836h; ExCA offset 36h Register: ExCA I/O window 1 offset-address low-byte ExCA register offset: CardBus socket address + 838h; ExCA offset 38h Register type: Read-only, Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.22 ExCA I/O Windows 0 and 1 Offset-Address High-Byte Registers

These registers contain the high byte of the 16-bit I/O window offset address for I/O windows 0 and 1. The 8 bits of these registers correspond to the upper 8 bits of the offset address.

Register: ExCA I/O window 0 offset-address high-byte ExCA register offset: CardBus socket address + 837h; ExCA offset 37h Register: ExCA I/O window 1 offset-address high-byte ExCA register offset: CardBus socket address + 839h; ExCA offset 39h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

5.23 ExCA Memory Windows 0−4 Page Registers

The upper 8 bits of a 4-byte PCI memory address are compared to the contents of this register when decoding addresses for 16-bit memory windows. Each window has its own page register, all of which default to 00h. By programming this register to a nonzero value, host software can locate 16-bit memory windows in any 1 of 256 16-Mbyte regions in the 4-Gbyte PCI address space. These registers are only accessible when the ExCA registers are memory-mapped; that is, these registers cannot be accessed using the index/data I/O scheme.

ExCA register offset: CardBus socket address + 840h, 841h, 842h, 843h, 844h Register type: Read/Write Default value: 00h

BIT NUMBER 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0

December 2004 SCPS114

CardBus Socket Registers

6 CardBus Socket Registers

The PC Card Standard requires a CardBus socket controller to provide five 32-bit registers that report and control socket-specific functions. The PCI1510R controller provides the CardBus socket/ExCA base-address register (PCI offset 10h, see Section 4.12) to locate these CardBus socket registers in PCI memory address space. Table 6−1 gives the location of the socket registers in relation to the CardBus socket/ExCA base address.

The controller implements an additional register at offset 20h that provides power management control for the socket.

PCI1510R Configuration Registers

Host

Memory Space

OffsetOffset

00h

20h

800h

844h

CardBus Socket/ExCA Base Address

16-Bit Legacy-Mode Base Address

10h

44h

CardBus

Socket

Registers

ExCA

Registers

Figure 6−1. Accessing CardBus Socket Registers Through PCI Memory

Table 6−1. CardBus Socket Registers

Socket event 00h Socket mask 04h Socket present-state 08h Socket force event 0Ch Socket control 10h Reserved 14h−1Ch Socket power-management 20h

December 2004SCPS114

CardBus Socket Registers

6.1 Socket Event Register

The socket event register indicates a change in socket status has occurred. These bits do not indicate what the change is, only that one has occurred. Software must read the socket present-state register (CB offset 08h, see Section 6.3) for current status. Each bit in this register can be cleared by writing a 1b to that bit. The bits in this register can be set to a 1b by software by writing a 1b to the corresponding bit in the socket force event register (CB offset 0Ch, see Section 6.4). All bits in this register are cleared by PCI reset. They can be immediately set again, if, when coming out of PC Card reset, the bridge finds the status unchanged (that is, CSTSCHG If it is not cleared when interrupts are enabled, then an interrupt is generated (but not masked) based on any bit set. See Table 6−2 for a complete description of the register contents.

CardBus register offset: CardBus socket address + 00h Register type: Read-only, Read/Write, Read/Clear Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT SIGNAL TYPE FUNCTION

31−4 RSVD R Reserved. Bits 31−4 return 000 0000h when read.

3 PWREVENT R/C

2 CD2EVENT R/C

1 CD1EVENT R/C

0 CSTSEVENT R/C

reasserted or card detect is still true). Software must clear this register before enabling interrupts.

Table 6−2. Socket Event Register Description

Power cycle. Bit 3 is set when the controller detects that bit 3 (PWRCYCLE) in the socket present-state register (CB offset 08h, see Section 6.3) has changed state. This bit is cleared by writing a 1b.

CCD2. Bit 2 is set when the controller detects that bit 2 (CDETECT2) in the socket present-state register (CB offset 08h, see Section 6.3) has changed state. This bit is cleared by writing a 1b.

CCD1. Bit 1 is set when the controller detects that bit 1 (CDETECT1) in the socket present-state register (CB offset 08h, see Section 6.3) has changed state. This bit is cleared by writing a 1b.

CSTSCHG. Bit 0 is set when bit 0 (CARDSTS) in the socket present-state register (CB offset 08h, see Section 6.3) has changed state. For CardBus cards, bit 0 is set on the rising edge of CSTSCHG PC Cards, bit 0 is set on both transitions of CSTSCHG

. This bit is reset by writing a 1b.

. For 16-bit

December 2004 SCPS114

CardBus Socket Registers

6.2 Socket Mask Register

The socket mask register allows software to control the CardBus card events that generate a status change interrupt. The state of these mask bits does not prevent the corresponding bits from reacting in the socket event register (CB offset 00h, see Section 6.1). See Table 6−3 for a complete description of the register contents.

CardBus register offset: CardBus socket address + 04h Register type: Read-only, Read/Write Default value: 0000 0000h

BIT NUMBER 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BIT NUMBER 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

RESET STATE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Table 6−3. Socket Mask Register Description

BIT SIGNAL TYPE FUNCTION

31−4 RSVD R Reserved. Bits 31−4 return 000 0000h when read.

Power cycle. Bit 3 masks bit 3 (PWRCYCLE) in the socket present-state register (CB offset 08h, see

3 PWRMASK RW

2−1 CDMASK RW

0 CSTSMASK RW

Section 6.3) from causing a status change interrupt.

0 = PWRCYCLE event does not cause CSC interrupt (default) 1 = PWRCYCLE event causes CSC interrupt

Card detect mask. Bits 2 and 1 mask bits 1 and 2 (CDETECT1 and CDETECT2) in the socket present-state register (CB offset 08h, see Section 6.3) from causing a CSC interrupt.

00 = Insertion/removal does not cause CSC interrupt (default) 01 = Reserved (undefined) 10 = Reserved (undefined) 11 = Insertion/removal causes CSC interrupt

CSTSCHG mask. Bit 0 masks bit 0 (CARDSTS) in the socket present-state register (CB offset 08h, see Section 6.3) from causing a CSC interrupt.

0 = CARDSTS event does not cause CSC interrupt (default) 1 = CARDSTS event causes CSC interrupt

December 2004SCPS114

TEXAS INSTRUMENTS PCI1510R Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
