MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2x33, MSP430G2x03 Mixed-Signal Microcontrollers

1 Device Overview

1.1 Features

• Low Supply-Voltage Range: 1.8 V to 3.6 V

• Ultra-Low Power Consumption – Active Mode: 230 µA at 1 MHz, 2.2 V – Standby Mode: 0.5 µA – Off Mode (RAM Retention): 0.1 µA

• Five Power-Saving Modes

• Ultra-Fast Wake up From Standby Mode in Less Than 1 µs

• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time

• Basic Clock Module Configurations – Internal Frequencies up to 16 MHz With Four

Calibrated Frequencies

– Internal Very-Low-Power Low-Frequency (LF)

Oscillator – 32-kHz Crystal – External Digital Clock Source

• Two 16-Bit Timer_A With Three Capture/Compare Registers

• Up to 24 Capacitive-Touch Enabled I/O Pins

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

• Universal Serial Communication Interface (USCI) – Enhanced UART Supports Automatic Baud-

Rate Detection (LIN) – IrDA Encoder and Decoder – Synchronous SPI – I2C

• 10-Bit 200-ksps Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold, and Autoscan (See Table 3-1)

• Brownout Detector

• Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse

• On-Chip Emulation Logic With Spy-Bi-Wire Interface

• Section 3 Summarizes Available Family Members

• Package Options – TSSOP: 20 Pin, 28 Pin – PDIP: 20 Pin – QFN: 32 Pin

• For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide (SLAU144)

1.2 Applications

• Power Management

• Sensor Interface

1.3 Description

The TI MSP family of ultra-low-power microcontrollers consists of several devices that feature different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from lowpower modes to active mode in less than 1 µs.

The MSP430G2x03 and MSP430G2x33 devices are ultra-low-power mixed-signal microcontrollers with built-in 16-bit timers, up to 24 I/O capacitive-touch enabled pins, and built-in communication capability using the USCI. In addition, the MSP430G2x33 family members have a 10-bit ADC. See Section 3 for configuration details.

Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.

• Capacitive Touch

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.

Clock

System

Brownout

Protection

RST/NMI

DVCC DVSS

MCLK

Watchdog

WDT+

15-Bit

Timer0_A3

3 CC

registers

16-MHz

CPU

including

16 registers

Emulation

2BP

JTAG

interface

SMCLK

ACLK

Port P1

8 I/Os,

interrupt

capability,

pullup or pulldown resistors

P1.x

P2.x

Port P2

8 I/Os,

interrupt

capability,

pullup or pulldown resistors

Spy-Bi-

Wire

Timer1_A3

3 CC

registers

XIN

XOUT

Port P3

8 I/Os, pullup or pulldown resistors

P3.x

8 8

RAM

512B 256B

Flash

16KB

8KB 4KB 2KB

USCI A0

UART,

LIN, IrDA,

SPI

USCI B0

SPI, I C

ADC

10 bit,

8 channel,

autoscan, 1-channel

DMA

MDB

MAB

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

PART NUMBER PACKAGE BODY SIZE

MSP430G2533IRHB VQFN (32) 5 mm × 5 mm

MSP430G2533IPW

MSP430G2533IN PDIP (20) 24.33 mm × 6.35 mm

(1) For the most current part, package, and ordering information, see the Package Option Addendum in

Section 8, or see the TI website at www.ti.com.

(2) The sizes shown here are approximations. For the package dimensions with tolerances, see the

Mechanical Data in Section 8.

1.4 Functional Block Diagrams

Figure 1-1 shows the functional block diagram of the MSP430G2x33 MCUs.

Device Information

(1)

TSSOP (28) 9.7 mm × 4.4 mm TSSOP (20) 6.5 mm × 4.4 mm

(2)

NOTE: Port P3 is available on 28-pin and 32-pin devices only.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 1-1. Functional Block Diagram, MSP430G2x33

Submit Documentation Feedback

MSP430G2203

Clock

System

Brownout

Protection

RST/NMI

DVCC DVSS

MCLK

Watchdog

WDT+

15-Bit

Timer0_A3

3 CC

registers

16-MHz

CPU

including

16 registers

Emulation

2BP

JTAG

interface

SMCLK

ACLK

Port P1

8 I/Os,

interrupt

capability,

pullup or pulldown resistors

P1.x

P2.x

Port P2

8 I/Os,

interrupt

capability,

pullup or pulldown resistors

Spy-Bi-

Wire

Timer1_A3

3 CC

registers

XIN

XOUT

Port P3

8 I/Os, pullup or pulldown resistors

P3.x

8 8

RAM

256B

Flash

8KB 4KB 2KB

USCI A0

UART,

LIN, IrDA,

SPI

USCI B0

SPI, I C

MDB

MAB

www.ti.com

Figure 1-2 shows the functional block diagram of the MSP430G2x03 MCUs.

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

NOTE: Port P3 is available on 28-pin and 32-pin devices only.

Figure 1-2. Functional Block Diagram, MSP430G2x03

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table of Contents

www.ti.com

1 Device Overview ......................................... 1

1.1 Features .............................................. 1

1.2 Applications........................................... 1

1.3 Description............................................ 1

1.4 Functional Block Diagrams........................... 2

2 Revision History ......................................... 5

3 Device Comparison ..................................... 6

3.1 Related Products ..................................... 7

4 Terminal Configuration and Functions.............. 8

4.1 Pin Diagrams ......................................... 8

4.2 Signal Descriptions.................................. 10

5 Specifications........................................... 13

5.1 Absolute Maximum Ratings ........................ 13

5.2 ESD Ratings ........................................ 13

5.3 Recommended Operating Conditions............... 13

5.4 Active Mode Supply Current Into VCCExcluding

External Current..................................... 14

5.5 Typical Characteristics, Active Mode Supply Current (Into V

5.6 Low-Power Mode Supply Currents (Into VCC)

Excluding External Current.......................... 16

5.7 Typical Characteristics, Low-Power Mode Supply

Currents ............................................. 17

5.8 Thermal Resistance Characteristics ................ 18

5.9 Schmitt-Trigger Inputs, Ports Px .................... 19

5.10 Leakage Current, Ports Px.......................... 19

5.11 Outputs, Ports Px ................................... 19

5.12 Output Frequency, Ports Px ........................ 19

5.13 Typical Characteristics – Outputs................... 20

5.14 Pin-Oscillator Frequency – Ports Px ................ 21

5.15 Typical Characteristics – Pin-Oscillator Frequency. 21

5.16 POR, BOR .......................................... 22

5.17 Main DCO Characteristics .......................... 24

5.18 DCO Frequency..................................... 24

5.19 Calibrated DCO Frequencies, Tolerance ........... 25

5.20 Wake-up Times From Lower-Power Modes (LPM3,

LPM4) .............................................. 26

5.21 Typical Characteristics, DCO Clock Wake-up Time

From LPM3 or LPM4................................ 26

5.22 Crystal Oscillator, XT1, Low-Frequency Mode ..... 27

5.23 Internal Very-Low-Power Low-Frequency Oscillator

(VLO)................................................ 27

5.24 Timer_A ............................................. 27

)............................................ 15

5.25 USCI (UART Mode)................................. 28

5.26 USCI (SPI Master Mode)............................ 28

5.27 USCI (SPI Slave Mode)............................. 29

5.28 USCI (I

5.29 10-Bit ADC, Power Supply and Input Range

5.30 10-Bit ADC, Built-In Voltage Reference

5.31 10-Bit ADC, External Reference (MSP430G2x33

5.32 10-Bit ADC, Timing Parameters (MSP430G2x33

5.33 10-Bit ADC, Linearity Parameters (MSP430G2x33

5.34 10-Bit ADC, Temperature Sensor and Built-In V

5.35 Flash Memory ....................................... 34

5.36 RAM................................................. 35

5.37 JTAG and Spy-Bi-Wire Interface.................... 35

5.38 JTAG Fuse .......................................... 35

C Mode) .................................... 30

Conditions (MSP430G2x33 Only)................... 31

(MSP430G2x33 Only)............................... 32

Only)................................................. 33

(MSP430G2x33 Only)............................... 34

MID

6 Detailed Description ................................... 36

6.1 CPU ................................................. 36

6.2 Instruction Set....................................... 37

6.3 Operating Modes.................................... 38

6.4 Interrupt Vector Addresses.......................... 39

6.5 Special Function Registers (SFRs) ................. 40

6.6 Memory Organization ............................... 41

6.7 Bootloader (BSL).................................... 41

6.8 Flash Memory ....................................... 42

6.9 Peripherals .......................................... 42

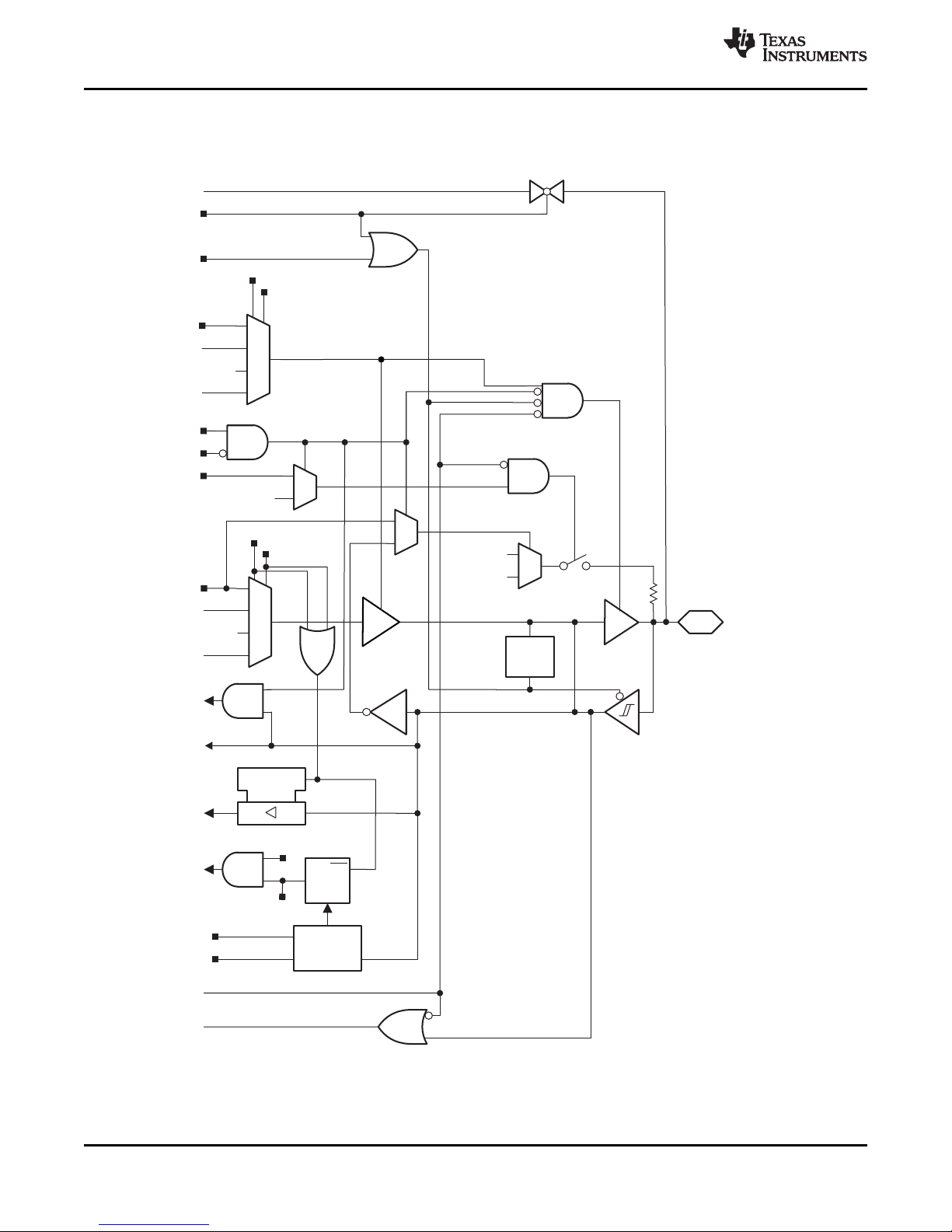

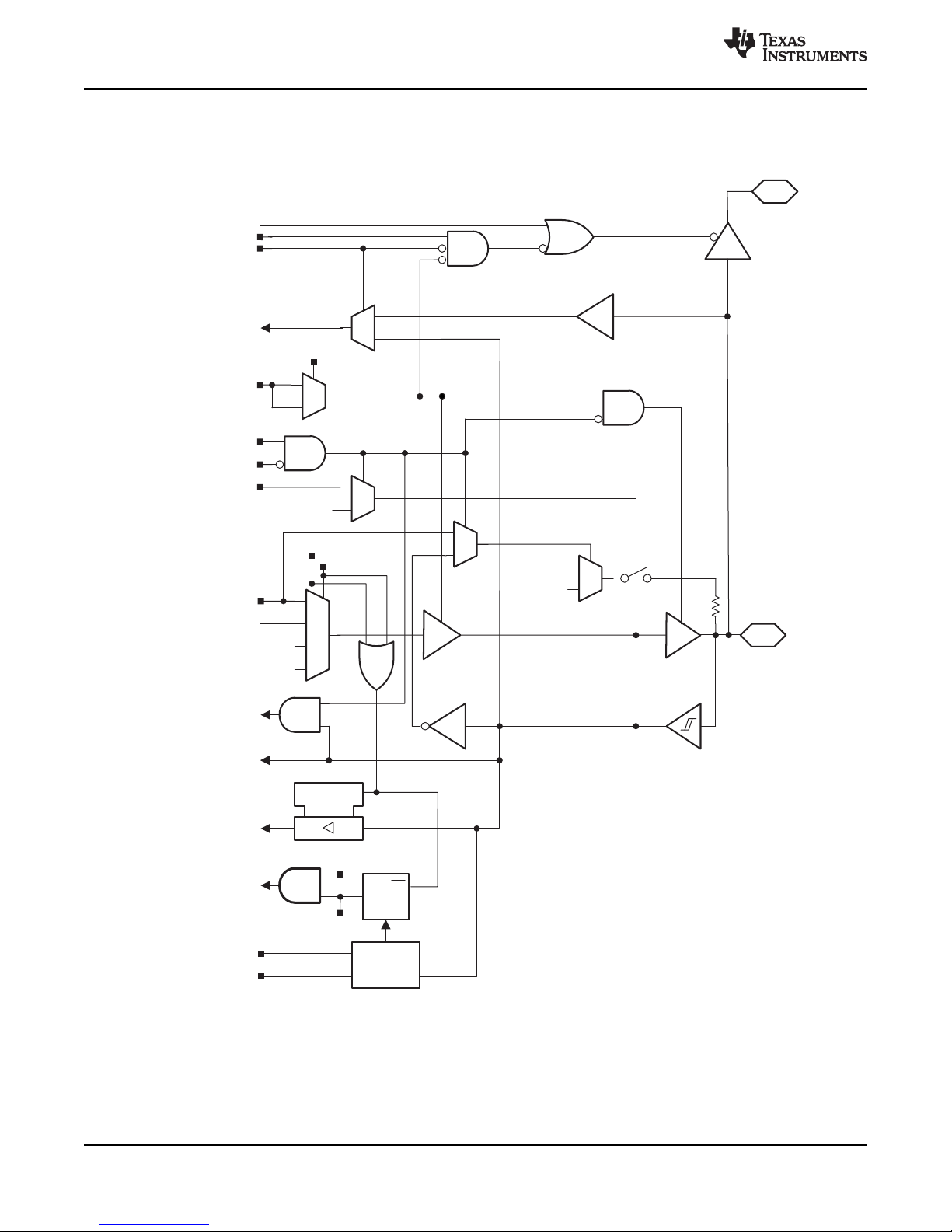

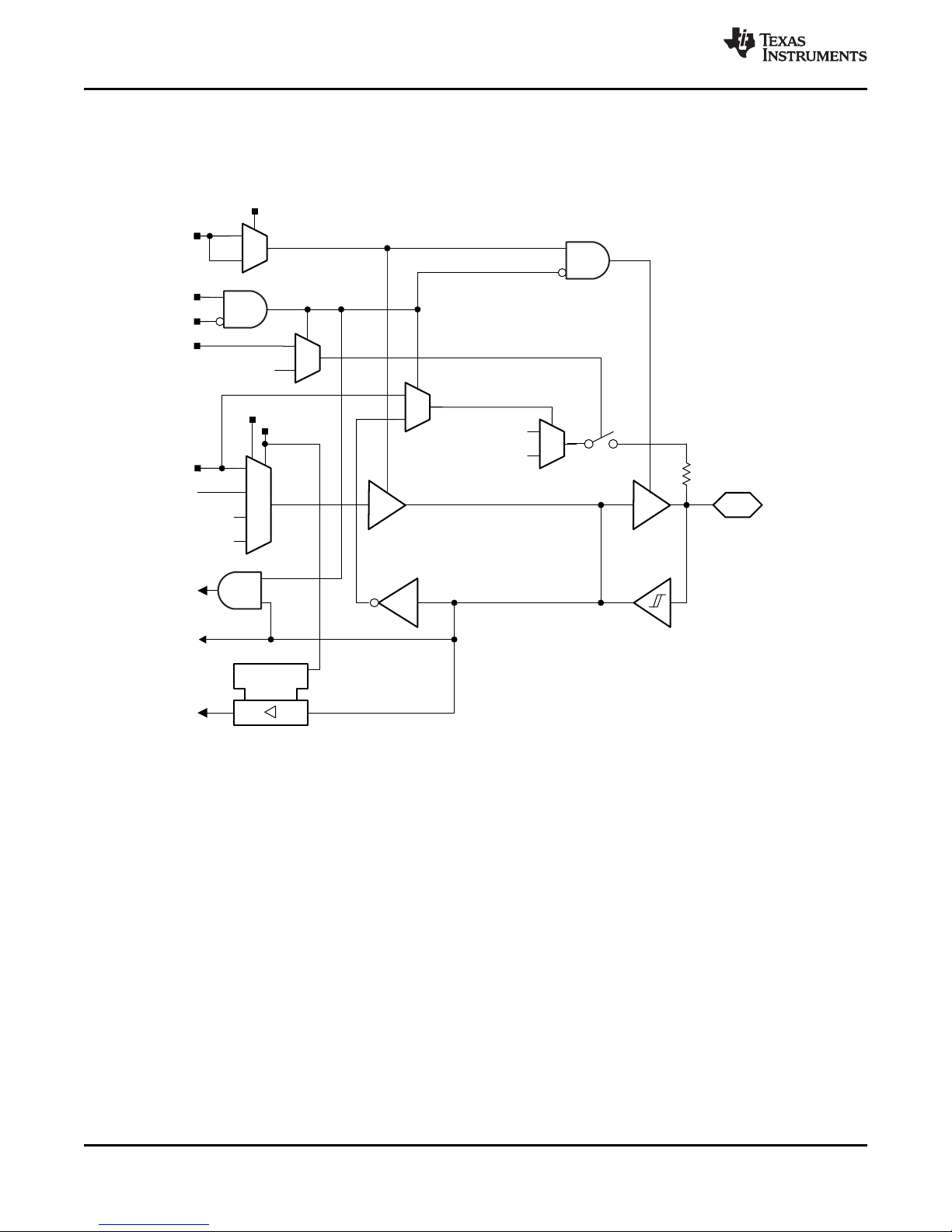

6.10 I/O Port Diagrams................................... 48

7 Device and Documentation Support ............... 64

7.1 Getting Started and Next Steps..................... 64

7.2 Device Nomenclature ............................... 64

7.3 Tools and Software ................................. 66

7.4 Documentation Support ............................. 68

7.5 Related Links........................................ 70

7.6 Community Resources .............................. 71

7.7 Trademarks.......................................... 71

7.8 Electrostatic Discharge Caution..................... 71

7.9 Glossary............................................. 71

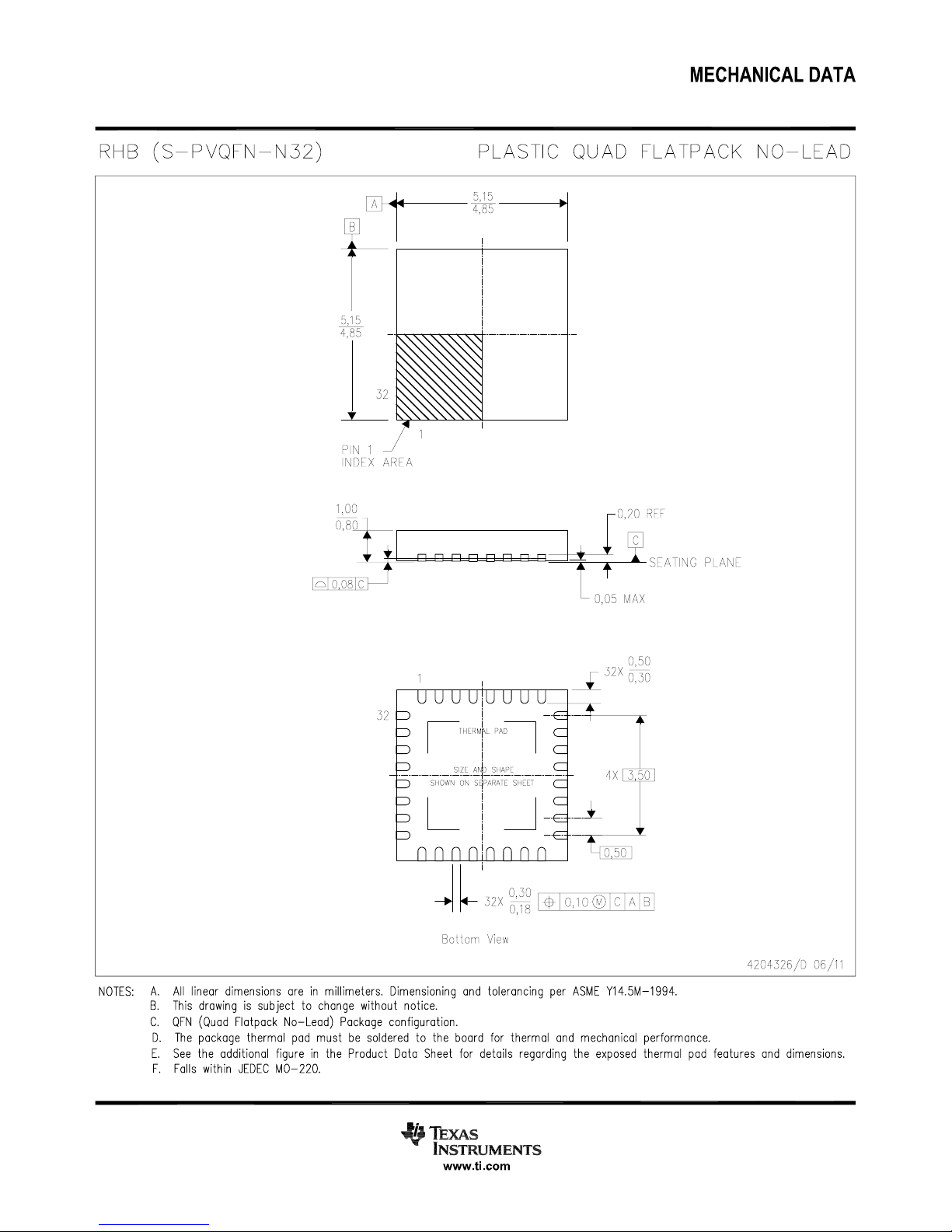

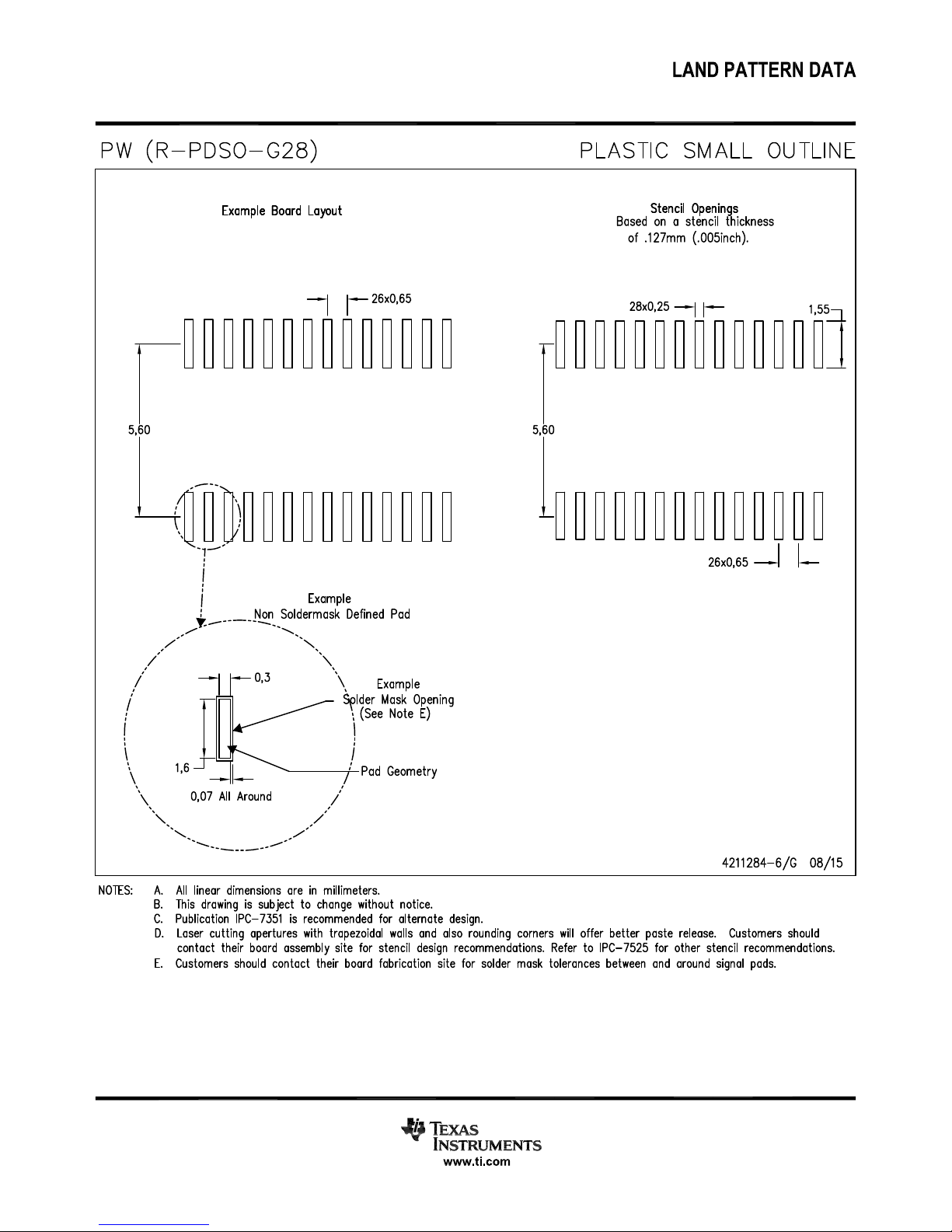

8 Mechanical, Packaging, and Orderable

Information .............................................. 72

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

2 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from May 2, 2013 to April 27, 2016 Page

• Document format and organization changes throughout, including addition of section numbering........................ 1

• Added Device Information table .................................................................................................... 2

• Added Section 3.1, Related Products ............................................................................................. 7

• Moved Section 5, Specifications .................................................................................................. 13

• Added Section 5.2, ESD Ratings.................................................................................................. 13

• Added Section 5.8, Thermal Resistance Characteristics ...................................................................... 18

• Throughout document, changed all instances of "bootstrap loader" to "bootloader"....................................... 39

• Changed all instances of "INCHx = 0x1010" to "INCHx = 1010b" in Table 6-11, Labels Used by the ADC

Calibration Tags ..................................................................................................................... 43

• Moved and renamed Section 6.10, I/O Port Diagrams......................................................................... 48

• Added notes to UCB0STE and UCA0CLK in Table 6-18 ...................................................................... 53

• Added notes to UCB0CLK and UCA0STE in Table 6-19 ...................................................................... 55

• Added "and PW28" to title of Section 6.10.8 .................................................................................... 62

• Added "and PW28" to title of Table 6-23......................................................................................... 63

• Added Section 7, Device and Documentation Support......................................................................... 64

• Added Section 8, Mechanical, Packaging, and Orderable Information ...................................................... 72

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

3 Device Comparison

Table 3-1 compares the available family members.

www.ti.com

Table 3-1. Device Comparison

DEVICE BSL EEM

MSP430G2533 1 1 16 512 2x TA3 8 1

MSP430G2433 1 1 8 512 2x TA3 8 1

MSP430G2333 1 1 4 256 2x TA3 8 1

MSP430G2233 1 1 2 256 2x TA3 8 1

MSP430G2403 1 1 8 512 2x TA3 – 1

MSP430G2303 1 1 4 256 2x TA3 – 1

MSP430G2203 1 1 2 256 2x TA3 – 1

(1) For the most current device, package, and ordering information, see the Package Option Addendum in Section 8, or see the TI website

at www.ti.com.

(2) Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.

FLASH

(KB)

RAM

(B)

Timer_A

ADC10

CHANNELS

(1)(2)

USCI_A0,

USCI_B0

CLOCK I/O PACKAGE

24 32-QFN

LF, DCO,

VLO

LF, DCO,

VLO

LF, DCO,

VLO

LF, DCO,

VLO

LF, DCO,

VLO

LF, DCO,

VLO

LF, DCO,

VLO

24 28-TSSOP 16 20-TSSOP 16 20-PDIP 24 32-QFN 24 28-TSSOP 16 20-TSSOP 16 20-PDIP 24 32-QFN 24 28-TSSOP 16 20-TSSOP 16 20-PDIP 24 32-QFN 24 28-TSSOP 16 20-TSSOP 16 20-PDIP 24 32-QFN 24 28-TSSOP 16 20-TSSOP 16 20-PDIP 24 32-QFN 24 28-TSSOP 16 20-TSSOP 16 20-PDIP 24 32-QFN 24 28-TSSOP 16 20-TSSOP 16 20-PDIP

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

3.1 Related Products

For information about other devices in this family of products or related products, see the following links.

Products for MSP 16-Bit and 32-Bit MCUs Low-power mixed-signal processors with smart analog and

digital peripherals for a wide range of industrial and consumer applications.

Products for Ultra-low Power MCUs MSP Ultra-Low-Power microcontrollers (MCUs) from Texas

Instruments (TI) offer the lowest power consumption and the perfect mix of integrated peripherals for a wide range of low-power and portable applications.

Products for MSP430G2x/i2x Low-Cost Industrial MCUs MSP430G2x microcontrollers (MCUs) from

the MSP ultra-low-power MCU series, offers the low power and performance of 16-bit MSP microcontrollers with a feature set targeted at cost sensitive applications.

Companion Products for MSP430G2533 Review products that are frequently purchased or used in

conjunction with this product.

Reference Designs for MSP430G2533 TI Designs Reference Design Library is a robust reference

design library that spans analog, embedded processor, and connectivity. Created by TI experts to help you jump start your system design, all TI Designs include schematic or block diagrams, BOMs, and design files to speed your time to market. Search and download designs at ti.com/tidesigns.

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

PW28

(TOP VIEW)

DVCC

P1.0/TA0CLK/ACLK/A0

P1.3/ADC10CLK/VREF-/VEREF-/A3

P3.0/TA0.2

P3.1/TA1.0

P2.0/TA1.0

P3.5/TA0.1

P3.6/TA0.2

P3.7/TA1CLK

RST/NMI/SBWTDIO

TEST/SBWTCK

XOUT/P2.7

XIN/P2.6/TA0.1

DVSS

P1.6/TA0.1/ TDI/TCLKUCB0SOMI/UCB0SCL/A6/

P1.7/ /A7/TDO/TDIUCB0SIMO/UCB0SDA

P1.1/TA0.0/ A1/UCA0RXD/UCA0SOMI

P1.2/TA0.1/ A2/UCA0TXD/UCA0SIMO

P1.4/SMCLK/ TCK/VREF+/VEREF+/A4/UCB0STE/UCA0CLK

P1.5/TA0.0/ A5/TMS/UCB0CLK/UCA0STE

P2.2/TA1.1

P3.2/TA1.1

P3.3/TA1.2

P3.4/TA0.0

P2.3/TA1.0

P2.4/TA1.2

P2.5/TA1.2

P2.1/TA1.1

DVCC

P1.0/TA0CLK/ACLK/A0

P1.3/ADC10CLK/VREF-/VEREF-/A3

P2.0/TA1.0

P2.1/TA1.1

P2.2/TA1.1

P2.3/TA1.0

P2.4/TA1.2

P2.5/TA1.2

RST/NMI/SBWTDIO

TEST/SBWTCK

XOUT/P2.7

XIN/P2.6/TA0.1

DVSS

P1.6/TA0.1/ /TDI/TCLKUC

B0SOMI/UCB0SCL/A6

P1.7/ /A7/TDO/TDIUCB0SIMO/UCB0SDA

P1.1/TA0.0/ A1/UCA0RXD/UCA0SOMI

P1.2/TA0.1/ A2/UCA0TXD/UCA0SIMO

P1.4/SMCLK/ /TCK/VREF+/VEREF+/A4UCB0STE/UCA0CLK

P1.5/TA0.0/ A5/TMS/UCB0CLK/UCA0STE

N20

PW20

(TOP VIEW)

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

4 Terminal Configuration and Functions

4.1 Pin Diagrams

Figure 4-1 shows the pinout for the MSP430G2x03 and MSP430G2x33 devices in the 20-pin N or PW

package.

NOTE: ADC10 is available on MSP430G2x33 devices only. NOTE: The pulldown resistors of port P3 should be enabled by setting P3REN.x = 1.

Figure 4-1. 20-Pin N or PW Package (Top View), MSP430G2x03 and MSP430G2x33

www.ti.com

Figure 4-2 shows the pinout for the MSP430G2x03 and MSP430G2x33 devices in the 28-pin PW

package.

NOTE: ADC10 is available on MSP430G2x33 devices only.

Figure 4-2. 28-Pin PW Package (Top View), MSP430G2x03 and MSP430G2x33

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

RHB32

(TOP VIEW)

P2.1/TA1.1

8NC

P2.2/TA1.1

P3.0/TA0.2

P3.1/TA1.0

P3.2/TA1.1

131415

P3.5/TA0.1

P2.5/TA1.2

P3.6/TA0.2

P3.7/TA1CLK

23 RST/NMI/SBWTDIO

24 TEST/SBWTCK

XOUT/P2.7

XIN/P2.6/TA0.1

AVSS

DVSS

AVCC

DVCC

P1.0/TA0CLK/ACLK/A0/CA0

P1.3/ADC10CLK/VREF-/VEREF-/A3

P1.1/TA0.0/ A1/

UCA0RXD/UCA0SOMI

P1.2/TA0.1/ A2/UCA0TXD/UCA0SIMO

P1.4/SMCLK/ /TCK/VREF+/VEREF+/A4UCB0STE/UCA0CLK

P1.5/TA0.0/ A5/TMS/UCB0CLK/UCA0STE

P1.6/TA0.1/ /TDI/TCLKUCB0SOMI/UCB0SCL/A6

P1.7 /TDO/TDI/UCB0SIMO/UCB0SDA/A7

www.ti.com

Figure 4-3 shows the pinout for the MSP430G2x03 and MSP430G2x33 devices in the 32-pin RHB

package.

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

NOTE: ADC10 is available on MSP430G2x33 devices only.

Figure 4-3. 32-Pin RHB Package (Top View), MSP430G2x03 and MSP430G2x33

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

4.2 Signal Descriptions

Table 4-1 describes the signals.

Table 4-1. Terminal Functions

TERMINAL

NO.

NAME

PW20,

N20

PW28 RHB32

P1.0/ TA0CLK/ Timer0_A, clock signal TACLK input ACLK/ ACLK signal output

2 2 31 I/O

A0 ADC10 analog input A0 P1.1/ TA0.0/ Timer0_A, capture: CCI0A input, compare: Out0 output / BSL transmit UCA0RXD/ USCI_A0 receive data input in UART mode

3 3 1 I/O UCA0SOMI/ USCI_A0 slave data out/master in SPI mode A1 ADC10 analog input A1 P1.2/ TA0.1/ Timer0_A, capture: CCI1A input, compare: Out1 output UCA0TXD/ USCI_A0 transmit data output in UART mode

4 4 2 I/O UCA0SIMO/ USCI_A0 slave data in/master out in SPI mode A2 ADC10 analog input A2 P1.3/ ADC10CLK/ ADC10, conversion clock output A3/ ADC10 analog input A3

5 5 3 I/O

VREF-/VEREF- ADC10 negative reference voltage P1.4/ SMCLK/ SMCLK signal output UCB0STE/ USCI_B0 slave transmit enable UCA0CLK/ USCI_A0 clock input/output

6 6 4 I/O A4/ ADC10 analog input A4 VREF+/VEREF+ ADC10 positive reference voltage TCK JTAG test clock, input terminal for device programming and test P1.5/ TA0.0/ Timer0_A, compare: Out0 output / BSL receive UCB0CLK/ USCI_B0 clock input/output UCA0STE/ USCI_A0 slave transmit enable

7 7 5 I/O

A5/ ADC10 analog input A5 TMS JTAG test mode select, input terminal for device programming and test P1.6/ TA0.1/ Timer0_A, compare: Out1 output A6/ ADC10 analog input A6 UCB0SOMI/ USCI_B0 slave out/master in SPI mode,

14 22 21 I/O

UCB0SCL/ USCI_B0 SCL I2C clock in I2C mode TDI/TCLK JTAG test data input or test clock input during programming and test

I/O DESCRIPTION

General-purpose digital I/O pin

(1)

General-purpose digital I/O pin

(1)

General-purpose digital I/O pin

(1)

General-purpose digital I/O pin

(1)

General-purpose digital I/O pin

(1)

General-purpose digital I/O pin

(1)

General-purpose digital I/O pin

(1)

www.ti.com

(1) MSP430G2x33 devices only 10

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 4-1. Terminal Functions (continued)

TERMINAL

NO.

NAME

PW20,

N20

PW28 RHB32

P1.7/ A7/ ADC10 analog input A7 UCB0SIMO/ USCI_B0 slave in/master out in SPI mode

15 23 22 I/O

UCB0SDA/ USCI_B0 SDA I2C data in I2C mode TDO/TDI P2.0/

TA1.0 Timer1_A, capture: CCI0A input, compare: Out0 output P2.1/ TA1.1 Timer1_A, capture: CCI1A input, compare: Out1 output P2.2/ TA1.1 Timer1_A, capture: CCI1B input, compare: Out1 output P2.3/ TA1.0 Timer1_A, capture: CCI0B input, compare: Out0 output P2.4/ TA1.2 Timer1_A, capture: CCI2A input, compare: Out2 output P2.5/ TA1.2 Timer1_A, capture: CCI2B input, compare: Out2 output

8 10 9 I/O

9 11 10 I/O

10 12 11 I/O

11 16 15 I/O

12 17 16 I/O

13 18 17 I/O

XIN/ P2.6/ General-purpose digital I/O pin

19 27 26 I/O TA0.1 Timer0_A, compare: Out1 output XOUT/ P2.7 General-purpose digital I/O pin P3.0/ TA0.2 Timer0_A, capture: CCI2A input, compare: Out2 output P3.1/ TA1.0 Timer1_A, compare: Out0 output P3.2/ TA1.1 Timer1_A, compare: Out1 output P3.3/ TA1.2 Timer1_A, compare: Out2 output P3.4/ TA0.0 Timer0_A, compare: Out0 output P3.5/ TA0.1 Timer0_A, compare: Out1 output P3.6/ TA0.2 Timer0_A, compare: Out2 output P3.7/ TA1CLK Timer1_A, clock signal TACLK input

18 26 25 I/O

- 9 7 I/O

- 8 6 I/O

- 13 12 I/O

- 14 13 I/O

- 15 14 I/O

- 19 18 I/O

- 20 19 I/O

- 21 20 I/O

RST/ NMI/ Nonmaskable interrupt input

16 24 23 I SBWTDIO Spy-Bi-Wire test data input/output during programming and test

I/O DESCRIPTION

General-purpose digital I/O pin

(1)

JTAG test data output terminal or test data input during programming and

(2)

test General-purpose digital I/O pin

General-purpose digital I/O pin

Input terminal of crystal oscillator

Output terminal of crystal oscillator

(3)

General-purpose digital I/O pin

General-purpose digital I/O

Reset

(2) TDO or TDI is selected by JTAG instruction. (3) If XOUT/P2.7 is used as an input, excess current flows until P2SEL.7 is cleared. This is due to the oscillator output driver connection to

this pad after reset.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 4-1. Terminal Functions (continued)

TERMINAL

NO.

NAME

TEST/ SBWTCK Spy-Bi-Wire test clock input during programming and test

AVCC NA NA 29 NA Analog supply voltage DVCC 1 1 30 NA Digital supply voltage DVSS 20 28 27, 28 NA Ground reference NC NA NA 8, 32 NA Not connected QFN Pad NA NA Pad NA QFN package pad connection to VSS recommended.

PW20,

N20

17 25 24 I

PW28 RHB32

I/O DESCRIPTION

Selects test mode for JTAG pins on Port 1. The device protection fuse is connected to TEST.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

5 Specifications

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.1 Absolute Maximum Ratings

(1)

over operating free-air temperature range (unless otherwise noted)

MIN MAX UNIT

Voltage applied at VCCto V Voltage applied to any pin

(2)

–0.3 4.1 V –0.3 VCC+ 0.3 V

Diode current at any device pin ±2 mA

Storage temperature, T

(3)

stg

Unprogrammed device –55 150 Programmed device –55 150

°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) All voltages referenced to VSS. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is

applied to the TEST pin when blowing the JTAG fuse.

(3) Higher temperature may be applied during board soldering according to the current JEDEC J-STD-020 specification with peak reflow

temperatures not higher than classified on the device label on the shipping boxes or reels.

5.2 ESD Ratings

VALUE UNIT

Electrostatic discharge

(ESD)

Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 Charged-device model (CDM), per JEDEC specification JESD22-C101

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Pins listed as

±1000 V may actually have higher performance.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Pins listed as ±250 V

may actually have higher performance.

(1)

(2)

±1000

±250

5.3 Recommended Operating Conditions

Typical values are specified at VCC= 3.3 V and TA= 25°C (unless otherwise noted)

MIN NOM MAX UNIT

SYSTEM

Supply voltage

Supply voltage 0 V Operating free-air temperature –40 85 °C

Processor frequency (maximum MCLK frequency using the USART module)

(1)(2)

(1) The MSP430 CPU is clocked directly with MCLK. Both the high and low phases of MCLK must not exceed the pulse duration of the

specified maximum frequency.

(2) Modules might have a different maximum input clock specification. See the specification of the respective module in this data sheet.

During program execution 1.8 3.6 During flash programming or erase 2.2 3.6

VCC= 1.8 V, Duty cycle = 50% ±10%

VCC= 2.7 V, Duty cycle = 50% ±10%

VCC= 3.3 V, Duty cycle = 50% ±10%

DC 6

DC 12

DC 16

MHz

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

Supply voltage range, during flash memory programming

Supply voltage range, during program execution

Legend:

16 MHz

System Frequency - MHz

12 MHz

6 MHz

1.8 V Supply Voltage - V

3.3 V

2.7 V

2.2 V

3.6 V

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

Note: Minimum processor frequency is defined by system clock. Flash program or erase operations require a minimum V

of 2.2 V.

Figure 5-1. Safe Operating Area

5.4 Active Mode Supply Current Into VCCExcluding External Current

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

AM,1MHz

PARAMETER TEST CONDITIONS V

= f

Active mode (AM) current at 1 MHz

MCLK

= 0 Hz,

= f

DCO

ACLK

Program executes in flash, BCSCTL1 = CALBC1_1MHZ, DCOCTL = CALDCO_1MHZ,

SMCLK

= 1 MHz,

2.2 V 230

3 V 330 420

CPUOFF = 0, SCG0 = 0, SCG1 = 0, OSCOFF = 0

(1) All inputs are tied to 0 V or to VCC. Outputs do not source or sink any current. (2) The currents are characterized with a Micro Crystal CC4V-T1A SMD crystal with a load capacitance of 9 pF. The internal and external

load capacitance is chosen to closely match the required 9 pF.

MIN TYP MAX UNIT

(1)(2)

µA

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

0.0

1.0

2.0

3.0

4.0

5.0

1.5 2.0 2.5 3.0 3.5 4.0

VCC− Supply Voltage − V

Active Mode Current − mA

DCO

= 1 MHz

DCO

= 8 MHz

DCO

= 12 MHz

DCO

= 16 MHz

0.0

1.0

2.0

3.0

4.0

0.0 4.0 8.0 12.0 16.0

DCO

− DCO Frequency − MHz

Active Mode Current − mA

TA= 25 °C

TA= 85 °C

VCC= 2.2 V

VCC= 3 V

TA= 25 °C

TA= 85 °C

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.5 Typical Characteristics, Active Mode Supply Current (Into VCC)

Figure 5-2. Active Mode Current vs VCC, TA= 25°C Figure 5-3. Active Mode Current vs DCO Frequency

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.6 Low-Power Mode Supply Currents (Into VCC) Excluding External Current

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

LPM0,1MHz

PARAMETER TEST CONDITIONS T

= 0 MHz,

MCLK

= f

= 1 MHz,

DCO

= 32768 Hz,

Low-power mode 0 (LPM0) current

(3)

SMCLK

ACLK

BCSCTL1 = CALBC1_1MHZ, DCOCTL = CALDCO_1MHZ,

25°C 2.2 V 56 µA

CPUOFF = 1, SCG0 = 0, SCG1 = 0, OSCOFF = 0

LPM2

Low-power mode 2 (LPM2) current

(4)

= f

MCLK

= 1 MHz,

DCO

= 32768 Hz,

ACLK

BCSCTL1 = CALBC1_1MHZ, DCOCTL = CALDCO_1MHZ,

SMCLK

= 0 MHz,

25°C 2.2 V 22 µA

CPUOFF = 1, SCG0 = 0, SCG1 = 1, OSCOFF = 0

= f

LPM3,LFXT1

Low-power mode 3 (LPM3) current

(4)

DCO

ACLK

CPUOFF = 1, SCG0 = 1, SCG1 = 1,

= f

MCLK

= 32768 Hz,

SMCLK

= 0 MHz,

25°C 2.2 V 0.7 1.5 µA OSCOFF = 0 f

= f

LPM3,VLO

Low-power mode 3 current, (LPM3)

(4)

DCO

ACLK

CPUOFF = 1, SCG0 = 1, SCG1 = 1,

= f

MCLK

from internal LF oscillator (VLO),

SMCLK

= 0 MHz,

25°C 2.2 V 0.5 0.7 µA OSCOFF = 0 f

= f

LPM4

Low-power mode 4 (LPM4) current

(5)

MCLK

= 0 Hz,

= f

DCO

ACLK

CPUOFF = 1, SCG0 = 1, SCG1 = 1, OSCOFF = 1

SMCLK

= 0 MHz,

25°C

85°C 0.8 1.7

load capacitance is chosen to closely match the required 9 pF. (3) Current for brownout and WDT clocked by SMCLK included. (4) Current for brownout and WDT clocked by ACLK included. (5) Current for brownout included.

2.2 V

(1) (2)

MIN TYP MAX UNIT

0.1 0.5 µA

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

0.00

0.25

0.50

0.75

1.00

1.25

1.50

1.75

2.00

2.25

2.50

2.75

3.00

-40

I – Low-Power Mode Current – µA

LPM3

V = 3.6 V

T – Temperature – °C

VCC= 1.8 V

VCC= 3 V

VCC= 2.2 V

-20

40 60 80

0.00

0.25

0.50

0.75

1.00

1.25

1.50

1.75

2.00

2.25

2.50

-40

I – Low-Power Mode Current – µA

LPM4

V = 3.6 V

T – Temperature – °C

VCC= 1.8 V

VCC= 3 V

VCC= 2.2 V

-20

40 60 80

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.7 Typical Characteristics, Low-Power Mode Supply Currents

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

Figure 5-4. LPM3 Current vs Temperature

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 5-5. LPM4 Current vs Temperature

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.8 Thermal Resistance Characteristics

PARAMETER VALUE

VQFN (RHB-32) 32.1

Rθ

Junction-to-ambient thermal resistance, still air

(2)

TSSOP (PW-28) 72.2 TSSOP (PW-20) 86.5 PDIP (N-20) 49.3 VQFN (RHB-32) 22.3

Rθ

JC(TOP)

Junction-to-case (top) thermal resistance

(3)

TSSOP (PW-28) 18.3 TSSOP (PW-20) 20.8 PDIP (N-20) 41 VQFN (RHB-32) 1.4

Rθ

JC(BOTTOM)

Junction-to-case (bottom) thermal resistance

TSSOP (PW-28) N/A TSSOP (PW-20) N/A PDIP (N-20) N/A VQFN (RHB-32) 6.1

Junction-to-board thermal resistance

(4)

TSSOP (PW-28) 30.4 TSSOP (PW-20) 39 PDIP (N-20) 30.2 VQFN (RHB-32) 0.3

Junction-to-package-top characterization parameter

TSSOP (PW-28) 0.7 TSSOP (PW-20) 0.8 PDIP (N-20) 18.1 VQFN (RHB-32) 6.1

Junction-to-board characterization parameter

TSSOP (PW-28) 29.9 TSSOP (PW-20) 38.1 PDIP (N-20) 30.1

(1) These values are based on a JEDEC-defined 2S2P system (with the exception of the Theta JC (RθJC) value, which is based on a

JEDEC-defined 1S0P system) and will change based on environment and application. For more information, see these EIA/JEDEC standards:

• JESD51-2, Integrated Circuits Thermal Test Method Environmental Conditions - Natural Convection (Still Air)

• JESD51-3, Low Effective Thermal Conductivity Test Board for Leaded Surface Mount Packages

• JESD51-7, High Effective Thermal Conductivity Test Board for Leaded Surface Mount Packages

• JESD51-9, Test Boards for Area Array Surface Mount Package Thermal Measurements

(2) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, High-K board, as

specified in JESD51-7, in an environment described in JESD51-2a.

(3) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific JEDEC-

standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

(4) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB

temperature, as described in JESD51-8.

(1)

UNIT

°C/W

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.9 Schmitt-Trigger Inputs, Ports Px

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

Positive-going input threshold voltage

IT+

Negative-going input threshold voltage

IT–

Input voltage hysteresis (V

hys

Pullup or pulldown resistor

Pull

Input capacitance VIN= VSSor V

IT+

– V

) 3 V 0.3 1 V

IT–

For pullup: VIN= V For pulldown: VIN= V

3 V 1.35 2.25

3 V 0.75 1.65

3 V 20 35 50 kΩ

MIN TYP MAX UNIT

0.45 V

0.25 V

0.75 V

0.55 V

5 pF

5.10 Leakage Current, Ports Px

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

lkg(Px.y)

PARAMETER TEST CONDITIONS V

High-impedance leakage current See

(1) (2)

3 V ±50 nA

(1) The leakage current is measured with VSSor VCCapplied to the corresponding pins, unless otherwise noted. (2) The leakage of the digital port pins is measured individually. The port pin is selected for input and the pullup/pulldown resistor is

disabled.

MIN MAX UNIT

5.11 Outputs, Ports Px

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

V V

High-level output voltage I

Low-level output voltage I

(1) The maximum total current, I

specified.

(OHmax)

and I

= –6 mA

(OHmax)

= 6 mA

(OLmax)

, for all outputs combined should not exceed ±48 mA to hold the maximum voltage drop

(OLmax)

(1)

3 V VCC– 0.3 V 3 V VSS+ 0.3 V

MIN TYP MAX UNIT

5.12 Output Frequency, Ports Px

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

Px.y

Port_CLK

PARAMETER TEST CONDITIONS V

Port output frequency (with load) Px.y, CL= 20 pF, RL= 1 kΩ Clock output frequency Px.y, CL= 20 pF

(2)

(1) (2)

3 V 12 MHz 3 V 16 MHz

(1) A resistive divider with two 50-kΩ resistors between VCCand VSSis used as load. The output is connected to the center tap of the

divider.

(2) The output voltage reaches at least 10% and 90% VCCat the specified toggle frequency.

MIN TYP MAX UNIT

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

VOH− High-Level Output Voltage − V

−25

−20

−15

−10

−5

0 0.5 1 1.5 2 2.5

VCC= 2.2 V P1.7

TA= 25°C

TA= 85°C

I − Typical High-Level Output Current − mA

VOH− High-Level Output Voltage − V

−50

−40

−30

−20

−10

0 0.5 1 1.5 2 2.5 3 3.5

VCC= 3 V P1.7

TA= 25°C

TA= 85°C

I − Typical High-Level Output Current − mA

VOL− Low-Level Output Voltage − V

0 0.5 1 1.5 2 2.5

VCC= 2.2 V P1.7

TA= 25°C

TA= 85°C

I − Typical Low-Level Output Current − mA

VOL− Low-Level Output Voltage − V

0 0.5 1 1.5 2 2.5 3 3.5

VCC= 3 V P1.7

TA= 25°C

TA= 85°C

I − Typical Low-Level Output Current − mA

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.13 Typical Characteristics – Outputs

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

www.ti.com

Figure 5-6. Typical Low-Level Output Current vs Low-Level

Figure 5-8. Typical High-Level Output Current vs High-Level

Output Voltage

Figure 5-7. Typical Low-Level Output Current vs Low-Level

Figure 5-9. Typical High-Level Output Current vs High-Level

Output Voltage

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

C − External Capacitance − pF

LOAD

0.00

0.15

0.30

0.45

0.60

0.75

0.90

1.05

1.20

1.35

1.50

10 50 100

P1.y

P2.0 to P2.5

P2.6, P2.7

V = 3.0 V

f − Typical Oscillation Frequency − MHz

osc

C − External Capacitance − pF

LOAD

0.00

0.15

0.30

0.45

0.60

0.75

0.90

1.05

1.20

1.35

1.50

10 50 100

P1.y

P2.0 to P2.5

P2.6, P2.7

V = 2.2 V

f − Typical Oscillation Frequency − MHz

osc

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.14 Pin-Oscillator Frequency – Ports Px

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

Port output oscillation frequency

P1.x

Port output oscillation frequency

P2.x

Port output oscillation frequency

P2.6/7

Port output oscillation frequency

P3.x

P1.y, CL= 10 pF, RL= 100 kΩ P1.y, CL= 20 pF, RL= 100 kΩ P2.0 to P2.5, CL= 10 pF, RL= 100 kΩ P2.0 to P2.5, CL= 20 pF, RL= 100 kΩ P2.6 and P2.7, CL= 20 pF, RL= 100

(1)(2)

kΩ P3.y, CL= 10 pF, RL= 100 kΩ P3.y, CL= 20 pF, RL= 100 kΩ

(1)(2) (1)(2)

3 V

3 V 700 kHz

3 V

(1) A resistive divider with two 50-kΩ resistors between VCCand VSSis used as load. The output is connected to the center tap of the

divider.

(2) The output voltage reaches at least 10% and 90% VCCat the specified toggle frequency.

MIN TYP MAX UNIT

1400

900 1800 1000

1800 1000

5.15 Typical Characteristics – Pin-Oscillator Frequency

kHz

Figure 5-10. Typical Oscillating Frequency vs Load Capacitance

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

One output active at a time.

Figure 5-11. Typical Oscillating Frequency vs Load Capacitance

Submit Documentation Feedback

MSP430G2203

One output active at a time.

CC(drop)

3 V

0.5

1.5

0.001 1 1000

Typical Conditions

1 ns 1 ns

tpw− Pulse Width − µs

CC(drop)

− V

tpw− Pulse Width − µs

VCC= 3 V

d(BOR)

(B_IT−)

hys(B_IT−)

CC(s tar t)

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.16 POR, BOR

(1)(2)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER

CC(start)

(B_IT–)

hys(B_IT–)

d(BOR)

(reset)

See Figure 5-12 dVCC/dt ≤ 3 V/s 0.7 V See Figure 5-12 through Figure 5-14 dVCC/dt ≤ 3 V/s 1.35 V See Figure 5-12 dVCC/dt ≤ 3 V/s 140 mV See Figure 5-12 2000 µs Pulse duration needed at RST/NMI pin to accepted

reset internally

(1) The current consumption of the brownout module is already included in the ICCcurrent consumption data. The voltage level V

hys(B_IT–)

(2) During power up, the CPU begins code execution following a period of t

must not be changed until VCC≥ V

is ≤ 1.8 V.

CC(min)

, where V

is the minimum supply voltage for the desired operating frequency.

CC(min)

TEST

CONDITIONS

d(BOR)

MIN TYP MAX UNIT

(B_IT--)

2.2 V 2 µs

after VCC= V

(B_IT–)

+ V

. The default DCO settings

hys(B_IT–)

(B_IT–)

Figure 5-12. POR and BOR vs Supply Voltage

Figure 5-13. V

CC(drop)

Level With a Square Voltage Drop to Generate a POR or BOR Signal

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

0.5

1.5

CC(drop)

tpw− Pulse Width − µs

CC(drop)

− V

3 V

0.001 1 1000

tpw− Pulse Width − µs

tf= t

Typical Conditions

VCC= 3 V

www.ti.com

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Figure 5-14. V

CC(drop)

Level With a Triangle Voltage Drop to Generate a POR or BOR Signal

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

DCO(RSEL,DCO+1)

DCO(RSEL,DCO)

average

DCO(RSEL,DCO) DCO(RSEL,DCO+1)

32 × f × f

f =

MOD × f + (32 – MOD) × f

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.17 Main DCO Characteristics

• All ranges selected by RSELx overlap with RSELx + 1: RSELx = 0 overlaps RSELx = 1, ... RSELx = 14 overlaps RSELx = 15.

• DCO control bits DCOx have a step size as defined by parameter S

• Modulation control bits MODx select how often f f

DCO(RSEL,DCO)

is used for the remaining cycles. The frequency is an average equal to:

DCO(RSEL,DCO+1)

DCO

is used within the period of 32 DCOCLK cycles. The frequency

5.18 DCO Frequency

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

RSELx < 14 1.8 3.6

Supply voltage

RSELx = 15 3 3.6

DCO(0,0)

DCO(0,3)

DCO(1,3)

DCO(2,3)

DCO(3,3)

DCO(4,3)

DCO(5,3)

DCO(6,3)

DCO(7,3)

DCO(8,3)

DCO(9,3)

DCO(10,3)

DCO(11,3)

DCO(12,3)

DCO(13,3)

DCO(14,3)

DCO(15,3)

DCO(15,7)

RSEL

DCO

DCO frequency (0, 0) RSELx = 0, DCOx = 0, MODx = 0 3 V 0.06 0.14 MHz DCO frequency (0, 3) RSELx = 0, DCOx = 3, MODx = 0 3 V 0.07 0.17 MHz DCO frequency (1, 3) RSELx = 1, DCOx = 3, MODx = 0 3 V 0.15 MHz DCO frequency (2, 3) RSELx = 2, DCOx = 3, MODx = 0 3 V 0.21 MHz DCO frequency (3, 3) RSELx = 3, DCOx = 3, MODx = 0 3 V 0.30 MHz DCO frequency (4, 3) RSELx = 4, DCOx = 3, MODx = 0 3 V 0.41 MHz DCO frequency (5, 3) RSELx = 5, DCOx = 3, MODx = 0 3 V 0.58 MHz DCO frequency (6, 3) RSELx = 6, DCOx = 3, MODx = 0 3 V 0.54 1.06 MHz DCO frequency (7, 3) RSELx = 7, DCOx = 3, MODx = 0 3 V 0.80 1.50 MHz DCO frequency (8, 3) RSELx = 8, DCOx = 3, MODx = 0 3 V 1.6 MHz DCO frequency (9, 3) RSELx = 9, DCOx = 3, MODx = 0 3 V 2.3 MHz DCO frequency (10, 3) RSELx = 10, DCOx = 3, MODx = 0 3 V 3.4 MHz DCO frequency (11, 3) RSELx = 11, DCOx = 3, MODx = 0 3 V 4.25 MHz DCO frequency (12, 3) RSELx = 12, DCOx = 3, MODx = 0 3 V 4.30 7.30 MHz DCO frequency (13, 3) RSELx = 13, DCOx = 3, MODx = 0 3 V 6.00 9.60 MHz DCO frequency (14, 3) RSELx = 14, DCOx = 3, MODx = 0 3 V 8.60 13.9 MHz DCO frequency (15, 3) RSELx = 15, DCOx = 3, MODx = 0 3 V 12.0 18.5 MHz DCO frequency (15, 7) RSELx = 15, DCOx = 7, MODx = 0 3 V 16.0 26.0 MHz Frequency step between

range RSEL and RSEL+1 Frequency step between

tap DCO and DCO+1

= f

RSEL

DCO(RSEL+1,DCO)/fDCO(RSEL,DCO)

= f

DCO

DCO(RSEL,DCO+1)/fDCO(RSEL,DCO)

3 V 1.35 ratio

3 V 1.08 ratio

Duty cycle Measured at SMCLK output 3 V 50%

MIN TYP MAX UNIT

www.ti.com

VRSELx = 14 2.2 3.6

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.19 Calibrated DCO Frequencies, Tolerance

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS T

1-MHz tolerance over temperature

(1)

BCSCTL1 = CALBC1_1MHZ, DCOCTL = CALDCO_1MHZ, calibrated at 30°C and 3 V

0°C to 85°C 3 V –3% ±0.5% +3%

BCSCTL1 = CALBC1_1MHZ,

1-MHz tolerance over V

DCOCTL = CALDCO_1MHZ, calibrated at 30°C and 3 V

30°C 1.8 V to 3.6 V –3% ±2% +3%

BCSCTL1 = CALBC1_1MHZ,

1-MHz tolerance overall

DCOCTL = CALDCO_1MHZ,

–40°C to 85°C 1.8 V to 3.6 V –6% ±3% +6%

calibrated at 30°C and 3 V

8-MHz tolerance over temperature

(1)

BCSCTL1 = CALBC1_8MHZ, DCOCTL = CALDCO_8MHZ, calibrated at 30°C and 3 V

0°C to 85°C 3 V –3% ±0.5% +3%

BCSCTL1 = CALBC1_8MHZ,

8-MHz tolerance over V

DCOCTL = CALDCO_8MHZ, calibrated at 30°C and 3 V

30°C 2.2 V to 3.6 V –3% ±2% +3%

BCSCTL1 = CALBC1_8MHZ,

8-MHz tolerance overall

DCOCTL = CALDCO_8MHZ,

–40°C to 85°C 2.2 V to 3.6 V –6% ±3% +6%

calibrated at 30°C and 3 V

12-MHz tolerance over temperature

(1)

BCSCTL1 = CALBC1_12MHZ, DCOCTL = CALDCO_12MHZ, calibrated at 30°C and 3 V

0°C to 85°C 3 V –3% ±0.5% +3%

BCSCTL1 = CALBC1_12MHZ,

12-MHz tolerance over V

DCOCTL = CALDCO_12MHZ, calibrated at 30°C and 3 V

30°C 2.7 V to 3.6 V –3% ±2% +3%

BCSCTL1 = CALBC1_12MHZ,

12-MHz tolerance overall

DCOCTL = CALDCO_12MHZ,

–40°C to 85°C 2.7 V to 3.6 V –6% ±3% +6%

calibrated at 30°C and 3 V

16-MHz tolerance over temperature

(1)

BCSCTL1 = CALBC1_16MHZ, DCOCTL = CALDCO_16MHZ, calibrated at 30°C and 3 V

0°C to 85°C 3 V –3% ±0.5% +3%

BCSCTL1 = CALBC1_16MHZ,

16-MHz tolerance over V

DCOCTL = CALDCO_16MHZ, calibrated at 30°C and 3 V

30°C 3.3 V to 3.6 V –3% ±2% +3%

BCSCTL1 = CALBC1_16MHZ,

16-MHz tolerance overall

DCOCTL = CALDCO_16MHZ,

–40°C to 85°C 3.3 V to 3.6 V –6% ±3% +6%

calibrated at 30°C and 3 V

(1) This is the frequency change from the measured frequency at 30°C over temperature.

MIN TYP MAX UNIT

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

DCO Frequency − MHz

0.10

1.00

10.00

0.10 1.00 10.00

DCO Wake Time − µs

RSELx = 0...11

RSELx = 12...15

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.20 Wake-up Times From Lower-Power Modes (LPM3, LPM4)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

DCO,LPM3/4

CPU,LPM3/4

PARAMETER TEST CONDITIONS V

DCO clock wake-up time from LPM3 or

(1)

LPM4 CPU wake-up time from LPM3 or

(2)

LPM4

BCSCTL1 = CALBC1_1MHz, DCOCTL = CALDCO_1MHz

3 V 1.5 µs

(1) The DCO clock wake-up time is measured from the edge of an external wake-up signal (for example, port interrupt) to the first clock

edge observable externally on a clock pin (MCLK or SMCLK).

(2) Parameter applicable only if DCOCLK is used for MCLK.

MIN TYP MAX UNIT

1/f

MCLK

Clock,LPM3/4

5.21 Typical Characteristics, DCO Clock Wake-up Time From LPM3 or LPM4

Figure 5-15. DCO Wake-up Time From LPM3 vs DCO Frequency

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.22 Crystal Oscillator, XT1, Low-Frequency Mode

(1)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

LFXT1,LF

PARAMETER TEST CONDITIONS V

LFXT1 oscillator crystal frequency, LF mode 0, 1

XTS = 0, LFXT1Sx = 0 or 1 1.8 V to 3.6 V 32768 Hz

LFXT1 oscillator logic level

LFXT1,LF,logic

square-wave input frequency, LF mode

XTS = 0, XCAPx = 0, LFXT1Sx = 3 1.8 V to 3.6 V 10000 32768 50000 Hz

XTS = 0, LFXT1Sx = 0,

Oscillation allowance for LF crystals

f XTS = 0, LFXT1Sx = 0,

LFXT1,LF

= 32768 Hz, C

L,eff

= 6 pF

= 12 pF

XTS = 0, XCAPx = 0 1

L,eff

Integrated effective load capacitance, LF mode

(2)

XTS = 0, XCAPx = 1 5.5 XTS = 0, XCAPx = 2 8.5 XTS = 0, XCAPx = 3 11 XTS = 0, Measured at P2.0/ACLK,

LFXT1,LF

= 32768 Hz

XTS = 0, XCAPx = 0, LFXT1Sx = 3

2.2 V 30% 50% 70%

(4)

2.2 V 10 10000 Hz

Fault,LF

Duty cycle, LF mode Oscillator fault frequency,

LF mode

(3)

(1) To improve EMI on the XT1 oscillator, the following guidelines should be observed.

• Keep the trace between the device and the crystal as short as possible.

• Design a good ground plane around the oscillator pins.

• Prevent crosstalk from other clock or data lines into oscillator pins XIN and XOUT.

• Avoid running PCB traces underneath or adjacent to the XIN and XOUT pins.

• Use assembly materials and processes that avoid any parasitic load on the oscillator XIN and XOUT pins.

• If conformal coating is used, make sure that it does not induce capacitive or resistive leakage between the oscillator pins.

• Do not route the XOUT line to the JTAG header to support the serial programming adapter as shown in other documentation. This

signal is no longer required for the serial programming adapter.

(2) Includes parasitic bond and package capacitance (approximately 2 pF per pin).

Because the PCB adds additional capacitance, verify the correct load by measuring the ACLK frequency. For a correct setup, the effective load capacitance should always match the specification of the used crystal.

(3) Frequencies below the MIN specification set the fault flag. Frequencies above the MAX specification do not set the fault flag.

Frequencies in between might set the flag.

(4) Measured with logic-level input frequency but also applies to operation with crystals.

MIN TYP MAX UNIT

500

200

kΩ

5.23 Internal Very-Low-Power Low-Frequency Oscillator (VLO)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER T

VLO

VLO/dT

VLO

VLO frequency –40°C to 85°C 3 V 4 12 20 kHz VLO frequency temperature drift –40°C to 85°C 3 V 0.5 %/°C

/dVCCVLO frequency supply voltage drift 25°C 1.8 V to 3.6 V 4 %/V

5.24 Timer_A

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

TA,cap

Timer_A input clock frequency SMCLK, duty cycle = 50% ±10% f Timer_A capture timing TA0, TA1 3 V 20 ns

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MIN TYP MAX UNIT

SYSTEM

MHz

SU,MI

HD,MI

UCLK

SOMI

SIMO

VALID,MO

CKPL = 0

CKPL = 1

1/f

UCxCLK

HD,MO

LO/HI

SU,MI

HD,MI

UCLK

SOMI

SIMO

VALID,MO

HD,MO

CKPL = 0

CKPL = 1

LO/HI

1/f

UCxCLK

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.25 USCI (UART Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

USCI

max,BITCLK

USCI input clock frequency SMCLK, duty cycle = 50% ±10% f Maximum BITCLK clock frequency

(equals baud rate in MBaud) UART receive deglitch time

(1)

(2)

3 V 2 MHz 3 V 50 100 600 ns

(1) The DCO wake-up time must be considered in LPM3 and LPM4 for baud rates above 1 MHz. (2) Pulses on the UART receive input (UCxRX) shorter than the UART receive deglitch time are suppressed. To ensure that pulses are

correctly recognized, their duration should exceed the maximum specification of the deglitch time.

MIN TYP MAX UNIT

SYSTEM

MHz

5.26 USCI (SPI Master Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-16 and Figure 5-17)

USCI

SU,MI

HD,MI

VALID,MO

PARAMETER TEST CONDITIONS V

USCI input clock frequency SMCLK, duty cycle = 50% ±10% f SOMI input data setup time 3 V 75 ns SOMI input data hold time 3 V 0 ns SIMO output data valid time UCLK edge to SIMO valid, CL= 20 pF 3 V 20 ns

MIN MAX UNIT

SYSTEM

MHz

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

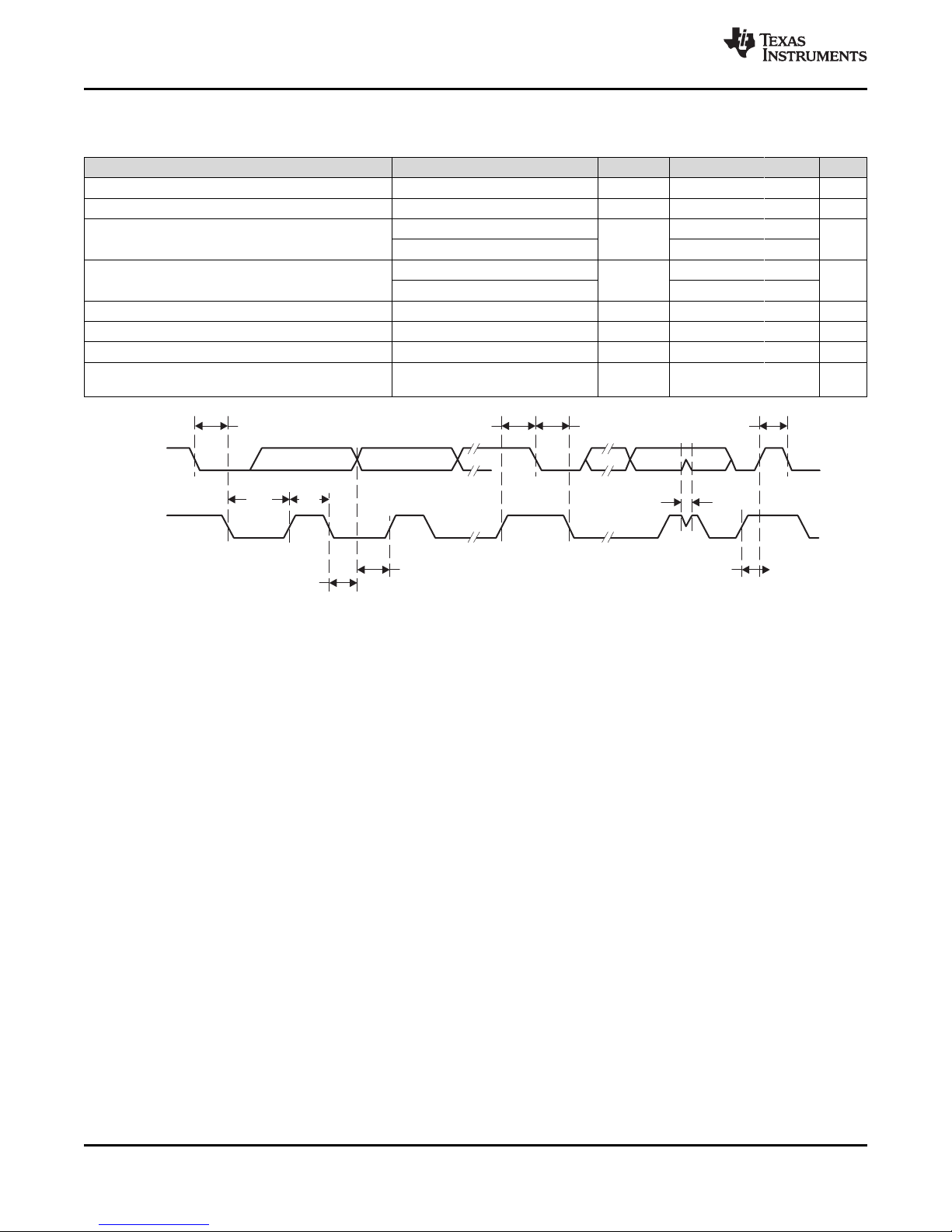

Figure 5-16. SPI Master Mode, CKPH = 0

Figure 5-17. SPI Master Mode, CKPH = 1

Submit Documentation Feedback

MSP430G2203

STE

UCLK

CKPL = 0

CKPL = 1

SOMI

SIMO

SU,SI

HD,SI

VALID,SO

STE,LEAD

1/f

UCxCLK

STE,LAG

STE,DIS

STE,ACC

HD,MO

LO/HI

STE

UCLK

CKPL = 0

CKPL = 1

SOMI

SIMO

SU,SI

HD,SI

VALID,SO

STE,LEAD

1/f

UCxCLK

LO/HI

STE,LAG

STE,DIS

STE,ACC

HD,SO

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

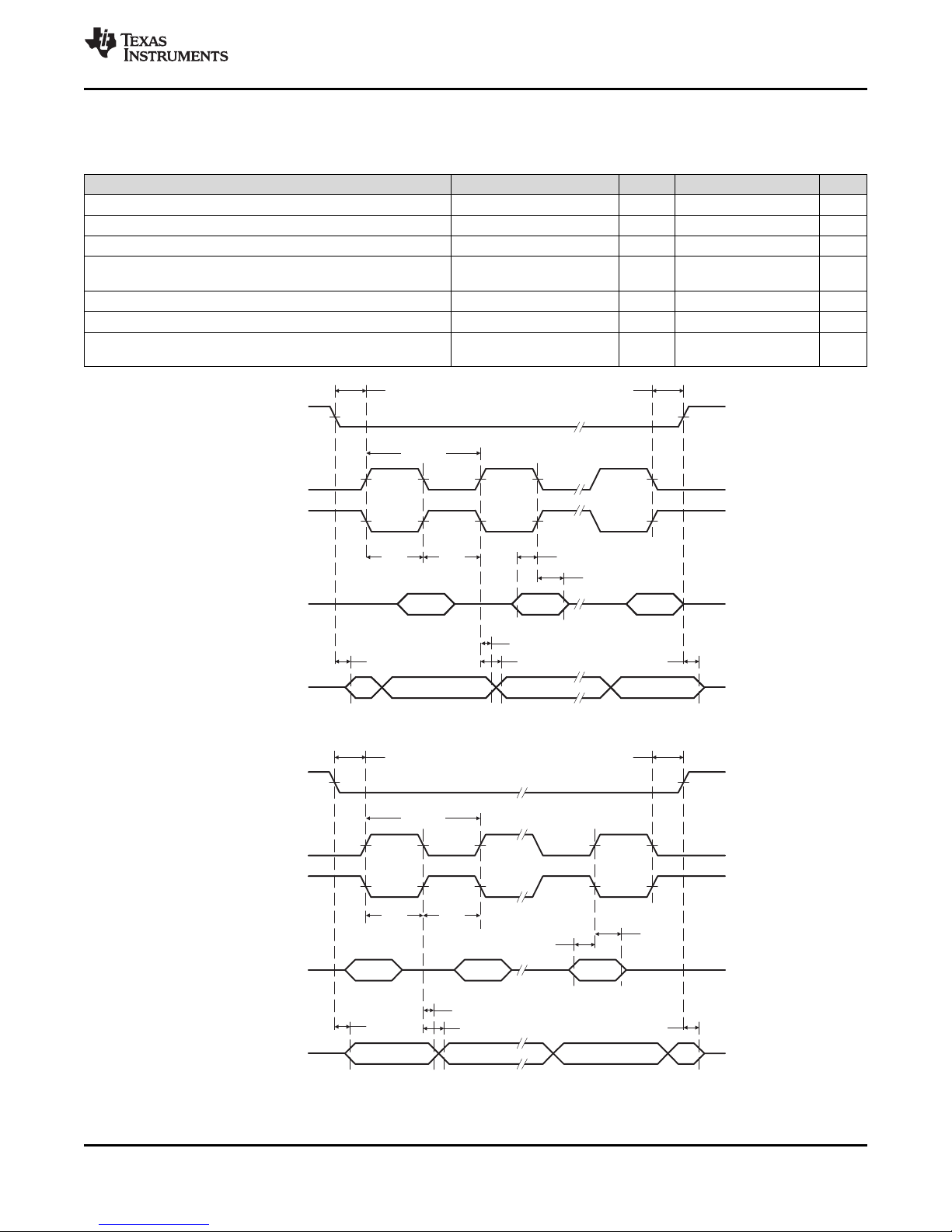

5.27 USCI (SPI Slave Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-18 and Figure 5-19)

STE,LEAD

STE,LAG

STE,ACC

STE,DIS

SU,SI

HD,SI

VALID,SO

PARAMETER TEST CONDITIONS V

STE lead time, STE low to clock 3 V 50 ns STE lag time, Last clock to STE high 3 V 10 ns STE access time, STE low to SOMI data out 3 V 50 ns STE disable time, STE high to SOMI high

impedance

3 V 50 ns

SIMO input data setup time 3 V 15 ns SIMO input data hold time 3 V 10 ns

SOMI output data valid time

UCLK edge to SOMI valid, CL= 20 pF

3 V 50 75 ns

MIN TYP MAX UNIT

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 5-18. SPI Slave Mode, CKPH = 0

Figure 5-19. SPI Slave Mode, CKPH = 1

Submit Documentation Feedback

MSP430G2203

SDA

SCL

HD,DAT

SU,DAT

HD,STA

HIGH

LOW

BUF

HD,STA

SU,STA

SU,STO

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.28 USCI (I2C Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-20)

USCI

SCL

HD,STA

SU,STA

HD,DAT

SU,DAT

SU,STO

PARAMETER TEST CONDITIONS V

USCI input clock frequency SMCLK, duty cycle = 50% ±10% f SCL clock frequency 3 V 0 400 kHz

≤ 100 kHz

Hold time (repeated) START

Setup time for a repeated START

SCL

> 100 kHz 0.6

SCL

≤ 100 kHz

SCL

> 100 kHz 0.6

SCL

3 V

Data hold time 3 V 0 ns Data setup time 3 V 250 ns Setup time for STOP 3 V 4.0 µs Pulse duration of spikes suppressed by

input filter

3 V 50 100 600 ns

MIN TYP MAX UNIT

SYSTEM

MHz

4.0

4.7

µs

Figure 5-20. I2C Mode Timing

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.29 10-Bit ADC, Power Supply and Input Range Conditions (MSP430G2x33 Only)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

ADC10

PARAMETER TEST CONDITIONS T

Analog supply voltage VSS= 0 V 2.2 3.6 V Analog input voltage

ADC10 supply current

(2)

(3)

All Ax terminals, Analog inputs selected in ADC10AE register

ADC10CLK

ADC10ON = 1, REFON = 0,

= 5.0 MHz,

ADC10SHT0 = 1, ADC10SHT1 = 0,

25°C 3 V 0.6 mA

ADC10DIV = 0

REF+

Reference supply current, reference buffer disabled

ADC10CLK

ADC10ON = 0, REF2_5V = 0,

(4)

REFON = 1, REFOUT = 0 f

ADC10CLK

ADC10ON = 0, REF2_5V = 1,

= 5.0 MHz,

25°C 3 V

REFON = 1, REFOUT = 0

REFB,0

Reference buffer supply current with ADC10SR = 0

(4)

ADC10CLK

ADC10ON = 0, REFON = 1, REF2_5V = 0, REFOUT = 1,

= 5.0 MHz,

25°C 3 V 1.1 mA

ADC10SR = 0

REFB,1

Reference buffer supply current with ADC10SR = 1

(4)

ADC10CLK

ADC10ON = 0, REFON = 1, REF2_5V = 0, REFOUT = 1,

= 5.0 MHz,

25°C 3 V 0.5 mA

ADC10SR = 1 C R

Input capacitance

Input MUX ON resistance 0 V ≤ VAx≤ V

Only one terminal Ax can be selected

at one time

25°C 3 V 27 pF 25°C 3 V 1000 Ω

(1) The leakage current is defined in the leakage current table with Px.y/Ax parameter. (2) The analog input voltage range must be within the selected reference voltage range VR+to VR–for valid conversion results. (3) The internal reference supply current is not included in current consumption parameter I (4) The internal reference current is supplied through terminal VCC. Consumption is independent of the ADC10ON control bit, unless a

conversion is active. The REFON bit enables the built-in reference to settle before starting an A/D conversion.

3 V 0 V

ADC10

(1)

MIN TYP MAX UNIT

0.25

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.30 10-Bit ADC, Built-In Voltage Reference (MSP430G2x33 Only)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

CC,REF+

REF+

LD,VREF+

VREF+

REF+

REFON

REFBURST

PARAMETER TEST CONDITIONS V

≤ 1 mA, REF2_5V = 0 2.2

Positive built-in reference analog supply voltage range

Positive built-in reference voltage

VREF+

≤ 1 mA, REF2_5V = 1 2.9

VREF+

≤ I

VREF+

max, REF2_5V = 0

VREF+

≤ I

max, REF2_5V = 1 2.35 2.5 2.65

VREF+

3 V

Maximum VREF+ load current 3 V ±1 mA

= 500 µA ±100 µA,

VREF+

Analog input voltage VAx≈ 0.75 V,

VREF+ load regulation

REF2_5V = 0 I

= 500 µA ±100 µA,

VREF+

Analog input voltage VAx≈ 1.25 V,

3 V

REF2_5V = 1 I

= 100 µA → 900 µA,

load regulation response

REF+

time

VREF+

VAx≈ 0.5 × VREF+, Error of conversion result ≤ 1 LSB,

3 V 400 ns

ADC10SR = 0

Maximum capacitance at pin VREF+

Temperature coefficient I Settling time of internal

reference voltage to 99.9% VREF

Settling time of reference buffer to 99.9% VREF

≤ ±1 mA, REFON = 1, REFOUT = 1 3 V 100 pF

VREF+

= const with 0 mA ≤ I

VREF+

= 0.5 mA, REF2_5V = 0,

VREF+

REFON = 0 → 1 I

= 0.5 mA,

VREF+

REF2_5V = 1, REFON = 1,

≤ 1 mA 3 V ±100

VREF+

3.6 V 30 µs

3 V 2 µs

REFBURST = 1, ADC10SR = 0

MIN TYP MAX UNIT

1.41 1.5 1.59

www.ti.com

±2

LSB

±2

ppm/

°C

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.31 10-Bit ADC, External Reference

(1)

(MSP430G2x33 Only)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

VEREF+ > VEREF–,

VEREF+

VEREF–

ΔVEREF

Positive external reference input voltage range

Negative external reference input voltage range

(2)

(4)

Differential external reference input voltage range,

SREF1 = 1, SREF0 = 0 VEREF– ≤ VEREF+ ≤ VCC– 0.15 V,

SREF1 = 1, SREF0 = 1

(3)

VEREF+ > VEREF– 0 1.2 V

VEREF+ > VEREF–

(5)

ΔVEREF = VEREF+ – VEREF–

VEREF+

VEREF–

0 V ≤ VEREF+ ≤ VCC,

Static input current into VEREF+

SREF1 = 1, SREF0 = 0 0 V ≤ VEREF+ ≤ VCC– 0.15 V ≤ 3 V,

SREF1 = 1, SREF0 = 1

Static input current into VEREF– 0 V ≤ VEREF– ≤ V

(3)

3 V ±1

3 V 0 3 V ±1 µA

(1) The external reference is used during conversion to charge and discharge the capacitance array. The input capacitance, CI, is also the

dynamic load for an external reference during conversion. The dynamic impedance of the reference supply should follow the recommendations on analog-source impedance to allow the charge to settle for 10-bit accuracy.

(2) The accuracy limits the minimum positive external reference voltage. Lower reference voltage levels may be applied with reduced

accuracy requirements.

(3) Under this condition, the external reference is internally buffered. The reference buffer is active and requires the reference buffer supply

current I

(4) The accuracy limits the maximum negative external reference voltage. Higher reference voltage levels may be applied with reduced

. The current consumption can be limited to the sample and conversion period with REBURST = 1.

REFB

accuracy requirements.

(5) The accuracy limits the minimum external differential reference voltage. Lower differential reference voltage levels may be applied with

reduced accuracy requirements.

MIN TYP MAX UNIT

1.4 V

1.4 3

1.4 V

µA

5.32 10-Bit ADC, Timing Parameters (MSP430G2x33 Only)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

ADC10CLK

ADC10OSC

ADC10 input clock frequency

ADC10 built-in oscillator frequency

For specified performance of ADC10 linearity parameters

ADC10DIVx = 0, ADC10SSELx = 0, f

ADC10CLK

= f

ADC10OSC

ADC10 built-in oscillator, ADC10SSELx = 0,

CONVERT

ADC10ON

Conversion time

Turnon settling time of the ADC

ADC10CLK

ADC10SSELx ≠ 0

(1)

= f

ADC10OSC

from ACLK, MCLK, or SMCLK:

(1) The condition is that the error in a conversion started after t

settled.

ADC10SR = 0 ADC10SR = 1 0.45 1.5

3 V

3 V 3.7 6.3 MHz

3 V 2.06 3.51

ADC10ON

is less than ±0.5 LSB. The reference and input signal are already

MIN TYP MAX UNIT

0.45 6.3

13 ×

ADC10DIV ×

1 / f

ADC10CLK

5.33 10-Bit ADC, Linearity Parameters (MSP430G2x33 Only)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

Integral linearity error 3 V ±1 LSB

Differential linearity error 3 V ±1 LSB

Offset error Source impedance RS< 100 Ω 3 V ±1 LSB

Gain error 3 V ±1.1 ±2 LSB

Total unadjusted error 3 V ±2 ±5 LSB

MIN TYP MAX UNIT

MHz

µs

100 ns

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

5.34 10-Bit ADC, Temperature Sensor and Built-In V

(MSP430G2x33 Only)

MID

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS V

SENSOR

Sensor(sample)

VMID

MID

VMID(sample)

Temperature sensor supply current

Sample time required if channel 10 is selected

Current into divider at channel 11 ADC10ON = 1, INCHx = 0Bh 3 V VCCdivider at channel 11 Sample time required if channel 11

is selected

(1) The sensor current I

high). When REFON = 1, I input (INCH = 0Ah).

(1)

SENSOR

REFON = 0, INCHx = 0Ah, TA= 25°C 3 V 60 µA ADC10ON = 1, INCHx = 0Ah

(3)

ADC10ON = 1, INCHx = 0Ah, Error of conversion result ≤ 1 LSB

(2)

ADC10ON = 1, INCHx = 0Bh, V

≈ 0.5 × V

MID

(5)

ADC10ON = 1, INCHx = 0Bh, Error of conversion result ≤ 1 LSB

is consumed if (ADC10ON = 1 and REFON = 1) or (ADC10ON = 1 and INCH = 0Ah and sample signal is

SENSOR

is included in I

. When REFON = 0, I

REF+

applies during conversion of the temperature sensor

SENSOR

3 V 3.55 mV/°C 3 V 30 µs

3 V 1.5 V

3 V 1220 ns

(2) The following formula can be used to calculate the temperature sensor output voltage:

Sensor,typ

(3) The typical equivalent impedance of the sensor is 51 kΩ. The sample time required includes the sensor-on time t (4) No additional current is needed. The V (5) The on-time t

= TC = TC

(273 + T [°C] ) + V

Sensor

T [°C] + V

Sensor

is included in the sampling time t

VMID(on)

Sensor(TA

Offset,sensor

= 0°C) [mV]

MID

[mV] or

is used during sampling.

VMID(sample)

; no additional on time is needed.

MIN TYP MAX UNIT

(4)

µA

SENSOR(on)

5.35 Flash Memory

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER

CC(PGM/ERASE)

FTG

PGM

ERASE

CPT

CMErase

Program and erase supply voltage 2.2 3.6 V Flash timing generator frequency 257 476 kHz Supply current from VCCduring program 2.2 V, 3.6 V 1 5 mA Supply current from VCCduring erase 2.2 V, 3.6 V 1 7 mA Cumulative program time

(1)

Cumulative mass erase time 2.2 V, 3.6 V 20 ms Program and erase endurance 10

Retention

Word

Block, 0

Block, 1-63

Block, End

Mass Erase

Seg Erase

Data retention duration TJ= 25°C 100 years Word or byte program time See Block program time for first byte or word See Block program time for each additional byte or

word Block program end-sequence wait time See Mass erase time See Segment erase time See

(1) Do not exceed the cumulative program time when writing to a 64-byte flash block. This parameter applies to all programming methods:

individual word or byte write and block write modes.

(2) These values are hardwired into the state machine of the flash controller (t

TEST

CONDITIONS

(2) (2)

(2)

See

(2) (2) (2)

FTG

MIN TYP MAX UNIT

2.2 V, 3.6 V 10 ms

30 t 25 t

18 t

6 t

10593 t

4819 t

= 1/f

FTG

cycles

FTG FTG

FTG

FTG FTG FTG

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

5.36 RAM

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN MAX UNIT

RAM retention supply voltage

(RAMh)

(1) This parameter defines the minimum supply voltage VCCwhen the data in RAM remains unchanged. No program execution should

happen during this supply voltage condition.

(1)

CPU halted 1.6 V

5.37 JTAG and Spy-Bi-Wire Interface

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER V

SBW

SBW,Low

SBW,En

SBW,Ret

TCK

Internal

Spy-Bi-Wire input frequency 2.2 V 0 20 MHz Spy-Bi-Wire low clock pulse duration 2.2 V 0.025 15 µs Spy-Bi-Wire enable time

(TEST high to acceptance of first clock edge

(1)

) Spy-Bi-Wire return to normal operation time 2.2 V 15 100 µs TCK input frequency

(2)

Internal pulldown resistance on TEST 2.2 V 25 60 90 kΩ

(1) Tools that access the Spy-Bi-Wire interface must wait for the maximum t

applying the first SBWCLK clock edge.

(2) f

5.38 JTAG Fuse

may be restricted to meet the timing requirements of the module selected.

TCK

(1)

time after pulling the TEST/SBWCLK pin high before

SBW,En

2.2 V 1 µs

2.2 V 0 5 MHz

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN MAX UNIT

CC(FB)

Supply voltage during fuse-blow condition TA= 25°C 2.5 V Voltage level on TEST for fuse blow 6 7 V Supply current into TEST during fuse blow 100 mA Time to blow fuse 1 ms

MIN TYP MAX UNIT

(1) After the fuse is blown, no further access to the JTAG/Test, Spy-Bi-Wire, and emulation features is possible, and JTAG is switched to

bypass mode.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

Program Counter

PC/R0

Stack Pointer SP/R1

Status Register

SR/CG1/R2

Constant Generator CG2/R3

General-Purpose Register

R10

General-Purpose Register

R11

General-Purpose Register

R12

General-Purpose Register

R13

General-Purpose Register

R15

General-Purpose Register

R14

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6 Detailed Description

6.1 CPU

The MSP430 CPU has a 16-bit RISC architecture that is highly transparent to the application. All operations, other than program-flow instructions, are performed as register operations in conjunction with seven addressing modes for source operand and four addressing modes for destination operand.

The CPU is integrated with 16 registers that provide reduced instruction execution time. The register-toregister operation execution time is one cycle of the CPU clock. Four of the registers, R0 to R3, are dedicated as program counter, stack pointer, status register, and constant generator, respectively. The remaining registers are general-purpose registers (see Figure 6-1).

Peripherals are connected to the CPU using data, address, and control buses, and can be handled with all instructions.

The instruction set consists of the original 51 instructions with three formats and seven address modes and additional instructions for the expanded address range. Each instruction can operate on word and byte data.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-1. Integrated CPU Registers

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.2 Instruction Set

The instruction set consists of 51 instructions with three formats and seven address modes. Each instruction can operate on word and byte data. Table 6-1 lists examples of the three types of instruction formats. Table 6-2 lists the address modes.

Table 6-1. Instruction Word Formats

INSTRUCTION FORMAT EXAMPLE OPERATION

Dual operands, source-destination ADD R4,R5 R4 + R5 → R5 Single operands, destination only CALL R8 PC → (TOS), R8 → PC Relative jump, unconditional or conditional JNE Jump-on-equal bit = 0

Table 6-2. Address Mode Descriptions

ADDRESS MODE S

Symbolic (PC relative) ✓ ✓ MOV EDE,TONI M(EDE) → M(TONI)

Absolute ✓ ✓ MOV &MEM,&TCDAT M(MEM) → M(TCDAT)

Indirect ✓ MOV @Rn,Y(Rm) MOV @R10,Tab(R6) M(R10) → M(Tab+R6)

Indirect autoincrement ✓ MOV @Rn+,Rm MOV @R10+,R11

Immediate ✓ MOV #X,TONI MOV #45,TONI #45 → M(TONI)

(1) S = source, D = destination

(1)

D SYNTAX EXAMPLE OPERATION

M(R10) → R11

R10 + 2 → R10

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.3 Operating Modes

These microcontrollers have one active mode and five software-selectable low-power modes of operation. An interrupt event can wake the device from any of the low-power modes, service the request, and restore back to the low-power mode on return from the interrupt program.

Software can configure the following operating modes:

• Active mode (AM) – All clocks are active

• Low-power mode 0 (LPM0) – CPU is disabled – ACLK and SMCLK remain active, MCLK is disabled

• Low-power mode 1 (LPM1) – CPU is disabled – ACLK and SMCLK remain active, MCLK is disabled – DC generator of the DCO is disabled if DCO not used in active mode

• Low-power mode 2 (LPM2) – CPU is disabled – MCLK and SMCLK are disabled – DC generator of the DCO remains enabled – ACLK remains active

• Low-power mode 3 (LPM3) – CPU is disabled – MCLK and SMCLK are disabled – DC generator of the DCO is disabled – ACLK remains active

• Low-power mode 4 (LPM4) – CPU is disabled – ACLK is disabled – MCLK and SMCLK are disabled – DC generator of the DCO is disabled – Crystal oscillator is stopped

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

6.4 Interrupt Vector Addresses

The interrupt vectors and the power-up starting address are in the address range 0FFFFh to 0FFC0h (see

Table 6-3). The vector contains the 16-bit address of the appropriate interrupt handler instruction

sequence. If the reset vector (at address 0FFFEh) contains 0FFFFh (for example, if the flash is not programmed), the

CPU goes into LPM4 immediately after power-up.

Table 6-3. Interrupt Sources, Flags, and Vectors

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

INTERRUPT SOURCE INTERRUPT FLAG

Power up

External reset

Watchdog Timer+ Flash key violation PC out of range

(1)

NMI

Oscillator fault

Flash memory access violation

PORIFG

RSTIFG

WDTIFG

KEYV NMIIFG

OFIFG

ACCVIFG Timer1_A3 TACCR0 CCIFG Timer1_A3 TACCR2 TACCR1 CCIFG, TAIFG

SYSTEM

INTERRUPT

Reset 0FFFEh 31, highest

(2)

(non)-maskable

(2)(4)

(non)-maskable (non)-maskable

maskable 0FFFAh 29 maskable 0FFF8h 28

(2)

(4)

(3)

WORD

ADDRESS

PRIORITY

0FFFCh 30

0FFF6h 27

Watchdog Timer+ WDTIFG maskable 0FFF4h 26

Timer0_A3 TACCR0 CCIFG Timer0_A3

USCI_A0, USCI_B0 receive

USCI_B0 I2C status

USCI_A0, USCI_B0 transmit

USCI_B0 I2C receive or transmit

ADC10

(MSP430G2x33 only)

TACCR2 TACCR1 CCIFG, TAIFG

(5)(4)

UCA0RXIFG, UCB0RXIFG

UCA0TXIFG, UCB0TXIFG

ADC10IFG

(4)

maskable 0FFF2h 25 maskable 0FFF0h 24

(2)(5)

(2)(6)

(4)

maskable 0FFEEh 23

maskable 0FFECh 22

maskable 0FFEAh 21

0FFE8h 20 I/O Port P2 (up to eight flags) P2IFG.0 to P2IFG.7 I/O Port P1 (up to eight flags) P1IFG.0 to P1IFG.7

(2)(4) (2)(4)

maskable 0FFE6h 19 maskable 0FFE4h 18

0FFE2h 17

0FFE0h 16

(7)

See See

(8)

0FFDEh 15

0FFDEh to

0FFC0h

14 to 0, lowest

(1) A reset is generated if the CPU tries to fetch instructions from within the module register memory address range (0h to 01FFh) or from

within unused address ranges. (2) Multiple source flags (3) (non)-maskable: the individual interrupt-enable bit can disable an interrupt event, but the general interrupt enable cannot. (4) Interrupt flags are in the module. (5) In SPI mode: UCB0RXIFG. In I2C mode: UCALIFG, UCNACKIFG, ICSTTIFG, UCSTPIFG. (6) In UART or SPI mode: UCB0TXIFG. In I2C mode: UCB0RXIFG, UCB0TXIFG. (7) This location is used as bootloader security key (BSLSKEY). A 0xAA55 at this location disables the BSL completely. A zero (0h)

disables the erasure of the flash if an invalid password is supplied. (8) The interrupt vectors at addresses 0FFDEh to 0FFC0h are not used in this device and can be used for regular program code if

necessary.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.5 Special Function Registers (SFRs)

Most interrupt and module enable bits are collected into the lowest address space. Special function register bits not allocated to a functional purpose are not physically present in the device. Simple software access is provided with this arrangement.

Legend

rw Bit can be read and written.

rw-0, rw-1 Bit can be read and written. It is reset or set by PUC.

rw-(0), rw-(1) Bit can be read and written. It is reset or set by POR.

SFR bit is not present in device.

Figure 6-2. Interrupt Enable Register 1 (Address = 00h)

7 6 5 4 3 2 1 0

ACCVIE NMIIE OFIE WDTIE

rw-0 rw-0 rw-0 rw-0

Table 6-4. Interrupt Enable Register 1 Description

Bit Field Type Reset Description

5 ACCVIE RW 0h Flash access violation interrupt enable 4 NMIIE RW 0h (Non)maskable interrupt enable 1 OFIE RW 0h Oscillator fault interrupt enable

0 WDTIE RW 0h

Watchdog Timer interrupt enable. Inactive if watchdog mode is selected. Active if Watchdog Timer is configured in interval timer mode.

www.ti.com

Figure 6-3. Interrupt Enable Register 2 (Address = 01h)

7 6 5 4 3 2 1 0

UCB0TXIE UCB0RXIE UCA0TXIE UCA0RXIE

rw-0 rw-0 rw-0 rw-0

Table 6-5. Interrupt Enable Register 2 Description

Bit Field Type Reset Description

3 UCB0TXIE RW 0h USCI_B0 transmit interrupt enable 2 UCB0RXIE RW 0h USCI_B0 receive interrupt enable 1 UCA0TXIE RW 0h USCI_A0 transmit interrupt enable 0 UCA0RXIE RW 0h USCI_A0 receive interrupt enable

Figure 6-4. Interrupt Flag Register 1 (Address = 02h)

7 6 5 4 3 2 1 0

NMIIFG RSTIFG PORIFG OFIFG WDTIFG

rw-0 rw-(0) rw-(1) rw-1 rw-(0)

Table 6-6. Interrupt Flag Register 1 Description

Bit Field Type Reset Description

4 NMIIFG RW 0h Set by the RST/NMI pin 3 RSTIFG RW 0h 2 PORIFG RW 1h Power-On Reset interrupt flag. Set on VCCpower-up.

1 OFIFG RW 1h Flag set on oscillator fault. 0 WDTIFG RW 0h

External reset interrupt flag. Set on a reset condition at RST/NMI pin in reset mode. Reset on VCCpower-up.

Set on watchdog timer overflow (in watchdog mode) or security key violation. Reset on VCCpower-on or a reset condition at the RST/NMI pin in reset mode.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Figure 6-5. Interrupt Flag Register 2 (Address = 03h)

7 6 5 4 3 2 1 0

UCB0TXIFG UCB0RXIFG UCA0TXIFG UCA0RXIFG

rw-1 rw-0 rw-1 rw-0

Table 6-7. Interrupt Flag Register 2 Description

Bit Field Type Reset Description

3 UCB0TXIFG RW 0h USCI_B0 transmit interrupt flag 2 UCB0RXIFG RW 1h USCI_B0 receive interrupt flag 1 UCA0TXIFG RW 1h USCI_A0 transmit interrupt flag 0 UCA0RXIFG RW 0h USCI_A0 receive interrupt flag

6.6 Memory Organization

Table 6-8 summarizes the memory map.

Table 6-8. Memory Organization

MSP430G2233 MSP430G2203

Memory Size 2KB 4KB 8KB 16KB Main: interrupt vector Flash FFFFh to FFC0h FFFFh to FFC0h FFFFh to FFC0h FFFFh to FFC0h Main: code memory Flash FFFFh to F800h FFFFh to F000h FFFFh to E000h FFFFh to C000h Information memory Size 256 byte 256 byte 256 byte 256 byte

Flash 010FFh to 01000h 010FFh to 01000h 010FFh to 01000h 010FFh to 01000h

RAM Size 256 byte 256 byte 512 byte 512 byte

02FFh to 0200h 02FFh to 0200h 03FFh to 0200h 03FFh to 0200h

Peripherals 16-bit 01FFh to 0100h 01FFh to 0100h 01FFh to 0100h 01FFh to 0100h

8-bit 0FFh to 010h 0FFh to 010h 0FFh to 010h 0FFh to 010h

8-bit SFR 0Fh to 00h 0Fh to 00h 0Fh to 00h 0Fh to 00h

MSP430G2333 MSP430G2303

MSP430G2433 MSP430G2403

MSP430G2533

6.7 Bootloader (BSL)

The MSP430 BSL enables users to program the flash memory or RAM using a UART serial interface. Access to the MSP430 memory through the BSL is protected by user-defined password. For complete description of the features of the BSL and its implementation, see the MSP430 Programming With the Bootloader User's Guide (SLAU319). Table 6-9 lists the BSL function pins.

Table 6-9. BSL Function Pins

BSL FUNCTION

Data transmit 3 - P1.1 3 - P1.1 1 - P1.1

Data receive 7 - P1.5 7 - P1.5 5 - P1.5

20-PIN PW PACKAGE

20-PIN N PACKAGE

28-PIN PW PACKAGE 32-PIN RHB PACKAGE

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.8 Flash Memory

The flash memory can be programmed through the Spy-Bi-Wire/JTAG port or in-system by the CPU. The CPU can perform single-byte and single-word writes to the flash memory. Features of the flash memory include:

• Flash memory has n segments of main memory and four segments of information memory (A to D) of 64 bytes each. Each segment in main memory is 512 bytes in size.

• Segments 0 to n may be erased in one step, or each segment may be individually erased.

• Segments A to D can be erased individually or as a group with segments 0 to n. Segments A to D are also called information memory.

• Segment A contains calibration data. After reset segment A is protected against programming and erasing. It can be unlocked but care should be taken not to erase this segment if the device-specific calibration data is required.

6.9 Peripherals

Peripherals are connected to the CPU through data, address, and control buses. The peripherals can be managed using all instructions. For complete module descriptions, see the MSP430x2xx Family User's Guide (SLAU144).

6.9.1 Oscillator and System Clock

www.ti.com

The clock system is supported by the basic clock module that includes support for a 32768-Hz watch crystal oscillator, an internal very-low-power low-frequency oscillator and an internal digitally controlled oscillator (DCO). The basic clock module is designed to meet the requirements of both low system cost and low power consumption. The internal DCO provides a fast turnon clock source and stabilizes in less than 1 µs. The basic clock module provides the following clock signals:

• Auxiliary clock (ACLK), sourced either from a 32768-Hz watch crystal or the internal LF oscillator.

• Main clock (MCLK), the system clock used by the CPU.

• Sub-Main clock (SMCLK), the subsystem clock used by the peripheral modules.

The DCO settings to calibrate the DCO output frequency are stored in the information memory segment A.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

6.9.2 Calibration Data Stored in Information Memory Segment A

Calibration data is stored for both the DCO and for ADC10 organized in a tag-length-value structure (see

Table 6-10 and Table 6-11).

Table 6-10. Tags Used by the ADC Calibration Tags

NAME ADDRESS VALUE DESCRIPTION

TAG_DCO_30 0x10F6 0x01 DCO frequency calibration at VCC= 3 V and TA= 30°C

TAG_ADC10_1 0x10DA 0x10 ADC10_1 calibration tag

TAG_EMPTY – 0xFE Identifier for empty memory areas

Table 6-11. Labels Used by the ADC Calibration Tags

SLAS734G –APRIL 2011–REVISED APRIL 2016

LABEL

CAL_ADC_25T85 0x0010 word INCHx = 1010b, REF2_5 = 1, TA= 85°C CAL_ADC_25T30 0x000E word INCHx = 1010b, REF2_5 = 1, TA= 30°C

CAL_ADC_25VREF_FACTOR 0x000C word REF2_5 = 1, TA= 30°C, I

CAL_ADC_15T85 0x000A word INCHx = 1010b, REF2_5 = 0, TA= 85°C CAL_ADC_15T30 0x0008 word INCHx = 1010b, REF2_5 = 0, TA= 30°C

CAL_ADC_15VREF_FACTOR 0x0006 word REF2_5 = 0, TA= 30°C, I

CAL_ADC_OFFSET 0x0004 word External VREF = 1.5 V, f

CAL_ADC_GAIN_FACTOR 0x0002 word External VREF = 1.5 V, f

CAL_BC1_1MHZ 0x0009 byte –

CAL_DCO_1MHZ 0x0008 byte –

CAL_BC1_8MHZ 0x0007 byte –

CAL_DCO_8MHZ 0x0006 byte –

CAL_BC1_12MHZ 0x0005 byte –

CAL_DCO_12MHZ 0x0004 byte –

CAL_BC1_16MHZ 0x0003 byte –

CAL_DCO_16MHZ 0x0002 byte –

ADDRESS

OFFSET

SIZE CONDITION AT CALIBRATION

6.9.3 Brownout

The brownout circuit is implemented to provide the proper internal reset signal to the device during power on and power off.

VREF+

VREF+ ADC10CLK ADC10CLK

= 1 mA

= 0.5 mA

= 5 MHz = 5 MHz

6.9.4 Digital I/O

Up to three 8-bit I/O ports are implemented:

• All individual I/O bits are independently programmable.

• Any combination of input, output, and interrupt condition (port P1 and port P2 only) is possible.

• Edge-selectable interrupt input capability for all bits of port P1 and port P2 (if available).

• Read/write access to port-control registers is supported by all instructions.

• Each I/O has an individually programmable pullup or pulldown resistor.

• Each I/O has an individually programmable pin oscillator enable bit to enable low-cost capacitive touch detection.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.9.5 WDT+ Watchdog Timer

The primary function of the watchdog timer (WDT+) module is to perform a controlled system restart after a software problem occurs. If the selected time interval expires, a system reset is generated. If the watchdog function is not needed in an application, the module can be disabled or configured as an interval timer and can generate interrupts at selected time intervals.

6.9.6 Timer_A3 (TA0, TA1)

Timer0_A3 and Timer1_A3 are 16-bit timers/counters with three capture/compare registers. Timer_A3 can support multiple capture/compares, PWM outputs, and interval timing (see Table 6-12 and Table 6-13). Timer_A3 also has extensive interrupt capabilities. Interrupts may be generated from the counter on overflow conditions and from each of the capture/compare registers.

Table 6-12. Timer0_A3 Signal Connections

www.ti.com

INPUT PIN NUMBER DEVICE

PW20, N20 PW28 RHB32 PW20, N20 PW28 RHB32

P1.0-2 P1.0-2 P1.0-31 TACLK TACLK

PinOsc PinOsc PinOsc TACLK INCLK

P1.1-3 P1.1-3 P1.1-1 TA0.0 CCI0A

P1.2-4 P1.2-4 P1.2-2 TA0.1 CCI1A

– P3.0-9 P3.0-7 TA0.2 CCI2A

PinOsc PinOsc PinOsc TA0.2 CCI2B – P3.6-20 P3.6-19

INPUT

SIGNAL

ACLK ACLK

SMCLK SMCLK

ACLK CCI0B P1.5-7 P1.5-7 P1.5-5

CAOUT CCI1B P1.6-14 P1.6-22 P1.6-21

MODULE

INPUT NAME

GND – P3.4-15 P3.4-14

GND P2.6-19 P2.6-27 P2.6-26

GND

MODULE

BLOCK

Timer NA

CCR0 TA0

CCR1 TA1

CCR2 TA2

MODULE

OUTPUT

SIGNAL

OUTPUT PIN NUMBER

P1.1-3 P1.1-3 P1.1-1

P1.2-4 P1.2-4 P1.2-2

– P3.5-19 P3.5-18 – P3.0-9 P3.0-7

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-13. Timer1_A3 Signal Connections

INPUT PIN NUMBER DEVICE

PW20, N20 PW28 RHB32 PW20, N20 PW28 RHB32

– P3.7-21 P3.7-20 TACLK TACLK

– P3.7-21 P3.7-20 TACLK INCLK

P2.0-8 P2.0-10 P2.0-9 TA1.0 CCI0A

P2.3-11 P2.3-16 P2.3-12 TA1.0 CCI0B P2.3-11 P2.3-16 P2.3-15

P2.1-9 P2.1-11 P2.1-10 TA1.1 CCI1A

P2.2-10 P2.2-12 P2.2-11 TA1.1 CCI1B P2.2-10 P2.2-12 P2.2-11

P2.4-12 P2.4-17 P2.4-16 TA1.2 CCI2A P2.5-13 P2.5-18 P2.5-17 TA1.2 CCI2B P2.5-13 P2.5-18 P2.5-17

INPUT

SIGNAL

ACLK ACLK

SMCLK SMCLK

MODULE

INPUT NAME

GND P3.1-8 P3.1-6

GND P3.2-13 P3.2-12

GND P3.3-14 P3.3-13

MODULE

BLOCK

Timer NA

CCR0 TA0

CCR1 TA1

CCR2 TA2

MODULE

OUTPUT

SIGNAL

OUTPUT PIN NUMBER

P2.0-8 P2.0-10 P2.0-9

P2.1-9 P2.1-11 P2.1-10

P2.4-12 P2.4-17 P2.4-16

6.9.7 Universal Serial Communications Interface (USCI)

The USCI module is used for serial data communication. The USCI module supports synchronous communication protocols such as SPI (3-pin or 4-pin) and I2C, and asynchronous communication protocols such as UART, enhanced UART with automatic baud rate detection (LIN), and IrDA. Not all packages support the USCI functionality.

USCI_A0 provides support for SPI (3-pin or 4-pin), UART, enhanced UART, and IrDA. USCI_B0 provides support for SPI (3-pin or 4-pin) and I2C.

6.9.8 ADC10 (MSP430G2x33 Only)

The ADC10 module supports fast 10-bit analog-to-digital conversions. The module implements a 10-bit SAR core, sample select control, reference generator, and data transfer controller (DTC) for automatic conversion result handling, allowing ADC samples to be converted and stored without any CPU intervention.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

www.ti.com

6.9.9 Peripheral File Map

Table 6-14 lists the registers that support word access. Table 6-15 that support byte access.

Table 6-14. Peripherals With Word Access

MODULE REGISTER DESCRIPTION ACRONYM OFFSET

ADC data transfer start address ADC10SA 1BCh

ADC10 (MSP430G2x33 only)

Timer1_A3

Timer0_A3

Flash Memory

Watchdog Timer+ Watchdog timer control WDTCTL 0120h

ADC memory ADC10MEM 1B4h ADC control register 1 ADC10CTL1 1B2h ADC control register 0 ADC10CTL0 1B0h Capture/compare register TA1CCR2 0196h Capture/compare register TA1CCR1 0194h Capture/compare register TA1CCR0 0192h Timer_A register TA1R 0190h Capture/compare control TA1CCTL2 0186h Capture/compare control TA1CCTL1 0184h Capture/compare control TA1CCTL0 0182h Timer_A control TA1CTL 0180h Timer_A interrupt vector TA1IV 011Eh Capture/compare register TA0CCR2 0176h Capture/compare register TA0CCR1 0174h Capture/compare register TA0CCR0 0172h Timer_A register TA0R 0170h Capture/compare control TA0CCTL2 0166h Capture/compare control TA0CCTL1 0164h Capture/compare control TA0CCTL0 0162h Timer_A control TA0CTL 0160h Timer_A interrupt vector TA0IV 012Eh Flash control 3 FCTL3 012Ch Flash control 2 FCTL2 012Ah Flash control 1 FCTL1 0128h

MODULE REGISTER DESCRIPTION ACRONYM OFFSET

USCI_B0 transmit buffer UCB0TXBUF 06Fh USCI_B0 receive buffer UCB0RXBUF 06Eh USCI_B0 status UCB0STAT 06Dh USCI B0 I2C Interrupt enable UCB0CIE 06Ch

USCI_B0

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

USCI_B0 bit rate control 1 UCB0BR1 06Bh USCI_B0 bit rate control 0 UCB0BR0 06Ah USCI_B0 control 1 UCB0CTL1 069h USCI_B0 control 0 UCB0CTL0 068h USCI_B0 I2C slave address UCB0SA 011Ah USCI_B0 I2C own address UCB0OA 0118h

Table 6-15. Peripherals With Byte Access

Submit Documentation Feedback

MSP430G2203

www.ti.com

MODULE REGISTER DESCRIPTION ACRONYM OFFSET

USCI_A0

ADC10 (MSP430G2x33 only)

Basic Clock System+

Port P3 (28-pin PW and 32-pin RHB only)

Port P2

Port P1

Special Function

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-15. Peripherals With Byte Access (continued)

USCI_A0 transmit buffer UCA0TXBUF 067h USCI_A0 receive buffer UCA0RXBUF 066h USCI_A0 status UCA0STAT 065h USCI_A0 modulation control UCA0MCTL 064h USCI_A0 baud rate control 1 UCA0BR1 063h USCI_A0 baud rate control 0 UCA0BR0 062h USCI_A0 control 1 UCA0CTL1 061h USCI_A0 control 0 UCA0CTL0 060h USCI_A0 IrDA receive control UCA0IRRCTL 05Fh USCI_A0 IrDA transmit control UCA0IRTCTL 05Eh USCI_A0 auto baud rate control UCA0ABCTL 05Dh ADC analog enable 0 ADC10AE0 04Ah ADC analog enable 1 ADC10AE1 04Bh ADC data transfer control register 1 ADC10DTC1 049h ADC data transfer control register 0 ADC10DTC0 048h Basic clock system control 3 BCSCTL3 053h Basic clock system control 2 BCSCTL2 058h Basic clock system control 1 BCSCTL1 057h DCO clock frequency control DCOCTL 056h Port P3 selection 2. pin P3SEL2 043h Port P3 resistor enable P3REN 010h Port P3 selection P3SEL 01Bh Port P3 direction P3DIR 01Ah Port P3 output P3OUT 019h Port P3 input P3IN 018h Port P2 selection 2 P2SEL2 042h Port P2 resistor enable P2REN 02Fh Port P2 selection P2SEL 02Eh Port P2 interrupt enable P2IE 02Dh Port P2 interrupt edge select P2IES 02Ch Port P2 interrupt flag P2IFG 02Bh Port P2 direction P2DIR 02Ah Port P2 output P2OUT 029h Port P2 input P2IN 028h Port P1 selection 2 P1SEL2 041h Port P1 resistor enable P1REN 027h Port P1 selection P1SEL 026h Port P1 interrupt enable P1IE 025h Port P1 interrupt edge select P1IES 024h Port P1 interrupt flag P1IFG 023h Port P1 direction P1DIR 022h Port P1 output P1OUT 021h Port P1 input P1IN 020h SFR interrupt flag 2 IFG2 003h SFR interrupt flag 1 IFG1 002h SFR interrupt enable 2 IE2 001h SFR interrupt enable 1 IE1 000h

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

PxDIR.y

From Timer

P1.0/TA0CLK/ ACLK/A0* P1.1/TA0.0/

UCA0RXD/UCA0SOMI/A1*

P1.2/TA0.1/

UCA0TXD/UCA0SIMO/A2*

From USCI

* Note: MSP430G2x33 devices only. MSP430G2x03 devices have no ADC10.

To Module

From Timer

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

Bus

Keeper

PxIN.y

PxSEL.y

PxREN.y

PxSEL2.y

INCHx = y *

ADC10AE0.y *

To ADC10 *

PxSEL.y

PxSEL2.y

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

Direction 0: Input 1: Output

PxSEL.y

PxSEL2.y

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10 I/O Port Diagrams

6.10.1 Port P1 Pin Diagram: P1.0 to P1.2, Input/Output With Schmitt Trigger

Figure 6-6 shows the port diagram. Table 6-16 summarizes the selection of the pin functions.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-6. Port P1 (P1.0 to P1.2) Diagram

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-16. Port P1 (P1.0 to P1.2) Pin Functions

PIN NAME

(P1.x)

P1.0/

x FUNCTION

P1DIR.x P1SEL.x P1SEL2.x

P1.x (I/O) I: 0; O: 1 0 0 0

CONTROL BITS OR SIGNALS

TA0CLK/ TA0.TACLK 0 1 0 0 ACLK/ ACLK 1 1 0 0

(2)

/ A0 X X X 1 (y = 0)

Pin Osc Capacitive sensing X 0 1 0 P1.1/

P1.x (I/O) I: 0; O: 1 0 0 0

TA0.0/ TA0.0 1 1 0 0

TA0.CCI0A 0 1 0 0

UCA0RXD/ UCA0RXD from USCI 1 1 0

UCA0SOMI/ UCA0SOMI from USCI 1 1 0

(2)

/ A1 X X X 1 (y = 1) Pin Osc Capacitive sensing X 0 1 0 P1.2/

P1.x (I/O) I: 0; O: 1 0 0 0

TA0.1/ TA0.1 1 1 0 0

TA0.CCI1A 0 1 0 0

UCA0TXD/ UCA0TXD from USCI 1 1 0

UCA0SIMO/ UCA0SIMO from USCI 1 1 0

(2)

/ A2 X X X 1 (y = 2) Pin Osc Capacitive sensing X 0 1 0

(1) X = don't care (2) MSP430G2x33 devices only

(1)

ADC10AE.x

(INCH.y = 1)

(2)

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

* Note: MSP430G2x33 devices only. MSP430G2x03 devices have no ADC10.

P1.3/ADC10CLK*/

A3*/VREF-*/VEREF-*

Direction 0: Input 1: Output

To Module

From ADC10 *

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

Bus

Keeper

PxIN.y

PxSEL.y

PxREN.y

PxDIR.y

0,2,3

PxSEL2.y

PxSEL.y

INCHx = y *

To ADC10 *

To ADC10 VREF- *

VSS

SREF2 *

PxSEL.y

PxSEL2.y

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

ADC10AE0.y *

PxSEL2.y

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.2 Port P1 Pin Diagram: P1.3, Input/Output With Schmitt Trigger

Figure 6-7 shows the port diagram. Table 6-17 summarizes the selection of the pin functions.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-7. Port P1 (P1.3) Diagram

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-17. Port P1 (P1.3) Pin Functions

PIN NAME

(P1.x)

P1.3/ ADC10CLK

(2)

/ A3 X X X 1 (y = 3)

(2)

VREFVEREF-

/ VREF- X X X 1

(2)

/ VEREF- X X X 1

x FUNCTION

P1DIR.x P1SEL.x P1SEL2.x

P1.x (I/O) I: 0; O: 1 0 0 0

(2)

/ ADC10CLK 1 1 0 0

CONTROL BITS OR SIGNALS

Pin Osc Capacitive sensing X 0 1 0

(1) X = don't care (2) MSP430G2x33 devices only

(1)

ADC10AE.x

(INCH.y = 1)

(2)

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

P1.4/SMCLK/UCB0STE/UCA0CLK/

VREF+/VEREF+/A4/TCK

Direction 0: Input 1: Output

To Module

SMCLK

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

Bus

Keeper

PxIN.y

PxSEL.y

PxREN.y

PxDIR.y

PxSEL2.y

PxSEL.y

INCHx = y *

To ADC10 *

From/To ADC10 Ref+ *

PxSEL.y

PxSEL2.y

From JTAG

To JTAG

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

ADC10AE0.y *

* Note: MSP430G2x33 devices only. MSP430G2x03 devices have no ADC10.

from Module

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.3 Port P1 Pin Diagram: P1.4, Input/Output With Schmitt Trigger

www.ti.com

Figure 6-8 shows the port diagram. Table 6-18 summarizes the selection of the pin functions.

Figure 6-8. Port P1 (P1.4) Diagram

Submit Documentation Feedback

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-18. Port P1 (P1.4) Pin Functions

CONTROL BITS OR SIGNALS

PIN NAME

(P1.x)

P1.4/

x FUNCTION

P1DIR.x P1SEL.x P1SEL2.x

P1.x (I/O) I: 0; O: 1 0 0 0 0 SMCLK/ SMCLK 1 1 0 0 0 UCB0STE/ UCB0STE UCA0CLK/ UCA0CLK

(2)

VREF+ VEREF+ A4

/ VREF+ X X X 1 0

(2)

/ A4 X X X 1 (y = 4) 0

/ VEREF+ X X X 1 0

(3)(4) (3)(4)

from USCI 1 1 0 0 from USCI 1 1 0 0

TCK/ TCK X X X 0 1 Pin Osc Capacitive sensing X 0 1 0 0

(1) X = don't care (2) MSP430G2x33 devices only (3) The pin direction is controlled by the USCI module. (4) UCA0CLK function takes precedence over UCB0STE function. If the pin is required as UCA0CLK input or output, USCI_B0 is forced to

3-wire SPI mode if 4-wire SPI mode is selected.

(1)

ADC10AE.x

(INCH.y =

(2)

JTAG Mode

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

P1.5/TA0.0/UCB0CLK/

UCA0STE/A5*/TMS

P1.6/TA0.1/UCB0SOMI/

UCB0SCL/A6*/TDI/TCLK

P1.7/CAOUT/UCB0SIMO/

UCB0SDA/A7*/TDO/TDI

From Module

* Note: MSP430G2x33 devices only. MSP430G2x03 devices have no ADC10.

To Module

From Module

PxOUT.y

TAx.y

TAxCLK

Bus

Keeper

PxIN.y

PxSEL.y

PxREN.y

PxSEL2.y

INCHx = y *

To ADC10 *

PxSEL.y

PxSEL2.y

From JTAG

To JTAG

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

Direction 0: Input 1: Output

PxDIR.y

From Module

PxSEL.y

PxSEL2.y

ADC10AE0.y *

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.4 Port P1 Pin Diagram: P1.5 to P1.7, Input/Output With Schmitt Trigger

Figure 6-9 shows the port diagram. Table 6-19 summarizes the selection of the pin functions.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-9. Port P1 (P1.5 to P1.7) Diagram

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-19. Port P1 (P1.5 to P1.7) Pin Functions

CONTROL BITS OR SIGNALS

PIN NAME

(P1.x)

P1.5/

x FUNCTION

P1DIR.x P1SEL.x P1SEL2.x

P1.x (I/O) I: 0; O: 1 0 0 0 0 TA0.0/ TA0.0 1 1 0 0 0 UCB0CLK/ UCB0CLK UCA0STE/ UCA0STE

(2)

/ A5 X X X 1 (y = 5) 0

(3)(4) (3)(4)

from USCI 1 1 0 0 from USCI 1 1 0 0

TMS TMS X X X 0 1 Pin Osc Capacitive sensing X 0 1 0 0 P1.6/

P1.x (I/O) I: 0; O: 1 0 0 0 0 TA0.1/ TA0.1 1 1 0 0 0 UCB0SOMI/ UCB0SOMI from USCI 1 1 0 0 UCB0SCL/ UCB0SCL from USCI 1 1 0 0

(2)

/ A6 X X X 1 (y = 6) 0

TDI/TCLK/ TDI/TCLK X X X 0 1 Pin Osc Capacitive sensing X 0 1 0 0 P1.7/

P1.x (I/O) I: 0; O: 1 0 0 0 0 UCB0SIMO/ UCB0SIMO from USCI 1 1 0 0 UCB0SDA/ UCB0SDA from USCI 1 1 0 0

(2)

/ A7 X X X 1 (y = 7) 0

TDO/TDI/ TDO/TDI X X X 0 1 Pin Osc Capacitive sensing X 0 1 0 0

(1) X = don't care (2) MSP430G2x33 devices only (3) The pin direction is controlled by the USCI module. (4) UCB0CLK function takes precedence over UCA0STE function. If the pin is required as UCB0CLK input or output, USCI_A0 is forced to

3-wire SPI mode if 4-wire SPI mode is selected.

(1)

ADC10AE.x

(INCH.y =

(2)

JTAG Mode

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

P2.0/TA1.0 P2.1/TA1.1 P2.2/TA1.1 P2.3/TA1.0 P2.4/TA1.2 P2.5/TA1.2

From Timer

Direction 0: Input 1: Output

To Module

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

PxIN.y

PxSEL.y

PxREN.y

PxSEL2.y

PxSEL.y

PxSEL2.y

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

PxDIR.y

PxSEL.y

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.5 Port P2 Pin Diagram: P2.0 to P2.5, Input/Output With Schmitt Trigger

Figure 6-10 shows the port diagram. Table 6-20 summarizes the selection of the pin functions.

www.ti.com

Figure 6-10. Port P2 (P2.0 to P2.5) Diagram

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-20. Port P2 (P2.0 to P2.5) Pin Functions

PIN NAME

(P2.x)

P2.0/ TA1.0/ Timer1_A3.CCI0A 0 1 0

Pin Osc Capacitive sensing X 0 1 P2.1/ TA1.1/ Timer1_A3.CCI1A 0 1 0

Pin Osc Capacitive sensing X 0 1 P2.2/ TA1.1/ Timer1_A3.CCI1B 0 1 0

Pin Osc Capacitive sensing X 0 1 P2.3/ TA1.0/ Timer1_A3.CCI0B 0 1 0

Pin Osc Capacitive sensing X 0 1 P2.4/ TA1.2/ Timer1_A3.CCI2A 0 1 0

Pin Osc Capacitive sensing X 0 1 P2.5/ TA1.2/ Timer1_A3.CCI2B 0 1 0

Pin Osc Capacitive sensing X 0 1

(1) X = don't care

x FUNCTION

P2.x (I/O) I: 0; O: 1 0 0

Timer1_A3.TA0 1 1 0

P2.x (I/O) I: 0; O: 1 0 0

Timer1_A3.TA1 1 1 0

P2.x (I/O) I: 0; O: 1 0 0

Timer1_A3.TA1 1 1 0

P2.x (I/O) I: 0; O: 1 0 0

Timer1_A3.TA0 1 1 0

P2.x (I/O) I: 0; O: 1 0 0

Timer1_A3.TA2 1 1 0

P2.x (I/O) I: 0; O: 1 0 0

Timer1_A3.TA2 1 1 0

CONTROL BITS OR SIGNALS

P2DIR.x P2SEL.x P2SEL2.x

(1)

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

XIN/P2.6/TA0.1

Direction 0: Input 1: Output

To Module

From Module

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

PxIN.y

PxSEL.y

PxREN.y

PxDIR.y

PxSEL2.y

PxSEL.y

PxSEL2.y

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

XOUT/P2.7

LF off

LFXT1CLK

PxSEL.6, PxSEL.7

BCSCTL3.LFXT1Sx = 11

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.6 Port P2 Pin Diagram: P2.6, Input/Output With Schmitt Trigger

Figure 6-11 shows the port diagram. Table 6-21 summarizes the selection of the pin functions.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-11. Port P2 (P2.6) Diagram

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-21. Port P2 (P2.6) Pin Functions

PIN NAME

(P2.x)

XIN

P2.6 P2.x (I/O) I: 0; O: 1

TA0.1 Timer0_A3.TA1 1

Pin Osc Capacitive sensing X

(1) X = don't care

x FUNCTION

XIN 0

CONTROL BITS OR SIGNALS

P2DIR.x

P2SEL.6 P2SEL.7

1 1

0 X

1 0

0 X

(1)

P2SEL2.6 P2SEL2.7

0 0

1 X

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

XOUT/P2.7

Direction 0: Input 1: Output

To Module

From Module

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

PxIN.y

PxSEL.y

PxREN.y

PxDIR.y

PxSEL2.y

PxSEL.y

PxSEL2.y

PxIRQ.y

PxIE.y

Set

Interrupt

Edge

Select

PxSEL.y

PxIES.y

PxIFG.y

XIN

LF off

LFXT1CLK

PxSEL.6, PxSEL.7

BCSCTL3.LFXT1Sx = 11

from P2.6

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.7 Port P2 Pin Diagram: P2.7, Input/Output With Schmitt Trigger

Figure 6-12 shows the port diagram. Table 6-22 summarizes the selection of the pin functions.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-12. Port P2 (P2.7) Diagram

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-22. Port P2 (P2.7) Pin Functions

PIN NAME

(P2.x)

XOUT/

P2.7/ P2.x (I/O) I: 0; O: 1

Pin Osc Capacitive sensing X

(1) X = don't care

x FUNCTION

XOUT 1

CONTROL BITS OR SIGNALS

P2DIR.x

P2SEL.6 P2SEL.7

1 1

0 X

(1)

P2SEL2.6 P2SEL2.7

0 0

1 X

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

P3.0/TA0.2 P3.1/TA1.0 P3.2/TA1.1 P3.3/TA1.2 P3.4/TA0.0 P3.5/TA0.1 P3.6/TA0.2 P3.7/TA1CLK/CAOUT

Direction 0: Input 1: Output

To Module

From Module

PxOUT.y

DVSS

DVCC

TAx.y

TAxCLK

PxIN.y

PxSEL.y

PxREN.y

PxDIR.y

PxSEL2.y

PxSEL.y

PxSEL2.y

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

6.10.8 Port P3 Pin Diagram: P3.0 to P3.7, Input/Output With Schmitt Trigger (RHB and PW28 Package Only)

Figure 6-13 shows the port diagram. Table 6-23 summarizes the selection of the pin functions.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 6-13. Port P3 (P3.0 to P3.7) Diagram (RHB and PW28 Package Only)

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

www.ti.com

SLAS734G –APRIL 2011–REVISED APRIL 2016

Table 6-23. Port P3 (P3.0 to P3.7) Pin Functions (RHB and PW28 Package Only)

PIN NAME

(P3.x)

P3.0/ TA0.2/ Timer0_A3.CCI2A 0 1 0

Pin Osc Capacitive sensing X 0 1 P3.1/ TA1.0/ Timer1_A3.TA0 1 1 0 Pin Osc Capacitive sensing X 0 1 P3.2/ TA1.1/ Timer1_A3.TA1 1 1 0 Pin Osc Capacitive sensing X 0 1 P3.3/ TA1.2/ Timer1_A3.TA2 1 1 0 Pin Osc Capacitive sensing X 0 1 P3.4/ TA0.0/ Timer0_A3.TA0 1 1 0 Pin Osc Capacitive sensing X 0 1 P3.5/ TA0.1/ Timer0_A3.TA1 1 1 0 Pin Osc Capacitive sensing X 0 1 P3.6/ TA0.2/ Timer0_A3.TA2 1 1 0 Pin Osc Capacitive sensing X 0 1 P3.7/ TA1CLK/ Timer1_A3.TACLK 0 1 0 Pin Osc Capacitive sensing X 0 1

(1) X = don't care

x FUNCTION

P3.x (I/O) I: 0; O: 1 0 0

Timer0_A3.TA2 1 1 0

P3.x (I/O) I: 0; O: 1 0 0

CONTROL BITS OR SIGNALS

P3DIR.x P3SEL.x P3SEL2.x

(1)

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

7 Device and Documentation Support

7.1 Getting Started and Next Steps

For more information on the MSP430™ family of devices and the tools and libraries that are available to help with your development, visit the Getting Started page.

7.2 Device Nomenclature

To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of all MSP430 MCU devices and support tools. Each MSP430 MCU commercial family member has one of three prefixes: MSP, PMS, or XMS (for example, MSP430F5438A). TI recommends two of three possible prefix designators for its support tools: MSP and MSPX. These prefixes represent evolutionary stages of product development from engineering prototypes (with XMS for devices and MSPX for tools) through fully qualified production devices and tools (with MSP for devices and MSP for tools).

Device development evolutionary flow: XMS – Experimental device that is not necessarily representative of the electrical specifications for the

final device PMS – Final silicon die that conforms to the electrical specifications for the device but has not completed

quality and reliability verification

www.ti.com

MSP – Fully qualified production device

Support tool development evolutionary flow:

MSPX – Development-support product that has not yet completed TI's internal qualification testing. MSP – Fully-qualified development-support product

XMS and PMS devices and MSPX development-support tools are shipped against the following disclaimer:

"Developmental product is intended for internal evaluation purposes." MSP devices and MSP development-support tools have been characterized fully, and the quality and

reliability of the device have been demonstrated fully. TI's standard warranty applies. Predictions show that prototype devices (XMS and PMS) have a greater failure rate than the standard

production devices. TI recommends that these devices not be used in any production system because their expected end-use failure rate still is undefined. Only qualified production devices are to be used.

TI device nomenclature also includes a suffix with the device family name. This suffix indicates the package type (for example, PZP) and temperature range (for example, T). Figure 7-1 provides a legend for reading the complete device name for any family member.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

Processor Family

CC = Embedded RF Radio MSP = Mixed-Signal Processor XMS = Experimental Silicon PMS = Prototype Device

MCU Platform 430 = MSP430 low-power microcontroller platform

Device Type Memory Type

C = ROM F = Flash FR = FRAM G = Flash or FRAM (Value Line) L = No Nonvolatile Memory

Specialized Application

AFE = Analog Front End BT = Preprogrammed with BQ = Contactless Power CG = ROM Medical FE = Flash Energy Meter FG = Flash Medical FW = Flash Electronic Flow Meter

Bluetooth

Series 1 Series = Up to 8 MHz

2 Series = Up to 16 MHz 3 Series = Legacy 4 Series = Up to 16 MHz with LCD

5 Series = Up to 25 MHz 6 Series = Up to 25 MHz with LCD 0 = Low-Voltage Series

Feature Set Various Levels of Integration Within a Series

Optional: A = Revision N/A

Optional: Temperature Range S = 0°C to 50 C

C to 70 C I = 40 C to 85 C T = –40 C to 105 C

C = 0° °

– ° °

° °

Packaging

http://www.ti.com/packaging

Optional: Tape and Reel T = Small Reel

R = Large Reel No Markings = Tube or Tray

Optional: Additional Features -EP = Enhanced Product ( 40°C to 105°C)

-HT = Extreme Temperature Parts ( 55°C to 150°C)

-Q1 = Automotive Q100 Qualified

–

MSP 430 F 5 438 A I ZQW T -EP

Processor Family

Series

Optional: Temperature Range

MCU Platform

Packaging

Device Type

Optional: A = Revision

Optional: Tape and Reel

Feature Set

Optional: Additional Features

www.ti.com

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Figure 7-1. Device Nomenclature

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

7.3 Tools and Software

All MSP microcontrollers are supported by a wide variety of software and hardware development tools. Tools are available from TI and various third parties. See them all at MSP Tools.

Table 7-1 lists the debug features of these devices. See the Code Composer Studio for MSP430 User's

Guide (SLAU157) for details on the available features.

Table 7-1. Hardware Features

www.ti.com

MSP430

ARCHITECTURE

MSP430 Yes Yes 2 No Yes No No No

4-WIRE

JTAG

2-WIRE

JTAG

BREAK-

POINTS

(N)

RANGE

BREAK-

POINTS

CLOCK

CONTROL

STATE

SEQUENCER

TRACE

BUFFER

DEBUGGING

Design Kits and Evaluation Modules

28-Pin Target Development Board and MSP-FET USB Programmer Bundle for MSP430F2x and

MSP430G2x MCUs The MSP-FET430U28A kit includes all of the hardware and software

required to quickly begin application development on the MSP430 MCU. This kit includes a ZIF socket target board (MSP-TS430PW28A) that accepts some MSP430 devices in 20- or 28-pin TSSOP packages (TI Package Code: PW). It is also bundled with a USB flash emulation tool (MSP-FET) that interfaces the target board to a PC, allowing developers to program and debug their MSP430 devices through in-system emulation through the JTAG interface or the pin-saving Spy Bi-Wire (2-wire JTAG) protocol.

MSP430 LaunchPad™ Value Line Development Kit The MSP-EXP430G2 LaunchPad Development Kit

is an easy-to-use microcontroller development board for the low-power and low-cost MSP430G2x MCUs. It has on-board emulation for programming and debugging and features a 14- or 20-pin DIP socket, on-board buttons and LEDs and BoosterPack Plug-in Module pinouts that support a wide range of modules for added functionality such as wireless, displays, and more.

MSP430 Capacitive Touch BoosterPack™ Plug-in Module The Capacitive Touch BoosterPack

(430BOOST-SENSE1) is a plug-in module for MCU LaunchPad Development Kits. This BoosterPack also includes a preprogrammed MSP430G2452IN20 Value Line device for the MSP-EXP430G2 LaunchPad. Developers can use this BoosterPack as a solution for adding capacitive touch differentiation in many applications such as consumer electronics, point of sales machines, and other devices with a physical button.

LPMx.5

SUPPORT

Software

MSP430G2x53, MSP430G2x33, MSP430G2x13, MSP430G2x03 Code Examples C Code examples are

available for every MSP device that configures each of the integrated peripherals for various application needs.

MSPWare™ Software MSPWare software is a collection of code examples, data sheets, and other

design resources for all MSP devices delivered in a convenient package. In addition to providing a complete collection of existing MSP design resources, MSPWare software also includes a high-level API called MSP Driver Library. This library makes it easy to program MSP hardware. MSPWare software is available as a component of CCS or as a stand-alone package.

MSP Driver Library Driver Library's abstracted API keeps you above the bits and bytes of the MSP430

hardware by providing easy-to-use function calls. Thorough documentation is delivered through a helpful API Guide, which includes details on each function call and the recognized parameters. Developers can use Driver Library functions to write complete projects with minimal overhead.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

Capacitive Touch Software Library Free C libraries for enabling capacitive touch capabilities on

MSP EnergyTrace™ Technology EnergyTrace technology for MSP430 microcontrollers is an energy-

ULP (Ultra-Low Power) Advisor ULP Advisor™ software is a tool for guiding developers to write more

IEC60730 Software Package The IEC60730 MSP430 software package was developed to be useful in

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

MSP430 MCUs and MSP432 MCUs. The MSP430 MCU version of the library features several capacitive touch implementations including the RO and RC method.

based code analysis tool that measures and displays the application’s energy profile and helps to optimize it for ultra-low-power consumption.

efficient code to fully utilize the unique ultra-low power features of MSP and MSP432 microcontrollers. Aimed at both experienced and new microcontroller developers, ULP Advisor checks your code against a thorough ULP checklist to squeeze every last nano amp out of your application. At build time, ULP Advisor will provide notifications and remarks to highlight areas of your code that can be further optimized for lower power.

assisting customers in complying with IEC 60730-1:2010 (Automatic Electrical Controls for Household and Similar Use – Part 1: General Requirements) for up to Class B products, which includes home appliances, arc detectors, power converters, power tools, e-bikes, and many others. The IEC60730 MSP430 software package can be embedded in customer applications running on MSP430s to help simplify the customer’s certification efforts of functional safety-compliant consumer devices to IEC 60730-1:2010 Class B.

Fixed-Point Math Library for MSP The MSP IQmath and Qmath Libraries are a collection of highly

optimized and high-precision mathematical functions for C programmers to seamlessly port a floating-point algorithm into fixed-point code on MSP430 and MSP432 devices. These routines are typically used in computationally intensive real-time applications where optimal execution speed, high accuracy, and ultra-low energy are critical. By using the IQmath and Qmath libraries, it is possible to achieve execution speeds considerably faster and energy consumption considerably lower than equivalent code written using floating-point math.

Development Tools

Code Composer Studio™ Integrated Development Environment for MSP Microcontrollers Code

Composer Studio is an integrated development environment (IDE) that supports all MSP microcontroller devices. Code Composer Studio comprises a suite of embedded software utilities used to develop and debug embedded applications. It includes an optimizing C/C++ compiler, source code editor, project build environment, debugger, profiler, and many other features. The intuitive IDE provides a single user interface taking you through each step of the application development flow. Familiar utilities and interfaces allow users to get started faster than ever before. Code Composer Studio combines the advantages of the Eclipse software framework with advanced embedded debug capabilities from TI resulting in a compelling feature-rich development environment for embedded developers. When using CCS with an MSP MCU, a unique and powerful set of plugins and embedded software utilities are made available to fully leverage the MSP microcontroller.

Grace – Graphical Peripheral Configuration Tool Enable and configure ADCs, DACs, timers, clocks,

serial communication interfaces, and more, by interacting with buttons, drop-down menus, and text fields. Navigate through the MSP430 MCUs highly integrated peripheral set with ease.

MSP Flasher - Command Line Programmer MSP Flasher is an open-source shell-based interface for

programming MSP microcontrollers through a FET programmer or eZ430 using JTAG or Spy-Bi-Wire (SBW) communication. MSP Flasher can download binary files (.txt or .hex) files directly to the MSP microcontroller without an IDE.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

MSP MCU Programmer and Debugger The MSP-FET is a powerful emulation development tool – often

called a debug probe – which allows users to quickly begin application development on MSP low-power microcontrollers (MCU). Creating MCU software usually requires downloading the resulting binary program to the MSP device for validation and debugging. The MSP-FET provides a debug communication pathway between a host computer and the target MSP. Furthermore, the MSP-FET also provides a Backchannel UART connection between the computer's USB interface and the MSP UART. This affords the MSP programmer a convenient method for communicating serially between the MSP and a terminal running on the computer. It also supports loading programs (often called firmware) to the MSP target using the BSL (bootloader) through the UART and I2C communication protocols.

MSP-GANG Production Programmer The MSP Gang Programmer is an MSP430 or MSP432 device

programmer that can program up to eight identical MSP430 or MSP432 Flash or FRAM devices at the same time. The MSP Gang Programmer connects to a host PC using a standard RS-232 or USB connection and provides flexible programming options that allow the user to fully customize the process. The MSP Gang Programmer is provided with an expansion board, called the Gang Splitter, that implements the interconnections between the MSP Gang Programmer and multiple target devices. Eight cables are provided that connect the expansion board to eight target devices (through JTAG or Spy-Bi-Wire connectors). The programming can be done with a PC or as a stand-alone device. A PC-side graphical user interface is also available and is DLL-based.

www.ti.com

7.4 Documentation Support

The following documents describe the MSP430G2x33 and MSP430G2x03 devices. Copies of these documents are available on the Internet at www.ti.com.

Receiving Notification of Document Updates

To receive notification of documentation updates—including silicon errata—go to the product folder for your device on ti.com (for example, MSP430G2533). In the upper right corner, click the "Alert me" button. This registers you to receive a weekly digest of product information that has changed (if any). For change details, check the revision history of any revised document.

Errata

MSP430G2533 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2533 device.

MSP430G2433 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2433 device.

MSP430G2333 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2333 device.

MSP430G2233 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2233 device.

MSP430G2403 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2403 device.

MSP430G2303 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2303 device.

MSP430G2203 Device Erratasheet Describes the known exceptions to the functional specifications for

the MSP430G2203 device.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

User's Guides

MSP430x2xx Family User's Guide Detailed information on the modules and peripherals available in this

Code Composer Studio v6.1 for MSP430 User's Guide This manual describes the use of TI Code

IAR Embedded Workbench Version 3+ for MSP430 User's Guide This manual describes the use of

MSP430 Programming With the Bootloader (BSL) The MSP430 bootloader (BSL, formerly known as

MSP430 Programming Via the JTAG Interface This document describes the functions that are required

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

device family.

Composer Studio IDE v6.1 (CCS v6.1) with the MSP430 ultra-low-power microcontrollers. This document applies only for the Windows version of the Code Composer Studio IDE. The Linux version is similar and, therefore, is not described separately.

IAR Embedded Workbench (EW430) with the MSP430 ultra-low-power microcontrollers.

the bootstrap loader) allows users to communicate with embedded memory in the MSP430 microcontroller during the prototyping phase, final production, and in service. Both the programmable memory (flash memory) and the data memory (RAM) can be modified as required. Do not confuse the bootloader with the bootstrap loader programs found in some digital signal processors (DSPs) that automatically load program code (and data) from external memory to the internal memory of the DSP.

to erase, program, and verify the memory module of the MSP430 flash-based and FRAMbased microcontroller families using the JTAG communication port. In addition, it describes how to program the JTAG access security fuse that is available on all MSP430 devices. This document describes device access using both the standard 4-wire JTAG interface and the 2wire JTAG interface, which is also referred to as Spy-Bi-Wire (SBW).

MSP430 Hardware Tools User's Guide This manual describes the hardware of the TI MSP-FET430

Flash Emulation Tool (FET). The FET is the program development tool for the MSP430 ultralow-power microcontroller. Both available interface types, the parallel port interface and the USB interface, are described.

Application Reports

MSP430 32-kHz Crystal Oscillators Selection of the right crystal, correct load circuit, and proper board

layout are important for a stable crystal oscillator. This application report summarizes crystal oscillator function and explains the parameters to select the correct crystal for MSP430 ultralow-power operation. In addition, hints and examples for correct board layout are given. The document also contains detailed information on the possible oscillator tests to ensure stable oscillator operation in mass production.

MSP430 System-Level ESD Considerations System-Level ESD has become increasingly demanding

with silicon technology scaling towards lower voltages and the need for designing costeffective and ultra-low-power components. This application report addresses three different ESD topics to help board designers and OEMs understand and design robust system-level designs: (1) Component-level ESD testing and system-level ESD testing, their differences and why component-level ESD rating does not ensure system-level robustness. (2) General design guidelines for system-level ESD protection at different levels including enclosures, cables, PCB layout, and on-board ESD protection devices. (3) Introduction to System Efficient ESD Design (SEED), a co-design methodology of on-board and on-chip ESD protection to achieve system-level ESD robustness, with example simulations and test results. A few real-world system-level ESD protection design examples and their results are also discussed.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

General Oversampling of MSP ADCs for Higher Resolution Multiple MSP ultra-low-power

microcontrollers offer analog-to-digital converters (ADCs) to convert physical quantities into digital numbers, a function that is widely used across numerous applications. There are times, however, when a customer design demands a higher resolution than the ADC of the selected MSP can offer. This application report, which is based on the previously-published Oversampling the ADC12 for Higher Resolution (SLAA323), therefore describes how an oversampling method can be incorporated to increase ADC resolution past the currently available number of bits.

Capacitive Touch Hardware Design Guide Capacitive touch detection is sometimes considered more

art than science. This often results in multiple design iterations before the optimum performance is achieved. There are, however, good design practices for circuit layout and principles of materials that need to be understood to keep the number of iterations to a minimum. This design guide describes a process for creating and designing capacitive touch solutions, starting with the schematic, working through the mechanicals, and finally designing the electrodes for the application.

Capacitive Touch Sensing, MSP430 Slider and Wheel Tuning Guide This application report provides

guidelines on how to tune capacitive touch sliders and wheels running on the MSP430™ microcontrollers. It identifies the hardware and software parameters as well as explains the steps used in tuning sliders and wheels. The slider and wheel tuning is based on the APIs defined in the Capacitive Touch Sense Library (CAPSENSELIBRARY).

www.ti.com

Capacitive Touch Sensing, MSP430 Button Gate Time Optimization and Tuning Guide MSP430™

microcontroller based capacitive touch buttons can offer increased performance when properly optimized and tuned for their specific application. Performance benefits that result from button optimization can include, but are not limited to, decreased power consumption, improved response time, and the ability to grow a design to include more buttons. This application report provides the reader with a starting point for button design at the system and software level.

7.5 Related Links

Table 7-2 lists quick access links. Categories include technical documents, support and community

resources, tools and software, and quick access to sample or buy.

Table 7-2. Related Links

PARTS PRODUCT FOLDER SAMPLE & BUY

MSP430G2533 Click here Click here Click here Click here Click here MSP430G2433 Click here Click here Click here Click here Click here MSP430G2333 Click here Click here Click here Click here Click here MSP430G2233 Click here Click here Click here Click here Click here MSP430G2403 Click here Click here Click here Click here Click here MSP430G2303 Click here Click here Click here Click here Click here MSP430G2203 Click here Click here Click here Click here Click here

TECHNICAL

DOCUMENTS

TOOLS &

SOFTWARE

SUPPORT &

COMMUNITY

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

www.ti.com

7.6 Community Resources

The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use.

TI E2E™ Community

TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas, and help solve problems with fellow engineers.

TI Embedded Processors Wiki

Texas Instruments Embedded Processors Wiki. Established to help developers get started with embedded processors from Texas Instruments and to foster innovation and growth of general knowledge about the hardware and software surrounding these devices.

7.7 Trademarks

MSP430, LaunchPad, BoosterPack, MSPWare, EnergyTrace, ULP Advisor, Code Composer Studio, E2E are trademarks of Texas Instruments. All other trademarks are the property of their respective owners.

7.8 Electrostatic Discharge Caution

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233

MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

7.9 Glossary

TI Glossary This glossary lists and explains terms, acronyms, and definitions.

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

MSP430G2533,MSP430G2433,MSP430G2333,MSP430G2233 MSP430G2403, MSP430G2303, MSP430G2203

SLAS734G –APRIL 2011–REVISED APRIL 2016

8 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

www.ti.com

Product Folder Links: MSP430G2533 MSP430G2433 MSP430G2333 MSP430G2233 MSP430G2403 MSP430G2303

Submit Documentation Feedback

MSP430G2203

PACKAGE OPTION ADDENDUM

www.ti.com

30-Apr-2015

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

MSP430G2203IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2203

MSP430G2203IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2203

MSP430G2203IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2203

MSP430G2203IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2203

MSP430G2203IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2203

MSP430G2203IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2203

MSP430G2233IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2233

MSP430G2233IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2233

MSP430G2233IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2233

MSP430G2233IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2233

MSP430G2233IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2233

MSP430G2233IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2233

MSP430G2233IRHB32T ACTIVE VQFN RHB 32 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2233

MSP430G2303IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2303

MSP430G2303IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2303

MSP430G2303IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2303

MSP430G2303IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2303

PACKAGE OPTION ADDENDUM

www.ti.com

30-Apr-2015

Addendum-Page 2

Orderable Device Status

(1)

Package Type Package

Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

MSP430G2303IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2303

MSP430G2303IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2303

MSP430G2303IRHB32T ACTIVE VQFN RHB 32 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2303

MSP430G2333IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2333

MSP430G2333IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2333

MSP430G2333IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2333

MSP430G2333IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2333

MSP430G2333IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2333

MSP430G2333IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2333

MSP430G2333IRHB32T ACTIVE VQFN RHB 32 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2333

MSP430G2403IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2403

MSP430G2403IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2403

MSP430G2403IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2403

MSP430G2403IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2403

MSP430G2403IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2403

MSP430G2403IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2403

MSP430G2403IRHB32T ACTIVE VQFN RHB 32 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2403

MSP430G2433IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2433

PACKAGE OPTION ADDENDUM

www.ti.com

30-Apr-2015

Addendum-Page 3

Orderable Device Status

(1)

Package Type Package

Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

MSP430G2433IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2433

MSP430G2433IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2433

MSP430G2433IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2433

MSP430G2433IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2433

MSP430G2433IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2433

MSP430G2433IRHB32T ACTIVE VQFN RHB 32 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2433

MSP430G2533IN20 ACTIVE PDIP N 20 20 Pb-Free

(RoHS)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 M430G2533

MSP430G2533IPW20 ACTIVE TSSOP PW 20 70 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2533

MSP430G2533IPW20R ACTIVE TSSOP PW 20 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2533

MSP430G2533IPW28 ACTIVE TSSOP PW 28 50 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2533

MSP430G2533IPW28R ACTIVE TSSOP PW 28 2000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-1-260C-UNLIM -40 to 85 430G2533

MSP430G2533IRHB32R ACTIVE VQFN RHB 32 3000 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2533

MSP430G2533IRHB32T ACTIVE VQFN RHB 32 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-2-260C-1 YEAR -40 to 85 MSP430

G2533

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined.

PACKAGE OPTION ADDENDUM

www.ti.com

30-Apr-2015

Addendum-Page 4

Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4)

There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5)

Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.

(6)

Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

OTHER QUALIFIED VERSIONS OF MSP430G2333 :

•

Automotive: MSP430G2333-Q1

NOTE: Qualified Version Definitions:

•

Automotive - Q100 devices qualified for high-reliability automotive applications targeting zero defects

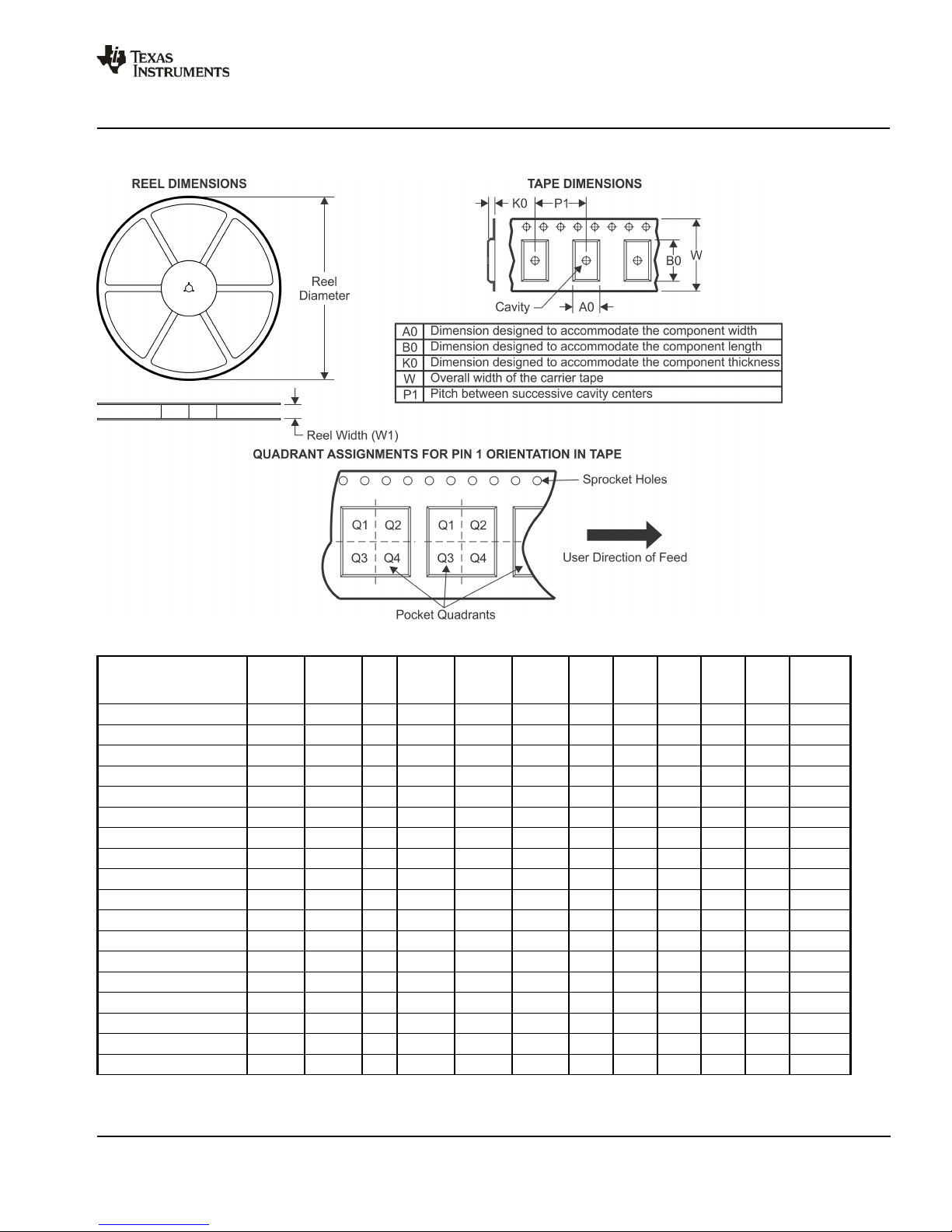

PACKAGE MATERIALS INFORMATION

www.ti.com 15-Oct-2015

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

MSP430G2203IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1 MSP430G2203IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1 MSP430G2203IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1 MSP430G2203IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1

MSP430G2203IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

MSP430G2233IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1 MSP430G2233IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1 MSP430G2233IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1

MSP430G2233IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1 MSP430G2233IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2 MSP430G2233IRHB32T VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

MSP430G2303IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1

MSP430G2303IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1

MSP430G2303IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1 MSP430G2303IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2 MSP430G2303IRHB32T VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

MSP430G2333IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1

MSP430G2333IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1

Type

Package

Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm)B0(mm)K0(mm)P1(mm)W(mm)

Quadrant

Pin1

Pack Materials-Page 1

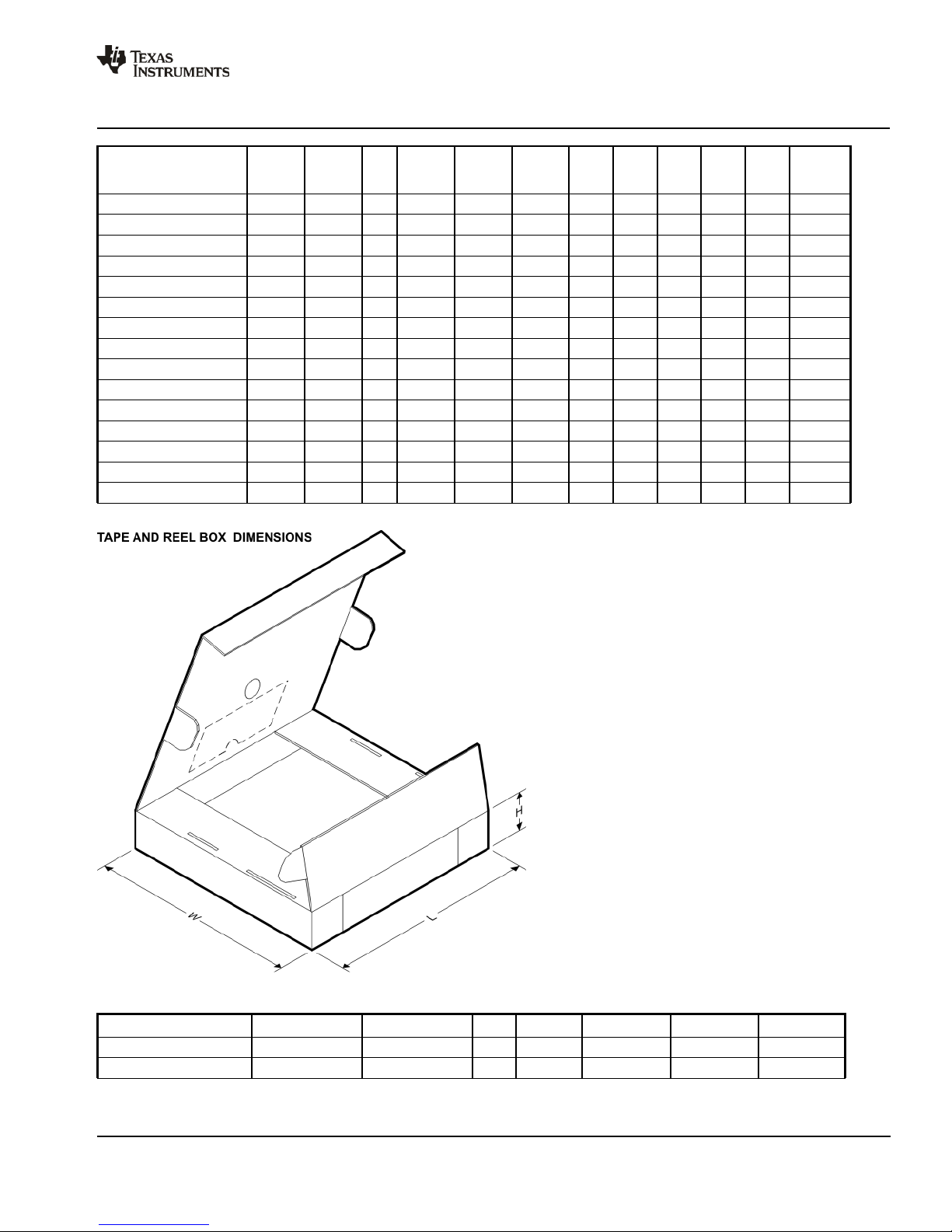

PACKAGE MATERIALS INFORMATION

www.ti.com 15-Oct-2015

Device Package

MSP430G2333IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2 MSP430G2333IRHB32T VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

MSP430G2403IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1

MSP430G2403IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1 MSP430G2403IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2 MSP430G2403IRHB32T VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

MSP430G2433IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1

MSP430G2433IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1 MSP430G2433IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2 MSP430G2433IRHB32T VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

MSP430G2533IPW20R TSSOP PW 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1

MSP430G2533IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1

MSP430G2533IPW28R TSSOP PW 28 2000 330.0 16.4 6.9 10.2 1.8 12.0 16.0 Q1 MSP430G2533IRHB32R VQFN RHB 32 3000 330.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2 MSP430G2533IRHB32T VQFN RHB 32 250 180.0 12.4 5.3 5.3 1.1 8.0 12.0 Q2

Type

Package

Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm)B0(mm)K0(mm)P1(mm)W(mm)

Pin1

Quadrant

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

MSP430G2203IPW20R TSSOP PW 20 2000 367.0 367.0 38.0 MSP430G2203IPW20R TSSOP PW 20 2000 367.0 367.0 38.0

Pack Materials-Page 2

PACKAGE MATERIALS INFORMATION

www.ti.com 15-Oct-2015

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

MSP430G2203IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2203IPW28R TSSOP PW 28 2000 367.0 367.0 38.0

MSP430G2203IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0

MSP430G2233IPW20R TSSOP PW 20 2000 367.0 367.0 38.0 MSP430G2233IPW20R TSSOP PW 20 2000 367.0 367.0 38.0 MSP430G2233IPW28R TSSOP PW 28 2000 367.0 367.0 38.0

MSP430G2233IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2233IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0 MSP430G2233IRHB32T VQFN RHB 32 250 210.0 185.0 35.0

MSP430G2303IPW20R TSSOP PW 20 2000 367.0 367.0 38.0

MSP430G2303IPW28R TSSOP PW 28 2000 367.0 367.0 38.0

MSP430G2303IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2303IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0 MSP430G2303IRHB32T VQFN RHB 32 250 210.0 185.0 35.0

MSP430G2333IPW20R TSSOP PW 20 2000 367.0 367.0 38.0

MSP430G2333IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2333IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0 MSP430G2333IRHB32T VQFN RHB 32 250 210.0 185.0 35.0

MSP430G2403IPW20R TSSOP PW 20 2000 367.0 367.0 38.0

MSP430G2403IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2403IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0 MSP430G2403IRHB32T VQFN RHB 32 250 210.0 185.0 35.0

MSP430G2433IPW20R TSSOP PW 20 2000 367.0 367.0 38.0

MSP430G2433IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2433IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0 MSP430G2433IRHB32T VQFN RHB 32 250 210.0 185.0 35.0

MSP430G2533IPW20R TSSOP PW 20 2000 367.0 367.0 38.0

MSP430G2533IPW28R TSSOP PW 28 2000 367.0 367.0 38.0

MSP430G2533IPW28R TSSOP PW 28 2000 367.0 367.0 38.0 MSP430G2533IRHB32R VQFN RHB 32 3000 367.0 367.0 35.0 MSP430G2533IRHB32T VQFN RHB 32 250 210.0 185.0 35.0

Pack Materials-Page 3

PACKAGE OUTLINE

PIN 1 INDEX AREA

0.9 MAX

0.05

0.00

28X 0.5

SCALE 3.000

VQFN - 0.9 mm max heightRHB0032N

PLASTIC QUAD FLATPACK - NO LEAD

5.1

4.9

2X 3.5

3.45 0.1 16

5.1

4.9

EXPOSED THERMAL PAD

SEATING PLANE

0.08 C

0.05

SECTION A-A

A-A 30.000

TYPICAL

0.08

(0.2) TYP

3.5

PIN 1 ID

(OPTIONAL)

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance.

SYMM

0.5

32X

0.3

www.ti.com

SYMM

0.3

32X

0.2

0.1 C A B

0.05 C

4222893/A 04/2016

32X (0.6)

EXAMPLE BOARD LAYOUT

VQFN - 0.9 mm max heightRHB0032N

PLASTIC QUAD FLATPACK - NO LEAD

( 3.45)

SYMM

32X (0.25)

28X (0.5)

( ) TYP

0.2

(R )

0.05 TYP

VIA

(4.8)

(1.475)

SYMM

(4.8)

LAND PATTERN EXAMPLE

SCALE:18X

0.07 MAX

ALL AROUND

NON SOLDER MASK

DEFINED

(PREFERRED)

NOTES: (continued)

4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature number SLUA271 (www.ti.com/lit/slua271).

5. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown on this view. It is recommended that vias under paste be filled, plugged or tented.

METAL

SOLDER MASK OPENING

SOLDER MASK DETAILS

www.ti.com

0.07 MIN

ALL AROUND

SOLDER MASK OPENING

METAL UNDER SOLDER MASK

SOLDER MASK

DEFINED

4222893/A 04/2016

(R ) TYP0.05

32X (0.6)

EXAMPLE STENCIL DESIGN

VQFN - 0.9 mm max heightRHB0032N

PLASTIC QUAD FLATPACK - NO LEAD

4X ( 1.49)

(0.845)

32X (0.25)

28X (0.5)

METAL TYP

SYMM

(0.845)

SYMM

(4.8)

75% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE

NOTES: (continued)

6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.

(4.8)

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

EXPOSED PAD 33:

SCALE:20X

4222893/A 04/2016

www.ti.com

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products Applications

Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com Wireless Connectivity www.ti.com/wirelessconnectivity

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Texas Instruments MSP430G2533, MSP430G2433, MSP430G2333, MSP430G2233, MSP430G2403 Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
