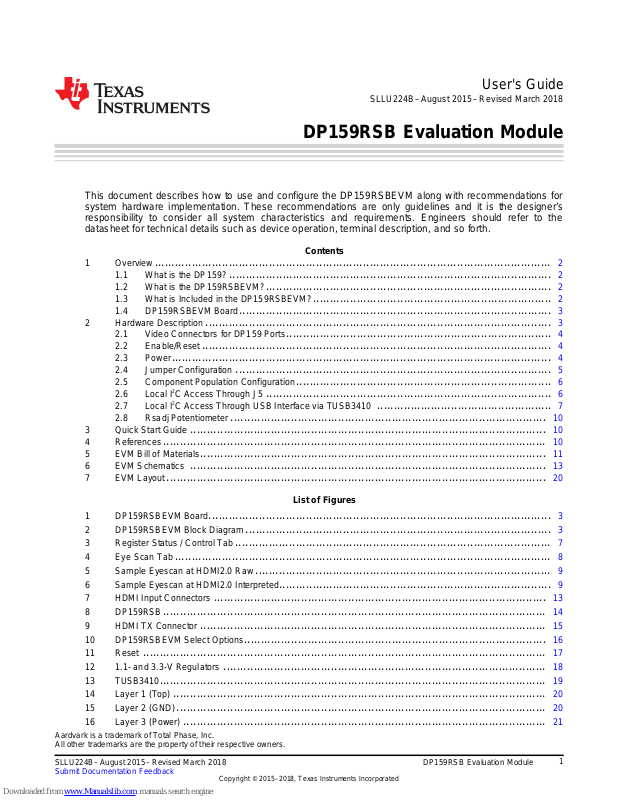

Texas Instruments DP159RSB User Manual

User's Guide

SLLU224B–August 2015–Revised March 2018

DP159RSB Evaluation Module

This document describes how to use and configure the DP159RSBEVM along with recommendations for system hardware implementation. These recommendations are only guidelines and it is the designer’s responsibility to consider all system characteristics and requirements. Engineers should refer to the datasheet for technical details such as device operation, terminal description, and so forth.

Contents

1 Overview...................................................................................................................... 2

1.1 What is the DP159? ................................................................................................ 2

1.2 What is the DP159RSBEVM?..................................................................................... 2

1.3 What is Included in the DP159RSBEVM?....................................................................... 2

1.4 DP159RSBEVM Board............................................................................................. 3

2 Hardware Description ....................................................................................................... 3

2.1 Video Connectors for DP159 Ports............................................................................... 4

2.2 Enable/Reset........................................................................................................ 4

2.3 Power................................................................................................................. 4

2.4 Jumper Configuration .............................................................................................. 5

2.5 Component Population Configuration............................................................................ 6

2.6 Local I

2.7 Local I

2.8 Rsadj Potentiometer .............................................................................................. 10

3 Quick Start Guide .......................................................................................................... 10

4 References.................................................................................................................. 10

5 EVM Bill of Materials....................................................................................................... 11

6 EVM Schematics .......................................................................................................... 13

7 EVM Layout................................................................................................................. 20

C Access Through J5 ..................................................................................... 6

C Access Through USB Interface via TUSB3410 .................................................... 7

1 DP159RSBEVM Board...................................................................................................... 3

2 DP159RSBEVM Block Diagram ........................................................................................... 3

3 Register Status / Control Tab.............................................................................................. 7

4 Eye Scan Tab ................................................................................................................ 8

5 Sample Eyescan at HDMI2.0 Raw........................................................................................ 9

6 Sample Eyescan at HDMI2.0 Interpreted................................................................................. 9

7 HDMI Input Connectors ................................................................................................... 13

8 DP159RSB.................................................................................................................. 14

9 HDMI TX Connector ....................................................................................................... 15

10 DP159RSBEVM Select Options.......................................................................................... 16

11 Reset ........................................................................................................................ 17

12 1.1- and 3.3-V Regulators ................................................................................................ 18

13 TUSB3410................................................................................................................... 19

14 Layer 1 (Top) ............................................................................................................... 20

15 Layer 2 (GND) .............................................................................................................. 20

16 Layer 3 (Power) ............................................................................................................ 21

Aardvark is a trademark of Total Phase, Inc. All other trademarks are the property of their respective owners.

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

List of Figures

DP159RSB Evaluation Module

Overview

17 Layer 4 (Power) ............................................................................................................ 21

18 Layer 5 (GND) .............................................................................................................. 22

19 Layer 6 (Bottom)............................................................................................................ 22

1 Jumper Settings.............................................................................................................. 5

2 Aardvark I 3 DP159 Target I

4 DP159RSBEVM Bill of Materials......................................................................................... 11

C (J5) Pin-Out................................................................................................... 6

C Address ................................................................................................. 7

1 Overview

1.1 What is the DP159?

The DP159 is a Dual-Mode DisplayPort to Transition Minimized Differential Signal (TMDS) retimer supporting Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b and 2.0 output signals. The DP159 supports the Dual-Mode Standard version 1.1 type 1 and type 2 through the DDC link. The DP159 supports data rates up to 6 Gbps per data lane to support UltraHD (4K x 2K / 60 Hz) 8 bits per color high resolution video and HDTV with 16-bit color depth at 1080p (1920 x 1080 / 60 Hz). The DP159 can automatically configure itself as a redriver at data rates < 1.0 Gbps or as a retimer above this data rate.

www.ti.com

List of Tables

1.2 What is the DP159RSBEVM?

The DP159RSBEVM is a PCB created to help customers evaluate the DP159 device for video applications. This EVM can also be used as a hardware reference design for implementation of the DP159 in the RSB package. PCB design/layout files can be provided upon request to provide PCB design illustrations of the routing/placement rules.

Please note that the EVM design supports both the standard DP159 application and a DP159-thru-HDMI application, so it contains many components that would not be needed by a typical DP159 application. A separate reference design specific to the DP159 is available for customers.

1.3 What is Included in the DP159RSBEVM?

The major components of the EVM are as follows:

• DP159RSB

• Standard DP sink connector (connects to source)

• Standard HDMI source connector (connects to sink)

• DC power regulators

• I2C programming interface for external I2C host connection

• USB interface (I2C utility available)

DP159RSB Evaluation Module

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

DP159

(40-Pin RSB)

DP Connector Top

HDMI Connector

IN0P/N

IN1P/N

IN2P/N

IN3P/N

TMDS_D2P/N

TMDS_D1P/N

TMDS_D0P/N

TMDS_CLKP/N

AUXP/N

DDC_SCL/SDA

AARDVARK Connector

SCL_CTL

SDA_CTL

5-V

DONGLE

5-V to 3.3-V LDO

3.3-V to 1.1-V LDO

USB2 Connector

TUSB3410

www.ti.com

1.4 DP159RSBEVM Board

Figure 1 illustrates the DP159RSBEVM board.

Overview

2 Hardware Description

Figure 2 shows the DP159RSBEVM block diagram.

Figure 1. DP159RSBEVM Board

100-Ω differential impedance for HDMI and DP differential pairs.

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

Figure 2. DP159RSBEVM Block Diagram

DP159RSB Evaluation Module

Hardware Description

2.1 Video Connectors for DP159 Ports

The EVM has a DP connection for the source and a HDMI connection for the sink. J2 is a standard DP connector (Molex 47272-0001). P2 is a standard HDMI connector (Molex 4715-10001). There is a third video connection on the board for a HDMI source (P1), this function is not installed on the DP159RSBEVM.

2.2 Enable/Reset

There are three device enable/reset options to use with the EVM: A. Supervisor circuitry option

This is the default configuration on the DP159RSBEVM. The enable (EN) signal is held low until the power good (PG) from the 3.3-V voltage regulator reaches a stable high-voltage level then released high.

B. RC timing option

C26 external capacitor and internal resistor are used to control the EN ramp time after the device is powered on. C26 is a Do Not Install (DNI option) by default. C26 needs to be installed and R77 needs to be uninstalled to enable this option.

C. External control option

A push button (SW1) is provided for manual control of the DP159’s EN/OE input.

2.3 Power

A DC power jack (J9) to accept a 5-V wall power adapter is provided on the EVM. The DC power jack (CUI Inc. PJ-202AH) has an inner diameter of 2.1 mm and an outer diameter of 5.5 mm. The tip of the +5V power supply must be positive. A +5-V power supply of at least 1.5 A that meets the given requirements can be used to power the DP159RSBEVM. Power is provided to the EVM from the 5-V wall power adapter when SW2 is set to position 1.

www.ti.com

CAUTION

Care should be taken to not plug in any power source higher than the configured voltage (5 V).

Alternately, it is possible to power the EVM by connecting a USB Micro cable from J13 to a USB host and setting SW2 to position 3.

DP159RSB Evaluation Module

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

2.4 Jumper Configuration

Jumpers are provided to operate the device/EVM in different configurations. Table 1 lists the jumper settings.

Jumper Signal Name Description Default Config

J1 HPD_SRC JP 1-2 for DP159 thru HDMI NC

J3 I2_EN_PIN JP 1-2 for I2C ENABLE NC

J4 SCL JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface

J6 SDA JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface

J7 HDMI_SEL_TEST_A1 JP 1-2 for: NC

J8 VSADJ JP 1-2 for 6.5 kΩ JP 1-2: Default of 6.5 kΩ

J10 SLEW_CTL JP 1-2 for fastest data rate NC

J12 EQ_SEL_A0 JP 1-2 for: NC

J15 PRE_SEL JP 1-2 NOT USED JP 2-3

Hardware Description

Table 1. Jumper Settings

JP 2-3 NOT USED NC for DP159

JP 2-3 for PIN STRAP NC – PIN STRAP (internal pulldown)

JP 2-3 for EXT IF TO I2C NC – N/A

• I2C Addr bit A1 = 1, when I2C_EN = H

• Test mode, when I2C_EN = L JP 2-3 for:

• I2C Addr bit A1 = 0, when I2C_EN = H

• Normal mode, when I2C_EN = L NC for weak internal pulldown (normal

mode)

JP 2-3 for adjustable resistance NC – N/A

JP 2-3 for 20 ps slow NC for 40 ps slow

• I2C Addr bit A0 = 1, when I2C_EN = H

• Fixed EQ at 14 dB, when I2C_EN = L JP 2-3 for:

• I2C Addr bit A0 = 0, when I2C_EN = H

• Fixed EQ at 7.5 dB, when I2C_EN = L NC for adaptive EQ

JP 2-3 for –2.5 dB NC for 0 dB

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Hardware Description

2.5 Component Population Configuration

To allow the DP159RSBEVM to support both the default DP input as well as a HDMI test input, there are many components that need to be removed, placed, or modified depending on the board configuration. Here’s a summary of the default component configuration for the DP159RSBEVM. In addition, the unused HDMI receptacle is depopulated.

Function Reference Designator DP159RSBEVM Differential Pair - IN C11, C12, C13, C14, C15, C16, C24,

C25

Differential Pair - HDMI IN R14, R15, R18, R19, R20, R21, R22,

R23

SDA / SCL - HDMI R16, R17, R24, R25, R134, R135 not populated Differential Pair - DP IN R112, R109, R111, R108, R110, R107,

R106, R105

SDA / SCL / HPD - DP R33, R31, R32 (R126, R136, R140,

R141 - snoop)

Pullup Differential Pair HDMI IN R1, R2, R3, R4, R6, R7, R8, R9 populated, but not

2.5.1 HPD Snoop Option

To accommodate systems that do not properly resend DDC commands after HPD goes low, we have implemented a HPD snoop mode on the DP159RSBEVM. This mode allows the HPD line to be routed around the DP159, but remain connected to the DP159 on the sink side to allow the DP159 to snoop its state. This snoop mode is disabled by default on the DP159RSBEVMs.

• Pop R131, no pop R129, R130, R139 for HPD on

• No pop R131, pop R129, R130, R139 for HPD snoop only

www.ti.com

populated with 0.1 µF

not populated

populated with 0 Ω

connected

2.5.2 DDC Snoop Option – not Available for DP159RSB REV B

To accommodate systems that do not properly support clock stretching on the DDC lines, we have implemented a snoop mode on the DP159RSBEVM. This mode allows the DDC lines to be routed around the DP159RSB, but remain connected to the DP159RSB on the sink side to allow the DP159RSB to snoop the DDC traffic. This snoop mode is disabled by default on the DP159RSB REV B1 EVMs.

• Pop R126, R136, R140, R141. No pop R31, R32 – DP159RSB, DDC snoop only

• Pop R31, R32. No pop R126, R136, R140, R141- DP159RSB, DDC on

2.6 Local I2C Access Through J5

Access to DP159’s local I2C signals is provided via the J5 input connector. Note that I2C signal levels should be at 3.3 V when I2C interface is accessed through the connector.

A standalone external I2C host can be connected via J5 for debug and control purposes. An example of an external I2C Host controller is the Total Phase Aardvark™ I2C/SPI Host Adapter (Total Phase Part#:

TP240141). Sample scripts for this I2C Host controller are provided by request.

Table 2. Aardvark I2C (J5) Pin-Out

J5 pin # Description J5 pin#Description

1 SCL_CTL 2 GND 3 SDA_CTL 4 NC 5 NC 6 NC 7 NC 8 NC 9 NC 10 GND

DP159RSB Evaluation Module

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

Table 3. DP159 Target I2C Address

DP159 I2C Target Address

Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 (W/R)

A6 A5 A4 A3 A2 A1 A0

1 0 1 1 1 1 0 0/1

(1)

The target I2C address for DP159 can be modified by the EVM jumper settings.

2.7 Local I2C Access Through USB Interface via TUSB3410

Access to DP159’s local I2C signals is also provided through the TUSB3410 on the DP159RSBEVM using a USB TI Utility called Eye Scan. To use the utility:

• Install the Eye Scan software from Texas Instruments

• J6 must be set to SDA – SDA_USB

• J4 must be set to SCL – SCL_USB

• Attach USB micro cable to J13 and to the host computer

NOTE: The USB connection should be made prior to installing any DP or HDMI cables.

• Start the Eye Scan software

Figure 3 shows the Register Status / Control tab.

Hardware Description

(1)

Confirm that the SN65DP149/159/TMDS171/181 Interface is present and selected at the top. If it is not, check the USB connection and confirm that the driver is loaded in Device Manager. It may take a moment for the USB driver to load, if the DP159RSB does not appear, hit the Refresh button. This tab can be used to read and write the status and control registers of the device.

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

Figure 3. Register Status / Control Tab

DP159RSB Evaluation Module

Hardware Description

Figure 4 shows the Eye Scan tab.

www.ti.com

Figure 4. Eye Scan Tab

To run an Eye Scan, select the Eye Scan tab, select the relevant lanes, and press scan. Note that Eye Scan cannot be performed when the device is in retimer mode, it does not function in redriver mode.

DP159RSB Evaluation Module

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

Note that at HDMI 2.0 speeds there is a bug that causes invalid eyescan results. Results that look like this:

Hardware Description

Figure 5. Sample Eyescan at HDMI2.0 Raw

Should be interpreted as this:

Figure 6. Sample Eyescan at HDMI2.0 Interpreted

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Hardware Description

2.8 Rsadj Potentiometer

The default Rsadj value on the DP159RSBEVM is 6.5 kΩ. The optimal value for an application may vary from 4.7 kΩ to 7 kΩ. To allow customers to test the effects of various Rsadj values, there is a potentiometer on the EVM at R76. The Rsadj value can be varied by turning the knob and setting J8 to [2,3].

3 Quick Start Guide

The following steps provide quick start instructions:

1. Connect USB cable from J13 to a USB host, set SW2 to 3. LED D2 should light up.

Option: Apply 5-V power to J9, set SW2 to 1. LED D2 should light up.

2. If using external I2C adapter instead of pin straps, please configure the DP159 at this step using J5 or

through the USB interface.

3. Plug in a DP source using a standard DP cable into J2 (Standard DP connector).

4. Plug in an HDMI video sink device into P2 (standard HDMI connector) using a standard HDMI cable.

5. Video output on HDMI sink should be observed.

4 References

1. DP159 Data Sheet

2. Aardvark Adapter User Manual

3. High-Definition Multimedia Interface Specification Version 1.4b.

4. High-Definition Multimedia Interface Specification Version 2.0.

www.ti.com

DP159RSB Evaluation Module

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

5 EVM Bill of Materials

Table 4 lists the DP159RSBEVM BOM.

Item Qty Reference Part PCB Footprint Manufacturer Part Number

1 2 C1,C52 1 uF 603 Taiyo Yuden LMK107B7105KA-T 2 12 C9,C10,C17,C18,C19,

C21,C23,C29,C40,

C46,C59,C60 3 5 C8,C20,C35,C36,C57 10uF 805 TDK C2012X5R1A106K125AB 63 1 C31 10uF 805 TDK C2012X5R1C106K085AC 4 8 C11,C12,C13,C14,C15,

C16,C24,C25 5 5 C22,C37,C41,C42,C47 0.01uF 402 6 1 C26 - DNI DNI_200nF 402 7 1 C27 18pF 402 AVX 04025A180JAT2A 8 1 C28 220pF 402 9 1 C30 220uF 7343 Kemet T491D227K016AT 10 1 C34 3.3 nF 402 11 1 C32 22uF 805 12 2 C39,C58 2.2uF 805 13 0 C38,R14,R15,R16,R17,

R18,R19,R20,R21,R22,

R23,R24,R25,R34,R87,

R92,R93,R104,R120,

R123,R125,R134,R135,

R129,R130,R139,R126,

R136,R140,R141 14 2 C45,C49 22pF 402 15 2 C50,C51 33pF 402 16 1 D1 Zener 6V SOT23 Diodes Inc. MMBZ5233B-FDICT-ND 17 1 D2 LED Green 0805 805 Lite On LTST-C171GKT 18 1 JP1 JUMPER HDR_THVT_1x2_100 19 9 J1,J3,J4,J6,J7,J8,J10,J12

,J15 20 1 J2 Display_Port_Connector_S

21 1 J5 Header 5x2 0.1" thru-hole con_thvt_shrd_2x5_100_m 3M N2510-6002-RB 22 1 J9 2.1 mm x 5.5 mm PJ-202AH CUI Inc. PJ-202AH (PJ-002AH) 23 1 J13 USB Micro B USB Micro B FCI 10103592-0001LF 24 12 LP5,LP6,LP7,LP8,LP9,

LP10,LP11,LP12,LP13,

LP15,LP16,LP17 25 1 L1 2.2 uH 1008 TDK VLS252010ET-2R2M 26 1 L2 1 uH 1008 TDK NLCV25T-1R0M-EFR 27 4 L3, L4, L5, L6 CHOKE 805 Murata DLW21SN900HQ2L 28 1 P1 - DNI HDMI_IN CON_HDMI_RT_19_0p50mm Molex 471510001 29 1 P2 HDMI_OUT CON_HDMI_RT_19_0p50mm Molex 471510001 30 2 Q1,Q2 FDV301N_NFET_8V SOT23 Fairchild

31 8 R1,R2,R3,R4,R6,R7,R8,R950 201

EVM Bill of Materials

Table 4. DP159RSBEVM Bill of Materials

0.1uF 402 Yageo CC0402KRX5R6BB104

0.1uF 201 TDK C0603X5R0J104M

DNI 402 / 201

HDR3X1 M .1 HDR_THVT_1x3_100 3M 961103-6404-AR

DISPLAYPORT Molex 47272-0001

ink_0

LP TESTLOOP KOBIKONN 151-103-RC

FD301N

Semiconductor

32 1 R5 100 402 33 6 R10,R11,R99,R100,R101

,R121 34 3 R12,R27,R81 100K 402 35 1 R13 10 402 36 12 R31,R32,R33,R105,R106

,R107,R108,R109,R110,

R111,R112,R124

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

1K 402

0 201

DP159RSB Evaluation Module

EVM Bill of Materials

Item Qty Reference Part PCB Footprint Manufacturer Part Number

37 6 R28,R29,R45,R46,R58,

38 7 R77,R80,R83,R84,R89,

39 1 R30 1M 402 40 10 R57,R60,R63,R64,R65,

41 1 R75 6.5K 402 42 1 R76 PTV09 10K POT THRUHOLE BOURNS PTV09A-4015F-B103 43 3 R78,R98,R102 10K 402 44 2 R79,R88 4.7K 402 45 1 R82 500 402 46 1 R85 750K 402 47 1 R86 240K 402 48 1 R90 1.87K 402 49 1 R91 4.99K 402 50 1 R94 1.5K 402 51 2 R95,R96 33 201 52 1 R103 15K 402 53 1 R115 47K 402 54 1 SW1 PB_SWITCH SW_MOM_2NO OMRON B3SN-3012P 55 1 SW2 3POS_SPDT THRUHOLE_3POS NKK Switches MS13ANW03 56 1 U10 DP159RSB 40_RSB TI 57 1 U3 TPS3808G30DBVT 6DBV TI TPS3808G30DBVT 58 1 U4 TPS62150A RGT16 TI TPS62150ARGTT 59 1 U6 TPS61240 6DRV TI TPS61240DRVT 60 1 U5 TPS74201RGWT RGW20 TI TPS74201RGWT 61 1 U7 TUSB3410 LQFP32 TI TUSB3410VF 62 1 U8 24LC256 8SOIC ON

64 1 U16 TPD2E001 drl_5pin TI TPD2E001 65 1 Y1 12 MHz Crystal ECX-32 ECS Inc. ECS-120-20-33-TR

www.ti.com

Table 4. DP159RSBEVM Bill of Materials (continued)

2K 402

R59

0 402

R122,R131

65K 402

R66,R67,R68,R69,R70

CAT24C256W

Semiconductor

DP159RSB Evaluation Module

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

EVM Schematics

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

6 EVM Schematics

Figure 7 through Figure 13 show the DP159RSBEVM schematics.

Figure 7. HDMI Input Connectors

Pop R131, no pop R129, R130 for HPD on No pop R131, pop R129, R130 for HPD snoop only

VDD_1P1V

VCC_3P3V

VCC_3P3VVDD_1P1V

BOARD_5V

OUT_CLKP PAGE4

OUT_CLKN PAGE4

OUT_D2P PAGE4

OUT_D2N PAGE4

OUT_D1P PAGE4

OUT_D1N PAGE4

OUT_D0P PAGE4

OUT_D0N PAGE4

HPD_SNK PAGE4

SDA_SNK PAGE4

SCL_SNK PAGE4

SLEW_CTL PAGE5

OEPAGE6

SCL_SRCPAGE2

SDA_SRCPAGE2

IN_D2PPAGE2

IN_D2NPAGE2

IN_D1PPAGE2

IN_D1NPAGE2

IN_D0PPAGE2

IN_D0NPAGE2

IN_CLKPPAGE2

IN_CLKNPAGE2

I2C_EN_PINPAGE5

SCL_CTLPAGE5

SDA_CTLPAGE5

PRE_SELPAGE5

EQ_SEL_A0PAGE5

HDMI_SEL#_TEST_A1 PAGE5

VSADJ PAGE5

HPD_SNK PAGE4

HPD_SRC_CONNPAGE2

HPD_SRCPAGE2

HDMI_SCL_SRC PAGE2,3

HDMI_SDA_SRC PAGE2,3

C19

0.1uF

C14

0.1uF

C18

0.1uF

C25

0.1uF

C17

0.1uF

C13

0.1uF

R129 DNI

C24

0.1uF

C12

0.1uF

C16

0.1uF

C11

0.1uF

U10

DP159RSB

IN_D2P

IN_D2N

HPD_SRC

IN_D1P

IN_D1N

IN_D0P

IN_D0N

I2C_EN/GPIO

IN_CLKP

IN_CLKN

VCC111VDD112SCL_CTL13SDA_CTL14GND115PRE_SEL16EQ_SEL/A017VSADJ18VDD219VDD3

OUT_CLKN

OUT_CLKP

HDMI_SEL/A1

OUT_D0N

OUT_D0P

OUT_D1N

OUT_D1P

HPD_SNK

OUT_D2N

OUT_D2P

VDD4

SCL_SNK

SDA_SNK

SLEW-CTL

GND2

35OE36

VCC2

SCL_SRC

SDA_SRC

VDD5

PAD

C23

0.1uF

C15

0.1uF

C22

0.01uF

C8 10uF

C10

0.1uF

C21

0.1uF

R130

DNI

0402 5%

0.1uF

R131 0

C20 10uF

EVM Schematics

www.ti.com

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Figure 8. DP159RSB

HDMI TX

Pop 2K resistors on R45, R46 for DP159 thru HDM, DDC on Pop 47K resistors on R45, R46 for DP159 thru HDMI, DDC snoop only Pop 2K resistors on R45, R46 for DP159

BOARD_5V

OUT_D2P PAGE3

OUT_D2N PAGE3 OUT_D1P PAGE3

OUT_D1N PAGE3 OUT_D0P PAGE3

OUT_D0N PAGE3 OUT_CLKP PAGE3

OUT_CLKN PAGE3

SDA_SNK PAGE3

SCL_SNK PAGE3

HPD_SNK PAGE3

SPDIF_IN PAGE2

HDMI_CEC_SNK PAGE2

LP11

DLW21SN900HQ2L

L4 DLW21SN900HQ2L

L6 DLW21SN900HQ2L

HDMI_OUT

HDMI OUT

Case120Case2

Case322Case4

LP12

R46

0402 5%

LP10

L5 DLW21SN900HQ2L

R45

0402 5%

LP13

www.ti.com

EVM Schematics

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Figure 9. HDMI TX Connector

HDMI TX

Pop 2K resistors on R45, R46 for DP159 thru HDM, DDC on Pop 47K resistors on R45, R46 for DP159 thru HDMI, DDC snoop only Pop 2K resistors on R45, R46 for DP159

BOARD_5V

OUT_D2P PAGE3

OUT_D2N PAGE3 OUT_D1P PAGE3

OUT_D1N PAGE3 OUT_D0P PAGE3

OUT_D0N PAGE3 OUT_CLKP PAGE3

OUT_CLKN PAGE3

SDA_SNK PAGE3

SCL_SNK PAGE3

HPD_SNK PAGE3

SPDIF_IN PAGE2

HDMI_CEC_SNK PAGE2

LP11

DLW21SN900HQ2L

L4 DLW21SN900HQ2L

L6 DLW21SN900HQ2L

HDMI_OUT

HDMI OUT

Case120Case2

Case322Case4

LP12

R46

0402 5%

LP10

L5 DLW21SN900HQ2L

R45

0402 5%

LP13

EVM Schematics

www.ti.com

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Figure 10. DP159RSBEVM Select Options

AARD VARK CONNE CTOR

Three place switches - hi, lo, no connect Sampled at POR

I2C_EN_HI

I2C_EN_LO

PRE_SEL_HI

PRE_SEL_LO

EQ_SEL_HI

EQ_SEL_LO

SLEW_CTL_HI

SLEW_CTL_LO

VCC_3P3V

I2C_EN_PIN PAGE3

PRE_SEL PAGE3

EQ_SEL_A0 PAGE3 SLEW_CTL PAGE3

SCL_CTLPAGE3

SDA_CTLPAGE3

HDMI_SEL#_TEST_A1 PAGE3

SDA_CTL_USB PAGE8

SCL_CTL_USB PAGE8

VSADJ PAGE3

HDR3X1 M .1

HDMI_SEL#/TEST/A1

1 2 3

HDR3X1 M .1

SCL

SCL_USB

SCL_AAR

1 2 3

HDR3X1 M .1

I2C_EN_PIN LO

1 2 3

R59 2K

0402 5%

J12

HDR3X1 M .1

EQ_SEL_A0 LO

1 2 3

R63 65K

0402 5%

R115 47K

0402 5%

R66 65K

0402 5%

J10

HDR3X1 M .1

SLEW_CTL LO

1 2 3

R65 65K

0402 5%

R75

6.5K

0402 1%

HDR3X1 M .1

SDA

SDA_USB

SDA_AAR

1 2 3

R69 65K

0402 5%

R68 65K

0402 5%

R76

PTV09 10K POT

J15

HDR3X1 M .1

PRE_SEL LO

1 2 3

R67 65K

0402 5%

R64 65K

0402 5%

R57 65K

0402 5%

R60 65K

0402 5%

HDR3X1 M .1

DEFAULT VSADJ

POT

1 2 3

R70 65K

0402 5%

R58 2K

0402 5%

Header 5x2 0.1" thru-hole

AARDVARK I2C

2 4 6 8 10

1 3 5 7 9

www.ti.com

EVM Schematics

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Figure 11. Reset

1.1V LDO REGULATOR

5.0V BOOST

3.3V BUCK REGULATOR - 4V to 17V input

REG_PG

EN1P2

SS1P2

FB_1PT2V

PWRIN_SW

FB_3PT3V

BOARD_3P3V

BOARD_1P1V

BOARD_3P3V

VDD_1P1V

VCC_3P3V

BOARD_3P3V

USB_5V

BOARD_5V

BOARD_3P3V

BOARD_IN

REG_PG PAGE6

SW2 3POS - SPDT

WALL- OFF - USB 5V

123

D2 LED Green 0805

BOARD PWR

R91

4.99K

0402 1%

C32 22uF

R82 500

0402 5%

R87 DNI

0402 5%

R88

4.7K

0402 5%

C57 10uF

R120

DNI

0402

LP7

R84 0

C31 10uF

C38

DNI

R90

1.87K

0402 1%

TPS62150A

SW1

SW2

SW3

AGND

FSW

DEF

SS/TR

AVIN

PVIN1

PVIN2

VOS

PGND115PGND216PAD

C37

0.01uF

LP9

GND

2.2 uH

R81 100K

0402

LP8

GND

R85

750K

0402 1%

C36 10uF

R86

240K

0402 1%

C35 10uF

C34

3.3 nF

2 3

1 uH

TPS74201RGWT

OUT1

NC12NC23NC3

IN1

IN2

IN3

IN4

BIAS

GND12NC413NC5

NC6

OUT4

OUT3

OUT2

PAD

C58

2.2uF

LP6

1.1V

C30 220uF

R89 0

R83 0

0402

LP5

3.3V

TPS61240

GND

VOUT

VIN

PAD

EVM Schematics

www.ti.com

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Figure 12. 1.1- and 3.3-V Regulators

RSTIn

BOARD_3P3V

+1V8

USB_5V +1V8

BOARD_3P3V

SCL_CTL_USBPAGE5

SDA_CTL_USBPAGE5

C40

0.1uF

R96 33

R99 1K

0402 5%

R92 DNI

C41

0.01uF

R93 DNI

R94 1.5K

C42

0.01uF

TUSB3410

RESET

DP0

DM0

VCC1

PUR

SUSP

X1/CLKI

GND3

TEST0

TEST1

VREGEN

VDD1V8

DTR

RTS

SOUT/IR_SOUT

SIN/IR_SIN

RI/CP

DCD

DSR

CTS

VCC2

P3_0

P3_1

P3_3

SDA

SCL

GND218GND1

P3_4

CLKOUT

WAKEUP

JP1

R121 1K

0402 5%

C49

22pF

C59

0.1uF

R101 1K

C5033pF

C5133pF

R102 10K

0402 5%

C46

0.1uF

U16

TPD2E001

VCC

IO13IO2

GND

R122 0

C60

0.1uF

24LC256

Vcc

SDA

Vss

SCL

C47

0.01uF

R103 15K

0402 5%

12 MHz

C39

2.2uF

R98 10K

0402

R95 33

R100 1K

0402 5%

J13

USB Micro B

VBUS

GND

C52 1 uF

C45

22pF

www.ti.com

EVM Schematics

SLLU224B– August 2015–Revised March 2018

Submit Documentation Feedback

DP159RSB Evaluation Module

Figure 13. TUSB3410

EVM Layout

7 EVM Layout

Figure 14 through Figure 19 illustrate the DP159RSBEVM PCB layouts.

www.ti.com

Figure 14. Layer 1 (Top)

DP159RSB Evaluation Module

Figure 15. Layer 2 (GND)

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

EVM Layout

Figure 16. Layer 3 (Power)

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

Figure 17. Layer 4 (Power)

DP159RSB Evaluation Module

EVM Layout

www.ti.com

Figure 18. Layer 5 (GND)

DP159RSB Evaluation Module

Figure 19. Layer 6 (Bottom)

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

www.ti.com

Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from A Revision (October 2015) to B Revision ............................................................................................... Page

• Added text and Figure 5 and Figure 6.................................................................................................. 9

Revision History

Changes from Original (August 2015) to A Revision ..................................................................................................... Page

• Changed the following rows in the Jumper Settings table: J1, J2, J15. ........................................................... 5

• Changed Qty and Reference columns in Item 13 and 36 of the DP159RSBEVM Bill of Materials table. ................... 11

• Changed HDMI Input Connectors schematic image. ............................................................................... 13

SLLU224B–August 2015–Revised March 2018

Submit Documentation Feedback

Revision History

STANDARD TERMS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions set forth herein but rather shall be subject to the applicable terms that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned, or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production system.

2 Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM. User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10) business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.

2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day warranty period.

3 Regulatory Notices:

3.1 United States

3.1.1 Notice applicable to EVMs not FCC-Approved:

FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference. Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.

3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:

CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Interference Statement for Class A EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Interference Statement for Class B EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

3.2 Canada

3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247

Concerning EVMs Including Radio Transmitters:

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Concernant les EVMs avec appareils radio:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Concerning EVMs Including Detachable Antennas:

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Concernant les EVMs avec antennes détachables

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur

3.3 Japan

3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に

輸入される評価用キット、ボードについては、次のところをご覧ください。

http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page

3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified by TI as conforming to Technical Regulations of Radio Law of Japan.

If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs (which for the avoidance of doubt are stated strictly for convenience and should be verified by User):

1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of Japan,

2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to EVMs, or

3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.

【無線電波を送信する製品の開発キットをお使いになる際の注意事項】開発キットの中には技術基準適合証明を受けていないものがあります。技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。

1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。

2. 実験局の免許を取得後ご使用いただく。

3. 技術基準適合証明を取得後ご使用いただく。

なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。

上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。日本テキサス・インスツルメンツ株式会社東京都新宿区西新宿６丁目２４番１号西新宿三井ビル

3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/

/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

3.4 European Union

3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a

low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

4 EVM Use Restrictions and Warnings:

4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.

4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information related to, for example, temperatures and voltages.

4.3 Safety-Related Warnings and Restrictions:

4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or property damage. If there are questions concerning performance ratings and specifications, User should contact a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative. During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit components may have elevated case temperatures. These components include but are not limited to linear regulators, switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the information in the associated documentation. When working with the EVM, please be aware that the EVM may become very warm.

4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the dangers and application risks associated with handling electrical mechanical components, systems, and subsystems. User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees, affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or designees.

4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal, state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local requirements.

5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as accurate, complete, reliable, current, or error-free.

6. Disclaimers:

6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.

6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.

7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES, EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.

8. Limitations on Damages and Liability:

8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING, OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS OCCURRED.

8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.

9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s) will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s), excluding any postage or packaging costs.

10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas, without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas. Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES

Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you (individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of this Notice.

TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections, enhancements, improvements and other changes to its TI Resources.

You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications (and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1) anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any testing other than that specifically described in the published documentation for a particular TI Resource.

You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING TI RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.

TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM, INCLUDING BUT NOT LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

You agree to fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of your noncompliance with the terms and provisions of this Notice.

This Notice applies to TI Resources. Additional terms apply to the use and purchase of certain types of materials, TI products and services. These include; without limitation, TI’s standard terms for semiconductor products http://www.ti.com/sc/docs/stdterms.htm), evaluation

modules, and samples (http://www.ti.com/sc/docs/sampterms.htm).

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Texas Instruments DP159RSB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
