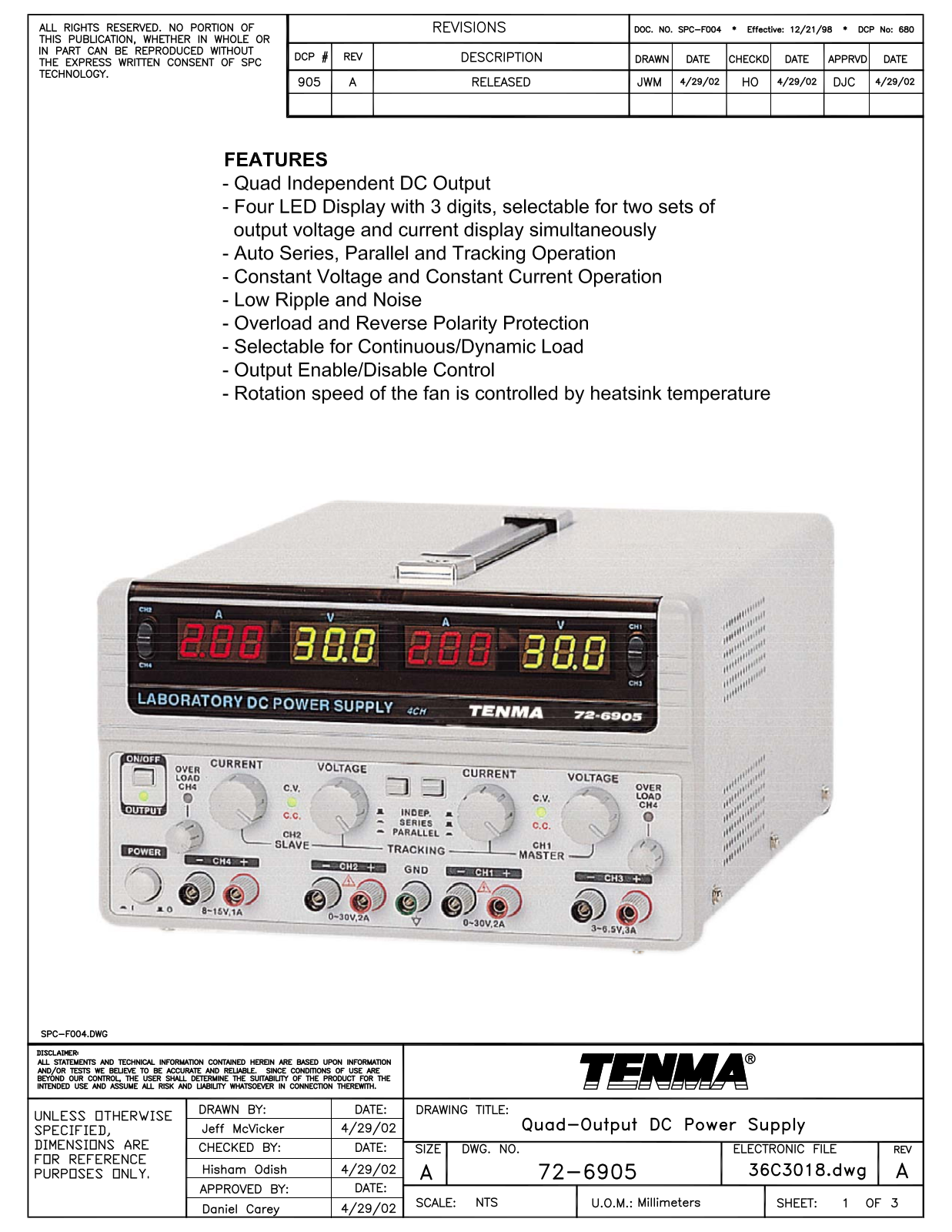

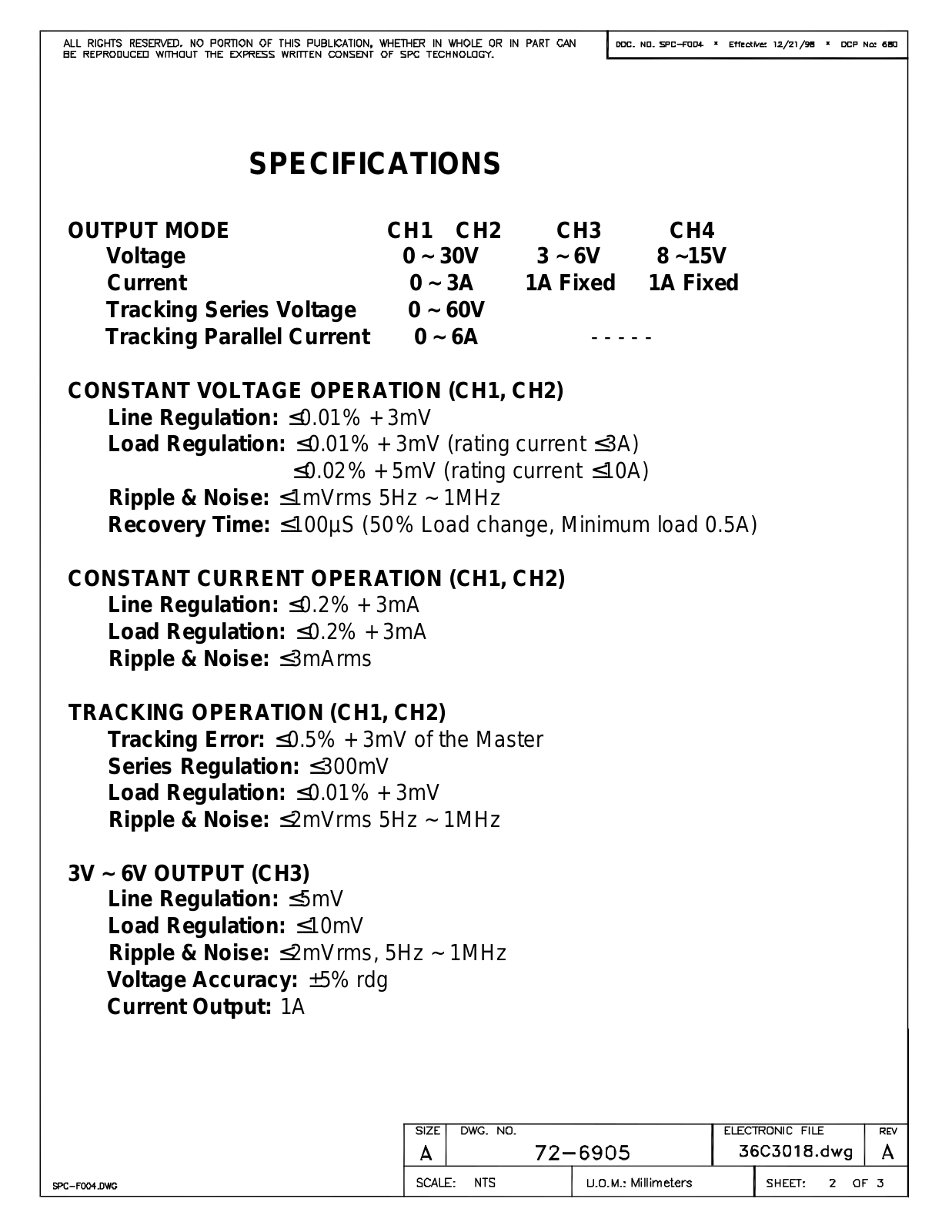

SPECIFICATIONS
OUTPUT MODE CH1 CH2 CH3 CH4
Voltage 0 ~ 30V 3 ~ 6V 8 ~15V
Current 0 ~ 3A 1A Fixed 1A Fixed
Tracking Series Voltage 0 ~ 60V
Tracking Parallel Current 0 ~ 6A - - - - -
CONSTANT VOLTAGE OPERATION (CH1, CH2)
Line Regulation: ≤0.01% + 3mV
Load Regulation: ≤0.01% + 3mV (rating current ≤3A)
≤0.02% + 5mV (rating current ≤10A)
Ripple & Noise: ≤1mVrms 5Hz ~ 1MHz
Recovery Time: ≤100µS (50% Load change, Minimum load 0.5A)
CONSTANT CURRENT OPERATION (CH1, CH2)
Line Regulation: ≤0.2% + 3mA
Load Regulation: ≤0.2% + 3mA
Ripple & Noise: ≤3mArms
TRACKING OPERATION (CH1, CH2)
Tracking Error: ≤0.5% + 3mV of the Master
Series Regulation: ≤300mV
Load Regulation: ≤0.01% + 3mV
Ripple & Noise: ≤2mVrms 5Hz ~ 1MHz
3V ~ 6V OUTPUT (CH3)
Line Regulation: ≤5mV
Load Regulation: ≤10mV
Ripple & Noise: ≤2mVrms, 5Hz ~ 1MHz
Voltage Accuracy: ±5% rdg
Current Output: 1A
Page 3

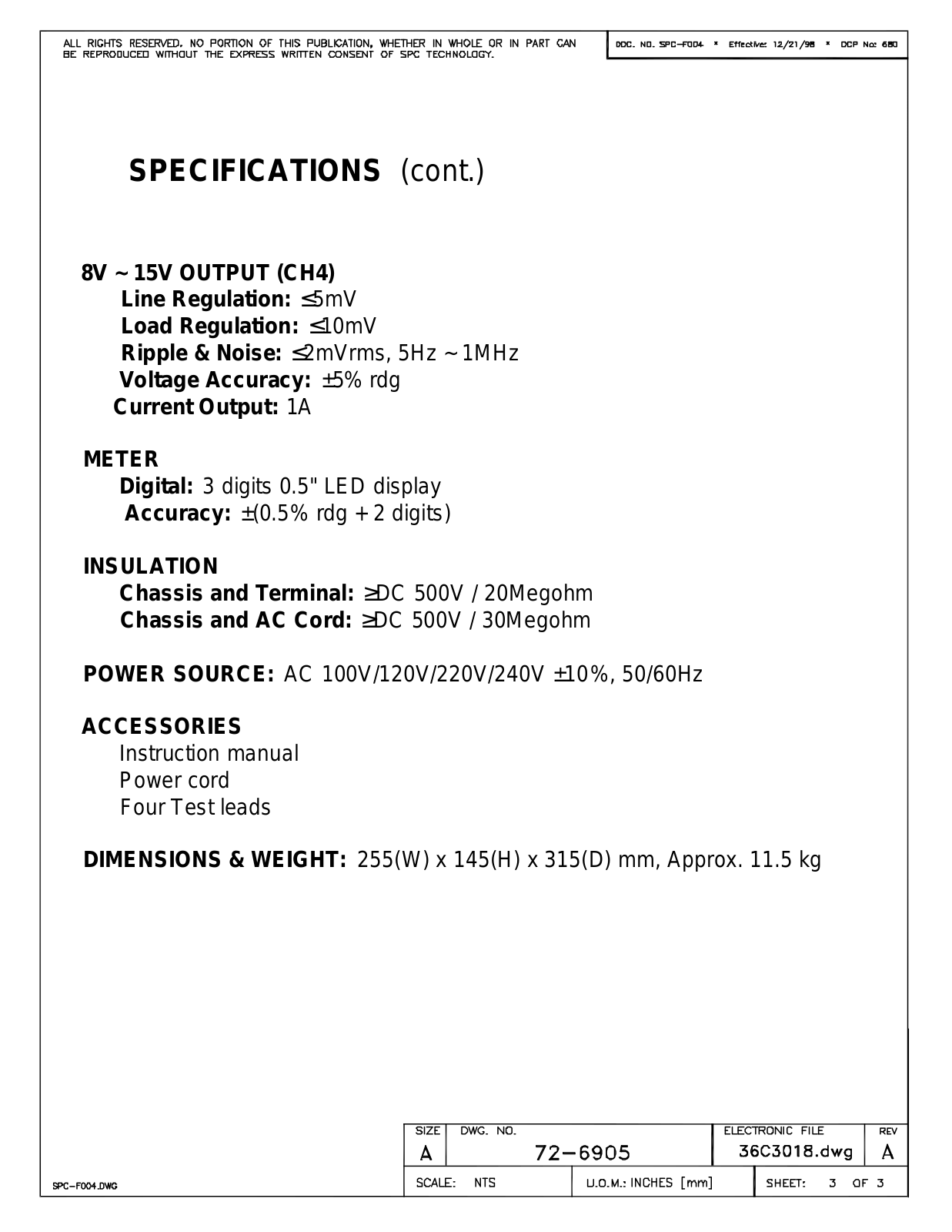

SPECIFICATIONS (cont.)
8V ~ 15V OUTPUT (CH4)
Line Regulation: ≤5mV
Load Regulation: ≤10mV
Ripple & Noise: ≤2mVrms, 5Hz ~ 1MHz
Voltage Accuracy: ±5% rdg
Current Output: 1A
METER
Digital: 3 digits 0.5" LED display
Accuracy: ±(0.5% rdg + 2 digits)
INSULATION
Chassis and Terminal: ≥DC 500V / 20Megohm
Chassis and AC Cord: ≥DC 500V / 30Megohm
POWER SOURCE: AC 100V/120V/220V/240V ±10%, 50/60Hz
ACCESSORIES
Instruction manual
Power cord
Four Test leads
DIMENSIONS & WEIGHT: 255(W) x 145(H) x 315(D) mm, Approx. 11.5 kg
