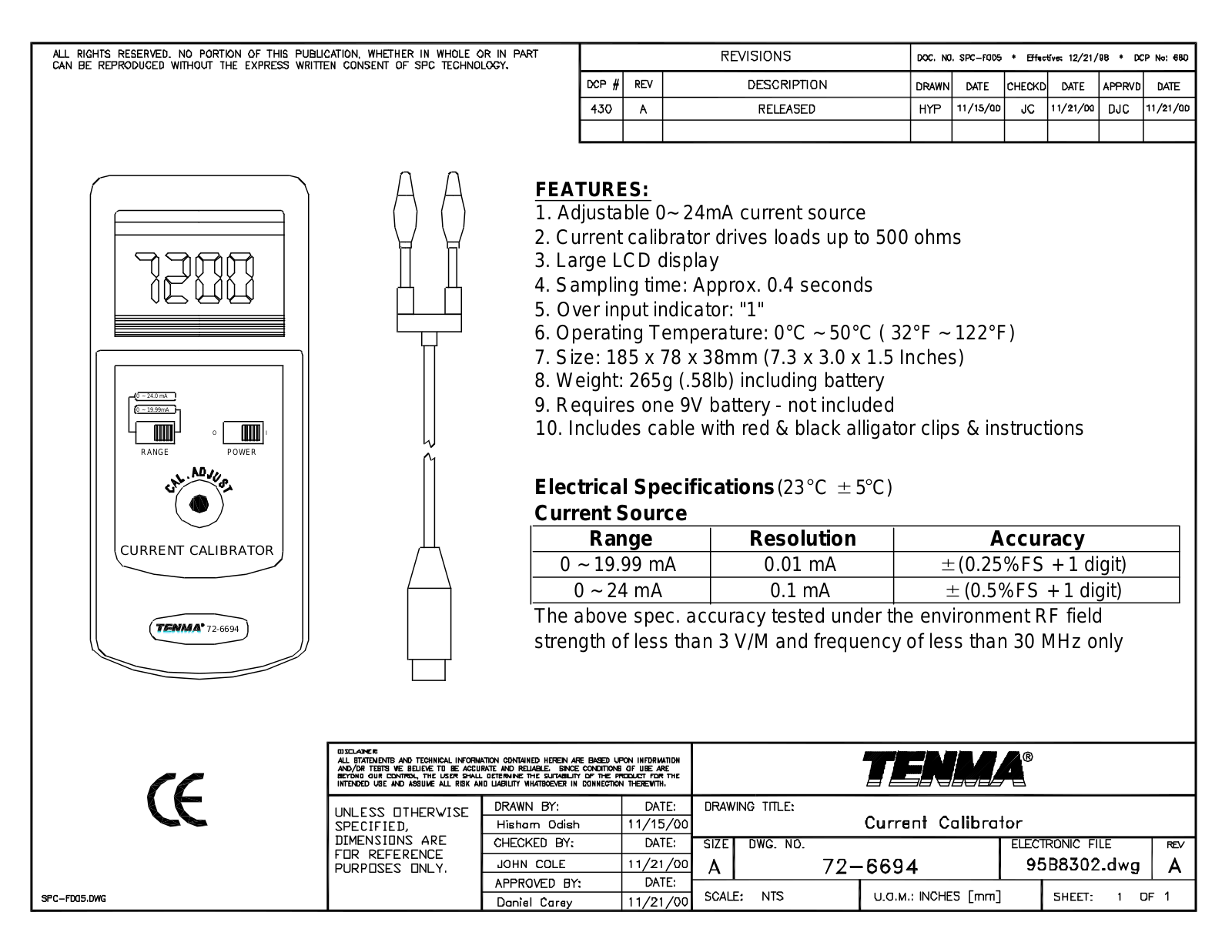

TENMA 72-6694 User Manual

0 ~ 24.0 mA
0 ~ 19.99mA

O I

RANGE POWER

CURRENT CALIBRATOR

72-6694

FEATURES:

1. Adjustable 0~ 24mA current source

2. Current calibrator drives loads up to 500 ohms

3. Large LCD display

4. Sampling time: Approx. 0.4 seconds

5. Over input indicator: "1"

6. Operating Temperature: 0°C ~ 50°C ( 32°F ~ 122°F)

7. Size: 185 x 78 x 38mm (7.3 x 3.0 x 1.5 Inches)

8. Weight: 265g (.58lb) including battery

9. Requires one 9V battery - not included

10. Includes cable with red & black alligator clips & instructions

Electrical Specifications (23BC A5BC)
Current Source

Range Resolution Accuracy

0 ~ 19.99 mA 0.01 mA A(0.25%FS + 1 digit)

0 ~ 24 mA 0.1 mA A(0.5%FS + 1 digit)

The above spec. accuracy tested under the environment RF field
strength of less than 3 V/M and frequency of less than 30 MHz only
