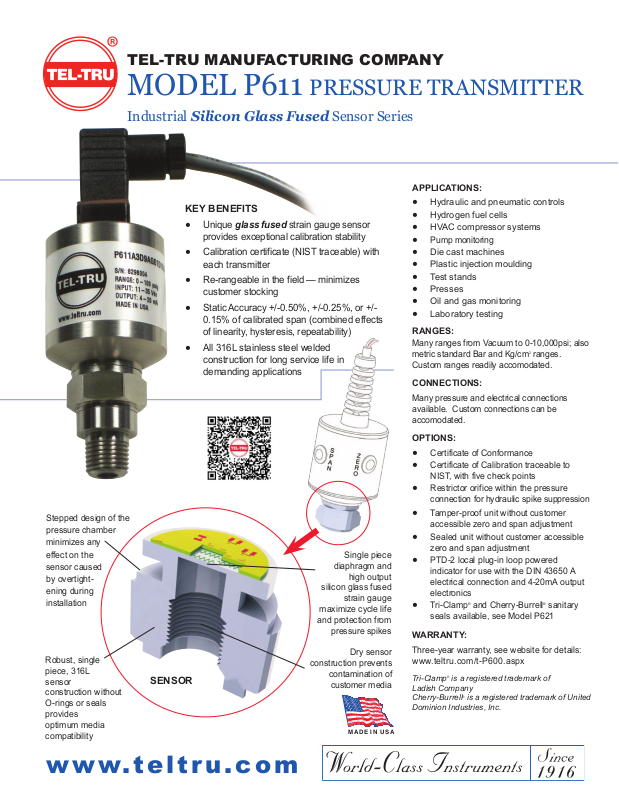

TEL-TRU MANUFACTURING COMPANY

MODEL P611

PRESSURE TRANSMITTER

Industrial Silicon Glass Fused Sensor Series

KEY BENEFITS

Unique glass fused strain gauge sensor

●

provides exceptional calibration stability

●

Calibration certificate (NIST traceable) with
each transmitter

●

Re-rangeable in the field — minimizes
customer stocking

●

Static Accuracy +/-0.50%, +/-0.25%, or +/-

0.15% of calibrated span (combined effects
of linearity, hysteresis, repeatability)

●

All 316L stainless steel welded
construction for long service life in
demanding applications

APPLICATIONS:

● Hydraulic and pneumatic controls

● Hydrogen fuel cells

● HVAC compressor systems

●

Pump monitoring

● Die cast machines

● Plastic injection moulding

● Test stands

● Presses

● Oil and gas monitoring

● Laboratory testing

RANGES:

Many ranges from Vacuum to 0-10,000psi; also
metric standard Bar and Kg/cm2 ranges.
Custom ranges readily accomodated.

CONNECTIONS:

Many pressure and electrical connections
available. Custom connections can be
accomodated.

Stepped design of the
pressure chamber
minimizes any
effect on the
sensor caused
by overtight­ening during
installation

Robust, single
piece, 316L
sensor
construction without
O-rings or seals
provides
optimum media
compatibility

SENSOR

Single piece

diaphragm and

high output

silicon glass fused

strain gauge

maximize cycle life

and protection from

pressure spikes

Dry sensor

construction prevents

contamination of

customer media

MADE IN USA

OPTIONS:

●

Certificate of Conformance

●

Certificate of Calibration traceable to
NIST, with five check points

●

Restrictor orifice within the pressure
connection for hydraulic spike suppression

●

Tamper-proof unit without customer
accessible zero and span adjustment

●

Sealed unit without customer accessible
zero and span adjustment

●

PTD-2 local plug-in loop powered
indicator for use with the DIN 43650 A
electrical connection and 4-20mA output
electronics

●

Tri-Clamp® and Cherry-Burrell® sanitary
seals available, see Model P621

WARRANTY:

Three-year warranty, see website for details:
www.teltru.com/t-P600.aspx

Tri-Clamp® is a registered trademark of
Ladish Company
Cherry-Burrell® is a registered trademark of United
Dominion Industries, Inc.

www.teltru.com

MODEL P611 PRESSURE TRANSMITTER -

1.44"

1.33"

.84" Diam.

.63"

1.56"

.84" Diam.

.625"

.625"

1.44"

1.33"

.75" Diam.

.63"

.91"

.75" Diam.

.50"

.78"

.84" Diam.

.63"

1.56"

.84" Diam.

.625"

Additional specifications at

www.teltru.com/t-P600.aspx

FUNCTIONAL SPECIFICATIONS

Proof Pressure:*

Up to 2 times URL

Burst Pressure:*

Up to 5 times URL or 20,000psi, whichever is less

Zero Adjustability:

Up to +/- 30% of calibrated span (output
dependent), externally accessible

Span Adjustability:

Up to 2.5 to 1 turndown of URL, externally accessible

PERFORMANCE SPECIFICATIONS

Static Accuracy (combined effects of linearity,
hysteresis, repeatability):

+/-0.50% or +/-0.25% of calibrated span
+/-0.15% of calibrated span

Linearity:***
+/-0.15% of calibrated span, BFSL
+/-0.05% of calibrated span, BFSL

Hysteresis:

Better than 0.05% of calibrated span

Repeatability:

Better than 0.05% of calibrated span

Response Time:

Less than 1ms

Output:

4-20mA, 2-wire

Output Impedance:

>10K Ohms

Current Consumption:

20mA

Output Load:

0-1000 Ohms @10-30Vdc

Output Noise:

Negligible

Zero Offset:

Within calibrated accuracy (+/-1% of URL for
sealed housing option)

Span Tolerance:

Within calibrated accuracy (+/-2% of URL for
sealed housing option)

Stability:

Better than +/-0.25% of URL for 1 year,
non-accumulating

Durability:

Greater than 1,000,000 full scale cycles

Thermal Effect on Zero:**
Less than +/-0.036% URL/°F
(+/-0.065% URL/°C)

Power Supply Requirements:

10-30Vdc

Temperature Limits:

Compensated range: 32/130°F (0/55°C)
Operating range: -40/185°F (-40/85°C)
Storage range: -40/212°F (-40/100°C)

* URL = Upper Range Limit (see range code list on
website, www.teltru.com/t-P600.aspx)

Thermal Effect on Span:**
Less than +/-0.036% of calibrated span/°F
(+/-0.065% of calibrated span/°C)

Shock:

Designed to withstand 10Gs, 11ms, 1/2 sine
(50Gs with optional silicone gel potting)

Vibration:

Designed to withstand 10Gs peak, 20-2400Hz
(50Gs with optional silicone gel potting)

*** Best-Fit-Straight-Line
** Over Compensated Range

PHYSICAL SPECIFICATIONS

Wetted Materials:

Single piece 316L Stainless Steel diaphragm
structure, with welded on pressure connections

Environmental Rating:

Integral Cable and 1/2" NPT Conduit

connections are IP65/IP67

DIN 43650 A and C connections are IP65

M12 connection is IP65/IP67

Bendix Style connections are IP65

WIRING COLORS AND PINOUTS

Output Function

4-20mA 2-wire

+ Supply Red 1 1 1 A A
+ Output Black 2 2 3 B B

1.50"
Diam.

.875" Hex

Integral Cable or
1/2"NPT w/Cable

ELECTRICAL
CONNECTIONS

.78"

.50"

1.44"

Example,
1/4"-18 NPT
Male

Numerous standard
connections readily
available

2.17"

PROCESS

1.33"

.75" Diam.

CONNECTIONS

Numerous standard
connections readily
available

DIN 43650 A DIN 43650 C M12 Bendix 4-pin Bendix 6-pin

Example,
Mini-DIN
43650 C
