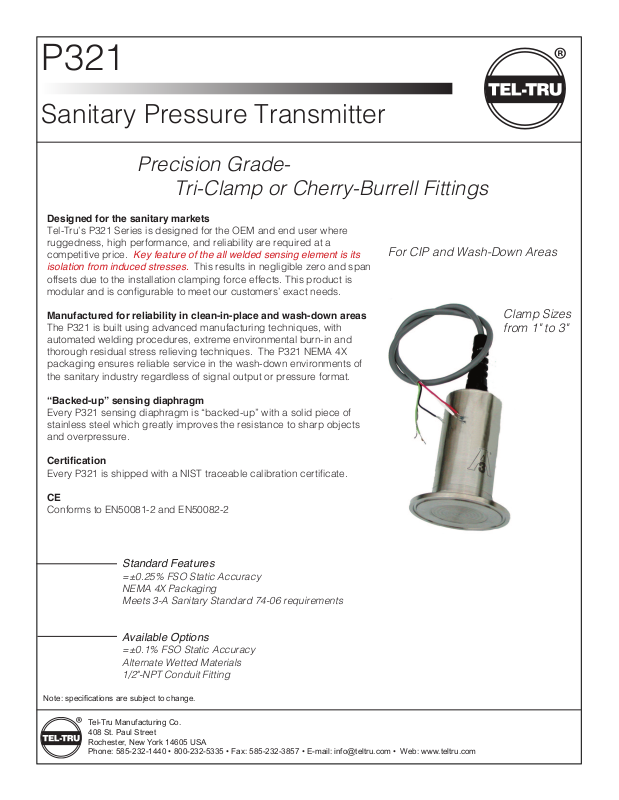

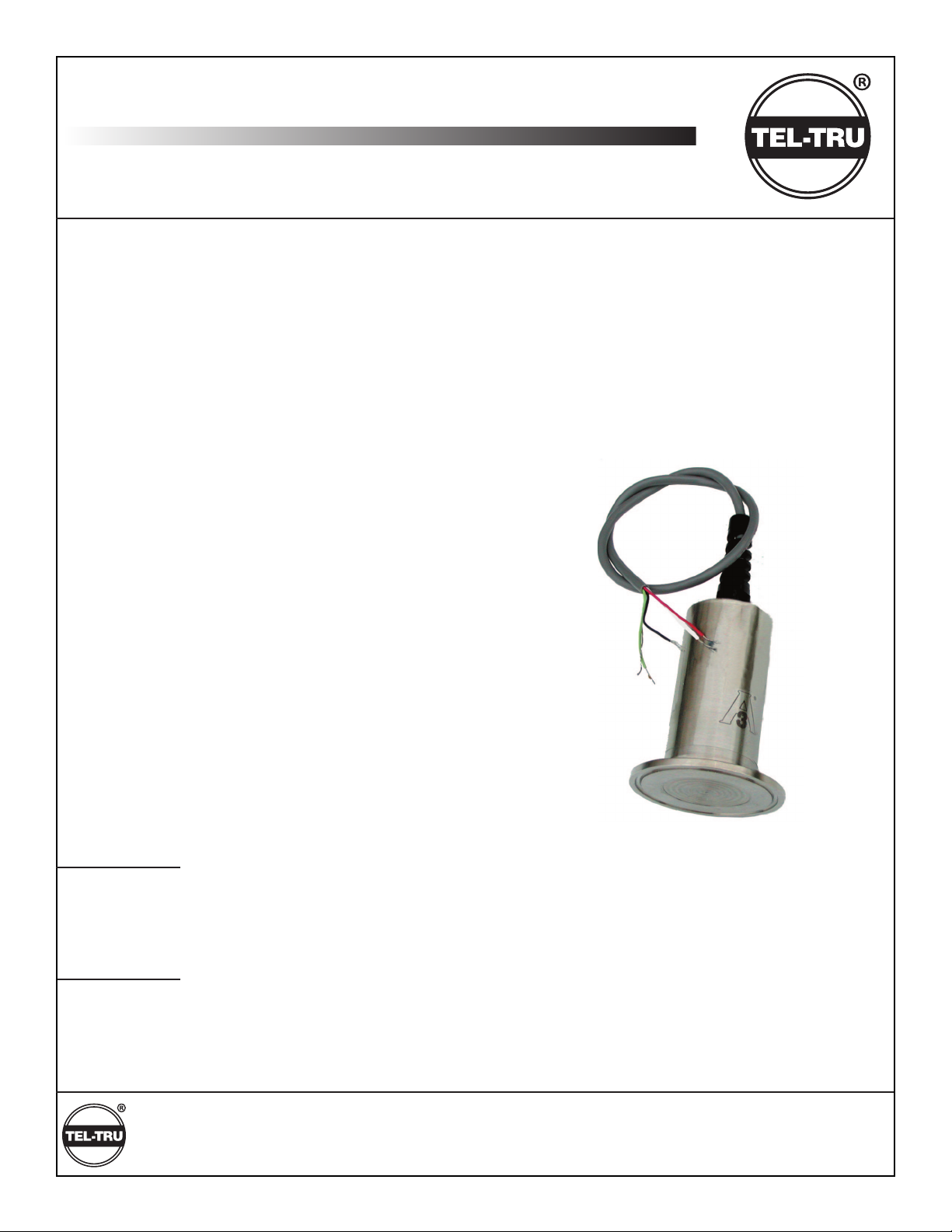

Page 1
P321
Sanitary Pressure Transmitter
Precision Grade Tri-Clamp or Cherry-Burrell Fittings
Designed for the sanitary markets
Tel-Tru’s P321 Series is designed for the OEM and end user where
ruggedness, high performance, and reliability are required at a
competitive price. Key feature of the all welded sensing element is its
isolation from induced stresses. This results in negligible zero and span
offsets due to the installation clamping force effects. This product is
modular and is congurable to meet our customers’ exact needs.
For CIP and Wash-Down Areas
Manufactured for reliability in clean-in-place and wash-down areas
The P321 is built using advanced manufacturing techniques, with
automated welding procedures, extreme environmental burn-in and
thorough residual stress relieving techniques. The P321 NEMA 4X
packaging ensures reliable service in the wash-down environments of
the sanitary industry regardless of signal output or pressure format.
“Backed-up” sensing diaphragm
Every P321 sensing diaphragm is “backed-up” with a solid piece of
stainless steel which greatly improves the resistance to sharp objects
and overpressure.
Certication
Every P321 is shipped with a NIST traceable calibration certicate.
CE
Conforms to EN50081-2 and EN50082-2
Standard Features
=±0.25% FSO Static Accuracy
NEMA 4X Packaging
Meets 3-A Sanitary Standard 74-06 requirements
Clamp Sizes
from 1" to 3"
Available Options
=±0.1% FSO Static Accuracy
Alternate Wetted Materials
1/2"-NPT Conduit Fitting
Note: specications are subject to change.
Tel-Tru Manufacturing Co.
408 St. Paul Street
Rochester, New York 14605 USA
Phone: 585-232-1440 • 800-232-5335 • Fax: 585-232-3857 • E-mail: [email protected] • Web: www.teltru.com
Page 2
P321
Precision Grade Sanitary
0-3 through 0-1,000 psi
Product Specications
Electrical
Excitation 8-38 Vdc*
Output
P321A 4-20 mA
P321B 0-5 Vdc*
Zero Balance =± 1% FSO
FSO Setting =± 1% FSO
Resolution Innite (±.001% FSO usable)
Response Time < 5 ms
Insulation Resistance 1000 MO @ 50 Vdc
Reverse Polarity Protected
Warm-up < 10 ms
Power Supply Effect =±.002% FSO per V input
EMI/RFI Internal Filtering
Short Circuit Protected Up to 40 Vdc
Mechanical
Pressure Ranges 0-3 through 0-1,000 psi
(Customer may specify any range/eng. unit FOC)
(Absolute, vacuum, compound available options)
Proof Pressure 2X Full Scale*
Burst Pressure 5X Full Scale* (Max 3,000 psi)
Materials
Wetted Parts* 316L SS
Non-wetted Parts 316 SS plus electrical connector*
Pressure Port 2" - Tri-Clamp
Electrical Connector NEMA 4X cable exit (24" cable)*
Dimensions per outline below
Weight nominal 10 oz.
Environmental
Compensated Temp Range 0 to 170°F
Operating Temp Range -40 to 200°F
Storage Temp Range -40 to 250°F
Performance
Static Accuracy =±0.25% FSO* (BFSL, RSS)*
(combined effects of non-linearity, hysteresis & repeatability)
Repeatability =±0.05% FSO
Temperature Effects =±1.5% FSO over comp range*
(combined effects of Zero & FSO with reference at 70°F)
Long Term Stability =±0.25% FSO per year
Note: specications are subject to change.
Tel-Tru Manufacturing Co.
408 St. Paul Street
Rochester, New York 14605 USA
Phone: 585-232-1440 • 800-232-5335 • Fax: 585-232-3857 • E-mail: [email protected] • Web: www.teltru.com
*Options Available

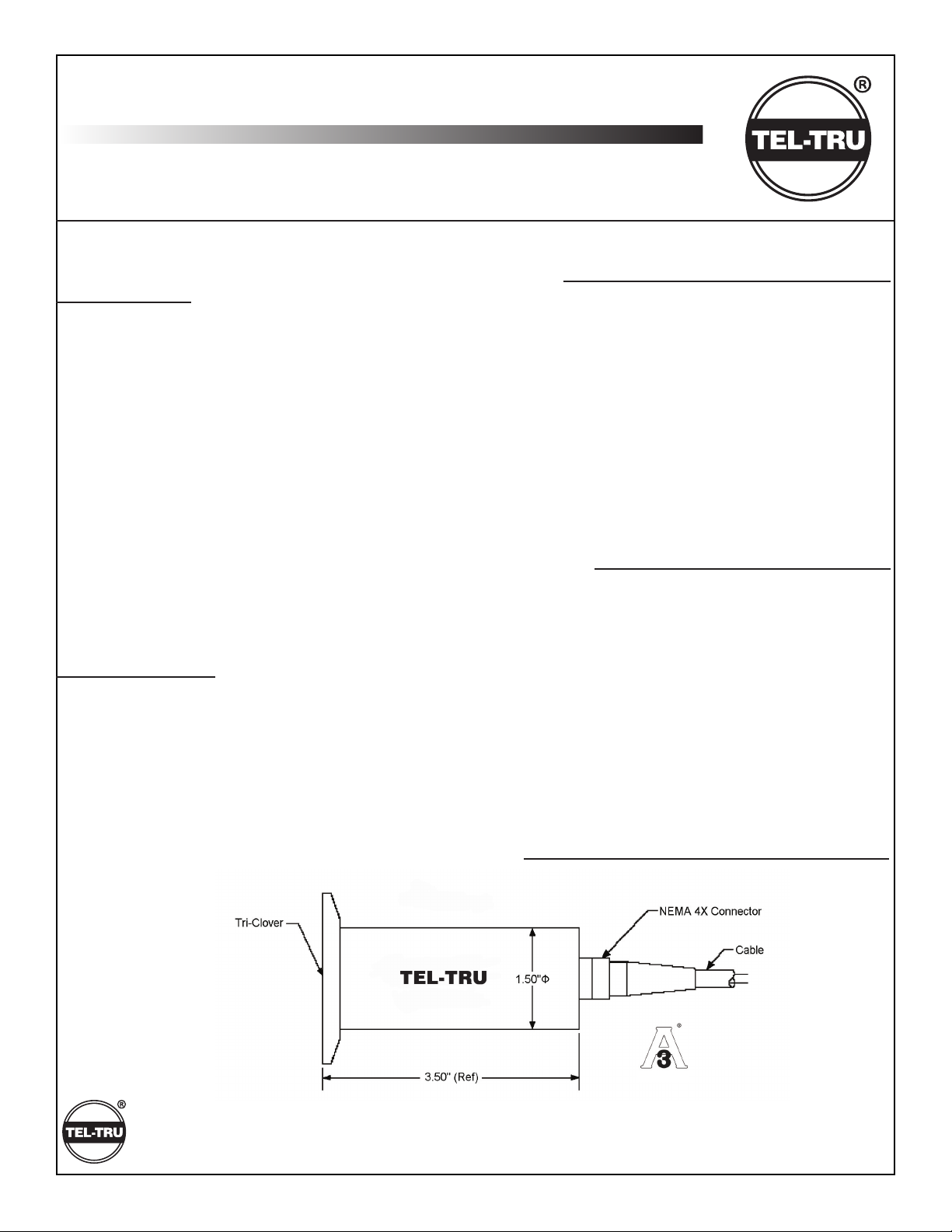

Outline
74-06
