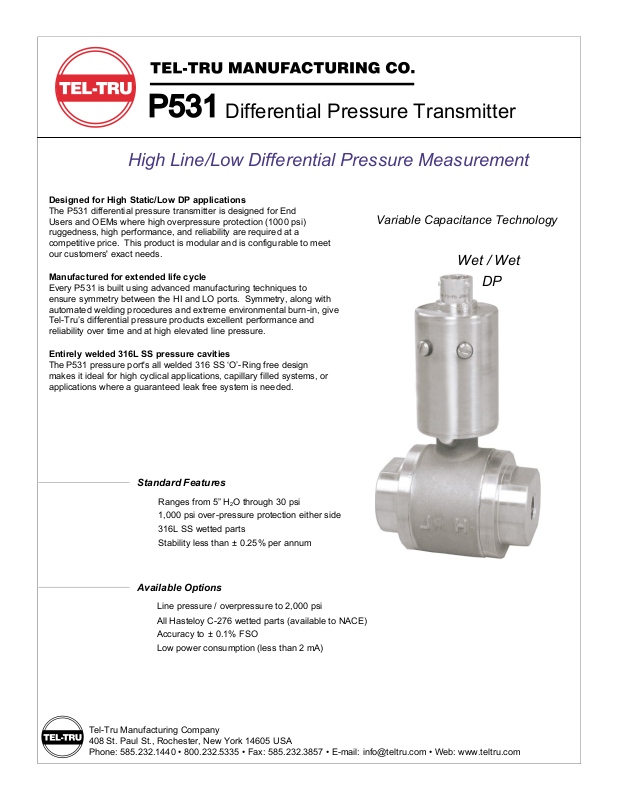

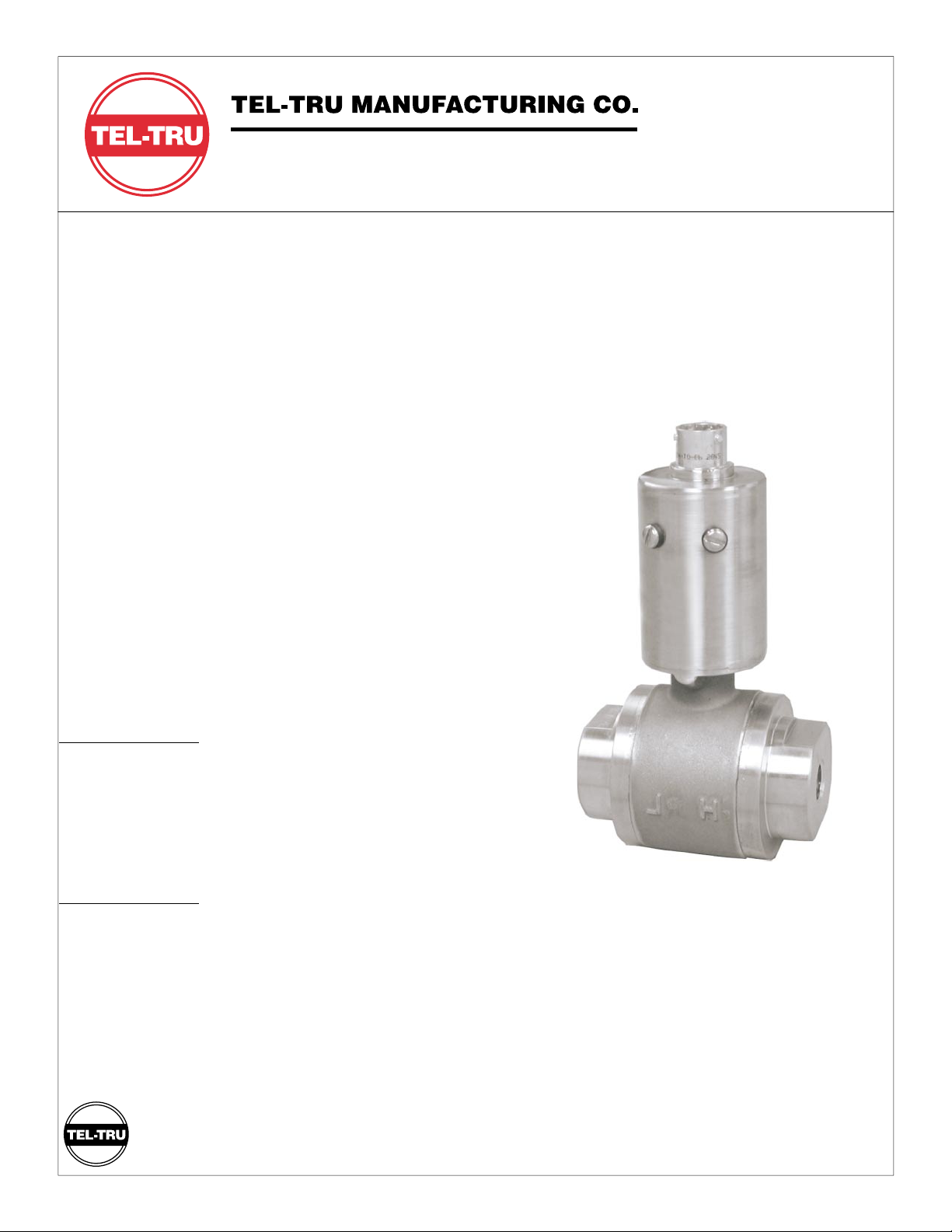

Differential Pressure Transmitter
P531P531
Tel-Tru Manufacturing Company
408 St. Paul St., Rochester, New York 14605 USA
Phone: 585.232.1440 • 800.232.5335 • Fax: 585.232.3857 • E-mail: [email protected] • Web: www.teltru.com
High Line/Low Differential Pressure Measurement
Standard Features
Ranges from 5” H2O through 30 psi
1,000 psi over-pressure protection either side
316L SS wetted parts
Stability less than ± 0.25% per annum
Designed for High Static/Low DP applications
The P531 differential pressure transmitter is designed for End
Users and OEMs where high overpressure protection (1000 psi)
ruggedness, high performance, and reliability are required at a
competitive price. This product is modular and is configurable to meet
our customers' exact needs.
Manufactured for extended life cycle
Every P531 is built using advanced manufacturing techniques to
ensure symmetry between the HI and LO ports. Symmetry, along with
automated welding procedures and extreme environmental burn-in, give
Tel-Tru’s differential pressure products excellent performance and
reliability over time and at high elevated line pressure.
Entirely welded 316L SS pressure cavities
The P531 pressure port's all welded 316 SS ‘O’-Ring free design
makes it ideal for high cyclical applications, capillary filled systems, or
applications where a guaranteed leak free system is needed.
Line pressure / overpressure to 2,000 psi
Accuracy to ± 0.1% FSO
Low power consumption (less than 2 mA)
Available Options
Wet / Wet
DP
Variable Capacitance Technology
All Hasteloy C-276 wetted parts (available to NACE)
Page 2
P531
Differential Pressure Transmitter
High Line/Low Differential Pressure Measurement
0-5” H
O through 0-100 psid
2
Product Specifications
Electrical
Excitation 8-38 Vdc*
Output
P531B 0-5 Vdc*
P531A 4-20 mAdc
Zero Balance =± 1% FSO
FSO Setting =± 1% FSO
Resolution Infinite (±.001 % FSO usable)
Response Time < 10 mS
Insulation Resistance 1000 M Ω @ 50 Vdc
Reverse Polarity Protected
Warm-up < 10 mS
Power Supply Effect =±.002% FSO per V input
EMI/RFI Internal Filtering
Short Circuit Protected Up to 40 Vdc
Mechanical
Pressure Ranges 0-5" H2O through 0-100 psid
Line Pressure 1,000 psi
Proof Pressure 1,000 psi (either port)
Burst Pressure 3,000 psi
Materials
Wetted Parts* 316L SS
Non-wetted Parts 316L SS plus electrical connector
Pressure Port* ¼"-NPT Female
Electrical Connector* NEMA 4X cable exit with 24" cable
Dimensions per outline below
Weight 18 oz
(Customer may specify any range/eng. unit FOC)
Options available
*
Performance
Static Accuracy =±
(combined effects of non-linearity, hysteresis & repeatability)
Static Pressure Effect
On zero
On span
Repeatability =±0.05% FSO
Temperature Effects
(combined effects of Zero & FSO with reference at 70 oF)
Mounting Effects Zero shifts up to 1" H2O depending
on orientation
Long Term Stability =±0.25% FSO per year
0.25% FSO* (BFSL, RSS)
=±0.25% FSO per 1,000 psi
=±0.5% of reading per 1,000 psi
=±1.5% FSO over comp range
Environmental
Compensated Temp Range 0 to 170
Operating Temp Range -40 to 200
Storage Temp Range -40 to 250
o
F
o
o
F
F

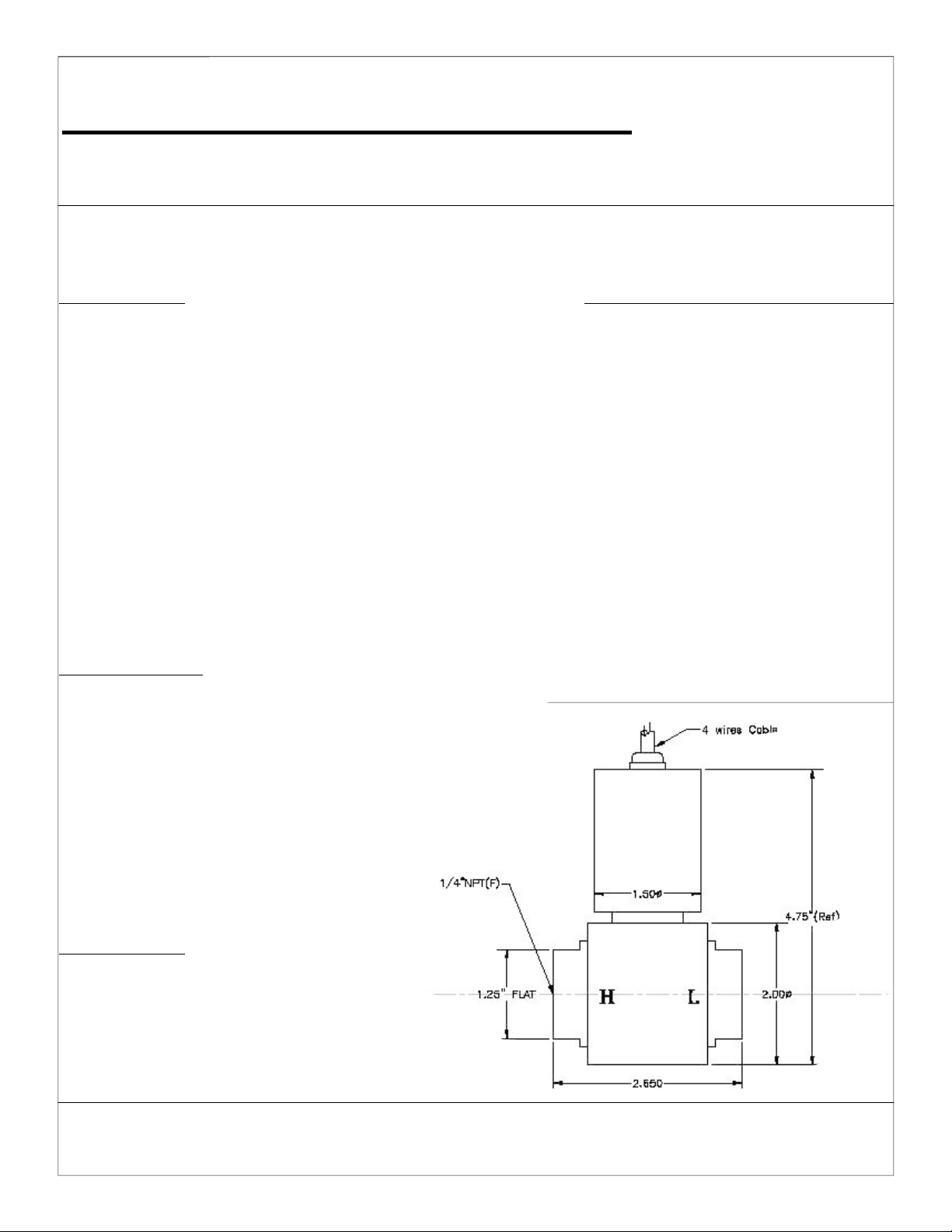

Outline
Tel-Tru
P531
Tel-Tru Manufacturing Co.
specifications without prior notification. Please
contact the factory for the latest revision.
reserves the right to change
P53106
