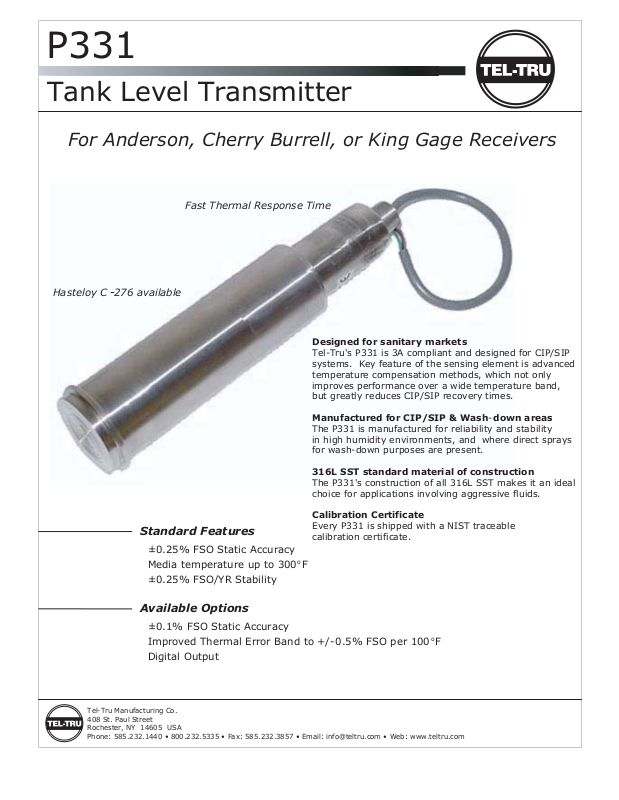

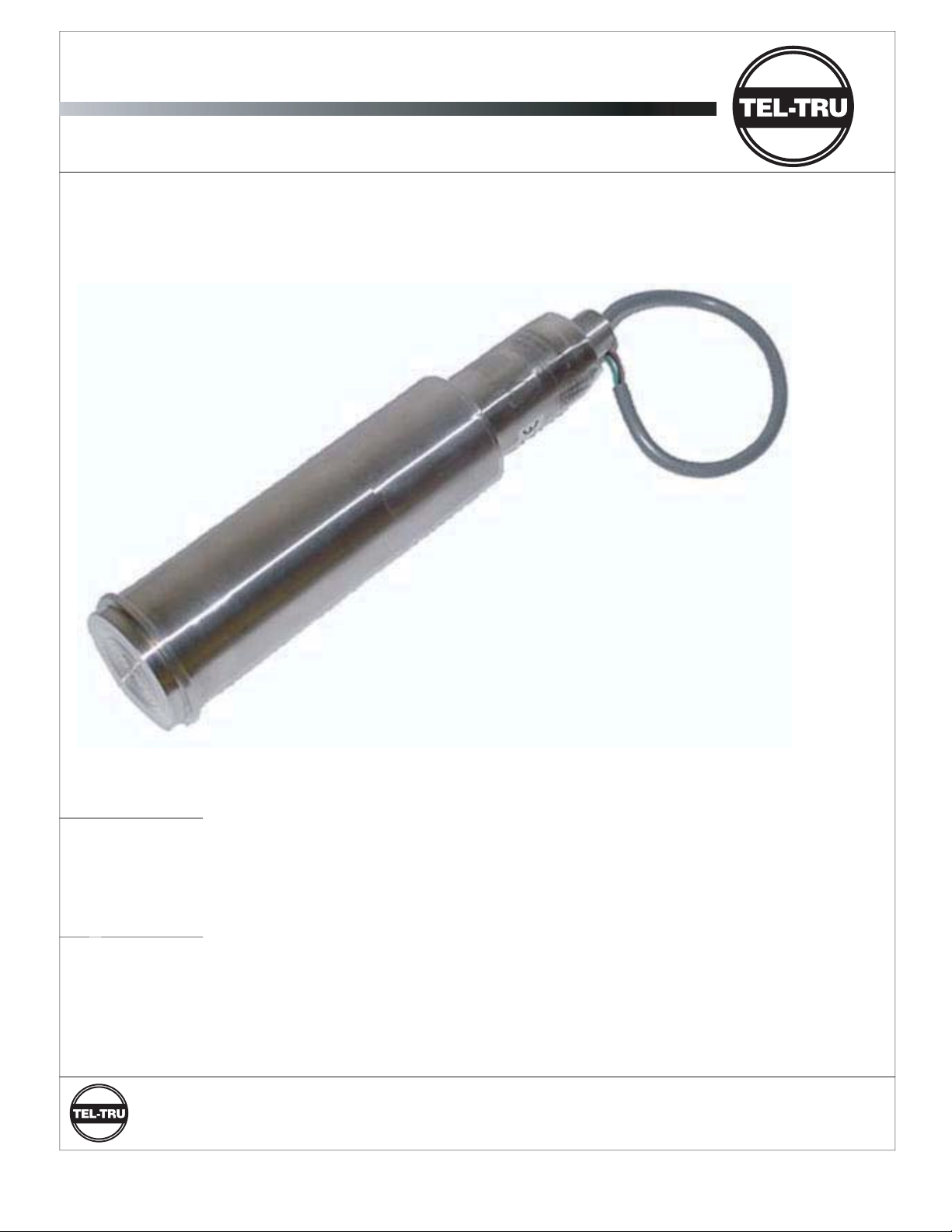

P331
Tank Level Transmitter
For Anderson, Cherry Burrell, or King Gage Receivers
Fast Thermal Response Time
Hasteloy C -276 available
Designed for sanitary markets
Tel-Tru's P331 is 3A compliant and designed for CIP/SIP
systems. Key feature of the sensing element is advanced
temperature compensation methods, which not only
improves performance over a wide temperature band,
but greatly reduces CIP/SIP recovery times.
Manufactured for CIP/SIP & Wash- down areas
The P331 is manufactured for reliability and stability
in high humidity environments, and where direct sprays
for wash-down purposes are present.
316L SST standard material of construction
The P331's construction of all 316L SST makes it an ideal
choice for applications involving aggressive fluids.
Calibration Certificate
Standard Features
±0.25% FSO Static Accuracy
Media temperature up to 300
±0.25% FSO/YR Stability
Every P331 is shipped with a NIST traceable
calibration certificate.
o
F
Available Options
±0.1% FSO Static Accuracy
Improved Thermal Error Band to +/-0.5% FSO per 100
Digital Output
Tel-Tru Manufacturing Co.
408 St. Paul Street
Rochester, NY 14605 USA
Phone: 585.232.1440 • 800.232.5335 • Fax: 585.232.3857 • Email: [email protected] • Web: www.teltru.com
o
F
Page 2
P331
Tank Level Transmitter
0- 3 psi through 0-100 psi
CIP/SIP Compatible
Product Specifications
Electrical
Excitation 2-15 Vdc*
8-38 Vdc*
Output
P331C 1-2 mV/V*
P331B 0-5 Vdc*
P331A 4-20 mAdc
Zero Balance ± 1% FSO
FSO Setting ± 1% FSO
Resolution Infinite (± 0.001% FSO usable)
Response Time < 5 mS
Insulation Resistance 100 MΩ @ 50 Vdc
Reverse Polarity Protected
Warm-up < 10 mS
Power Supply Effect ± 0.002% FSO per V input
EMI/RFI Internal Filtering
Short Circuit Protected
Up to 40 Vdc
Mechanical
Pressure Ranges 0-3 psi through 0-100 psi
(Customer may specify any range/eng. unit FOC)
(Absolute, vacuum, compound available options)
Proof Pressure 2X Full Scale*
Burst Pressure 5X Full Scale* (Max 3000 psi)
Materials
Wetted Parts* 316L SST*
Pressure Port To mate with Anderson, Cherry
Burrell, or King Gage tank
receivers
Electrical 1/2" NPT (m) conduit with 20'
Connector
Dimensions
cable

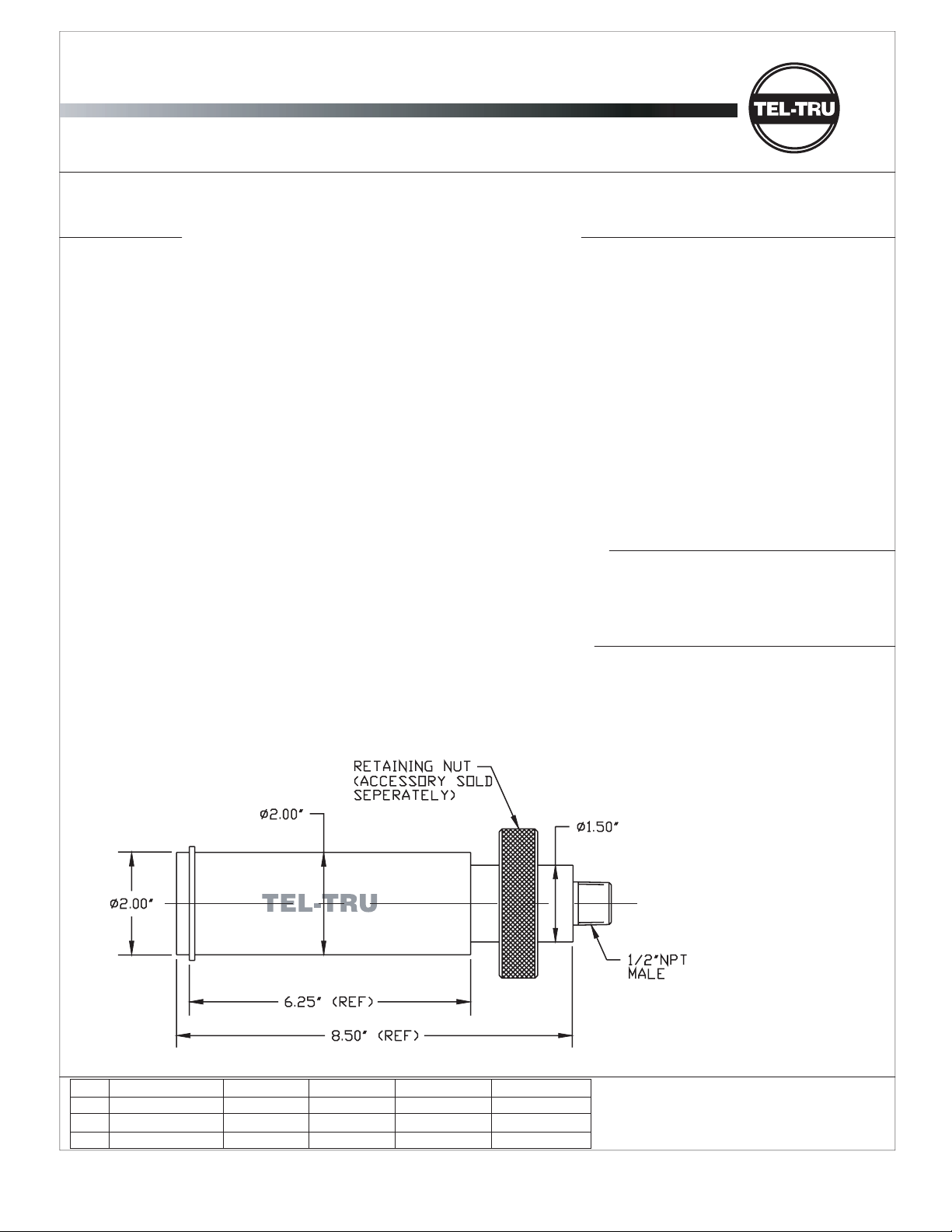

per outline below
Environmental
Compensated Temp Range 0°F to 170°F
Operating Temp Range -20°F to +300°F
Performance
Static Accuracy ± 0.25% FSO* (BFSL, RSS)*
(combined effects of non - linearity, hysteresis & repeatability)
*Options Available
Standard Wiring:
Model + Power - Power + Signal - Signal
FD1 Red/Pin 1/Pin A Black/Pin2/PinB Green/Pin 3/Pin C White/Pin 4/Pin D
FD2 Red/Pin 1/Pin A Black/Pin2/PinB Green/Pin 3/Pin C +Sig ref to - Power
FD3 Red/Pin 1/Pin A Black/Pin 2/Pin B
Output
mV/V dc 4 wire
0-5 (10) Vdc 3 Wire
4-20 mAdc 2 Wire
Repeatability ± 0.1% FSO
Temperature Effects ± 1.5% FSO over comp range*
(combined effects of Zero & FSO with reference at 70 oF)
Long Term Stabily ± 0.25% per year
Tel-Tru reserves the right to
change specifications without
prior notification. Please contact
the factory for the latest revision.
