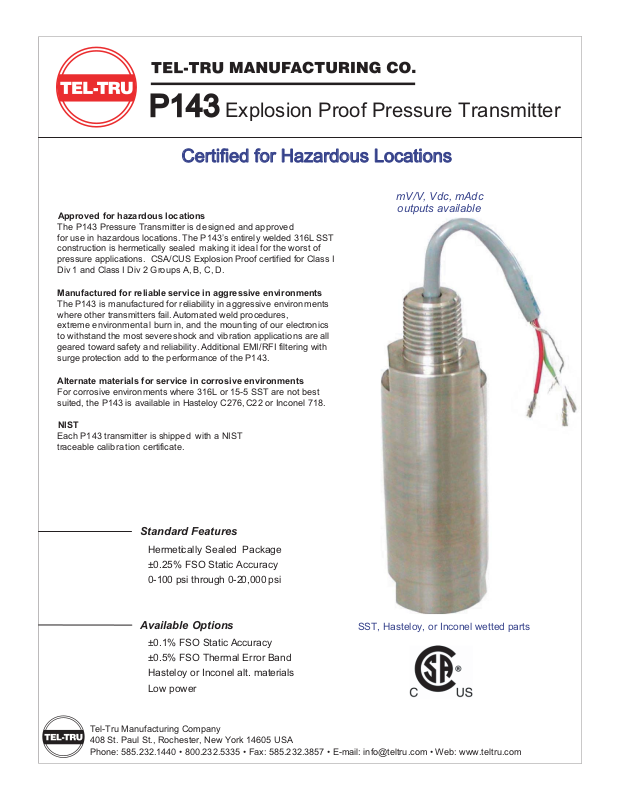

Tel-Tru P143 Specifications

Certified for Hazardous Locations

P143

P143

Certified for Hazardous Locations

Approved for hazardous locations

The P143 Pressure Transmitter is d esigned and approved
for use in hazardous locations. The P143’s entirely welded 316L SST
construction is hermetically sealed making it ideal for the worst of
pressure applications. CSA/CUS Explosion Proof certified for Class I
Div 1 and Class I Div 2 Groups A, B, C, D.

Manufactured for reliable service in aggressive environments

The P143 is manufactured for reliability in aggressive environments
where other transmitters fail. Automated weld procedures,
extreme environmental burn in, and t he mounting of our electronics
to withstand the most severe shock and vibration applications are all
geared toward safety and reliability. Additional EMI/RFI filtering with
surge protection add to the performance of the P143.

Alternate materials for service in corrosive environments

For corrosive environments where 316L or 15-5 SST are not best
suited, the P143 is available in Hasteloy C276, C22 or Inconel 718.

NIST

Each P143 transmitter is shipped with a NIST
traceable calibration certificate.

Explosion Proof Pressure Transmitter

mV/V, Vdc, mAdc

outputs available

Standard Features

Hermetically Sealed Package

±0.25% FSO Static Accuracy

0-100 psi through 0-20,000 psi

Available Options

±0.1% FSO Static Accuracy

±0.5% FSO Thermal Error Band

Hasteloy or Inconel alt. materials

Low power

Tel-Tru Manufacturing Company
408 St. Paul St., Rochester, New York 14605 USA
Phone: [phone] • 800.232.5335 • Fax: [phone] • E-mail: [e-mail] • Web: www.teltru.com

SST, Hasteloy, or Inconel wetted parts

Product

Specificat

ions

Electrical

*

Options A

vailable

Mechaha

nical l

Environm

ental

Performa

nce

Ce

rtificicationsns

P143

P143

Explosion Proof Pressure Transmitter

0-100 psi through 0-25,000 psi
Low-Cost Explosion Proof Process Transmitter

Product

Excitation

P143C 2-15 Vdc

P143A & P143B 8-38 Vdc*

Output

P143C 1-2 mV/V*

P143B 0-5 Vdc*

P143A 4-20 mAdc

Zero Balance ±1% FSO

FSO Setting ±1% FSO

Resolution Infinite (±.001% FSO usable)

Response Time

P143A & P143B < 5 mS

Insulation Resistance 1000 M Ω @ 50 Vdc

Reverse Polarity Protected

Warm-up < 10 mS

Power Supply Effect ±.002% FSO per V input

(P143A & P143B)

EMI/RFI

Short Circuit Pr otected Up to 40 Vdc

CSA/CUS Explosion Proof Class I Div 1 Groups A, B, C, D

CSA/CUS Explosion Proof Class I Div 2 Groups A, B, C, D

Master Contract Number: 236039

Certificate Number: 1815757

Specificat

P143C < 1mS

ions

Electrical

Ce

rtif

Internal Filtering (P143A & P143B)

Mec

Environ

Pe

(P143A & P143B)

Options A

nic

Pressure Ranges 0-100 psi through 0-25,000 psi

(Absolute, vacuum, compound availab le options)

Proof Pressure 2X Full Scale*

Burst Pressure 5X Full Scale*

Materials

Wetted Parts* 316 & 15-5 SST*

Non-wetted Parts 316 SST plus electrical connector*

Pressure Port ¼”-NPT Female*

Electrical Connector NEMA 4X cable exit with 24” of

Dimensions per outline below

Weight nominal 15 oz

Compensated Temp Range

Operating Temp Range -40 to 200 oF

Storage Temp Range -40 to 250 oF

Static Accuracy ±0.25% FSO* (BFSL, RSS)*
(combined effects of non-linearity, hysteresis & repeatability)

Repeatability ±0.1% FSO

Temperature Effects ±1.5% FSO over comp range*

Long Term Stabily ±0.25% FSO per year

(Customer may specify any range/eng. unit FOC)

cable*

ental

0 to 170 oF

nc

(combined effects of Zero & FSO with reference at 70 oF)

vailable

Tel-Tru

P143

Standard Wiring:

Model + Power - Power + Signal - Signal

P143C Red Black Green White

P143B Red Black Green +Sig ref to - Power

P143A

Output

mV/V dc 4 wire

0-5 (10) Vdc 3 Wire

4-20 mA dc 2 Wire

Red

Black

Tel-Tru Manufacturing Co.

specifications without prior notification. Please

contact the factory for the latest revision.

reserves the right to change

P14306
