Teledyne 3110 User Manual

Teledyne Analytical Instruments

OPERATING INSTRUCTIONS FOR

Model 3110

Portable Trace Oxygen Analyzer

DANGER

Toxic gases and or flammable liquids may be present in this monitoring system.

Personal protective equipment may be required when servicing this instrument.

Hazardous voltages exist on certain components internally which may persist
for a time even after the power is turned off and disconnected.

Only authorized personnel should conduct maintenance and/or servicing.
Before conducting any maintenance or servicing, consult with authorized
supervisor/manager.

Copyright © 2005 Teledyne Analytical Instruments

P/N M77970

10/16/2005

ECO:

Model 3110

ii Teledyne Analytical Instruments

All Rights Reserved. No part of this manual may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any other language or computer language in
whole or in part, in any form or by any means, whether it be electronic, mechanical,
magnetic, optical, manual, or otherwise, without the prior written consent of Teledyne
Instruments / Analytical Instruments, 16830 Chestnut Street, City of Industry, CA 91748.

Warranty

This equipment is sold subject to the mutual agreement that it is warranted by us free from
defects of material and of construction, and that our liability shall be limited to replacing or
repairing at our factory (without charge, except for transportation), or at customer plant at
our option, any material or construction in which defects become apparent within one year
from the date of shipment, except in cases where quotations or acknowledgements provide
for a shorter period. Components manufactured by others bear the warranty of their
manufacturer. This warranty does not cover defects caused by wear, accident, misuse,
neglect or repairs other than those performed by TAI or an authorized service center. We
assume no liability for direct or indirect damages of any kind and the purchaser by the
acceptance of the equipment will assume all liability for any damage that may result from
its use or misuse.

We reserve the right to employ any suitable material in the manufacture of our apparatus,
and to make any alterations in the dimensions, shape or weight of any parts, in so far as
such alterations do not adversely affect our warranty.

Important Notice

This instrument provides measurement readings to its user, and serves as a tool by which
valuable data can be gathered. The information provided by the instrument may assist the user
in eliminating potential hazards caused by his process; however, it is essential that all
personnel involved in the use of the instrument or its interface, with the process being
measured, be properly trained in the process itself, as well as all instrumentation related to it.

The safety of personnel is ultimately the responsibility of those who control process
conditions. While this instrument may be able to provide early warning of imminent
danger, it has no control over process conditions, and it can be misused. In particular, any
alarm or control systems installed must be tested and understood, both as to how they
operate and as to how they can be defeated. Any safeguards required such as locks, labels,
or redundancy, must be provided by the user or specifically requested of TAI at the time the
order is placed.

Therefore, the purchaser must be aware of the hazardous process conditions. The purchaser
is responsible for the training of personnel, for providing hazard warning methods and
instrumentation per the appropriate standards, and for ensuring that hazard warning devices
and instrumentation are maintained and operated properly.

Teledyne Analytical Instruments, the manufacturer of this instrument, cannot accept
responsibility for conditions beyond its knowledge and control. No statement expressed or
implied by this document or any information disseminated by the manufacturer or its
agents, is to be construed as a warranty of adequate safety control under the user’s process
conditions.

Portable Trace Oxygen Analyzer

Teledyne Analytical Instruments iii

Specific Model Information

Instrument Serial Number: _______________________

Model 3110

iv Teledyne Analytical Instruments

Safety Messages

Your safety and the safety of others is very important. We have
provided many important safety messages in this manual. Please read
these messages carefully.

A safety message alerts you to potential hazards that could hurt you
or others. Each safety message is associated with a safety alert symbol.
These symbols are found in the manual and inside the instrument. The
definition of these symbols is described below:

GENERAL WARNING/CAUTION: Refer to the
instructions for details on the specific danger. These cautions
warn of specific procedures which if not followed could cause
bodily Injury and/or damage the instrument.

CAUTION: HOT SURFACE WARNING: This warning is
specific to heated components within the instrument. Failure
to heed the warning could result in serious burns to skin and
underlying tissue.

WARNING: ELECTRICAL SHOCK HAZARD: Dangerous
voltages appear within this instrument. This warning is
specific to an electrical hazard existing at or nearby the
component or procedure under discussion. Failure to heed this
warning could result in injury and/or death from
electrocution.

Technician Symbol: All operations marked with this symbol
are to be performed by qualified maintenance personnel only.

NOTE: Additional information and comments regarding a
specific component or procedure are highlighted in the form
of a note.

CAUTION: THE ANALYZER SHOULD ONLY BE USED FOR THE

PURPOSE AND IN THE MANNER DESCRIBED IN
THIS MANUAL.

No

Symbol

Portable Trace Oxygen Analyzer

Teledyne Analytical Instruments v

IF YOU USE THE ANALYZER IN A MANNER OTHER
THAN THAT FOR WHICH IT WAS INTENDED,
UNPREDICTABLE BEHAVIOR COULD RESULT
POSSIBLY ACCOMPANIED WITH HAZARDOUS
CONSEQUENCES.

This manual provides information designed to guide you through
the installation, calibration operation and maintenance of your new
analyzer. Please read this manual and keep it available.

Occasionally, some instruments are customized for a particular
application or features and/or options added per customer requests.
Please check the front of this manual for any additional information in
the form of an Addendum which discusses specific information,
procedures, cautions and warnings that may be peculiar to your
instrument.

Manuals do get lost. Additional manuals can be obtained from TAI
at the address given in the Appendix. Some of our manuals are available
in electronic form via the Internet. Please visit our website at:

www.teledyne-ai.com.

Model 3110

vi Teledyne Analytical Instruments

Table of Contents

List of Figures............................................................................ viii

Introduction ................................................................................ 10

1.1 Introduction 10

1.2 Features 11

1.3 Method of Analysis 13

1.4 Micro-Fuel Cell 13

1.4.1 Cell Warranty 13

1.5 Accuracy and Response 14

1.6 Signal Output 14

1.7 Compact Packaging 14

Installation .................................................................................. 17

2.1 Charging the Batteries 17

2.2 Gas Connections 18

2.3 Sensor Installation 20

2.3.1 Installing a Trace Sensor 20

2.4 Calibration 21

2.4.1 Calibration Procedure for Trace Analysis 21

2.4.2 Bleeding the Regulator and Purging the Gas Line 22

2.5 Set the Sample Flow rate 22

2.6 External Signal 23

Operation .................................................................................... 24

3.1 Front Panel Interface 24

3.1.1 ENTER Key 24

3.1.2 ESCAPE Key 25

3.1.3 UP/DOWN Keys 25

3.2 Operation and Setup Screens and Menus 26

3.2.1 POWER ON Screen 27

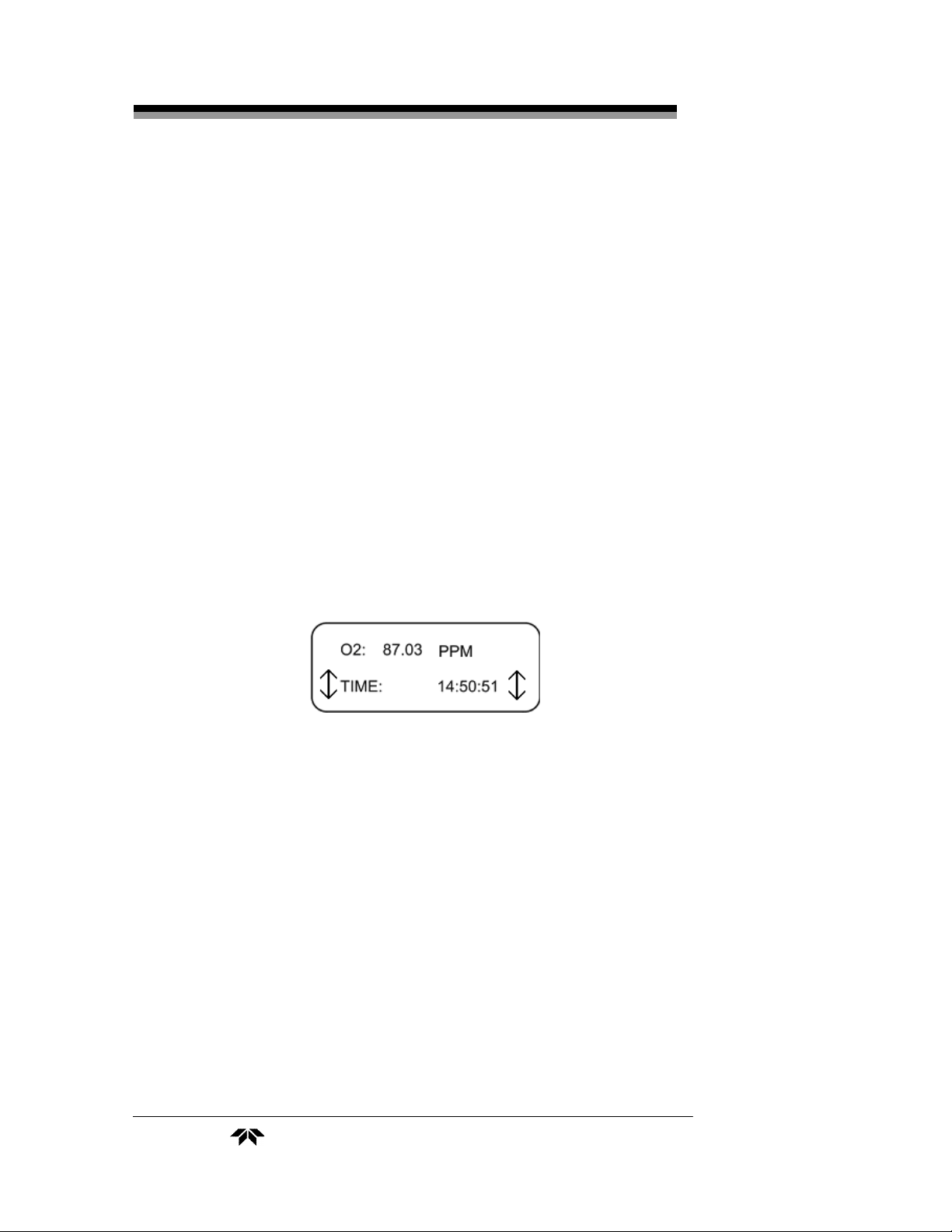

3.2.2 HOME Screen 27

Portable Trace Oxygen Analyzer

Teledyne Analytical Instruments vii

3.2.3 DATE Screen 27

3.2.4 TIME Screen 28

3.2.5 STANDARD ALARM Screen 29

3.2.6 ALARM Enable 29

3.2.7 FS ALARM Screen 30

3.2.8 HI-LOW ALARM Screen 30

3.2.9 LTCH ALARM Screen 31

3.2.10 RANGE 1 Screen 32

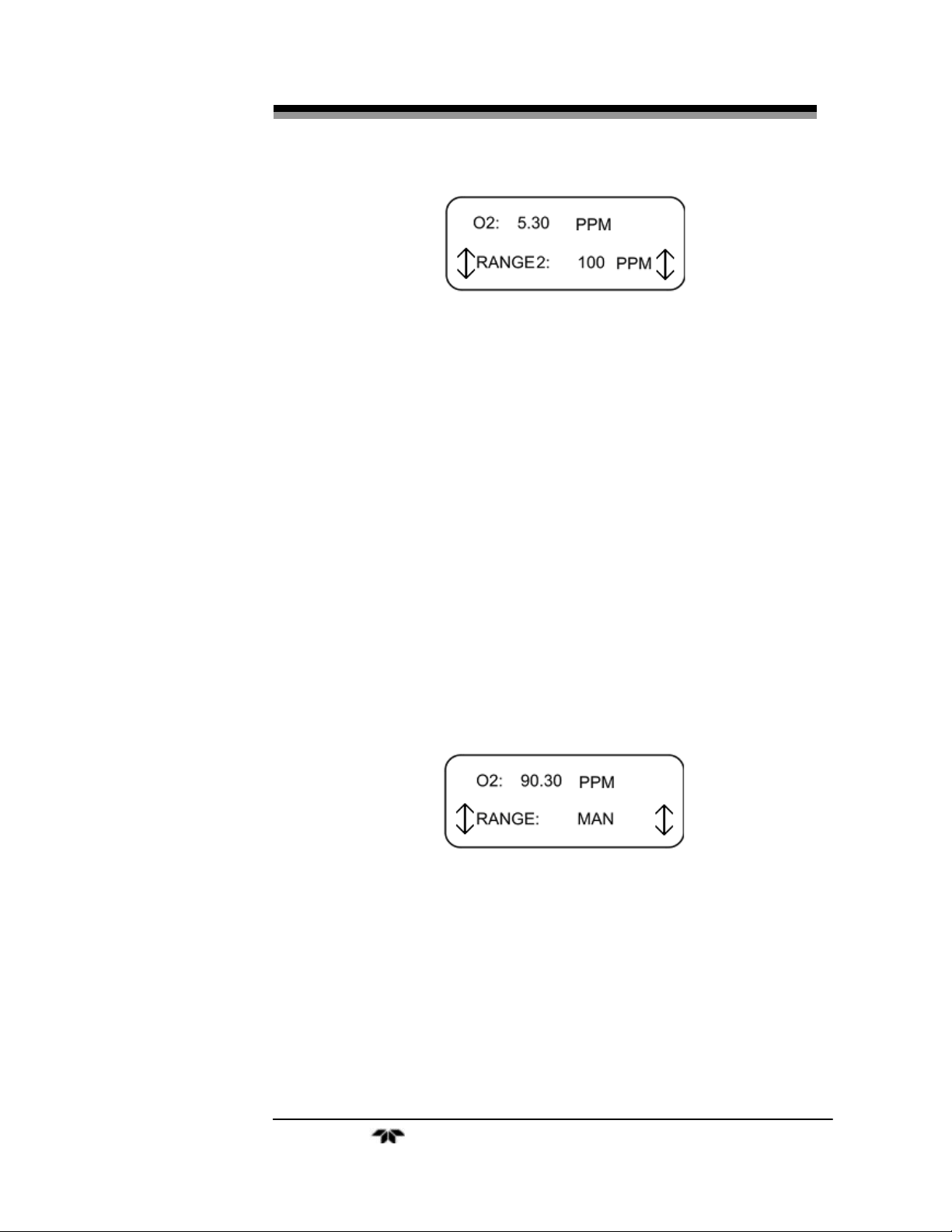

3.2.11 RANGE 2 Screen 32

3.2.12 Range Screen 33

3.2.13 SPAN VALUE Screen 34

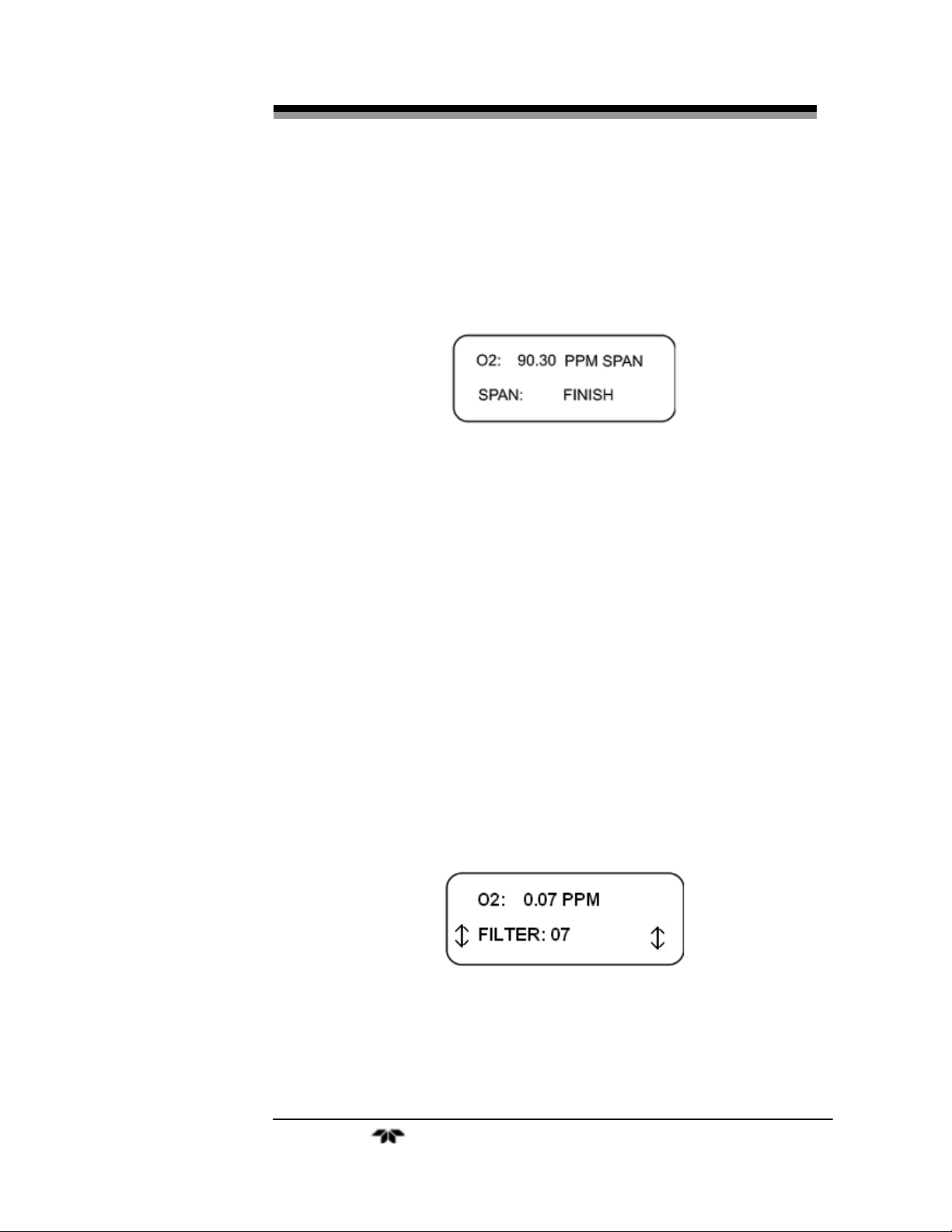

3.2.14 SPAN Screen 34

3.2.15 Filter Screen 35

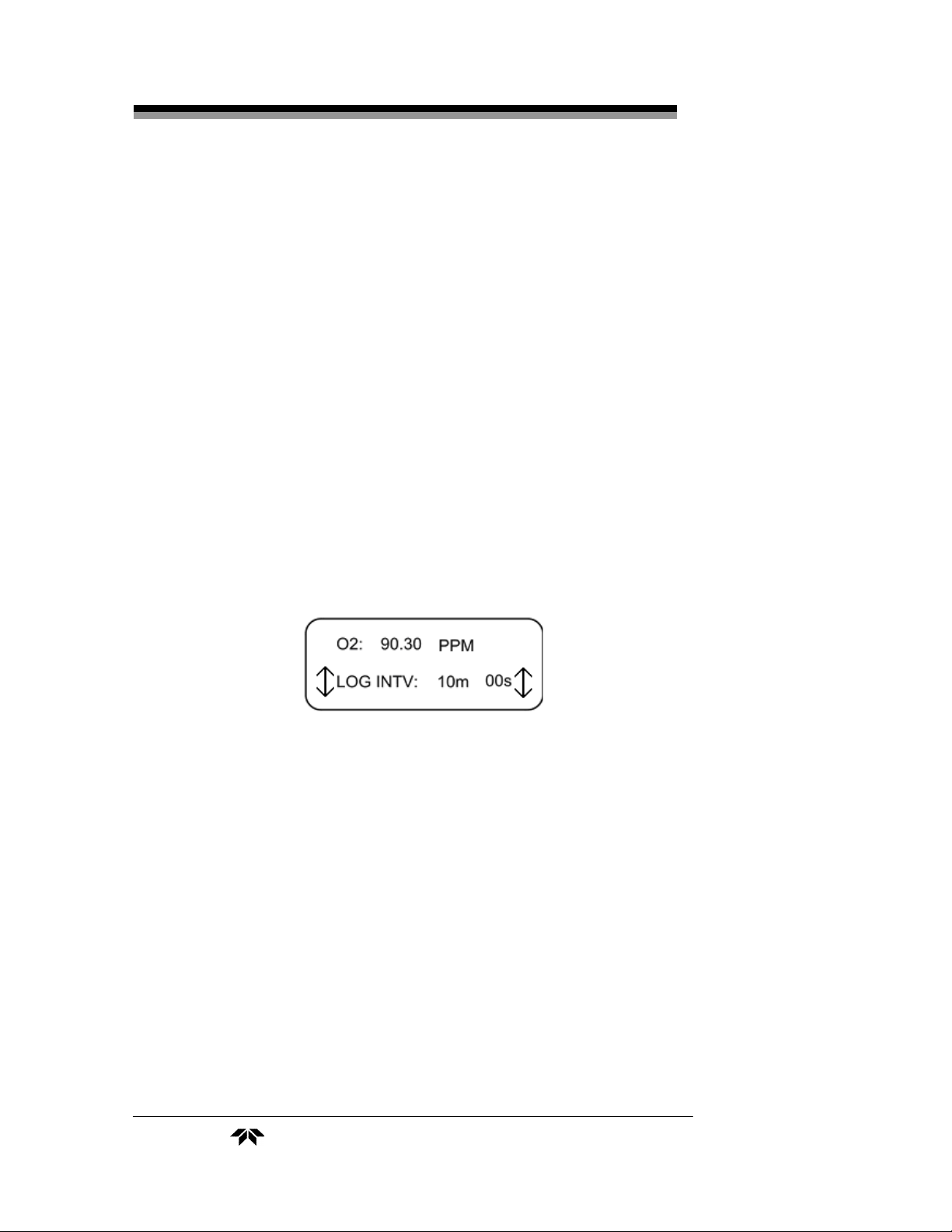

3.2.16 LOG INTV Screen 36

3.2.17 LOG RESET & START Screen 36

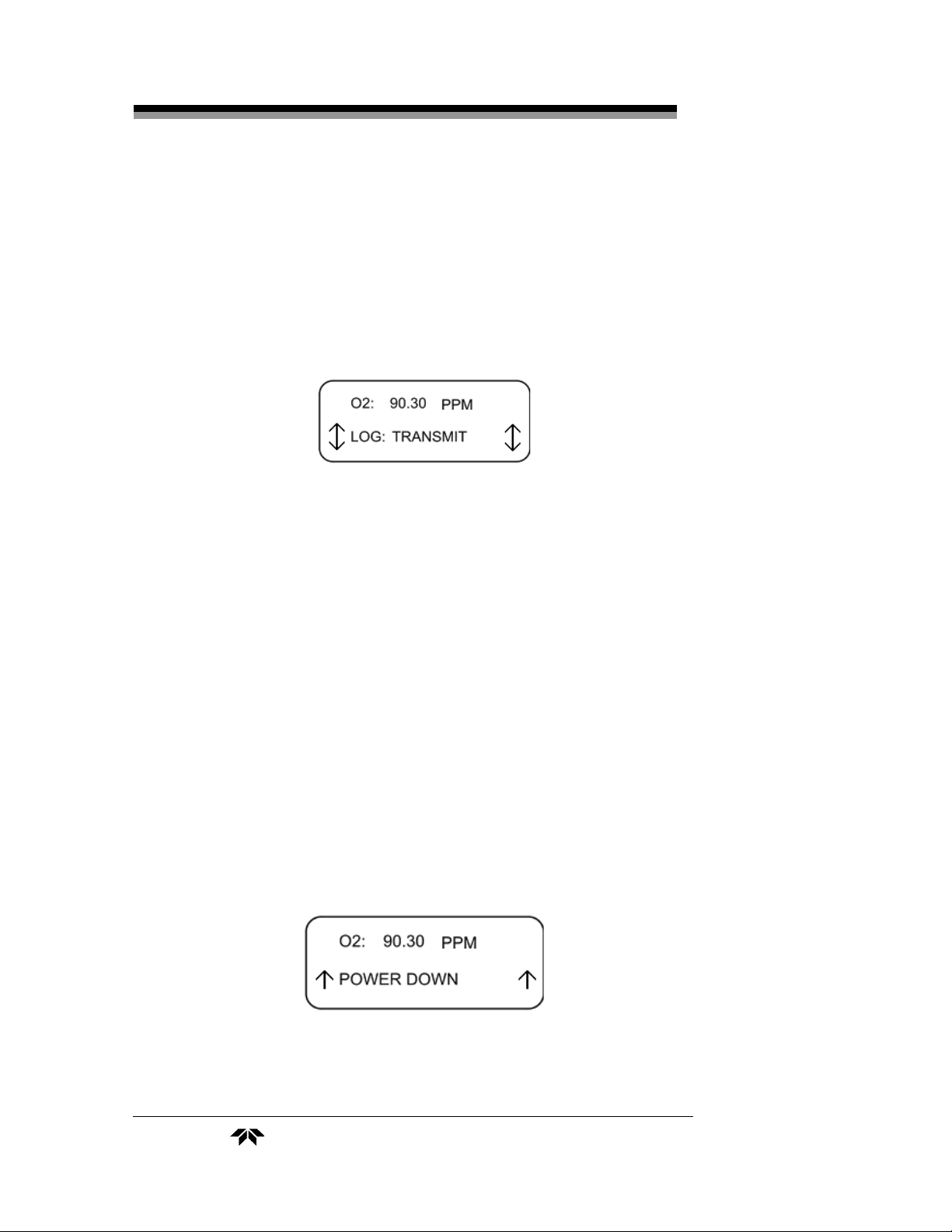

3.2.18 LOG TRANSMIT Screen 37

3.2.19 POWER DOWN Screen 38

Maintenance & Troubleshooting................................................40

4.1 Routine Maintenance 40

4.2 Opening the Instrument Case 40

4.3 Replacing the Battery 40

4.4 Battery Power Supply Service 41

4.5 Cell Replacement 42

4.6 Cell Warranty 43

4.7 Temperature Compensation 44

4.8 Leak Testing 46

Appendix .....................................................................................48

A.1 Specifications 48
A.2 Spare Parts List 49

Index ............................................................................................50

Model 3110

viii Teledyne Analytical Instruments

List of Figures

Figure 2-1: Model 3110 Rear Panel.............................................. 18

Figure 3-1: Front Panel Keys........................................................ 25

Figure 3-2: Available Menus and Their Sequence ........................ 26

Figure 4-1: Battery Charger Port on the Model 3110 .................... 42

Portable Trace Oxygen Analyzer

Teledyne Analytical Instruments ix

DANGER

COMBUSTIBLE GAS USAGE

WARNING

This is an intrinsically safe instrument which can be used in
hazardous areas. It is the customer's responsibility to ensure
safety especially when combustible gases are being
analyzed since the potential of gas leaks always exist.

The customer should ensure that the principles of operating
this equipment are well understood by the user. Misuse of
this product in any manner, tampering with its components,
or unauthorized substitution of any component may
adversely affect the safety of this instrument.

Since the use of this instrument is beyond the control of
Teledyne Analytical Instruments, referred as TAI, no
responsibility by TAI, its affiliates, and agents for damage or
injury from misuse or neglect of this equipment is implied or
assumed.

Introduction Model 3110

10 Teledyne Analytical Instruments

Introduction

1.1 Introduction

The Teledyne Analytical Instruments (TAI) Model 3110 Portable
Trace Oxygen Analyzer is a portable, intrinsically safe oxygen analyzer
capable of analyzing oxygen levels from 2 parts per million (ppm)
oxygen.

The instrument operates from internal rechargeable batteries and is
supplied with a universal AC charge adapter. Featuring quick
disconnect fittings for sample connections and a rugged lightweight
housing with handle, this versatile instrument can be brought to the
sample site and set up for analysis quickly and easily. Because of the
intrinsically safe design, once calibrated, the instrument can be
employed even in hazardous environments without compromise. The
Model 3110 incorporates a large standard feature list designed for
versatile, accurate oxygen analysis for a wide range of applications.
Figure 1-1 shows the standard Model 3110 Portable Trace Oxygen
Analyzer.

The microprocessor based Model 3110 instrument provides user
settable analysis ranges at the trace level. The range can be set from 0-2
ppm to 0-25% oxygen. In auto-ranging mode two ranges can be set and
the analyzer move between these ranges as required. The adjustment
resolution is 0.1 ppm for trace analysis.

Sample oxygen is displayed on a 2-line 20 character alphanumeric
LCD display mounted on the front panel. Four buttons are used to
interface with the instrument and access all of the analyzer features.

Sample gas is introduced and vented via a pair of quick-disconnect
fittings that feature integral shutoff valves that automatically close when
the mating male fitting is withdrawn. The fittings are an integral part of
the measuring cell manifold.

Portable Trace Oxygen Analyzer Introduction

Teledyne Analytical Instruments 11

WARNING

Though the 3110 can be applied to monitor percent
oxygen, doing so will lead to more frequent sensor
replacement requirements.

Figure 1-1: Model 3110 Portable Trace Oxygen Analyzer

1.2 Features

This instrument is designed to be a versatile analytical instrument
and to perform reliably and accurately in analyzing oxygen
concentrations in gas mixtures from the ppm level through 25% oxygen.
The following features are standard on the Model 3110:

• Data Logger: The optional built-in data logging feature

allows the user to specify the time interval
between data recording sets. The date,
time, and oxygen concentration readings
are stored in internal RAM at the user
specified interval. The data set can be

Introduction Model 3110

12 Teledyne Analytical Instruments

downloaded using the instrument’s
optional RS-232 interface.

• Display: A 2-line 20 character alphanumeric LCD

on the front panel displays data and
operational information through various
screens. The contrast is adjustable for
various lighting conditions.

• Four-Button User Interface: Operation is performed using the

four front panel mounted buttons. These
buttons are used to enter data, select items
and move through operational screens that
appear on the display.

• Universal AC Charge Adapter: The rechargeable batteries can

be recharged without removing them from
the instrument. The charger operates over
the range of 100-240 VAC.

• LEDs: Two front panel mounted LEDs are used

to indicate low battery condition and when
the battery is recharging.

• Contrast Control: This feature allows the user to easily

adjust the contrast of the display for
optimum viewing under different lighting
conditions. The adjustment is made using
a front panel control dial.

• Auto-ranging: The user is able to specify two analytical

ranges for analysis in the auto mode. The
Model 3110 will automatically switch
between these ranges depending on the
oxygen level.

• Percent of Range Voltage Output: An optional 0-1 VDC

output is available that represents the
percentage of the current analysis range.

• Real-time Clock: This feature allows the Model 3110 to date

and time stamp the data set recorded on
the data logger. It uses a 24 hour clock.

Portable Trace Oxygen Analyzer Introduction

Teledyne Analytical Instruments 13

• Quick Disconnect Fittings: Dual self-sealing quick disconnect

fittings are installed for making easy
sample connections.

1.3 Method of Analysis

The sample oxygen is measured by a unique electrochemical
transducer which functions as a fuel cell; in this instance, the fuel is
oxygen. Oxygen diffusing into the cell reacts chemically to produce an
electrical current that is proportional to the oxygen concentration in the
gas phase immediately adjacent to the transducer’s sensing surface. The
linear, but minute signal produced by the transducer from oxygen is
amplified by a two-stage amplifier. The O2 sensor output signal is
digitized and fed to the microprocessor. Additional signal conditioning
and temperature compensation are handled electronically and
appropriate signals are directed to the display and output ports.

1.4 Micro-Fuel Cell

The micro-fuel cell (U.S. Pat. Nos. 3,767,552 and 3,668,101) is a
sealed electrochemical transducer with no electrolyte to change or
electrodes to clean. When the cell reaches the end of its useful life, it is
removed, properly disposed of, and replaced with a new cell. The life of
the cell is warranted by TAI (see below).

The cell is specific for oxygen and is not sensitive to flow rate or
reducing agents such as hydrocarbons, carbon monoxide, sulfur dioxide,
etc. In the absence of oxygen, no current is produced; thus, no zeroing is
required.

1.4.1 Cell Warranty

The Class B2-C, A2C, B2C-XL and Insta Trace micro-fuel cells
can be used in the Model 3110 and are warranted for six (6) months
from the date of shipment.

With regard to spare cells, service time starts when the cell is
removed from its shipping package. You should stock only one spare
cell per instrument at a time.

If a cell was working satisfactorily but ceases to function before the
warranty period expires, the sensor will be replaced at no cost.

Introduction Model 3110

14 Teledyne Analytical Instruments

If you have a warranty claim, return the cell in question to the
factory for evaluation. If it is determined that failure is due to faulty
workmanship or material, the cell will be replaced at no cost to you.

WARNING: EVIDENCE OF DAMAGE DUE TO TAMPERING OR

MISHANDLING WILL RENDER THE CELL
WARRANTY NULL AND VOID.

The Model 3110 is designed to meet Factory Mutual standards for
intrinsically safe for Class I, Division I, Groups A, B, C and D
hazardous locations. (Approval pending at time of manual printing.)

This safety feature does not apply when the instrument is being
charged with the 100- 240 VAC external charge adapter. The instrument
should be removed from hazardous areas when the batteries are being
charged.

Note: Do not use the analyzer when the battery charge is low.

1.5 Accuracy and Response

The Model 3110 provides monitoring accuracies of ±2% of full
scale or ±1 ppm, whichever is greater, at constant temperature.

With a sample flow rate of 1 SCFH, a 90% response can be realized
in 60 seconds. The response time on the 3110 is limited by the filter
setting.

1.6 Signal Output

The standard 0-1 VDC output has a 100 ohm impedance and is
suitable for driving external devices that have an input impedance of
10,000 Ω or more. The signal output is available from a port on the rear

panel.

1.7 Compact Packaging

The instrument is housed in 6 1/8" × 9 ½" × 5 5/8" (156 × 241 ×
143 mm) aluminum case that is equipped with a carrying handle and
foot pads. Unlike analog instruments where uneven positioning may

Portable Trace Oxygen Analyzer Introduction

Teledyne Analytical Instruments 15

affect meter accuracy, the Model 3110 can be used in any position
without interference.

Introduction Model 3110

16 Teledyne Analytical Instruments

Intentionally left blank.
