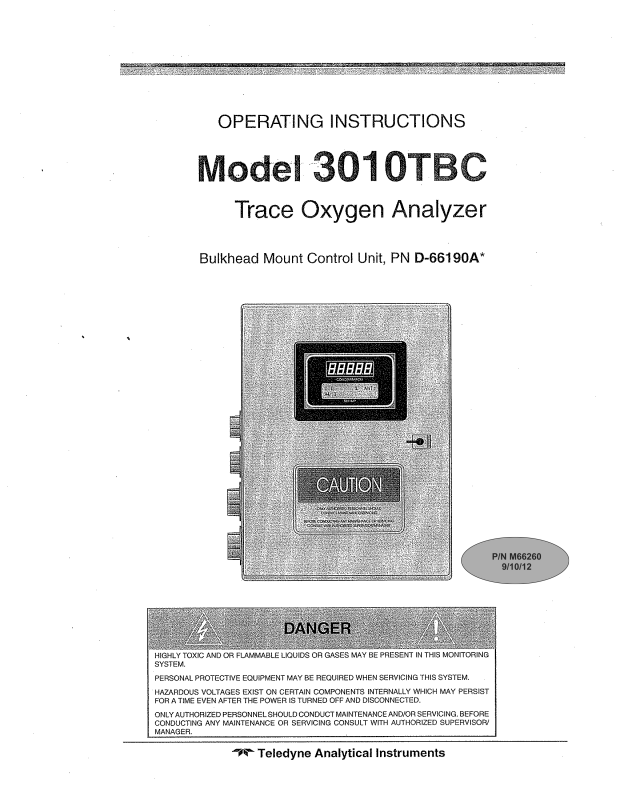

Teledyne 3010TBC User Manual
Specifications and Main Features
- Model: 3010TBC
- Type of Equipment: Oxygen Analyzer
- Equipment Class: ISM Class A Group 1
- Detection Levels: 0-25 % O2 in ppm
- Display: 2 line alphanumeric display
- Microprocessor: 8 bit CMOS with 32 KB RAM and 128 kB ROM
- Sensor: Micro-Fuel Cell sensor with 1 year warranty and 2 years expected lifetime
- Readout accuracy: High accuracy and resolution
- Output ranges: User-defined ranging from 0-10 ppm to 0-250,000 ppm
- Calibration: Air calibration ranged and auto ranging features available
- Alarms: Adjustable concentration alarms and system failure alarm
- Diagnostics: Self-diagnostical testing at start up and on demand
- Communication: Availability of RS-232 serial digital port and isolated 4-20 mA analog outputs
- Design: Compact in size and bulkhead mounted control unit
- Compliance: Compliance of RFI/EMI and LVD CE requirements
- Remote Probe: Approved for Intrinsically safe CENELEC
- Additional Features: - Controlled gas flow due to downstream vacuum - Stainless steel cell block structure - Protection against RFI in both ways
Frequently Asked Questions
- What is the content with the foremost goal of the Model 3010TBC?
The functioning of the oxygen sensor is trace detection of oxygen in different background gases.
- What kind of display does the unit Model 3010TBC use?
It uses a microprocessor controlled 2 line alphanumeric display.
- What is the life span of the Micro-Fuel Cell sensor?
The Micro-Fuel Cell sensor is expected to last for two years.
- Is the Model 3010 TBC suitable for indoors as well as outdoors?
Yes, the control unit can be used indoors as well as outdoors in non-hazardous locations.
- Does the device have alarm functions?
Yes, two adjustable concentration alarms and a system failure alarm are integrated with the device.
- Model 3010TBC what means there for communication?
It can be connected via a computer using the serial digital port RS-232 and has provisions for analog outputs.
- What is the calibration of the analyzer?
The unit can be calibrated in the fresh air of 20.9% Oxygen concentration level and in other gas composition modes.
- Is the device safe according to the regulations?
Yes, Model 3010TBC meets the Euro CE requirements for RFI/EMI and LVD.
- What are the qualifications and the roles of the various levels in the maintenance of the device?
The maintenance or the servicing of the Unit Model 3010 TBC should be done by the authorized personnel only.
