Digital Storage Oscilloscopes
TDS2000C Series Data Sheet
Features & Benefits
Key Perfor
200 MHz, 100 MHz, 70 MHz, 50 MHz Bandwidth Models
2- and 4-channel Models
Up to 2 GS/s Sample Rate on All Channels
2.5k point Re cord Length on All Channels
Advanced Triggers including Pulse Width Trigger and Line-selectable
Video Trig
mance Specifications
ger
Ease-of-Use Features
16 Automated
Waveform Analysis
Built-in Waveform Limit Testing
Automated, Extended Data Logging Feature
Autoset and Signal Auto-ranging
Built-in Con text-sensitive Help
Probe Check Wizard
Multiple-language User Interface
5.7 in. (144 mm) Active TFT Color Display
Small Footprint and Lightweight – Only 4.9 in. (124 mm) Deep and 4.4 lb.
(2 kg)
Measurements, and FFT Analysis for Simplified
Connectivity
USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage,
Printing,
USB 2.0 Device Port on Rear Panel for Easy C onnection to a PC or
Direct Pr intin g to a PictBridge
Includes National Instrument’s LabVIEW SignalExpress™ TE Limited
Edition and Tektronix OpenChoice
Lifetime Warranty*
*1Limita
and Connecting a USB Keyboard
®
-compatible Printer
®
Software for Connecting Your Bench
1
tions apply. For terms and conditions, visit www.tektronix.com/lifetimewarranty.
Data Sheet

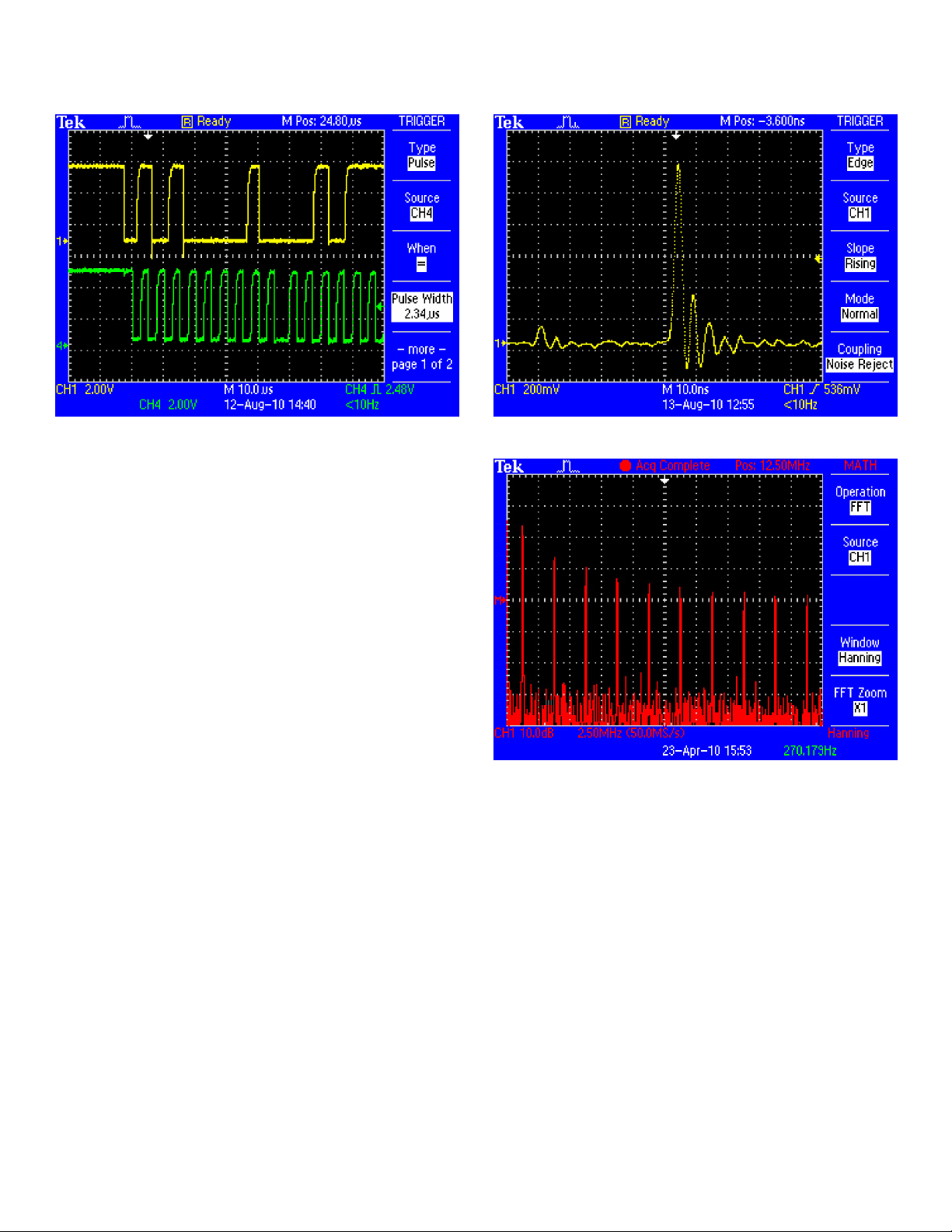

Quickly and easily capture waveforms with advanced triggering.
Performance You Need at a Price You Can
Afford
The TDS2000C Digital Storage Oscilloscope Series provides you with
affordable performance in a compact design. Packed with standard
features – including USB connectivity, 16 automated measu
testing, data logging, and context-sensitive help – the TDS2000C Series
oscilloscopes help you g et more done, in less time.
rements, limit
Digital Precision for Accurate Measurements
With up to 200 MHz bandwidth and 2 GS/s maximum sample rate, no other
digital storage oscilloscope offers as much bandwidth and sample rate for
the price. Tektronix proprietary sampling technolog y provides real-time
sampling with a minimum of 10X oversampling on all channels, all the time
to accurately capture your signals. Sampling performance is not reduced
when using multiple channels.
Critical Tools for Troubleshooting Your Device
Advanced trigg ers – rising/falling edge, pulse width, and video – help you
ly isolate your signals of interest. Once you’ve captured a signal,
quick
advanced math capabilities and automated measurements can speed your
analysis. Quickly perform an FFT or add, subtract, or multiply waveforms.
Sixteen automated measurements quickly and reliably calculate important
signal characteristics such as frequency or rise time, while the built-in Limit
Test function enables you to easily identify problems in your signal.
See all the details other oscilloscopes might miss with Tektronix proprietary digital
real-time sampling.
Quickly perform an FFT with the advanced math functions.
Designed to Make Your Work Easy
The TDS2000C Series oscilloscopes are designed with the ease of use and
familiar operation you have come to expect from Tektronix.
Intuitive Operation
The intuitive user interface with dedicated per-channel vertical controls,
auto-setup, and auto-ranging makes these instruments easy to use,
reducing learning time and increasing efficiency.
2 www.tektronix.com
Digital Storage Oscilloscopes — TDS2000C Series

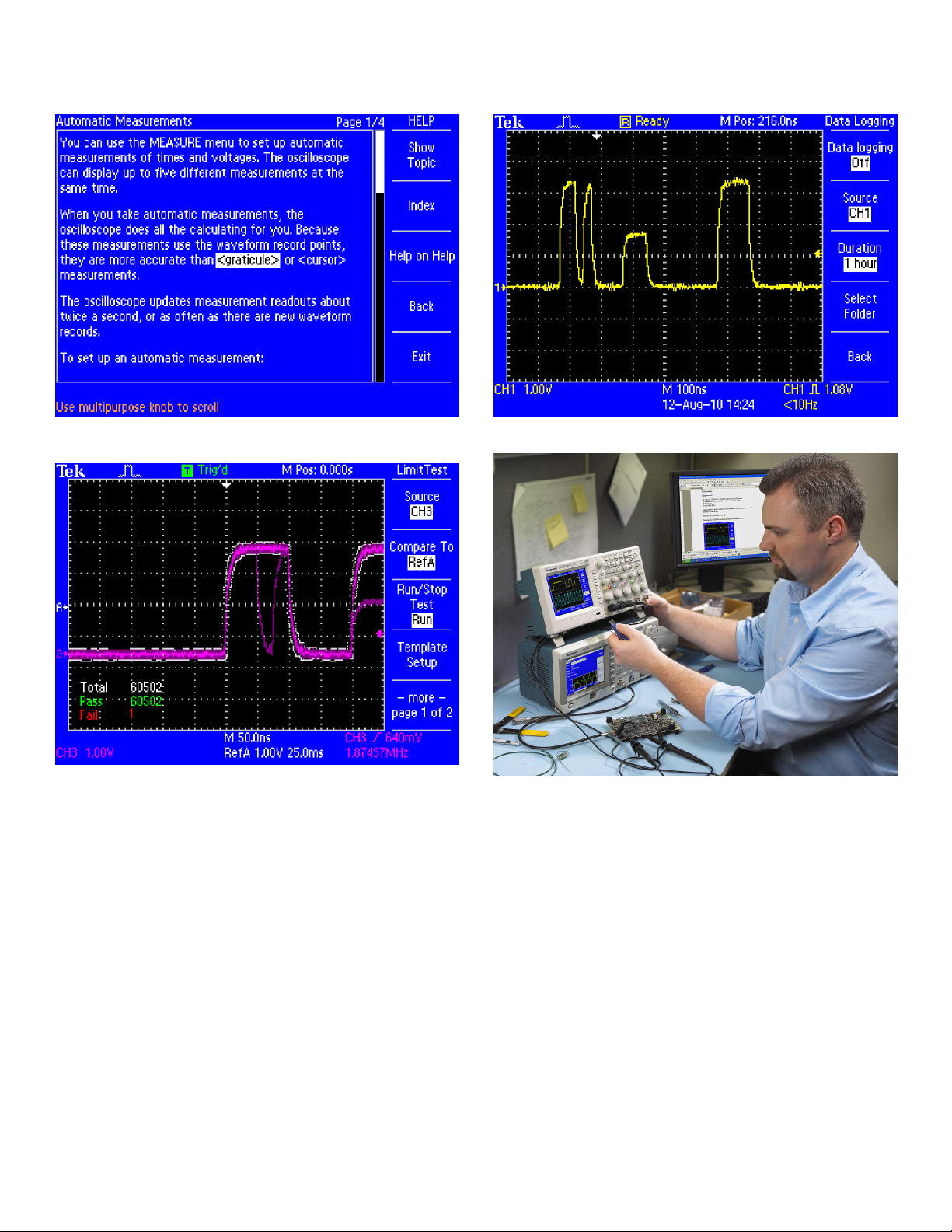

The contex
you are wor
Limit Test provides a quick pass/fail comparison of any triggered input signal to a
user-defined template.
t-sensitive Help system provides important information specifictothetask
king on.
Help When You Need It, Where You Need It
The built-in Help menu pro vide s you with important information on your
oscilloscope’s features and functions. Help is provided in the same
languages as the user interface.
Probe Check Wizard
Check out your probe compensation before making measurements with just
one button that starts a fast, easy procedure.
Limit Test
The oscilloscope can automatically monitor source signals and output Pass
or Fail results by judging whether the input waveform is within predefined
Data Logging enables automatic saving of triggered waveforms for up t o 8 hours.
Conveniently use your USB flash drive to store screenshots and waveform data.
daries. Specific actions can be triggered on violation including
boun
stopping waveform acquisition, stopping Limit Test functions, saving the
failed waveform data or screen image to a USB memory device, or any
combination of the above. This is an ideal solution for manufacturing or
service applications where you need to make decisions quickly.
Flexible Data Transfer
The USB host port on the front panel enables you to save your instru ment
settings, screenshots, and waveform data in a flash. The built-in
data logging feature means you can set up your oscilloscope to save
user-specified triggered waveforms to a USB memory device for up to
8hours.
www.tektronix.com 3
Data Sheet

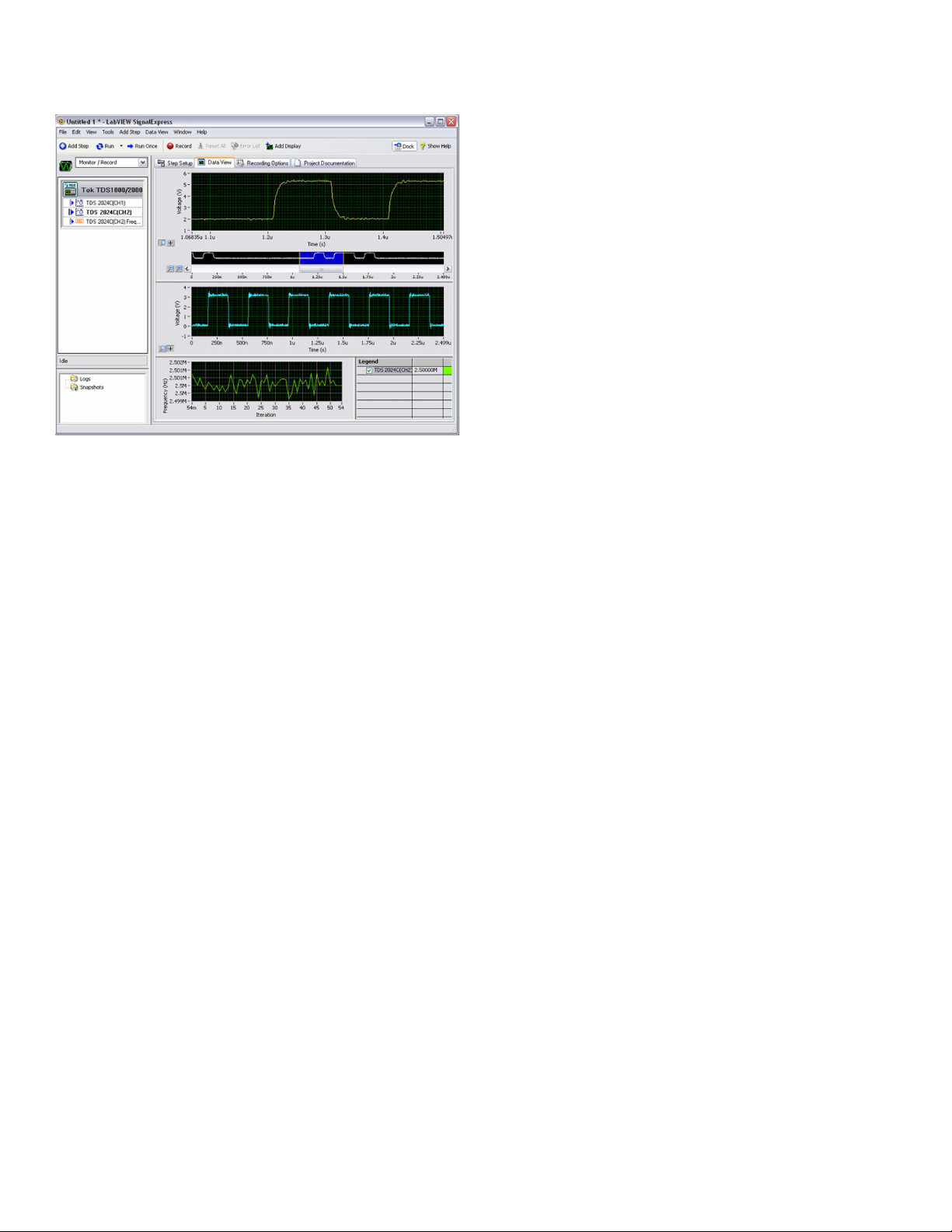

Easily capture, save, and analyze measurement results with included National
Instrument’s LabVIEW SignalExpress, Limited Tektronix Edition software.
Easy PC Co
Easily capture, save, and analyze measurements results by connecting
to your PC
OpenChoice PC Communications Software. Simply pull screen images
nnectivity
with the rear-panel USB device port and the included copy of
and waveform data into the stand-alone desktop application or directly
into Microsoft Word and Excel. Alternatively, if you prefer not to use your
PC, you can simp
ly print your image directly to any PictBridge-comp atible
printer.
Connect Your Bench for Intelligent Debug
Every TDS2 000C Series oscilloscope ships with an included copy of the
Limited Tektronix Edition of National Instrument’s LabVIEW SignalExpress
for basic instrument control, data logging, and analysis.
SignalExpress supports the range of Tektronix
bench instruments*
2
enabling you to connect your entire test bench. You can then access the
feature-rich tools packed into each instrument from one intuitive software
interface. This allows yo u to automate complex measurements requiring
multiple instruments, log data for an extended period of time, time correlate
data from multiple instruments, and easily capture and analyze your results,
all from your PC. Only Tektronix offers a conne
cted test bench of intelligent
instruments to simplify and speed debug of your complex design.
Performance You Can Count On
In addition to industry-leading service and support, every TDS2000C Series
oscilloscope comes backed with a Lifetime Warranty*
*1Limitations apply. For terms and conditions, visit www.tektronix.com/lifetimewarranty.
2
*
For a complete listing of Tektronix instruments supported by NI LabVIEW Signal Express, visit
www.tektronix.com/signalexpress.
1
as standard.
4 www.tektronix.com
Characteristics
Digital Storage Oscilloscopes — TDS2000C Series
TDS2000C Seri
Display (QVGA
es Digital Storage Oscilloscopes
TDS2001C TDS2002C TDS2004C TDS2012C TDS2014C TDS2022C TDS2024C
TFT TFT TFT TFT TFT TFT TFT
LCD)
Bandwidth*
3
Channels
External Trigger
50 MHz 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 200 MHz
2242424
Included on all models
Input
Sample Rate on
500 MS/s 1.0 GS/s 1.0 GS/s 2.0 GS/s 2.0 GS/s 2.0 GS/s 2.0 GS/s
Each Channel
Record Length 2.5k points at all time bases on all models
Vertical Resolution 8 bits
Vertical Sensitivity 2 mV to 5 V/div on all models with calibrated fine adjustment
DC Vertical
±3% on all models
Accuracy
Vertical Zoom
Maximum Input
Voltage
Position Range
300 V
Vertically expand or compress a live or stopped waveform
CAT II; derated at 20 dB/decade above 100 kHz to 13 V
RMS
2mVto200mV/div+2V
p-p
>200 mV to 5 V/div +50 V
Bandwidth Limit
20 MHz for all models
Input Coupling AC, DC, GND on all models
Input Impedance
Time Base Range
Time Base
5nsto50s/div 5nsto50s/div 5nsto50s/div 2.5nsto50s/div 2.5nsto50s/div 2.5nsto50s/div 2.5nsto50s/div
1MΩ in parallel with 20 pF
50 ppm
Accuracy
Horizontal Zoom
I/O Interfaces
Horizontally expand or compress a live or stopped waveform
USB Ports USB host port on front panel supports USB flash drives
USB device port o n back of instrument supports connection to PC and all PictBridge-compatible printers
GPIB Optional
Nonvolatile Storage
Reference
(2) 2.5k point reference waveforms
Waveform Display
Waveform Storage
(2) 2.5k point (2) 2.5k point (4) 2.5k point (2) 2.5k point (4) 2.5k point (2) 2.5k point (4) 2.5k point
without USB Flash
Drive
Maximum USB
64 GB
Flash Drive S ize
Waveform Storage
96 or more reference waveforms per 8 MB
with USB Flash
Drive
Setups without USB
10 front-panel setups
Flash Drive
Setups with USB
4000 or more front-panel setups per 8 MB
Flash Drive
Screen Images with
128 or more screen images per 8 MB (the number of images depends on file format selected)
USB Flash Drive
Save All with USB
Flash Drive
*3Bandwidth is 20 MHz at 2 mV/div , all models.
A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)
12 or more Save All operations per 8 MB
AC at 3 MHz
www.tektronix.com 5
Data Sheet
Acquisition Modes
Mode Description
Peak Detect
High-frequency and random glitch capture. Captures glitches
as narrow as 12 ns (typical) at all time base settings from
5 μs/divto50s/div
Sample Sample data only
Average
Waveform averaged, selectable: 4, 16, 64, 128
Single Sequence Use the Single Sequence button to capture a single triggered
acquisition sequence
Roll
At acquisition time base settings of >100 ms/div
Trigger System
Description
Characteri
Trigger Modes
stic
Auto, Normal, Single Sequence
Trigger Types
Trigger Descripti
Edge
(Rising/F
alling)
Conventional level-driven trigger. Positive or negative slope
on any channel. Coupling selections: AC, DC, Noise Reject,
on
HF Reject, LF Reject
Video
Trigger on all lines or individual lines, odd/even or all fields
from composite video, or broadcast standards (NTSC, PAL,
SECAM)
r on a pulse width less than, greater than, equal to, or
Pulse Width (or
glitch)
er So urce
Trigg
Characteristic
2-channel Models
4-channel Models
Trigge
al to, a selectable time limit ranging from 33 ns to 10 s
not equ
Description
CH1, CH2, Ext, Ext/5, AC Line
CH1,CH2,CH3,CH4,Ext,Ext/5,ACLine
Trigger View
Displays trigger signal while Trigger View button is depressed.
ger Signal Frequen cy Readout
Trig
Provides a frequency readout of the trigger source.
Cursors
Characteristic
Description
Types Amplitude, Time
Measurements
ΔT, 1 / ΔT, ΔV
Automatic Waveform Measurements
Period, Frequency, +Width, –Width, Rise Time, Fall Time, Max, Min,
Peak-to-Peak, Mean, RMS, Cycle RMS, Cursor RMS, Duty Cycle, Phase,
Delay
Waveform Math
Characteristic
Description
Operators Add, Subtract, Multiply, FFT
FFT Windows: Hanning, Flat Top, Rectangular
2048 sample points
Sources
2-channel models
4-channel models
CH1 – CH2, CH2 – CH1, CH1 + CH2, CH1 × CH2
CH1 – CH2, CH2 – CH1, CH3 – CH4, CH4 – CH3, CH1 +
CH2, CH3 + CH4, CH1 × CH2, CH3 × CH4
Autoset Menu
Single-but
systems, w
Signal Type Autoset Menu Choices
ton, automatic setup of all channels for vertical, horizontal, and trigger
ith undo Autoset.
Square Wave Single Cycle, Multicycle, Rising or Falling Edge
Sine Wave Single Cycle, Multicycle, FFT Spectrum
Video (NTSC, PAL,
SECAM)
Field: All, Odd, or Even
Line: All or Selectable Line Number
Autorange
Automatically adjust vertical and/or horizontal oscilloscope settings when
probe is moved from point to point, or when the signal exhibits large changes.
Display Ch ar acteristics
Characteristic
Display
Interpolation
Description
QVGA Active Color TFT
Sin(x)/x
Display Types Dots, vectors
Persistence
Off,1s,2s,5s,infinite
Format YT and XY
Multiple-language U ser Interface and Context-sensitive Help
Characteristic
Languages
Available
Description
English, French, German, Italian, Japanese, Korean,
Portuguese, Russian*
4
,Simplified Chinese, Spanish,
Traditional Chinese
*4Requires Russian firmware, indicated by "RUS" suffix.
Environmental and Safety
Characteristic
Description
Temperature
Operating 0 to +50 °C
Nonoperating
–40to+71°C
Humidity
Operating and
nonoperating
Up to 80% RH at or below +40 °C
Upto45%RHupto+50°C
Altitude
Operating and
Up to 3,000 m
nonoperating
Electromagnetic
Compatibility
Meets Directive 2004/108/EC, EN 61326-2-1 Class A;
Australian EMC Framework
Safety UL61010-1:2004, CSA22.2 No. 61010-1:2004,
EN61010-1:2001, IEC61010-1:2001
6 www.tektronix.com
Digital Storage Oscilloscopes — TDS2000C Series
Physical Characteristics
Instrument
Dimensions
mm
in.
Width 326.3 12.85
Height 158.0 6.22
Depth 124.2 4.89
Weight kg lb.
Instrument Only
2.0 4.4
With accessories 2.2 4.9
Instrument Shipping
Package Dimensions mm in.
Width 476.2 18.75
Height 266.7 10.5
Depth 228.6 9.0
RM2000B Rackmount mm in.
Width 482.6 19.0
Height 177.8 7.0
Depth 108.0 4.25
Ordering Information
Models
Model Description
TDS2001C 50 MHz, 2 Ch, 500 MS/s, TFT DSO
TDS2002C 70 MHz, 2 Ch, 1 GS/s, TFT DSO
TDS2004C 70 MHz, 4 Ch, 1 GS/s, TFT DSO
TDS2012C 100 MHz, 2 Ch, 2 GS/s, TFT DSO
TDS2014C 100 MHz, 4 Ch, 2 GS/s, TFT DSO
TDS2022C 200 MHz, 2 Ch, 2 GS/s, TFT DSO
TDS2024C 200 MHz, 4 Ch, 2 GS/s, TFT DSO
Standard Accessories
Accessory Description
Passive Probes
TPP0101: 100 MHz passive probe for
TDS2001C/TDS2002C/TDS2004C
TPP0201: 200 MHz passive probe for
TDS2012C/TDS2014C/TDS2022C/TDS2024C
Power Cord (Please specify plug option)
NIM/NIST Traceable Certificate of Calibration
Documentation
OpenChoice PC
Communications
Software
National
Instruments
SignalExpress
Tektronix Edition
Interactive
Measurement
Software – Base
Version
User Manual (Please specify preferred language option)
Enables fast and easy communication between a Windows
PC and the TDS2000C Series using USB. Transfer and save
settings, waveforms, measurements, and screen images
A fully interactive measurement software environment
optimized for the TDS2000C Series. Enables you to
instantly acquire, generate, analyze, compare, import,
and save measurement data and signals using an intuitive
drag-and-drop user interface that does not require any
programming. Standard TDS2000C Series support for
acquiring controlling, viewing, and exporting your live signal.
A 30-day trial period of the Professional Version provides
additional signal processing, advance analysis, mixed signal,
sweeping, limit testing, and user-defined step capabilities.
Order SIGEXPTE for permanent Professional Version
capability
Limited Lifetime
Warranty*
*5Lifetime is defined as 5 years after Tektronix discontinues manufacturing the product, but the
6
*
5
warranty length shall be at least ten years from date of original purchase. Lifetime warranty is
nontransferable, proof of original purchase is required. Limitations apply. For terms and conditions visit
www.tektronix.com/lifetimewarranty.
Probes and accessories are not covered by the oscilloscope warranty and Service Offerings. Refer to the
data sheet of each probe and accessory model for its unique warranty and calibration terms.
Covers labor and parts for defects in materials and
workmanship for a minimum of 10 years, excluding probes
and accessories*
6
Power Plug Options
ription
Option
A0 Nort
A1 Univ
A2 Unit
A3 Aust
A5
A6 Jap
A10
A11 Ind
A99
Desc
hAmerica
ersal Euro
ed Kingdom
ralia
Switzerland
an
China
ia
No power cord or AC adapter
www.tektronix.com 7
Data Sheet
User Manual Options
Translated front-panel overlays included with their respective user manuals.
Option
Description
L0 English manual
L1 French manual
L2 Italian manual
L3
L4
German manual
Spanish manual
L5 Japanese manual
L6 Portuguese manual
L7
L8
Simple Chinese manual
Standard Chinese manual
L9 Korean manual
L10 Russian manual
Recommended Accessories
Accessory Description
TEK-USB-488 GPIB-to-USB converter
SIGEXPTE National Instruments SignalExpress Tektronix Edition
Interactive Measurement Software–ProfessionalVersion
AC2100 Soft Carrying Case for Instrument
HCTEK4321 Hard Plastic Carrying Case for Instrument (requires AC2100)
RM2000B Rackmount Kit
071-1075-xx
071-1828-xx
174-4401-xx
Programmer Manual – English Only
Service Manual – English Only
USB host to device cable, 3 ft. long
Recommended Probes
Probe Description
TPP0101 10X Passive Probe, 100 MHz bandwidth
TPP0201 10X Passive Probe, 200 MHz bandwidth
P2220
P6101B
P6015A
P5100
P5200
P6021
P6022
A621
A622
1X/10X Passive Probe, 200 MHz bandwidth
1XPassiveProbe(15MHz,300V
CAT II rating)
RMS
1000X High-voltage Passive Probe (75 MHz)
100X High-voltage Passive Probe (250 MHz)
High-voltage Active Differential Probe (25 MHz)
15 A, 60 MHz AC-current Probe
6 A, 120 MHz AC-current Probe
2000 A, 5 to 50 kHz AC-current Probe
100 A, 100 kHz AC/DC Current Probe/BNC
TCP303/TCPA300 150 A, 15 MHz AC/DC Current Probe/Amplifier
TCP305/TCPA300 50 A, 50 MHz AC/DC Current Probe/Amplifier
TCP312/TCPA300 30 A, 100 MHz AC/DC Current Probe/Amplifier
TCP404XL/TCPA400 500 A, 2 MHz AC/DC Current Probe/Amplifier
6
Service Op
Option
tions*
Description
C3 Calibration Service 3 Years
C5 Calibration Service 5 Years
D1
D3
D5
Calibration Data Report
Calibration Data Report 3 Years (with Opt. C3)
Calibration Data Report 5 Years (with Opt. C5)
CA1 Provides a single calibration event or coverage for the
designated calibration interval, whichever comes first
*6Probes and accessories are not covered by the oscilloscope warranty and Service Offerings. Refer to the
data sheet of each probe and accessory model for its unique warranty and calibration terms.
Service Offerings (Available after purchase)
Option
Description
TDSxxxxC-CA1 Provides a single calibration event or coverage for the
designated calibration interval, whichever comes first
re manufactured in ISO registered facilities.
Product(s) a
Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with Tektronix
Standard Codes and Formats.
8 www.tektronix.com
Digital Storage Oscilloscopes — TDS2000C Series
www.tektronix.com 9
Data Sheet
10 www.tektronix.com
Digital Storage Oscilloscopes — TDS2000C Series
www.tektronix.com 11
Data Sheet
Contact Tektronix:
ASEAN / Australa
Balkans, Israel, South Africa an d other ISE Countries +41 52 675 3777
Central East Eu
Mexico, Central/South America & Caribbean (52) 56 04 50 90
* European toll-free number. If not accessible, call: +41 52 675 3777
rope, Ukraine, and the Baltics +41 52 675 3777
Central Europe & Greece +41 52 675 3777
Middle E as t,
Asia, and North Africa +41 52 675 3777
The Netherlands 0080 0 2255 4835*
People’s Rep
Republic of
United K ingdom & Ireland 00800 2255 4835*
sia (65) 6356 3900
Austria 00800 2255 4835*
Belgium 00800 22
Brazil +55(11)37597600
Canada 1 8 00 833 9200
Denmark +4580881401
Finland +41526
France 00800 2255 4835*
Germany 00800 2255 4835*
Hong Kong 400 8
India 000 800 650 1835
Italy 00800 2255 4835*
Japan 81 (3) 6 7
Luxembourg +41526753777
ublic of China 400 820 5835
Poland +41 52 675 3777
Korea 001 800 8255 2835
Russia & CIS +7 (495) 7484900
South Africa +41526753777
Spain 00800
Sweden 008 00 2255 4835*
Switzerland 00800 2255 4835*
Tai wa n 886 (
55 4835*
75 3777
20 5835
14 3010
Norway 800 16098
Portugal 80 08 12370
2255 4835*
2) 2722 9622
USA 1 800 833 9200
Updated 25 May 2010
www.tektronix.com
For Further Information. Tektronix maintains a comprehensive, constantly expanding
collection of application notes, technical bri efs and other resources to help engineers working
on the cutting edge of technology. Please visit www.tektronix.com
t © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents,
Copyrigh
d pending. Information in this publication supersedes that in all previously published material.
issued an
tion and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of
Specifica
x, Inc. All other trade names referenced are the service marks, trademarks, or registered trademarks
Tek t ro n i
espective companies.
of their r
20 Sep 2010 3GW-25645-0
Loading...
