Teka TKI4 215 User guide
TKI4 215
Please read this manual first!
Dear Customer,
hope that your product, which has been produced in modern plants and
We
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
C Important information or useful usage tips.
A Warning against dangerous conditions for life and property.
B Warning against electric voltage.
Recycling
8LMWTVSHYGXMWWYTTPMIH[MXLXLIWIPIGXMZIWSVXMRKW]QFSPJSV[EWXIIPIGXVMGEP
ERHIPIGXVSRMGIUYMTQIRX;)))
8LMWQIERWXLEXXLMWTVSHYGXQYWXFILERHPIHTYVWYERXXS)YVSTIER(MVIGXMZI
)'MRSVHIVXSFIVIG]GPIHSVHMWQERXPIHXSQMRMQMWIMXWMQTEGXSR
XLIIRZMVSRQIRX*SVJYVXLIVMRJSVQEXMSRTPIEWIGSRXEGX]SYVPSGEPSVVIKMSREP
EYXLSVMXMIW
)PIGXVSRMGTVSHYGXWRSXMRGPYHIHMRXLIWIPIGXMZIWSVXMRKTVSGIWWEVITSXIRXMEPP]
HERKIVSYWJSVXLIIRZMVSRQIRXERHLYQERLIEPXLHYIXSXLITVIWIRGISJ
LE^EVHSYWWYFWXERGIW
EN
1
CONTENTS
1 Your refrigerator 3
2 Important Safety Warnings 4
Intended use .....................................4
General safety....................................4
For products
Child safety ........................................6
HCA Warning ....................................6
Things to be done for energy saving ..6
with a water dispenser; ....6
3 Installation
Points to be considered when re-
transporting your refrigerator .............7
Before operating your refrigerator ......7
Electric connection ............................7
Disposing of the packaging ...............7
Disposing of your old refrigerator .......8
Placing and Installation ......................8
Replacing the interior light bulb .........8
Reversing the doors ..........................9
4 Preparation 10
5 Using your refrigerator 11
Thermostat setting button................11
Cooling ............................................11
Freezing ...........................................11
Defrost ............................................12
Stopping your product .....................12
6 Maintenance and
7
cleaning
Protection of plastic surfaces ..........13
7 Recommended solutions
for the problems
13
14
EN
2
1 Your refrigerator
10
9
7
8
7
7
6
5
4
1
1
2
1
3
1. Adjustable door shelves
2. Egg tray
3. Bottle shelves
4. Crisper
5. Crisper cover
6. Defrost water collection
channel
8. Wine rack
9. Light bulb and thermostat box
10. a.) Freezing compartment & ice
tray (for models)
b.) Frozen food compartment & ice
tray (for models)
- drain tube
7. Movable shelves
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
EN
3
2 Important Safety Warnings
Please review the following information.
Failure to observe this information may
cause injuries or material damage.
Otherwise, all warranty and reliability
commitments will become invalid.
Original Spare parts will be provided
for 10 years, following the product
purchasing date.
Intended use
This product is intended to be used
– indoors and in closed areas such as
homes;
– in closed working environments
such as stores and offices;
– in closed accommodation areas
such as farm houses, hotels, pensions.
– This product should not be used
outdoors.
General safety
• When you want to dispose/scrap the
product, we recommend you to
consult the authorized service in
order to learn the required
information and authorized bodies.
• Consult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat cone ice
cream and ice cubes immediately
after you take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put bottled
and canned liquid beverages in the
freezer compartment. Otherwise,
these may burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes
of your refrigerator. In such cases,
the vapor may get in contact with
the electrical parts and cause short
circuit or electric shock.
• Never use the parts on your
refrigerator such as the door as a
means of support or step.
• Do not use electrical devices inside
the refrigerator.
• Do not damage the parts, where the
refrigerant is circulating, with drilling
or cutting tools. The refrigerant that
might blow out when the gas
channels of the evaporator, pipe
extensions or surface coatings are
punctured causes skin irritations
and eye injuries.
• Do not cover or block the ventilation
holes on your refrigerator with any
material.
• Electrical devices must be repaired
by only authorised persons. Repairs
performed by incompetent persons
create a risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.
• Do not pull by the cable when
pulling off the plug.
• Place the beverage with higher
proofs tightly closed and vertically.
• Never store spray cans containing
flammable and explosive
substances in the refrigerator.
EN
4
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• This product is not intended to be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are
attended by a person who will be
responsible for their safety or who
will instruct them accordingly for use
of the product.
• Do not operate a damaged
refrigerator. Consult with the service
agent if you have any concerns.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact authorized service when
there is a power cable damage to
avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
• This refrigerator is intended for only
storing food items. It must not be
used for any other purpose.
• Label of technical specifications is
located on the left wall inside the
refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the
refrigerator, do not look at the blue
light with optical tools.
• For manually controlled
refrigerators, wait for at least 5
minutes to start the refrigerator after
power failure.
• This operation manual should be
handed in to the new owner of the
product
when it is given to others.
• Avoid causing damage on power
cable when transporting the
refrigerator. Bending cable may
cause fire. Never place heavy
objects on power cable. Do not
touch the plug with wet hands when
plugging the product.
• Do not plug the refrigerator if the
wall outlet is loose.
• Water should not be sprayed
directly
on inner or outer parts of
the product for safety purposes.
Do not spray substances
•
containing inflammable gases such
as propane gas near the
refrigerator to avoid fire and
explosion risk.
• Never place containers filled with
water on top of the refrigerator,
otherwise this may cause electric
shock or fire.
• Do not overload your refrigerator
with excessive amounts of food. If
overloaded, the food items may fall
down and hurt you and damage
refrigerator when you open the
door. Never place objects on top
of the refrigerator; otherwise, these
objects may fall down when you
open or close the refrigerator's
door.
• As they require a precise
temperature, vaccines, heatsensitive medicine and scientific
materials and etc. should not be
kept in the refrigerator.
EN
5
• If not to be used for a long time,
refrigerator should be unplugged.
A possible problem in power cable
may cause fire.
• The plug's tip should be regularly
cleaned; otherwise, it may cause
fire.
• The plug’s tip should be cleaned
regularly with a dry cloth; otherwise,
it may cause fire.
• Refrigerator may move if adjustable
legs are not properly secured on the
floor. Properly securing adjustable
legs on the floor can prevent the
refrigerator to move.
••When carrying the refrigerator, do
not hold it from door handle.
Otherwise, it may be snapped.
When you have to place your
product next to another refrigerator
or freezer, the distance between
devices should be at least 8 cm.
Otherwise, adjacent side walls may
be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water
mains should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with
the product.
HCA Warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product
is stated in the type plate which is on
the left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is
not prevented.
• Do not install your refrigerator under
direct sunlight or near heat emitting
appliances such as ovens,
dishwashers or radiators.
Pay attention to keep your food in
•
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined by
removing freezer shelf or drawer and
under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide
energy saving and preserve the food
quality.
EN
6
3 Installation
B Please remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be emptied
and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and
etc. in your refrigerator must be
fastened securely by adhesive tape
against any jolt before repackaging.
3. Packaging must be tied with thick
tapes and
rules of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature and
for our national resources.
If you wish to contribute to recycling the
packaging materials, you can get further
information from the environmental
bodies or local authorities.
strong ropes and the
4. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
• The connection must be in
compliance with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal
to your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.
B A damaged power cable must be
replaced by a qualified electrician.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Clean the interior of the refrigerator
as recommended in the
“Maintenance and
section.
3. Plug
the
refrigerator
outlet. When the fridge door is open
the fridge compartment interior light
will come on.
cleaning”
into
the wall
B Product must not be operated before
it is repaired! There is danger of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance with
the waste instructions. Do not
dispose them of along with the
normal household waste.
The packing of your refrigerator is
produced from recyclable materials.
EN
7
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
You may consult your authorized
•
dealer or waste collection center of
your municipality about the disposal of
your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
A If the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. Keep your refrigerator away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in
a recess in the wall, there must be at
least 5 cm distance with the ceiling and
at least 5 cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.
Replacing the interior light
bulb
To change the Bulb/LED used for
illumination of your refrigerator, call
your Authorised Service.
The lamp(s) used in this appliance is
not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in a
safe and comfortable way.
The lamps used in this appliance have
to withstand extreme physical
conditions such as temperatures below
-20°C.
8 EN
Reversing the doors
Proceed in numerical order.
B
C
1
3
6
A
7
8
5
12
2
4
D
E
13
9
11
14
10
9 EN
4 Preparation
C Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
C The ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
C Please make sure that the interior of
your refrigerator is cleaned thoroughly.
C If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
C When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
C Original packaging and foam
materials should be kept for future
transportations or moving.
10 EN
5 Using your refrigerator
Thermostat setting button
The operating temperature is
regulated by the temperature control.
;EVQ 'SPH
3V1MR 1E\
1 = Lowest cooling setting
(Warmest setting)
5 = Highest cooling setting
(Coldest setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
The average temperature inside the
fridge should be around +5°C.
Please choose the setting according
to the desired temperature.
Please note that there will be different
temperatures in the cooling area.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended to
close the door again as soon as
possible after use.
The interior temperature of your
refrigerator changes for the following
reasons:
•
Seasonal temperatures.
•
Frequent opening of the door and
leaving the door open for long
periods.
•
Food put into the refrigerator
without cooling down to the room
temperature .
•
The location of the refrigerator in
the room (e.g. exposing to sunlight).
•
You may adjust the varying interior
temperature due to such reasons
by using the thermostat. Numbers
around the thermostat button
indicates the cooling degrees.
•
If the ambient temperature is higher
than 32°C, turn the thermostat
button to maximum position.
•
If the ambient temperature is lower
than 25°C, turn the thermostat
button to minimum position.
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.
Freezing
Freezing food
The freezing compartment is marked
with this symbol.
You can use the appliance for freezing
fresh food as well as for storing prefrozen food.
Please refer to the recommendations
given on the packaging of your food.
Storing frozen food
The frozen food compartment is
marked with symbol.
The frozen food compartment is
suitable for the storage of pre-frozen
food. The recommendation for storage,
as stated on the food packaging,
should be observed at all times.
11
EN
Defrost
A) Fridge compartment
Fridge compartment performs full-
automatic defrosting.
Water drops and a frosting up to 7-8
mm can occur on the inner rear wall
of the fridge compartment while your
refrigerator cools down. Such
formation is normal as a result of the
cooling system. The frost formation
is defrosted by performing automatic
defrosting with certain intervals thanks
to the automatic defrosting system of
the rear wall. User is not required to
scrape the frost or remove the water
drops. Water resulting from the
defrosting passes from the water
collection groove and flows into the
evaporator through the drain pipe and
evaporates here by itself.

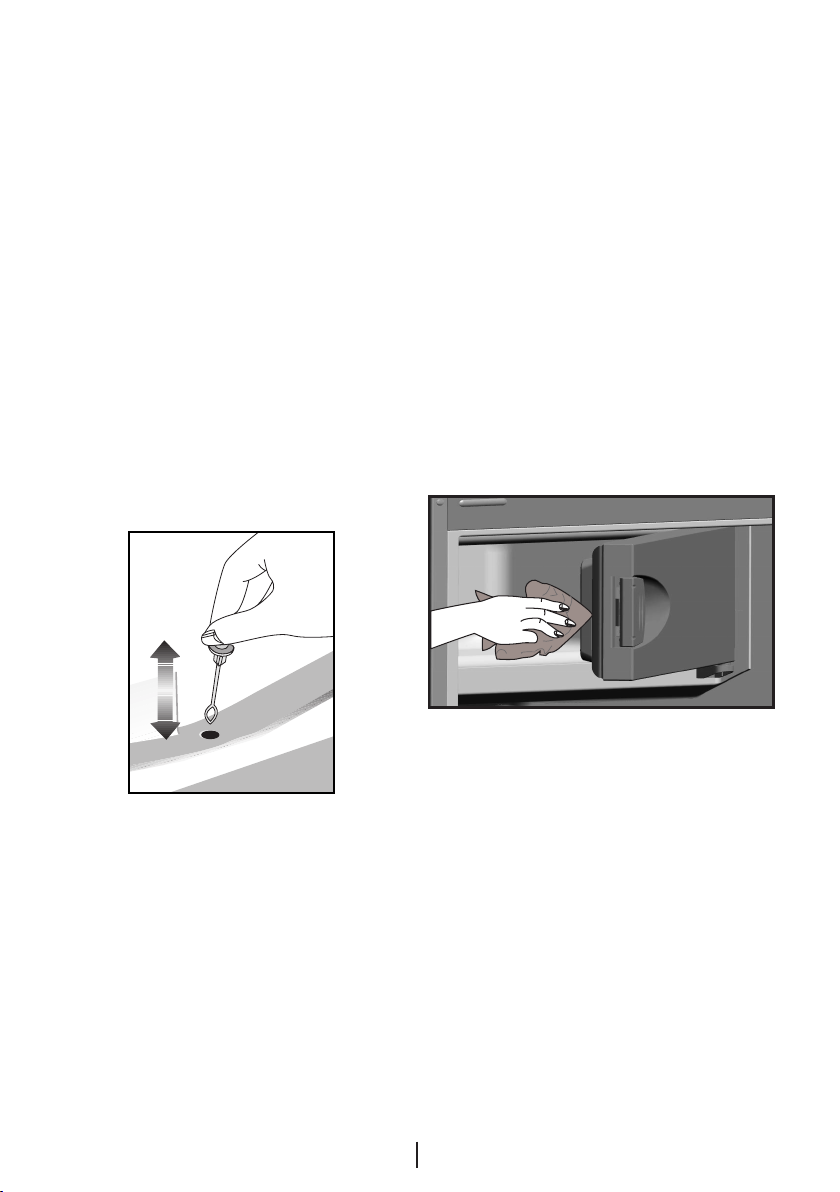

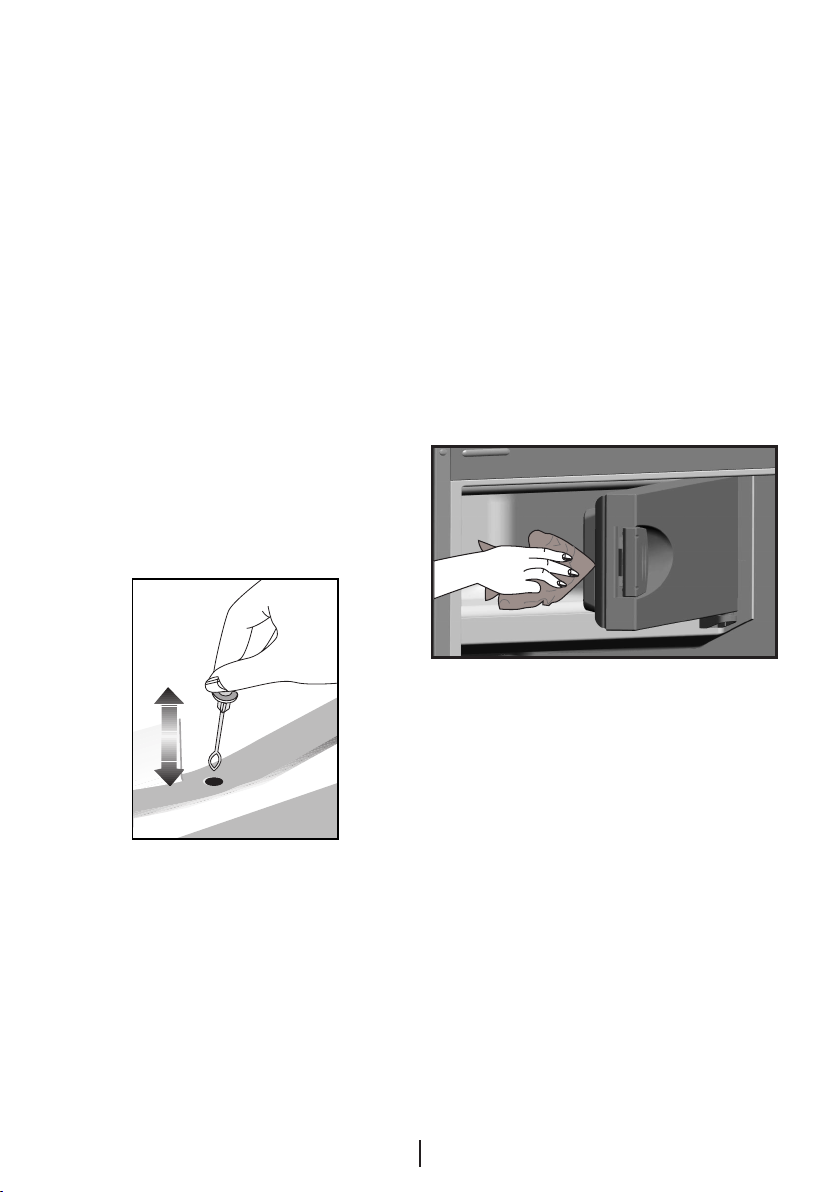

Check regularly to see if the drain
pipe is clogged or not and clear it with
the stick in the hole when necessary.
All food should be wrapped in several
layers of newspaper and stored in a
cool place (e.g. fridge or larder).
Containers of warm
placed carefully in the freezer to speed
up the defrosting.
Do not use pointed or sharp-edged
objects, such as knives or forks to
remove the frost.
Never use hair dryers, electrical
heaters or other such electrical
appliances for defrosting.
Sponge out the defrost water
collected in the bottom of the freezer
compartment. After defrosting, dry the
interior thoroughly.
Insert the plug into the wall socket and
switch on the electricity supply.
water may be
B) Freezer compartment
Deep freezer compartment does not
perform automatic defrosting in order
to prevent decaying of the frozen food.
Defrosting is very straightforward and
without mess, thanks to a special
defrost collection basin.
Defrost twice a year or when a frost
layer of around 7 (1/4”) mm has formed.
To start the defrosting procedure,
switch off the appliance at the socket
outlet and pull out the mains plug.
12
Stopping your product
If your thermostat is equipped with
“0” position:
- Your product will stop operating when
you turn the thermostat button to
“0” (zero) position. Your product will not
start unless to you turn the thermostat
button to position “1”
positions again.
If your thermostat is equipped with
“min” position:
- Unplug your product to stop it.
EN
or one of the other
6 Maintenance and cleaning
A Never use gasoline, benzene or similar
substances for cleaning purposes.
B We recommend that you unplug the
appliance before cleaning.
B Never use any sharp abrasive
instrument, soap, household cleaner,
detergent and wax polish for cleaning.
C Use lukewarm water to clean the
cabinet of your refrigerator and wipe it
dry.
C Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
B Make sure that no water enters the
lamp housing and other electrical
items.
B If your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
Protection of plastic
surfaces
C Do not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the plastic
surfaces of your refrigerator. In case of
spilling or smearing oil on the plastic
surfaces, clean and rinse the relevant
part of the surface at once with warm
water.
C Check door seals regularly to ensure
they are clean and free from food
particles.
A To remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
13 EN
7 Recommended solutions for the problems
Please review this list before calling the service. It might save you time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The refrigerator does not operate.
• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse
blown out? Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL
CONTROL and FLEXI ZONE).
• Very cold ambient conditions. Frequent opening and closing of the door. Highly
humid ambient conditions. Storage of food containing liquid in open containers.
Leaving the door ajar. Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running.
• Protective thermic of the compressor will blow out during sudden power
failures or plug-out plug-ins as the refrigerant pressure in the cooling system of
the refrigerator has not been balanced yet. Your refrigerator will start running
approximately after 6 minutes. Please call the service if the refrigerator does not
startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting
refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that the plug is
properly fit into the socket.
• Are the temperature adjustments correctly made?
• Power might be cut off.
14
EN
The fridge is running frequently or for a long time.
• Your new product may be wider than the previous one. This is quite normal.
Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded
with food. Cooling down of the refrigerator completely may last for a couple of
hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot
food causes longer running of the refrigerator until they reach the safe storage
temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm
air that has entered into the refrigerator causes the refrigerator to run for longer
periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors
are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly
seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator
to run for a longer period of time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature might have been adjusted to a very low temperature.
Adjust the fridge temperature to a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.
• The fridge temperature might have been adjusted to a very low temperature.
Adjust the fridge temperature to a warmer degree and check.
15 EN
Temperature in the fridge or freezer is very high.
• The fridge temperature might have been adjusted to a very high degree.
Fridge adjustment has an effect on the temperature of the freezer. Change the temperature
of the fridge or freezer until the fridge or freezer temperature reaches
to a sufficient level.
• Doors might have been opened frequently or left ajar for a long time; open them less
frequently.
• Door might have been left ajar; close the door completely.
• Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge
or freezer reaches the desired temperature.
• The refrigerator might have been plugged in recently. Cooling down of the refrigerator
completely takes time.
The operation noise increases when the refrigerator is running.
• The operating performance of the refrigerator may change due to the changes in the ambient
temperature. It is normal and not a fault.
Vibrations or noise.
• The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that
the floor is strong enough to carry the refrigerator, and level.
• The noise may be caused by the items put onto the refrigerator. Items on top of the
refrigerator should be removed.
There are noises coming from the refrigerator like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your refrigerator.
It is normal and not a fault.
There is a noise like wind blowing.
• Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• Doors might have been left ajar; make sure that the doors are closed fully.
• Doors might have been opened frequently or left ajar for a long time; open them less
frequently.
Humidity occurs on the outside of the refrigerator or between the doors.
• There might be humidity in the air; this is quite normal in humid weather. When the
humidity is less, condensation will disappear.
Bad odour inside the refrigerator.
• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge,
lukewarm water or carbonated water.
• Some containers or package materials might cause the smell. Use a different container or
different brand packaging material.
The door is not closing.
• Food packages may prevent the door's closing. Replace the packages that are obstructing
the door.
• The refrigerator is not completely upright on the floor and rocking when slightly moved.
Adjust the elevation screws.
• The floor is not level or strong. Make sure that the floor is level and capable to carry the
refrigerator.
Crispers are stuck.
• The food might be touching the ceiling of the drawer. Rearrange food in the
drawer.
EN
16
Lea este manual antes de utilizar el frigorífico.
Estimado cliente:
Esperamos que este aparato, que ha sido fabricado en plantas dotadas de
la más avanzada tecnología y sometido a los más estrictos procedimientos de
control de calidad, le preste un servicio eficaz.
Para ello, le recomendamos que lea atentamente el presente manual antes de
utilizar el aparato, y que lo tenga a mano para futuras consultas.
Este manual
• Le ayudará a usar el electrodoméstico de manera rápida y segura.
• Lea el manual antes de instalar y poner en funcionamiento el aparato.
• Siga las instrucciones, en particular las relacionadas con la seguridad.
• Conserve el manual en un sitio de fácil acceso, ya que podría necesitarlo en
el futuro.
• Lea también los demás documentos suministrados junto con el aparato.
Tenga en cuenta que este manual también podría ser válido para otros modelos.
Símbolos y sus descripciones
El presente manual de instrucciones emplea los siguientes símbolos:
C Información importante o consejos útiles sobre el funcionamiento.
A Advertencia sobre situaciones peligrosas para la vida y la propiedad.
B Advertencia acerca de la tensión eléctrica.
)WXITVSHYGXSMRGSVTSVEIPW¿QFSPSHIVIGSKMHEWIPIGXMZEHIVIWMHYSWHI
IUYMTSWIPÃGXVMGSW]IPIGXVºRMGSW
)PPSWMKRMJMGEUYIIWXITVSHYGXSHIFI WIV QERMTYPEHS XIRMIRHS IR GYIRXE PE
(MVIGXMZE)YVSTIE)'IRSVHIRHIWIVVIGMGPEHSSVIGYTIVEHS
TEVEQMRMQM^EVWYMQTEGXSIRIPQIHMSEQFMIRXI4EVEQÉWMRJSVQEGMºR
VSKEQSWGSRXEGXIGSRPEWEYXSVMHEHIWPSGEPIWSVIKMSREPIWQÉWTVº\MQEWE
WYHSQMGMPMS
0SWTVSHYGXSW IPIGXVºRMGSW RS MRGPYMHSW IR IP TVSGIWS HI VIGSKMHE WIPIGXMZE
WSRTSXIRGMEPQIRXITIPMKVSWSWTEVEIPQIHMSEQFMIRXI]PEWEPYHLYQERE
HIFMHSEPETVIWIRGMEHIGMIVXEWWYWXERGMEW
ES
1
ÍNDICE
1 Su frigorífico 3
2 Avisos importantes sobre la
seguridad 4
Finalidad prevista ...............................4
Seguridad general ..............................4
Productos equipados con dispensador
de agua:
Seguridad infantil ...............................6
Advertencia sobre la seguridad de la
salud .................................................6
Consejos para el ahorro de energía ...6
3 Instalación
Cuestiones a considerar a la hora de
transportar el frigorífico ......................7
Antes de usar el frigorífico ..................7
Conexiones eléctricas........................7
Eliminación del embalaje ....................8
Eliminación de su viejo frigorífico ........8
Colocación e instalación ....................8
Sustitución de la bombilla interior ......8
Inversión de las puertas .....................9
............................................6
7
4 Preparación
5 Uso del frigorífico
Botón de ajuste del termostato ........11
Refrigeración ...................................11
Congelación ....................................11
Deshielo ..........................................12
Parada del aparato ..........................12
10
11
6 Mantenimiento y
limpieza
Protección de las superficies de
plástico ...........................................13
13
7 Sugerencias para la
solución de problemas
14
ES
2
1 Su frigorífico
10
9
7
8
7
7
6
5
4
1
1
2
1
3
1. Estantes de la puerta ajustables
2. Huevera
3. Estantes para botellas
4. Cajón de frutas y verduras
5. Tapa del cajón de frutas y verduras
6. Canal de recogida del agua de
deshielo - conducto de drenaje
8. Rejilla para vino
9. Bombilla y termostato
10. a.) Compartimento de congelación y
bandeja de hielo (para modelos
)
b.) Compartimento de alimentos
congelados y bandeja de hielo
(para modelos
)
7. Estantes móviles
Las ilustraciones incluidas en el presente manual de instrucciones son
C
esquemáticas y puede que no se adecúen a su aparato con exactitud. Si alguno
de los elementos reflejados no se corresponde con el aparato que usted ha
adquirido, entonces será válido para otros modelos.
ES
3
Loading...
