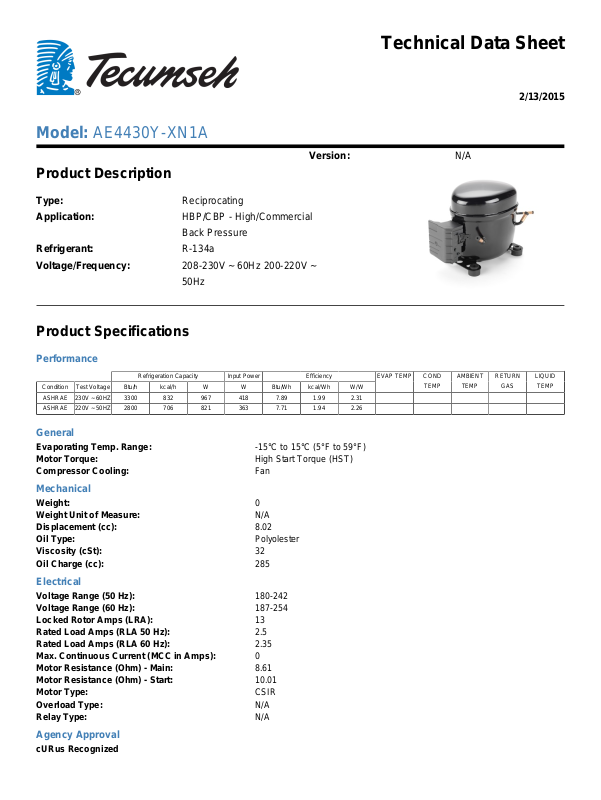

Technical Data Sheet
2/13/2015
Model: AE4430Y-XN1A
|
Version: |
N/A |
Product Description |
|
|
Type: |
Reciprocating |
|
Application: |
HBP/CBP - High/Commercial |
|
|
Back Pressure |
|
Refrigerant: |
R-134a |
|
Voltage/Frequency: |
208-230V ~ 60Hz 200-220V ~ |
|
|
50Hz |
|
Product Specifications
Performance
|
|
|
Refrigeration Capacity |
|
Input Power |
|
Efficiency |
|
EVAP TEMP |
COND |
AMBIENT |
RETURN |
LIQUID |
||
|
|
|
|
|
|
|
|
|
|
|
|
TEMP |
TEMP |
GAS |
TEMP |
Condition |
Test Voltage |
Btu/h |
|
kcal/h |
|
W |
W |
Btu/Wh |
kcal/Wh |
W/W |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASHRAE |
230V ~ 60HZ |
3300 |
|
832 |
|
967 |
418 |
7.89 |
1.99 |
2.31 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASHRAE |
220V ~ 50HZ |
2800 |
|
706 |
|
821 |
363 |
7.71 |
1.94 |
2.26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General
Evaporating Temp. Range: |
-15°C to 15°C (5°F to 59°F) |
Motor Torque: |
High Start Torque (HST) |
Compressor Cooling: |
Fan |
Mechanical
Weight: |
0 |
Weight Unit of Measure: |
N/A |
Displacement (cc): |
8.02 |
Oil Type: |
Polyolester |
Viscosity (cSt): |
32 |
Oil Charge (cc): |
285 |
Electrical
Voltage Range (50 Hz): |
180-242 |
Voltage Range (60 Hz): |
187-254 |
Locked Rotor Amps (LRA): |
13 |
Rated Load Amps (RLA 50 Hz): |
2.5 |
Rated Load Amps (RLA 60 Hz): |
2.35 |
Max. Continuous Current (MCC in Amps): |
0 |
Motor Resistance (Ohm) - Main: |
8.61 |
Motor Resistance (Ohm) - Start: |
10.01 |
Motor Type: |
CSIR |
Overload Type: |
N/A |
Relay Type: |
N/A |
Agency Approval
cURus Recognized
