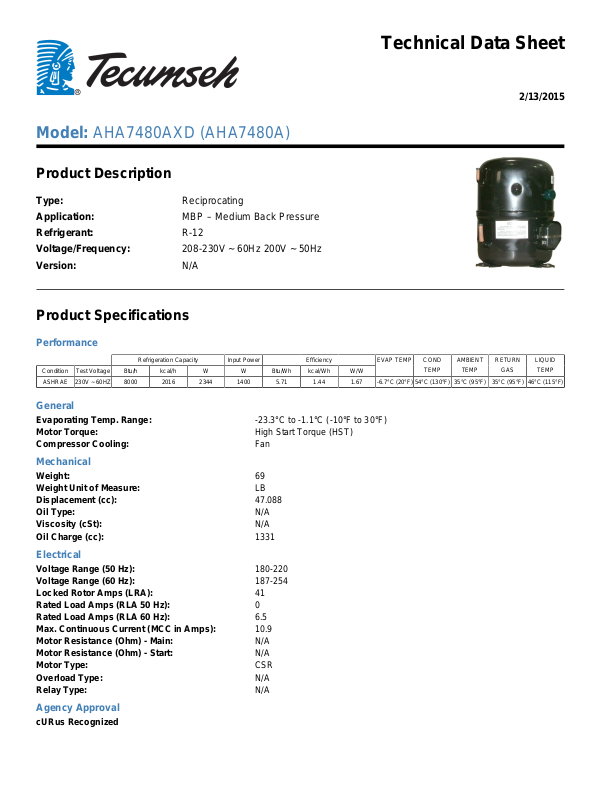

Technical Data Sheet
2/13/2015
Model: AHA7480AXD (AHA7480A)
Product Description
Type: |
Reciprocating |
Application: |
MBP – Medium Back Pressure |
Refrigerant: |
R-12 |
Voltage/Frequency: |
208-230V ~ 60Hz 200V ~ 50Hz |
Version: |
N/A |
Product Specifications
Performance
|
|
|
Refrigeration Capacity |
|
Input Power |
|
Efficiency |
|
EVAP TEMP |
COND |
AMBIENT |
RETURN |
LIQUID |
||
|
|
|
|
|
|
|
|
|
|
|
|
TEMP |
TEMP |
GAS |
TEMP |
Condition |
Test Voltage |
Btu/h |
|
kcal/h |
|
W |
W |
Btu/Wh |
kcal/Wh |
W/W |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASHRAE |
230V ~ 60HZ |
8000 |
|
2016 |
|
2344 |
1400 |
5.71 |
1.44 |
1.67 |
-6.7°C (20°F) |
54°C (130°F) |
35°C (95°F) |
35°C (95°F) |
46°C (115°F) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General
Evaporating Temp. Range: |
-23.3°C to -1.1°C (-10°F to 30°F) |
Motor Torque: |
High Start Torque (HST) |
Compressor Cooling: |
Fan |
Mechanical
Weight: |
69 |
Weight Unit of Measure: |
LB |
Displacement (cc): |
47.088 |
Oil Type: |
N/A |
Viscosity (cSt): |
N/A |
Oil Charge (cc): |
1331 |
Electrical
Voltage Range (50 Hz): |
180-220 |
Voltage Range (60 Hz): |
187-254 |
Locked Rotor Amps (LRA): |
41 |
Rated Load Amps (RLA 50 Hz): |
0 |
Rated Load Amps (RLA 60 Hz): |
6.5 |
Max. Continuous Current (MCC in Amps): |
10.9 |
Motor Resistance (Ohm) - Main: |
N/A |
Motor Resistance (Ohm) - Start: |
N/A |
Motor Type: |
CSR |
Overload Type: |
N/A |
Relay Type: |
N/A |
Agency Approval
cURus Recognized
