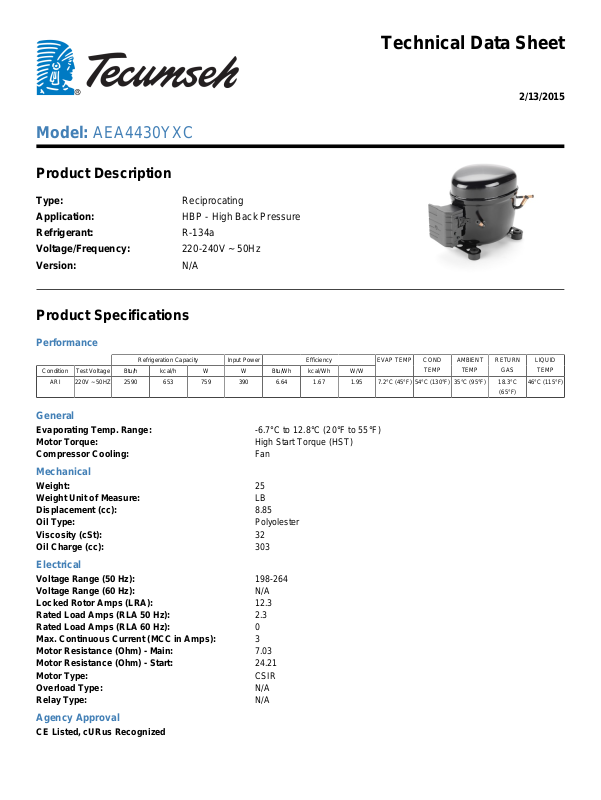

Technical Data Sheet
2/13/2015
Model: AEA4430YXC
Product Description
Type: |
Reciprocating |
Application: |
HBP - High Back Pressure |
Refrigerant: |
R-134a |
Voltage/Frequency: |
220-240V ~ 50Hz |
Version: |
N/A |
Product Specifications
Performance
|
|
|
Refrigeration Capacity |
|
Input Power |
|
Efficiency |
|
EVAP TEMP |
COND |
AMBIENT |
RETURN |
LIQUID |
||
|
|
|
|
|
|
|
|
|
|
|
|
TEMP |
TEMP |
GAS |
TEMP |
Condition |
Test Voltage |
Btu/h |
|
kcal/h |
|
W |
W |
Btu/Wh |
kcal/Wh |
W/W |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ARI |
220V ~ 50HZ |
2590 |
|
653 |
|
759 |
390 |
6.64 |
1.67 |
1.95 |
7.2°C (45°F) |
54°C (130°F) |
35°C (95°F) |
18.3°C |
46°C (115°F) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(65°F) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General
Evaporating Temp. Range: |
-6.7°C to 12.8°C (20°F to 55°F) |
Motor Torque: |
High Start Torque (HST) |
Compressor Cooling: |
Fan |
Mechanical
Weight: |
25 |
Weight Unit of Measure: |
LB |
Displacement (cc): |
8.85 |
Oil Type: |
Polyolester |
Viscosity (cSt): |
32 |
Oil Charge (cc): |
303 |
Electrical
Voltage Range (50 Hz): |
198-264 |
Voltage Range (60 Hz): |
N/A |
Locked Rotor Amps (LRA): |
12.3 |
Rated Load Amps (RLA 50 Hz): |
2.3 |
Rated Load Amps (RLA 60 Hz): |
0 |
Max. Continuous Current (MCC in Amps): |
3 |
Motor Resistance (Ohm) - Main: |
7.03 |
Motor Resistance (Ohm) - Start: |
24.21 |
Motor Type: |
CSIR |
Overload Type: |
N/A |
Relay Type: |
N/A |
Agency Approval
CE Listed, cURus Recognized
