Teac LES6572F3D User Manual

Download

LES6572F3D

support@teac.com.au

The screen and cabinet get warm when the TV is in use. This is not a malfunction.In case of smoke, strange noise or strange smell from the unit:

· Turn off the power switch immediately;

· Disconnect the power plug from the power outlet;

· Contact your dealer or service centre. Never attempt to make repairs yourself because this could be dangerous.

High Voltage Do not open

Risk of electronic shock, do not open. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

CAUTION

Important Safety Instructions

Important Safety Instructions and Maintenance

Never push objects of any kind into the set through the cabinet slots as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the set. Use special caution in households where children are present. The apparatus is not suitable for children under 3-year to operate.

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

If the following problems occur: Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or service centre to have it checked by qualified service personnel When:

- AC power cord is damaged.

- Poor fitting of AC power outlet.

- TV set is damaged by being dropped, hit or having something thrown at it.

- Any liquid or solid object falls through openings in the cabinet.

Do not overload wall outlets, extension cords or adaptors beyond their capacity, this can result in fire or electrical shock. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance. The mains plug is used as the disconnect device. It shall remain readily accessible and should not be obstructed during intended use. Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet, do not pull the plug out by the wire. NEVER touch the plug or power cord with wet hands. To disconnect the apparatus from the mains power, the plug must be pulled out from the mains socket, therefore make sure the mains plug is always easily accessible.

Safety Precautions

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Important Safety Instructions and Maintenance

Important Safety Instructions

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC mains for environmental and safety reasons. As the TV set is not disconnected from the AC power when the TV is turned off at the standby switch, pull the plug from the AC power outlet to disconnect the TV completely. However, some TV sets may have features that require the TV set to be left in standby to function correctly. In the case of lightning, unplug the TV set from the outlet immediately. Never touch the antenna wire during lightning.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.Ensuring the television is not overhanging the edge of the supporting furniture.

Installation

The ventilation should not be impeded by covering the ventilation opening with items, such as newspapers, tablecloths, curtains, etc. At least 10 cm space should be left around the apparatus for sufficient ventilation.

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Place the apparatus in such a position that the screen is not exposed to direct sunlight. It is best to have soft indirect lighting while watching and avoid

and reflection from the screen as these may cause eye fatigue. Keep the TV set away from any equipment emitting electromagnetic radiation.

completely

dark environments

Do not pull the plug out by the wire; Never touch the plug with wet hands.

Excessive from earphones and headphones can cause hearing loss.

volume

To avoid the fire, no naked flame source, such as lighted candles, should be placed on the apparatus.

Do not push or scratch the front filter, or place any objects on top of the TV set. The image may be uneven or the screen may be damaged.

Safety Precautions

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Important Safety Instructions and Maintenance

Installation

Do not place this apparatus near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or a swimming pool; and the like;

When the TV being moved in from cold place, it needs some right time for dew inside unit evaporating fully before turn on the unit;

Cleaning and handling the screen surface and cabinet. Disconnect the unit from the AC outlet before cleaning. To remove dust, wipe gently with a soft, lint free cloth. If required use a slightly damp cloth.

Do not place the set on an unstable cart, stand, table or shelf. The set may fall, causing serious personal injury as well as damage to the product. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Cleaning

Move

LED Screen Although the LED screen is made with high precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue or green) may appear constantly on the LED screen. This is a structural property of the LED screen and is not a malfunction. If the surface of the LED panel cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result. Do not throw anything at the TV set. The LED panel may break from the impact and cause serious injury.

Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen. Do not display still images and partially still images on the LED panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LED TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

MAINS PLUG

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Use care not to subject the TV's surfaces to detergent. (A liquid inside the TV could lead to product failure, fire or electrical shock.) Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances as this may deteriorate the surface and finish of the cabinet.

solvent

thinner

Safety Precautions

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Table of Contents

Important Information

Accessories-----------------------------------------------------------------------------------------------5 Introduction-----------------------------------------------------------------------------------------------6

Features---------------------------------------------------------------------------------------------------------6 Specifications--------------------------------------------------------------------------------------------------7 Stand and wall-mounting instructions (optional)------------------------------------------------8

--------------------------------------------------------------------------------10 Overview of back panel------------------------------------------------------------------------------------10 Overview of front panel-------------------------------------------------------------------------------------11 Overview of remote control-------------------------------------------------------------------------------12 Installing Batteries in the Remote Control------------------------------------------------------------14

External Connection------------------------------------------------------------------------------14

Antenna connection----------------------------------------------------------------------------------------14 Connecting VCR -------------------------------------------------------------------------------------------15 Connecting a Camcorder---------------------------------------------------------------------------------16 Connecting a DVD Player/Set-Top Box via DVI ----------------------------------------------------17 Connecting DVD Player/Set-Top Box via HDMI ----------------------------------------------------18 Connecting Digital Audio System-----------------------------------------------------------------------19 Connecting PC ---------------------------------------------------------------------------------------------20

Supporting signals ---------------------------------------------------------------------------------------20

Basic operation---------------------------------------------------------------------------------------21

Turning the TV on and off---------------------------------------------------------------------------------21 The main interface------------------------------------------------------------------------------------------22 Applications of the TV--------------------------------------------------------------------------------------23

Menu system instruction-----------------------------------------------------------------------24

TV menu-------------------------------------------------------------------------------------------------------26 Sound----------------------------------------------------------------------------------------------------------26 Image-----------------------------------------------------------------------------------------------------------28 Program-------------------------------------------------------------------------------------------------------29 Input Source--------------------------------------------------------------------------------------------------31 3D---------------------------------------------------------------------------------------------------------------31

General Description

Function-------------------------------------------------------------------------------------------------------32 Time------------------------------------------------------------------------------------------------------------34 PVR-------------------------------------------------------------------------------------------------------------35

Digital Media Player --------------------------------------------------------------------------------------38 Troubleshooting -------------------------------------------------------------------------------------------41 Picture defects and the reason------------------------------------------------------------------------43

Keep small accessories out of reach of children so they are not mistakenly swallowed.

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Please make sure the following items are included with your LED TV. If any items are

missing, contact your dealer.

Accessories

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Quick Start Guide

Contact Card

Features

Introduction

Input terminals used for external equipment connection

1 x CVBS output

1 x ANTENNA jack 4 x HDMI inputs 1 x computer PC-RGB input 4 x USB inputs including top mount 1 x COMPONENT input 1 x AV input 1 x SPDIF output 1 x Headphone output

l 65” TFT display screen l Zero X radiation complies to green environment protection requirement l Connect to computer directly to realize TV/monitor combo. l HDMI MHL 2.0 l Android4.2 l 1 x USB 3.0, 3 x USB 2.0(top usb for webcam mounting only) l 16:9 wide screen l Auto tuning and fine tuning l 4 x HDMI inputs l Component Compatible (480i; 480P; 576i; 576P; 720P; 1080i; 1080P) l VGA input l Programmable sleep timer l Wide range voltage input l No-signal automatic power off

LED

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Note:

- Design and specifications are subject to change without notice.

- Weight and Dimension shown are approximate.

- It is suggested to watch 3D program under the operation temperature above 10 C to obtain the best 3D effect.

Introduction

Specifications

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Analog: Antenna:

46.25MHz-855.25MHz Digital:5-12, 21-69

PAL / NTSC / SECAM

≥5 X2W

o o

0 C-40 C

<1W

~110-240V, 50/60Hz

75 ohms, unbalanced

Display size

LED panel resolution

Power supply

TV receive system

Frequency range

Video in

Antenna Input

Speaker output power

Power consumption

Standby consumption

Work Temperature

Model

Controller power

DC 3V (Two AAA size batteries)

1920X1080

Digital: DVB-T Analog: PAL: BG, I, DK, SECAM: BG, D/K

220W

65” Diagonal (max.)

1454X65.5X845mm

38.5Kg

1454X335X899m m

34Kg

LES6572F3D

Stand and wall-mounting instructions (optional)

How to assemble the stand

-Before attaching/detaching the stand, make sure to turn off the TV.

-Before performing work, spread cushioning over the base area to lay the LED TV on. This will prevent it from being damaged.

Assembling instruction:

If you need to remove or assemble the stand please read the following instructions.

1) Assemble the stand and the unit together with five M4*10 screws. (Figure 1)

- To disconnect the stand from the TV, perform the above steps in reverse order.

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Note: Please take precautions to prevent large TVS from falling over and causing

damage and injury, eg anchoring to the wall.

B-M4*10

Figure 1

Screws(M4X10)

Stand and wall-mounting instructions (optional)

Introduction

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Wall mounting instructions

see previous page for instructions on removing the stand.

(optional)

Your LED TV is able to accommodate wall mounting with the use of a wall mount bracket (not supplied with LED TV, please contact your local hardware store) and the mounting holes on the back of the unit. We recommend removing the TV stand prior to wall mounting the TV. Please

Wall

Long mounting bracket

Figure 1

Figure 2

Short mounting bracket

Figure 3

1. LED TV 2. Long wall-mounting bracket 3. Mounting screw

4. Self-tapping screw 5. Short wall-mounting bracket 6. Nylon sleeve

7. Wall

Wall-mounting instruction:

1. Please ensure the distance of wall-mounting holes is 200mm or 400mm on the back cabinet before you mounting your TV on the wall.

2. Mark the horizontal distance screw holes A and B with pencil on the wall by using long wall-mounting bracket as ruler (There are “0” engraved in the middle of long wall-mounting and “200” engraved at the end of the long wall-mounting bracket, as figure 1 shown)

3. Align the upper holes on the short wall-mounting bracket (5) to A and B, then mark the vertical distance screw holes C and D with pencil on the wall, as figure 2 shown.

4. Drill the holes at A, B, C and D position on the wall.

5. Drive Nylon sleeves(6) into the screw holes on the wall.

6. Fasten short wall-mounting bracket (5) on the Nylon sleeves with self-tapping screws (4) on the wall.

7. Fasten long wall-mounting bracket (2) with screws (3) into the two screw holes on the rear cabinet (Place the long wall-mounting end with hook upper as figure 3 shown);

8. Left the TV and hang it on the wall by two people.

Note: 1. Please mount your TV on the strength of the wall for withstanding the TV’s weight.

2. Be careful not to scratch panel and TV cabinet when your fasten the screws on the TV.

General Description

Overview of back panel

You can connect the TV with video devices such as DVD/VCD player, VCR and video camera

to enjoy the high quality picture.

SPDIF

Headphone

Microphone

Video output

SD card

(max 64GB)

USB 3

(USB 3.0)

USB 2

USB 1

USB 2

USB 3

(USB 3.0)

SPDIF

Y/V

MIC

VIDEO

COMPONENT/AV IN

VGA AUDIO ANT

HDMI4 HDMI3 HDMI2 HDMI1(MHL)

Camcorder

DVD player

PC (HDMI-output)

Blu-ray disc player

DVD player

General Description

External Connection

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Ethernet(LAN)

General Description

Overview of front panel

The buttons on the lower-left panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

VOLv/w

Press to increase or decrease the volume.

Press button to toggle between normal and standby mode.

Standby button

Remote Control Sensor Power Indicator Green: In power on mode. Red: In standby mode.

Power Switch

Press this button to turn TV on or off.

Aim the remote control towards this spot on the TV.

INPUT

Toggles between all the available input sources.

Press to display an on-screen menu of your TV's features.

PROGr/s

Press to change programs.

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Remo te co ntr ol sens or (kee p cle ar of o bstac les )

INPUT

PROG

VOL

On Off

Overview of Remote Control

General Description

The remote control uses Infrared signals. Point it at the Infrared sensor at the front of the TV.

NOTE: The remote control may not work correctly if it is operated out of range or angle, of if there are objects blocking the signal.

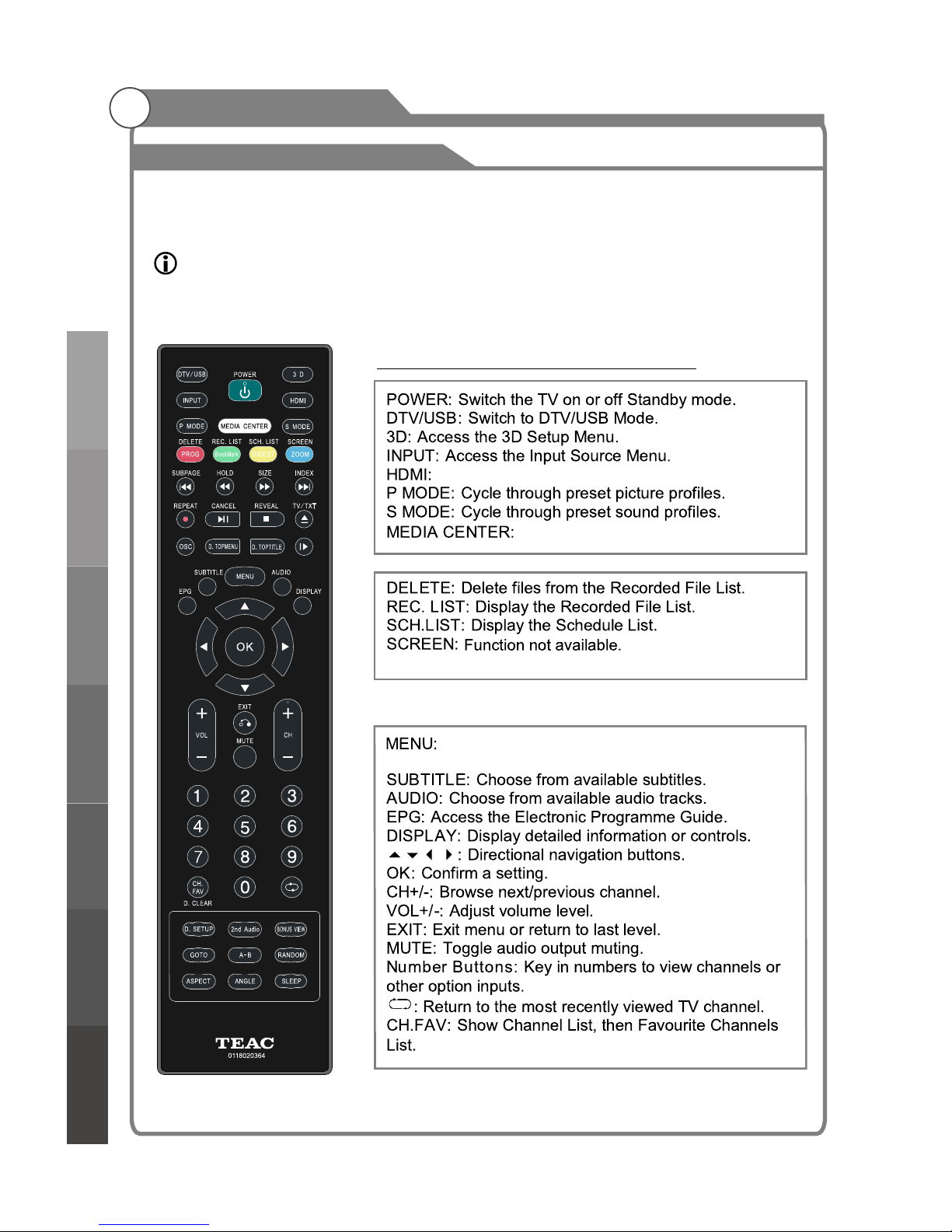

Remote Control Buttons and Functions

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Cycle through HDMI Modes 1-4.

Co to Home Page directly.

Press to display the OSD menu or return to last level.

Overview of Remote Control

General Description

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Remote Control Buttons and Functions

Fast Rewind/Fast Forward up to 32x.

OSC: Start/stop virtual mouse.

Viryual mouse (on screen pointer)

OSC:Press to turn on/off th e pointer.

▲▼ ◀▶:Move the pointer on the screen. OK:Click o n the object that the pointer is pointing to.

Installing Batteries in the Remote Control

General Description

Antenna connection

Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details Please refer to the following drawing.

Use a 75ohm - 300ohm converter

300ohm coaxial cable

Antenna feeder

ANT IN

75ohm c oax ial cable

Anten na ca ble

Antennas with 300 W flat twins Leads

Antennas with 75 W Round Leads

External Connection

Insta llin g Batt erie sInsta llin g Batt erie s

Poin t the rem ot e tow ar ds th e re mote cont rol sen so r of th e TV a nd u se it with in 8 mete rs .

Put th e used ba tt eri es i nto the r ecycling b in sinc e th ey ca n ne gat iv ely affect t he e nvi ro nme nt .

The batteries (battery pack o r batteries installed) shall not be exposed to excessive heat such as sunshine, fire or t he like.

General Description

External Connection

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

2.Insert batteries according to +/- polarity symbols.

External Connection

Connecting VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.

VCR Rear Panel

Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

jack

on the TV.

5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AUDIO L and AUDIO R jacks on the TV.

Note: 1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2. When connecting an external device, match the color of the connection terminal to the cable.

Connect a Component Cable between the COMPONENT

[Y, Pb, Pr] jacks on the DVD player and YPbPr

TV Rear Panel

White

Red

White

ANT

ANT OUT S-VIDEO

AUDIO OUT

Red

Blue

Green

VIDEO OUT

Audio Cable (Not supplied)

YPbPr cable( supplied) Not

RF Cable (Not supplied)

1 2

Green

Blue

Red

USB 1

USB 2

USB 3

(USB 3.0)

SPDIF

Y/V

MIC

VIDEO

COMPONENT/AV IN

VGA AUDIO

ANT

HDMI3 HDMI2 HDMI1(MHL)

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

External Connection

Connecting a Camcorder

The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.

Each Camcorder has a different back panel configuration. When connecting a Camcorder or DVD, match the color of the connection terminal to the cable.

1. Connect a Video Cable between the AV1 VIDEO jacks on the TV and the VIDEO OUT jack on the camcorder.

2. Connect Audio Cables between the AUDIO L and AUDIO R jacks on

the TV and the AUDIO OUT jacks on the camcorder.

3. Connect a Video Cable between the component IN Y on the TV

and the VIDEO OUT jack on the DVD.

4. Connect Audio Cables between the component IN AUDIO L and

R jacks on the TV and the AUDIO OUT jack on the DVD.

Note:

1. Whenever you connect an external device to your TV, make sure that

power on the unit is turned off.

2. When connecting an external device, match the color of the connection

terminal to the cable.

Video Cable (Not supplied)

Audio Cable (Not supplied)

Camcorder

White

Y l

e low

Red

White

USB 1

USB 2

USB 3

(USB 3.0)

SPDIF

Y/V

MIC

VIDEO

COMPONENT/AV IN

External Connection

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

External Connection

Connecting a DVD Player/Set-Top Box via DVI

This connection can only be made if there is a DVI Output connector on the external device.

Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable.

1. Connect Audio Cables between the PC AUDIO IN jack on the TV and the AUDIO OUT jacks on the DVD player/Set-Top Box.

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is

turned off.

2.When connecting an external device, match the color of the connection terminal to the

cable.

TV Rear Panel

DVI to HDMI Cable (Not supplied)

Audio Cable (Not supplied)

DVD Player/ Set-Top Box

White

Red

VGA AUDIO ANT

HDMI4 HDMI3 HDMI2 HDMI1(MHL)

External Connection

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

External Connection

Connecting DVD Player/Set-Top Box via HDMI

This connection can only be made if there is a HDMI Output connector on the external device.

What is HDMI? HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression. Multimedia interface is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio. Each DVD player/STB has a different back panel configuration.

1. Connect an HDMI Cable between the HDMI1, HDMI2, HDMI3 or HDMI4 connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

2.When connecting an external device, match the color of the connection terminal to the cable.

HDMI Cable (Not supplied)

DVD Player/ Set-Top Box

VGA AUDIO ANT

HDMI4 HDMI3 HDMI2 HDMI1(MHL)

TV Rear Panel

External Connection

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

External Connection

Connecting Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.

1. Connect a Coaxial Cable between the SPDIF jacks on the TV and the Digital Audio Input jacks on the Digital Audio System. When a Digital Audio System is connected to the SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the volume control.Digital Audio System's

TV Rear Panel

Coaxial Cable (Not supplied)

Digital Audio System

(Black)

USB 1

USB 2

USB 3

(USB 3.0)

SPDIF

Y/V

MIC

VIDEO

COMPONENT/AV IN

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Connecting PC

External Connection

Resolution

Input

VGA

60Hz

640x480

PC/VGA

SVGA

XGA

60Hz 60Hz

800X600

1024X768

Vertical

Frequency

Supported signals

Input

Mode

DTV

ATV

DVB-T

CVBS PAL/NTSC/SECAM

PAL BG I DK

SECAM BG DK

Resolution

Input

Component

60Hz 60Hz

50Hz/60Hz

480i

480p

720p

50Hz/60Hz

1080i

HDMI

50Hz/60Hz

480p

720p

60Hz

1080i

Vertical

Frequency

50Hz/60Hz

1080p

50Hz/60Hz

1080p

50Hz 50Hz

576i

576p

50Hz

Each PC has a different back panel configuration. The HDMI jacks do not support PC connection.

1. Connect a D-Sub Cable between VGA/PC IN connector on the TV and the PC output connector on your computer.

2. Connect a PC Audio Cable between PC AUDIO IN jack on the TV and the Audio Out jack of the soundcard on your computer. You should set PC software before you connect a PC to your TV (please refer to "PC

Note: 1. Whenever you connect an external device to your TV, make sure that power on the unit is turned off. 2. When connecting an external device, match the color of the connection terminal to the cable.

Display'' settings)

D-Sub Cable (Not supplied)

PC Audio Cable (Not supplied)

SXGA

60Hz

1280X1024

60Hz

1360X768

VGA AUDIO ANT

HDMI4 HDMI3 HDMI2 HDMI1(MHL)

External Connection

Basic operationMenu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Turning the TV On and Off

1. Insert the power plug into an AC outlet, then turn on the AC power.

2. Locate the power switch at the back of the TV and switch it on. The TV will enter standby mode and the indicator LED will light up in red.

3. Turn the TV on with the POWER button on the remote control or on theTV control panel.

4. If temporary POWER off is required, press POWER button on the remote control or button on the bottom panel.

5. If you want to completely switch off the power for this unit, unplug the power cord plug for this unit.

6. After switching off the unit, you should

Status indication lamp

Red: In standby mode. Green: In power on mode.

Auto power-off

1. If there is no signal, the TV will 10 minutes.

2. In VGA mode, if no any operation 15 seconds later, TV will enter standby mode.

Memory before turning TV off

wait at least 5 seconds before switching on

again.

automatically enter standby mode after

The picture and sound settings and preset channels will be memorised at the point when the TV is turned off. When the TV is started up again it will work accordingly with these settings.

How to turn the TV on or off

Basic Operation

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Menu operation

The main interface

You will enter the home page directly after the TV is turned on. The page shows preset

apps and widgets for video, social medis and internet browsing. Press the MEDIA CENTER button to return to the home page from other app / video modes.

Home page navigalion Select: Press p q t u to select different objects on the menu and move between

pages. The currend selection is highlighed with an orange frame. (Default selection: video mini frame)

Confirm: Press OK to confirm the selection and open it. Use on-screen pointer: Press OSC to turn the pointer on/off. Press p q t u to

move the painter.

Options menu

There are some options on the top right corner:

1. Add shortcut: Place a new shortcut to an app onto a custom page. To remove a shortcut, select the shortcut, press the MENU button and choose “Remove”. Note: The home page cannot be changed.

2. All apps: View all installed apps in the Apps folder.

3. Change wallpaper: Choose from preinstalled wallpapers or add your own.

4. Search: Go to the Google search bar.

5. Settings: Access system settings and information.

6. Mass storage: View connected data storage devices.

7. Network: Access network options and set up internet connection.

Firmware Upgrade

In the Setting menu, go to System"SW Upgrade. (Fiemware version is shown in System Info.) Upgrade by USB: Use a firmware file from www.teac.comau saved on a USB drive. Upgrade online: Download and install new firmware directly using the Internet.

Basic Operation

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Social media widgets

Internet browser

Options

Mini frame (Video,

DTV by default)

App shortcuts

Page shortcuts

Menu operation

Network connection(Wired/Wireless/PPPOE/WLAN HP)

The instant network page browsing gives you quick and easy access to information. Surfing on the web with infinite pleasure.

Basic Operation

Cable Network

Internet

Connect the TV to a local area network

(LAN) via the LAN port as shown in the

left illustration and set up the network

settings.

If wired and wireless networks are both

available, wired is the preferred method.

LAN WAN

ETHERNET

Cable Modem

Network

System

Individual

Storage

Wired

Wireless

PPPOE

WLAN HP

Cable Network

IP Mode Auto

IP Address 192.168.8.214

Subnet Mask 255.255.255.0

Default Gateway 192.168.8.254

DNS Server 192.168.2.128

Set

Network Detection

Network

System

Individual

Storage

Wired

Wireless

PPPOE

WLAN HP

Cable Network

IP Mode Manual

IP Address 192.168.8.214

Subnet Mask 255.255.255.0

Default Gateway 192.168.8.254

DNS Server 192.168.2.128

Set

Network Detection

Smart TV

Back of Smart TV

Router

Cable

MEDIA CENTER

Wireless

Internet

Connect the TV to a local area network

via wireless, the wireless router is

required before connecting the TV to the

network, see the left illustration and set

up the network settings.

Smart TV

Router

Cable Modem

Cable

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Menu operation

Basic Operation

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

PPPOE

PPPOE is point-to-point protocol over ethernet, for detailed operation please contact the local

Internet Service Provider

WLAN HP(Hotspot)

When your TV accesses the internet by cable connection, your TV hotspot enables you to

connect to wireless internet on a lot of devices, like smart mobile phone, laptops, tablets or

gaming devices.

Step 1: Connect Cable Network as page 3 shown;

Step 2: Press button on the remote control to go back to home page, use Navigation

buttons to select “Wireless” on the right corner.

Step 3: Enter “WLAN-Hotspot”, you can set account name and password for “SSID”.

If you set your TV Hotspot successfully, your other portable devices(such as laptop, I-pad,

mobile phone, etc.) will be allowed to wireless access the internet by scanning this router.

NOTE: WI-FI will be off automatically when you set your TV Hotspot successfully.

To set up the Wireless settings:

Step 1: Press to access the Home page.

Step 2: Press the Navigation buttons to

select “Wired” on the TV right

corner.

Step 3: Press the Navigation buttons to

select “Wireless”, Wi-Fi choose

“ON”, TV will search the available

router equipment.

If no available Wi-Fi, choose “Scan”

to search again.

Step 4: Choose the router equipment you

want to join, enter the password if

reqiured, then you can surf on the

internet.

Network

System

Individual

Storage

Wired

Wireless

PPPOE

WLAN HP

Scan

Network Detection

WI-FI Please open WI-FI, if you want to get the available list.

OFF

Please choose an access point:

(Multiple pages, turning page by using RC, or UP/DOWN button on the keypad, or mouse wheel.)

Scan

Network Detection

WI-FI Please open WI-FI, if you want to get the available list.

Please choose an access point:

(Multiple pages, turning page by using RC, or UP/DOWN button on the keypad, or mouse wheel.)

wireless Network is connected.

BMYG

Security

Signal strength

Password

WPA/WPA2 PSK

Less

Passord

Show passord

Cancel Connect

MEDIA CENTER

Basic operationMenu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Menu operation

Applications Folder

Application menu shows all applications installed on the TV. Access this folder by clicking on theall Apps icon on the homepage on the App Assistent.

This TV comes with some useful apps pre installed. For example:

1. Browser: Browse internet web pages.

2. System Setting: Access system settings menu.

3. Email: Set up email access.

4. Home Share / DLNA: Access DLNA functions.

5. Music: Launch the file browser for music files.

6. Picture: Launch the file browser for picture files.

7. TV: View video input in full screen (for DTV, HDMI, AV etc.)

8. Multiscreen TV: Screen mirroring from to smart devices and also provides remote control capabilities from smart devices.

9. Play Store: Find and install new apps.

10. App Assistant: View and uninstall current apps, on install new apps straight from an apk(app installation) file located on USD.

11. Search: Go to Google search.

General app controls:

Menu key: Toggle the app’s menu/toggle a contextual menu from the home page App foldes. Exit key: Exit menus, or exit the app to return to the home page. Arrow keys: Navigation using the selection frame or the on-screen pointer. OK key: Confirm selection.

App storage and SD card

The internal srorage status for apps can be viewed in settings"Storage"Flash. To add more storage, insert an SD card into the SD card slot on the TV.( 64GB max) SD card information and options are in settings"Storage"SD Card. Apps can be set to install to internal or SD card storage in Settings"Storage "App Install Position Note: 1.Do Not remove the SD card while apps are running.

2.Installing too many apps may slow down system performance. If this happens, please uninstall unused apps and check the system memory.

Basic Operation

Internal data storage information

Latest apps (recently used)

Sound Mode Standard

Equalizer

Balance

Auto Volume

Surround

SPDIF Mode

HDMI Sound

...

Off

RAW

HDMI

Sound Mode Standard

Equalizer

Balance

Auto Volume

Surround

SPDIF Mode

HDMI Sound

...

Off

RAW

HDMI

TV Menu

Menu button: Open the TV menu. Exit button: Close the TV menu. Arrow buttons: Select the desired submenu. OK button: Enter the selected submenu.

Menu system instruction

Sound Image Program Input Source 3D Function

Time

Sound Mode

You can select the type of special sound to be used when watching a given broadcast. Your TV has five sound settings (“Standard”,“Music”, “Movie”,“Sports”, “User”) that are preset at the factory.

1. Press p/q key to select "Sound Mode" option.

2. Press t/u key to select one sound mode.

l Standard: Selects the normal sound mode.

l Music l Movie: Provides live and full sound for movies. l Sports: Emphasizes bass over other sounds. l User: Selects your custom sound settings (See "User settings for Sound”).

settings

: Select the sound mode for music.

Sound

Menu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

The menu can be accessed while viewing the various input modes in full screen. (DTV, HDMI, AV etc.)

Equalizer

1. Press ▲/▼ key to select an equalizer item.

2. Press OK key to enter the equalizer . The sound settings can be adjusted to suit your user preferences.

1. Press ▲/▼ key to select a particular item.

2. Press t/u key to decrease or increase the value of a particular item.

Balance

If the volumes of the left speaker and the right speaker are not the same, you can adjust the "Balance" to suit your personal preference.

1. Press p/q key to select "Balance" option.

2. Press t/u key to decrease or increase the value of the item.

Auto Volume

Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press p/q key to select “Auto Volume" option.

2. Press t/u key to select “On” or “Off”.

1. Press p/q key to select "Surround sound" option.

2. Press t/u key to select “On” or “Off”.

SPDIF Mode

This is used to select "SPDIF Mode" .This option is only used in HDMI\DTV mode.

1. Press p/q key to select "SPDIF Mode" option.

2. Press t/u key to select "RAW" or "PCM".

HDMI Sound

This option is only used in HDMI mode.

1. Press p/q key to select “HDMI Sound" option.

2. Press t/u key to select HDMI Sound mode, HDMI or VGA.

submenu

Surround Sound

This is used to turn on surround sound to gain better sound effect.

Sound

Equalizer

120Hz

500Hz

1.5KHz

5KHz

10KHz

Menu system instruction

Menu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Bass

Treble

Picture Mode

Your TV has five picture settings (Standard, Soft, Vivid, User, Dynamic) that are preset at

the factory. Only "User" mode can be set to your preference by adjusting particular items

such as Contrast, Brightness,Color,Sharpness,Tint.

1. Press p/q key to select "Picture Mode" option.

2. Press t/u key to select one picture mode.

Aspect Ratio

You can select the picture size which best corresponds to your viewing

1. Press p/q key to select “ " option.

2. Press t/u key to set the scale mode. You can also press “ ” key on the remote control to select one of the scale modes. Each source has different scale modes. (16:9, 4:3, Panorama, Movie, Subtitle, Dot by dot)

Color Temp

You can change the color of the entire screen according to your preference.

1. Press p/q key to select "Color Temp" option.

2. Press t/u key to select one color temp.

Adjusting the Backlight

You can the brightness of the entire screen according to your preference.

1. Press p/q key to select "Backlight" option.

2. Presst/u key to select one backlight mode.

Window Adjust

This option is only used when VGA mode has signal.

1. Press p/q key to select “Window Adjust” option.

2. Press OK key to display the “Window Adjust” menu.

·Auto Adjust: Allows you to set the TV to self-adjust to the incoming PC video signal. The fine, coarse and position values are adjusted automatically

·H-Position: Set horizontal of picture.

·V-Position: Set vertical of picture.

·Clock/Phase: Remove or reduce picture noise.

requirement.

Aspect Ratio

Aspect

change

position


Picture Mode Dynamic

Aspect Ratio

Color Temp

Backlight

Window Adjust

16:9

Cool

100

...

Standard: Keeps whites white. Warm: Makes whites reddish. Cool: Makes whites bluish.

Backlight: Adjusts the brightness of the whole screen.

Window Adjust

Auto Adjust

H-Position

V-Position

Clock

Phase

...

Menu system instruction

Menu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Search Type

ATV/DTV

Australia

New Zealand

Others

1/1

ress p/q key to select "Auto Search" option. Then

press OK key to start a notice window. In this notice window, you can select country in the “Country Selection” option and set “Tune Type” option.

EPG(Used only in DTV)

1. Press p/q key to select “EPG" option.

2. Press “OK” key to enter EPG submenu. Note: The details operartion please see the page37.

Auto Search

The number of searched channels will be shown on the screen.If you set “Tune Type” to “DTV+ATV”, When the searching of DTV channels is over , TV will start to search ATV channels.When the whole searching is finished, all the channels will be stored in memory, and a message will appear on the screen as per the diagram on the right: NOTE: If you want to exit the whole searching, you can

press EXIT button.

ATV Manual

In the ATV/DTV source, you can choose “ATV Manual ” to enter “ATV Manual

” menu.

Program

Auto Search

EPG

ATV Manual Search

DTV Manual Search

Program Edit

Signal Information

...

Auto Search

TV:

DTV:

RADIO:

DATA:

0 Programmes

1% VHF CH 5A DTV

Exit

EXIT

Skip

è è Color System

" " AUTO

è Sound System Sound

ound " DK " I "

è è

Current CH:You can see the current channel number and you can presst/u button to choose the channel you want to modify.

: Select the “Color System” option, press t/u on the remote control or TV. The color system will be changed

repeatedly in the order.PAL SECAM

: Select the “ System” option, press t/u on the remote control or TV.

The s system will be changed repeatedly in the below order. BG L

Search: you can use u button to search channels from low frequency to high frequency and use t button to search channels

from high frequency to low frequency. When you have searched a channel, the searching will be paused and you can press it again for other channels after you store the channel.

Fine Tune: In case of unfavorable image or sound of TV program, you can use “Fine Tune”. Skip: Select “Skip” option, “be changed” on the remote control or TV to switch, select “ON” to skip current program, select “OFF”

to add the program into the program list.

Frequency: You can see the frequency of the searched channels.

Menu system instruction

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Signal Information(Used only in DTV)

1. Press p/q key to select “Signal Information" option.

2. Press “Ok”or u key ,you can see the information of the DTV channel.

NOTE: Signal Quality/Signal Strength (DTV Only): Unlike analogue channels, which can vary in reception quality, digital channels must have perfect reception quality or you will not receive them at all. So, unlike analogue channels, you are not able fine tune a digital channel. If the signal strength indicates that the signal is weak, a possible solution is to adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal.

DTV Manual Search

In the ATV/DTV source, you can choose “DTV Manual Search” to enter “DTV Manual Search” menu. You can use t/ubutton to choose the channel and press OK button to search, and then the TV will store the DTV channel if there is a DTV signal present.

Program Edit

You can use p/q button to choose “Program Edit” and enter the menu, press the Blue/Red/Yellow color button on the remote control to skip, delete and move programs, also you can press FAV button to add to your favorite list.

Program

DTV Manual Search

Return

CH37

Signal Strength

Signal Quality

DTV: 0 DATA: 0 RADIO: 0

è Move:You can press

è You can press

Delete:You can press RED button to enter "DEL" menu, then choose the

channel you want to delete and press RED button again to delete.

p/q button to choose the channel in ATV mode you

want to move and press YELLOW button to move it.

Skip: p/q button to choose the channel you want to skip and

press BLUE button to skip it when you change channels.

FAV:If you like the program of a channel, you can choose “FAV” button in the

menu to add it to your favorite list and later you can press “FAV” button in the remote control to choose your favorite programs as soon as possible.

Signal Information

Channel

NetWork

Modulation

Signal Strength

Signal Quality

Nine Melbourne

64 QAM

84%

100%

Program Edit

Skip Delete

Nine Digital

Nine Digital HD

Nine Guide

C-01

C-04

S-43

S-45

S-02

S-04

S-05

DTV

ATV

FAV

Menu system instruction

Menu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

There are two ways to select input source.

1.Input Setup

Press INPUT key on the remote control to enter "INPUT SOURCE" menu. These options for you to select: DTV, ATV, AV, YPbPr, VGA, HDMI1, HDMI2, HDMI3, HDMI4 . Use / key to move the cursor to the input you desired and press OK key to confirm. To cancel, press EXIT. NOTE: Pressing INPUT from the home page will bring up the current inputs screen before displaying the menu. Press INPUT again to do so.

2. Input Source menu

1. Press MENU key to display the main menu on the screen.

2. Press / key to select "Input Source” option.

3. Press OK key to enter submenu.

t u

Input Source

DTV ATV

YPbPr

VGA

HDMI1 HDMI2

HDMI3

HDMI4

DTV

ATV

YPbPr

VGA

HDMI1

HDMI2

HDMI3

HDMI4

Figure2

Figure1

1. 2D-3D: Upscale 2D video into 3D mode.

2. 3D-2D: Downscale 3D video into 2D mode.

3. 3D-Off: Turn off 3D mode.

Menu system instruction

3D Left Right

3D Up Down

3D-Off

3D-2D

2D-3D

3D Auto Off

3D Engine ...

3D Clarity

Menu system

instruction

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Function

4. 3D Auto: When it is ON, 3D mode turns on automatically when 3D video is played via HDMI or USB. When it is OFF, only the source film with 3D format sigh will automatically switch to 3D mode.

5. Left Right/Up Down/ 3D Clarity: switch between 3D display formats to suit the current 3D video.

6. 3D Engine:Press OK button to enter the "3D Engine" menu, and set 3D Effect and 3D Sequence. Note:

1. Watching 3D content for a long time may cause headache or eyestrain to you, please stop watching if you feel uncomfortable and take a rest immediately. Please consult a doctor if the feeling persists.

2. The appropriate 3D videos are needed for watching 3D content.

3. It is suggested to watch 3D program under the operation temperature above 10c° to obtain

the best 3D effect.

4. When in 3D mode, “2D-3D” can’t be selected. When in 2D mode, “3D-2D” can’t be selected. NOTE: Some 3D videos may not be encoded with a 3D marker if the TV dose not detect it on its own, please turn on 3D manually.

1. Press p/q key to select “ " option.

2. Press OK key to display the OSD setting menu. OSD Language: select the proper language OSD Time : Set the preferred amount of time for the OSD to be displayed on the screen.

. Press p/q key

2. Press OK key to enter " " submenu, "Please

OSD Setting

You can modify the OSD set to suit your user preferences.

OSD Setting

Lock (Optional)

Lock

The lock feature requires a Password to be entered before any settings can be changed.

and select "Lock" under the

"Function" menu.

OSD Setting

OSD Language

OSD Timet

English

Always

Menu system instruction

OSD Setting ...

Lock

PVR File System

Screen Saver

Noise Reduction

RGB Range

Reset

...

Off

Default

16~235

...

Please enter password

Cancel

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Program Lock

C-01

C-04

S-43

S-45

S-02

C-06

C-07

C-08

C-09

C-12

ATV

Function

enter password" menu will appear, enter your 4-digit password to enter " " submenu

1. Press p/q key to select " " option.

2. Press

1. Press p/q key to select "Set " option.

2. Enter your old 4-digit password

1. Press p/q key to select “Block Program” option.

2. Press OK key to enter Program Lock. In the channel list, use Blue key to lock or unlock the channel. Once the channel is locked and Lock System is on, the password is needed to view it.

This option is only used in DTV mode.

1. Press p/q key to select “ ” option.

2. Press key to select the lock level of the Parental Guidance: off, Block All, G, PG, M, MA, AV, R.

PVR File System

1. Press MENU key to display the main menu on the screen.

2. Press p/q key to select “PVR File System” option.

3. Press OK key to enter “PVR File System" submenu, operation refer to “PVR File System”.

will skip

for detailed

Lock (the default and

universal password is 0000, the super password is 1980).

Lock System

t/u key to select "On" or "Off".

Set Password

Password

. Choose any 4-digits for your new password and enter them. As soon as the 4 digits are entered, the cursor to “Confirm password” , re-enter the new password to confirm and save.

Block Program (channel)

Parental Guidance

t/u

Menu system instruction

Lock

Lock System

Set Password

Block Program

Parental Guidance

...

Off

Set Password

Please enter old password

Please enter new password

Confirm password

PVR File System

Sekect Disk

Time Shift Size

Manual Record Time

Format Start

Speed Check

Lock

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Function

Screen Saver

This option is only used in ATV mode.

1.Press p/q key to select “Screen Save” option.

2.Press t/u to choose on or off.

Noise Reduction

1. Pressp/qkey to select "Noise Reduction" option.

2. Press / key to select "Off", "Low", "Middle", "High" and "DEFAULT” to improve the picture sharpness. Note: Noise Reduction doesn't work in VGA Mode.

RGB Range

Change the brightness and saturation for a better picture.

1.Pressp/qkey to select "RGB Range" option.

2.Press / key to select "16~235" or "0~255". Note: only available in HDMI mode.

RESET

You can set a desired source and TV channel to be displayed automatically when the TV turns on.

t u

Note: Please use the "Reset" option with caution as it will return all settings and channel memories to factory default. If Lock is set to ON, you will be asked for a password.

Clock Setting

In the first item, press OK button to enter the "Clock Setting" menu to set the Date and Time. In the "Auto Mode" item,you can get the time from DTV or the Internet automatically.

On Time

In "On Time” item, press OK button to enter the submenu, then set the time to turn on the TV set from standby mode.

Select the “Reset” option and press OK key to display a confirm box,and select “Yes” or “No”.

Menu system instruction

Time

On Time

Off Time

Sleep Timer

Time Zone

Off

2014/01/09 14:25

On Time

Switch On

Time

Source

22:26

DTV

Clock Setting

Auto Mode Off

Date

Time

2013-04-18

09:16

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

ChannelNumber

Time

PVR

Sleep Timer

1. Press p/q key to select "Sleep Timer" option.

2. Press t/u key repeatedly until the desired time appears (Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min). Notes:

1.The sleep timer you have set will be cancelled when the TV turns off or if a power failure occurs.

1. Press p/q key to select "Time Zone" option.

2. Press t/u key to select time zone.

PVR File System

Off Time

In "Off Time" item, press OK button to enter the submenu, then set the time to turn off the TV set.

2.When the time is less than 60 seconds, a reminder will be displayed on the screen. Press any key button to cancel timer function.

Time Zone

You can choose to modify your time zone on the TV set.

WARNING:

1. Before connecting your USB device to the TV, please back up your files to prevent damage or loss of data.

2. A USB disk must be formatted when first used for PVR. Any existing data on the disk will be lost during the formatting process. Please back up your disk if you do not want to lose this data. You are recommended to use a dedicated disk for PVR use only. Do not disconnect disk or power during formatting.

3. Do not modify PVR files on a PC. Do NOT disconnect the USB device while recording.

Note: Make sure your USB device is compatible with the TV and able to support PVR recording.

Off Time

Switch On

Time 00:00

512M

Select Disk

C: FAT

null

D: FAT

null

Cancel

Menu system instruction

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Time Zone

Western Australia GMT+8

Northern Territery GMT+9.5

South Australia GMT+9.5

New South Wale GMT+10

Tasmania GMT+10

Queensland GMT+10

Victoria GMT+10

PVR

Select Disk: Press “OK” button to enter submenu and press / choose the disk for PVR. Time Shift Size: Press “OK” button to enter submenu and press p/q choose the size. Format: Press “OK” button to enter format submenu. The disk must be when first used

for PVR.

PVR Guide

If the disk for PVR is ready, the programs can be recorded in DTV mode.

Time shift

In DTV mode, press “ / ” button to pause the DTV program, press it again to continue play.

Press “EXIT” to stop

the time shift.

“tu” to

“ ” to

formatted

Do not disconnect disk or turn power off during formatting.

When formatting your disk, a progress bar will appear on the display. NOTE: The larger

your device the longer it will take to format. The device may take many minutes to format, this is not a malfunction, please wait for the formatting to finish. Speed Check: Test your disk speed.

The length of time a program can be paused depends upon the setting in the PVR File System.

Press the PLAY button to continue playing the program from the point where it was paused. NOTE: Time Shift will stop if you change channels, change inputs or go into standby mode while in Time Shift mode.

Instant recording

1. Select the desired channel then press the “ ” button on the remote control to start recording the current broadcast, a progress bar will be displayed at the bottom of the screen.

2. Recording stops when you press the EXIT button and the recorded file is stored in the external USB device automatically. NOTE: You can only watch channels on the same frequency as the program being recorded. If you try to change to another channel or come to the main interface a message will appear prompting you to continue or not “STOP RECORDING. System will stop record if user want to channel up/down, Confirm or Cancel.”

Recording in standby mode

This unit is able to record while in standby mode. During standby recording, the LED light will blink in green.

Note: Start a recording then press the power button. A message will be displayed prompting you

to standby, stop or cancel.

Menu system instruction

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

Play/Pause

Stop

Forward

Back

Record

CH9 Nine Digital

00:00:00

Play

Stop

Pause Rev

SlowMotion

Goto

C:FAT

89%

PVR

Thursday Friday

Saturday Sunday

Monday Tuesday

Wednesday

DTV

9 Nine Digiral

90 Nine Digiral HD

99 Nine Guide

15:30 MALCOLM IN THE MIDDLE[PG]

Schedule

Record

Switch Day

Reminder

INFO

EPG

2007-01-18 15:53

INFO

Reminder Settings

Channel 90 Nine Digital HD

Hour

Month

Date

Mode

Back

Minute

EXIT

Once

V1.0.12 Build 7587

Menu system instruction

Menu system

instruction

Digital Media Player

Troubleshooting

Picture defects and

the reason

DTV EPG (Electronic Program Guide)

In DTV mode, press “EPG” button to enter the Electronic Program uide. Highlight a desired program and press "RED” button to schedule a recording. The menu below will display.

Highlight a desired program and press "OK" button to "Schedule a reminder". Note: Press /

Press the YELLOW button to view the schedule list.

t ubutton to adjust the scheduled time, press

OK button to save the setting.

Return

Delete

Schedule

2007-01-18 16:01

Channel ID Channel Name Event Name

90 CH90 Nine Digital HD Once 2007-01-18 16:30 MALCOLM IN THE MIDDLE

90 CH90 Nine Digital HD Once 2007-01-18 16:37 MALCOLM IN THE MIDDLE

9 CH90 Nine Digital Once 2007-01-18 16:56 MALCOLM IN THE MIDDLE

Thursday Friday

Saturday Sunday

Monday Tuesday

Wednesday

DTV

9 Nine Digital

90 Nine Digital HD

99 Nine Guide

15:30 MALCOLM IN THE MIDDLE[PG]

Schedule

Record

Switch Day

Reminder

INFO

EPG

2007-01-18 16:01

INFO

Record Setting

Channel CH 9 Nine Digital HD

Start Time

Hour Month Date

End Time

Back

Minute

EXIT

Minute Hour Month Date Mode

Once

V1.0.12 Build 7587

MPG,MPEG, , ,MP4 MOV MKV

Introduction

This TV is provides a USB port digital media player. It can find devices that support USB1.1/2.0/3.0, including flash disk, USB hard disk and digital camera. It supports functions as: Display pictures, Play music files, Play video files. Note: please do not disconnect the USB during use. It may cause errors or the system.

Data


Music

Video

Format

JPG,JPE,PNG,BMP

MP3, AAC

Digital Media Player

On the main home page(page.24), click the “Mass storage”icon to enter the file browser. I

Connecting a data storage device

or File Manager

f no there are no data storage devices connected, the error message

below will be shown.

When a data storage device is connected, it will be displayed like the figure below. The default drive letter is C. If an SD card is inserted, it will always display as C; and USB devices will start from the drive letter D.

Select a drive and press ok to view the data content on the storage device. Only files supported by the media player can be viewed.

Device and File Management

Figure 1

Figure 2

Disk Choice

Current Version: 1.2.00 Bulid:16114

Storage DeviceRemove

At present there is no storage equipment can be used, will soon quit this module.

Quit

Disk Choice

Current Version: 1.2.00 Bulid:16114

Digital Media Player

Troubleshooting

Picture defects and

the reason

Play


Digital Media Player

1. Photo

In the file browser, select a photo and press OK to pay it in full screen. Press menu button to display/exit the "photo menu". Those menu items from left to right function as the following in turn: a.Wallpaper b.List c.Prev d.Play/Pause e.Next f.Stop g.Sequence h.Anticlockwise i.Clockwise j.Zoom in k.Zoom out l.DragMode

2. Music

The functions of the menu items from left to right are: a.Lyric b.Prev c.Play/Pause d.Next e.Play Mode

In the file browser, select a music file and press OK to play it. All music files found in the folder will be displayed in a list. musical photo slideshow After starting music playback, press EXIT to return to the file browser without stopping the music. Next, select a photo file and press OK to view in the full screen.

Media Playback

Wallpaper

List thumbnails

Play/Pause

Stop

DragMode

Zoom out Zoom in

Clockwise

Anticlockwise

Sequence/cycle (Repeat on/off)

Lyric

Play/Pause

Play Mode Next

Digital Media Player

Troubleshooting

Picture defects and

the reason

Digital Media Player

3. Movie

In the file browser, select a desired movie and press OK to start playback.Press menu button to display/exit the "movie menu". Those menu items from left to right function as the following in turn: a.Prev b.Play/Pause c.Next d.Stop e.Advanced setting

Media Playback

Play/Pause

Advanced setting Stop

Digital Media PlayerTroubleshooting

Picture defects and

the reason

Troubleshooting

If you have any problem, check the couter measures for each symptom listed below. The following symptoms may have . adjustment rather than actual malfunction of the unit. If the trouble persists, contact the

been caused by inappropriate

Customer Care

Centre, see back page for contact details

Symptoms

No power

No picture

Good picture but no sound

Good sound but abnormal color or no picture

No response to remote control

Full scree n flickering under VGA

Horizontal stripes under VGA

Colored dots may be present on the screen

Possible solutions

Please check the power cord

. Unplug the power cord and plug it in after 60 seconds and restart the TV.

plugged in and that the power

outlet works

Please check antenna connection. Station may problems, please tune to another station. Please adjust the settings of contrast and brightness.

be experiencing

Please increase the volume. Please check TV is under mute mode, press MUTE button on the remote control. Please check sound settings

If external devices are being used, check their volumes are not set too low or turned off. If using AVI or Component inputs, please make sure cables are connected properly and not loose. If using DVI to HDMI cable, a separate audio cable is required. Make sure a headphone jack is not connected.

Batteries of remote control may have exhausted, if necessary, please change the batteries. Clean the remote control lens. The distance between LED TV and remote control should be within 8m, within recommended operating angle and path is free of obstructions.

V-HEIGHT value may be set too big, restart computer and enter safe mode, then set monitor parameters to correct value according to adjustment description.

Sample phase may be deflected, adjust phase according to picture position.

Although the LED screen is made with high-precision technology and 99.99% or more of the the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LED screen. This is a structural property of the LED screen and not a malfunction.

Please check antenna connection and antenna condition. If using Component input, please check Component connections, incorrect or loose connections may cause colour problems or cause the screen to be blank.

Keep the TV away from noisy electrical sources such as cars, hair dryers, welders, and all optional equipment. Electrical atmospheric interference such as local or distant lightning storms may cause picture to break up. When installing optional equipment, leave some space between the optional equipment and the TV. Check the antenna and connection. Keep the antenna away from any power or input/output cables.

Picture is breaking up

Troubleshooting

Picture defects and

the reason

Troubleshooting

Check your area is covered by Digital Video Broadcasts. Try re-tuning or manually tuning missing channels. Check that you are using the correct antenna type - please see pg.16 'Antenna connection'.

After Auto Tuning only some channels are available

Check if the channel has been blocked in the main menu settings.

Please check connecting USB cable and power supply is connected.Hard drive has not been formatted. Please make sure USB disk is compatible and the multimedia data formats are supported.

Channel cannot be selected

USB not playing

Compression of video contents may cause distortion especially on fast moving pictures such as sports and action movies.

Picture is distorted, macroblock, small block, dots, pixelization, etc

Black bars on each s ide will be shown o n HD channels when displayin g SD (4:3) contents. Black bars on Top & Bottom wil l be shown on movies that have aspect rati os differen t from your TV. Adjust picture s ize option on your exter nal device or TV to full screen.

Noise from speak er

Check cable conn ections, make sure a vid eo cable is not connected to an au dio input. Low signal level m ay cause sound distort ion.

TV turns off automatically

Check if the Off Timer is set to On in the S etup menu. Sleep Timer may hav e been enabled. If there is no signa l for about 10 minutes from an inpu t, the TV will turn off, see Auto Sleep pg. 33. If connected to your PC, ch eck your PC power settin gs. Make sure the AC power cord is plugged i n securely to the wall outlet an d the TV.

TV turns on automaticall y

Check if the On Timer i s set to On in the Setup menu.

Picture is not sho wn in full screen

Troubleshooting

Picture defects and

the reason

Note: Installi ng too many apps may slow down syst em performance. If thi s happens, pleas e uninstall unused app s and check the system mem ory.

Troubleshooting

Picture defects and the reason

Ghosting may also occur when still pictures are displayed continuously. It may disappear after a few moments.

Picture defects and

the reason

39048598

Teac LES6572F3D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
