Table Of Contents
Contents--------------------------------------------------------------------------------------------------
1
Important Safety Instructions----------------------------------------------------------------------
Accessories----------------------------------------------------------------------------------------------
Notes on Discs-------------------------------------------------------------------------------------------
View of unit------------------------------------------------------------------------------------------------
Remote Control------------------------------------------------------------------------------------------
System Connections-----------------------------------------------------------------------------------
Connecting TV------------------------------------------------------------------------------------------Connecting Amplifier---------------------------------------------------------------------------------Connecting External AV Signal Source--------------------------------------------------------Connecting Headphone-------------------------------------------------------------------------------
Power Supply Preparation---------------------------------------------------------------------------
Rechargeable Battery---------------------------------------------------------------------------------
Playback Operation------------------------------------------------------------------------------------
System Setup--------------------------------------------------------------------------------------------
Definitions-----------------------------------------------------------------------------------------------Troubleshooting----------------------------------------------------------------------------------------
Specification---------------------------------------------------------------------------------------------
2
4
5
6
10
13
13
13
14
14
15
16
19
25
31
32
33
1
Important Safety Instructions
This symbol indicates that dangerous voltage instituting a risk of electric
shock is present within this unit.
This symbol indicates that there are important operation and maintenance
instructions in the literature accompanying the appliance.
CAUTION: Laser radiation when open. Do not stare into beam.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
CAUTION
1. The product contains a low-power laser device. In order to ensure the safety of the
laser device, do not remove any cover and attempt to repair the unit. If any service
is needed, please contact TEAC or an authorised service center.
2. To reduce the risk of electric shock, do not remove the cover (or back). No userserviceable parts inside. Refer servicing to qualified service centre or agent.
Unplug the product from the wall outlet before servicing or when it is unused for a
long period of time.
3. TEAC does not hold responsibility for the damage caused by any substitutions and
modifications of the product without authorisation from TEAC.
4. Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
WARNING
The product should not be exposed to moisture and that no objects filled with liquids,
such as vases, should be placed on the unit.
NOTES
1. Follow all instructions.
2. Do not use this product near water.
3. Clean only with dry cloth.
4. Do not block any ventilation openings. Maintain well ventilated conditions around
the product. Do not put product on bed, sofa or anything that blocks ventilation.
Install according to the manufacturer’s instructions.
2
Important Safety Instructions
5. Do not install near any heat sources such as radiators, heat registers, stoves or
other product (including amplifiers) that produce heat.
6. Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the unit.
7. Only use attachments/accessories specified by the manufacturer.
8. Unplug the product during lightning storms or when unused for long periods of time.
9. Refer all servicing to qualified service technician. Servicing is required when the
product has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen on the product, the product
has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Note: Do not touch the color TFT LCD screen by hand directly.
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection technology
must be authorised by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorised by Macrovision. Reverse engineering or
disassembly is prohibited.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
3. CAUTION: Do not open the top cover. There are
Region code information
DVD units and discs are coded by region. If the region number described on the DVD
disc does not correspond to the region number of this product, this product cannot play
the disc. The region code of this unit is 4.
The images in this manual are only for reference and they may be
different from the actual ones.
interlock failed or defeated. Avoid direct exposure
to beam.
no user serviceable parts inside the unit. Leave all
servicing to qualified service technician.
3
Accessories
ITEM NAME QTY
Remote Control 1
Note：
Accessories and their parts numbers are subject to change without prior notice.
Cell for Remote Control 1
Power Supply Cord with AC Adaptor 1
Rechargeable Battery Pack 1
Audio/Video Cable 1
Operation Manual 1
4
Notes on Discs
Compatible Disc Formats
DISC LOGO DIAMETER
DVD
CD
JPEG 12cm
The software manufacturer specifies operation methods of some DVD discs. Please
follow the instructions of the disc.
Care of Discs
PLAYBACK TIME/
PLAYABLE SIDES
133 min (SS-SL)
12cm
8cm
12cm 74 min
8cm 20 min
242 min (SS-DL)
266 min (DS-SL)
484 min (DS-DL)
41 min (SS-SL)
75 min (SS-DL)
82 min (DS-SL)
150 min (DS-DL)
1. When loading or removing discs, try not to touch their playing surfaces as the right
figure.
2. Fingerprints or stain on the disc may affect the quality of sound and picture. To
clean your discs, use a soft clean cloth to wipe them. If necessary, moisten a soft
cloth with diluted neutral detergent to remove heavy dirt or fingerprints.
3. Do not wipe in a circular direction as the figure in the right middle (concentric
scratches on the disc groove tend to cause noise). Gently wipe from the center of
the disc to the outer edge as the right figure.
5
View of Unit
Front Panel
1. LCD Screen
2. Speakers
3. MODE Button
Press to enter the brightness or color adjusting mode.
Press and hold for several seconds to change the aspect ratio among 16:9 and
4:3.
6
View of Unit
4. SETUP Button
Press to enter or exit the setup menu.
5. TITLE Button
Press to display title menu if it exits in the disc.
6. MENU Button
Press to enter or exit the disc menu during playback.
7. (STOP) Button
Press to stop playback. Then press the
8.
Button
Press once to pause the playback, and press it again to resume the playback.
9. / and / Button
/ Button: Press to select item.
Button: Press to play forward fast during playback.
Button: Press to play backward fast during playback.
10. / and/ Button
Button: Press to select item.
Button: Press to skip to the next list, track or chapter during playback.
Button: Press to return to the previous list, track or chapter during playback.
11. ENT Button
Press to confirm your selection.
12. Disc tray cover
When the disc is loaded, gently press the cover to close.
13. Remote Sensor
14. Charge Indicator
Light is red during being charged, and is green when it is fully charged.
15. OPEN Button
Press to open the disc tray cover.
button to resume the normal playback.
7
View of Unit
Right Side Panel
1. Volume Control Knob
2. Headphone Jack
3. Audio Input/Output Jack
Connect external audio device.
4. Video Input/Output Jack
Connect external video device.
5. AV IN/OUT Switch
Switch to “IN” to input external AV signal; switch to “OUT” to play disc or output AV
signal.
Left Side Panel
1. DC 9.5V Input Jack
Connect supplied adaptor.
2. Power ON/OFF Switch
8
View of Unit
Bottom Panel
1. Rechargeable Battery Contacts
Connect rechargeable battery pack.
Note: Do not touch Rechargeable Battery Contacts.
9

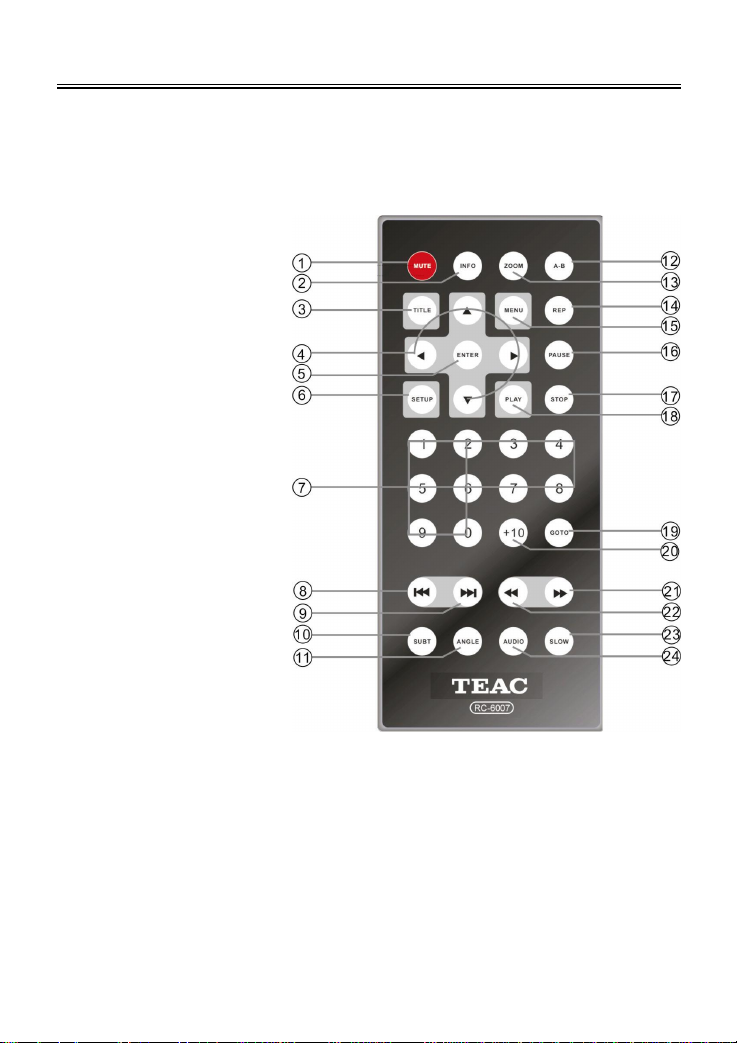

Remote Control
Button Function
1. MUTE Button
Press to mute the volume.
2. INFO Button
Press repeatedly to
display the detailed
information of the disc
during playback.
3. TITLE Button
Press to display title
menu if it exits on the
disc.
4. Direction Button
Press to select item.
5. ENTER Button
Press to confirm
selection.
6. SETUP Button
Press to enter or exit
setup menu
7. 0-9 number Buttons
Press to select numbers.
8. Button
Press to return to
previous list, track or
chapter.
9. Button
Press to skip to the next
list, track or chapter.
10. SUBT Button
Press to select subtitle language if the disc contains multi-subtitle languages.
11. ANGLE Button
Press to select camera angle if the disc contains multiple camera angles.
12. A-B Button
Press to play a section of the disc from point A to point B.
13. ZOOM Button
Press to realize various zoom effect.
14. REP Button
Press to repeat a chapter, title or the entire disc.
15. MENU Button
Press to enter or exit the DVD disc menu.
10
Loading...
