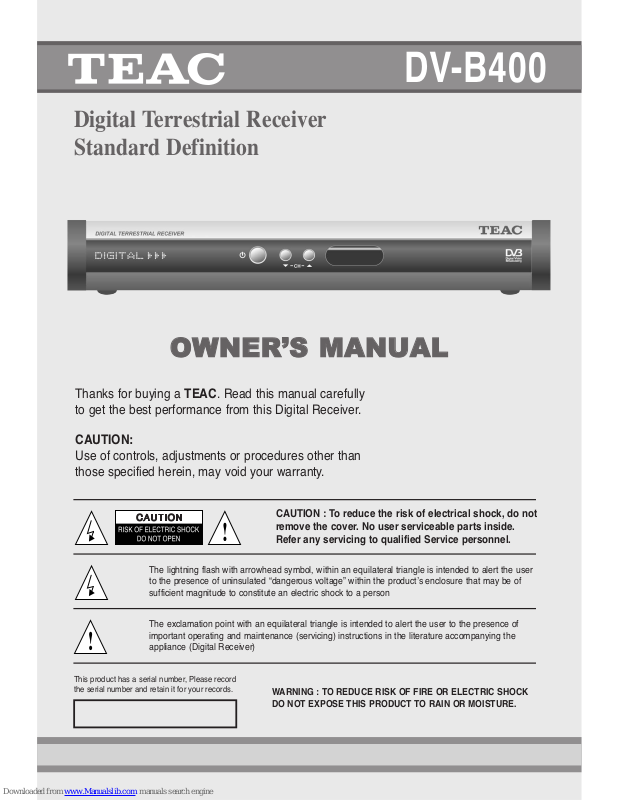

OOWWNNEERR’’SS MMAANNUUAALL

DV-B400

Digital Terrestrial Receiver
Standard Definition

Thanks for buying a TEAC. Read this manual carefully
to get the best performance from this Digital Receiver.

CAUTION:

Use of controls, adjustments or procedures other than
those specified herein, may void your warranty.

CAUTION : To reduce the risk of electrical shock, do not
remove the cover. No user serviceable parts inside.
Refer any servicing to qualified Service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute an electric shock to a person

The exclamation point with an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance (Digital Receiver)

WARNING : TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

This product has a serial number, Please record
the serial number and retain it for your records.

PLEASE READ THIS FIRST!

Is Digital TV reception available in your home?

Generally speaking; if this receiver was on display (demonstration) by your retailer and
you live within the same area/town/city, then it should work within your home.

If you experience break-up of picture or poor performance, it is recommended that you
contact your local TV antenna installer first. They may need to check your signal quality
for digital reception. The antenna installer may advise you to upgrade your TV antenna
to a newer digital ready antenna, and install newer cabling such as RG6 quad shield
cable.

For more information on installations, visit the Digital Broadcast Australia website found at
http://www.dba.org.au.

I don’t seem to have Digital TV reception in my home,
what shall I do?

Digital TV is relatively new to Australia and it will take time for it to be available everywhere
around Australia. If Digital TV reception is not available to you, simply place together all
packaging and supplied cables back into the box neatly. Have your receipt (proof of
purchase) ready and contact your place of purchase for further details on what you
should do.

Connect your antenna lead directly into the antenna connection on the rear of the box.

Be sure to select AV or EXT input on your television by using the television remote
control.

Switch on the set-top box. If all connections are right, you will see a The AUTO
SEARCH screen appears on the television.

Simply press the RED button (SUB.T) to start tuning process.

Please read the user-manual thoroughly

to enjoy this product.

How do I connect this box to my TV?

Using the supplied cable, connect the plug (called RCA) onto the rear of the
Set-top box labelled Video-L Audio R . The other end of the cable connect to your television’s
Video in and Audio in. Any televisions that have mono sound (not stereo) will not
require the red plug.

1

2

3

4

5

Use adaptor
supplied

DEFINITION Throughout the manual, you will find the letters STB.

This stands for Set-Top Box.

MAIN SUPPLY Use only DC 12V 1.5A plugpack as supplied.

CABLE Use standard certified cables to prevent any malfunction of

the STB.

LOCATION Keep the STB indoors and away from potential hazards, such as

houseplants, rain and direct sunlight.

CLEANING 1. Always disconnect the STB power cord from the wall socket

before cleaning it.

2. Use a light damp cloth(no solvents)to clean the case.

OVERLOADING Do not overload wall outlets, extension cords or adapters.

These can cause fire or electrical shock.

VENTILATION 1. Do not block ventilation slots of STB.

2. Do not place the STB on soft furnishings or carpets.

3. Ensure that a free airflow is maintained around the STB.

4. Do not allow the STB to be exposed to direct sunlight or a heater.

5. Do not stack other electronic equipment on top of the STB.

LIQUIDS Keep liquids away from the STB.

Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus.

LIGHTNING 1. The Manufacture's instructions for safe guarding other

equipment connect to the STB, such as a television set,
must be followed during lightning conditions.

2. Ensure lightning protection devices for the terrestrial
antenna, and mains are installed.

Safety Instructions

This STB has been manufactured to meet Australian safety standards.
Please read the following safety instructions carefully before you handle the STB.

For our valued customers, we do our best for each product and services to offer. We will
support our cutomers through our local sales and service network. TEAC supports this
product via its set-top box homepage with useful information and new software.
If you have any questions about this product, please consult the web page before contacting
out Total Care Hotline [phone] EST 9am to 5pm. Please have your software version
number ready before calling us. [ Refer to MENU/SYSTEM INFORMATION page27]

Homepage : http://stb.teac.com.au
E-mail : [e-mail]

To provide you with the convenience of usage, TEAC has the right to make changes and
improvements to the products including the user manual without any notice in advance.

Copyright 2004 TEAC Australia Pty Ltd.

Throughout this manual the letters STB are constantly used. This stands for "Set-Top Box"
and refers to your DV-B400.

Support & Copyright

Understanding the Remote Control Unit ..........................................8 ~ 9

Connecting Your Equipment ..................................................................10

Front Panel ......................................................................................................10

Rear Panel .......................................................................................................11

Connection ......................................................................................................12 ~ 13

Setting Up Your System...........................................................................14

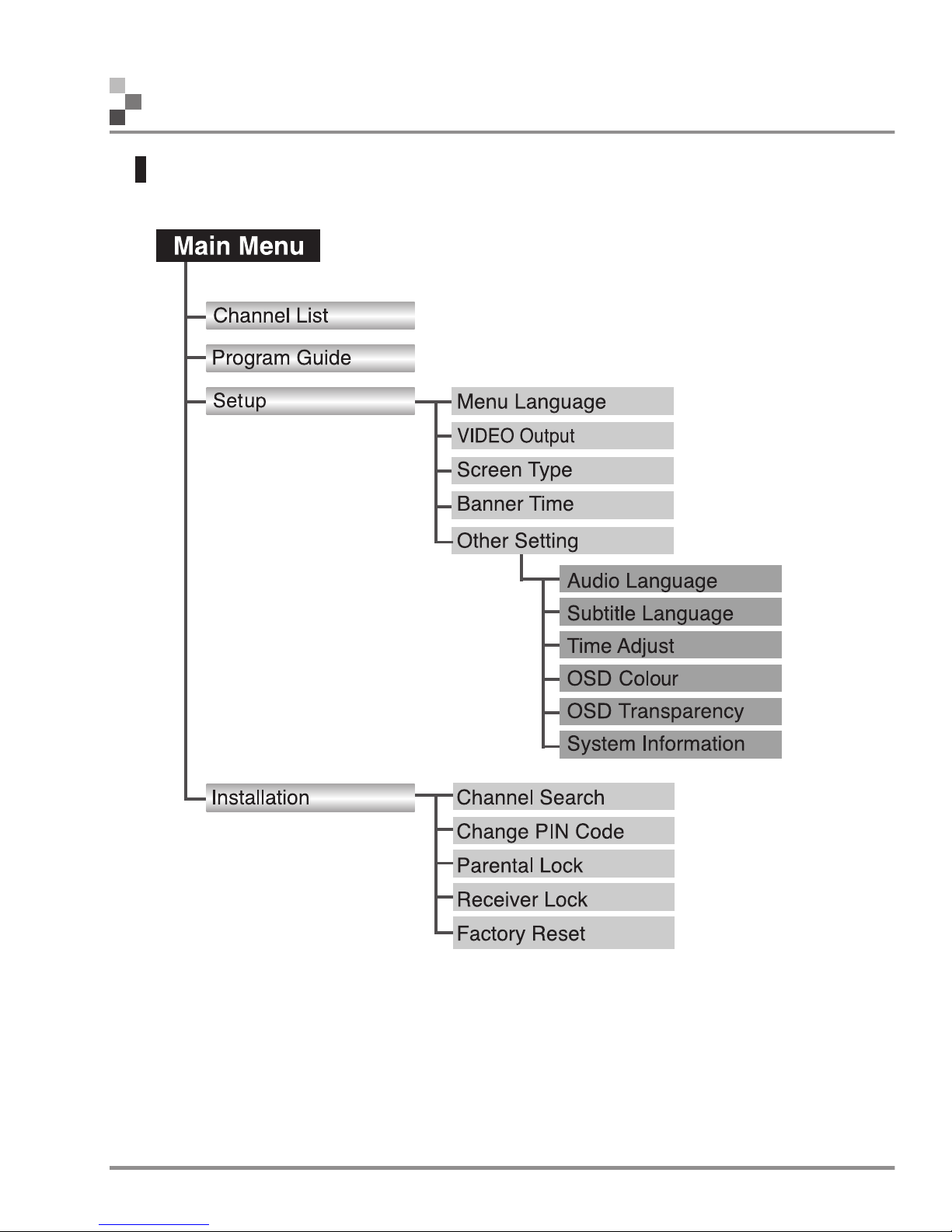

Menu Tree ........................................................................................................14

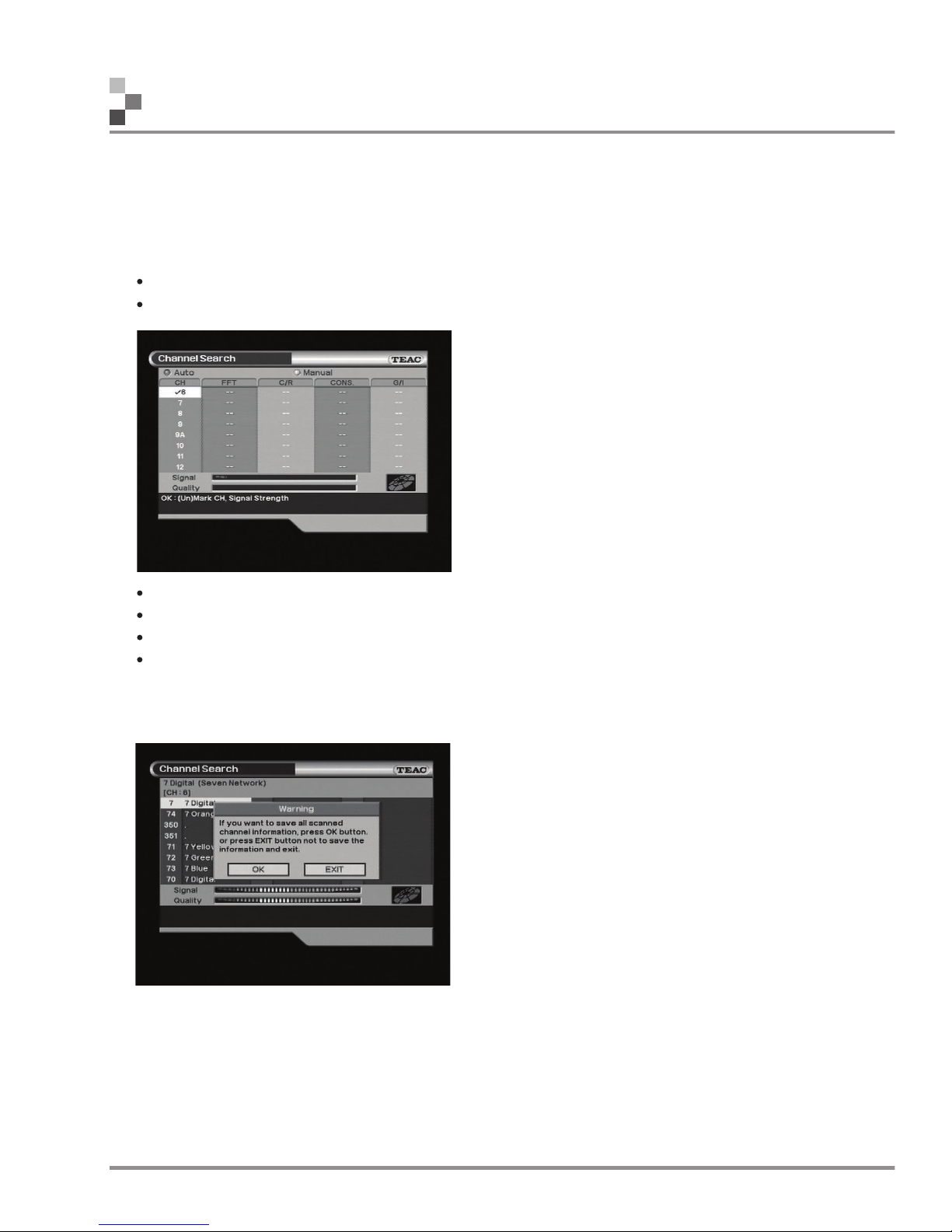

Automatic Channel Search for Television Services....................................15

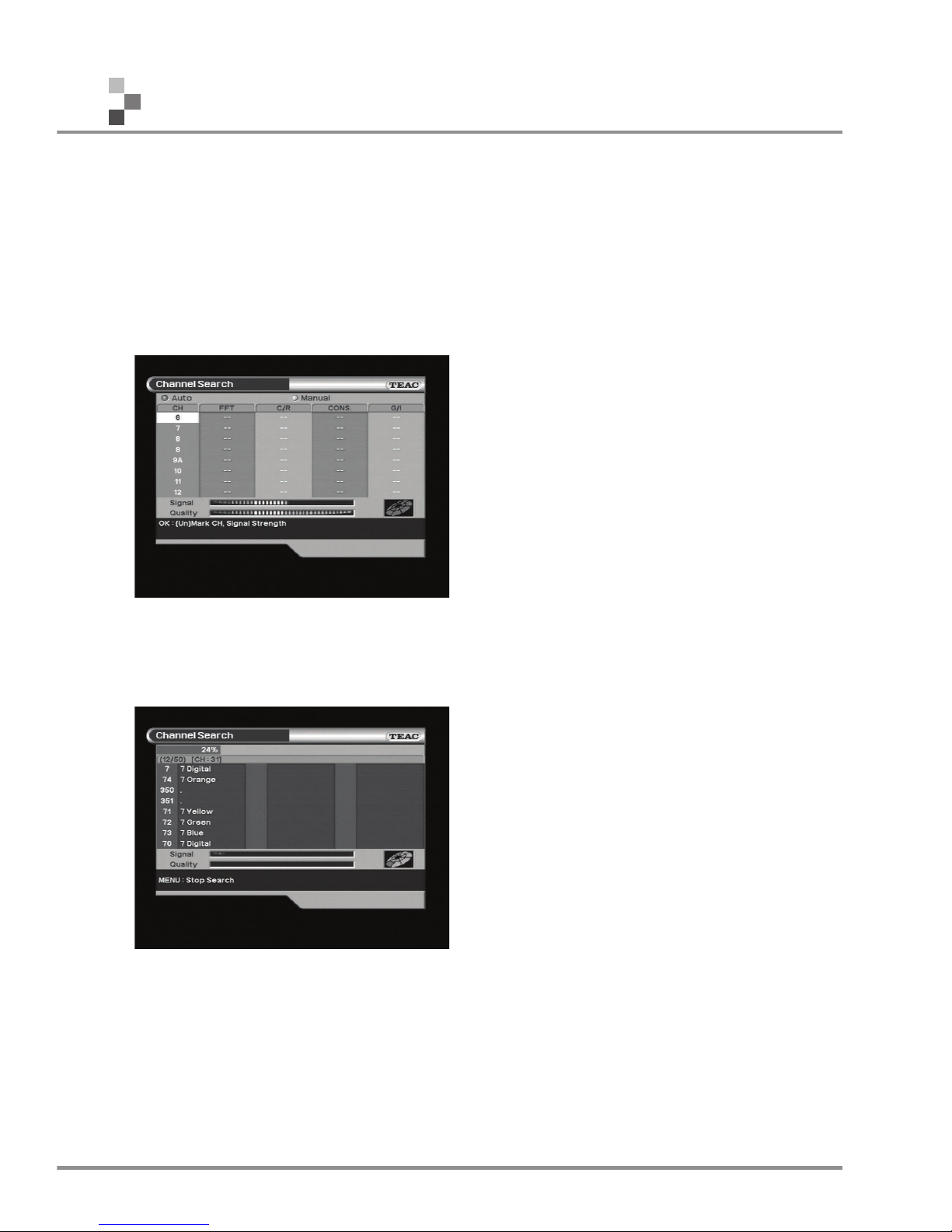

Manual Channel Search .................................................................................15

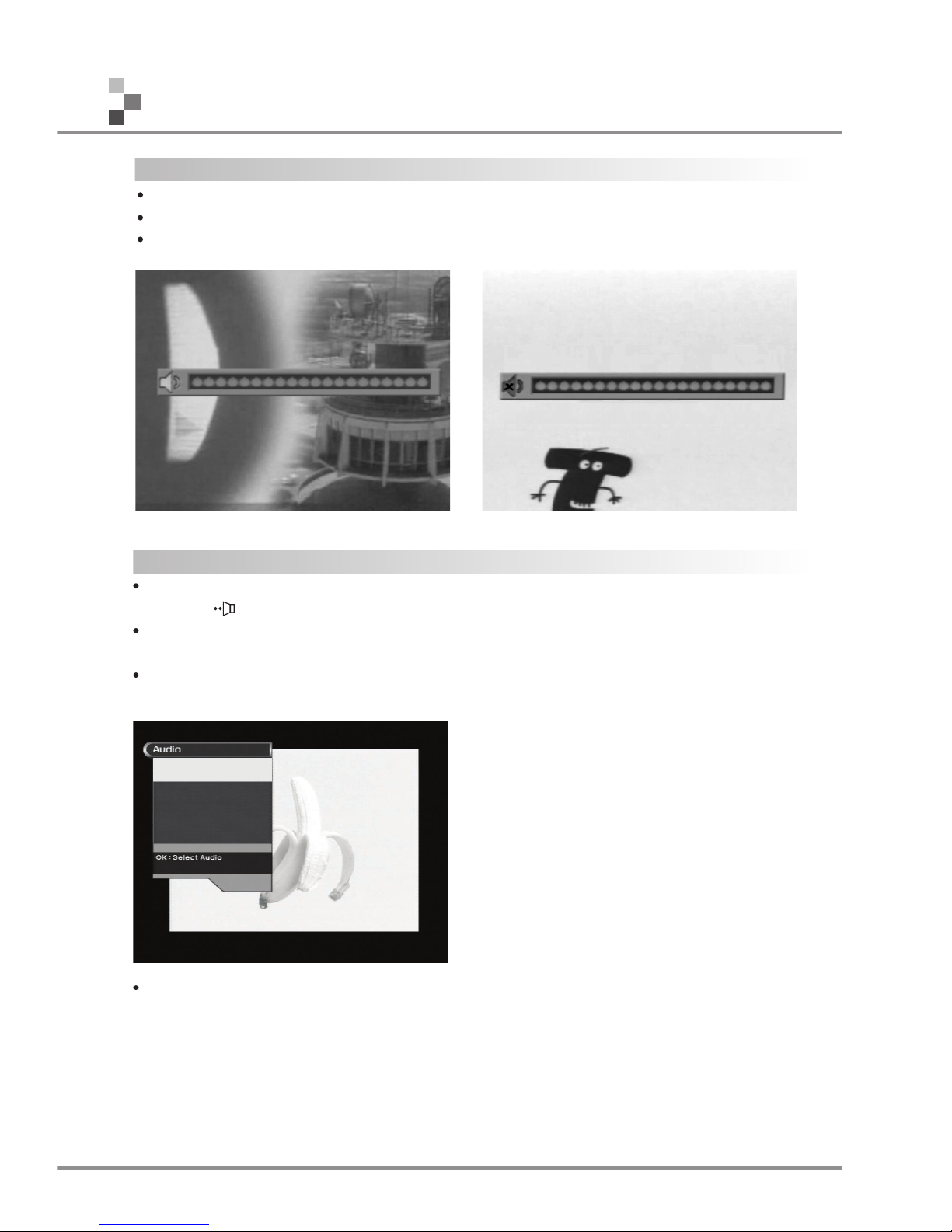

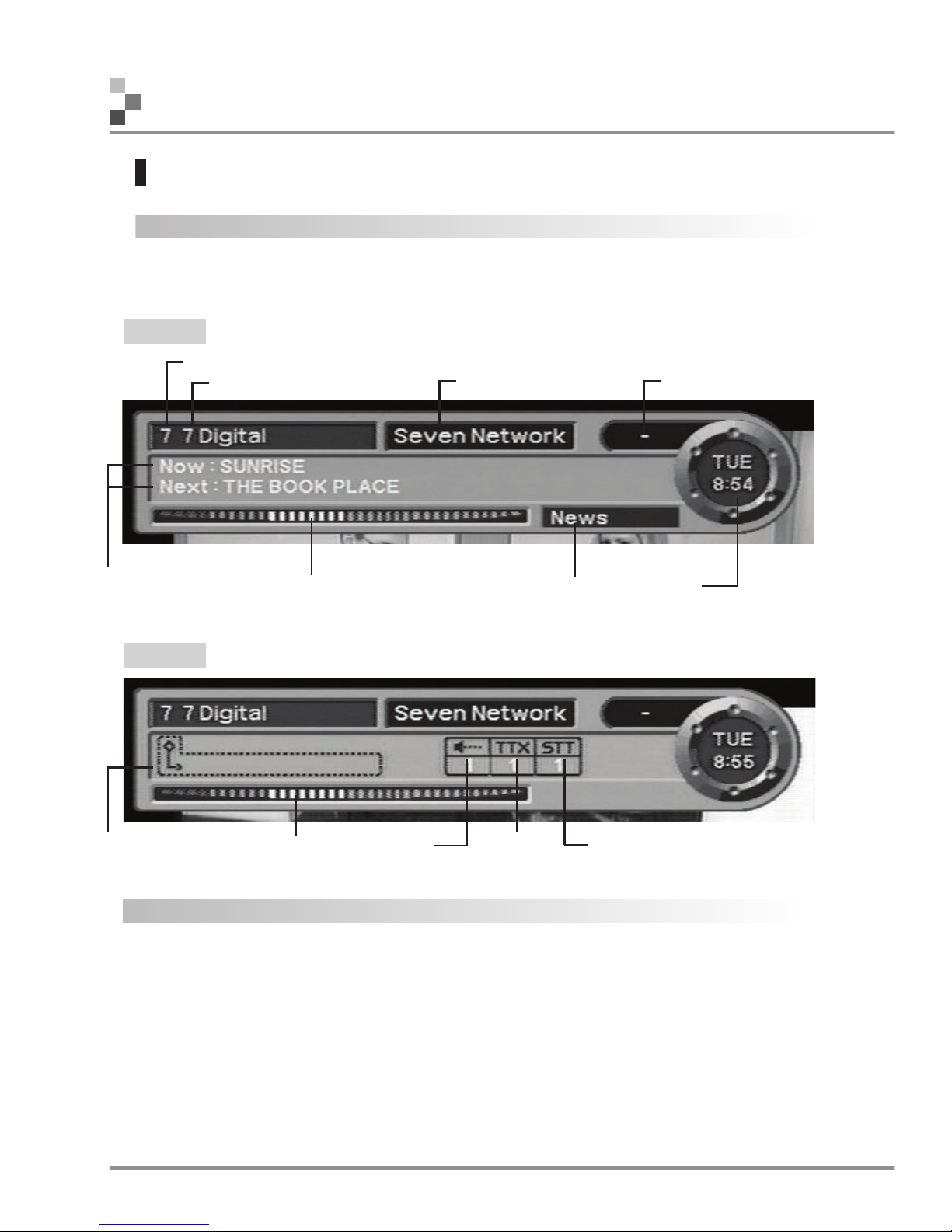

Basic Function ................................................................................................16 ~ 17

Menu Operation ...........................................................................................18

Main Menu .......................................................................................................18 ~ 19

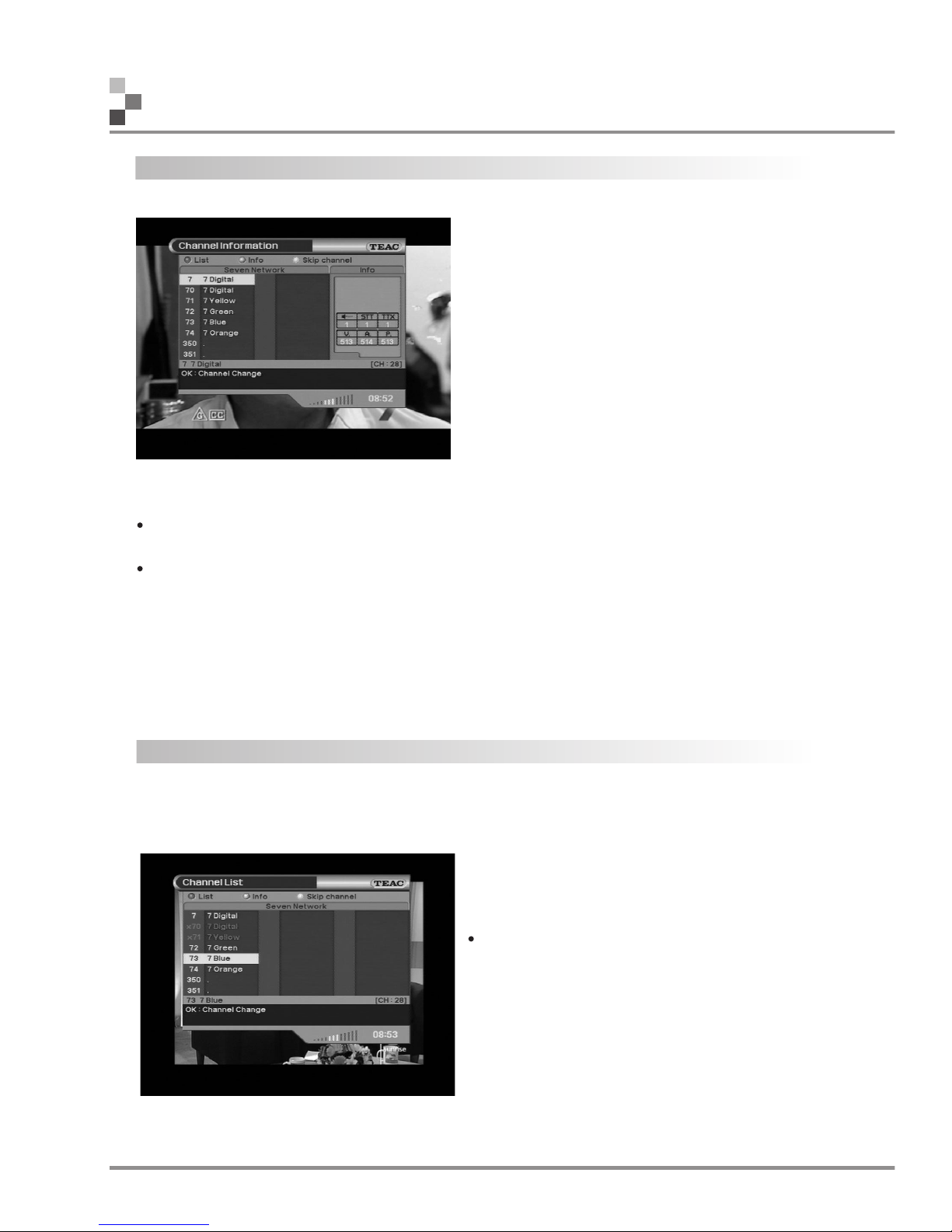

Channel List ....................................................................................................19

Channel Information .......................................................................................20

Skip Channel ..................................................................................................20

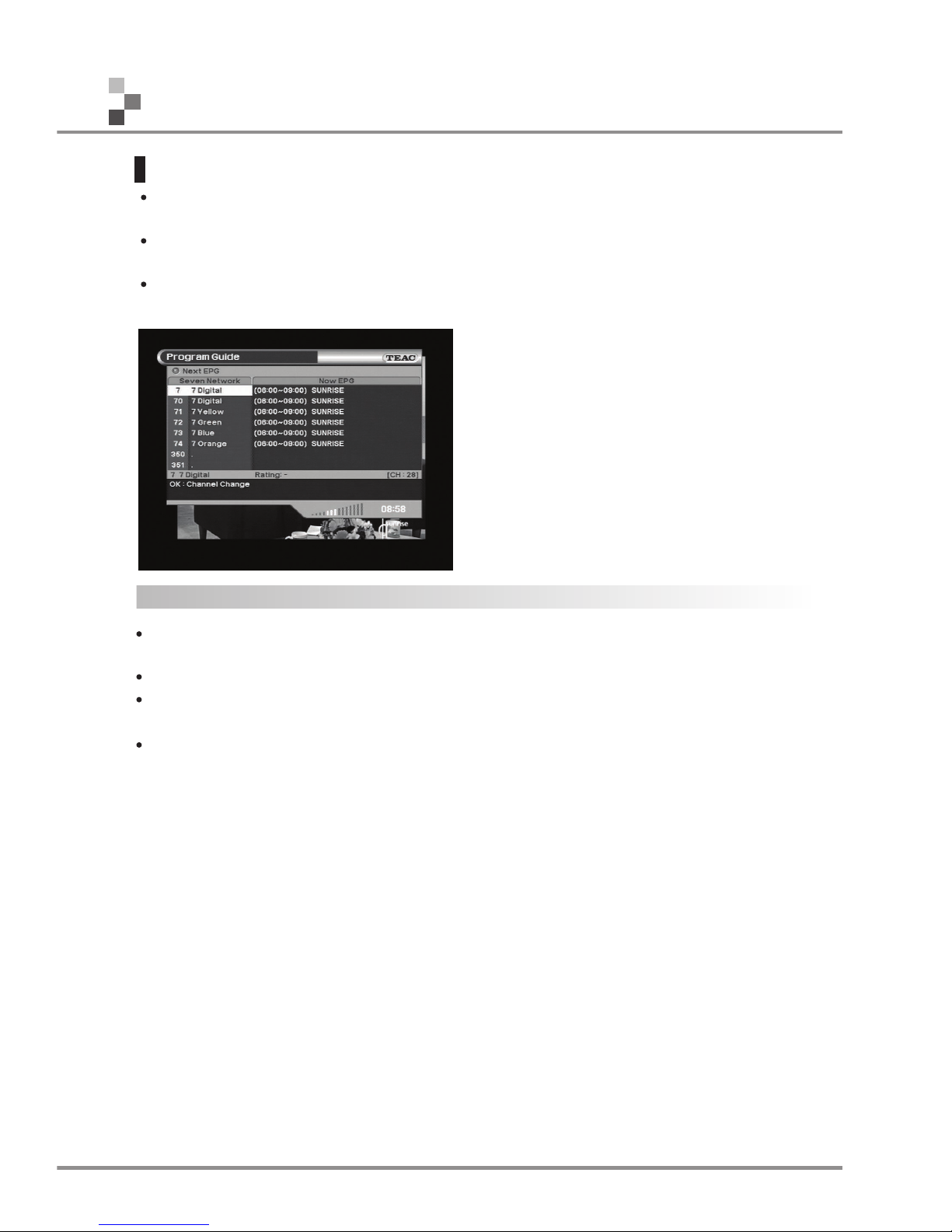

Program Guide ................................................................................................21

Now/Next EPG ...............................................................................................21

Setup ................................................................................................................22

Menu Language..............................................................................................22

VIDEO Output.................................................................................................23

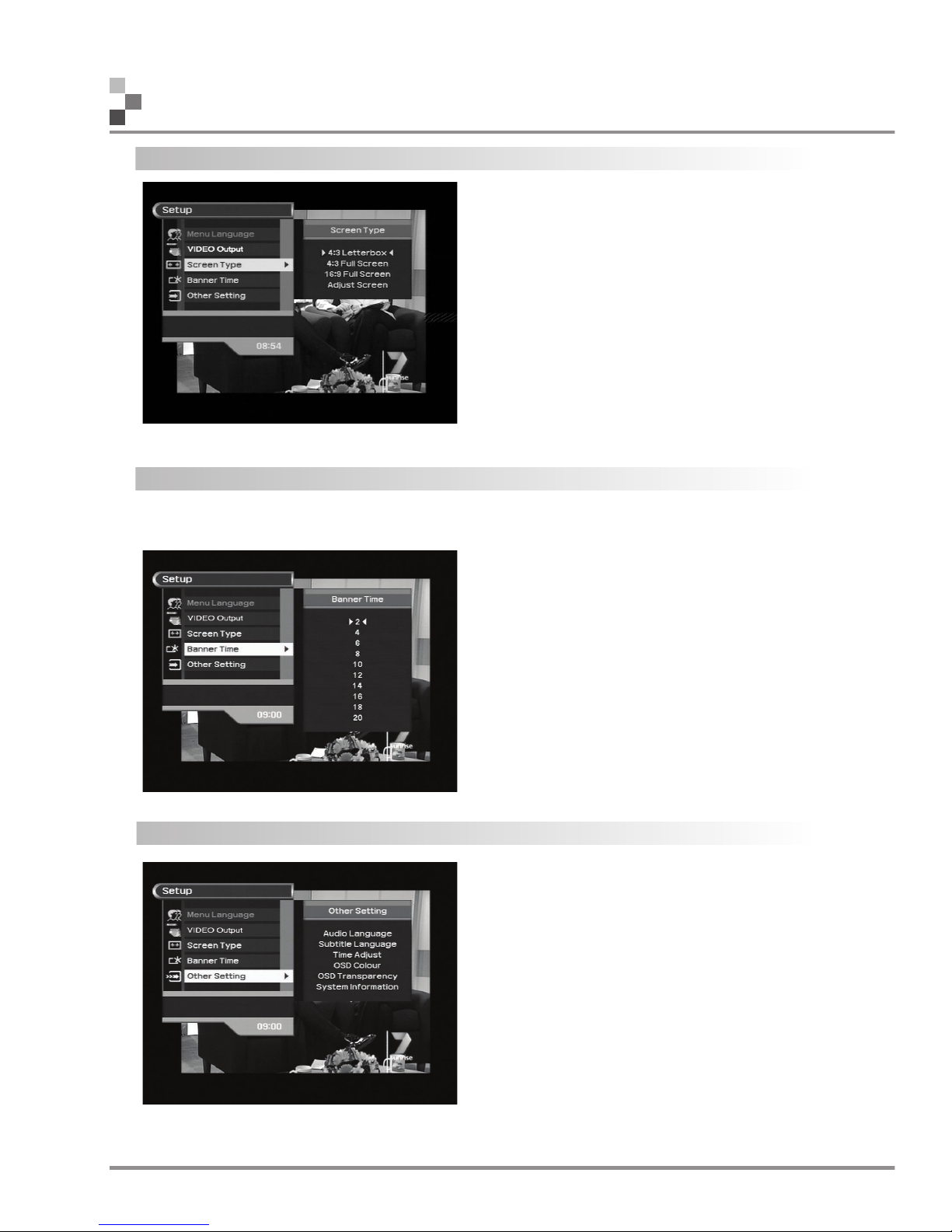

Screen Type ...................................................................................................24

Banner Time ...................................................................................................24

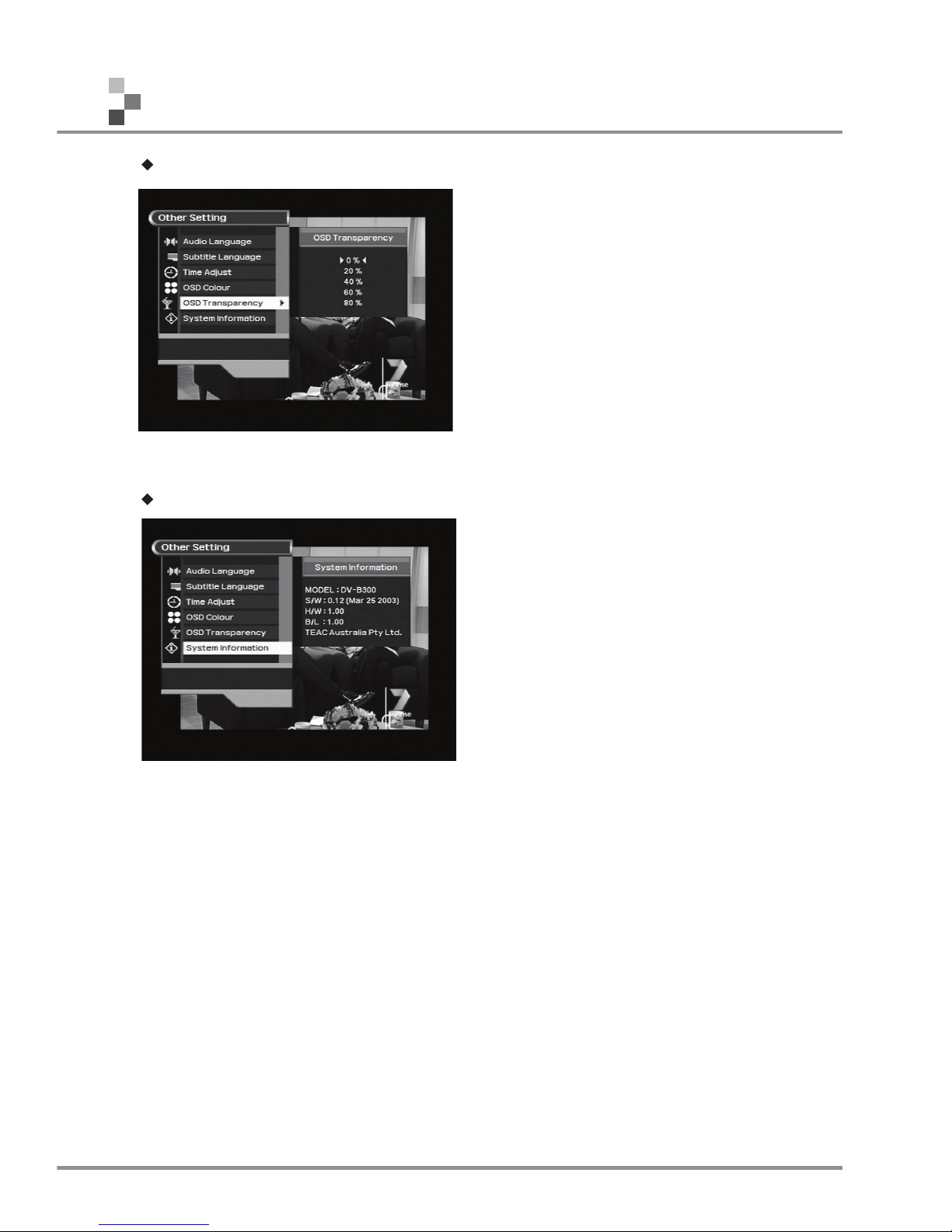

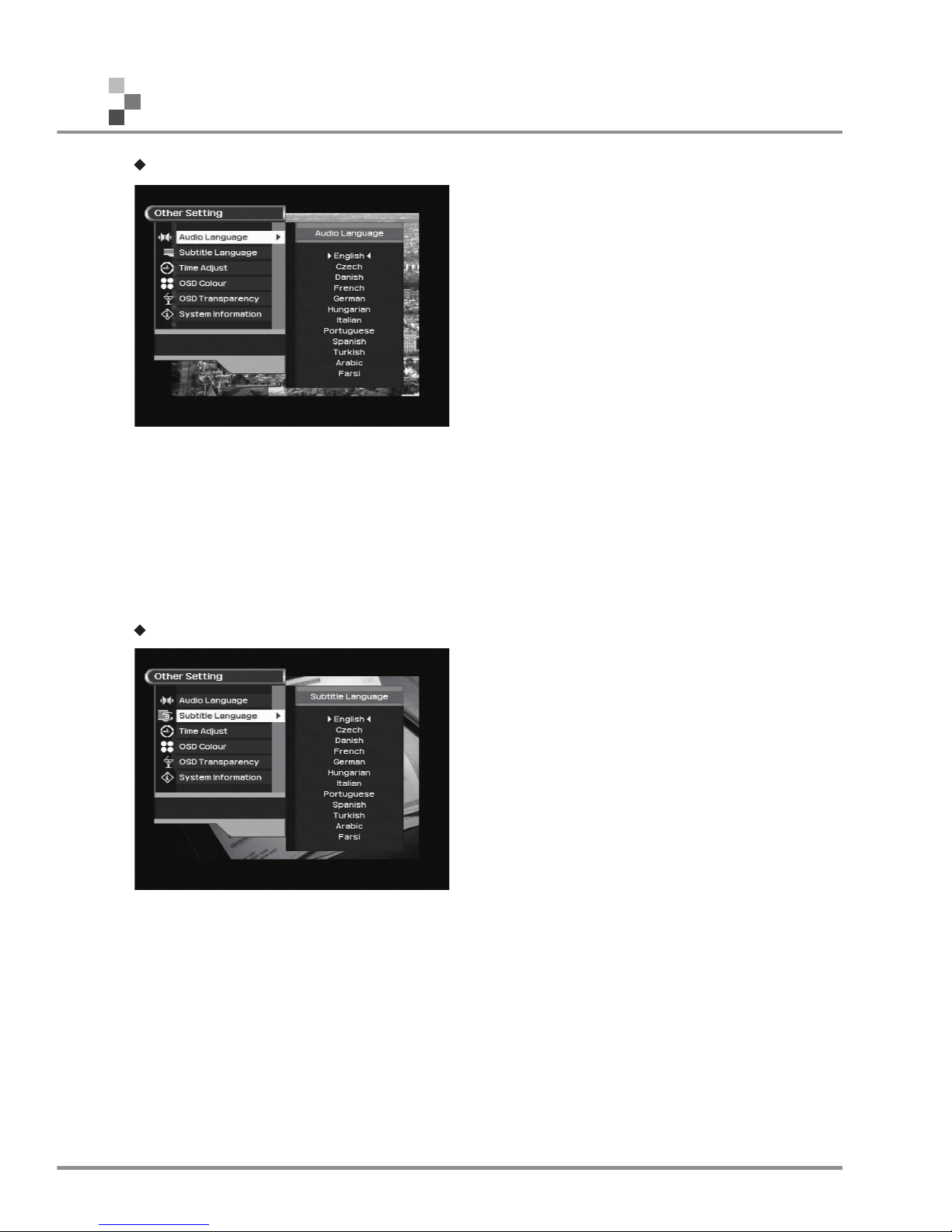

Other Setting ..................................................................................................24 ~ 27

Installation .......................................................................................................28

Channel Search..............................................................................................28 ~ 30

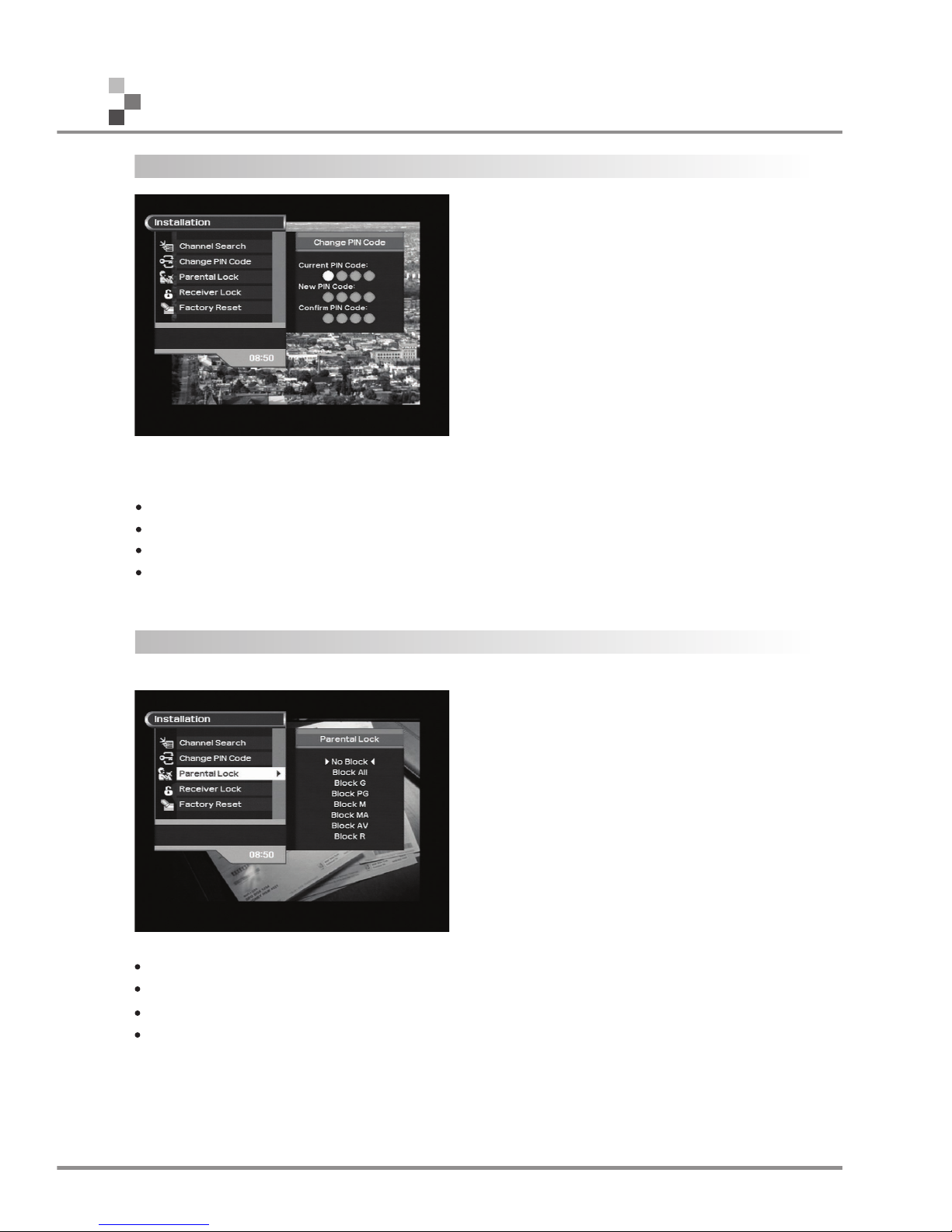

Change PIN Code ..........................................................................................31

Parental Lock..................................................................................................31

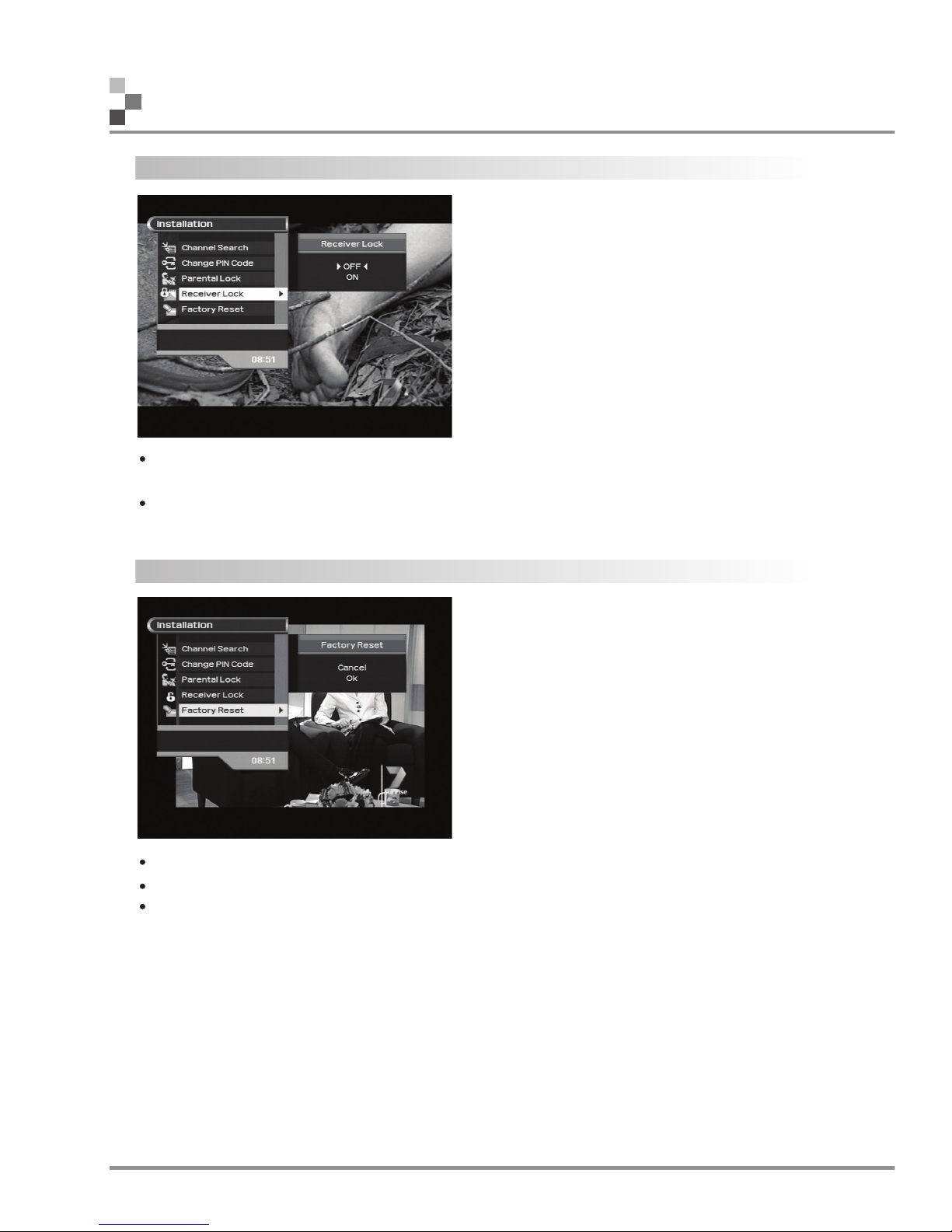

Receiver Lock .................................................................................................32

Factory Reset .................................................................................................32

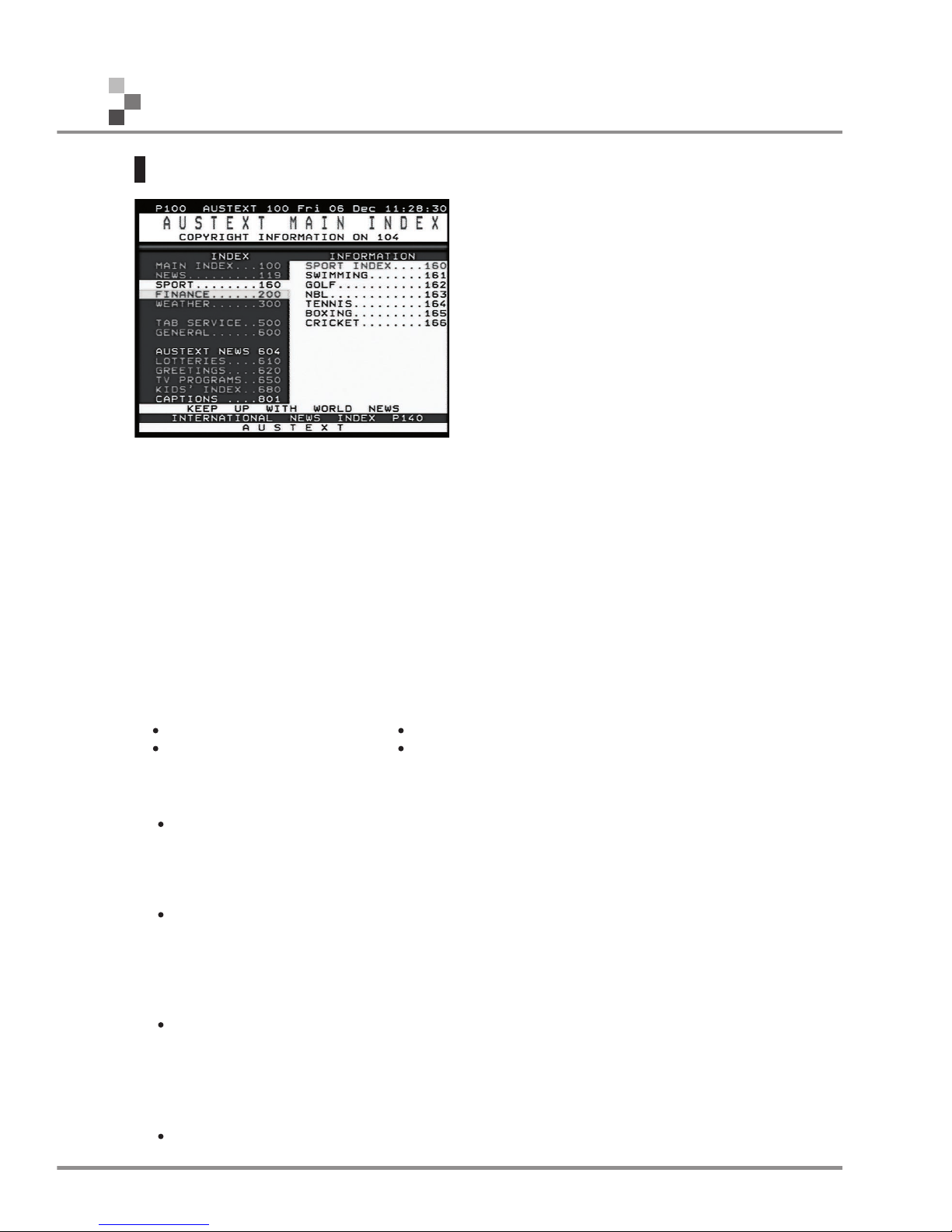

TELETEXT Navigation ....................................................................................33

Troubleshooting ..........................................................................................34

Technical Specifications ..........................................................................35 ~ 36

Frequently Asked Questions..................................................................37 ~ 39

- 8 -

DV-B400 Digital Terrestrial Receiver

Understanding the Remote Control Unit

TELETEXT

JUMP

EXIT

17

MENU

19

ASPECT

18

TV/RADIO

16

CHANNEL

UP/DOWN

14

INFORMATION

15

PRE-CHANNEL

13

EPG

12

NUMERIC

BUTTONS

11

MUTE

STANDBY

TV/STB

SOUND

SUBTITLE

PAGE UP/DOWN

VOLUME UP/DOWN

OK

1

2

3

4

5

7

EVENT

20

M-VIEW

21

8

10

9

Remote Control Unit

6

STANDBY

To switch between Operation and
Standby mode.

TV/STB

Not used

SUBTITLE (Red)
To select closed caption.
Note that closed caption may not always
work as the broadcaster may not provide
this service.

PAGE UP/DOWN

To move up or down a page in the
channel list.

SOUND (Yellow)
To select the sound track list in the current
channel.

VOLUME UP/DOWN

To increase or decrease the volume.

OK

To confirm your choice.

EXIT

To return to the normal viewing mode from
a menu.

TELETEXT

To navigate teletext pages.

JUMP

This key will jump between the 1st service
of each network.

MUTE

To enable or disable the audio.

NUMERIC BUTTONS

To select the channel and enter the
channel information and PIN Code.

EPG

To display the TV/Radio program guide.

INFORMATION (Green)
To display the program information box on
the screen.

PRE-CHANNEL (Blue)
To return to the previous channel.

CHANNEL UP/DOWN

To change channels up and down.

MENU

To display the Main Menu on the screen or
return to the previous menu.

TV/RADIO

Not used

ASPECT

To select your screen aspect ratio.
Press this button to toggle different modes.

EVENT

To select the extended event information of
the program.

M-View

To display multi angle view selection.

- 9 -

DV-B400 Digital Terrestrial Receiver

Understanding the Remote Control Unit

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

Note : Your DVB receiver is capable of displaying teletext on screen since it has an

embedded teletext decoder.

**AUSTEXT only available from 7 digital

- 10 -

DV-B400 Digital Terrestrial Receiver

Connecting Your Equipment

Front Panel

STAND-BY To Switch between Operation and Standby mode.

CHANNEL- To change channels down.

To move down highlight marked cursor.

CHANNEL+ To change channels up.

To move up highlight marked cursor.

RED LED Stand by condition
GREEN LED Operating

IR SENSOR Point remote controller toward front on the DV-B400

1 2 3 4

3

4

1

2

5

5

- 11 -

DV-B400 Digital Terrestrial Receiver

3

6

Connecting Your Equipment

ANT IN To connect the antenna here.

LOOP THROUGH Used to connect a RF signal from the STB to either the RF input jack

(antenna) on your VCR or to the antenna input of your TV.

TV Composite video, S-Video & also RGB output is available.

Different cables are required.

VIDEO & AUDIO L/R To connect Video & Audio R/L to a TV, Audio Amp or Hi-Fi system.

YPbPr The 3 RCA(Cinch) connectors are switchable from Video+L/R Audio

to Component video YPbPr. Refer to MENU selection for further
information

RS-232 To connect to a personal computer for software upgrade.
UPGRADE

OPTICAL To connect S/PDIF cable for digital audio.

Rear Panel

1

2

4

5

1

2

3

4

5

6

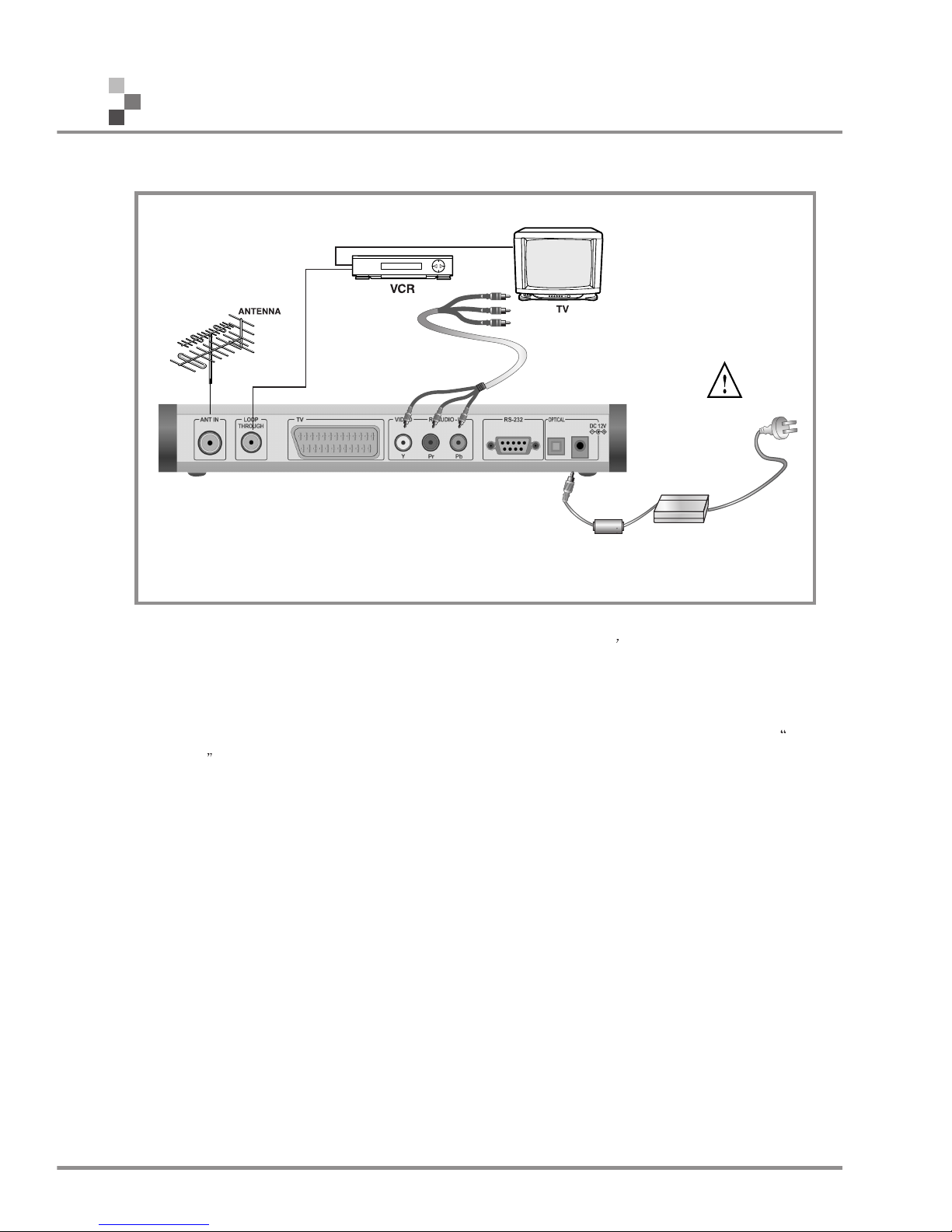

How to connect your STB to various systems

There are several ways of connecting the STB to your TV and Hi-Fi System. Consult
your local supplier for assistance in setting-up your system best suited to your
requirements.

1. STB to a TV

Simple connection to the television set. There are 2 methods.

(a) Connect STB to a 3RCA connector(supplied cable)

The 3RCA connections will connect to your television AV input. Be sure to select

'AV' key on your TV remote control.

(b) Connect STB via SCART to SCART connector (cable optional)

Simply connect the SCART lead from TV (on STB) to the SCART connector(cable
optional) usually found on the rear of your television. Select RGB on menu for
best performance.

- 12 -

DV-B400 Digital Terrestrial Receiver

Connection

Connecting Your Equipment

Use adaptor
supplied

STB to a TV Set
