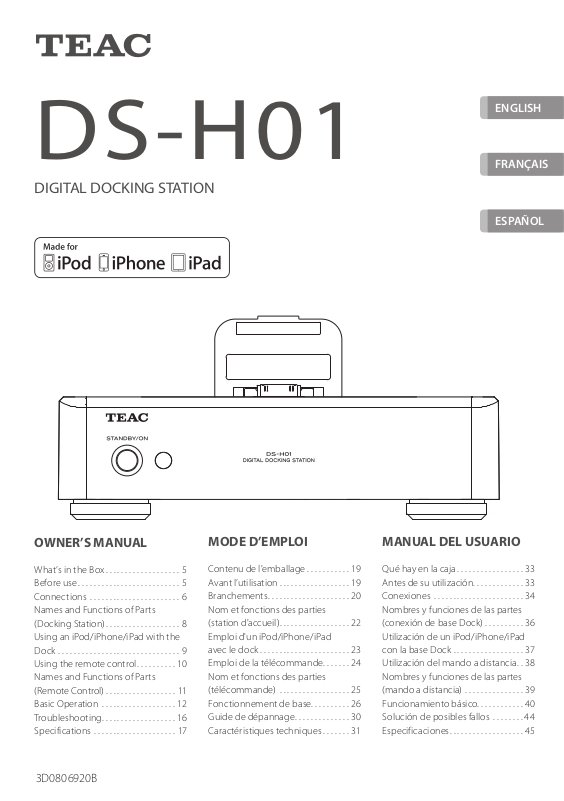

TEAC DS-H01 Owner's Manual

Z
ENGLISH
DS-H01
DIGITAL DOCKING STATION
OWNER’S MANUAL
MODE D’EMPLOI
FRANÇAIS
ESPAÑOL
MANUAL DEL USUARIO
Names and Functions of Parts
Using an iPod/iPhone/iPad with the
Names and Functions of Parts
3D0806920B
Contenu de l'emballage ...........19
Nom et fonctions des parties
Emploi d'un iPod/iPhone/iPad
Nom et fonctions des parties
Qué hay en la caja .................33
Antes de su utilización .............33
Nombres y funciones de las partes
Utilización de un iPod/iPhone/iPad
2
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not instal l near any heat sources such as radiator s, heat re gisters, st o ves, or ot her apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blad e s wi th on e wi de r th an th e ot he r. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pi nched partic ula rly at pl ugs, conve nien ce receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Ser vicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
or sold with
Do not expose this apparatus to drips or splashes.
<
Do not place any objects lled with liquids, such
<
as vases, on the apparatus.
Do not install this apparatus in a confined space
<
such as a book case or similar unit.
The apparatus draws nominal non-
<
operating power from the AC outlet wi th its PO WER or S TANDBY/O N switch not in the ON position.
The apparatus shou ld be locate d
<
close enough to the AC outlet so that you can easily grasp the power cord plug at any time.
The appliance coupler is used as the disconnect
<
device, the disconnect device shall remain readily operable.
If the product uses batteries (including a battery
<
pack or installed batteries), they should not be exposed to sunshine, re or excessive heat.
Caution should be taken when using earphones or
<
headphones with the product because excessive so und pressure (volume) fro m ea rphone s or headphones can cause hearing loss.
3
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE TH IS AP PLIAN CE TO RAI N OR MOISTURE.
CAUTION
DO N OT RE MOV E THE EX TER NAL CASE S OR
<
CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN.
IF YOU ARE EXP ERIENCI NG PROBLE MS WI TH
<
THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
For U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radia te radi o f requenc y en ergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does ca use ha rmf ul int er ferenc e to ra dio o r tel evi sion rec eption, whic h can be dete rmined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reori ent or relo cate the equip ment an d/or the
receiving antenna.
• Increase the separation betwe en the equipment and
receiv er.
• Co nn ec t th e e quipment into an o utlet on a
circuit dif ferent from that to which the receiver is connected.
• Co nsul t th e d eal er or an ex per ie nce d radi o/T V
technician for help.
CAUTION
Ch ang es or mo dif ica tio ns to th is equi pme nts not expres sly a pp ro ved b y TE AC C OR PO RAT IO N fo r compliance will void the user’s warranty.
iPad, iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specif ica lly to iPod, iPho ne, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulator y standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
Other company names and product names in this doc um en t ar e the tr ad em ar ks or re gi st er ed trademarks of their respective owners.
4
For European Customers
Pb, Hg, Cd
Disposal of electrical and electronic equipment
(a) All electrical and electronic equipment should be disposed of separately from the municipal
waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of electrical and electronic equipment correctly, you will help save valuable
resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste electrical and electronic equipment can have serious effects on
the environment and human health because of the presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE) symbol, which shows a
wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) Return and collection systems are available to end users. For more detailed
information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.
Disposal of batteries and/or accumulators
(a) Waste batteries and/or accumulators should be disposed of separately from the municipal
waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of waste batteries and/or accumulators correctly, you will help save valuable
resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste batteries and/or accumulators can have serious effects on the
environment and human health because of the presence of hazardous substances in them.
(d) The WEEE symbol, which shows a wheeled bin that has been crossed out, indicates
that batteries and/or accumulators must be collected and disposed of separately from household waste.
If a battery or accumulator contains more than the specified values of lead (Pb),
mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.
(e) Return and collection systems are available to end users. For more detailed information
about the disposal of waste batteries and/or accumulators, please contact your city office, waste disposal service or the shop where you purchased them.
5

What’s in the Box

Should any of the following accessories be missing or damaged, please contact the retailer where you purchased the unit or our audiovisual customer support (see back cover).
AC adapter (PS-M0630) × 1
AC adapter power cord × 1
RCA audio cable × 1
Remote control (RC-1268) × 1
Dry cell batteries (AAA) × 2
Owner's manual (this document) × 1
Warranty card × 1

Before use

Q Precautions for placement
o Avoid placing the unit in direct sunlight, close to a source of heat or in other similar conditions.
Do not place the unit on top of an amplifier or other equipment that might generate heat that exceeds the operating temperature range of this unit. Doing so could cause discoloration, deformation or malfunction. (This unit can be placed on top of a TEAC A-H01 without problem.)
o When the unit is turned on, if a TV is turned on nearby lines might appear on its screen
depending on the characteristics of the TV broadcast signal. This is not a malfunction of the unit nor of the TV. If this occurs, turn the unit off.
Cleaning
Wipe the acrylic part of the top cover with a soft cloth. Clean dirt from panel surfaces by wiping them with a soft cloth that has been slightly dampened by a diluted neutral cleaning fluid. Do not use chemical cleaning cloths, thinner or similar substances as they could damage the surface of the unit.
Q For safety, disconnect the power plug from the outlet before cleaning.
6
Power outlet
A B
LR
VIDEO IN
TV (display)
S-VIDEO IN
PS-M0630
Included AC adapter power cord
D
C
E
Computer
USB cable
RCA audio cable
RCA video cable
RCA coaxial digital cable
Optical digital cable
S-video cable
TEAC UD-H01, A-H01,
stereo amplier or
powered speakers
Sound input
(LINE IN, etc.)
DIGITAL IN
(OPTICAL)
DIGITAL IN
(COAXIAL)
UD-H01, A-H01 or other digital sound input device
UD-H01, A-H01 or other digital sound input device

Connections

After all connections are complete, connect the power cord’s plug to the AC wall socket.
Read the instructions of each device that you intend to use with this unit.
<
To avoid hum and noise, do not bundle the connection cords.
<
Be sure to connect each plug securely.
<
7
A
White (L)
Red (R)
White (L)
Red (R)
Analog sound output jacks (LINE OUT)
These output the two channels of audio from the iPod/iPhone/iPad connected to this unit's dock as analog signals. Connect the RCA jacks to a stereo amplifier or speakers. Connect this unit's R jack to the R jack of the device receiving sound input and this unit's L jack to the L jack of the receiving device.
B
USB port
Set the rear panel PC SYNC USB switch to ON to use this unit as an iPod Dock, enabling the synchronization of music files between the connected computer and the iPod/iPhone/iPad.
Connect using a commercially available cable.
o
When the PC SYNC USB switch is set to ON, no signals are output from the LINE OUT, VIDEO
o
OUT or DIGITAL OUT connectors.
C
VIDEO OUT connectors (S-VIDEO, VIDEO)
These output the video signal from the iPod/iPhone/iPad connected to this unit's dock. Use these to connect to the S-VIDEO input or composite video input of a TV or monitor.
Connect using a commercially available cable.
o
When outputting the iPod/iPhone/iPad video signal, no video will appear on its display.
o
If the iPod/iPhone/iPad has a TV Out menu, select On or Ask. When set to Ask, a screen will be
o
shown each time before a video is played back. You can then choose whether or not to have the device output the video signal.
To output video from the iPod/iPhone/iPad via the output jack to a TV or other display, start
o
playback after connecting the iPod/iPhone/iPad to this unit's dock.
D
DIGITAL OUT connectors (OPTICAL, COAXIAL)
These output sound from the iPod/iPhone/iPad connected to this unit's dock. Connect one to a digital sound input port of another device.
COAXIAL: RCA coaxial digital cable OPTICAL: Optical digital cable (TOS)
Connect using a commercially available cable.
o
E
DC input port (DC IN 6V)
After completing all other connections, connect the included AC adapter (PS-M0630) to this jack. Then, connect the AC adapter power cord to the adapter. Finally, connect the AC adapter power cord plug to a power outlet.
When not using the unit for some time, disconnect the power cord from the power outlet.
o
V
Use only the included AC adapter (PS-M0630) and AC adapter power cord.

Names and Functions of Parts (Docking Station)

A CB
D
A
STANDBY/ON
Press this button to turn the unit on and to put it into standby. When the power is on, the ring around the button (power indicator) lights blue.
If nothing is connected to this unit when the power is turned on, it will enter standby mode,
o
and the power indicator will not light blue. When you connect an iPod/iPhone/iPad to the dock connector or connect an operating computer to the unit using a USB cable, the power indicator will light blue.
B
Remote control signal receiver
This receives signals from the remote control. When using the remote control, aim the end of the remote control toward the remote control signal receiver.
C
Dock connector
Use this to connect an iPod/iPhone/iPad.
D
Dock cover
When not using an iPod/iPhone/iPad, close this to protect the dock connector. When using an iPod/iPhone/iPad, open this and use it to hold the iPod/iPhone/iPad. For details, see "Using an iPod/iPhone/iPad with the Dock" on the next page.
Fold the dock connector toward the dock cover before closing the cover.
o
8

Using an iPod/iPhone/iPad with the Dock

1
3
2
4
Compatible iPod/iPhone/iPad models
iPod classic iPod nano (2nd, 3rd, 4th, and 5th generation) iPod touch (1st, 2nd, 3rd , and 4th generation) iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G iPad 2, iPad
Connecting an iPod/iPhone/iPad
1
Open the dock cover.
2
Fold the dock connector forward.
3
Connect the iPod/iPhone/iPad.
4
Lean the iPod/iPhon e/iPad against the doc k
cover.
iPod/iPhone/iPad software
If the unit or remote control but tons do not work properly with your iPod/iPhone/iPad, updating its software might solve the problem. Download the latest software for your iPod/iPhone/ iPad from the following Apple website.
http://www.apple.com/downloads/
9
10

Using the remote control

The included remote control allows this unit to be operated from a distance.
Point the remote control unit at the main unit’s remote sensor from within 16 feet/5 meters of themain unit.
< Re mote co n tro l ope r at i on may be
impossible if there are any o bstacles between the unit and the remote control.
< If di re c t sunlight o r strong a r tificial
illumination shines on the remote sensor, the remote control might not function. If that is the case, move this unit to another location.
< If the remote control unit is operated near
other appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. And conversely, the other appliances may operate incorrectly.
Battery Installation
Remove the b att ery c ompartme nt
1
cove r.
Battery Replacement
If the ef fe ct ive ra ng e decrea s es, th e batteries are exhausted. In this case, replace the batteries with new ones. For detailed information about collection of ba t te ri es , pl ea se con t ac t yo u r loc al municipality, your waste disposal service or the point of sale where you purchased the items.
Precautions concerning batteries
Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of items nearby. Please read and obser ve the following precautions carefully.
< Be sure to insert the batteries with correct
positive “+” and negative “–” polarities.
< Use batteries of the same type. Never use
different types of batteries together.
< Rechargeable and n o n -rechargeable
bat teries c an be used. Re f er to th e precautions on their labels.
< When the remote control unit is not to be
used for a long time (more than a month), remove the batteries from the battery compartment to prevent them from leaking. If they leak, wipe away the liquid inside the battery compartment and replace the batteries with new ones.
< Do not heat or disassemble batteries and
never dispose of old batteries by throwing them in a fire.
Inser t t wo “AAA” (R 03, UM- 4) d ry
2
batteries. Make sure that the batteries are inserted with their positive “+” and negative “–” poles positioned correctly.
Close the cover.
3
11

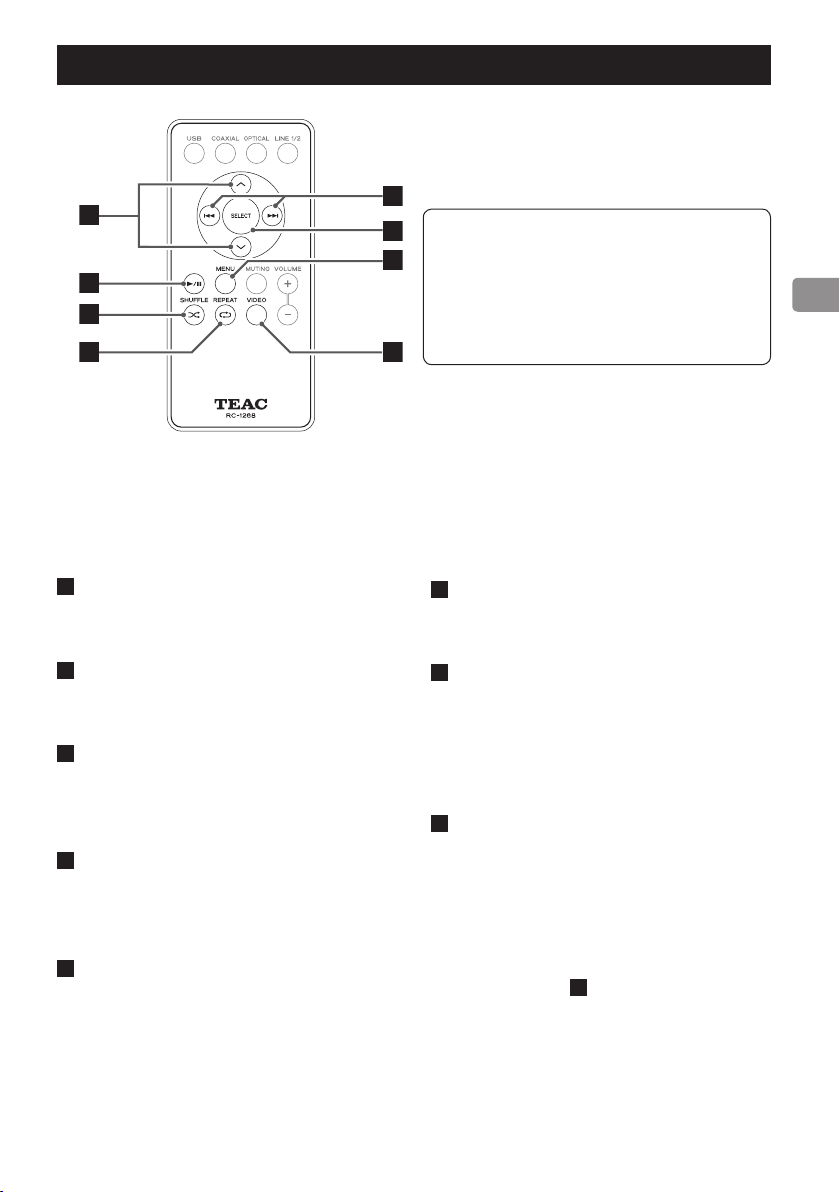

Names and Functions of Parts (Remote Control)

A
B
C
D
E
F
G
H
The RC-1268 remote control can control both A-H01 and DS-H01 models. (The same remote control is included with the TEAC A- H01.) This manual explains the buttons that can be used with the DS-H01.
Using the RC-1268 remote, you can control the iPod/iPhone/iPad connected to this unit's dock.
A
Scroll buttons (j/k)
Use these to scroll through menus.
B
Play/pause button (7/9)
Starts/pauses playback.
C
Shuffle button (½)
Turns shuffle playback on/off.
D
Repeat button (REPEAT ¼)
Changes the repeat playback modes.
E
Skip buttons (.//)
Press these buttons to skip to the previous or next song. Hold down these buttons to search forward or backward.
F
Selection button (SELECT)
Press this button to confirm a selection in a menu.
G
MENU
Return to the previous iPod/iPhone menu. This is the same as the iPod MENU button.
H
Video output button (VIDEO)
Turns video send on/off.
You can send the iPod/iPhone/iPad video
o
signal from this unit's video output jacks (VIDEO OUT) to a TV or display. (See page 7 C and page 14.)
12

Basic Operation

1
Press the power button (STANDBY/ON) to turn
the power on.
o If nothing is connected to this unit when the power
is turned on, it will enter standby mode, and the ring around the button (power indicator) will not light blue. When you connect an iPod/iPhone/iPad to the dock connector or connect an operating computer to the unit using a USB cable, the power indicator will light blue.
o When connected to an amplifier, always turn
the amplifier’s power on ver y last to avoid sudden loud noises.
2
After turning the iPod/iPhone/iPad power on,
connect it to the dock.
For details about how to connect an iPod/iPhone/iPad, see “Using an iPod/iPhone/iPad with the Dock” on page 9.
o If you connect an unpowered iPod/iPhone/iPad to the
dock, it might not operate correctly after its power is turned on.
o The iPod/iPhone/iPad in this unit's dock will be
charged whenever this unit's power plug is connected to a power source and its power is turned on.
o With some iPod/iPhone/iPad models, no sound will be
output from headphones that are plugged into them when the device is connected to the dock.
o You can output the iPod/iPhone/iPad video signal
from this unit's video output jacks (VIDEO OUT) to a TV or display. (See page 7 C and page 14.)
o When outputting iPod/iPhone/iPad video from a
video output jack to a TV or other display, connect the iPod/iPhone/iPad to this unit's dock before starting playback.
o When using an iOS application on an iPod touch,
iPhone or iPad, start the iOS application before connecting the device to the dock.
o If a case being used with an iPod touch, iPhone or iPad
touches this unit's dock when the device is connected, remove the case and reconnect it.
13
Pausing playback
Repeat one Repeat all Off
Hold down
During playback, press the playback/pause button (7/9) to pause playback. When paused, press the playback /pause button (7/9) to restart playback.
Skipping songs
During playback, press a skip button (.//) to skip to the previous or next song and start playing it. Keep pressing the button until the desired song number is reached. The selected song will be played from the beginning.
o During playback, if the . button is pressed once
the beginning of the current song will be found. Press it again if you want to play the previous song.
Searching forward and backward
During playback, hold down a skip (.//) button to search forward or backward. Release it when you find the part you want to hear.
Repeat playback
Press the repeat button (¼) to cycle through the iPod/iPhone/iPad repeat modes in the following order.
When set to repeat one song, the » icon appears
o
on the iPod/iPhone/iPad display.
When set to repeat all songs, the ¼ icon appears
o
on the iPod/iPhone/iPad display
14
Songs Albums Off
Basic Operation (continued)
Shuffle playback
Press the Shuffle (½) button to cycle through the shuf fl e modes of th e iPod/ iPhon e /iPa d in th e following order.
When set to shuffle, the ½ icon appears on the
o
iPod/iPhone/iPad display.
Returning to the previous iPod/iPhone/iPad menu
Press the MENU button to open the previous iPod/ iPhone/iPad menu. This has the same function as an iPod MENU button.
Selecting an iPod/iPhone/iPad menu item
Use the scroll buttons (j/k) to select an item and then press the SELECT button.
Outputting video
When the iPod/iPhone/iPad video selection screen is open, press the remote control VIDEO button to turn video output on or off. Since this cannot be confirmed on the iPod/iPhone/iPad menu screen, start video playback and check whether video output is on or off on the TV (display) screen.
If the device has a TV Out menu, select On or Ask.
o
When set to Ask, a screen will be shown each time before a video is played back. You can then choose whether or not to have the device output the video signal.
Set the TV signal to NTSC or PAL as appropriate for
o
the region of the TV or other device that you are using.
15
Synchronizing with a computer
This unit can be used as an iPod/iPhone/iPad dock with recharging capability. To synchronize an iPod/iPhone/iPad with a computer, set the rear panel PC SYNC USB switch to ON.
When the PC SYNC USB switch is set to ON, no sig-
o
nals are output from the LINE OUT or DIGITAL OUT connectors.
When connected to a computer that does not sup-
o
port recharging of an iPod/iPhone/iPad, the con­nected iPod/iPhone/iPad will not be recharged if the PC SYNC USB switch is set to ON. In this case, set the PC SYNC USB switch to OFF to recharge the connected device.
While synchronizing an iPod/iPhone/iPad with a
o
computer, do not set the PC SYNC USB switch to OFF. Doing so could cause a device to freeze or other operation problems.
Operation might dif fer according to the iPod/iPhone/iPad model and iOS software version.
USB cable
Loading...
+ 33 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
