Teac DP-32 User Manual

Download

DP-32

Digital Portastudio

OWNER'S MANUAL

D01175120A

IMPORTANT SAFETY PRECAUTIONS

For European Customers

Disposal of electrical and electronic equipment

(a) All electrical and electronic equipment should be

disposed of separately from the municipal waste

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

stream via collection facilities designated by the government or local authorities.

(b) By disposing of electrical and electronic equipment

correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.

equipment can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.

(d) The Waste Electrical and Electronic Equipment (WEEE)

symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

For U.S.A.

TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

a) Reorient or relocate the receiving antenna.

b) Increase the separation between the equipment and

receiver.

c) Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

d) Consult the dealer or an experienced radio/TV

technician for help.

(e) Return and collection systems are available to end

users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

For Canada

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.CET

APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA.

This appliance has a serial number located on the bottom panel. Please record the model number and serial number and retain them for your records.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment.

2 TASCAM DP-32

Model number ______________________________

Serial number ______________________________

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9 Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

The apparatus draws nominal non-operating power

•

from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.

The mains plug is used as the disconnect device, the

•

disconnect device shall remain readily operable.

Caution should be taken when using earphones or

•

headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

If you are experiencing problems with this product,

•

contact TEAC for a service referral. Do not use the product until it has been repaired.

CAUTION

Do not expose this apparatus to drips or splashes.

•

Do not place any objects filled with liquids, such as

•

vases, on the apparatus.

Do not install this apparatus in a confined space such

•

as a book case or similar unit.

The apparatus should be located close enough to the

•

AC outlet so that you can easily grasp the power cord plug at any time.

If the product uses batteries (including a battery pack

•

or ooinstalled batteries), they should not be exposed to sunshine, fire or excessive heat.

CAUTION for products that use replaceable lithium

•

batteries: oothere is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WORNING

Products with Class ! construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

13 Unplug this apparatus during lightning storms or

when unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

TASCAM DP-32 3

Safety Information

CAUTIONS ABOUT LASER RADIATION

This product has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968,” and is classified as a class 1 laser product. There is no hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings.

The label required in this regulation is shown at 1.

For USA

Optical pickup

Type : SW651L Manufacturer : Hitachi Media Electronics Co., Ltd. Laser output : Less than 95mW on the objective lens Wavelength : 785 nm (Typ.) Standard : IEC60825-1: 2007

Cautions:

DO NOT REMOVE THE PROTECTIVE HOUSING USING A

•

SCREWDRIVER. USE OF CONTROLS OR ADJUSTMENTS OR

•

PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

IF THIS PRODUCT DEVELOPS TROUBLE, CONTACT YOUR

•

NEAREST QUALIFIED SERVICE PERSONNEL, AND DO NOT USE THE PRODUCT IN ITS DAMAGED STATE.

4 TASCAM DP-32

Table of Contents

1 – Introduction ..............................................8

Features .................................................................................. 8

Items included with the product .................................. 8

Conventions used in this manual .................................. 8

Intellectual property rights ............................................. 9

Precautions for placement and use ..............................9

Beware of condensation ...................................................9

Cleaning the unit.................................................................9

About SD cards .................................................................... 9

Precautions for use ....................................................10

About CDs (Compact Discs) ..........................................10

Precautions for use ....................................................10

About CD-R and CD-RW discs ................................10

2 - Quick Guide .............................................. 11

Playback and mixing ........................................................11

Preparation ...................................................................11

Listening to the demo song ...................................12

Recording and mastering ..............................................13

Creating a new song .................................................13

Connecting and setting the input sources .......14

Setting the guitar as the recording source for

TRACK 1..........................................................................14

Adjusting and monitoring the input level ........14

Recording a guitar to TRACK 1 ..............................15

Playing back the recording .....................................15

Recording a guitar to TRACK 2 ..............................15

Recording a vocal to TRACK 3 ................................16

Mixing the tracks ........................................................17

Mastering a recording ..............................................18

Creating an audio CD with the master file ...............19

Inserting a CD ..............................................................19

Writing to a CD-R/CD-RW ........................................20

Ejecting a CD ................................................................21

Shutting down ...................................................................21

3 – Names and Functions of Parts ...............22

Top panel .............................................................................22

Front panel ..........................................................................26

Rear panel ............................................................................27

Home screen .......................................................................28

Menu structure ..................................................................29

Navigating screens ...........................................................30

Function button assignments .....................30

Navigation examples ................................................30

4 – Preparation ..............................................31

Inserting and removing SD cards ................................31

Inserting an SD card ..................................................31

Removing the card ....................................................31

About write-protected SD cards ...........................31

Powering the unit .............................................................31

Starting up & shutting down ........................................32

Starting up the unit ...................................................32

Shutting down ............................................................32

Setting the date and time ..............................................33

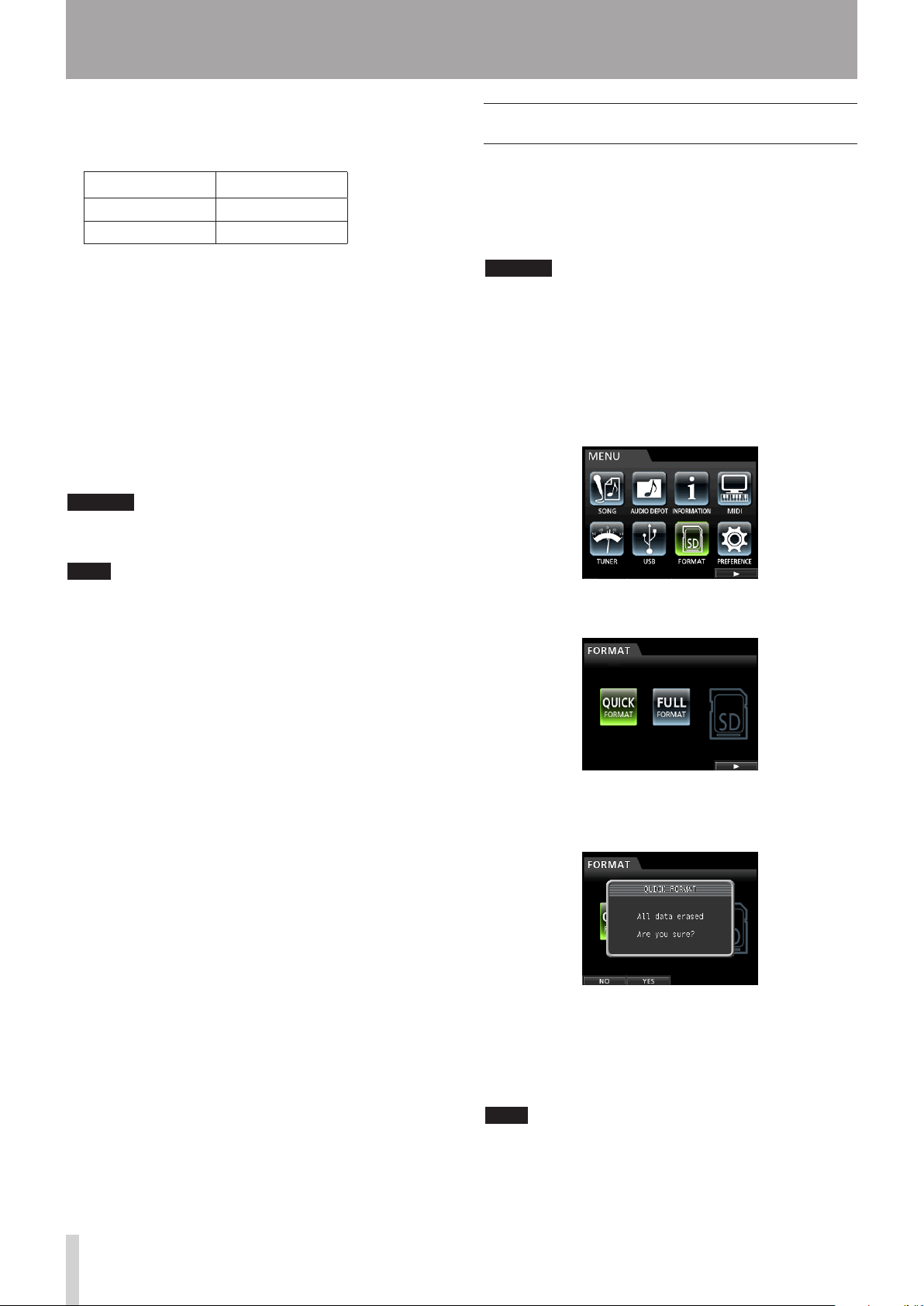

Preparing an SD card for use.........................................33

Recorder modes ................................................................33

Connecting other equipment ......................................34

Front panel ...................................................................34

Rear panel .....................................................................34

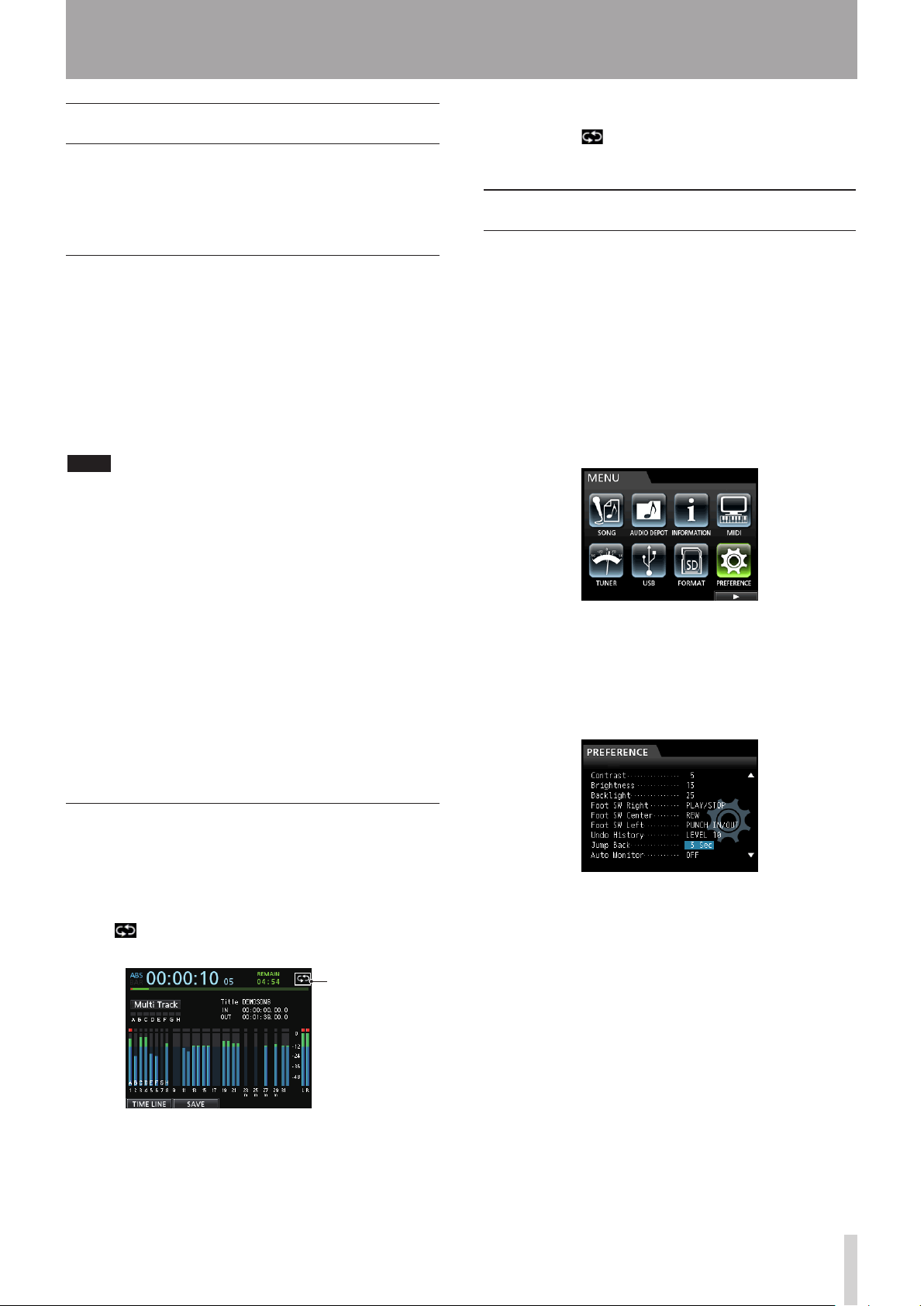

Adjusting the display .......................................................34

5 - Song Management ..................................35

Editing names.....................................................................35

Loading a song ..................................................................35

Creating a new song ........................................................35

Saving a song .....................................................................36

Viewing song information .............................................37

Copying songs ...................................................................37

Erasing songs ......................................................................37

Protecting songs ...............................................................38

Deleting unnecessary audio data from a song ......38

Changing a song name ...................................................39

6 - Basic Recording........................................40

Selecting the input sources ...........................................40

Assigning inputs ................................................................40

Setting the track type ...............................................40

Assigning inputs to mono tracks ..........................40

Assigning inputs to stereo tracks .........................41

Assigning inputs to a stereo bus ..........................41

Checking assignments .............................................41

Canceling assignments ............................................41

Using phantom power ....................................................41

Monitoring...........................................................................42

Monitor selection .......................................................42

OL indicators and level meters .....................................42

Peak hold display .......................................................43

Mixer screen settings .......................................................43

Using the input equalizer ........................................43

DIGITAL TRIM setting (track only) .........................44

Sending signals to internal/external effects .....44

Enabling insert effects ..............................................44

Setting the stereo position .....................................44

Changing the signal phase .....................................45

Checking the fader level ..........................................45

Setting levels sent to stereo buses ......................45

Solo ........................................................................................45

TASCAM DP-32 5

Table of Contents

Muting tracks ......................................................................45

Rehearsing a recording ...................................................45

Making the first recording .............................................46

Multitrack recording ........................................................46

Arming tracks for recording ...................................46

Adjusting track pan and level settings ...............46

Input selection and assignment ...........................47

Setting input levels ....................................................47

Recording ......................................................................47

Undoing an operation .....................................................47

Undo feature settings ...............................................47

Undoing the last operation (single undo) .........47

Undoing older operations (multiple undo) ......48

7 - Recorder Functions ..................................49

Punching in and out ........................................................49

Using a footswitch to punch in/out .....................49

Setting the footswitch ..............................................49

Bouncing tracks .................................................................50

Using the bounce function .....................................50

Checking the bounce result ...................................50

Direct location function ..................................................50

Locating a specified time directly ........................51

Locating a specified bar/beat directly ................51

Location marks ...................................................................51

Setting a location mark ............................................51

Skipping to location marks .....................................51

Deleting a location mark .........................................51

Returning to zero or the last recording position ...52

Fast forwarding and rewinding....................................52

Cueing with the JOG/DATA dial ...................................52

Jogging while viewing a waveform .....................52

Jogging while listening to audio ..........................52

Repeat playback ................................................................53

Setting IN/OUT points ..............................................53

Using repeat playback ..............................................53

Jumpback playback..........................................................53

Previewing cue points .....................................................54

Automatic punching in and out ..................................54

Setting punch-in/out points ..................................54

Checking punch-in/out points ..............................55

Rehearsing with automatic punching ................55

Recording with automatic punching ..................55

Checking takes ............................................................55

Virtual tracks .......................................................................56

Recording to virtual tracks ......................................56

Assigning virtual tracks ............................................56

8 - Track Editing ............................................57

Overview of track editing ...............................................57

Editing points ..............................................................57

Basic editing procedures .........................................57

Explanation of items .................................................57

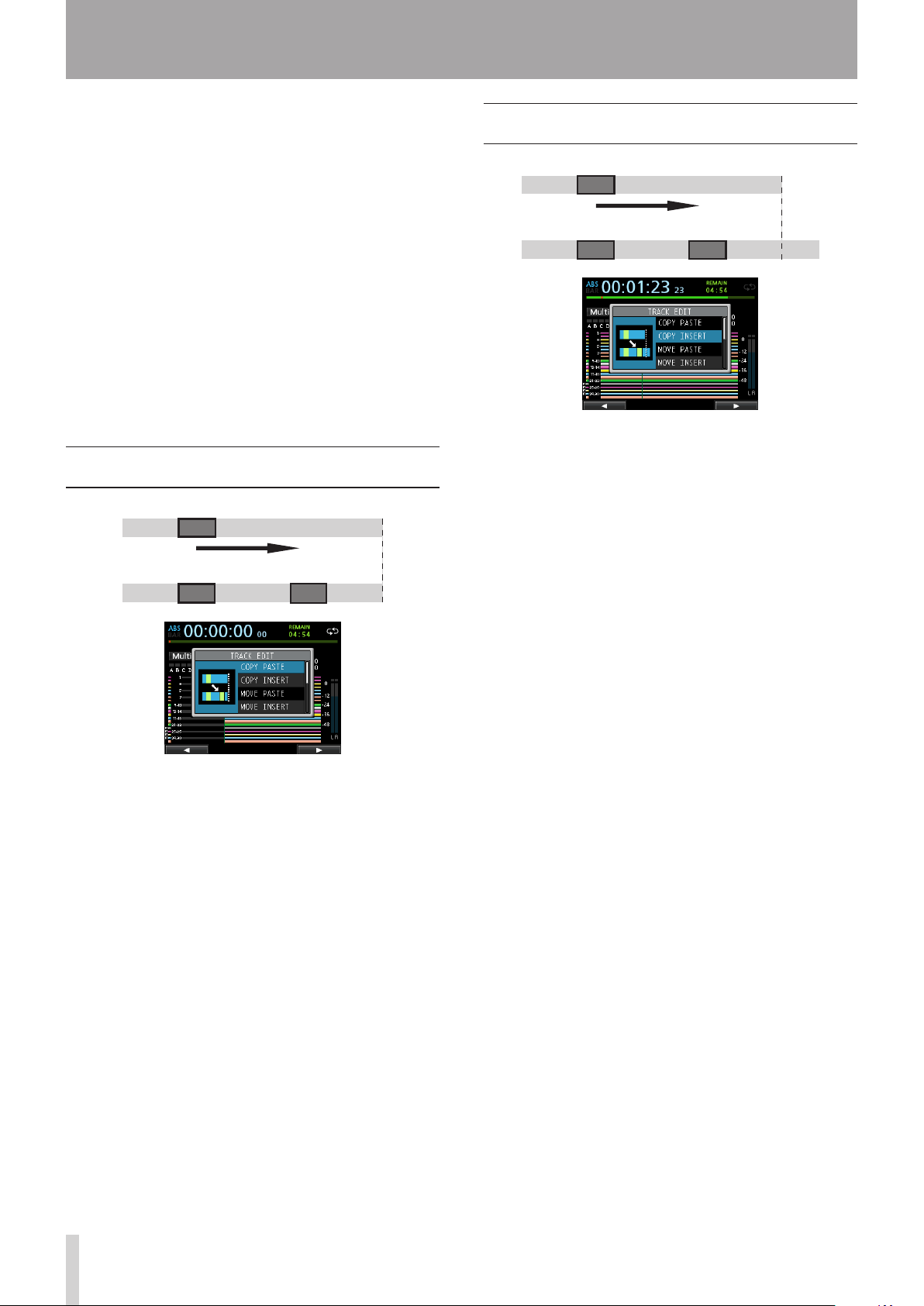

COPY/PASTE ........................................................................58

COPY/INSERT ......................................................................58

MOVE/PASTE .......................................................................59

MOVE/INSERT .....................................................................59

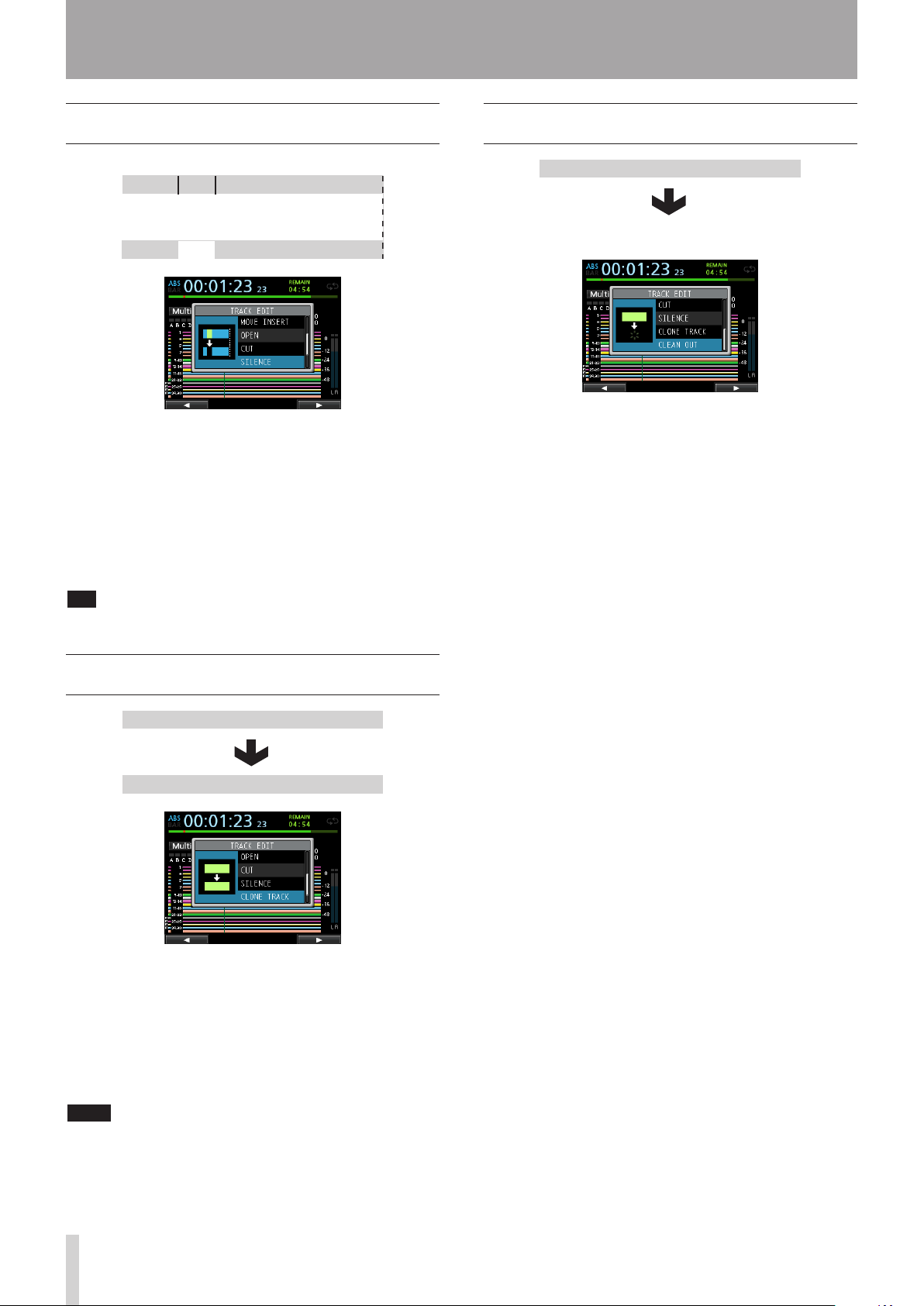

OPEN (Insert Silence) .......................................................59

CUT (Remove Part) ............................................................59

SILENCE (Erase Part) .........................................................60

CLONE TRACK (duplicate track) ....................................60

CLEAN OUT (delete track) ..............................................60

9 - Using Internal Effects .............................. 61

Dynamic effects .................................................................61

Inserting a dynamic effect ......................................61

Adjusting dynamic effects ......................................61

Guitar effects ......................................................................62

Inserting a guitar effect............................................62

Adjusting guitar effects............................................62

Loading guitar effect settings ...............................62

Saving guitar effects in the library .......................62

Send effects .........................................................................63

Using send effects ......................................................63

Adjusting send effects ..............................................63

Loading send effect settings ..................................63

Saving send effects in the library .........................63

10 - Mixing Down and Mastering Songs .....64

Mixing down tracks ..........................................................64

Levels and balance ....................................................64

Fader group ..................................................................64

Stereo position (panning) .......................................64

Track equalizer ............................................................64

Send effects ..................................................................65

Creating a master file .......................................................65

Setting the start and end points ...........................65

Creating a master file ................................................65

Exiting Mixdown mode ............................................66

Checking the master file .................................................66

Ending master file checking ...................................66

Using the mastering tools ..............................................66

Mastering procedures ..............................................67

Using the mastering equalizer ..............................67

Using mastering compression ...............................68

Using normalize ..........................................................69

Checking the noise shaper (noise shaped

dithering) ......................................................................69

Exiting Mastering mode ..........................................69

6 TASCAM DP-32

Table of Contents

11 - Various Other Functions ........................70

Metronome .........................................................................70

MIDI Sync .............................................................................70

MIDI remote control .........................................................71

Tuner function ....................................................................71

PREFERENCE menu settings ..........................................72

Setting automatic power saving ..........................72

Setting automatic monitoring...............................72

Setting the song name format ..............................72

Restoring the initial preference settings ..................73

Viewing information ........................................................73

12 - SD Card Management ............................ 74

Quick formatting an SD card .........................................74

Full formatting an SD card .............................................75

13 - Exchanging Data with a Computer .......76

Operating system requirements ..................................76

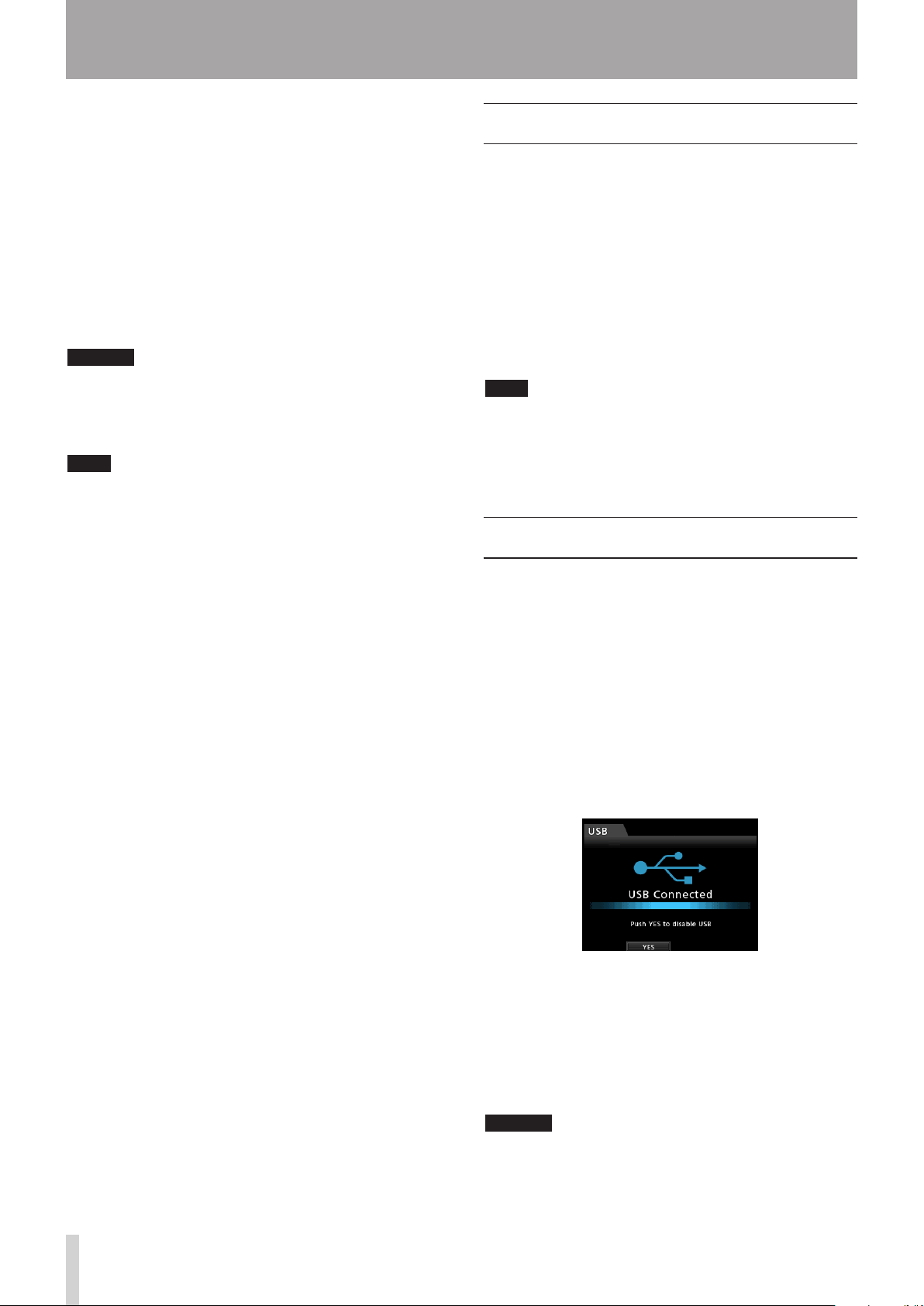

Connecting to a computer ............................................76

Disconnecting .............................................................77

Track import and export .................................................78

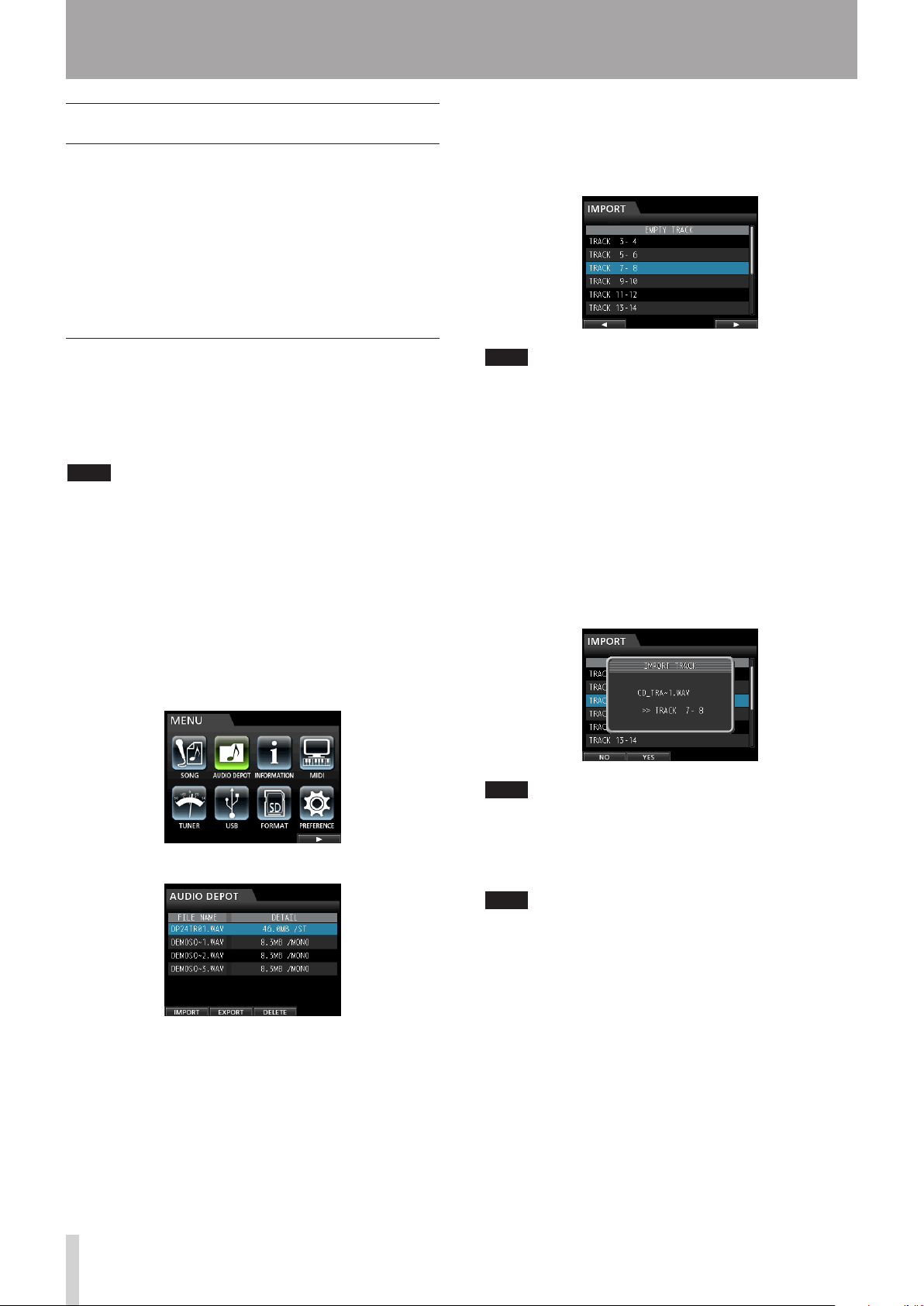

Importing tracks .........................................................78

Exporting tracks ..........................................................79

Deleting files from the AudioDepot folder ..............79

Ratings ..................................................................................93

Input/output ratings ........................................................93

Analog audio input/output ratings .....................93

Control input/output ratings .................................93

Audio performance ..........................................................93

Operating requirements .................................................93

Dimensional drawings ....................................................94

General..................................................................................94

Block diagram .....................................................................95

Level diagram .....................................................................96

18 – Appendix ...............................................97

MIDI Control Change message ....................................97

Mixer control change parameters ........................97

MIDI Program Change message ..................................98

Dynamic effects ..........................................................98

Preset libraries of the send effects .......................98

Preset libraries of the guitar effects .....................98

MIDI Implementation Chart ...................................99

Bit-map array of MMC commands ........................... 100

14 - Using CDs ................................................80

Using the CD drive ............................................................80

Preparations before using CDs with this unit ..80

Compatible CD types ................................................80

Loading and ejecting CDs ..............................................80

Loading a CD................................................................81

Ejecting a CD ................................................................81

Forcing disc ejection .................................................82

Playing back an audio CD ..............................................82

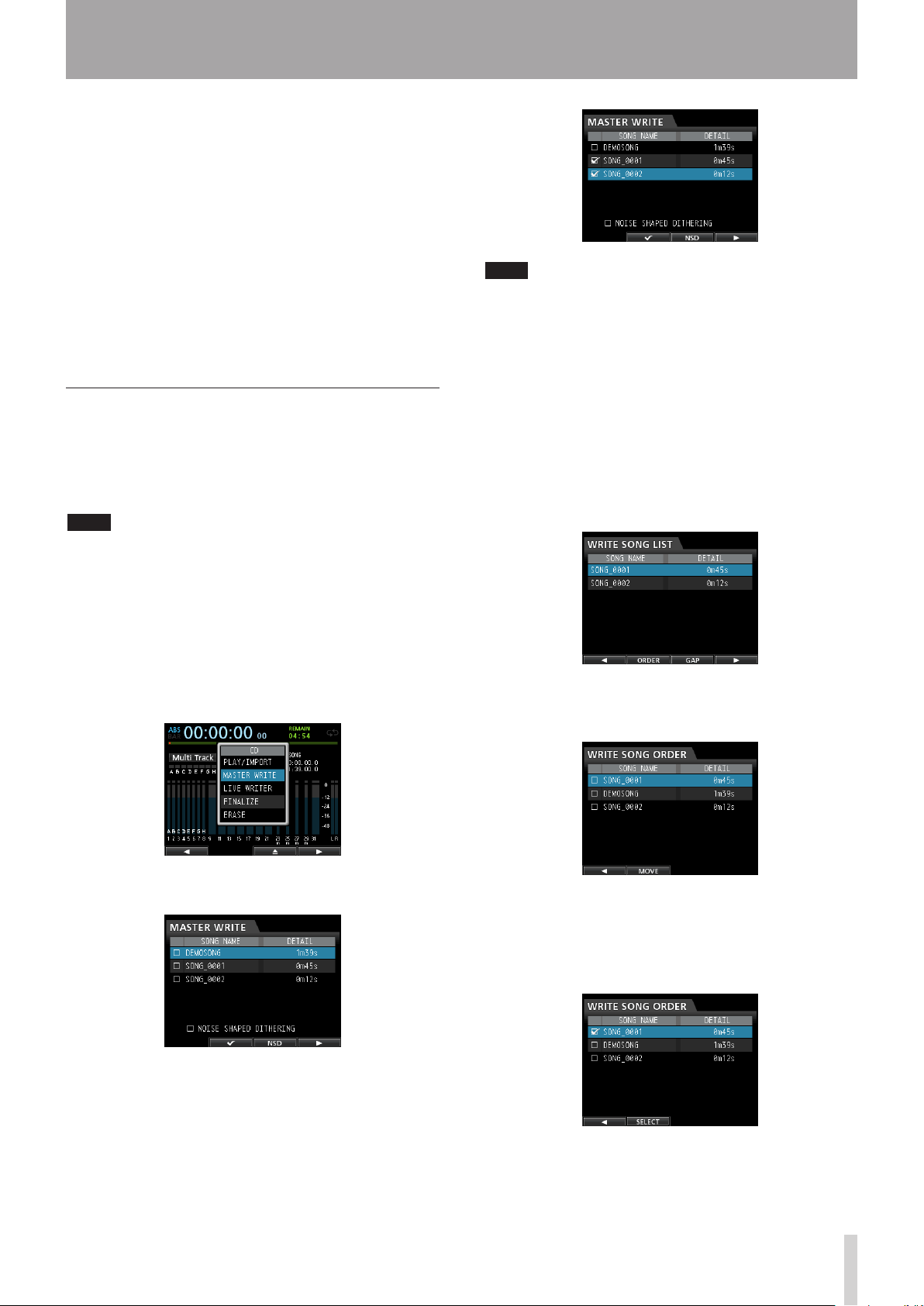

Creating an audio CD ......................................................82

Using Disc At Once ....................................................83

Using Track At Once ..................................................84

Using LIVE WRITER .....................................................85

Finalizing a CD .............................................................86

Importing songs from audio CDs ................................86

Erasing a CD-RW ................................................................87

Media Compatibility Table .............................................87

15 – Troubleshooting....................................88

16 – Messages ...............................................89

General messages .............................................................89

CD mode messages ..........................................................91

CD-related error messages ............................................92

17 – Specifications ........................................93

TASCAM DP-32 7

1 – Introduction

Thank you very much for purchasing the TASCAM DP-32 Digital Multitrack Recorder.

Before connecting and using the unit, please take time to read this manual thoroughly to ensure you understand how to properly set up and connect the unit, as well as the operation of its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference.

You can also download the Owner's Manual from the TASCAM website (http://tascam.com/).

Features

This unit uses SD cards for multitrack recording of up to 8 tracks and playback of up to 32 tracks simultaneously. Multiple tracks can be mixed down to a stereo master file using the built-in mixer functions.

Master files can be written to CD-Rs and similar media, as well as transferred to a computer that is connected by USB. Moreover, since transferring data between the unit and a computer is possible, you can copy tracks and master files, and back up song files to a computer.

32-track Digital Multitrack Recorder uses SD cards as

•

recording media and includes a CD drive Supports SDHC standard for high-capacity SD cards of

•

up to 32GB Multitrack recorder functions include simultaneous

•

8-track recording and 32-track playback (44.1/48kHz, 16/24-bit)

Stereo/mono track type selection function makes

•

changing track allocation easy 20 track faders and 1 master fader for level adjustment

•

(all 45 mm) Each track has independent SELECT and REC buttons

•

+48V phantom power supported mic input

•

8 balanced mic/line inputs (XLR/TRS combo jacks)

•

INPUT H supports high-impedance guitar input (6.3mm

•

(1/4") phone jack) Large TFT color display with excellent visibility (3.5-inch)

•

Independent 3-band equalizers for each input and

•

playback track Mixing down to a dedicated master file possible

•

Mastering effects that can be used during mix downs

•

of master files Reverb and various other effects that can be adjusted

•

independently for each playback track Automatic punch in/out

•

Track bouncing

•

COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE,

•

OPEN, CUT, SILENCE, CLONE TRACK and CLEAN OUT track editing functions

Undo and redo functions, including 10-level history

•

setting option Location to marks

•

Tuner and metronome

•

Audio CDs can be created from mixed-down master

•

files, and tracks on audio CDs can be played back and imported

Song data and WAVE files can be copied and backed up

•

to a computer connected by USB 2.0 Punch in/out and other functions can be assigned to

•

and controlled by a TASCAM RC-3F footswitch (sold separately)

Items included with the product

The DP-32 package contains the following items.

Take care when opening the package not to damage the items. Keep the package materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Main unit ........................................................................................ 1

•

AC adaptor (TASCAM PS-1225L) ............................................1

•

Power cord for AC adaptor ...................................................... 1

•

SD memory card (inserted into the unit) ........................... 1

•

USB cable (80cm) ........................................................................1

•

Warranty card ............................................................................... 1

•

Owner's Manual (this manual)................................................ 1

•

CAUTION

Never use any AC adaptor or power cord other than the supplied TASCAM PS-1225L AC adaptor and AC adaptor power cord. Moreover, do not use the supplied AC adaptor and AC adaptor power cord with other equipment. Doing so could cause malfunction, fire or electric shock.

Conventions used in this manual

Conventions used in this manual are as follows.

Names of buttons, controls, etc. of this unit appear like

•

this: MENU. Text displayed on the LCD display appears like this:

•

The four buttons beneath the LCD display (F1 to F4)

•

are function buttons. The functions displayed at the bottom of each screen are sometimes shown after the button names in parentheses.

Example: F1 (

"SD memory card" is abbreviated as "SD card".

•

CD-DA format is sometimes called audio CD format.

•

Moreover, a CD recorded with audio CD format tracks is sometimes called an audio CD.

An unused CD-R/CD-RW or a completely erased CD-RW

•

may be mentioned as a blank CD. Text displayed on a computer monitor appears like this: OK.

•

TIMELINE

) button, F4 (t) button.

8 TASCAM DP-32

Additional information is introduced in the following

•

styles when needed: TIP, NOTE, and CAUTION.

TIP

Useful hints when using the unit.

NOTE

Explanation of actions in special situations, supplementary explanations, etc.

CAUTION

Instructions that should be followed to avoid injury, damage to the unit or other equipment, and loss of data.

Intellectual property rights

TASCAM is a trademark of TEAC Corporation, registered

•

in the U.S. and other countries. SDHC Logo is a trademark of SD-3C, LLC.

•

Microsoft, Windows, Windows XP, Windows Vista,

•

and Windows 7 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Macintosh, iMac, Mac OS and Mac OS X are

•

trademarks of Apple Inc. Pentium and Intel are trademarks of Intel Corporation

•

in the U.S. and/or other countries. Other company names, product names and logos

•

in this document are the trademarks or registered trademarks of their respective owners.

1 – Introduction

Precautions for placement and use

The operating temperature should be between 5°C and

•

35°C (41°F and 95°F). Do not install in the following types of places. Doing

•

so could degrade the sound quality and/or cause malfunctions.

Places with significant vibrations or that are

•

otherwise unstable

Near windows or other places exposed to direct

•

sunlight

Near heaters or other extremely hot places

•

Extremely cold places

•

Places with bad ventilation or high humidity

•

Very dusty locations

•

Make sure that the unit is mounted in a level position

•

for correct operation. Do not place any object on the unit for heat dissipation.

•

Avoid installing this unit on top of any heat-generating

•

electrical device such as a power amplifier.

Beware of condensation

If the unit is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using.

Any data, including, but not limited to information, described herein are intended only as illustrations of such data and/or information and not as the specifications for such data and/or information. TEAC Corporation disclaims any warranty that any use of such data and/or information shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such data and/or information.

This product is designed to help you record and reproduce sound works to which you own the copyright, or where you have obtained permission from the copyright holder or the rightful licensor. Please use the product appropriately.

Under no circumstances will TEAC Corporation be responsible for the consequences of any illegal copying performed using the recorder.

Cleaning the unit

Use a dry soft cloth to wipe the unit clean. Do not clean the unit with a chemically treated cloth or substances such as thinner and alcohol. This could damage the surface or change the color of the unit.

About SD cards

This unit uses SD cards for recording and playback.

SD and SDHC cards that are at least 512 MB in size can be used.

A list of SD cards that have been tested with this unit can be found on the TASCAM website (http://tascam.com/). Use of cards that have not been verified for use with this unit could result in the unit not functioning properly.

TASCAM DP-32 9

1 – Introduction

Precautions for use

SD cards are delicate media. In order to avoid damaging a card or the card slot, please take the following precautions when handling them.

Do not leave them in extremely hot or cold places.

•

Do not leave them in extremely humid places.

•

Do not let them get wet.

•

Do not put things on top of them or twist them.

•

Do not hit them.

•

Do not remove or insert an SD card when the power is

•

ON.

About CDs (Compact Discs)

In addition to audio CDs, this unit can play CD-R and CDRW discs on which audio CD (CD-DA) format files are recorded. The unit can also play 8cm CDs.

Precautions for use

Use only CD, CD-R and CD-RW discs that bear the

•

following logos.

CD-R

CD-RW

have sticky residue from stickers, etc. Such discs could become stuck in the unit or cause it to malfunction.

Never use a commercially available CD stabilizer. Using

•

stabilizers with this unit will damage the mechanism and cause it to malfunction.

Do not use cracked discs.

•

Only use circular compact discs. Do not use non-

•

circular promotional, etc. discs.

Some record companies sell copy-protected discs or

•

copy-controlled discs that may not play back correctly in this unit. Since such discs may not conform with the CD standard, do not use them in this unit.

If you experience problems with such non-standard

•

discs, you should contact the producers of the disc.

About CD-R and CD-RW discs

CD-R discs can be recorded only once. Tracks (songs) recorded in such discs cannot be deleted. However, if the disc has not been finalized and sufficient space is available on the disc, additional material can be recorded. After finishing recording, finalizing a CD-R makes it playable in most ordinary CD players (some CD players might not be able to play these discs).

If a CD-RW disc becomes full, you can erase the recorded data to allow reuse.

However, you cannot designate specific songs for erasure.

Even after being finalized, CD-RW discs can only be played in players that specifically support their playback.

Always place the compact discs in the trays with their

•

label facing upward. To remove a disc from its case, press down on the

•

center of the disc holder, then lift the disc out, holding it carefully by the edges.

Do not touch the signal side (the unlabeled side).

•

Fingerprints, oils and other substances can cause errors during recording.

To clean the signal side of a disc, wipe gently with a soft

•

dry cloth from the center towards the outside edge. Dirt on discs can lower the sound quality, so clean them and always store them in a clean state.

Do not use any record spray, anti-static solutions,

•

benzine, paint thinner or other chemical agents to clean CDs. This could damage the delicate playing surface and cause CDs to become unplayable.

Do not apply labels or other materials to discs. Do

•

not use discs that have had tape, stickers or other materials applied to their surface. Do not use discs that

10 TASCAM DP-32

2 - Quick Guide

Playback and mixing

In this section, we will play back the demo song on the included SD card.

When this unit is purchased new, an SD card with the demo song on it is already inserted in the unit, but we will start by explaining how to insert an SD card using the procedures below.

Preparation

1. Insert the included SD card into the SD card slot on the rear panel. Be careful not to forcibly insert the card in the wrong direction. Doing so could damage the SD card slot or the SD card.

2. Connect the supplied AC adaptor (TASCAM PS1225L) to the DC IN 12V jack on the rear panel.

CAUTION

Never use any AC adaptor or power cord other than the supplied TASCAM PS-1225L AC adaptor and its power cord. Use of a different adaptor or cord could cause malfunction, fire or electric shock.

3. Connect headphones to the PHONES jack on the front panel.

Headphones

ヘッドホン

4. Press and hold the STANDBY/ON button for a few seconds on the rear panel to turn the power ON. When the unit starts, the Home screen opens on the display.

TASCAM

PS-1225L

DC plug

AC outlet

The bottom panel has a hook (cord holder) that can be used to hold the AC adaptor cord in place. Wrap the cord around this hook to prevent it from being disconnected during use.

Start-up screen

Home screen

TASCAM DP-32 11

2 - Quick Guide

CAUTION

Do not remove or insert an SD card when the power

•

is ON. Always turn the power off (put in standby) before removing or inserting an SD card.

When the power is ON, do not disconnect the power

•

cord or otherwise interrupt the power to the unit. Doing so will cause all settings made since the last time you saved to be lost. If the power is interrupted while an SD card is being accessed, all recorded songs and data on the card could be damaged beyond recovery.

Before turning the power ON, minimize the

•

headphones volume and the volume on any monitoring system connected to this unit.

5. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select

LOAD

, and then press the F4 (t)

button.

The

SONG LOAD

pop-up window appears.

TIP

By connecting an amplifier or powered speakers to the

MONITOR OUT jacks, you can monitor using speakers.

Listening to the demo song

The included SD card in the unit contains a demo song. We will use this demo song to practice listening to and mixing a recording.

1. Press the HOME button to open the Home screen.

2. When the recorder is stopped, press the MENU button to open the

3. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

screen.

screen opens.

SONG

, and then

6. Press the F2 (

YES

) button to load the demo song.

The demo song is loaded and the window closes, but the

SONG LIST

screen remains open.

7. Press the HOME button to return to the Home screen.

8. Press the PLAY (7) button, and raise the levels of the track and STEREO faders and the MONITOR LEVEL knob to listen to the demo song.

The STEREO fader adjusts the overall volume of the mixer output. When the STEREO fader is at 0dB the overall level is neither increased nor decreased.

Use the track faders to adjust the balance of the tracks.

Use the MONITOR LEVEL knob to adjust the final monitoring volume.

9. Press the MIXER button to open the

Mixer

screen.

4. Use the JOG/DATA dial or the CURSOR (5/b)

buttons to select

DEMO SONG

, and then press the

F4 (t) button to open a menu list.

12 TASCAM DP-32

10. Press a SOURCE buttons to select an input (A-H) or press a SELECT button to select a track to be set. Then use the PAN knob to set the stereo position of that input or track. Repeat for other inputs and tracks.

2 - Quick Guide

TIP

Press the STOP (8) and REW (m) buttons at the

•

same time to use the TO ZERO function to return to the beginning of the song (ZERO point).

If you press the wrong button and open a different screen,

•

you can press the HOME button to return to the Home screen at any time.

Recording and mastering

In this section we will practice multitrack recording.

Here we will explain how to connect electric guitars to INPUT H and external microphones to INPUT B.

In the following example, we will explain how to record an electric guitar rhythm part to track 1 and a lead guitar part to track 2. Then, we will use an external microphone to record vocals to track 3. Finally, we will mix down the tracks to stereo.

We will assume that you have already followed the instructions in the previous section, and that you have connected headphones or other monitoring equipment, started the unit and inserted an SD card.

Creating a new song

1. When the recorder is stopped, press the MENU button to open the

screen.

3. Press the F4 (t) button to open the menu list and then use the JOG/DATA dial or the CURSOR (5/b) buttons to select

4. Press the F4 (t) button to open the

CREATE

SONG CREATE

pop-up window.

The created song is given the name

SONG_0002

5. Change the name (title) of the song if necessary in the

Name

item. (See "Editing names" on page 35.)

6. Use the CURSOR (5/b) buttons to move the cursor (highlighted blue) to select

(sampling frequency), and then use the JOG/

Bit

(bit rate) or

DATA dial to set it as desired.

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t)

buttons to select (highlight green)

SONG

, and then

press the F4 (t) button.

The

SONG LIST

screen opens.

NOTE

Standard audio CDs are 16-bit, 44.1kHz format.

If you make an audio CD using songs with different setting combinations, they will automatically be converted to 16bit, 44.1kHz format. The master file itself, however, will not be converted (the original settings are retained).

7. Press the F2 (

YES

) button.

The currently loaded song is saved and a new song is created.

8. Press the HOME button to return to the Home screen.

TASCAM DP-32 13

2 - Quick Guide

Connecting and setting the input sources

1. Connect an electric guitar to the MIC/LINE INPUTS H jack on the rear panel.

Guitar

2. Set the LINE-GUITAR switch on the rear panel to GU ITAR .

Setting the guitar as the recording source for TRACK 1

When you press the ASSIGN button to open the Assign screen, the default screen setting for the recording source is A (INPUT A) for TRACK 1, B (INPUT B) for TRACK 2, C (INPUT C) for TRACK 3, and so on for tracks 4 to 8 (D to H). (See "Assigning inputs" on page 40.)

Since initially INPUT H is set only as the recording source for TRACK 8, you must change the TRACK 1 recording source.

Follow these procedures to change the recording source of TRACK 1.

1. Press the ASSIGN button to open the Assign screen.

2. Use the CURSOR (5/b/g/t) buttons or press

the SELECT button for TRACK 1 to move the cursor (frame) on the Assign screen with

3. Use the JOG/DATA dial or the SOURCE button for INPUT H to set the recording source of TRACK 1 to

TRACK 1

The GUITAR indicator lights.

GUITAR indicator

Now the guitar is the input source for INPUT H.

TIP

When connecting an electric-acoustic guitar with a built-in preamp or an active-type electric guitar, or when using an effects pedal, for example, between the guitar and this unit, set the LINE-GUITAR switch to LINE on the rear panel.

Adjusting and monitoring the input level

1. Press the HOME button to return to the Home screen.

2. Press the REC button for TRACK 1.

The REC button flashes and the unit enters recording standby.

3. Use the TRIM knob for INPUT H to adjust the guitar input level. Set the TRIM knob so that the OL indicator for INPUT H does not light even when the loudest sound to be recorded is input.

14 TASCAM DP-32

2 - Quick Guide

If the OL indicator continues to light even when the TRIM knob is turned down, the guitar signal itself is

too loud. In this case, lower the output level on the guitar.

OL indicator

When you play the guitar, level meter 1 (TRACK 1) shows the input level on the display.

When you raise the fader for TRACK 1, the STEREO fader and the MONITOR LEVEL knob, you will be able hear the sound of the guitar through the headphones (or monitoring system), and the L and R level meters will move.

NOTE

You can use the PAN knob for TRACK 1 on the Mixer screen

•

to set the stereo position for monitoring. If the REC button for TRACK 1 is not lit, you will not be able

•

to hear the guitar sound that is being input.

Recording a guitar to TRACK 1

1. Press the RECORD (0) button to start recording

and play the guitar.

The REC button for TRACK 1 stops flashing and lights steadily when recording.

2. After you finish your performance, press the STOP

(8) button to stop recording.

The recorded file is saved in the folder of the currently loaded song.

3. Press the REC button for TRACK 1 so the REC button becomes unlit.

Playing back the recording

1. To return to the beginning of the song (ZERO

point), press and hold the STOP (8) button and press the REW (m) (TO ZERO) button.

2. Press the PLAY (7) button to play back the

recording on TRACK 1.

3. Use the fader for TRACK 1 and the STEREO fader to adjust the playback monitoring level. Use the MONITOR LEVEL knob to adjust the final monitoring volume.

TIP

Use the PAN knob for TRACK 1 on the Mixer screen to set the stereo position of the track signal.

Recording a guitar to TRACK 2

Next, you can listen to the rhythm guitar on TRACK 1 as you play the lead guitar part and record it on TRACK 2.

Follow these procedures to change the recording source of TRACK 2.

1. Press the ASSIGN button to open the Assign screen.

We want to record the lead guitar sound from INPUT H to TRACK 2, but INPUT B is assigned to TRACK 2 by default.

2. Use the CURSOR (5/b/g/t) buttons or press the SELECT button for TRACK 2 to move the cursor (frame) on the Assign screen to

Use the JOG/DATA dial or press the SOURCE button for INPUT H to set the TRACK 2 recording source to

TRACK 2

3. Press the HOME button to return to the Home screen.

TASCAM DP-32 15

2 - Quick Guide

4. Press the REC button for TRACK 2.

Its REC indicator blinks and the unit enters recording standby.

When you play the guitar, the input level is shown by the

level meter (TRACK 2).

3. Press the HOME button to return to the Home screen.

5. Return to the beginning of the song (ZERO point) and start playback of the recorded rhythm guitar to practice the lead guitar part along with the recording.

Raise the fader for TRACK 2 to hear the input guitar signal along with the TRACK 1 playback signal through your headphones or monitoring system.

6. As necessary, use the TRACK 1, 2 and STEREO faders and MONITOR LEVEL knob to adjust the monitoring level and balance and the PAN knob to adjust the stereo positions.

7. Return to the beginning of the song, press the RECORD (0) button to start recording, and play the lead guitar part.

The RECORD (0) button lights red and the REC indicator for TRACK 2 stops flashing and stays lit while recording.

8. After you finish your performance, press the STOP (8) button to stop recording.

The recorded file is saved in the folder of the currently loaded song.

9. Press the REC button for TRACK 2 so the REC button becomes unlit.

4. Press the REC button for TRACK 3.

The REC indicator blinks and the unit enters recording standby.

5. Use the TRIM knob for INPUT B to adjust the input level suitably for the mic. Set the TRIM knob so that the OL indicator for INPUT B does not light even when the loudest sound to be recorded is input.

OL indicator

When you input a sound through an external microphone, the input level is shown by the 3 level meter.

Recording a vocal to TRACK 3

1. Press the ASSIGN button to open the Assign screen.

2. Use the CURSOR (5/b/g/t) buttons or press

the SELECT button for TRACK 3 to move the cursor (frame) on the Assign screen to

Use the JOG/DATA dial or press the SOURCE button for INPUT B to set the TRACK 3 recording source to

TRACK 3

16 TASCAM DP-32

When you raise the fader for TRACK 3, the STEREO fader and the MONITOR LEVEL knob, you can hear the sound of the mic input through the headphones.

NOTE

If the OL indicator continues to light even when the TRIM knob is turned down, the mic signal itself is too loud. In this case, move the mic further away from the sound source or lower the volume of the sound source.

6. Return to the beginning of the song, start playback of the recorded rhythm and lead guitar parts, and practice singing along with the recording.

2 - Quick Guide

You can hear the playback of the recorded guitar parts on tracks 1 and 2 along with the vocal on your headphones.

7. As necessary, use the TRACK 1, 2, 3 and STEREO faders and the MONITOR LEVEL knob to adjust the monitoring level and balance and the PAN knob to adjust the stereo positions.

8. Return to the beginning of the song, press the RECORD (0) button to start recording, and then sing along with the recording.

The RECORD (0) button lights red, and the REC indicator for TRACK 3 stops flashing and stays lit while recording.

9. After you finish your performance, press the STOP (8) button to stop recording.

The recorded file is saved in the folder of the currently loaded song.

10. Press the REC button for TRACK 3 so that the REC button becomes unlit.

Mixing the tracks

Once you have finished your recording, you are ready to mix down and create a master file.

1. Use the faders for TRACKS 1 to 3 to balance their levels. Use the STEREO fader to adjust the overall level.

2. Press the MIXER button to open the Mixer screen.

Press the SELECT buttons for TRACKS 1 to 3 to select the track to be adjusted and then use the PAN knob to set its stereo position.

TIP

You can also press and hold the MARK SET button and press the IN or OUT button to set the IN or OUT point when playback is stopped.

5. Press the MIXDOWN/MASTERING button.

The recorder switches to display returns to the Home screen.

NOTE

When in Mixdown mode, left of the Home screen.

6. Press the RECORD (0) button.

Master file recording starts.

Recording stops automatically when the OUT point is reached.

NOTE

The IN and OUT points must be at least 4 seconds apart.

•

If the interval is shorter than 4 seconds, the message

O Too Short

cannot switch to During recording, you can use the track faders to adjust

•

the levels of the tracks and the overall level. You can also use the equalizer or reverb effect while

•

recording a master file. (See "Send effects" on page 65 and "Track equalizer" on page 64)

You can mute unwanted tracks so that they are not

•

recorded to the master file. (See "Muting tracks" on page

45.)

will appear and the Recorder mode

Mixdown

mode.

mode and the

appears in the upper

3. Set the IN point.

The interval from the IN point to the OUT point will be used for the master file.

Play back the song, press and hold the MARK SET button and press the IN button at the point where you want to start the master file.

The position where you press the button is set as the IN point, which is where the mix down will start.

4. Set the OUT point.

Play back the song, press and hold the MARK SET button and press the OUT button where you want to end the master file.

The position where you press the button is set as the OUT point, which is where the mix down will end.

TASCAM DP-32 17

2 - Quick Guide

Mastering a recording

You can adjust the sound or the master file to your liking. This process is called mastering.

Checking the master file

1. When in MASTERING button to open the MASTERING screen.

The recorder switches to display returns to the Home screen.

NOTE

When in Mastering mode,

•

upper left corner of the Home screen. If a master file does not exist, the recorder mode cannot

•

switch to If the recorder is in

•

MIXDOWN/MASTERING button to switch to mode, and then press the MIXDOWN/MASTERING button again to switch to

2. In this mode, press the PL AY (7) button to listen to the master file that you have created.

Mixdown

Mastering

mode, press the MIXDOWN/

Multi Track

Mastering

mode.

mode, press the

Mastering

mode and the

appears on the

Mixdown

mode.

Applying equalization

In this example, we will use the equalizer on the master file to reduce high frequencies and increase low frequencies slightly.

1. When in button to open the

Mastering

EQUALIZER

mode, press the F1 (EQ)

screen.

2. Turn the EQ HIGH GAIN knob left to lower the

HIGH GAIN

knob on the screen to "

reduces the high frequencies.

3. Next turn the EQ MID GAIN knob left to lower the

MID GAIN

to "

-2dB

". This reduces the mid

frequencies.

4. Next, turn the EQ LOW GAIN knob right to raise the

LOW GAIN

knob on the screen to "

increase the low frequencies.

5. Press the ON/OFF button to the right of the LOW knobs to turn the equalizer ON.

-2dB

+6dB

". This

NOTE

Confirm that both the

•

OFF

. If either is set to ON, the sound heard will be affected

and

COMP

items are set to

by the equalizer and/or compressor. (See "Using the mastering equalizer" on page 67 and "Using mastering compression" on page 68.)

Mastering

•

mode, the STEREO fader cannot be

used to adjust the level.

6. Press the F1 (g) button to return to the Mastering screen.

7. Press the PLAY (7) button to listen to the master file with equalization.

Applying compression

Use the compressor on the master file to adjust the dynamics and loudness of the entire song.

1. When in button to open the

Mastering

COMP MULTI

mode, press the F2 (

screen.

COMP

)

18 TASCAM DP-32

2 - Quick Guide

2. Press the F3 ( list.

3. Use the JOG/DATA dial to select (highlight blue) an item in the list and then press the F4 (t) button to load a suitable setting from the library.

The library list closes.

TIP

You can also adjust the parameters on the screen using the CURSOR keys and JOG/DATA dial. (See "Using mastering compression" on page 68.)

4. Press the F4 (

The

OFF

LIBRARY

) button to turn the compressor on.

icon changes to ON.

) button to open the library

COMP MULTI

Using the noise shaper

Use this function to reduce quantization distortion.

1. When in button to open the screen.

2. Press the F4 ( shaper to ON.

3. Press the F1 (g) button to return to the Mastering screen.

Re-recording the master file

Re-record the master file with equalization and compression applied to create a new master file.

1. When in button.

2. This will record over the master file and create a new master file with equalization and compression applied.

Mastering

NOISE SHAPED DITHERING

ON/OFF

Mastering

mode, press the F3 (

) button to set the noise

mode, press the RECORD (0)

NSD

)

5. Press the F1 (g) button to return to the Mastering

screen.

6. Press the PLAY (7) button on the Mastering screen

to listen to the master file with compression.

NOTE

If the EQ item is set to ON on the effect of the equalizer on the sound will also be heard.

Normalizing

Normalizing maximizes the volume of the master file without changing the dynamic range.

1. When in button to open the

2. Press the F2 ( normalization.

3. Press the F1 (g) button to return to the Mastering screen.

Mastering

YES

) button to perform the

EQUALIZER

mode, press the F4 (

NORMALIZE

screen.

screen, the

NORM

)

Creating an audio CD with the master file

You can use a master file that you have created to make an audio CD that can be played back by an ordinary CD player, for example.

Inserting a CD

1. When in to open the CD menu.

CAUTION

When in a mode other than

•

you cannot open the CD menu. In

Mixdown

MIXDOWN/MASTERING button repeatedly until you return to In

Bounce

switch to

Multi Track

Mastering

Multi Track

mode, press the BOUNCE button to

Multi Track

mode, press the CD button

Multi Track

mode, press the

mode.

mode,

TASCAM DP-32 19

2 - Quick Guide

The disc tray will not open when only the Home

•

screen or when the CD menu or open.

2. Press the F3 (-) button or the disc tray eject

button on the front panel to open the tray slightly.

Pull the tray out until it opens completely as shown below.

screen is open. Open the disc tray

CD PLAY/IMPORT

screen is

Writing to a CD-R/CD-RW

When writing to a CD-R/CD-RW, the procedure differs between when you are choosing multiple master files and when you are choosing only one file.

In this example, we will select multiple master files to create a CD that can be played in ordinary CD players.

For details about writing to a CD-R/CD-RW, see "Creating an audio CD" on page 82.

1. When in to open the CD menu.

2. Place a blank CD (unused CD-R/CD-RW disc or a completely erased CD-RW) on the disc tray.

3. Use the JOG/DATA to select then press the F4 (t) button.

Multi Track

mode, press the CD button

MASTER WRITE

and

3. Hold the edge of the disc with the label side up and put it into the tray so that its central hole is on the round protrusion in the center of the tray, and then press the disc gently near the center to mount it on the tray.

NOTE

The disc will click into place and be level with the tray.

4. Push the tray to close it. The tray will click when shut.

This opens the

MASTER WRITE

screen and shows a

list of songs that have been recorded as master files.

4. Use the JOG/DATA dial to select (highlight blue) a song that you want to write to the CD-R/CD-RW, and then press the F2 (4) button.

A check mark 4 appears in the check box next to the song.

20 TASCAM DP-32

NOTE

To remove the check mark 4 from a check box, press the F2 (4) button again while the song with the 4 is selected (highlighted blue).

5. Repeat step 4 above as necessary.

6. When you select all songs to be written, press the F4 (t) button to open the

WRITE SONG LIST

screen.

On this screen, you can change the order that the master files will be written to the CD-R/CD-RW and set the gaps between them. (For details about changing

2 - Quick Guide

the order and setting the gaps, see "Creating an audio CD" on page 82).

7. Press the F4 (t) button again and a confirmation

pop-up window will appear.

8. Press the F2 (

YES

) button to begin writing to the

CD-R/CD-RW.

9. When writing is complete, a message asking whether you want to write another CD-R/CD-RW with the same contents appears.

Shutting down

Turn the unit off when you are done using it.

1. Press the HOME button to open the Home screen.

2. Press and hold the STANDBY/ON button on the rear panel until the display.

When the unit completes its automatic shutdown procedure, which includes keeping a record of various information about operations that have been performed until now, the power turns off (enters standby mode).

Always use the procedure above to turn the power off properly.

DIGITAL PORTASTUDIO

appears on

If you want to write the same contents to another CD-R/CD-RW, press the F2 (

To finish the procedure, press the F1 (

YES

) button.

Ejecting a CD

1. When in to open the CD menu.

CAUTION

The disc tray will not open when only the Home screen or

menu or

2. Press the F3 (-) button or the disc tray eject button on the front panel to open the tray slightly, and then pull the tray out until it opens completely.

Hold the disc by its edges and lift it out.

CAUTION

Do not lift the disc forcibly. Doing so could damage the unit or the disc.

Multi Track

mode, press the CD button

screen is shown. Open the disc tray when the

CD PLAY/IMPORT

screen is open.

CAUTION

When the power is ON, do not disconnect the power cord or otherwise interrupt the power to the unit. Doing so will cause all settings made since the last time you saved to be lost. If the power is interrupted while an SD card is being accessed, all recorded songs and data on the card could be damaged beyond recovery.

TASCAM DP-32 21

3 – Names and Functions of Parts

Top panel

1 GUITAR indicator

This indicator lights when the LINE-GUITAR switch on the rear panel is set to GUITAR.

2 Display area

While viewing the screen, use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to, for example,

return to the Home screen, open the assign input signals to tracks and change parameters for each input and track. (See page 26 for details.)

screen,

3 PHANTOM (+48V) buttons/indicators

Use these buttons to turn phantom power on/off for MIC/LINE INPUTS A-D and E-H on the rear panel.

The PHANTOM indicators light when phantom power is turned on for each set of inputs.

When the GUITAR indicator is lit, even if phantom (+48V) power is ON (indicator lit) for E-H, INPUT H will not receive phantom power.

CAUTION

Use the STEREO fader to lower the output volume

•

of the unit before turning phantom power on or off. Depending on the microphone, a loud noise could occur, possibly damaging equipment and harming people's hearing.

Do not connect or disconnect a microphone when

•

phantom power is turned on.

Turn phantom power on only when using a

•

condenser microphone that requires phantom power. Do not supply phantom power to an unbalanced

•

dynamic microphone. Supplying phantom power to some types of ribbon

•

microphones could break them. Do not supply phantom power to a ribbon microphone if you are in doubt.

4 OL indicators (A-H)

These indicators light when the input source signal is too loud.

5 TRIM knobs (A-H)

Use these knobs to adjust input levels. (See "Making the first recording" on page 46.)

6 SOURCE buttons/indicators

When you press one of these buttons, the corresponding input (INPUT A to H) is selected as the input source (and its button lights).

Operation of mixer controls and other functions affect the selected input.

These buttons are also used to assign input sources to tracks (see "Assigning inputs" on page 40).

22 TASCAM DP-32

3 – Names and Functions of Parts

7 MUTE (solo) indicators

These indicators light when a track is muted or soloed. When the SOLO button is not lit, it indicates the track is muted. When the SOLO button is lit, it indicates the track is soloed.

8 REC buttons/indicators

Use these buttons to enable (arm) or disable recording for each track.

To monitor a track's input sound through headphones or a monitoring system, press the REC button for the corresponding track.

When recording is enabled for a track, the REC button flashes when the recorder is stopped, and lights during recording. (See "Making the first recording" on page 46 and "Multitrack recording" on page 46.)

9 SELECT buttons/indicators

When you press one of these buttons, the corresponding track (1 to 31/32) is selected as the current channel (its button lights).

The mixer and other functions affect the current channel.

These buttons are also used for the following purposes.

To assign an input source to a track (See "Assigning

•

inputs" on page 40.)

To assign effects to an input (See "Inserting a guitar

•

effect" on page 62.)

To select tracks in a fader group

•

0 TRACK faders (1–31/32)

Use these faders to adjust the monitoring level of each track's playback signal or input signal assigned to the track. (See "Levels and balance" on page 64.)

q Operation buttons

Use these buttons to activate/deactivate functions or make settings. (See pages 26-27 for details.)

w FADER GROUP button/indicator

Press to set a fader group.

The button lights when in use. (See "Fader group" on page 64.)

e STEREO SELECT button/indicator

When the Assign screen is open, you can press to move the cursor from the

STEREO BUS

stereo bus. (See "Assigning inputs to a stereo bus" on page 41.)

display area, and set the input for the

TRACK

display area to the

r STEREO fader

Use this fader to adjust the stereo signal level output from the STEREO OUT jacks and PHONES jack. Use this fader also to adjust the recording level when bouncing or mixing down tracks.

t REW (m) (TO ZERO) button

When stopped or playing back, press and hold this button to rewind. Rewinding is at a fixed 10x speed.

Press briefly to jump to the previous mark. Press and hold the STOP (8) button and press to

locate the beginning of the song ( = ZERO point). (See "Returning to zero or the last recording position" on page 52.)

00:00:00:00

y F FWD (,) (TO LAST REC) button

When stopped or playing back, press and hold this button to fast-forward. Fast-forwarding is at a fixed 10x speed.

Press briefly to jump to the next mark. Press and hold the STOP (8) button and press to

locate the last recording position (LAST REC point). (See "Returning to zero or the last recording position" on page 52.)

u STOP (8) button

Use this button to stop playback, recording and fastforwarding/rewinding. Press at the same time as you press the REW (m) (TO ZERO) button or F FWD (,) (TO LAST REC) button to locate the beginning of the song ( recording position (LAST REC point). (See "Returning to zero or the last recording position" on page 52.)

00:00:00:00

= ZERO point) or the last

i PLAY (7) button/indicator

Press to start playback.

During recording, press to stop recording and start playback (punch out).

During playback or recording, the PLAY (7) button lights.

o RECORD (0) button/indicator

Press to start recording.

This button lights during recording. During playback, if you press this button when a track REC button is flashing, recording to that track will begin (punch in). (See "Automatic punching in and out" on page 54.)

TASCAM DP-32 23

3 – Names and Functions of Parts

p Color display

This 3.5-inch TFT display with 320x240 resolution shows various types of information.

NOTE

The display is produced with extremely high-precision manufacturing technologies. More than 99.99% of the pixels operate to specification. Less than 0.01% of the pixels may occasionally misfire or appear as red or black dots. This is not a malfunction.

a GAIN (HIGH/MID/LOW) knobs

Use these knobs to adjust the equalizer gain of each band. (See "Using the input equalizer" on page 43.)

s FREQ (HIGH/MID/LOW) knobs

Use these knobs to adjust the center frequency of each equalizer band. (See "Using the input equalizer" on page 43.)

d Q knob

Use this knob to adjust the width of the MID equalizer band. (See "Using the input equalizer" on page 43.)

f EQUALIZER ON/OFF button

Use this button to turn the equalizer on and off. (See "Using the input equalizer" on page 43.)

g JOG/DATA dial

When the Home screen is open, you can use this dial for transport jog operations. (See "Cueing with the JOG/DATA dial" on page 52.)

Use this dial to change parameter values and select items when using menus.

h ASSIGN button/indicator

Use this button to set the track type for tracks 9/10– 31/32 and set (assign) the input (INPUT A to H) for each track. When you press this button, the Assign screen opens. The input signal of the assigned input source becomes the recording source. (See "Assigning inputs" on page 40.)

j MIXER button/indicator

Press to open the Mixer screen.

On this screen, you can adjust the settings for the selected input (INPUT A to H) or track (including GROUP) that is selected. (See "Bouncing tracks" on page 50.)

k DYNAMICS button/indicator

Pressing this button opens a screen to adjust the settings for the effects applied to the inputs (INPUT A to H). (See "Dynamic effects" on page 61.)

l EFFECT button/indicator

Pressing this button opens a screen to make adjustments to the effects. (See "Guitar effects" on page 62 and "Send effects" on page 63.)

; MENU button

Press to open the on page 29.)

screen. (See "Menu structure"

z HOME button

Press to open the Home screen. (See "Home screen" on page 28.)

x F1 to F4 (function) buttons

The functions of these buttons depend on the currently open screen. The functions currently assigned to the F1 to F4 buttons are shown at the bottom of the screen.

c PAN knob

Use this knob to adjust the stereo position of the track's playback signal or the input signal assigned to that track. (See "Stereo position (panning)" on page

64.)

v SEND EFF 1/EFF 2 knobs

Use these knobs to adjust the amount of track signal output to the EFFECT SENDS jacks.

Use the SEND EFF 1 knob also to adjust the amount of track signal sent to the internal effects. (See "Sending signals to internal/external effects" on page 44.)

b SEND MASTER 1/MASTER 2 knobs

Use these knobs to adjust the amount of master track signal output to the EFFECT SENDS jacks.

Use the SEND MASTER 1 knob also to adjust the amount of master track signal sent to the internal effects. (See "Sending signals to internal/external effects" on page 44.)

n CURSOR (5/b/g/t) buttons

Use these buttons to move the cursor on the screen.

m JOG PLAY button

Press to switch to Search mode.

24 TASCAM DP-32

, SOLO button/indicator

Press to switch to Solo mode (the button lights). (See "Solo" on page 45.)

. MUTE button/indicator

Press to switch to Mute mode (the button lights). (See "Muting tracks" on page 45.)

/ TRACK EDIT button

Press to open the "Overview of track Editing" on page 57.)

TRACK EDIT

screen. (See

! VIRTUAL TRACK button/indicator

Press to open the "Virtual tracks" on page 56.)

VIRTUAL TRACK

screen. (See

@ BOUNCE button/indicator

Press to switch to Bounce recording mode (the button lights). (See "Bouncing tracks" on page 50.)

# MIXDOWN/MASTERING button/indicator

Press to cycle through the and

Mastering

available when there is a master track. (See "Mixing down tracks" on page 64, "Creating a master file" on page 65, "Checking the master file" on page 66 and "Using the mastering tools" on page 66.)

NOTE

The current mode is shown on the Home screen.

modes. Mastering mode is only

Multi Track, Mixdown

$ METRONOME button/indicator

Press to set the metronome.

The button flashes in time with the set tempo. (See "Metronome" on page 70.)

% UNDO/REDO button/indicator

Press to undo the immediately previous action (single undo) or to cancel the last undo (redo). (See "Undoing an operation" on page 47.)

After a single or multiple undo, the UNDO/REDO button lights, showing that an operation has been undone.

^ MONITOR SELECT button

Press to open the window on the Home screen. (See "Monitor selection" on page 42.)

MONITOR SELECT

pop-up

& MONITOR LEVEL knob

Use this knob to adjust the level of the signals output from the MONITOR OUT jacks.

3 – Names and Functions of Parts

* MARK SET button

During recording or playback, press to set a mark manually. (See "Setting a location mark" on page 51.)

( AUTO PUNCH button/indicator

Press to turn automatic punching on and off.

When auto punch is on, Home screen. (See "Automatic punching in and out" on page 54.)

) IN button

Press to locate the IN point.

Press and hold the MARK SET button and press to set the IN point.

Press and hold the JUMPBACK (PREVIEW) button and press this to start pre-roll playback up to the current position where it stops. (See "Previewing cue points" on page 54.)

Q REHEARSE button/indicator

Use this button to turn Rehearse mode on and off. In addition to auto punch in/out, you can also use the Rehearse mode for ordinary recording. (See "Rehearsing a recording" on page 45.)

W OUT button

Press to locate the OUT point.

Press and hold the MARK SET button and press to set the OUT point.

Press and hold the JUMPBACK (PREVIEW) button and press this to start post-roll playback from the current position for a set amount of time, then return to the current position and stop. (See "Previewing cue points" on page 54.)

E REPEAT button/indicator

Press to this button to turn Repeat Playback mode on and off. (See "Using repeat playback" on page 53.)

R JUMPBACK (PREVIEW) button

Press to rewind a set number of seconds from the current position and start playback. (See "Jumpback playback" on page 53.)

T CD button

Press to open the page 80.)

Auto Punch

menu. (See "14 – Using CDs" on

appears on the

TASCAM DP-32 25

3 – Names and Functions of Parts

Front panel

Y PHONES jack

Use this standard stereo jack to connect stereo headphones.

Use the MONITOR LEVEL knob on the top panel to adjust the volume output from this jack.

CAUTION

Before connecting headphones, use the MONITOR LEVEL knob on the top panel to set to the volume to

minimum. A loud noise could occur, which might result in damage to equipment and people's hearing.

U REMOTE jack (2.5mm TRS)

Connect a TASCAM RC-3F footswitch (sold separately) here to remotely control a variety of operations, including punching in and out (starting and stopping recording).

I Disc tray

When the to open the disc tray and then load or remove a disc.

Push the tray to close it. The tray will click when shut.

menu is open, press the F3 (-) button

O Access indicator

This indicator lights when the unit is accessing (reading or writing) a disc.

P Eject button

When the disc tray.

menu is displayed, press to open the

A Emergency eject hole

If the disc tray does not open, press the button inside this hole to forcibly open the disc tray. (See "Forcing disc ejection" on page 82.)

CAUTION

Do not use this button at any time other than an emergency. Before doing this, turn the power off (put in standby) and disconnect the AC adaptor.

26 TASCAM DP-32

Rear panel

3 – Names and Functions of Parts

S STANDBY/ON button

When the power is OFF (in standby), press and hold this to turn the power on. When the power is ON, press and hold this button to turn the power off (put in standby). (See "Start-up & Shutdown" on page 32.)

D SD card slot

Insert an SD card into this slot.

F USB port

Use the included USB cable to connect with a USB port on a computer. (See "Connecting to a computer" on page 76.)

CAUTION

Always connect the unit directly to a computer. Do not use a USB hub.

G GROUND connector

Depending on other conditions in your setup, you might hear noise when monitoring. If this occurs, use this connector to ground the unit. (Please prepare the necessary wiring yourself.)

H Kensington lock attachment hole J DC IN 12V jack

Connect the supplied TASCAM PS-1225L AC adaptor.

K Cord holder

Wrap the cord of the supplied TASCAM PS-1225L AC adaptor around this hook to prevent the plug from becoming disconnected accidentally.

L MIDI OUT jack

Use this standard 5-pin DIN MIDI jack for MIDI signal output.

: MIDI IN jack

Use this standard 5-pin DIN MIDI jack for MIDI signal input.

Z MONITOR OUT jacks (standard balanced TRS)

These jacks output the signal selected using the MONITOR SELECT button on the top panel. These are standard balanced jacks.

X EFFECT SENDS jacks (standard unbalanced TS)

These jacks output the signal for effect sends 1 and 2.

C STEREO OUT jacks (unbalanced RCA)

These jacks output the stereo bus signal.

V LINE-GUITAR switch

Set this switch according to the input source of the MIC/LINE INPUT H. When connecting an electric guitar, electric bass or similar instrument directly, set this switch to GUITAR. When connecting a digital instrument or other audio equipment, set it to LINE.

B MIC/LINE INPUTS A-H jacks (balanced)

These are balanced analog XLR/TRS combo jacks for microphone and line level input.

XLR (1: GND, 2: HOT, 3: COLD)

•

TRS (Tip: HOT, Ring: COLD, Sleeve: GND)

•

TASCAM DP-32 27

3 – Names and Functions of Parts

Home screen

Home screen with track level meters

1 Counter mode

Shows the currently selected time counter mode: or

BAR

2 Recorder time counter

Shows the elapsed time from the start of the song.

3 REMAIN time

Shows the remaining recordable time (hours: minutes) on the SD card.

4 Repeat playback icon

When the unit is in Repeat Playback mode, the icon appears.

5 Playback position

Shows the current playback position.

6 Recorder mode

Shows the current recorder mode:

Bounce, Mixdown

The following items are also shown here:

Rehearsal, Auto Punch

Mastering

7 INPUT A to H overload indicators

If the input signal of any INPUT A to H source is too loud, the corresponding indicator lights.

Multi Track

and

ABS

8 Track section

Level meters

When level meters appear, they show input signal levels during recording and playback signal levels during playback.

Timeline

When the timeline appears, it shows the current playback position and which tracks have recordings.

9 Song name

Shows the song name during playback.

0 IN/OUT point time

Press and hold the MARK SET button and press the IN or OUT button to display the set IN or OUT point.

q Stereo level meters

Shows the signal level output from the STEREO OUT jacks.

w TIMELINE/METER function

When the level meters are shown in the track section, press the F1 ( timeline.

When the timeline is shown in the track section, press the F1 (

METER

e SAVE function

Press the F2 ( pop-up window.

Home screen with timeline

TIMELINE

) button to shown the level meters.

SAVE

) button to shown the

) button to open the

SONG SAVE

28 TASCAM DP-32

3 – Names and Functions of Parts

Menu structure

Press the MENU button to open the

The menu contains the following items.

Menu item Function Reference

Song loading, saving

SONG

AUDIO DEPOT

INFORMATION

MIDI TUNER USB FORMAT

PREFERENCE

and creation, and other song-related operations

Import and export WAV files

View information about songs, files, and the system

Make MIDI settings Page 70

Tune instruments Page 71

Make USB settings Page 76

Format SD cards Page 74

Auto Power Save setting

Contrast (LCD adjustment)

Brightness (LCD adjustment)

Backlight (LCD adjustment)

Foot SW Right assignment

Foot SW Center assignment

Foot SW Left assignment

Undo History (Switch between Level 1 and Level 10)

Jump Back (JUMP time setting)

Auto Monitor setting

Preview Time setting

Peak Hold setting

Song Name Type (switch between DATE and WORD)

Date/Time (system time setting)

Initialize (restore default settings)

screen.

Page 35

Page 78

Page 72

Page 34

Page 49

Page 47

Page 53

Page 72

Page 54

Page 43

Page 72

Page 33

Page 73

Press the CD button to open the CD menu, which contains the following items.

Menu item Function Reference

PLAY/IMPORT

MASTER WRITE

LIVE WRITER

FINALIZE

ERASE

Play back audio CDs and import songs from them

Create audio CDs with master files

Create audio CDs with multiple tracks by dividing master files with marks

Finalize unfinalized CD-R/CD-RW discs

Erase written CD-RW discs

Pages 82 and 86

Page 82

Page 85

Page 86

Page 87

TASCAM DP-32 29

3 – Names and Functions of Parts

F2 F3 F4

Navigating screens

After using the MENU button or a dedicated button to open a screen, follow the guidelines below to use the functions on the screen.

These examples show basic operation procedures, but the actual assignments of the function buttons (F1 to F4 buttons) depend on the screen.

Use the JOG/DATA dial or the CURSOR (5/b/g/t)

•

buttons to select (highlight green) the desired item. This example shows the

item selected.

This example shows the

•

Function button assignments

The assignments of the function buttons (F1 to F4) are shown at the bottom of the screen above the buttons themselves.

screen with the

SONG LIST

SONG

menu.

Navigation examples

In this menu, use the JOG/DATA dial or the CURSOR (5 /b ) buttons to select (t) button to load the song.

When the cursor (highlighted blue) is on a setting

•

value, use the JOG/DATA dial to change the value. To select an item, use the CURSOR (5/b) buttons.

This example shows the

Use the JOG/DATA dial to change the value.

Move the cursor (highlighted blue) up or down. To move left or right, use the CURSOR (g/t) buttons.

•

LOAD

, and then press the F4

PREFERENCE

screen.

"4" above the F2 button shows that "4" is assigned to the F2 button when using this screen.

In this manual, the function assigned to a function button is shown in parentheses, for example, "F2 (4) button".

In this way, " is assigned to the F4 button.

When an item has a menu, "t" appears on the right side, and the F4 (t) button is used to open it.

In the menu, you can press the F1 (g) button to return to the previous screen.

INFO

" is assigned to the F3 button, and "t"

Press the HOME button to return to the Home Screen.

•

30 TASCAM DP-32

4 – Preparation

Inserting and removing SD cards

Inserting an SD card

Insert the SD card into the SD card slot on the rear panel as shown in the illustration until it clicks into place.

NOTE

An SD card is already in the SD card slot when the unit is shipped from the factory. If you want to use this card to record and play tracks, there is no need to reinsert it.

Removing the card

Push the loaded card in gently to eject it.

Powering the unit

As shown in the illustration, connect the included TASCAM PS-1225L AC adaptor to the DC IN 12V jack.

TASCAM

PS-1225L

DC plug

The bottom panel has a hook (cord holder) that can be used to hold the AC adaptor cord in place. When using it, wrap the cord around this hook to prevent it from being disconnected during use.

AC outlet

CAUTION

Always turn the power off (put in standby) before

•

removing an SD card. If you remove or insert an SD card when the power is

•

on, recorded data could be lost permanently. SD and SDHC cards that are at least 512 MB in size

•

can be used. A list of SD cards that have been confirmed to work

•

with this unit can be found on the TASCAM website (http://tascam.com/).

About write-protected SD cards

SD cards have write-protect (lock) switches.

CAUTION

Use only the included TASCAM PS-1225L AC adaptor

•

and power cord. Use of a different AC adaptor could cause malfunction, fire or electric shock.

Be sure to use the included TASCAM PS-1225L AC

•

adaptor to supply power to this unit. Power cannot be supplied to this unit by USB.

Unprotected Protected

When the protect switch is in the LOCK position, files cannot be recorded or edited on the card. Slide the switch away from the LOCK position if you want to record, erase or otherwise change files on a card.

TASCAM DP-32 31

4 – Preparation

Starting up & shutting down

CAUTION

Turn down the volume of any sound monitoring

•

system connected to the unit before starting up or shutting down the unit.

Do not use headphones when starting up or shutting

•

down the unit. A loud noise could cause damage to your headphones or your ears.

Starting up the unit

Press and hold the STANDBY/ON button on the rear panel for a few seconds.

When the unit starts, the startup screen opens briefly followed by the Home screen.

Shutting down

Make the following preparations before shutting down the unit.

Stop the recorder. (The unit cannot be shut down

•

during recording and other operations.) Return to the Home screen.

•

If the unit is connected to a computer, disconnect the

•

USB cable after performing the necessary procedure on the computer to disconnect the unit.

After making these preparations, press and hold the STANDBY/ON button on the rear panel until the following screen opens.

The power turns off (enters standby) after the unit completes its shutdown process, which includes saving various information from your session.

Start-up screen

Home screen

When the unit starts up, it defaults to multitrack mode, regardless of the mode used last before shutting down.

CAUTION

When the power is ON, do not disconnect the power cord or otherwise interrupt the power to the unit. Doing so will cause all settings made since the last time you saved it to be lost. If the power is interrupted while an SD card is being accessed, all recorded songs and data on the card could be damaged beyond recovery.

NOTE

When the power is turned off (put in standby), the currently loaded song is saved. When the power is turned on again, the last song used is reloaded in the same state it was when the power was turned off (put in standby). You can even undo and redo previous operations.

32 TASCAM DP-32

4 – Preparation

Setting the date and time

Using its internal clock, this unit remembers the date and time when a song or file is recorded.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select (highlight blue)

Date/Time

button.

The

DATE/TIME

screen.

PREFERENCE

screen opens.

, and then press the F4 (t)

screen opens.

Preparing an SD card for use

In order to use an SD card in this unit, you must format it first.

CAUTION

The included SD card is already formatted, so formatting it is not necessary. Formatting the supplied SD card will erase the demo song stored on it.

1. Confirm that the SD card is loaded and turn the power on.

2. An "Invalid Card" pop-up warning appears when a new SD card or an SD card formatted for use with another device is inserted in the unit.

3. You can also reformat a card in this unit at any time. (See "Quick formatting an SD card" on page 74 and "Full formatting an SD card" on page 75.)

To close the pop-up message, press the F1 button.

Recorder modes

This unit has four modes.

Multi Track

Use to operate the unit as a multitrack recorder.

4. Use the CURSOR (g/t) buttons to move the cursor

(highlighted blue) to the desire item, and then use the JOG/DATA dial to change the value.

5. After making the settings, press the F2 ( button to return to the Home screen.

NOTE

The time indication stops while the time is being set.

•

You can automatically add the date to file names

•

by setting the

PREFERENCE

Song Name Type

menu.

DATE

YES

in the

)

Bounce

Use to bounce tracks. (See "Bouncing tracks" on page 50.)

Mixdown

Use to mix down tracks to create a master file. (See "Mixing down tracks" on page 64 and "Creating a master file" on page 65.)

Mastering

Use to play back the master files that you have created and apply effects and tailor them to suit your preferences (mastering). (See "Checking the master file" on page 66 and "Using the mastering tools " on page 66.)

When the unit starts up, it defaults to multitrack mode, regardless of the mode used last before shutting down.

When in any mode other than multitrack mode, many of the onscreen operations are unavailable.

In this manual, explanations are given for multitrack mode unless otherwise noted.

TASCAM DP-32 33

4 – Preparation

Connecting other equipment

This section shows examples of how to connect other devices to this unit.

Precautions before making connections

Turn off (put in standby) this unit and all devices that

•

you will connect beforehand. Supply power to all the devices from the same line.

•

When using a power strip, for example, use one with a cable that has a high electric current capacity in order to minimize power voltage variations.

Front panel

フットスイッチ

TASCAM RC-3F Footswitch

TASCAM RC-3F

Headphones

ヘッドホン

(別売)

(Optional)

CAUTION

Do not connect a dynamic microphone using an

•

unbalanced connection when phantom power is on. Doing so could break it.

Do not connect or disconnect a microphone when

•

phantom power is on. Doing so could cause a loud noise and damage the equipment.

Before turning phantom power on or off, turn down

•

the output volume using the MONITOR LEVEL knob, STEREO fader and external monitor monitoring

system. Depending on the microphone, a loud noise could occur, resulting in harm to equipment and hearing.

NOTE

Before producing any sound, minimize the output

•

volume using the MONITOR LEVEL knob and external monitoring system. Loud noise could occur, resulting in harm to equipment and hearing.

Recorder functions cannot be used when the unit is

•

connected to a computer via USB.

TIP

Rear panel

TASCAM

PS-1225L

DC plug

Drum machine

Powered speakers or amplier and speakers

External eect

External recorder

AC outlet

USB

Mini-B USB plug

Computer

Connect microphones to INPUTS A to H

Connect electronic keyboards to INPUTS A to H

Connect a

guitar/bass

to INPUT H

Adjusting the display

You can adjust the contrast, brightness and backlight level of the display.

Follow these procedures to adjust the contrast.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select

Contrast

, and then use the JOG/DATA dial to

adjust it.

Contrast Brightness Backlight

4. After making the settings, press the HOME button to return to the Home screen.

screen.

PREFERENCE

screen opens.

range: 1 – 25 (default: 5)

range: 1 – 25 (default:

range: 1 – 25 (default: 25)

34 TASCAM DP-32

5 - Song Management

This unit manages data in units called "songs". Ordinarily, each project should have its own "song" file. The first step is to load an existing song that you want to use or create a new song.

The audio data for the recorded multitrack (TRACKS 1 to 31/32) and the master file are saved in the song.

This chapter covers basic operations, including procedures for loading songs and creating new songs, as well as explains various song management functions.

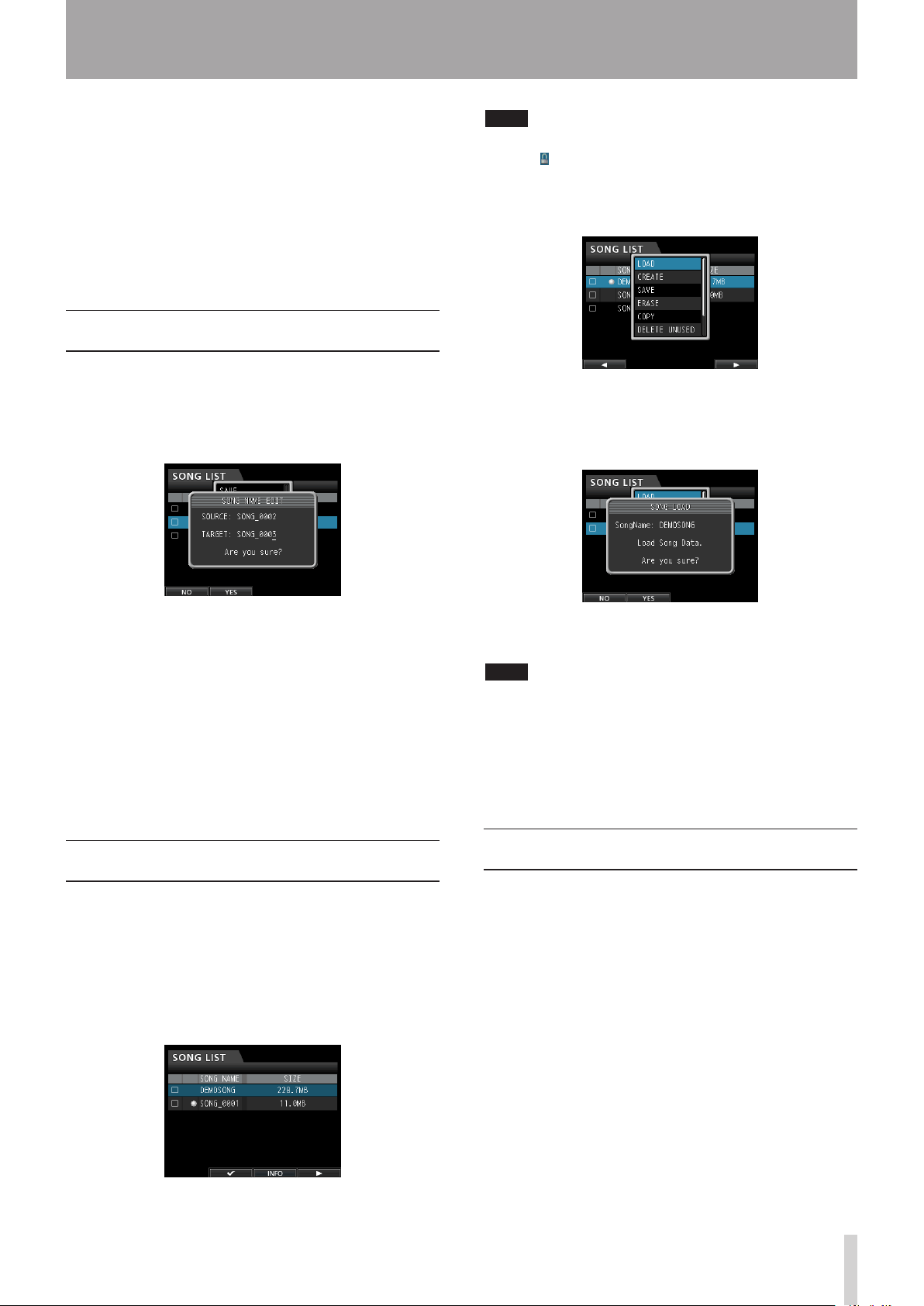

Editing names

You can edit the name of a song in a pop-up window when creating ( and copying ( the name of a song by opening the pop-up window.

SONG CREATE

SONG COPY

) the song. You can also edit

), saving (

SONG SAVE

SONG NAME EDIT

)

NOTE

The 0 icon appears next to the currently loaded song.

•

A lock

•

3. Use the JOG/DATA dial or the CURSOR (5/b)

4. Use the JOG/DATA dial or the CURSOR (5/b)

The

icon appears next to any protected song.

buttons to select the desired song, and then press the F4 (t) button to open the menu.

buttons to select button again.

SONG LOAD

LOAD

, and then press the F4 (t)

pop-up window appears.

SONG NAME EDIT screen

Use the following controls to edit names.

Use the CURSOR (g/t) buttons to move the cursor.

•

The character at the cursor position (underlined) is the one that can be edited.

Use the JOG/DATA dial to change the characters at the

•

cursor (underline) position. You can input a maximum of 15 characters, including ordinary symbols, numerals and English upper and lower case letters.

After inputting or editing the name, press the F2 (

•

button to save the edited name.

YES

Loading a song

Follow these procedures to load the song you want.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

screen.

screen opens.

SONG

, and then

5. Press the F2 ( song.

NOTE

If you press the F1 (NO) button, the pop-up window disappears from the

6. Once the song is loaded, the pop-up window disappears from the

)

7. Press the HOME button to return to the Home screen.

YES

) button to load the selected

SONG LIST

screen.

Creating a new song

Follow these procedures to create a new song.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

screen.

screen opens.

SONG

, and then

TASCAM DP-32 35

5 - Song Management

3. Press the F4 (t) button to open the menu.

Use the JOG/DATA dial or the CURSOR (5/b) buttons to select

CREATE

from the menu, and then

press the F4 (t) button.

4. Press the F4 (t) button to open the

SONG CREATE

pop-up window.

The created song will automatically be given a name according to the

PREFERENCE

5. Change the song name in the

Song Name Type

menu.

Name

setting in the

item if you

want. (See "Editing names" on page 35.)

Saving a song

This unit automatically saves the current song during shutdown and when loading another song. You can also save a song at any time using the following procedure.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

3. Press the F4 (t) button to open the menu.

Use the JOG/DATA dial or the CURSOR (5/b) buttons to select press the F4 (t) button.

4. Press the F4 (t) button to open the pop-up window.

screen.

screen opens.

SAVE

from the menu, and then

SONG

SONG SAVE

, and then

TIP

You can edit the name of a song later by selecting

NAME EDIT

from the

SONG

screen. You can also edit the

song name when saving the song.

6. Align the cursor with

Bit

and turn the JOG/DATA

dial to set the bit rate. (Default: 16bit)

7. Align the cursor with

and turn the JOG/DATA

dial to set the sampling frequency. (Default:

44.1kHz)

CAUTION

If you plan to create a CD from a master file, use the default values of 44.1kHz and 16bit.

8. Press the F2 (

YES

) button to save the currently

loaded song and create a new song.

NOTE

If you press the F1 (NO) button, the pop-up window disappears from the

SONG LIST

screen.

9. Once the song is created, the pop-up window disappears from the

SONG LIST

screen.

10. Press the HOME button to return to the Home screen.

5. Change the song name in the

SongName

item if

you want. (See "Editing names" on page 35.)

To save without changing the name, just press the F2 (

YES

) button.

6. Once the song is saved, the pop-up window disappears from the

SONG LIST

screen.

7. Press the HOME button to return to the Home screen.

TIP

The

SAVE

item, which is one of the

items, can also be selected using the F2 (

SONG LIST

SAVE

) button on

the Home screen.

36 TASCAM DP-32

5 - Song Management

Viewing song information

You can check the song file format, song name (title), time/date, and song size.

1. Press the MENU button to open the

screen.

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t)

buttons to select (highlight green)

SONG

, and then

press the F4 (t) button.

The

SONG LIST

3. Press the F3 (

screen opens.

INFO

) button to cycle through the

song information shown in the following order:

SIZE, SAMPLE RATE, SAMPLE BIT

, and

DATE

Copying songs

5. Change the song name as you want and press the F2 (

YES

) button.

NOTE

To cancel copying, press the F1 (NO) button instead of the F2 (

YES

) button.

6. When copying completes, the pop-up window disappears from the

SONG LIST

screen.

Erasing songs

You can erase a single song or multiple songs at once. You might want to erase unneeded songs if the SD card starts to run out of space.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

3. Select (highlight blue) the song you want to erase and then press the F2 (4) button. To erase multiple songs, check all the songs you want to erase.

screen.

screen opens.

SONG

, and then

You can copy songs.

1. When the recorder is stopped, press the MENU button to open the

screen.

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green)

SONG

, and then

press the F4 (t) button.

The

SONG LIST

screen opens.

3. Select (highlight blue) a song you want to copy.

4. Next, press the F4 (t) button to open the menu. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select

COPY

from the menu, and then

press the F4 (t) button.

A confirmation pop-up message appears.

NOTE

To remove a check 4 from a box, press the F2 (4) button again while the song is selected (highlighted blue).

4. Next, press the F4 (t) button to open the menu. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select

ERASE

from the menu, and then

press the F4 (t) button.

A confirmation pop-up message appears.

5. Press the F2 (

NOTE

YES

) button to perform the erase.

To cancel erasing a song, press the F1 (NO) button instead of the F2 (

YES

) button.

TASCAM DP-32 37

5 - Song Management

6. When erasing a song completes, the pop-up window disappears from the

NOTE

The MUSIC folder must always have at least one song in it. Therefore, one song will be automatically created when you insert or format a card.

SONG LIST

screen.

Protecting songs

If you protect a song, editing, recording and erasing that song will be prevented.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

3. Select (highlight blue) the song you want to protect and then press the F2 (4) button. To protect multiple songs, select all songs you want to protect.

screen.

screen opens.

SONG

, and then

Deleting unnecessary audio data from a song

In addition to audio data for a track, a song may also contain "unused" audio data. When a track is overwritten in this unit, the overwritten audio data is not erased, but remains on the SD card. Audio data that has been completely overwritten is "unused" audio data.

As shown in the illustration, if old audio data is not completely overwritten by new audio data, old audio data cannot be deleted.

New guitar solo overwrites old one

Old guitar solo (deleted)

New guitar solo overwrites old one

Old guitar solo (not deleted)

New guitar solo overwrites old one

Old guitar solo (not deleted)

NOTE

To remove a check 4 from a box, press the F2 (4) button again while the song is selected (highlighted blue).

4. Next, press the F4 (t) button to open the menu. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select the menu, and then press the F4 (t) button.

The song protect function is enabled for the selected song.

5. When protecting a song completes, the pop-up window disappears from the

NOTE

In a song list used to copy, erase or perform other

•

functions, lock If you try to perform a prohibited operation (edit, record

•

or erase) on a protected song, a message will appear and the operation will be prevented.

To remove protection from a song, follow the same

•

procedure above, unchecking songs that you want to unlock in step 3.

icons will appear next to protected songs.

PROTECT

item from the

SONG LIST

Song Protected

screen.

"Unused" old audio data in any virtual track that has not been assigned to a physical track can also be deleted. (See "Virtual tracks" on page 56.)

Follow these procedures to delete "unused" audio data and create room on the SD card for additional storage (this operation cannot be undone).

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

3. Select (highlight blue) the song that contains unnecessary audio data and then press the F2 (4) button. To erase multiple songs, select all songs you want to erase.

NOTE

To remove a check 4 from a box, press the F2 (4) button again while the song is selected (highlighted blue).

screen.

screen opens.

SONG

, and then

38 TASCAM DP-32

5 - Song Management

4. Next, press the F4 (t) button to open the menu. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select

DELETE UNUSED

from the menu,

and then press the F4 (t) button.

A confirmation message appears.

5. Press the F2 (

YES

) button.

The unnecessary audio data is deleted from the song(s).

When the deletion of unnecessary data completes, the pop-up window disappears from the

SONG LIST

screen.

NOTE

To cancel the deletion of unnecessary data, press the F1 (NO) button instead of the F2 (

CAUTION

YES

) button.

This operation deletes all unused audio data from the selected songs and cannot be undone. Therefore, if you think you might use this audio data later, back up the data to a computer before using the

DELETE UNUSED

command. (See "Connecting to a computer" on page

76.)

Changing a song name

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) press the F4 (t) button.

The

SONG LIST

3. Select (highlight blue) the song with the name that you want to change.

4. Next, press the F4 (t) button to open the menu. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select then press the F4 (t) button.

Now you can change the song name.

screen.

screen opens.

NAME EDIT

SONG

, and then

from the menu, and

5. Change the song name as you want and press the F2 (

YES

) button.

NOTE

To cancel changing a song name, press the F1 (NO) button instead of the F2 (

YES

) button.

6. Once the song name is changed, the pop-up window disappears from the

SONG LIST

screen.

TASCAM DP-32 39

6 - Basic Recording

Selecting the input sources

This unit is equipped with eight inputs (INPUTS A to H), and each of them has a standard XLR/TRS combo jack.

In addition to microphones and line level instruments, you can connect guitars to the INPUT H jack. When connecting a guitar, set the LINE-GUITAR switch on the rear panel to GUITAR.

TIP

When connecting an electric-acoustic guitar with a builtin preamp or an active-type electric guitar, or when using an effects pedal, for example, between the guitar and this unit, set the LINE-GUITAR switch on the rear panel to

LINE.

Assigning inputs

When using this unit, "assigning inputs" means setting the recording source for each track to INPUT A to H on the Assign screen.

Assign screen

NOTE

By default, the recording sources of tracks 1 to 8 are

•

assigned to inputs A to H, in that order. Assignments are saved when you save a song or turn the

•

unit off. Likewise, assignments are loaded when you load a song.

This unit can simultaneously record a maximum of eight tracks. You can assign one input source to multiple tracks simultaneously, but you cannot assign multiple input sources to the same track. You can also assign an input source to a direct stereo bus.

5. After selecting all the tracks that you want to change, press the F4 [t] button.

A “Erase selected tracks. Are you sure?” pop-up

message appears.

6. Press the F2 [YES] button to change all the tracks at once.

CAUTION

When the track type is changed, the audio for that track is cleared, so the track will have no audio signal. If you make a mistake, however, you can undo this operation to restore the track type and audio on it. (See "Undoing an operation" on page 47.)

NOTE

When the track type is changed, the input assignment is

•

cleared, so you should make assignments now. If you set track 9/10 as a mono track, it will become track

•

9, for example. Likewise, if 31/32 is set to mono, it will become track 31. (The even numbered track is skipped.)

Assigning inputs to mono tracks

1. When the recorder is stopped, press the ASSIGN button to open the Assign screen.

2. Use the SELECT button of each track or the CURSOR (5/b/g/t) buttons to move the cursor to the mono track to which you want to assign a recording source.

3. Press the SOURCE button of the desired input (A to H) or turn the JOG/DATA dial to set the input source of each mono track.

4. After making the settings, press the ASSIGN button or the HOME button to return to the Home screen.

Setting the track type

You can set tracks 9/10–31/32 to be used as either stereo or mono tracks. By default, they are all stereo tracks. Change these settings on the Assign screen.

1. When the recorder is stopped, press the ASSIGN button to open the Assign screen.

2. Use the STEREO SELECT button of each track or the CURSOR (5/b/g/t) buttons to move the cursor to a track that you want to change.

3. Press the F3 [ST/MONO] button to change the type of the selected track.

4. If you want to change the type of other tracks, repeat steps 2 and 3.

40 TASCAM DP-32

Assigning inputs to stereo tracks

Stereo tracks are always recorded simultaneously.

You cannot record to a single track of a stereo track pair.

1. When the recorder is stopped, press the ASSIGN button to open the Assign screen.

2. Use the SELECT button of each track or the CURSOR (5/b/g/t) buttons to move the cursor to the stereo track to which you want to assign a recording source.

3. Press the SOURCE button of the desired input (A to H) or turn the JOG/DATA dial to set the input source of each stereo track.

Options:

E/F, F/F, G/G, G/H

4. After making the settings, press the ASSIGN button or the HOME button to return to the Home screen.

NOTE

You can assign a single input source to multiple tracks by

•

keeping the SOURCE button of the desired input (A to H) pressed and pressing the SELECT buttons of multiple

tracks. However, you cannot assign multiple input sources to the

•

same track.

A/A, A/B, B/B, C/C, C/D, D/D, E/E

, and

H/H

Assigning inputs to a stereo bus

To use an external effect device, assign the inputs (A to H) that are connected to the outputs of the effect (EFFECT RETURN) to a stereo bus to return the effect signal to that stereo bus. You can also assign inputs to stereo buses during mixdown, allowing you to mix up to 8 input signals with the playback tracks.

1. When the recorder is stopped, press the ASSIGN button to open the Assign screen.

2. Use the STEREO SELECT button or the CURSOR (5/b/g/t) buttons to move the cursor to the

STEREO BUS

3. Use the CURSOR (g/t) buttons to move the cursor to the stereo bus to which you want to assign the input source.

4. Press the SOURCE button of the desired input (INPUT A to H) or turn the JOG/DATA dial to set the input source to the stereo bus.

5. After making the settings, press the ASSIGN button or the HOME button to return to the Home screen.

display area.

Checking assignments

You can check the current assignment on the Assign screen.

The assigned input source name ( level meter display area of each track on the Home screen.

to H) is shown on the

6 - Basic Recording

NOTE

When the power is turned off, the current song is saved and all song-related settings are stored (except when the song protection function is enabled).

The next time you turn the power on, all stored settings will be restored.

Canceling assignments

When the Assign screen is open, pressing the F1 (

DEFAULT

assignment settings. On this screen, pressing the F2 (

ALL CLEAR

Using phantom power

When connecting a condenser microphone that requires phantom power, press the PHANTOM (+48V) for INPUTS A to D or INPUTS E to H when the recorder is stopped to turn phantom power on or off.

When you turn phantom power on, the PHANTOM (+48V) button lights and phantom power is supplied to the XLR jacks of INPUTS A to D and/or INPUTS E to H.

When the GUITAR indicator is lit, however, INPUT H will not receive phantom power even if phantom (+48V) power is on (indicator lit) for E-H.

CAUTION

Turn the STEREO fader down before turning phantom

•

power on or off. Depending on the microphone, a loud noise could occur, resulting in harm to the equipment and hearing.

Do not connect or disconnect a microphone when

•

phantom power is on. This could cause a loud noise that might damage the equipment.

Turn phantom power on only when using a

•

condenser microphone that requires phantom power. Do not supply phantom power to an unbalanced

•

dynamic microphone. Doing so could cause a malfunction.

Supplying phantom power to some types of ribbon

•

microphones could cause a malfunction. Do not supply phantom power to a ribbon microphone if you are in doubt.

) button restores the default track type and

) button clears all assignment settings.

TASCAM DP-32 41

6 - Basic Recording

Monitoring

Monitoring is an important element in the recording and mastering process. You can use an external monitoring system (such as a self-powered monitor speakers, an amplifier equipped with speakers) or headphones to monitor the sound of this unit.

Use the MONITOR LEVEL knob to adjust the level of the monitoring system.

while before automatically disappearing). If the level is too loud, the sound might be distorted, so lower the level until the red line

stops appearing.

If an OL indicator lights, the signal from the input source might be too loud and/or the TRIM knob might be set too high.

If the OL indicator lights even though the TRIM knob is set to the LINE position, the input source signal is too loud, so lower the volume of the input source.

Monitor selection

Besides the stereo bus, this unit allows you to monitor the bounce bus (see "Bouncing tracks" on page 50) or Effect Send 1 or 2.

With Effect Send monitoring, you can monitor the signal being sent to an effect.

1. When the Home screen is open, press the MONITOR SELECT button to open the menu.

MONITOR SELECT

The overload indicators for inputs A to H on the display show input level (A to H) overloads.

Use the TRIM knobs of INPUTS A to H or the output volume controls of the input sources to reduce their input levels if overloads occur.

These level meters show either the playback signal levels or the input signal levels of the corresponding tracks. The

2. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select the signal to monitor.

STEREO (default)

Select to monitor the stereo signal of the stereo bus.

BOUNCE

Select to monitor the stereo signal of the bounce bus.

EFFECT SEND 1

Select to monitor the mono signal of Effect Send 1.

EFFECT SEND 2

Select to monitor the mono signal of Effect Send 2.

3. After selecting the signal source to monitor, press the MONITOR SELECT button to return to the Home screen.

OL indicators and level meters

You can check the audio signal levels of this unit with the OL indicators and the onscreen level meters for INPUTS A to H.

The level meters allow the signal levels to be observed and can be used to confirm whether signals are being input into the unit. For example, if the level meters assigned to inputs this means that signals are being input into the unit even if you cannot hear anything when monitoring.

As shown below, if a red line level meter, the level is too high (it stays on screen for a

to H on the Home screen are moving,

appears at the top of a

signal levels shown by the track level meters depend on the operating conditions as shown below.

REC button Transport status Level meters

Unlit Playback

Flashing (recording standby)

Lit (recording) Recording

NOTE

•

erload indicator

Overload indicators (A to H)

Track level meters (1 to 31/32)

Show playback signal levels

Playback (Automatic monitoring ON)

Playback (Automatic monitoring OFF)

Stopped

Show track playback signal levels

Show input and playback signal levels

Show input signal levels

When playback signal levels are shown, they cannot be adjusted because they are the levels of the recorded signals. When input signal levels are shown, you can adjust the levels with the TRIM knobs of INPUT A to H.

Stereo level meter (L, R)

This meter shows the output level of this unit's stereo bus. Adjust this level with the STEREO fader.

42 TASCAM DP-32

6 - Basic Recording

Peak hold display

Using the peak hold function , you can set how long peak levels are shown on the level meters on the Home Screen and other screens.

1. When the recorder is stopped, press the MENU button to open the

screen.

2. Use the JOG/DATA dial or the CURSOR (5/b/g/ t) buttons to select

PREFERENCE

, and then press

the F4 (t) button.

3. Use the CURSOR (5/b) buttons to select the

Peak Hold

item, and then use the JOG/DATA dial

to change the setting.

Option Function

OFF

(default)

1 Sec

KEEP

Peak value is not shown.

Peak value is shown for about one second.

In mastering mode, the peak value is cleared when you locate a new time. In all other modes, press the CLEAR] button to clear the peak value.

F3 [PEAK

4. After making the settings, press the HOME button to return to the Home screen.

TIP

When you are unable to monitor the meters continuously (when playing, for example), use the

KEEP

setting to check

the highest level so far.

Mixer screen settings

Press the SOURCE button for an input or press the SELECT button for a track to adjust its EQ and other

settings.

Using the input equalizer

INPUTS A to H and tracks 1 to 31/32 have independent

3-band EQs (equalizers).

CAUTION

The effect of the input equalizer will be recorded. If you plan to make EQ adjustments during mixdown, turn input equalizers OFF and turn track equalizers ON.

Adjust the equalizer settings on the Mixer screen.

1. Press the MIXER button to open the Mixer screen.

2. Press the SOURCE button of an INPUT (A to H) or the SELECT button of a track to open the Mixer screen with the corresponding equalizer.

3. Press the EQUALIZER ON/OFF button to the right of the LOW FREQ knob to turn the equalizer on/off.

The equalizer parameters are as follows.

GAIN FREQ

HIGH

MID

LOW

Setting range: ±12 dB (Default: 0 dB)

Setting range: 1.7 kHz to 18 kHz (Default: 10 kHz)

Setting range: 32 Hz to 18 kHz (Default: 1.0 kHz)

Setting range: 32 Hz to

1.6 kHz (Default: 100 Hz)

Use track SELECT buttons to select desired tracks.

Use INPUT SOURCE buttons to select desired inputs.

Use HIGH, MID and LOW GAIN knobs to adjust the gain of each band.

Use the HIGH, MID and LOW FREQ knobs to adjust the center frequency of each band.

Use the MID Q knob to set the resonance (width) of the

MID FREQ band.

Setting range:

NOTE

The "Q" value is the center frequency of the equalizer

•

0.25

to 16 (Default:

0.5

)

divided by the bandwidth. A high Q value reduces the range of the cut or boost applied to the frequencies. Depending on the equalizer setting, the graph at the top of the screen changes.

If you press the F1 (

•

EQ FLAT

) button, all the settings shown on the open Mixer screen will be restored to their default values.

3. After making the settings, press the HOME button to return to the Home screen.

TASCAM DP-32 43

6 - Basic Recording

PAN

DIGITAL TRIM setting (track only)

Depending on the playback sound, EQ boosting could cause distortion (digital clipping). If this happens, use the DIGITAL TRIM to lower the playback level before the EQ.

1. Use the CURSOR (5/b/g/t) buttons to move the

cursor to the

Digital trim

DIGITAL TRIM

display area.

2. Turn the JOG/DATA dial to set the value.

Setting range:

-42dB

+6dB

(Default:

0dB

)

Sending signals to internal/external effects

This unit has two external effect sends (EFF 1 and EFF 2) and a send for the internal effects (INSERT EFFECT).

You can adjust send levels for each track. For details about the built-in send effects, see "Send effects" on page 63.

Follow these procedures to enable use of these effects.

1. Use the CURSOR (5/b/g/t) buttons to move the

cursor to the

SEND EFF 1/EFF 2

area.

Enabling insert effects

This unit has dynamic and guitar effects that can be used as insert effects. For details about these effects, see "Dynamic effects" on page 61 and "Guitar effects" on page

62.

1. Use the CURSOR (5/b/g/t) buttons to move the cursor to the

Insert effect indicator

INSERT EFFECT

area.

2. Turn the JOG/DATA dial to enable/disable the insert effect.

Options

OFF:

INSERT EFFECT

ON:

indicator unlit (default)

indicator lit

Setting the stereo position

Use the PAN parameter to set the stereo position.

The full left value is The center position is shown by C.

L63

, and the full right value is

R63

Effect sends

2. Turn the JOG/DATA dial to enable the effect.

Options:

OFF

(default),

PRE, POST

PRE

This sends the track pre-fader signal to the effect send bus. The effect send signal level is not affected by the track fader.

POST

This sends the track post-fader signal to the effect send bus. The effect send signal level is affected by the track fader.

3. Use the SEND EFF 1/EFF 2 knobs to adjust the external send levels.

Setting range:

127

(Default: 0)

4. Use the SEND MASTER 1/MASTER 2 knobs to adjust the internal send levels.

Setting range:

127

(Default: 0)

Turn the PAN knob to adjust the stereo position.

Setting range:

L63

to C to

R63

(Default: C)

44 TASCAM DP-32

6 - Basic Recording

Fader level indicator

Changing the signal phase

When the phase is inverted due to mic wiring or another reason, use the PHASE Ø item to correct the phase.

1. Use the CURSOR (5/b/g/t) buttons to move the cursor to the

2. Turn the JOG/DATA dial to change the signal phase.

Options:

PHASE PHASE

PHASE

Phase

Ø unlit (default): Normal phase Ø lit: Inverted phase

Ø area.

Checking the fader level

You can check the level of a track with the of the Mixer screen. You cannot, however, select this item and adjust the level of a track directly on this display.

NOTE

The fader level indicator shows the actual fader level. When playing back a track, by default, the positions of the faders (physical faders) on the top panel and the indicators by a remote control to the unit could cause them to differ. In this case, when you move a physical fader, the indicator and thereafter the physical fader will control the level again.

match, but a fader group or MIDI command sent

will respond to and match the physical fader value,

LEVEL

fader level

item

Solo

Press the SOLO button to enable Solo mode. The SOLO button lights when this mode is active.

In Solo mode, the REC button of each track works as a SOLO button, so you can monitor the signal of the desired track.

When Solo mode is active, only tracks that have lit REC buttons can be heard. All other tracks are muted.

1. When the Home screen is open, press the SOLO button to enable Solo mode.

In Solo mode, the SOLO button is lit.

2. Press the REC button for the track you want to solo. (You can solo multiple tracks at the same time.)

When Solo mode is activated, the MUTE indicator of the track whose REC button was pressed lights.

To cancel soloing

In Solo mode, press the SOLO button or the REC button of the soloed track.

When Solo mode is deactivated, the MUTE indicators of soloed tracks turn off.

Muting tracks

1. Press the MUTE button to enter Mute setting mode.

In Mute setting mode, the MUTE button lights.

2. Press the REC button for a track that you want to turn muting on/off.

When muted, the MUTE indicator of that track lights.

CAUTION

In such cases, a sudden level change could occur.

Setting levels sent to stereo buses

You can adjust the levels sent to stereo buses independently for each input (INPUT A to H).

1. Use the CURSOR (5/b/g/t) buttons to move the

cursor to the

2. Turn the JOG/DATA dial to adjust the level.

Setting range:

LEVEL

inf

area.

+6.0dB

To cancel muting

Press the MUTE button to enter Mute setting mode.

Press the REC button of a muted track to unmute it (and turn its MUTE/SOLO indicator off).

NOTE

If you solo a muted track, you can hear its sound, but its muted status is retained. So, it will be muted again when you end soloing.

Rehearsing a recording

This unit has a recording rehearsal function, so you can rehearse without actually recording.

The rehearsal function is especially useful for auto punch recording and other recording operations. (See "Automatic punching in and out" on page 54.)

In a rehearsal mode, monitoring and other recording operations are the same as during actual recording, but input signals are not recorded.

To rehearse, press the REHEARSE button so that the button lights.

TASCAM DP-32 45

6 - Basic Recording

When you record in Rehearsal mode, the RECORD (0) button flashes instead of becoming lit.

After finishing your rehearsal, press the REHEARSE button to cancel Rehearsal mode.

Making the first recording

Before beginning the following recording procedures, connect a recording source (such as a microphone or guitar) to an input, assign that input as the recording source for the track, and prepare your monitoring equipment.

1. Press the REC button of the track that you want to record on.

The REC button flashes red and the unit enters recording standby.

A maximum of eight tracks can be recorded simultaneously. When the REC buttons of eight tracks are flashing, the other REC buttons become inoperative.

2. Set the recording level.

Use the TRIM knobs of INPUTS A to H to adjust the input level.

When doing this, adjust the levels appropriately by checking the OL indicators above and to the left of the TRIM knobs.

At the same time, confirm that the sound heard from the headphones or monitoring system is not distorted, and that no effects have been applied to the sound unintentionally.

NOTE

The level meter of tracks that have input sources assigned to them show input levels after the application of INPUT equalizer.

OL indicators light if inputs are too loud.

If an OL indicator stays lit even when you lower the TRIM knob for that input, lower the input source signal level.

3. Press the REHEARSE button to activate Rehearsal mode.

In Rehearsal mode, upper left corner of the Home screen.

4. Press the RECORD (0) button.

Rehearsal starts, the RECORD (0) button flashes, and the PL AY (7) button lights.

The REC button of tracks set to be recorded keep flashing because they are not being recorded.

5. After rehearsing your recording, press the STOP (8) button.

6. Press the REHEARSE button to exit Rehearsal mode.

Rehearsal

the Home screen.

Rehearsal

disappears from the upper left corner of

appears in the

7. Press the RECORD (0) button.

Recording starts, and the RECORD (0) and P LAY (7) buttons light.

The REC buttons of the tracks being recorded stop flashing and stay lit.

8. After finishing your recording, press the STOP (8)

button.

9. If you want to check part of a recording, use the

REW (m) (TO ZERO) button, for example, to move (locate) to it.

TIP

Use the TO LAST REC function to move to the last recording position and the TO ZERO function to return to the start of the song ( rewind/fast-forward and locate functions, see "Returning to zero and the last recording position" on page 52.

10. Press the PLAY (7) button to play back the

NOTE

•

00:00:00

recorded tracks.

Use the track and STEREO faders to adjust the playback level.

Use the MONITOR LEVEL knob or the volume control on your monitoring system to set the final monitoring volume.

Use the PAN knob on the Mixer screen to set the stereo position of each track.

For each track, the PAN knob on the Mixer screen and the track fader control the recorded track's playback output signal or the monitoring sound of the input signal. They do not control the signal being recorded to the track.

If you are not satisfied with the recorded sound, repeat the procedure above from the beginning.

). For more information about the

Multitrack recording

You can record new audio to different tracks while playing back already recorded tracks.

Arming tracks for recording

Press the REC buttons of the already recorded tracks to

•

turn off their REC buttons if they are lit. Press the REC buttons of the tracks on which you want

•

to record to put them into recording standby (the REC buttons start flashing).

Adjusting track pan and level settings

Use the track faders and PAN knobs on the Mixer screen of the already recorded tracks to adjust their levels and stereo positions that will be used when monitoring their playback signals while making the new recording.

46 TASCAM DP-32

6 - Basic Recording

Input selection and assignment

Use the procedures described earlier in this chapter to assign input sources to the recording tracks.

Setting input levels

After making the settings, press the PL AY (7) button to start playback.

Just as though you were recording, you can monitor the sound of the already recorded tracks being played back and the input sources on the tracks for recording, allowing you to check the monitoring balance and volume.

Recording

Press the RECORD (0 ) button to start recording to another track while monitoring the playback signal.

Undoing an operation

This unit allows you to undo an operation or recording that was not successful or satisfactory. Many ordinary operations, including editing and recording, can be canceled (undone).

This unit has two types of undo functions. Single undo can be performed by a simple button press, while multiple undo allows you to return to a specific past operation and undo the operations that occurred after it.

You can use the undo functions for the following types of operations.

Track editing (functions described in this chapter)

•

Recording (including track bouncing)

•

Automatic punching in/out

•

Track type setting

•

All these operations are stored on the SD card as song information. Even when you turn the unit off (put it in standby), the previous operations are stored and can be undone when you turn the unit on again.

When listening to a part that you replaced in your last recording, for example, you might find that the previous take was better. In such a case, you can use the undo function to easily get your previous take back.

NOTE

The UNDO/REDO button lights when a single undo or

•

multiple undo has been performed. When you change the track type, the assignment is turned

•

OFF and any recorded track is deleted. If you undo this, the recorded track will be restored and the track type changed back, but the assignment setting will not be restored. (See "Setting the track type" on page 40.)

Undo feature settings

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select (highlight blue)

Undo History

4. Set the undo level.

LEVEL 1 (Default)

The

HISTORY LIST

the UNDO/REDO button. In other words, this returns the unit to the state before the last operation (single undo). (To cancel an undo, press the UNDO/REDO button again.)

LEVEL 10

When you press the UNDO/REDO button, the

HISTORY LIST

state to 10 operations earlier.

NOTE

Even when you change from history for a maximum of 10 actions remains stored. The position of the cursor in the HISTORY LIST shows the current undo position.

screen.

PREFERENCE

menu screen opens.

is not displayed when you press

appears and you can return to the

LEVEL 10

LEVEL 1

, the

Undoing the last operation (single undo)

Press the UNDO/REDO button to return to the state before the last operation.

After doing this, the UNDO/REDO button lights, showing that redo (see below) is possible.

Canceling an undo operation (redo)

Press the UNDO/REDO button when it is lit.

The undone operation is redone, restoring the state before the undo, and the UNDO/REDO button becomes unlit.

TASCAM DP-32 47

6 - Basic Recording

Undoing older operations (multiple undo)

To use the multiple undo function, first you must set the

Undo History

LEVEL 10

1. Set

LEVEL 10

2. When the Home screen is open, press the UNDO/ REDO button to display the

. (See "Undo feature settings" on page 47.)

Undo History

on the

PREFERENCE

in the

PREFERENCE

HISTORY LIST

menu to

On the next to the last event not undone. If the most recent event in the F4 (t) button returns to the state before the multiple undo was executed.

CAUTION

When saving a song, a maximum of 10 operation

•

events can be saved in the history with the song data. If the number of history events exceeds 10, the oldest events in it are erased. These erased events cannot be restored.

When the UNDO/REDO button is lit after a multiple

•

undo, if you perform a new operation that is added to the history, the history of events after the multiple undo will be erased, and you will not be able to redo any of these undone events.

NOTE

Since the history is stored with the song information, even when the power is turned off (put in standby), the previous operation remains stored, so undo operations will be possible the next time the power is turned on.

HISTORY LIST

screen, the 0 icon appears

is selected, pressing the

The maximum number of operations in the undo history is 10. In other words, a maximum of 10 operations can be undone.

This operation is called "multiple undo" because it allows you to undo multiple events at once and return to an earlier state.

3. Use the JOG/DATA dial to select (highlight blue) the event that you want to return to (all operations after the selected event will be undone).

4. Press the F4 (t) button.

The multiple undo is executed and the song is restored to the state just after the selected event was performed.

In this state, the UNDO/REDO button lights.

The record of operations undone by a multiple undo is not immediately erased. The unit has simply been returned to a previous state.

48 TASCAM DP-32

7 - Recorder Functions

(sold separately)

Punching in and out

Punching in/out is a technique used to replace a part of an already recorded track.

Start playback and when you reach the part that you want to replace, switch to record (punch in), then switch back to playback (or stop) when you finish replacing the part that you want (punch out).

1. Decide what part of the track you plan to re-record.

Choose a point to begin where the new recording can sit well with the existing recording.

2. Press the REC buttons of the tracks that you want to partially re-record to put them into recording standby (REC buttons start flashing).

3. Start playback before the part you want to replace.

4. When the part you want to replace is reached, press the RECORD (0) button and start your performance.

Recording starts (punch in).

5. When you finish the replacement recording, press the PL AY (7) button.

Playback resumes (punch out).

Setting the footswitch

Set the footswitch on the

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select (highlight blue)

Foot SW Right

PREFERENCE

screen.

screen opens.

screen.

PREFERENCE

TIP

You can also press the STOP (8) button to punch out at the end of the replacement recording.

Using a footswitch to punch in/out

You can connect a TASCAM RC-3F footswitch (sold separately) to the REMOTE jack on the front panel and use it to punch in and out.

In step 4 above, step on the footswitch instead of pressing the RECORD (0 ) button, and in step 5, step on the footswitch again instead of pressing the PLAY (7) button.

TASCAM RC-3F footswitch

NOTE

Step on the switch (pedal) that you have set to

OUT

in the footswitch settings. By default, the center pedal

is set to

PUNCH IN/OUT

. (See "Setting the footswitch"

below.)

PUNCH IN/

4. Use the JOG/DATA dial to select the function that you want to assign to the right pedal of the TASCAM RC-3F footswitch.

Options:

PUNCH IN/OUT, PLAY/STOP

default),

5. In the same way, set function of the center pedal and

PLAY, REC, STOP, FF, REW

(right pedal

CUE LOCATE

Foot SW Center

Foot SW Left

for the

for the left pedal.

Options:

PUNCH IN/OUT STOP

PLAY, REC, STOP, FF, REW

(center pedal default),

CUE LOCATE

(left pedal default)

PLAY/

6. After making the settings, press the HOME button to return to the Home screen.

Footswitch function list

Function Description

PLAY

REC

STOP

REW

PUNCH IN/ OUT

PLAY/STOP

CUE LOCATE Locates last point where playback started.

Same as unit's

Same as unit's button

Same as unit's

Punches in when pressed during playback, punches out when pressed during recording.

Starts playback when stopped, stops in other states.

PL AY (7) button RECORD (0) button STOP (8) button F FWD (,) (TO LAST REC)

REW (m) (TO ZERO) button

TASCAM DP-32 49

7 - Recorder Functions

Bouncing tracks

Like many multitrack recorders, this unit allows you to bounce tracks (ping-pong recording). Track bouncing allows you to combine the signals of multiple tracks and use them to create new mono or stereo recordings. In this way, you can virtually record more than 32 tracks. Note, however, that the original tracks cannot be separated again, so save them if they are important to you.

In Bounce mode, the recording source track signals pass through the mixer tracks via the bounce bus, and they are sent to the bounce tracks.

If you make a mistake, you can use the undo function of this unit to undo the incorrect operation (see "Undoing an operation" on page 47).

Using the bounce function

1. When in stopped, press the BOUNCE button.

The Recorder switches to

NOTE

In Bounce mode, Home screen.

2. Press the REC button(s) of the track(s) on which you want to record the bounce. The REC button for the bounce target track starts flashing.

When bouncing in stereo, press the REC buttons for two mono tracks or one stereo track. The button or buttons start flashing.

When bouncing in mono, press the REC button for one mono track (1 to 8). The button starts flashing.

You should also set the fader of the bounce target track to 0 dB.

NOTE

Though the track fader and STEREO fader settings of the bounce destination affect the monitoring volume, they do not affect the recording level. If you want the monitoring level to be the same as the recording level, set the bounce target track and STEREO faders to 0 dB.

3. Press the SELECT button to specify the bounce source.

You can select any tracks except the bounce target tracks and any inputs as bounce sources. To set an input as a bounce source, assign it to a stereo bus and press its SOURCE button.

Multi Track

Bounce

appears in the upper left of the

mode and the recorder is

Bounce

mode.

Use the track faders and the PAN knobs on the Mixer screen to adjust the signals of tracks to be bounced.

When bouncing in stereo, the lower numbered track becomes the left channel.

When bouncing in mono, set the PAN knobs on the Mixer screen of tracks that will be bounced completely to the left.

To adjust the bounce master level when in Bounce mode, press the F4 ( show a fader. Use the JOG/DATA dial to adjust it.

CAUTION

If a bounce source is selected before selecting a destination, the audio signals of the bounce sources will not be output from the STEREO OUT or MONITOR OUT jacks until you select the bounce destination.

4. Locate to the point where you want to start the

bounce and press the RECORD (0) button to start bouncing.

Press the STOP (8) button at the position where you want to end the bounce.

BOUNCE MASTER

) button to

Checking the bounce result

Mute the bounce source tracks and play back the song. (See "Muting tracks" on page 45.)

If you are not satisfied with the result because you think the balance between the instruments or the pan settings are not good, for example, undo the operation. (See "Undoing an operation" on page 47.)

If you are satisfied with the result, press the BOUNCE button to return to

Once the track bounce completes, you can make new recordings over (overwrite) the other tracks.

TIP

If it is possible that you might need the original tracks at some time later, copy or back up song data to a computer before bouncing tracks. (See "Copying songs" on page 37 and "Connecting to a computer" on page 76.)

NOTE

To hear the audio recorded to the bounce target track(s), set the monitor destination to the bounce bus signal.

Multi Track

BOUNCE

mode.

so that you can monitor

Direct location function

You can specify a time or measure/beat to be located without using marks. On the Home screen, use the JOG/ DATA dial to specify the location point.

The Home screen counter has two display modes: (absolute time) and

The

BAR

display is based on the metronome setting.

BAR

mode, you can locate a position in beat units.

The current position of the recorder is shown as a time

BAR

(bar/beat).

ABS

50 TASCAM DP-32

7 - Recorder Functions

(measure-beat) at the top of the Home screen. The tempo is also displayed.

The

ABS

display is based on the absolute time. In mode, you can locate a position in frame units. The current position of the recorder is shown as a time (hours: minutes: seconds: frames) at the top of the Home screen (30 frames per second).

You can specify a time in this time display area and move the transport to that point.

ABS

Locating a specified time directly

ABS

mode, you can locate a specified time directly using the following procedure. Direct location this way is not possible when recording.

1. Press the HOME button to open the Home screen.

ABS

appears to the left of the counter on the Home

screen.

ABS

does not appear, press the METRONOME

button to open the Use the CURSOR (5 /b) buttons to select the

BAR DISP

to set it to Home screen.

3. Turn the JOG/DATA dial to change the time (the

speed that the time changes corresponds to the speed that the dial is turned).

4. After setting the desired time value, press the PL AY

(7) button to start playback from that time.

item, and then use the JOG/DATA dial

OFF

METRONOME

. This will cause

screen.

ABS

to appear on the

under the beat field, the bar value will decrease by one, and the beat field will return to 04.

4. After setting the desired measure/beat, press the

PLAY (7) button to start playback from that beat.

Location marks

This unit allows you to set up to 99 location marks in each song. For example, you could mark the intro, vocal entry points and the starts of verses.

Setting a location mark

When stopped, recording or playing back, press the MARK SET button at a point where you want a location mark.

A mark number ( (xx is the mark number).

The displayed mark number is the mark at the current position or the mark that is placed closes before the current position. A flag icon is also shown above the timeline.

MARK xx

) appears on the Home screen

Locating a specified bar/beat directly

In BAR mode, in the same way that you can locate a specified time directly in ABS mode, you can locate a position by specifying a time in bars and beats using the following procedure. Direct location this way is not possible when recording.

1. Press the HOME button to open the Home screen.

BAR

appears to the left of the counter of the Home

screen.

BAR

does not appear, press the METRONOME

button to open the Use the CURSOR (5 /b) buttons to select the

BAR DISP

to set it to ON. This will cause Home screen.

3. The value cycles automatically when they reach the

highest or lowest value in a field.

When set to 4/4, if the beat field exceeds example, the bar value will increase by one, and the beat field will return to 01.

In the same way, when you turn the JOG/DATA dial to lower a value and the beat value passes through 01, the bar value will decrease and the total value will change in succession. When set to 4/4, for example, if the value drops below

item, and then use the JOG/DATA dial

METRONOME

when the cursor is located

screen..

BAR

to appear on the

, for

NOTE

The marks are numbered in the order that you enter them. They are not numbered according to their positions in the song. Therefore, in a song, for example.

MARK 05

could appear before

MARK 01

Skipping to location marks

Press the F FWD (,) or REW (m) button to skip to the next or previous mark.

NOTE

Marks are skipped to in time order, not in numerical order.

Deleting a location mark

You can delete marks when the recorder is stopped.

1. Press the F FWD (,) or REW (m) button to move

to the mark that you want to delete.

2. Press the MARK SET button to delete the location mark.

NOTE

This operation cannot be undone. Make sure you want to execute it.

TASCAM DP-32 51

7 - Recorder Functions

Returning to zero or the last recording position

You can easily jump to the beginning of a song (00:00:00:00 = ZERO point) or to the last recording position (LAST REC point) by using two buttons at once.

To return to the beginning of a song (00:00:00:00 = ZERO point), press and hold the STOP (8) button and press the REW (m) (TO ZERO) button.

To return to the last recording position (LAST REC point), press and hold the STOP (8) button and press the F FWD (,) (TO LAST REC) button. This function is useful when you want to record again after finishing recording.

Fast forwarding and rewinding

During playback or when stopped, press the REW (m) or F FWD (,) button to rewind or fast-forward while the button is pressed. The rewind and fast-forward speed is fixed at 10 times normal speed.

Cueing with the JOG/DATA dial

5. Use the JOG/DATA dial to locate the cue point.

6. After you find the cue point, press the JOG PLAY button to return to the Home screen.

Jogging while listening to audio

1. Use the transport buttons or other locate functions to move the playback position near the position where you want to cue playback.

2. Press the JOG PLAY button to enter jog mode.

If in waveform display mode, press the F1 key to switch to timeline display.

3. Use the CURSOR (g/t) buttons to increase/ decrease the horizontal zoom (time) as necessary.

Press the CURSOR (g) button to decrease the horizontal zoom (time), or the CURSOR (t) button to increase it

Increasing the zoom makes it easier to cue precisely.

The jogging sound, which is the sound of a short increment being repeated, can be heard.

4. While listening to the jog sound, use the JOG/DATA dial to locate the cue point.

5. After you find the cue point, press the JOG PLAY button to return to the Home screen.

You can use the JOG/DATA dial to jog to a precise playback position. There are two ways to cue by jogging: while viewing a track's waveform and while listening to the audio of tracks.

Jogging while viewing a waveform

1. Use the transport buttons or other locate functions to move the playback position near the position where you want to cue playback.

2. Press the JOG PLAY button to enter jog mode.

If in timeline display mode, press the F1 key to switch to waveform display.

3. Press the SELECT button for the track that you want to view.

The waveform of the selected track appears.

If a stereo track is selected, the displayed track (odd or even) changes each time the SELECT button is pressed, and you can monitor only the displayed track.

4. Use the CURSOR (g/t) buttons to increase/ decrease the horizontal zoom (time) as necessary.

Press the CURSOR g button to decrease the horizontal zoom (time), or the CURSOR t button to increase it.

You can also use the CURSOR (5/b) buttons to increase/decrease the vertical zoom (audio level).

Press the CURSOR 5 button to increase the vertical zoom (audio level), or the CURSOR b button to decrease it.

Increasing the zoom makes it easier to cue precisely.

NOTE

The transport buttons can be used even in jog mode. However, when the timeline is displayed, pressing the PL AY button switches between normal playback and jog playback, and pressing the STOP button activates jog playback.

When in jog mode, you can move in 1/10 frame (1/300 seconds) units. You can also set IN and OUT points with 1/10 frame precision.

52 TASCAM DP-32

7 - Recorder Functions

Repeat playback

Use the repeat playback function to play the same part again and again.

The repeat playback interval is the audio between the IN and OUT points.

Setting IN/OUT points

In addition to setting the repeat playback interval, the IN and OUT points are also used to set track editing intervals and as the punch-in and punch-out points when automatically punching in and out. Moreover, these points are used as the start and end points of the mixeddown master file when creating a master file.

You can set these points when the unit is recording, playing back or stopped.

NOTE

The IN and OUT points cannot be set or edited in the following modes: repeat playback, auto punch and mastering.

Adding IN/OUT points

Regardless of whether the unit is stopped, playing back or recording, when the recorder is at the desired position, press and hold the MARK SET button and press the IN or OUT button.

The position where you pressed the IN/OUT button is set as the IN/OUT point and the time is shown on the Home screen.

Locating IN/OUT points

When stopped or playing back, press the IN or OUT button.

3. To end repeat playback, press the REPEAT button, so that the icon disappears from the Home screen.

Jumpback playback

Press the JUMPBACK (PREVIEW) button during playback to move back a set number of seconds and restart playback.

If you want to hear a passage again during playback, press the JUMPBACK (PREVIEW) button to go back the set number of seconds and replay that passage.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select (highlight blue)

Jump Back

set the jumpback time.

Options: (default:

1 Sec 3 Sec

screen.

PREFERENCE

screen opens.

, then use the JOG/DATA dial to

10 Sec, 20 Sec, 30 Sec

)

Using repeat playback

1. Set the IN point and OUT points as the start and end points of the repeat playback interval, and then return to the Home screen.

2. Press the REPEAT button.

The playback starts.

After starting from the IN point, when playback reaches the OUT point, it returns to the IN point and continues.

Playback continues to repeat between the IN and OUT points.

icon appears on the Home screen, and repeat

Repeat icon

4. After making the setting, press the HOME button to return to the Home screen.

5. Press the JUMPBACK button during playback to move back by the time set in step 3.

TASCAM DP-32 53

7 - Recorder Functions

Previewing cue points

You can preview playback to check whether it is cued correctly. This function can be used to preview audio both before and after the current playback position.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select (highlight blue)

Preview Time

to set the preview playback time.

Preview Time:

4. After making the setting, press the HOME button to return to the Home screen.

5. Preview playback before or after the cue point.

To preview after the cue point:

While playback is stopped, hold the PREVIEW button and press the OUT button to play from the current point for the preview time, and then return to the current point and stop.

To preview before the cue point:

While playback is stopped, hold the PREVIEW button and press the IN button to skip back the preview time and then play to the current time and stop.

screen.

PREFERENCE

screen opens.

, then use the JOG/DATA dial

1 Sec

10 Sec

(default:

4 Sec

In automatic punch in/out recording, monitoring of the recording tracks changes as follows.

Pre-roll period: Track playback signal + input source

•

signal Punch in–out interval: Input source signal

•

Post-roll period: Track playback signal + input source

•

signal

Tracks not armed for recording can be monitored the entire time.

When using this auto punch in/out function, the above monitoring changes occur not only during actual recording, but also in the Rehearsal mode.

In Rehearsal mode, you can simulate auto punch in/out recording, so you can rehearse your performance and also check whether the IN and OUT points are set correctly.

You can also use punch in/out in with the repeat function. By using these functions together, you can repeatedly rehearse punch in/out recording, or record multiple takes of the same section, letting the unit work automatically. After recording multiple takes, you can choose the best one.

)

Setting punch-in/out points

There are two ways to set the punch-in/out points.

LAST REC:

This option sets the starting and ending points of the last recording (or rehearsal) as the punch in and out points.

IN - OUT:

This option sets the IN and OUT points as the punch-in/ out points. The first of these points will be used as the punch-in point and the second as the punch-out point.

1. When the recorder is stopped, press the HOME button to open the Home screen.

2. Press the REC button for the track(s) on which you want to automatically punch in and out.

3. Press the AUTO PUNCH button to open the

AUTO PUNCH

screen.

Automatic punching in and out

You can use the punch in/out function to automatically record between punch-in and punch-out points set in advance.

When using auto punch in/out recording, playback starts from the pre-roll point before the punch-in point where recording starts. Once the punch-out point is reached, recording ends, but playback continues for the post-roll time and then stops.

54 TASCAM DP-32

4. Use the CURSOR (5/b) buttons to select (highlight blue)

MODE, PREROLL

use the JOG/DATA dial to set the value.

MODE: LAST REC

PREROLL

POSTROLL

After setting press the F4 (t) button to return to the Home screen.

1.0

MODE, PREROLL

IN-OUT

9.9 sec

POSTROLL

and

POSTROLL

, and then

7 - Recorder Functions

Auto Punch

automatic punching is enabled.

You can also press the AUTO PUNCH button again to return to the Home screen without enabling automatic punching.

NOTE

You can press the AUTO PUNCH button before putting any tracks into recording standby. Press the REC button of any track to put it into recording standby after enabling automatic punching.

appears at the top of the screen when

Checking punch-in/out points

When punch-in/out points are set, you can confirm the setting by pressing the PL AY (7) button.

The playback starts from the pre-roll point and continues to the post-roll point. When the punch-in point is reached, on tracks armed for recording, already recorded audio will be muted and only input signals will be heard. When the punch-out point is reached, already recorded audio and input signals will both be heard.

If you want to change the punch-in/out points, locate the desired points and set them again.

If there are no problems with the punch-in/out points and pre-roll and post-roll times rehearse recording, as described below.

Rehearsing with automatic punching

You can rehearse before punch in/out recording. During rehearsal, monitoring operates the same way as in actual recording, but no recording occurs.

1. When the AUTO PUNCH button is lit and at least one of the tracks is in recording standby, press the REHEARSE button.

The REHEARSE button lights.

2. Press the RECORD (0) button.

Automatic punch in/out rehearsal starts.

Playback starts from the pre-roll point. You can

•

monitor both the track playback and input source signals during the pre-roll.

When the punch-in point is reached, monitoring

•

changes to only the input source signal, and the RECORD (0) button starts flashing (indicating that this is a rehearsal).

When the punch-out point is reached, monitoring

•

of both the track playback and input source signals resumes, and the RECORD (0 ) button becomes unlit.

Playback stops at the post-roll point.

•

Before starting a rehearsal, you can press the REPE AT button to repeat rehearsal of the auto-punch interval until you press the STOP (8) button. (AUTO PUNCH,

REHEARSE and RE PEAT buttons all light in this case.)

Recording with automatic punching

After rehearsing, record with auto punch in/out.

1. If necessary, press the REHEARSE button so that it becomes unlit.

2. Press the RECORD (0) button.

Playback starts from the pre-roll point. You can

•

monitor both the track playback and input source signals during the pre-roll.

When the punch-in point is reached, monitoring

•

changes to only the input source signal, and the RECORD (0) button starts flashing (indicating that this is a rehearsal).

When the punch-out point is reached, monitoring

•

of both the track playback and input source signals resumes, and the RECORD (0 ) button becomes unlit.

Playback stops at the post-roll point.

•

Before starting punch in/out recording, you can press the REPEAT button so that it lights. Then, you can repeat automatic punch in/out recording up to 8 times (takes). This uses the recorder's virtual track feature.

After recording, you can choose your favorite take from one of the 8 takes recorded on virtual tracks. (See "Checking takes" below.)

NOTE

You can undo auto punch in/out operations.

Checking takes

After recording one or more takes, follow these procedures to check them.

After punch in/out recording completes, the VIRTUAL TRACK screen opens, as shown below.

1. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select (highlight blue) a take in the list.

2. Press F4 ( physical track.

Playback the take to check it.

Repeat steps 1 and 2 to check other takes.

3. If you are satisfied with the result, press the VIRTUAL TRACK button to close this screen.

To end Auto Punch mode, press the AUTO PUNCH button.

If you are not satisfied with the result, press the RECORD (0) button again and record another take.

LOAD

) to assign that virtual track to the

TASCAM DP-32 55

7 - Recorder Functions

Virtual tracks

This unit has 8 virtual tracks for each track.

Since there are 8 virtual tracks for each track, you can record multiple takes of lead vocals and improvised solos, for example, and then choose the best takes afterwards.

After recording, assign an unused virtual track to the physical track, and then record another take. By repeating this process, you can use multiple virtual tracks for different takes.

NOTE

The virtual tracks are mono tracks. When assigning virtual tracks to a physical track of a stereo pair, you must assign them separately to the left and right channels.

Recording to virtual tracks

Follow these procedures to record a virtual track.

1. Select the track.

2. Press the VIRTUAL TRACK button.

3. Select

4. Press the F4 (

5. Once you have completed the setting, press the

UNUSED

track to be recorded to.

HOME button to return to the Home Screen.

LOAD

) button to assign the virtual

2. Use the JOG/DATA dial to select the virtual track that you want to assign.

LOAD

3. Press the F4 ( track to the physical track.

The virtual track assigned to the physical track is marked with an icon on the screen.

NOTE

To delete a virtual track, press the F3 (

•

step 3 above. A virtual track assigned to a physical track cannot be

•

deleted. If you assign an unused virtual track, the physical track

•

becomes empty.

) button to assign the virtual

CLEAR

) button in

Assigning virtual tracks

Follow these procedures to assign a virtual track to a physical track.

1. Press the SELECT button of a track you want to assign a virtual track to when the Home screen is open, and then press the VIRTUAL TRACK button.

(You can also press the VIRTUAL TRACK button first, and then select the track.)

The

VIRTUAL TRACK

NOTE

When creating a song, Virtual Track #1 is assigned to each

•

physical track. Recording, playback, and editing is only possible on

•

virtual tracks assigned to physical tracks. You can assign an already recorded virtual track to a

•

physical track and record over it.

screen opens.

56 TASCAM DP-32

8 - Track Editing

In the past, editing recordings made on tape recorders required advanced techniques, but with this unit editing is easy and accurate.

Moreover, unlike with a tape recorder when an editing error could not be undone, this unit uses non-destructive editing, which means you can edit without altering the original data so the undo function can be used to correct an edit easily. (See "Undoing an operation" on page 47.)

Overview of track editing

This unit has the following track editing functions.

COPY/PASTE

•

COPY/INSERT

•

MOVE/PASTE

•

MOVE/INSERT

•

OPEN (insert silence)

•

CUT (remove part)

•

SILENCE (erase part)

•

CLONE TRACK (duplicate track)

•

CLEAN OUT (delete track)

•

Basic editing procedures

1. When the recorder is stopped, press the TRACK EDIT button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b) buttons to select (highlight blue) the desired track editing function, and then press the F4 (t) button.

The corresponding function window opens.

TRACK EDIT

menu.

Editing points

The IN, OUT and TO points are used as editing points for the COPY/PASTE, COPY/ INSERT, MOVE/PASTE and MOVE/ INSERT functions.

The IN and OUT points are used as editing points for the OPEN, CUT, and SILENCE functions.

These are the same IN and OUT points used for repeat playback.

IN point

The IN point is the start point for the part of the track to be edited.

Press and hold the MARK SET button and press the IN button to set the IN point at the current position.

OUT point

The OUT point is the end point for the part of the track to be edited.

Press and hold the MARK SET button and press the OUT button to set the OUT point at the current position.

TO point

The TO point is the current playback position.

NOTE

If you press the JOG PLAY button to enable jog mode, you can set IN and OUT points with subframe (1/10 frame) precision.

COPY PASTE

3. Select the setting item value.

If there are multiple setting items, use the CURSOR (5/b) buttons to select one, and then use the JOG/ DATA dial to set the value.

4. Press the F2 (

NOTE

Press the F1 (NO) button to close the without executing the function.

YES

) button to execute the function.

window

COPY PASTE

window

Explanation of items

SOURCE

This is the track to be edited.

The choices available depend on the editing function.

to 12: Single track

•

13/14

•

You can also use track SELECT buttons to set this.

ALL

•

31/32

: Every track from 1 to 32

: Stereo track

COPY PASTE window

TASCAM DP-32 57

8 - Track Editing

IN OUT TO

IN/OUT/TO

To change the IN/OUT/TO points, exit the TRACK EDIT screen, and set them again as necessary.

TARGET Track

This is the track that is edited. In the case of OPEN, CUT, SILENCE and CLEAN OUT, the source track itself is the target track.

The options depend on what you have set for the

SOURCE track

When the

TARGET track

Set the number of times that the copied section will be pasted between 1 and 99.

SOURCE track

TIMES

COPY/PASTE

This function copies the audio data from between the IN and OUT points on the source track, and pastes it on the target track starting from the TO point. This operation does not change the source track between the IN and OUT points.

This operation overwrites recorded data on the target track. Therefore, the length of the target track is not changed.

You can make multiple copies in a single operation. In other words, you can overwrite the target track from

the TO point with a designated number of repetitions of the source data.

The following parameters are used in this operation.

SOURCE Track

•

IN/OUT/TO

•

TARGET

•

TIMES

•

ALL

must also be

IN OUT TO

ALL

(all tracks) , the

(all tracks).

COPY/INSERT

IN OUT TO

This function copies the audio data from between the IN and OUT points on the source track, and inserts it on the target track starting from the TO point. This operation does not change the source track between the IN and OUT points.

This operation inserts recorded data into the target track. The recorded data on the target track after the TO point is offset by the amount of time used by the inserted audio data. Therefore, the target track becomes longer.

You can make multiple copies in a single operation. In other words, you can insert a designated number of repetitions of the data into the target track from the TO point.

The following parameters are used in this operation.

SOURCE Track

•

IN/OUT/TO

•

TARGET

•

TIMES

•

58 TASCAM DP-32

8 - Track Editing

IN OUT TO

IN OUT

MOVE/PASTE

IN OUT TO

The audio data between the IN and OUT points on the source track is removed and pasted on the target track from the TO point. This operation leaves a silence between the IN and OUT points on the source track.

This operation overwrites recorded data on the target track. Therefore, the length of the target track is not changed.

The following parameters are used in this operation.

SOURCE Track

•

IN/OUT/TO

•

TARGET Track

•

OPEN (Insert Silence)

IN OUT

This function inserts silence between the IN and OUT points on the selected track.

This function splits the track at the IN point and shifts the recorded data after the IN point to after the OUT point. Therefore, the track becomes longer.

The following parameters are used in this operation.

TARGET Track

•

IN/OUT

•

CUT (Remove Part)

MOVE/INSERT

IN OUT TO

The audio data between the IN and OUT points on the source track is removed and inserted in the target track starting from the TO point. This operation leaves a silence between the IN and OUT points on the source track.

This operation inserts recorded data into the target track starting from the TO point. Therefore, the target track becomes longer.

The following parameters are used in this operation.

SOURCE Track

•

IN/OUT/TO

•

TARGET Track

•

This function cuts (deletes) the audio data between the IN and OUT points on the selected track, and shifts the remaining recording after the OUT point forward to the IN point. Therefore, the track becomes shorter.

The following parameters are used in this operation.

TARGET Track

•

IN/OUT

•

TASCAM DP-32 59

8 - Track Editing

IN OUT

SILENCE (Erase Part)

IN OUT

This function cuts (deletes) the audio data between the IN and OUT points on the selected track.

This creates silence between the IN and OUT points, as though there had been no recording.

This operation does not change the length of the track. The following parameters are used in this operation.

TARGET Track

•

IN/OUT

•

TIP

You can use this function to delete short noises, for example.

CLEAN OUT (delete track)

Use this function to completely erase the selected track.

This deletes the entire track, so the IN, OUT and TO points have no effect.

The following parameter is used in this operation.

TARGET Track

•

CLONE TRACK (duplicate track)

Use this function to duplicate a mono or stereo track to a different track.

This copies the entire track, so the IN, OUT and TO points have no effect.

The following parameters are used in this operation.

SOURCE Track

•

TARGET Track

•

NOTE

If you choose the same track for both the

TARGET

the operation will not be executed.

track, a

Same Track

SOURCE

notification appears and

and the

60 TASCAM DP-32

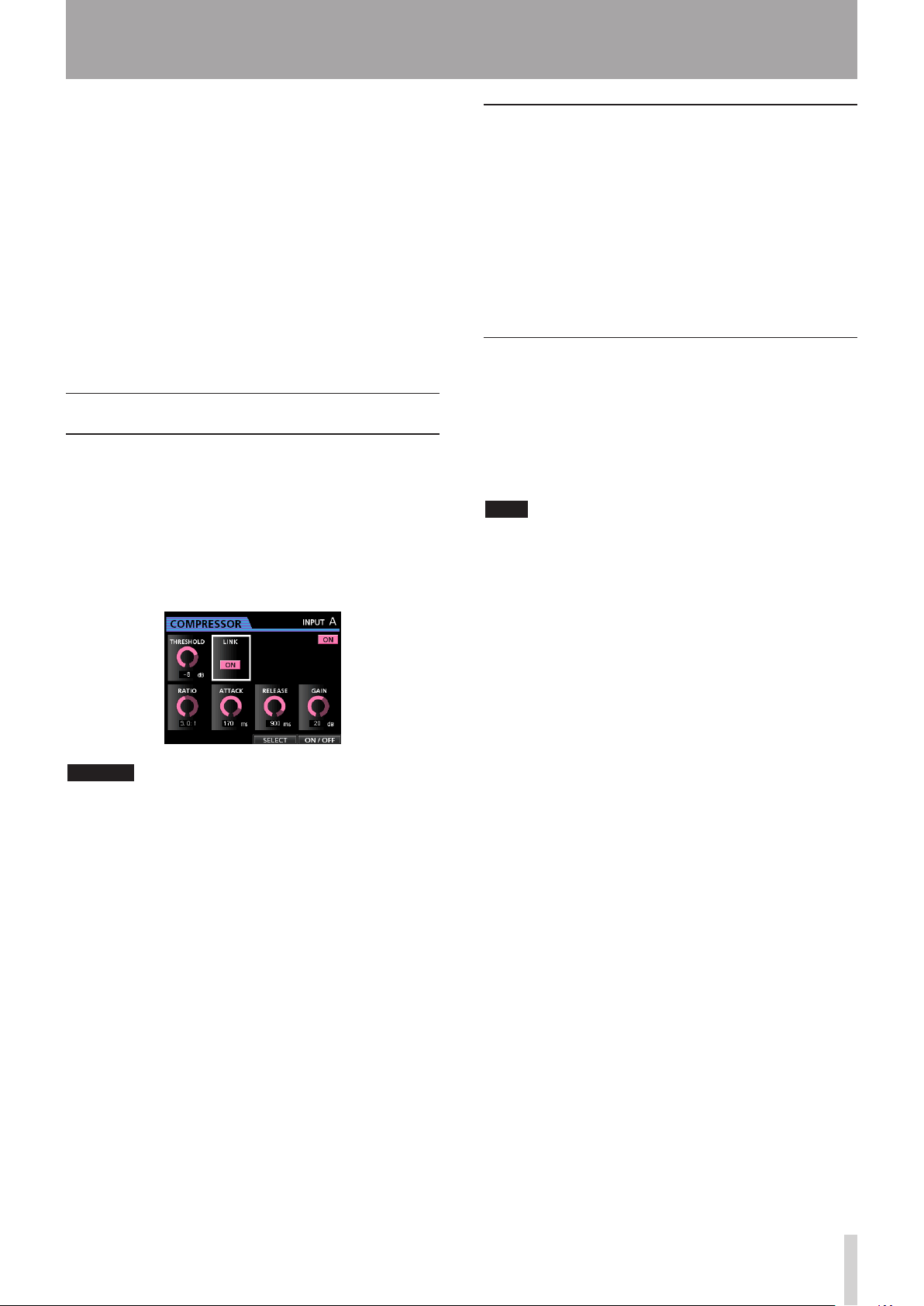

9 - Using Internal Effects

This chapter explains the dynamic effects, guitar effects, and send effects that can be applied to individual mic and guitar inputs.

You can select one of four types of dynamic effects (COMPRESSOR, NOISE SUPPRESSOR, DE-ESSER, EXCITER) for use with all inputs (A to H).

For details about the parameters of each type of effect, see "18 - Appendix" (page 97).

The library settings of guitar and send effects can be used for other songs.

Even when parameter settings are not stored in the library, effect assignments and parameters are always stored as part of a song.

Dynamic effects

When you press the DYNAMICS button, the inserted effect for the last selected input (INPUT A to H) is displayed.

You can select one of the four types of effects (COMPRESSOR, NOISE SUPPRESSOR, DE-ESSER, EXCITER) and apply it to all inputs (A to H) (simultaneous application has some limitations).

You cannot use multiple types of dynamic effects simultaneously.

Inserting a dynamic effect

Press the DYNAMICS button to open the screen. Press the SOURCE button to select the input (A to H) where you want to insert the dynamic effect.

Press the F3 ( you want to insert. Press the F4 ( the selected effect to ON and insert it.

You can also align the cursor with the Mixer screen and use the JOG/DATA dial to turn the effect on/off.

SELECT

) button to select the effect that

ON/OFF

INSERT EFFECT

DYNAMICS

) button to set

Adjusting dynamic effects

You can edit the parameters of the selected dynamic effect. The parameters differ depending on the effect type.

Use the CURSOR (5 /b/g/t) buttons to select the parameter that you want to change, and then use the

JOG/DATA dial to set the value.

NOTE

There is no preset or library function for dynamic effects.

CAUTION

When using a guitar effect together with a dynamic effect, the dynamic effect can be inserted on a maximum of 2 channels.

The selected input (A to H) and the screen

on/off state are

shown on

TASCAM DP-32 61

9 - Using Internal Effects

Mono input

Stereo input

Guitar effects

This unit has multi-effects for guitar. You can insert and use these effects on tracks.

Inserting a guitar effect

Press the EFFECT button to open the

GUITAR EFFECT/SEND EFFECT

displayed effect appears).

If the

SEND EFFECT

(

GUITAR

) button to open the

screen is open, press the F1

If there is any effect already inserted on a track, the SELECT button lights and the track number appears in the upper right corner of the screen.

If no effect has been inserted, the SELECT button is unlit, and

TRACK --

appears in the upper right corner of the

screen.

Press the SELECT button of a track to insert the effect on it.

You can also align the cursor with the Mixer screen and use the JOG/DATA dial to turn the effect on/off.

NOTE

A guitar effect has a mono input and a mono output, but when inserted on a stereo track, it can have a stereo output and some types will have a stereo effect.

CAUTION

Since guitar effects are mono, when they are inserted on stereo tracks, the effect is sent only to the oddnumbered track. (See the illustration below.)

For example, when inputs G and H are assigned to

•

stereo track 9/10 and you insert a guitar effect, the effected sound will be recorded on track 9 (input G).

Since some effects work in stereo, we recommend

•

that you set the track type to stereo, and then assign the same input to both odd and even numbers. (For example, assign input H/H to tracks 9/10.)

screen (the last

GUITAR EFFECT

INSERT EFFECT

screen.

Adjusting guitar effects

You can edit the parameters of the selected guitar effect. The parameters differ depending on the effect type.

Press the F3 (

SELECT

) button to select the effect that

you want to edit. Use the CURSOR (5/b/g/t) buttons to select the

parameter that you want to change, and then use the JOG/DATA dial to set the value.

Select whether to apply the effect during recording or during playback with the

POSITION

parameter on the

Guitar Effect screen.

Loading guitar effect settings

1. On the Guitar Effect screen, press the F2 ( button to open the library list.

2. Use the JOG/DATA dial to select the effect setting that you want to load, and then press the F4 (t) button.

3. The setting is loaded and the library list closes, but the Guitar Effect screen stays open.

Press the F1 (g) button to return to the Guitar Effect screen without loading a setting.

NOTE

Factory preset settings are stored in the category, and user settings are stored in the category.

LIBRARY

PRESET

USER

Saving guitar effects in the library

You can save adjusted effect settings as a user setting in the library.

1. When the Guitar Effect screen is open, press the F2 (

LIBRARY

library list.

Use the JOG/DATA dial to select the USER area, and then press the F3 (

NOTE

The library list has a category. PRESET area data cannot be overwritten.

2. Enter a name, if necessary.

Names in the PRESET library cannot be changed.

) button to open the PRESET/USER

SAVE

) button.

PRESET

category and a

USER

)

62 TASCAM DP-32

Odd track

Even track

Odd track

EFFECT

Even track

9 - Using Internal Effects

Send effects

The internal send effect can be applied to signals sent to Send Effect 1.

You can use one of the three types of send effects (REVERB, DELAY and CHORUS) available. You cannot use multiple types of effects simultaneously.

Using send effects

You can send input channel or track signals to the send effects. Set channel signal send levels and whether the signal is pre or post fader on the Mixer screen. (See "Sending signals to internal/external effects" on page 44.)

The return signal from this effect is sent to the stereo bus. In Bounce mode, however, it is sent to the bounce bus. (See "Bouncing tracks" on page 50.)

Saving send effects in the library

You can save adjusted effect settings as a user setting in the library.

1. When the Send Effect screen is open, press the F2 (

LIBRARY

library list.

Use the JOG/DATA dial to select the USER area, and then press the F3 (

NOTE

The library list has a category. PRESET area data cannot be overwritten.

2. Enter a name if necessary.

Names in the PRESET library cannot be changed.

) button to open the PRESET/USER

SAVE

) button.

PRESET

category and a

USER

Adjusting send effects

Adjust parameters on the

Press the EFFECT button to open the the Guitar Effect is shown, press the F1 ( switch to the Send Effect screen.

Press the F3 ( (REVERB, DELAY or CHORUS).

Use the CURSOR (5 /b/g/t) buttons to select the parameter that you want to change, and then use the JOG/DATA dial to set the value.

SELECT

EFFECT

) button to select the effect type

screen.

EFFECT

SEND

screen. If

) button to

Loading send effect settings

1. On the Send Effect screen, press the F2 ( button to open the library list.

2. Use the JOG/DATA dial to select the effect setting that you want to load, and then press the F4 (t)

button.

3. The setting is loaded and the library list closes, but the Send Effect screen stays open.

Press the F1 (g) button to return to the Send Effect screen without loading a setting.

LIBRARY

)

TASCAM DP-32 63

10 - Mixing Down and Mastering Songs

Ungrouping tracks

Mixing down tracks

Mixing down tracks is the process of adjusting the volumes and stereo positions of each recorded track and combining them into a well-balanced stereo track.

Including recorded tracks (32 maximum) and inputs (8 maximum), you can mix down up to 40 total tracks.

1. Press all the SELECT buttons of tracks in the group to turn them off.

2. Press the GROUP button.

If you press the GROUP button before turning off all the buttons (a button is still lit), the GROUP button will blink, indicating that tracks are still grouped.

Levels and balance

Use the track faders to balance the relative levels of the tracks.

Then, use the STEREO fader to adjust the overall level. Watching the stereo level meters on the display, adjust the level until it is suitable.

If the level is too loud, the sound will become distorted.

NOTE

The track meters on the display show the recorded signal levels of the tracks. Therefore, these meters do not change when the TRACK faders are adjusted.

TIP

You do not need to keep the entire song at the same volume. For example, you could gradually increase the volume during a guitar solo.

Fader group

You can group multiple faders to control them simultaneously with a single fader.

Group and ungroup tracks while the GROUP button is lit.

Grouping tracks

1. Press the GROUP button.

2. Adjust the level and balance between tracks you want to control.

3. Press the SELECT buttons of tracks to control.

A lit SELECT button indicates a track in the group.

The track fader with the smallest number will be the master fader, and faders in the group can be controlled by it. When a fader other than the master fader is moved, the SELECT button of the master fader blinks and the movement will have no effect.

This fader group internally retains the relative level differences from the master fader that it had when it was set. The relationship between physical faders is not retained.

NOTE

After tracks have been grouped, they will not be ungrouped when you press the GROUP button. (The GROUP button will blink.)In this case, if the group master fader is moved, the SELECT buttons of tracks in the group will light during operation.

If another fader is moved, the SELECT button of the master fader will blink and the movement will have no effect.

CAUTION

After ungrouping tracks, the positions of the physical faders and the actual levels (values shown onscreen) might not match. In such a case, when you move a physical fader, the actual level will change to match the physical fader value, and thereafter the physical fader will controls the level. This might cause a sudden level change and loud noise, so turn the stereo fader down beforehand.

NOTE

After grouping tracks, if the group master fader changes because the lowest numbered track is ungrouped or a lower numbered track is added to the group, the track levels are reset to their physical fader values.

Stereo position (panning)

Use the PAN knobs on the Mixer screen of each mono track to set the stereo position of the track signal.

For stereo tracks, instead of panning, adjust the balance (BAL) between left and right channels.

Track equalizer

Each track has a 3-band equalizer that can be adjusted on the Mixer screen.

1. Press the MIXER button to open the Mixer screen.

2. Adjust the track equalizer.

The equalizer parameters are as follows.

GAIN FREQ

HIGH

MID

LOW

Use track SELECT buttons to select desired tracks.

Setting range: ±12 dB (Default: 0 dB)

Setting range: 1.7 kHz to 18 kHz (Default: 10 kHz)

Setting range: 32 Hz to 18 kHz (Default: 1.0 kHz)

Setting range: 32 Hz to

1.6 kHz (Default: 100 Hz)

64 TASCAM DP-32

10 - Mixing Down and Mastering Songs

Use HIGH, MID and LOW GAIN knobs to adjust the gain of each band.

Use the HIGH, MID and LOW FREQ knobs to adjust the center frequency of each band.

Use the MID Q knob to set the resonance (width) of the

MID FREQ band.

Setting range:

Press the EQUALIZER ON/OFF button to turn the equalizer on or off.

Use INPUT SOURCE (A–H) buttons to select inputs to set the equalizer. (See "Using the input equalizer" on page

43.)

3. After making the settings, press the HOME button to return to the Home screen.

0.25

to 16 (Default:

0.5

)

Send effects

This unit has three types of send effects.

Adjust the level of the signal sent to the effect from each track by using their SEND EFF 1/EFF 2 knobs.

NOTE

Adjust the

1. Press the EFFECT button to open the Effect screen.

RETURN LEVEL

on the Send Effect screen.

Creating a master file

When you are satisfied with your mix, this unit can create a stereo master file by recording the mixed down tracks.

Master files created by this unit are saved with their songs.

A master file can be recorded by an external stereo recorder and can also be converted by the unit into a WAV file and stored with the same name as the song in the song's folder on the SD card.

CAUTION

Only one master file ("[song name].wav") can be created in each song. (When mastering, another file besides the "[song name].wav" master file is created, but it is only for use by the unit. Do not erase it.)

Setting the start and end points

Before creating a master file, set the start and end points to be used for the mixed down master file. The range between the song's IN and OUT points will be recorded as the master file.

Usually, you will probably want to set the beginning of the song as the IN point and the end of the song as the OUT point.

Press and hold the MARK SET button and press the IN button where you want to set the IN (start) point of the master file, and press and hold the MARK SET button and press the OUT button where you want to set the OUT (end) point.

For more information about how to correct the IN/OUT points, see "Setting IN/OUT points" on page 53.

2. Select and adjust the send effect.

Press the EFFECT button to open the Effect screen where the last operation was performed. Press the F3

(

SELECT

types ( multiple types of effects simultaneously.

Align the cursor with the parameter that you want to adjust, and then use the JOG/DATA dial to adjust it.

The return from the send effect is mixed with the stereo signal.

3. After making the send effect setting, press the HOME button to return to the Home screen.

4. Use the SEND EFF 1 knob to adjust the level of the signal sent to the send effect of each track.

TIP

When using an external effect, connect the output of the external effect (EFFECT RETURN) to INPUT A to H. By assigning the connected input to the stereo bus, you can return the effect sound to the stereo bus. (See "Assigning inputs to a stereo bus" on page 41.)

) button to select one of the three available

REVERB, DELAY

CHORUS

). You cannot use

Creating a master file

After setting the IN and OUT points, you are ready to create the master file.

1. When in MIXDOWN/MASTERING button.

The recorder switches to Home screen reopens.

If you play or record, you can hear the signal of the mixed tracks (the signal to be recorded) through headphones or a monitoring system.

NOTE

In Mixdown mode,

•

corner of the Home screen. If the interval between the IN and OUT points is

•

shorter than 4 seconds, when you start to record,

Multi Track

Mixdown

mode, press the

Mixdown

appears on the upper left

mode and the

TASCAM DP-32 65

10 - Mixing Down and Mastering Songs

Trk Too Short

will not be performed. When in

•

do not work. If you try to use one of these functions,

In Mixdown Mode

2. Press the RECORD (0) button.

The mixdown starts and the RECORD (0) button lights.

Regardless of the recorder's current position, the mixdown starts from the IN point.

If necessary, adjust the track faders or the Mixer screen's PAN knobs while mixing down the tracks to stereo. These adjustments will be reflected in the master file.

When the recorder reaches the OUT point, recording automatically stops.

3. If you want to redo the creation of the stereo

master track, press the RECORD (0) button.

A new master file will be created, and the previous master file will be overwritten.

NOTE

After recording the master file, you can play back the master file to check it. (See "Checking the master file" in the following section.)

Mixdown

appears and the mixdown recording

mode, some playback functions

appears.

2. In this state, press the PLAY (7) button to play back the master file that you have created.

CAUTION

Confirm that both the EQ and

OFF

. If either is set to ON, the playback sound of the master file will be affected by the equalizer and/or compressor. (See "Using the mastering equalizer" on page 67 and "Using mastering compression" on page

68.)

3. When in

work as follows.

•

Since the master file playback signal is output from the STEREO OUT jack, you can record the output to an external stereo recorder.

If you are not satisfied with this master file, you can perform a new mixdown.

Mastering

Press the PLAY (7) button to play back the master file from the current position until its end.

Use the REW (m) button and the F FWD (,) button to rewind and fast-forward in the same way as in ordinary recorder mode.

Press the STOP (8) button to stop playback.

Track recording is not possible.

Repeat playback and location mark functions cannot be used.

COMP

items are set to

mode, the transport buttons

Exiting Mixdown mode

Press the MIXDOWN/MASTERING button twice to return to

Multi Track

mode.

Checking the master file

Follow these procedures to listen to a master file after you have completed recording it.

1. When in MASTERING button.

The recorder switches to

Mastering

NOTE

In Mastering mode,

•

left of the Home screen. When in

•

MASTERING button to switch to then press the MIXDOWN/MASTERING button again to switch to

You cannot switch to

•

master file.

Mixdown

Multi Track

Mastering

mode, press the MIXDOWN/

screen opens.

Mastering

mode.

Mastering

mode, press the MIXDOWN/

Mixdown

mode and the

appears in the upper

mode, and

mode if there is no

NOTE

To listen to a master file recorded in a saved song, load the song, change the recorder to press the PL AY (7) button to start playback.

Mastering

mode, and then

Ending master file checking

After checking the master file, press the MIXDOWN/ MASTERING button to return to

Multi Track

mode.

Using the mastering tools

This unit has specialized tools for enhancing the sound of the master file. Use the equalizer, noise shaper, compressor, and normalize functions to adjust the overall volume and sound quality.

Switch to tools to enhance the master file.

Mastering

mode and use the mastering

66 TASCAM DP-32

10 - Mixing Down and Mastering Songs

Mastering procedures

Follow the steps below to master the file that has been mixed down.

Step 1 - Enter Mastering mode.

When in MASTERING button.

The recorder switches to

Mastering

NOTE

•

You can use the following mastering tools: EQUALIZER (F1 (EQ) button), COMPRESSOR (F2 (

SHAPED DITHERING (F3 ( (F4 (

You can also switch between a multi-band and singleband type compressor on the pressing the F2 button.

When using the multi-band compressor, the parameter display on the BAND, MID BAND and HIGH BAND areas, allowing separate adjustments for each band.

Make the necessary settings for each tool. (For further details, see "Using the mastering equalizer," "Using mastering compression," "Using normalize," and "Using noise shaped dithering" below.)

When in (7), STOP (8), REW (m) and F FWD (,) transport buttons to monitor the playback signal as you adjust settings.

After adjusting the mastering tool settings, press the RECORD (0) button to start recording.

The recording starts and the PL AY (7) and RECORD (0 ) buttons light.

Recording always starts from of the current position.

Mixdown

mode, press the MIXDOWN/

Mastering

mode and the

screen opens.

When in MASTERING button to switch to

Multi Track

mode, press the MIXDOWN/

Mixdown

mode, and

then press the MIXDOWN/MASTERING button again to switch to

You cannot switch to

Mastering

mode.

mode if there is no

master file.

Step 2 - Use the mastering tools to adjust

the sound.

COMP

) button), NOISE

NSD

) button) and NORMALIZE

NORM

) button).

COMP MULTI

Mastering

Step 3 - Record a new master file using the

screen is split into LOW

mode, you can use the PLAY

screen by

mastering tools.

00:00:00:00

regardless

Recording in

Mastering

mode overwrites the previous

master file.

At the end of the master file, recording finishes automatically and the position returns to

NOTE

00:00:00:00

If you stop the recording in the middle, a new master file will be created until the time when you stopped the unit.

Step 4 - Check your recording.

Turn the equalizer and compressor off before playing back the master file to check the mastering results.

Single undo and redo can be used, so you can compare the sound before and after using the mastering tools.

If you are not satisfied with the result

Undo the operation to return the master file to mixdown state, and apply the mastering tools again from step 1.

NOTE

Multiple undo and redo cannot be used when the recorder is in

Mastering

mode.

Using the mastering equalizer

1. When the (EQ) button to open the

2. Adjust mastering equalization on this screen.

The equalizer parameters are as follows.

HIGH

MID

LOW

Use the HIGH, MID and LOW GAIN knobs to adjust the gain of each band.

Use the HIGH, MID and LOW FREQ knobs to adjust the center frequency of each band.

Use the MID Q knob to set the resonance (width) of the

MID FREQ band.

Setting range:

Mastering

screen is open, press the F1

EQUALIZER

GAIN FREQ

Setting range: ±12 dB (Default: 0 dB)

0.25

to 16 (Default:

screen.

Setting range: 1.7 kHz to 18 kHz (Default: 10 kHz)

Setting range: 32 Hz to 18 kHz (Default: 1.0 kHz)

Setting range: 32 Hz to

1.6 kHz (Default: 100 Hz)

0.5

)

TASCAM DP-32 67

10 - Mixing Down and Mastering Songs

Press the EQUALIZER ON/OFF button to turn the equalizer on or off.

NOTE

The "Q" value is the center frequency of the equalizer divided by the bandwidth. A high Q value reduces the range of the cut or boost applied to the frequencies. Depending on the equalizer setting, the graph at the top of the screen changes.

3. After making the settings, press the F1 (g) button

to return to the

4. On the either ON or

Mastering

screen, the EQ is shown as

OFF

screen.

3. Use the JOG/DATA dial or the CURSOR (5/b)

buttons to select (highlight blue) the desired preset, and then press the F4 (t) button.

After the preset is loaded, the library list closes, but the

COMP MULTI

4. When using the multi-band compressor, move the cursor to the band display area, use the JOG/DATA dial to switch among the bands, and then set the parameter for each band as desired.

screen stays open.

Multiband compressor

Using mastering compression

You can choose between single band and multi-band compressors.

Multi-band compressors allow independent settings for the low, mid and high frequency ranges, so you can adjust the overall level balance. By using compression, you can also reduce unwanted peaks and increase the overall gain to make the song louder, creating a mastered sound with greater impact.

1. When the (

COMP

2. Press the F3 ( list.

Mastering

) button to open the

LIBRARY

screen is open, press the F2

) button to open the library

COMP MULTI

screen.

Single band compressor

At this time, the selected band is shown in the upper left.

5. Use the CURSOR (5/b/g/t) buttons to select the

parameter to adjust, and then use the JOG/DATA dial to set it.

THRESHOLD

The threshold value determines when the compressor becomes active.

RATIO

Sets how much compression is applied after the level exceeds the threshold.

KNEE

Sets the transition curve.

GAIN

Adjusts the output level.

ATTACK

Adjusts how fast the compressor responds after the level exceeds the threshold.

RELEASE

Adjusts how fast the compressor disengages after the level drops below the threshold.

AUTO MAKE

This feature automatically adjusts the volume to prevent it from being reduced by the compressor.

68 TASCAM DP-32

10 - Mixing Down and Mastering Songs

6. When using the multi-band compressor, move the cursor to dial to adjust the frequency range of each band.

7. Press the F4 ( compressor on or off. The ON or OFF state is shown on the

8. After setting the parameters, press the F1 (g) button to return to the

CROSSOVER

ON/OFF

Mastering

Compressor ON/

OFF

and then use the JOG/DATA

) button to turn the

screen.

Mastering

screen.

Using normalize

Use the normalize function to automatically adjust the volume.

This function detects the highest volume level and raises the overall volume until the highest level reaches the maximum limit.

Checking the noise shaper (noise shaped dithering)

You can use the noise shaper when creating an audio CD from master files of 24-bit songs. (See "Creating an audio CD" on page 82.)

You can check the effect of using the noise shaper when creating an audio CD in advance.

NOTE

The noise shaper only affects the audio CD created. It has no effect on the original master files themselves.

What is a noise shaper?

Since standard audio CDs use 16-bit quantization, this unit automatically converts master files created from 24bit songs to 16-bit when writing a CD. When the bit rate is converted, a very low level of quantization distortion usually occurs at points where sound becomes inaudible, but you can reduce this distortion by turning the noise shaper on.

The noise shaper in this unit reduces quantization distortion by using a dithering technique that adds random noise below the quantization steps.

1. When the press the F3 (

NOISE SHAPED DITHERING

Mastering

NSD

) button to open the

screen is open,

screen.

CAUTION

If you use equalization or compression after normalizing the track, distortion might occur. Use the normalize function after adjusting the sound with equalization and compression.

1. When the (

NORM

2. Press the F2 ( track.

3. Once normalization completes, the screen reopens.

Mastering

) button to open the

YES

screen is open, press the F4

) button to normalize the master

NORMALIZE

Mastering

screen.

2. Press the F4 ( shaper ON.

3. Press the F1 (g) button to return to the Mastering screen.

ON/OFF

) button to turn the noise

Exiting Mastering mode

To exit

Mastering

mode, press the MIXDOWN/MASTERING button.

mode and return to

Multi Track

TASCAM DP-32 69

11 - Various Other Functions

Metronome

This unit has a built-in metronome that can be used when the recorder is running.

You can set it to work during both playback and recording or only during recording.

1. When the recorder is stopped, press the METRONOME button to open the screen.

2. Set the following items.

Use the CURSOR (5/b) buttons to select the desired item, and then use the JOG/DATA dial to set its value.

MODE

You can select from the following modes.

Mode Description

OFF

REC&PL AY

REC

LEVEL

Set the metronome volume. The setting range is from

TEMPO

Set the speed. The setting range is from

(Default:

SIGNATURE

Set the time signature to 4/4, 3/4, etc. The setting range is from

(Default:

BAR DISP

Set the

BAR

3. After making the settings, press the HOME button to return to the Home screen.

The metronome works according to the made in step 2 above.

When enabled, the METRONOME button flashes in time with the metronome tempo.

The metronome signal is not recorded even if set to work during recording.

Default, metronome off

Active during recording and playback

Active only during recording

120

)

1/1

4/4

)

display to ON or

127

OFF

250

12/8

METRONOME

. (Default: 60)

(BPM).

. (Default:

MODE

OFF

setting

)

NOTE

When the metronome is working, you can monitor the

•

sound of the metronome through connected external speakers. Note, however, in this case that the metronome sound could also be recorded if you are using a microphone to record in the same room.

When the metronome is running, you can adjust the

•

LEVEL

items cannot be changed. You can use the metronome as a click track to help keep

•

time when recording rhythm guitar or bass, for example, as the first tracks of a song.

If you want to use the metronome alone for practice,

•

you can either turn each track's fader all the way down during playback or play a song that does not have any recordings.

item on the

METRONOME

screen, but other

MIDI Sync

This unit support MIDI Time Code (MTC) and MIDI Clock, so synchronization with other equipment is possible.

The following synchronization types are available.

MTC Master

You can synchronize the MTC generated by this unit with external equipment (MTC compatible synthesizer, DAW, etc.).

MIDI Clock Master

You can synchronize external equipment (sequencer, drum machine, etc.) with MIDI clock based on a specified tempo.

NOTE

When MIDI clock master is active, in addition to the MIDI clock, a variety of data, including start, stop, continue and song position points is transmitted from this unit to another device. When MTC master is active, full timecode messages can be transmitted while locating the song position.

The synchronization settings are made under the

MIDI

item on the

FRAME TYPE

The MTC frame type used for transmission/reception is always 30 (which is common for music and high-definition video).

GENERATOR

Select the sync signal output from the MIDI OUT jack.

Select

•

MTC CLOCK

Select

OFF

Select signal from the unit.

screen.

to set this unit to MTC Master.

to set this unit to MIDI Clock Master.

when you do not want to output a sync

SYNC

70 TASCAM DP-32

11 - Various Other Functions

MIDI remote control

The mixer, effects and recorder of this unit can be remotely controlled by other devices using MIDI messages.

For more information about MIDI messages that can be used to control this unit, see "18 - Appendix" on page 97.

When the transport is stopped, press the MENU button to open the item, and then press the F4 (t) button to open the

MIDI

Set the MIDI Machine Control transmission/reception mode.

When the unit is the MMC master, the MMC command is output by the MIDI OUT jack, and it is possible to remotely control an external MIDI sequencer or another DP-32 unit.

When the unit is the MMC slave, MMC commands can be received through the MIDI IN jack, and it is possible to remotely control this unit from an external MIDI sequencer or another DP-32 unit.

Set the MMC device ID.

Select from

Master units send MMC commands with device IDs that slaves with the same IDs can receive. When ALL is selected, however, MMC commands are sent and received for all IDs.

MMC is used for remote transport control of MIDI equipment. On the other hand, MIDI Time Code (MTC) is used for synchronization with MIDI equipment. Note that the MMC mode and MMC device ID are not related to mixer and effect remote control.

Use MODE to set this unit as a master or a slave.

Use PROGRAM CHANGE EFF to set whether this unit's effect changes when a program change message is received (ON or OFF). In Mastering mode, program change messages are not received even if this is ON.

Use CONTROL CHANGE to set whether or not received control change messages control the parameters of this unit's mixer and effects (ON or OFF).

screen, select (highlight blue) the

screen.

MMC MODE

OFF: MMC communication disable. MASTER: This unit functions as the MMC master. SLAVE: This unit functions as an MMC slave.

MMC Device ID

127

, and

ALL

REMOTE CONTROL

. (Default:

ALL

)

MIDI

Tuner function

You can use the built-in chromatic tuner to tune guitars.

1. Connect a guitar or bass to the MIC/LINE INPUT H.

Tuning cannot be performed with instruments connected to MIC/LINE INPUTS A to G.

2. Set the LINE-GUITAR switch on the rear panel to GUITAR. (See "Selecting the input sources" on page

40.)

3. When the recorder is stopped, press the MENU button to open the

4. Use the JOG/DATA dial to select the item and then press the F4 (t) button.

The

TUNER

5. Use the JOG/DATA dial or the CURSOR (5/b) buttons to set the standard frequency of A4.

The setting range is from

440Hz

6. Play the instrument and begin tuning.

The pitch name closest to the string appears above the meter.

Tune the instrument so that the target pitch name appears and the center of the tuning meter lights.

A bar appears to the left or right of the center if the sound is lower or higher than the target pitch. The bar becomes longer as the sound shifts away from the target pitch.

When the pitch played matches the note shown, the center , t and g icons light green.

7. After tuning the instrument, press the HOME button to return to the Home screen.

screen opens.

)

435Hz

screen.

445Hz

TUNER

. (Default:

TASCAM DP-32 71

11 - Various Other Functions

PREFERENCE menu settings

Use the settings to optimize the unit for your use conditions and requirements, as well as to restore the factory settings.

Follow these steps to open the

1. When the recorder is stopped, press the MENU

2. Use the JOG/DATA dial or the CURSOR (5/b/g/

3. On the

PREFERENCE

button to open the

t) buttons to select

menu to change various

PREFERENCE

screen.

PREFERENCE

menu.

, and then press

the F4 (t) button.

The

PREFERENCE

screen opens.

screen, use the CURSOR

(5/b) buttons to select a parameter, and then use the JOG/DATA dial to change its setting.

Menu item Function Reference

Auto Power Save

Contrast Brightness Backlight Foot SW

Right Foot SW

Center Foot SW

Left Undo

History Jump Back Auto

Monitor Preview

Time Peak Hold Song Name

Type Date/Time Initialize

Set automatic power saving

Adjust display contrast

Adjust display brightness

Adjust display backlight

Set right footswitch pedal assignment

Set center footswitch pedal assignment

Set left footswitch pedal assignment

Set length of undo history Page 47

Set jumpback time Page 53

Set automatic monitoring Page 72

Set preview playback time

Set peak hold time Page 43

Set file name format Page 72

Set date and time Page 33

Restore default settings Page 73

Page 72

Page 34

Page 49

Page 54

Setting automatic power saving

Use the of time until the unit power turns off after the last user operation or function completes.

The options and default value are as follows.

The Auto Power Save function is disabled under the following conditions.

(1) During recording or playback

(2) When the metronome is in use

(3) When the record function is ON

(4) When a signal is output from the STEREO OUT

Auto Power Save

item to set the amount

Options: OFF, 3 min, 5 min, 10 min, 30 min (default)

NOTE

Setting automatic monitoring

Input monitoring is possible when recording is enabled and the transport is stopped.

If automatic monitoring is ON, when playback starts, input sounds are muted, and only playback sounds can be monitored.

Use the

AUTO MONITOR

item to set this function.

OFF (default):

Input sounds are not muted even when playback starts.

When recording is enabled, input and playback sounds are mixed.

ON:

When playback starts, input sounds are muted.

When recording is enabled, only playback sounds can be heard.

Setting the song name format

Use the for song names created by this unit to

DATE

When the screen is set to

the setting screen.

The length of the word is limited to XX single-byte alphanumeric characters. (See "Editing names" on page

35.)

Song Name Type

item to set the format used

WORD

(default) or

WORD: The characters set are used for the beginning of the song name.

Example (set to "TASCAM"): "TASCAM0001" DATE: The date is used for the beginning of

the song name. Example (created on July 10, 2012):

"201207100001"

Setting the WORD

Song Name Type

WORD

, press the F4 [t] button to open

on the

PREFERENCE

72 TASCAM DP-32

11 - Various Other Functions

Restoring the initial preference settings

You can restore the their initial values (factory defaults). This operation is called initialization.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

PREFERENCE

3. Use the CURSOR (5/b) buttons to select

Initialize

PREFERENCE

screen opens.

, and then press the F4 (t) button.

screen settings to

screen.

PREFERENCE

Viewing information

You can view information about the current song (currently loaded song), the SD card and the firmware.

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

The

INFORMATION

The following information is shown on the

INFORMATION

screen opens.

screen.

INFORMATION

4. When the confirmation message appears, press the F2 (

YES

) button to confirm.

5. Once initialization completes, the messages closes, but the

NOTE

If you want to cancel the initialization, press the F1 (NO) button.

6. After making the settings, press the HOME button to return to the Home screen.

PREFERENCE

screen remains open.

CURRENT SONG

NAME FORMAT DAT E SIZE

INFO

TOTAL SONG TOTAL SIZE REMAIN SIZE SYSTEM VERSION

TASCAM DP-32 73

12 - SD Card Management

The recording files are stored on SD cards.

Depending on the capacity of the SD card, the card is formatted using the FAT16 or FAT32 file system.

SD card capacity File system

512 MB to 2 GB FAT16

Above 2 GB FAT32

Moreover, this unit is compatible with SD card writeprotection, so you can write-protect your cards to prevent accidental deletion by formatting them. (See "About write-protected SD cards" on page 31.)

When an SD card is inserted, the unit mounts the card and enables it for use. At this time, if the inserted SD card has not been formatted by this unit, a message appears prompting you to format it.

If the inserted SD card has no setup file on it, a message appears prompting you to create a setup file.

When an SD card is ejected, the unit unmounts it and then a No Card message appears.

CAUTION

Ejection during recording is not supported.

•

Formatting cannot be undone.

•

NOTE

The FAT (File Allocation Table) format is a file system

•

format that can be read by a computer. SD and SDHC cards that are at least 512MB in size can be

•

used.

A list of SD cards that have been confirmed to work with this unit can be found on the TASCAM website (http://tascam.com/).

Quick formatting an SD card

Use the card. Using QUICK FORMAT erases all files on the card and automatically creates new MUSIC, UTILITY and AudioDepot folders, as well as the dp-24.sys file that is necessary to use the card with this unit.

This operation erases all data from the SD card and cannot be undone. Confirm that you will not lose important data before quick formatting a card.

1. When the recorder is stopped, press the MENU

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t)

QUICK FORMAT

CAUTION

button to open the

buttons to select (highlight green) then press the F4 (t) button.

The format screen where you can choose Quick Format or Full Format opens.

item to quickly format an SD

screen.

FORMAT

, and

3. Use the JOG/DATA dial to select

and press the F4 (t) button.

QUICK FORMAT

4. Press the F2 ( format. If you want to cancel the quick format, press the F1 (NO) button.

5. Once the quick format completes, the message closes, but the

NOTE

When a card is formatted, one song is automatically created in the MUSIC folder.

confirmation message appears.

YES

) button to execute the quick

FORMAT

screen remains open.

QUICK FORMAT

74 TASCAM DP-32

Full formatting an SD card

12 - SD Card Management

Use the card. Using FULL FORMAT erases all files on the card and automatically creates new MUSIC, UTILITY and AudioDepot folders, as well as the dp-24.sys file that is necessary to use the card with this unit.

Using Full Format, memory errors are checked during formatting. A full format takes longer than a quick format.

This operation erases all the data from the SD card. This operation cannot be undone. Confirm that you will not lose important data before full formatting a card.

Follow these procedures to fully format an SD card.

1. When the recorder is stopped, press the MENU

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t)

FULL FORMAT

CAUTION

button to open the

buttons to select (highlight green) then press the F4 (t) button.

item to completely format an SD

screen.

FORMAT

, and

The format screen where you can choose Quick Format or Full Format opens.

3. Use the JOG/DATA dial to select

and press the F4 (t) button.

FULL FORMAT

4. Press the F2 ( format. If you want to cancel the full format, press the F1 (NO) button.

5. Once the full format completes, the message closes, but the

confirmation message appears.

YES

) button to execute the full

FORMAT

screen remains open.

FULL FORMAT

NOTE

When a card is formatted, one song is automatically created in the MUSIC folder.

TASCAM DP-32 75

13 - Exchanging Data with a Computer

By connecting this unit to a computer using the included USB cable, you can backup song data from an SD card in the unit to a computer and restore backed-up song data from a computer to the card. In addition, you can export track files and stereo master files from songs to the computer, as well as import audio files from the computer to the unit.

Backed-up data can be restored to a different DP-32 unit than the one that created it. In other words, files can be freely exchanged between DP-32 units, making it easy to add additional recordings or mix existing recordings in different location.

CAUTION

If you want to remove an SD card from this unit and back up its data on a computer using a card reader, always turn off the unit's power before removing the card.

NOTE

In this chapter, "computer" refers to a Windows or Macintosh personal computer connected to this unit. (See "Operating system requirements" in the following section.)

The following types of data can be transferred from this unit to a computer.

Entire songs

You can transfer the data for an entire song from the unit's MUSIC folder to a computer. This operation is called "backing up". In addition, data backed up on a computer can be transferred to the MUSIC folder, and then restored as a song file. This operation is called "restoring".

WAV format tracks

Export specified track files as WAV files to the AudioDepot folder of the SD card. In addition, you can import specified track files by storing WAV files from a computer in the AudioDepot folder beforehand.

In other words, data transfer between the computer and track files is carried out through the AudioDepot folder.

Operating system requirements

You can connect this unit to computers with the following operating systems.

Windows

Windows XP, Windows Vista and Windows 7

Mac OS X

Mac OS X 10.2 or later

When this unit is connected to a computer, the computer recognizes it as a removable disk. There is no need for a special driver.

NOTE

Data transfer between this unit and a computer occurs at USB 2.0 speed (maximum). Data can still be transferred if the computer connection is USB 1.1, but it will be slower. In addition, to assure USB 2.0 speed, use a cable that meets USB

2.0 standards.

Connecting to a computer

When connected to a computer via USB, this unit's record, playback and other recorder functions cannot be used.

To connect with a computer, use a mini-B-type USB 2.0 cable to connect the USB port on the rear panel of the unit with a USB port on the computer.

It does not matter whether you turn the unit's power ON before or after the USB connection is made.

When this unit is ON, enable the USB connection with the

USB

item of the

The currently loaded song is saved before the USB connection becomes effective. When connected, the following screen appears on the display.

screen.

Master file

A master file created on this unit can be transferred to a computer as a stereo WAV file (from the "Song name" folder inside the MUSIC folder).

Only export of the master file is possible.

76 TASCAM DP-32

After making a USB connection, you must turn the power on and enable the USB connection in the

screen.

This unit appears as an external drive named DP-32 on the computer's display.

Clicking on the DP-32 drive will display the MUSIC, UTILITY, and AudioDepot folders.

CAUTION

Be sure to use the included TASCAM PS-1225L AC

•

adaptor to supply power to this unit. Power cannot be supplied to this unit via USB.

USB

item of the

13 - Exchanging Data with a Computer

Do not disconnect the AC adaptor or otherwise cut

•

the power to the unit during data transfer. Doing so will cause all the data to be lost beyond recovery.

Do not change the names of folders inside the DP-32.

•

NOTE

The UTILITY folder is used, for example, to update the system software used by the unit. In addition, do not delete or change the names of individual files in the Song subfolder inside the MUSIC folder. You can, however, delete an entire Song folder if you no longer need that song.

Disconnecting

Follow these procedures to disconnect the USB connection correctly.

CAUTION

When transferring data, do not disconnect the unit or remove the USB cable. Doing so could cause data on the computer or this unit to be damaged.

NOTE

When disconnecting from a computer, the procedure on the computer might be called "eject", "unmount'' or "remove".

Disconnecting from Macintosh computers

1. Drag the DP-32 icon that represents this unit to the Trash, or use Command + E to eject the DP-32.

TIP

Depending on the OS version and settings you might also be able to eject the DP-32 icon by clicking on an eject icon next to it in a Finder window or by using a control key.

2. After the DP-32 icon disappears from the display, press the function key to disconnect this unit and the computer. After that, unplug the USB cable.

The Home screen opens on the display.

Disconnecting from computers running

Windows XP, Windows Vista or Windows 7

Follow these procedures to disconnect from computers that use Windows XP, Windows Vista or Windows 7 operating systems.

A PC card icon and arrow appear in the taskbar (usually at the bottom right of the screen).

1. Left click on this icon to open a pop-up bar. Click on this pop-up bar to disconnect this unit from the computer.

2. After a message appears on the computer screen saying that the unit can be disconnected, press the applicable function key to disconnect it from the computer. After that, unplug the USB cable.

The Home screen opens on the display.

CAUTION

If a message appears on the computer screen saying that this unit cannot be disconnected safely, do not disconnect the USB cable.

Close all the computer programs and windows that are accessing files on this unit, and then try the operation again.

TASCAM DP-32 77

13 - Exchanging Data with a Computer

Track import and export

You can import and export individual tracks between a computer and this unit using the AudioDepot folder.

Files must be WAV files (with the ".WAV" extension) to be imported/exported as tracks.

You can import both mono and stereo files, and export mono files.

If you want to import an audio file of a different format into this unit, you must convert it to a WAV file first.

Importing tracks

1. Connect the unit to a computer. (See "Connecting to a computer" on page 76.)

2. Use the computer to copy WAV files to the AudioDepot folder on the SD card in this unit.

NOTE

The files to be copied must have single-byte alphanumeric character names. If you try to copy a file with double-byte characters, it cannot be imported because the file name will not appear on the display in step 6 below,.

3. Disconnect the unit properly from the computer, and then unplug the USB cable. (See "Disconnecting" on page 77.)

4. Press the MENU button to open the

5. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

screen.

AUDIO DEPOT

6. Use the JOG/DATA dial or the CURSOR (5/b)

buttons to select the WAV file that you want to import, and then press the F1 (

Empty tracks that can be imported appear.

NOTE

If you are trying to import a WAV file with attributes that

•

do not match the current song, an error pop-up message appears. For example, this occurs if the current song is

44.1 kHz and you try to import a 48 kHz WAV file. If there is no file that can be imported, appears.

When the file name is short, spaces appear after the file

•

name, but those spaces are not included in the actual file name.

7. Use the JOG/DATA dial or the CURSOR (5/b)

buttons to select the track to be imported, and then press the F4 (t) button.

A confirmation message appears.

IMPORT

FILE NOT FOUND

) button.

WAV files that can be imported appear.

NOTE

If the WAV file to be imported is stereo, you must select a track pair.

8. Press the F2 ( file.

NOTE

If there is not enough space or the file format is wrong, an

•

error message appears. The beginning of the file is set at the start of the song

•

00:00:00:00

( recording tracks, you can edit a track with an imported file. (See "Overview of track Editing" on page 57.)

To import a stereo WAV file, an empty stereo track is

•

necessary.

9. Once importing completes, a pop-up window appears and then the reopens.

10. Press the HOME button to return to the Home screen.

YES

) button to start importing the

). In the same way as with other

Audio Depot

screen

78 TASCAM DP-32

13 - Exchanging Data with a Computer

Exporting tracks

1. When the recorder is stopped, press the MENU button to open the

2. Use the JOG/DATA dial or the CURSOR (5/b/g/t) buttons to select (highlight green) and then press the F4 (t) button.

3. Press the F2 (

The

EXPORT

that contain audio data.

NOTE

Song tracks that do not have audio data are not displayed in the file list.

4. Use the JOG/DATA dial to select (highlight blue) the track that you want to export, and then press the F2 (4) button.

A check mark 4 appears in the box next to the selected track.

screen.

AUDIO DEPOT

EXPORT

screen opens showing a list of tracks

) button.

6. Press the F2 ( track to the AudioDepot folder.

NOTE

When a track file with the same name already exists in the

AudioDepot folder, a number is added to the file name end, so the existing track is not overwritten.

7. After a pop-up message appears, the

Audio Depot

8. Press the HOME button to return to the Home screen.

9. Connect the unit to a computer. (See "Connecting to a computer" on page 76.)

10. Operate the computer to copy track files from the AudioDepot folder of the SD card to the computer.

11. After exporting track files to the computer, disconnect the unit from the computer using the proper procedures, and then unplug the USB cable. (See "Disconnecting" on page 77.)

YES

) button to export the selected

screen reopens.

Deleting files from the AudioDepot folder

1. When the file list is displayed, use the JOG/DATA dial or the CURSOR (5/b) buttons to select the files that you want to delete.

2. Press the F3 ( confirmation message.

DELETE

) button to open a

By checking multiple boxes (4), you can export more than one track at once.

NOTE

To remove a check mark 4 from a box, press the F2 (4) button again while the track is selected (highlighted blue).

5. After you finish putting checks (4) next to the

tracks you want to export, press the F4 (t) button.

A confirmation message appears.

3. Press the F2 (

If you want to delete multiple files, repeat the procedure above.

YES

) button to confirm deletion.

TASCAM DP-32 79

14 - Using CDs

Using the CD drive

This unit has a CD drive that supports writing to CD-R and CD-RW discs. In addition to playing back audio CDs (CD-DA discs), the unit's CD drive can also be used for the following purposes.

Create audio CDs from master files

•

Import tracks from audio CDs into the current song

•

NOTE

Standard audio CDs are 16-bit, 44.1kHz format.

If you make an audio CD using a master file of a song that was created with different settings, it will automatically be converted to 16-bit, 44.1kHz format.

Preparations before using CDs with this unit

When using CDs with this unit, make the following preparations.

Before using a CD, change the recorder to

•

Multi Track Multi Track

Mixdown

In MIXDOWN/MASTERING button repeatedly until the unit switches to

Bounce

Multi Track

Open the

•

mode. In modes other than , you cannot open the CD menu.

Mastering

Multi Track

mode, press the BOUNCE button to switch

mode.

menu before inserting or ejecting a CD.

mode, press the

mode.

Compatible CD types

This unit is compatible with 12cm and 8cm CD, CD-R, CD-RW and CD-RW High Speed discs. This unit does not support CD-RW Ultra Speed or CD-RW Ultra Speed+ discs.

For the functions that can be used with different types of discs, see the "Media Compatibility Table" on page 87.

Writing to an already written CD-RW

With this unit, you do not need to erase a CD-RW beforehand. You can use a previously written CD-RW by erasing it at the beginning of the desired operation.

When creating an audio CD, the following message will appear if you load an already written CD-RW disc.

Conrmation message

Press the F2 ( recorded on the disc.

If you do not want to erase the CD-RW disc, press the F1

(

) button. The disc tray will open slightly. Pull the tray

out and replace the disc with another one.

CAUTION

If you use Track At Once to write a master file to an unfinalized CD-RW in audio CD format (a CD-RW created by selecting a single master file on the screen and setting added without showing the CD-RW erasure warning, and it will not overwrite existing data on the disc.

Yes

) button to erase the data previously

MASTER WRITE

FINALIZE

OFF

), the file will be

In order to prevent the sound of the CD drive being operated during recording, for example, the power to the drive is disabled when in modes other than CD mode. For this reason, it is necessary to put the unit into CD mode in order to load or eject a CD. Even in CD mode, a CD cannot be loaded or ejected after being loaded, unless the CD menu is open.

Since CDs are unmounted when screens other than the CD menu are open, use the CD menu or

IMPORT

screen to load or eject a CD.

CD PLAY/

80 TASCAM DP-32

Loading and ejecting CDs

Place the disc on the disc tray at the front of the unit.

1. When in to open the CD menu.

2. Press the F3 (-) button or the disc tray eject button on the front panel to open the tray slightly.

Pull the tray out until it opens completely as shown below.

Multi Track

mode, press the CD button

14 - Using CDs

CAUTION

Pull the tray out completely. If you try to load a disc

•

into the tray or remove a disc from it when it is not open completely, the disc could be scratched, making it unusable.

Do not touch the writable (unlabeled) side of a disc.

•

Doing so could cause it to become dirty or scratched, making it unusable.

Loading a CD

1. As shown in the illustration, hold the edge of the disc with the label side up and put it into the tray so that its central hole is on the round protrusion at the center of the tray.

When a disc is not properly loaded

Pull the tray out completely once, reload the disc properly and push the tray closed again. (If you force the disc in, the unit or the disc could be damaged.)

Ejecting a CD

1. When in to open the CD menu.

2. Press the F3 (-) button or the disc tray eject button on the front panel to open the tray slightly, and then pull the tray out until it opens completely.

Hold the disc by its edges and lift it out.

CAUTION

Do not lift the disc forcibly. Doing so could damage the unit or the disc.

Multi Track

mode, press the CD button

2. Press the disc gently near the center to set it on the tray.

The disc should click into place and be level with the tray.

3. Push the tray to close it. The tray will click when shut.

TASCAM DP-32 81

14 - Using CDs

Forcing disc ejection

If the disc does not eject even when you press the F3 (-) button while the CD menu is open or press the disc tray eject button on the front panel due to a failure of the CD drive, for example, you can eject the disc by using the emergency eject button, which is accessed through a small hole.

Before using the emergency eject function, turn the power off (put it in standby), disconnect the AC adaptor from the unit. Then, follow these procedures.

1. Prepare an extended paper clip or similar object.

2. Insert the paper clip into the hole and press the emergency eject button a few times.

3. When the disc tray opens slightly, pull it out by hand.

CAUTION

Use this function only in an emergency. Normally,

•

remove the disc by the usual procedure. (See "Ejecting a CD" above.)

Never use the emergency ejection button to eject a

•

disc when power is ON.

Playing back an audio CD

1. Press the CD button to open the CD menu.

2. Load an audio CD.

3. Use the JOG/DATA dial to select (highlight blue)

PLAY/IMPORT

and then press the F4 (t) button.

3 This shows the elapsed time from the beginning

of the track currently playing back.

4 These meters show the levels of the audio

recorded on the CD. The playback signal sent from the CD to the MONITOR OUT and PHONES jacks of this unit cannot be adjusted with the STEREO fader.

4. When the can use the JOG/DATA dial and other buttons to control the CD player.

Button/dial Description

JOG/DATA STOP (8)

PL AY (7)

REW (m) (TO ZERO)

F FWD (,) (TO LAST REC)

STOP (8)

+ REW (m)

(TO ZERO) F2 (4) F3 (-) F4 (t)

NOTE

During playback, selecting a track does not affect playback. Stop playback and start again to play the selected track.

CD PLAY/IMPORT

Select a track for playback.

Stop the CD player.

Press when the CD player is stopped to play the selected track.

Skip to previous track when near the beginning of a track. Return to the beginning of the current track when in the middle of a track.

Skip to the next track.

Skip to the first track on the CD and stop.

Select a track to be imported.

Stop playback and open the disc tray.

Import tracks.

screen is open, you

The

CD PLAY/IMPORT

drive works as a CD player.

screen opens and the CD

1 This shows the number of the track currently

playing back.

2 This shows the track numbers and times.

You can use the JOG/DATA dial to change the selected track. When the CD player is stopped, press the PL AY (7) button to play back the selected track.

Creating an audio CD

You can create audio CDs that can be played back by ordinary CD players using this unit by writing song master files to CD-R and CD-RW discs. (See "Creating a master file" on page 65.)

Use the following three methods to create audio CDs.

Disc At Once (DAO)

Use Disc At Once to write multiple master files to a disc at one time.

Since this method automatically finalizes the disc, making it playable by an ordinary CD player, you will be able to use the completed disc with other CD players right away. (See "Finalizing a CD" on page 86.)

However, once DAO completes, you will not be able to add any more tracks to the CD-R/CD-RW because it will have been automatically finalized.

Track At Once (TAO)

Use Track At Once to write a single master file at a time to a CD-R/CD-RW.

Use this when you want to write files to a CD-R/CD-RW at different times.

82 TASCAM DP-32

With TAO, the CD-R/CD-RW is not automatically finalized.

Note that even though an unfinalized CD-R/CD-RW can be played in this unit, it cannot be played by ordinary CD players.

After you have written all the master files to a disc that you want using TAO, finalize the disc. (See "Finalizing a CD" on page 86.)

You cannot add more tracks to a CD-R/CD-RW that has been finalized.

LIVE WRITER function

You can use marks to divide a master file into multiple parts, and write them as multiple tracks to a disc.

Using Disc At Once

Use Disc At Once when you have selected multiple tracks.

Using DAO, you can set the order of multiple tracks as you like. Moreover, you can set the length of silent pauses and add them between songs.

NOTE

When using DAO, you can also make multiple discs with the same contents. When doing so, use identical discs (same manufacturer, type and capacity).

1. When in to open the CD menu.

2. Place a blank CD (unused CD-R/CD-RW disc or a completely erased CD-RW) on the disc tray.

3. Use the JOG/DATA dial to select (highlight blue)

MASTER WRITE

Multi Track

and then press the F4 (t) button.

mode, press the CD button

14 - Using CDs

NOTE

To remove the check mark 4 from a check box, press the F2 (4) button again while the song is selected (highlighted blue).

5. Repeat step 4 above as necessary.

6. To use noise shaped dithering, press the F3 (NSD) button to check (4) the box.

7. After you finish selecting songs, press the F4 (t) button.

The

WRITE SONG LIST

screen, you can change the order that the master files will be written to the CD-R/CD-RW and set the length of the gaps between them.

8. To change the song order, press the F2 ( button to open the (song order change screen).

screen opens. On this

ORDER

WRITE SONG ORDER

)

screen

This opens the list of songs that have recorded master files.

4. Use the JOG/DATA dial to select (highlight blue) songs which you want to write to CD-R/CD-RW, and press the F2 (4) button to select the desired songs (selected songs have check marks 4 in the boxes next to them).

MASTER WRITE

screen that shows a

9. Use the JOG/DATA dial or the CURSOR (5/b)

buttons to select (highlight blue) the song that you want to put in different order, and then press the F2 (

MOVE

) button.

4 appears before the song name.

TASCAM DP-32 83

14 - Using CDs

10. Use the JOG/DATA dial to change the song position.

Press the F2 (

SELECT

) button to confirm.

To change the order of multiple songs, repeat the steps 9 and 10 above.

11. When the song order is as you want, press the (g) button to return to the

WRITE SONG LIST

screen.

12. To change the gap between the songs, press the F3 (

GAP

) button.

The

WRITE SONG GAP

screen opens.

17. When the confirmation message appears, press the F2 (

YES

) button to confirm.

CD-R/CD-RW writing starts.

NOTE

If you want to cancel the writing, press the F1 (NO) button to return to the

WRITE SONG LIST

screen.

18. When writing completes, a message appears asking whether you want to write another CD-R/ CD-RW with the same contents.

13. Use the CURSOR (5/b) buttons to select (highlight

blue) the song for which you want to change the length of the gap that follows it, and then use the JOG/DATA dial to set the gap length.

The song gap can be set between 0.0 to 9.9 seconds, in 0.1-second units.

NOTE

To change the gap between multiple songs, repeat step 13 above.

14. You can also press the F2 (

ALL

) button to set all

gaps at once.

Use the JOG/DATA dial to set the gap between the songs.

Press F2 (

WRITE SONG GAP

SET

) to confirm the setting and return to the

screen.

15. Once you have completed setting the gap lengths, press the

WRITE SONG LIST

16.

After you have finished changing the song order

F1 (g) button to return to the

screen.

and song gap settings, press the F4 (t) button.

If you want to burn another CD-R/CD-RW with the same contents, press the F2 (

YES

) button. If you

do not want to burn another disc, press the F1 (NO) button.

Using Track At Once

When using Track At Once, after one track is written, a two-second gap is added after it.

1. When in to open the CD menu.

2. Place a blank CD (unused CD-R/CD-RW disc or a completely erased CD-RW) on the disc tray.

NOTE

If you put a CD-R/CD-RW that has been used previously to write tracks using Track At Once and has not been finalized, you can add another track to it. In this case, no pop-up window to confirm erasure of the CD-RW appears.

3. Use the JOG/DATA dial to select (highlight blue)

MASTER WRITE

Multi Track

and then press the F4 (t) button.

mode, press the CD button

84 TASCAM DP-32

14 - Using CDs

This opens the

MASTER WRITE

screen that shows a

list of songs that have recorded master files.

4. Use the JOG/DATA dial to select (highlight blue) only one song to write to the CD-R/CD-RW, and

then press the F2 (4) button.

A check mark 4 appears in the box next to the selected song.

NOTE

To remove a check mark 4 from a box, press the F2 (4) button again while the song is selected (highlighted blue).

5. To use noise shaped dithering, press the F3 (NSD) button to check (4) the box.

6. Press the F4 (t) button.

A pop-up window appears asking whether you want to finalize the disc when the writing completes.

Using LIVE WRITER

1. When in to open the CD menu.

2. Place a blank CD (unused CD-R/CD-RW disc or a completely erased CD-RW) on the disc tray.

3. Use the JOG/DATA dial to select (highlight blue)

LIVE WRITER

This opens the divide master files at mark points.

At this time, if no master file has been created or no mark has been set, a messages appears.

4. To use noise shaped dithering, press the F3 (NSD) button to check (4) the box.

5. The column for TRACK 1 shows the song name, the columns for TRACK 2 and after show the mark name.

Press the F4 (t) button and the following confirmation message will appear.

Multi Track

and then press the F4 (t) button.

LIVE WRITER

mode, press the CD button

screen where you can

TIP

Finalize the disc if you do not plan to add any more tracks to the CD-R/CD-RW. (See "Finalizing a CD" on page 86.)

7. To finalize, use the JOG/DATA dial to select otherwise, select button again (default:

OFF

, and then press the F4 (t)

OFF

The confirmation message shown below appears.

8. Press the F2 (

YES

) button to begin writing to the

CD-R/CD-RW.

6. Press the F2 ( CD-R/CD-RW.

YES

) button to begin writing to the

TASCAM DP-32 85

14 - Using CDs

Finalizing a CD

If you do not plan to write any more songs to a CD-R/CDRW using Track At Once, finalize it so that it can be played on a regular CD player.

1. When in to open the CD menu.

2. Load the CD-R/CD-RW that you want to finalize.

3. Use the JOG/DATA dial to select (highlight blue)

FINALIZE

A finalize confirmation message appears.

Multi Track

and then press the F4 (t) button.

mode, press the CD button

Importing songs from audio CDs

You can import tracks (songs) from an audio CD to the AudioDepot folder.

1. When in to open the CD menu.

2. Load the audio CD on the disc tray.

3. Use the JOG/DATA dial to select (highlight blue)

PLAY/IMPORT

The

Multi Track

and then press the F4 (t) button.

CD PLAY/IMPORT

screen opens.

mode, press the CD button

4. Press the F2 (

NOTE

Note that unfinalized CD-R/CD-RWs cannot be played in

•

ordinary CD players. You cannot add tracks to a disc that has been finalized.

•

YES

) button to finalize the disc.

4. Use the JOG/DATA dial to select the tracks that you want to import and confirm them with the F2 (4) button, and then press the F4 (t) button to show a list of the tracks to be imported. If the tracks in the list are okay, press the F4 (t) button again to start importing.

5. When a confirmation message appears, press the F2 (

YES

) button to confirm.

86 TASCAM DP-32

After the tracks have been imported from the audio CD, the

CD PLAY/IMPORT

reopens.

14 - Using CDs

Erasing a CD-RW

Follow these procedures to erase the songs recorded on a CD-RW disc.

1. When in to open the CD menu.

2. Load the CD-RW that you want to erase.

3. Use the JOG/DATA dial to select press the F4 (t) button.

A confirmation message appears.

4. Press the F2 ( RW.

After the disc is erased, the

CAUTION

This operation erases the entire CD-RW. Erased data cannot be restored. Confirm that you will not lose important data before erasing a disc.

Multi Track

YES

) button to begin erasing the CD-

mode, press the CD button

ERASE

menu reopens.

and then

Media Compatibility Table

Audio CD

playback

and import

Commercially-available standard CDDA format CD

Finalized standard CDDA format CD-R/CD-RW (made by this player)

Finalized standard CDDA format CD-R/CD-RW (made by a device other than this player)

Unfinalized standard CDDA format CD-R/CD-RW (made by this player)

Unfinalized standard CDDA format CD-R/CD-RW (made by a device other than this player)

Commercially-available CD in a format other than standard CDDA (protected CD, DATA CD, enhanced CD, etc.)

Non-standard CDDA format CD-R/CD-RW (DATA CD, enhanced CD, etc.)

Blank High-Speed CD-R/CD-RW OK

Ultra-Speed CD-RW N N

–

OK OK

N N

–

OK: Compatible

–: Operation not assured

N: Not compatible

Audio CD

writing

NOTE

CD-R discs cannot be erased.

TASCAM DP-32 87

15 – Troubleshooting

When working with this unit, if something is not working as you expect it should or if you experience any other difficulties, please refer to this troubleshooting section first. It contains the most common troubles, their probable causes and corrective measures. In addition, see the "Messages" chapter starting on page 89 for the meaning of messages that may appear on the display. Consult this table if a message appears when an operation cannot be completed by the unit.

The SD card is not recognized.

Confirm that the SD card is completely inserted.

•

Why can't I hear any sound when I play back?

Are the track faders of the tracks set to a proper level?

•

Is the STEREO fader set to a proper level?

•

Have you connected the PHONES or MONITOR

•

OUT jacks to your headphones or monitoring system properly?

Is your monitoring system set up correctly?

Is the MONITOR LEVEL knob set to a proper level?

•

(PHONES jack only)

The sound I am trying to record sounds distorted.

Are the INPUT A to H TRIM knobs on the top of the

•

unit set too high? Is the input source too loud?

Is the monitoring system distorted because the

•

monitoring level is too high?

Why can't I record?

You must have at least one track in recording standby

•

(REC indicator flashing) before you can start recording by pressing the RECORD (0 ).

Are input sources assigned to tracks? (See "Assigning

•

inputs" on page 40.)

Noise occurs if I connect a passive guitar or bass directly.

Connecting another device to the unit's STEREO OUT

•

jacks might reduce the noise. This might be caused by interference from another

•

device. If there is a power amplifier or other device that uses a large transformer, a fluorescent light or something similar nearby, you might be able to reduce the noise by changing the distance and orientation of this unit in relation to such equipment.

You might also be able to noise if you use this unit's

•

GROUND connector to ground the unit.

The disc tray does not open.

The disc tray will not open unless CD mode is active

•

(

screen or its CD menu open). Put the recorder into

Multi Track

the CD menu, and then press the F3 (-) button or the disc eject button on the front panel.

An audio CD that I made cannot be played on a CD player.

Did you finalize the audio CD?

•

An audio CD that has not been finalized cannot be played on an ordinary CD player. Finalize the CD and try again. (You cannot record on the CD any more after finalizing it.)

Are you trying to play a CD-RW disc on a CD player that

•

does not support CD-RW discs? Use a compatible CD player or create a new audio CD

using a CD-R disc. (Some CD players cannot play back CD-R discs either.)

I cannot or fail to create an audio CD.

Are you using a blank CD (CD-R/CD-RW) that is

•

supported by this unit? This unit does not support Ultra-Speed or Ultra-Speed+

CD-RW discs.

Depending on the manufacturer and type of CD-R/CD-

•

RW, writing might fail, writing might succeed but result in an unreadable disc, or writing might take a long time. In any of these cases, try using a CD-R/CD-RW from a different manufacturer or of a different brand.

mode, press the CD button to open

88 TASCAM DP-32

16 – Messages

General messages

The following list shows messages that could appear during the use of this unit.

These messages alert you to conditions that might arise while you are using the unit. Consult the table below if you see something you do not understand or if you want to know how to solve a problem.

Message Description and remedy

Can not Import

Cannot Clear Current

Card Error

Card Full

Empty Export Track

Export File Too Big

File Not Found

Format Error Format CARD

I/O Too Short

Import Failed Export Failed

Import File Too Large

In Bounce Mode

In Master Mode

In Punch Mode

In Repeat Mode

Invalid Card

Invalid Card Change Card

Mark Full

Master File Not Found

This pop-up appears when the sample frequency or bit rate of the selected file in the AUDIO DEPOT IMPORT menu differs from the current song.

The current track cannot be deleted. A virtual track assigned to a physical track cannot be deleted.

The card could not be recognized properly. Replace the card.

The card has no remaining capacity. Erase unnecessary files or move them to your computer to make open space.

You tried to export a track that does not contain any recording data. This pop-up appears if you try to export a song track that does not contain a recording. (See "Exporting tracks" on page 79.) Export a song track that has a recording.

The track to be exported exceeds the available capacity on the SD card. You have tried to export a track to the AudioDepot folder, but the size is too large for the remaining space on the SD card. Delete unnecessary songs or files from the AudioDepot folder to create more space on the SD card, then try to export the track again.

The file to be imported could not be found. You tried to import a WAV file from the AudioDepot folder, but there are no WAV files in it. (See "Importing tracks" on page 78.) Connect the unit to a computer and transfer files that you want to import from the computer to the AudioDepot folder of the unit.

The formatting of the card is abnormal or corrupted. This message also appears if you used a computer connected via USB to format the card in FAT format and if an unformatted card is inserted in the unit. Always use the DP-32 to format cards to be used with it. Replace the card or format it using the FORMAT menu. FAT formatting erases all data currently on the card.

The interval between IN and OUT points is too short. You tried to use repeat mode, but the time between the IN and OUT points is too short.

Importing or exporting failed.

The size of file to be imported is too large. You tried to import a WAV file from the AudioDepot folder that is too large for the remaining space on the SD card. Free up some space in the AudioDepot folder by deleting unnecessary songs, and try again.

Bounce mode is active. You tried to perform an action that is not possible while in Bounce mode.

Mastering mode is active. You tried to perform an action that is not possible while in Mastering mode.

Auto punch mode is active. You tried to perform an action that is not possible while in auto punch mode.

Repeat playback mode is active. You tried to perform an action that is not possible while in repeat playback mode.

The inserted SD card is in a format the cannot be used by this unit. Insert another SD card after turning off the unit, or format the card using FORMAT on the MENU screen.

Something might be wrong with the card. Replace the card.

It is not possible to add more location marks. You tried to store more than 99 location marks in a song. (See "Location marks" on page 51.) Delete some location marks and try again.

A master file could not be found. This message appears if you try to enter Mastering mode, but you have not made any mixdown recording yet. First make a mixdown recording.

TASCAM DP-32 89

16 – Messages

Master Track Too Large

MBR Error Init CARD

No Card

No Armed Track

No Undo History

Not Stopped

Now Recording

OUT point must be set after the IN point.

Protected Card

Recorded Track Not Found

Revert to discard changes.

Same Track

The master file is too large. You tried to create a master file that is larger than the remaining open space on the SD card. To make more space, format the SD card (see "Quick formatting an SD card" on page 74 and "Full formatting an SD card" on page 75), delete unnecessary files or connect the unit to a computer to transfer (and then delete) files.

The formatting of the card is abnormal or corrupted. Replace the card or format the card using the FORMAT menu. Formatting erases all data currently on the card.

No SD card is in the unit. Load a recordable SD card.

There is no track in recording standby (armed). You tried to enter auto punch mode or pressed the standby. (See "Automatic punching in and out" on page 54.) Put a track into recording standby before pressing

There is no undo history. There are no actions to be undone. (See "Undoing an operation" on page 47.)

The recorder transport is not stopped. When the recorder is not stopped, this message appears if you press a button, such as that works only when the recorder is stopped.

The unit is recording. This message appears when you try to operate a menu while the unit is recording. Some other operations are also not allowed during recording.

You cannot set the OUT point before the IN point. Set the OUT point after the IN point.

The inserted SD card is write-protected. To record or edit, turn off the unit and unlock the write-protection on the SD card.

When trying to use the export function, no recordings were found on the current song's tracks. No tracks have been recorded in the current song, or virtual tracks with recordings have not been assigned to physical tracks. Select a recorded song, assign the track you want to export to a physical track, and then export it. (See "Virtual tracks" on page 56.)

Edits and changes made since the song was loaded will be cleared, and the song will be reset to status it had when loaded. Proceed only when you are sure you wish to discard all changes.

The same track has been specified. This message appears when using the clone track function if the source track is also set as the destination track.

RECORD button when no tracks were in recording

RECORD or activating auto punch.

UNDO/REDO,

Song Protected

Stereo Track Full

Track Full

Trk Edit Fail

Trk Too Short

Turn off the Guitar Effect or use two or less Dynamic Effects.

Work Memory Full

The song is protected. You are trying to change (record, edit, etc.) a protected song. (See "Protecting songs" on page 38.) Unprotect the song.

All the stereo tracks already have recordings. This message appears if you try to import a stereo file when all the stereo tracks in the song already have recordings, even if some mono tracks are still open.

All the tracks already have recordings. This message appears if you try to import a file when all tracks in the song already have recordings. (See "Importing tracks" on page 78.)

Track editing failed. Save the song, turn the unit off and on again, and then try the track edit one more time.

The track is too short. You are trying to record in mixdown mode, but the time between the IN and OUT points is too short. The IN and OUT points must be at least 4 seconds apart. (See "Setting IN/OUT points" on page 53.)

While using a guitar effect, the use of dynamic effects is limited to one or two channels. To use dynamic effects on three or more channels, turn the guitar effect OFF.

The working memory is full. Even if the SD card has enough remaining space, this error could occur if you perform many editing

operations. You may be able to continue to work after executing the

SONG

menu to increase the amount of available working memory. (See "Undoing an operation" on

page 47.)

DELETE UNUSED

item in the

90 TASCAM DP-32

Audio Rst Fail Device Error File Error No CD Drive Not Continued Remote Cmd Remote Rx Sys Rom Err System Err 50 System Error 1 System Error 2 System Error 3 System Error 4 System Error 5 System Error 6 System Error 7 System Error 8 System Error 9 Writing Failed

16 – Messages

If any of these errors occur, turn the unit's power off and restart it. If these error messages continue to appear, please contact a TEAC Service Center.

CD mode messages

The following pop-up messages appear when the unit is in CD mode (when the CD menu or one of its submenus is open).

Refer to this chart when you want to understand the meaning of these messages and how you should respond to them.

Message Description and remedy

Blank CD Insert CD-RW

Blank CD Insert Opened CD

Finalized CD Insert CD-RW

Finalized CD Insert Opened CD

Import File Too Big

Invalid CD Insert Blank CD

Not Erasable Insert CD-RW

Invalid CD Insert Opened CD

A blank CD has been inserted. Insert a CD-RW that is not blank. This message appears when the ERASE item of the CD menu is used, but the set disc is blank. There is no need to erase the inserted CD-RW.

A blank CD has been inserted. Insert an unfinalized CD-R/CD-RW. This message appears when the FINALIZE item of the CD menu is used, but the set disc is blank. Insert a CD-R/CD-RW that you want to finalize.

A finalized CD-RW has been inserted. Insert an unfinalized CD-RW. This message appears when the ERASE item of the CD menu is used, but the set disc is a finalized CD-R/ CD-RW. Only CD-RW discs can be erased.

A finalized CD-R/CD-RW has been inserted. Insert an unfinalized CD-R/CD-RW. This message appears when the FINALIZE item of the CD menu is used, but the set disc is an already finalized CD-R/CD-RW. This CD-R/CD-RW does not need to be finalized.

The size of file to be imported is too large. When using the CD PLAY/IMPORT item of the CD menu, the size of the file to be imported exceeds the free space on the SD card. Create more free space on the SD card by erasing the undo operation history, for example, to open enough space to import the file.

An invalid CD-R/CD-RW has been inserted. Insert a blank CD. You tried to write to a CD-R/CD-RW using the MASTER WRITE or CD BACKUP items in the CD menu, but inserted a CD-R/CD-RW that is not blank. ( When using Track At Once, this message also appears if a finalized CD-R/CD-RW is set.) Insert a blank CD.

A disc other than a CD-RW has been inserted. This message appears when the ERASE item of the CD menu is used, but the set disc is a CD-R. Insert a CD-RW that you want to erase.

An invalid CD-R/CD-RW has been inserted. Insert an unfinalized CD-R/CD-RW. This message appears when the FINALIZE item of the CD menu is used, but a CD-R/CD-RW that cannot be finalized has been inserted. Insert a CD-R/CD-RW that you want to finalize.

TASCAM DP-32 91

16 – Messages

No disc Insert Blank CD

No disc Insert Opened CD

No Room On CD

Not Audio CD Insert Audio CD

Not Blank Insert Blank CD

There is no CD-R/CD-RW inserted. Insert a blank CD. There is no CD-R/CD-RW loaded in the disc tray, but you tried to write to a CD-R/CD-RW with the MASTER WRITE item of the CD menu. Insert a blank CD and close the disc tray.

There is no CD-R/CD-RW inserted. Insert an unfinalized CD-R/CD-RW. There is no CD-R/CD-RW in the CD tray, but you tried to use the FINALIZE item of the CD menu.

You tried to write an amount of data that exceeds the CD-R/CD-RW capacity. You selected a master file to be written to the CD-R/CD-RW using the MASTER WRITE item of the CD menu, but the total size of that file exceeds the remaining capacity of the loaded CD-R/CD-RW. Change or erase the disc or use a smaller master file.

You loaded a CD that is not an audio CD. Insert an audio CD. This message appears when you try to use the CD-DA IMPORT item of the CD menu to import audio if the loaded CD is not an audio CD.

An unfinalized CD-R/CD-RW has been inserted. Insert a blank CD. This message appears when you try to create an audio CD with Disc At Once, but an unfinalized CD-R/ CD-RW written with Track At Once has been loaded. Either insert a blank CD or write with Track At Once.

CD-related error messages

If you experience a problem while reading or writing a CD, you may see one of the following error messages.

When one of the messages is displayed, press the HOME button to exit the operation.

Message Description and remedy

CD Read Error

CD Write Error

Erase Error

Finalize Error

Import Error

Media Error

Writing Failed

An error occurred during the execution of a CD menu FINALIZE, CD-DA IMPORT or ERASE operation.

An error occurred during the execution of a CD menu FINALIZE or ERASE operation.

An error occurred during the execution of a CD menu ERASE operation.

An error occurred during the execution of a CD menu FINALIZE operation.

An error occurred during the execution of a CD menu CD-DA IMPORT operation.

An error occurred during the execution of a CD menu CD PLAYER operation.

An error in CD-R/CD-RW writing occurred during the execution of a CD menu MASTER WRITE operation.

menu, then check the disc, and retry the

92 TASCAM DP-32

17 – Specifications

Ratings

Recording media

SD card (512 MB to 2 GB) SDHC card (4 GB to 32 GB)

File system

SD card (512 MB to 2 GB): FAT16 SDHC card (4 GB to 32 GB): FAT32

Input/output ratings

Analog audio input/output ratings

INPUT A to H jack

XLR type (Balanced)

•

Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD) Input impedance: 2.4 kΩ Rated input level: –14 dBu Maximum input level: +2 dBu

Standard jack type (Balanced)

•

Connector: 6.3 mm (1/4") TRS standard jack Input impedance:

Above 22 kΩ 1 MΩ (INPUT H only, when LINE-GUITAR switch is

set to GUITAR)

Rated input level: +4 dBu Maximum input level: +20 dBu

STEREO OUT jack

Connector: RCA pin jack Rated output level: –10 dBV Maximum output level: +6 dBV Output impedance: 200 Ω

EFFECT SENDS jack

Connector: 6.3 mm (1/4") TS standard jack Rated output level: –10 dBV Maximum output level: +6 dBV Output impedance: 200 Ω

MONITOR OUT jack

Connector: 6.3 mm (1/4") TRS standard jack Rated output level: –2 dBu Maximum output level: +14 dBu Output impedance: 200 Ω

PHONES jack

Connector: 6.3 mm stereo jack Maximum output level: 70 mW+70 mW or more

(THD+N 0.1% or less, 32 Ω load)

Control input/output ratings

MIDI input (MIDI IN)

Connector: 5-pin DIN Format: Standard MIDI format

MIDI output (MIDI OUT)

Connector: 5-pin DIN Format: Standard MIDI format

USB port

Connector: USB 4-pin mini-B type Format: Mass Storage Class USB 2.0 HIGH SPEED

REMOTE jack

Connector: 2.5 mm TRS jack

Audio performance

Frequency response

INPUT (MIC/LINE) q STEREO OUT/EFFECT SENDS/ MONITOR OUT: 20 Hz to 20 kHz, +1 dB/–1 dB

Distortion

INPUT (MIC/LINE) q STEREO OUT/EFFECT SENDS/ MONITOR OUT: 0.01% or less

S/N ratio

INPUT (MIC/LINE) q STEREO OUT/EFFECT SENDS/ MONITOR OUT: 90 dB or more

Operating requirements

See the TASCAM website (http://www.tascam.com/) for updated information about OS compatibility.

Windows

Pentium 300 MHz or faster 128 MB or more memory USB port (USB 2.0 recommended)

Macintosh

Power PC, iMac, G3, G4 266 MHz or faster 64 MB or more memory USB port (USB 2.0 recommended)

Recommended USB host controller

Intel chipset

Supported OS

Windows: Windows XP, Windows Vista, Windows 7 Macintosh: Mac OS X 10.2 or later

TASCAM DP-32 93

17 – Specifications

General

Power supply

AC adaptor (TASCAM PS-1225L)

Power consumption

12 W (Phantom power ON)

Dimensions

514 x 104 x 340 mm (Width x Height x Depth, excluding projections)

Weight

6.2 kg/13.67 lb

Operating temperature range

5 to 35ºC/41 to 95ºF

Dimensional drawings

340mm

514mm

* Illustrations in this manual may differ from the actual product.

* In order to improve the product, specifications and appearance could be changed without prior notice.

104mm

94 TASCAM DP-32

Block diagram

DP-32 Mixer Block Diagram

17 – Specifications

INPUTA-H

TRACK1-32

TASCAM DP-32 95

17 – Specifications

Level diagram

96 TASCAM DP-32

18 – Appendix

MIDI Control Change message

When the DP-32 receives MIDI Control Change messages from an external device (such as a sequencer), they can control the DP-32 mixer and effect parameters.

Mixer control change parameters

Select a channel group of 8 track/input channels beforehand.

The Bank Select message is used with the MIDI channel 15 to select a channel group.

Bank 0: track channels 1 to 8

•

Bank 1: track channels 9 to 16

•

Bank 2: track channels 17 to 24

•

Bank 3: track channels 25 to 32

•

Bank 4: input channels A to H

•

The following table shows the variable range of mixer parameter and mapping to the MIDI Control Change.

MIDI Channel

Control Change

Number

7 Internal Level 0 - 127 (0=–∞dB, 105=0dB, 127=+6dB) 0 - 127 (–∞ - 0dB)

10 Pan 1 - 64 - 127=L63 - C (center) - R63

11 DigitalTrim 0 - 48 (–42 - +6dB)

16 Low Freq 0 - 31=

17 Low Gain 0 - 24=–12 - +12 (dB)

18 Mid Freq 0 - 63=

19 Mid Gain 0 - 24=–12 - +12 (dB)

20 Mid Q 0 - 6=0.25, 0.5, 1, 2, 4, 8, 16

21 High Freq 32 - 63=

22 High Gain 0 - 24=–12 - +12 (dB)

23 EFFECT1 Level 0 - 127 (0=–∞dB, 127=0dB) EFFECT1 Level

24 EFFECT2 Level 0 - 127 (0=–∞dB, 127=0dB) EFFECT2 Level

80 EQ SW 0, 1=OFF, ON

81 EFFECT1 Position 0, 1, 2=OFF, PRE, POST

82 EFFECT2 Position 0, 1, 2=OFF, PRE, POST

Parameter

Track/Input Channel Stereo Master

32, 40, 50, 60, 70, 80, 90, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500, 600, 700, 800, 850, 900, 950, 1.0k,

1.1k, 1.2k, 1.3k, 1.4k, 1.5k, 1.6k (Hz)

32, 40, 50, 60, 70, 80, 90, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500, 600, 700, 800, 850, 900, 950, 1.0k,

1.1k, 1.2k, 1.3k, 1.4k, 1.5k, 1.6k, 1.7k, 1.8k, 1.9k, 2.0k, 2.2k,

2.4k, 2.6k, 2.8k, 3.0k, 3.2k, 3.4k, 3.6k, 3.8k, 4.0k, 4.5k, 5.0k,

5.5k, 6.0k, 6.5k, 7.0k, 7.5k, 8.0k, 9.0k, 10k, 11k, 12k, 13k, 14k, 15k, 16k, 17k, 18k (Hz)

1.7k, 1.8k, 1.9k, 2.0k, 2.2k, 2.4k, 2.6k, 2.8k, 3.0k, 3.2k, 3.4k,

3.6k, 3.8k, 4.0k, 4.5k, 5.0k, 5.5k, 6.0k, 6.5k, 7.0k, 7.5k, 8.0k,

9.0k, 10k, 11k, 12k, 13k, 14k, 15k, 16k, 17k, 18k (Hz)

1 - 8 16

Values

TASCAM DP-32 97

18 – Appendix

MIDI Program Change message

When the DP-32 receives MIDI Program Change messages, it can call settings from the effect libraries.

The Bank Select message of MIDI Control Change is used to select presets and users of the effect libraries.

Different MIDI Channels are applied for each item.

MIDI

Channel

1 - 8*

* The Bank Select message of MIDI Control Change is used

with the MIDI channel 14 to select a channel group for the dynamic effect.

Bank 0: track channels 1 to 8

•

Bank 1: track channels 9 to 16

•

Bank 2: track channels 17 to 24

•

Bank 3: track channels 25 to 32

•

Bank 4: input channels A to H

•

The following tables show the preset libraries of each effect.

Dynamic effects

Program Change Display Effect type

CMP: Compressor

•

DSR: De-Esser

•

EXC: Exciter

•

NSP: Noise Suppressor

•

Parameter Function Value

Recalling the dynamic effect type

Calling from the send effect library

Calling from the guitar effect library

COMP CMP

NOISE SUPRESSOR NSP

DE-ESSER DSR

EXCITER EXC

Bank 0 (Type): 0 - 3

Bank 0 (Preset): 0 - 6 Bank 1 (User): 0 - 9

Bank 0 (Preset): 0 - 9 Bank 1 (User): 0 - 9

Preset libraries of the send effects

Program Change Display Effect type

REV: Reverb

•

DLY: Delay

•

CHO: Chorus

•

HALL REV

ROOM REV

LIVE REV

STUDIO REV

PLATE REV

CHORUS CHO

STEREO DLY D LY

Preset libraries of the guitar effects

Program Change Display Effect type

AMP: Amplifier

•

CMP: Compressor

•

FLG: Flanger

•

PHA: Phaser

•

CHO: Chorus

•

WAH: Wah

•

DLY: Delay

•

PRESET 01 AMP, CMP, DLY

PRESET 02 AMP, CHO

PRESET 03 AMP

PRESET 04 AMP, CMP, DLY

PRESET 05 AMP, FLG

PRESET 06 AMP, CMP

PRESET 07 AMP, CMP, CHO

PRESET 08 AMP, CMP, PHA

PRESET 09 AMP

PRESET 10 AMP, CMP, WAH

98 TASCAM DP-32

MIDI Implementation Chart

Function Transmitted Recognized Remarks

Basic Channel

Mode

Note Number

Velocity

Pitch Bend × ×

Control Change

Program Change

System Exclusive

System Common

System Real Time

Others

Notes

Default 1 - 16 1 - 16

Changed × 1 - 16

Default × Mode 3

Messages × ×

Altered *******

True Voice 0 - 127 0 - 127

******* 0 - 127

Note On × ×

Note Off × ×

0, 32

7, 10, 11

16-22

23-28

80, 81, 82

6, 38 × ×

96, 97 × ×

98, 99 × ×

True # ******* 0 - 127

Quarter Frame

Song Position

Song Select × ×

Tune × ×

Clock

Commands

Local On/Off × ×

All Notes Off × ×

Active Sense × ×

Reset × ×

When REMOTE is set to MASTER

When REMOTE is set to SAVE

When GENERATOR is set to MTC

When GENERATOR is set to CLOCK

When MMC is set to MASTER or SLAVE, RP version 1.00 (T, R): MIDI full timecode message is T when

GENERATOR is set to MTC.

18 – Appendix

EFF Bank, CH Bank

Mix Level, Pan, DigitalTrim

Mix Eq

Mix Send

EQ SW, EFF1 Posi, EFF2 Posi

Mode 1: OMNI ON, POLY

Mode 2: OMNI ON, MONO

Mode 3: OMNI OFF, POLY

Mode 4: OMNI OFF, MONO

: YES / ×: NO

TASCAM DP-32 99

18 – Appendix

Bit-map array of MMC commands

Byte Bit7 Bit6 (40H) Bit5 (20H) Bit4 (10H) Bit3 (08H) Bit2 (04H) Bit1 (02H) Bit0 (01H)

c0 – 0 (06)

RECORD STROBE

c1 – 0 (0D)

MMC RESET

c2 – 0 (14) (13) (12) (11) (10) (0F) (0E)

c3 – 0 (1B) (1A) (19) (18) (17) (16) (15)

c4 – 0 – 0 – 0 – 0 (1F) (1E) (1D) (1C)

c5 – 0 (26) (25) (24) (23) (22) (21) (20)

c6 – 0 (2D) (2C) (2B) (2A) (29) (28) (27)

c7 – 0 (34) (33) (32) (31) (30) (2F) (2E)

c8 – 0 (3B) (3A) (39) (38) (37) (36) (35)

c9 – 0 – 0 – 0 – 0 (3F) (3E) (3D) (3C)

c10 – 0 (46)

c11 – 0 (4D)

ADD

c12 – 0 (54)

DEFERRED VARI, PLAY

(05) REWIND

(0C) COMMAND ERROR RESET

(45) VARIABLE PLAY

(4C) MOVE

(53) COMMAND SEGMENT

(04) FAST FORWARD

(0B) CHASE

(44) LOCATE

(4B) MTC COMMAND

(52) GROUP

(03) DEFERRED PLAY

(0A) EJECT

(43) UPDATE

(4A) GENERATOR COMMAND

(51) EVENT

(02) PLAY

(09) PAUSE

(42) READ

(49) ASSIGN SYS, MAS

(50) PROCEDURE

(01) STOP

(08) RECORD PAUSE

(41) MASKED WRITE

(48) STEP

(4F) DROP FR ADJUST

(00) reserved

(07) RECORD EXIT

(40) WRITE

(47) SHUTTLE

(4E) SUBTRACT

c13 – 0 (5B) (5A) (59) (58) (57) (56) (55)

c14 – 0 – 0 – 0 – 0 (5F) (5E) (5D) (5C)

c15 – 0 (66) (65) (64) (63) (62) (61) (60)

c16 – 0 (6D) (6C) (6B) (6A) (69) (68) (67)

c17 – 0 (74) (73) (72) (71) (70) (6F) (6E)

c18 – 0 (7B) (7A) (79) (78) (77) (76) (75)

c19 – 0 – 0 – 0 – 0 (7F)

RESUME

(7E) (7D) (7C)

REC STROBE VARIABLE

WAIT

100 TASCAM DP-32
