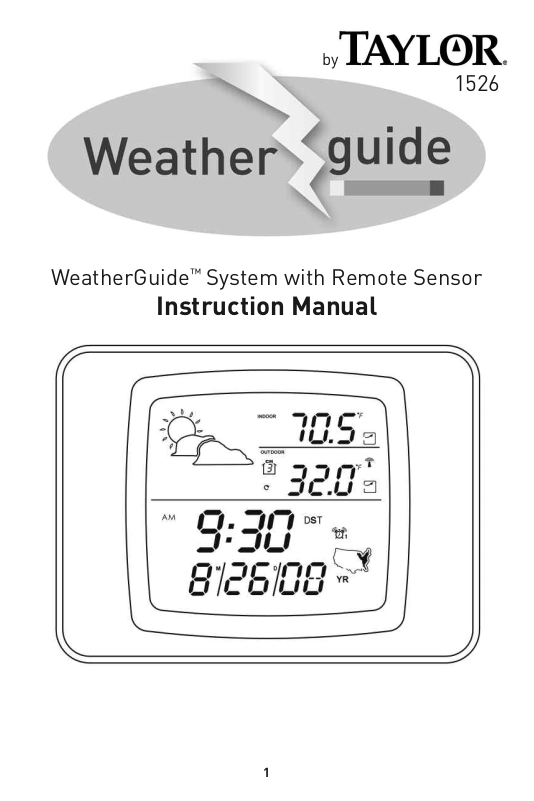

Taylor 1526 User Manual
by
1526
WeatherGuide™System with Remote Sensor
Instruction Manual
1
Welcome to theTaylor®WeatherGuide System. Simple,reliable,
accurate…it allows you to monitor indoor or outdoor locations from
one room. The base unit reads indoor conditions, while the remote
sensor wirelessly reports outdoor weather conditions back to the base
unit for an all-in-one weather display.
Plan your work day, play day,every day. Now that’s smart!
Table of Contents
Powering theWeatherGuide™..................................................................3
How to Set Up the WeatherGuide™ ......................................................3
How to Display the WeatherGuide™......................................................5
Atomic Clock
Atomic Clock Setting ................................................................6
Manual Clock Setting..................................................................7
Alarm ............................................................................................8
Snooze ........................................................................................10
How to Read the WeatherGuide™........................................................11
Temperature/Humidity Displays ............................................12
Minimum/Maximum Records ................................................13
Temperature/Humidity Trends ..............................................14
Weather Forecast ....................................................................15
Backlight......................................................................................16
°F/°C Switch ..............................................................................16
Low Battery Display ................................................................16
TroubleShooting
Disconnected Signals................................................................17
Transmission Collision ............................................................18
Problem Solving ........................................................................18
Precautions ................................................................................19
2
To Power your WeatherGuide
™
Base Unit
Your WeatherGuide™ base unit is powered by 2 AAA batteries (not
included).
Remove the battery compartment cover on the back of the unit.
Install 2 AAA batteries. Replace the battery compartment cover.
Important:
Power the base unit before installing batteries in the re-
mote sensor,or the units’ transmissions may not properly connect.
Remote Sensor
Unscrew the 4 screws securing the remote sensor’s battery compartment cover located on the back of the unit. Install 2 AAA batteries.
(Tip: Lithium batteries are recommended in extremely cold or hot locations.)
How to Set up Your WeatherGuide™System
First,power up the base unit using 2 AAA batteries.Next,install 2AAA
batteries into the remote sensor.
Place the base unit as close as possible to the remote unit.
There is a Channel switch in the remote
sensor battery compartment. Move the
switch to Channel 1.
Move channel switch
to Channel 1
Press the Tx button to send
transmission signal to base unit
Press the “TX” button located inside the
remote sensor battery compartment. This
will send a transmission signal to the base
unit.The red LED Indicator light will flash
when a signal is transmitted.
3
If the transmission is successful,the remote
sensor readings and a“ ” icon will appear
on the base unit.If dashes are still displayed
on the receiver unit, press the Tx button
again.
Transmission successful
To change the remote sensor’s temperature display to Celsius, press the “+C/F”
button inside the remote’s battery compartment.
Replace the remote’s battery compart-
Select °F or °C for remote
ment cover.
The remote will automatically transmit readings to the base unit.
• The first remote registered will transmit every 53 seconds.
• If a second remote is registered, it will transmit every 56 seconds.
• If a third remote is registered, it will transmit every 59 seconds.
Note: A maximum of 3 remote sensor units can be registered.
Should you purchase one or two additional remote units (Model 1536,
sold separately) to expand your thermometer monitoring capabilities
to multiple locations, slide the CH switch to Channel 2 to register the
second sensor and select Channel 3 to register the third sensor.The
Channel number assigned will appear on the remote’s LCD screen.
4
How to Display your WeatherGuide™
Table top – use the Table Stand on the back of the base and remote
sensor units
Wall – use the keyhole on the back of the base and remote sensor units.
Keyhole
Base Unit Remote Sensor
Table Stand
Base unit location –
Place the unit indoors in a well-ventilated location away from direct sunlight.
Remote sensor location –
The transmission range of the remote sensor is 100 feet.The effective
transmission range is vastly affected by obstacles such as walls, sheds,
trees,etc.Try various set ups for the best results. Shorten the distance
between receiver and remote units when necessary. Place indoor in a
well ventilated location away from direct sunlight. Place the sensor in
a dry, shaded area. Direct sunlight will heat the casing and inflate temperatures readings.
Important: Though the remote unit is weather proof, it should be
placed away from direct sunlight, rain, snow and should never be submerged in water.
A maximum of 3 remote sensor units can be registered. One
remote sensor is included.To purchase additional Remote
Sensors (Taylor model 1536), please visit www.partshelf.com.
5
Atomic Clock and Calendar
Your WeatherGuide™ has a radio-controlled clock/calendar that sets
itself to the radio signal transmitted by the U.S.Atomic Clock located
in Colorado.To synchronize the atomic clock:
1. Press and hold the “-PMCE/RCC”
button on the back of the base unit.The
Press and hold -PMCE/RCC to
synchronize atomic clock. Release
when unit beeps.
unit will beep.The antenna icon will
flash on the screen.
Please note: reception may take
2-10 minutes.
Steady Icon = Atomic clock
synchronized
(may take up to 24 hours to
capture signal).
2. When the icon is steady, the
Atomic Clock has been successfully
synchronized.
3. Choose your time zone by pressing the
“PMCE/RCC” button.
Press PMCE/RCC to choose
time zone.
Please note: If the icon disappears, the Atomic time signal is not
available at the moment.Try another location later away from possible
sources of interference,such as mobile phones, appliances, computers,
refrigerators,TVs, etc. Daytime conditions such as sunlight and other
atmospheric interferences can affect synchronization; try setting the
clock during evening hours.Please note:if the signal is weak, it may take
up to 24 hours for the atomic clock to establish a connection. In the
meantime, the clock may be manually set. Once the atomic signal is
found, it will override the manually programmed time and date.
The Atomic Clock will have a daily synchronization at 2:05 am Pacific
Time every day. Each reception cycle is 2.5 minutes minimum and 10
minutes maximum.
6
