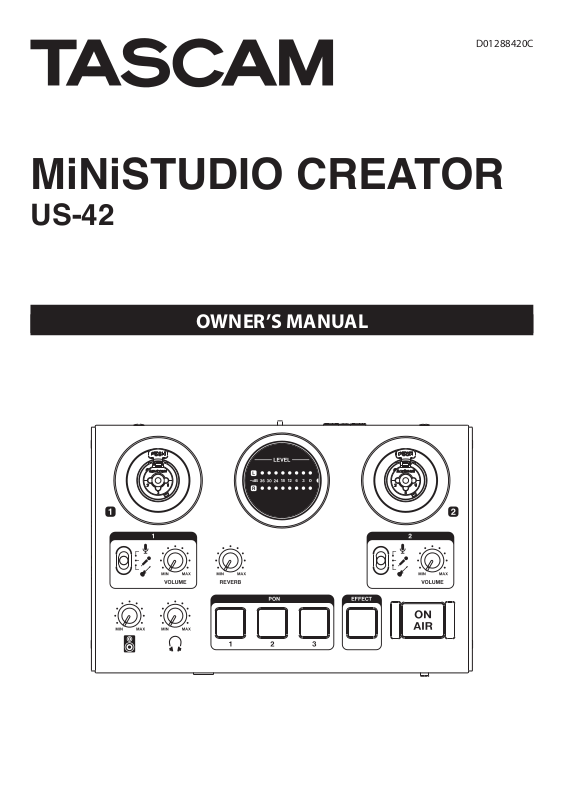

Tascam US-42 User Manual
D01288420C
MiNiSTUDIO CREATOR
US-42
OWNER’S MANUAL
IMPORTANT SAFETY PRECAUTIONS
For U.S.A.
INFORMATION TO THE USER
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures.
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment
and receiver.
c) Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
Changes or modifications to this equipment not
expressly approved by TEAC CORPORATION for
compliance could void the user’s authority to operate
this equipment.
For Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH
CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST
CONFORME À LA NORME NMB-003 DU CANADA.
Declaration of Conformity
Responsible party: TEAC AMERICA, INC.
Address: 1834 Gage Road, Montebello,
California, U.S.A.
Telephone number: 1-323-726-0303
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This product complies with the
European Directives request and the
other Commission Regulations.
Nameplate
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
TASCAM MiNiSTUDIO CREATOR
2
12 Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
• The apparatus draws nominal non-operating
power from the AC outlet with its POWER or
STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Caution should be taken when using earphones
or headphones with the product because
excessive sound pressure (volume) from
earphones or headphones can cause hearing
loss.
• If you are experiencing problems with this
product, contact TEAC for a service referral. Do
not use the product until it has been repaired.
CAUTION
• Do not expose this apparatus to drips or
splashes.
• Do not place any objects filled with liquids, such
as vases, on the apparatus.
• Do not install this apparatus in a confined space
such as a book case or similar unit.
• The apparatus should be located close enough
to the AC outlet so that you can easily grasp the
power cord plug at any time.
• If the product uses batteries (including a battery
pack or installed batteries), they should not be
exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable
lithium batteries: there is danger of explosion
if a battery is replaced with an incorrect type
of battery. Replace only with the same or
equivalent type.
8
For European Customers
Disposal of electrical and electronic equipment
(a) All electrical and electronic equipment should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed
by the government or the local authorities.
(b) By disposing of the electrical and electronic
equipment correctly, you will help save valuable
resources and prevent any potential negative
effects on human health and the environment.
(c) Improper disposal of waste equipment can have
serious effects on the environment and human
health as a result of the presence of hazardous
substances in electrical and electronic equipment.
(d) The crossed out wheeled dust bin
symbol indicates that electrical and
electronic equipment must be collected
and disposed of separately from
household waste.
(e) The return and collection systems are available to
the end users. For more detailed information about
disposal of old electrical and electronic equipment,
please contact your city office, waste disposal
service or the shop where you purchased the
equipment.
TASCAM MiNiSTUDIO CREATOR
3
Contents
IMPORTANT SAFETY PRECAUTIONS ..............................2
IMPORTANT SAFETY INSTRUCTIONS .............................2
Introduction ............................................................................4
Features ....................................................................................4
Included items .......................................................................5
Conventions used in this manual ...................................5
Trademarks and copyrights ..............................................5
Precautions for placement and use ...............................5
Using the TEAC Global Site ...............................................6
Beware of condensation ....................................................6
Cleaning the unit ..................................................................6
User registration ....................................................................6
Broadcasting live...................................................................6
Names and functions of parts ..........................................8
Top panel ........................................................................................... 8
Front panel ........................................................................................9
Rear panel ....................................................................................... 10
Installing the dedicated software ............................... 10
Installing the Windows software ..................................... 10
Installing the Mac software .................................................. 11
Working with Gatekeeper .....................................................12
Connecting the power ..................................................... 13
When using a computer (Windows/Mac) ...................13
When using an iOS device ....................................................13
Connection illustrations .................................................. 14
Connecting with a computer ............................................ 14
Connecting iOS devices ........................................................ 14
Audio connections.....................................................................15
Opening the Settings Panel ........................................... 16
Windows .......................................................................................... 16
Mac ...................................................................................................... 16
Settings Panel overview ..................................................16
Using the Settings Panel menu bar ............................... 16
EASY page .......................................................................................17
EXPERT page ................................................................................. 18
Driver settings for specific purposes (Windows only)
21
Application Guide ..............................................................22
Windows Media Player ........................................................... 22
OS X and iTunes .......................................................................... 22
Troubleshooting .................................................................22
Specifications ...................................................................... 24
Ratings............................................................................................... 24
Analog audio input ratings ..................................................24
Analog audio output ratings .............................................. 24
Control input/output ratings ............................................. 24
Audio performance .................................................................. 24
Operation requirements ................................................. 25
Windows .......................................................................................... 25
Mac ...................................................................................................... 25
iOS device .......................................................................................25
Supported audio drivers .......................................................25
General...................................................................................25
Dimensional drawings .....................................................25
Block diagrams.................................................................... 26
Introduction
Thank you very much for purchasing the TASCAM
MiNiSTUDIO CREATOR.
Before using this unit, read this Owner's Manual
carefully so that you will be able to use it correctly
and enjoy working with it for many years. After you
have finished reading this manual, please keep it in a
safe place for future reference.
You can also download this Owner’s Manual from the
TEAC Global Site (http://teac-global.com/).
Before connecting this unit to a computer, you
must download and install dedicated software
on the computer.
Features
The MiNiSTUDIO series of personal audio interfaces
are designed to make Internet broadcasting of audio
performances easy.
The MiNiSTUDIO CREATOR, which is an advanced
model in the MiNiSTUDIO series, supports both live
broadcasting and production applications as well as
the simultaneous use of two mics. Users can enjoy
streaming and production with advanced features.
• Audio interface designed specifically for live
Internet broadcasting with support for not only
Windows, but also Mac and iOS
• Sound effect triggering (PON) function,
voice effects and reverb enable many audio
performance possibilities
• Easily-operated user interface designed for
Internet broadcasting
• Two input jacks support various applications
including performances with vocals and guitar
and interview programs
• CREATOR mode is optimal for creating video
contents and music.
8
Note about computer operation
If you are unsure about anything related to the basic
operation of a computer when it is mentioned in
an explanation in this manual, please refer to the
computer operation manual.
To use this unit with a computer, dedicated software
must be installed on the computer.
For details about software installation, see “Installing
the dedicated software” on page 10.
TASCAM MiNiSTUDIO CREATOR
4
Included items
This product includes the following items.
Take care when opening the package to avoid
damaging the items. Keep the box and packing
materials for transportation in the future.
Please contact the store where you purchased this
unit if any of these items are missing or have been
damaged during transportation.
• Main unit ................................................................... × 1
• USB cable .................................................................. × 1
• Owner’s Manual (this document) .....................× 1
The warranty is included at the end of this manual.
Conventions used in this manual
In this manual, we use the following conventions:
• Buttons, connectors and other physical parts of
this unit are written using a bold font like this:
VOLUME knob.
• Information shown on a computer display is
written like this: “OK”.
• Additional information is provided as necessary
as tips, notes and cautions.
TIP
These are tips about how to use the unit.
NOTE
These provide additional explanations and
describe special cases.
CAUTION
Failure to follow these instructions could result
in injury, damage to equipment or lost recording
data, for example.
Trademarks and copyrights
• TASCAM and MINISTUDIO are registered
trademarks of TEAC Corporation.
• Microsoft, Windows, Windows Vista and
Windows Media are either registered trademarks
or trademarks of Microsoft Corporation in the
United States and/or other countries.
• Apple, Mac, Mac OS, macOS, iPad, iPod touch,
Lightning, App Store and iTunes are trademarks
of Apple Inc.
• IOS is a trademark or registered trademark of
Cisco in the U.S. and other countries and is used
under license.
• ASIO is a trademark of Steinberg Media
Technologies GmbH.
• Other company names, product names and
logos in this document are the trademarks
or registered trademarks of their respective
owners.
Precautions for placement and use
• The operating temperature range of this unit is
5–35 °C.
• Do not install this unit in the following types
of locations. Doing so could make the sound
quality worse or cause malfunction.
Places with significant vibrations
Near windows or other places exposed to
direct sunlight
Near heaters or other extremely hot places
Extremely cold places
Places with bad ventilation or high humidity
Very dusty locations
• Do not place this unit on top of a power
amplifier or other device that generates heat.
TASCAM MiNiSTUDIO CREATOR
5
Using the TEAC Global Site
You can download the Owner’s Manual necessary for
this unit from the TEAC Global Site (http://teac-global.
com/).
1. Open the TEAC Global Site (http://teac-global.
com/).
2. In the TASCAM Downloads section, click the
desired language to open the Downloads
website page for that language.
NOTE
If the desired language does not appear, click
Other Languages.
3. Click the product name in the “Search by Model
Name” section to open the Downloads page for
that product.
4. Select and download the Owner’s Manual that
are needed.
Beware of condensation
If the unit is moved from a cold to a warm place,
or used after a sudden temperature change, there
is a danger of condensation; vapor in the air could
condense on the internal mechanism, making correct
operation impossible. To prevent this, or if this occurs,
let the unit sit for one or two hours at the new room
temperature before using it.
Cleaning the unit
Use a dry soft cloth to wipe the unit clean. Do not
wipe with chemical cleaning cloths, thinner, alcohol
or other chemical agents. Doing so could damage the
surface or cause discoloration.
Broadcasting live
8
Computer preparation (installing the
dedicated software)
1. Download the software for the operating system
you are using from the TEAC Global Site (http://
teac-global.com/) and follow the installer procedures to install it. See “Installing the dedicated
software” on page 10 for details.
Installer screen
2. Make the following settings according to the
computer you are using.
Windows
Open the Sound Control panel and set “
TUDIO US-32/42
both the Playback and Recording tabs. (See
“Windows Media Player” on page 21.)
” as the Default Device on
MiNiS-
User registration
Customers in the USA, please visit the TASCAM
website (http://tascam.com/) to register as a user
online.
TASCAM MiNiSTUDIO CREATOR
6
Mac
Open the Utilities folder in the Applications
folder, and double-click “Audio MIDI Setup”.
Then, set “MiNiSTUDIO US-42” to “Use this
device for sound input” and “Use this device
for sound output”. (See “OS X and iTunes” on
page 22.)
8
Setting up the unit
NOTE
For details about the IN 1 jack (1) and other
parts, see “Top panel” on page 8 and “Front
panel” on page 9.
3. Set the CREATOR/BROADCAST switch (o) to
BROADCAST.
4. Confirm that the IN 1 VOLUME knob (4) is set
to MIN before connecting a mic.
i Connect a condenser or dynamic mic to the IN
1 jack (1).
i When using 4-pole headphones with a built-in
mic, connect it to the headphones jack (y).
i When using the headset, connect the
headphone plug to the headphones jack (y)
and the mic plug to the mic jack (u).
9. Press the ON AIR button (e) so that it lights to
complete preparation.
Audio will start being sent to the computer, so
make the settings in the streaming software to
start streaming.
Start live broadcasting.
CAUTION
Refer to the help pages of the streaming
software to make various settings in it.
Refer to the following pages to use the other
functions of this unit.
Desired action Page
Use voice effects
Play background music on the
computer (Windows Media Player/
iTunes)
Play sound effects (PON trigger
function)
Use with an iOS device (connecting) page 13
Use with an iOS device (powering) page 13
Use music on a tablet or other
connected device
Using the unit as an audio interface
(music and video creation)
page 16
page 17
page 21
page 16
page 17
page 9, i
page 9, o
5. Set the mic type switch (5) for the IN 1 jack (1)
according to the type of mic connected to it as
follows.
Condenser mic (mic that requires power)
Dynamic mic (mic that does not require
power)
NOTE
When using 4-pole headphones with a built-in
mic or a headset, you can set this to either or
.
6. Say or sing something, and turn the IN 1
VOLUME knob (4) until the LEVEL meter (2)
lights green.
7. Confirm that the headphone knob (6) is
set to MIN, and connect headphones to the
headphone jack (t).
When using this unit for a live broadcast, in
order to prevent feedback (signal looping), use
headphones or an earphone instead of speakers.
8. If you want to apply reverb to your voice, turn the
REVERB knob (0).
TASCAM MiNiSTUDIO CREATOR
7
Names and functions of parts
Top panel
1 IN 1 jack (BALANCED/UNBALANCED)
This XLR/TRS combo jack is an analog input.
It supports high impedance input, including
direct guitar input.
i XLR (1: GND, 2: HOT, 3: COLD)
i TRS
(Tip: HOT, Ring: COLD, Sleeve: GND)
Use the IN 1 VOLUME knob (4) to set the input
level.
Use the IN 1 input switch (5) to enable
balanced line input ( / ) or unbalanced input (
) for the TRS jack.
When directly connecting a guitar, bass or other
instrument, set the IN 1 jack input switch (5)
to .
2 LEVEL meters
These show the levels of the analog input signals.
When a signal is being input, this lights yellow
when the level is too low or too high, green
when the level is good and red when the signal
is distorting.
3 IN 2 jack (BALANCED/UNBALANCED)
This XLR/TRS combo jack is an analog input.
It supports high impedance input, including
direct guitar input.
i XLR (1: GND, 2: HOT, 3: COLD)
i TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
Use the IN 2 VOLUME knob (9) to set the input
level.
Use the IN 2 input switch (8) to enable
balanced line input ( / ) or unbalanced input (
) for the TRS jack.
When directly connecting a guitar, bass or other
instrument, set the IN 2 jack input switch (8)
to .
4 IN 1 VOLUME knob
Use to adjust the input levels from the IN 1 jack
(1) on the top of the unit, as well as from the mic
input for 4-pole headphones with a built-in mic
(y) and the headset jack mic input (u).
CAUTION
The IN 1 jack (1) on the top of the unit, the mic
input for 4-pole headphones with a built-in
mic (y), and the headset jack mic input (u)
cannot be used at the same time.
5 IN 1 jack input switch
Set according to the input source of the IN 1
jack (1) on the top of the unit.
Mic (phantom power on, +48V)
Mic (phantom power off)
Instrument
NOTE
• When using 4-pole headphones with a built-in
mic or a headset, you can set this to either or .
• Phantom power is not output through the TRS
jack.
6 (headphones) knob
Use to adjust the output level from the
headphones jack (t) and the headphone
outputs for the 4-pole headphones with a built-in
mic (y) and the headset jack (u).
CAUTION
Before connecting headphones, minimize the
headphones knob. Failure to do so could result
in a sudden loud noise that could harm hearing,
for example.
7 Line output knob
Use to adjust the output level of the LINE OUT
L/R jacks (p) on the back of the unit.
8 IN 2 jack input switch
Set according to the input source of the IN 2
jack (3) on the top of the unit.
Mic (phantom power on)
Mic (phantom power off)
Instrument
NOTE
When using 4-pole headphones with a built-in
mic or a headset, you can set this to either or .
Phantom power is not output through the TRS
jack.
9 IN 2 VOLUME knob
Use to adjust the input level of the IN 2 jack (3)
on the top of the unit.
TASCAM MiNiSTUDIO CREATOR
8
0 REVERB knob
This knob adjusts the depth of the reverb effect.
When set all the way to MIN, no reverb will be
used and the signal will be 100% dry. When set
all the way to MAX, the signal will be 100% wet.
Use the Settings Panel to set the reverb type and
parameters. (See “Settings Panel overview” on
page 15.)
q PON trigger pads (1/2/3)
Press these pads to play sounds set in the
Settings Panel.
Press them strongly to play sounds loudly and
press them weakly to play sounds softly.
Use the Settings Panel to set the PON trigger pad
parameters. (See “Settings Panel overview” on
page 15.)
w EFFECT button
Use to turn the effect on/off for the sounds
input from the IN 1/IN 2 jacks on the top of
the unit, as well as for the mic input for 4-pole
headphones with a built-in mic (y) and the
headset jack mic input (u) on the front of the
unit.
Set the effect type and parameters on the
Settings Panel. (See “Settings Panel overview” on
page 15.)
e ON AIR button
This turns on air mode on/off.
If the CREATOR/BROADCAST switch (o) is set to
BROADCAST, when this is on, the button lights
and the input sound (1, 3, y, u and i) and
sound from the computer (sound of playback
from Windows Media Player, for example) are
mixed and sent to the computer.
If the CREATOR/BROADCAST switch (o) is set to
CREATOR, this always stays on.
Front panel
r Strap attachments
t Headphones jack (stereo standard)
Use this standard stereo jack to connect stereo
headphones.
The same signals are output from the LINE OUT
L and R jacks.
y Headphones jack (stereo mini)
Connect stereo headphones to this stereo mini
jack.
This unit supports input and output for 4-pole
headphones with a mic and output for headset
headphones.
CAUTION
Before connecting headphones, use the
headphones knob (6) to minimize the volume.
Failure to do so could result in a sudden loud
noise that could harm hearing, for example.
u Mic jack (TS mini)
Connect the mic plug of a headset to this TS mini
jack.
CAUTION
The IN 1 jack (1) on the top of the unit, the mic
input for 4-pole headphones with a mic (y), and
the headset jack mic input (u) cannot be used
at the same time.
i External input jack (stereo mini)
Use a stereo mini jack cable to connect this to the
line output jack of a tablet or other device.
Use the output level setting of the connected
device to adjust the input level.
o CREATOR/BROADCAST switch
Set this switch according to use.
CREATOR: Select when using a DAW or other
software to create music. The signals input
through the IN 1 (1, y, u) and IN 2 (3)
jacks are sent to the computer.
BROADCAST: Select when using a computer
for live broadcast streaming, for example. The
signals input through the IN 1 (1, y, u)
and IN 2 (3) and external input (i) jacks
are mixed to a mono signal. This is mixed
with the sound from the computer (sound
of playback from Windows Media Player, for
example) and sent to the computer.
