Preface
This operation and maintenance manual is for safe and proper operation and
inspection/maintenance of the radio-control system whose model is shown in the following
table.
Refer to the operation and maintenance manual of the main unit of the crane for operation
and inspection/maintenance of the main unit.
Applicable model
Transmitter RCS-FT1
Radio-control system
Communication unit RCS-FR1
Control unit RCS-FC1
Confirm the model of your radio-control system with the nameplates shown in the following
illustrations.
Illustrations in this manual may differ from the actual products in details. Note that the
illustrations for explanation purposes are sometimes drawn without any cover or guard.
Transmitter
Communication unit
Control unit
Note that the products may be subject to modifications that are not reflected in this manual,
because of product improvement.
When transferring the crane to another party, transfer this manual also together with the
crane.
Should you have any comments or inquiries on the delivered crane or this manual, contact
the nearest TADANO distributor or dealer.
ノ
ダ
タ
社
会
式
株
1
R
F
-
S
C
R
2
S
E
号
00
番
2
造
0
製
1
R
F
S
C
R
-
＊
＊
＊
＊
＊
:
C
I
1
R
F
-
S
C
R
-
＊
＊
＊
:
D
I
C
C
F
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
M22654E
Preface
2
Preface
Configurations of Radio-control System
M037940E
Communication unit
Transmitter
storing bag
Emergency stop lamp
Radio control valve
Speaker
(for alarm)
Control unit
Transmitter
Portable hook
Configurations of Radio-control System
3
M22656E
Configurations of Radio-control System
Names and Functions of Each Part
1. Radio-control Block
M037950E
【Transmitter】
1 Engine start LED (Red/Green) 2 Speed mode LED (Red/Green)
13 Emergency
stop LED (Red)
12 Emergency
stop switch
11 Engine
start switch
10 Horn switch
6 Elevation selection switch
7 Hook selection switch
8 Extension selection switch
9 Swing selection switch
Motion selection switches
69
3 Power LED (Red)
4 Power switch
5 Speed mode
switch
20 Communication
unit LED
(Red/Green)
【Control Unit】
【Communication Unit】
ノ
ダ
タ
社
会
式
株
1
R
-F
S
C
R
2
S
号
番
造
0200E
製
1
R
F
S
C
R
-
＊
＊
＊
＊
＊
:
C
I
1
R
F
S
C
-R
＊
＊
＊
:
D
I
C
C
F
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
16 Speed
control lever
Names and Functions of Each Part
14 Strap
15 Battery cover
19 Reception
lamp
18 Connector for remote-control operation
4
17 Mode indicator lamp
M22657E
Names and Functions of Each Part
M037950E
1. Engine Start LED
The LED shows the condition of the engine
start switch.
・When the switch is not operated: Turned
off
・When the switch is operated: Turned on
(Red)
2. Speed Mode LED
The LED shows the speed modes.
・At high-speed mode: Turned off
・At medium-speed mode: Turned on
(Green)
・At low-speed mode: Turned on (Red)
3. Power LED
The LED shows the power ON/OFF of the
transmitter and battery consumption
condition.
・At power OFF: Turned off
・At power ON: Turned on (Red)
・At battery exhaustion: Flashing (Red)
4. Power Switch
This is the switch for power ON/OFF of the
transmitter.
When the power switch is pressed while
the radio-control /manual changeover
switch of the crane is turned to “Radio”
position after PTO is set to “Engaged” state,
the power of the transmitter is turned on
and the
power LED lights up.
When the power switch is pressed once
again, the power is turned off and the
power LED turns off.
5. Speed Mode Switch
This is the switch to select the speed mode.
Every time the switch is pressed, the mode
changes in the order of: “low-speed” →
“medium-speed” → “high-speed”
→“low-speed” •••••. At the same time, the
speed mode LED changes in the order of:
“turned on in red” → “turned on in green” →
“turned off” → “turned on in red” •••••.
6. Elevation Selection Switch
7. Hook Selection Switch
8. Extension Selection Switch
9. Swing Selection Switch
These are the motion selection switches for
the crane operation. When the speed
control lever is pulled after the motion
selection switch is changed, the crane can
be operated.
10. Horn Switch
When the switch is pressed, the vehicle’s
horn sounds.
11. Engine Start Switch
This is the switch to output the engine start
signal. When the switch is pressed, the
engine starts up.
The engine start-up is disabled under
the emergency stop state.
12. Emergency Stop Switch
Pressing the switch causes an emergency
stop and all the crane operation stops. At
the same time, the emergency stop LED
and emergency stop lamp of the crane light
up.
When the switch is pressed once again, the
emergency stop state is released, and the
emergency stop LED and emergency stop
lamp of the crane turn off.
13. Emergency Stop LED
The LED shows the emergency stop state.
・Under normal condition: Turned off
・Under emergency stop state: Turned on
(Red)
14. Strap
The strap is for portable use of the
transmitter. Hook the transmitter onto a belt
on your waist or hang it from your neck by
extending the strap.
15. Battery Cover
This is used when replacing the batteries.
16. Speed Control Lever
This is the lever to adjust operation speeds
of the crane.
According to the pulling amount of the lever,
the engine speed increases to increase the
speed of the crane.
Names and Functions of Each Part
5
Names and Functions of Each Part
M037950E
17. Mode Indicator Lamp
The lamp indicates the current operation
mode.
・At power on of the control unit: “L0”
・At radio-control mode: “L1”
At error occurrence, an error number is
displayed.
18. Connector for Remote-control
Operation
This is the connector to connect the
remote-control transmitter when the
remote-control is used.
The connector is not used for this
system.
19. Reception Lamp
The lamp lights up while operation signals
are received from the radio-control
transmitter.
When the power of the control unit is
turned on while the radio-control
/manual changeover switch of the crane
is turned to the “Radio” position after
PTO is set to “Engaged” state, the lamp
also lights up once.
20. Communication Unit LED
The LED shows the power ON/OFF of the
communication unit and communication
conditions.
・“Upper side”: Power LED
When the power is supplied to the
communication unit from the control unit
while the radio-control /manual
changeover switch of the crane is turned
to “Radio” position after PTO is set to
“Engaged” state: Turned on (Red)
At error: Turned on (Orange)
・“Lower side”: Radio wave LED
Under communication: Turned on
(Green)
Before communication, at
communication disconnected, and at
power OFF of the transmitter: Turned off
At error: Turned on (Orange)
When communication is interrupted
during the operation: Flashing (Green)
Names and Functions of Each Part
6
Names and Functions of Each Part
2. Crane
f
r
p
M037950E
1. Speaker Switch
3 Emergency
stop lamp
4 Speaker
This is the switch to select output/stop o
the alarm.
“ON”: Alarm sounds
“OFF”: Alarm stops
2. Radio-control/Manual Changeove
Switch
This is the switch to select radio-control
operation/manual operation.
“Radio”: Radio-control operation
“Manual”: Manual operation
SPEAKER
ON
OFF
SPEAKER
Radio
Manual
1 Speaker
switch
2 Radio control/manual
changeover switch
M22658E
3. Emergency Stop Lamp
The LED shows the emergency stop state.
・Under normal condition: Turned off
・Under emergency stop state: Turned on
(Yellow)
The lamp shows the same indication as
the emergency stop LED of the radiocontrol transmitter.
4. Speaker
The speaker outputs an alarm sound at
occurrence of a problem, at wrong
operation, and to call attention for proper
o
erations.
Names and Functions of Each Part
7
Names and Functions of Each Part
Safety Functions of Radio-control System
Power switch
Power LED
M22659E
Motion selection switch
M037960E
The radio-control system has the following functions to realize safety operations.
1. Auto Power-off Function
When the motion selection switch is not
operated for approximately one hour, the
power of the transmitter is automatically
turned off to save battery consumption.
The power LED of the transmitter is turned
off, and the mode indicator lamp of the
control unit changes from the radio-control
mode “L1” to the manual mode “L0”.
To resume the radio-control operation,
press the power switch once again to turn
on the power LED to set to the radio-control
mode.
2. Switch Failure Detection Function
Error is displayed when the power of the
transmitter is turned on while the switches or
speed control lever is operated.
Four LEDs on the transmitter flash to show
the failure condition. In addition, the mode
indicator lamp of the control unit displays
the error number “13”, and both the
radio-control operation and manual
operation are disabled. (Refer to the
Error number
is displayed
chapter of “Measures for Emergency
Case”)
When the power of the transmitter is turned
off, the mode indicator lamp of the control
unit changes to “L0”.
To perform a radio-control operation, press
the power switch while releasing your finger
from the other switches and the speed
control lever.
M22660E
Safety Functio ns of Ra dio-control System
8
Safety Function s of Ra d io -c on tr ol System
3. Continual Operation Restriction Function
M22660E
Error number
is displayed
Error is displayed when any of the motion
selection switches is kept in the operation
state for approximately five minutes due to a
failure, trapped dirt or the like.
Four LEDs on the transmitter flash to show
the failure condition. In addition, the mode
indicator lamp of the control unit displays
the error number “13”, and both the
radio-control operation and manual
operation are disabled. (Refer to the
chapter of “Measures for Emergency
Case”)
When the power of the transmitter is turned
off, the mode indicator lamp of the control
unit changes to “L0”.
To resume the radio-control operation, turn
the power on once again after confirming
the position of the motion selection
switches.
4. Instant Stop Alarm Function
If the radio wave from the transmitter is
hindered during the radio-control operations
due to changing surrounding conditions and
the like, the speaker outputs a “beep” alarm.
Condition of the crane is as follows
according to the number of beeps of the
alarm.
(1) “Beep”
The crane continues to work although there
is a warning of poor radio wave
transmission.
(2) “Beep, Beep”
The crane operation stops when two
continual alarms sound.
In either case the warning is of poor radio
wave transmission condition. Take measures
such as reducing the distance between the
transmitter and the communication unit.
M037960E
?
"Beep, Beep"
M22661E
Safety Functio ns of Ra dio-control System
9
Safety Function s of Ra d io -c on tr ol System
5. Alarm Function
SPEAKER
SPEAKER
ON
OFF
M22662E
Speaker
switch
SPEAKER
SPEAKER
ON
OFF
Radio
Manual
M037960E
No alarm sounds when the speaker switch is turned “OFF”. Since it is an
important alarm, turn the speaker switch “ON” except for special cases.
Warning
Operation should be made with special care when the switch needs to be turned off due
to noise prevention at nighttime operation and the like.
In addition, make sure that the switch is returned to “ON” position after the operation.
The following alarms sound when the system
has a problem, when a wrong operation is
made, or to call attention for proper operations.
Take appropriate measures according to the
following tables when the alarm sounds.
(1) At the time of abnormal stop of the radio-control system:
Warning sound Beep (Three times)
Warning timing When the computer judges that serious trouble has occurred to the
system
Crane
The radio-control operation is disabled.
operation
Measure Refer to the chapter of “Measures for Emergency Case”
(2) At the time of a problem occurring when the operation lever is at the neutral position
Warning sound Beep (Three times)
Warning timing When the operation lever of the crane does not return to the neutral
position even after the motion selection switch of the transmitter is
returned to the neutral position.
Crane
The radio-control operation is disabled.
operation
Measure Refer to the chapter of “Measures for Emergency Case”
(3) Battery exhaustion warning
Warning sound Two-tone alarm (once)
Warning timing When the motion selection switch of the transmitter is operated under the
low battery-voltage condition of the transmitter.
Measure Refer to the chapter of “Battery Replacement for Transmitter”
(4) At the set of emergency stop state
Warning sound Beep (Once)
Warning timing When the operation to set the emergency stop state is made.
(5) At the release of emergency sop state
Warning sound Two-tone alarm (once)
Warning timing When the operation to release the emergency stop state is made.
Safety Functio ns of Ra dio-control System
10
Safety Function s of Ra d io -c on tr ol System
Radio-control
[NOTE]
Even after the radio-control transmitter is turned OFF under the condition where the
radio wave is out of reach, the control unit still remains on in the radio-control mode.
Make sure to confirm that the mode indicator lamp of the control unit indicates “L0” after
the radio-control operation is completed (or after the power of the transmitter is turned
OFF).
M037970E
1. Preparation for Radio-control Operation
Confirm that each lever is at the following position before starting up the engine.
Each operation lever for extension/winch/elevation/swing/jack ••••• “Neutral”
PTO lever (Switch) ••••• “Disconnected”
Operation mode changes as is shown in the
figure according to the PTO operation,
operation of the radio-control /manual
changeover switch, and power ON/OFF of
the radio-control transmitter.
In addition, an indication on the mode
indicator lamp of the control unit changes as
Radiocontrol/
manual
PTO
changeoverswitch
ON
ON OFF「Radio」
ON ON「Radio」
Transmitter
power
OFF「Manual」
Modeindicator
lamp
Operationmode
Manual
operation
Radio-control
operation
the figure shows.
M22666E
1. Start up the engine and turn PTO to
“Connected (ON)” position.
Confirm that the radio-control /manual
changeover switch is on “Manual” position.
2. After extending the outriggers, extend the jacks
and set the crane level.
M22663
Radio-control/manual changeover switch
3. Turn the radio-control /manual changeover
switch to “Radio” position.
When the switch is turned to “Radio” position,
SPEAKER
ON
Radio
the power of the control unit is turned ON.
OFF
SPEAKER
Manual
M22664E
Radio-control
11
Radio-control
M037970E
4. Confirm that the mode indicator lamp of the
control unit displays “L0”.
The lamp displays “L0” after displaying “88.”
(All light up).
5. Press the power switch to turn on the power of
the transmitter. The power LED of the transmitter
lights up.
If the power switch is pressed while other
switches or the speed control lever is under
operation, the switch failure detection function
works to indicate the error state. (Refer to the
chapter of “Safety Functions of Radio-control
System”). Do not touch any other switch or
lever than the power switch.
6. Confirm that the mode indicator lamp of the
control unit has changed from “L0” to the
radio-control mode “L1”.
7. Confirm that the speaker switch is turned “ON”.
No alarm sounds if the speaker switch is
“OFF”.
SPEAKER
ON
OFF
SPEAKER
Radio
Manual
SPEAKER
ON
OFF
SPEAKER
Mode indicator lamp
Power LED
Power switch
Mode indicator lamp
Speaker
switch
M22662E
M22336E
M22665E
M22339E
Radio-control
12
Radio-control
2. How to Operate the Radio-control
Warning
- Before starting the crane operation, confirm whether or not it is possible to make
each motion of the crane normally by making the following operations: Extending
and retracting of the boom, raising and lowering of the boom, hoisting up and
down the hook, and turning of the hook.
-
It is dangerous to rapidly pull the speed control lever, causing sudden movement
of the crane. Pull the lever slowly. Also, release the speed control lever slowly.
- It is dangerous to release your finger from the motion selection switch while the
speed control lever is pulled, since it causes a shock. Release your finger from the
motion selection switch after letting go of the speed control lever.
-
While the radio-control operation is made, the manual operation lever moves
correspondingly. Do not touch the manual operation lever.
(1) Operation device
M037970E
Emergency stop LED
Speed
control lever
Emergency
stop switch
Engine
start switch
Horn
switch
Engine start LED Speed mode LED
Elevation selection switch
Hook selection switch
Extension selection switch
Swing selection switch
Power LED
Power switch
Speed mode switch
Motion selection
switches
M22667E
Radio-control
13
Radio-control
(2) Basic operations

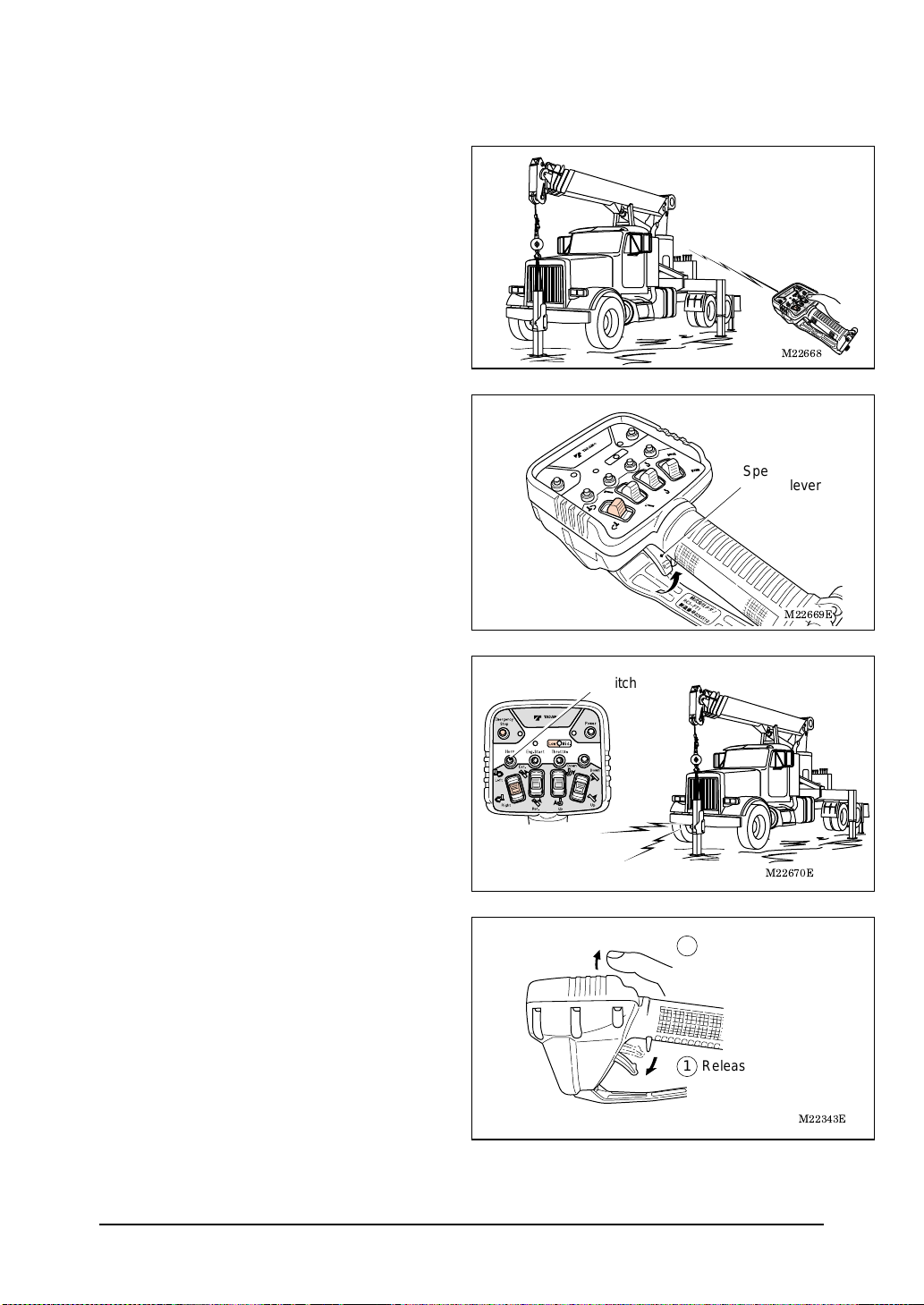

1. Operate the motion selection switch while
pointing the transmitter in the direction of the
crane.
When the motion selection switch is
operated, the engine speed increases
slightly higher than the idling speed.
M037970E
2. Pull the speed control lever slowly. Then the
crane starts to move.
The engine speed increases according to
the amount the lever is pulled. Adjust the
moving speed of the crane with the speed
control lever.
3. To call the attention of the surrounding
people during the operation, press the horn
switch. Then the vehicle’s horn beeps.
4. To stop the crane operation, release the
speed control lever slowly. The operation
stops when the lever is released.
Then release the motion selection switch.
Horn switch
M22668
Speed
control lever
M22669E
M22670E
2 Release your finger
from the motion
selection switch.
Radio-control
1 Release the speed
control lever.
14
M22343E
Radio-control
M037970E
3. Changing Speed Mode
With the speed mode switch, operating speed of the crane can be changed to three levels:
High-speed, medium-speed and low-speed. Select the high-speed mode when the crane
needs to be used under normal conditions, the medium-speed mode when the crane needs
to be used with medium-speed range of the engine, and low-speed mode when the crane
needs to be used with low-speed (at idle up) or when noise prevention is necessary during
nighttime operation and the like.
The speed mode is memorized even after the power is turned off. Next time the power
of the transmitter is turned on; the previously selected speed mode is set.

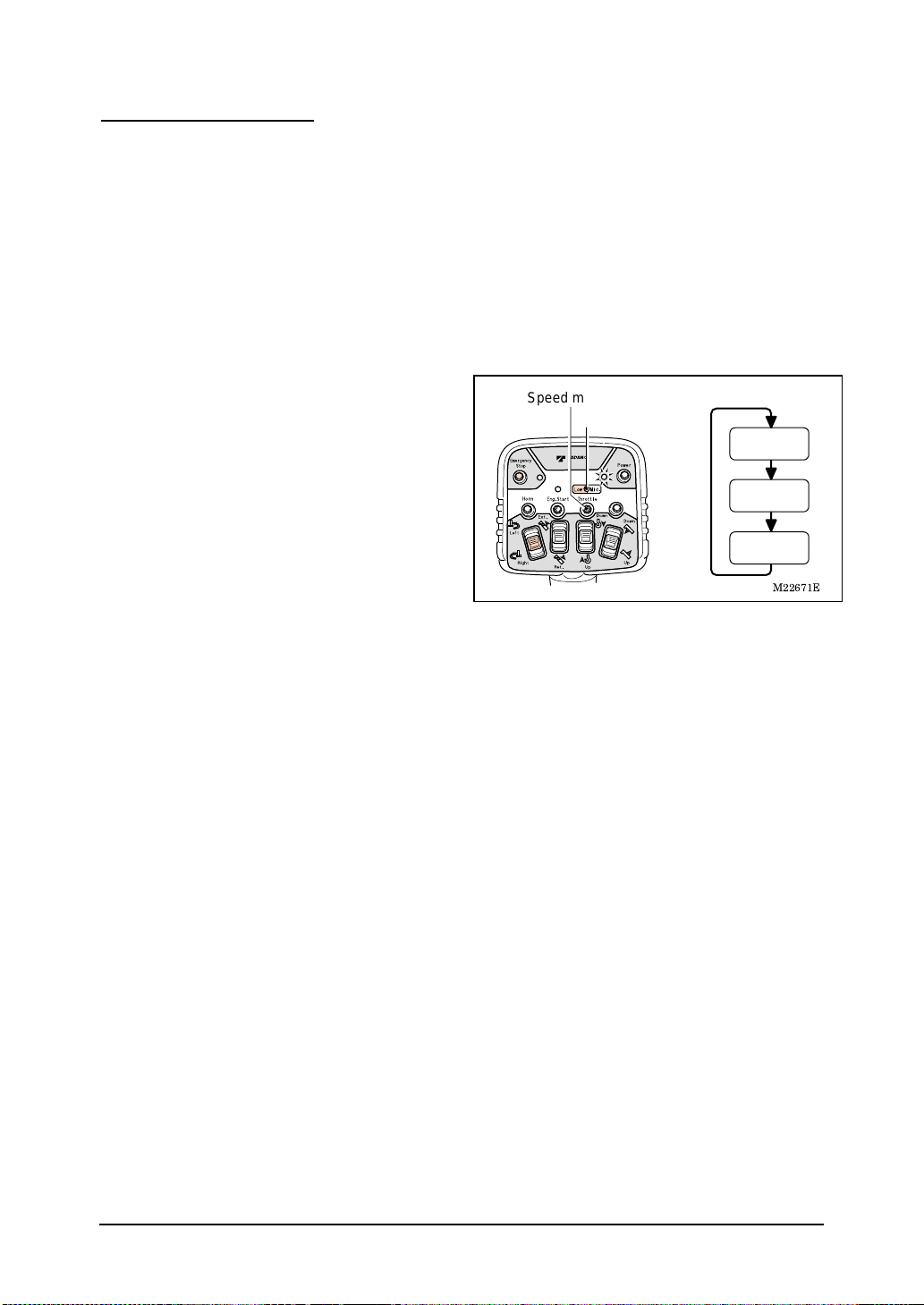

1. Press the speed mode switch while the
power LED of the transmitter is turned on.
Every time the switch is pressed, an indication
of the speed mode LED changes in the
following order and the speed mode changes
accordingly.
Speed mode switch
Speed mode LED
High-speed mode
(LED off)
Low-speed mode
(LED (red) on)
(1) At high-speed mode: LED off
(2) At low-speed mode: LED on (Red)
(3) At medium-speed mode: LED on (Green)
Medium-speed mode
(LED (green) on)
M22671E
Radio-control
15
Radio-control
4. Engine Start-up Operation
M037970E
Warning
It is dangerous to start up the engine while the motion selection switch of the
manual operation lever or transmitter is under operation, causing sudden
movement of the crane. Start-up the engine after confirming that the operation
levers and motion selection switches are in the neutral position.
The engine is damaged if the starting-up operation of the engine is made while
the engine is rotating. Start-up the engine after confirming that the engine has
stopped.
[NOTE]
Engine start-up operation is disabled under the e mergency stop state. Release
the emergency stop state before the operation.
Press the engine start switch after conforming
that the engine is stopped. The engine start
LED lights up while the switch is pressed and
the engine starts.
After the engine starts up, quickly release
Engine start LED
Engine
start
switch
your finger from the switch.
5. Emergency Stop Operation
When the control cannot be made through the
M22673E
radio-control operation, or when the
surrounding situation becomes dangerous,
press the emergency stop switch. If the switch
Emergency stop LED
is pressed, the engine stops, which stops the
crane operation.
When the switch is pressed, the
emergency stop LED and emergency
stop lamp of the crane light up to indicate
the emergency stop state.
Beep alarm sounds.
Emergency
stop switch
How to Release Emergency Stop
M22674E
Press the switch once again. Then the
emergency stop LED and emergency stop
lamp of the crane turn off and the emergency
stop state is released.
Two-tone alarm sounds.
The emergency stop state is also released when the switch of the control unit is turned
off after the radio-control /manual changeover switch is turned to “Manual” position.
Radio-control
16
Radio-control
Manual Operation
[NOTE]
To change from the radio-control
operation to manual operation, turn off
the power of the radio-control transmitter,
and then turn the radio-control /manual
changeover switch to the “Manual”
position.
Power LED (Turned off)
Power switch
M037980E
Radio-control/manual
changeover switch
Radio
Manual
Even after the radio-control transmitter is
turned off under the condition where the
radio wave is out of reach, the control unit
still appears to be on, in the radio-control
mode. Make sure to confirm that the
mode indicator lamp of the control unit
indicates “L0” after the radio-control
operation is completed (or after the
power of the transmitter is turned off).
Radio-control
/manual
PTO
changeover switch
ON
ON OFF「Radio」
ON ON「Radio」
Transmitter
power
OFF「Manual」
Mode
indicator lamp
Mode indicator lamp
Operation
mode
Manual operation
Radio-control
operation
M22672E
M22354E
Manual Operation
17
Manual Operation
Battery Replacement for Transmitter
1. Battery Replacement Timing
Replace the batteries in the following cases.
(1) When the power LED of the transmitter
flashes.
(2) When the alarm (which has a “two-tone”
sound) sounds while the motion selection
switch is operated.
The power LED also flashes in this case.
2. How to Replace Batteries
[NOTE]
Inserting the batteries incorrectly for plus
(+) and minus (-) may cause a liquid spill,
ignition, heat generation, and burst.
Insert the batteries according to the
direction plate.
If the battery cover is loosely fixed, water
may enter inside and cause a problem.
Fasten the fixing screw securely.
1. Open the batteries cover and remove the
old batteries.
2. After replacing the new batteries, close the
battery cover and fasten the fixing screw.
Use four AA-size batteries.
Do not mix any old or different types.
M037990E
Power LED
(Flashing)
Two-tone Alarm
M22675E
Direction plate
Battery cover
Fixing screw
AA-size battery
M22372E
Battery Replacement for Transmitter
18
Battery Replacemen t for Transmitter
M038000E
r
M22676E
：Flashing red (with short cycle) ：Flashing red (with long cycle)
：Flashing orange ：Flashing green
Mode indicator
lamp
【Transmitter】
【Control unit】
Engine start
LED
Speed mode LED
Emergency
stop LED
Power LED
Emergency
stop LED
I / R
Engine start
LED
Speed
mode LED
Power LED
Mode
indicator lamp
1
2
3
4
5
6
7
* I / R : Indication priority
Measures for Emergency Case
1. When Radio-control Operation is Impossible
Depending on the failure conditions, changing to the manual operation may not
restore the normal operation.
Check the LED indications of the transmitter or the error number on the mode
indicator lamp of the control unit in order to take the correct measure for the erro
number.
Warning
The radio-control operation is electrically made with the radio-control system. Therefore, a
part or the whole of the radio-control operation becomes impossible when the radio-control
system has a problem.
If a problem of the radio-control operation is recognized, confirm the operation of the four
LEDs of the transmitter and the mode indicator lamp of the control unit.
(1) If the LED of the transmitter flashes
・If the power of the transmitter is turned on
while the motion selection switch is
operated, indications (2) as shown in the
table are displayed.
If the power of the transmitter is turned on
while the speed control lever is operated,
indications (4) as shown in the table are
displayed.
If the power of the transmitter is turned on
while the motion selection switch and
speed control lever are operated,
indications (1) as shown in the table are
displayed.
In either case, once again turn the power
on.
・If the power of the transmitter is turned on
while the push switch (the horn, engine
start and speed mode) is operated,
indications (3) as shown in the table are
displayed.
After confirming the switch, once again turn
the power on.
・If the motion selection switch is kept under
the operation state approximately for five
minutes due to a failure, trapped dirt or the
like, indications (2) as shown in the table
are displayed. After confirming the switch,
once again turn the power on.
Measures for Emergency Case
19
Measures for Emergency Case
M038000E
M22677E
Transmitter
power
Mode indicator
lamp
Radio control/manual
changeover switch
Manual
operation
Radio control
operation
OFF
「Manual」
OFF
「Radio」
Control Unit
Power: OFF
Control Unit
Power: ON
ON
Operation
mode
If the normal operation is not restored or if
the indications (5) – (7) as shown in the
table remain to be displayed even after the
above measures are taken, quickly stow
the crane with the manual operation. Then
have the crane and radio-control system
inspected /repaired at the nearest
TADANO distributor or dealer.
(2) When the mode indicator lamp of the control unit displays an error number
The mode indicator lamp of the control unit
displays indications as are shown in the
figure to the right according to the
operational conditions.
If the mode indicator lamp displays the
indications not listed in the figure to the right,
the radio-control system has a problem.
Take an appropriate measure according to
the following table.
If more than two problems occur, each error number flashes in turn.
If the normal operation is not restored even after the measures in the following table are
taken, quickly stow the crane. Then, have the crane and radio-control system
inspected/repaired at the nearest TADANO distributor or dealer.
Error
Trouble and measure
number
13 After releasing your fingers from the switch of the transmitter and speed control
lever, turn on the power of the transmitter.
If the above does not restore the normal operation, the radio-control operation
is impossible. Change to the manual operation and operate the crane.
30-33 After the operation lever that corresponds to the error number is manually
returned to the neutral position, check if the error number disappears. When the
mode indicator lamp displays “L1” and when the error number does not
reappear after operation is started, the operation can be continued.
If the operation lever cannot be returned to the neutral position or if the error
number does not disappear, the radio-control operation of the part that has a
problem is not possible. Change to the manual operation and then operate the
crane.
Warning
It is dangerous to make other operations when the operation
lever of the part that has a problem cannot be returned to the neutral
position, since this would cause the part that has a problem to move
at the same time. Do not make such operations.
Measures for Emergency Case
20
Measures for Emergency Case
“30”: Extension operation
“32”: Winching operation
“31”: Elevation operation
“33”: Swing operation
34
The auto acceleration cannot be controlled with the radio-control operation.
Although the radio-control operation is possible, the operation should be made
carefully when the engine is revved up. Or, change to the manual operation and
then operate the crane.
45-49
The part that has a problem cannot be operated with the radio-control operation.
Change to the manual operation and then operate the crane.
It is dangerous to make other operations when the operation
lever of the part that has a problem cannot be returned to the neutral
position, since this would cause the part that has a problem to move
at the same time. Do not make such operations.
“45”: Extension operation
“47”: Winching operation
“46”: Elevation operation
“48”: Swing operation
“49”: Accelerating operation
M038000E
Warning
50-59
The part that has a problem cannot be operated with the radio-control operation.
Change to the manual operation and then operate the crane.
“50” “55”: Extension operation
“52” “57”: Winching operation
“51” “56”: Elevation operation
“53” “58”: Swing operation
60-63
“54” “59”: Accelerating operation
First change to the manual operation. Then, after the operation lever that
corresponds to the error number is manually returned to the neutral position,
change to the radio-control mode and check that the error number disappears.
When the mode indicator lamp displays the normal number and when the error
number does not reappear after operation is made, the operation can be
continued. If the operation lever cannot be moved or if the error number does
not disappear, then radio-control operation is impossible. Change to the manual
operation and then operate the crane.
“60”: Extension operation
“62”: Winching operation
“61”: Elevation operation
“63”: Swing operation
70-89 The radio-control operation is impossible. Change to the manual operation and
then operate the crane.
Measures for Emergency Case
21
Measures for Emergency Case
2. If the Radio-control is not Possible
M038000E
This is a measure to stow the crane in an emergency case. Do not
make any crane operation.
Warning
1. The unloading solenoid of the radio-control
valve should be fastened so that the crane
Screw
can be manually stowed.
(1) Remove the cap nut.
(2) Loosen the lock nut and lightly tighten the
screw inside until it cannot be turned any
longer.
Fastening the screw too tight may cause
operation failures. Make sure to lightly
tighten the screw.
2. After manually stowing the crane, have the
crane and radio-control system
inspected/repaired at the nearest TADANO
distributor or dealer.
Cap nut
Lock nut
M22377E
Measures for Emergency Case
22
Measures for Emergency Case
Troubleshooting Guide
First check the following when a problem occurs during the radio-control operation.
M038010E
Trouble
Power LED does not
light up.
Power LED flashes.
After the power is
turned on, four LEDs
flash.
The power of the
transmitter
spontaneously turned
off.
The power is turned off
during the radio-control
operation.
The accelerator cannot
be revved up.
Batteries are
exhausted in a short
time
The crane stops with
two-tone sound.
Checkpoints
・Are batteries inserted?
・Are batteries inserted in the
correct manner?
・
Are batteries exhausted?
・
Are batteries exhausted?
・Was the power turned on while
the switch on the transmitter
was operated?
・Was the power turned on while
the speed control lever was
pulled?
・When no operation is made for
approximately one hour, the
power of the transmitter is
automatically turned off to save
battery consumption.
・When the motion selection
switch is under operational
state continuously for
approximately five minutes,
transmission from the
transmitter is automatically cut
off to prevent accidents.
・Is the low-speed mode (with
the speed mode LED lighting in
red) selected?
・Battery longevity is shortened
under the conditions with
extremely cold temperatures.
・Are cables of the reception unit
or control unit loose?
・Is the crane used in the
situation as shown on the next
page?
Measures
・Insert batteries.
・Insert batteries in the
correct manner.
・
Replace batteries.
・
Replace batteries
・After releasing your finger
from the switch, turn on
the power.
・After releasing your finger
from the speed control
lever, turn on the power.
・Turn on the power again.
・After confirming that the
motion selection switches
are retuned to the neutral
positions, turn on the
power again.
・Change to the
medium-speed or
high-speed mode.
・Replace batteries.
・Connect the cable
properly.
・Refer to the next page.
Troubleshooting Guide
23
Troubleshooting Guide
M038010E
Radio wave transmission is hindered under the following conditions, which may stop the
crane operation. Take an appropriate measure according to the operational condition.
If the appropriate measure does not improve the situation, use the manual operation.
Operation example
Distance between the transmitter and
reception unit is too far.
Operation is made near the noise-generating
source.
M00247
Operation is made in a place with an
intensive radio wave interference causing
noise to the radios and to television screens.
A large metal cargo is lifted with the crane.
Or, there are obstacles between the
transmitter and reception unit such as wire
netting or metal doors.
Appropriate measure
・
Too large a distance between the
transmitter and reception unit may not
only hinder the radio wave transmission
but also increase noise influences.
Normally, make the operations within the
operating radius of the crane.
・When a noise generating device such as
a revolving light, electric fan or vehicle’s
air conditioner is used nearby, the
radio-control operation is influenced by
the source.
Turn off the noise-generating device
when it is possible to refrain from using it.
Since a motorcycle also generates a
noise, pay attention to motorcycles
passing through.
・Approach the transmitter to the reception
unit and operate the transmitter.
・Metal products between the transmitter
and reception unit hinder the radio wave
transmission. Move yourself to the
location where the reception unit can be
seen and then operate the transmitter.
?
Troubleshooting Guide
?
M22678
24
(Wire netting)
M22652E
Troubleshooting Guide
M038020E
Daily Inspection
Inspect the radio-control system at the time of the pre-operational inspection of the main
unit of the crane.
(1) Is the case of the transmi tt er or con t rol
unit damaged? Do switches or rubber
parts of the transmitt er have an y crack
or flaw?
Any damage on the case or any crack or
flaw on the rubber parts may allow water
or dust to enter inside, causing electronic
circuit problems or malfunction of the
crane.
(2) Do the motion selection switches and
speed control lever move smoothly?
Adhered dust or dirt may give unfavorable
impact on operations of the motion
selection switches or speed control lever,
causing operation failures or malfunctions
of the crane.
(3) Is the fixing screw of the transmitter’s
battery cover securely tightened?
A loose fixing screw of the transmitter’s
battery cover may allow water or dust to
enter inside, causing electronic circuit
problems or malfunction of the crane.
(4) Is the cable between the control unit
and communication unit loose or
damaged?
Is the antenna of the communication
unit damaged or loose?
If the connector of the cable or antenna is
loose, a radio wave reaching distance
may be reduced or the radio-control
system may be subject to noises.
In addition, if the cable or antenna is
damaged, the radio-control system may
be subject to noises.
Transmitter Communication unit
ノ
ダ
タ
社
会
式
株
1
R
F
S
C
R
2
S
E
号
00
番
2
造
0
製
1
R
F
S
C
R
＊
＊
＊
＊
＊
:
C
I
1
R
F
-
S
C
R
＊
＊
＊
:
D
I
C
C
F
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
Control unit
M22679E
M22681
M22682
ノ
ダ
タ
社
会
式
株
1
R
F
S
C
R
2
S
号
00E
番
造
02
製
1
R
F
S
C
R
＊
＊
＊
＊
＊
:
C
I
1
R
F
-
S
C
R
＊
＊
＊
:
D
I
C
C
F
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
M22680E
Daily Inspection
25
Daily Inspection
MEMO
26
H000781E
TADANO LTD.
Head Office
Ko-34, Sinden-cho, Takamatsu, Japan
Overseas Service Dept.
Tadano Ryogoku Bldg.
4-12, Kamezawa 2-chome,
Sumida-ku,
Tokyo, Japan
Tel. 81-3-3621-7765
Tel fax 81-3-3621-7785
TADANO AMERICA CORP.
333 Northpark Central Drive, SuiteZ,
Houston Texas, 77073 U.S.A.
Tel. 1-281-869-0030
Fax 1-281-869-0040
History of Revision
1
2
3
4
5
Loading...
