Service manual
DVD-R150
CONTENTS
1. SAFETY INFORMATION 1
2. IMPORTANT SAFETY INSTRUCTIONS 2
3. REMOTE CONTROLLER 4
4. FRONT PANEL INFORMATION 5
5. REAR PANEL INFORMATION 6
6. REMOTE CONTROLLER INFORMATION 7

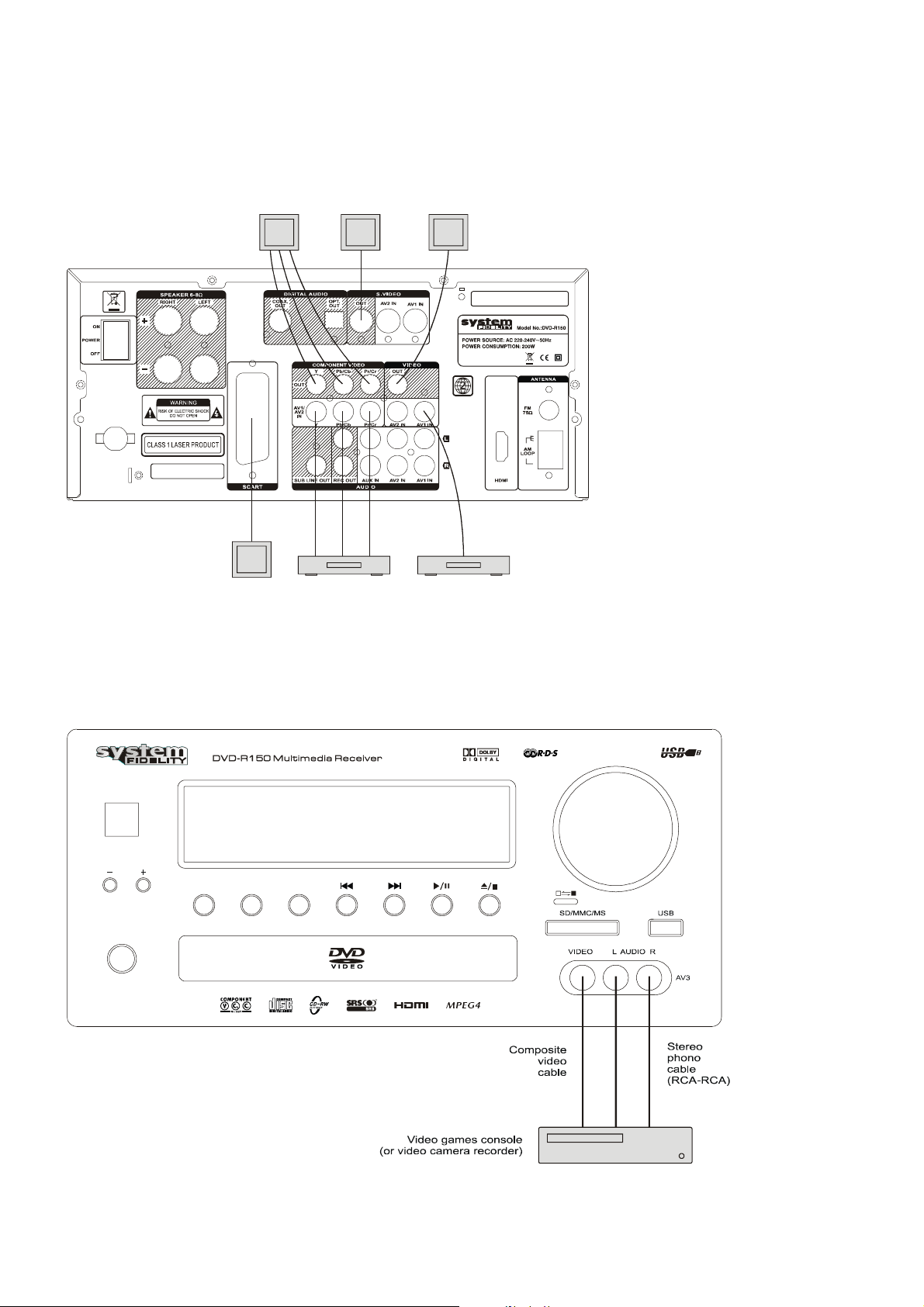

7. CONNECTION 9
LOUDSPEAKER CONNECTIONS 9
AUDIO CONNECTIONS 10
DIGITAL CONNECTIONS 10
VIDEO CONNECTIONS 11
FRONT INPUT CONNECTIONS 11

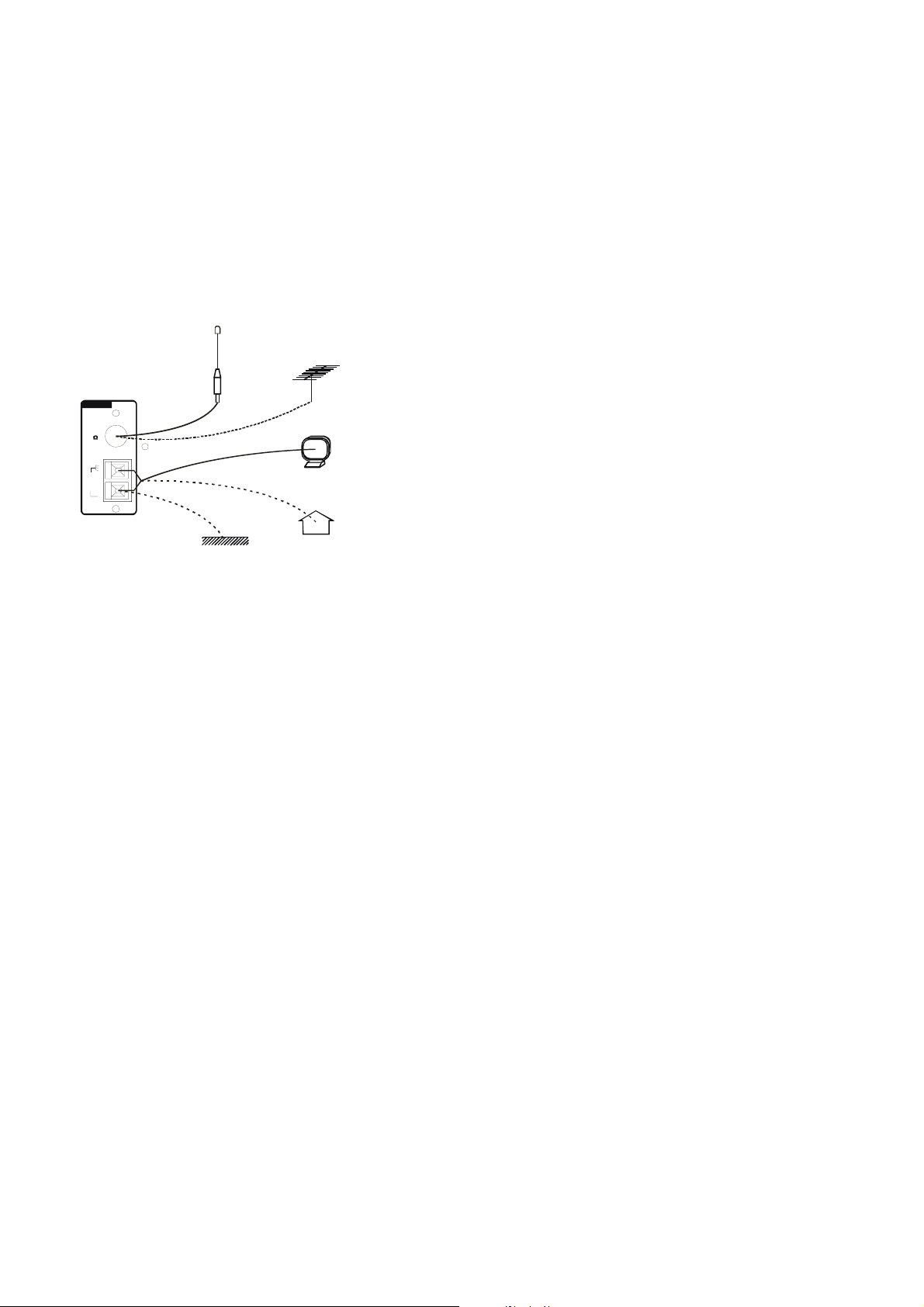

AERIAL CONNECTIONS 12
8. FUNCTION AND OPERATION EXPLANATION 13
9. RDS DATA SYSTEM 17
10. REGION MANAGEMENT INFORMATION 18
11. TROUBLESHOOTING GUIDE 18
12. SPECIFICATIONS 19
SAFETY INFORMATION
CLASS 1
LASER PRODUCT
ACCESSORIES
1. RCA cord (yellow color).
2. Remote control.
3. Battery AAA x 2 for Remote control.
4. T-type FM Antenna (75 ohms) and matching transformer.
AM Loop Antenna
5. Instruction Manual.
Caution:
- To reduce the risk of electric shock, do not remove Cover (or back)
- No user-serviceable parts inside.
- Refer servicing to qualified service personnel.
This lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninstalled
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
The marking of products using lasers (except for some areas). The
label is attached to the rear panel and says that the component uses
beams that have been classified as Class 1,which means the unit is
utilizing laser beams that are of weaker class. There is no danger of
hazardous radiation outside the unit
1
IMPORTANT SAFETY INSTRUCTIONS
A
A
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
1. READ AND FOLLOW INSTRUCTIONS: All the safety and operation instructions should be read before the product is
operated. Follow all operation instructions within this manual.
2. RETAIN INSTRUCTIONS: The safety and operation instructions should be retained for future reference.
3. HEED WARNINGS: Comply with all warnings on the product and in the operation instructions.
4. CLEANING: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
5. GROUNDING or POLARIZATION: This product may be equipped with a polarized alternating current line plug (a plug
having one pin wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician
since it is likely you have an out of sate wall socket. Never force the plug into the socket.
6. OVERLOADING: Do not overload wall outlets or extension cords as this can result in the risk of
fire or electric shock. Overloaded AC outlets, extension cords, frayed power cables, damaged
or cracked wire insulation, and broken plugs are dangerous. They may result in electric shock
or fire hazard. Periodically examine the power cable - if its appearance indicates damage or
deteriorated receptacles have it replaced by your service technician.
7. POWER SOURCES: This product should be operated only from the type of power source
indicated on the rear panel label. If you are not sure of the type of power supply to your home, consult your product dealer or
local power company. For products intend to be operated from battery power, or other sources, refer to the operation
instructions.
8. ACCESSORIES: Do not place this product on an unstable surface or support. The product may fall,
causing serious injury to a child or adult as well as serious damage to the product. Any mounting of
the product should follow the manufacture’s instructions and use a mounting accessory
recommended by the manufacturer. A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to
overturn.
9. OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and
built-up static charges. The example below is for reference only. Correct grounding should always be installed by an
electrician.
NTENNA
LEAD IN
WIRE
GROUND
CLAMP
NTENNA
DISCHARGE UNIT
(NEC SECTION 810-21)
GROUNDI NG CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC A RT 250. PART H)
ELECTRIC
SERVICE
EQUIPMENT
10. POWER-CORD PROTECTION: The power supply cables should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cables at plugs and the point where they exit
from the product.
11. ATTACHMENTS: Do not use unauthorized attachments as they may cause faults with the unit.
12. CONDITIONS REQUIREING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions.
a) If the unit exhibits sudden unusual operation or unusual display characteristics.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operation instructions, adjusting only those controls that are
covered by the operation instructions. (NOTE: improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation).
e) If the product has been dropped or damaged in any way.
f) If the product exhibits a distinct change in performance.
13. SERVICING: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous
voltage and may damage precision components. Refer all servicing to qualified service personnel.
14. LIGHTNING: For added protection during a lightning storm, or when it is left unattended and unused for long period of time,
unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to
lightning and power line surges.
2
IMPORTANT SAFETY INSTRUCTIONS
A
15. REPLACEMENT PARTS: Should replacement parts be required, have the service technician verify that the replacement
parts he uses have the same safety characteristics as the original parts. Use of unauthorized replacements parts can cause
fire or electric shock.
16. SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks recommended by the manufacturer to determine that the product is in a safe operating condition.
17. HEAT DISPERSAL: Leave at least 10 cm of space between the top, back and sides of the unit and the wall or other electrical
components.
18. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
19. NOTES ON USE
Keep the set free f rom moisture.
water,and dust.
void high temperatures
Allow for sufficient heat dispersion
when installed on a rack.
Do not let foreign objects in the set.
Handle the power cord carefully.
Hold the plug when unplugging the
cord.
Unplug the power cord when not
using the set for long periods of
time
*(For sets with ventilation holes)
Do not obstruct the ventilation
holes
Do not let insecticides,benzene,and
thinner come in contact with the set.
Never disassemble or modify the set
in any way.
3

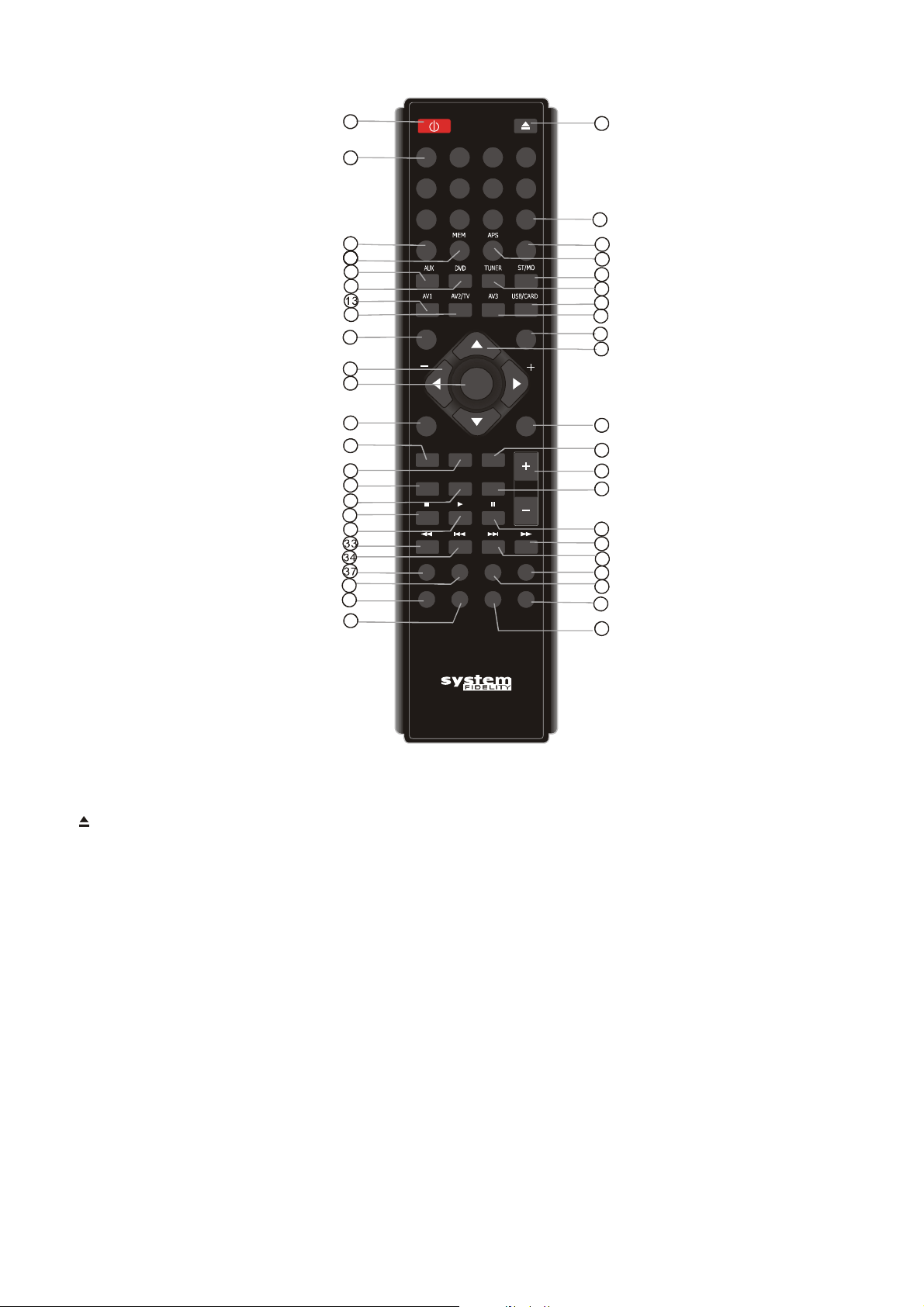

REMOTE CONTROLLER
By using the provided remote control unit, the receiver can be
controlled from your listening position. To use the remote
control unit, point it at the REMOTE SENSOR window of the
receiver.
Notes:
- Even if the remote control unit is operated within the
effective range, remote control operation may be impossible if
there are any obstacles between the unit and the remote
control.
- If the remote control unit is operated near other appliance
which generate infrared rays, or if other remote control
devices using infrared rays are used near the unit, it may
operate incorrectly.
- The power is turned on/off (standby) by pressing the
POWER button on the remote control unit in standby mode.
Precautions concerning batteries
-Be sure to insert the batteries with correct positive+ and
negative – polarities.
- Use batteries of the same type. Never use different types of
batteries together.
- Rechargeable and non-rechargeable batteries can be used.
Refer to the precautions on their labels.
- When the remote control unit is not to be used for a long
time (more than a month), remove the batteries from the
remote control unit to prevent them from leaking. If they leak,
wipe away the liquid inside the battery compartment and
replace the batteries with new ones.
- Do not heat or disassemble batteries and never dispose of
old batteries by throwing them in a fire.
REMOTE CONTROL OPERATION RANGE
Use the remote control unit within a range of about 7
meters (23 feet) and the angles of up to 30 degrees aiming
at the remote sensor.
BATTERY INSTALLATION
1. Remove the battery compartment cover.
2. Insert two “AAA” dry batteries.
Make sure that the batteries are inserted with their
positive “+” and negative “-” poles positioned correctly.
3. Close the cover until it clicks.
If the distance required between the remote control unit
and main unit decreases, the batteries are exhausted. In
this case, replace the batteries with new one
4
FRONT PANEL INFORMATION
1
2 3
VOLUME
POWER
STANDBY/ON
TUNI NG
STATION
PHONES
154 165 6 7 8 9 10 11 12 13 1417
SOURCE
CARD
/USB
R
UNIVERSAL SERIAL BUS
1. Power Standby/On When this unit is powered on, press this button to turn the unit into standby mode, press it
again to turn on the unit.
2. VFD Display Unit Informs you of selected inputs and system state.
3. Volume While playing the source, if you want to increase or decrease the volume, just turn the
volume knob clockwise or counterclockwise.
4. Tuning +/- When using the Tuner these buttons adjust the radio frequency.
5. Station When using the Tuner press this button to select a preset channel.
6. Source Press this button to select different kinds of source: DVD, USB, AV1, AV2, FM, AM, AUX, TV,
AV3
7. Card/USB If you want to use SD/MMC/MS card or USB card for playback, insert a SD/MMC/MS card or
a USB card, press this button to select the device you want to use.
Skip down.
8.
Skip up.
9.
10.
Press this button if you want to start or interrupt the disc playing
11. / Under DVD mode, press this button if you want to stop the disc playing, press this button
once more to open the disc tray.
12. Door switch When a SD card is used, push the door switch to the left side before attempting to insert a
SD card, if not using the SD card or if the SD card is removed, always push the door switch
to the right side to close the door to prevent dirt and dust from entering the input.
13. SD card port
14. USB port
15. PHONES Connect to the headphone.
This is the jack for the headphone. Connect the plug on the stereo headphone for private
listening.
Adjust the volume so that it does not hurt your ears when using the headphones.
- If you do not intend to use your headphones, always ensure that you unplug them.
16. DISC TRAY
17. AV3 Input for VCR, Video Camera Recorder, etc. It contains one video input and Analog Left and
Right inputs.
5
REAR PANEL INFORMATION
1
SRS and (o) symbol are
trademarks of SRS Labs, Inc.
3 4 5
Dolby and the double-D symbol are
registered trademarks of Dolby Laboratories.
2 8 6 9 10 117 12
1. Power On/Off Switches the unit on and off.
2. Mains power lead Once you have completed all connections, plug the AC power lead into an appropriate
mains socket. The Multimedia receiver is now ready for use.
3. Speaker terminals Connect to loudspeakers with an impedance of between 4-8 ohms.
4. Digital Audio - Coax. Out: Connect to the digital coaxial input of an external recording device (eg
MD/CDR etc) to record from the selected digital audio source.
- Opt. Out: Connect to the digital optical input of an external recording device (eg MD/CDR
etc) to record from the selected digital audio source.
5. S-Video In/Out - S-Video In : Connect the S-Video output from the source equipment.
- S-Video Out: Connect to the S-Video terminal of a TV set.
6. Component Video Input/Output - Input: Connect the Component Video output from the source equipment.
- Output: Connect to the Y, Pb/Cb & Pr/Cr terminals of a TV set.
7. Composite Video In/Out - Input: Connect the Composite Video output from the source equipment.
- Output: Connect to your television via RCA phono cable to display the picture of any
composite video connected unit.
8. Scart Connect to the Scart terminal of a TV set.
9. Subwoofer Line Out Line output for an active subwoofer
10. Analogue audio inputs/output 3 x audio inputs (AV1/AV2 IN / AUX) / 1 x audio output (REC Out)
11. FM/AM antenn or FM & AM a Antenna inputs f
12. HDMI out jack
Use an HDMI connection cable (commercially available) to connect to a display with an
HDMI compatible port.
6
REMOTE CONTROLLER INFORMATION
A
1
POWER
2
17
19
20
21
23
24
27
28
30
31
38
41
42
11
12
14
3
5
6
1234
5678
0
9 10+
UTO
MENU TITLE
TUNING TUNING
ENTER
RETURN SETUP
TREBLE
BASS BALANCE
AUDIO
SUBTITLE REPEAT
PBC SLOW/STEP
GOTO
P.S C A N ZOO M
ANGLE
DISPLAY
PTY SEARCH
VOLUME
SRS
MUTE
4
8
7
10
9
16
15
18
45
22
25
26
29
32
36
35
40
39
44
43
1. Power key
When this button is pressed during the remote standby state,
the power of the unit can be switched on/off.
2.
Press this button to open the disc tray.
3. Number keys
These are the numeric keys for using in operating DVD player
and preset station on FM/AM.
4. Display
When playing DVD disc, press this button to play the current
playing time and the remained time.
5. AUTO
This button is used to select AUTO or MANUAL tuning for AM
and FM stations. Press once to set to AUTO again for
MANUAL.
6. Memory
When in tuner mode, press it to store the broadcast station
you wish to preset.
7. APS
Under FM or AM mode, press this button to allocate and
memorize radio stations automatically.
8. PTY Search
Used for our other model with RDS function.
9. TUNER
Press this to select source of FM and AM.
10. ST/Mono
Press it to alternate between stereo mode and mono mode
when listen to FM broadcast.
DVD-R150
11. AUX
Press this button to select the source of AUX.
12. DVD
Press this button to select the source of DVD.
13. AV1
Press this button to select the source of AV1.
14. AV2/TV
Press this button to select the source of AV2/TV.
15. AV3
Press this button to select the source of AV3.
16. USB/CARD
If you want to use USB/SD card for playback, insert a USB
/SD card, press this button in DVD source mode, DVD DRIVE,
USB/CARD DEV 1 appear in the TV screen, use the up &
down cursor on the remote or press this button repeatedly to
select the device you want to use.
17. Menu
Press it to show the main contents of DVD.
18. Title (only for DVD)
When playing DVD including many titles, press it, the title
menu will appear on the television screen, use the CURSOR
to choose the title you want to play, then press ENTER to start
your chosen title.
19. Tuning + / -
When using the Tuner these buttons adjust the radio
frequency.
20. Enter
To confirm the item, button or number that you select.
7
21. Return
Press it to cancel the utilizing of controlled menu picture.
22. Setup
You can access the DVD player configuration settings by
using the Setup Menu.
23. BASS
The button is used for adjusting the BASS tone of the
speakers.
24. TREBLE
The button is used for adjusting the TREBLE tone of the
speakers.
25. BALANCE
The button is used for adjusting the balance of the speakers.
26. Volume+/-
To increase or decrease the Master Volume.
27. Subtitle (only for DVD)
Press this button to select different subtitle languages from
those included in the DVD video or turn it off.
28. Audio
In DVD mode: select different languages for dialogue.
29. Repeat
1). Press it to play a single chapter/title on a DVD video or a
single track/entire disc on a CD repeatedly.
2). When playing MP3, press this button repeatedly, you will
get the following loop: SINGLE→ FOLDER → REPEAT
ONE→FOLDER REPEAT→DISC→ DISC
REPEAT→DISC SCAN.
SINGLE means that only the current song will be played,
when this song finishes playing, the playback will stop
automatically.
FOLDER means that only the songs in the folder you
selected will be played.
REPEAT ONE means that the song you selected will be
played repeatedly.
FOLDER REPEAT means that the folder you selected will
be played repeatedly.
DISC means the whole disc will be played.
DISC REPEAT means that the disc will be played
repeatedly.
DISC SCAN means that each track will be scanned for 10
seconds.
30.
Under DVD mode, press this button if you want to stop the
disc playing.
31. ►
Press this button if you want to start the disc.
32. װ
Press this button if you want to interrupt the disc playing
33.
34.
35.
36.
37. PBC
When playing VCD (2.0), press this button to turn on/off PBC.
38. Slow/ Step
- When play back DVD disc, press this button repeatedly,
you will get SF 2 x, SF 4 x, SF 8 x, SR2 x, SR 4 x, SR 8 x.
- When play back VCD disc, press this button repeatedly,
- Press the ‘װ’ button first and then press this button, the
39. Angle (only for DVD disc)
As to the DVD recorded with multi-angular, press ANGLE
button to change the angle of the screen.
a). Press this key once, you can get Angle 1.
b). Press it again, is Angle 2.
40. SRS
Press this button to select the source of 3D Stereo, 3D Mono,
and BYPASS.
41. Goto
Press this button to play your desired selection and location
while playing the disc.
42. Pro. Scan
When playing DVD disc, and this unit is connected to a TV set
with progressive scan function, press this key to better the
picture seen on the screen.
43. Zoom
Enlarge the picture
44. Mute
Press this button to mute the sound, press it again to cancel
the mute function.
45. Cursor keys◄►▲▼
: Fast backward (search backward)
Skip to previous chapter or track.
Skip to next chapter or track
: Fast forward (search forward)
you will get SF 1 x, SF 2 x, SF 3 x.
picture will move forward frame by frame
8
CONNECTION
LOUDSPEAKER CONNECTIONS
Caution:
To avoid damaging the speakers with a sudden high-level signal, be sure to switch the power off before connecting the speakers.
Check the impedance of your speakers.
Connect speaker with an impedance of 8 ohms or more. The amplifier’s red speaker terminals are the + (positive) terminals
and the black terminals are the – (negative) terminals.
The + side of the speaker cable is marked to make it distinguishable from the – side of the cable. Connect this marked side
to the red + terminals and the unmarked side is the black terminal.
Prepare the speaker cords for connection by stripping off approximately 10 mm or less (no more as this could cause a
short-circuit) of the outer insulation. Twist the wires tightly together so that they are not straggly.
2
1
3
1. Unscrew the knob
2. Insert the speaker cable.
3. Tighten the knob and secure the cable.
Dolby and the double-D symbol are
registered trademarks of Dolby Laboratories.
SRS and (o) symbol are
trademarks of SRS Labs, Inc.
Note: The front left speaker and front right speaker connections are made via loudspeaker cable, while the active subwoofer is
connected via a standard RCA phono cable.
9
CONNECTION
AUDIO CONNECTIONS
Note: Do not plug in the mains power lead or turn on the unit all connections have been made.
Connect to source equipment using phono cables (stereo 2RCA-2RCA).
Dolby and the double-D symbol are
registered trademarks of Dolby Laboratories.
SRS and (o) symbol are
trademarks of SRS Labs, Inc.
DVD PLAYERTAPE RECORDER CD PLAYER
DIGITAL CONNECTIONS
Two types of digital audio connections can be made to this unit, optical and optical.
CD PLAYER
SRS and (o) symbol are
trademarks of SRS Labs, Inc.
MD/DVD-R/CD-R
Dolby and the double-D symbol are
registered trademarks of Dolby Laboratories.
10
CONNECTION
VIDEO CONNECTIONS
There are four types of video connections can be made on this unit: Composite, S-Video, SCART and Component. For best
picture quality we recommend making Component/SCART video connections, then in declining order of quality, S-Videos and
then Composite video connections.
SRS and (o) symbol are
trademarks of SRS Labs, Inc.
TV/MONITOR TV/MONITOR
TV/MONITOR
Dolby and the double-D symbol are
registered trademarks of Dolby Laboratories.
TV/MONITOR
DVD PLAYER
DVD PLAYER
FRONT INPUT CONNECTIONS
The front panel AV3 input is for temporary connections to video games consoles etc. Connect to a video game or video camera’s
outputs using a composite video cable and stereo phono cable (RCA-RCA).
POWER
STANDBY/ON
TUNING
PHONES
STATION
SOURCE
CARD
/USB
VOLUME
R
UNIVERSAL SERIAL BUS
11
COMMECTIONS
AERIAL CONNECTIONS
FM aerial
Connect an aerial to the FM 75 ohm socket (a simple wire aerial is supplied for temporary use). Extend the lead and move the
aerial around until you get the best reception. For continued use, we strongly recommended using a 75 ohm outdoor FM aerial.
AM loop aerial
Connect each end of the single length antenna to the antenna terminals. Place the antenna as far from the main system as
possible to prevent unwanted noise and to obtain optimum reception. If the AM loop aerial provided does not receive sufficient
reception, it may be necessary to use an outdoor AM aerial.
FM aerial
OR FM external aerial
ANTENNA
FM
75
AM
LOOP
AM loop aerial
OR
AM external aerial
Ground
12
FUNCTION AND OPERATION EXPLANATION
Turn ON/OFF the unit
1. Connect the power cord to the rated AC socket. Press the
POWER ON/OFF switch (on the rear panel), the unit has
been turned on and is in the previous played mode.
2. Press the STANDBY button (1/ front panel) to turn off the
unit and into the standby mode. Press the STANDBY button
again to turn on the unit.
Input function selection
After the unit having been turned on, press the SOURCE
button to choose the your desired input signal source. Press
the SOURCE button repeatedly to select DVD, USB, AV1,
AV2, FM, AM, AUX, TV OT AV3.
Basic playback
1. In DVD mode, “ DISC LOADING” will appear on the screen
and the initial picture on the TV screen. Now the unit is
searching whether there is disc inside the unit, if yes, the
menu will be shown or the disc will be played automatically. If
no, “ NO DISC” will appear.
2. Press
disc on it, press
unit starts to read the disc, and the DVD menu will appear on
the TV screen or start playing automatically.
Function operation
1.
Under the stop mode, press it once to start playing.
a. During the playing mode, press it once to interrupt the
playing and show the static picture.
b. Press it again to continue playing
2.
Under the state of playing or pausing, press it once to skip
one chapter or one music forward or backward, then continue
playing.
3. : fast backward/forward (previous/next track)
During playing, press the button or the button on
remote control repeatedly, DVD disc fast forwards/ backwards
at 2 times, 4 times, 6 times and 8 times of the normal speed.
A. When playing CD, VCD disc, press
button on remote control repeatedly, you can get 2 times, 4
times, 8 times and 16 times fast forward/ backward.
B. Under the fast forward/backward mode, press
button, it will resume normal playback.
4. REPEAT: Repeat track or disc (for SVCD, VCD, PBC must
be in OFF mode, otherwise not valid.)
a. Press it once, repeat chapter or track.
b. Press it again, repeat title or disc.
c. Press it once more to cancel the repetition.
/ button to open the DVD disc tray, place the
/ button again to close the disc tray, the
: play/pause button
: skip backward/ forward
button or the
5. ZOOM: Enlarge the picture. (CD not valid)
A. Press this key repeatedly to enlarge 1.5 x , 2 x, 3 x, times.
B. While playing with enlarging picture, press the 4 shift
buttons
6. MENU: (CD not valid)
A. Press MENU button to show the main contents of the DVD.
B. Use the 4 shift button on front panel or remote control to
choose the content or music you want.
C. Press
playing.
In addition, if there are subtitles, using the above step a—b to
choose the your desired subtitles.
If the disc being played without contents, this button will be no
function.
7. DISPLAY: Press this button to check the current playing
time and the remained time of the title/chapter/track being
played and the total remained time of the disc being played.
A. Press the DISPLAY button to display the title, chapter
included in this disc and the playing time.
B. Press it again to display the remained time of the title.
C. Press it again to display the playing time of the chapter.
D. Press it again to display the remained time of this chapter.
E. Press it once more to clear up the time display mode on
the TV screen.
8. ANGLE: to choose the angle of the picture (CD, VCD,
SVCD not valid).
Press this button in sequence to choose the angle of the
scenes. (As to those DVD recorded without multi- angular,
not valid).
With the DVD set on the multi-angular mode ON, when
playing DVD recorded with multi-angular, the current playing
angle mark appears on the upper right angle on the TV
screen.
9. AUDIO
When play DVD disc
a. Press this key to select audio channel1 output.
b. Press this key again to select audio channel 2 output.
Note: Audio channel 1, 2… is the music style recorded in the
disc, if the disc does not has such characteristic, “NOT
VALID” will appear.
10. RETURN: (CD not valid)
A. During playing VCD, SVCD, press “ RETURN” button to go
back to main menu.
B. During playing, after pressing “SETUP” to enter setup
function, press RETURN button to exit SETUP and start
playing again.
11. SETUP: menu setting button
A. Press SETUP button, “….SETUP MENU…MAIN PAGE…”
appears on the TV screen.
B. During setup, using the 4 shift button
the functional button ENTER on remote control, you can
complete the your desired functional setting.
on remote control to move the picture.
or ENTER on remote control to confirm
and
13
FUNCTION AND OPERATION EXPLANATION
General Setup
TV Display Normal/PS
Normal /LB
Wide
TV Type PAL
Multi
NTSC
Video Out YUV
RGB
Angle Mark On
Off
OSD Lang English
French
German
Spanish
Italian
Hungarian
Slovene
Screen Saver On
Off
HDMI Setup Off
480p
720p(60Hz)
1080i(60Hz)
576p
720p(50Hz)
1080i(50Hz)
HDMI Audio SPDIF
PCM
Audio Setup
SPDIF Output Spdif/Off
Spdif/Raw
Spdif/Pcm
On
LPCM Out 48K
96K
Preferences Page
Audio English
French
German
Spanish
Italian
Hungarian
Slovene
Subtitle English
French
German
Spanish
Italian
Hungarian
Slovene
Disc Menu English
French
German
Spanish
Italian
Hungarian
Slovene
Parental 1 Kid Saf
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 Adult
Password Change
Defaults Reset
14
1). General Setup
● TV Display
To select the screen format to fit your TV screen.
NORMAL/PS (4:3 Pan Scan): To select this screen when this
system is connected to normal TV set. The wide-screen
picture display on the full screen, but some parts of the video
picture are cut off automatically.
NORMAL/LB (4:3 Letter-box): To select this screen when this
system is connected to normal TV set. When display
wide-screen picture, there are black strips on upper and
bottom.
WIDE /HDTV(16:9): To select this screen when this system is
connected to wide-screen or HDTVTV set.
● TV Type
There are three types of TV system setting in this system:
Multi, NTSC and PAL. Select a different setting according to
your TV system.
Note: Only when HDMI setup is in Off mode, can you select
this item.
● Video Out
To select video output signal (RGB or YUV), if YUV is
selected, YUV has video signal output, but not RGB; if RGB is
selected, both YUV and RGB has video signal output.
Note: Only when HDMI setup is in Off mode, can you select
this item.

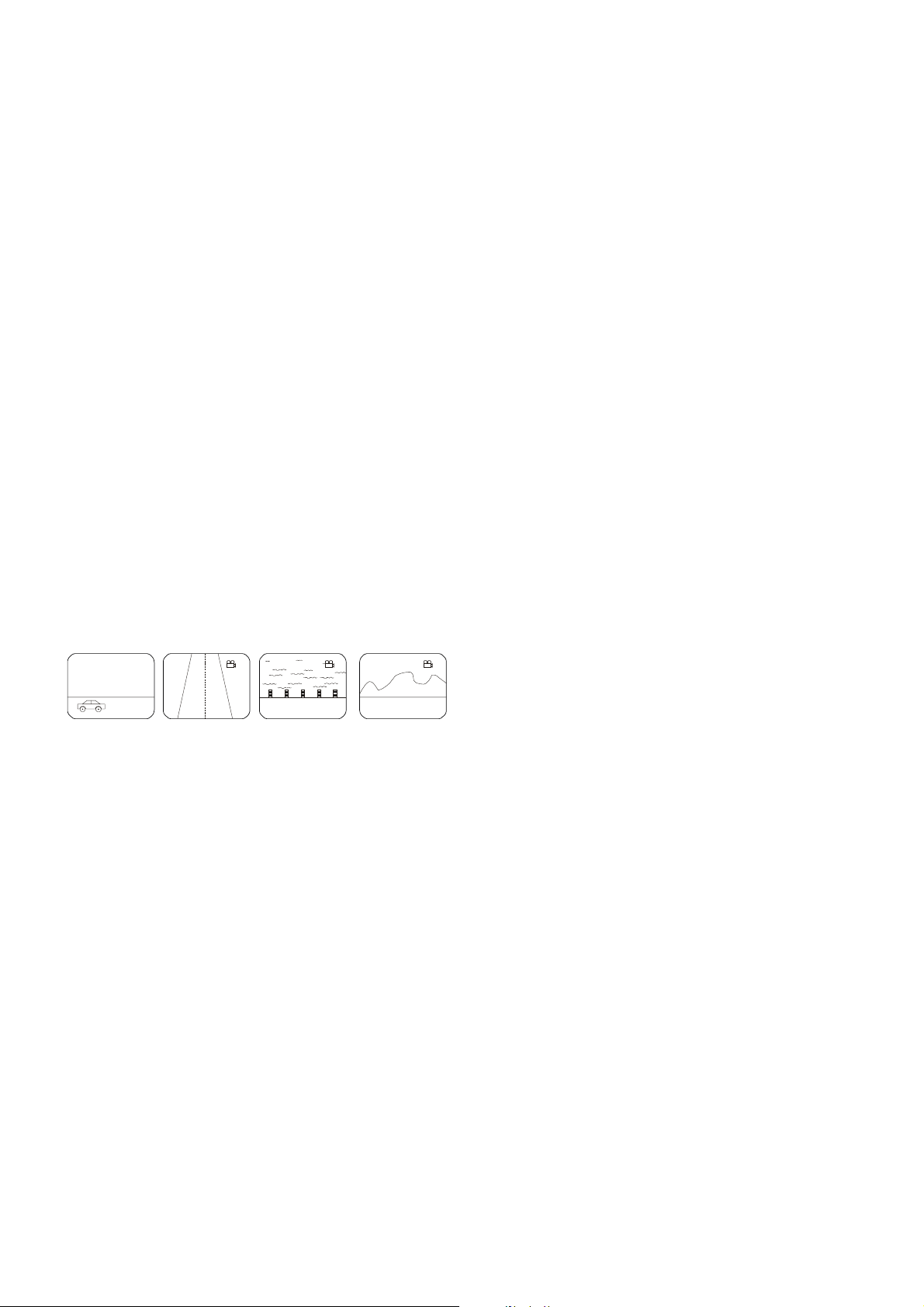

● ANGLE MARK
As to the DVD recorded with multi-angular scenes, you
can change the angle of the screen.
For example, when you play a DVD in which the motor car is
going forward, without interrupting the moving scenes, you
can display the scenes from the font, left side window or right
side window. Each time you press the ANGLE key on remote,
the angle will be changed once.
There are two modes ON/OFF in this angle mark.
ON mode: The current playing angle mark number displayed
on the right upper angle on the TV screen.
OFF mode: No angle mark number displayed on the TV
screen.
1 2 3
Note: The angle number differs from disc to disc or from
scenes to scenes. Some discs are not recorded with
multi-angular, the angle may not be changed.
● OSD LANG
There are seven different languages: English, Spanish,
German, French, Italian, Hungarian & Slovene set in this unit
system.
Note: OSD LANG differs from DVD disc to DVD disc. Even if
one language has been set, if the disc underplaying recorded
w/o such kind of language, only other languages can be
displayed.
● SCREEN SAVER
If you activate the screen saver function, when this unit is
under stop, tray-open, no disc or picture still for about 60
seconds, SCREEN SAVER picture appears. The purpose of
SCREEN SAVER is to protect the display screen from
damage. (The initial setting is ON.)
● HDMI Setup
OFF (Default): No video outputs from the HDMI OUT
connector.
480p: Video output from HDMI OUT jack at 480p.
720p(60Hz): Video output from HDMI OUT jack at
720p(60Hz).
1080i(60Hz): Video output from HDMI OUT jack at
1080i(60Hz).
576p: Video output from HDMI OUT jack at 576p.
720p(50Hz): Video output from HDMI OUT jack at
720p(50Hz).
1080i(50Hz): Video output from HDMI OUT jack at
1080i(50Hz).
● HDMI Audio
To select the audio output format from HDMI: SPDIF or PCM.
2). Audio Setup
● SPDIF output
- SPDIF Off: When this item has been selected, the output is
only analog.
- SPDIF RAW: When this item has been selected, the audio
source output will be exactly the same as that of inputting.
- SPDIF PCM: When this item has been selected, the audio
source output will always be PCM (stereo) no matter what
source has been inputted.
● LPCM Out
This function is available only in digital output, there are 48K
& 96K set in this unit.
3). Preferences
● Audio
- After entering AUDIO setting, select your desired AUDIO
language by using the direction key, then press ENTER
button to confirm it. There are seven modes for you to select:
English, French, German, Spanish, Italian, Hungarian and
Slovene.
● Subtitle
- After entering SUBTITLE setting, select your desired
SUBTITLE language by using the direction key, then press
ENTER button to confirm it. There are seven modes for you to
select: English, French, German, Spanish, Italian, Hungarian
and Slovene.
● Disc menu
- After entering MENU LANG setting, select your desired
MENU language by using the direction key, then press
ENTER button to confirm it. There are seven modes for you to
select: English, French, German, Spanish, Italian, Hungarian
and Slovene.
Note: If the disc does not have the language you select, it can
be played only with the disc menu language recorded.
● Parental (restrict the children playing)
This function is used to setup the playing restrictive level.
1. Press the SETUP button in STOP mode.
2. Press the Cursor button (▼) to select Preferences, then
press the ENTER button.
3. Press the Cursor button (▼) to select PARENTAL
4. Press the Cursor button (►) to Rating Level Options, press
the Cursor buttons (▲or ▼) to select a rating level, then
press the ENTER button, input password”330812341234”,
then press the ENTER button to confirm.
5. Press the SETUP button to exit.
● Password
1. Press the SETUP button in STOP mode.
2. Press the Cursor button (▼) to select Preferences, then
press the ENTER button.
3. Press the Cursor button (▼) to select PASSWORD.
4. Press the Cursor button (►) to CHANGE, then press the
ENTER button, you are required to input password old
password (”330812341234”), new password, and confirm
password, then press the ENTER button to confirm.
5. Press the SETUP button to exit.
● Defaults
This unit has a function that preserves the preset memory
and most-recent memory function. In the event of a power
failure, or if the power cord of this unit is disconnected from
the electric outlet, the back-up memory will preserve the
preset memory and most-recent memory functions for as long
as approximately 1 week. If the power supply is interrupted
for 7 days or longer, the memory settings will be erased.
If it is desired to reset all settings to their factory defaults or in
the unlikely event that the unit locks up due to an electrical
discharge etc:
1. Press the SETUP button in STOP mode.
2. Press the Cursor button (▼) to select Preferences, then
press the ENTER button.
3. Press the Cursor button (▼) to select DEFAULTS.
4. Press the Cursor button (►) to RESET, then press the
ENTER button.
5. Press the SETUP button to exit.
15
RADIO OPERATION
1. Select FM or AM broadcasting mode by pressing Source
button.
2. Tuning mode:
A. AUTOMATIC TUNING
1). Press the Auto button on remote control to activate
automatic selection. (Default mode is Manual selection) (Note:
Auto appears on the display).
2). Press Tun i ng +/- to select the station you want to listen to.
When a station is tuned in, the tuning process will stop
automatically. (Automatic selection)
3). Press Tuning + /- again to select another channel.
B. MANUAL TUNING
It is for selecting stations, which cannot be tuned
automatically (manual selection)
Press the Auto button on remote control to activate manual
selection. Each time the Tuning + /- button is pressed
momentarily (0.5 second or less), the frequency changes by a
fixed step. FM: 50 kHz steps; AM: 9 kHz steps
3. PRESET BROADCAST STATION
This facility is used to store FM, AM broadcasting from
channel 1 to 20 (FM)/1 to 10 (AM) repeatedly.
a. Press Source to select broadcast FM or AM.
b. Press Tuning- or Tuning+ until the displaying frequency
begins to change, then release. When this system tunes to
station the scanning will stop.
c. Press MEM button on remote control. A preset number will
appear on the display. Use Station to choose your desired
preset number, then press MEM button again to confirm.
d. Repeat the above procedures, this unit can store 1 to 15
stations.
e. When you want to listen to the preset broadcast station,
press Station on front panel or number key on remote to
select your desired preset station.
4. FM MODES AVAILABLE
Press ST/Mono button to alternate between Stereo mode and
Mono mode.
STEREO
FM stereo broadcasts are received in stereo and the “∞”
indicator lights on the display.
MONO
To compensate for weak FM stereo reception, select this
mode. Reception will now be forced monaural, reducing
unwanted noise.
16
RADIO DATA SYSTEM
RADIO DATA SYSTEM (RDS)
RDS is a method for the transmission of additional information from local Radio Stations. It can only operated in FM mode. For
example, name of the station broadcasting, name of the program or the type of program will be shown on the multi-function
display.
It functions only when the local broadcasting stations have the RDS transmission and the signal is strong enough.
Press “DISPLAY” on remote control, there are functions for PS, PTY, WAIT CT and RT.
a) PS (Program Service Name)
Press “DISPLAY” on remote control until “PS” appears. The current station name will be shown.
Note: “NO PS” will be shown if the signal from local radio station is not strong enough or no such service.
b) PTY (Program Type)
Press ”DISPLAY” on remote control until “PTY” appears. The current name type of the program will be shown.
Note: “NO PTY” will be shown if the signal from local radio station is not strong enough or no such service.
c) CT (Clock - Time)
Press “DISPLAY” on remote control, then “WAITING CT” will appear.
The current time from Radio Station will be shown, e.g. 15:30
Note:
1. The Clock - Time will be only transmitted from local radio station once a minute, so you need to wait for less than 1 minute to
show the result.
2. “NO CT” will be shown if the signal from local radio station is not strong enough or no such service.
d) RT (Radio text)
Press “DISPLAY” on remote control until “RT” appears. Some Text messages will be shown.
Note: “NO RT” will be shown if the signal from local radio station is not strong enough or no such service.
PTY SEARCH (Program Type Search)
1. Press the “PTY SEARCH ” on remote control, “PTY SELECT” will flash on the display.
2. Press TUNING + /- to choose the program type, for example, NEWS, SPORT, …etc.
3. Press “PTY SEARCH” again once you choose the program type.
4. When the type of program tuned in, it will stop searching, otherwise, “NO FOUND” will appear.
APS (Auto Program Search)
1. Select your FM or AM band.
2. Pressing the “APS” on remote control, it will search the available stations. The searched stations will be memorized in the
respective band memory up to maximum FM=20, AM=10 memories.
Note: Weak station may also be storied in memorizes, so manual memory presetting may be needed in order to have better
receiving.
17
REGION MANAGEMENT INFORMATION
DVD/VCD/CD player is designed and manufactured to respond to the Region Management Information that is recorded on a
DVD disc. If the region number that described on the DVD disc does not correspond to the region number of this player, then the
player cannot play the disc.
The player is set to work only in a particular world region as label on the player.
Region number Region
1 Canada, USA, U.S Territories
2 Europe (including Poland, Romania, The Czech Republic), Japan,
Middle East including Saudi Arabia, Egypt, Iran, South Africa
3 Southeast Asia, East Asia (including Hong Kong, Taiwan, South Korea)
4 Australia, New Zealand, Mexico, Caribbean, Central and South America
5 Former Soviet Union, India, Africa, Pakistan, Turkmenistan, North Korea
6 China
TROUBLESHOOTING GUIDE
If you have a problem with DVD player, check this list for a possible solution before calling for service. Some simple or minor
problem can be solved by yourself. If the unit works abnormally continuously or the unit has been physically damaged, turn off the
power and disconnect the AC power plug, consult qualified person such as dealer for service.
Symptom Remedy
No sound or
Distorted sound
No picture Make sure the equipment is well connected.
Picture breakdown Make sure there is no significant damage on the disc
Does not play Make sure the disc is well installed with the label facing at the top.
No operation can be performed
with the remote control
No surround sound Choose the correct setup of the speaker setting which matches with your stereo
No 4:3 (16:9) picture Choose the correct setup “TV SCREEN” item that matches with your TV type.
Remark: Abnormal functioning of this unit may be caused by static electricity or other external interference. To restore normal
operation, unplug the AC cord and then plug it in again or switch off and on the player again.
Confirm the power cord plug is well connected.
Make sure the setting of TV or other AV equipment is proper.
Make sure the TV or the amplifier is under normal operation.
As you use the headphones, make sure the headphone is well connected with the
jack and the volume switch (phone level) is turned to proper level
No sound is heard during still picture (pause) or slow motion play.
Make sure the input setting for the TV is “Video”
Make sure TV is under normal operation.
Make sure the color system is set at the proper mode (NTSC/PAL)
The disc may be dirty, clean it and re-start again
The disc may be dirty and require cleaning
The player will be affected by moist disc or by condensation, keep the disc dry and
wait about 1 or 2 hours to allow the player to dry out.
Check the batteries are installed with the correct polarities (+ &-)
Make sure the batteries are in good condition and not depleted. If yes, replace the
new ones.
Make sure the remote is pointing at the sensor
Remove the obstacles between the player and the remote
system
Check speaker connections
Check the sources materials—if mono, sound may only come out of the center
output.
If 2-channel DVD model, you will require a Pro Logic decoder or Dolby Digital
decoder to reproduce the surround output.
18
SPECIFICATIONS
Audio Section
Rated Power Output: FRONT 40 W + 40 W 8 ohm
FRONT 50 W + 50 W 4 ohm
Total Harmonic Distortion: Less than 0.2% rated power output
Line Input (Each Line Input - FRONT SPEAKER OUT)
Input Sensitivity/Impedance: 200 mV /47kohm
Frequency Response: 20 Hz - 20 kHz +0.5 / -3 dB
Tone Control Range: BASS: ±10dB
TREBLE: ±10dB
Signal-to-noise Ratio: 70 dB CCIR/ARM
Woofer Output (Each Line Input – SUBWOOFER OUT)
Rated Output/Impedance: 2 V / 2.2Kohm
Frequency Response: 10 Hz - 120 Hz ± 3 dB
FM Tuner Section
Frequency Range: 87.5-108 MHz
Sensitivity: 14dB (5uV)
Antenna Terminal: 75 ohm (unbalanced)
MW Tuner Section
Frequency Range: 522 - 1629 kHz (Europe) 9 kHz step
Sensitivity: 60 dB / M
Single-to-noise Ratio: 50 dB
Antenna: Loop Antenna
Video Section
Standard Video Jacks
Input and Output
Level/Impedance:
General
Power Requirements:
Power Supply: AC220V –240V~ 50Hz
Power Consumption: 120 Watts
Dimensions: 275(W) x 125(H) x 350(D) mm
Net Weight: 5.8Kg
*Design and specifications are subject to change without notice.
1 Vp-p / 75ohm
19
Loading...
